mp-667342-2/Bi12PbO20/harm

Equation of state

../../_images/fig_bm2610.png

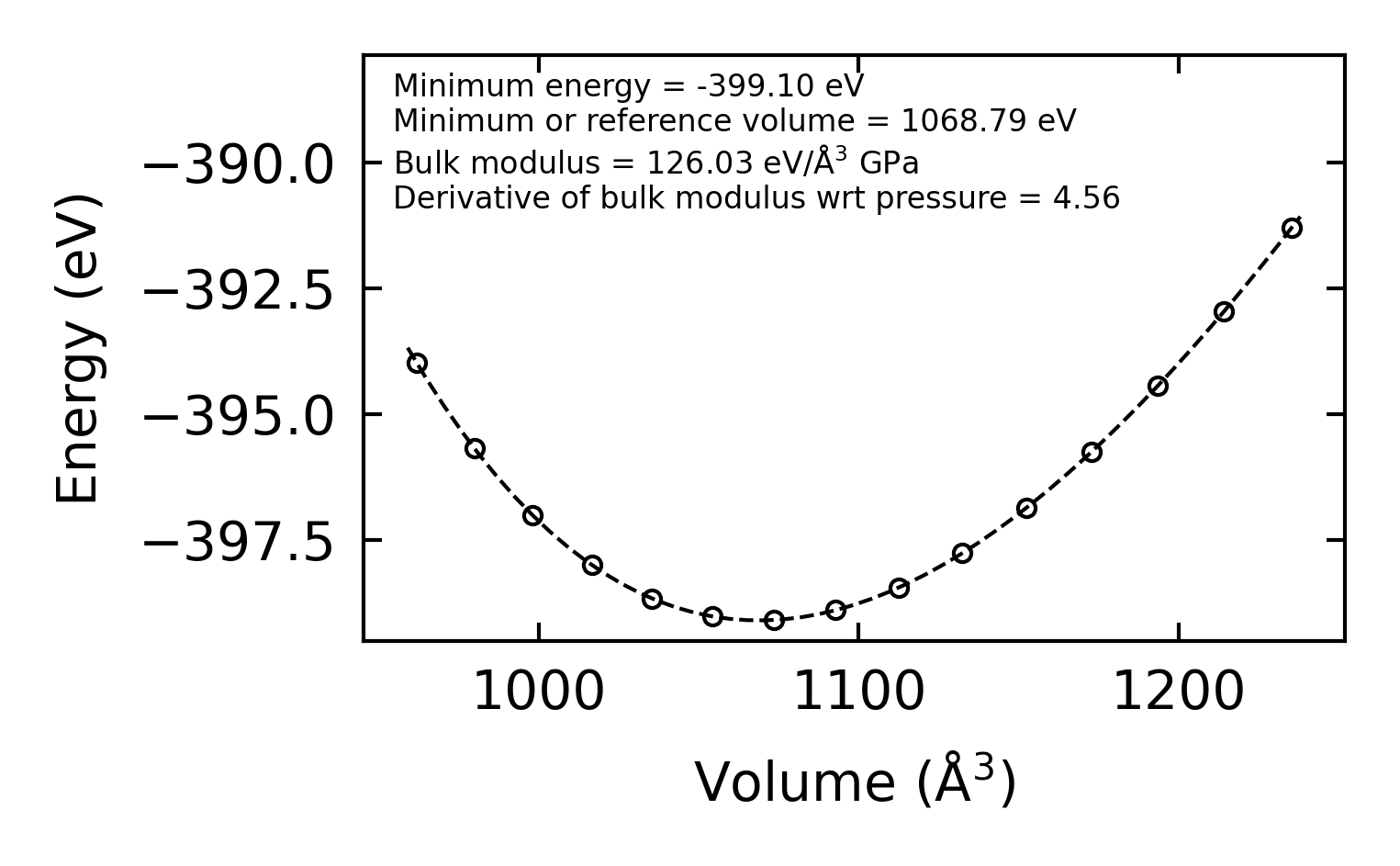

(a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr5365.png

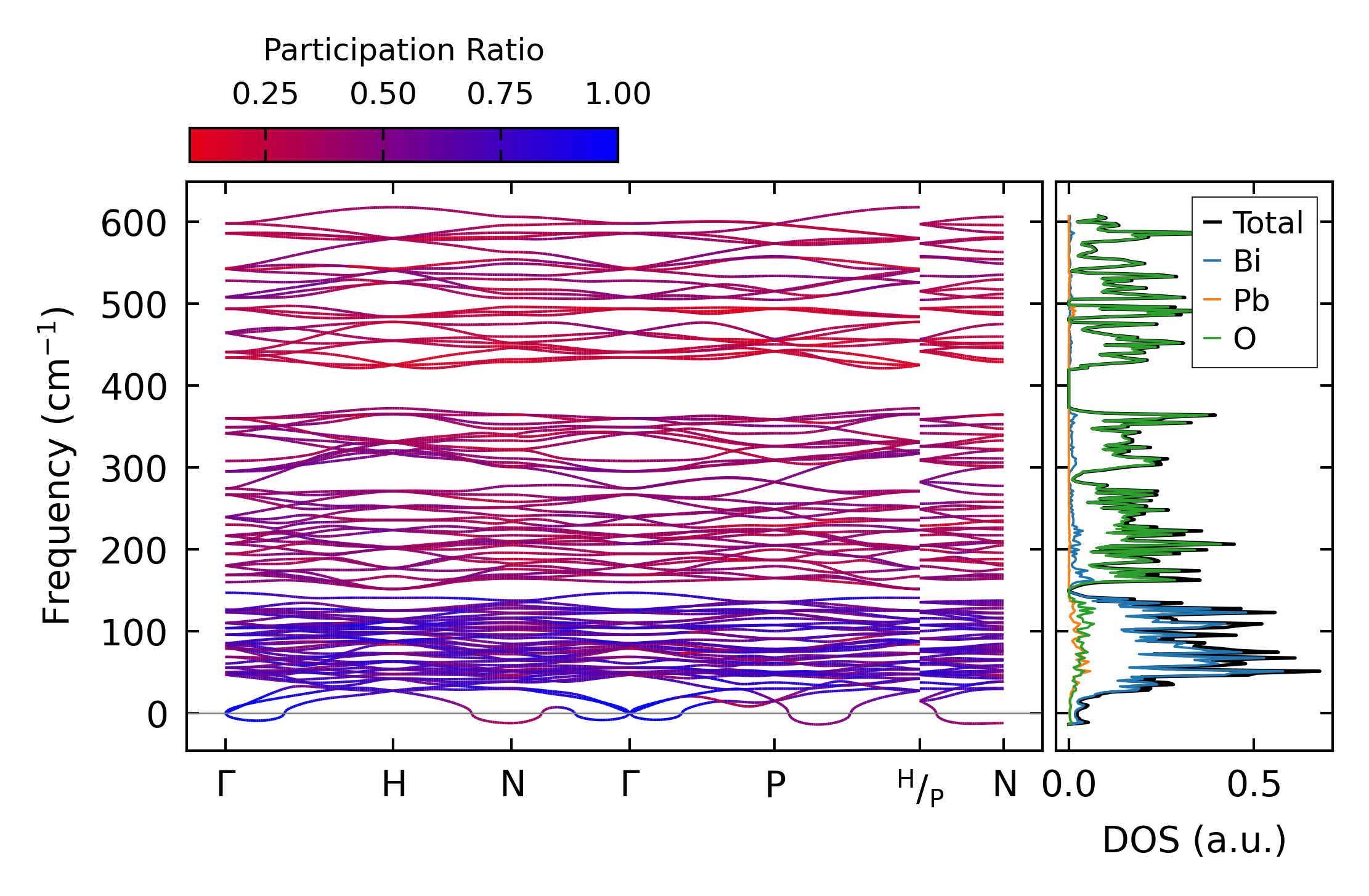

(a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos7712.png

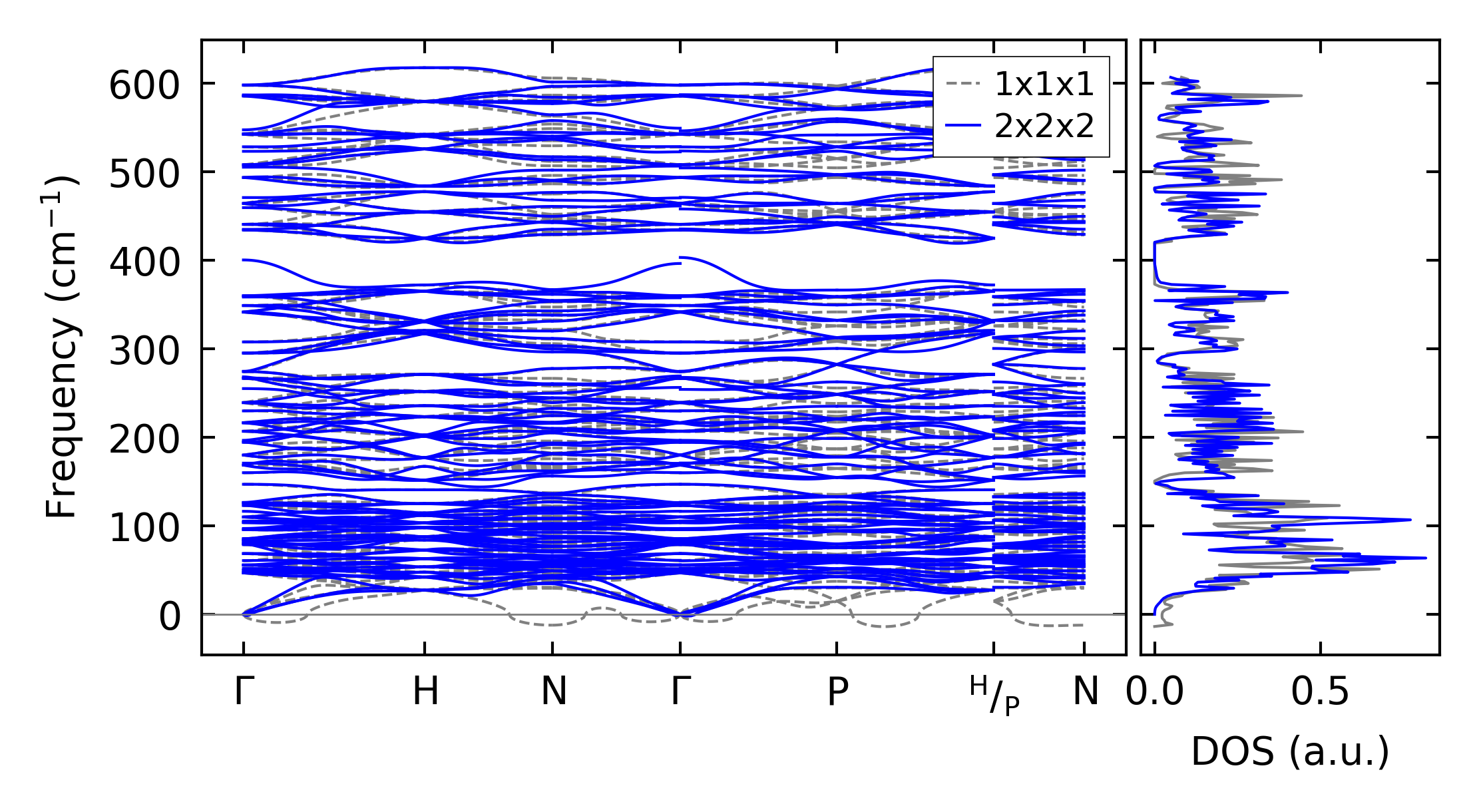

(b) Phonon dispersion and DOS

../../_images/fig_thermo5365.png

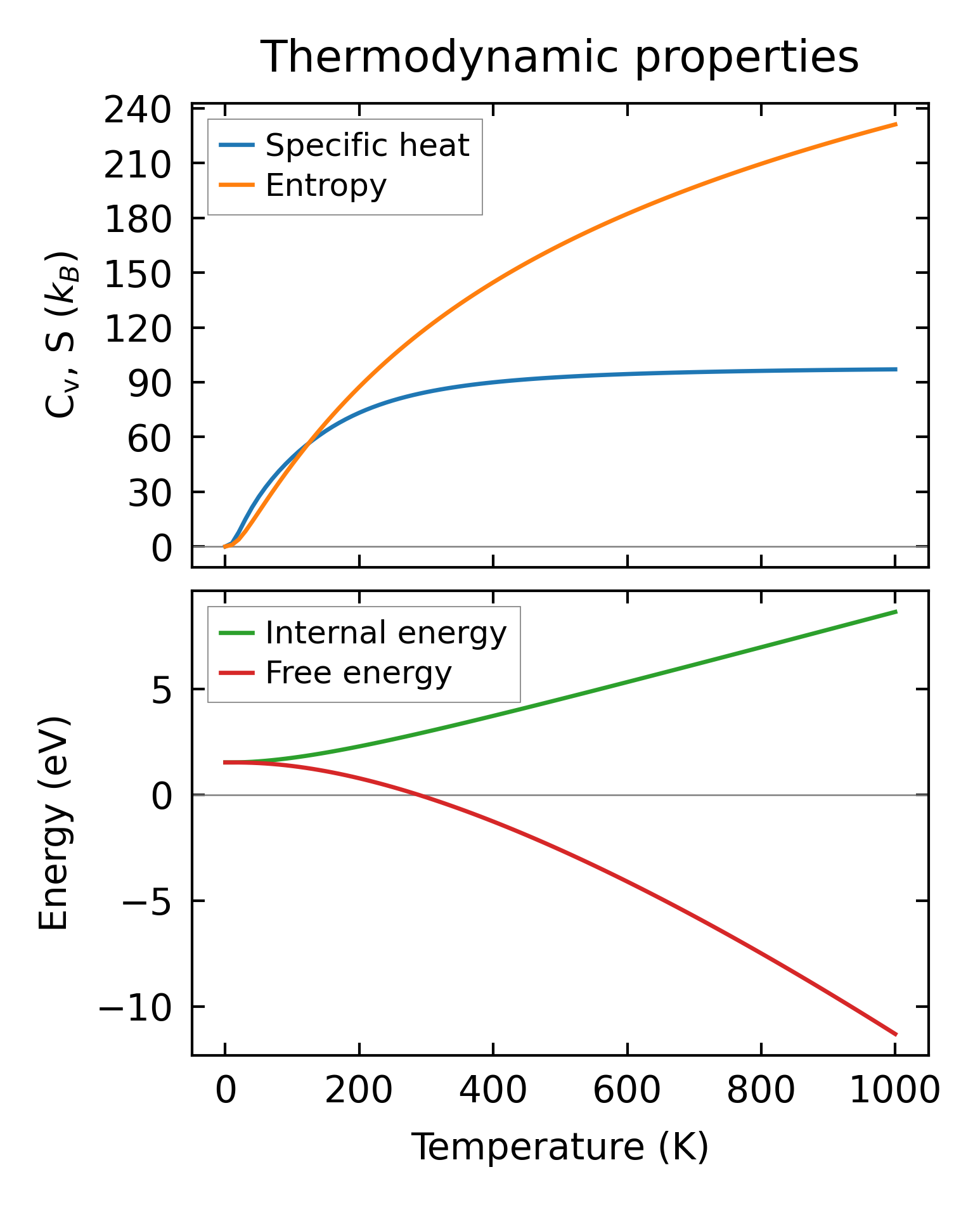

(c) Thermodynamic properties

Force constants

../../_images/fig_fc25170.png

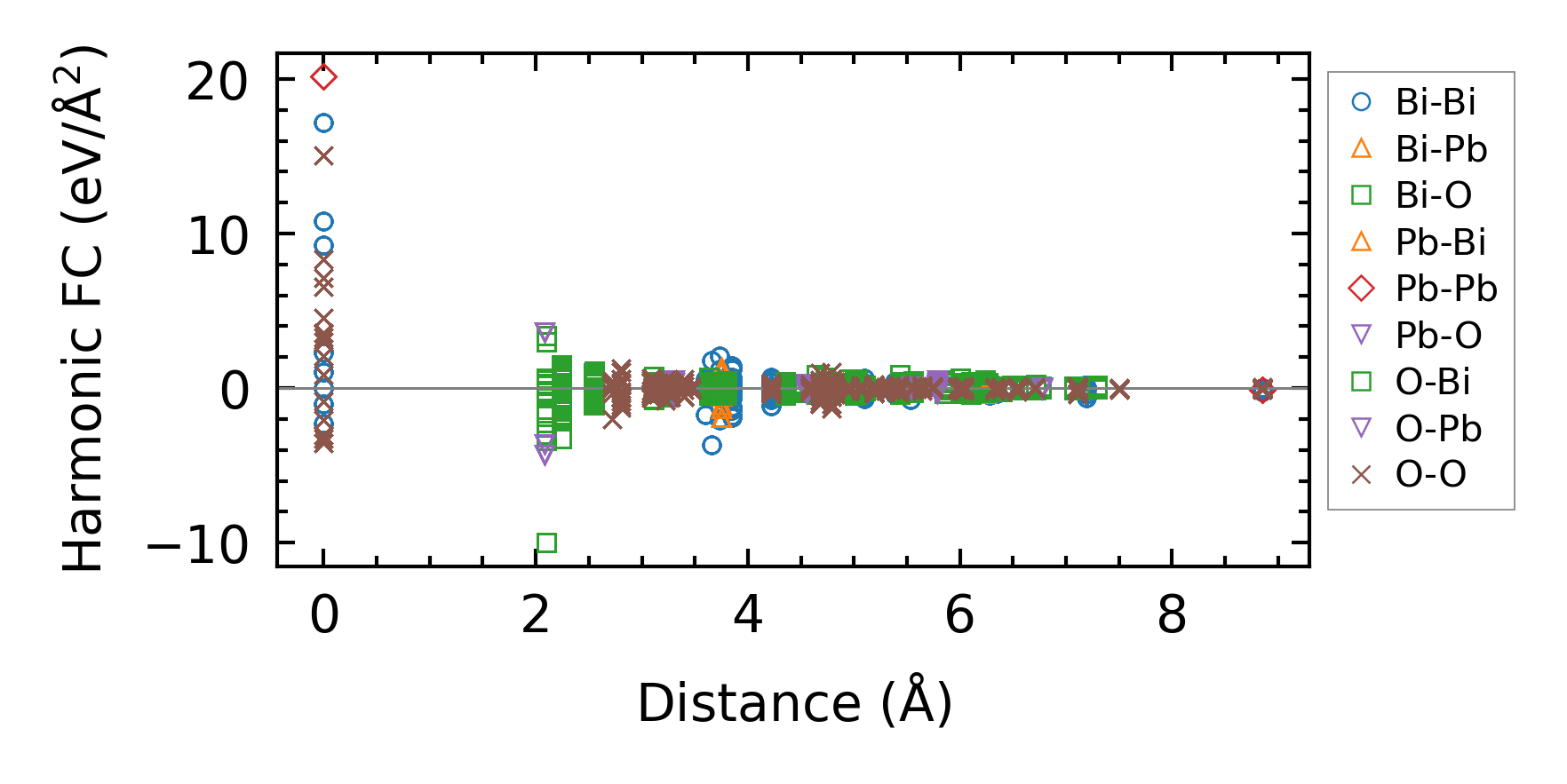

(a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times9696.png

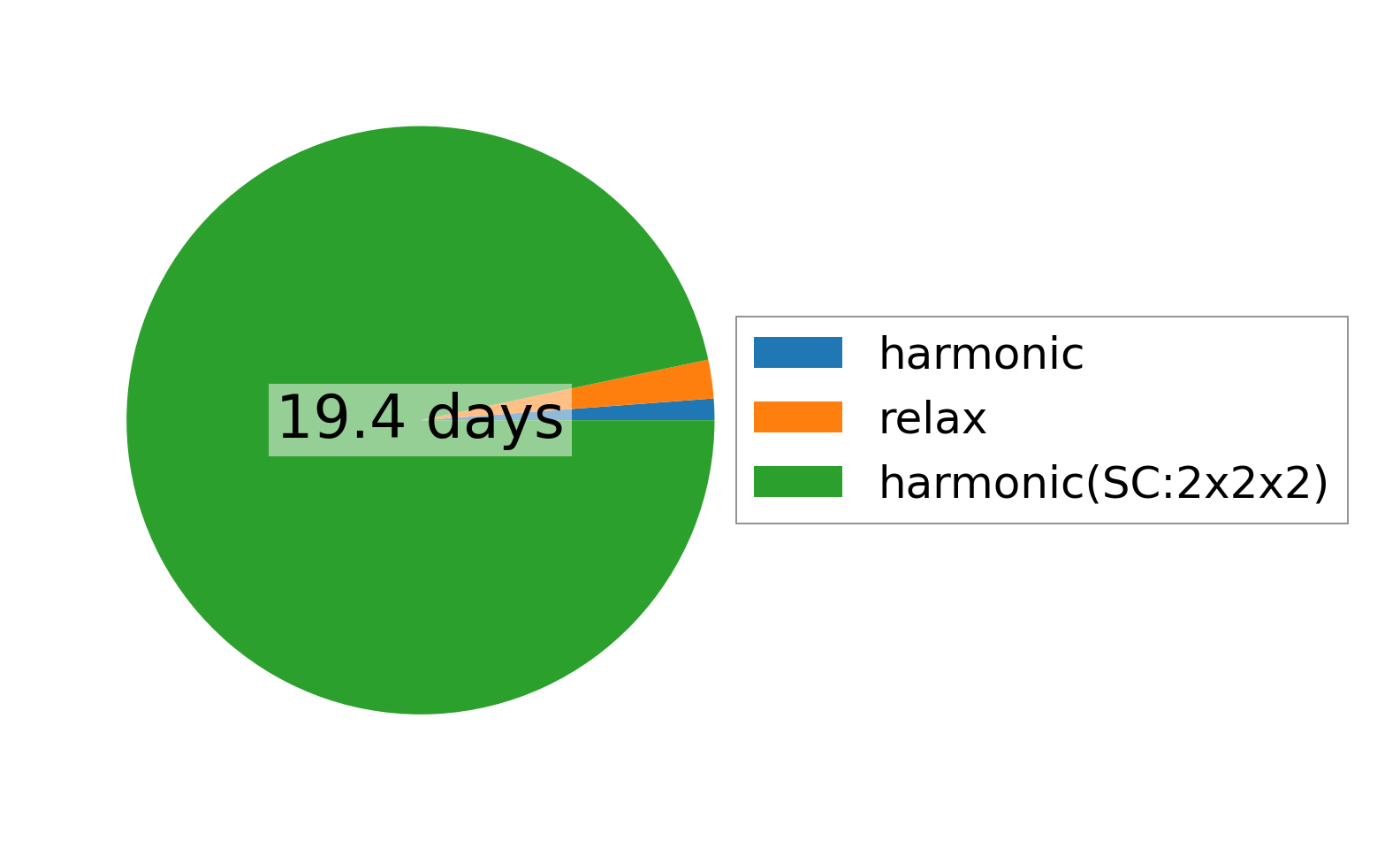

(a) Computation time
