mp-646007/Cs2Tb6Te7N2/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-646007.tar.gz

Equation of state

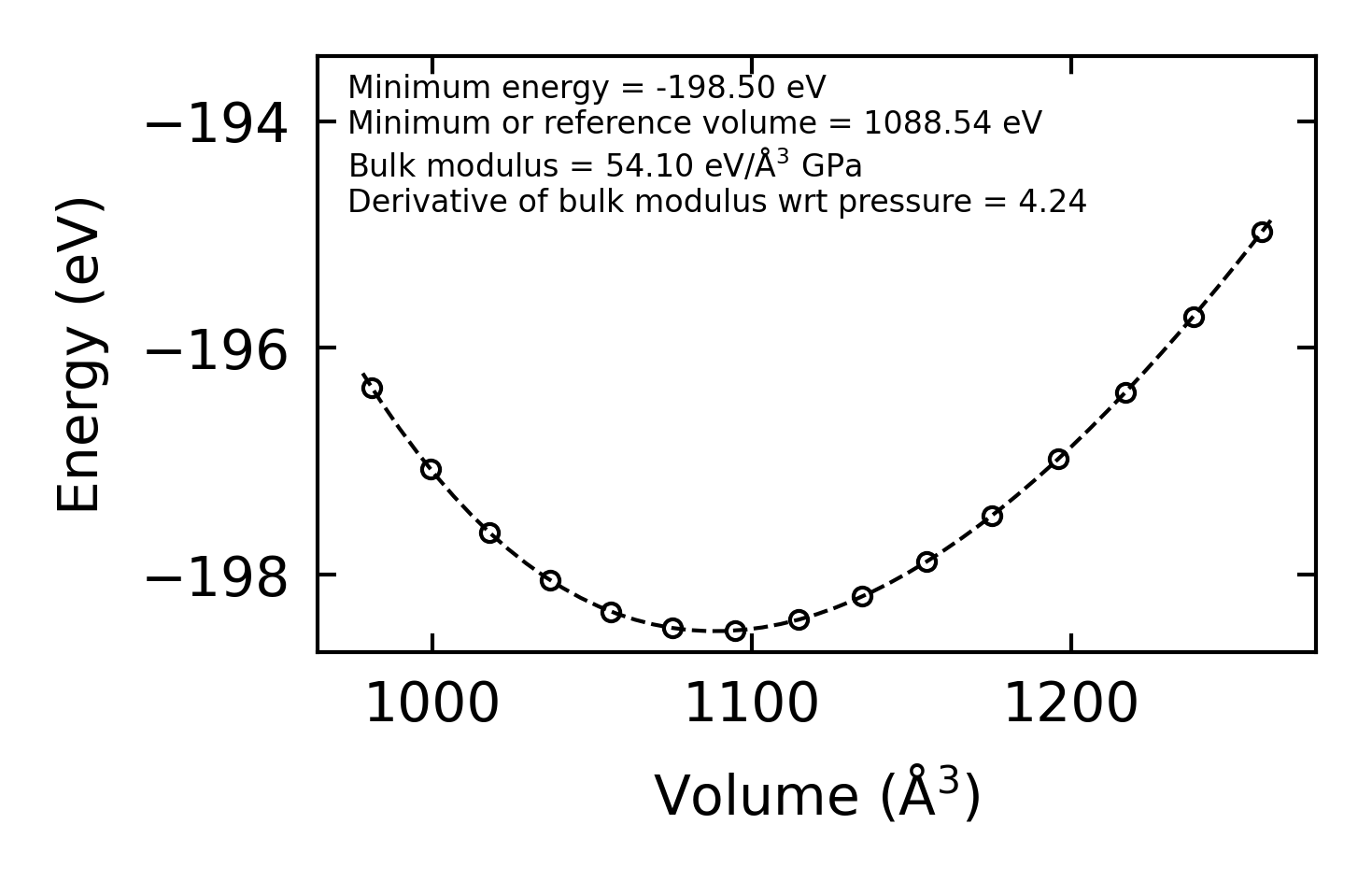

../../_images/fig_bm2720.png — (a) Equation of state

Harmonic properties

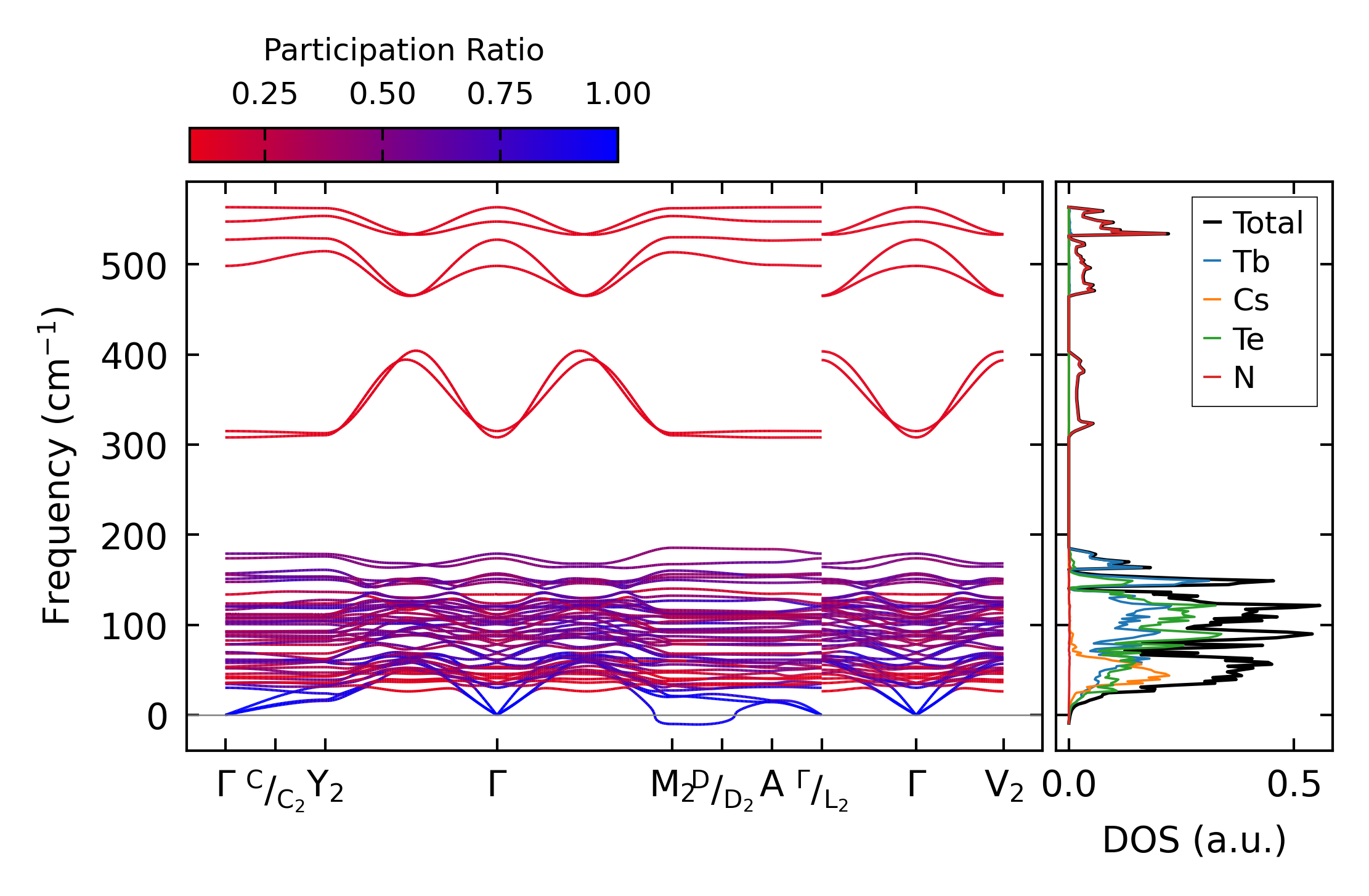

../../_images/fig_bandos_pr5589.png — (a) Phonon dispersion with participation ratio and DOS

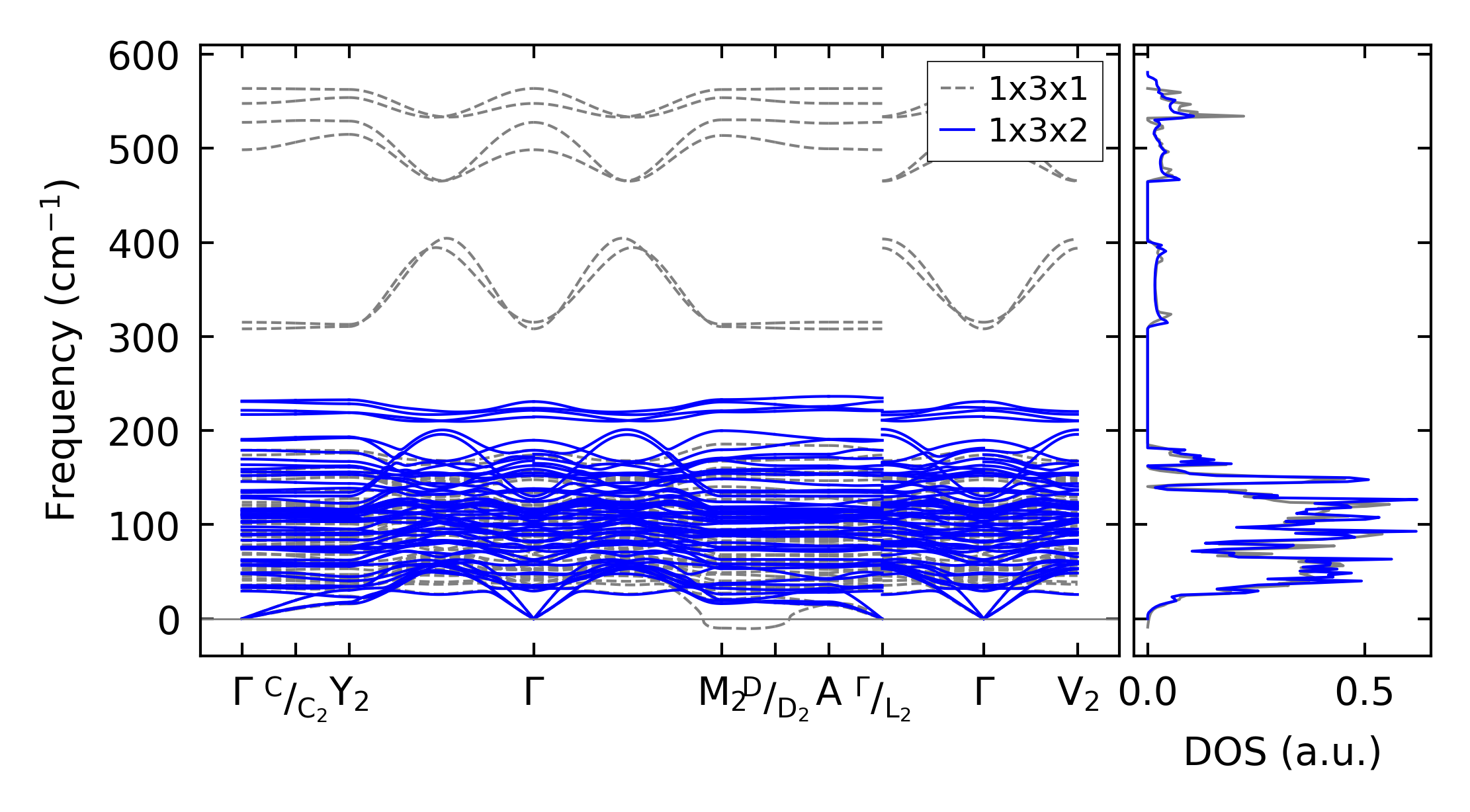

../../_images/fig_bandos7997.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo5589.png — (c) Thermodynamic properties

Grüneisen parameters

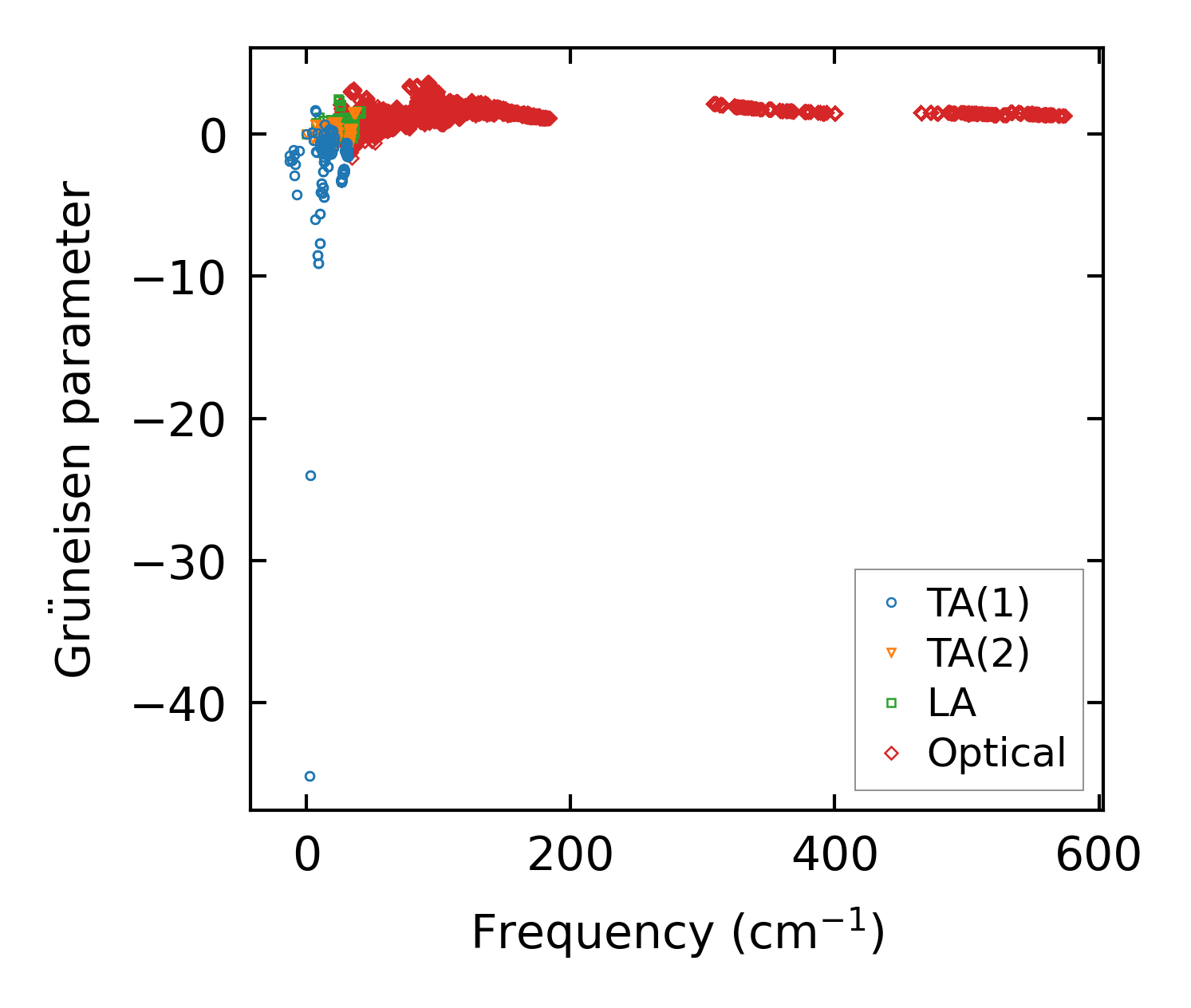

../../_images/fig_gru_all2336.png — (a) Grüneisen parameters

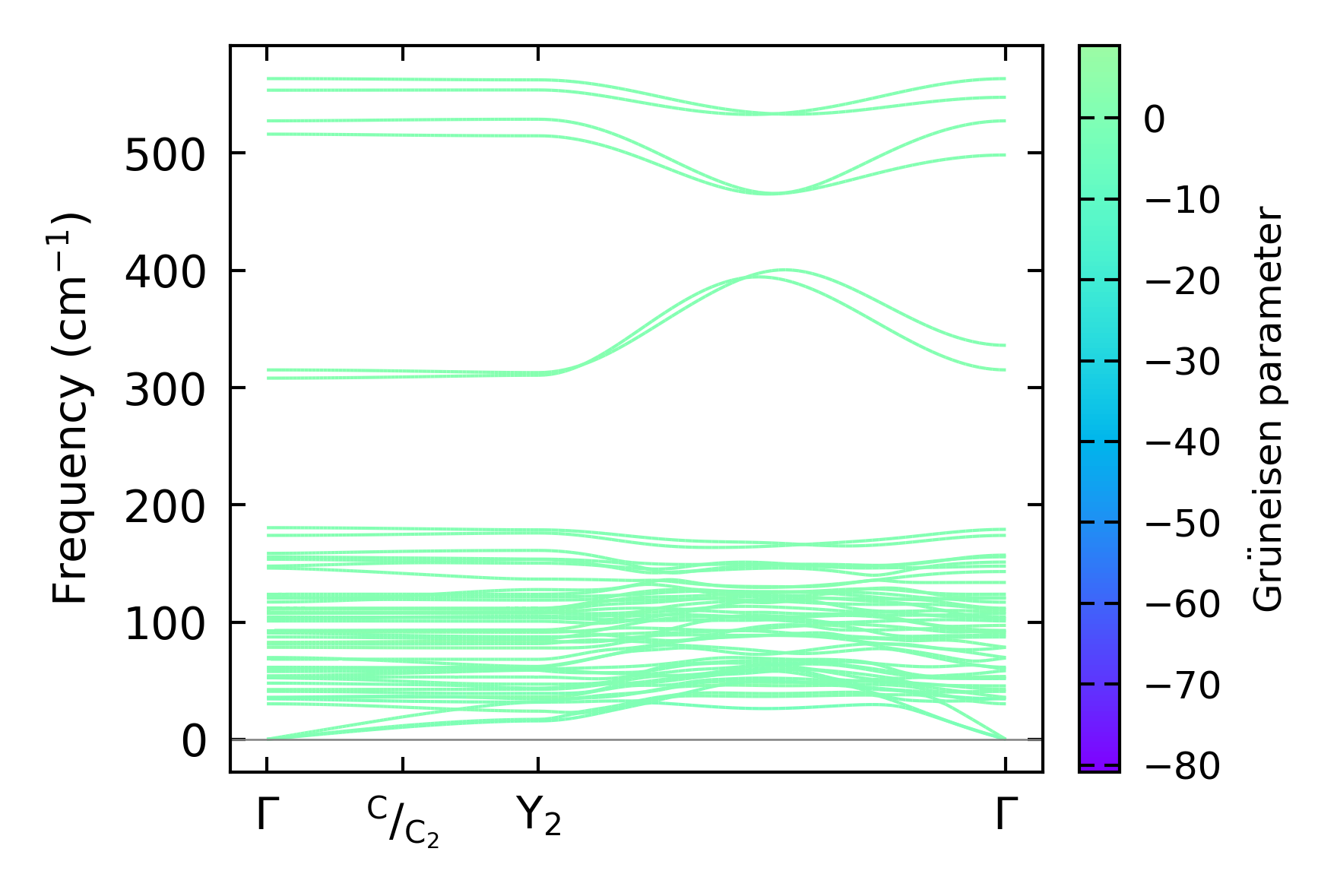

../../_images/fig_gruneisen2336.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 1x3x2 — q-mesh: 8x8x9, supercell: 1x3x2

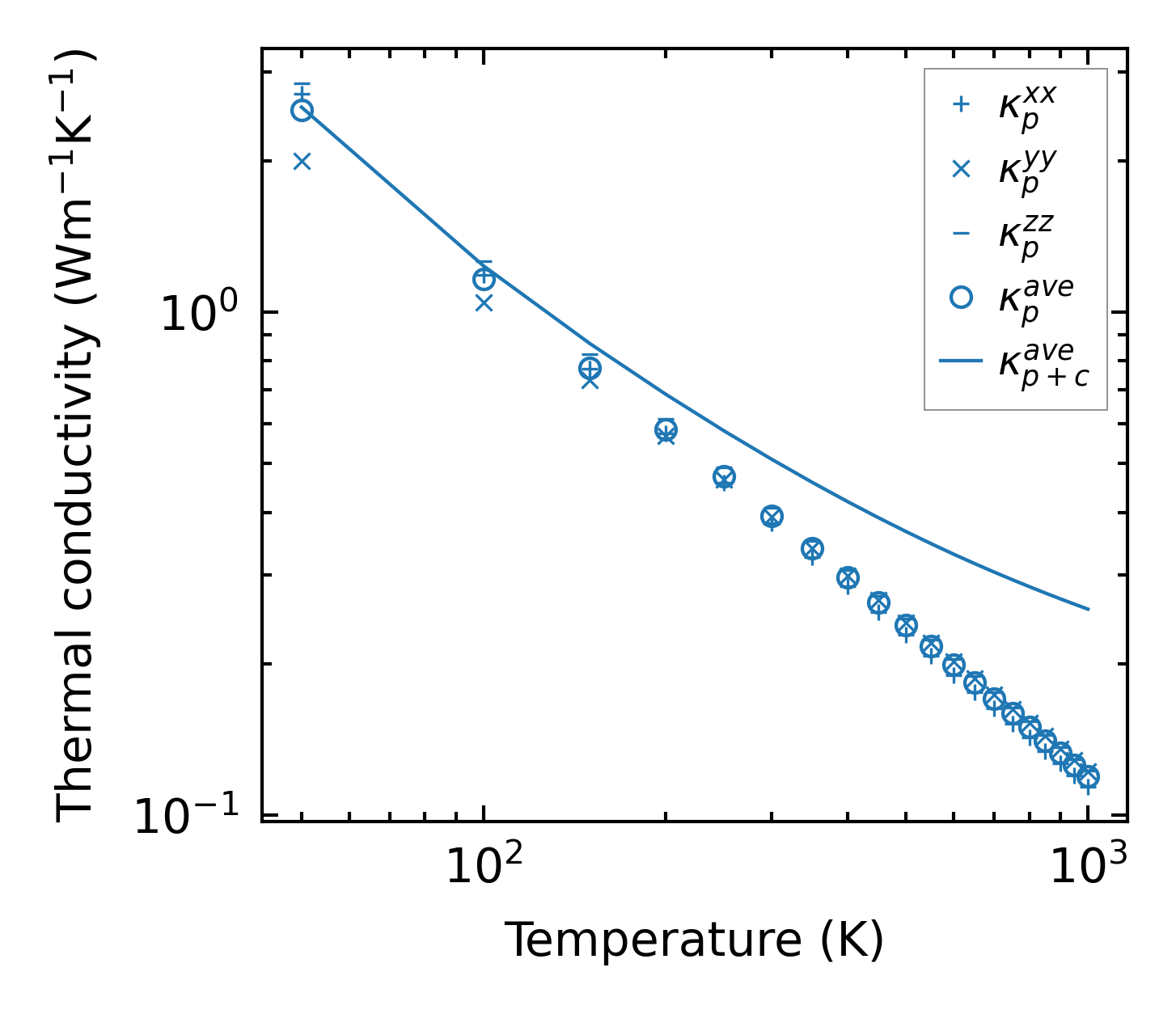

../../_images/fig_kappa4465.png — (a) Temperature-dependent lattice thermal conductivity

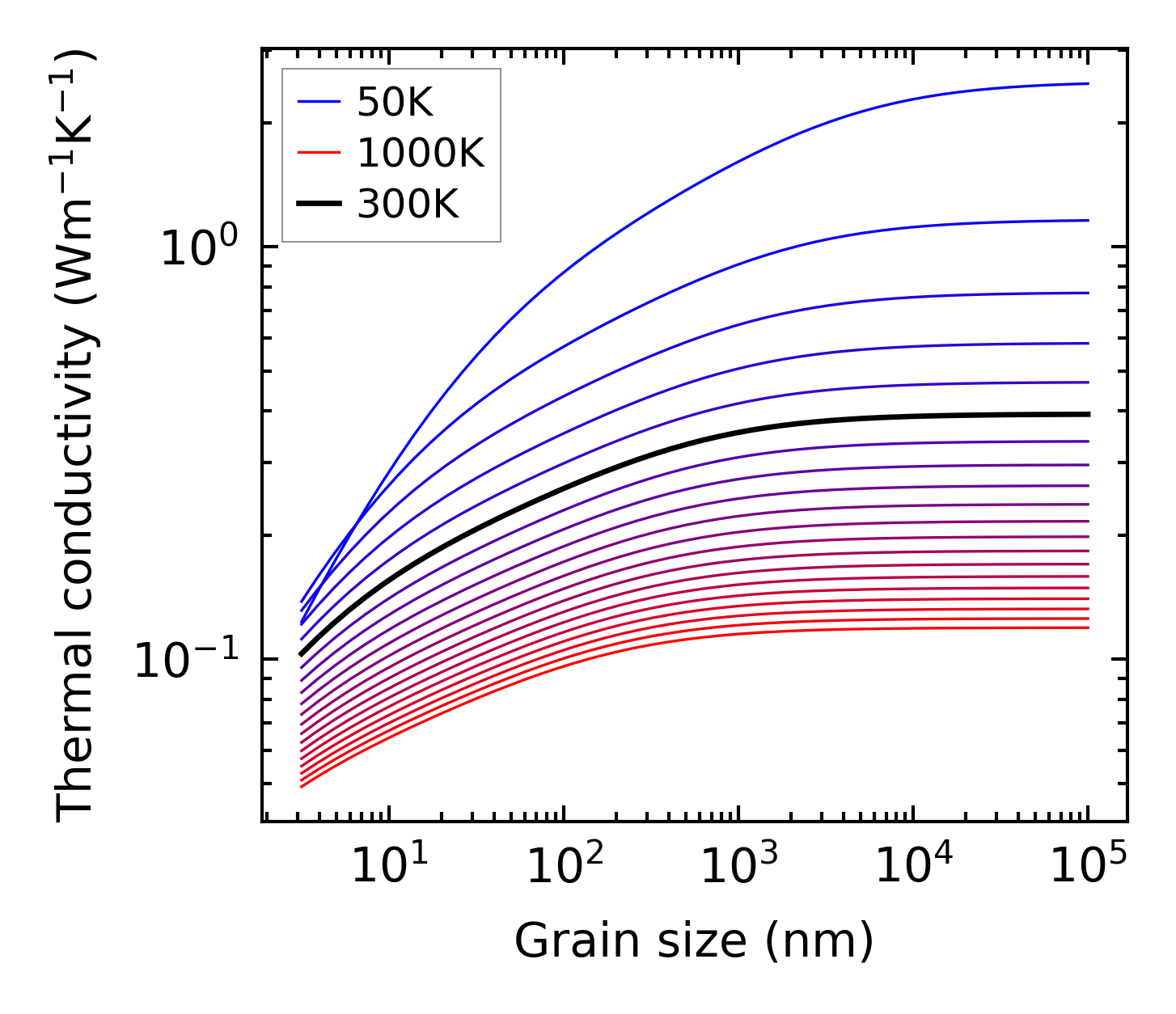

../../_images/fig_kappa_vs_grain_size2366.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

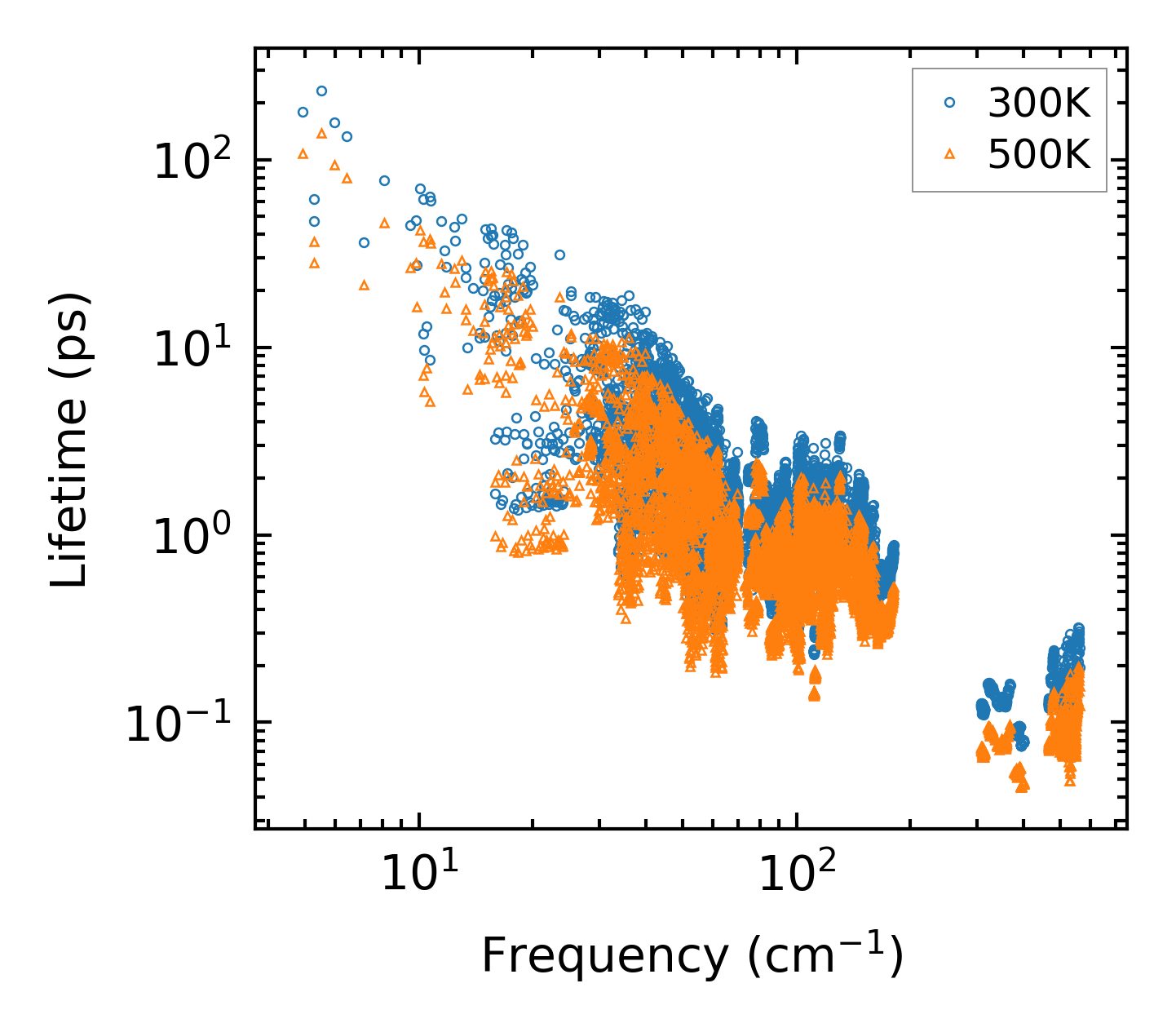

../../_images/fig_lifetime2321.png — (a) Phonon lifetime due to phonon-phonon scattering

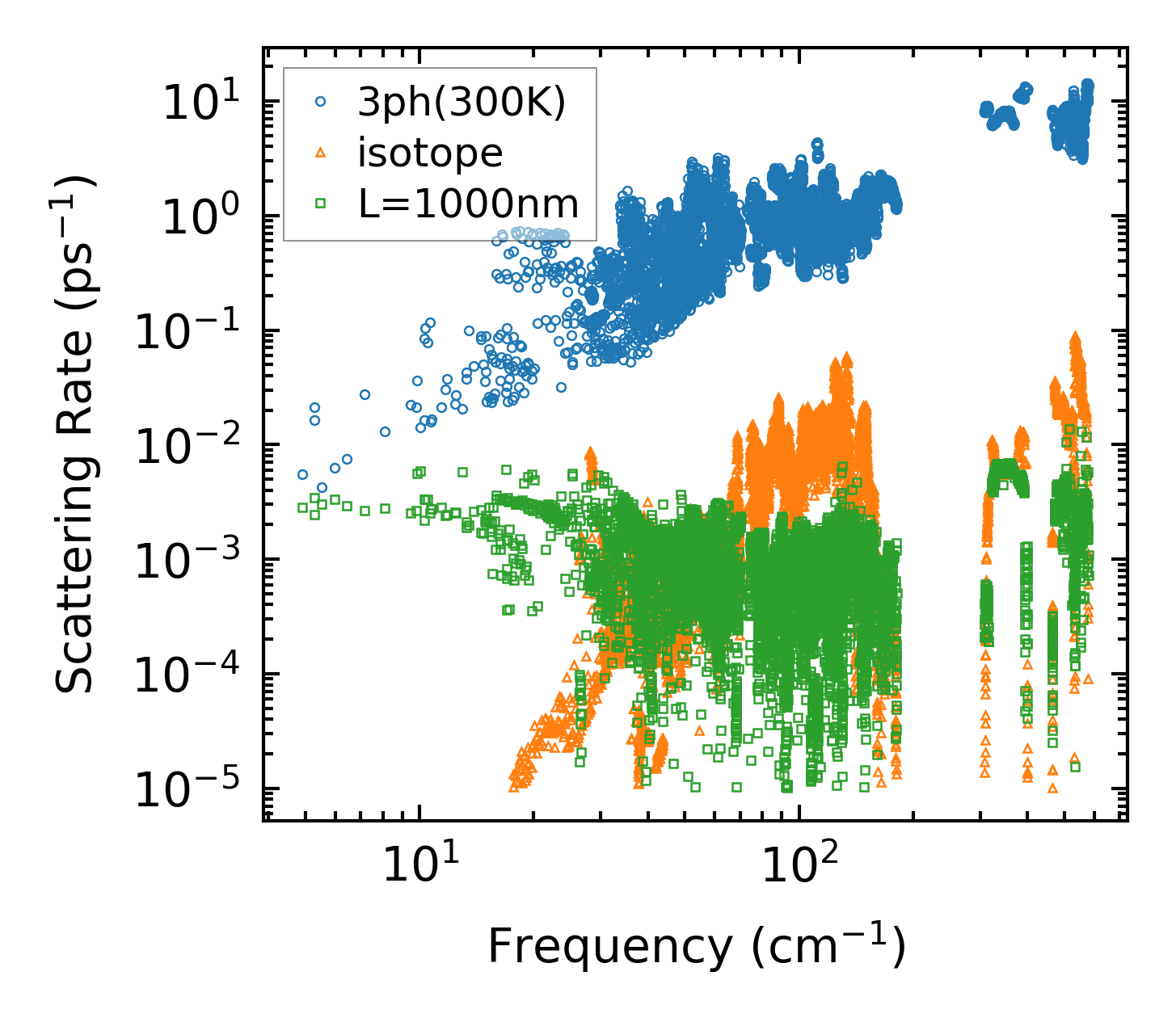

../../_images/fig_scat_rates2320.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

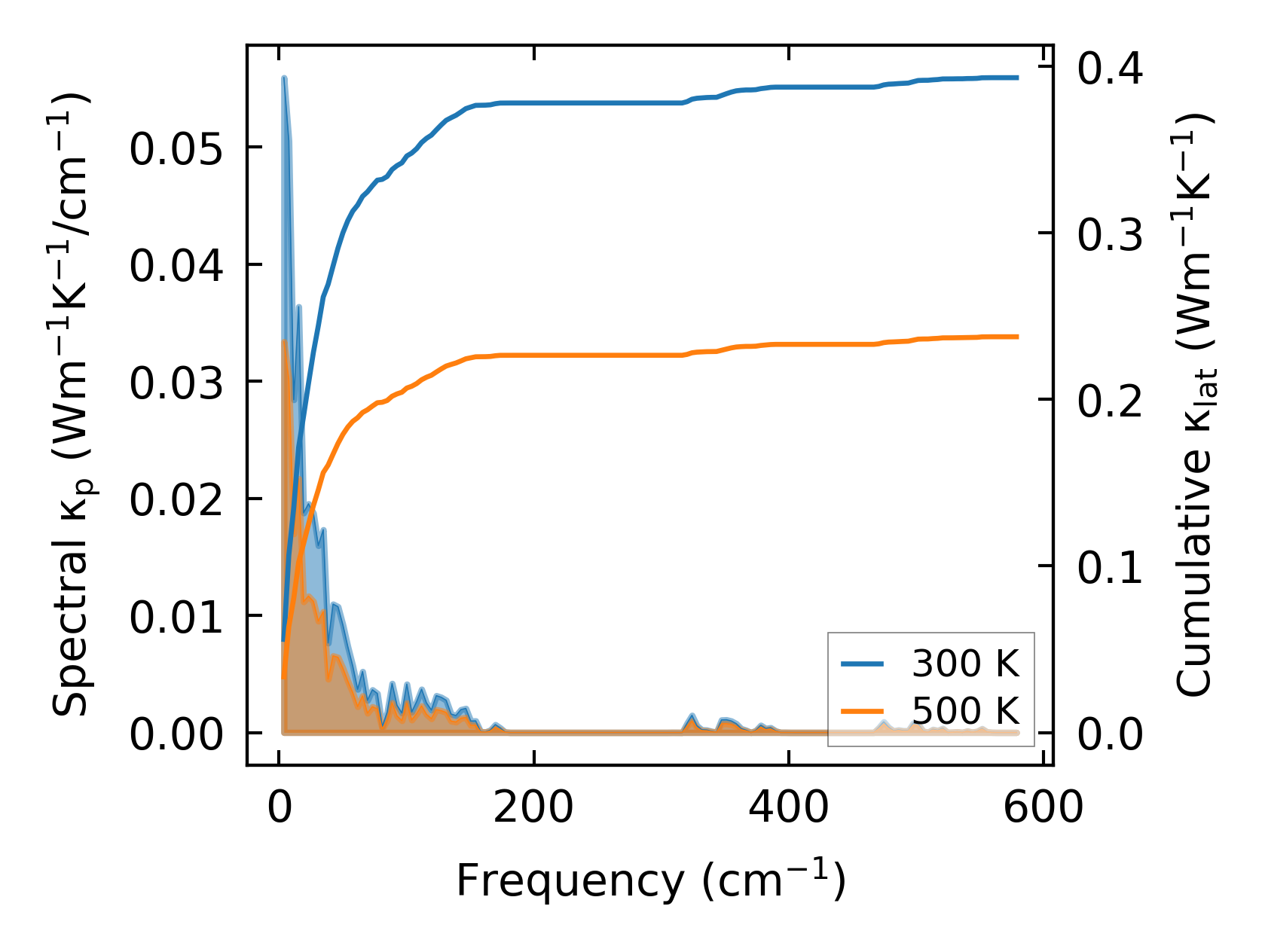

../../_images/fig_cumu_frequency2321.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

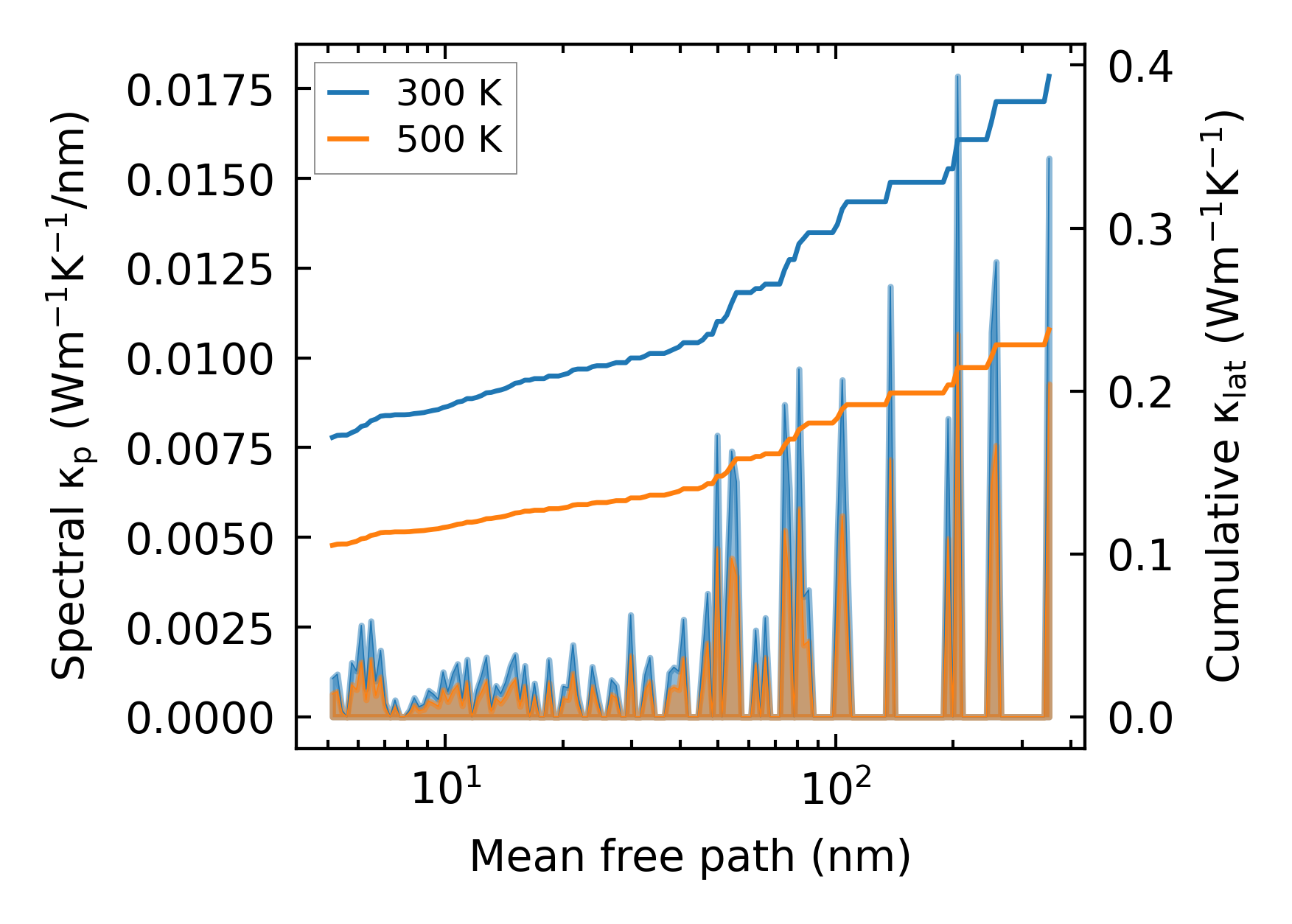

../../_images/fig_cumu_mfp2321.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

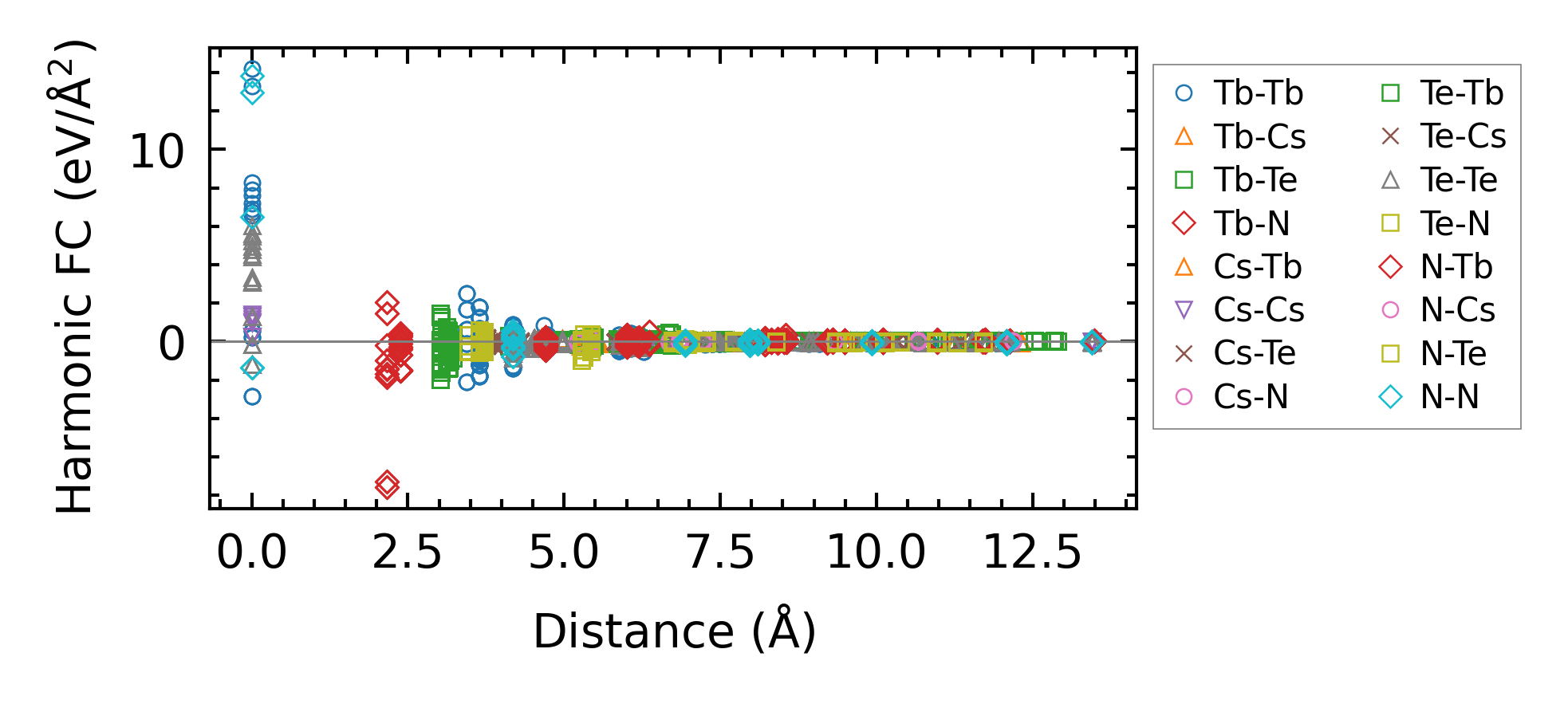

../../_images/fig_fc25390.png — (a) Force constants w.r.t atomic distance

Summary

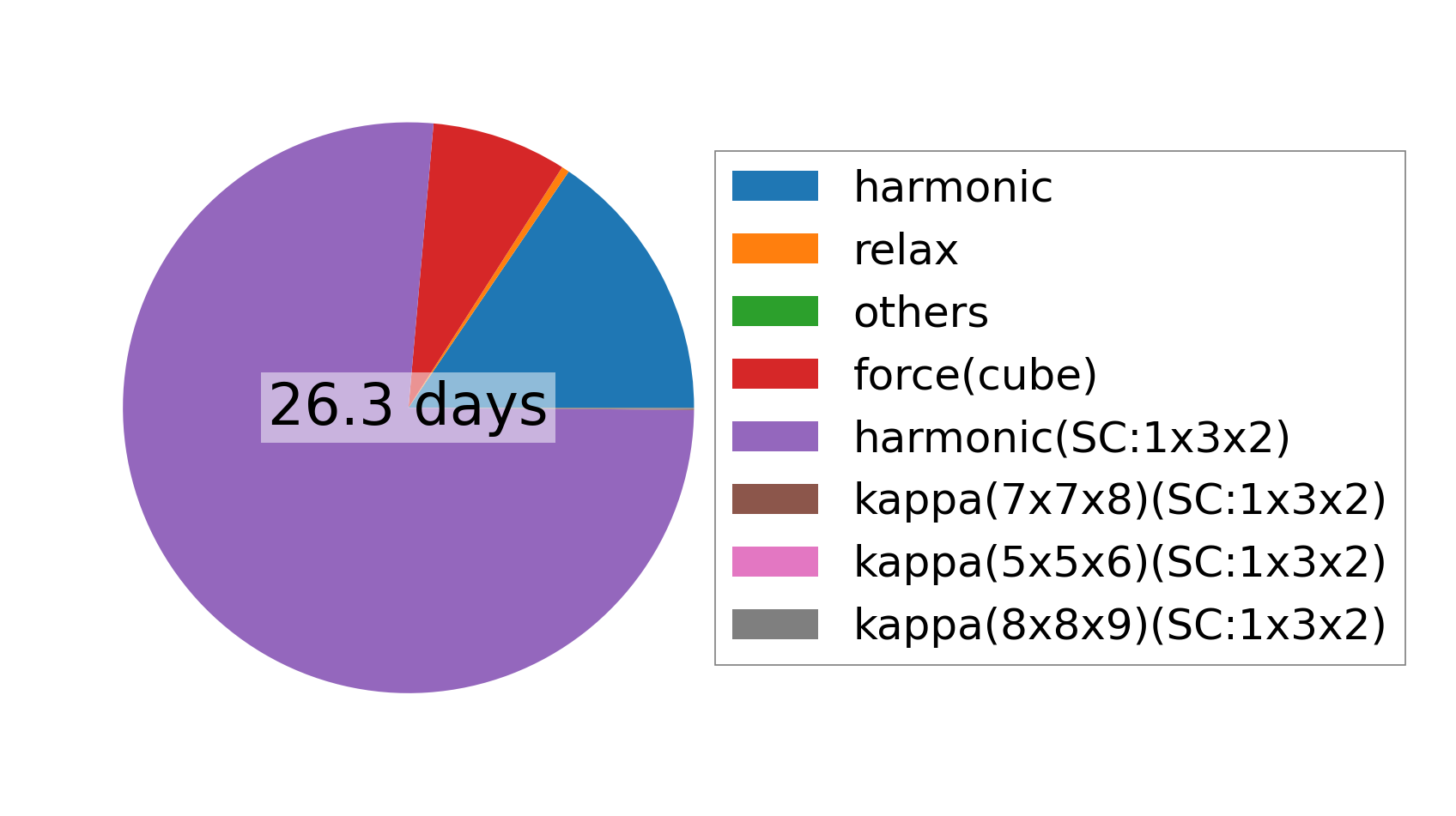

../../_images/fig_times10074.png — (a) Computation time
