mp-634446-2/CsAlH8N4/anharm

Space group: P4/n (85)
Link: Materials Project
Download: mp-634446-2.tar.gz

Equation of state

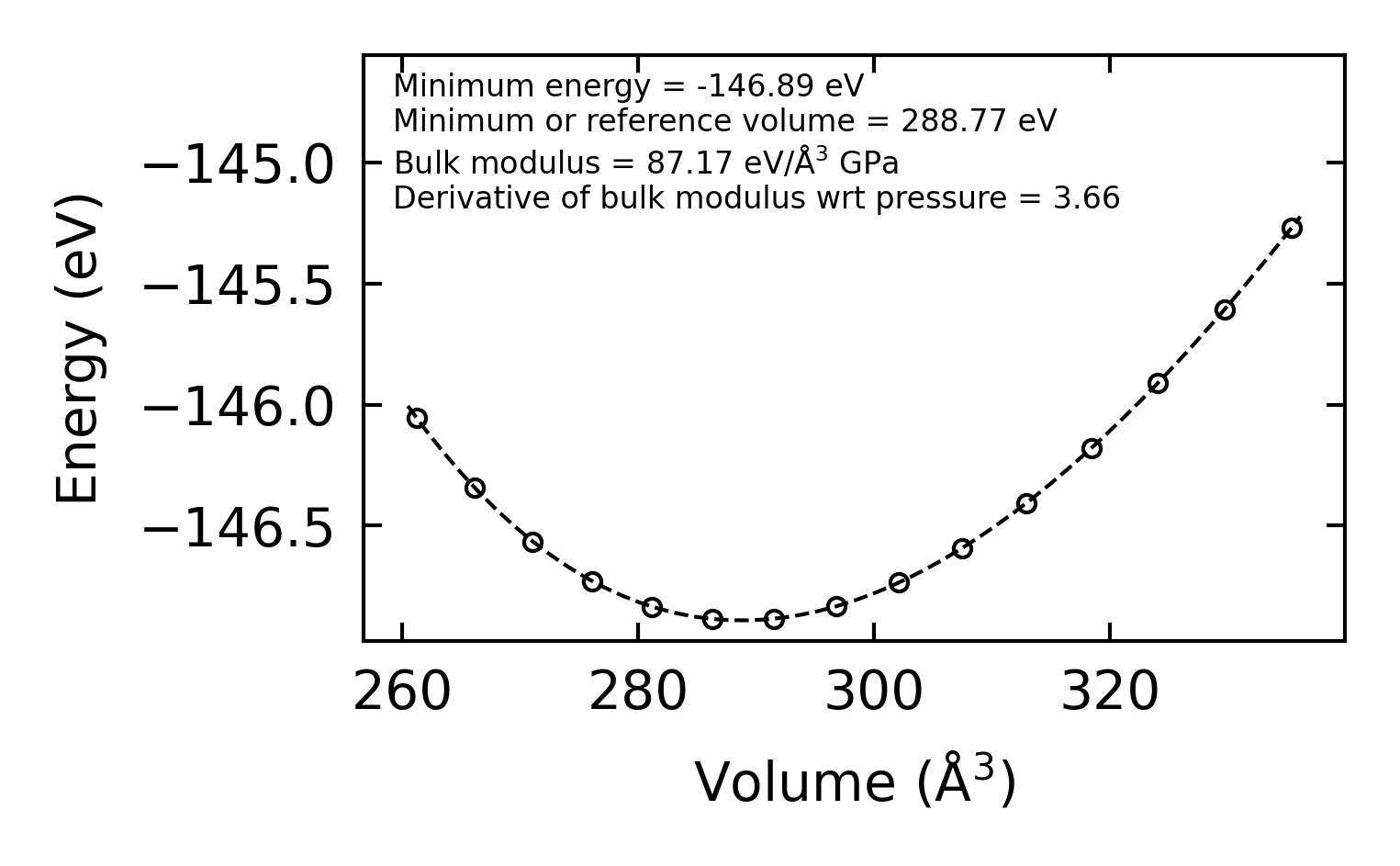

../../_images/fig_bm2795.png — (a) Equation of state

Harmonic properties

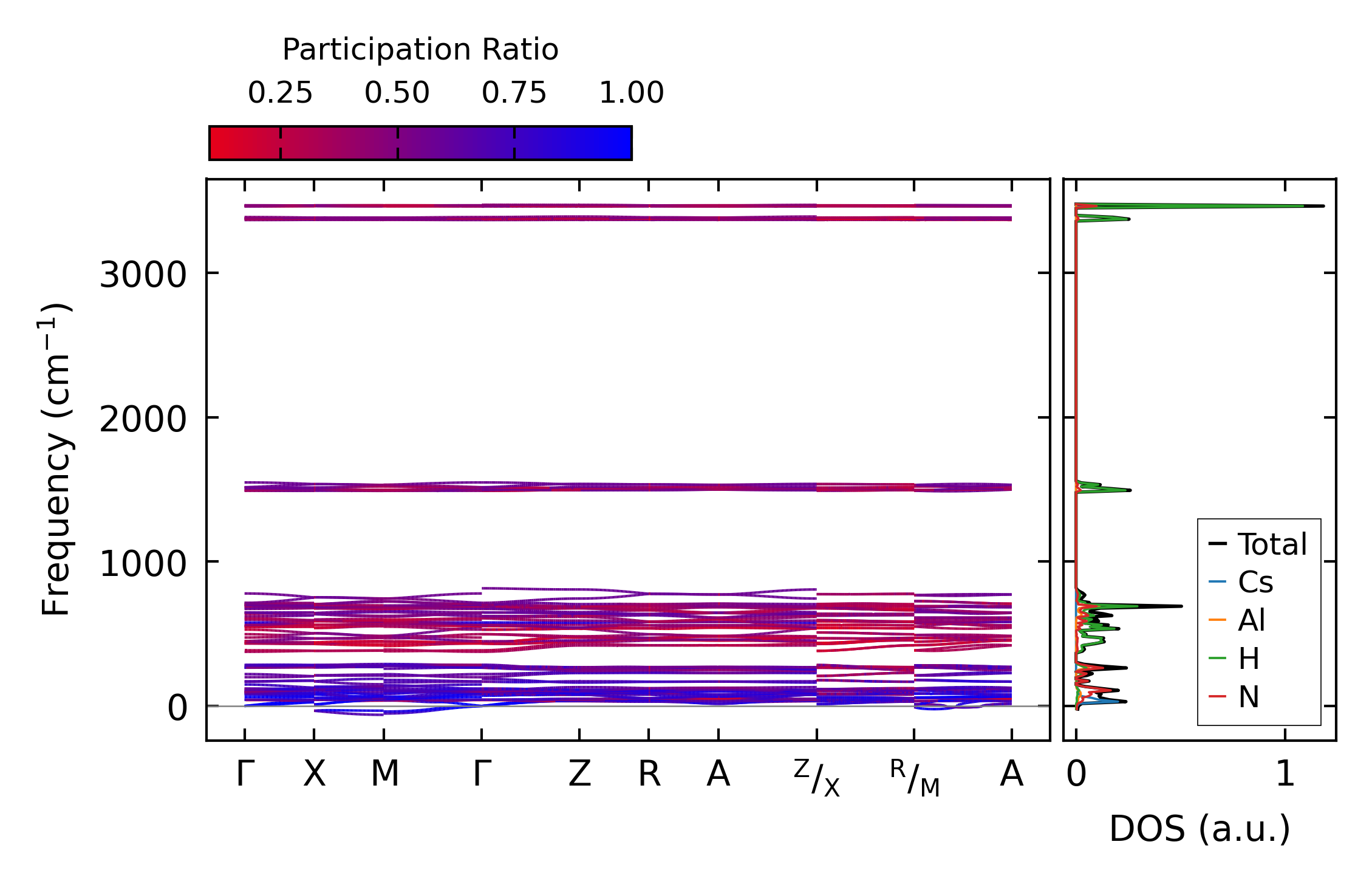

../../_images/fig_bandos_pr5657.png — (a) Phonon dispersion with participation ratio and DOS

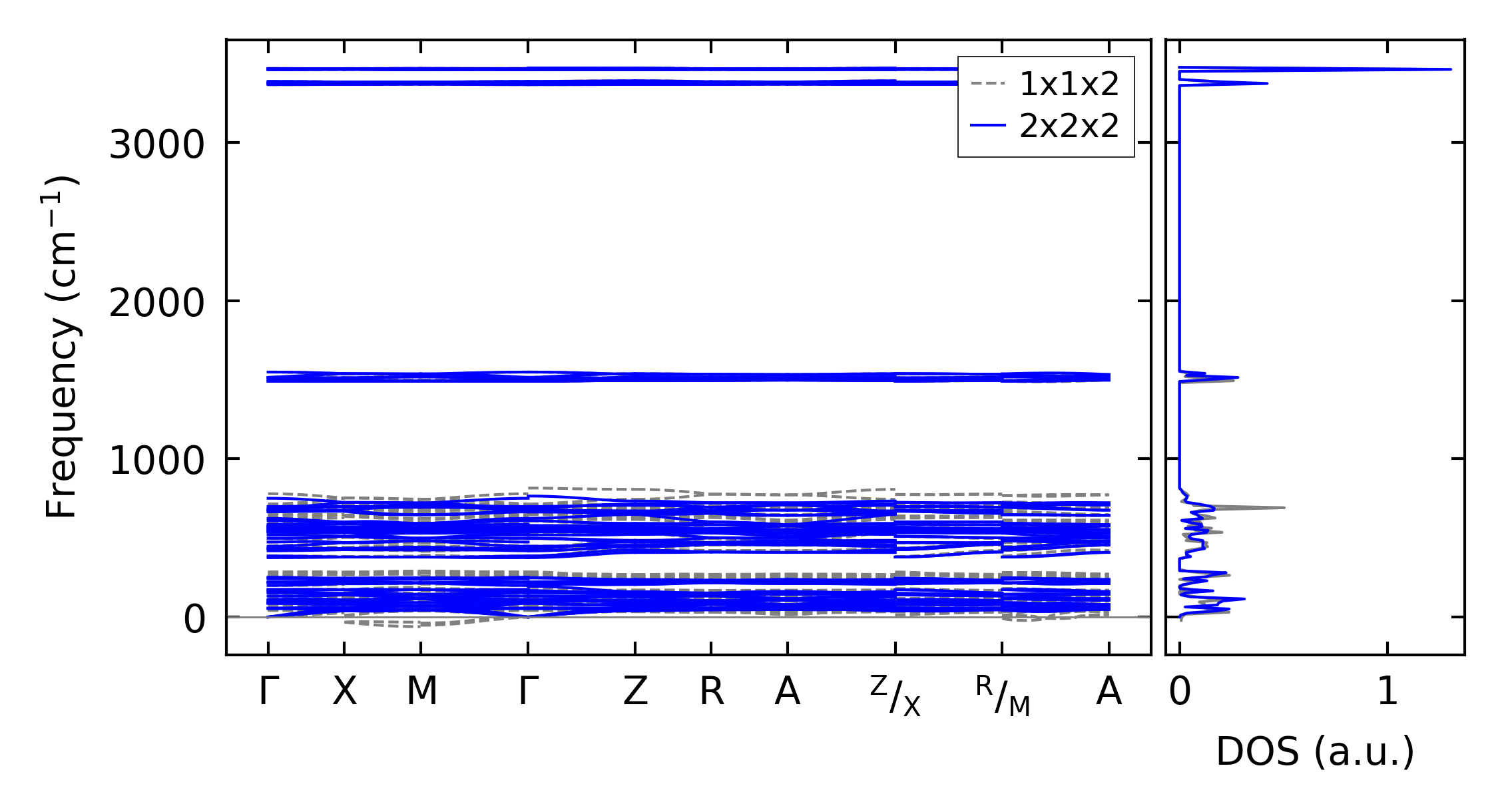

../../_images/fig_bandos8135.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo5657.png — (c) Thermodynamic properties

Grüneisen parameters

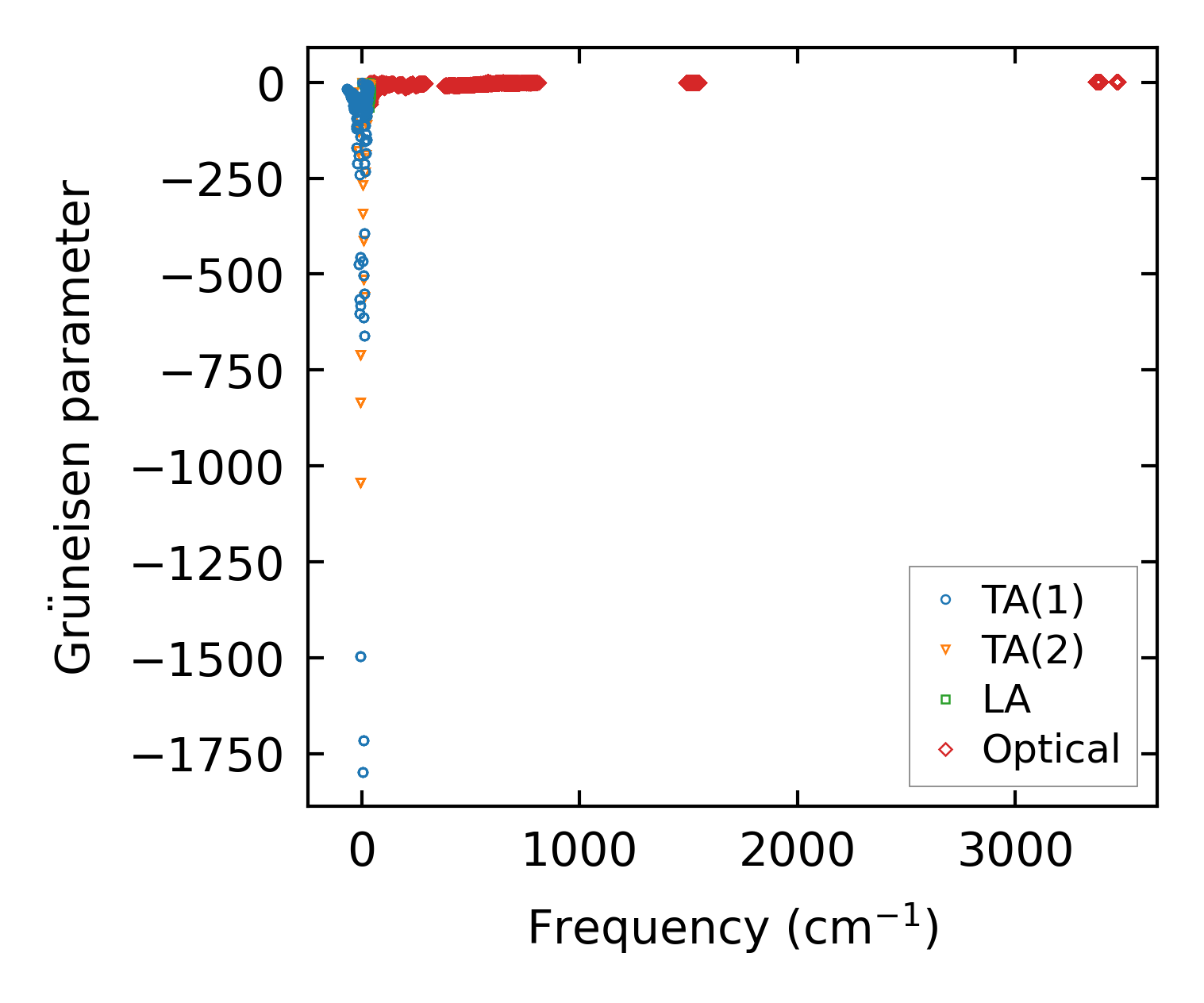

../../_images/fig_gru_all2359.png — (a) Grüneisen parameters

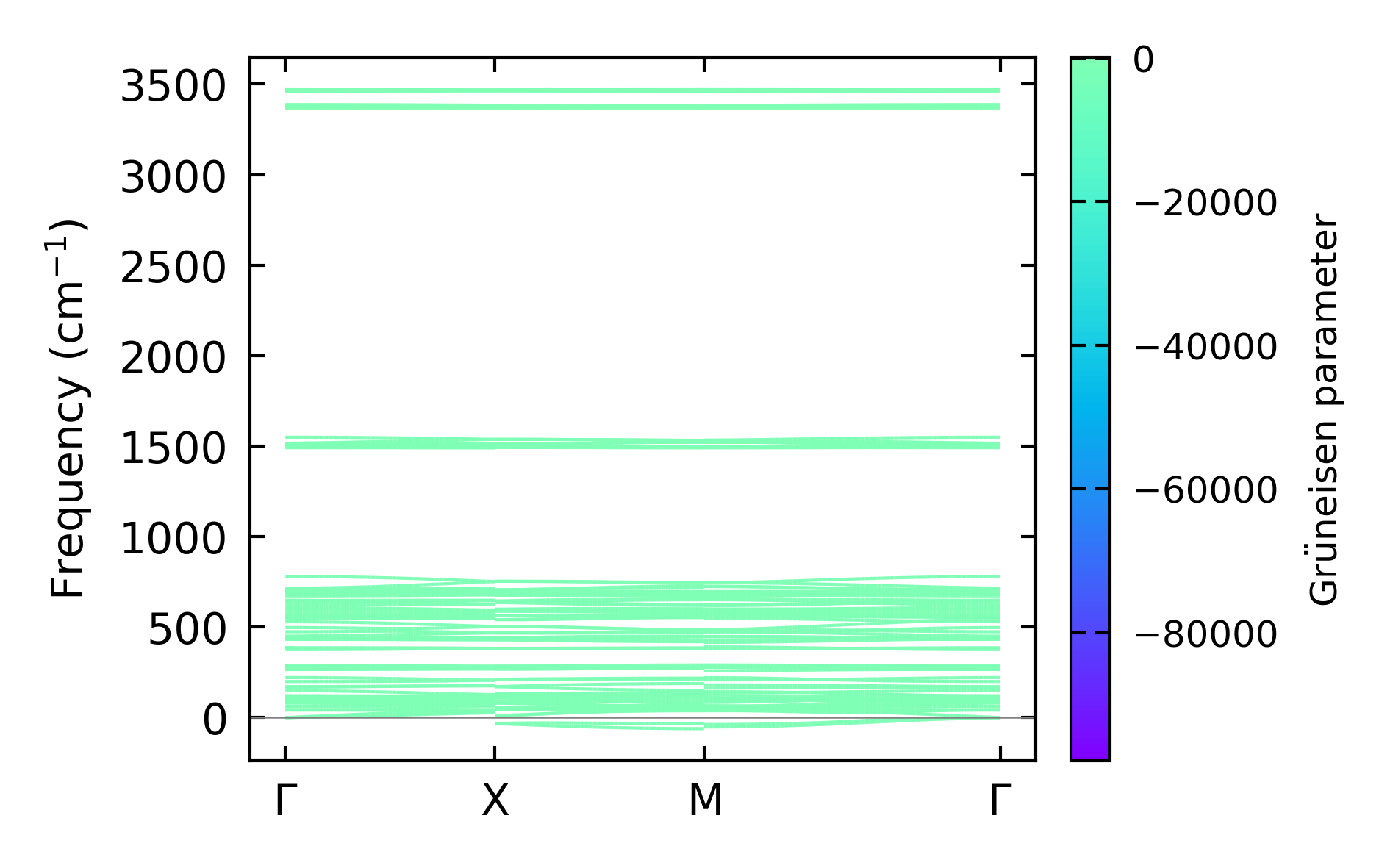

../../_images/fig_gruneisen2359.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 9x9x13, supercell: 2x2x2

../../_images/fig_kappa4504.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2390.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

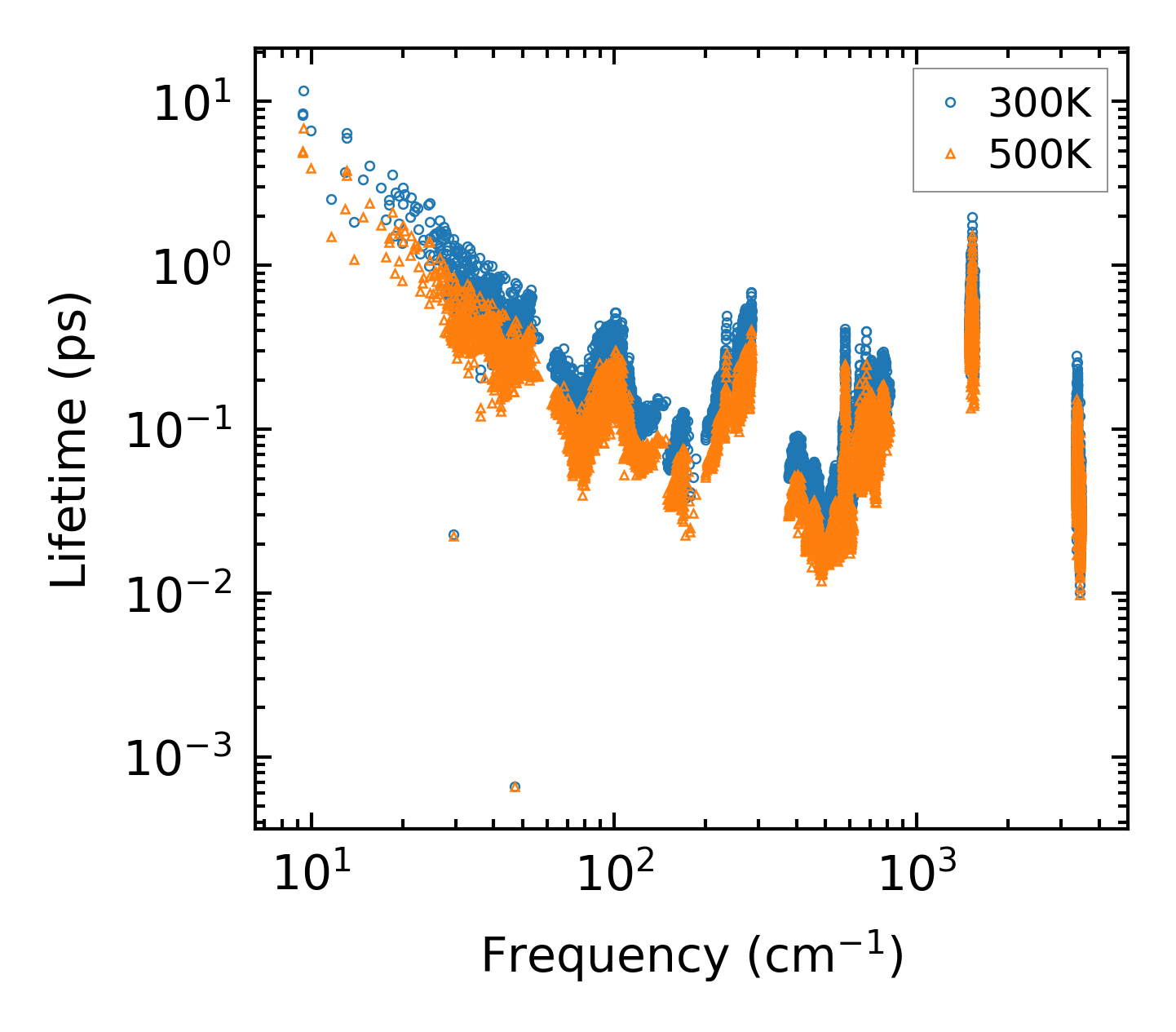

../../_images/fig_lifetime2344.png — (a) Phonon lifetime due to phonon-phonon scattering

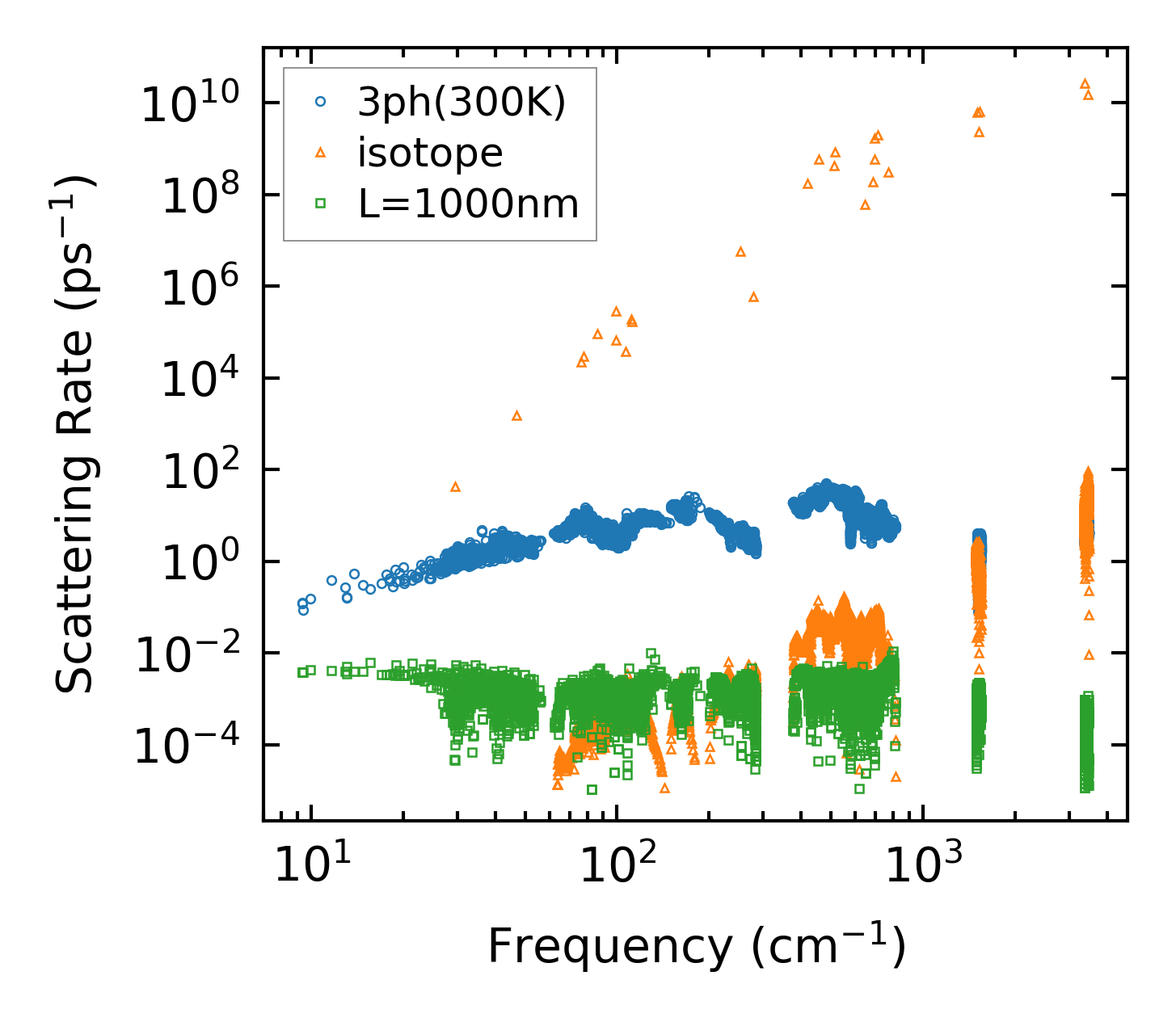

../../_images/fig_scat_rates2343.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2344.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

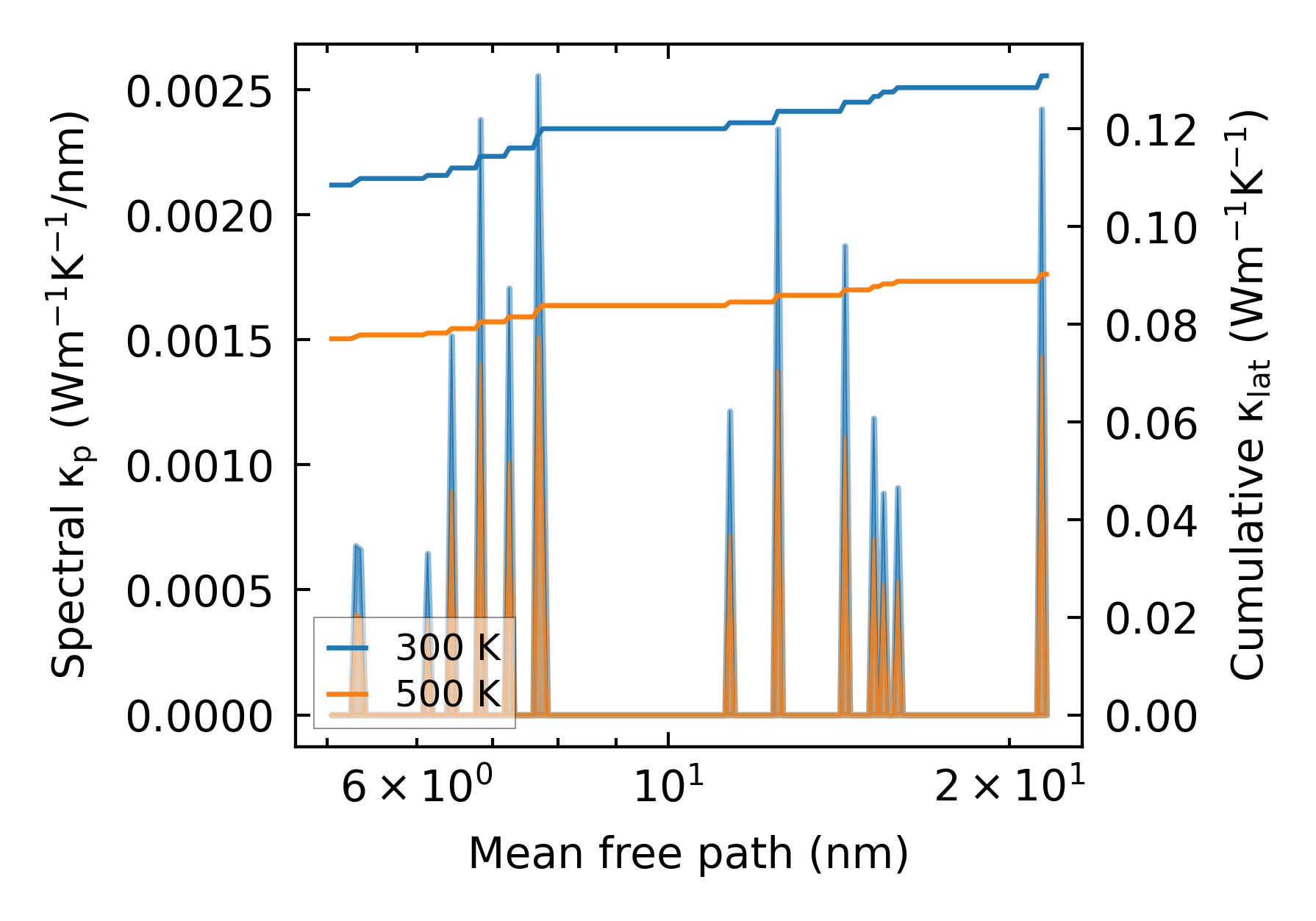

../../_images/fig_cumu_mfp2344.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc25456.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times10227.png — (a) Computation time
