mp-545847/LuBi2BrO4/anharm

Space group: P4/mmm (123)
Link: Materials Project
Download: mp-545847.tar.gz

Harmonic properties

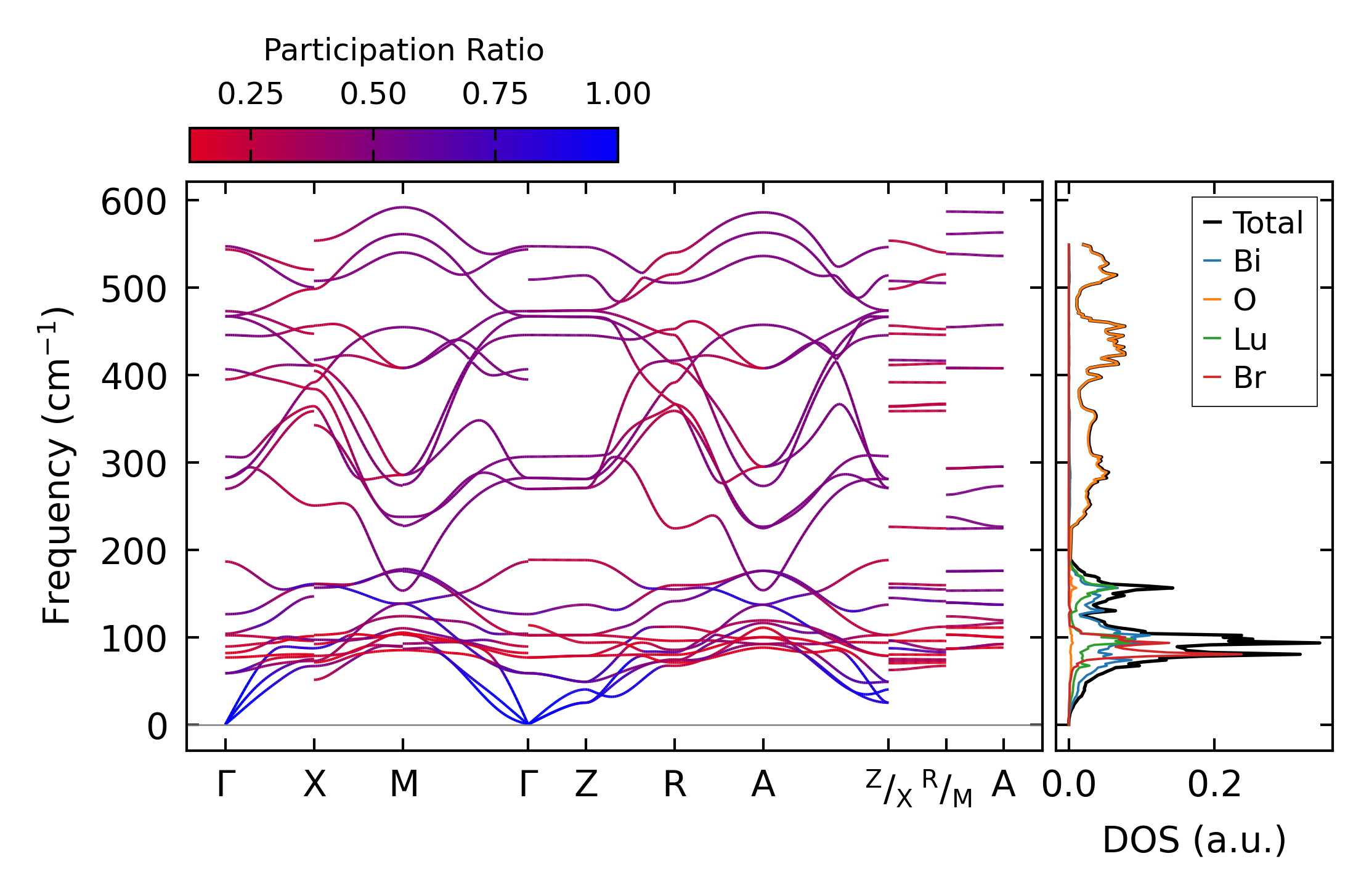

../../_images/fig_bandos_pr9395.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9395.png — (b) Thermodynamic properties

Grüneisen parameters

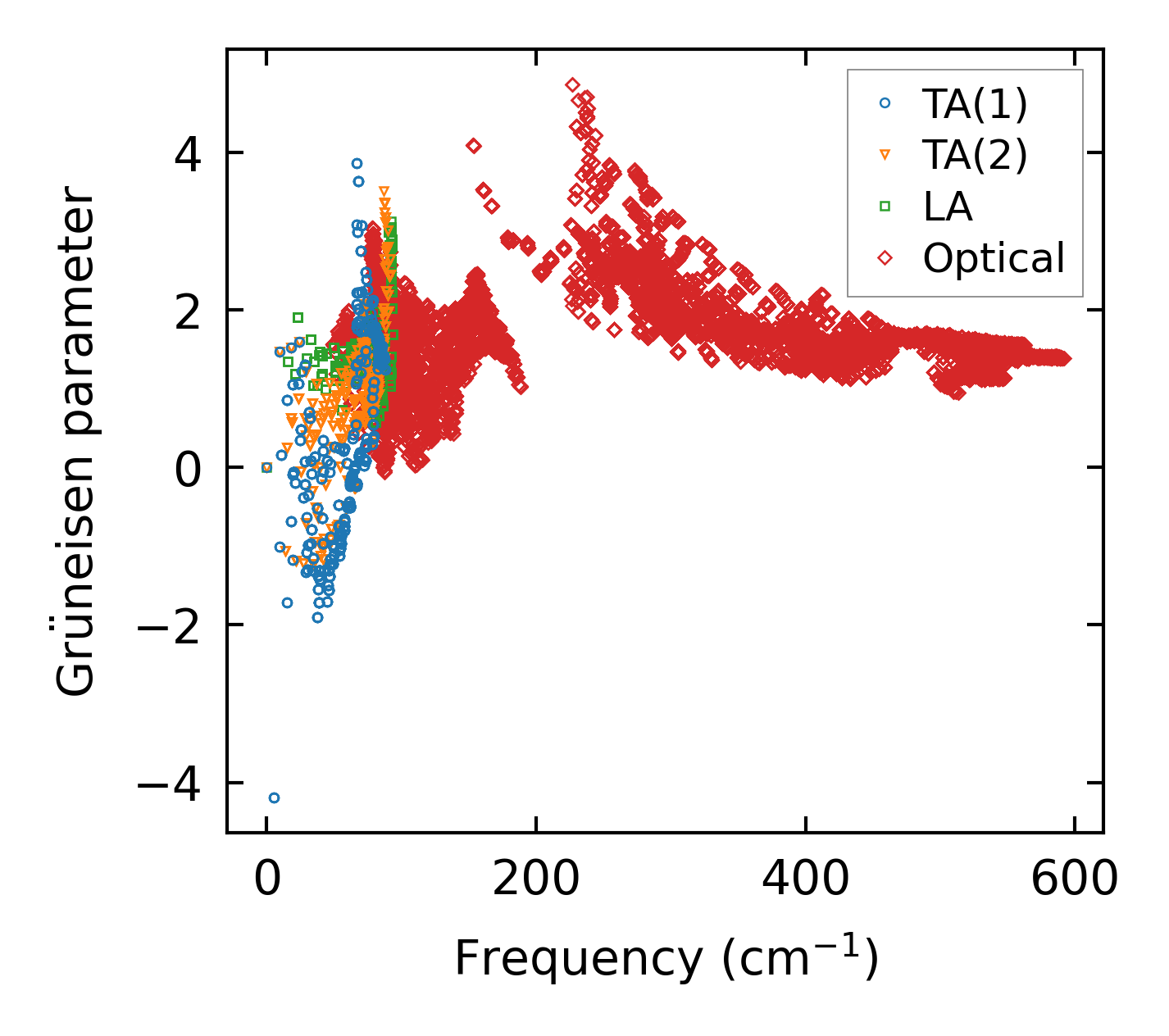

../../_images/fig_gru_all3737.png — (a) Grüneisen parameters

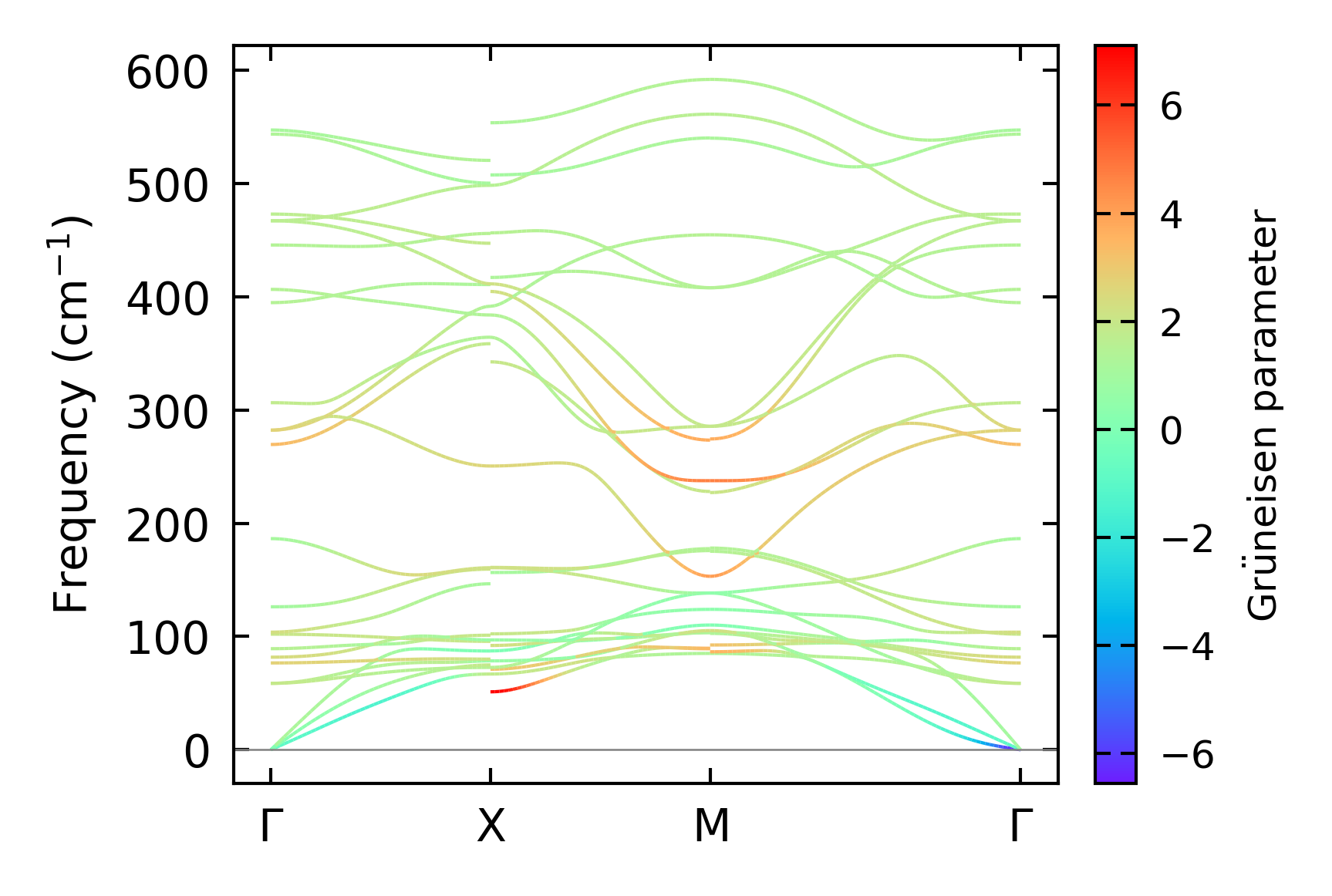

../../_images/fig_gruneisen3737.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 18x18x7, supercell: 3x3x2

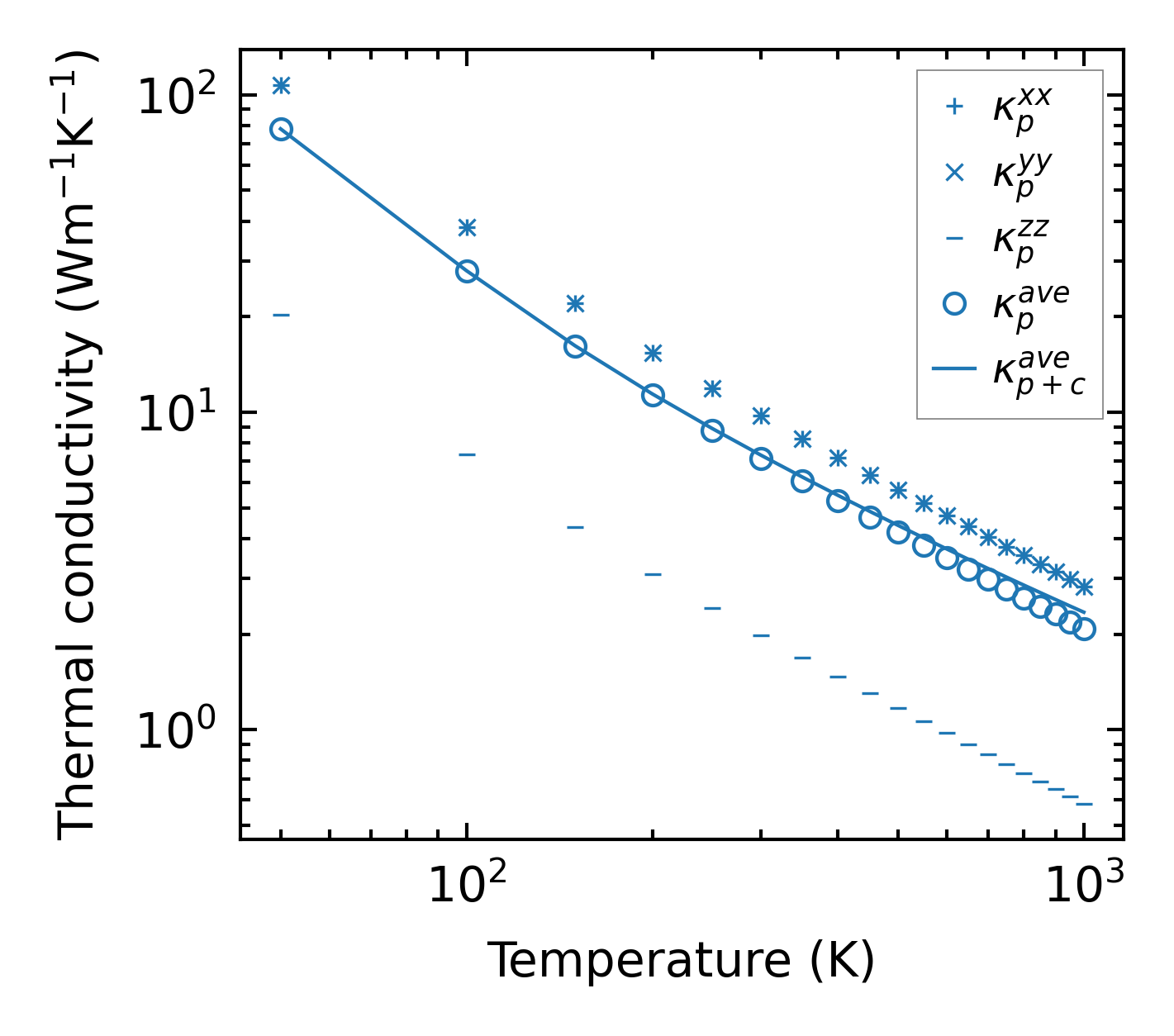

../../_images/fig_kappa7053.png — (a) Temperature-dependent lattice thermal conductivity

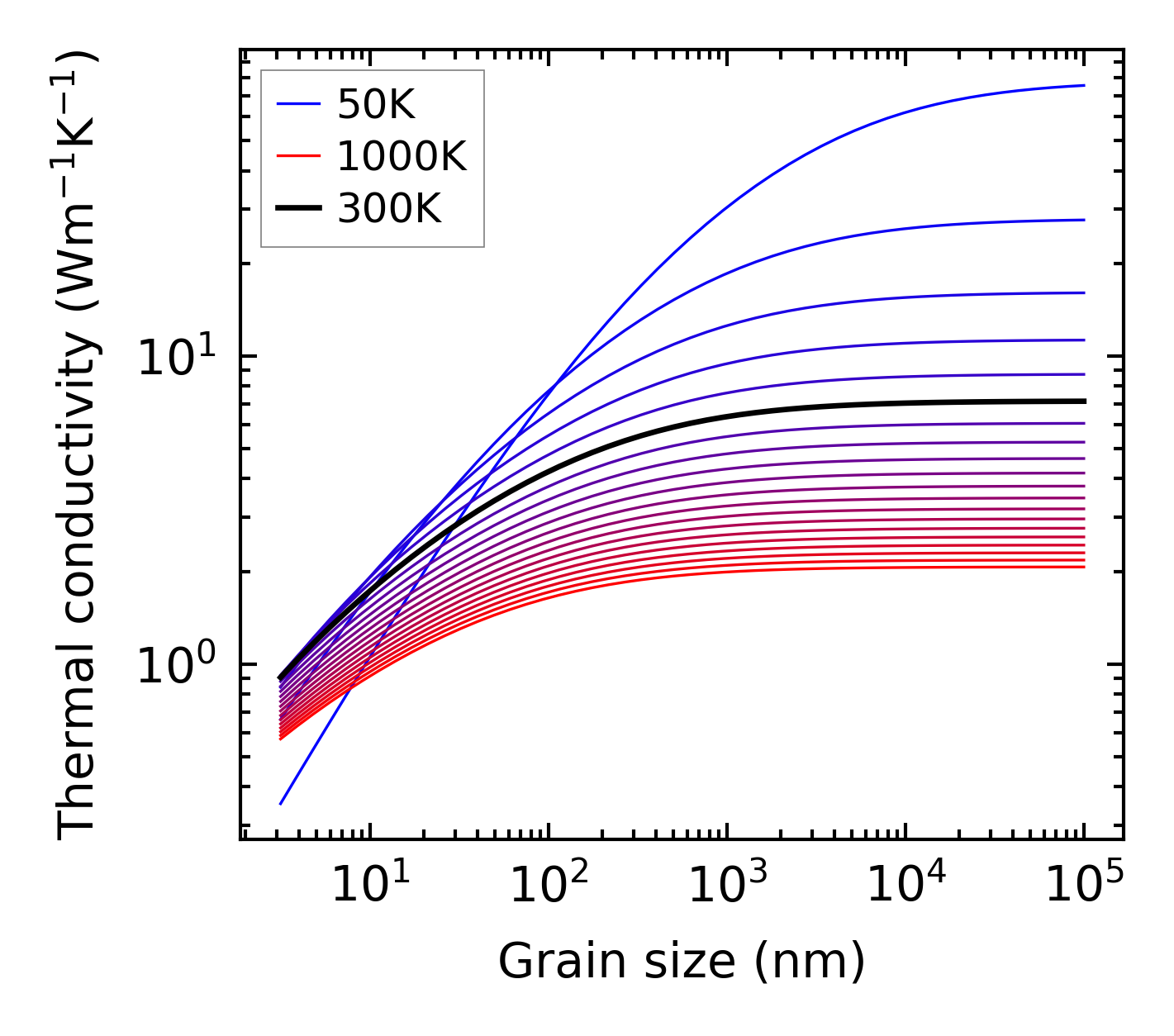

../../_images/fig_kappa_vs_grain_size3786.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3702.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates3701.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency3702.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

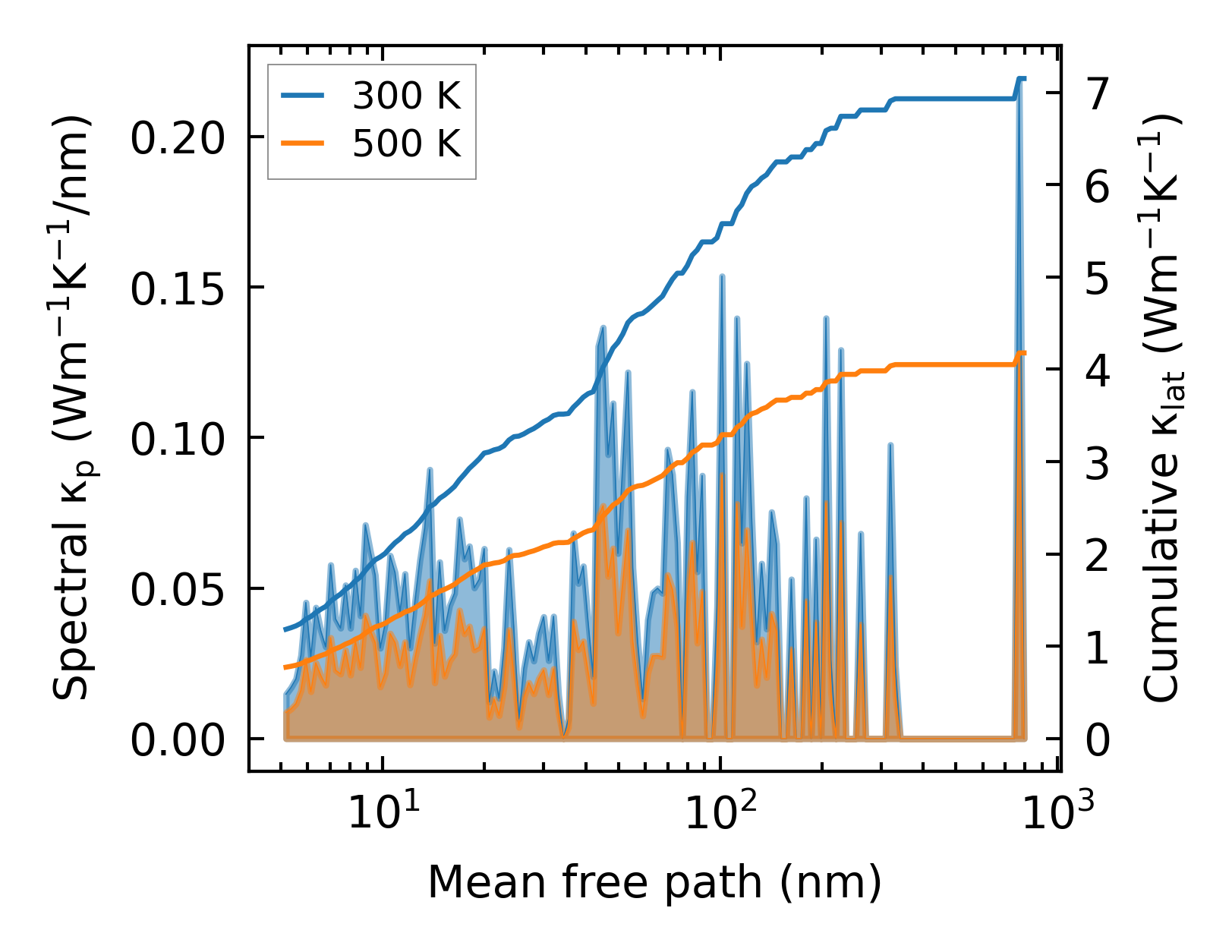

../../_images/fig_cumu_mfp3701.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc29157.png — (a) Force constants w.r.t atomic distance

Summary

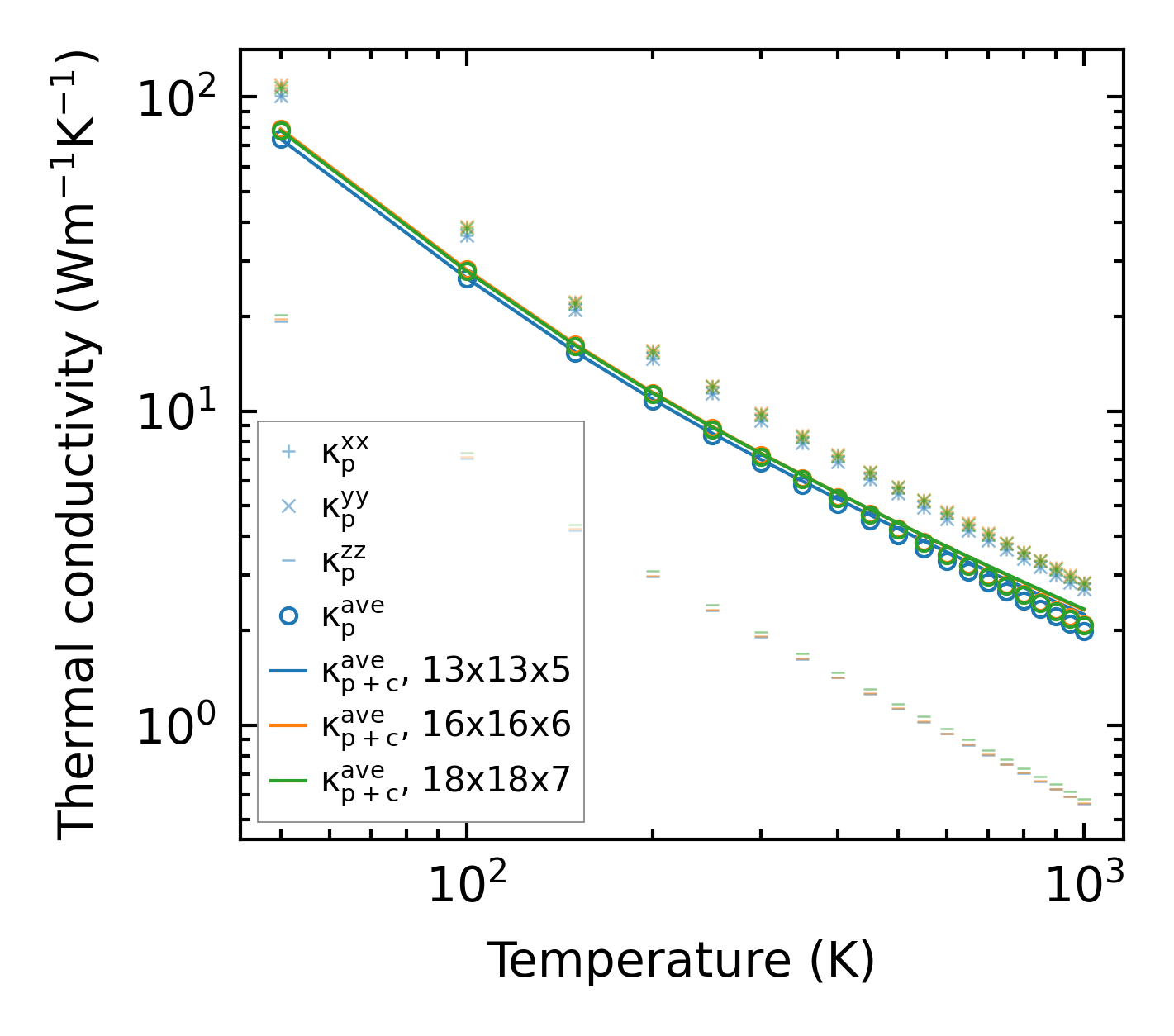

../../_images/fig_kappa7054.png — (a) Temperature-dependent lattice thermal conductivity

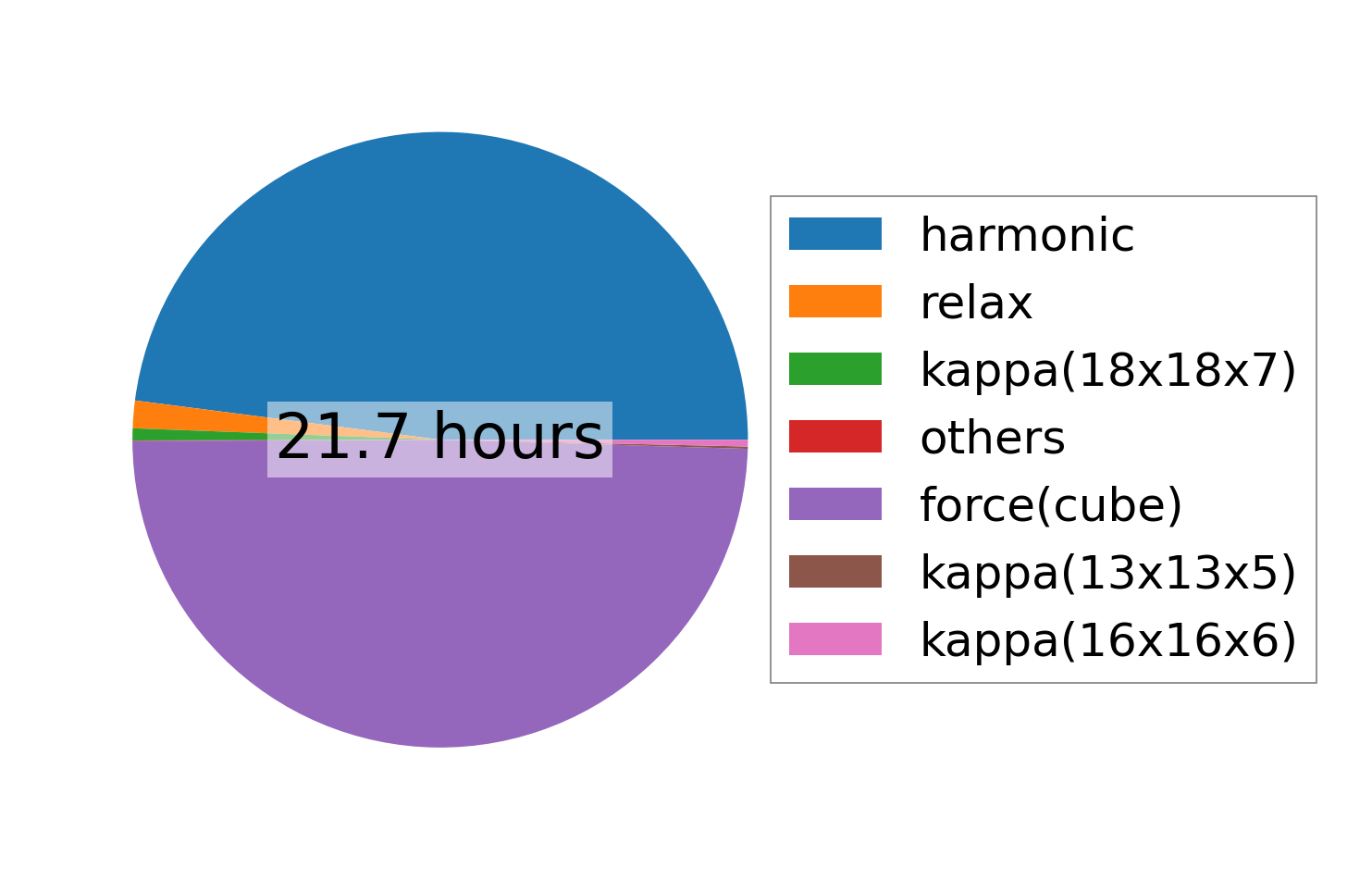

../../_images/fig_times16367.png — (b) Computation time
