mp-545598/UCdO4/anharm

Space group: Cmmm (65)
Link: Materials Project
Download: mp-545598.tar.gz

Harmonic properties

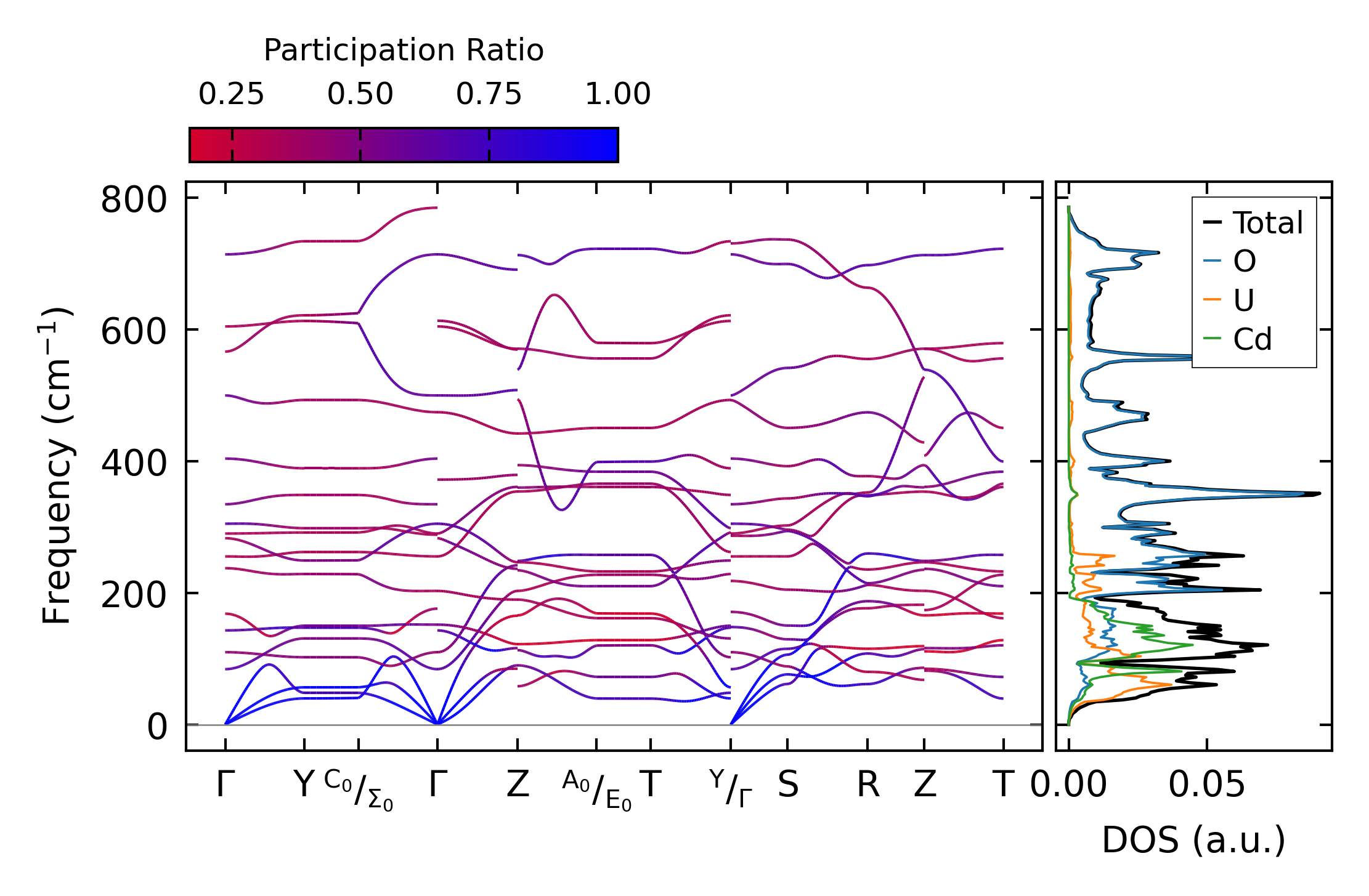

../../_images/fig_bandos_pr9383.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9383.png — (b) Thermodynamic properties

Grüneisen parameters

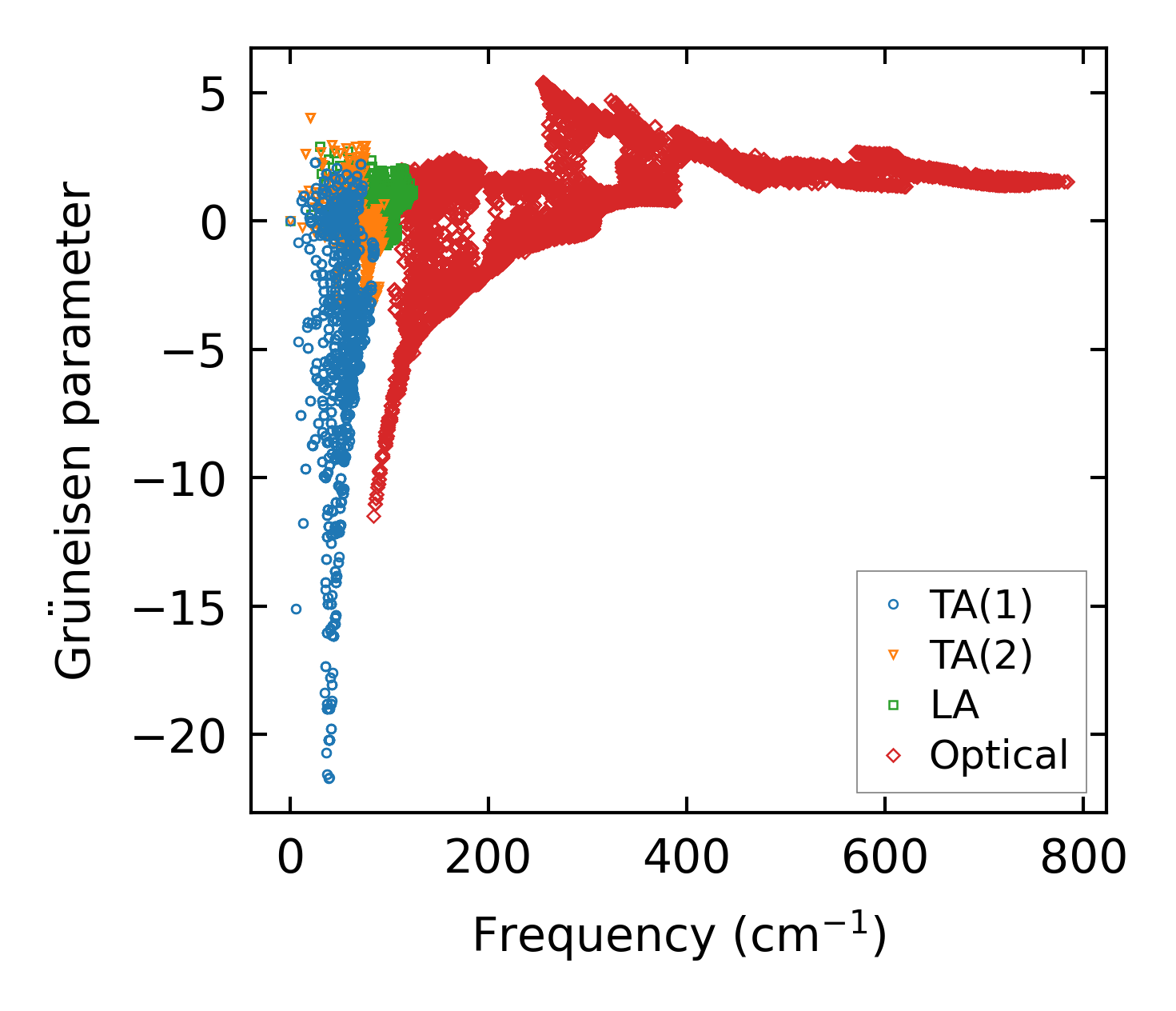

../../_images/fig_gru_all3735.png — (a) Grüneisen parameters

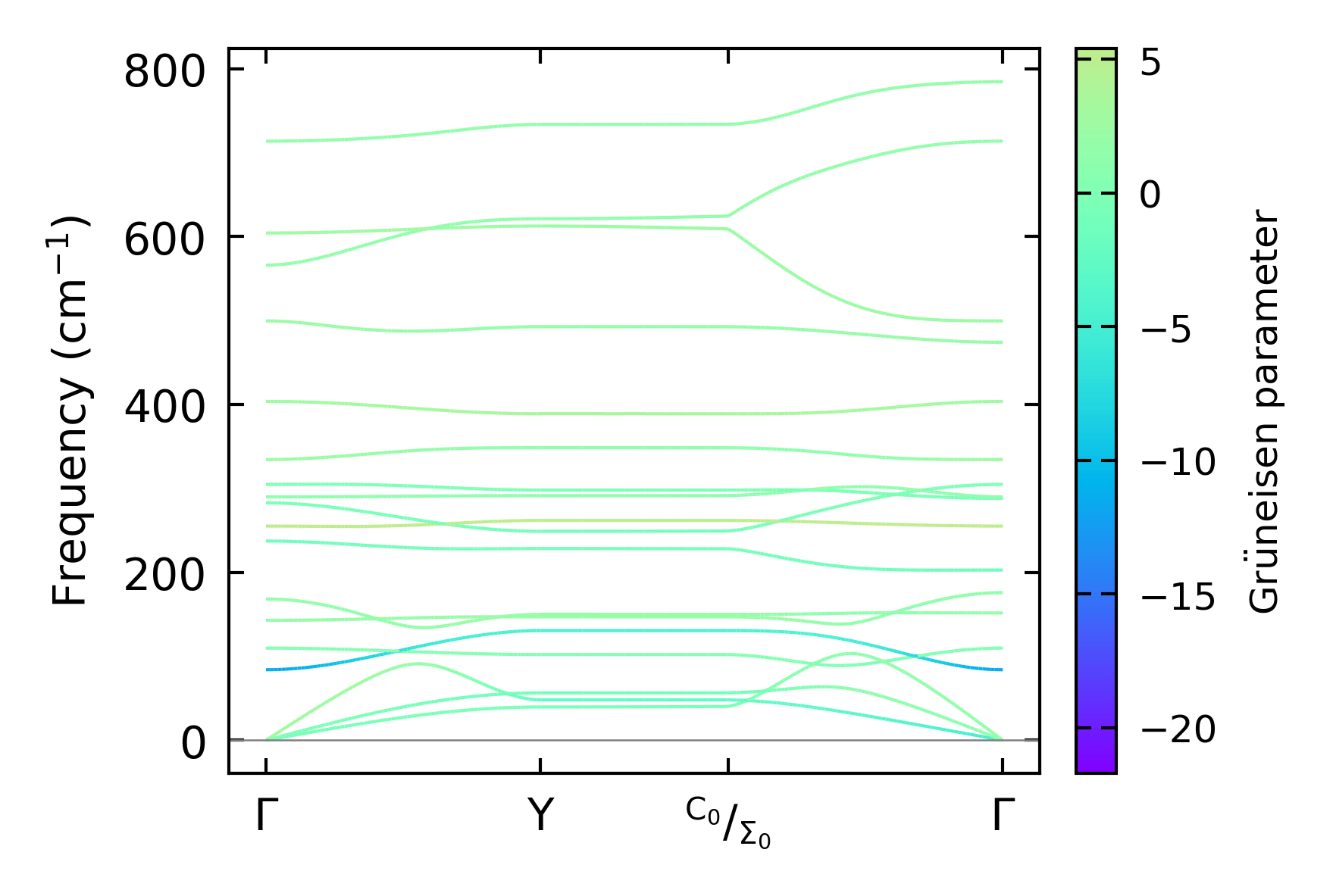

../../_images/fig_gruneisen3735.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x20, supercell: 2x2x3

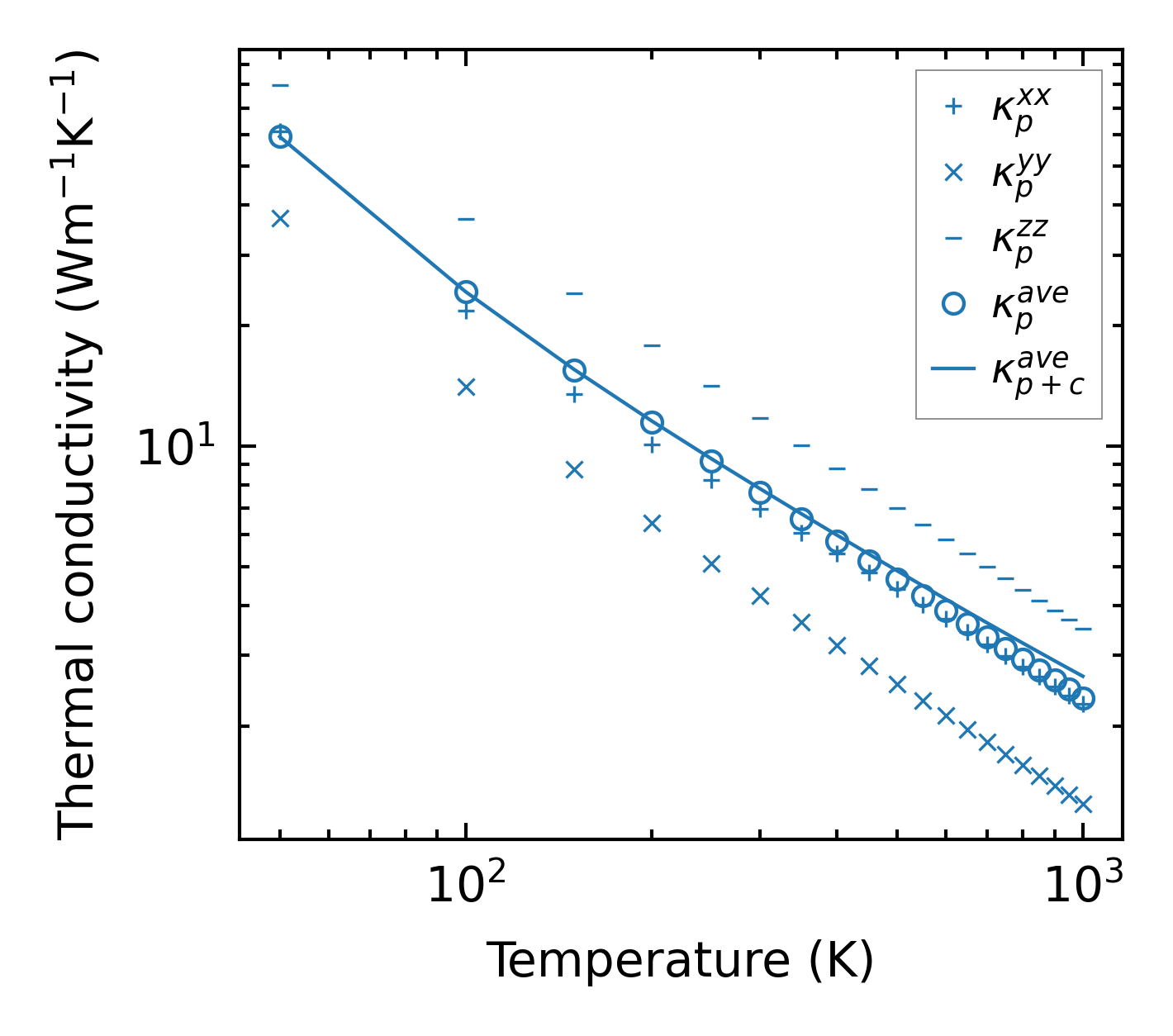

../../_images/fig_kappa7049.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3784.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3700.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates3699.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

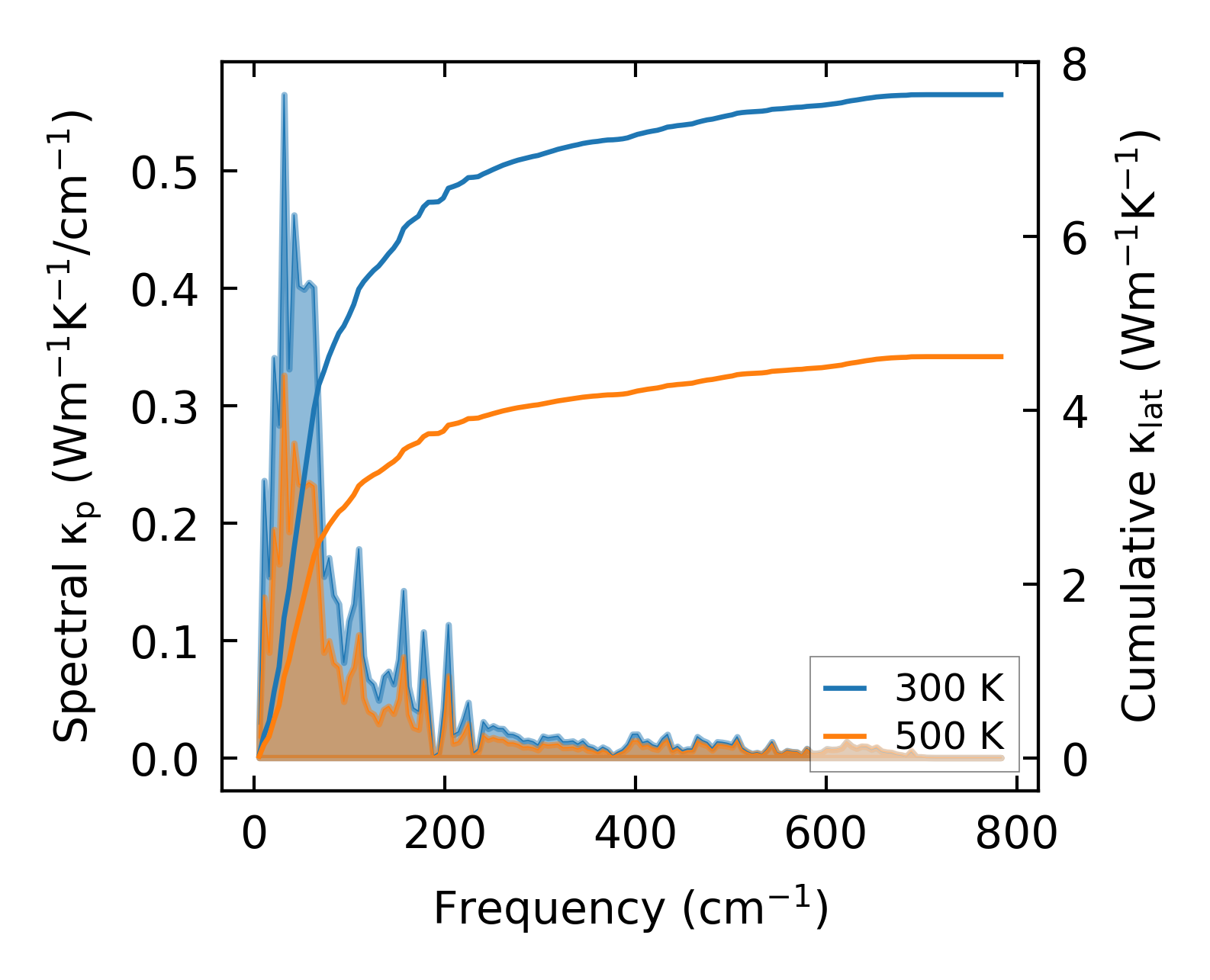

../../_images/fig_cumu_frequency3700.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

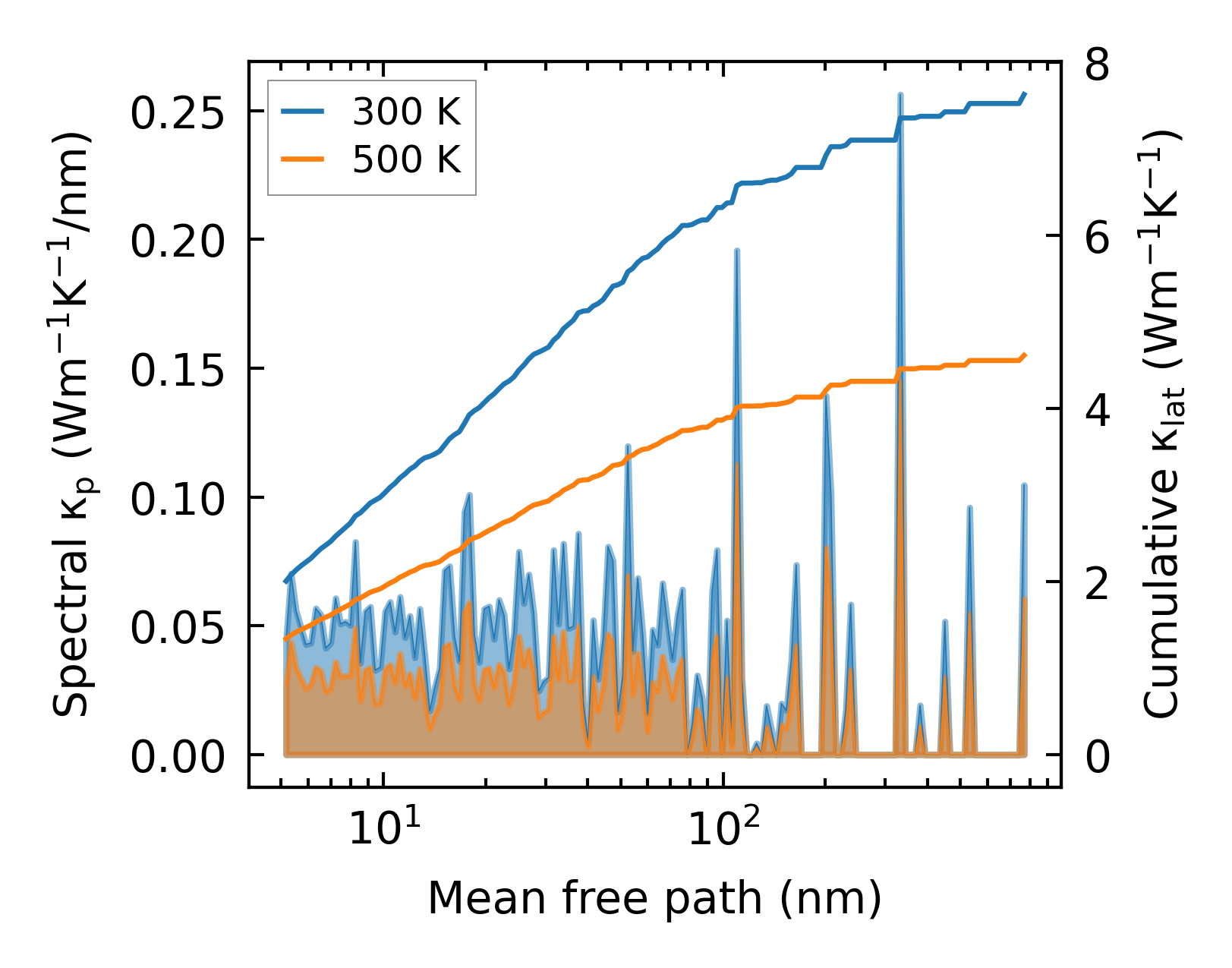

../../_images/fig_cumu_mfp3699.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

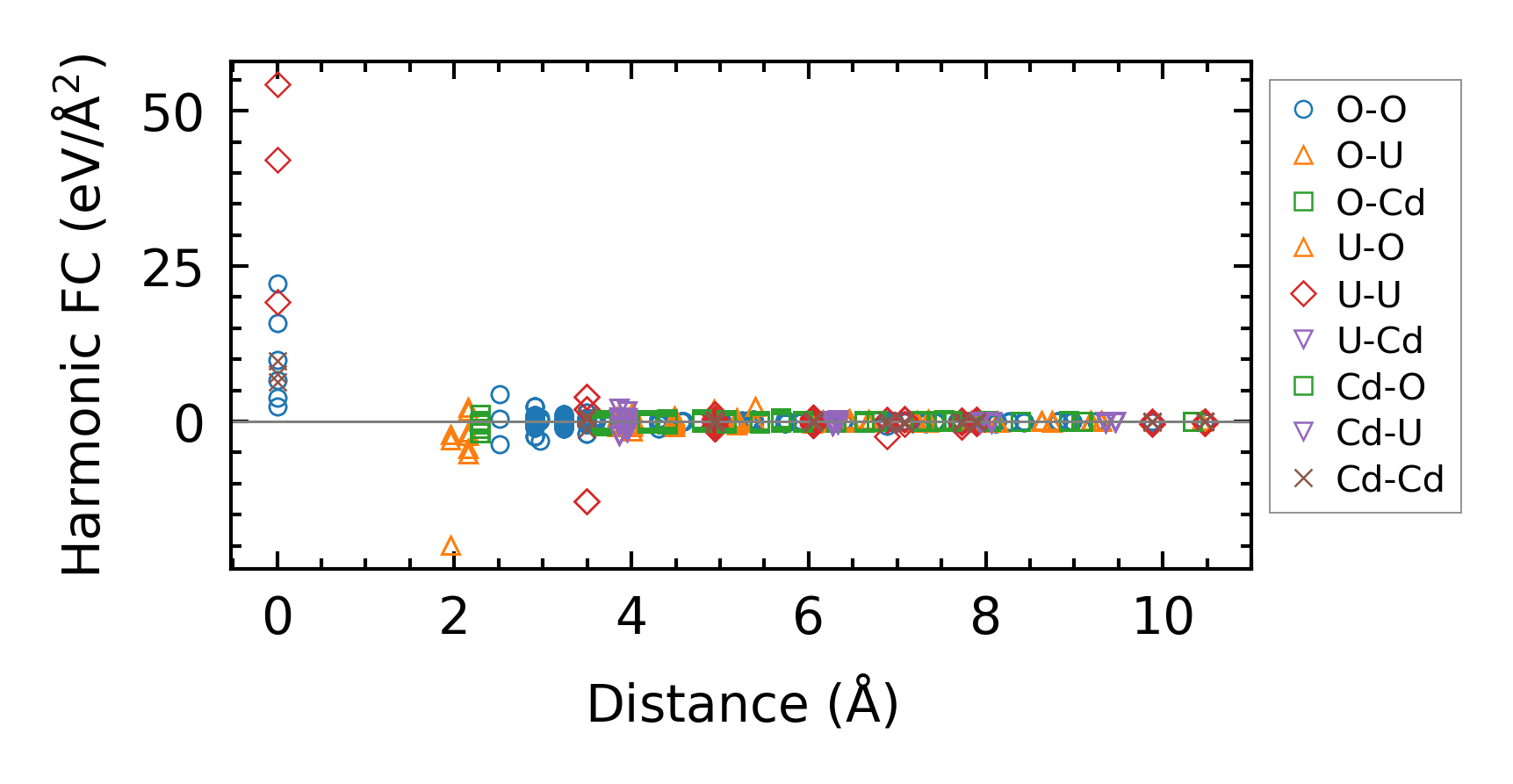

../../_images/fig_fc29145.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa7050.png — (a) Temperature-dependent lattice thermal conductivity

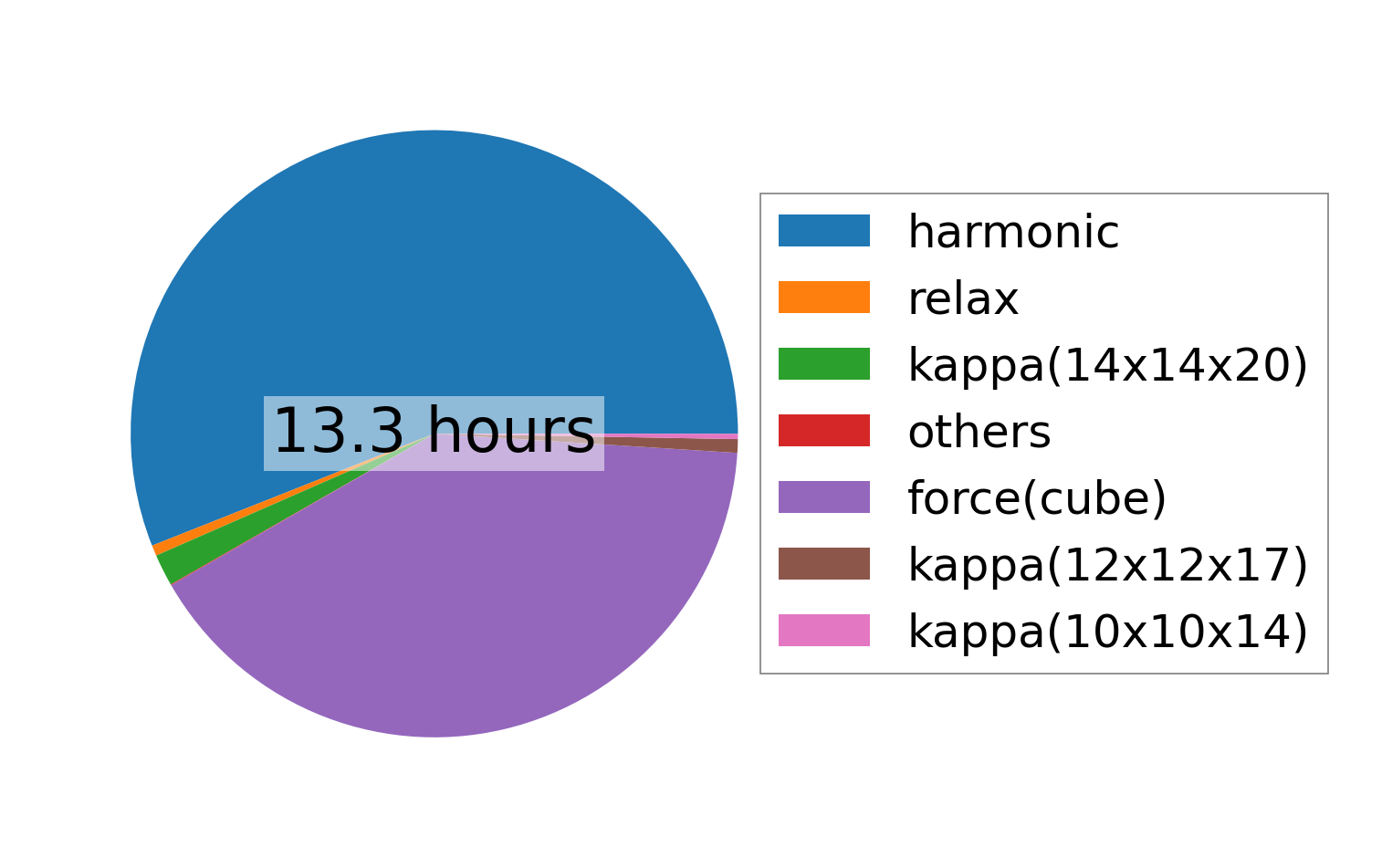

../../_images/fig_times16351.png — (b) Computation time
