mp-34806/NaYF4/anharm

Space group: P3 (143)
Link: Materials Project
Download: mp-34806.tar.gz

Harmonic properties

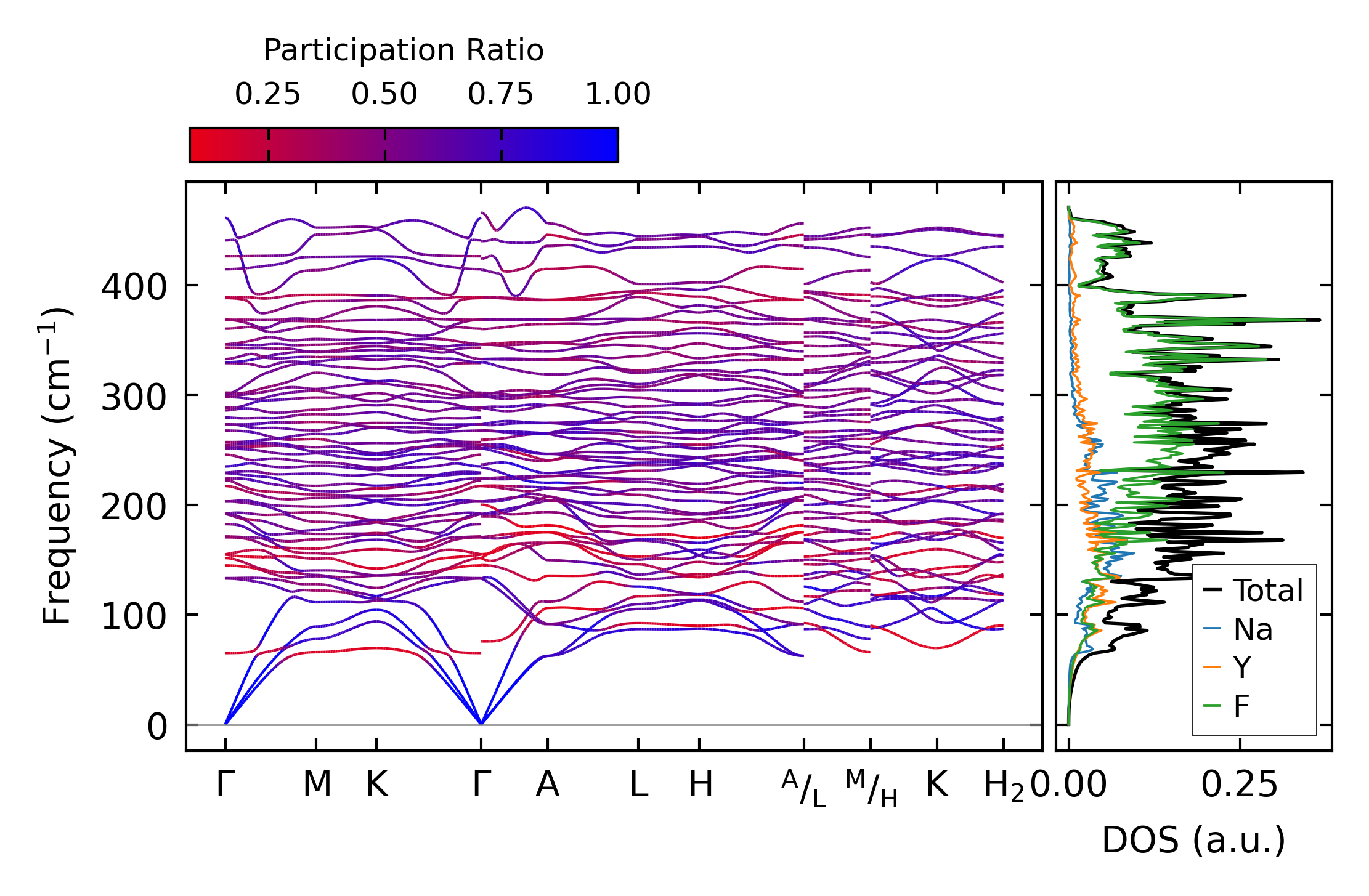

../../_images/fig_bandos_pr10490.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10490.png — (b) Thermodynamic properties

Grüneisen parameters

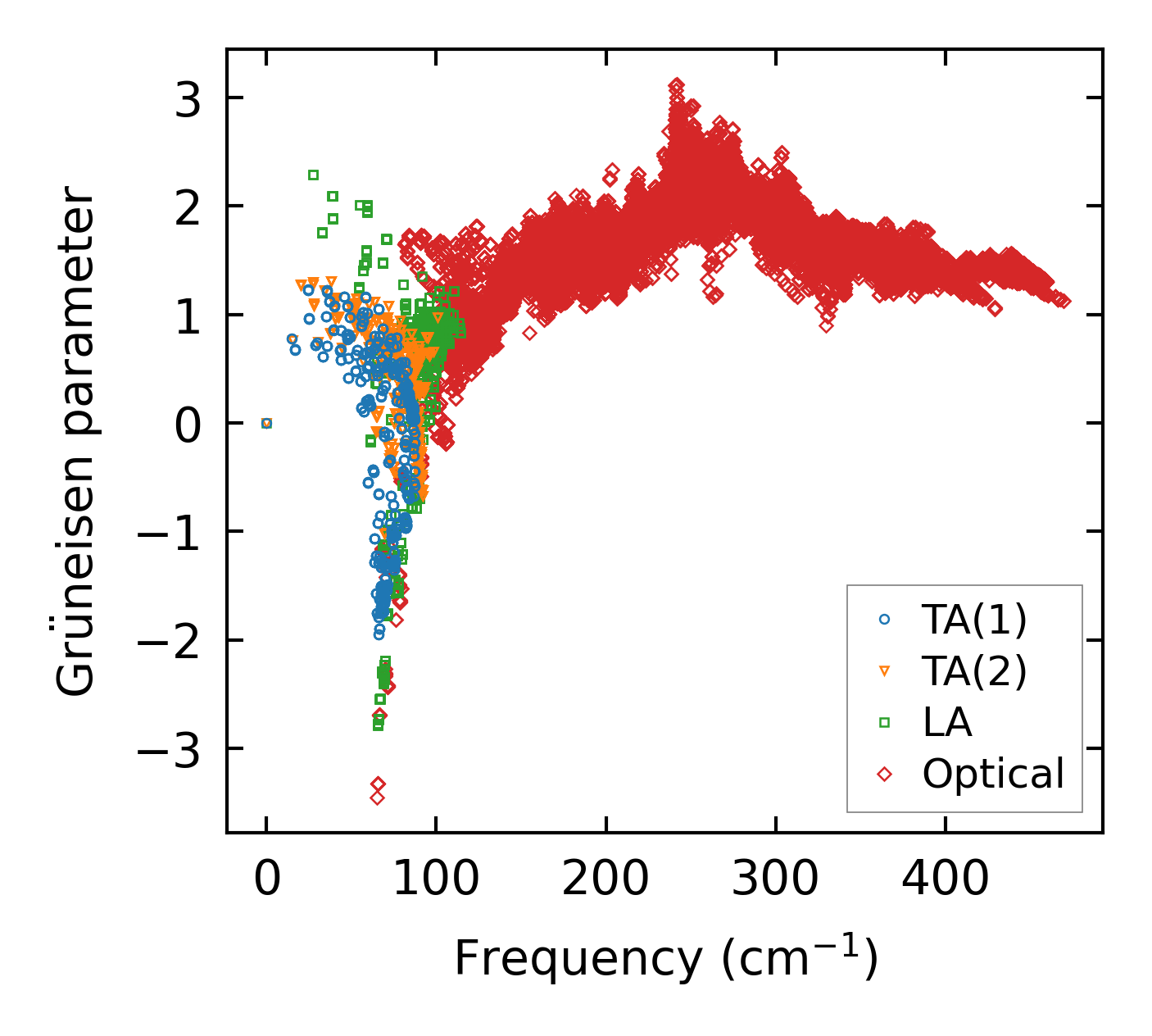

../../_images/fig_gru_all4252.png — (a) Grüneisen parameters

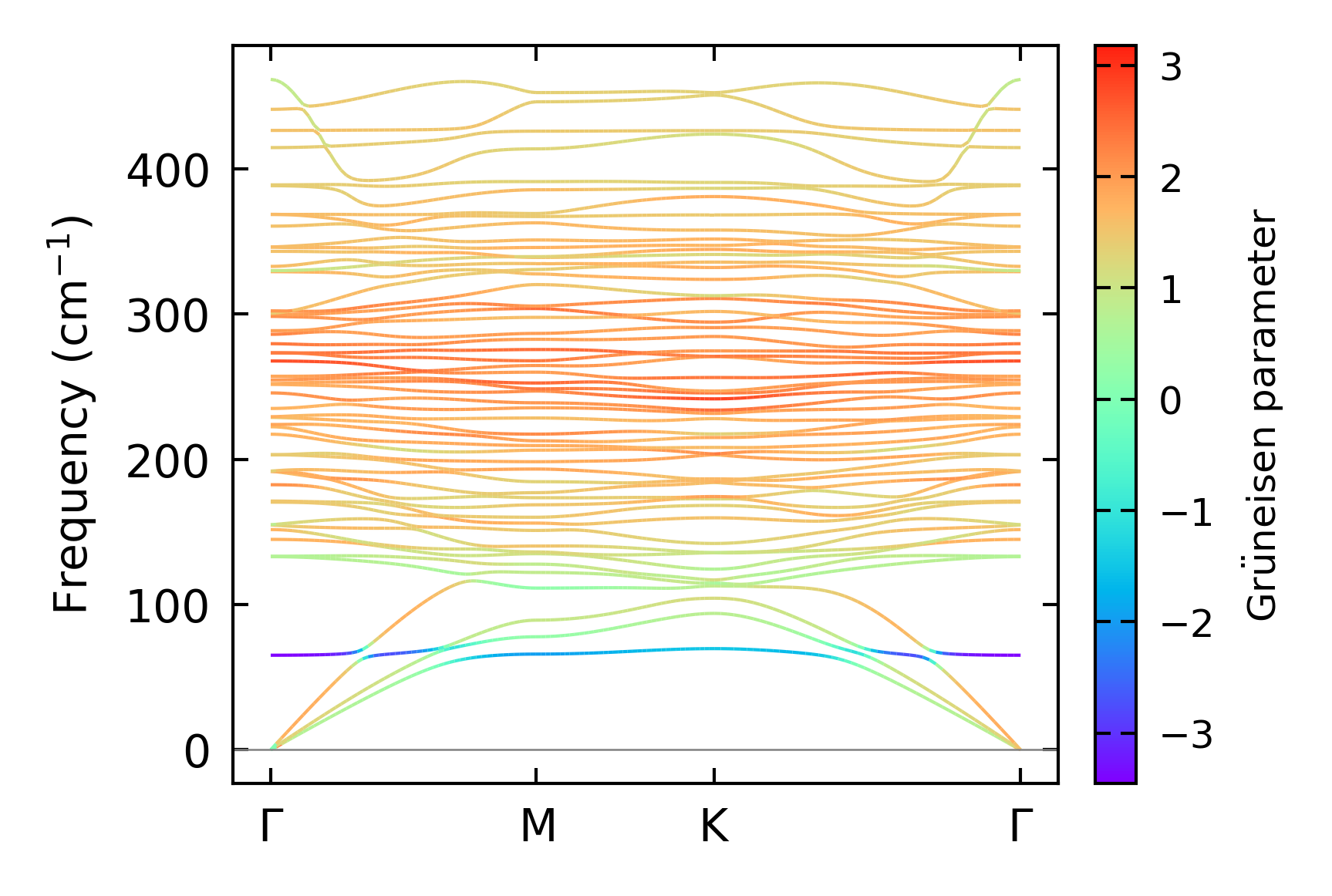

../../_images/fig_gruneisen4252.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x10, supercell: 2x2x2

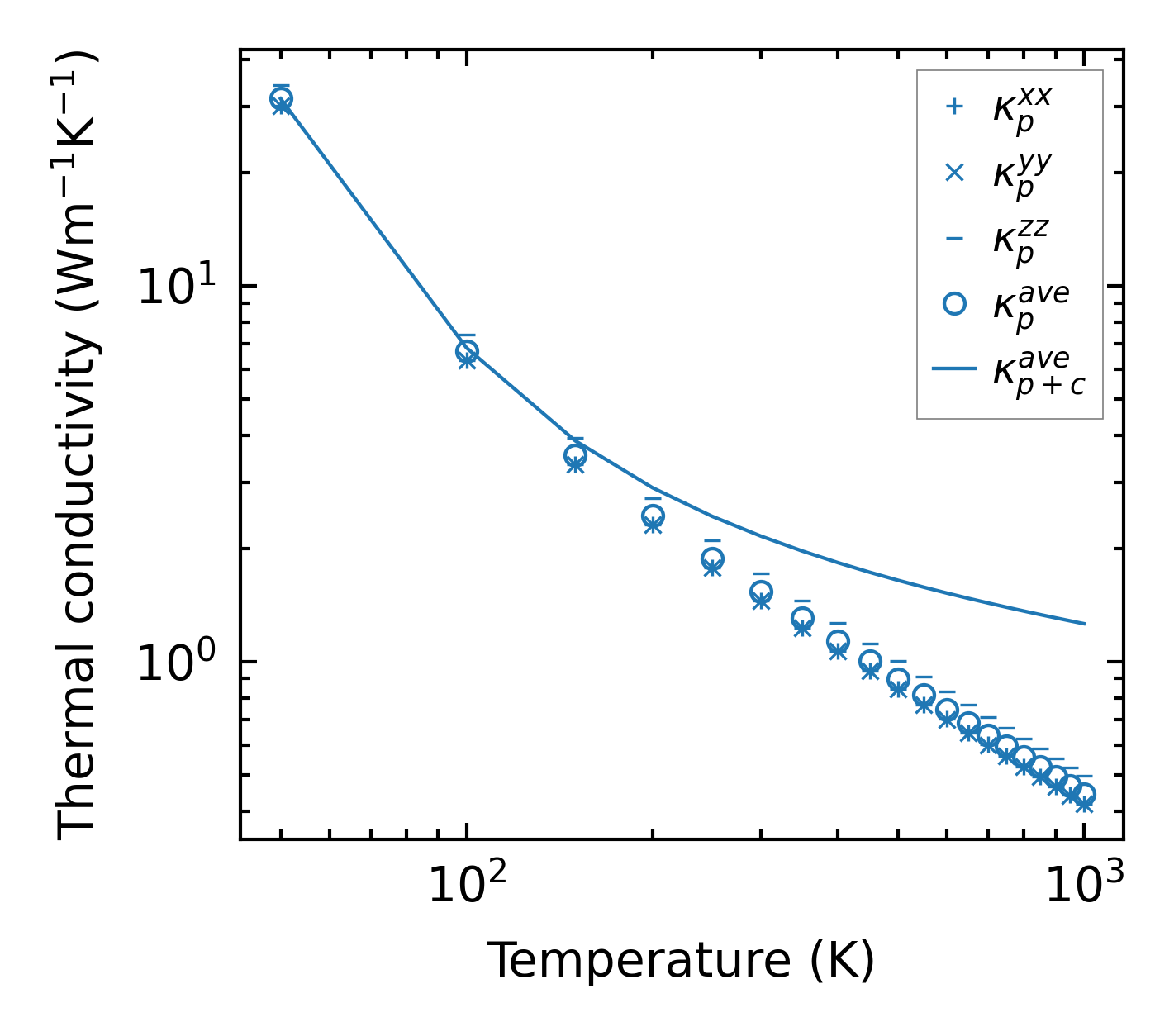

../../_images/fig_kappa8016.png — (a) Temperature-dependent lattice thermal conductivity

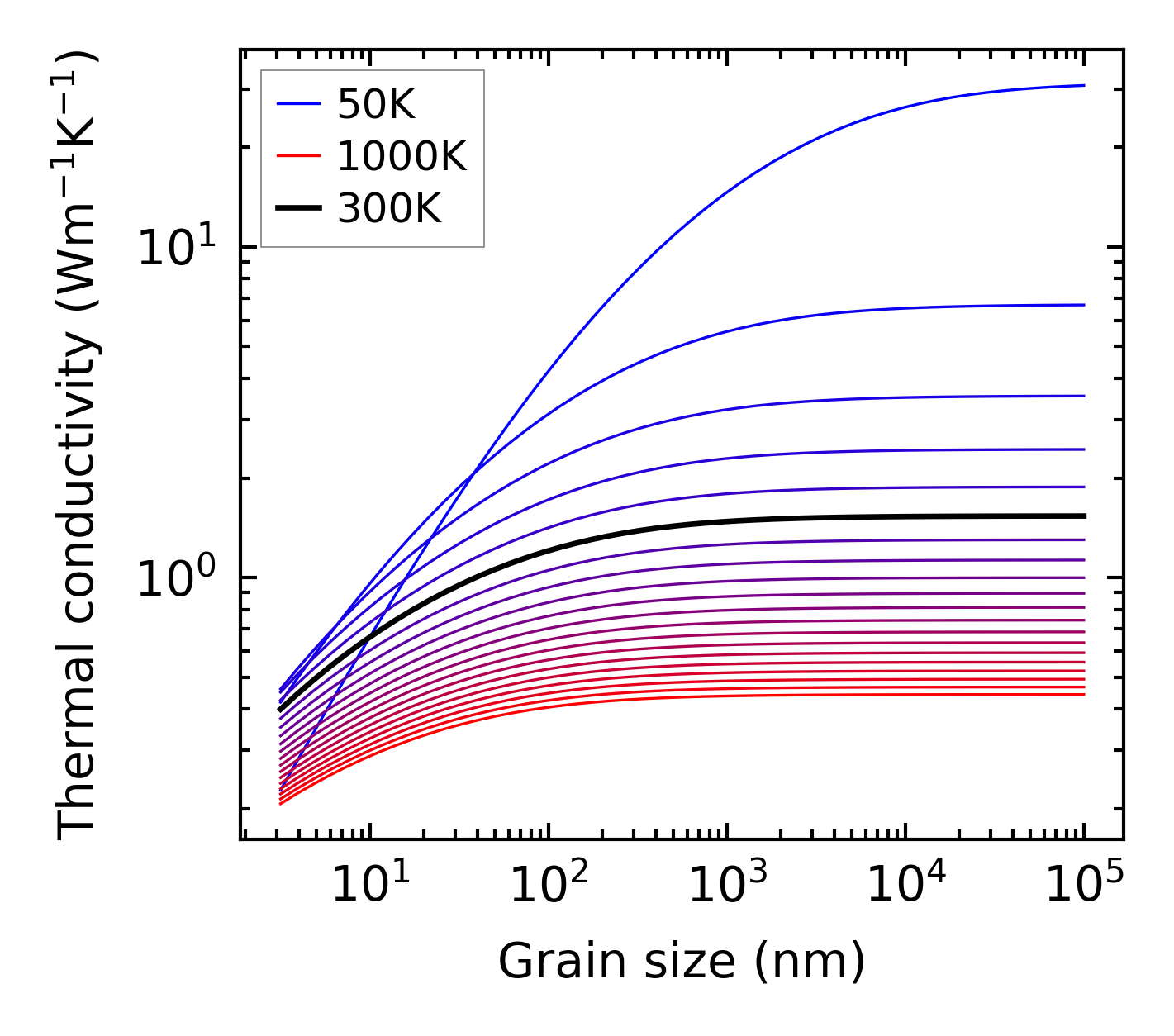

../../_images/fig_kappa_vs_grain_size4305.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

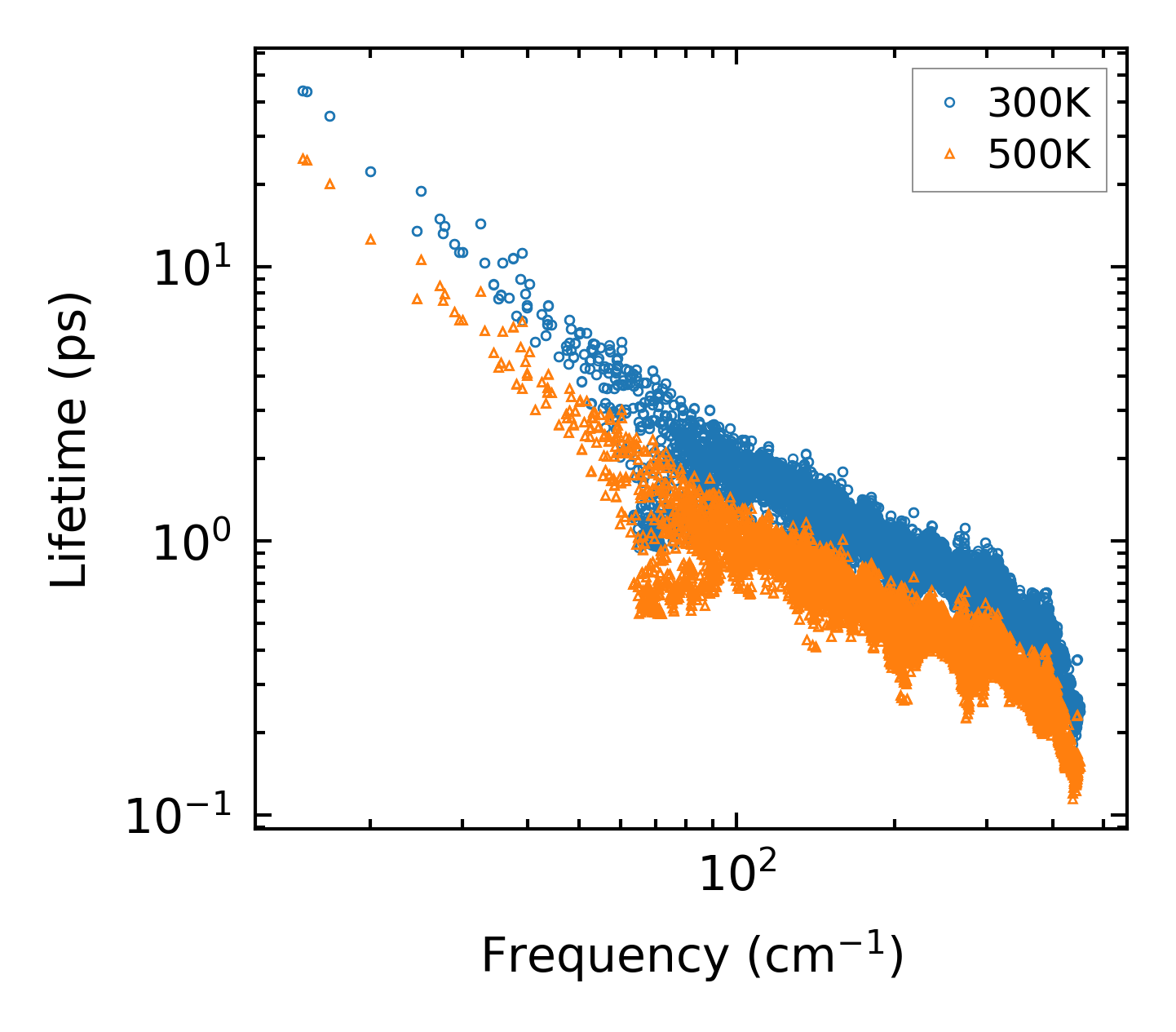

../../_images/fig_lifetime4211.png — (a) Phonon lifetime due to phonon-phonon scattering

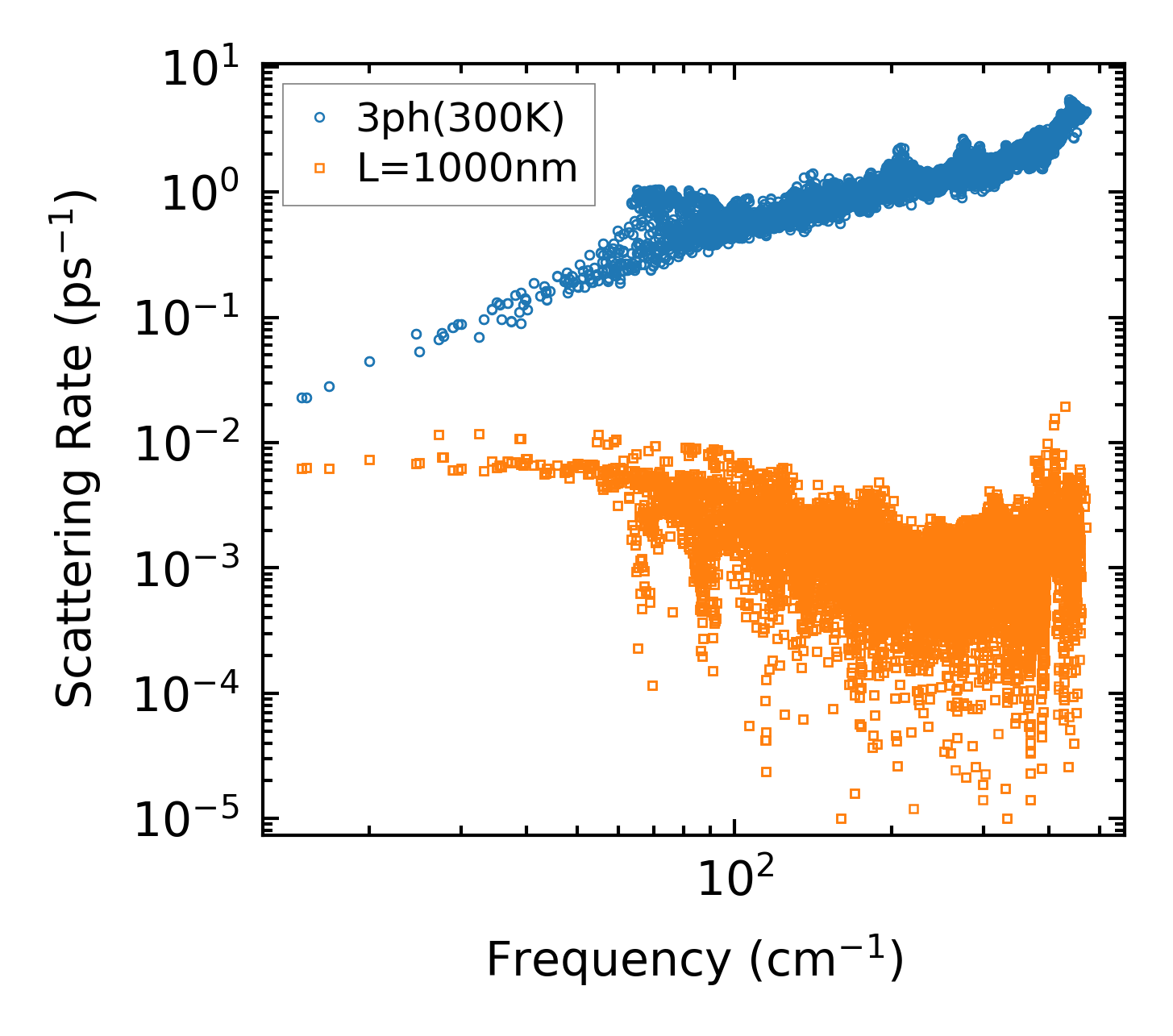

../../_images/fig_scat_rates4210.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

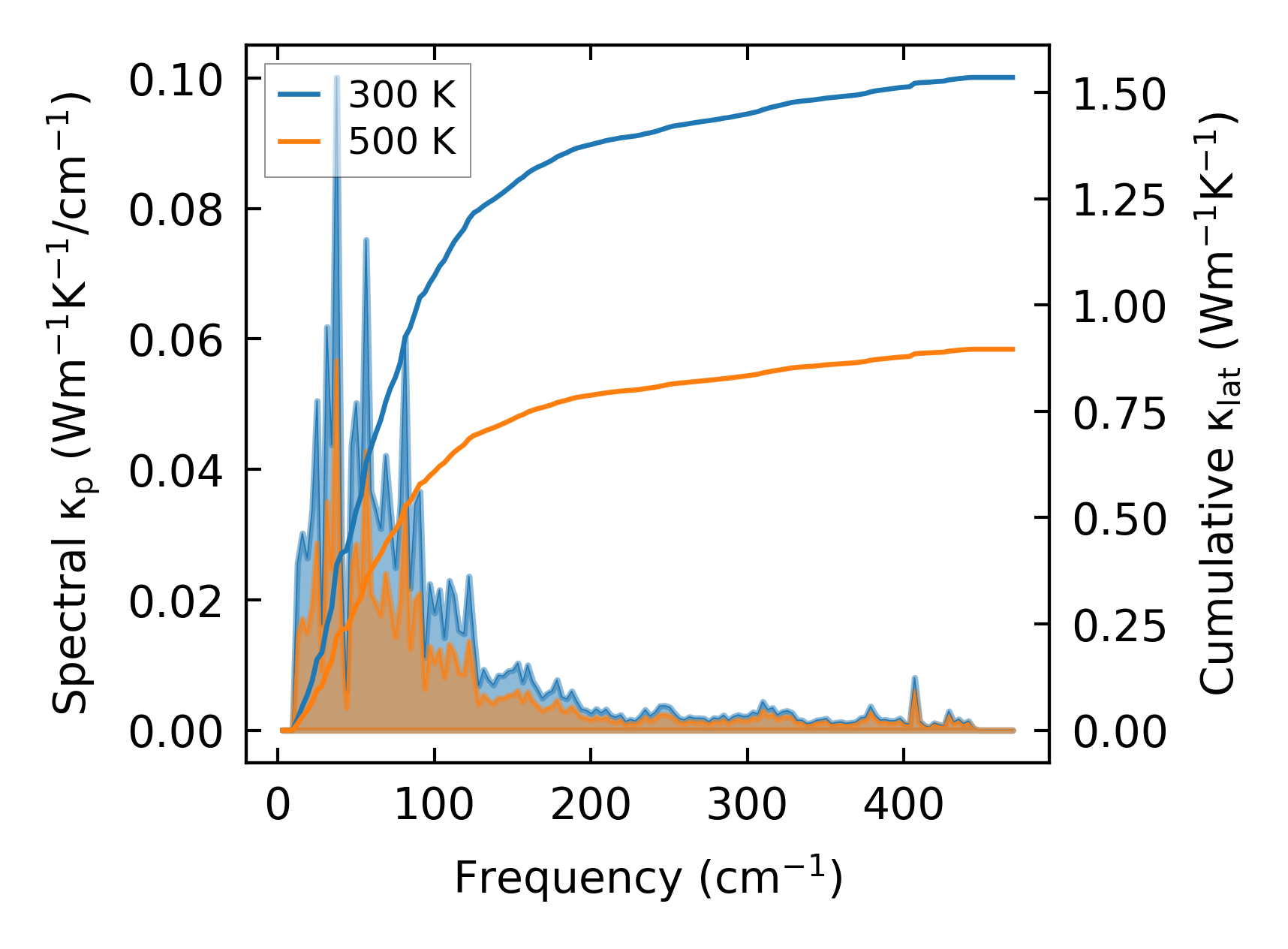

../../_images/fig_cumu_frequency4211.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

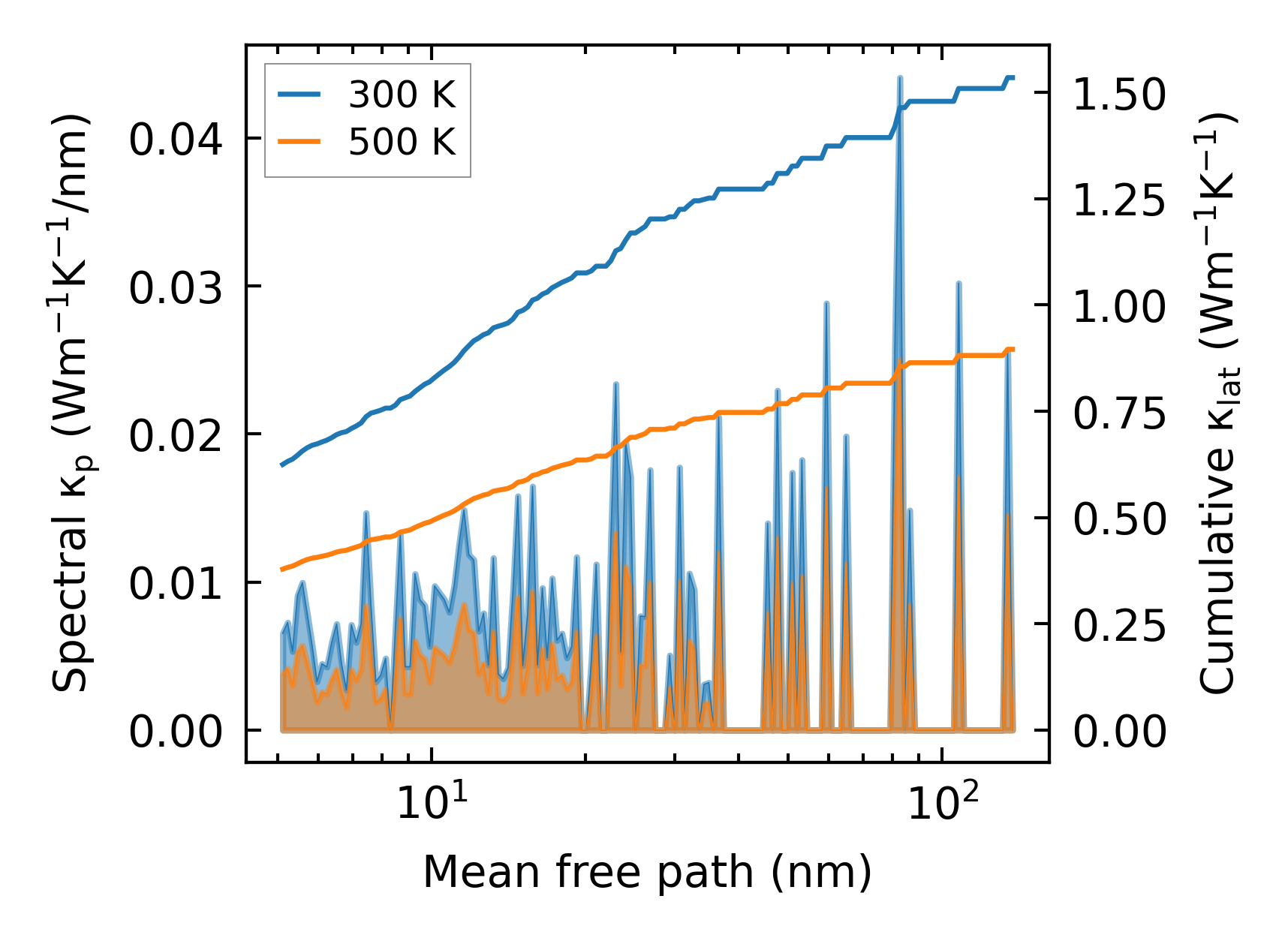

../../_images/fig_cumu_mfp4210.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

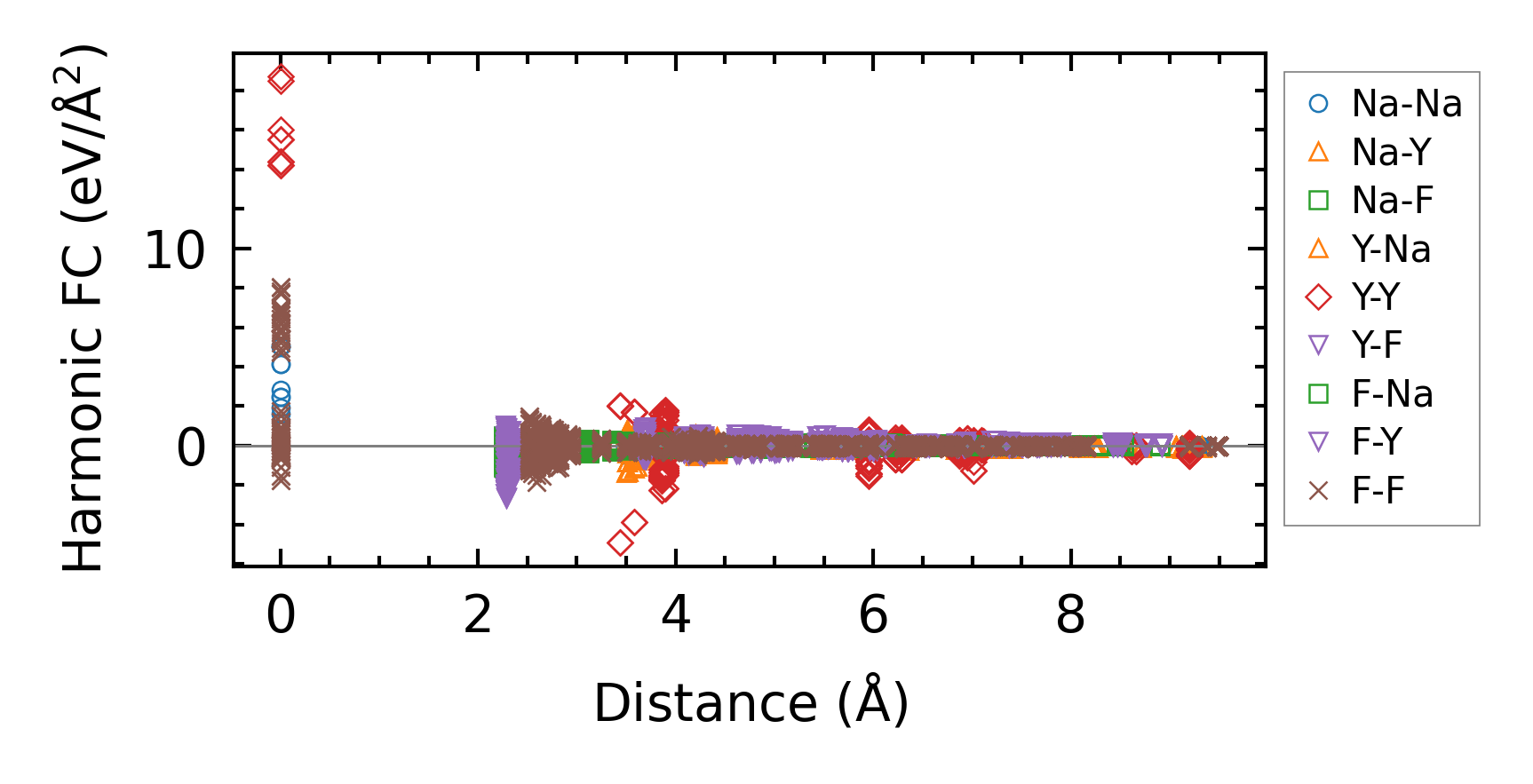

../../_images/fig_fc210232.png — (a) Force constants w.r.t atomic distance

Summary

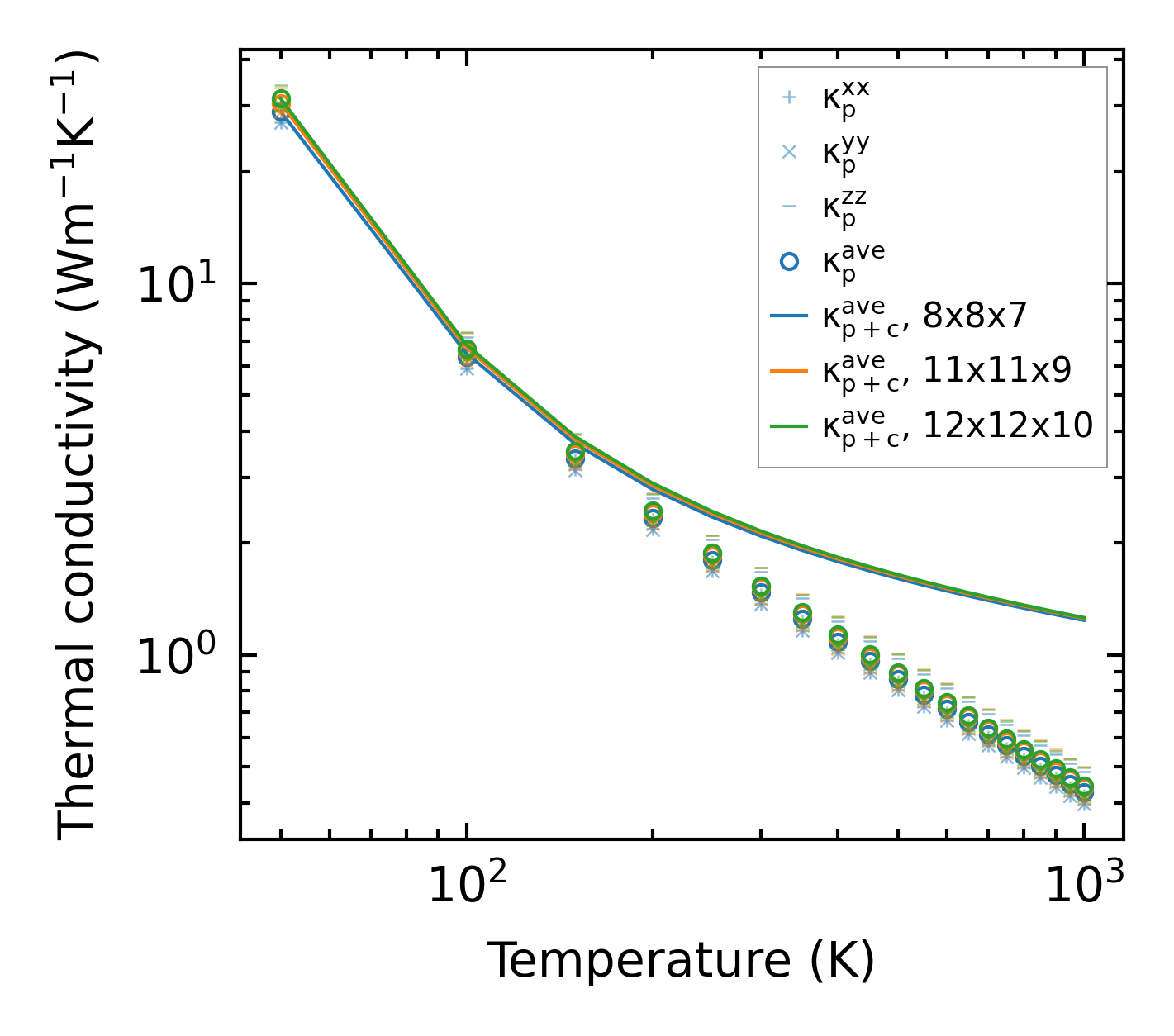

../../_images/fig_kappa8017.png — (a) Temperature-dependent lattice thermal conductivity

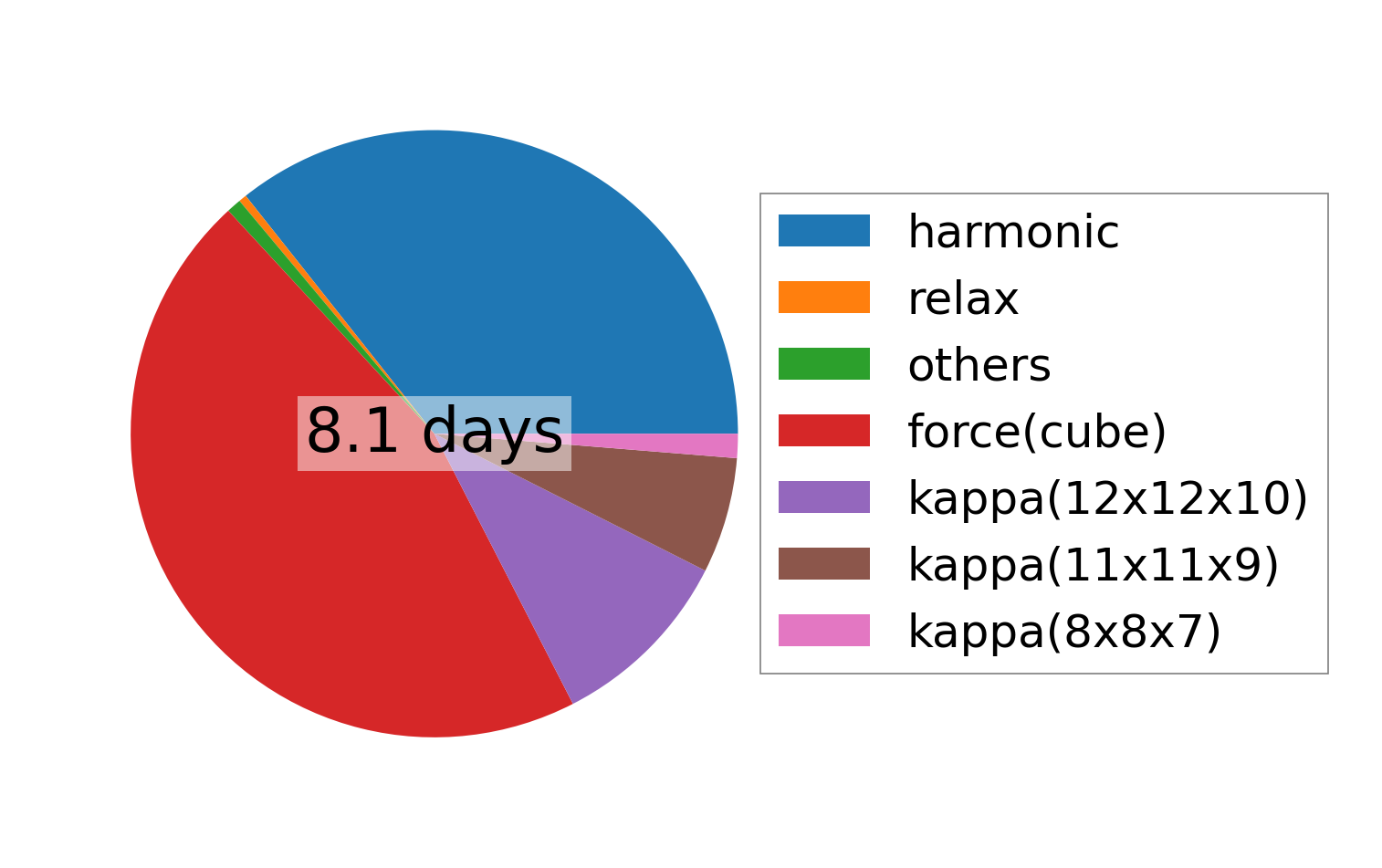

../../_images/fig_times18065.png — (b) Computation time
