mp-34185/CaPr2S4/anharm

Space group: I-42d (122)
Link: Materials Project
Download: mp-34185.tar.gz

Harmonic properties

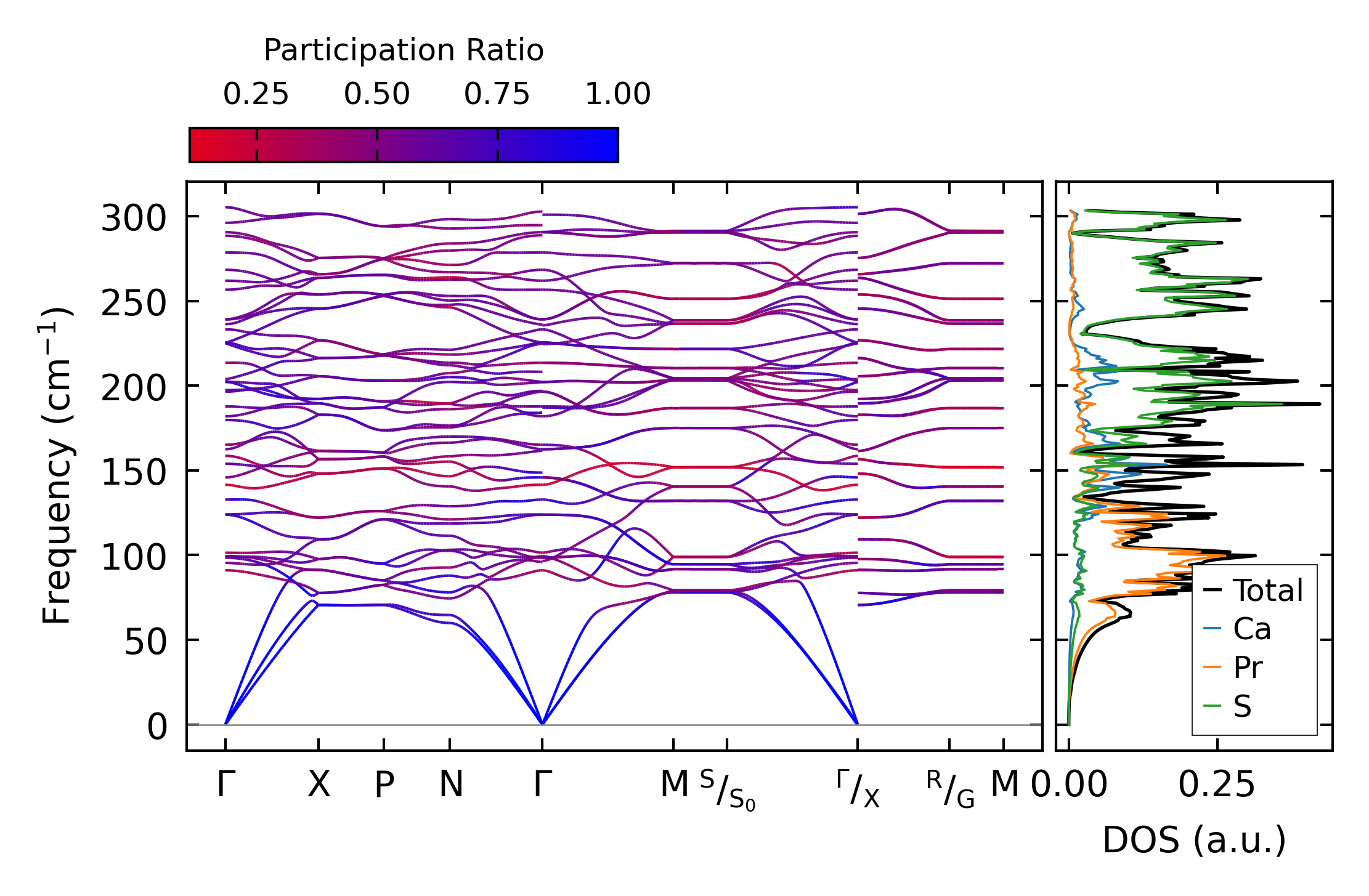

../../_images/fig_bandos_pr10466.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10466.png — (b) Thermodynamic properties

Grüneisen parameters

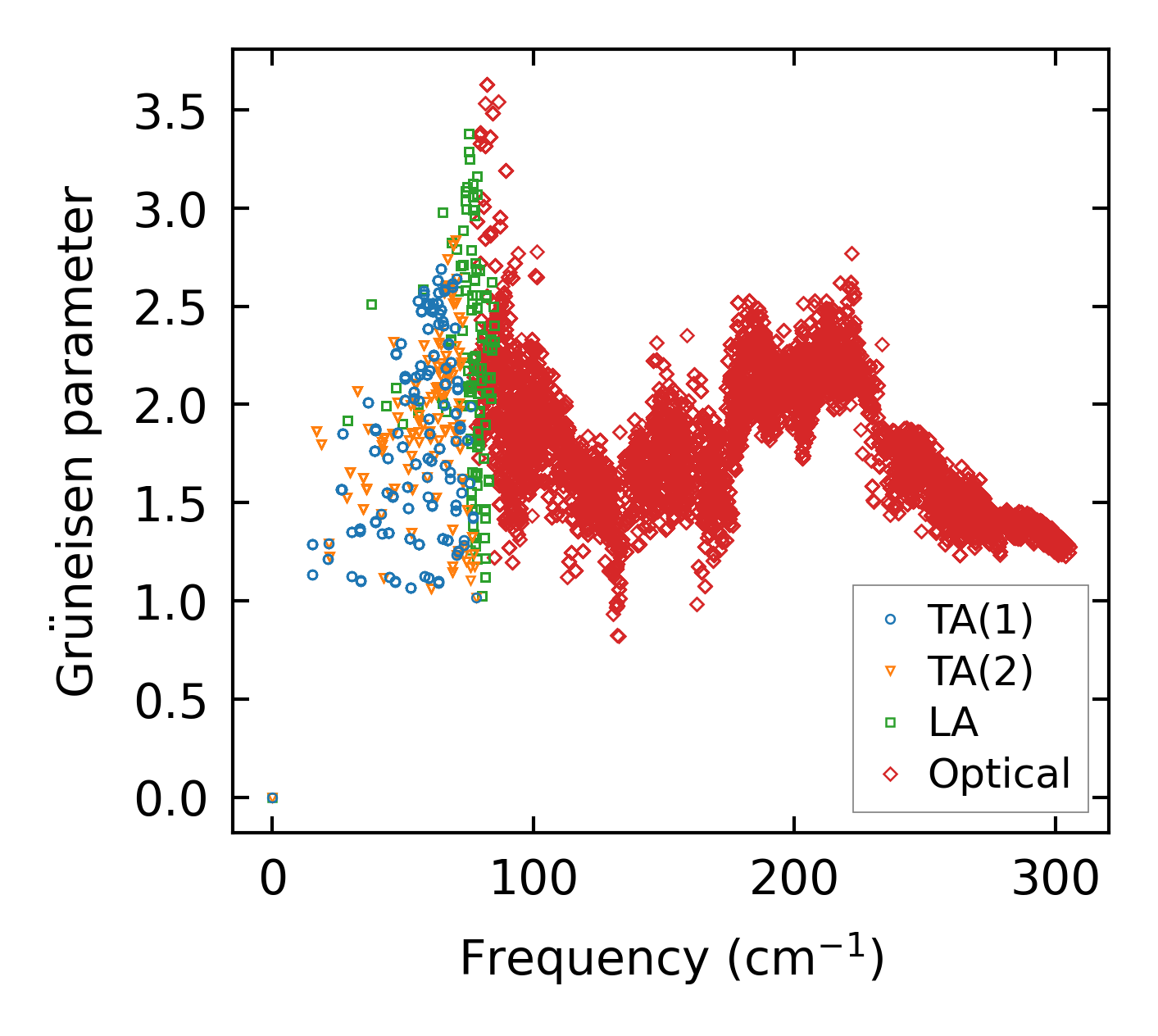

../../_images/fig_gru_all4243.png — (a) Grüneisen parameters

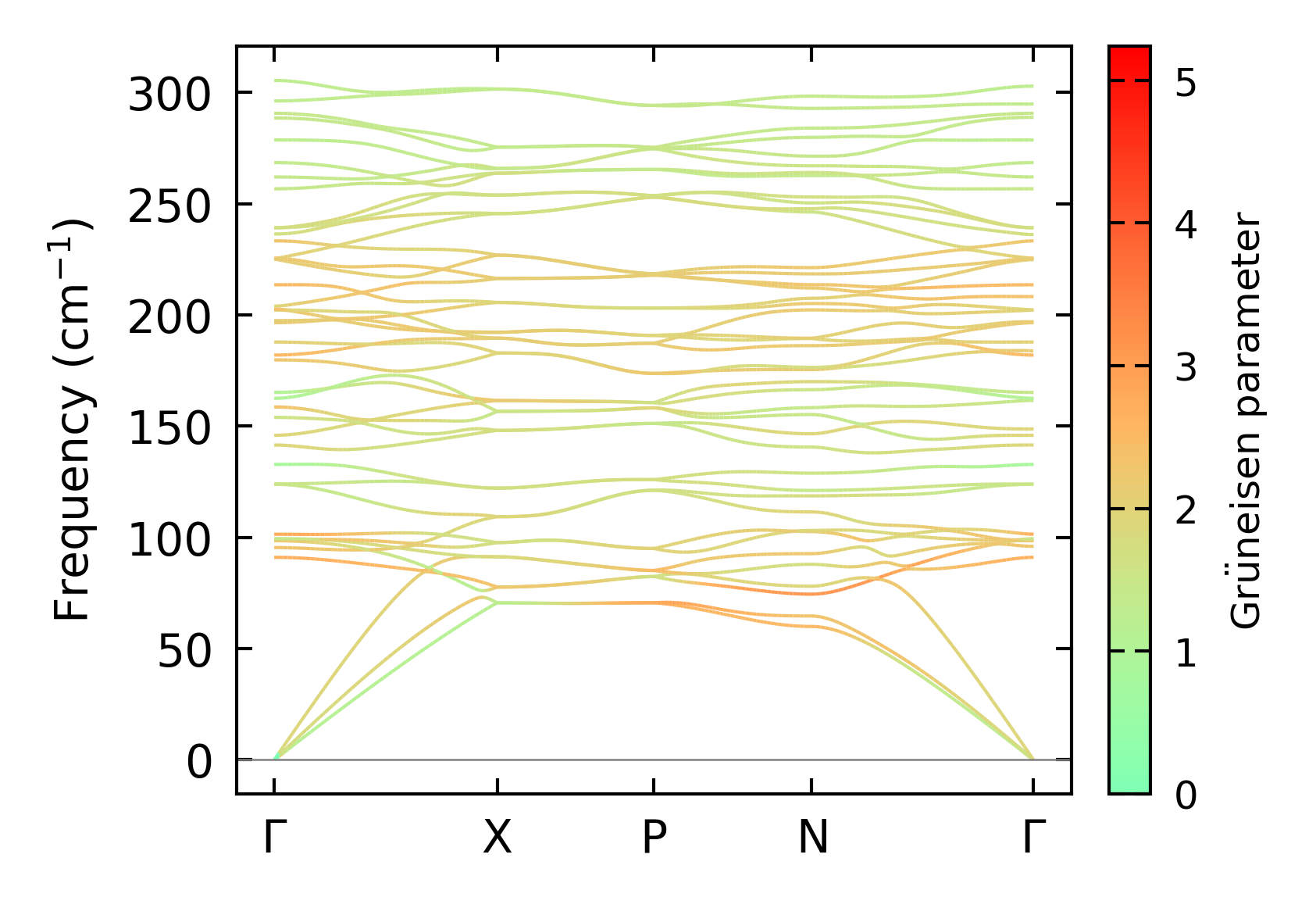

../../_images/fig_gruneisen4243.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x10, supercell: 2x2x1

../../_images/fig_kappa7998.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4296.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

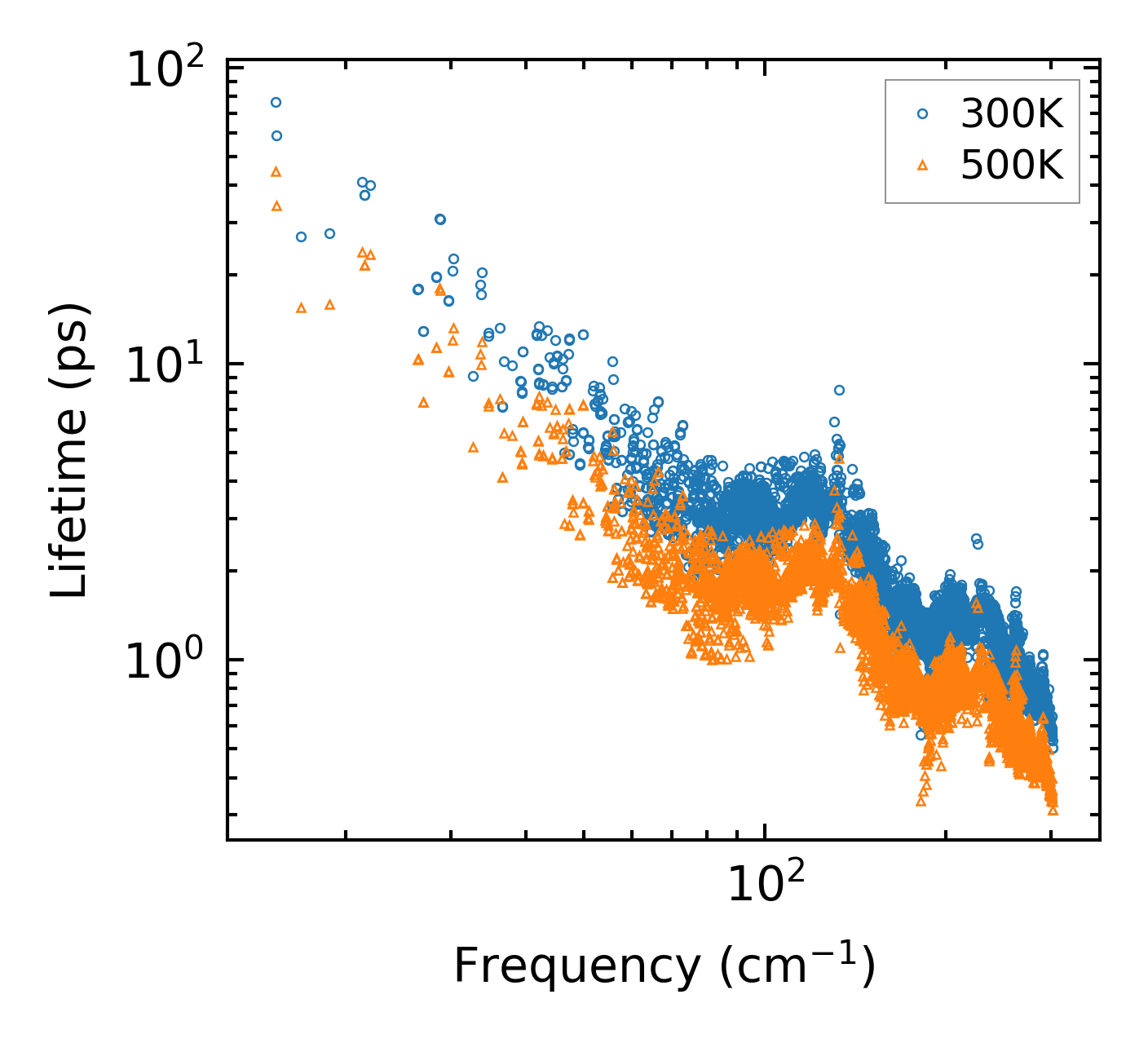

../../_images/fig_lifetime4202.png — (a) Phonon lifetime due to phonon-phonon scattering

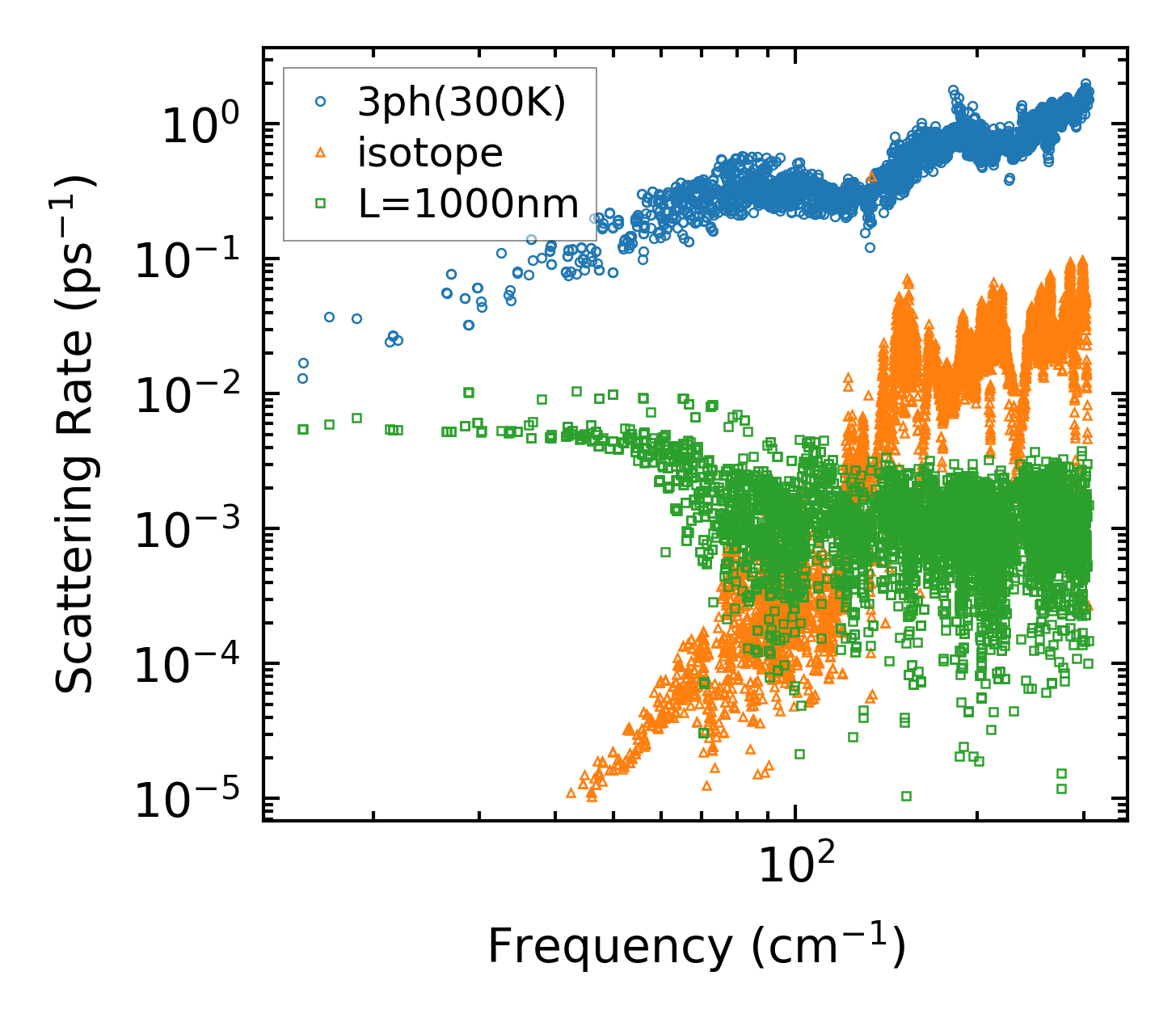

../../_images/fig_scat_rates4201.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4202.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

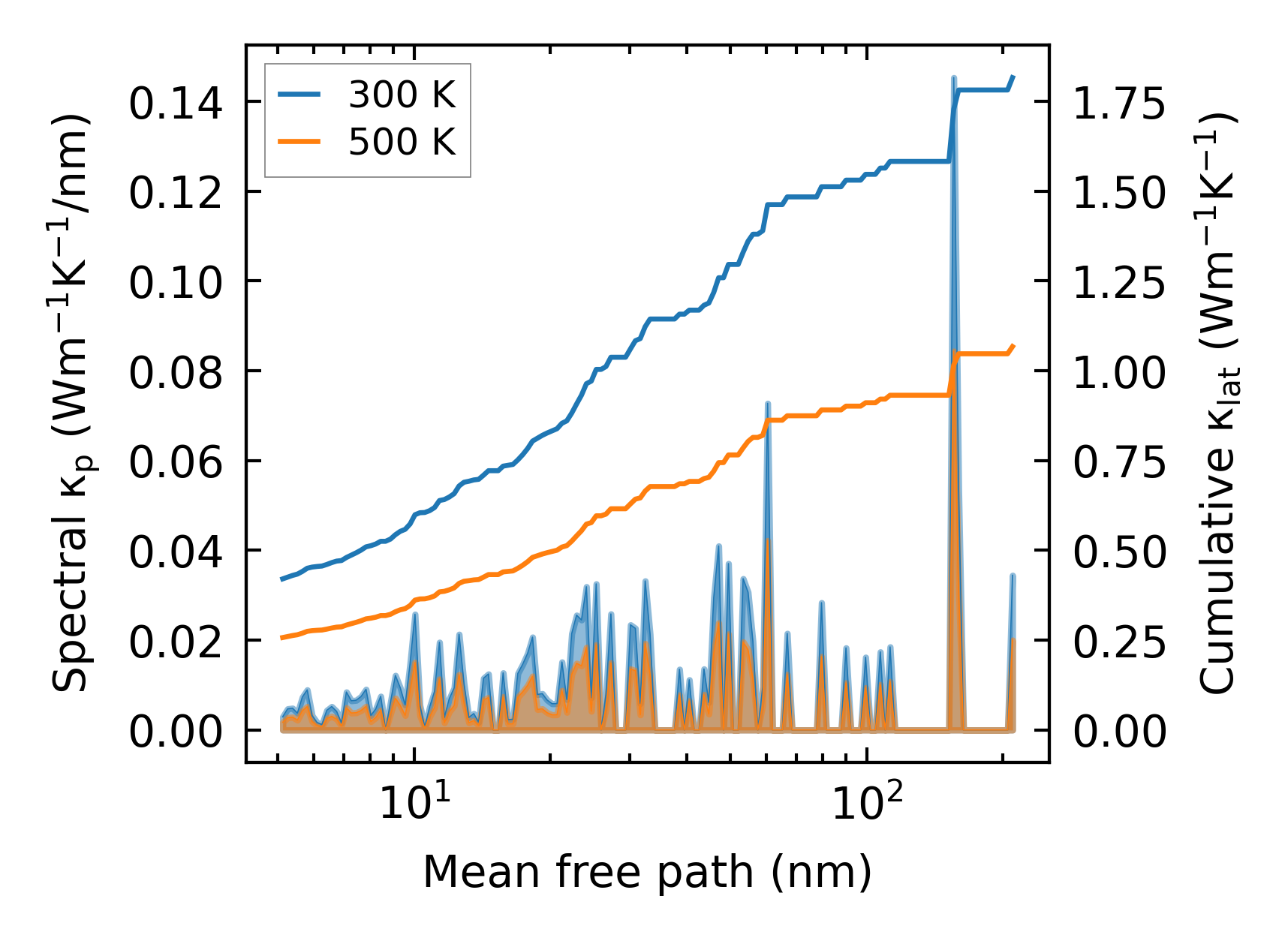

../../_images/fig_cumu_mfp4201.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

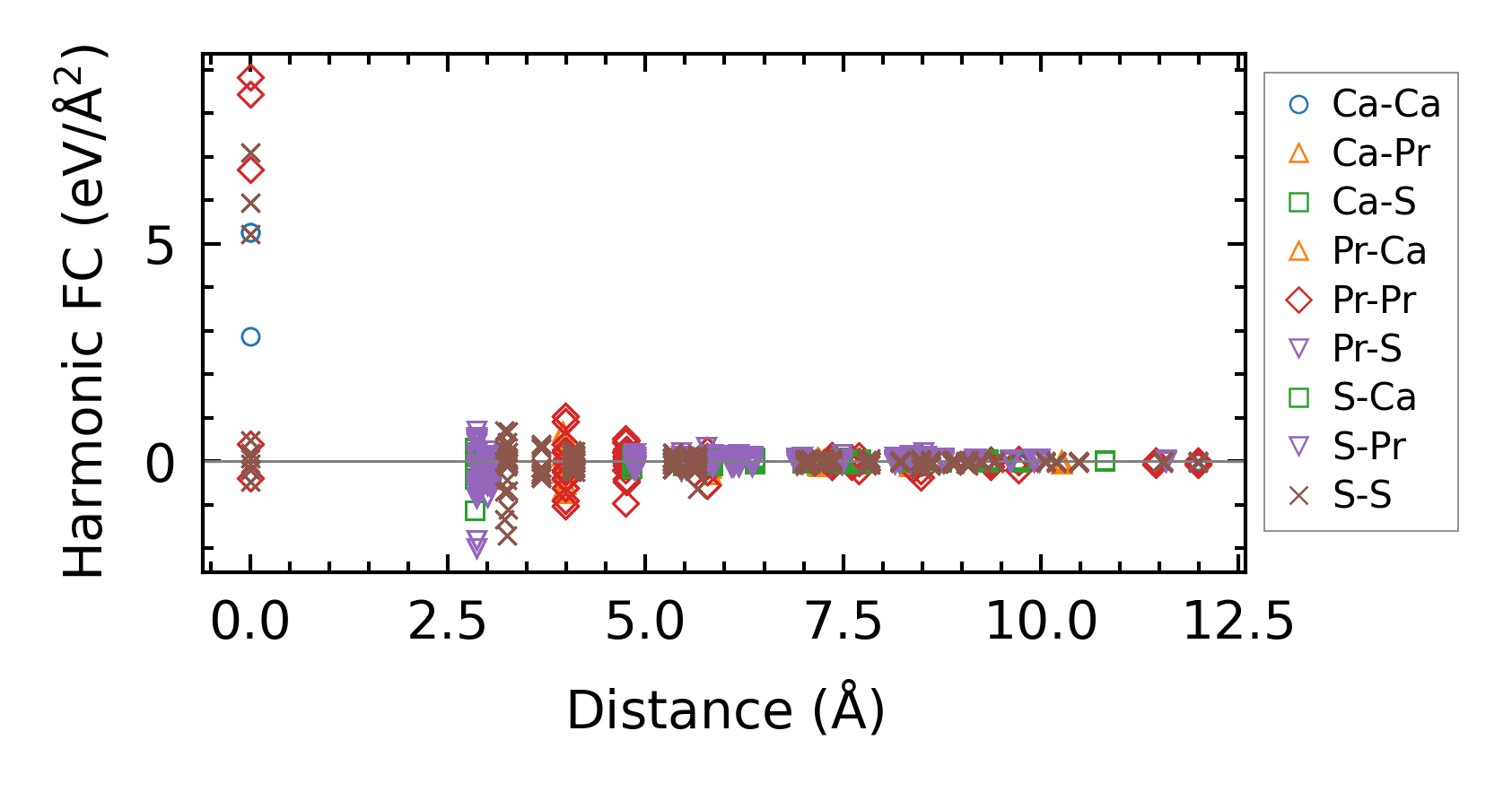

../../_images/fig_fc210209.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa7999.png — (a) Temperature-dependent lattice thermal conductivity

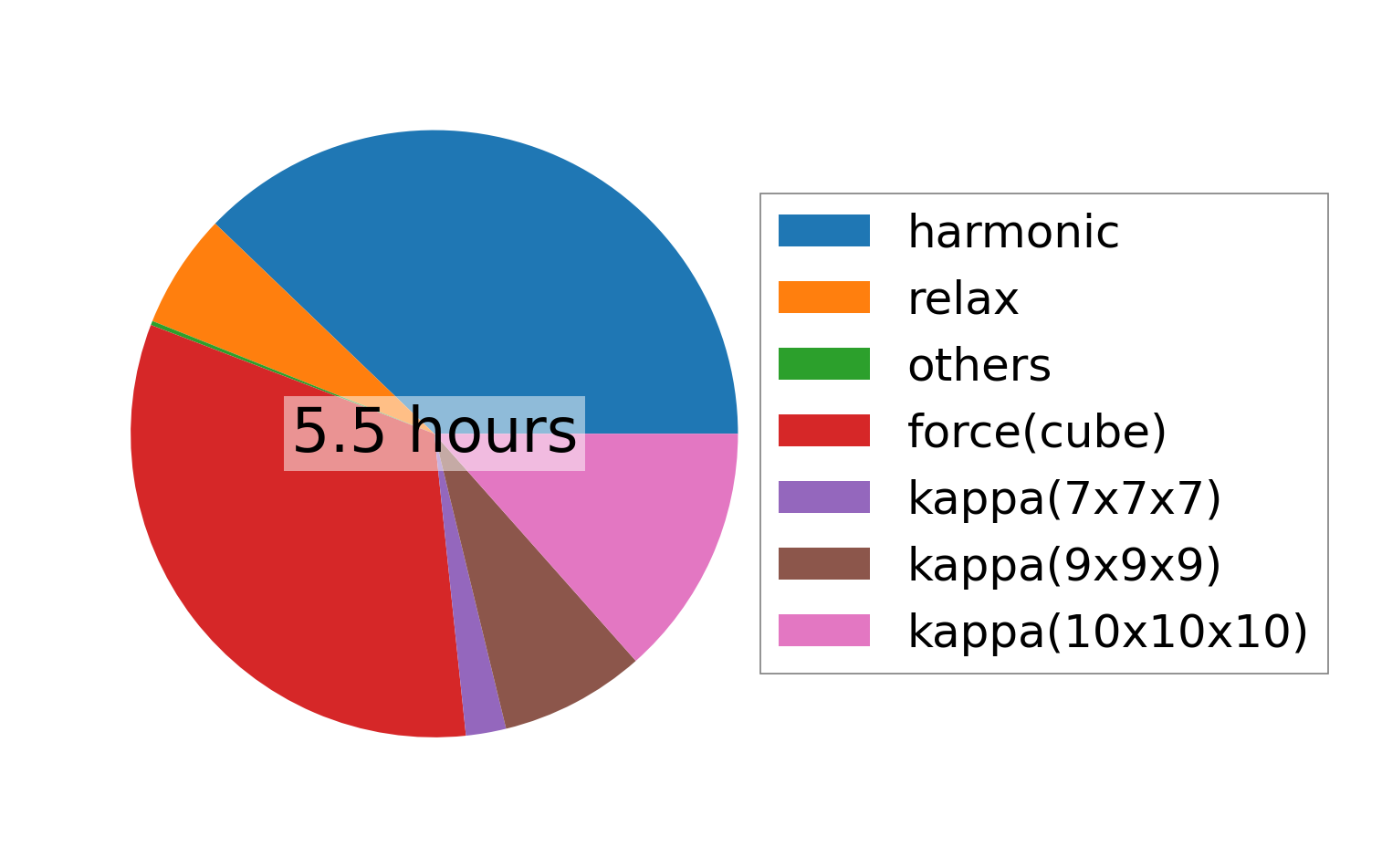

../../_images/fig_times18032.png — (b) Computation time
