mp-1225560/Er2O3/anharm

Space group: R3m (160)
Link: Materials Project
Download: mp-1225560.tar.gz

Harmonic properties

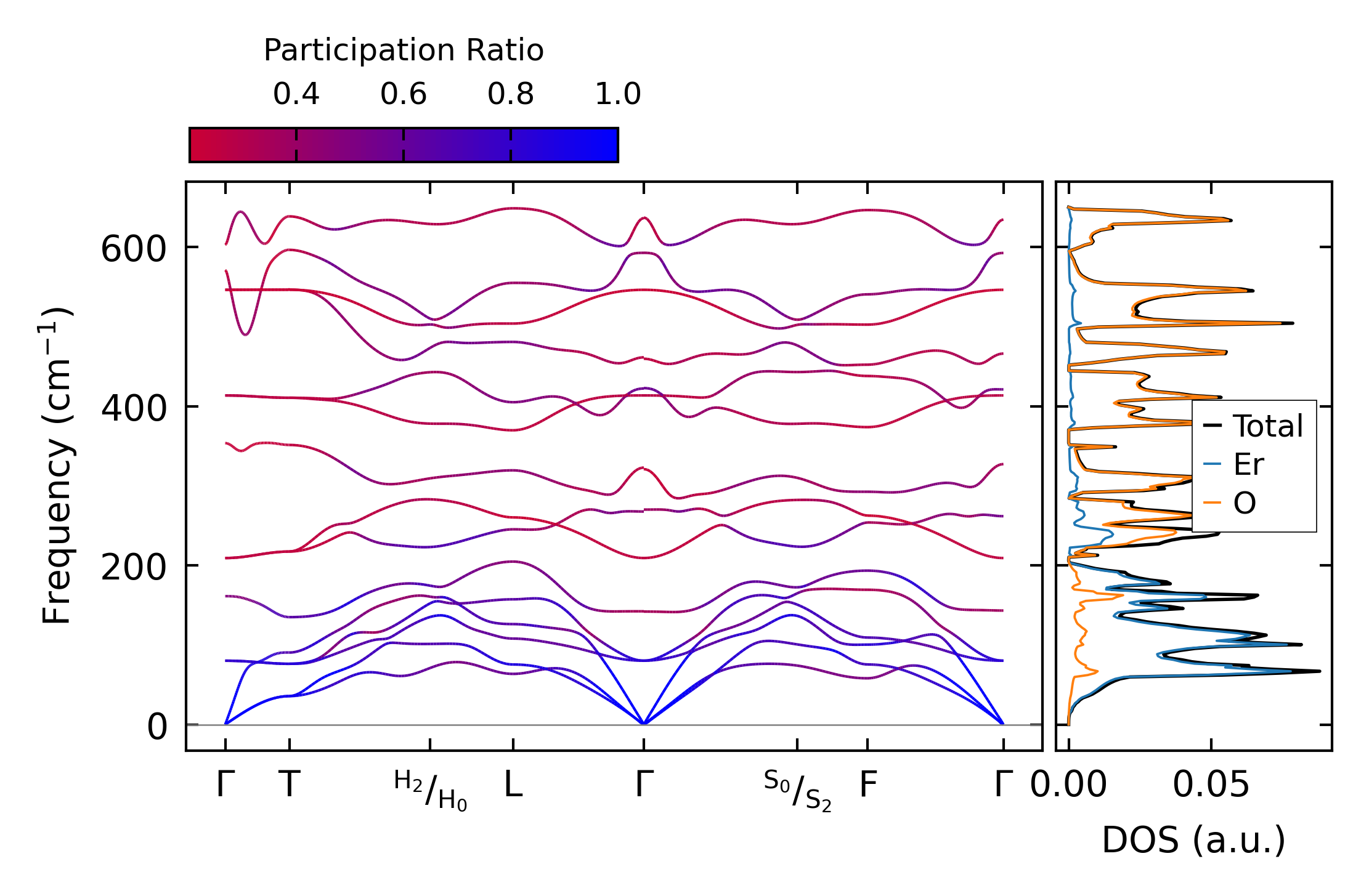

../../_images/fig_bandos_pr15079.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15078.png — (b) Thermodynamic properties

Grüneisen parameters

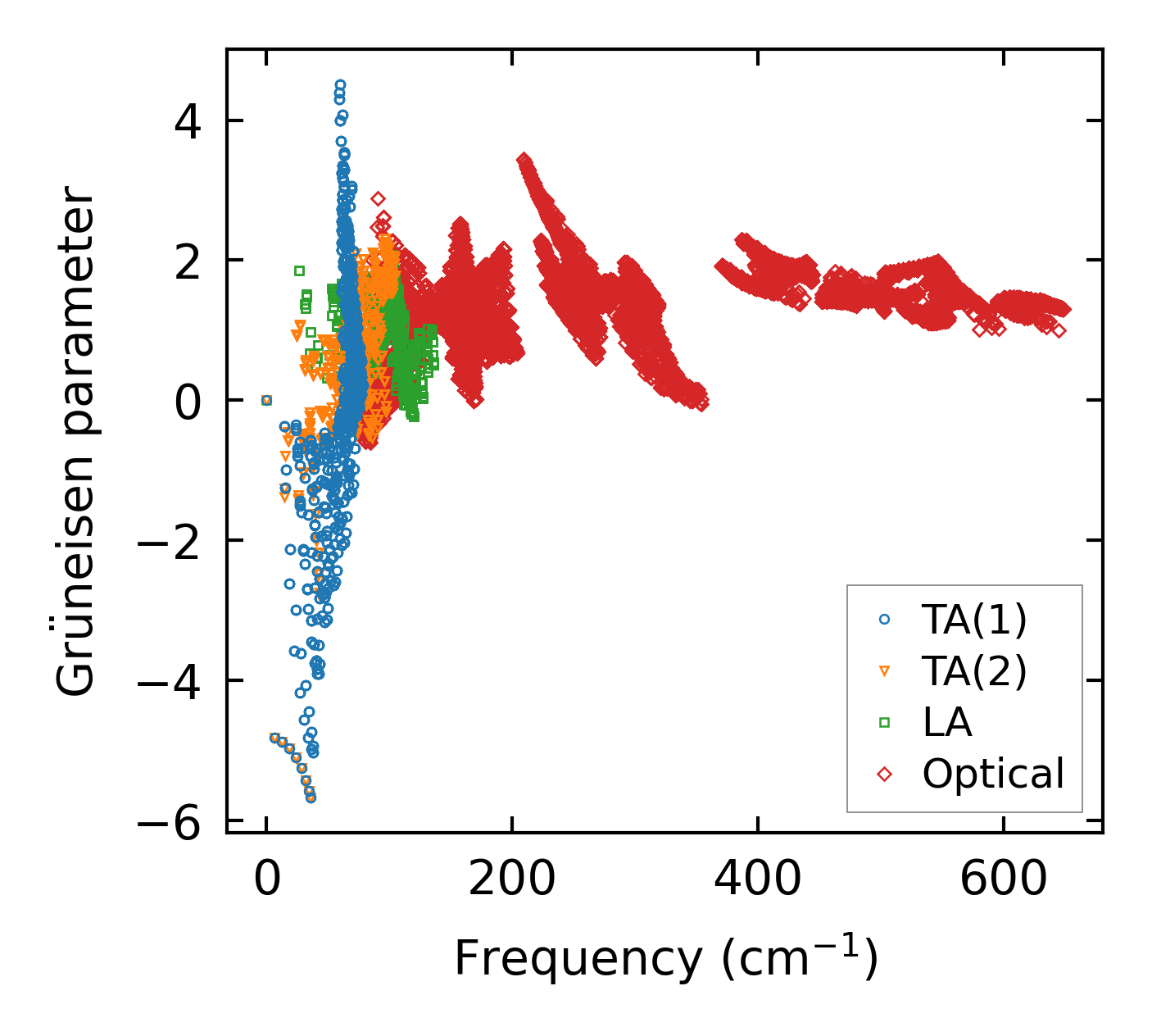

../../_images/fig_gru_all6477.png — (a) Grüneisen parameters

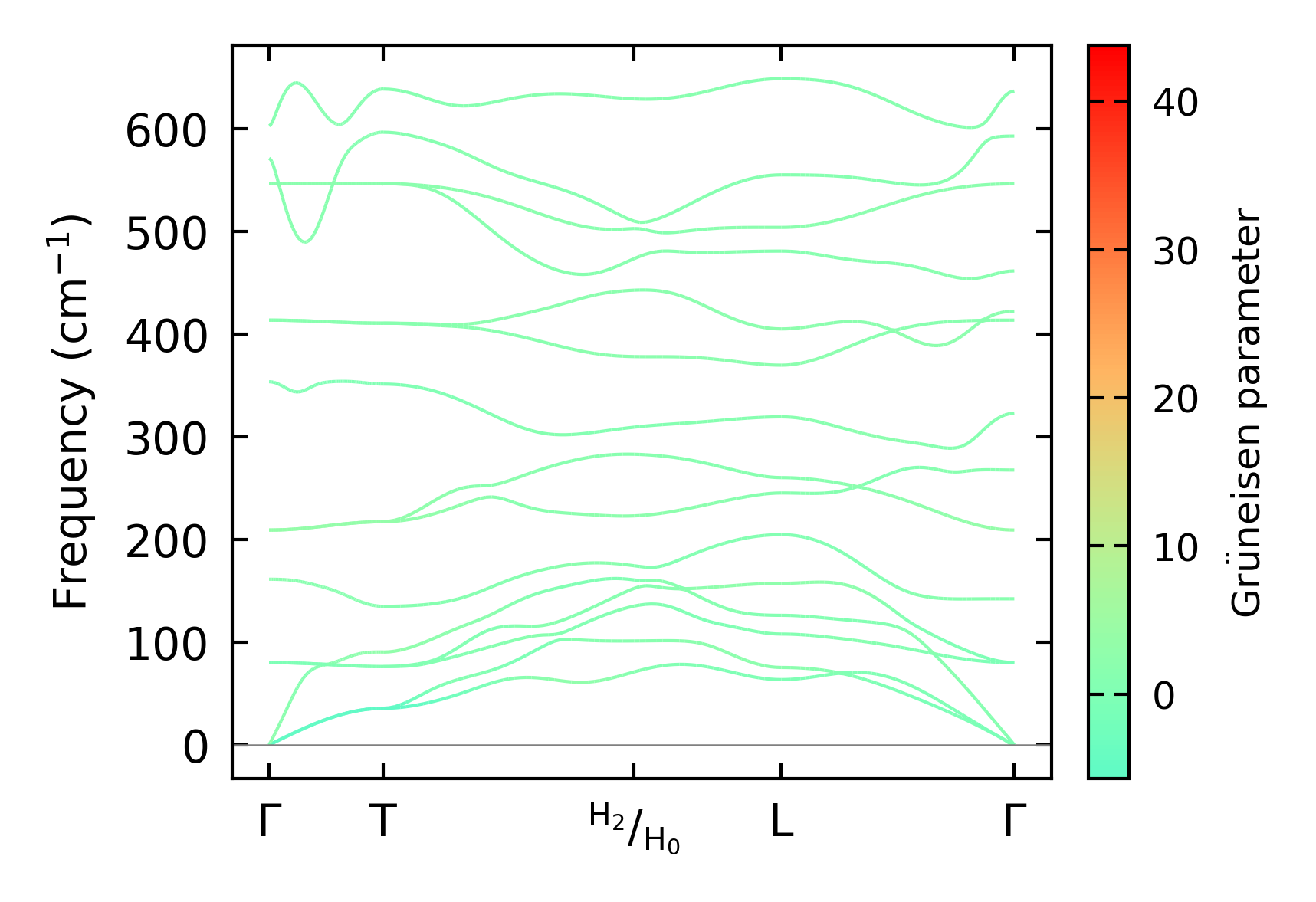

../../_images/fig_gruneisen6477.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 17x17x17, supercell: 3x3x1

../../_images/fig_kappa12184.png — (a) Temperature-dependent lattice thermal conductivity

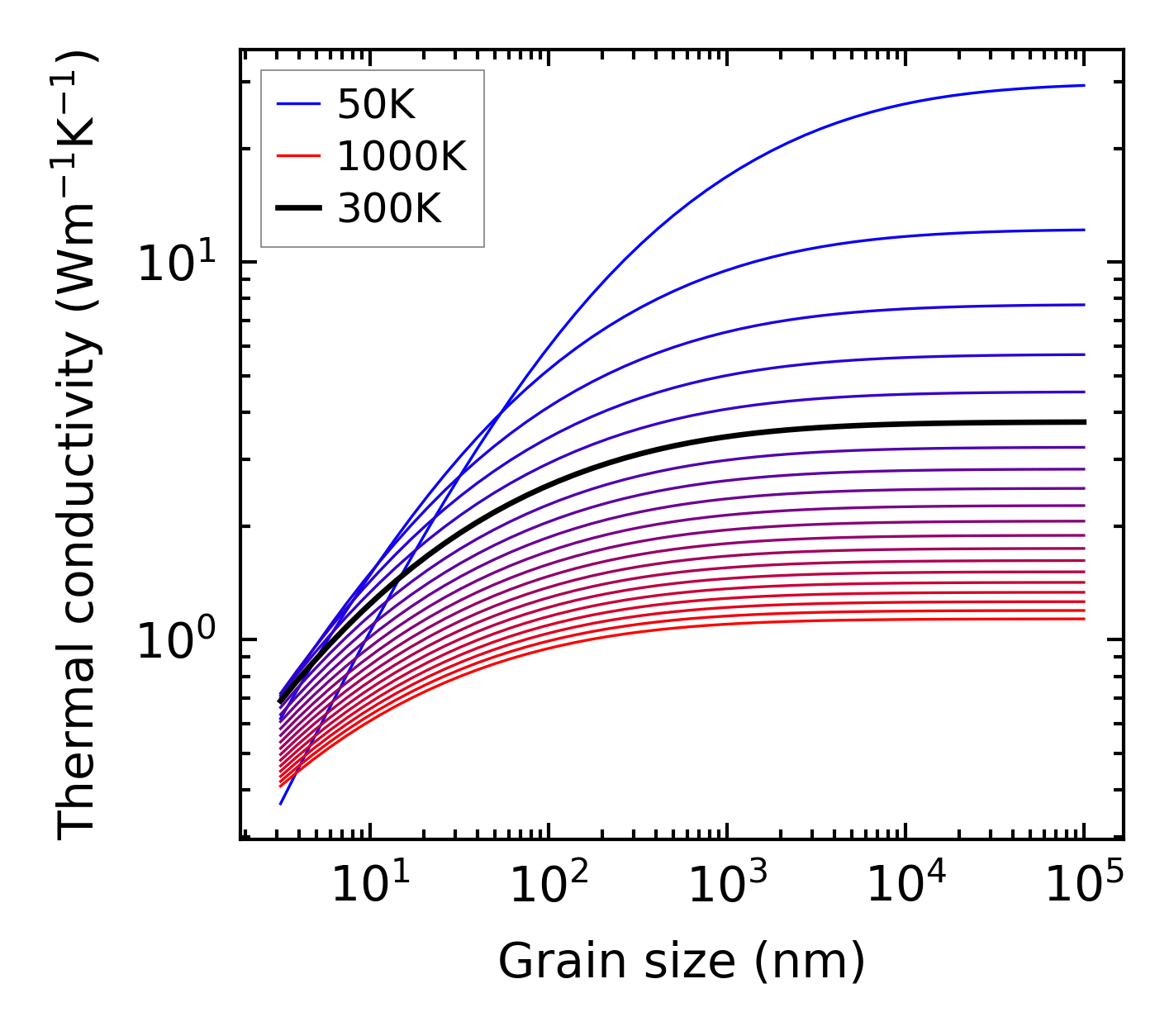

../../_images/fig_kappa_vs_grain_size6554.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime6411.png — (a) Phonon lifetime due to phonon-phonon scattering

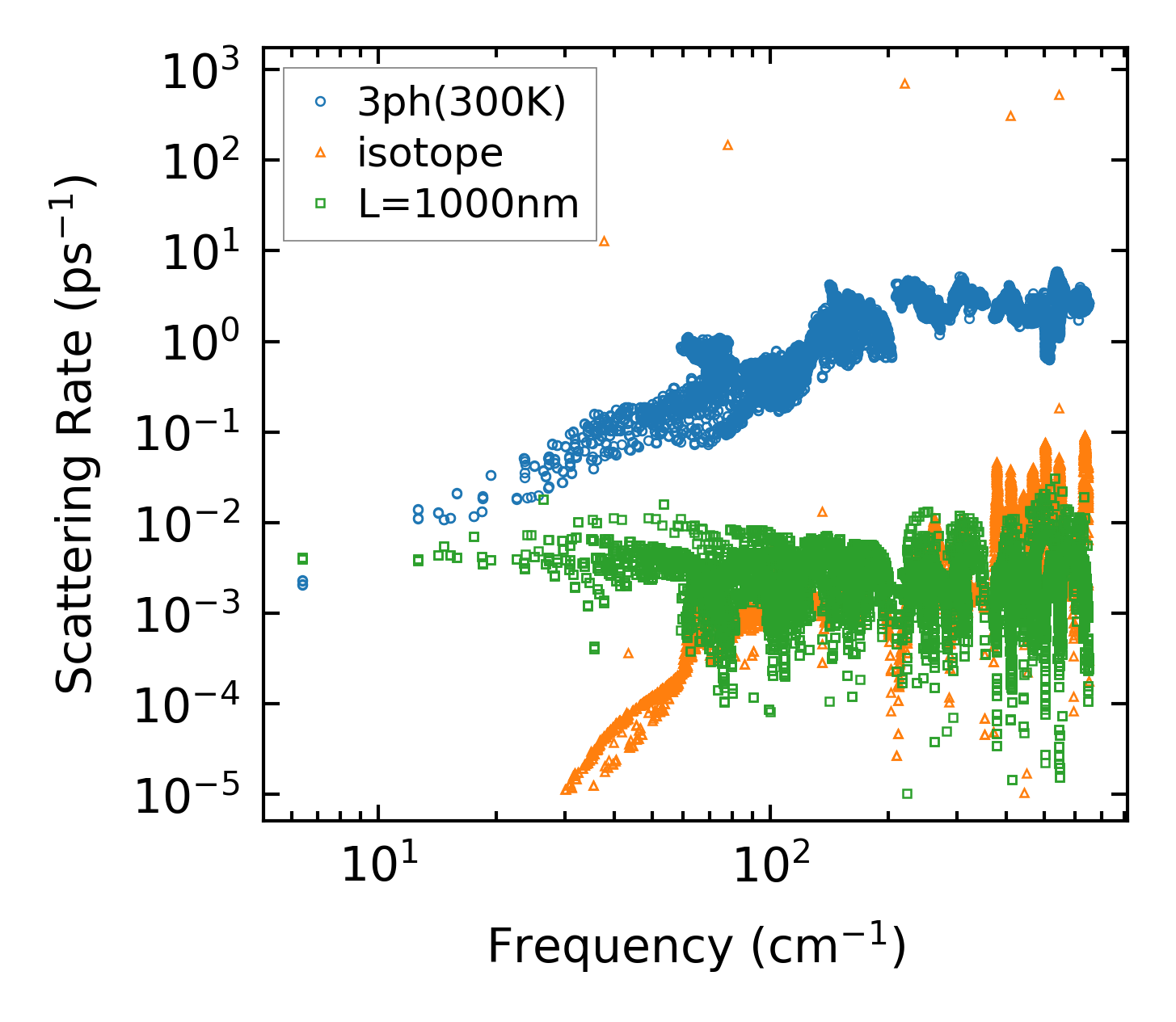

../../_images/fig_scat_rates6410.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

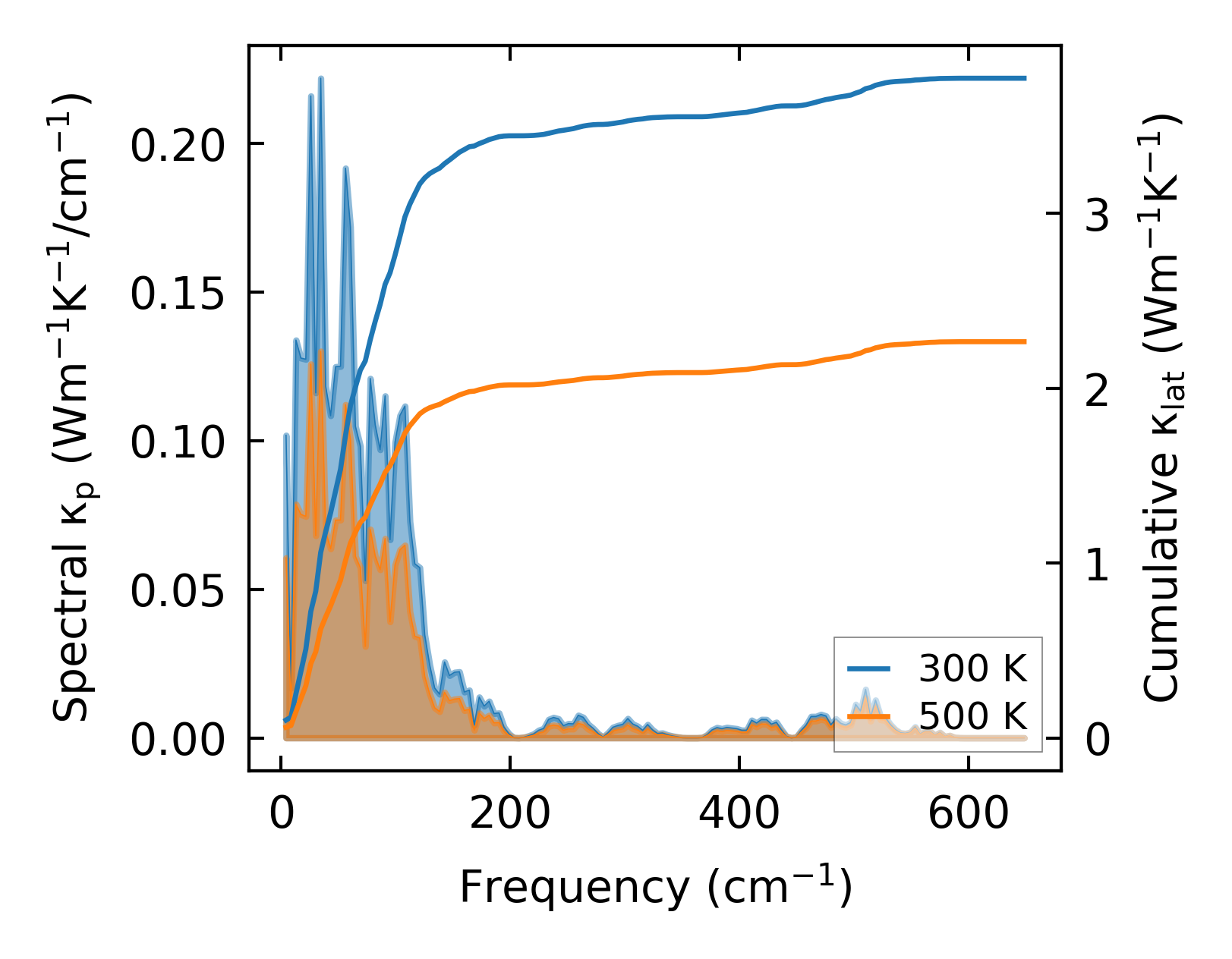

../../_images/fig_cumu_frequency6411.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

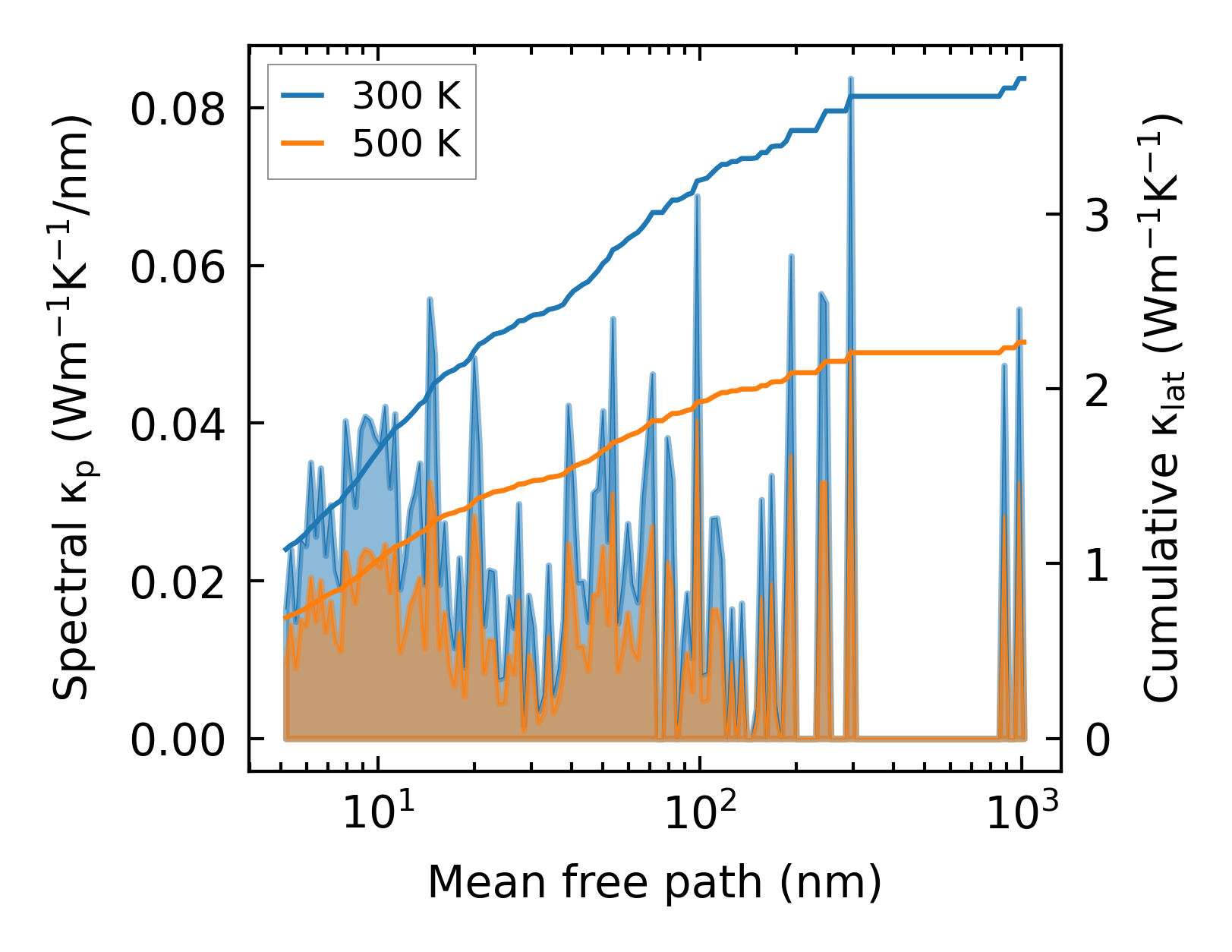

../../_images/fig_cumu_mfp6410.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc214695.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa12185.png — (a) Temperature-dependent lattice thermal conductivity

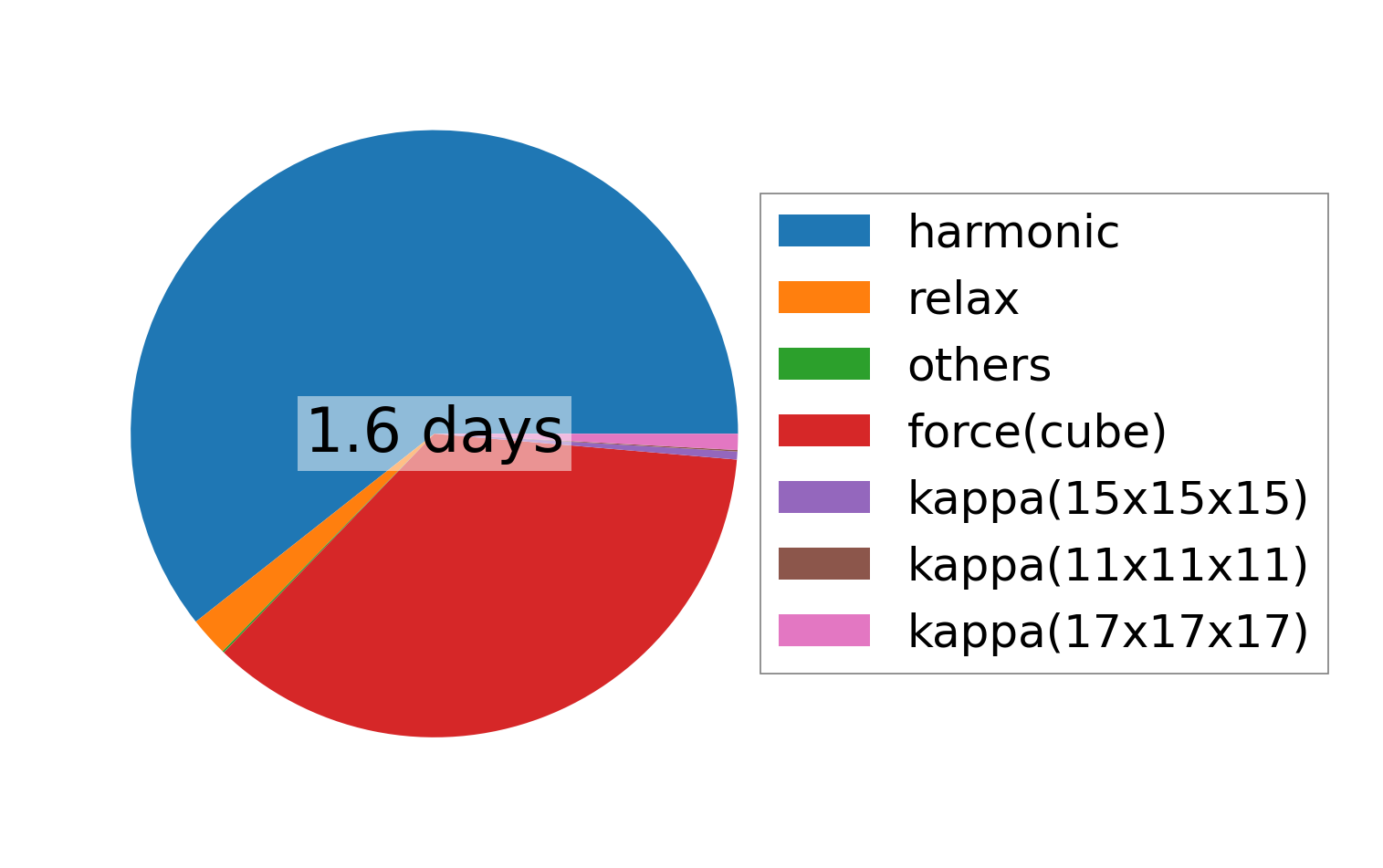

../../_images/fig_times24952.png — (b) Computation time
