mp-1217314/TeMo2Se3/anharm

Space group: P3m1 (156)
Link: Materials Project
Download: mp-1217314.tar.gz

Harmonic properties

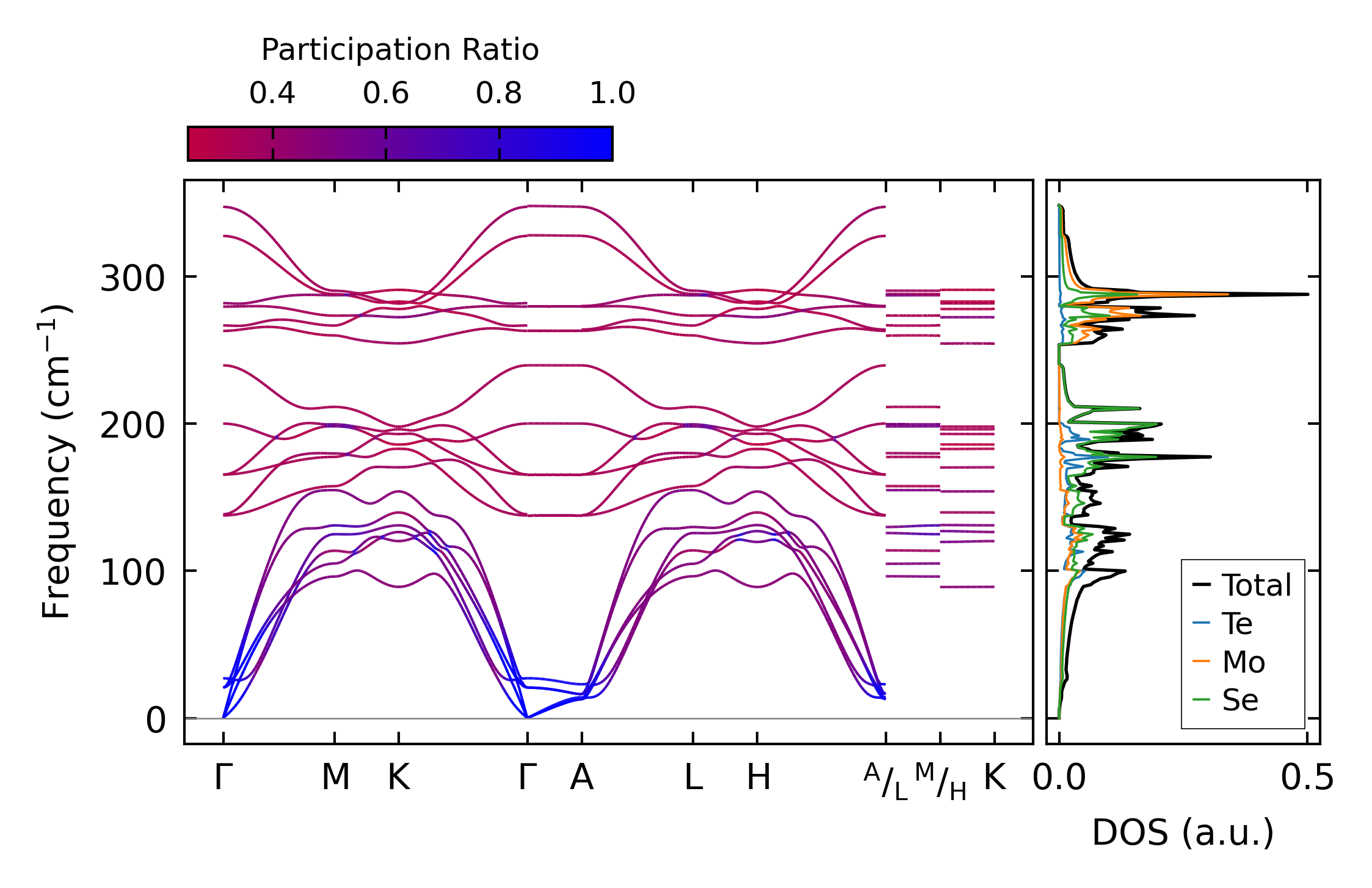

../../_images/fig_bandos_pr15223.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15222.png — (b) Thermodynamic properties

Grüneisen parameters

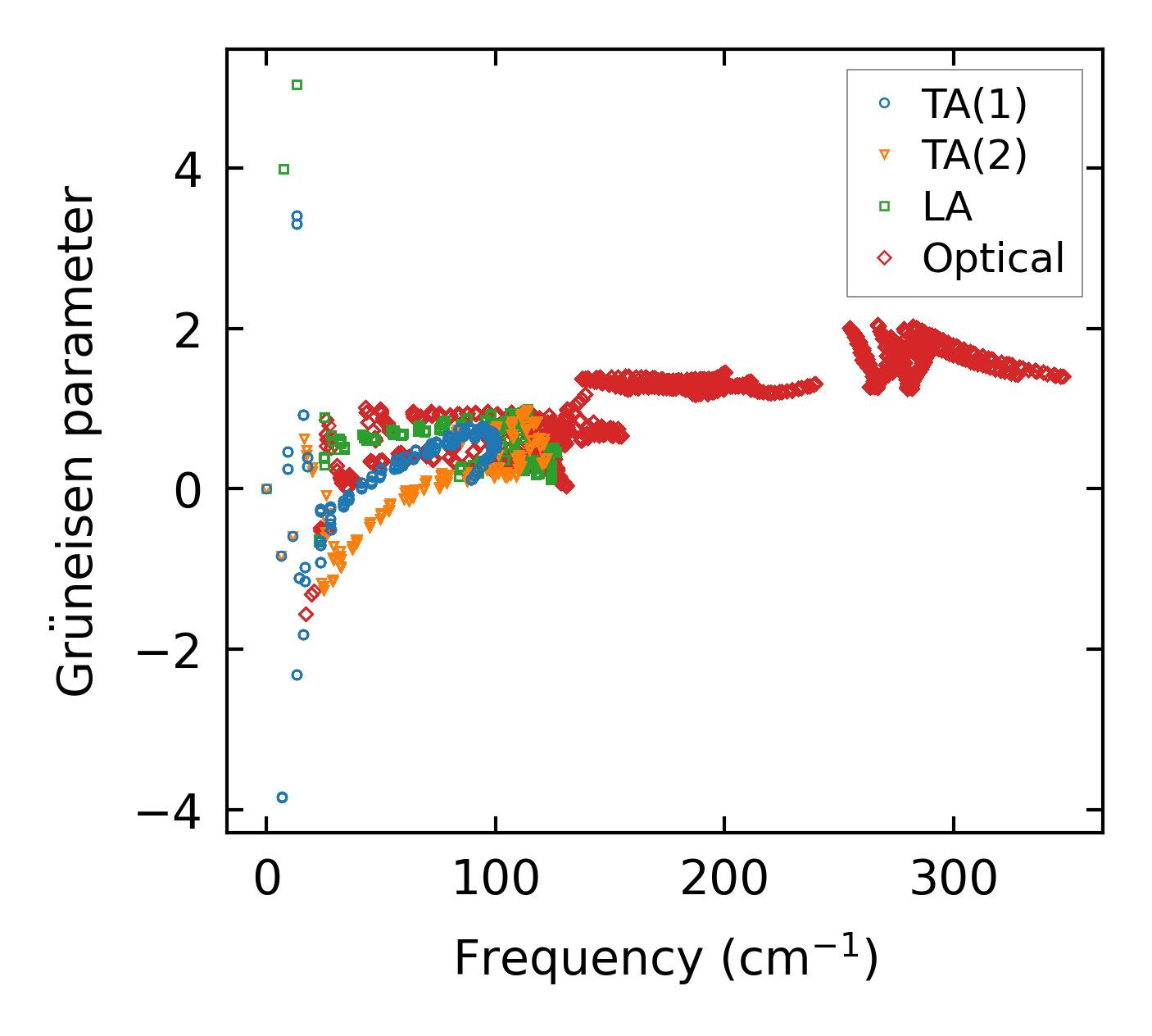

../../_images/fig_gru_all6553.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6553.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 22x22x5, supercell: 5x5x1

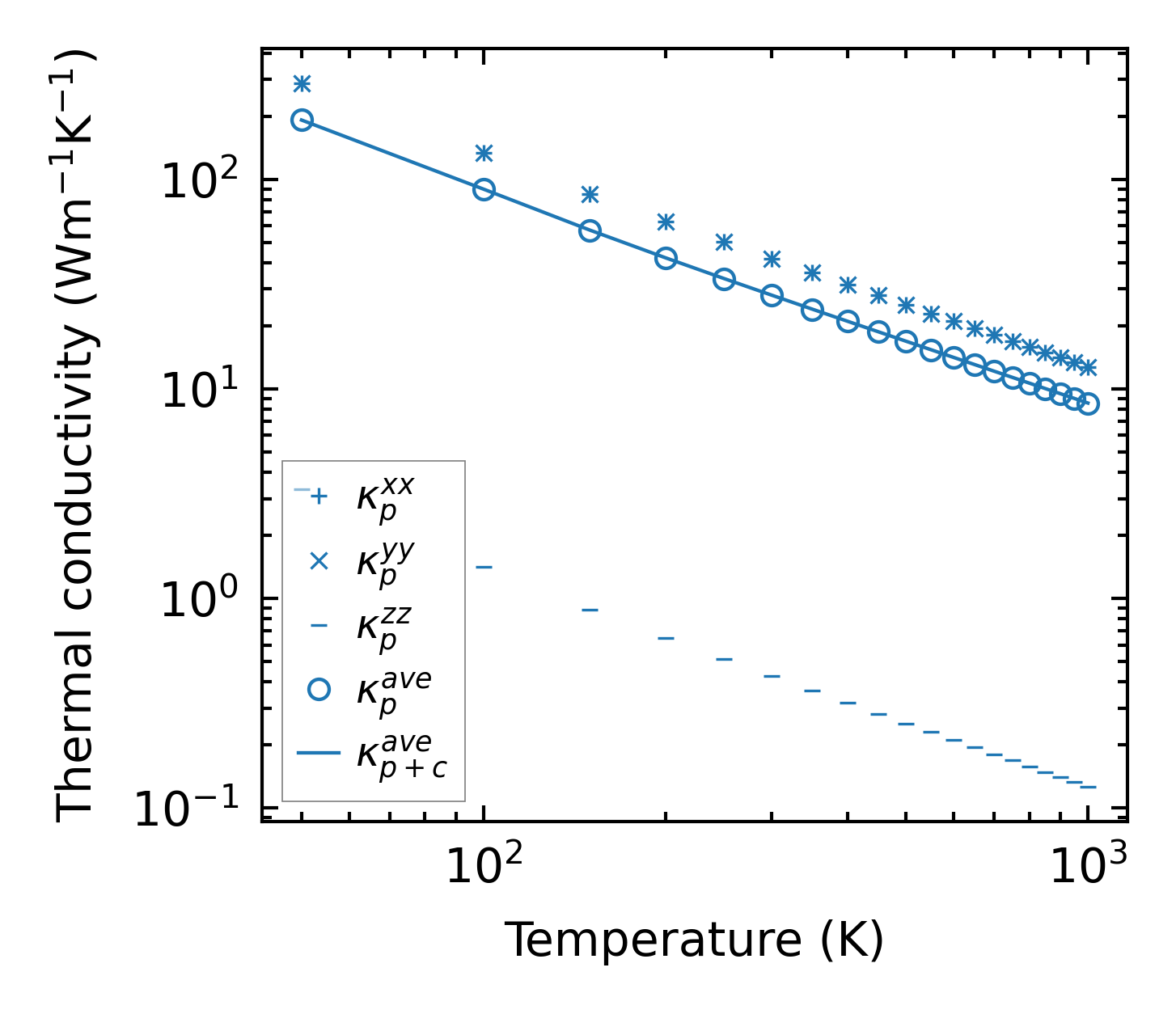

../../_images/fig_kappa12333.png — (a) Temperature-dependent lattice thermal conductivity

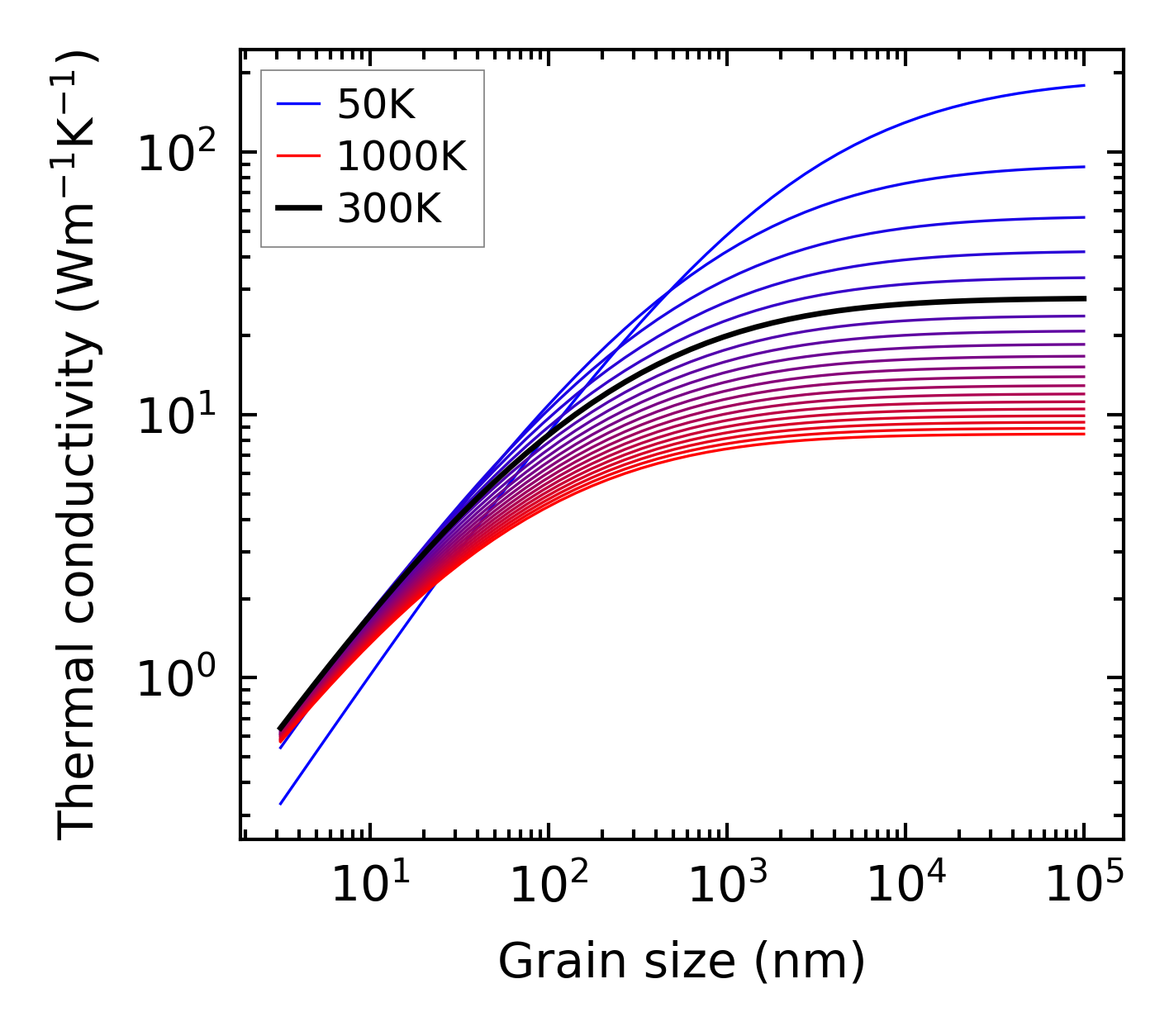

../../_images/fig_kappa_vs_grain_size6630.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

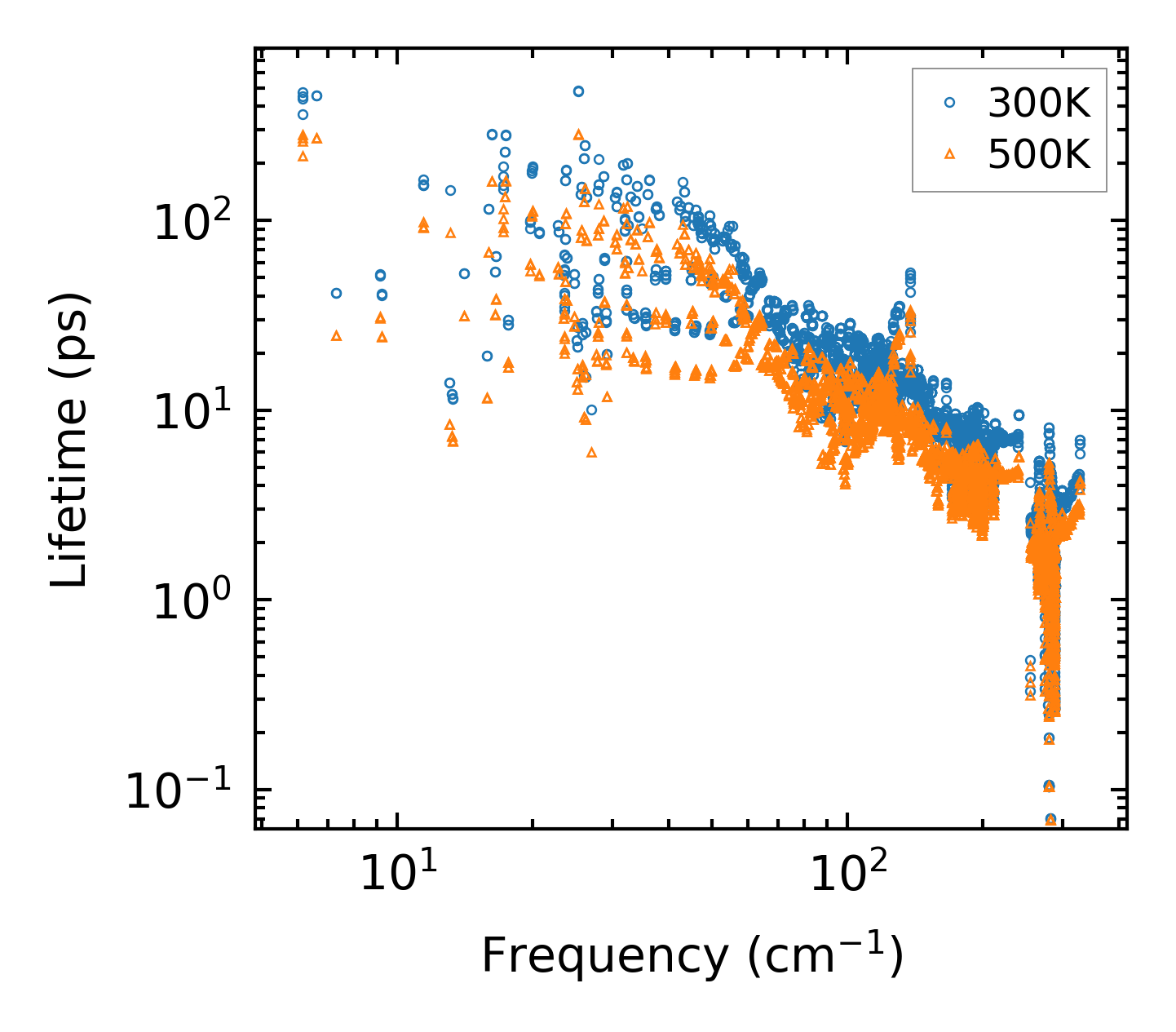

../../_images/fig_lifetime6487.png — (a) Phonon lifetime due to phonon-phonon scattering

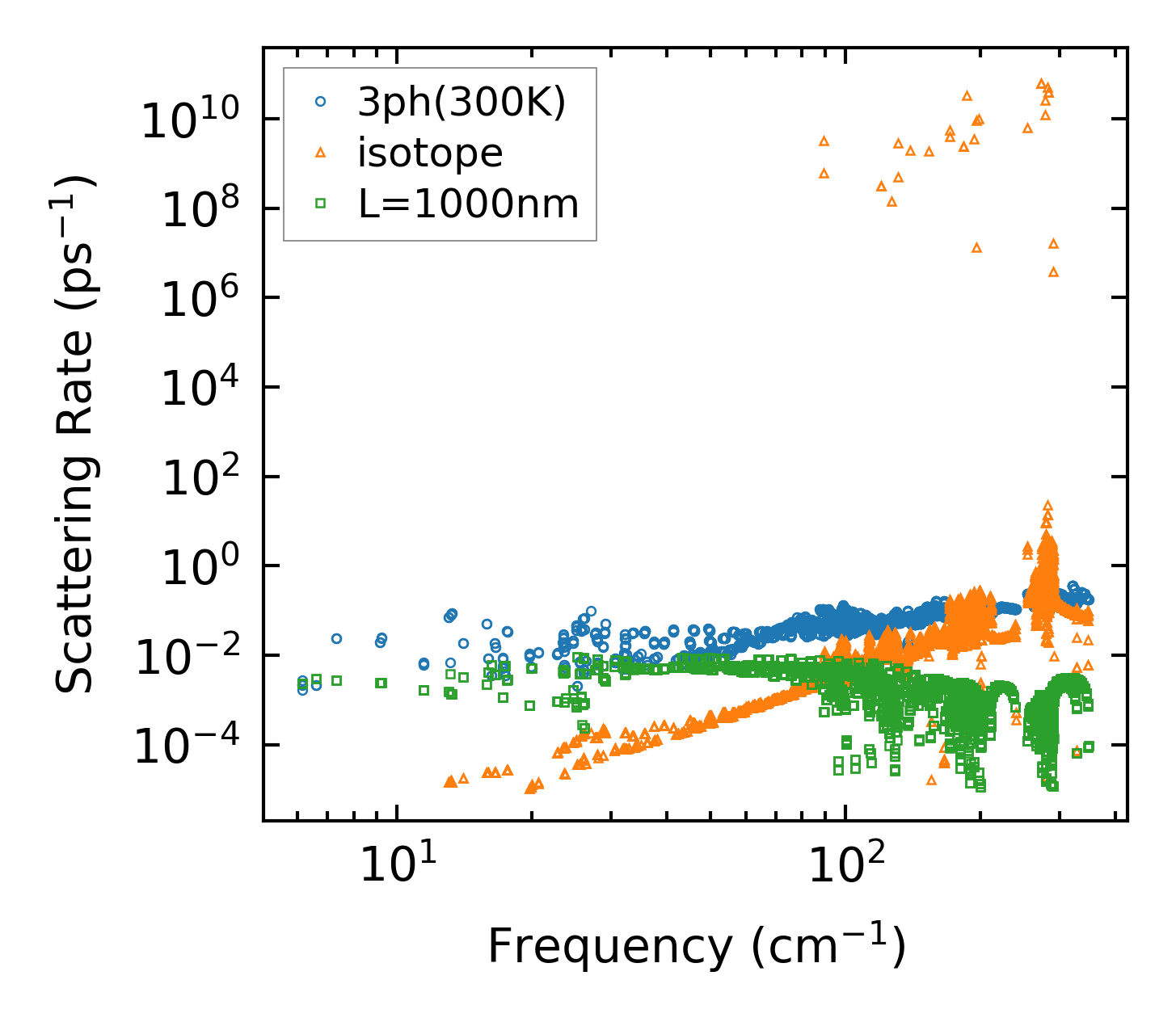

../../_images/fig_scat_rates6486.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

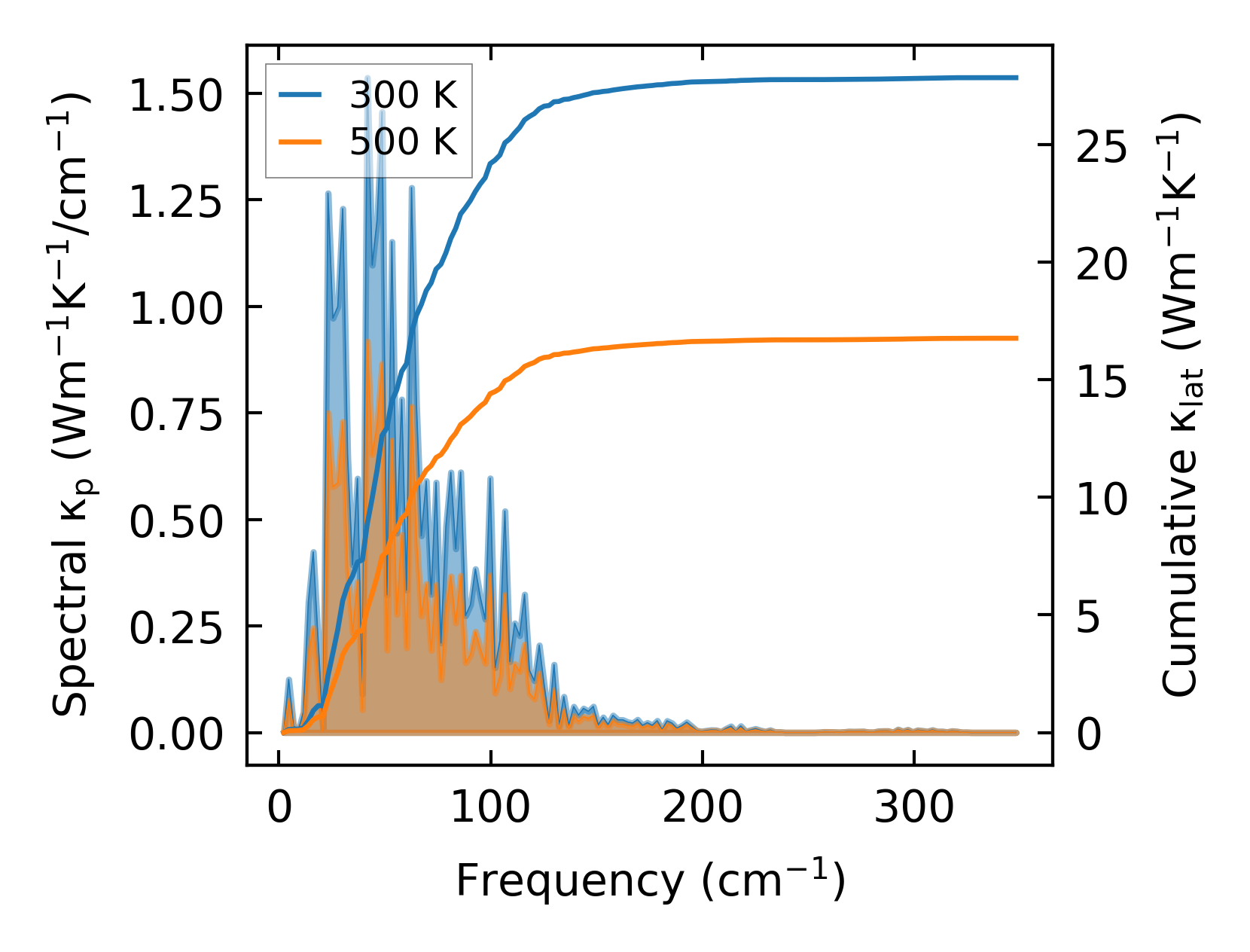

../../_images/fig_cumu_frequency6487.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

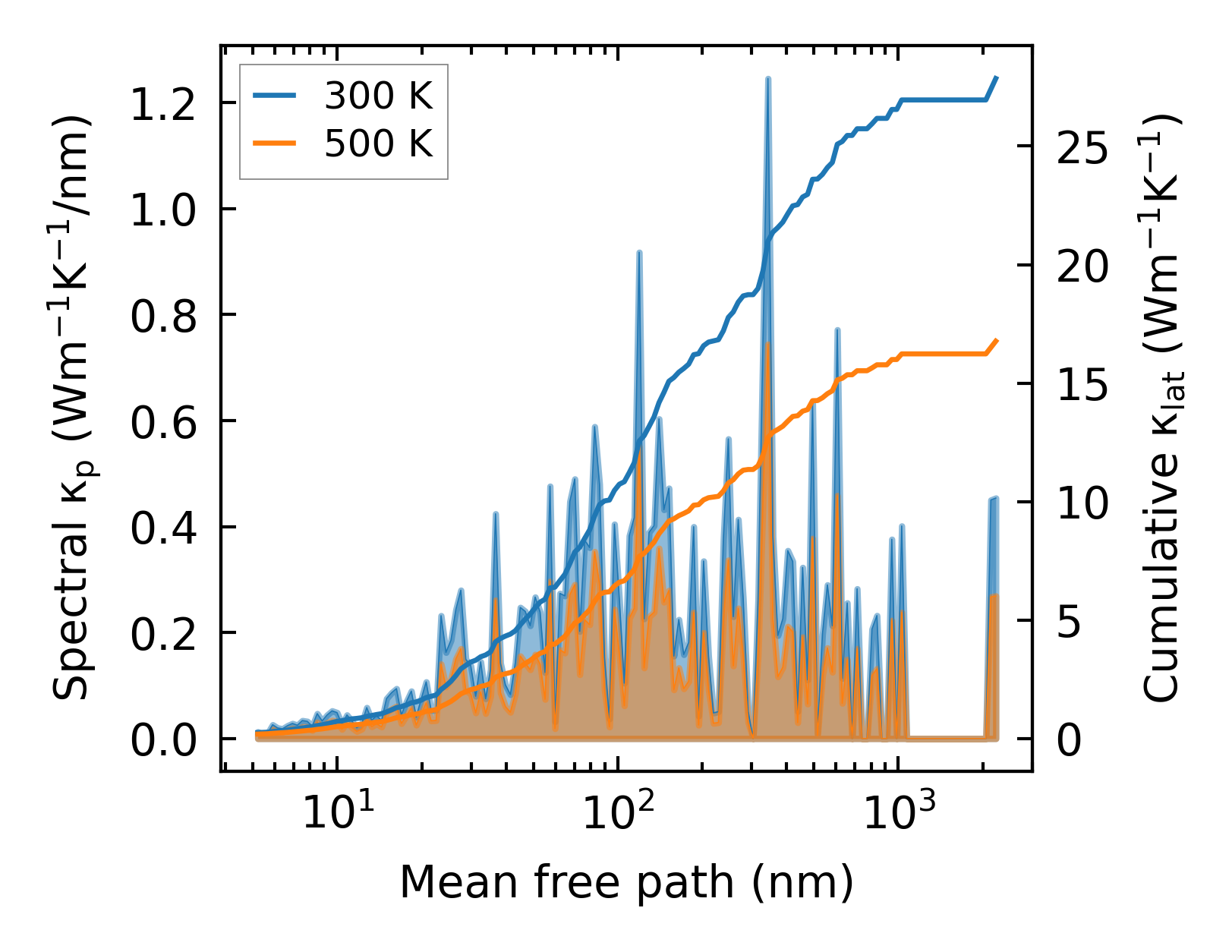

../../_images/fig_cumu_mfp6486.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

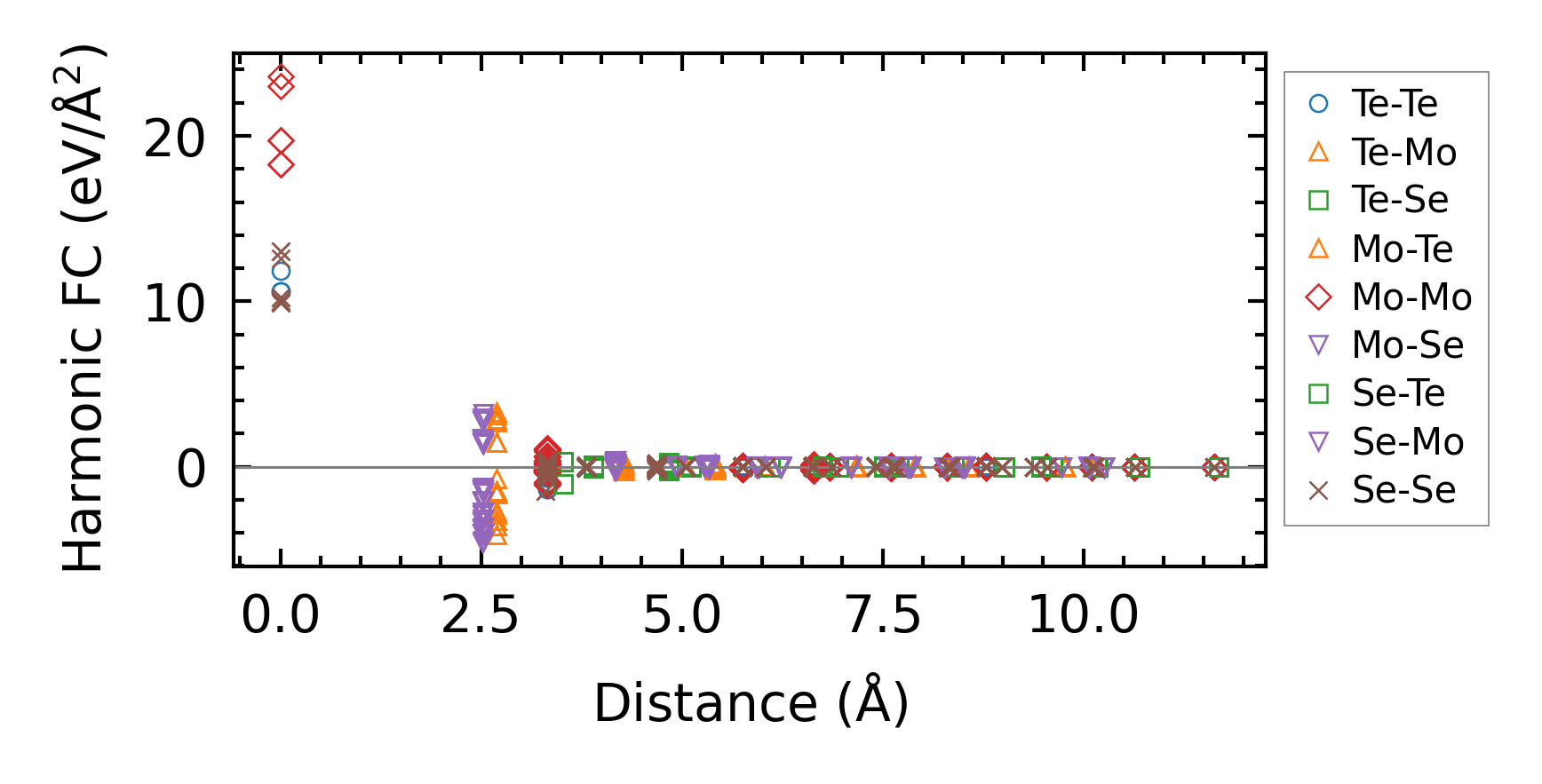

../../_images/fig_fc214835.png — (a) Force constants w.r.t atomic distance

Summary

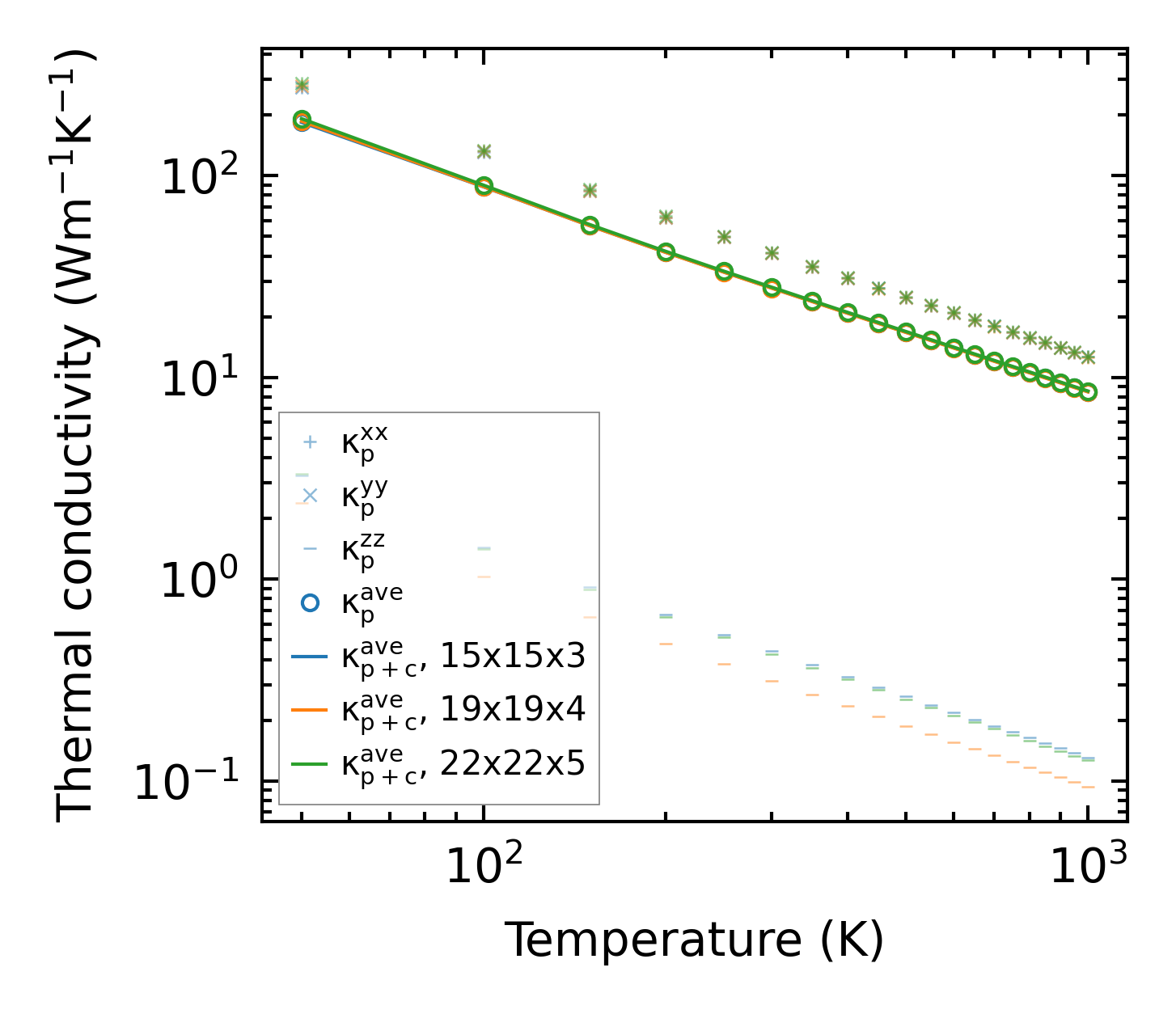

../../_images/fig_kappa12334.png — (a) Temperature-dependent lattice thermal conductivity

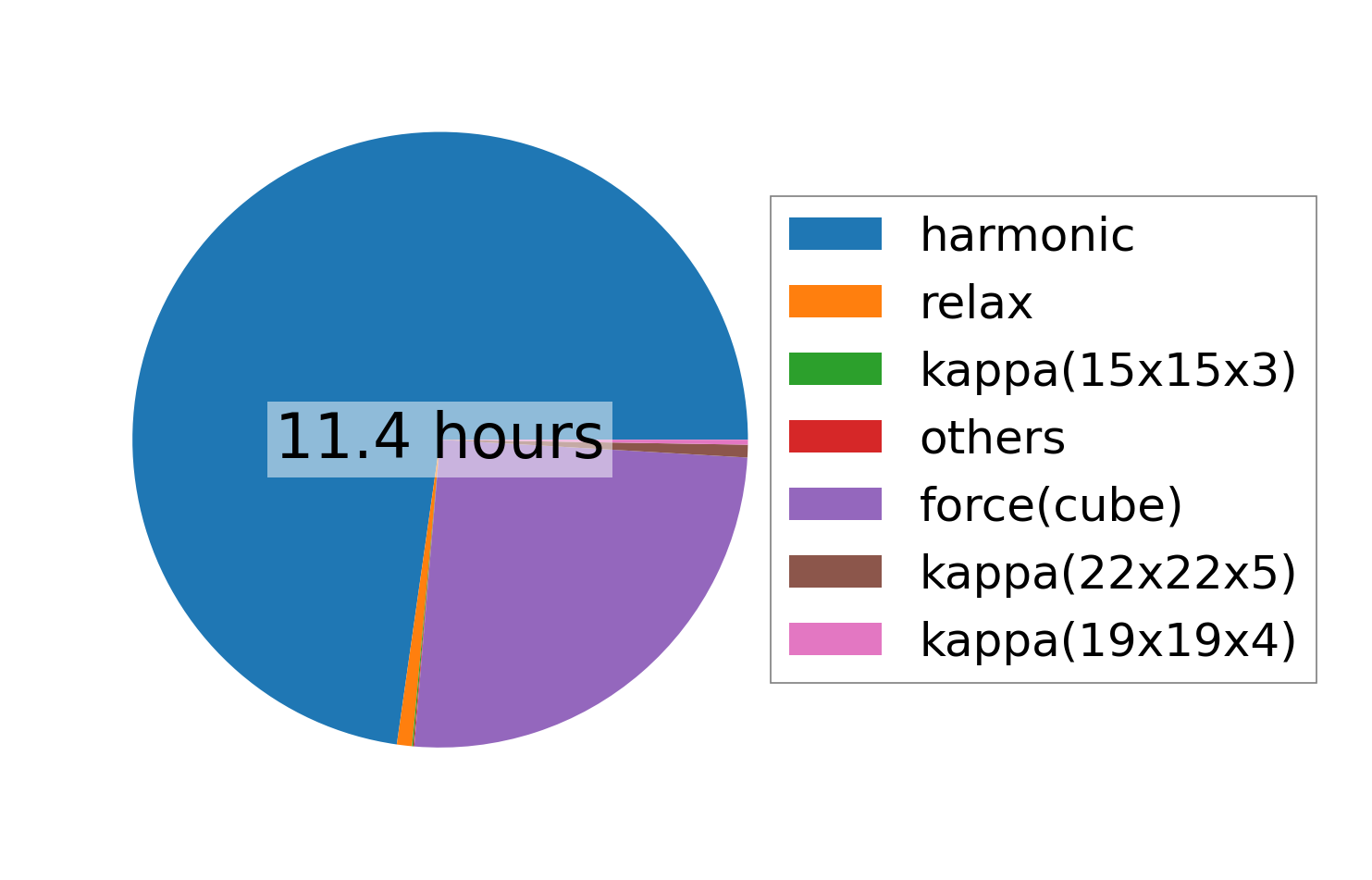

../../_images/fig_times25193.png — (b) Computation time
