mp-1217281/Th2AsNO/anharm

Space group: P3m1 (156)
Link: Materials Project
Download: mp-1217281.tar.gz

Harmonic properties

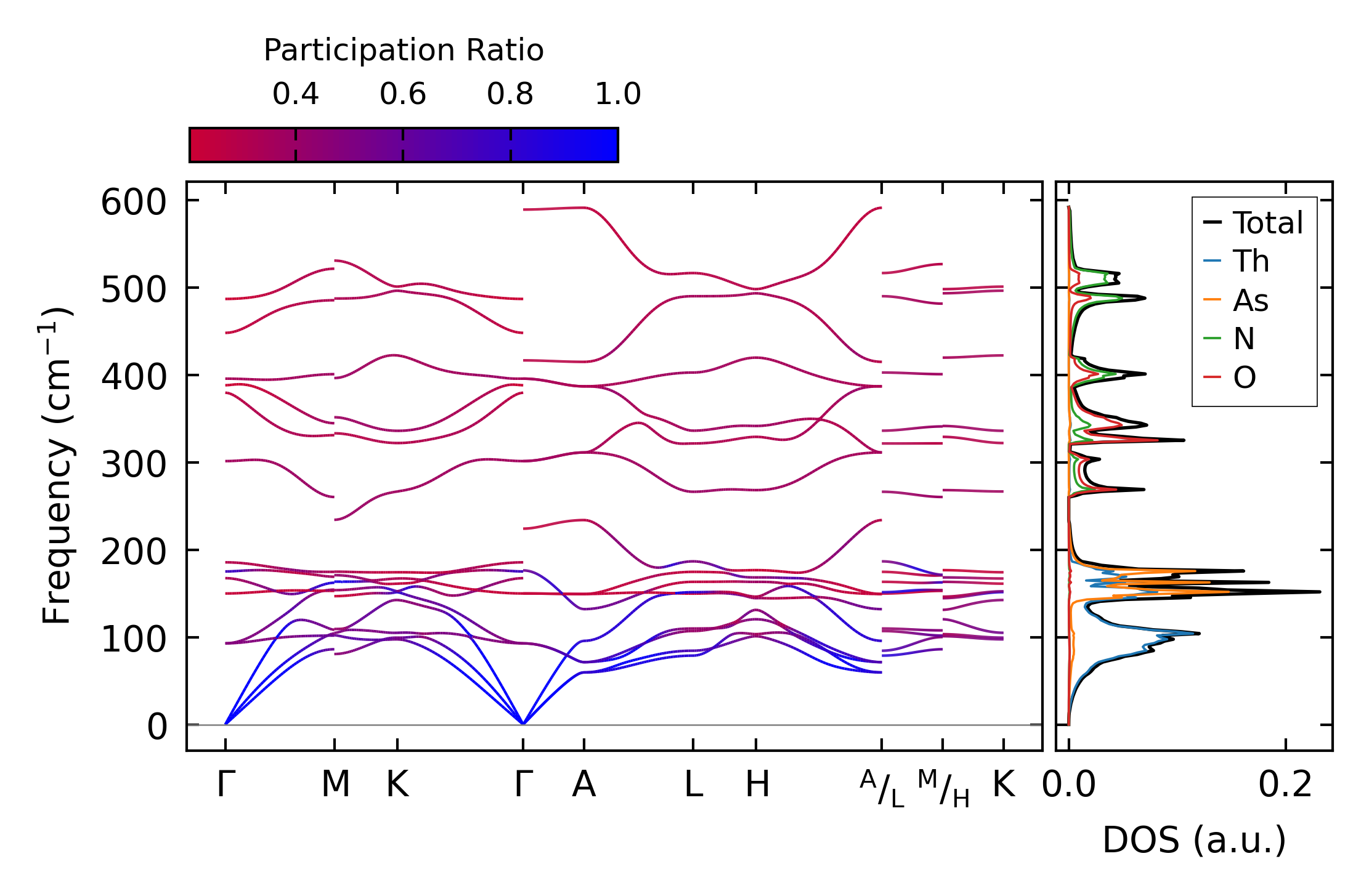

../../_images/fig_bandos_pr15221.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15220.png — (b) Thermodynamic properties

Grüneisen parameters

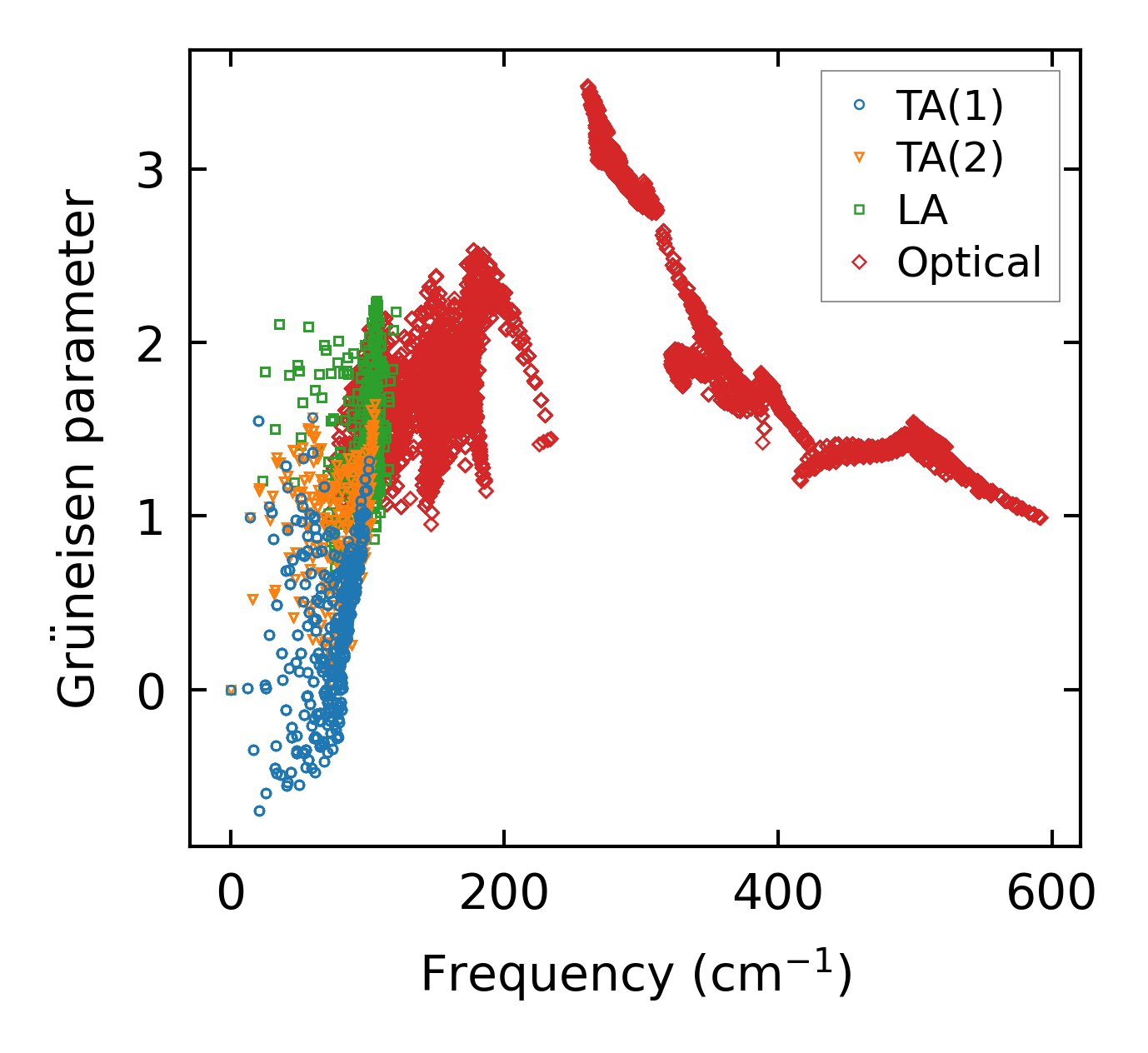

../../_images/fig_gru_all6551.png — (a) Grüneisen parameters

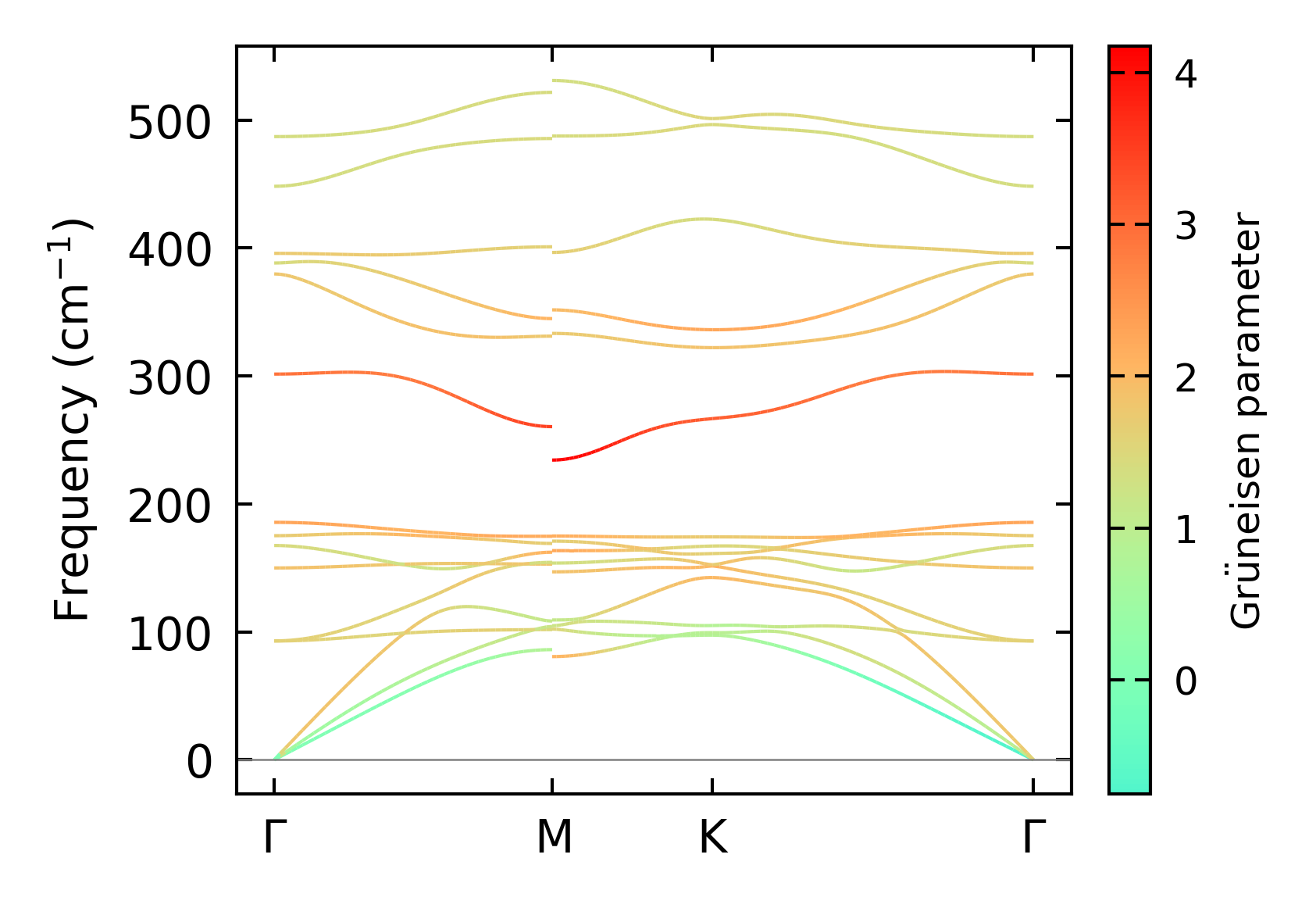

../../_images/fig_gruneisen6551.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 18x18x10, supercell: 3x3x2

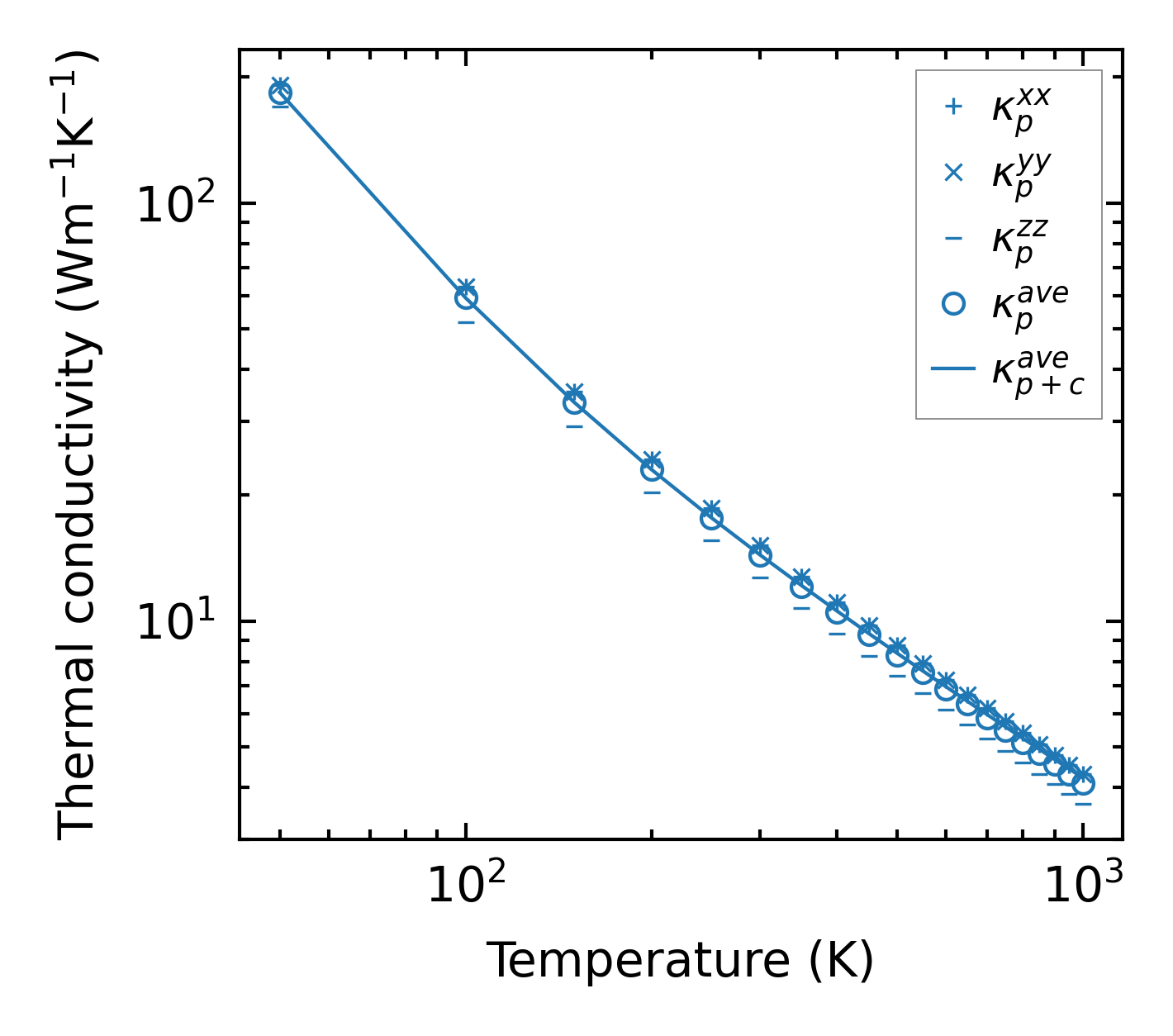

../../_images/fig_kappa12329.png — (a) Temperature-dependent lattice thermal conductivity

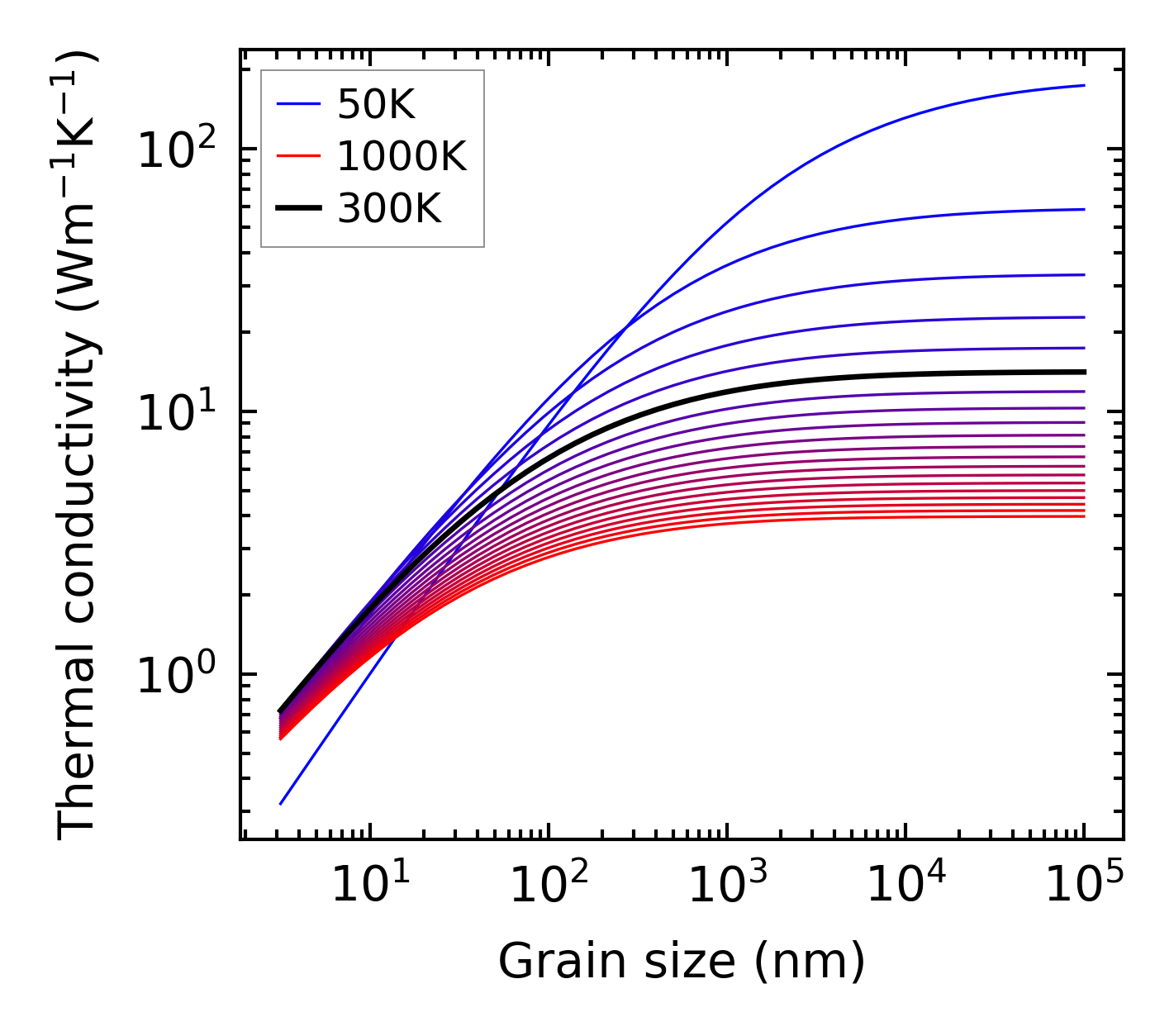

../../_images/fig_kappa_vs_grain_size6628.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

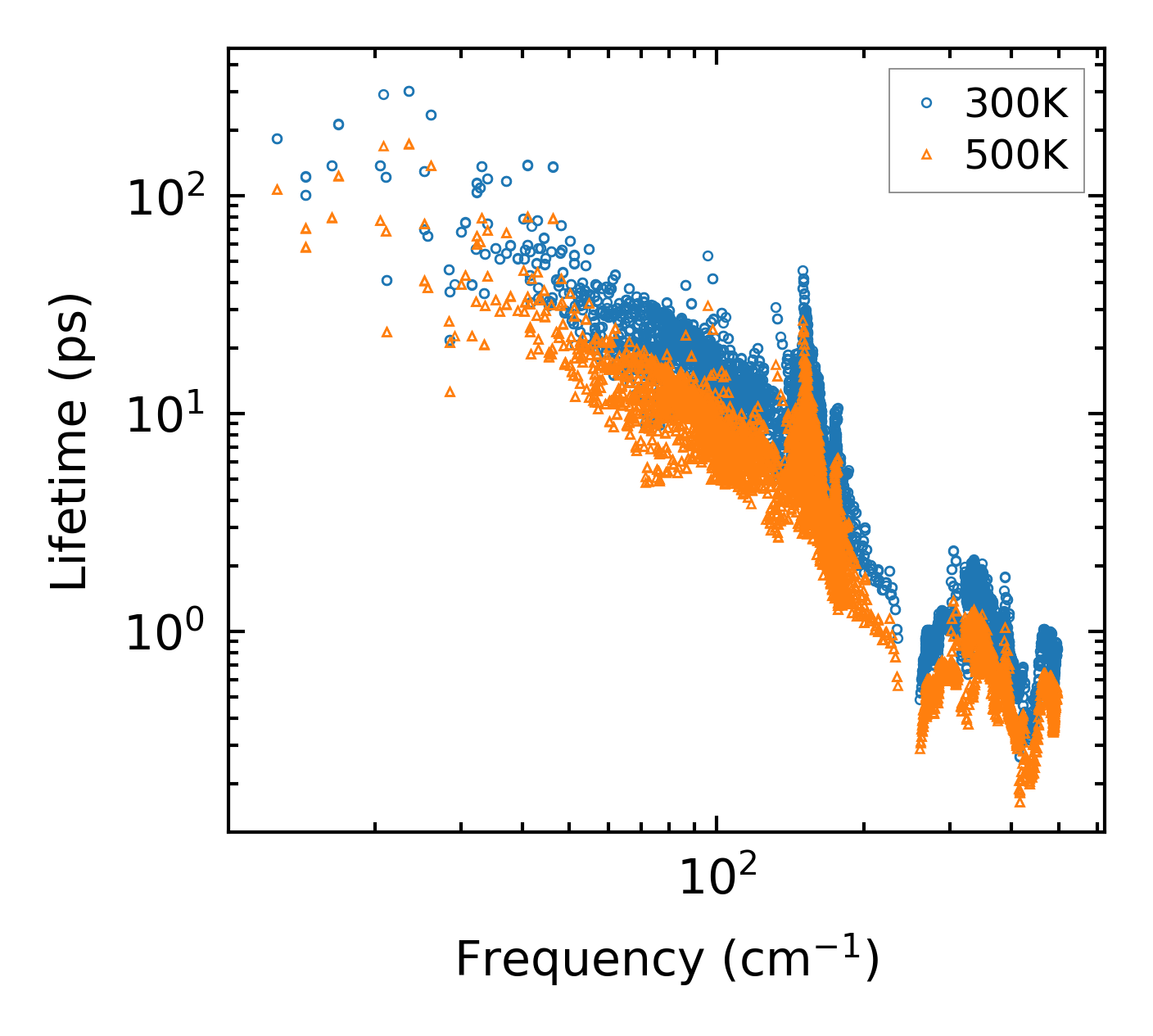

../../_images/fig_lifetime6485.png — (a) Phonon lifetime due to phonon-phonon scattering

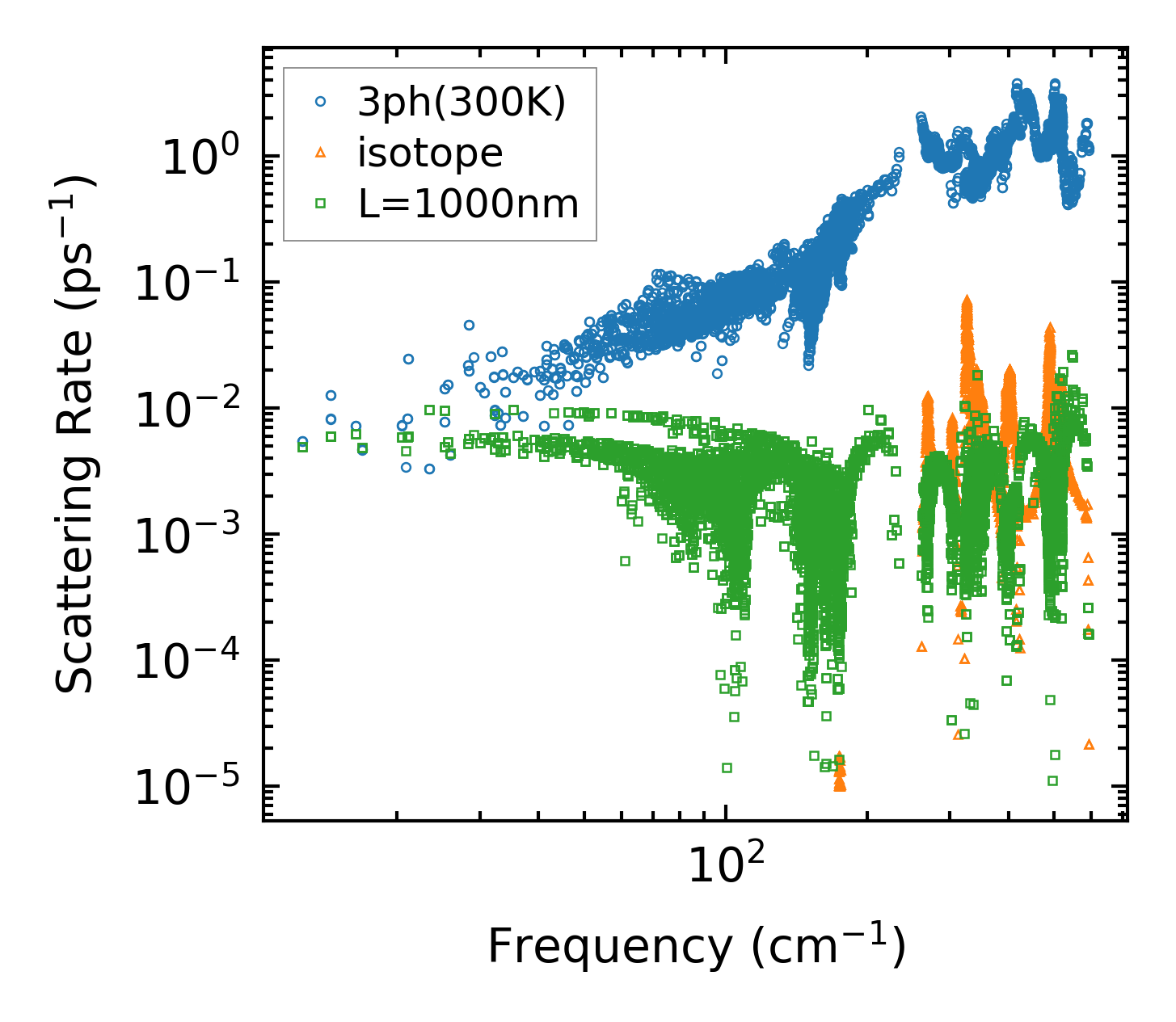

../../_images/fig_scat_rates6484.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

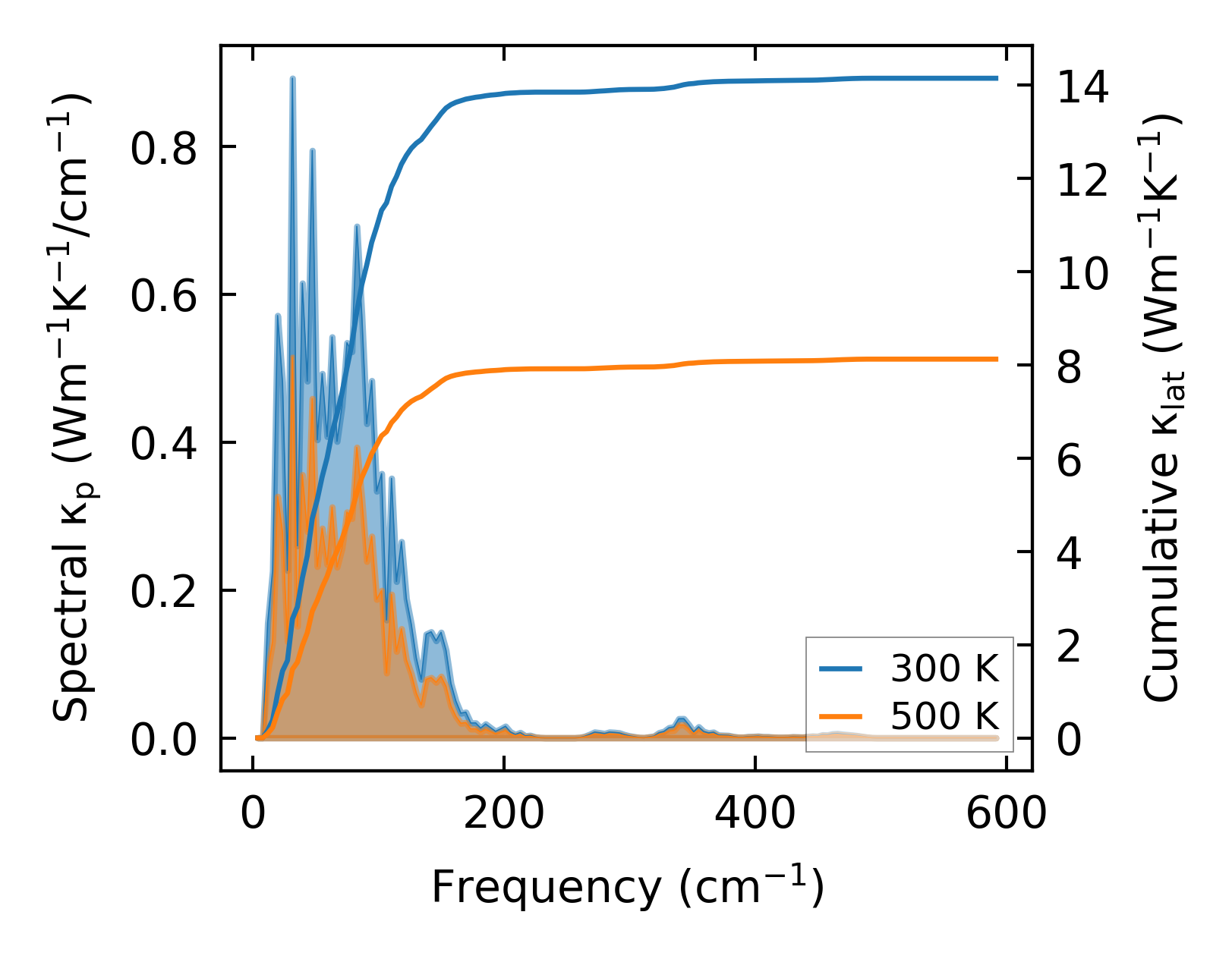

../../_images/fig_cumu_frequency6485.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

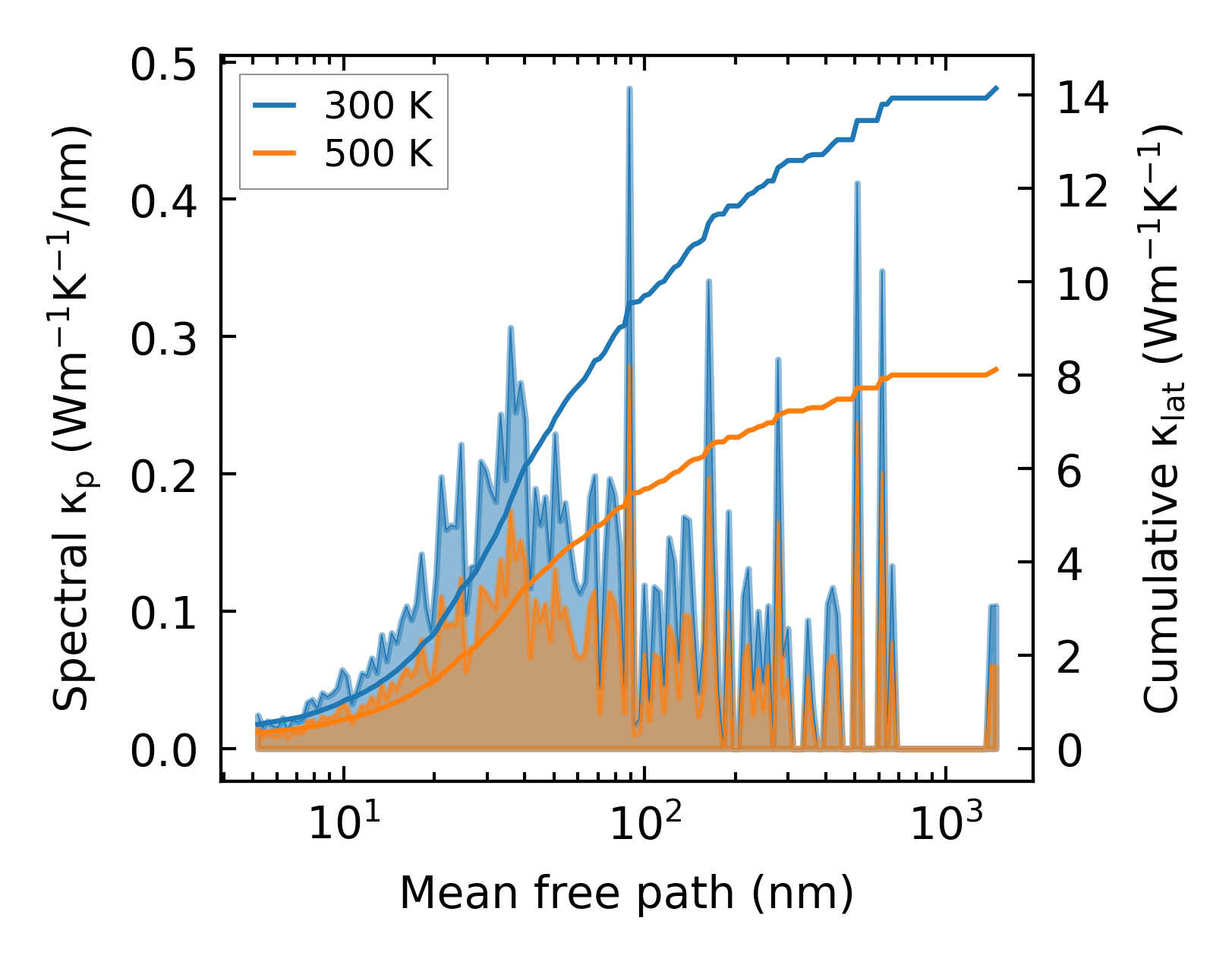

../../_images/fig_cumu_mfp6484.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

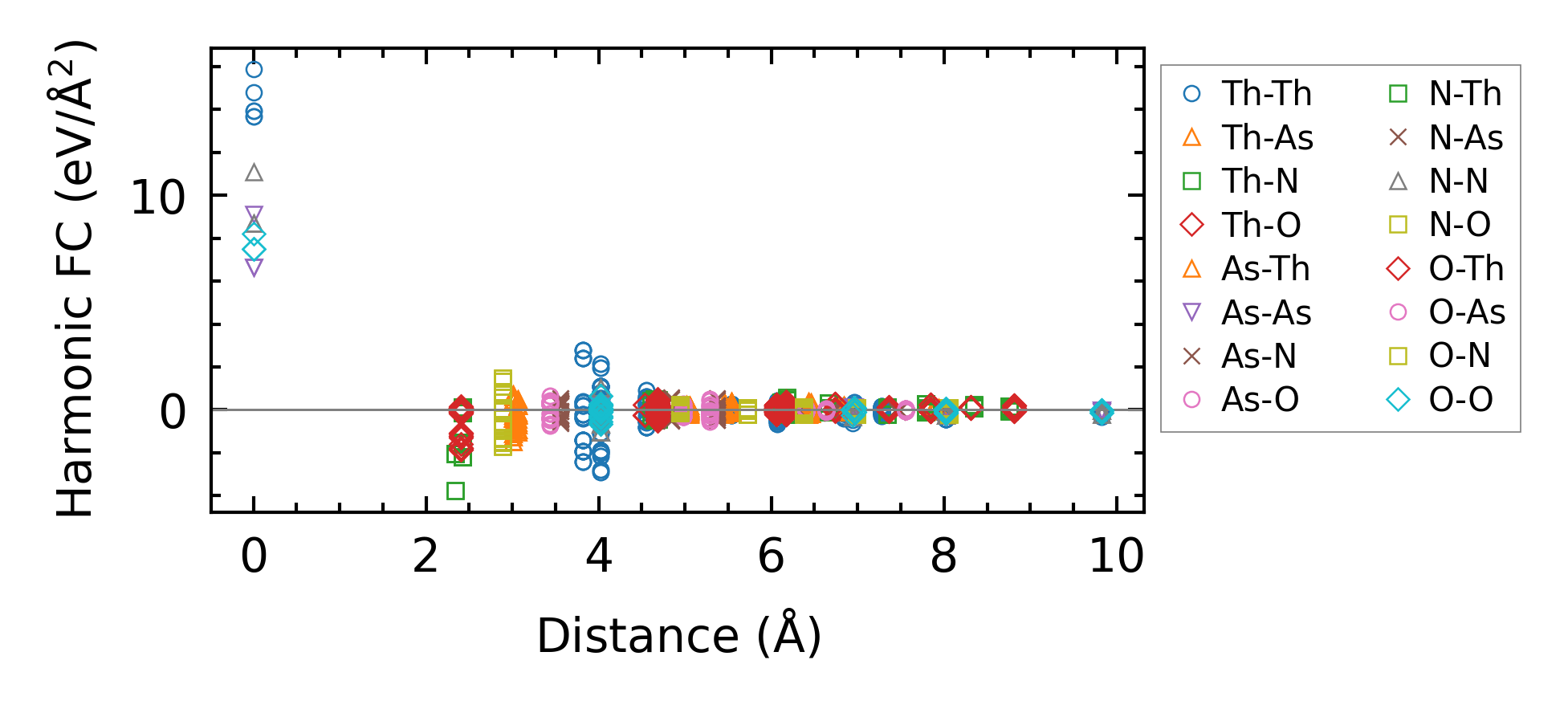

../../_images/fig_fc214833.png — (a) Force constants w.r.t atomic distance

Summary

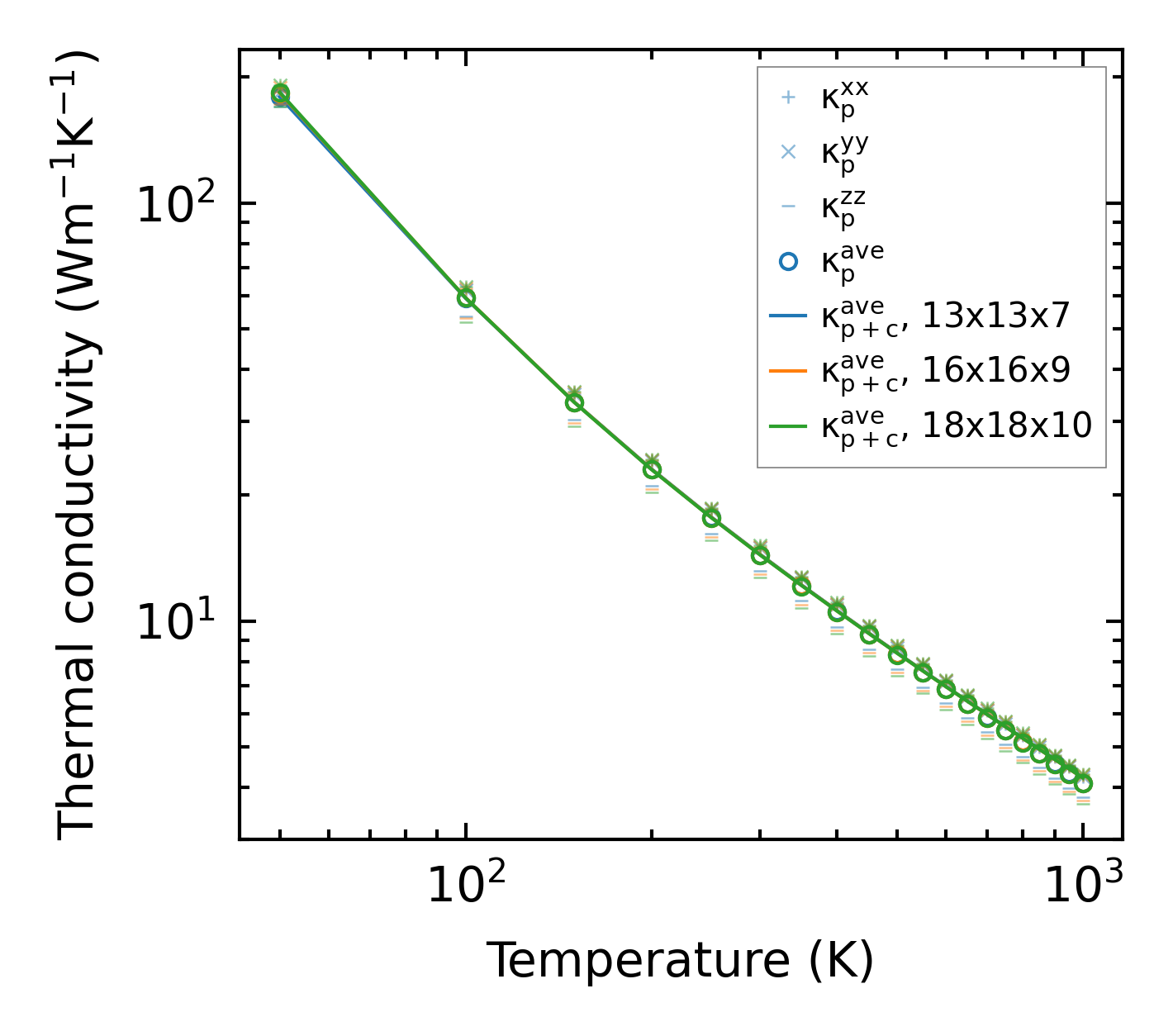

../../_images/fig_kappa12330.png — (a) Temperature-dependent lattice thermal conductivity

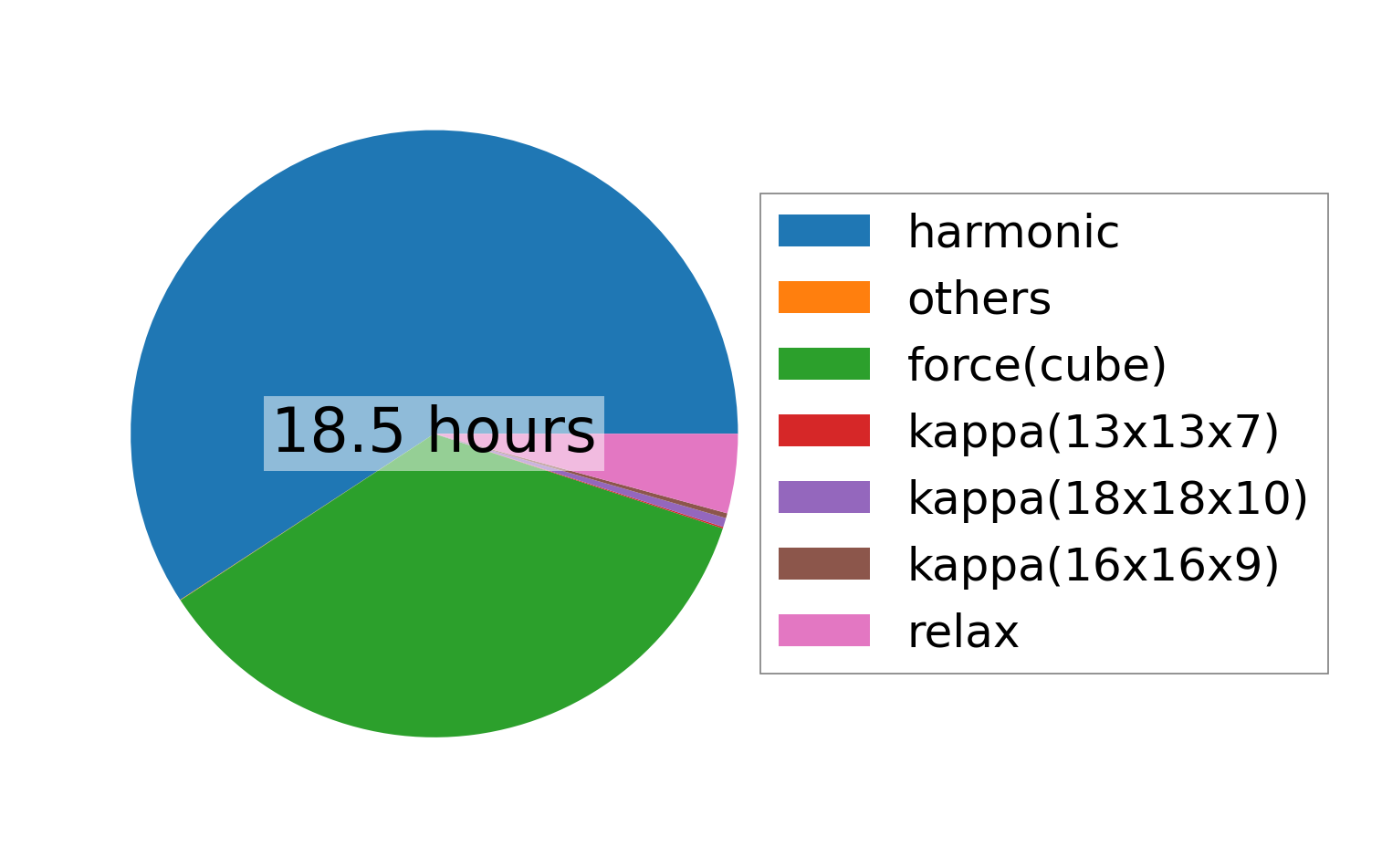

../../_images/fig_times25187.png — (b) Computation time
