mp-1044097/ZnAgBiO5/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-1044097.tar.gz

Harmonic properties

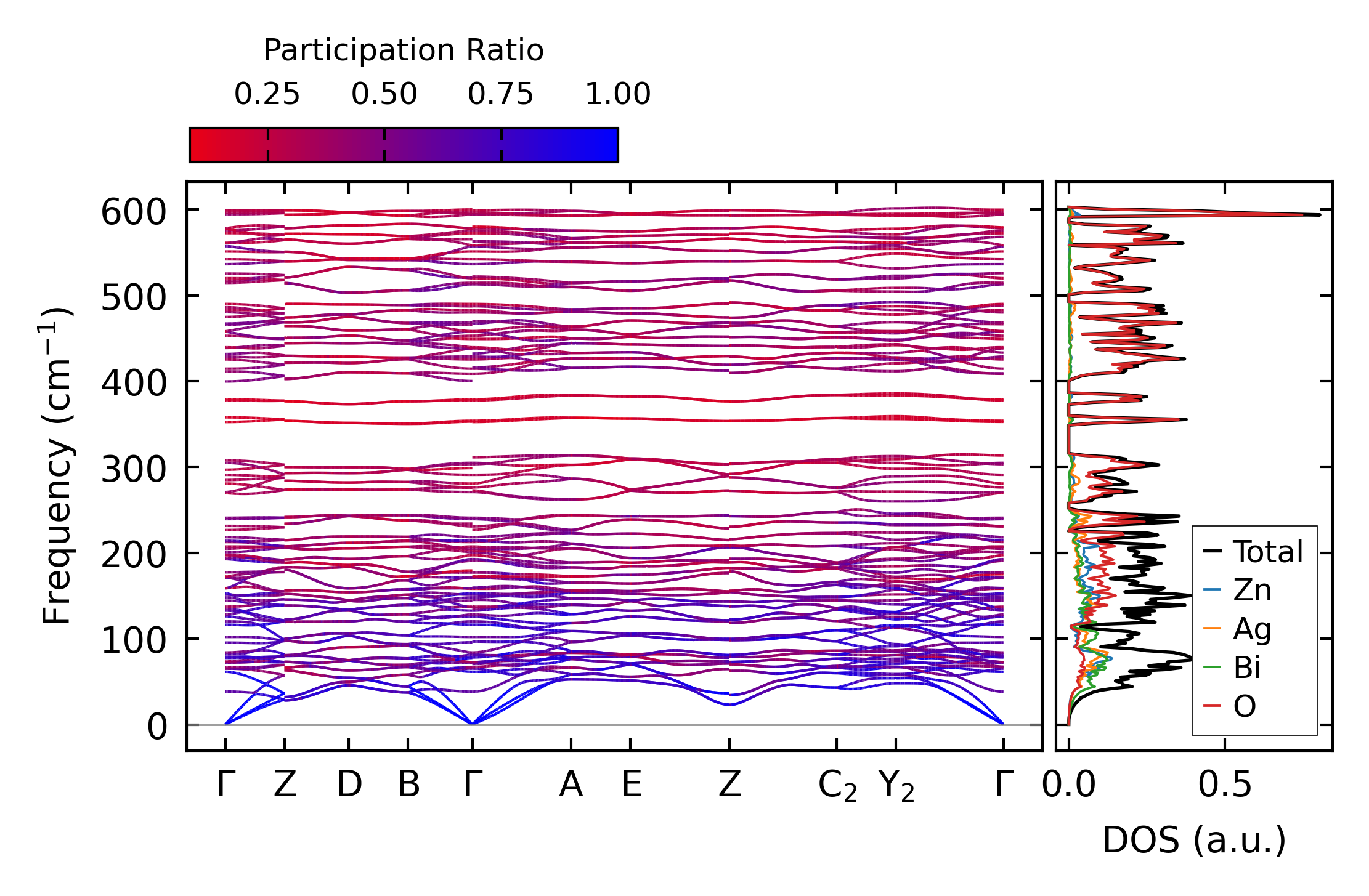

../../_images/fig_bandos_pr17026.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo17025.png — (b) Thermodynamic properties

Grüneisen parameters

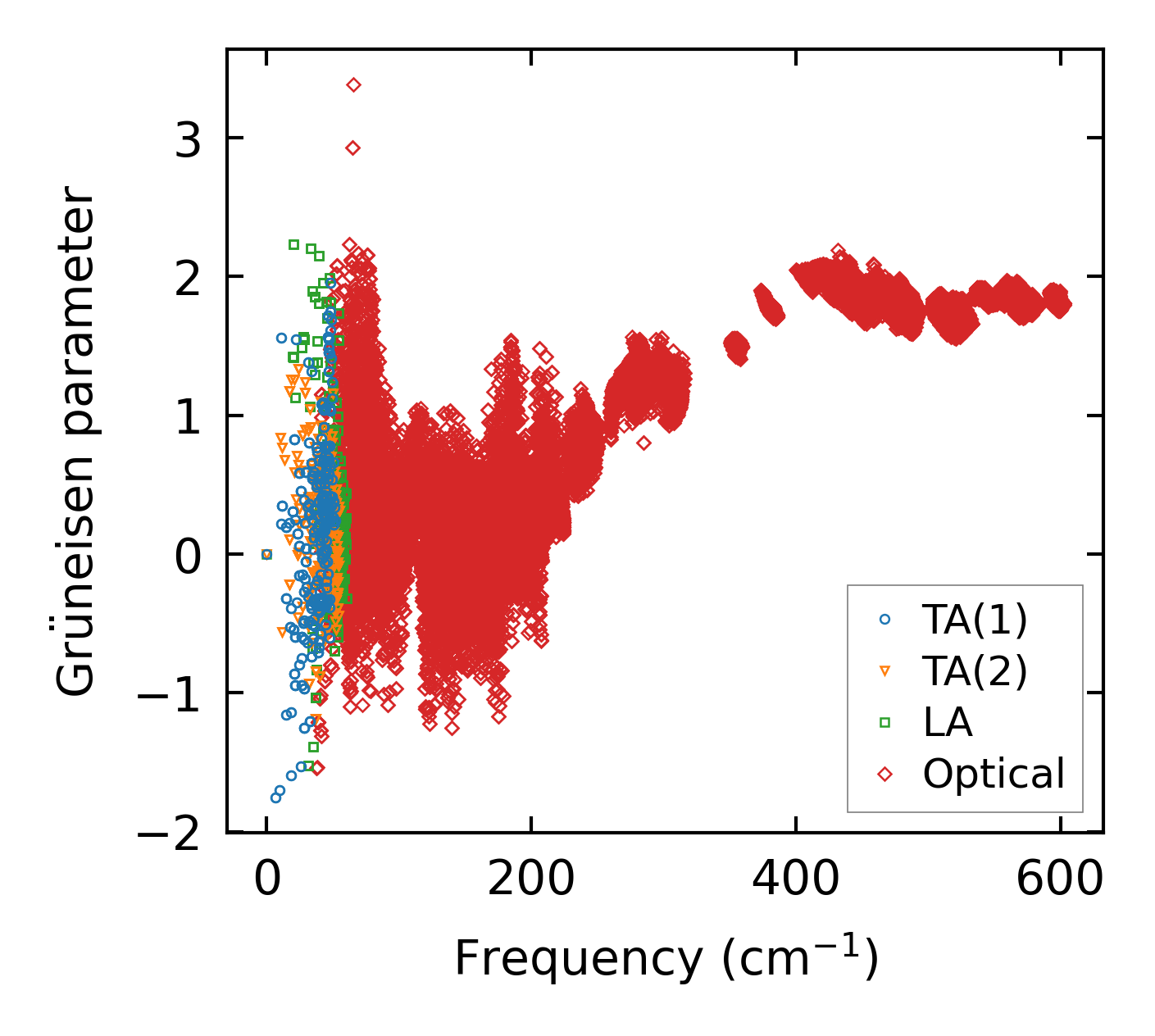

../../_images/fig_gru_all7457.png — (a) Grüneisen parameters

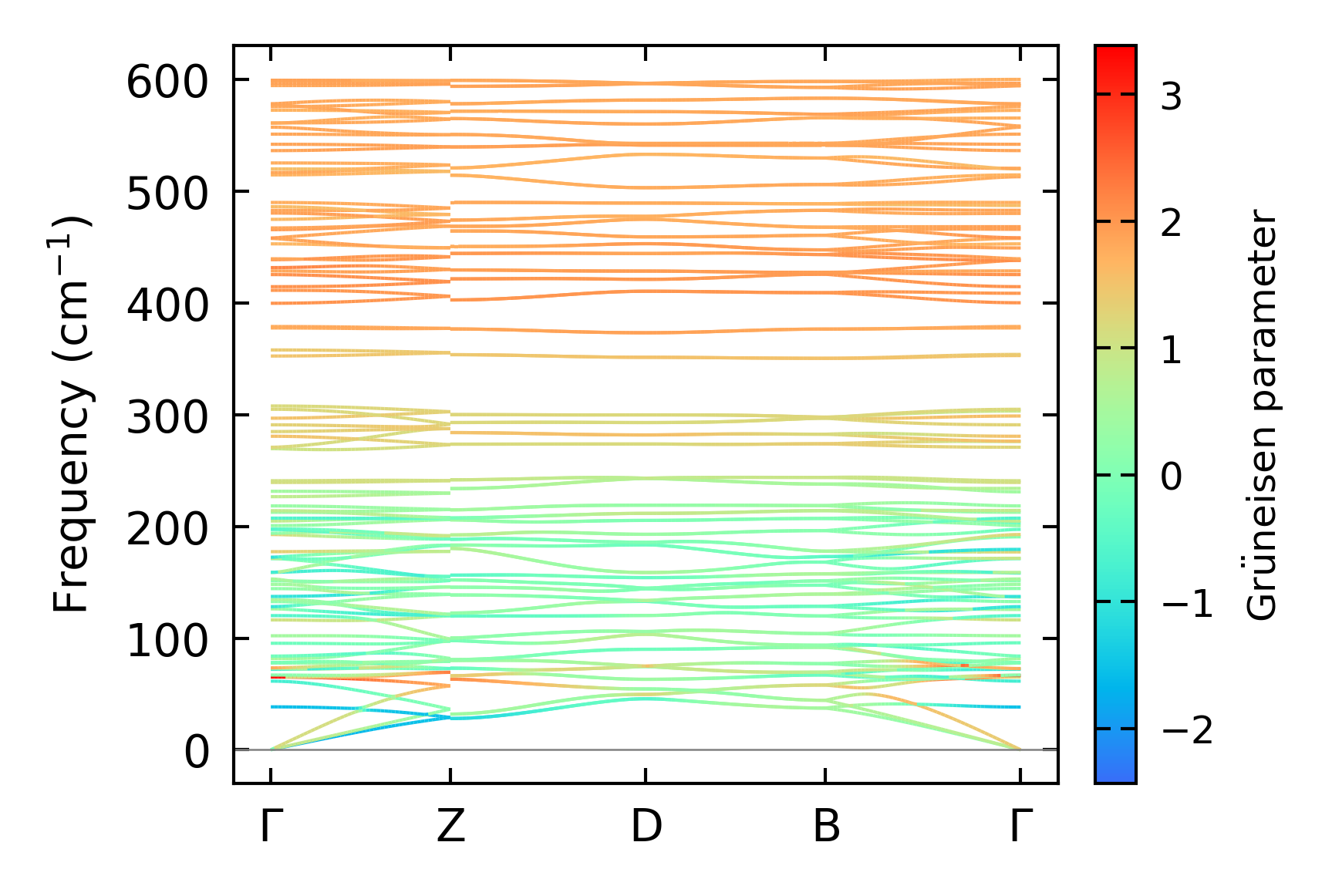

../../_images/fig_gruneisen7457.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x7x8, supercell: 2x1x2

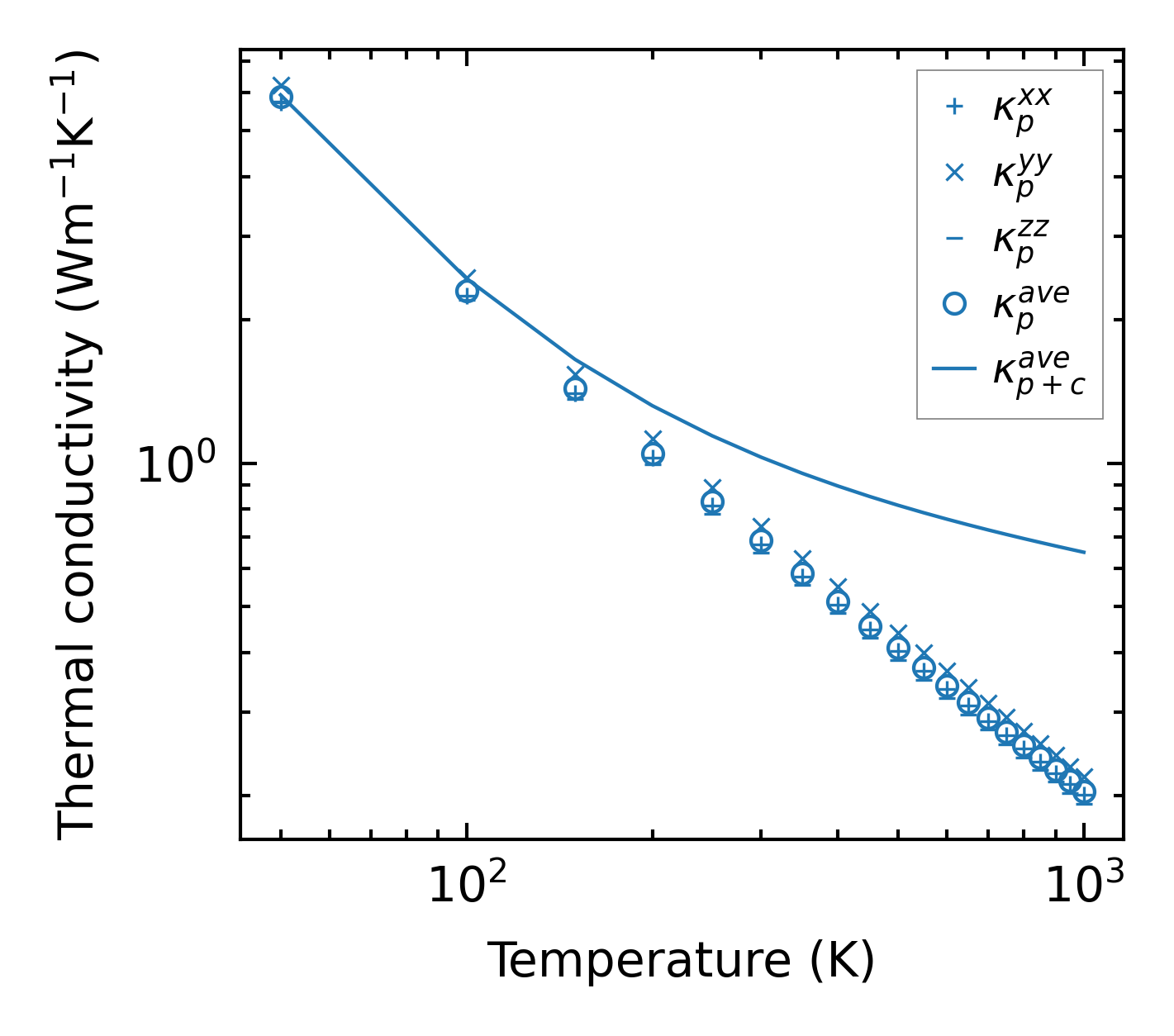

../../_images/fig_kappa14064.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7545.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

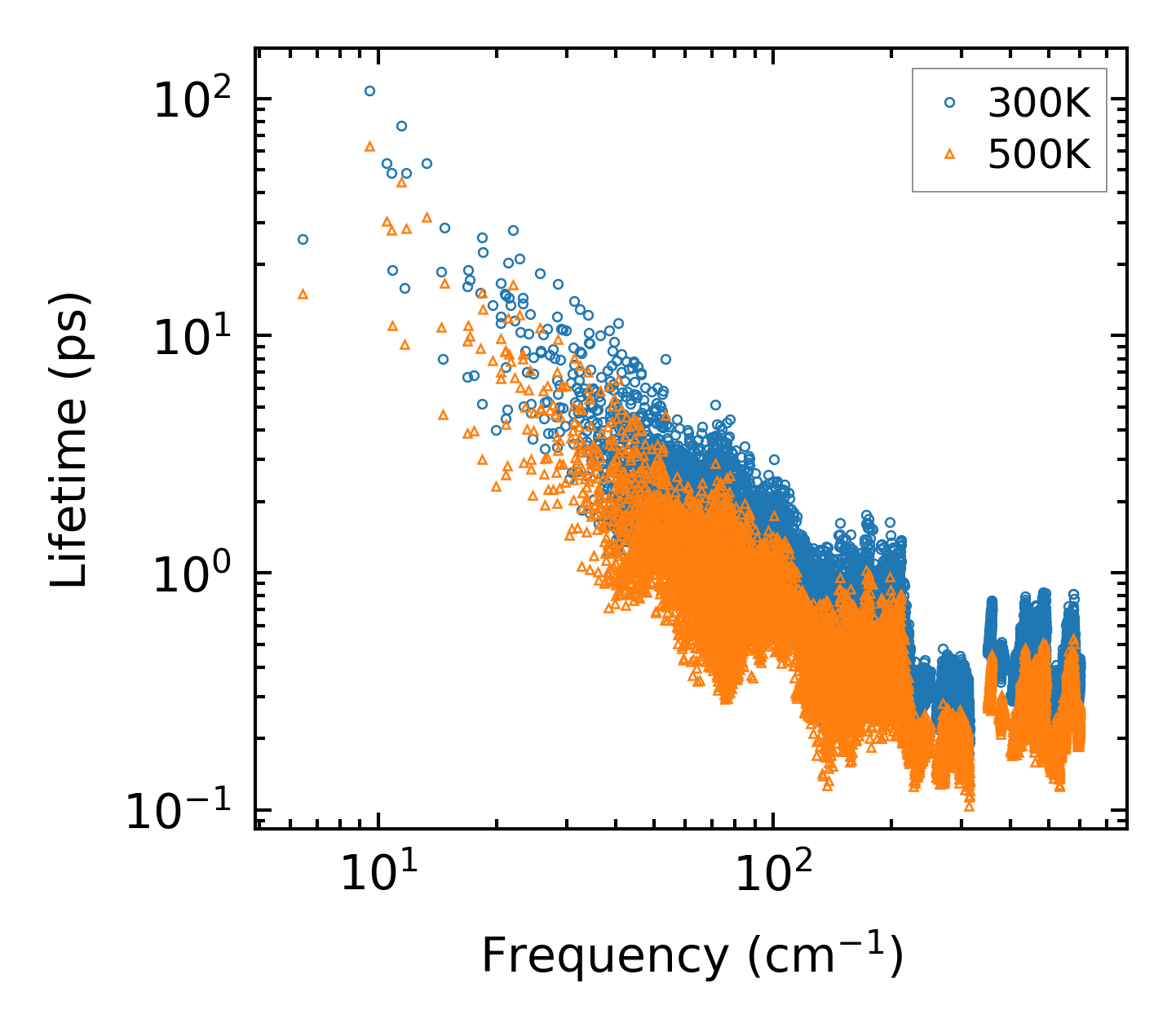

../../_images/fig_lifetime7390.png — (a) Phonon lifetime due to phonon-phonon scattering

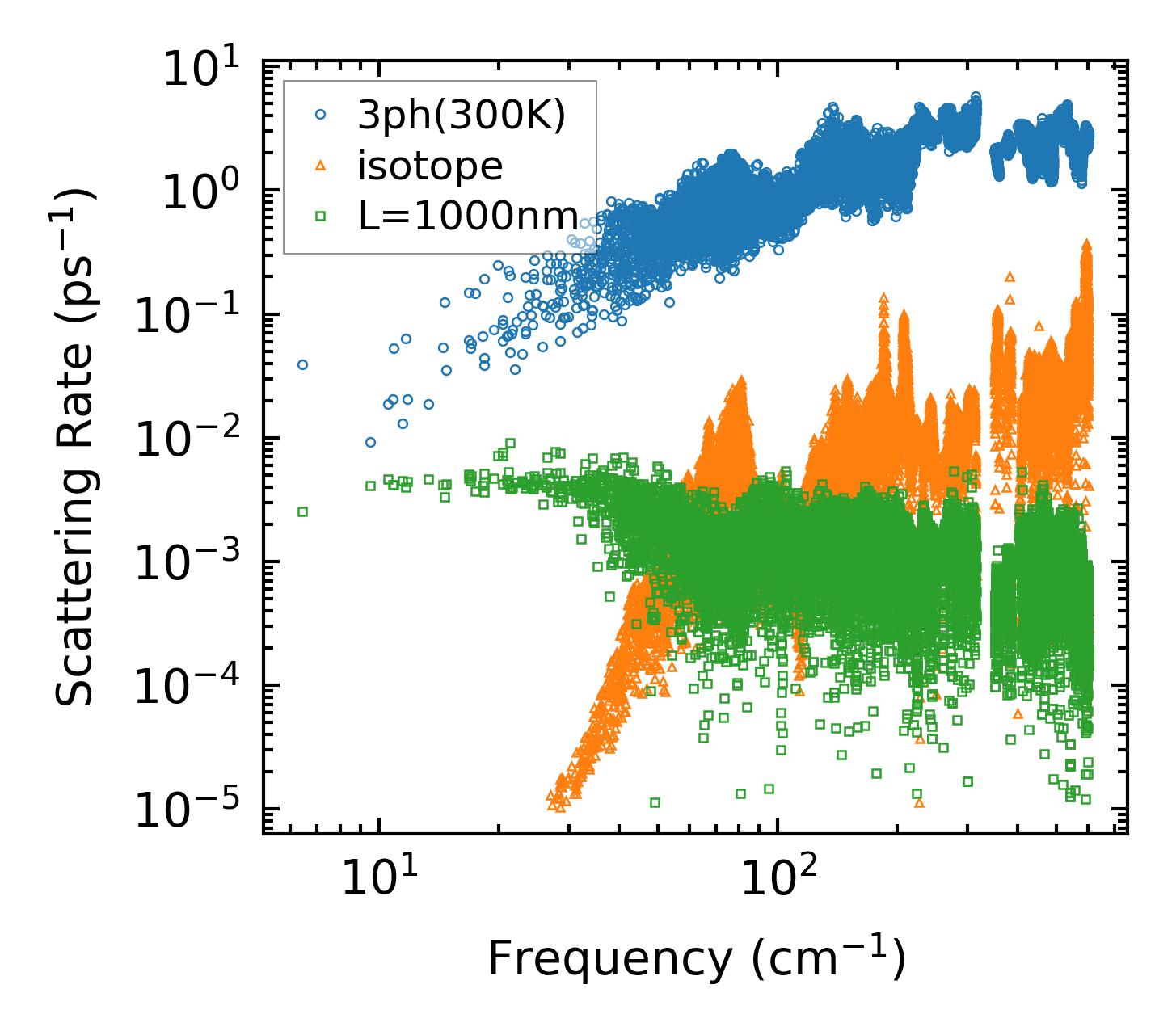

../../_images/fig_scat_rates7389.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

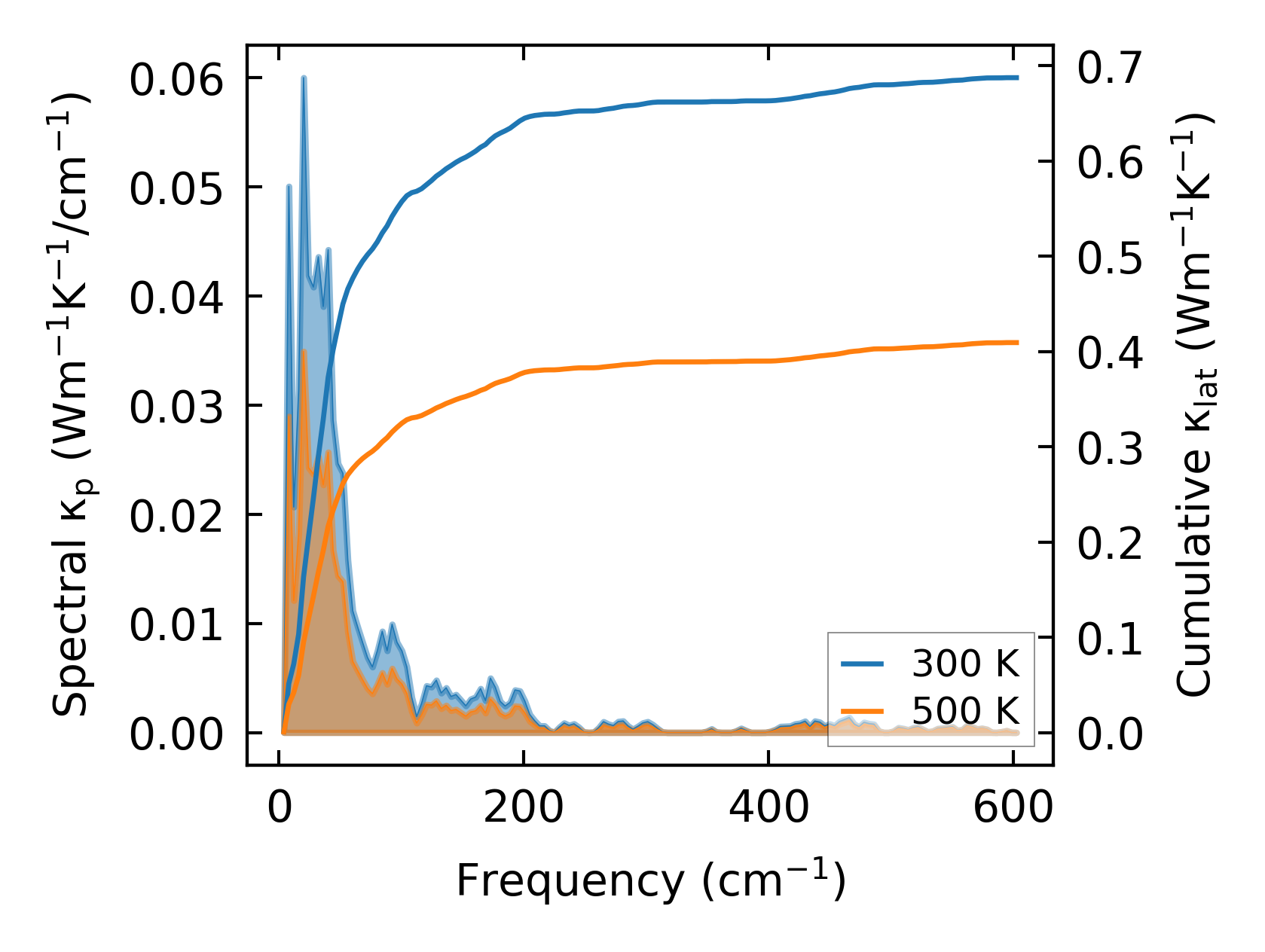

../../_images/fig_cumu_frequency7390.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp7389.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

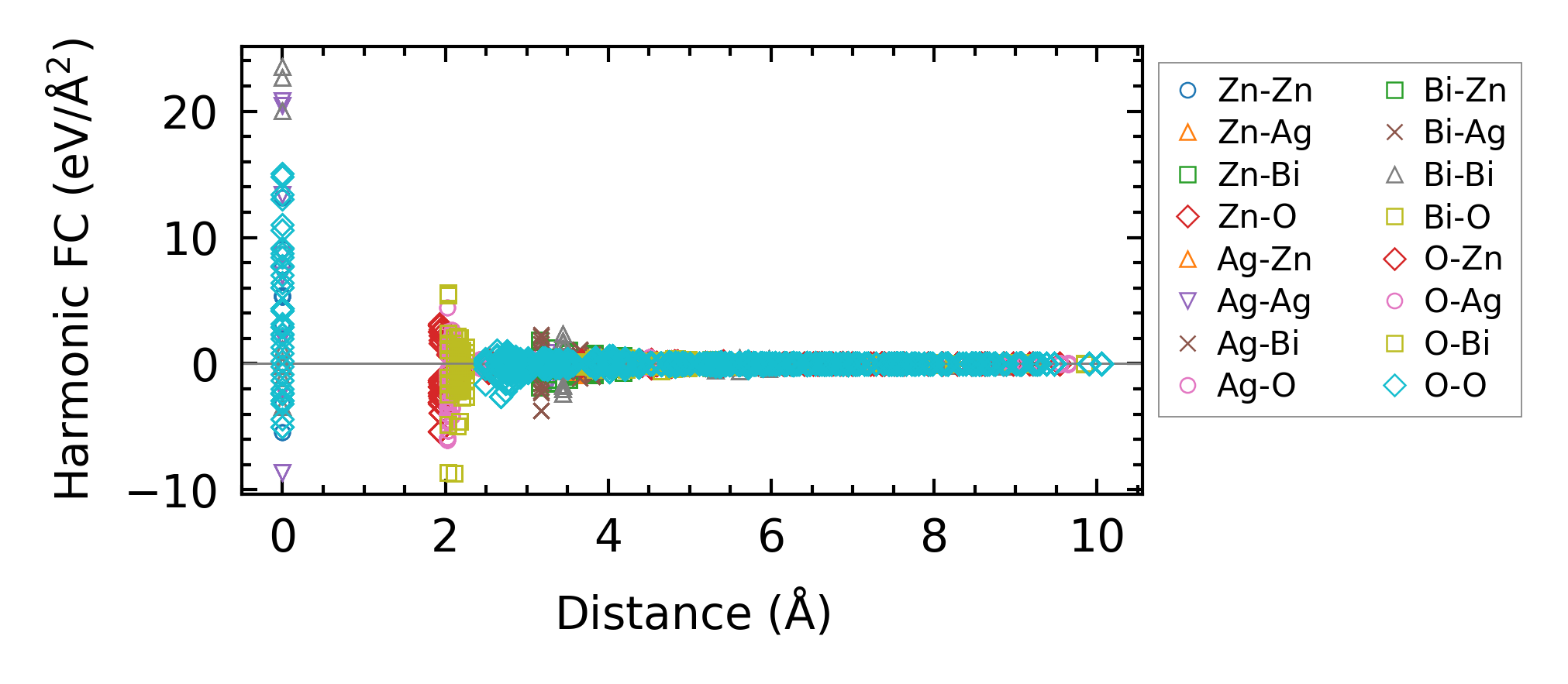

../../_images/fig_fc216578.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa14065.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times27755.png — (b) Computation time
