mp-977148/LiBeH3/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-977148.tar.gz

Harmonic properties

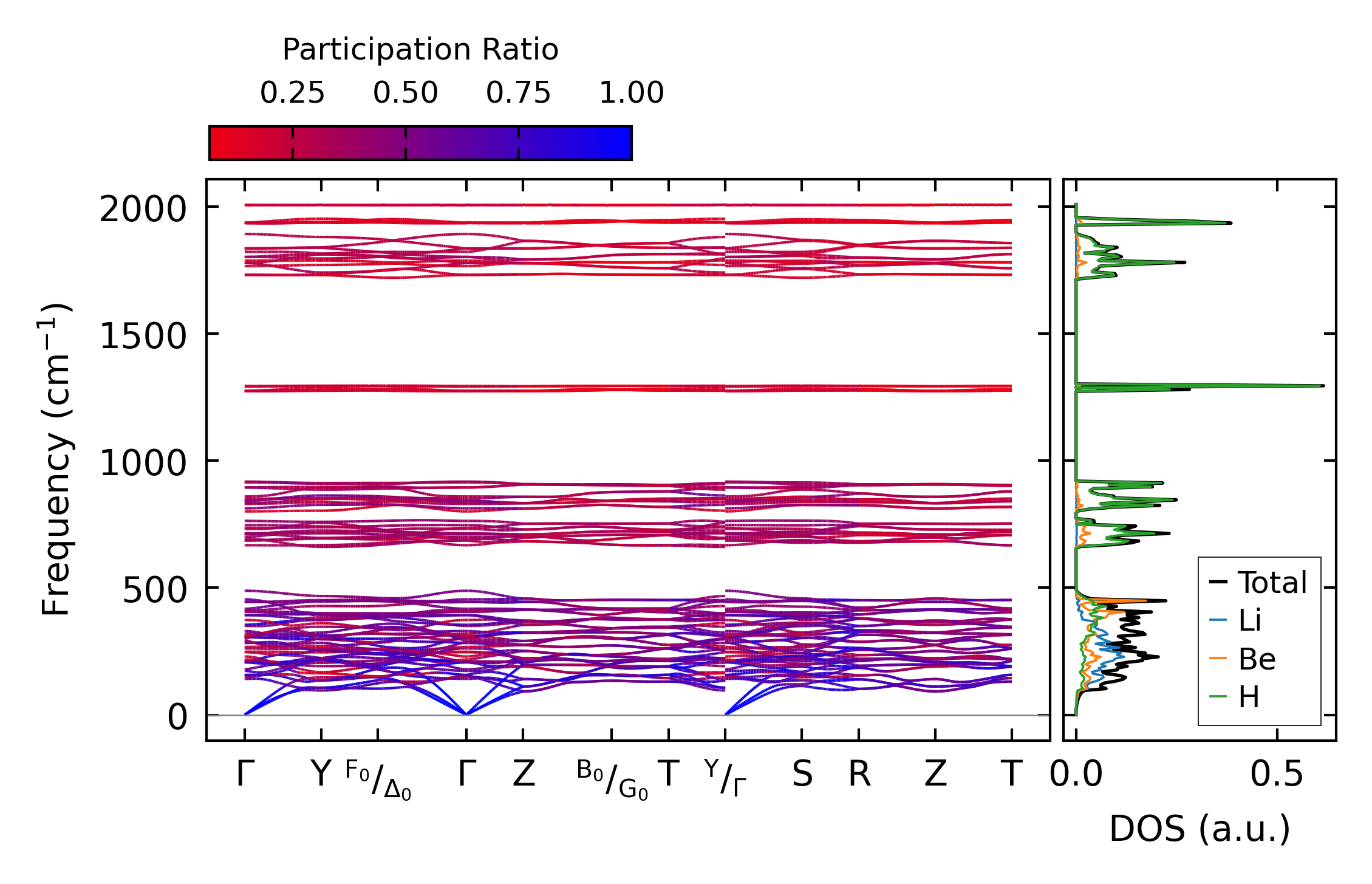

../../_images/fig_bandos_pr1048.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1048.png — (b) Thermodynamic properties

Grüneisen parameters

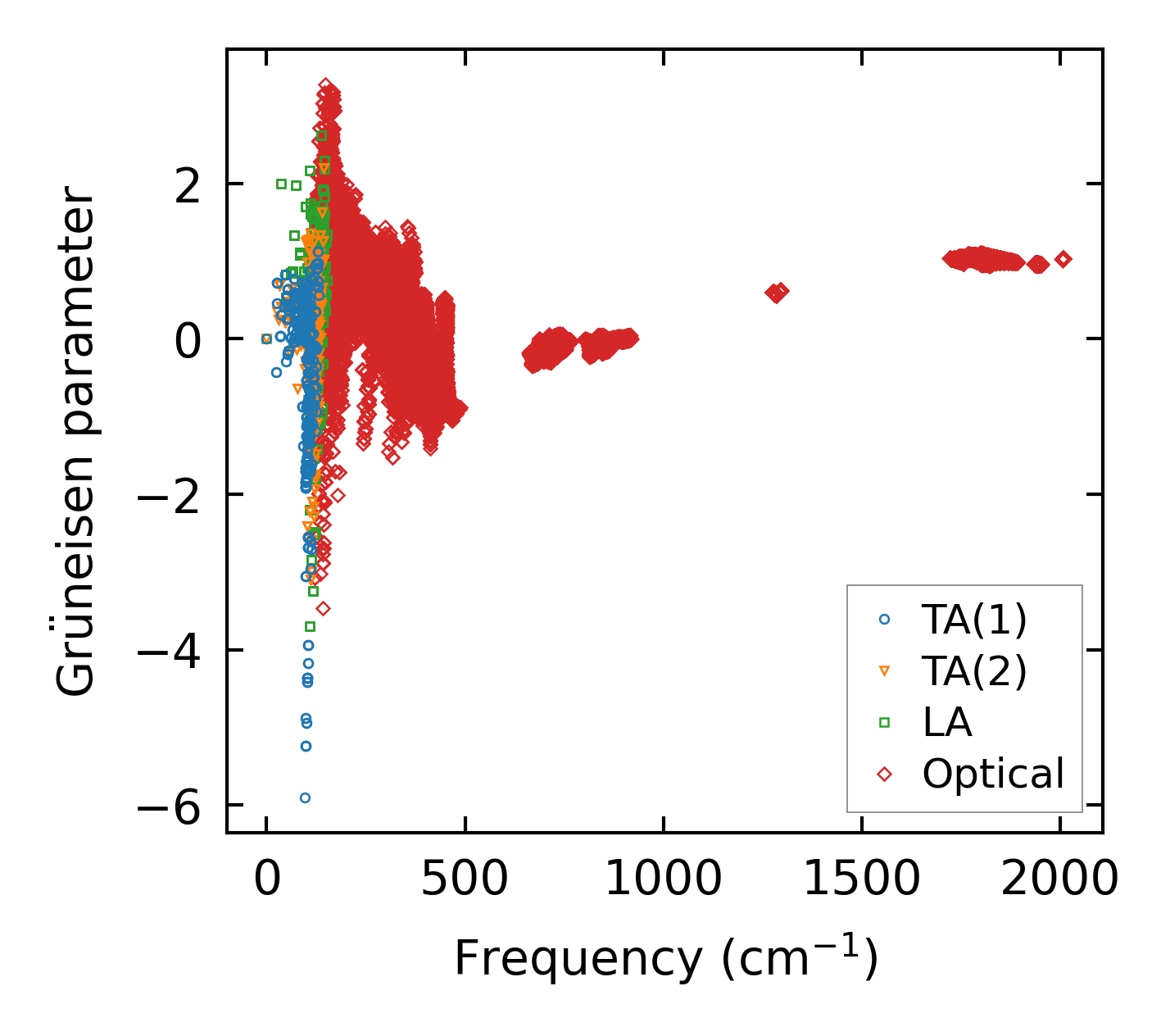

../../_images/fig_gru_all641.png — (a) Grüneisen parameters

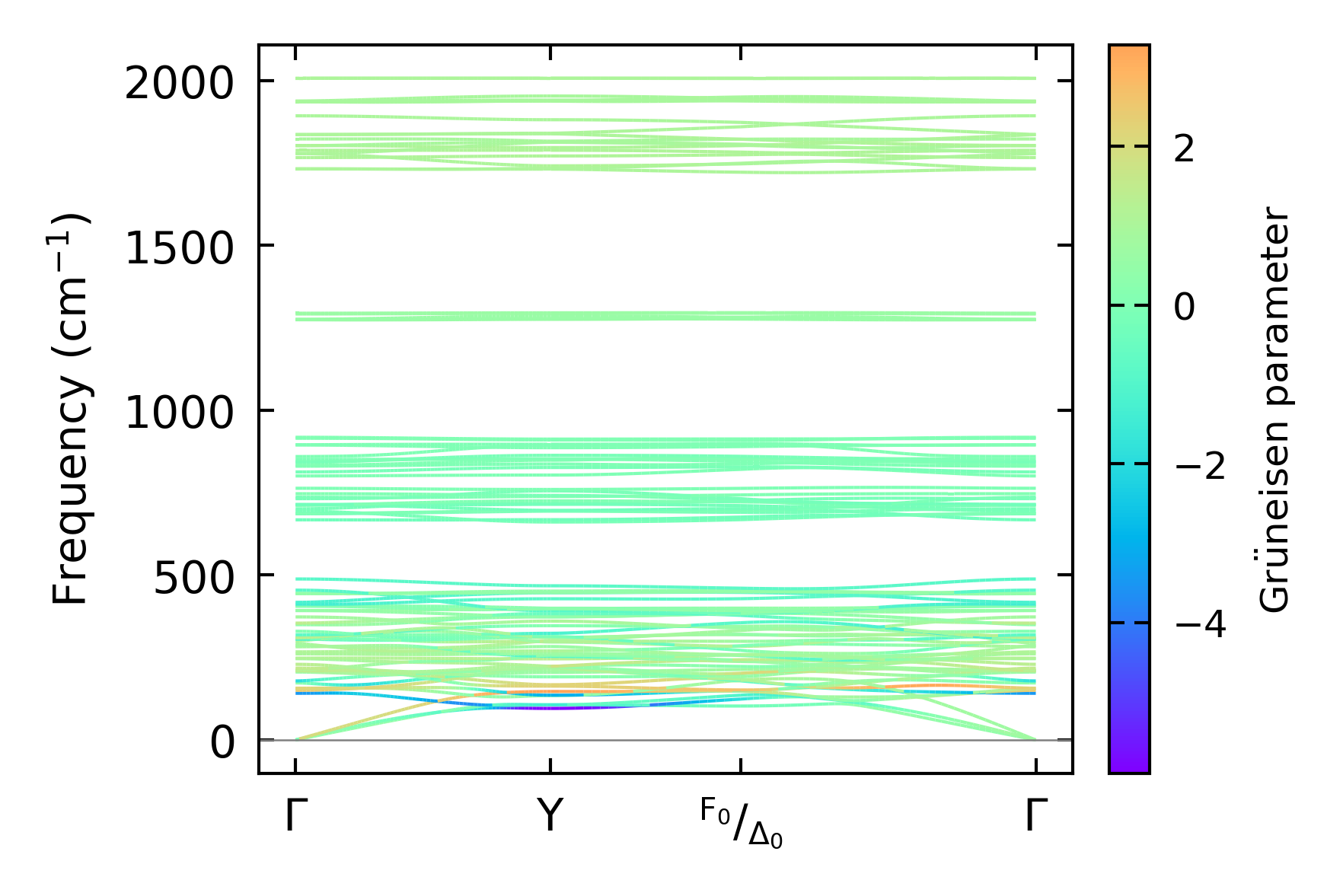

../../_images/fig_gruneisen641.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x9, supercell: 1x2x1

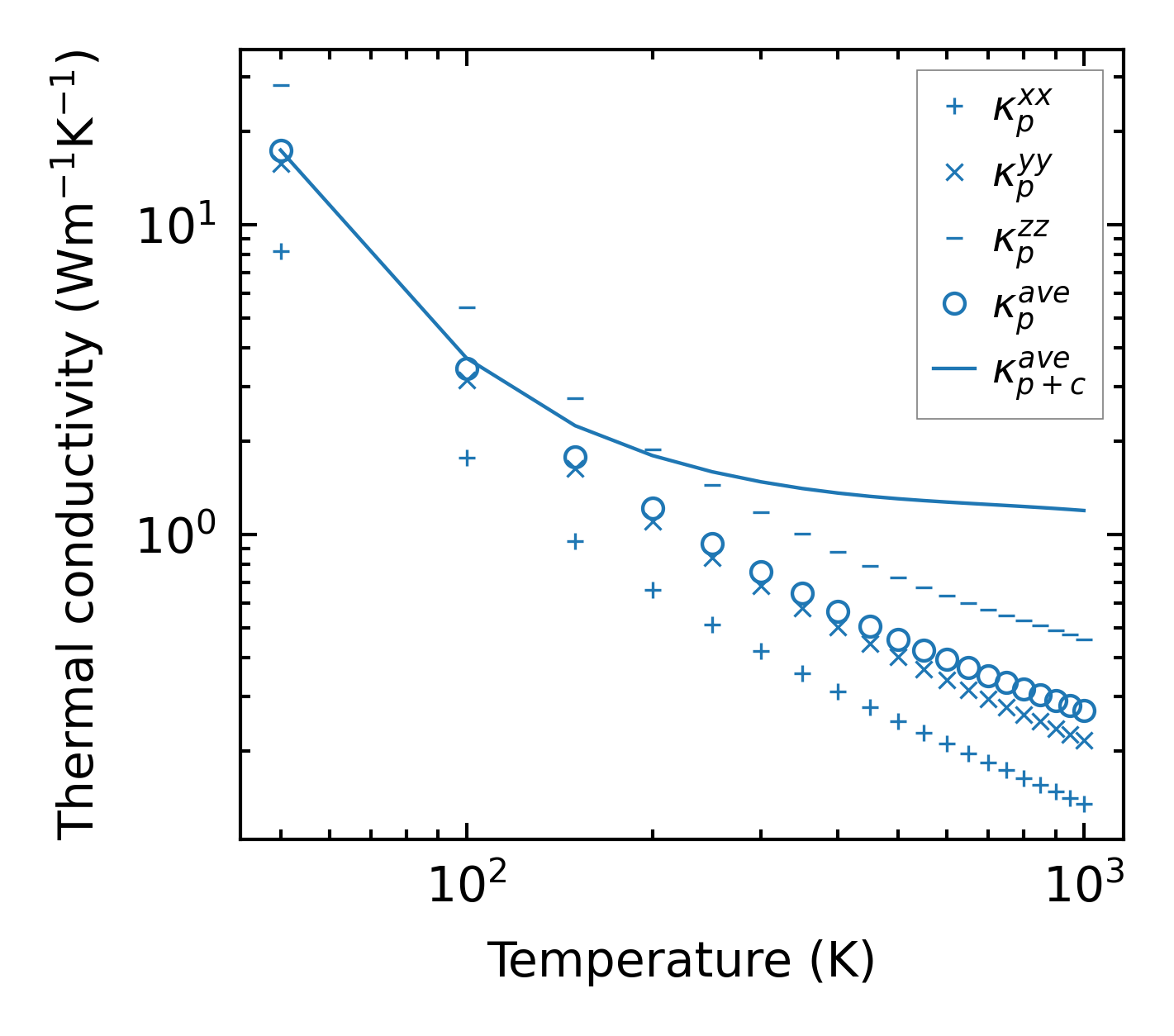

../../_images/fig_kappa1248.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size649.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

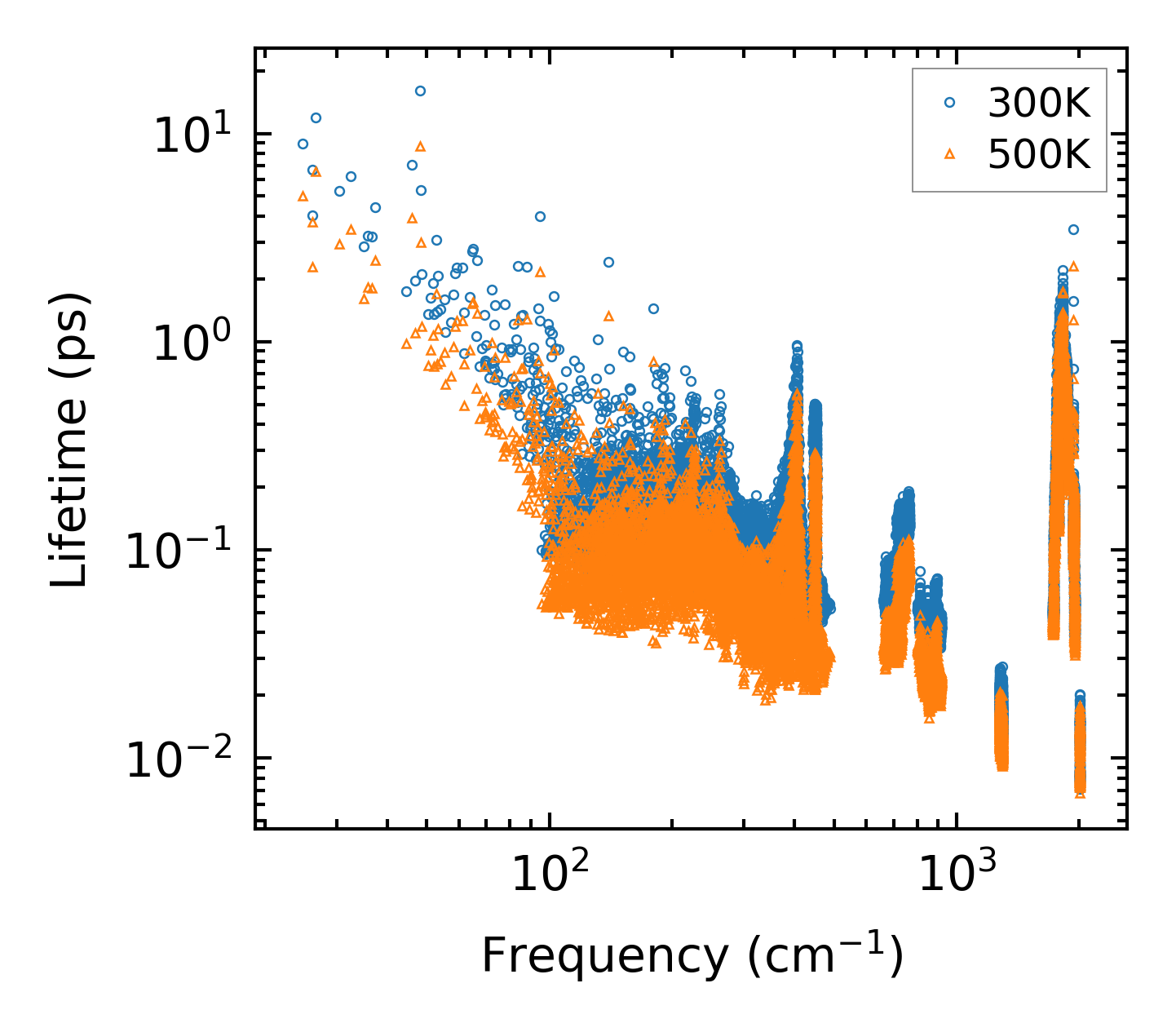

../../_images/fig_lifetime639.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates638.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

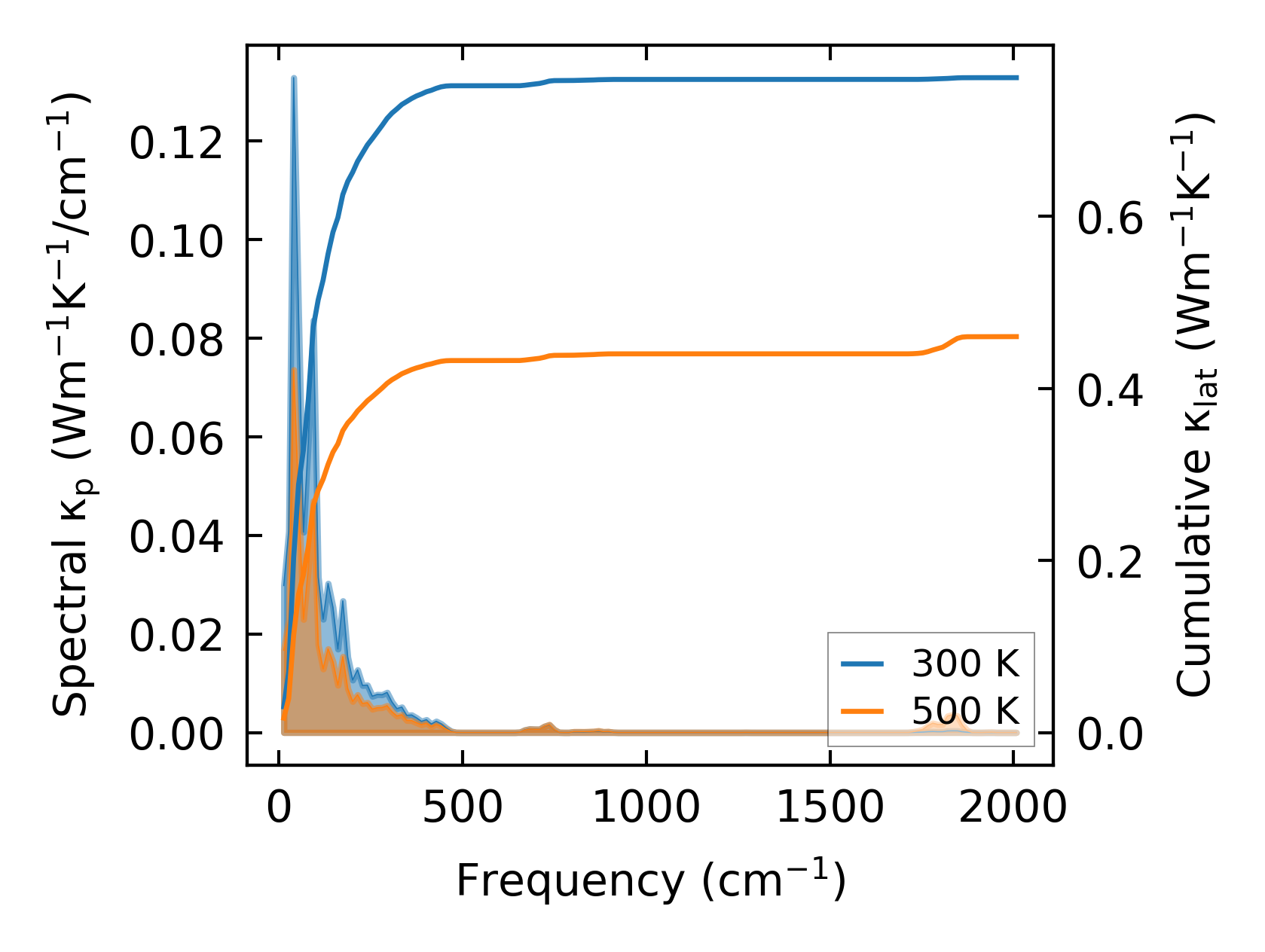

../../_images/fig_cumu_frequency639.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

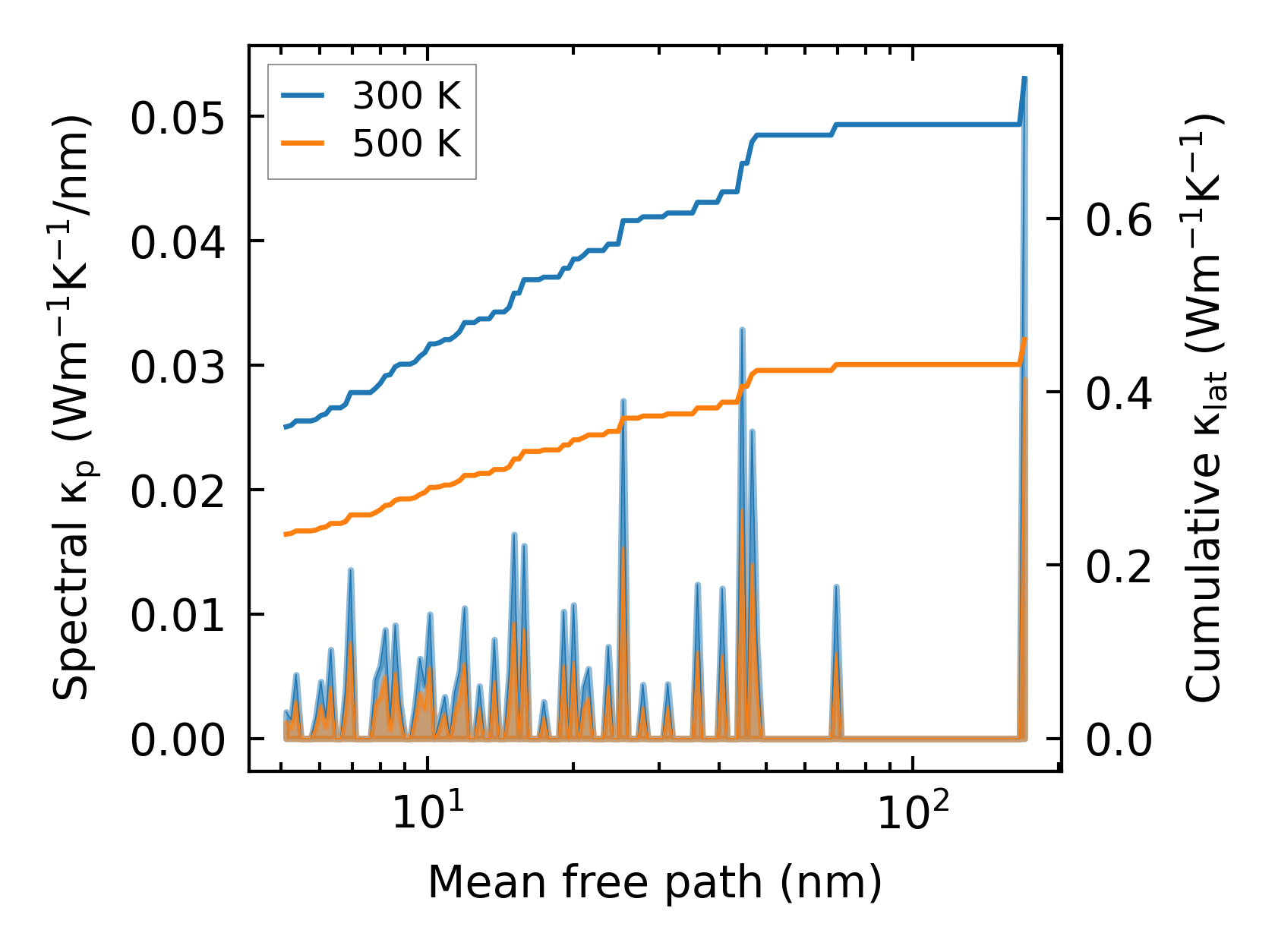

../../_images/fig_cumu_mfp639.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc2916.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa1249.png — (a) Temperature-dependent lattice thermal conductivity

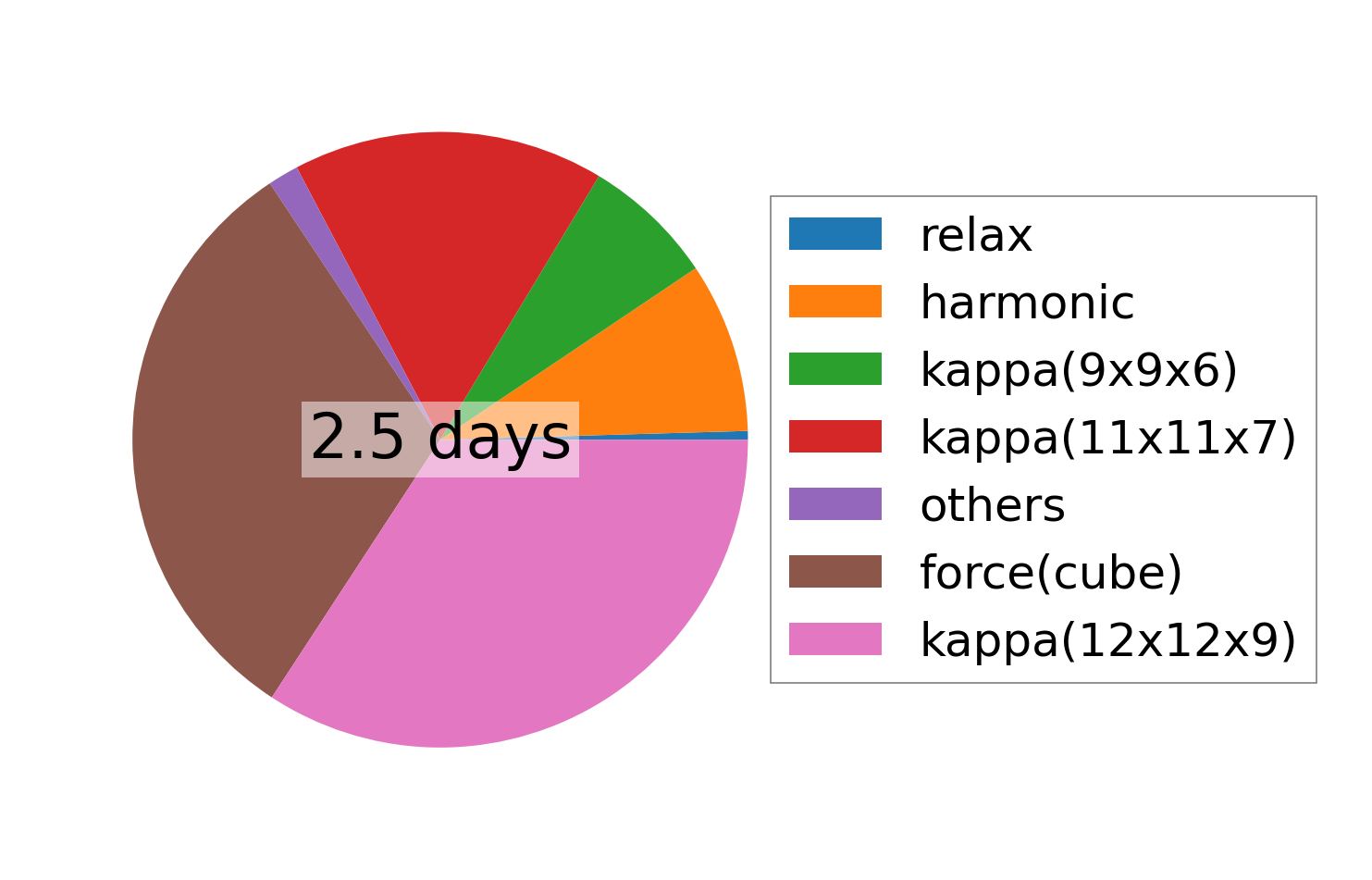

../../_images/fig_times1564.png — (b) Computation time
