mp-974682/RbGaH2/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-974682.tar.gz

Harmonic properties

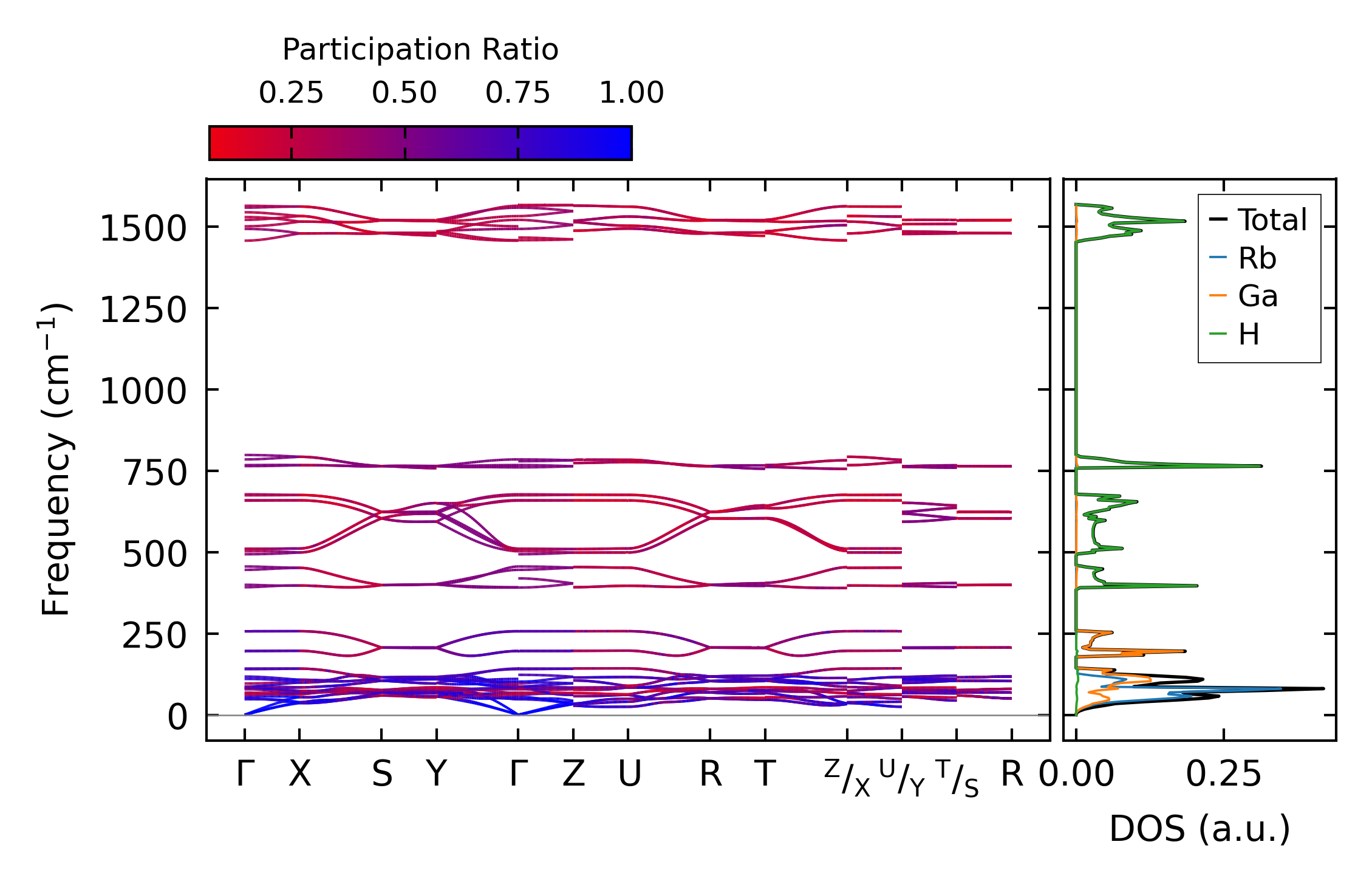

../../_images/fig_bandos_pr1024.png — (a) Phonon dispersion with participation ratio and DOS

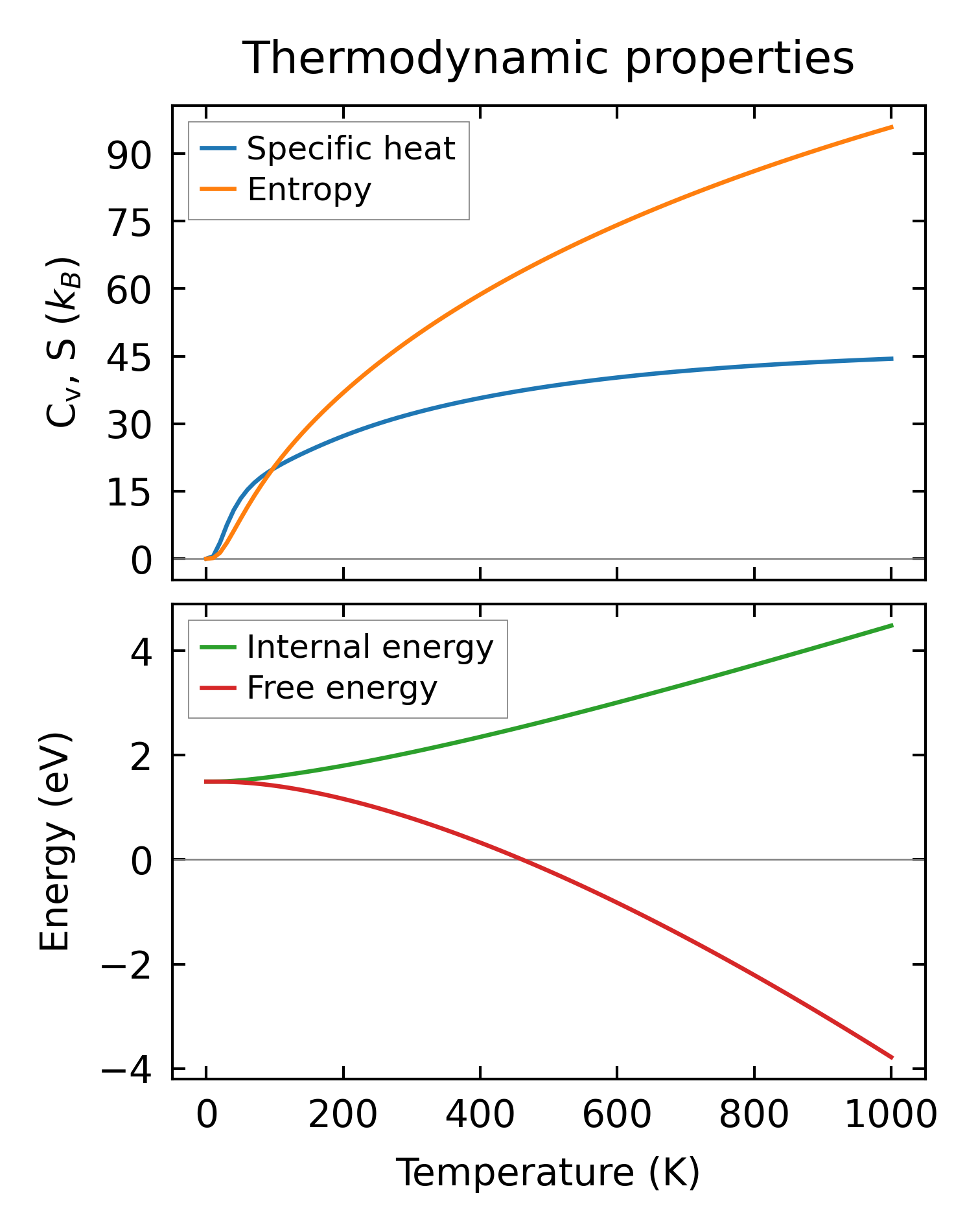

../../_images/fig_thermo1024.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all626.png — (a) Grüneisen parameters

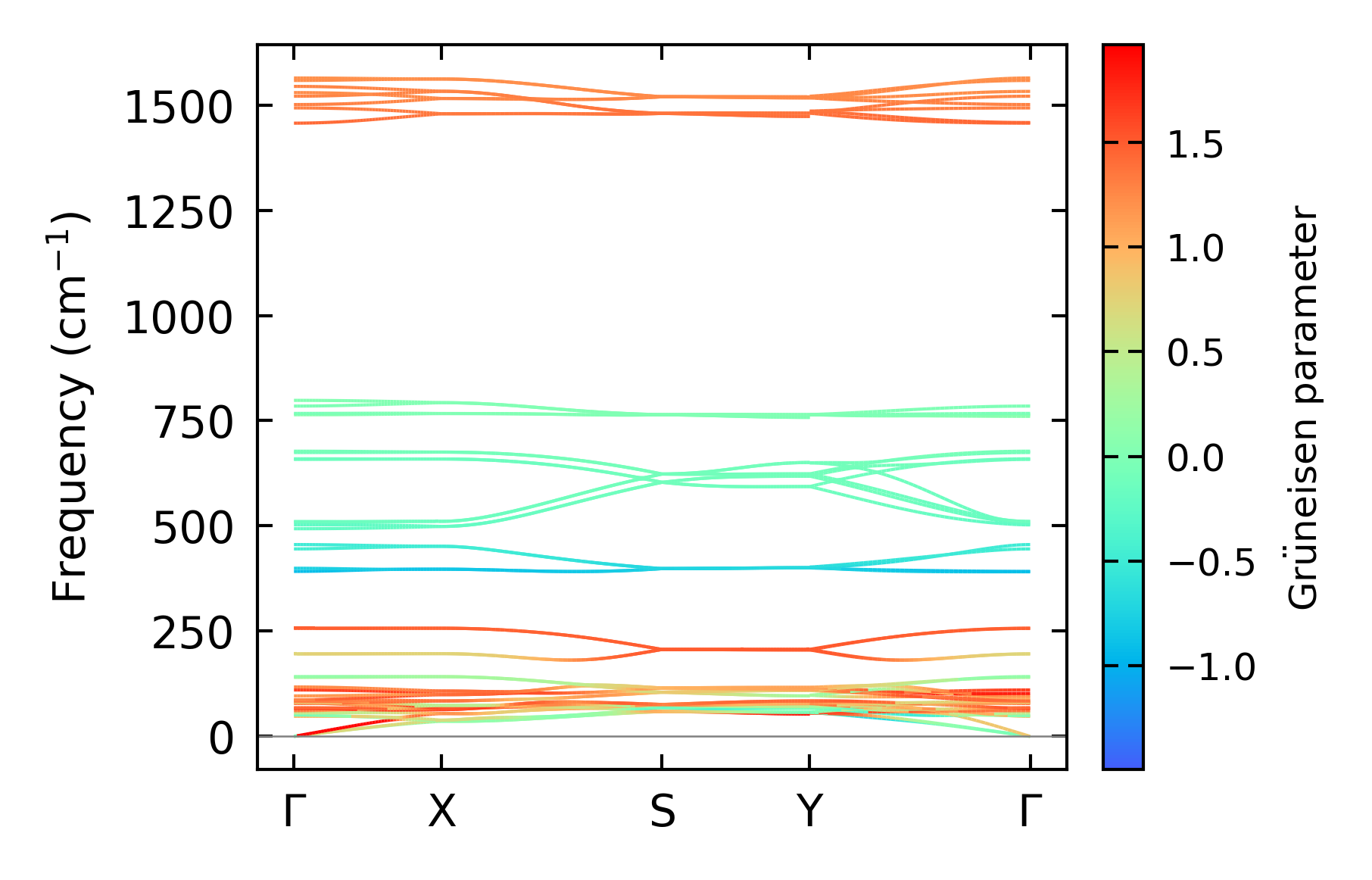

../../_images/fig_gruneisen626.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x16x7, supercell: 2x3x1

../../_images/fig_kappa1218.png — (a) Temperature-dependent lattice thermal conductivity

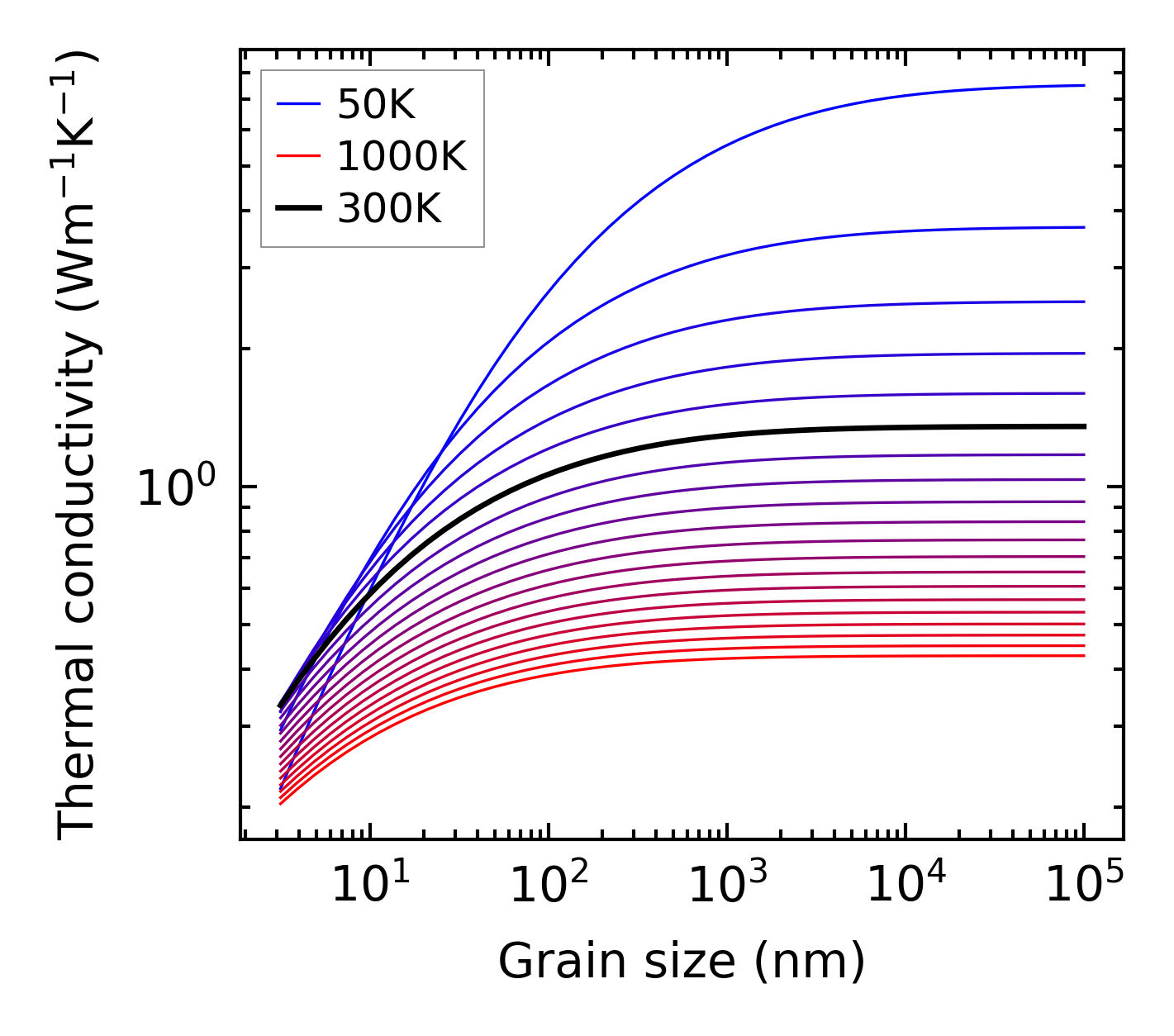

../../_images/fig_kappa_vs_grain_size634.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

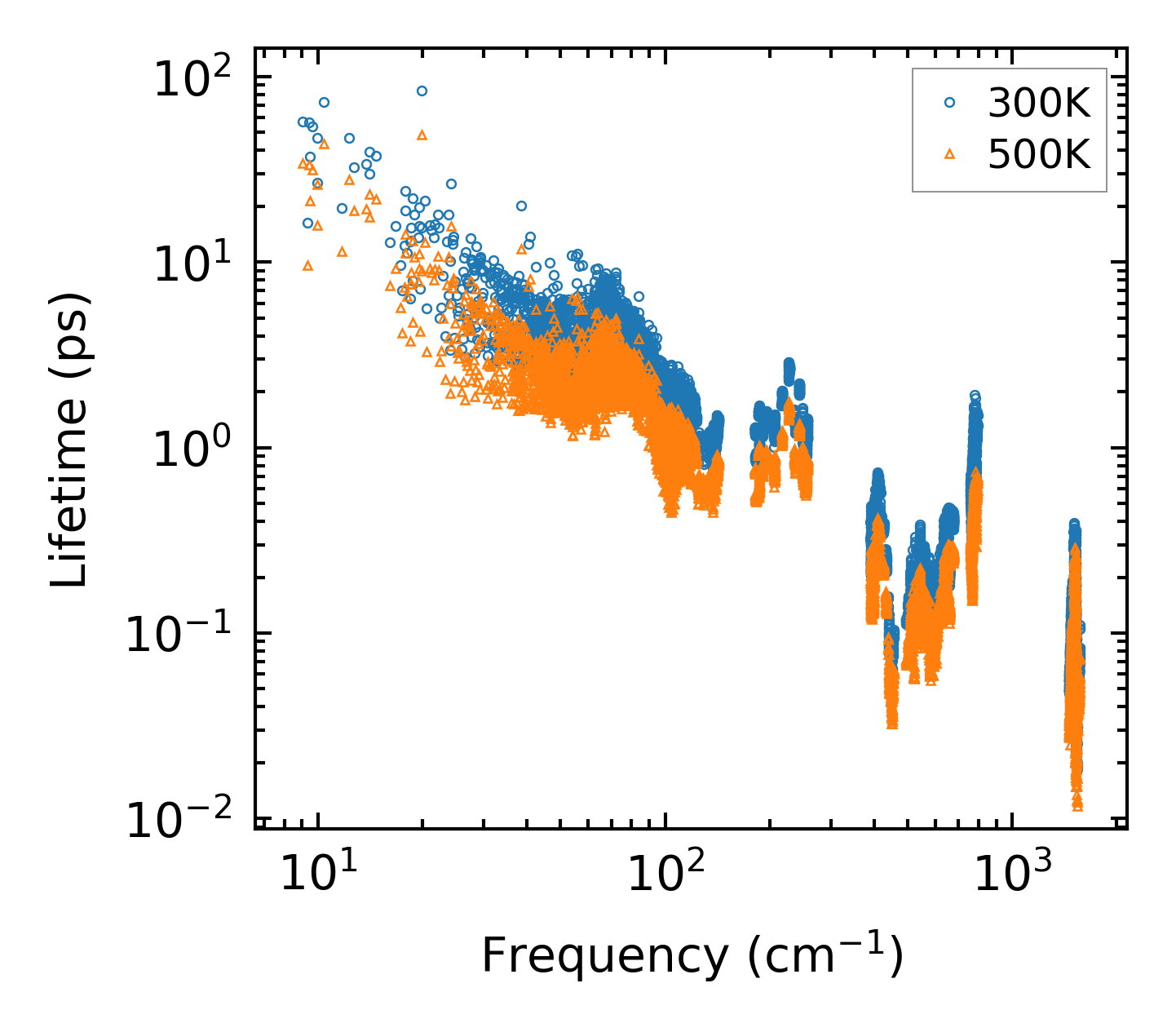

../../_images/fig_lifetime624.png — (a) Phonon lifetime due to phonon-phonon scattering

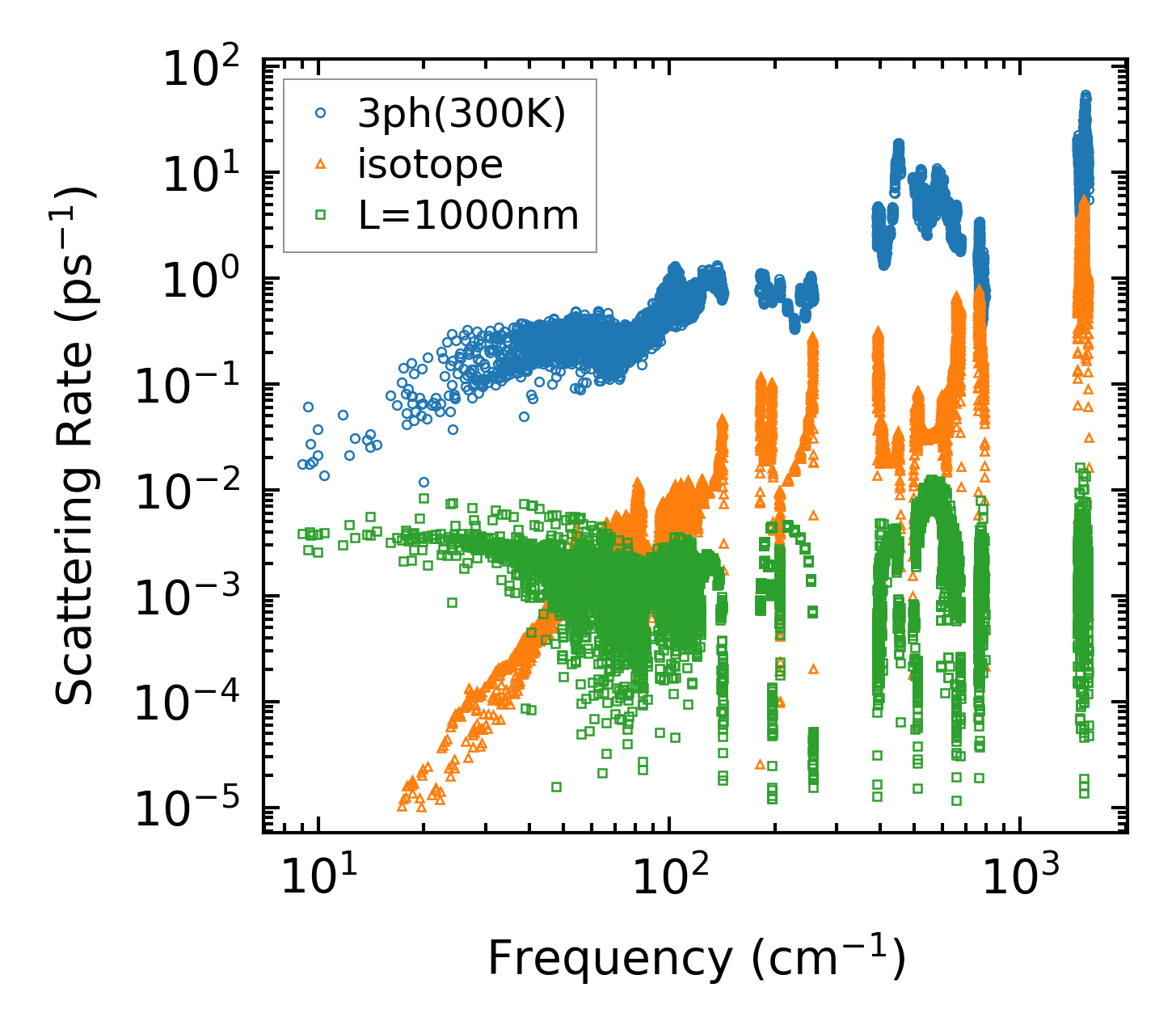

../../_images/fig_scat_rates623.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency624.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

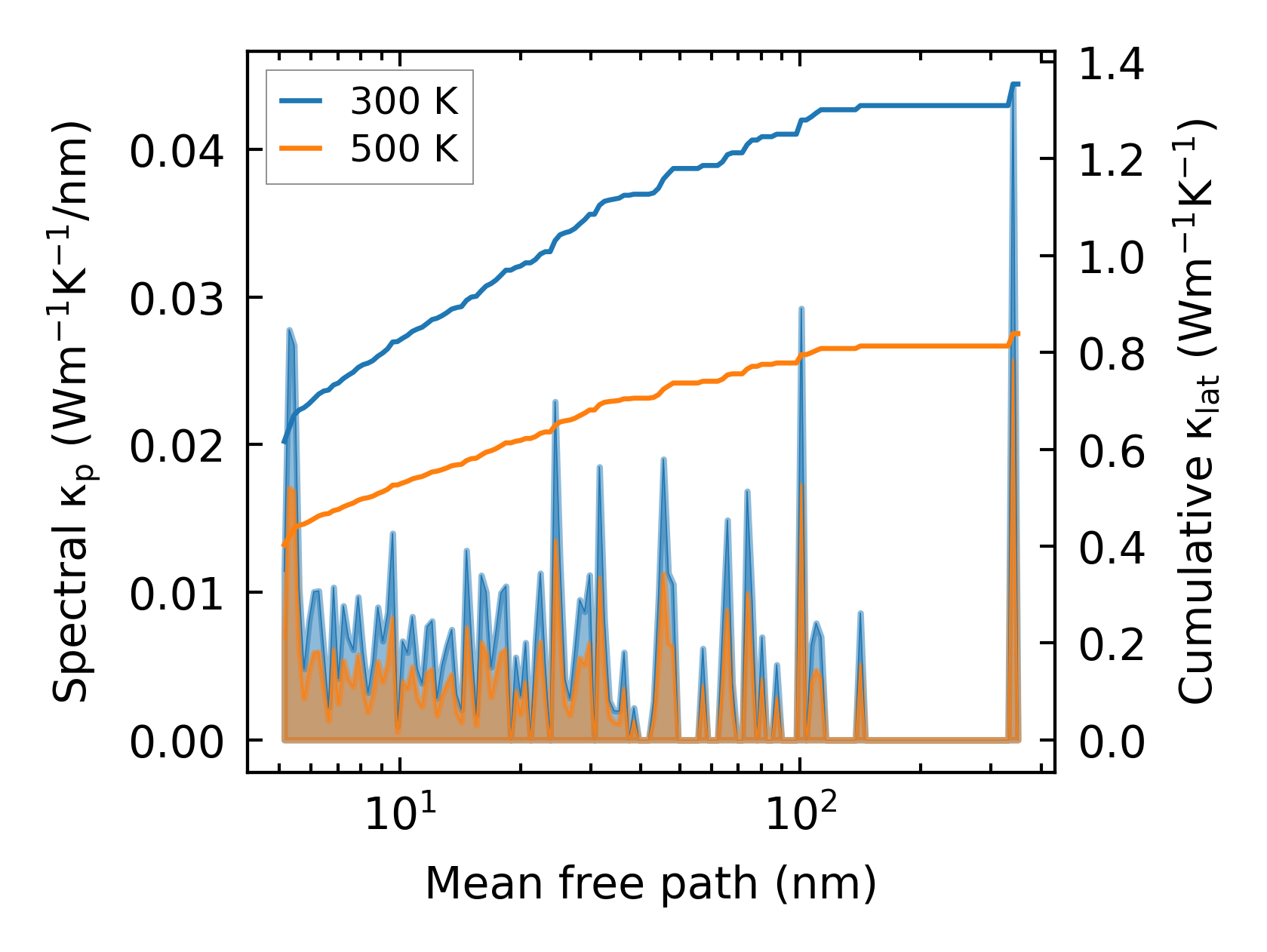

../../_images/fig_cumu_mfp624.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc2893.png — (a) Force constants w.r.t atomic distance

Summary

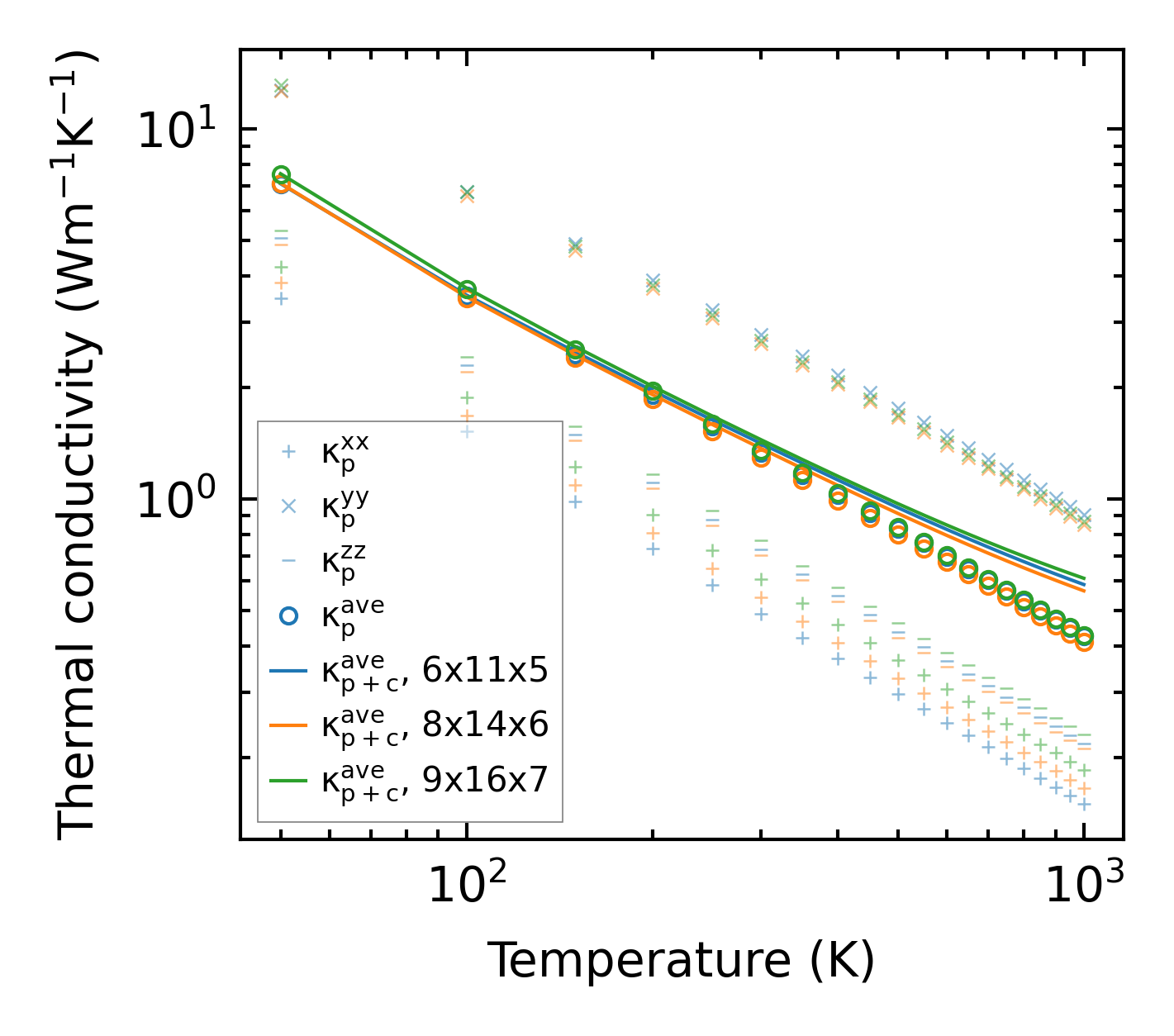

../../_images/fig_kappa1219.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times1527.png — (b) Computation time
