mp-864954/MgMoN2/anharm

Space group: P6_3/mmc (194)
Link: Materials Project
Download: mp-864954.tar.gz

Harmonic properties

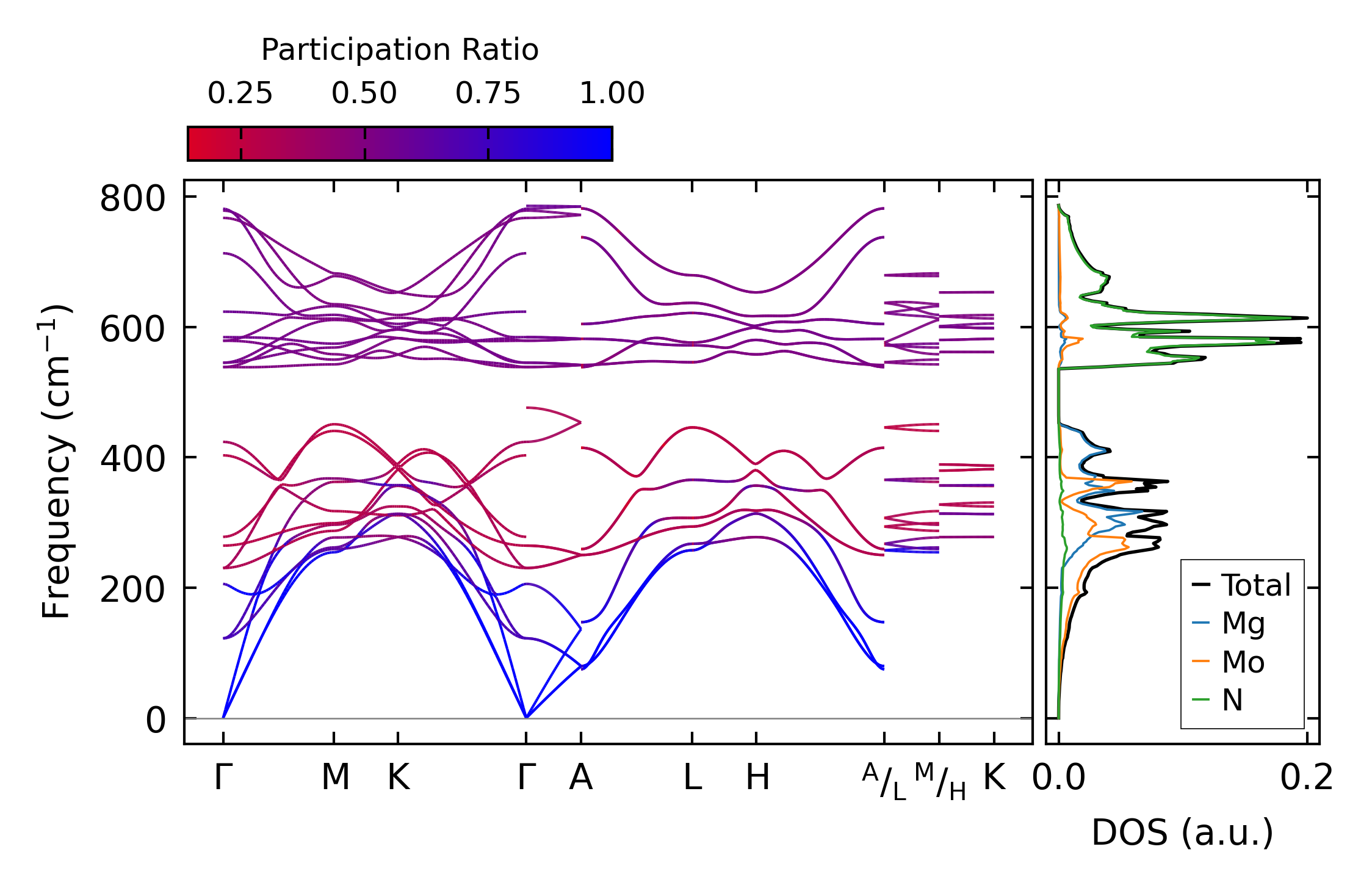

../../_images/fig_bandos_pr1552.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1552.png — (b) Thermodynamic properties

Grüneisen parameters

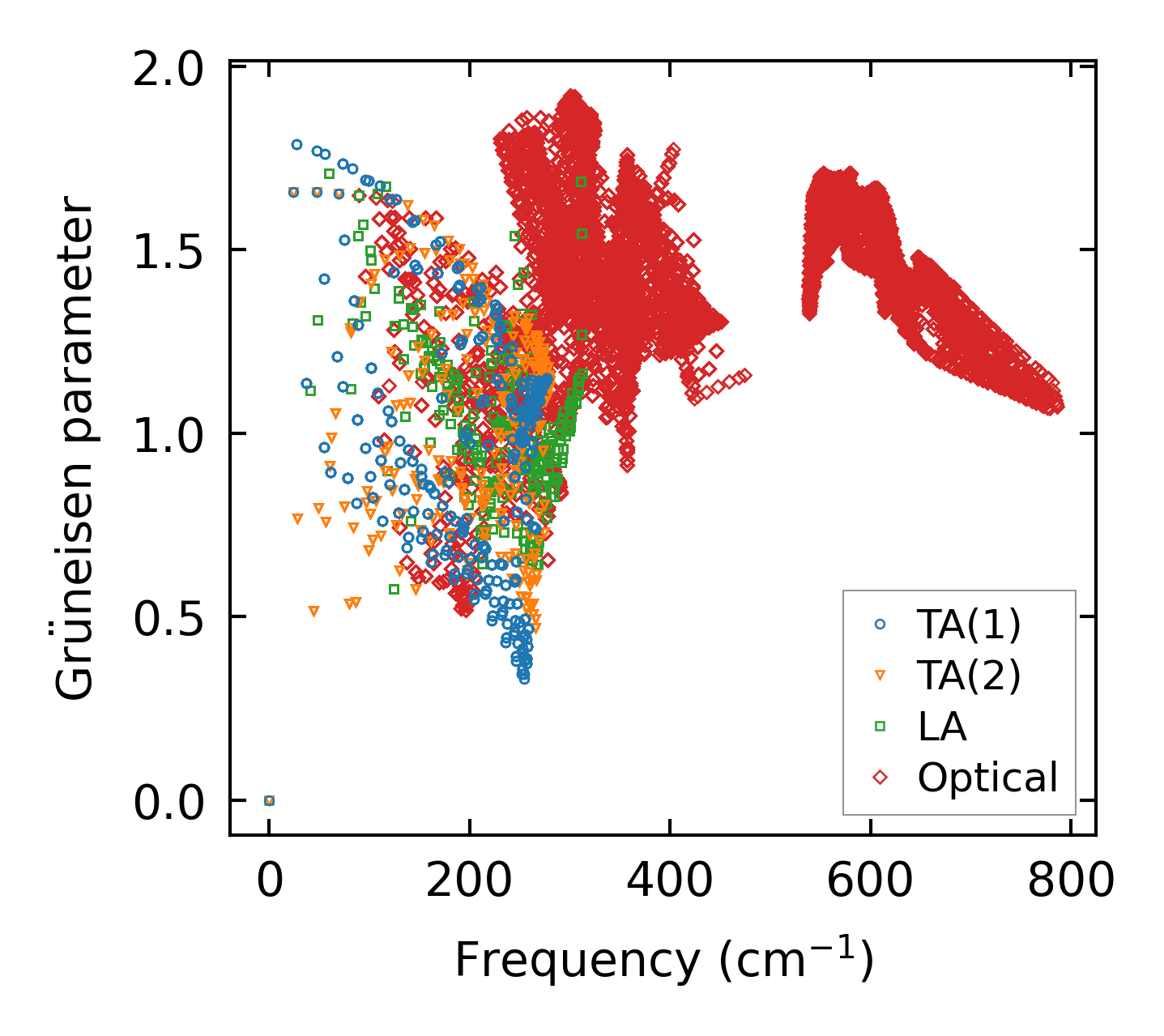

../../_images/fig_gru_all928.png — (a) Grüneisen parameters

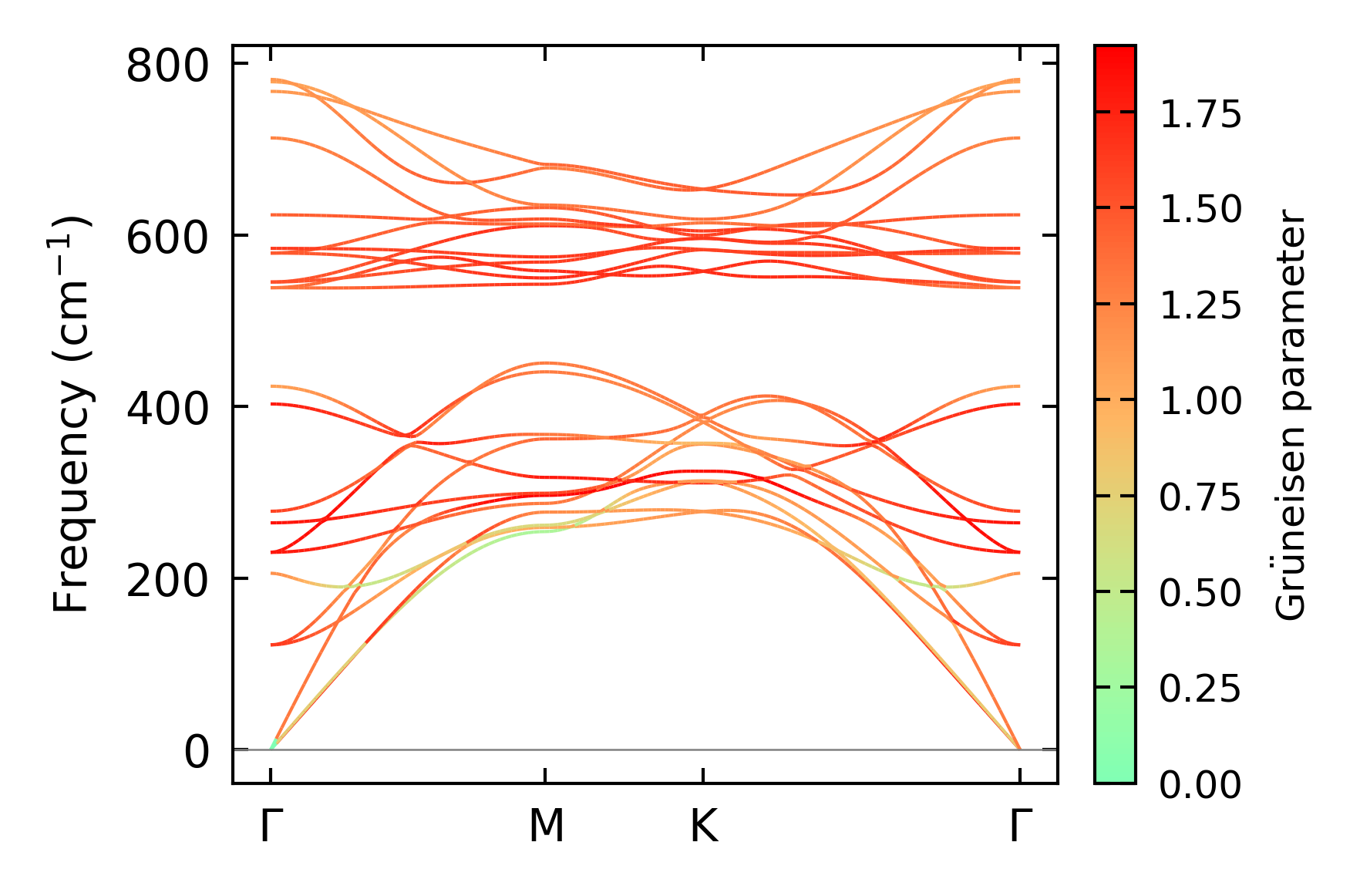

../../_images/fig_gruneisen928.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 26x26x7, supercell: 4x4x1

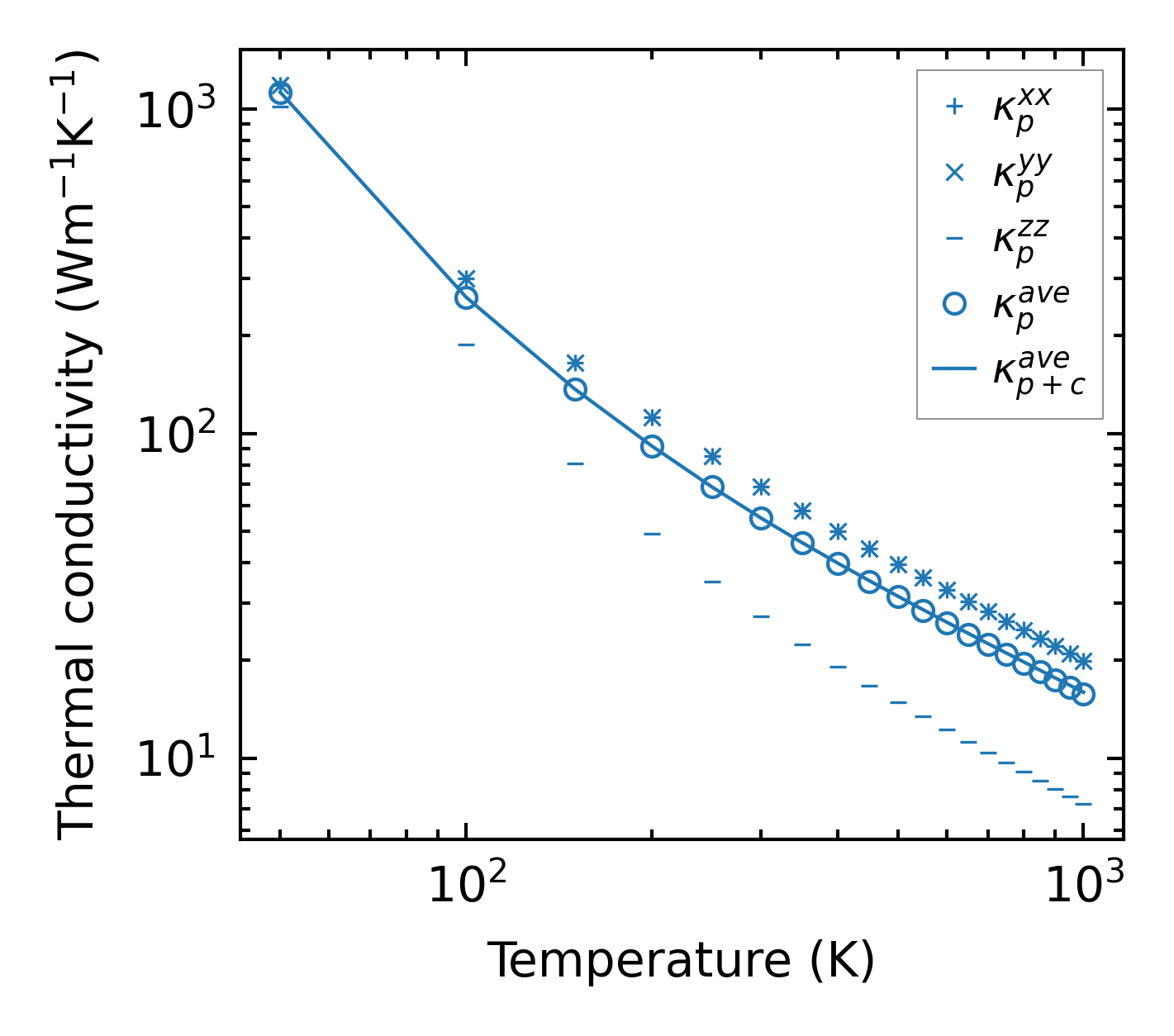

../../_images/fig_kappa1802.png — (a) Temperature-dependent lattice thermal conductivity

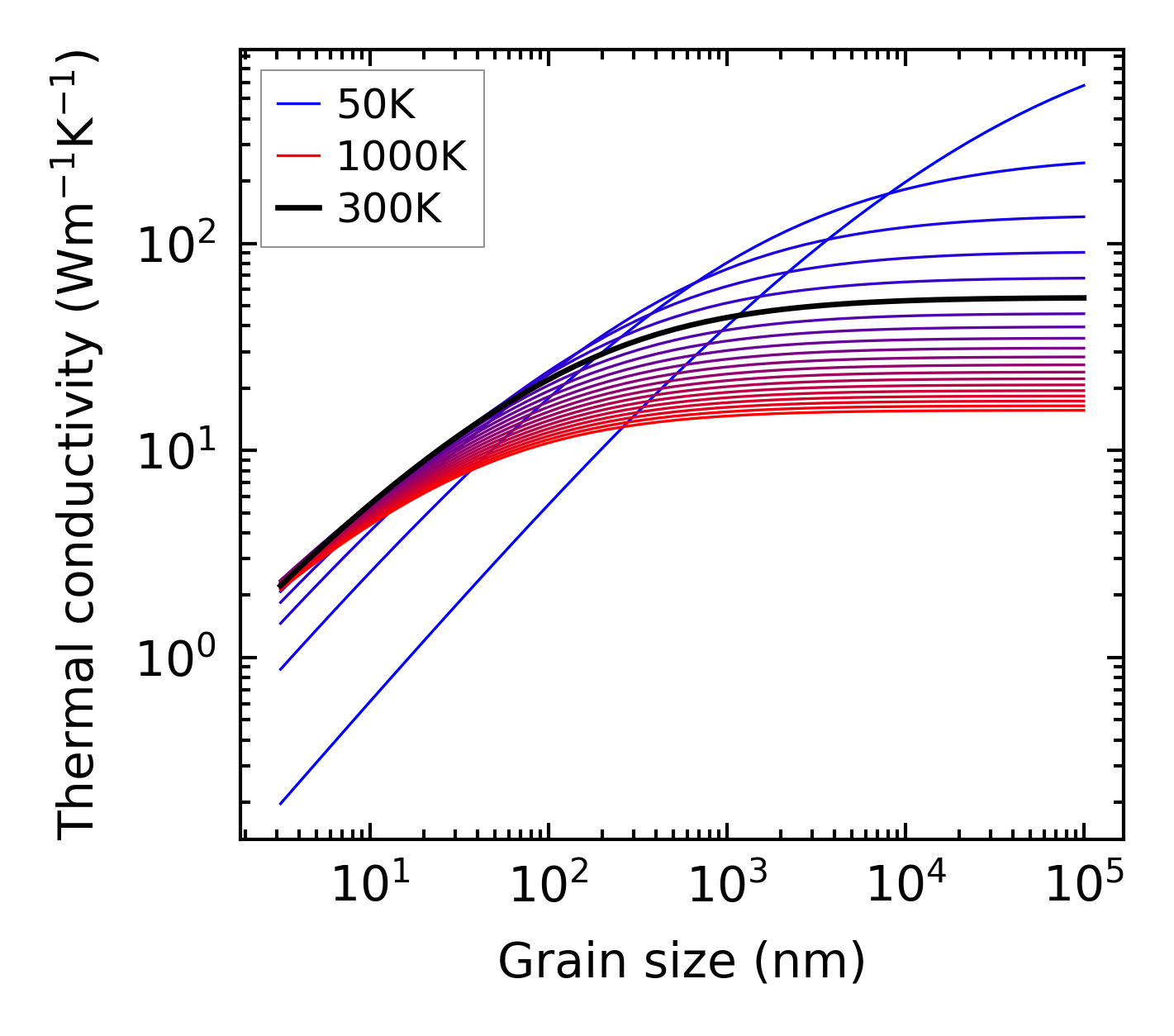

../../_images/fig_kappa_vs_grain_size938.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

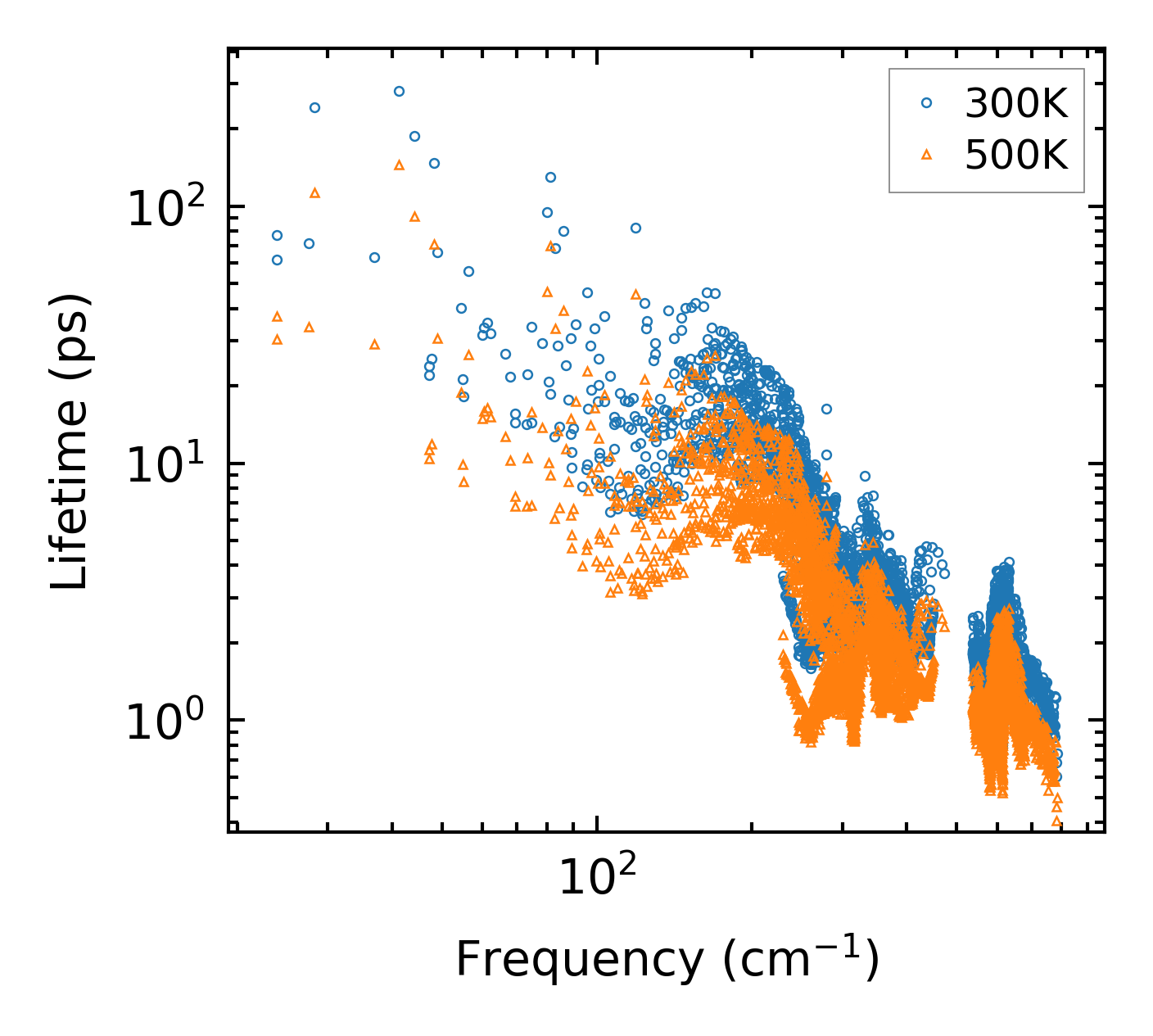

../../_images/fig_lifetime921.png — (a) Phonon lifetime due to phonon-phonon scattering

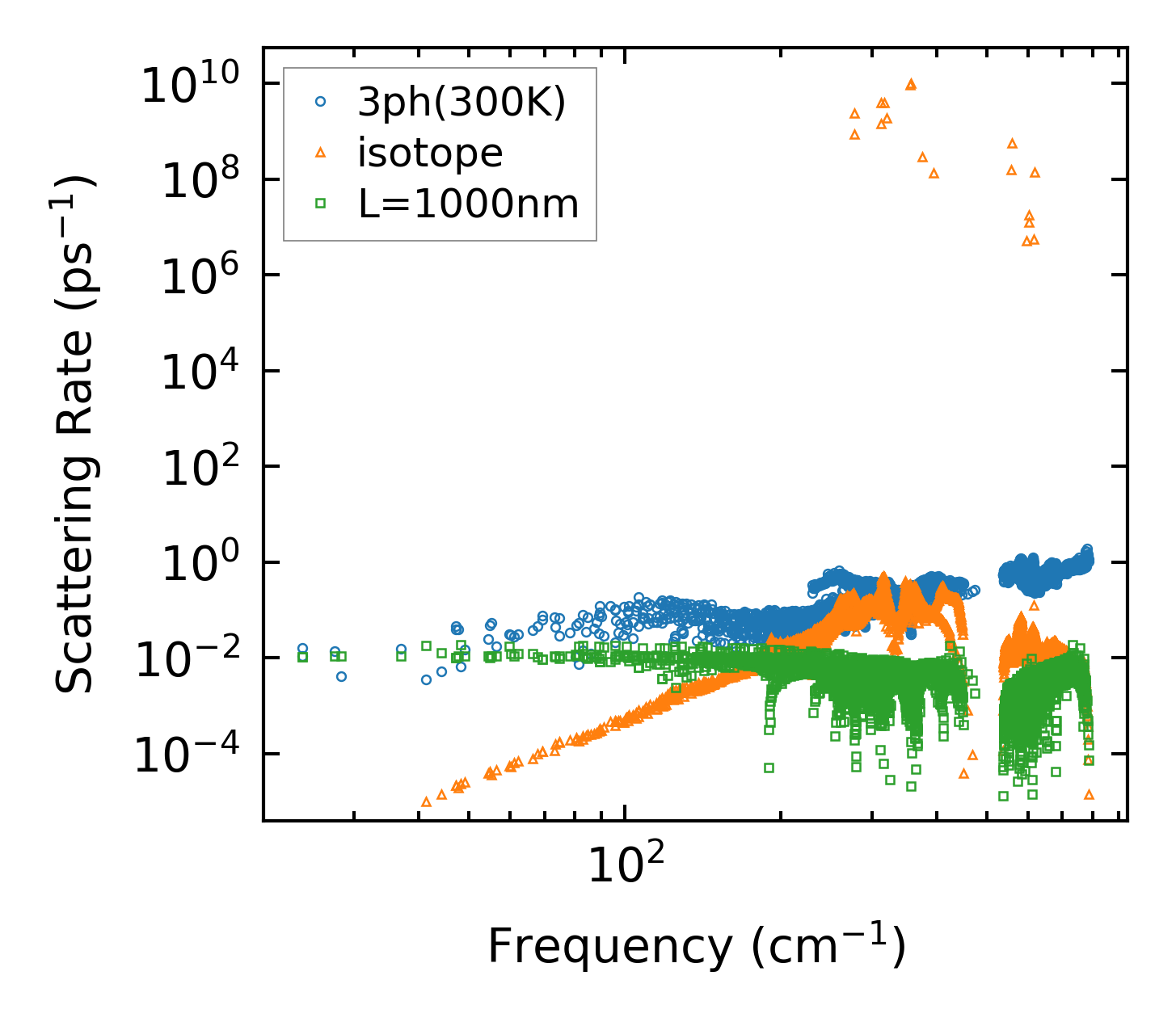

../../_images/fig_scat_rates920.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

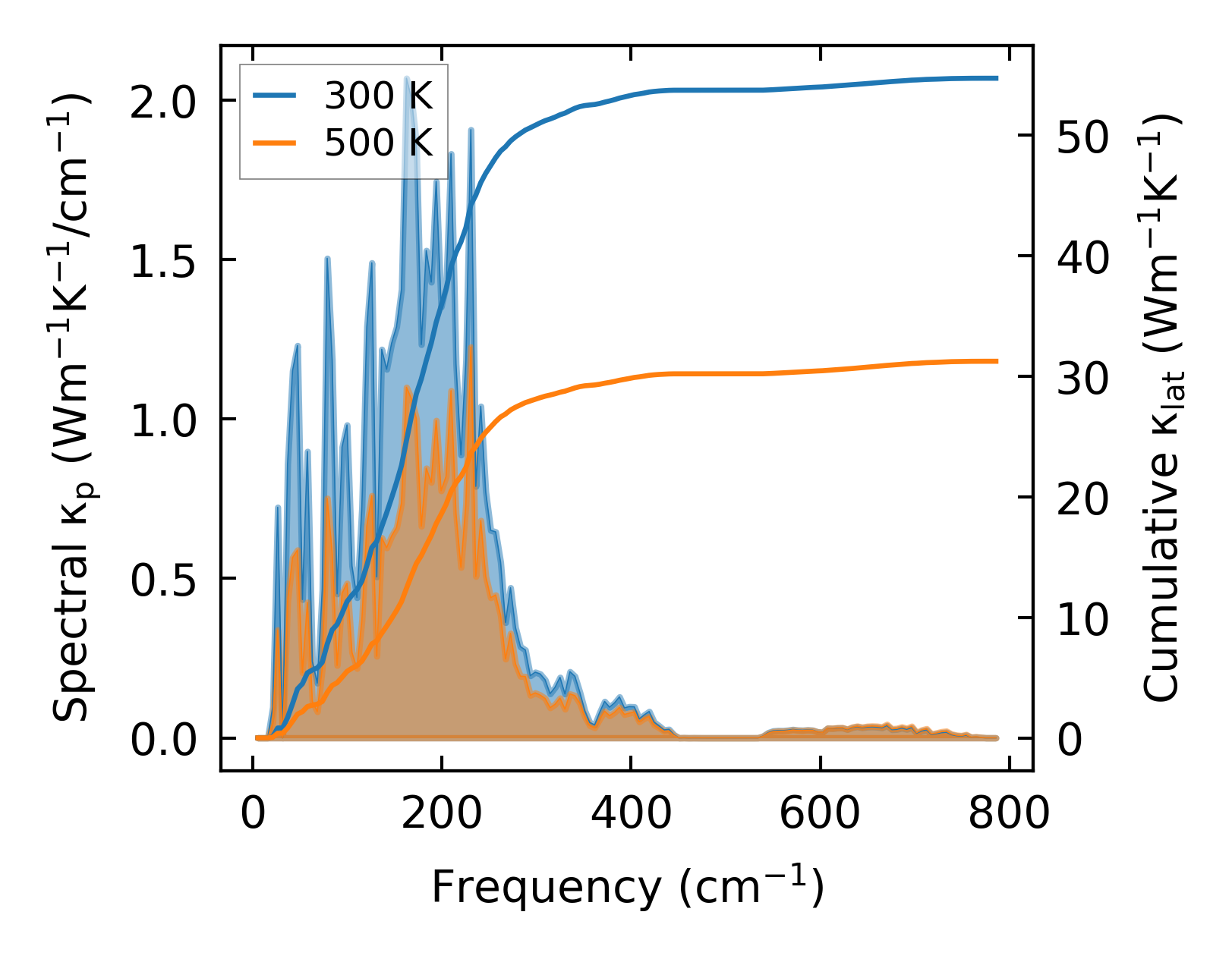

../../_images/fig_cumu_frequency921.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

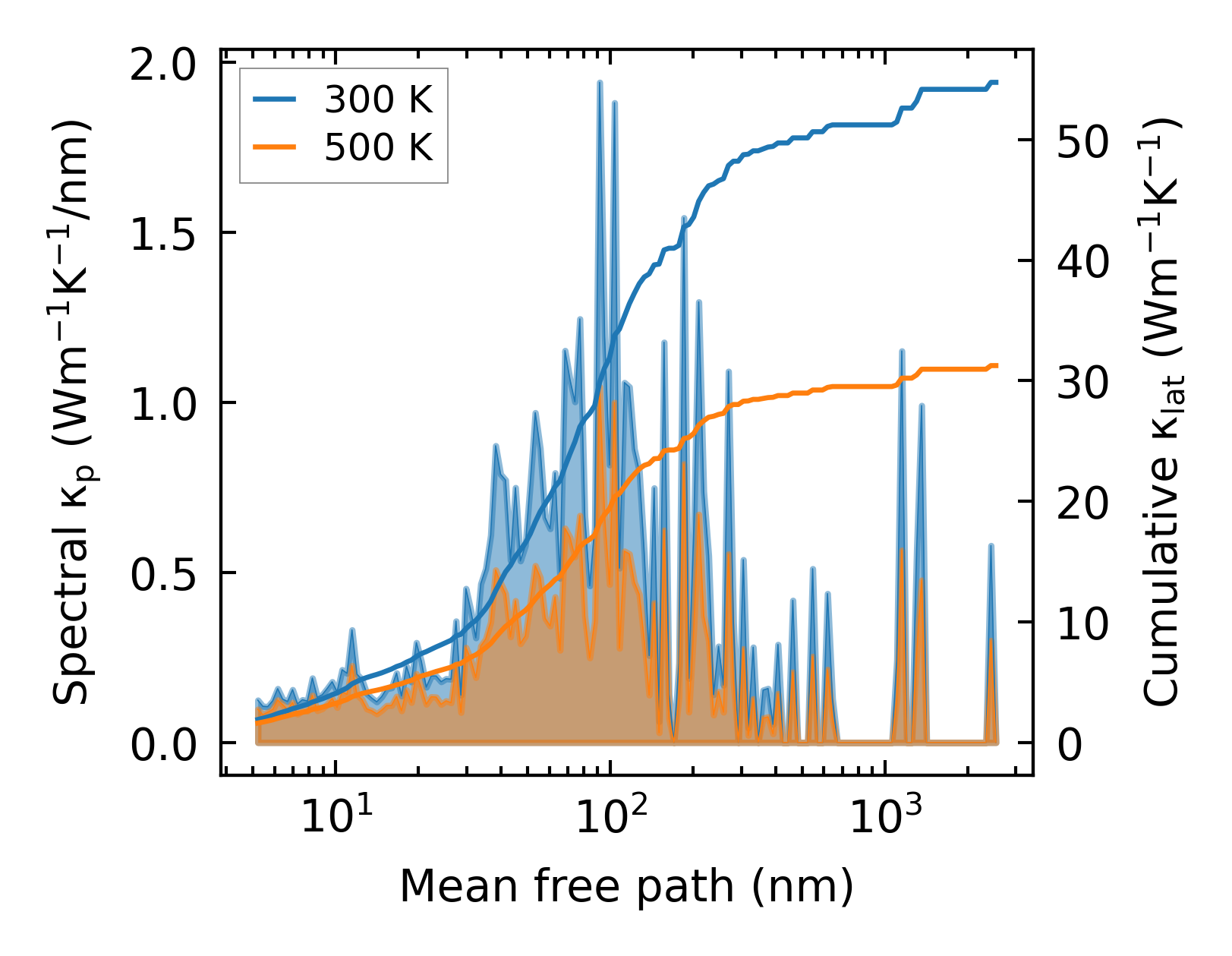

../../_images/fig_cumu_mfp921.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

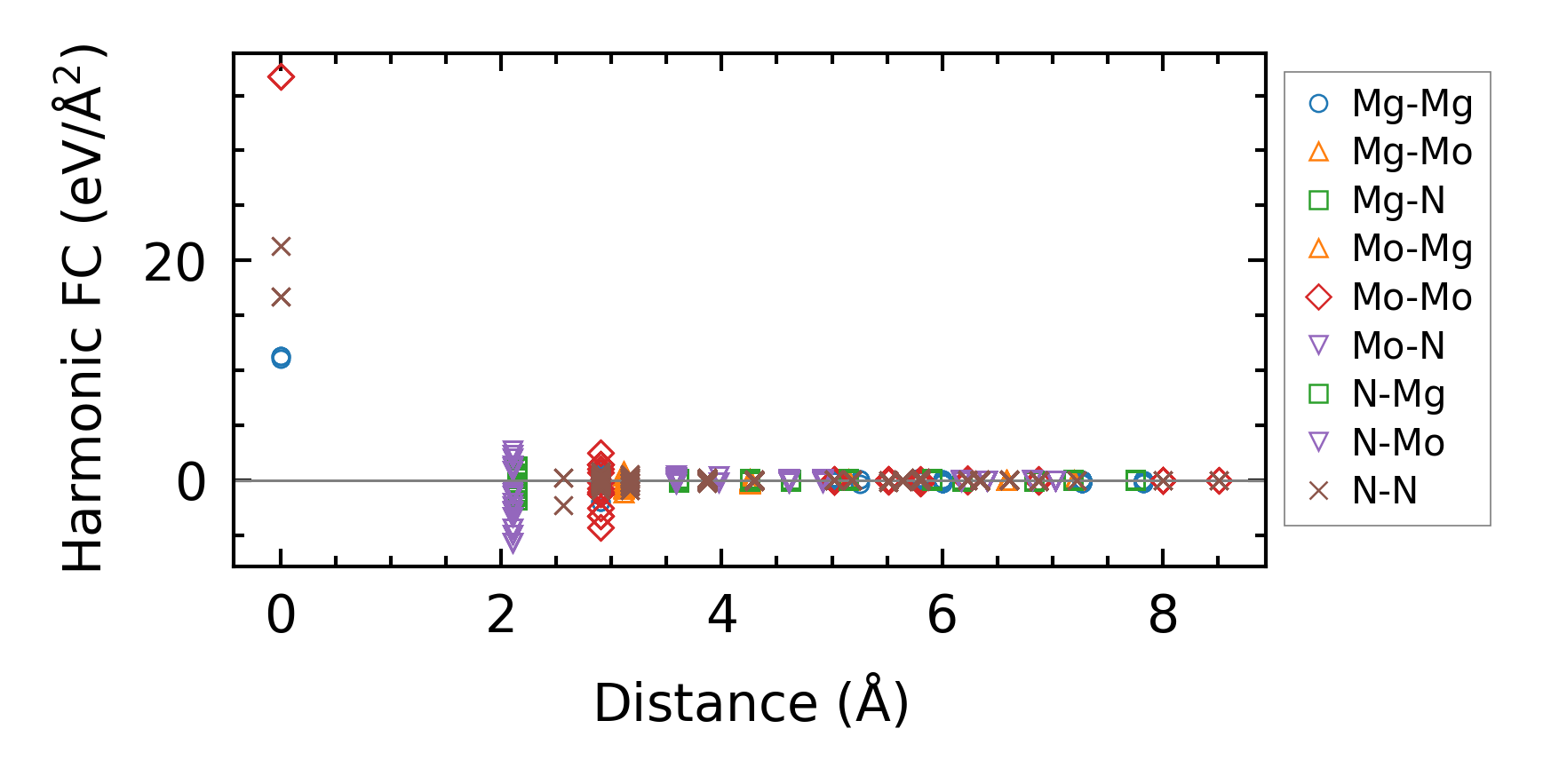

../../_images/fig_fc21397.png — (a) Force constants w.r.t atomic distance

Summary

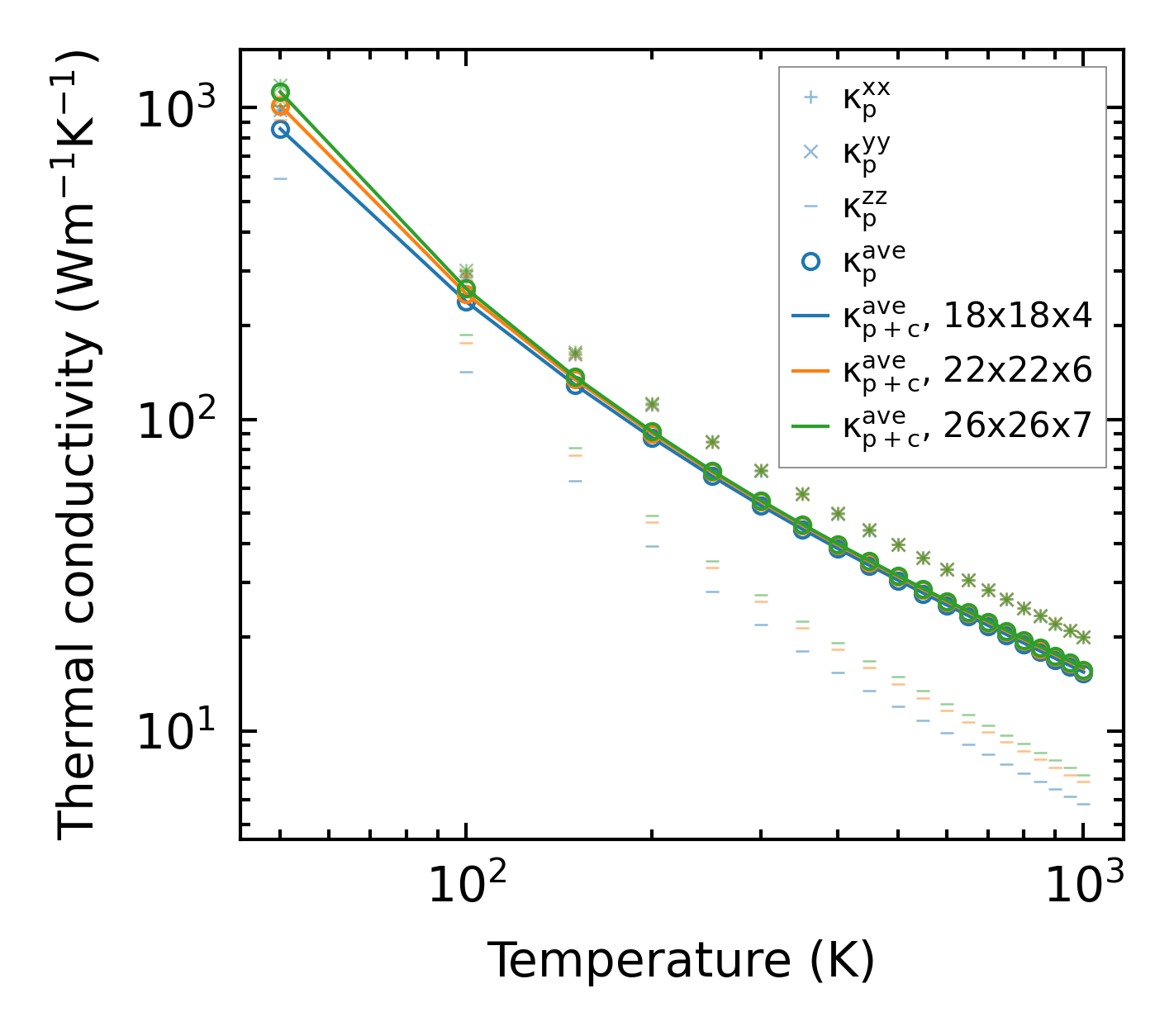

../../_images/fig_kappa1803.png — (a) Temperature-dependent lattice thermal conductivity

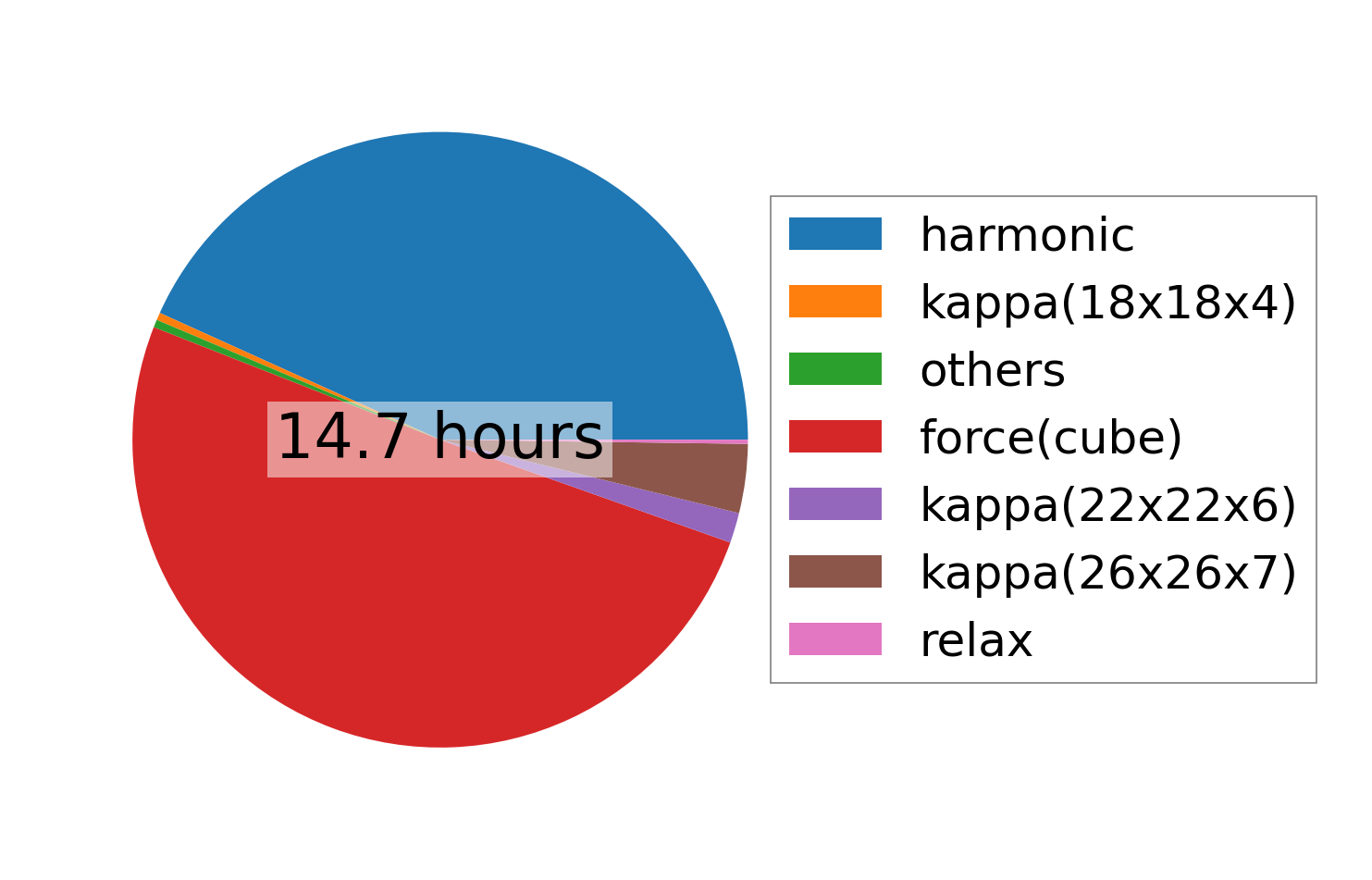

../../_images/fig_times2321.png — (b) Computation time
