mp-740719/Ba3In2H12O12/anharm

Space group: Ia-3d (230)
Link: Materials Project
Download: mp-740719.tar.gz

Equation of state

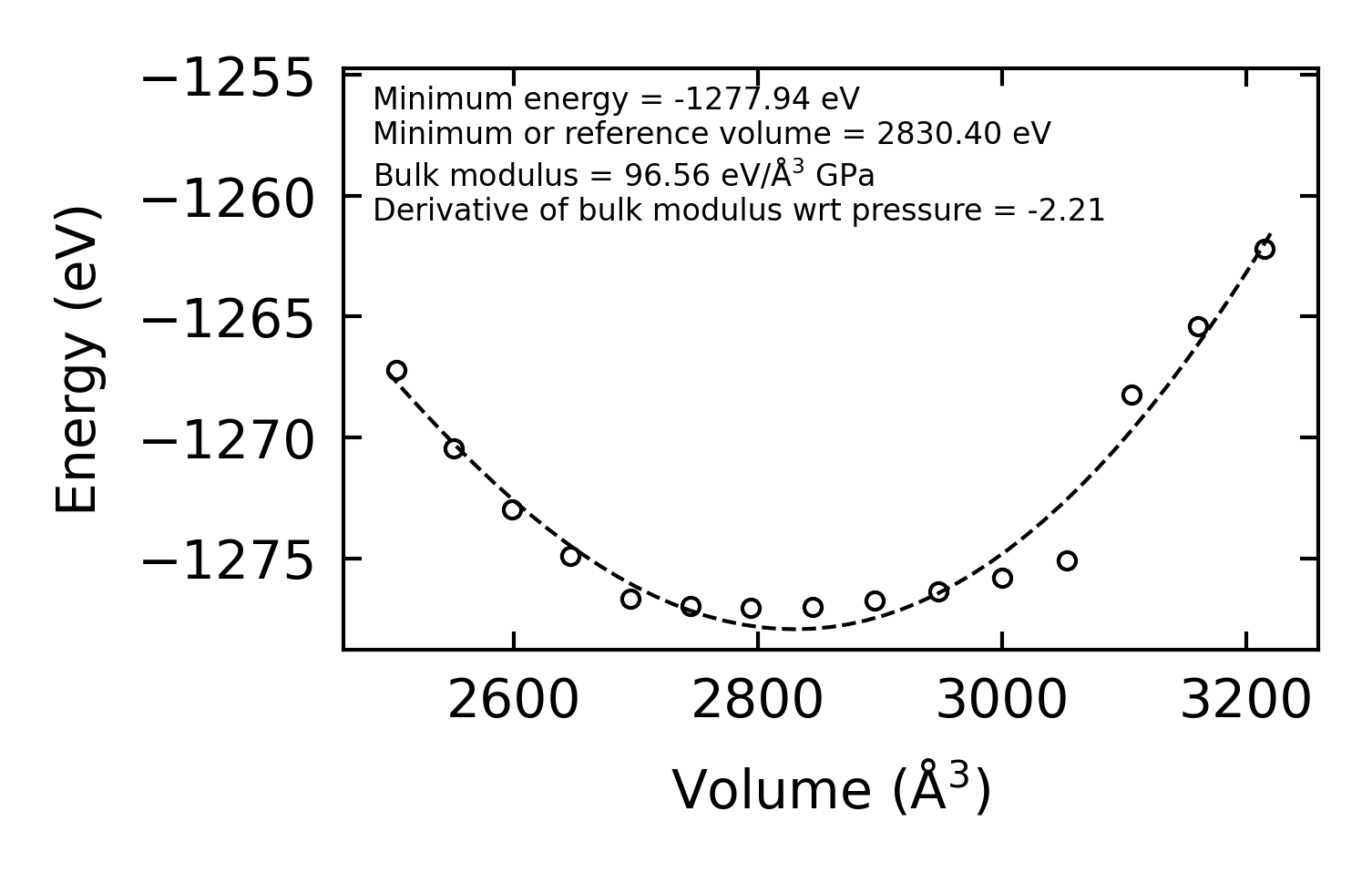

../../_images/fig_bm2042.png — (a) Equation of state

Harmonic properties

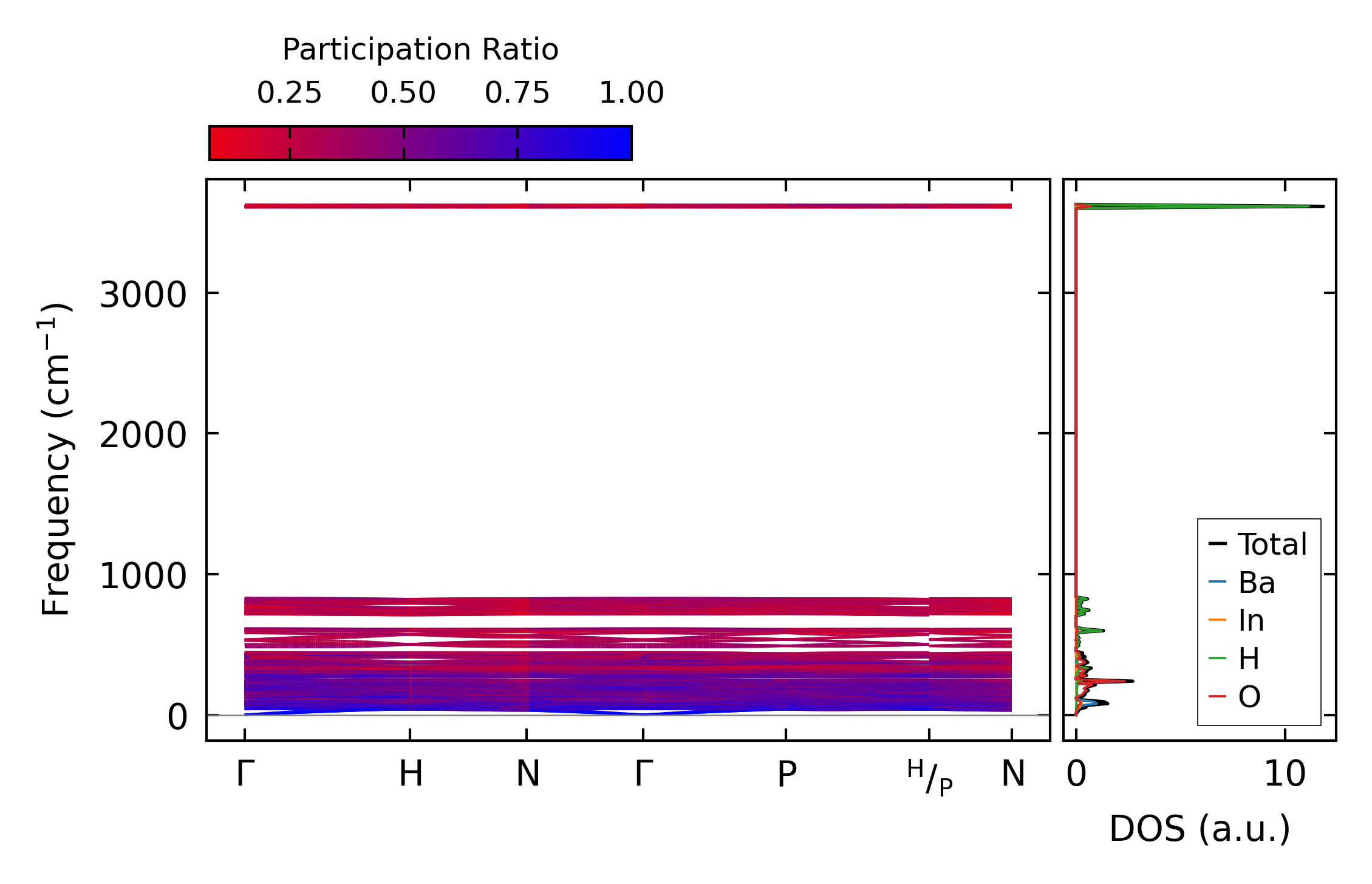

../../_images/fig_bandos_pr4120.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4120.png — (b) Thermodynamic properties

Grüneisen parameters

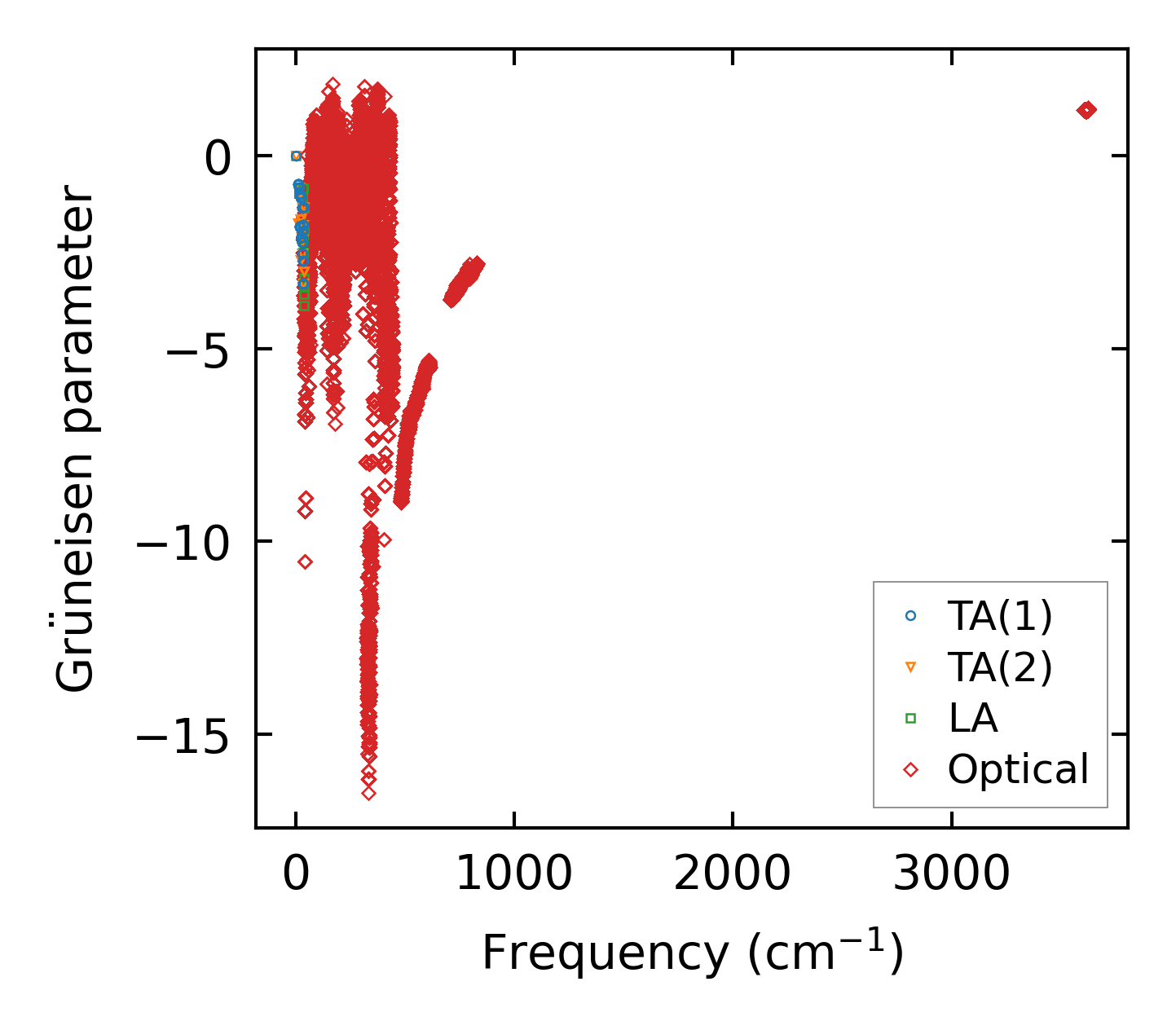

../../_images/fig_gru_all1820.png — (a) Grüneisen parameters

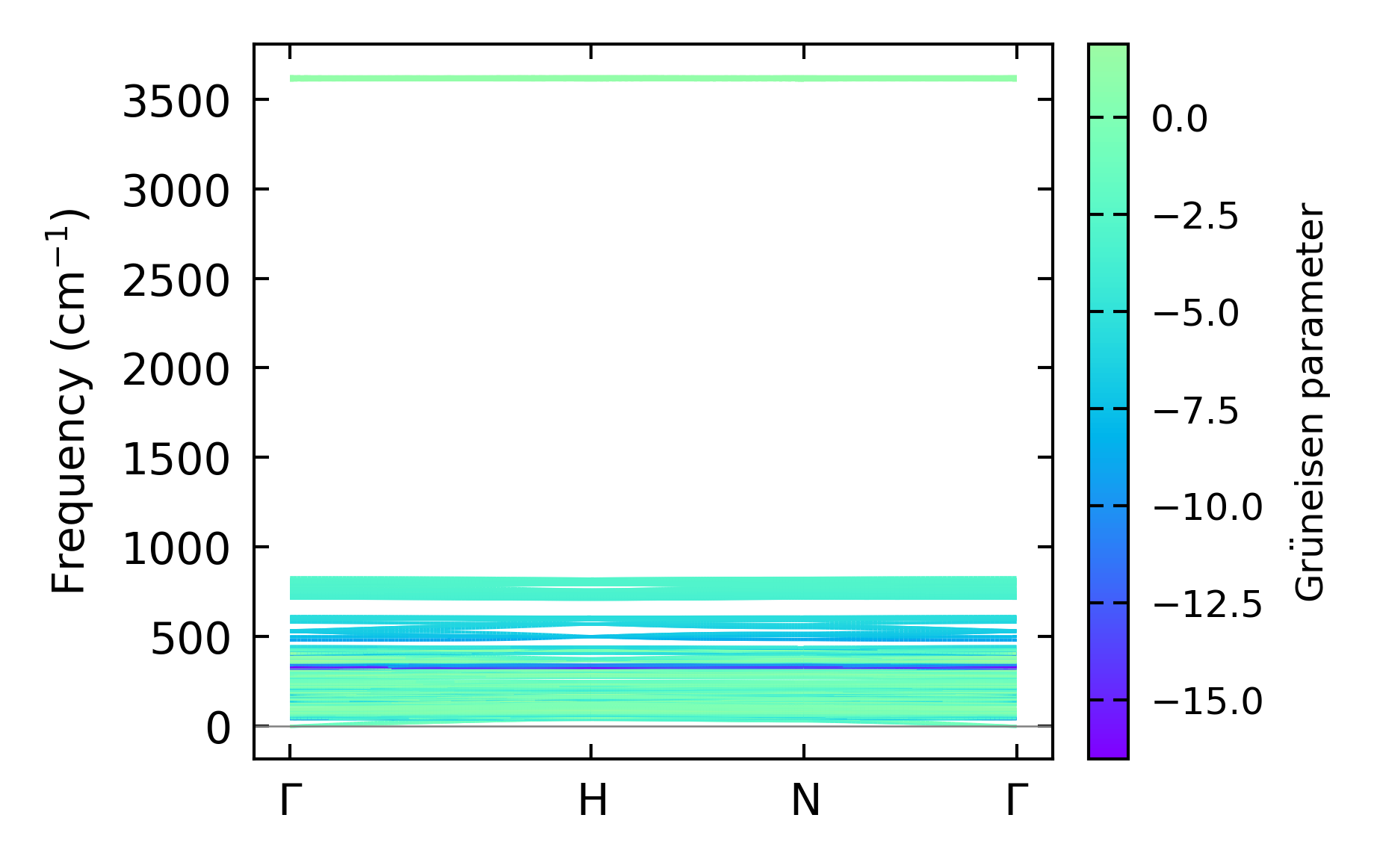

../../_images/fig_gruneisen1820.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x6x6, supercell: 1x1x1

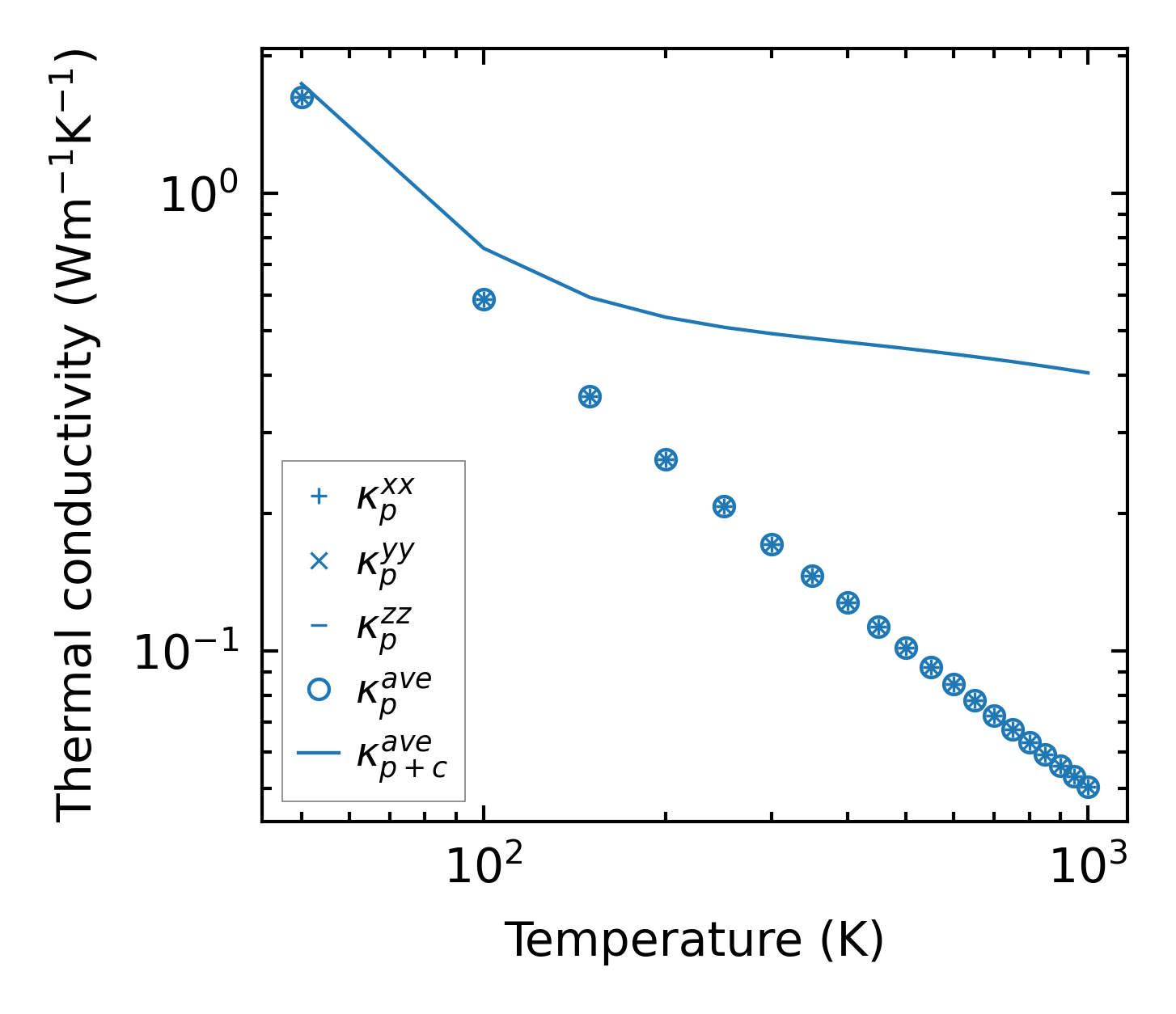

../../_images/fig_kappa3493.png — (a) Temperature-dependent lattice thermal conductivity

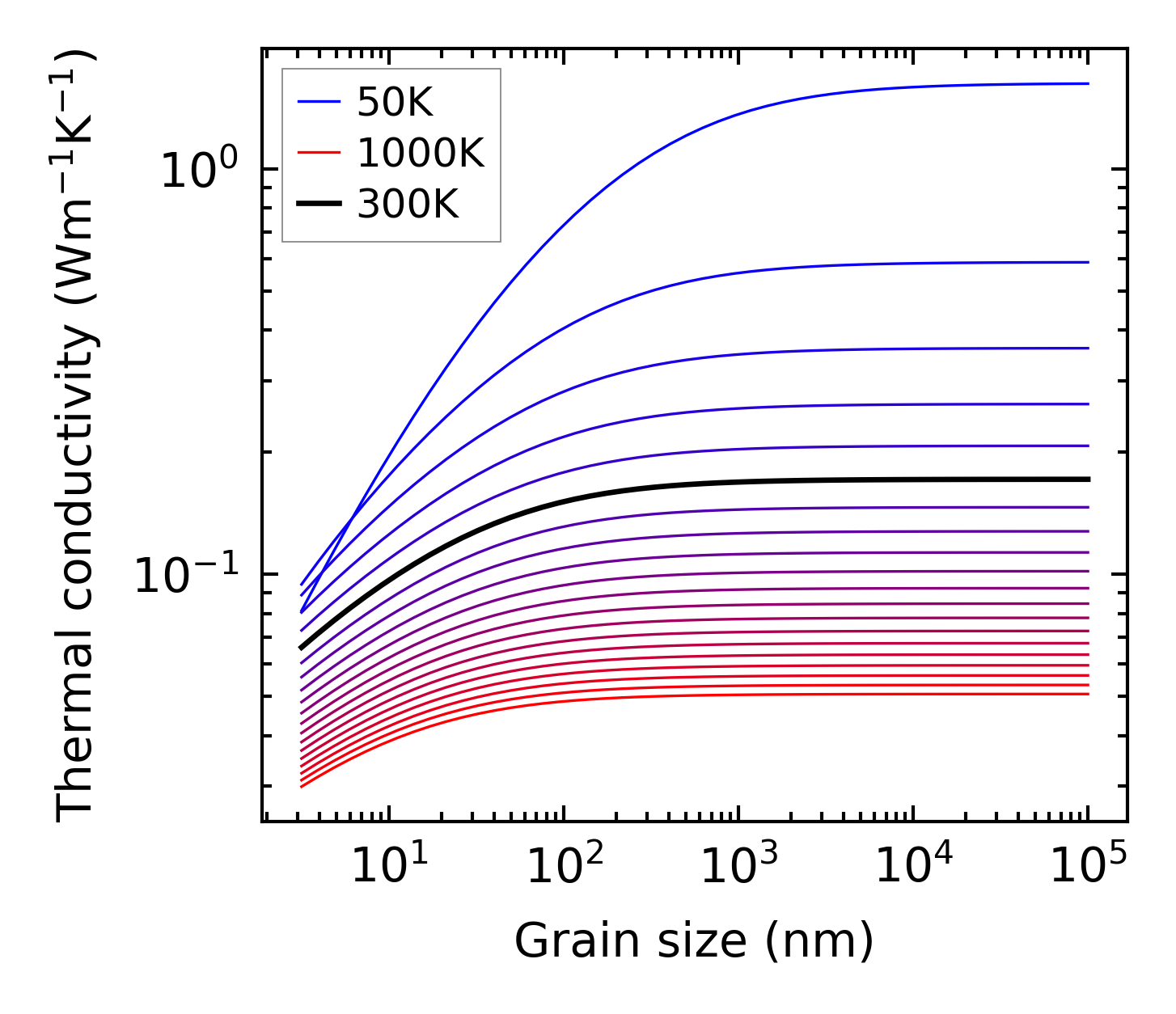

../../_images/fig_kappa_vs_grain_size1848.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

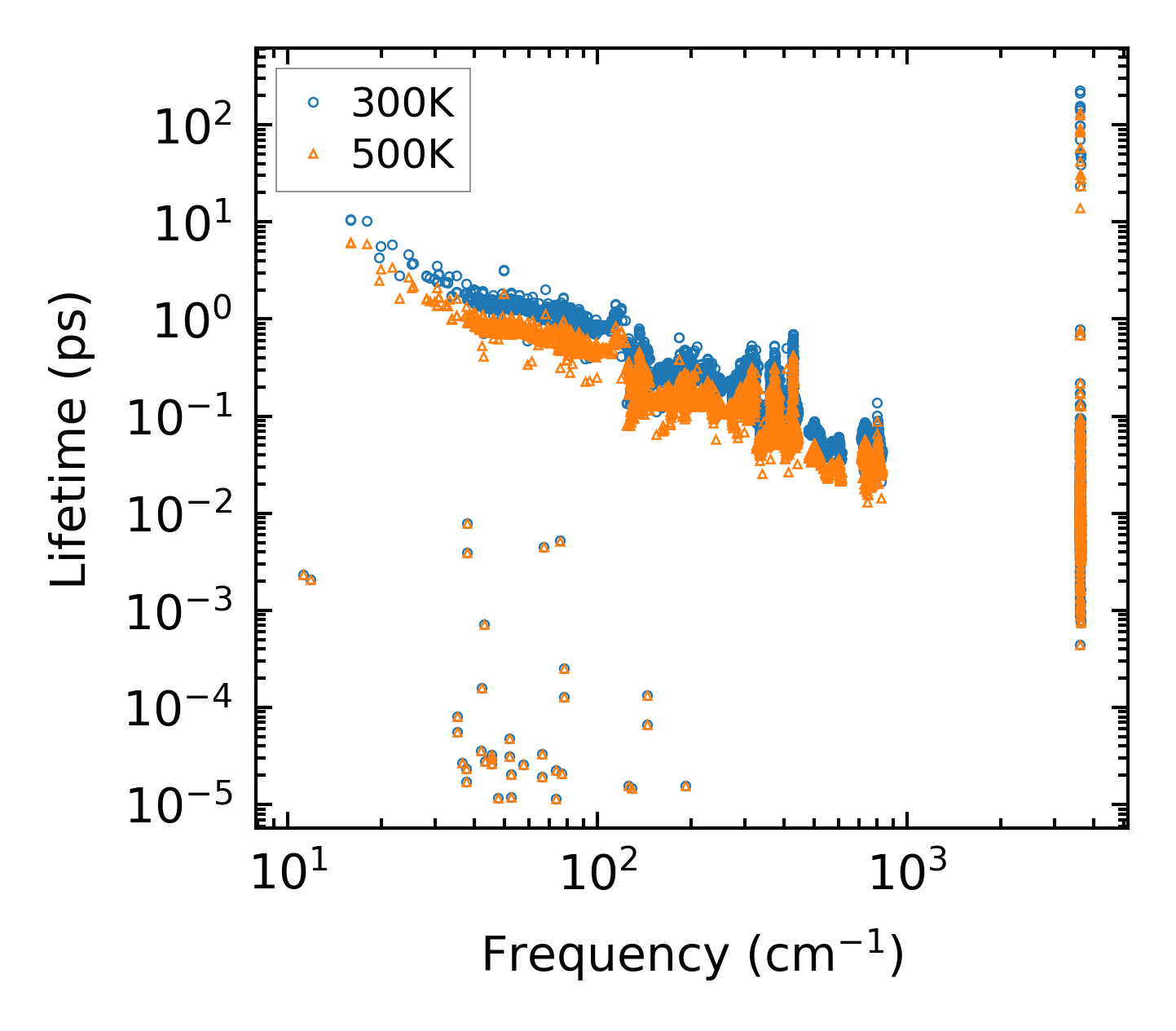

../../_images/fig_lifetime1810.png — (a) Phonon lifetime due to phonon-phonon scattering

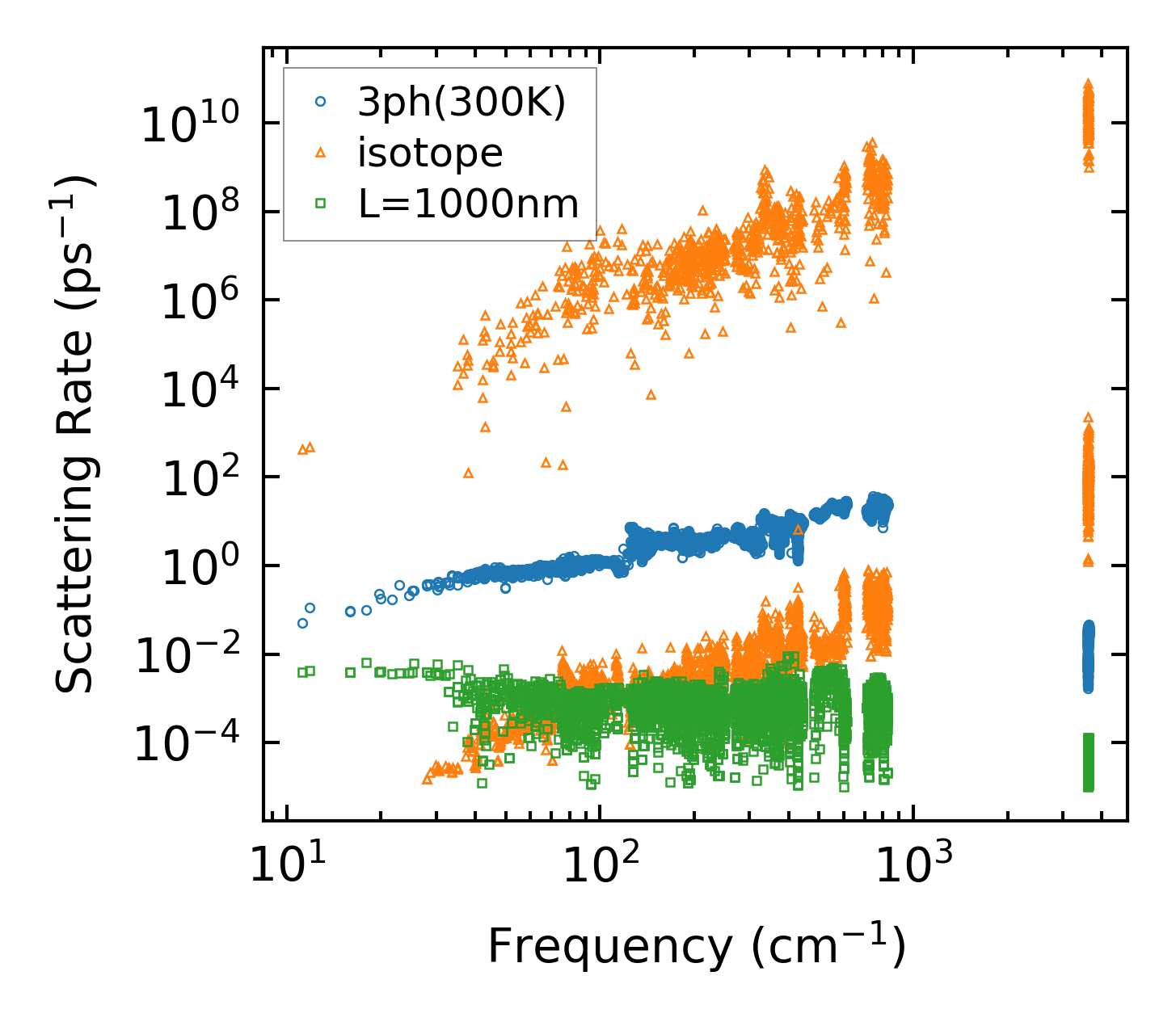

../../_images/fig_scat_rates1809.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

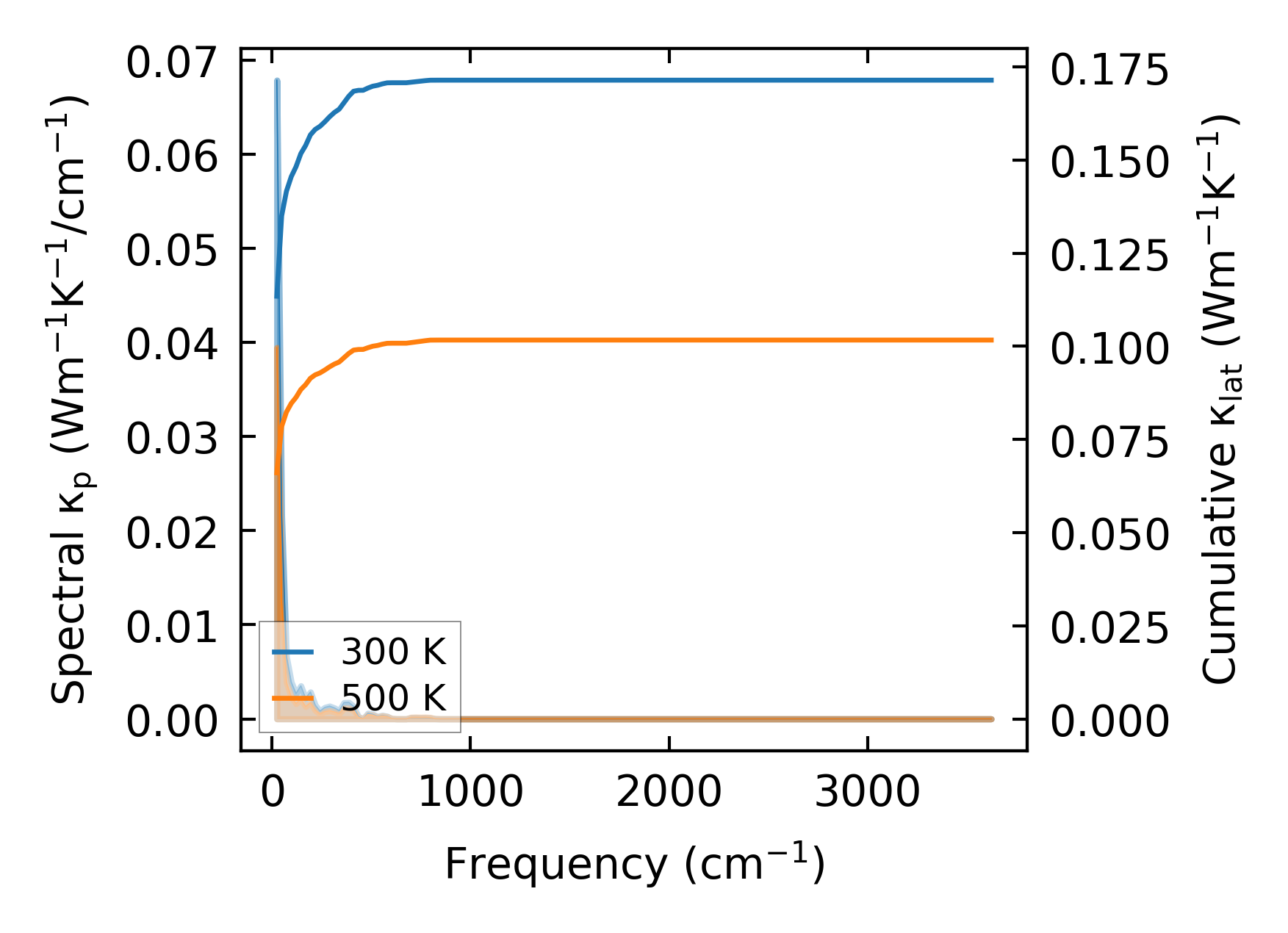

../../_images/fig_cumu_frequency1810.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

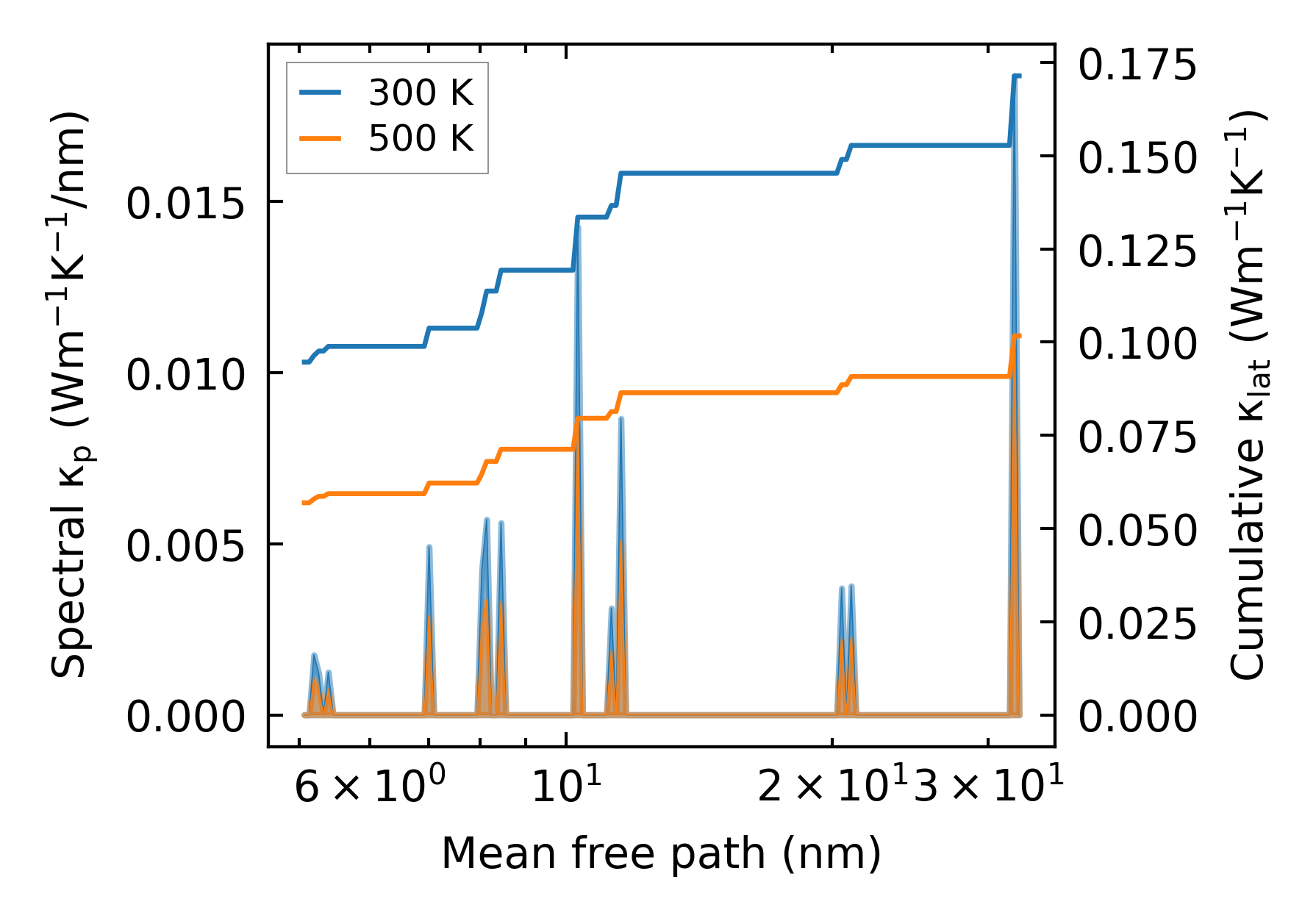

../../_images/fig_cumu_mfp1810.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

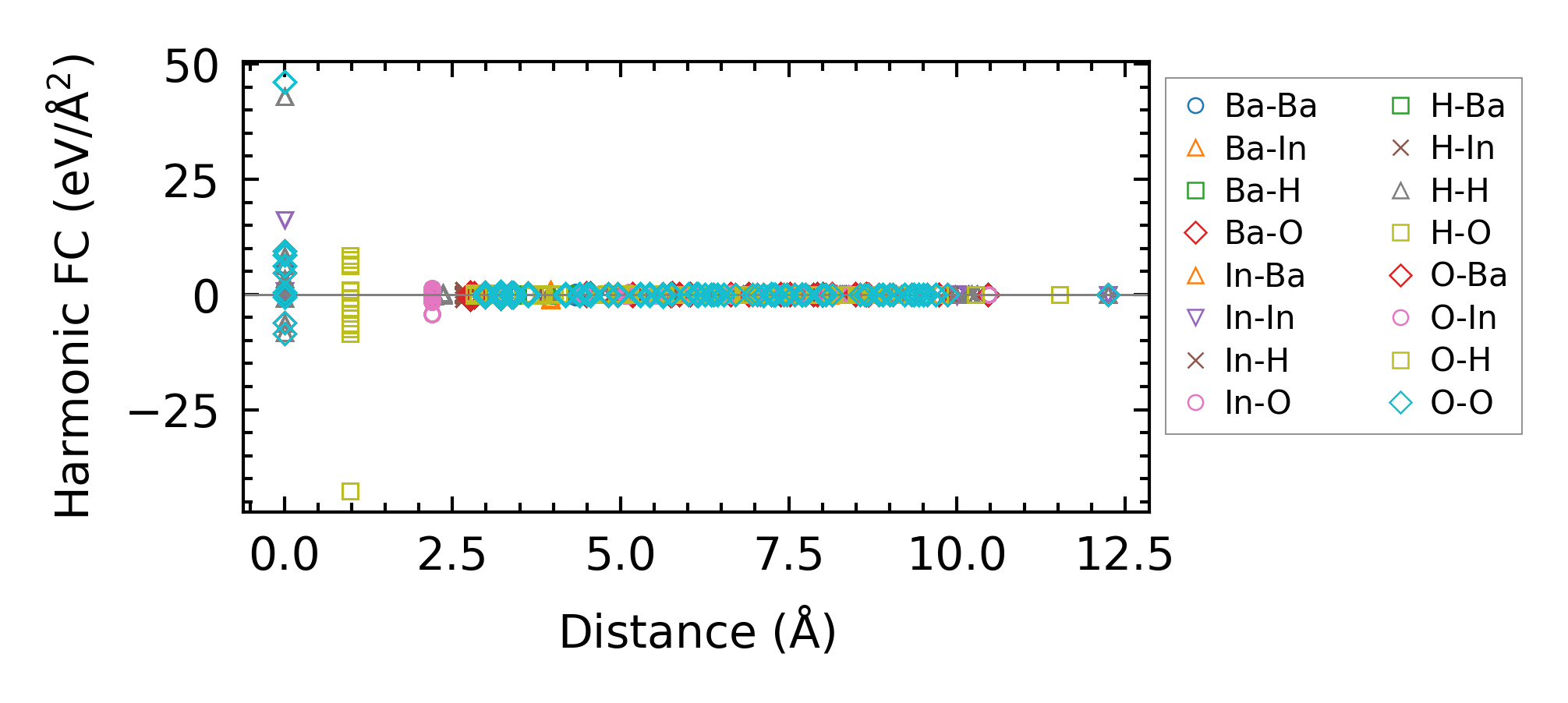

../../_images/fig_fc23933.png — (a) Force constants w.r.t atomic distance

Summary

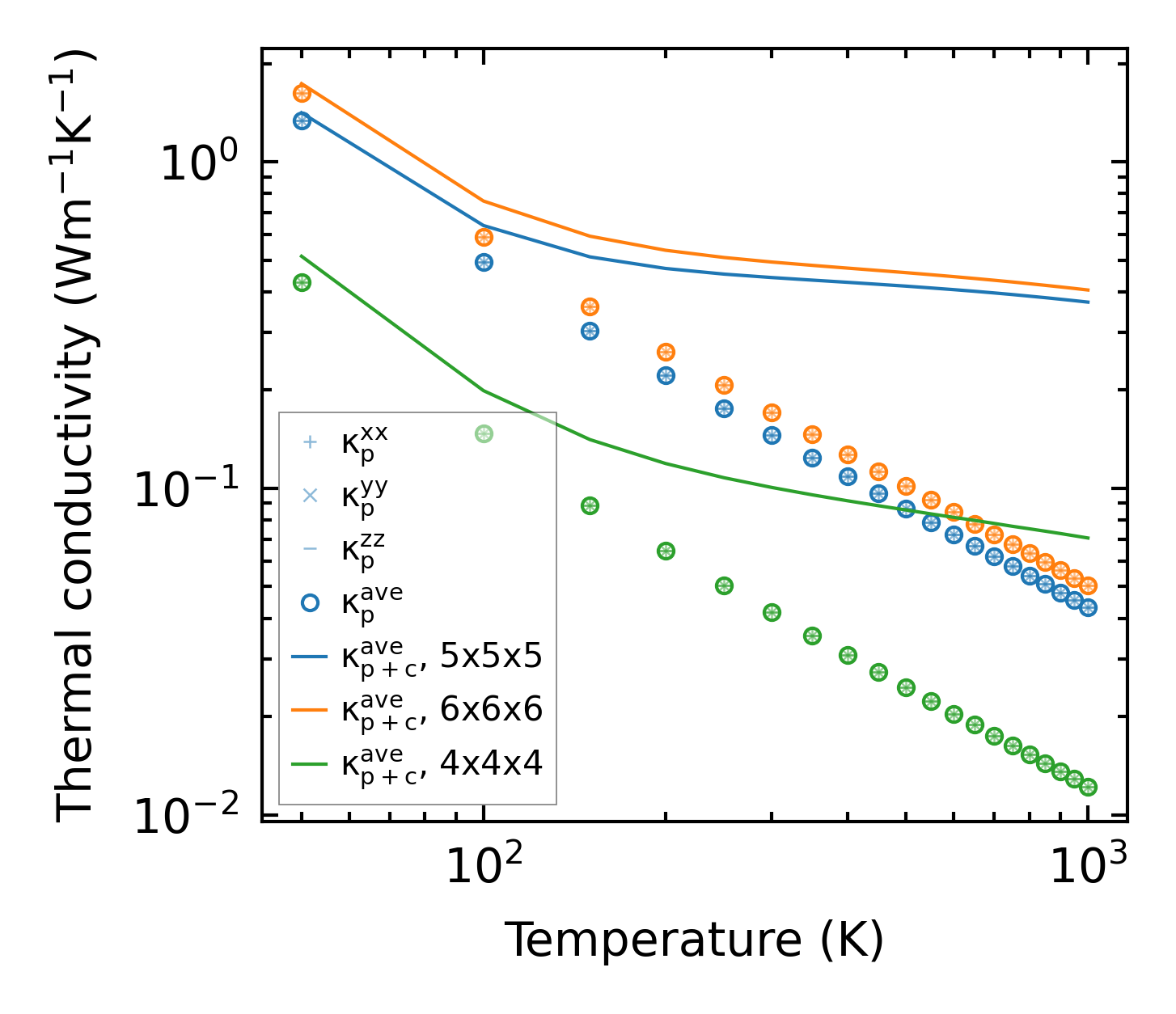

../../_images/fig_kappa3494.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times7190.png — (b) Computation time
