mp-685150-3/PbF2/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-685150-3.tar.gz

Equation of state

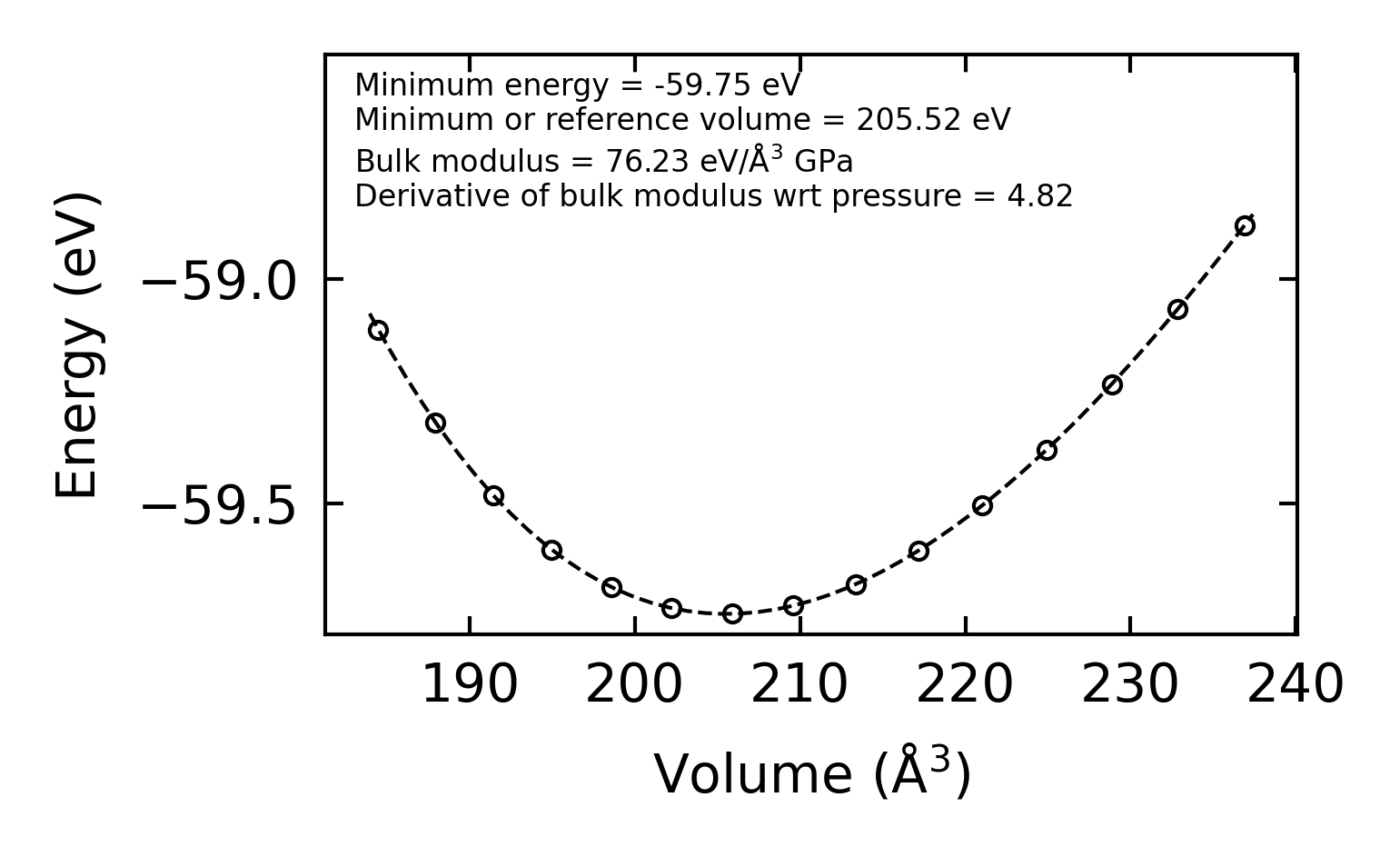

../../_images/fig_bm2481.png — (a) Equation of state

Harmonic properties

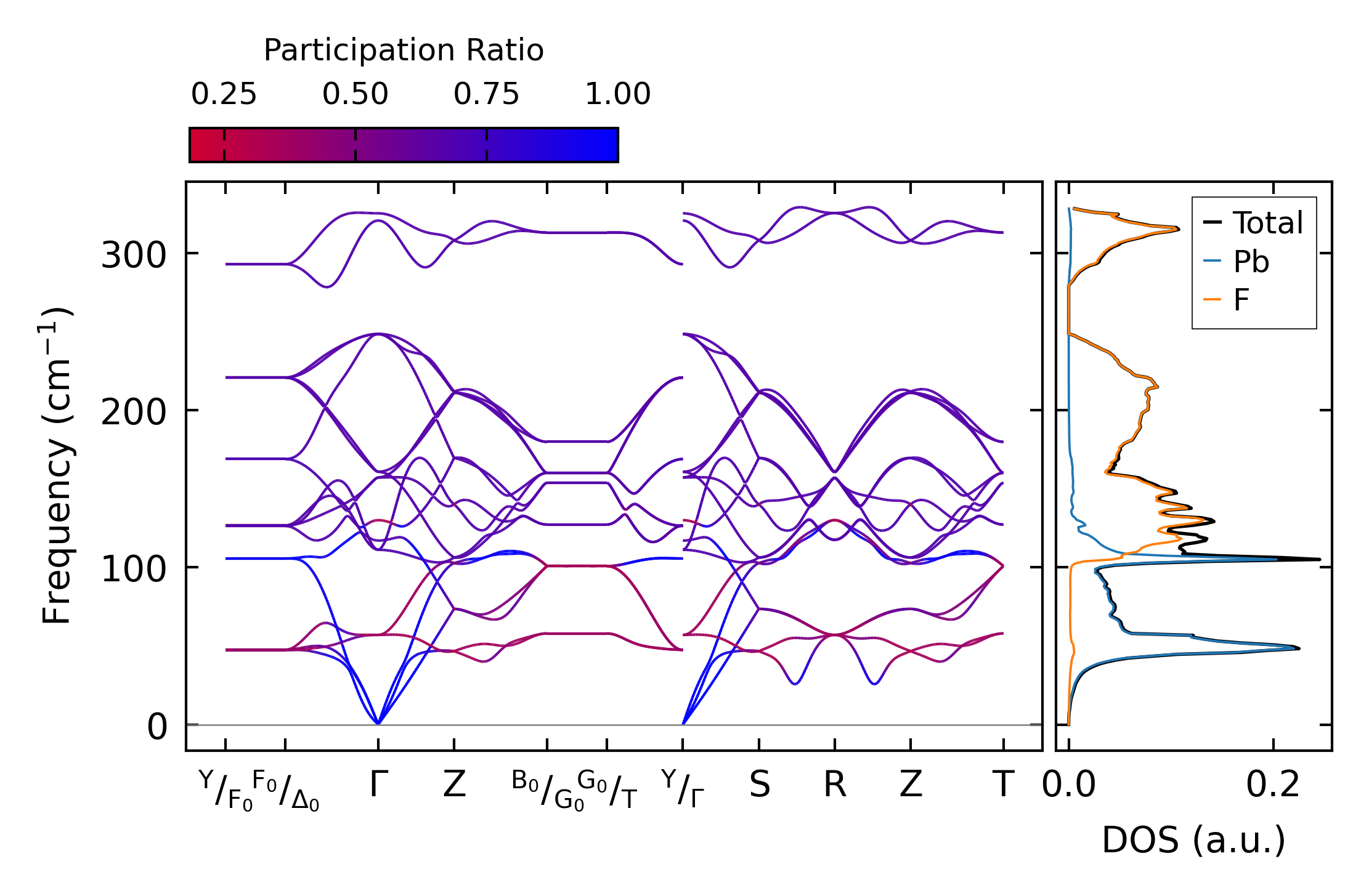

../../_images/fig_bandos_pr5012.png — (a) Phonon dispersion with participation ratio and DOS

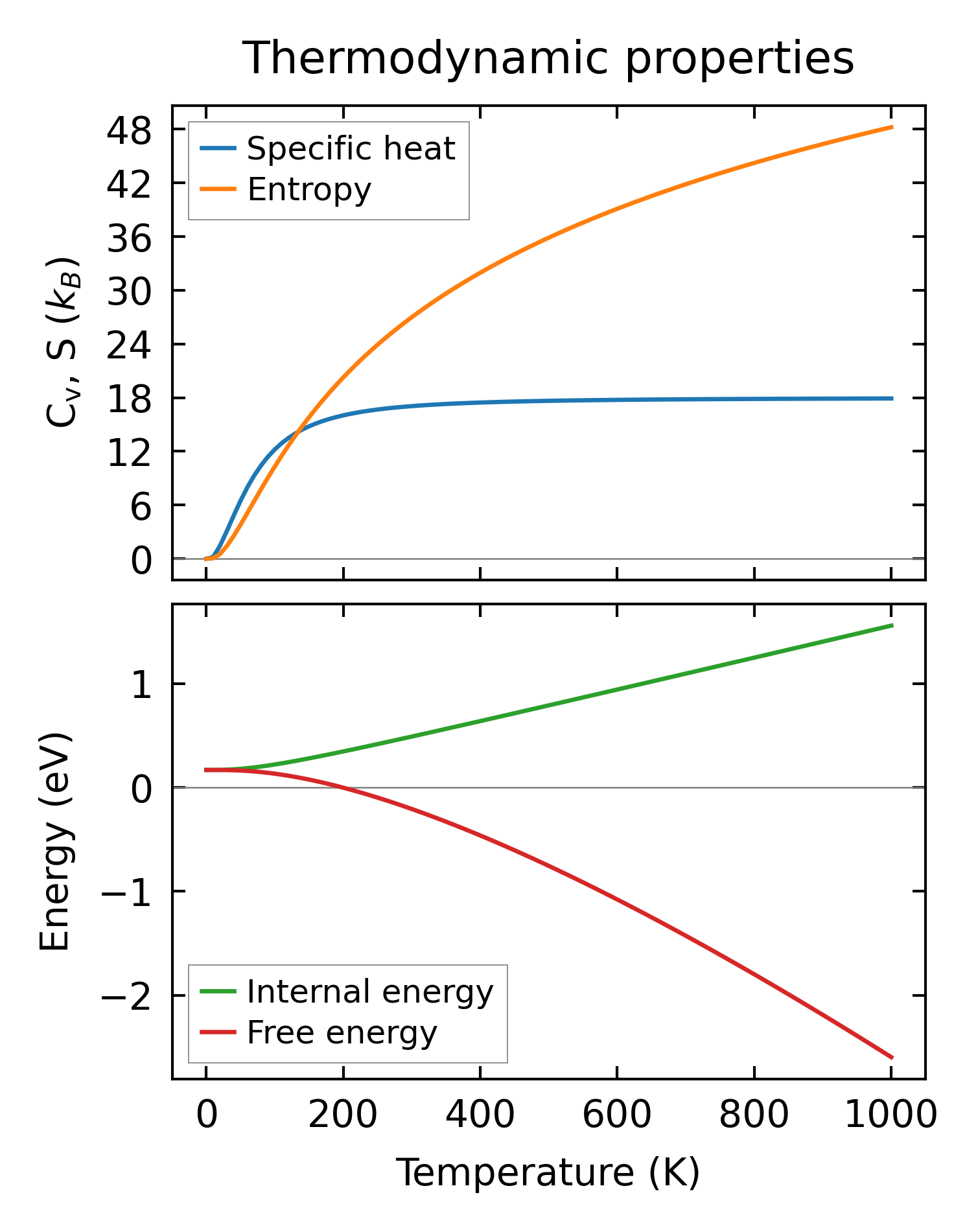

../../_images/fig_thermo5012.png — (b) Thermodynamic properties

Grüneisen parameters

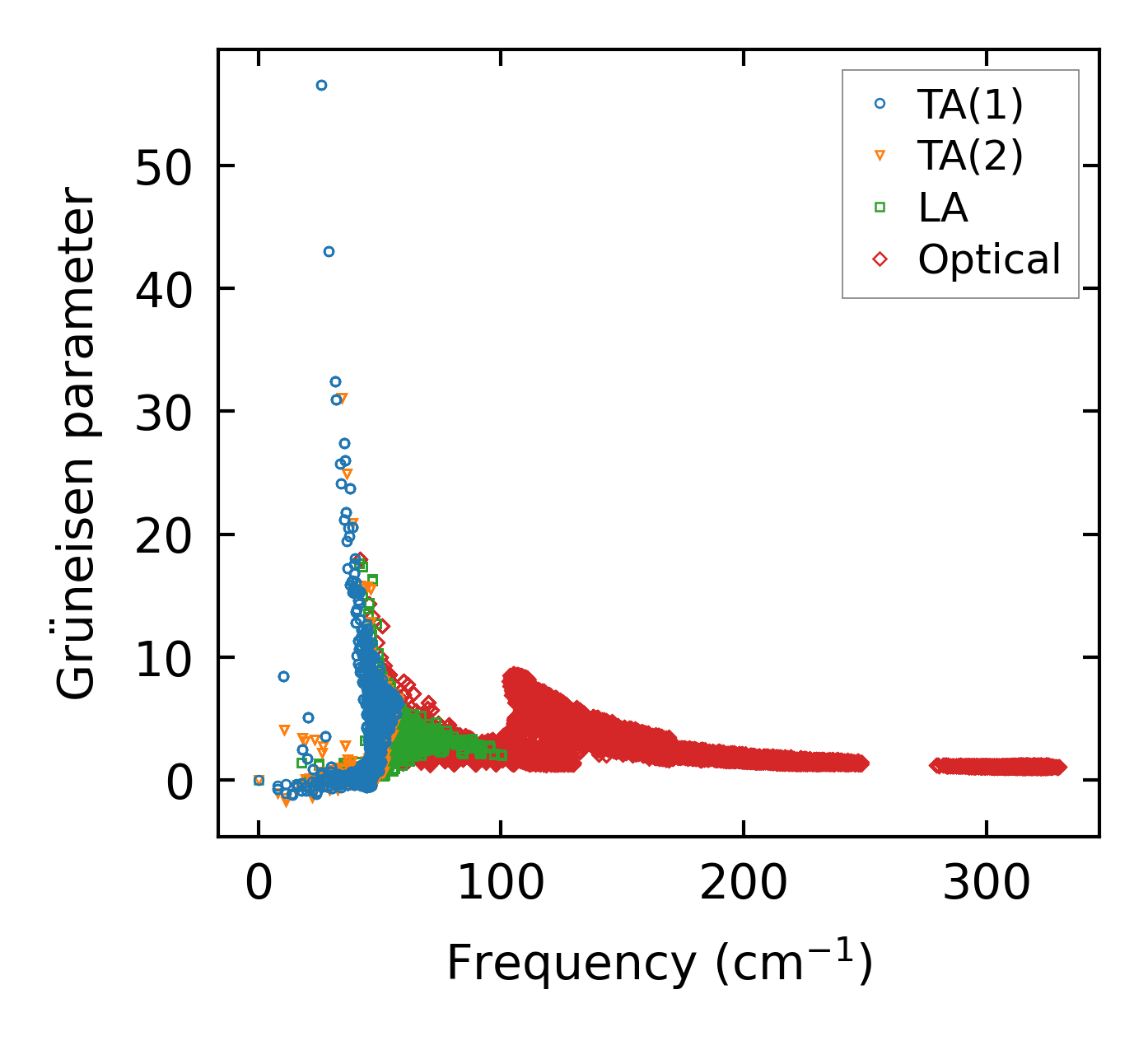

../../_images/fig_gru_all2134.png — (a) Grüneisen parameters

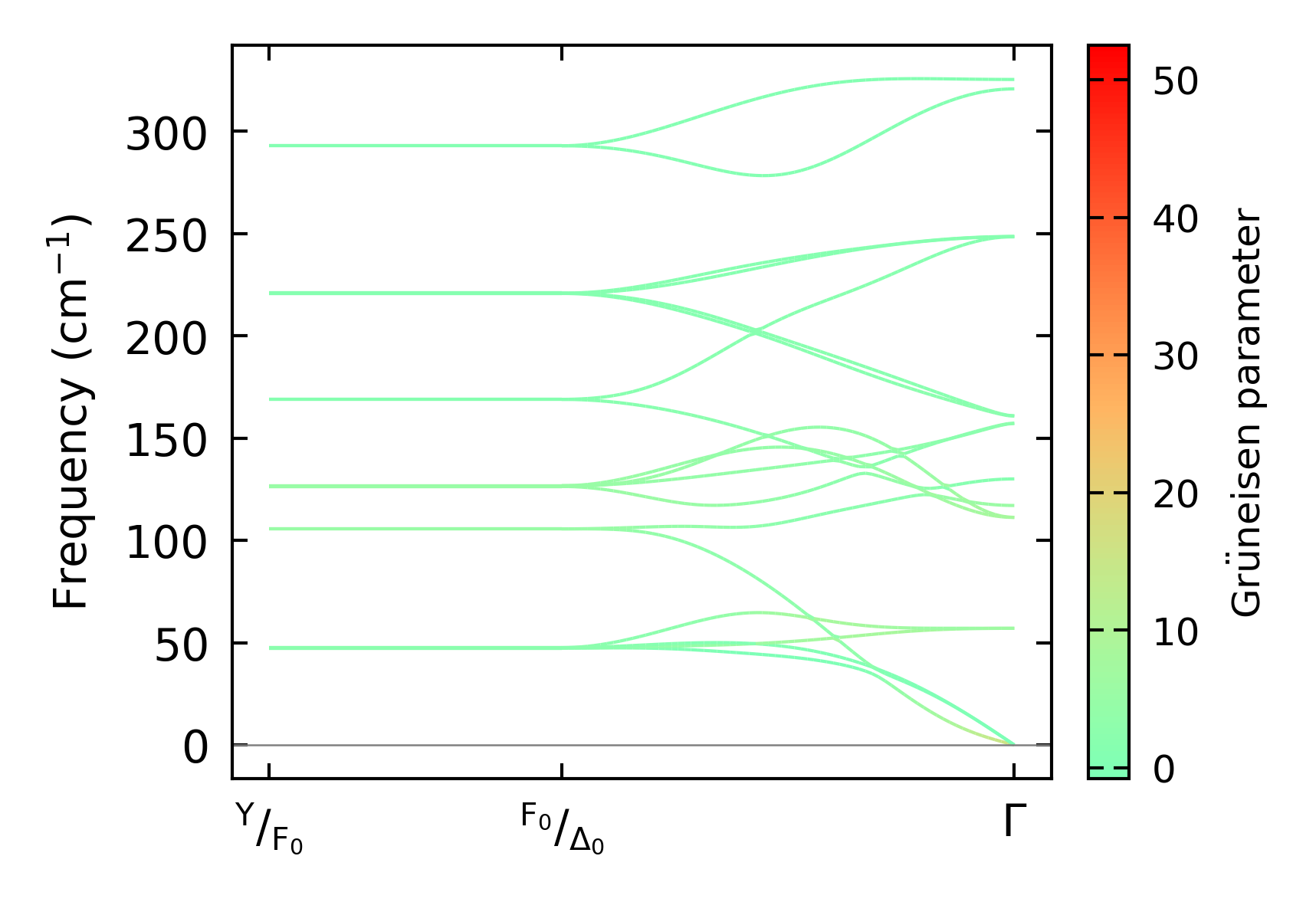

../../_images/fig_gruneisen2134.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x17x17, supercell: 2x3x2

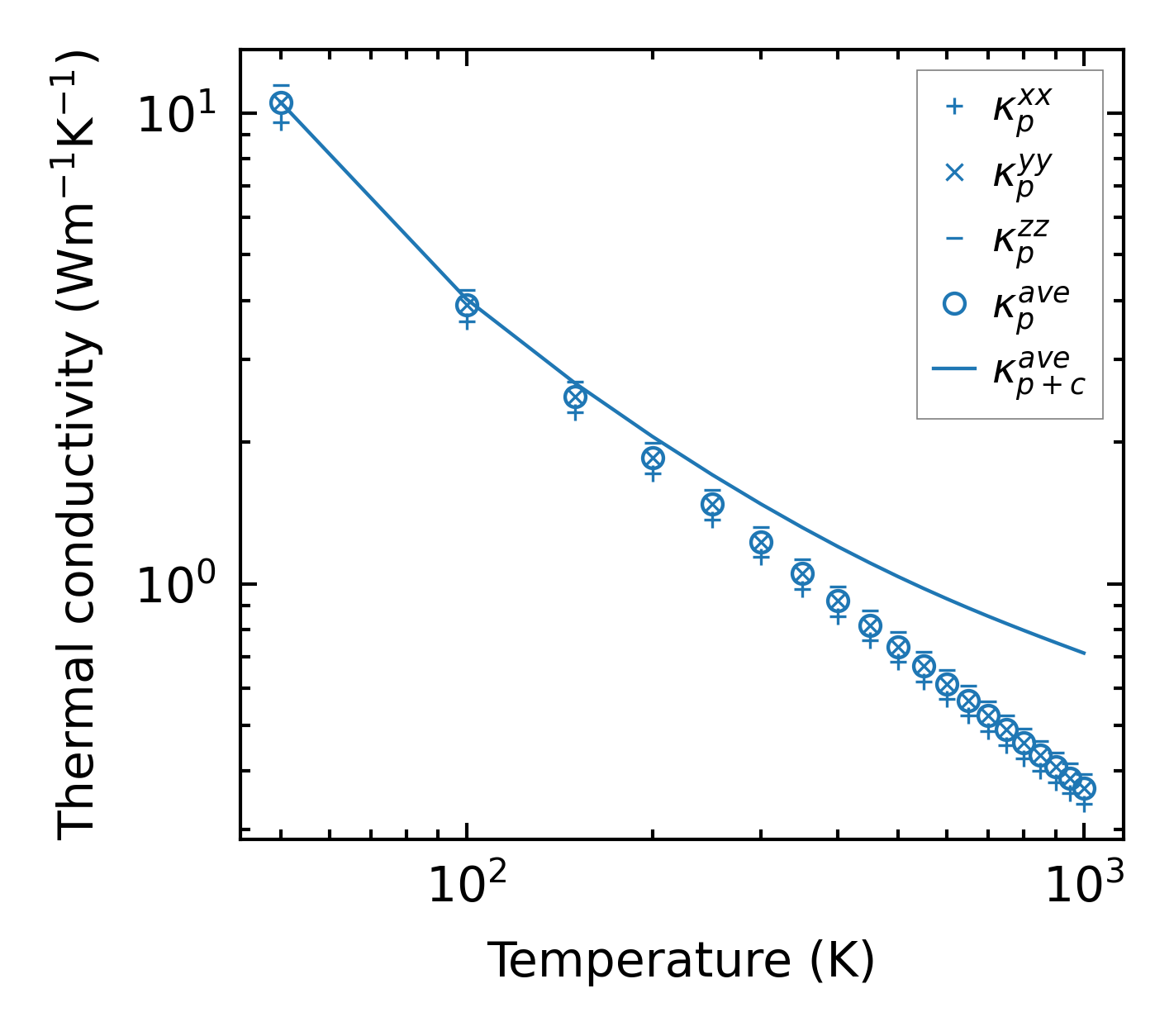

../../_images/fig_kappa4089.png — (a) Temperature-dependent lattice thermal conductivity

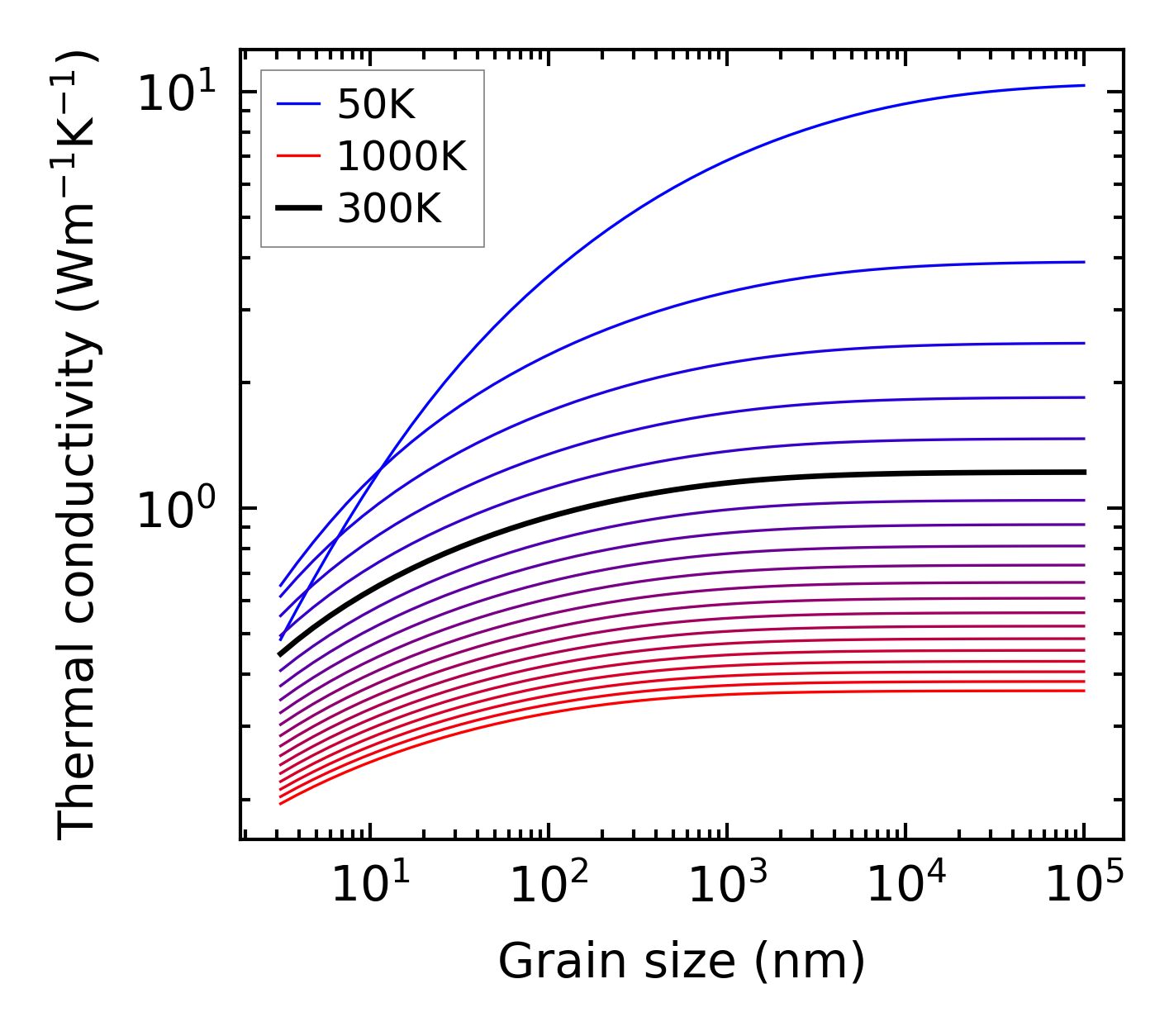

../../_images/fig_kappa_vs_grain_size2166.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

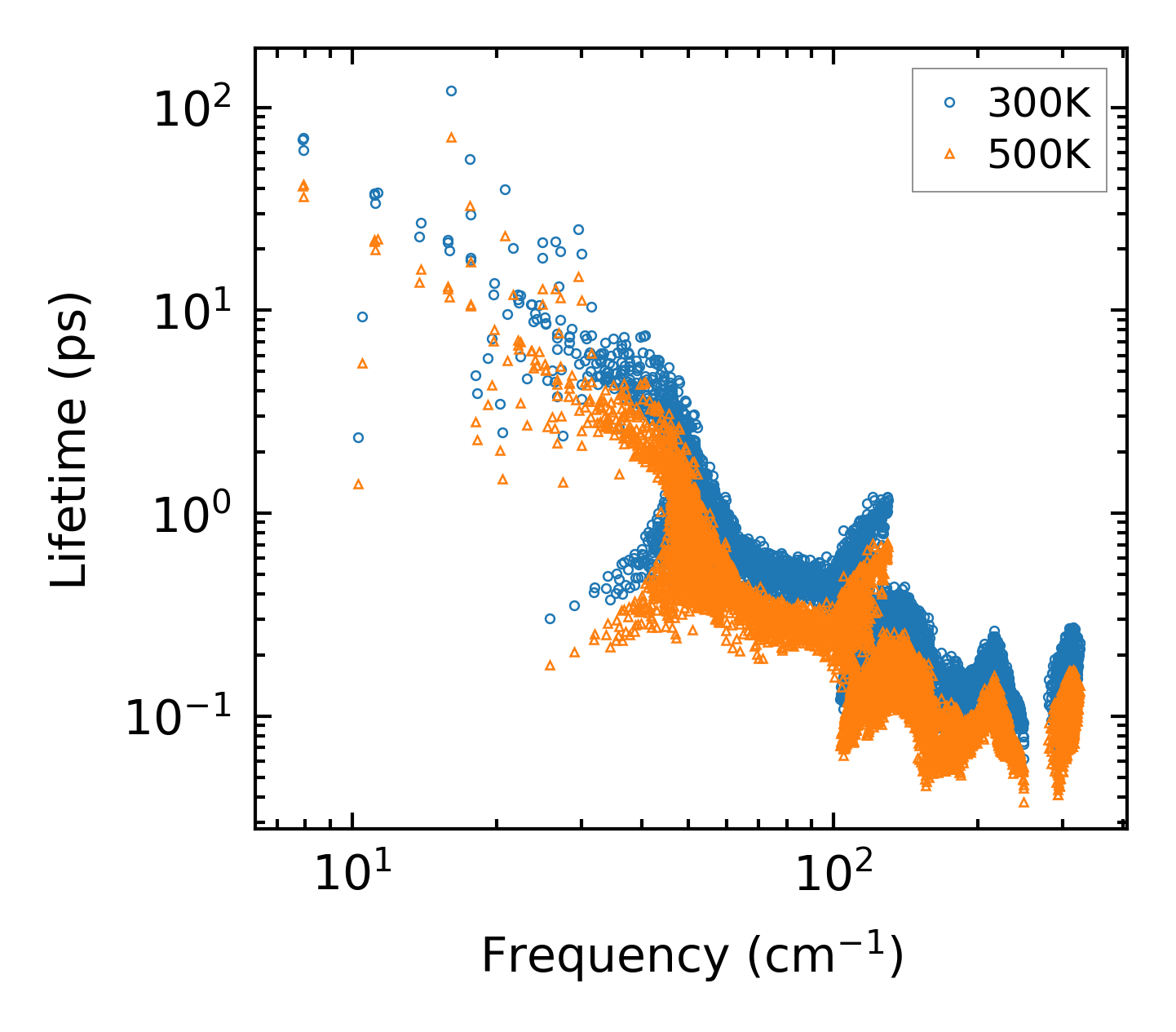

../../_images/fig_lifetime2121.png — (a) Phonon lifetime due to phonon-phonon scattering

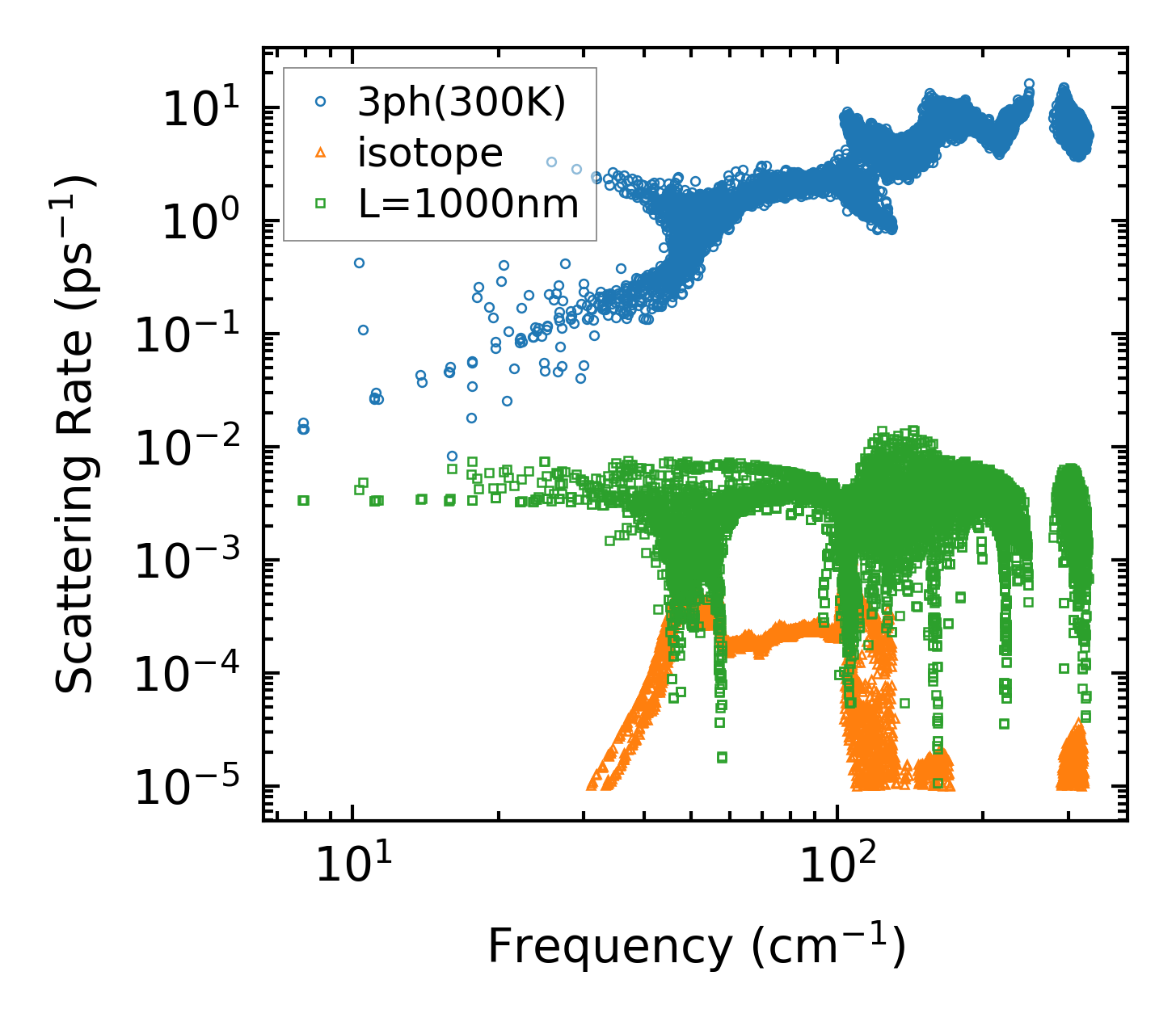

../../_images/fig_scat_rates2120.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

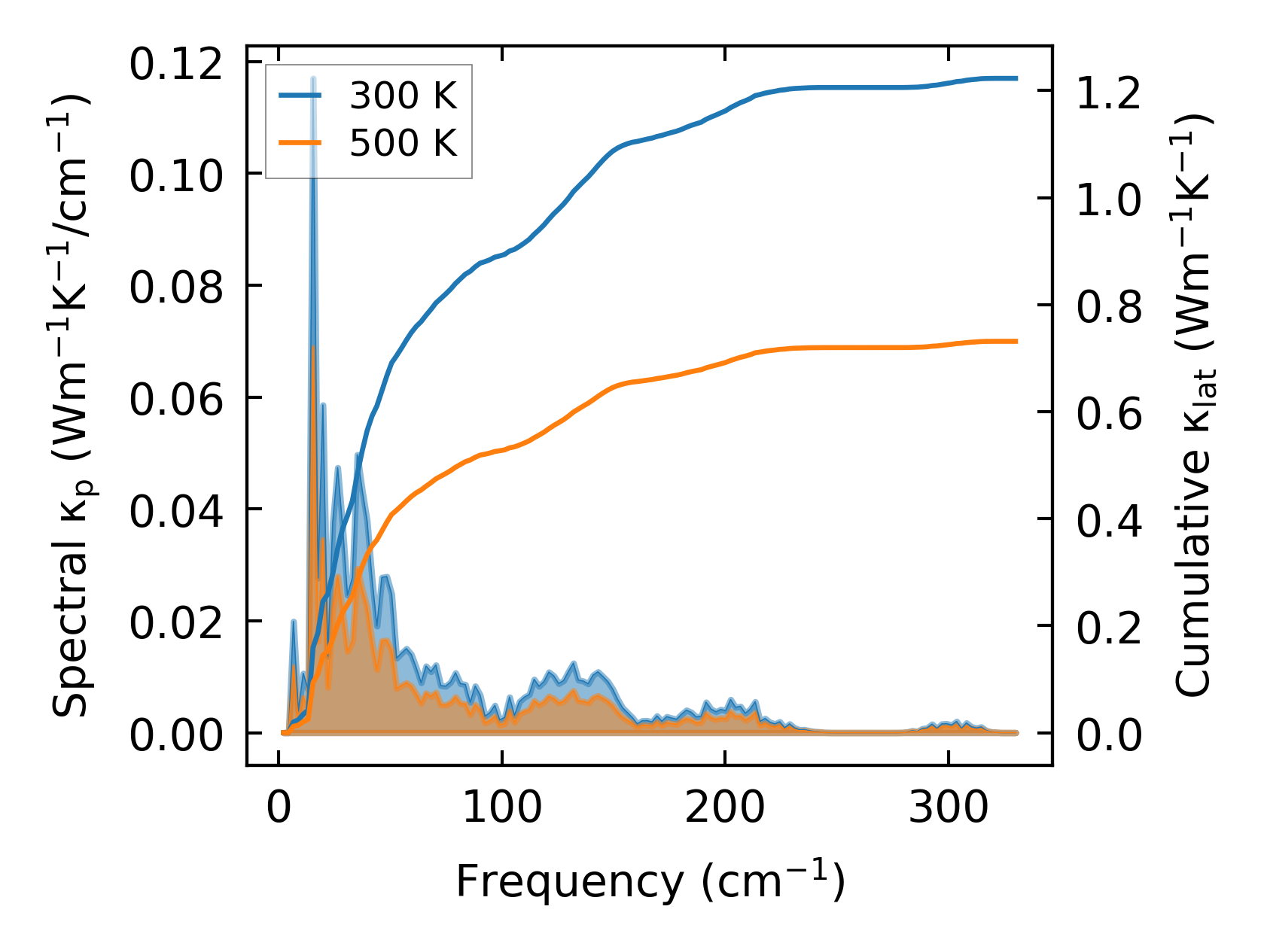

../../_images/fig_cumu_frequency2121.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

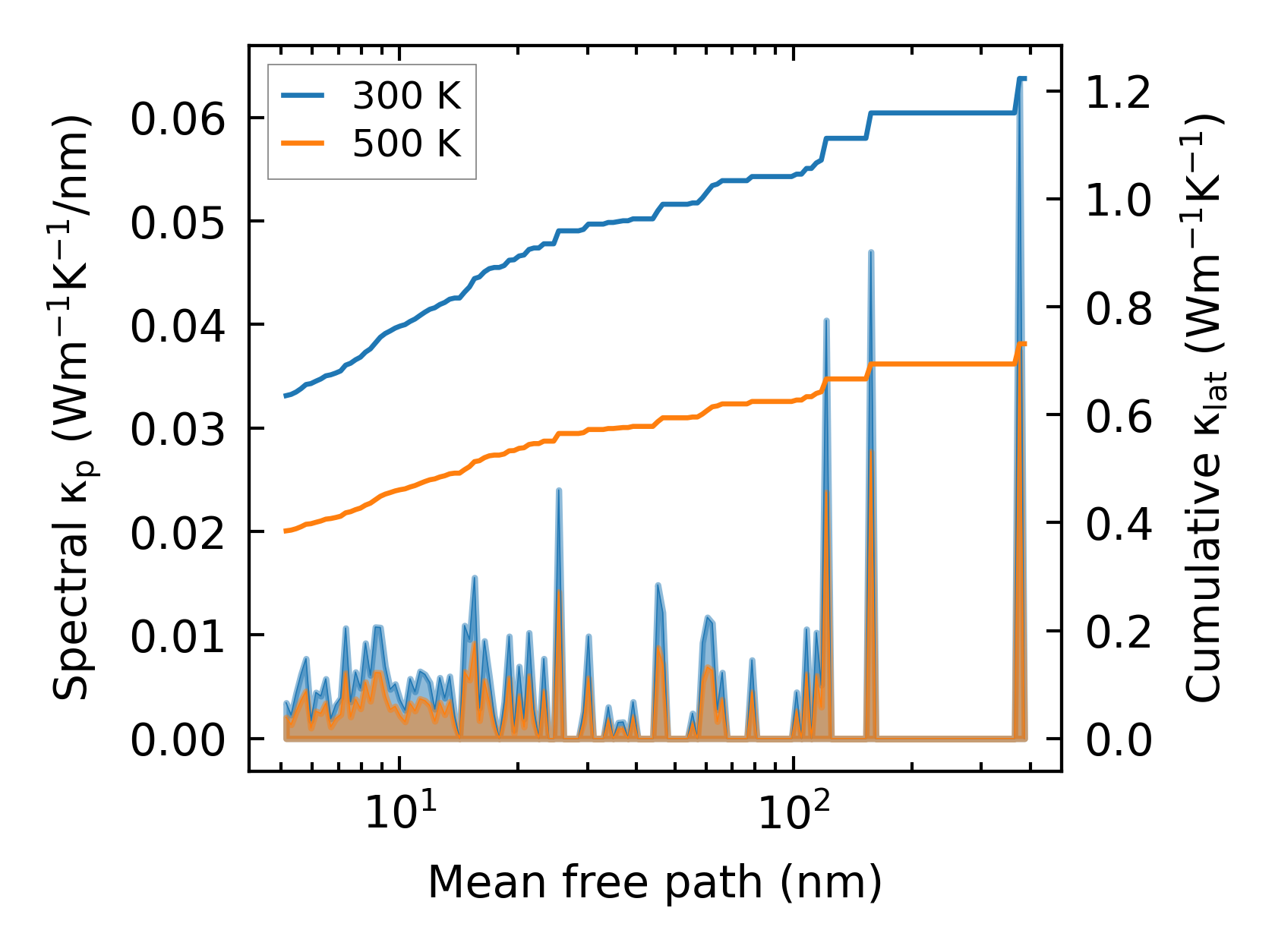

../../_images/fig_cumu_mfp2121.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

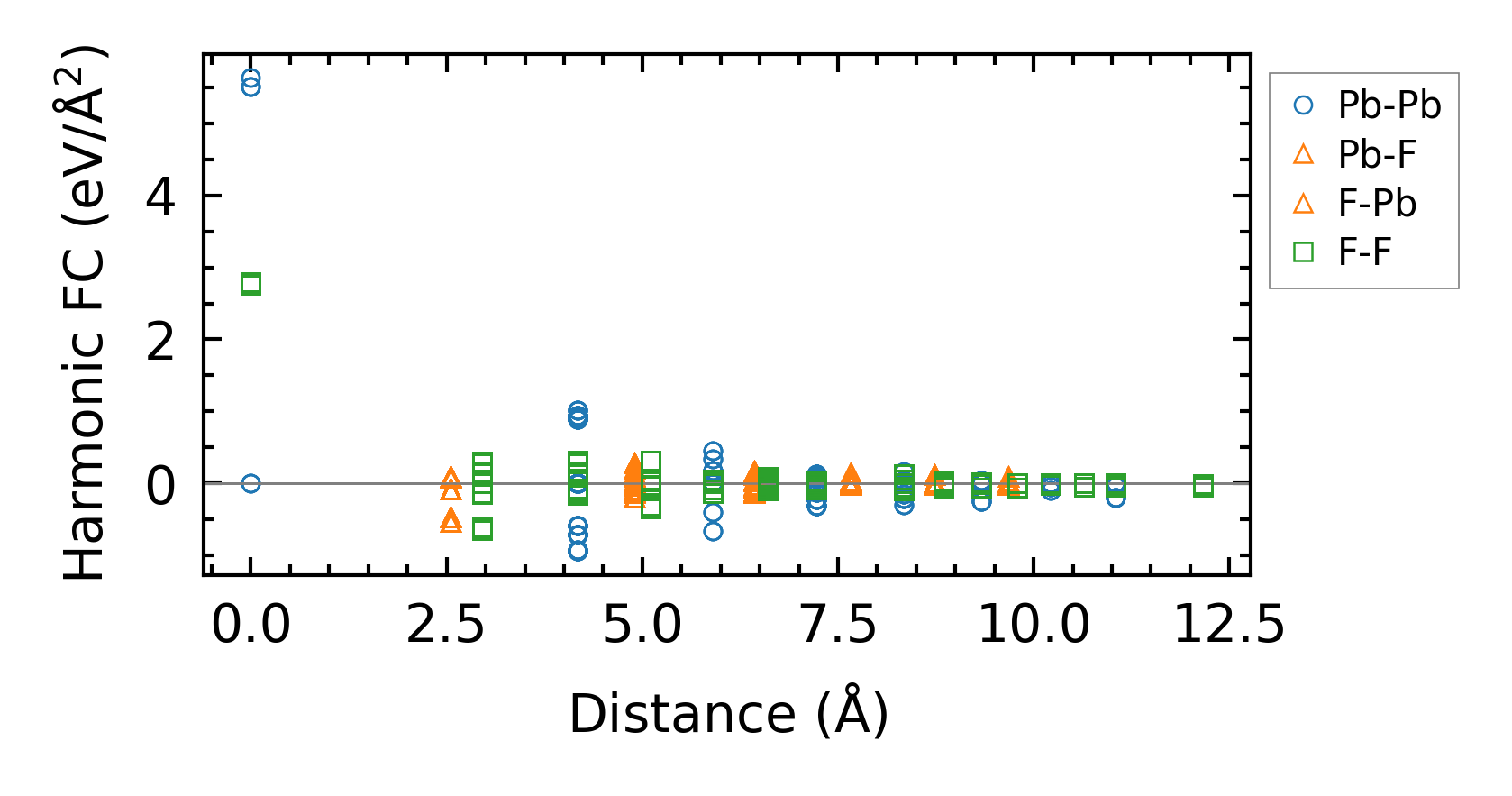

../../_images/fig_fc24817.png — (a) Force constants w.r.t atomic distance

Summary

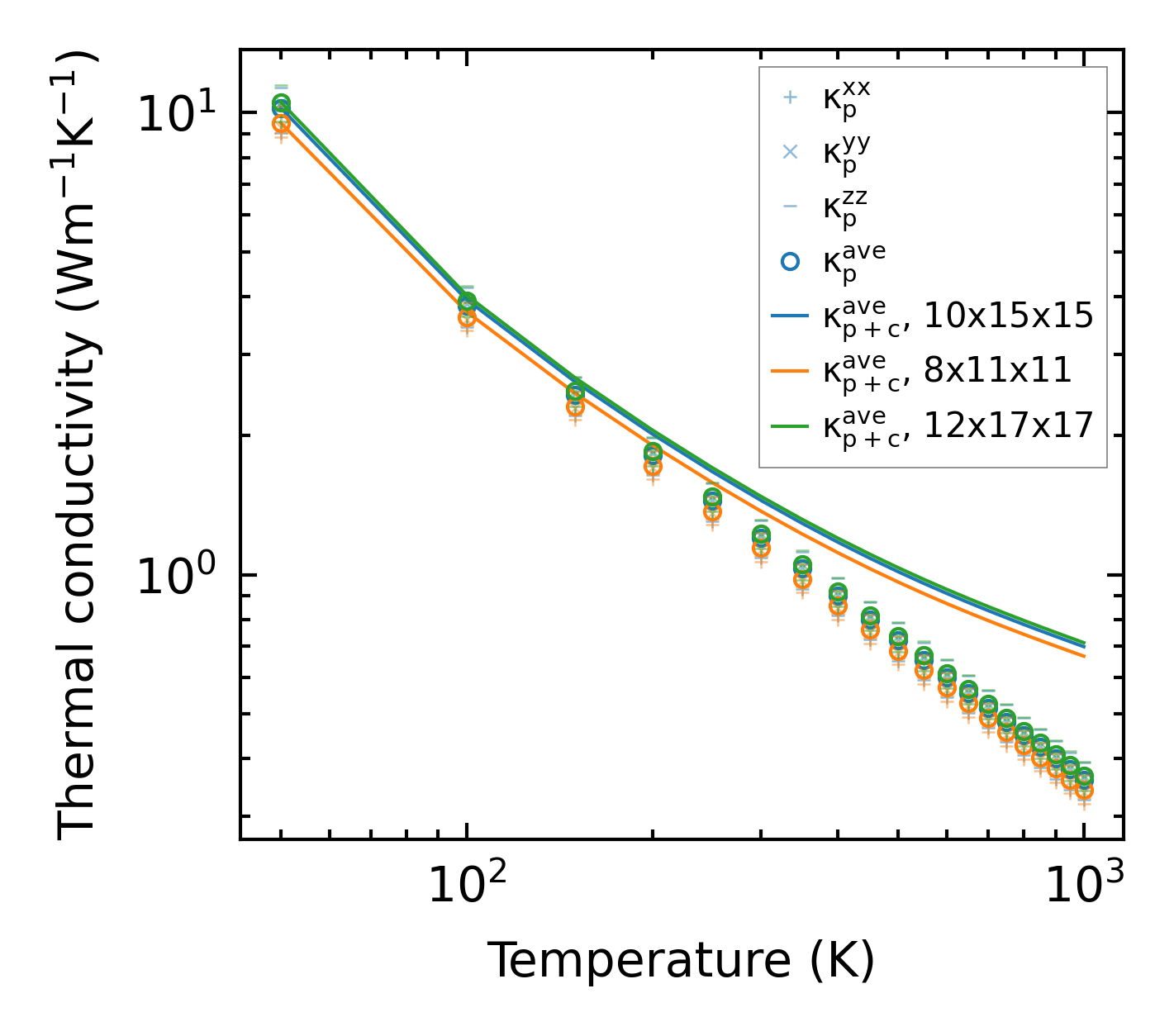

../../_images/fig_kappa4090.png — (a) Temperature-dependent lattice thermal conductivity

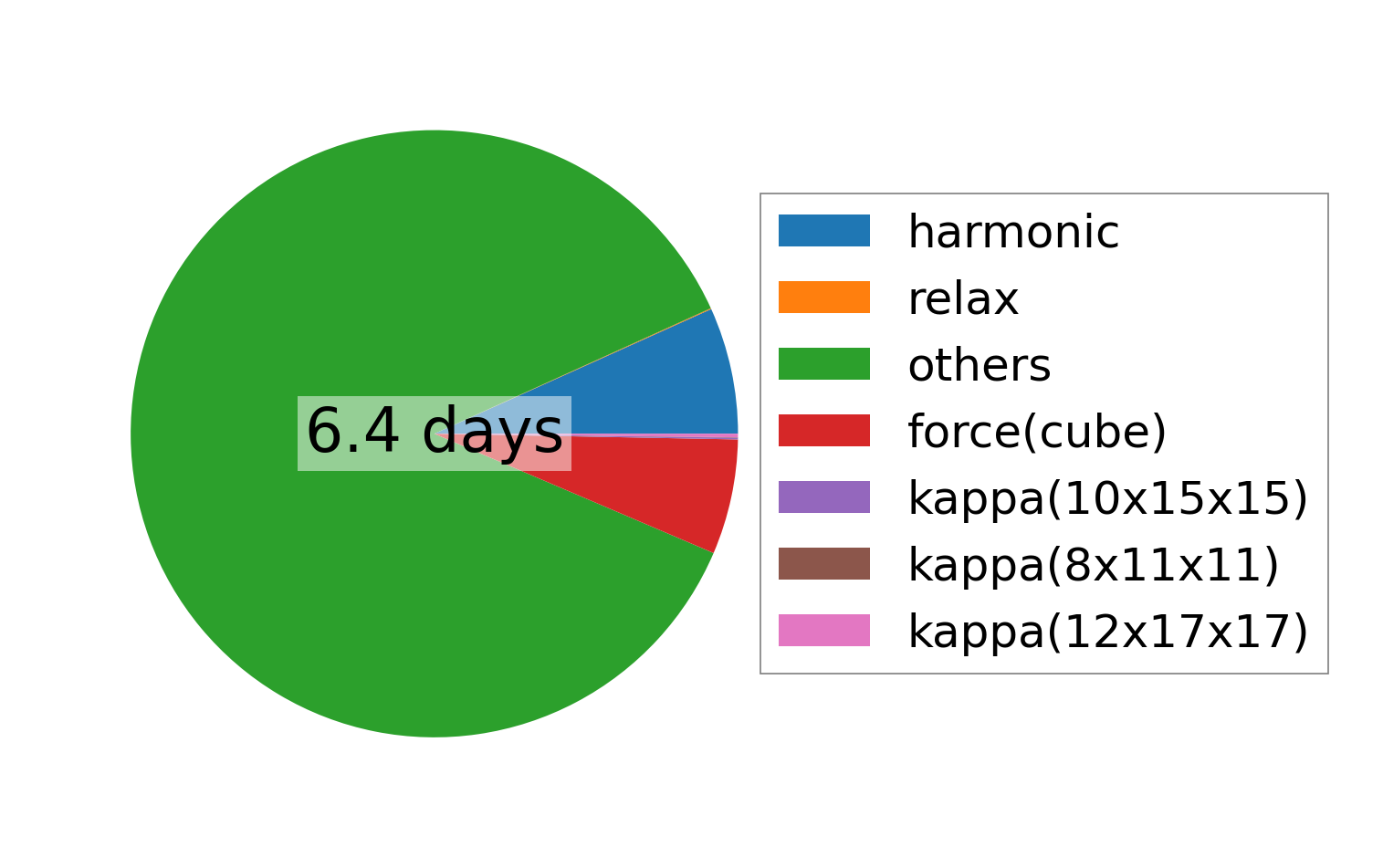

../../_images/fig_times8919.png — (b) Computation time
