mp-685150-2/PbF2/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-685150-2.tar.gz

Equation of state

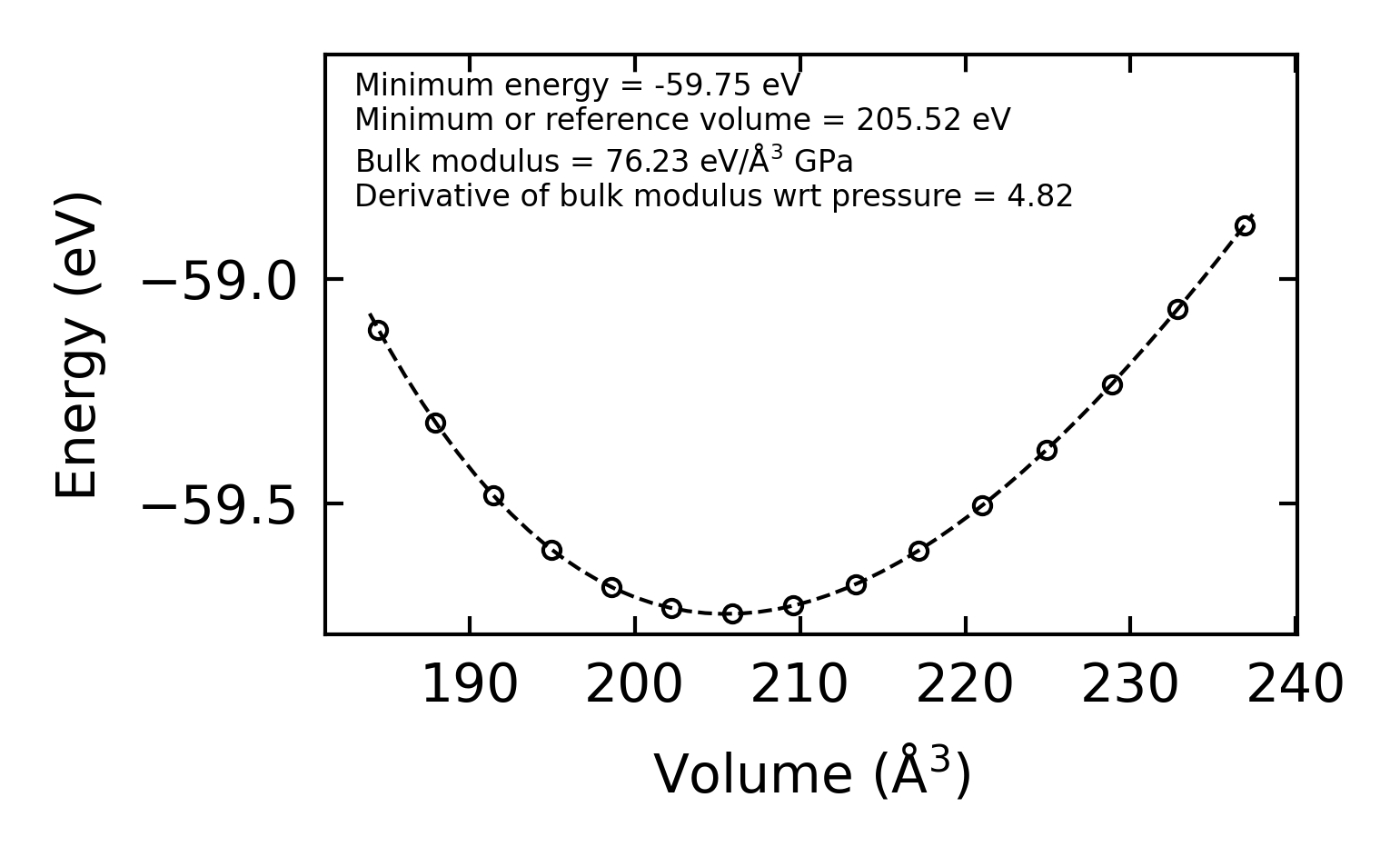

../../_images/fig_bm2480.png — (a) Equation of state

Harmonic properties

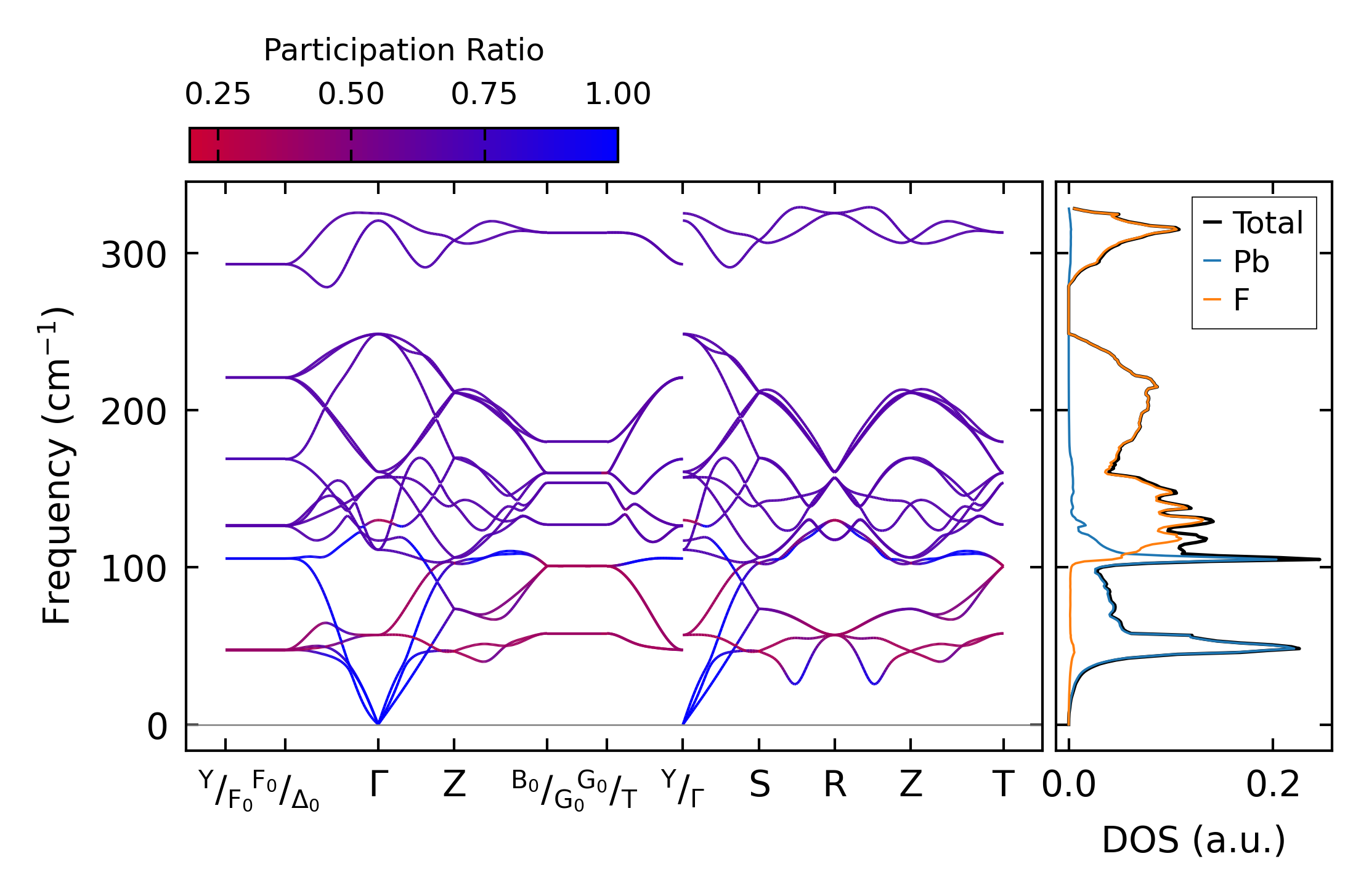

../../_images/fig_bandos_pr5011.png — (a) Phonon dispersion with participation ratio and DOS

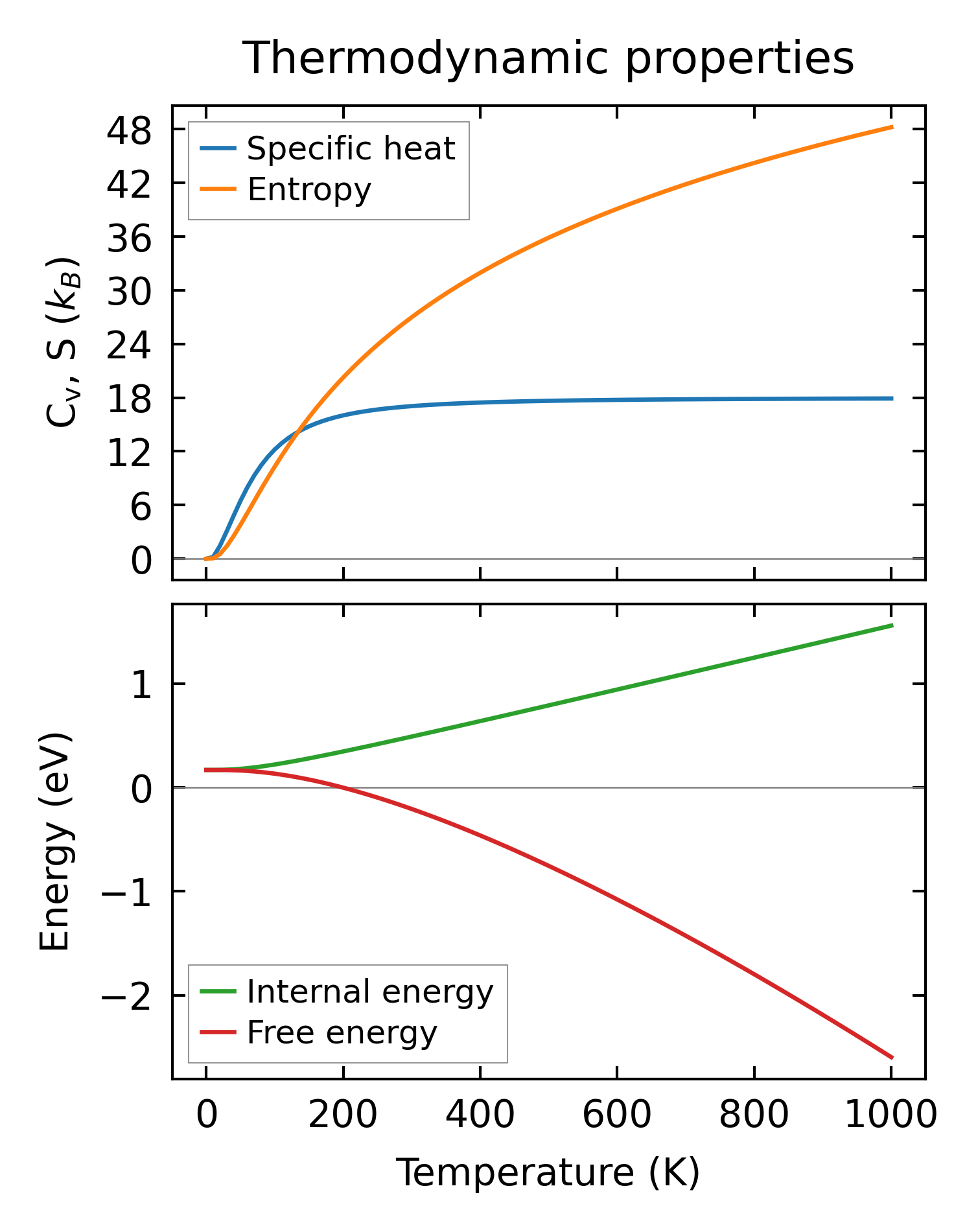

../../_images/fig_thermo5011.png — (b) Thermodynamic properties

Grüneisen parameters

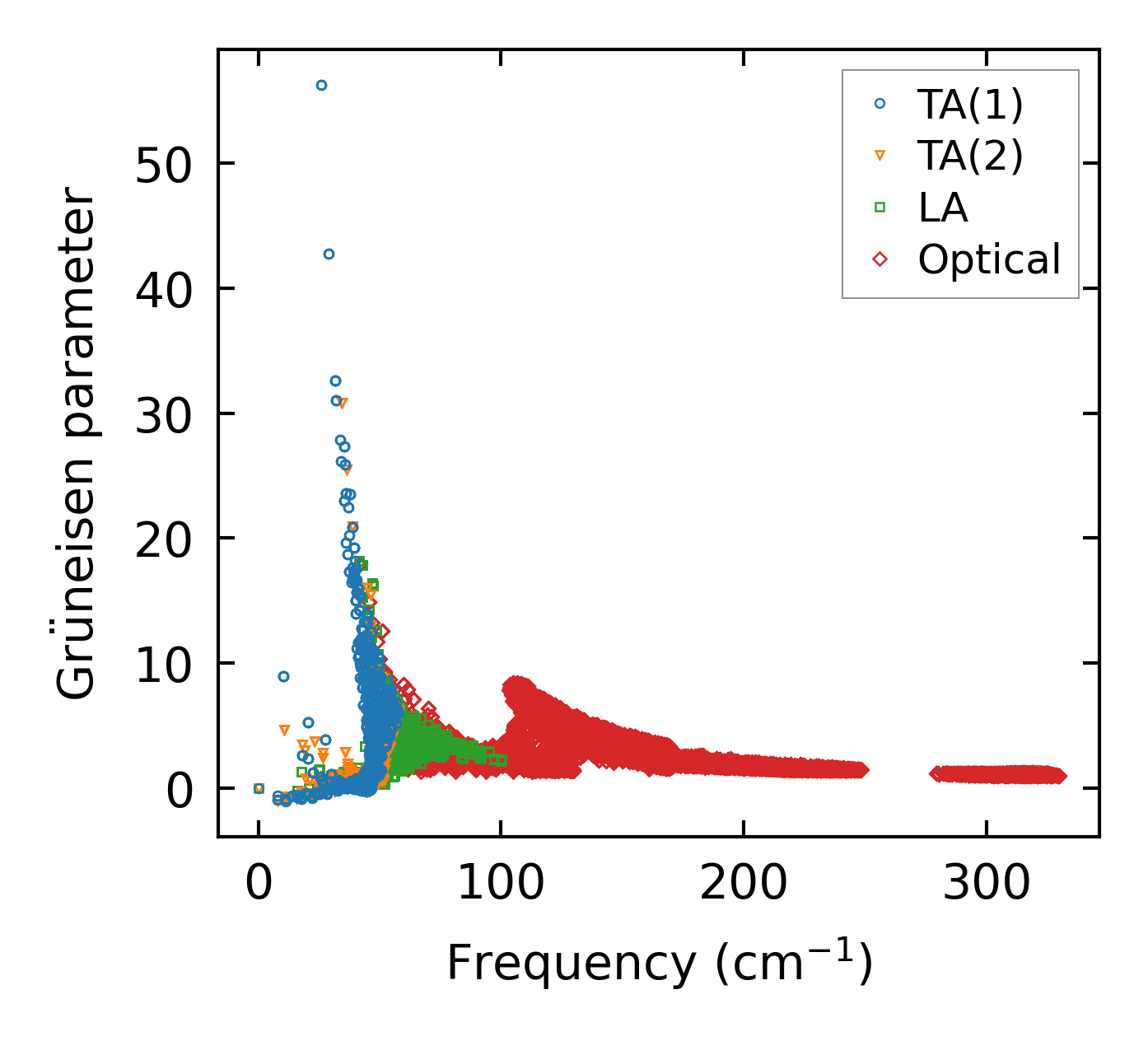

../../_images/fig_gru_all2133.png — (a) Grüneisen parameters

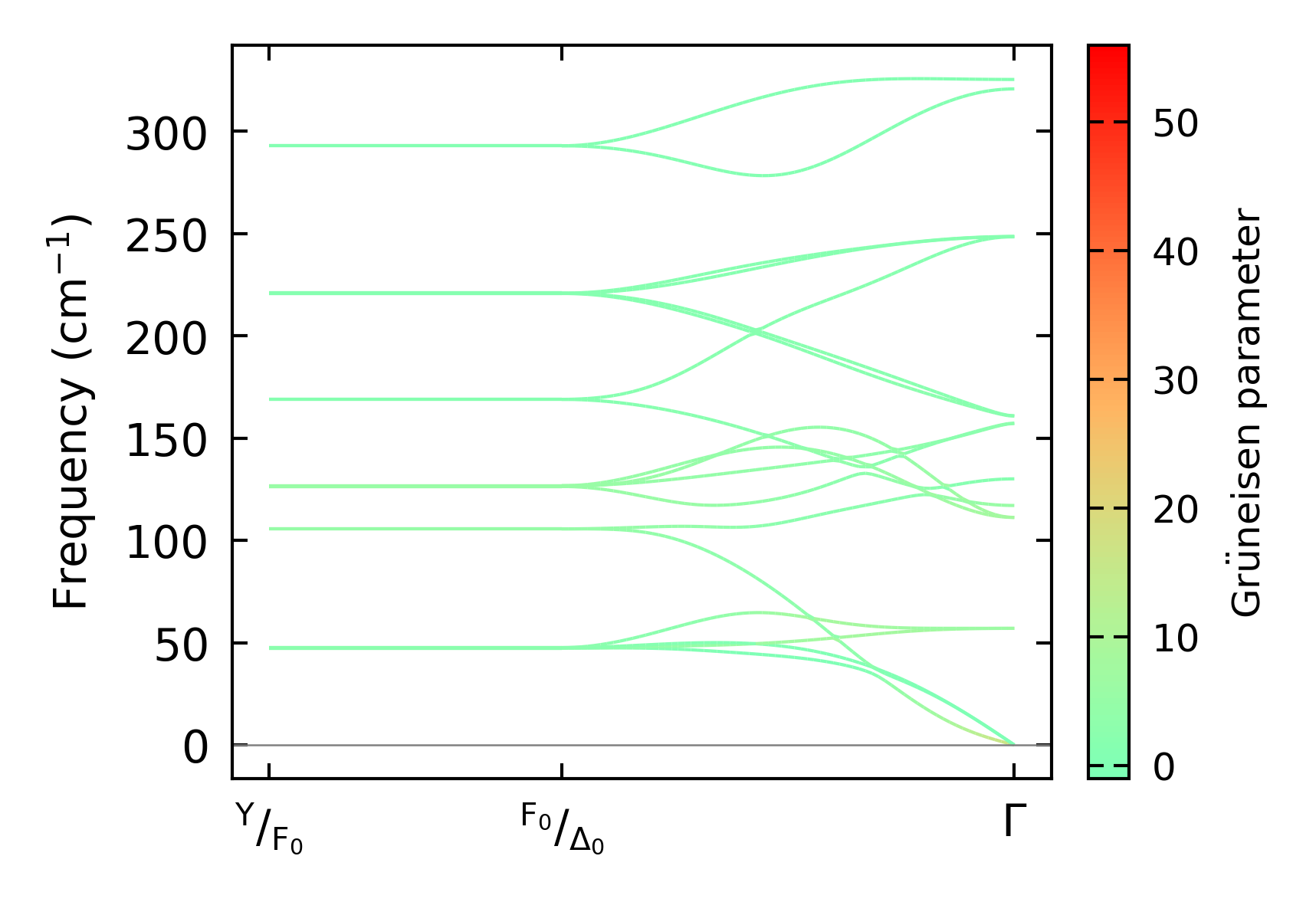

../../_images/fig_gruneisen2133.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x17x17, supercell: 2x3x2

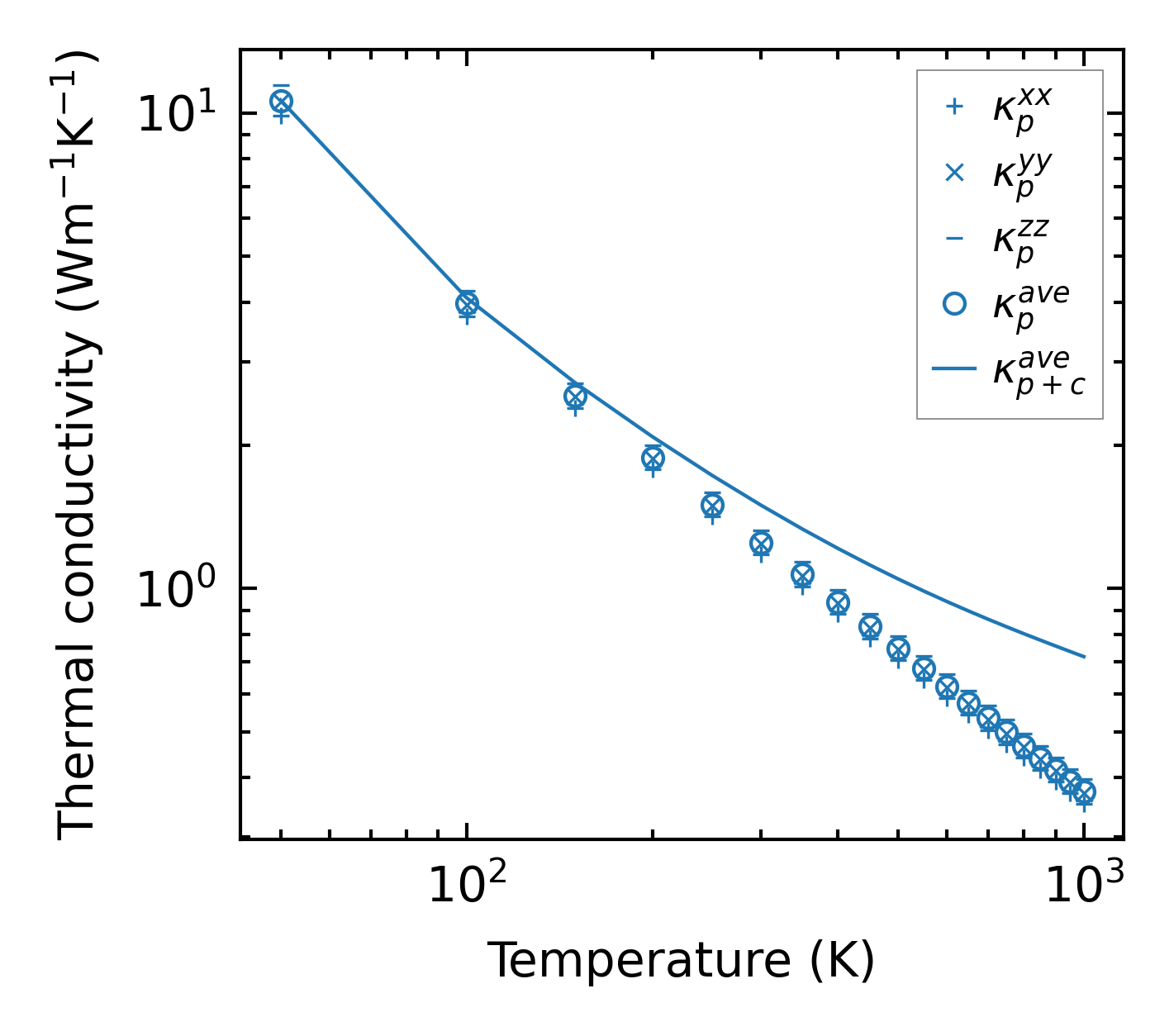

../../_images/fig_kappa4087.png — (a) Temperature-dependent lattice thermal conductivity

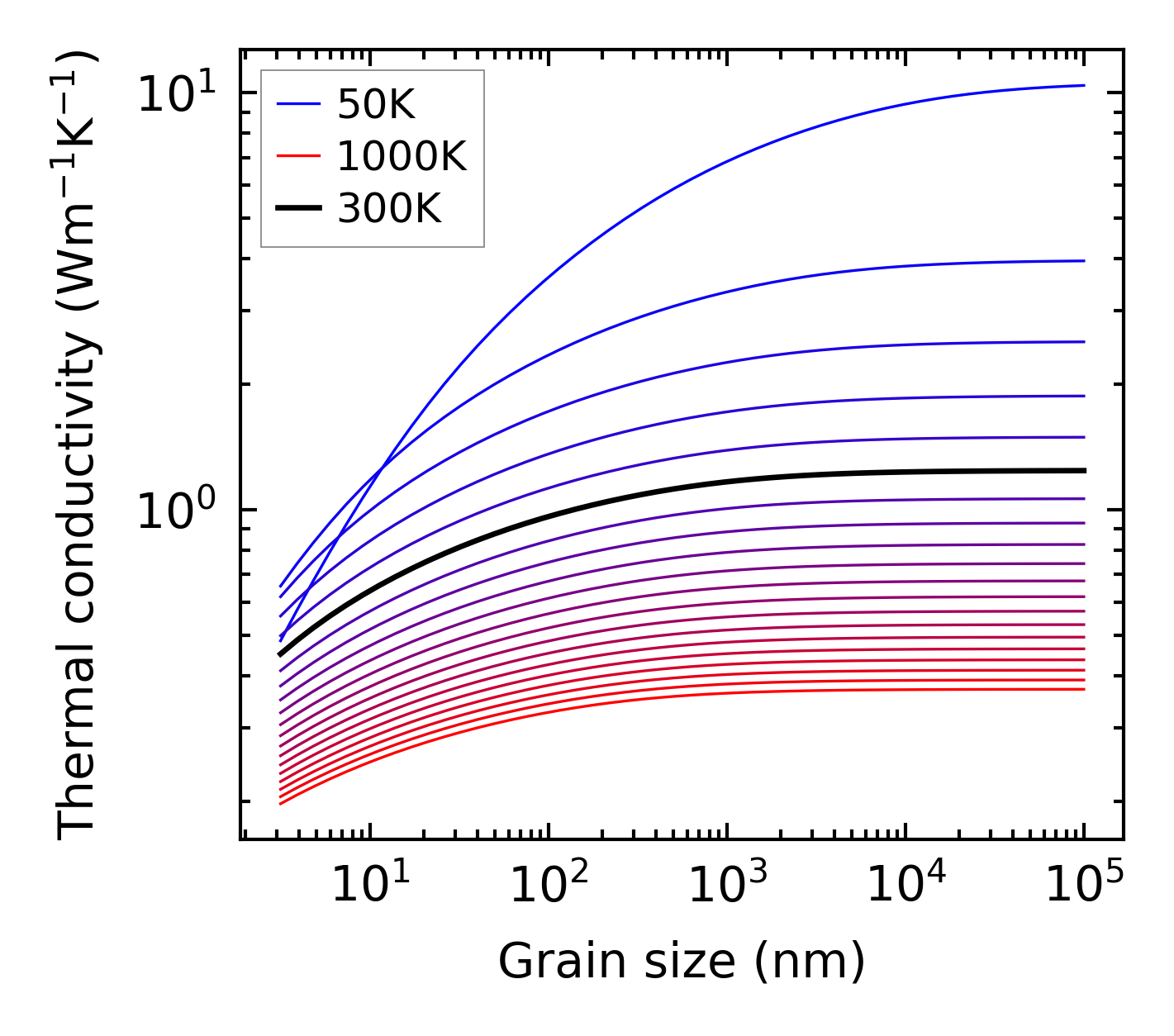

../../_images/fig_kappa_vs_grain_size2165.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

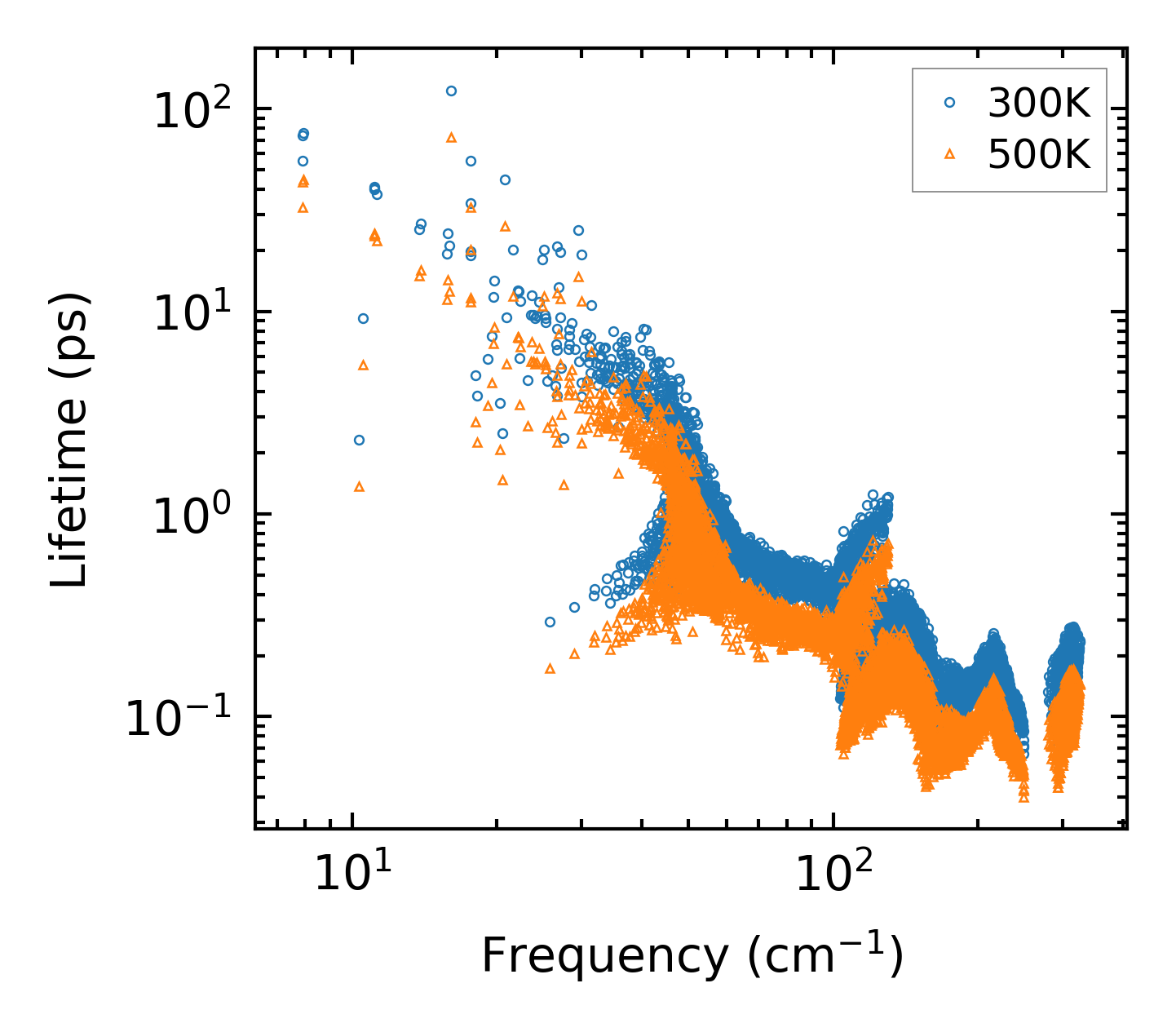

../../_images/fig_lifetime2120.png — (a) Phonon lifetime due to phonon-phonon scattering

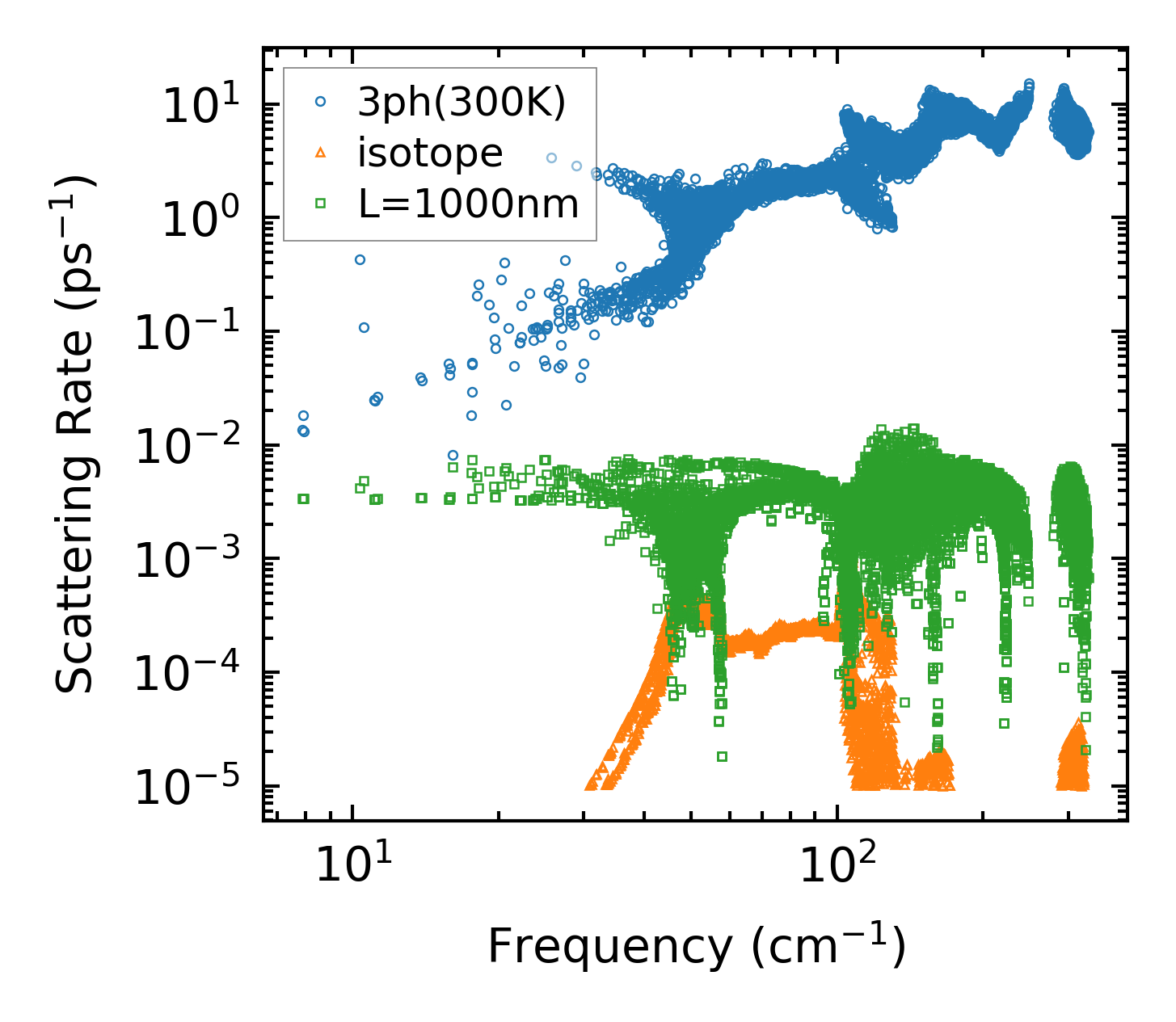

../../_images/fig_scat_rates2119.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

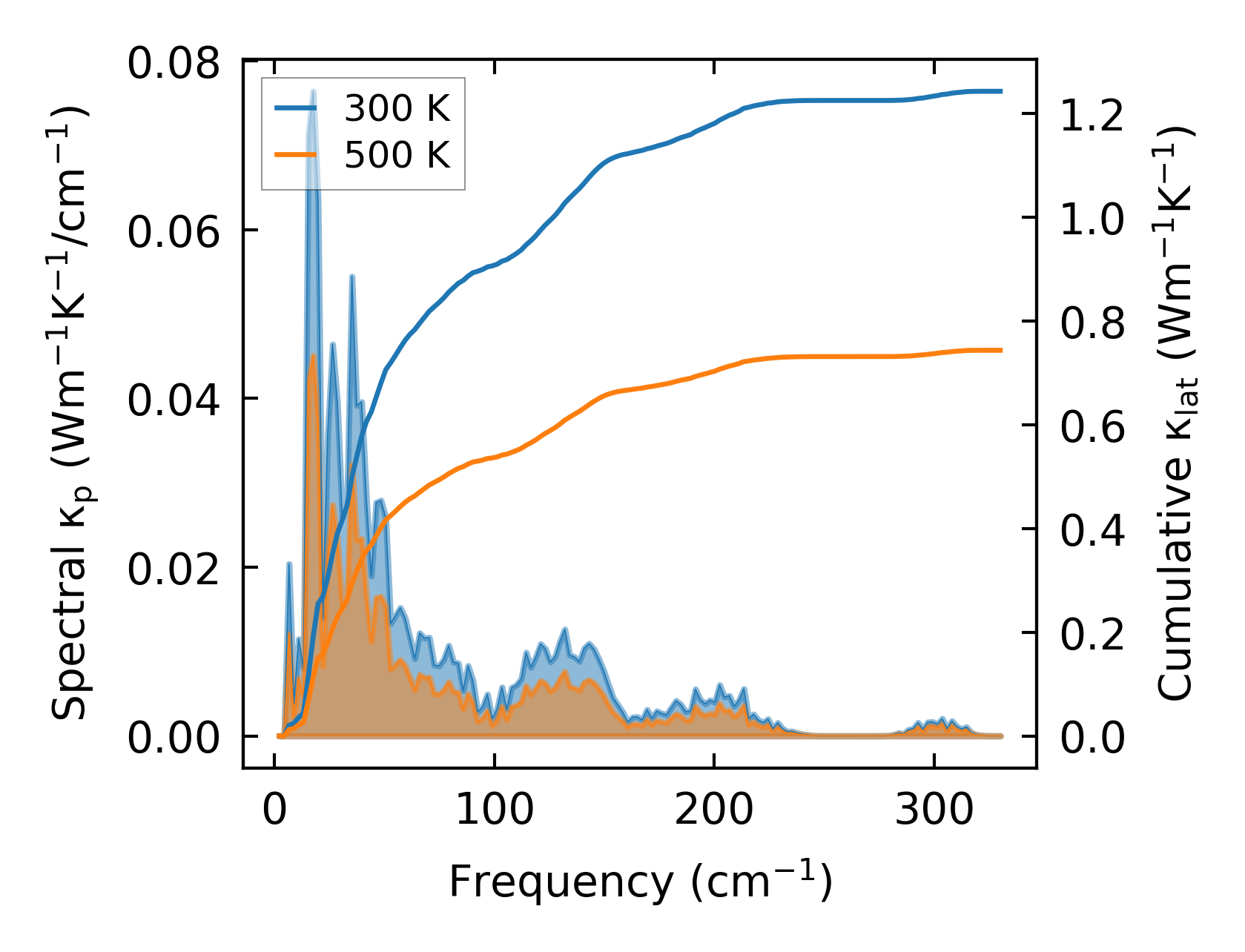

../../_images/fig_cumu_frequency2120.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

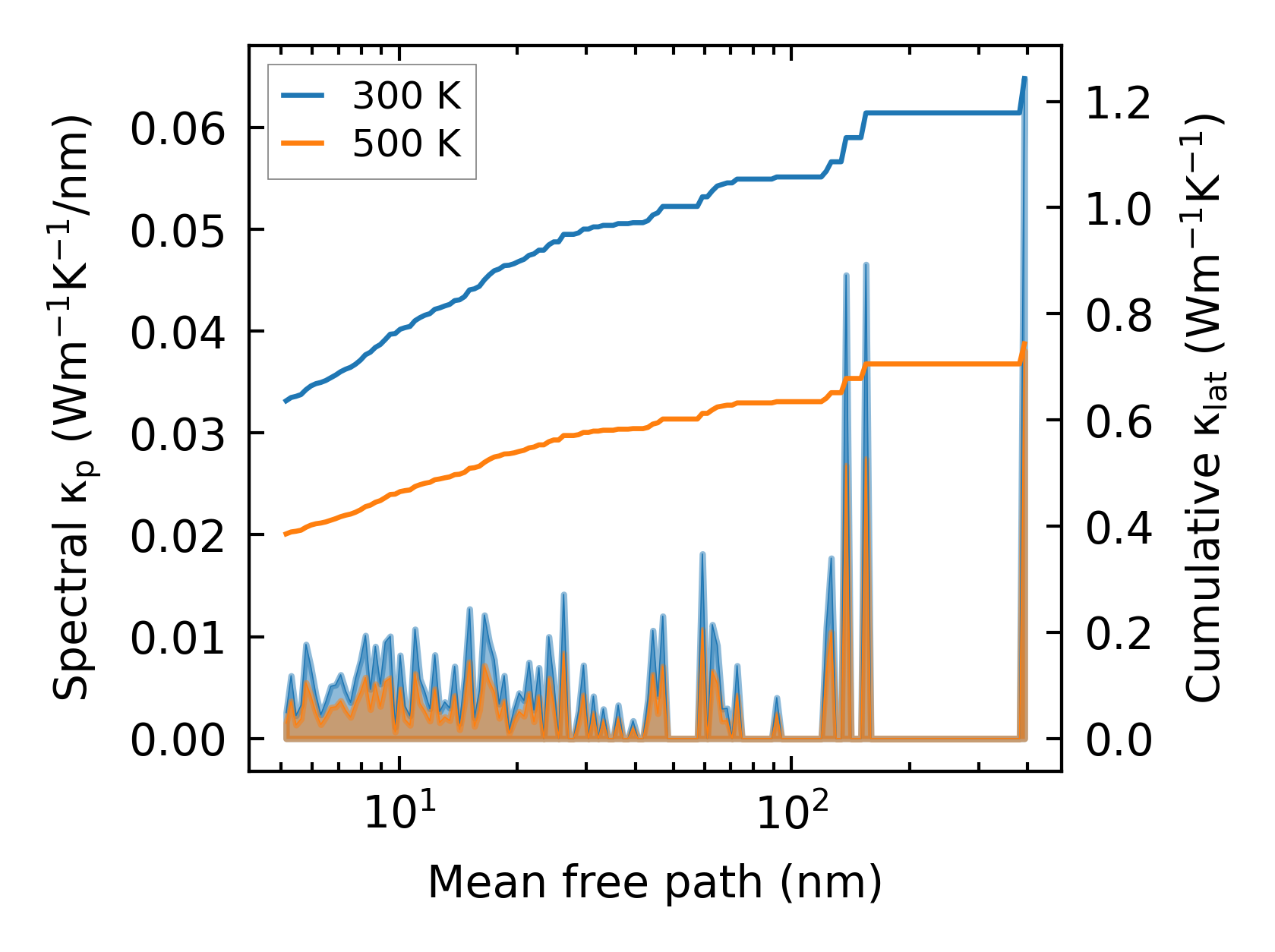

../../_images/fig_cumu_mfp2120.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

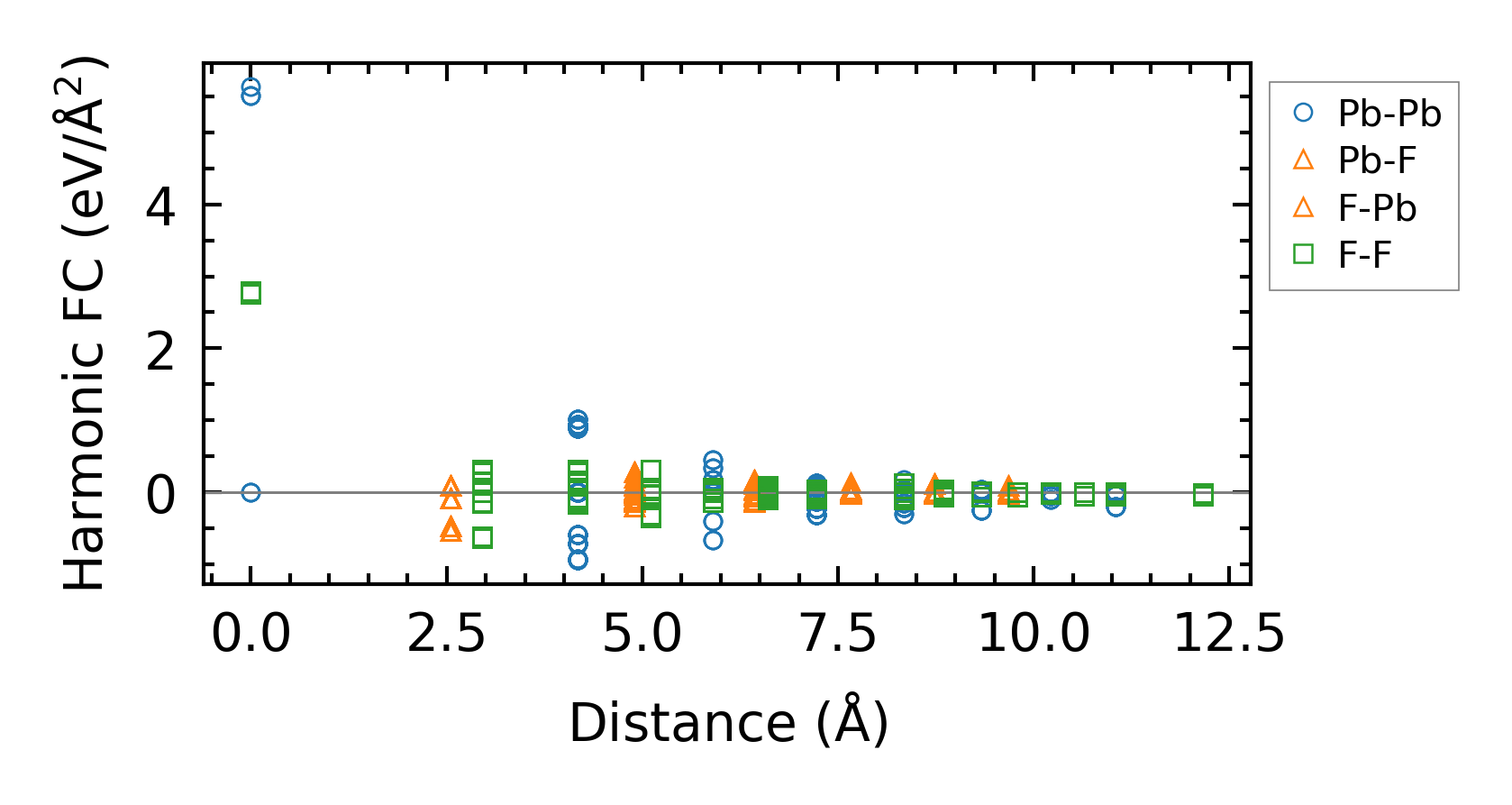

../../_images/fig_fc24816.png — (a) Force constants w.r.t atomic distance

Summary

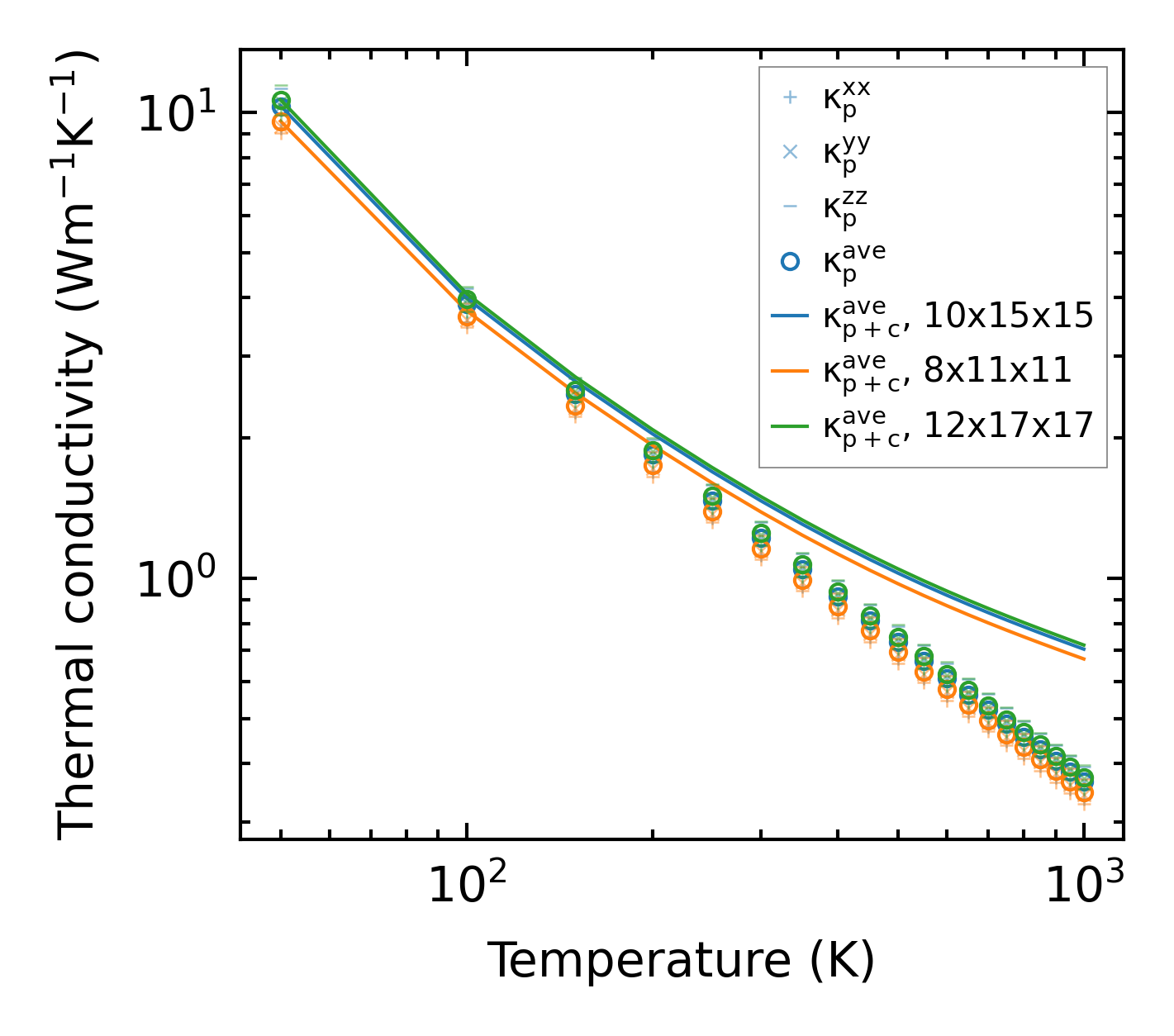

../../_images/fig_kappa4088.png — (a) Temperature-dependent lattice thermal conductivity

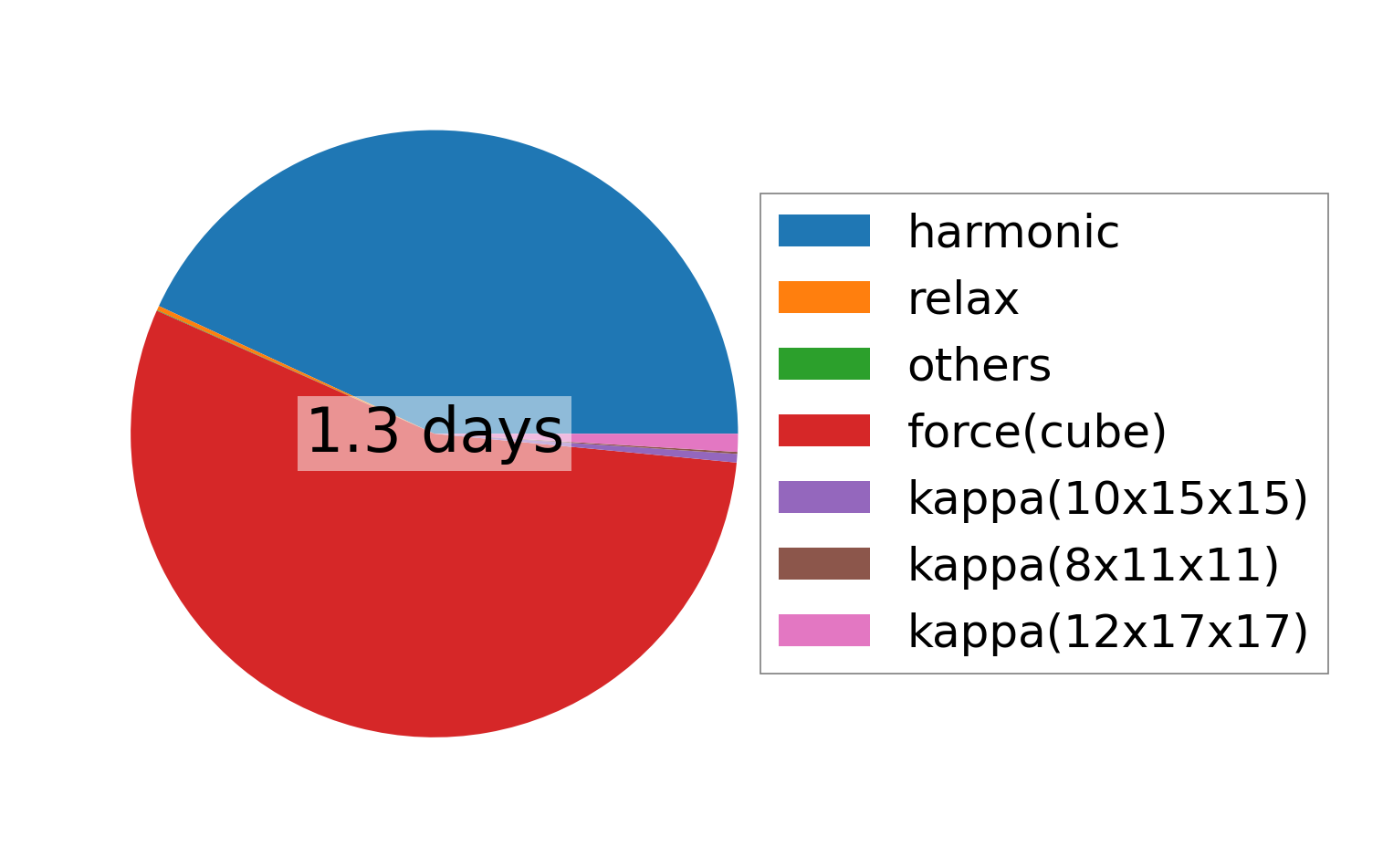

../../_images/fig_times8918.png — (b) Computation time
