mp-673245-2/CuI/anharm

Space group: F-43m (216)
Link: Materials Project
Download: mp-673245-2.tar.gz

Equation of state

../../_images/fig_bm2635.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr5403.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5403.png — (b) Thermodynamic properties

Grüneisen parameters

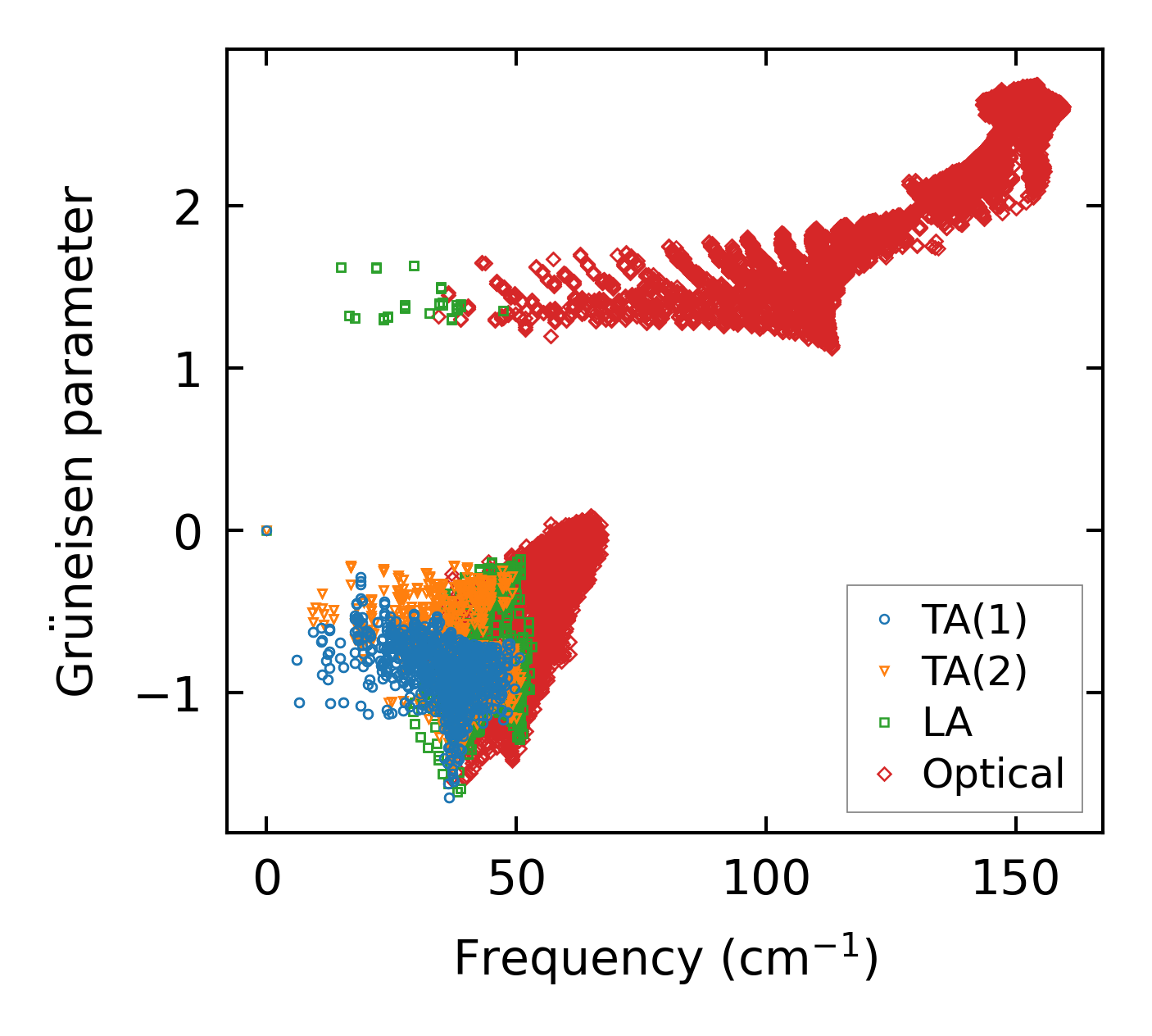

../../_images/fig_gru_all2244.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2244.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 17x12x8, supercell: 4x2x2

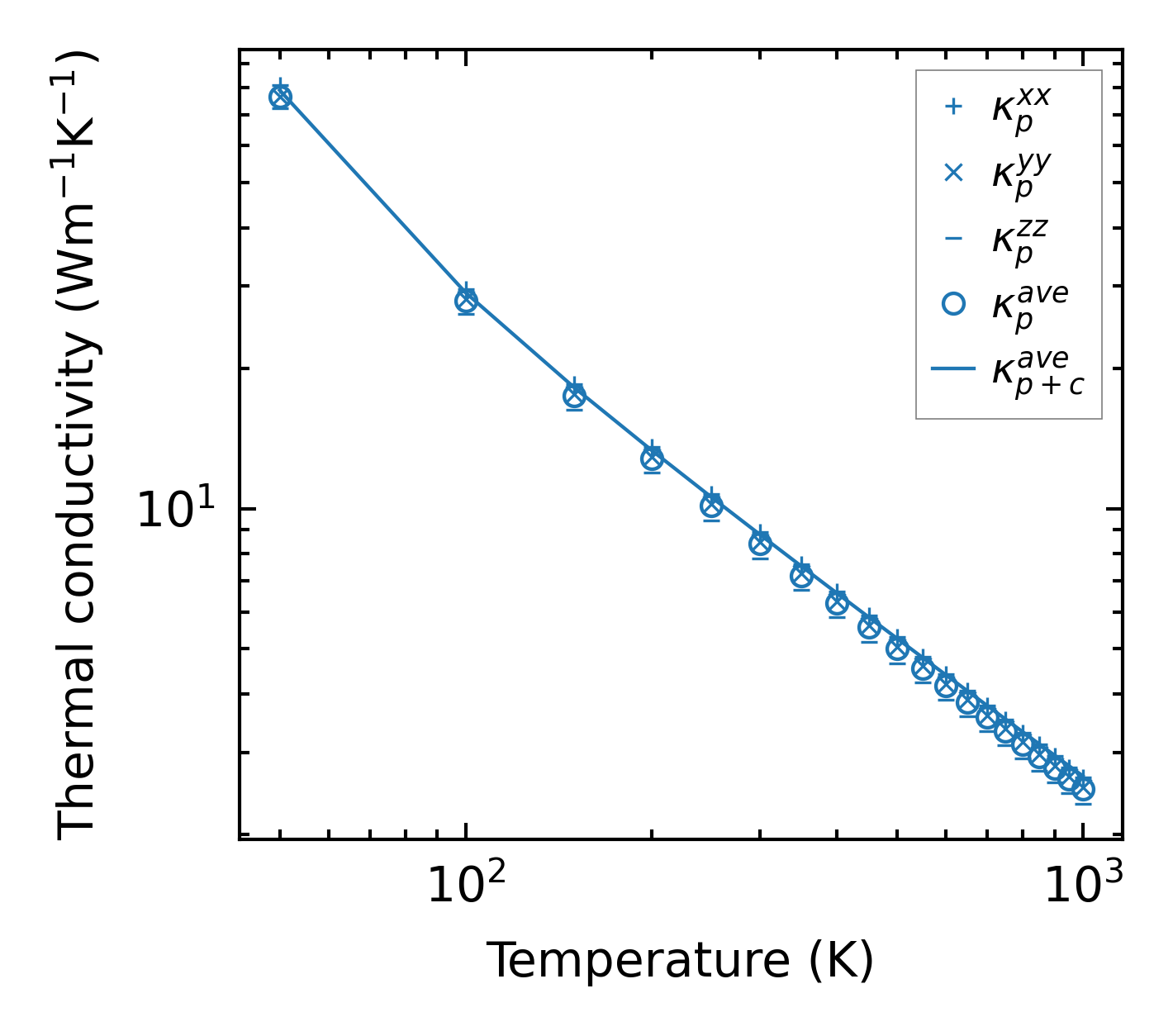

../../_images/fig_kappa4293.png — (a) Temperature-dependent lattice thermal conductivity

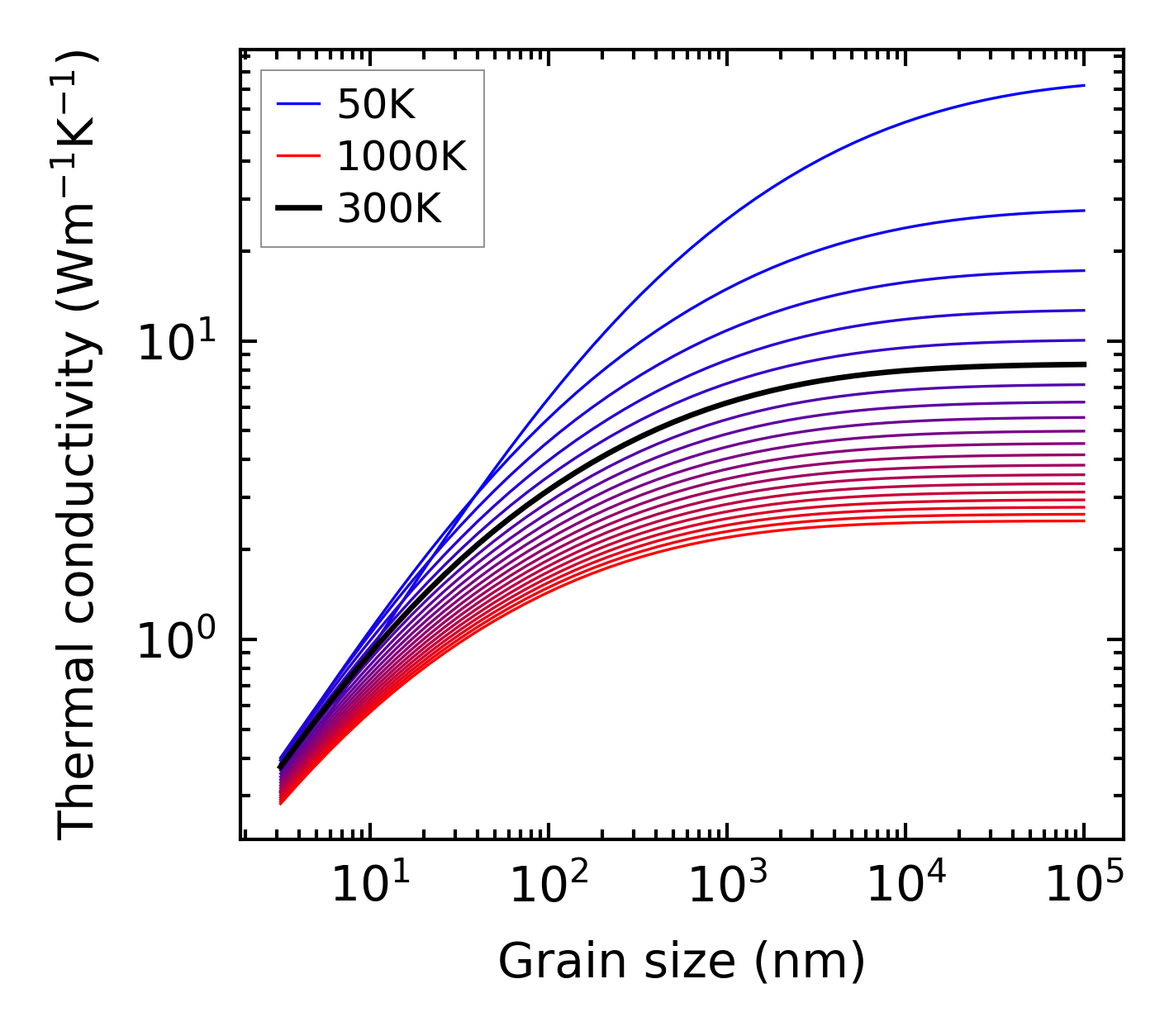

../../_images/fig_kappa_vs_grain_size2275.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2230.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2229.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

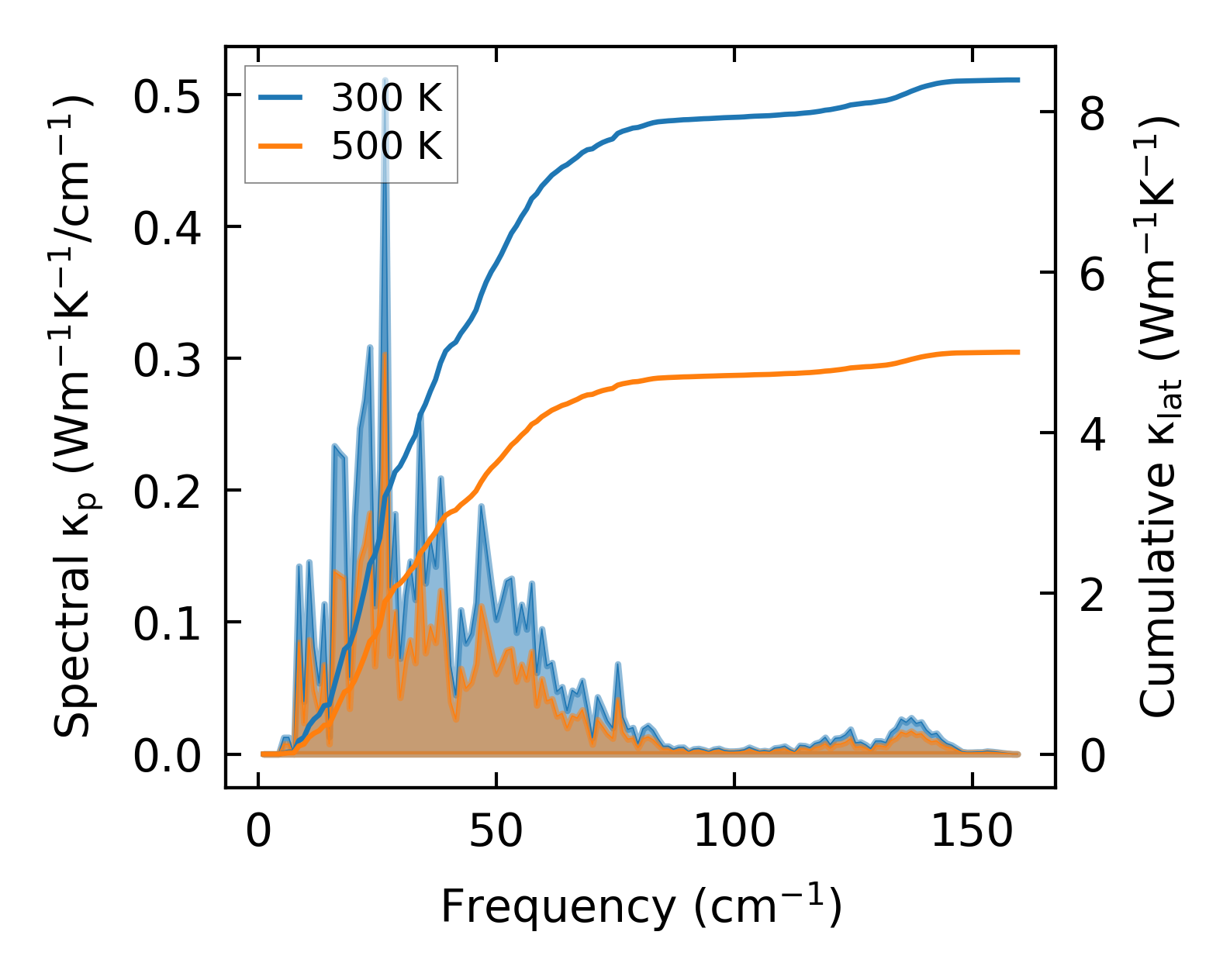

../../_images/fig_cumu_frequency2230.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

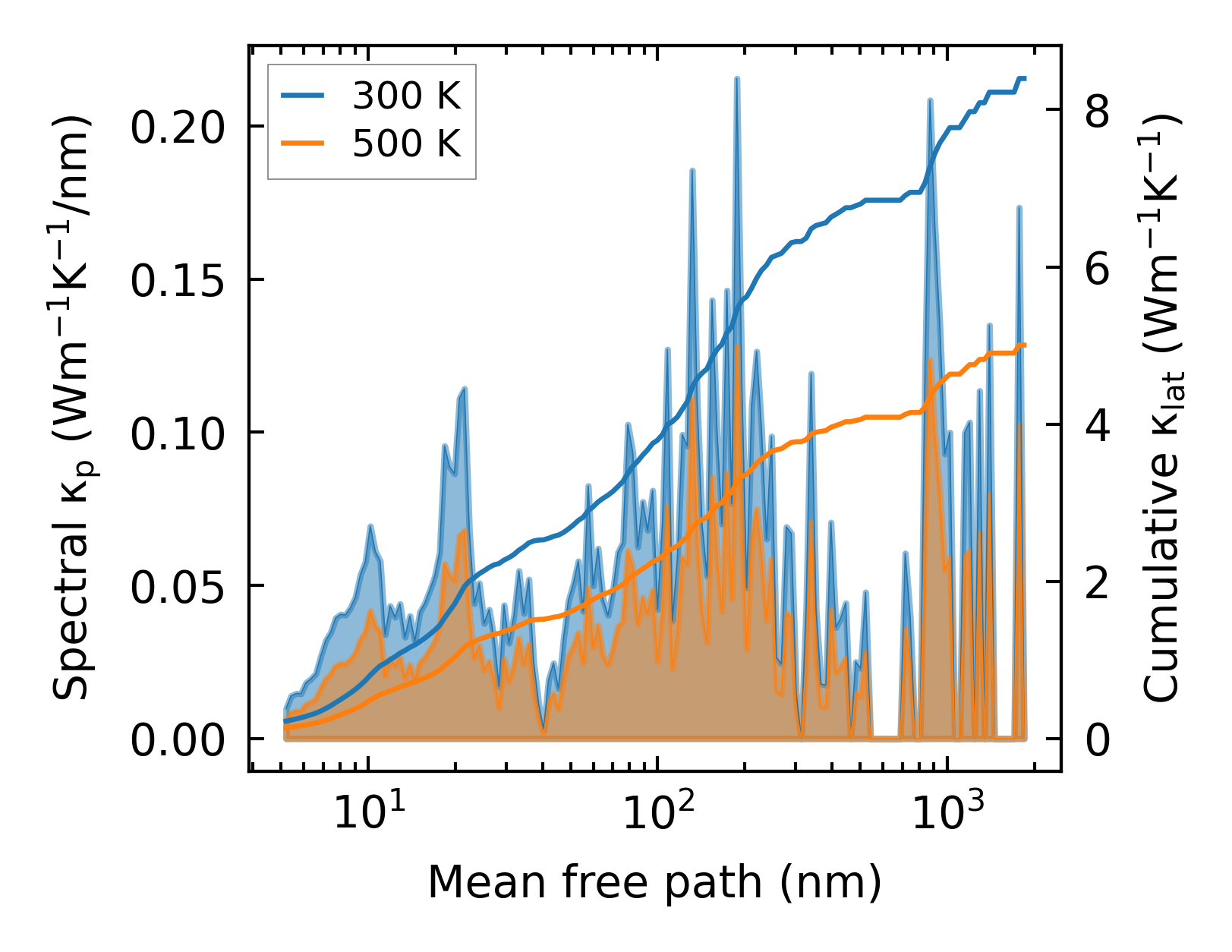

../../_images/fig_cumu_mfp2230.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

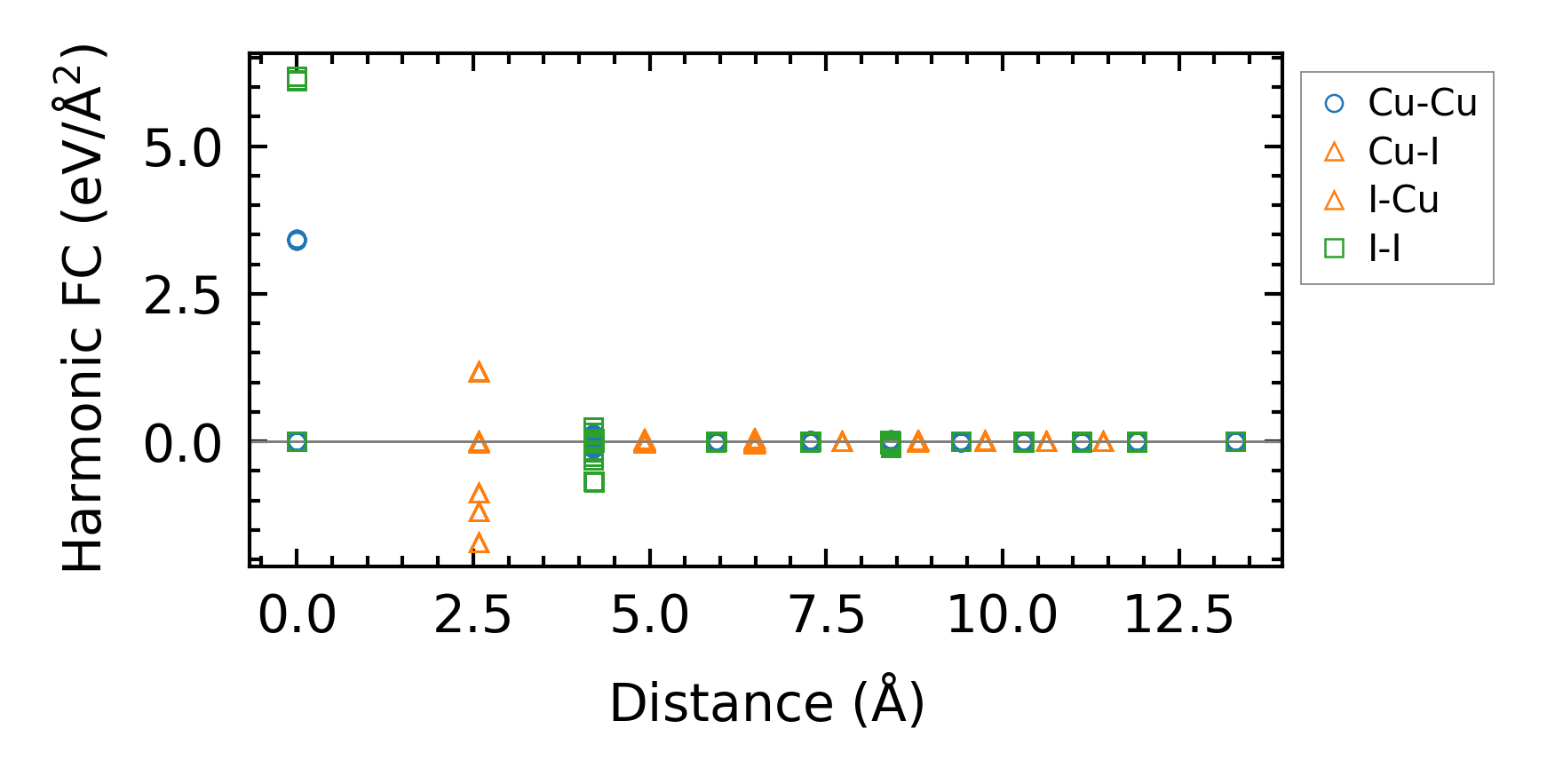

../../_images/fig_fc25208.png — (a) Force constants w.r.t atomic distance

Summary

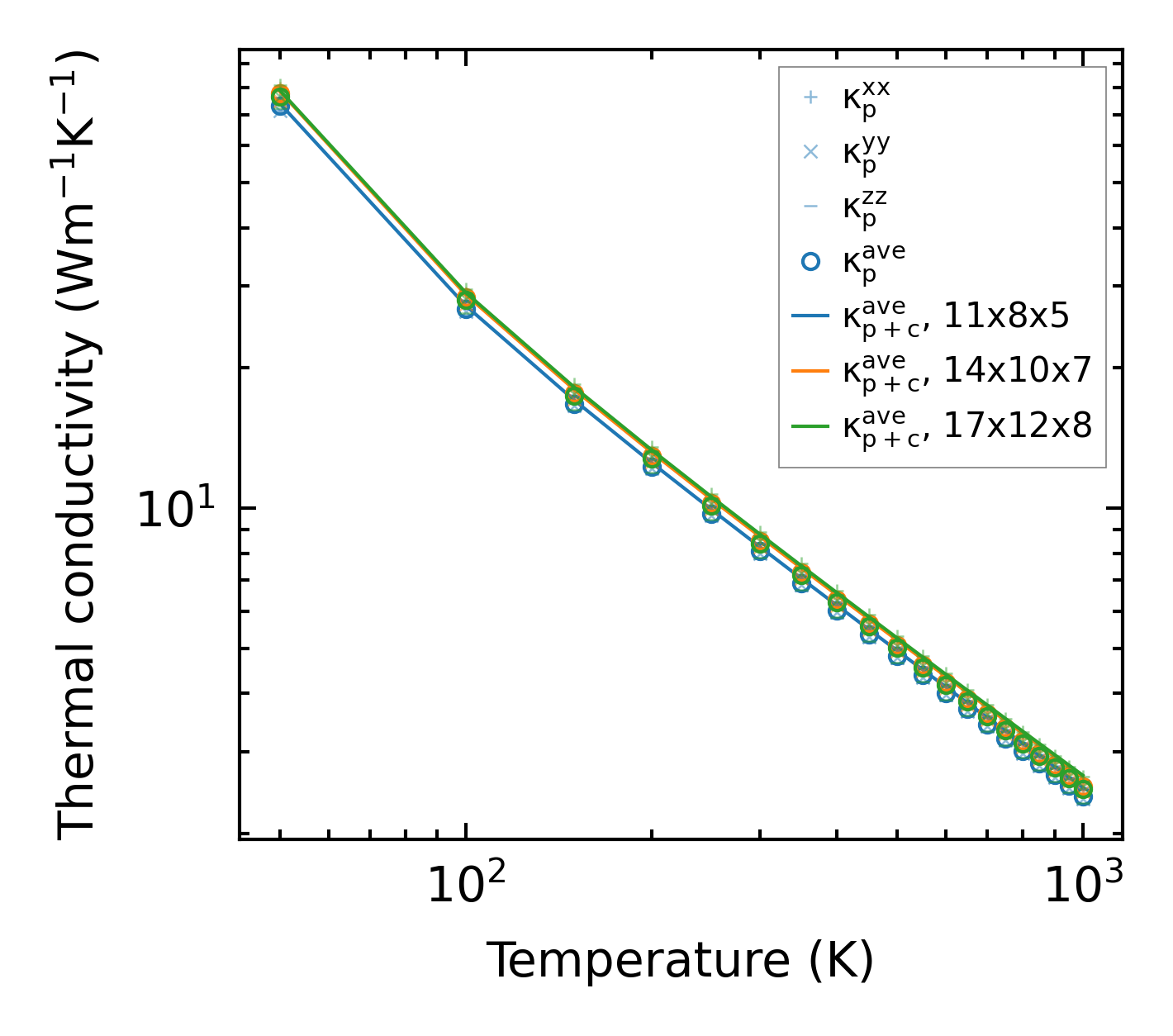

../../_images/fig_kappa4294.png — (a) Temperature-dependent lattice thermal conductivity

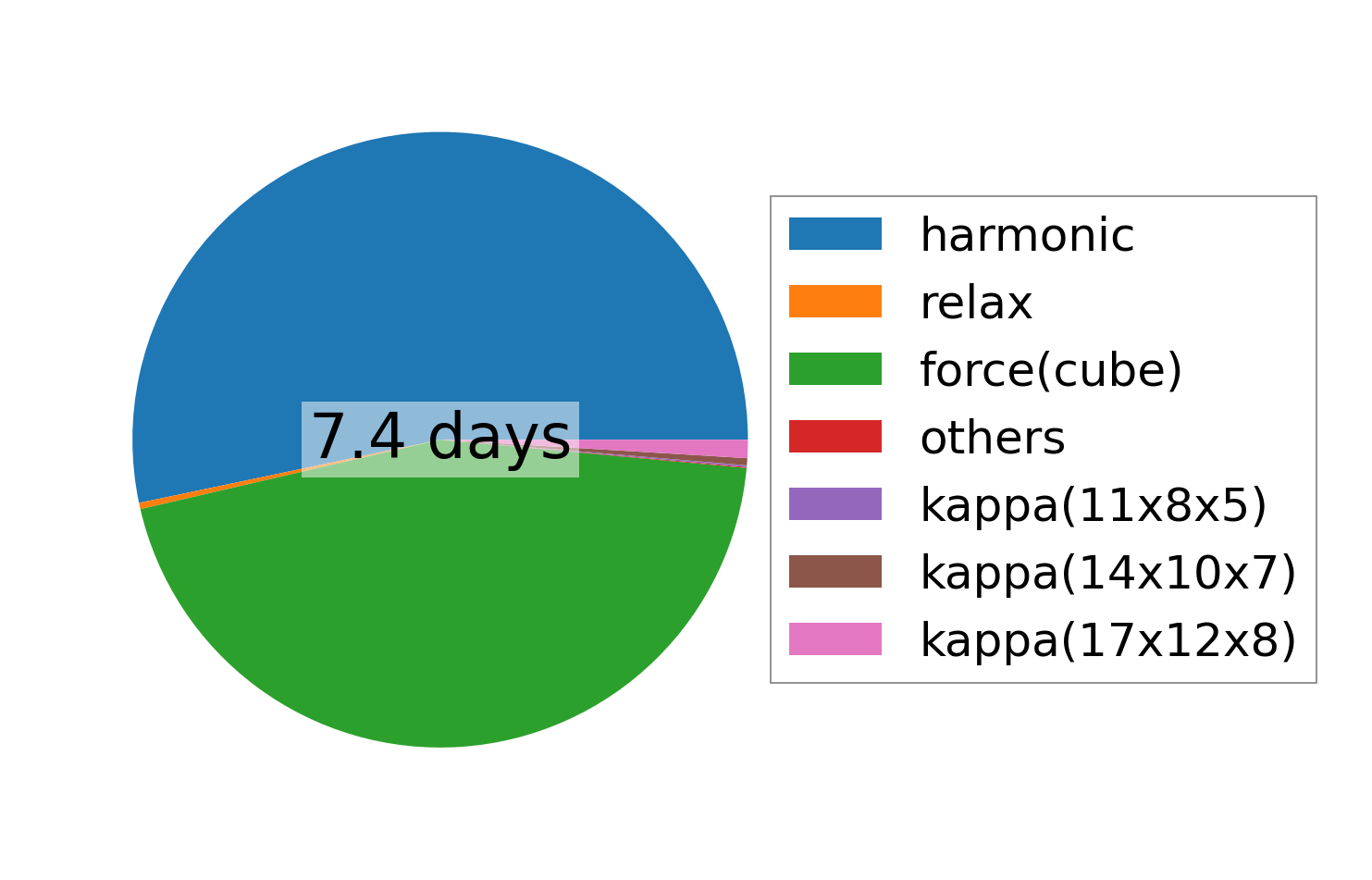

../../_images/fig_times9799.png — (b) Computation time
