mp-638070/LiB13C2/anharm

Space group: Imma (74)
Link: Materials Project
Download: mp-638070.tar.gz

Harmonic properties

../../_images/fig_bandos_pr5683.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5683.png — (b) Thermodynamic properties

Grüneisen parameters

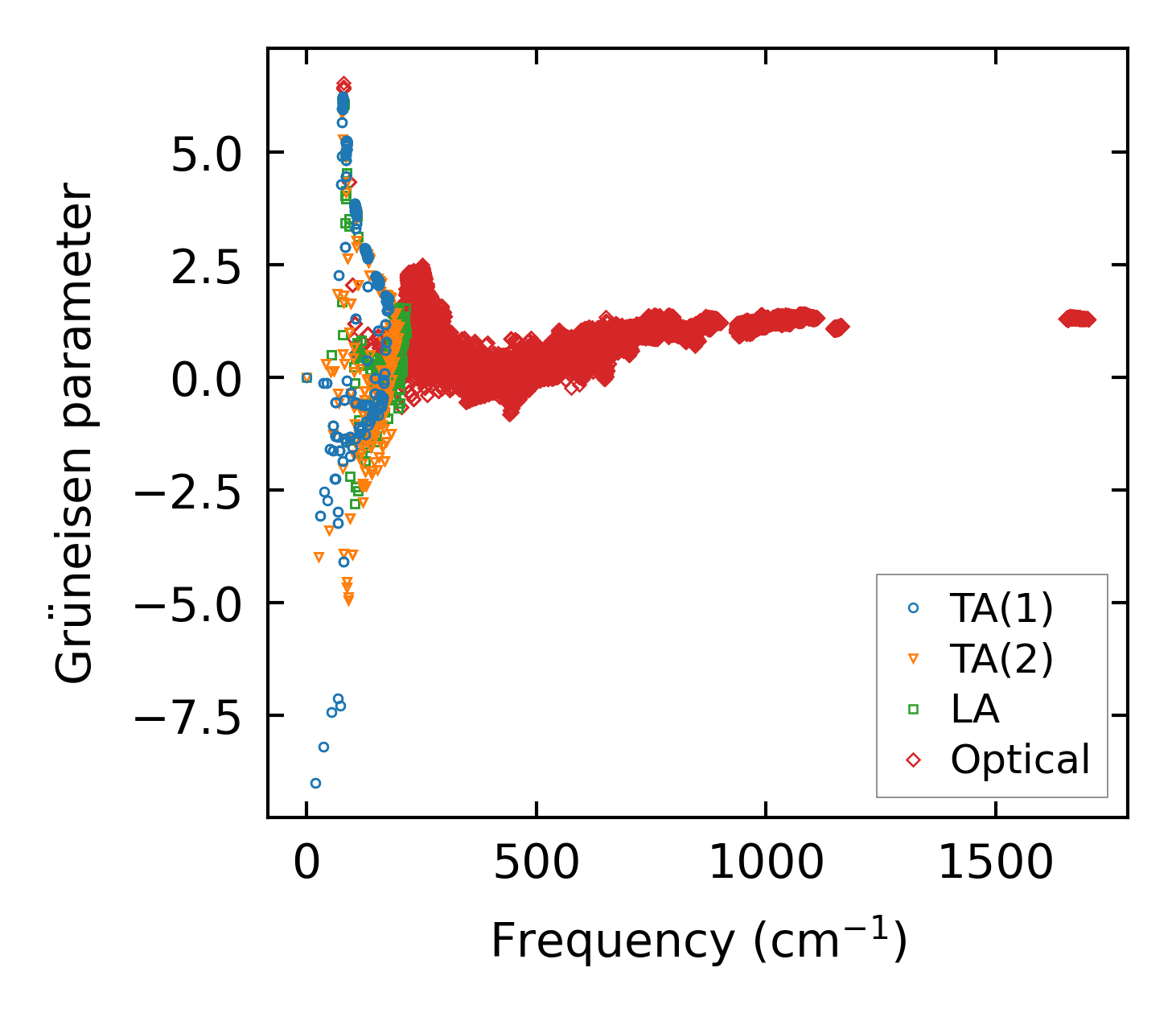

../../_images/fig_gru_all2370.png — (a) Grüneisen parameters

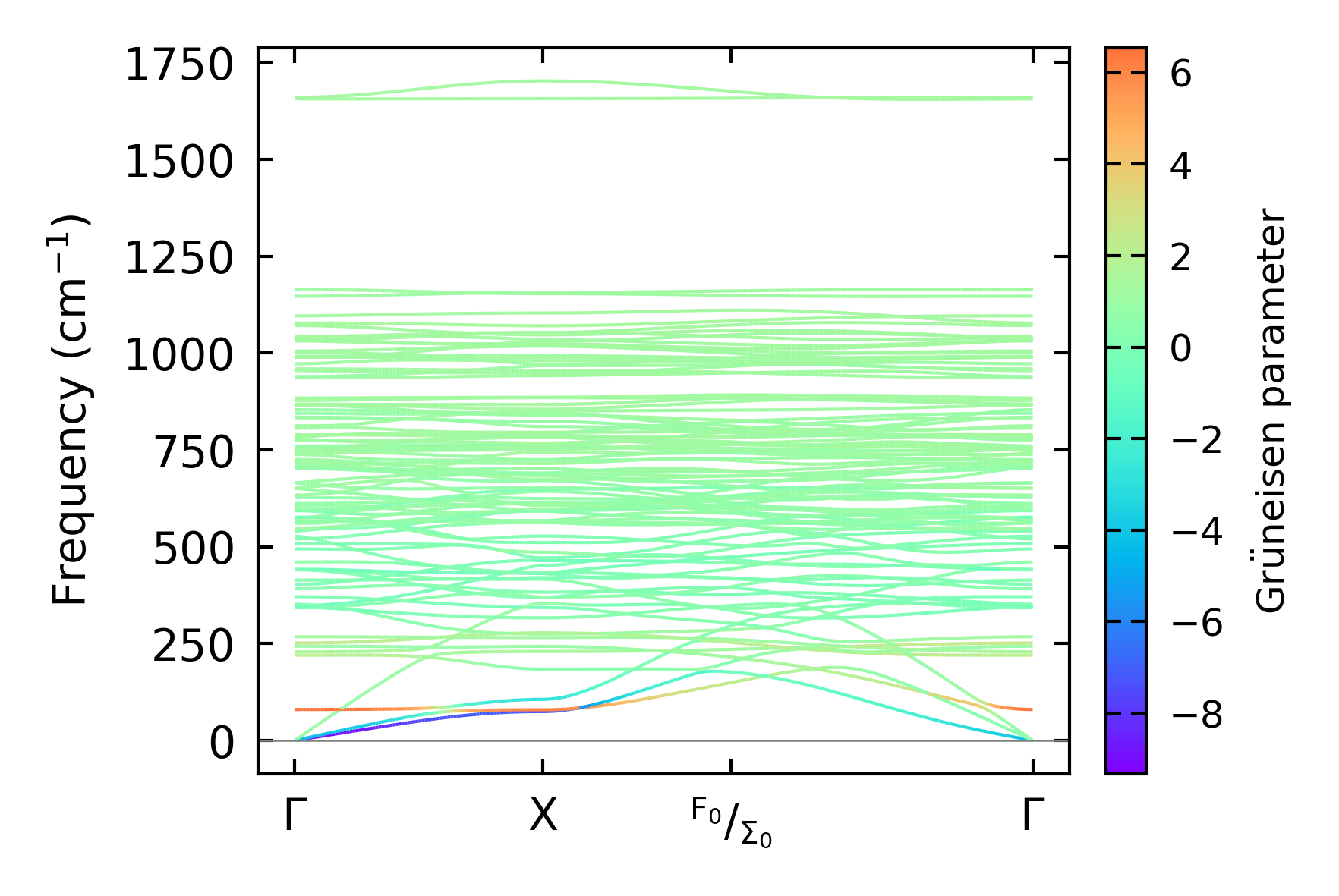

../../_images/fig_gruneisen2370.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x11, supercell: 2x1x1

../../_images/fig_kappa4522.png — (a) Temperature-dependent lattice thermal conductivity

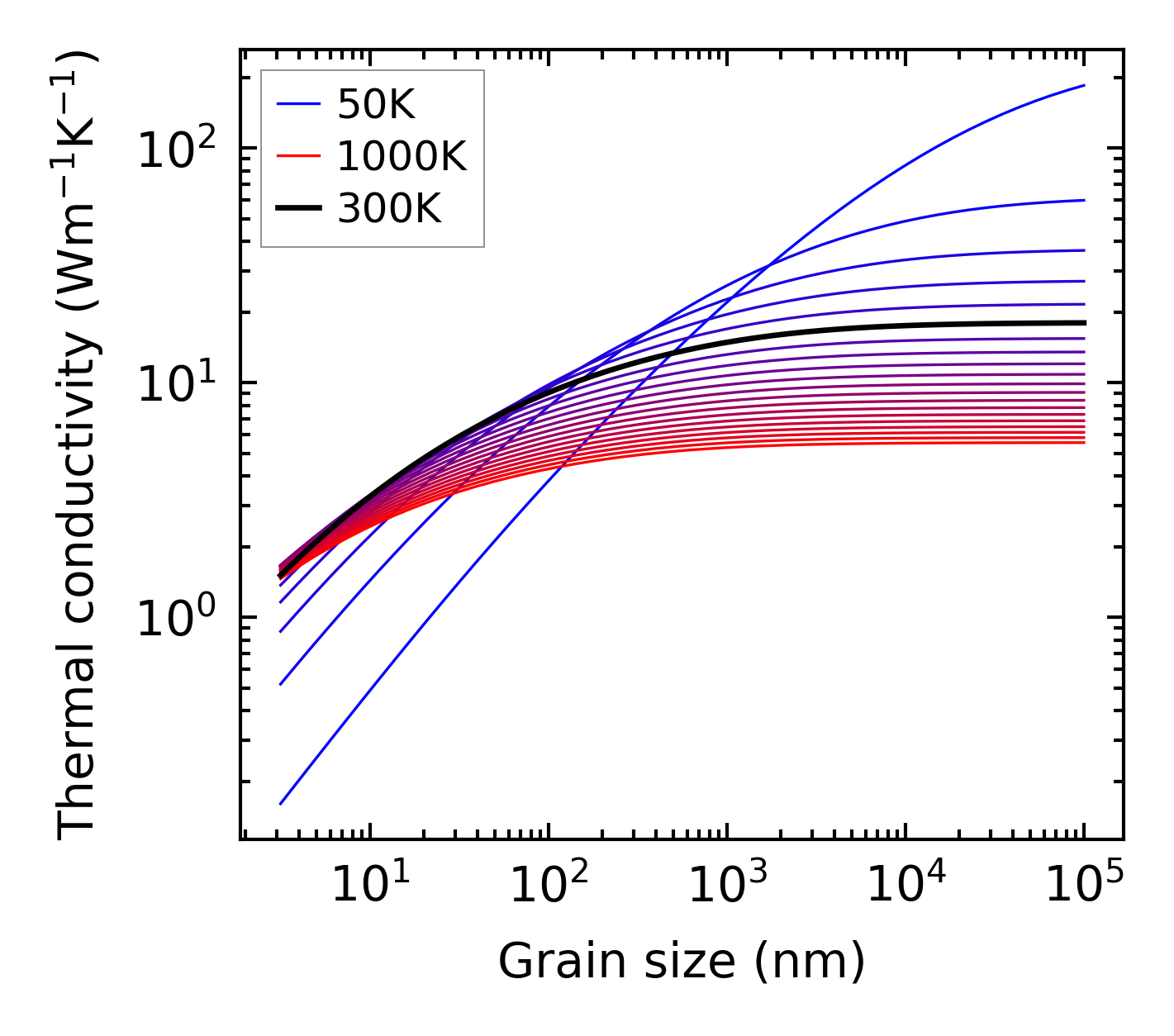

../../_images/fig_kappa_vs_grain_size2401.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

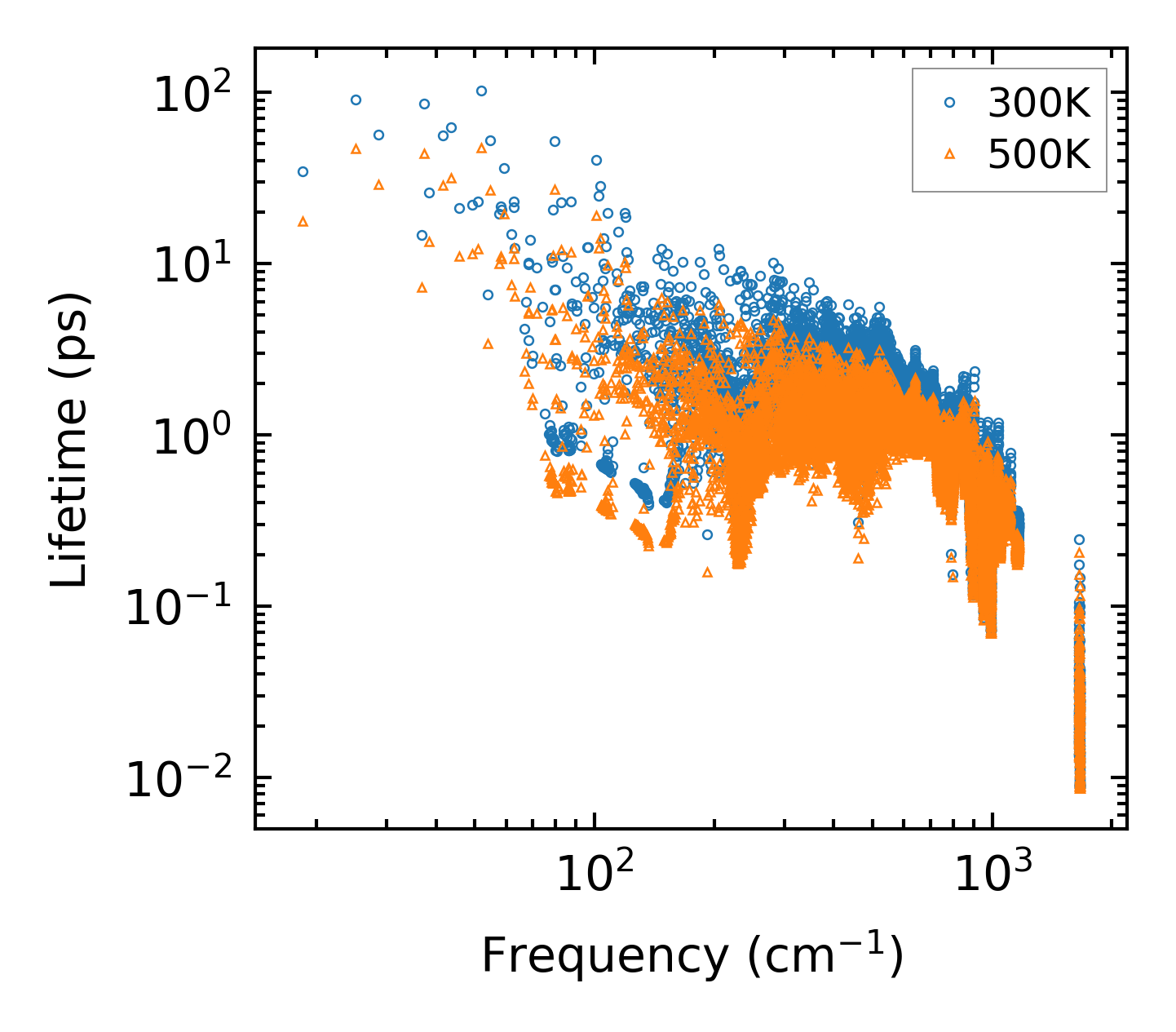

../../_images/fig_lifetime2355.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2354.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2355.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

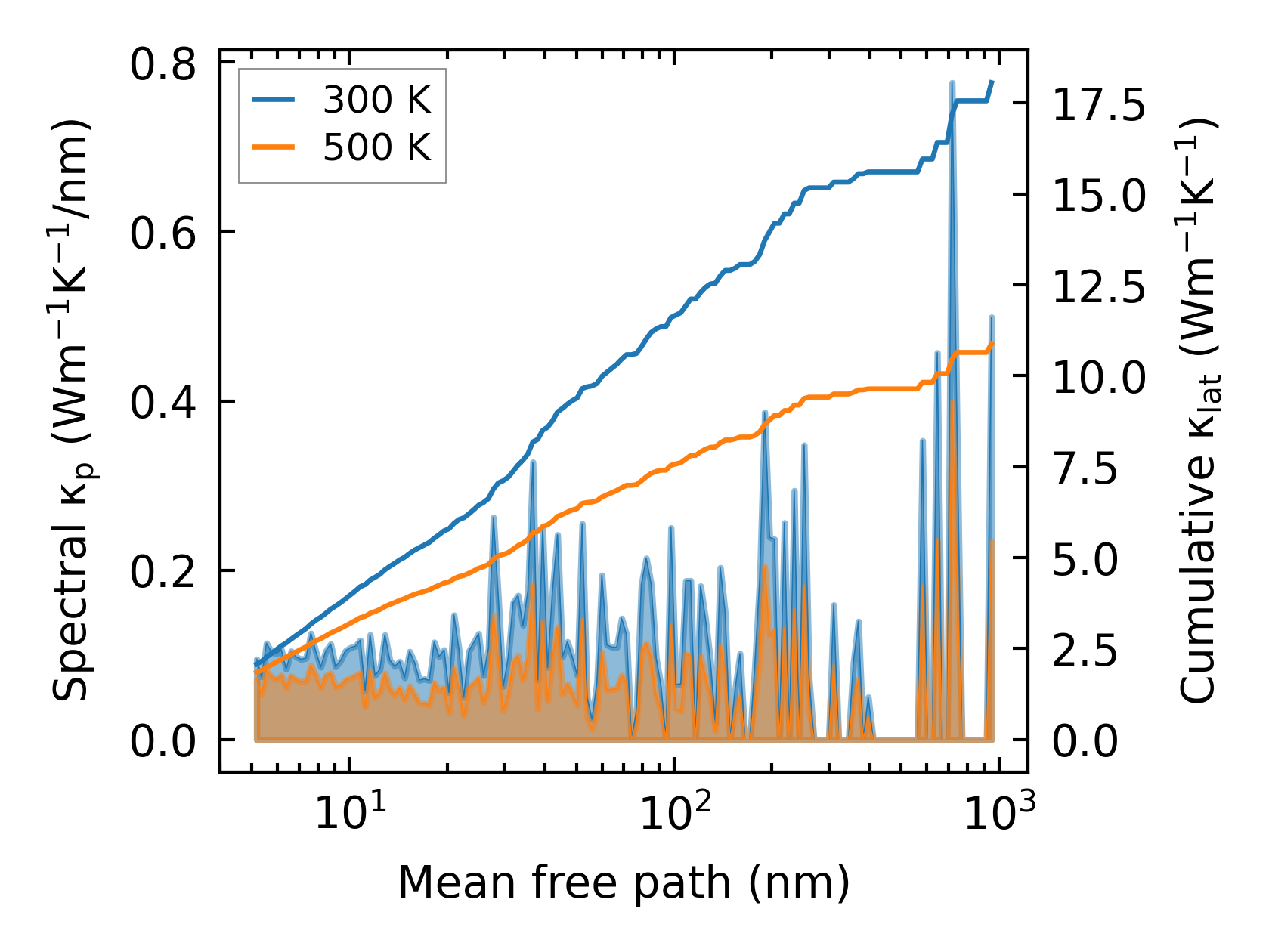

../../_images/fig_cumu_mfp2355.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

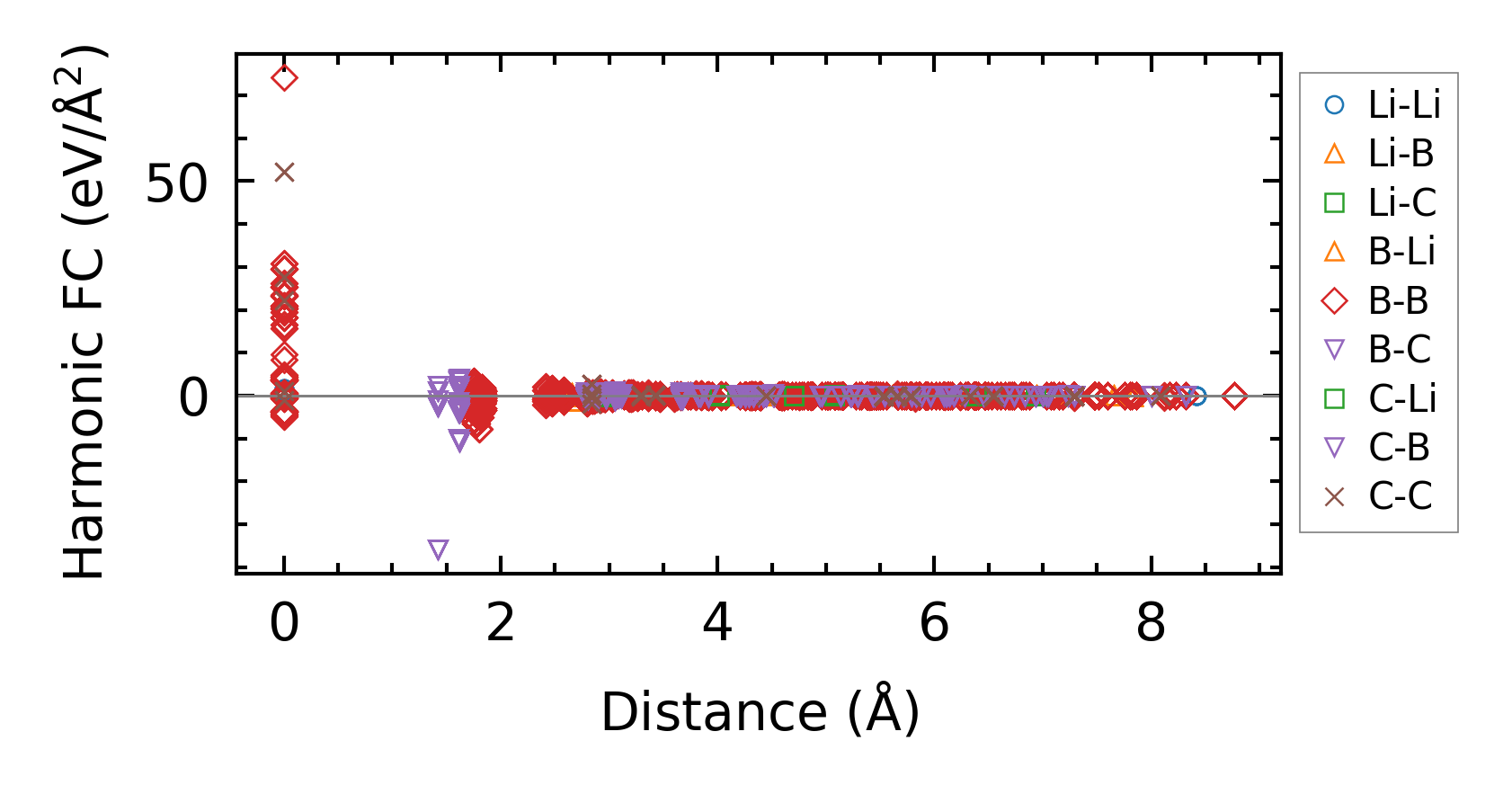

../../_images/fig_fc25481.png — (a) Force constants w.r.t atomic distance

Summary

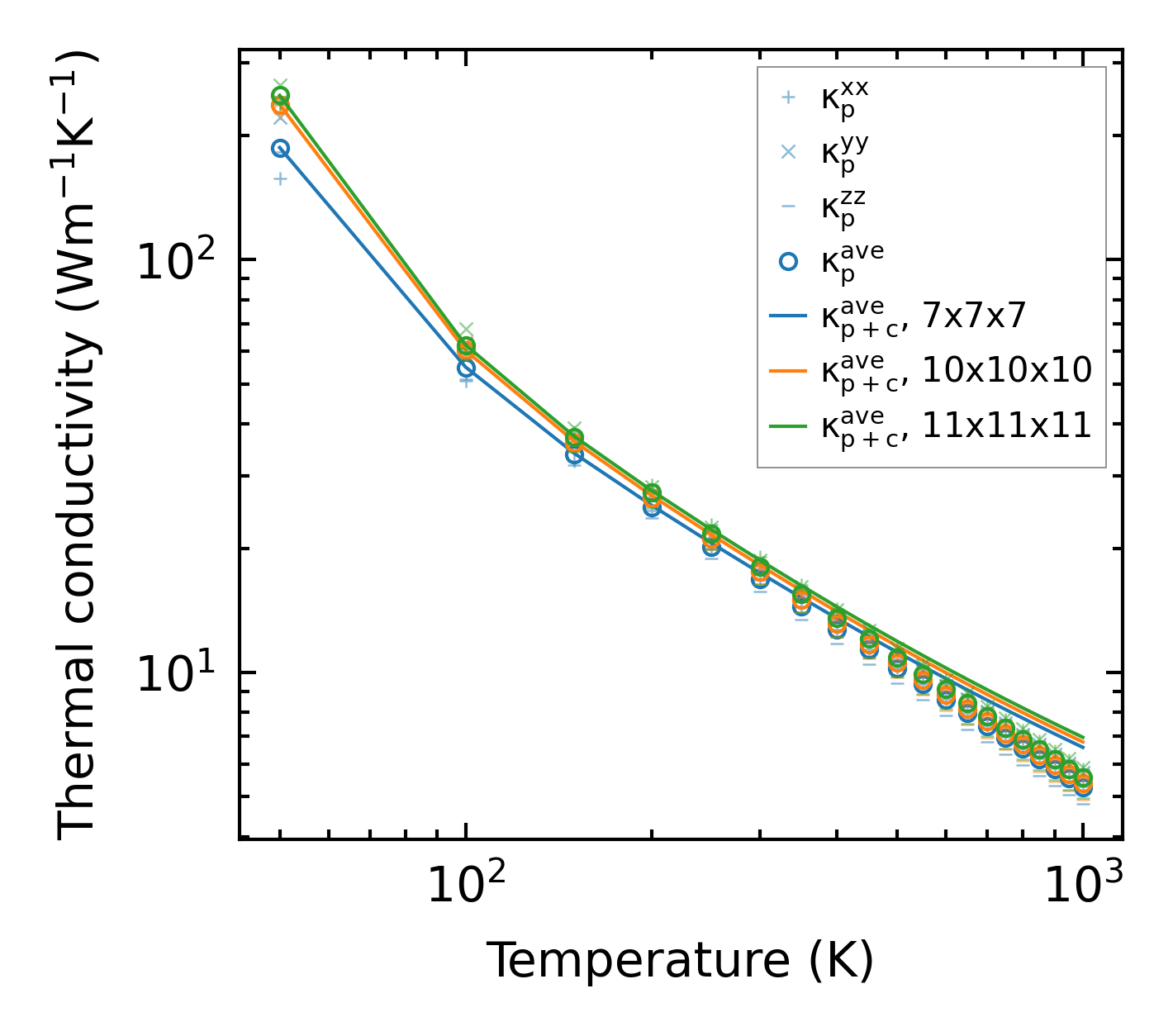

../../_images/fig_kappa4523.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times10286.png — (b) Computation time
