mp-632760/Na2H6PtO6/anharm

Space group: P-3 (147)
Link: Materials Project
Download: mp-632760.tar.gz

Harmonic properties

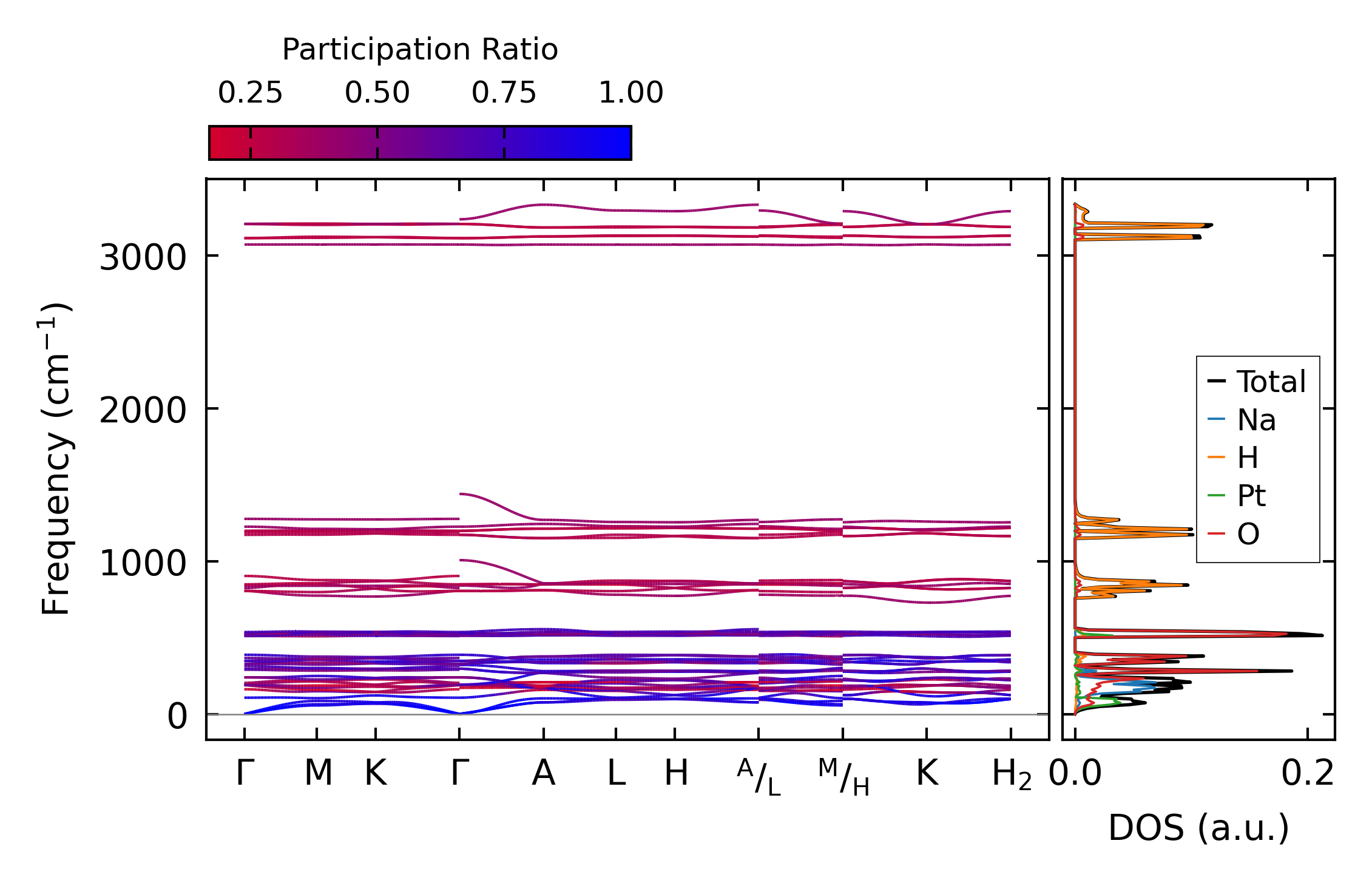

../../_images/fig_bandos_pr5638.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5638.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2355.png — (a) Grüneisen parameters

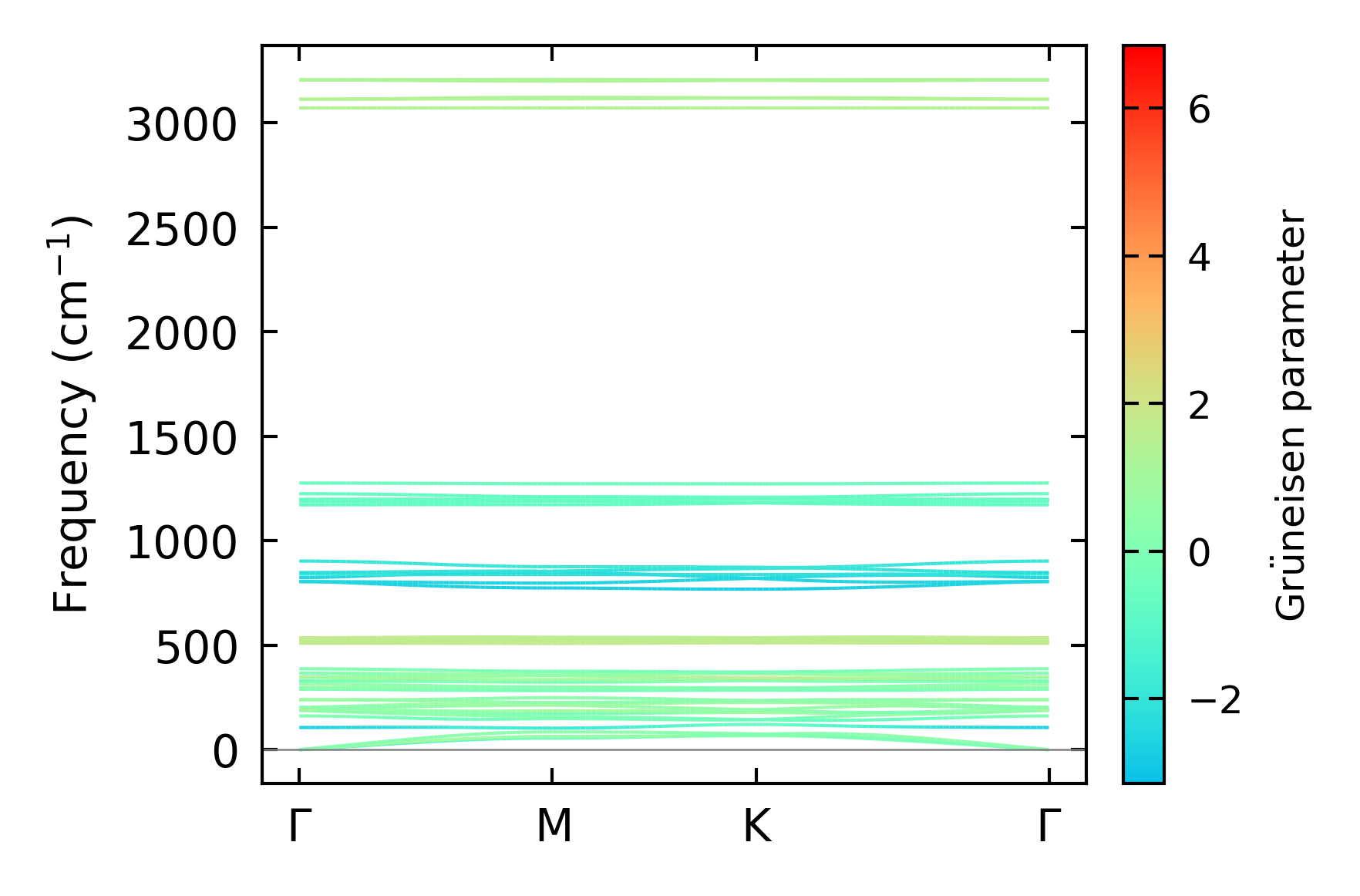

../../_images/fig_gruneisen2355.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x17, supercell: 2x2x2

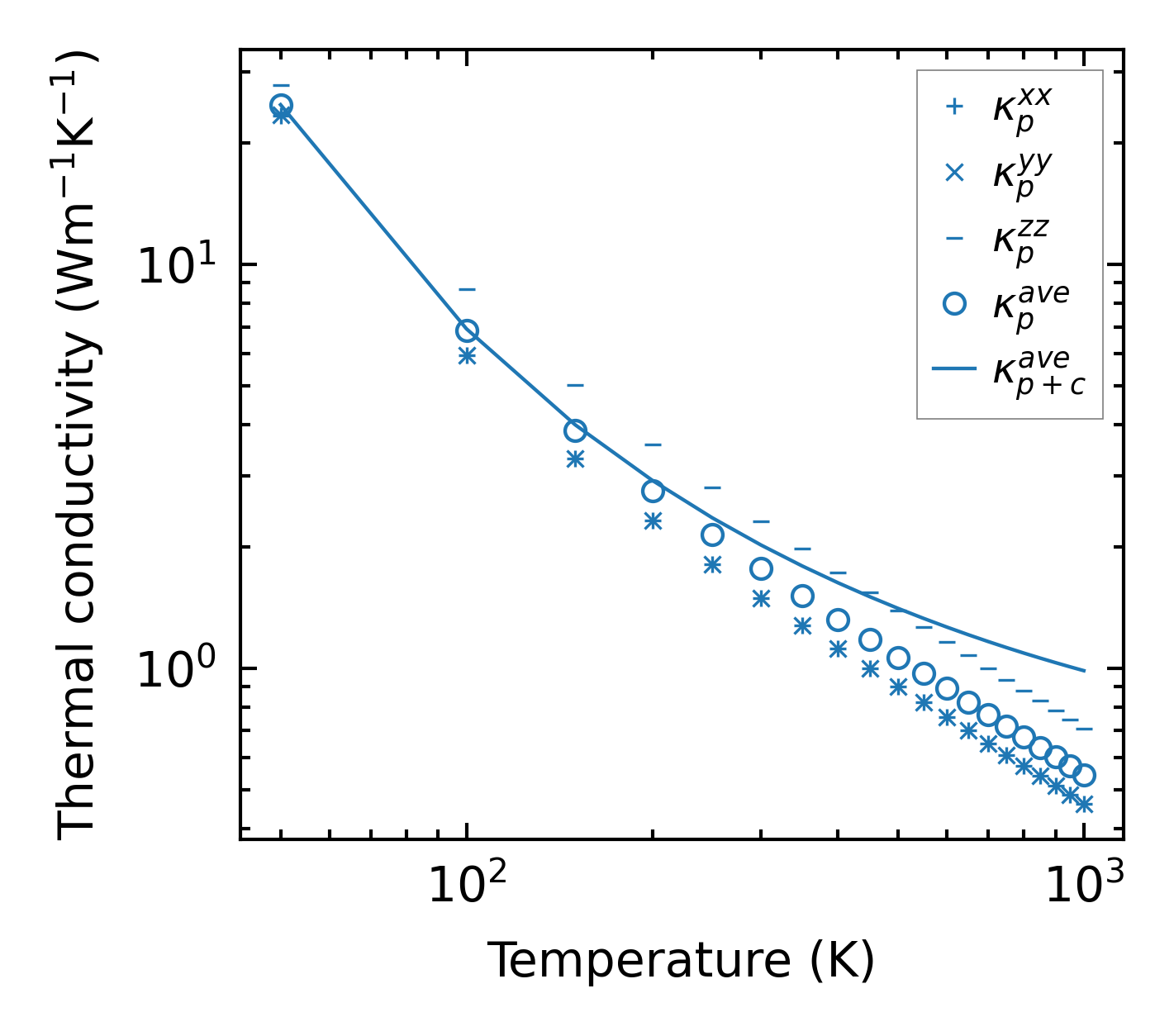

../../_images/fig_kappa4498.png — (a) Temperature-dependent lattice thermal conductivity

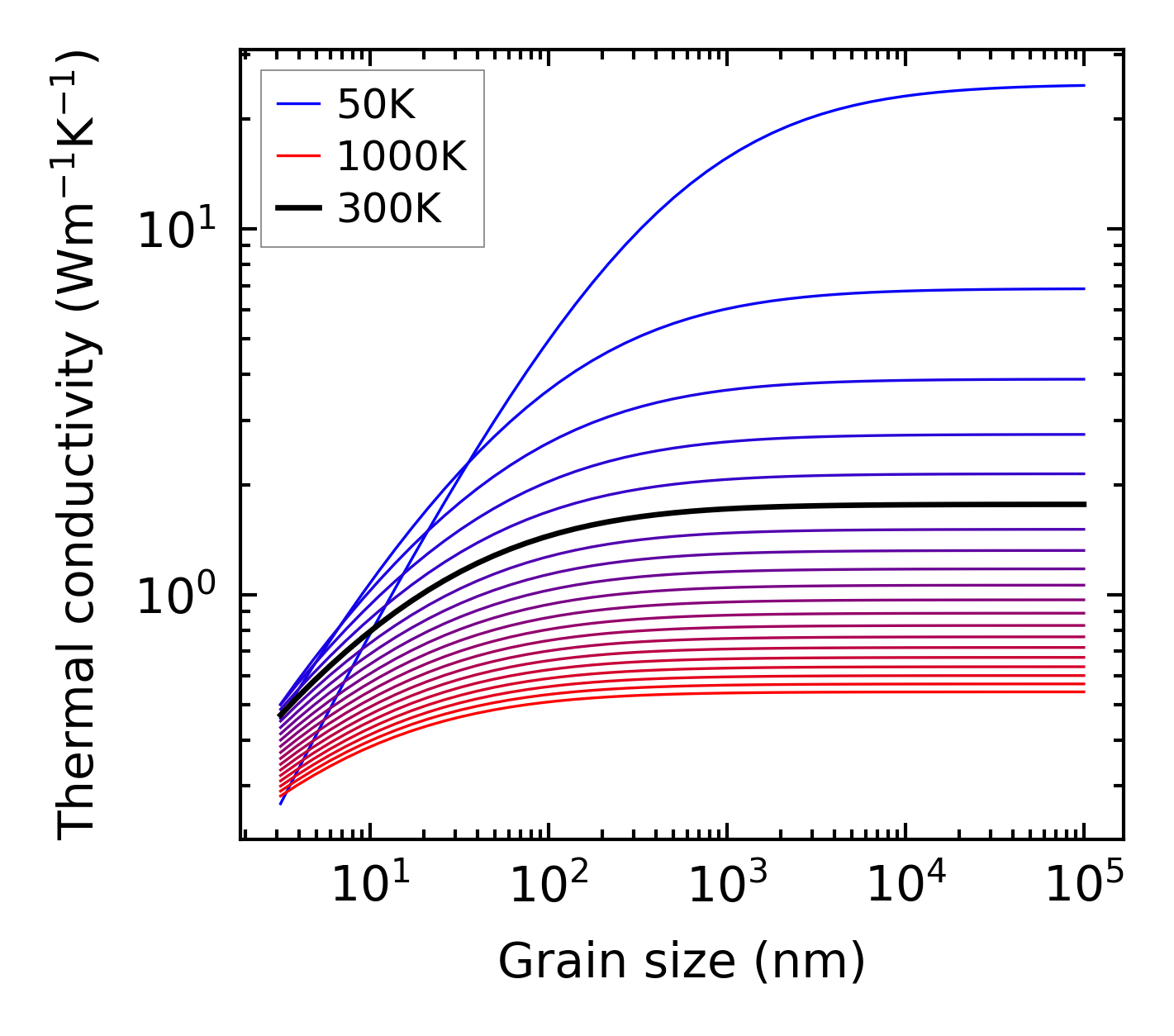

../../_images/fig_kappa_vs_grain_size2386.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

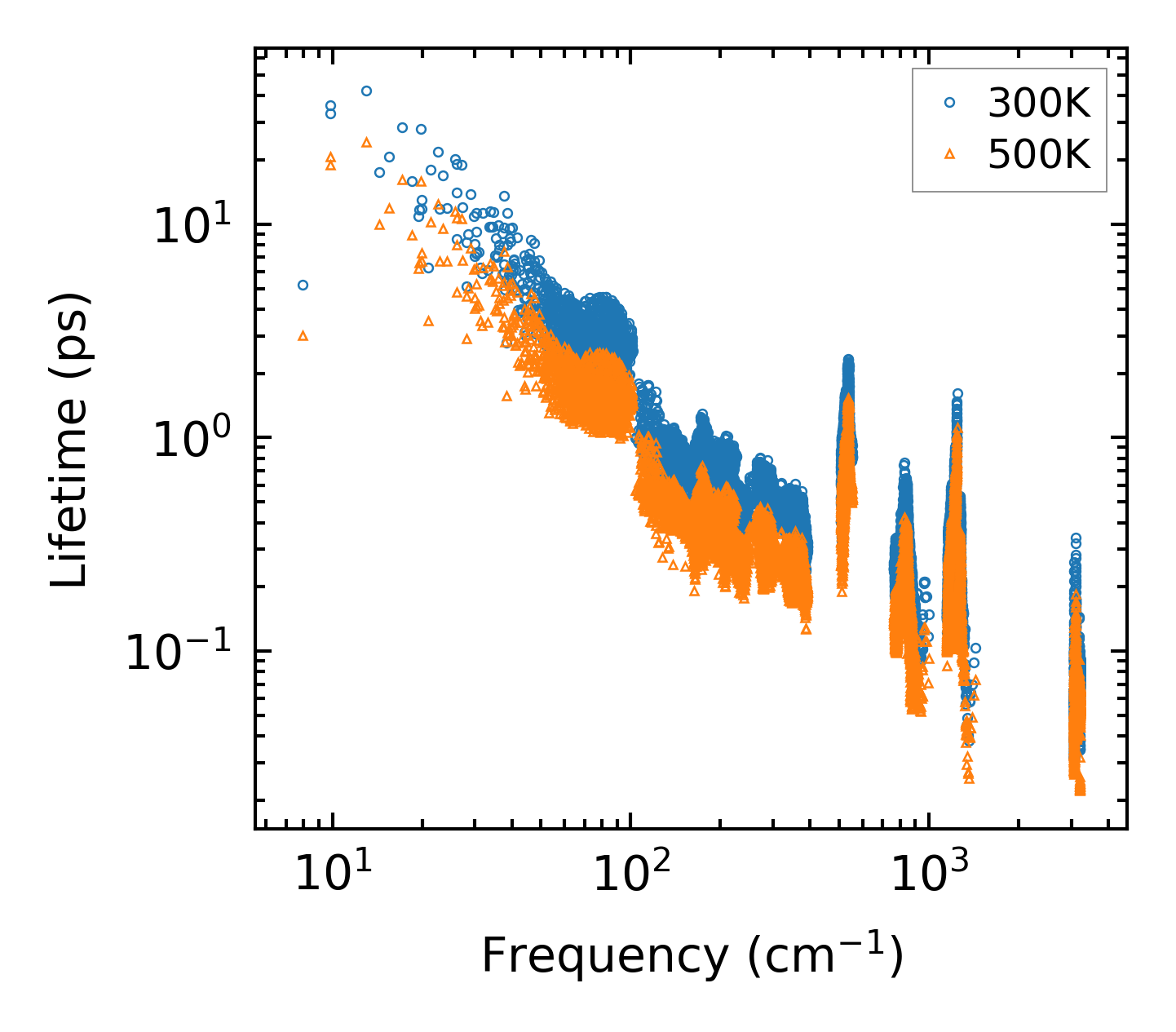

../../_images/fig_lifetime2340.png — (a) Phonon lifetime due to phonon-phonon scattering

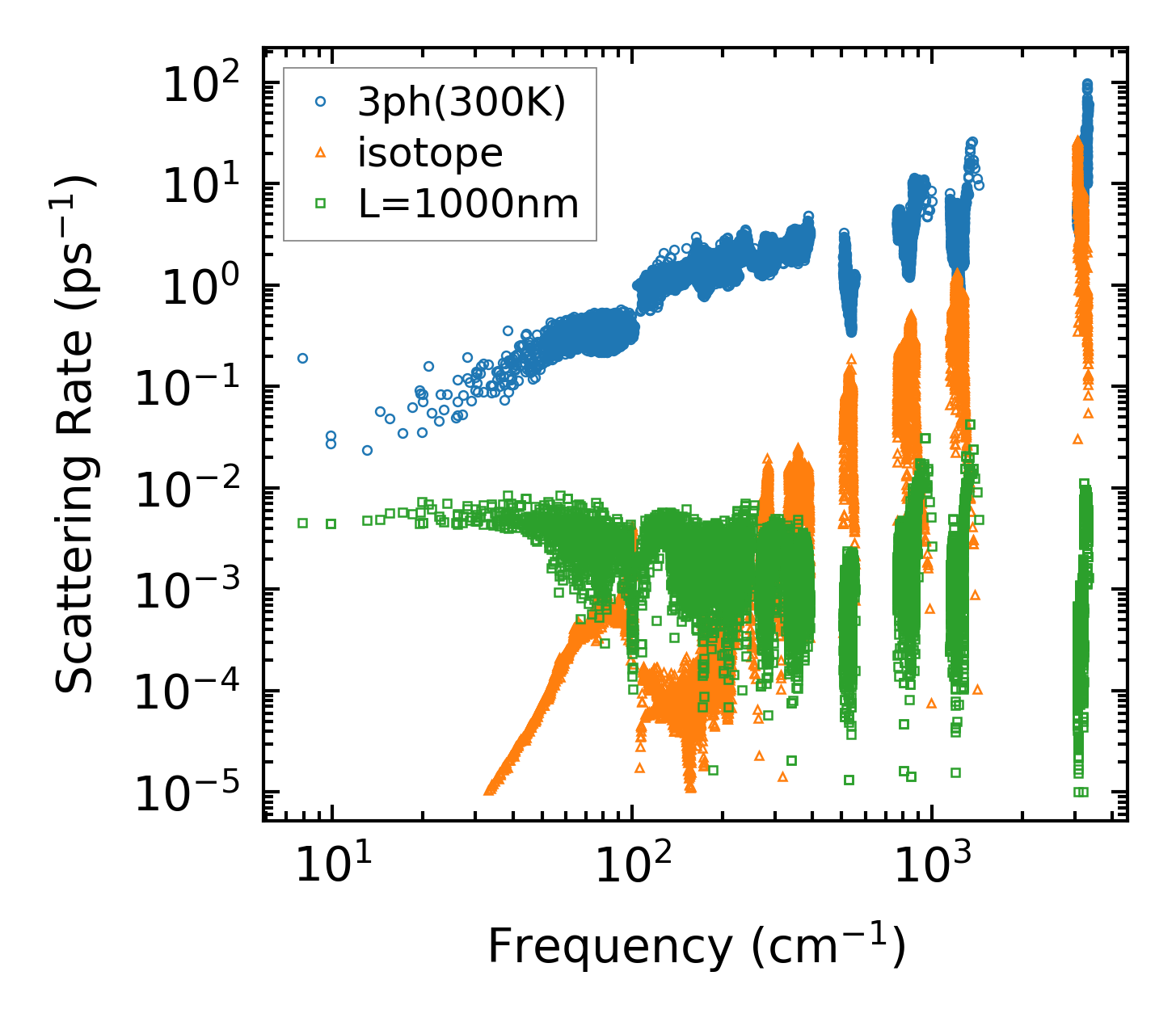

../../_images/fig_scat_rates2339.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

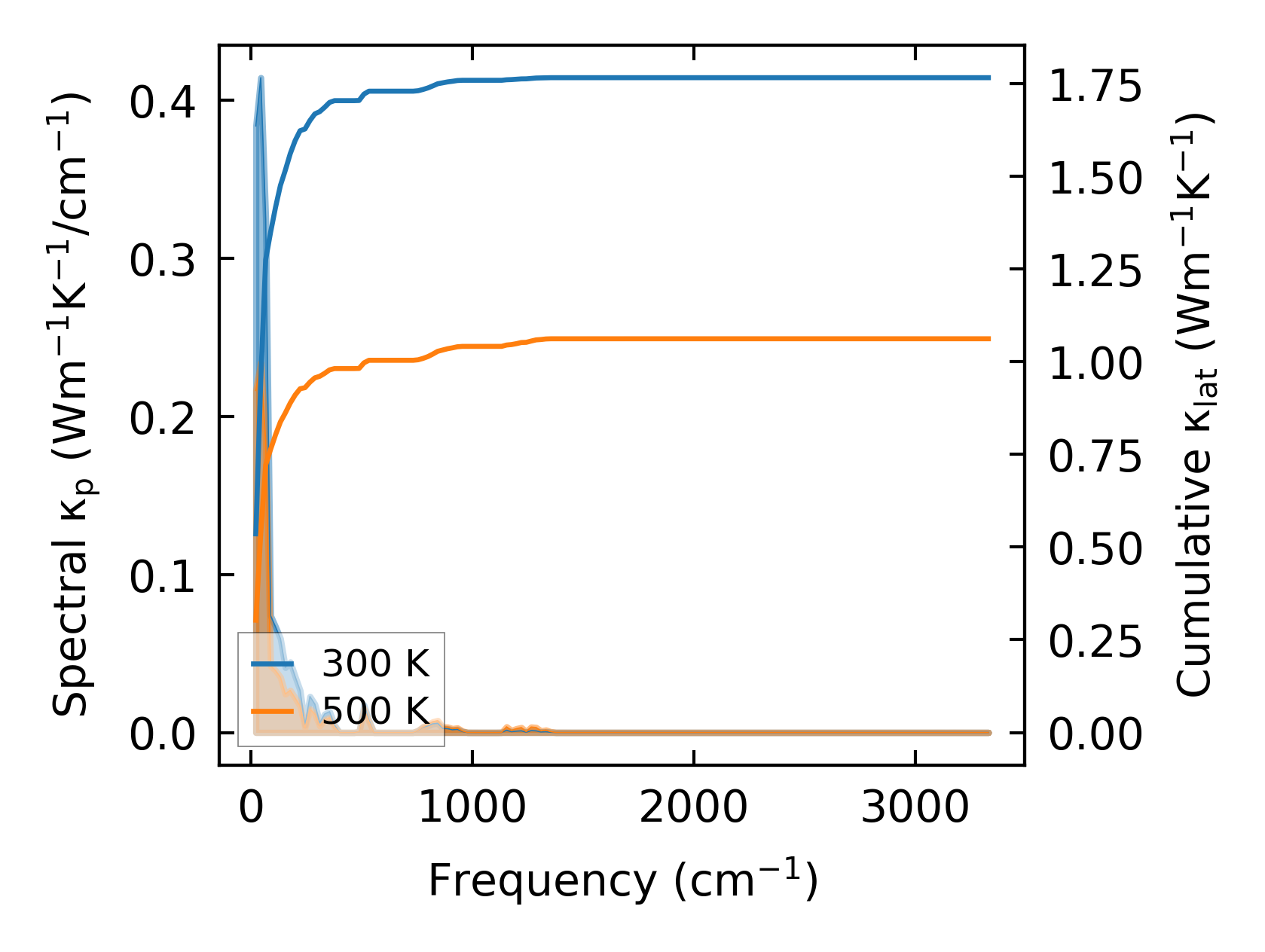

../../_images/fig_cumu_frequency2340.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2340.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc25437.png — (a) Force constants w.r.t atomic distance

Summary

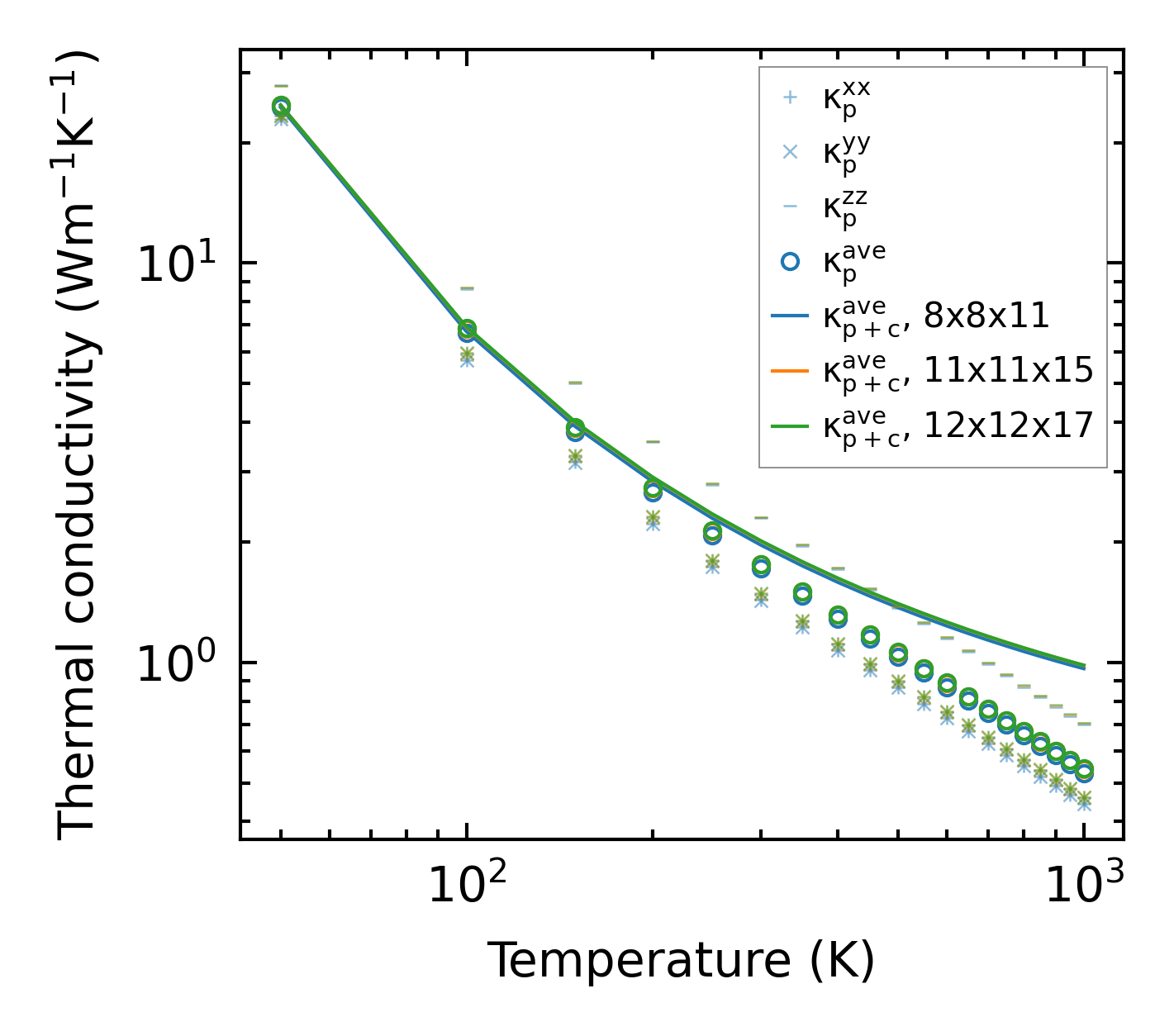

../../_images/fig_kappa4499.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times10190.png — (b) Computation time
