mp-619510-2/CsHg2Br5/anharm

Space group: P2_1/m (11)
Link: Materials Project
Download: mp-619510-2.tar.gz

Equation of state

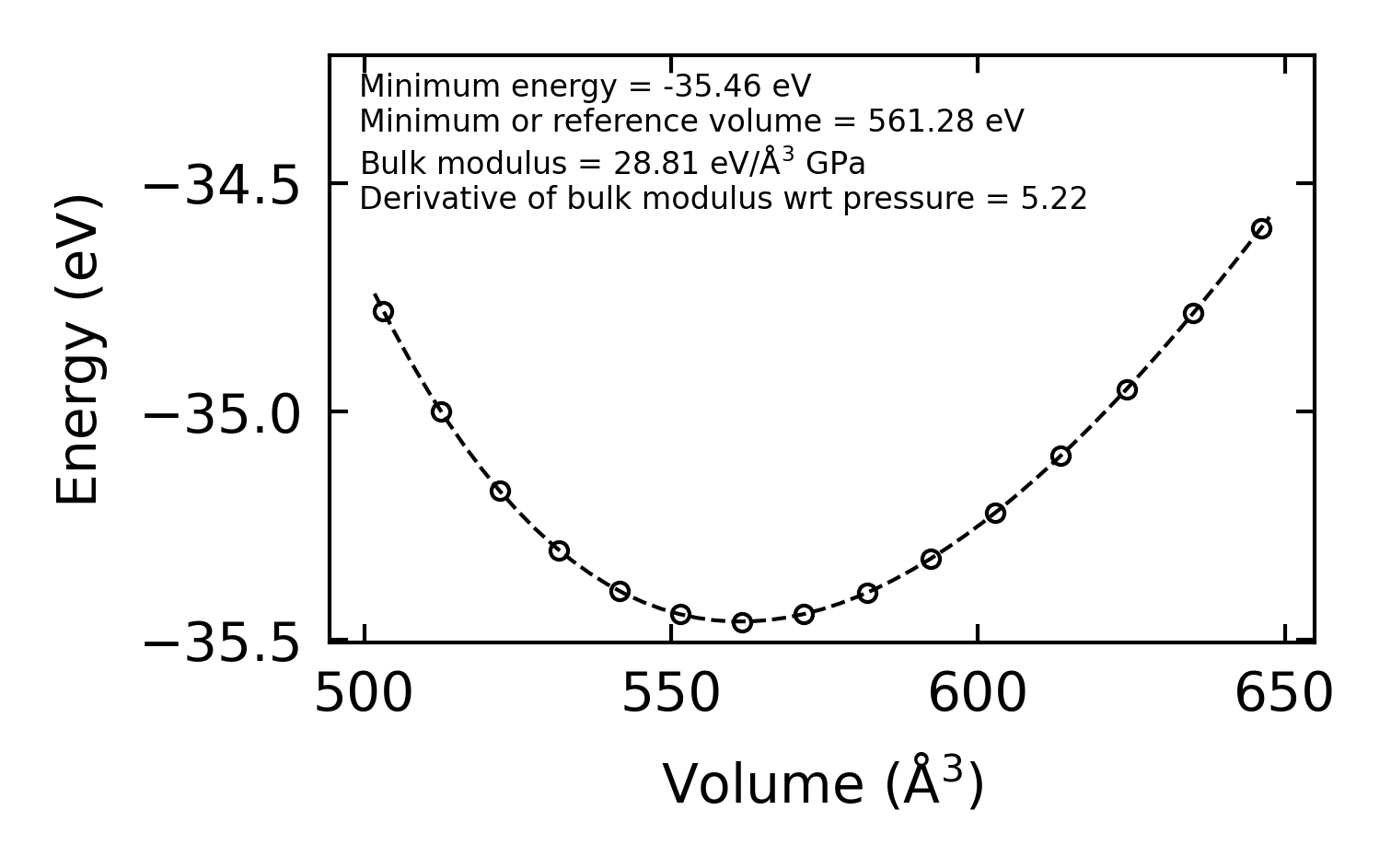

../../_images/fig_bm3188.png — (a) Equation of state

Harmonic properties

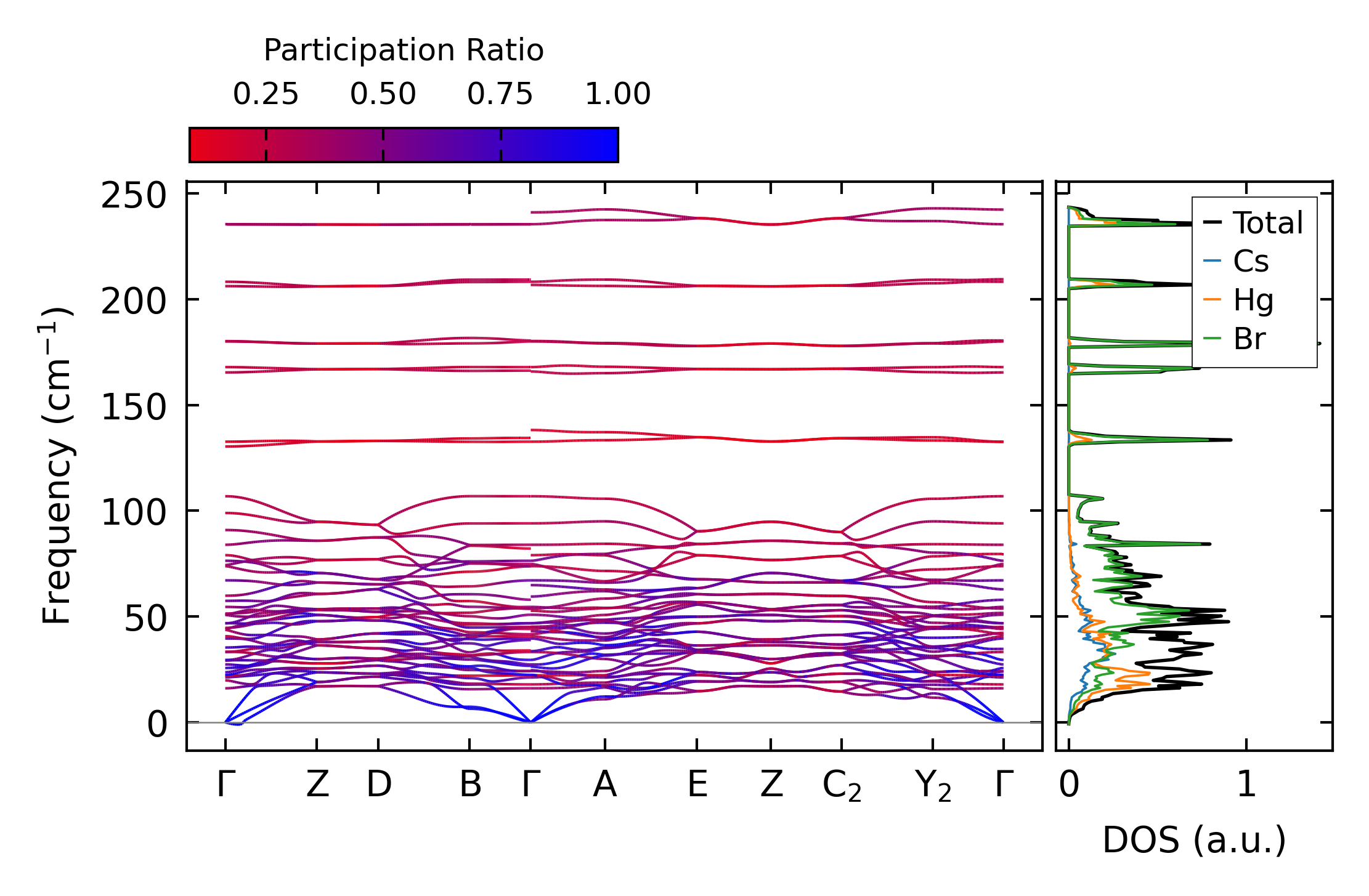

../../_images/fig_bandos_pr6056.png — (a) Phonon dispersion with participation ratio and DOS

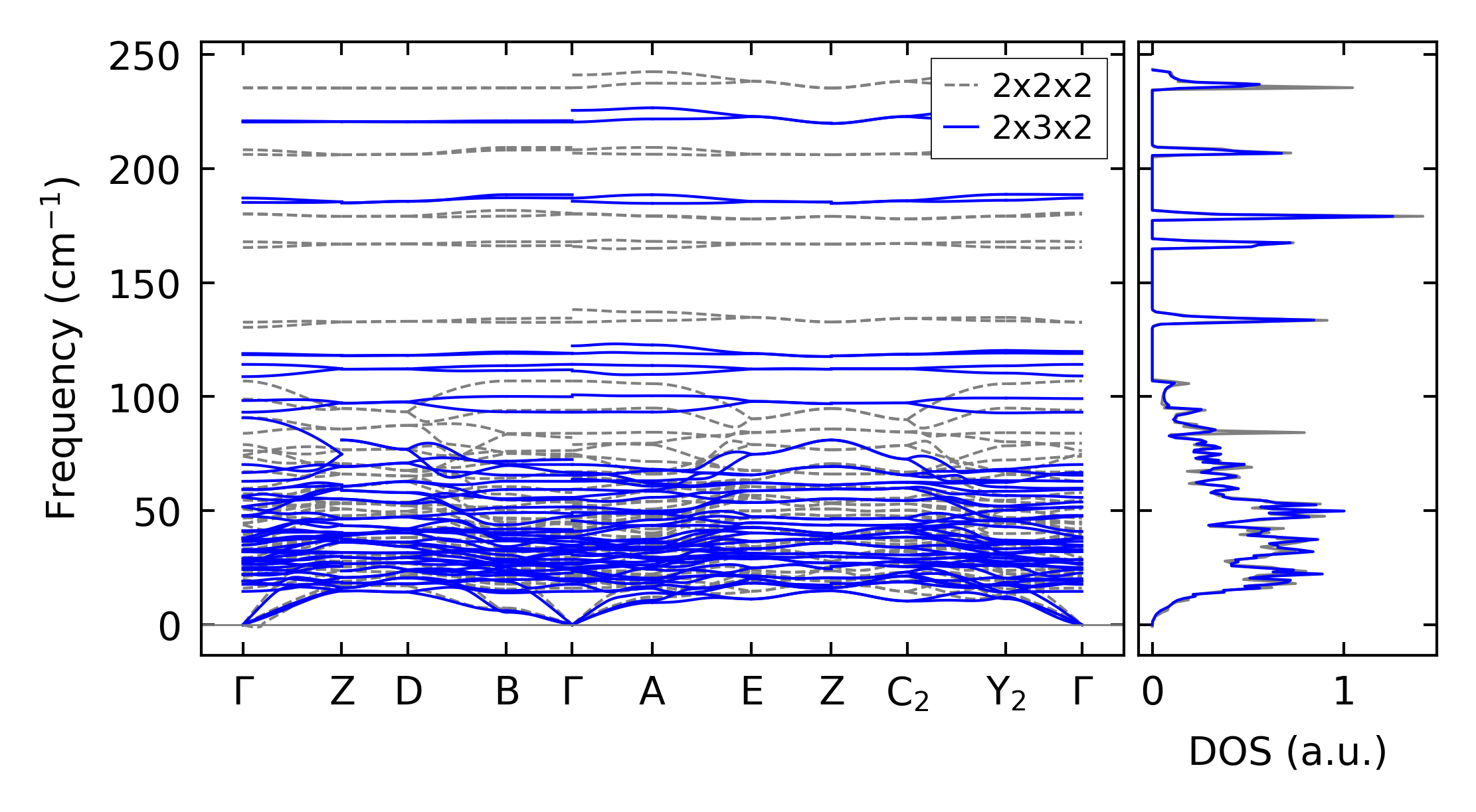

../../_images/fig_bandos8913.png — (b) Phonon dispersion and DOS

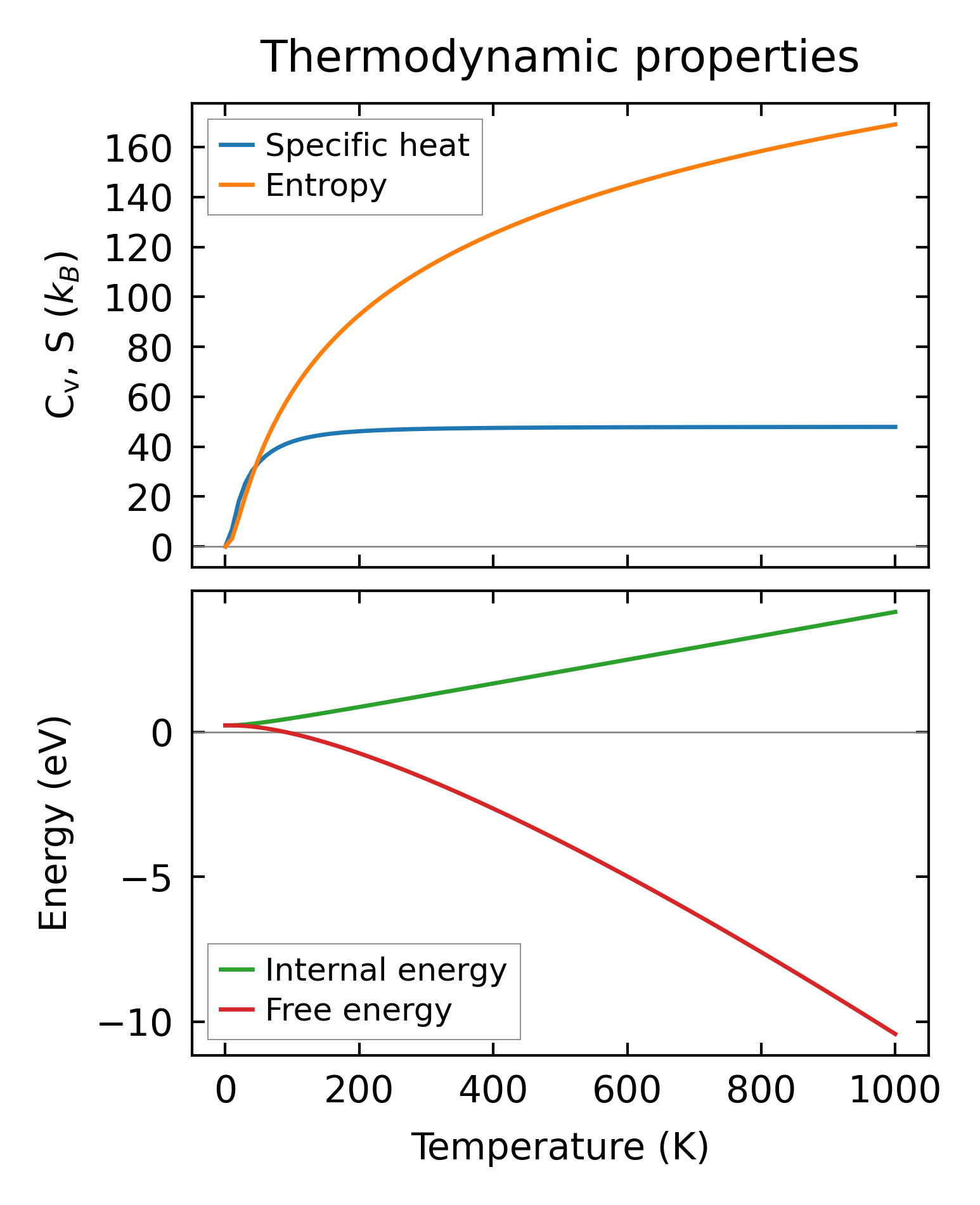

../../_images/fig_thermo6056.png — (c) Thermodynamic properties

Grüneisen parameters

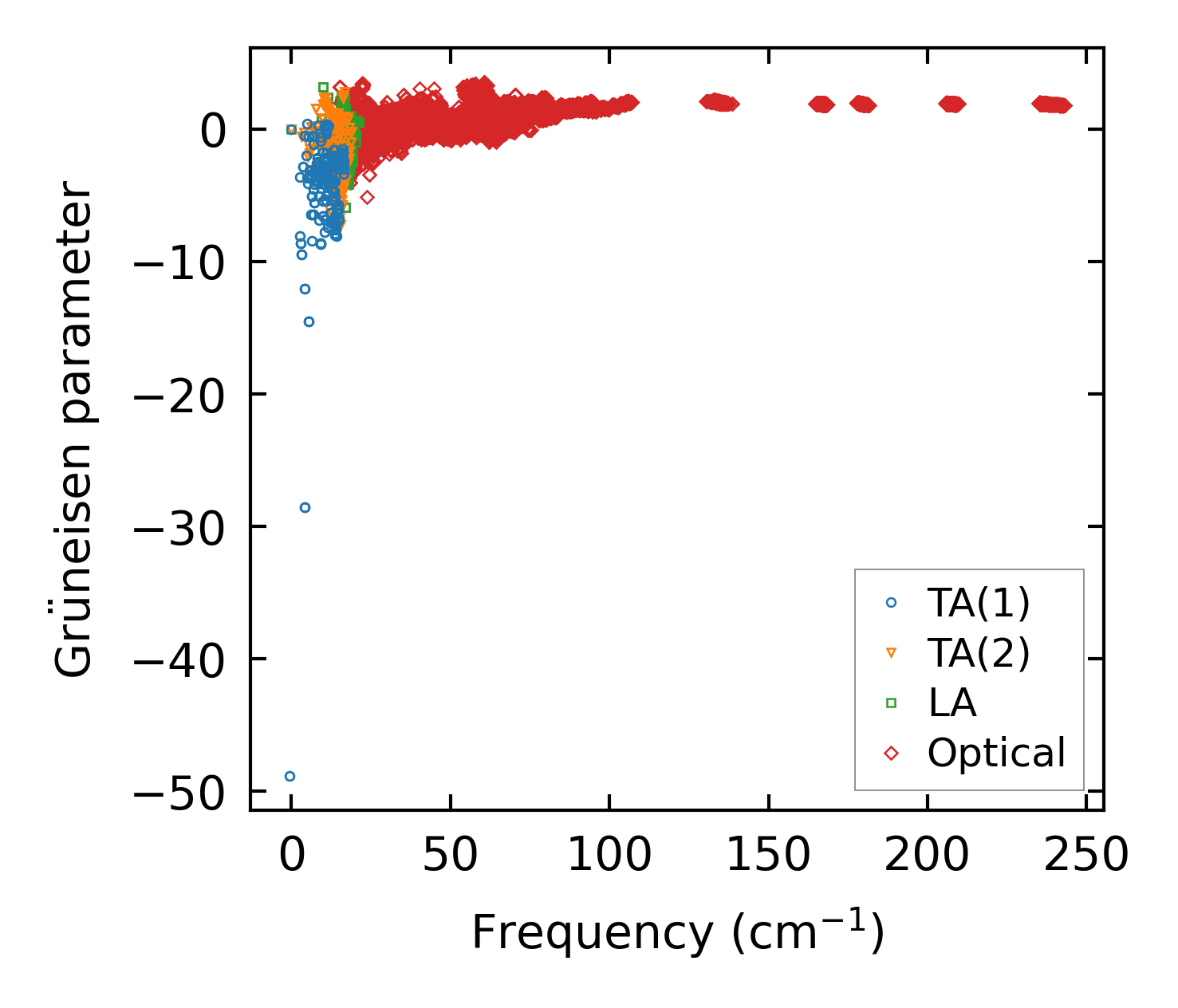

../../_images/fig_gru_all2460.png — (a) Grüneisen parameters

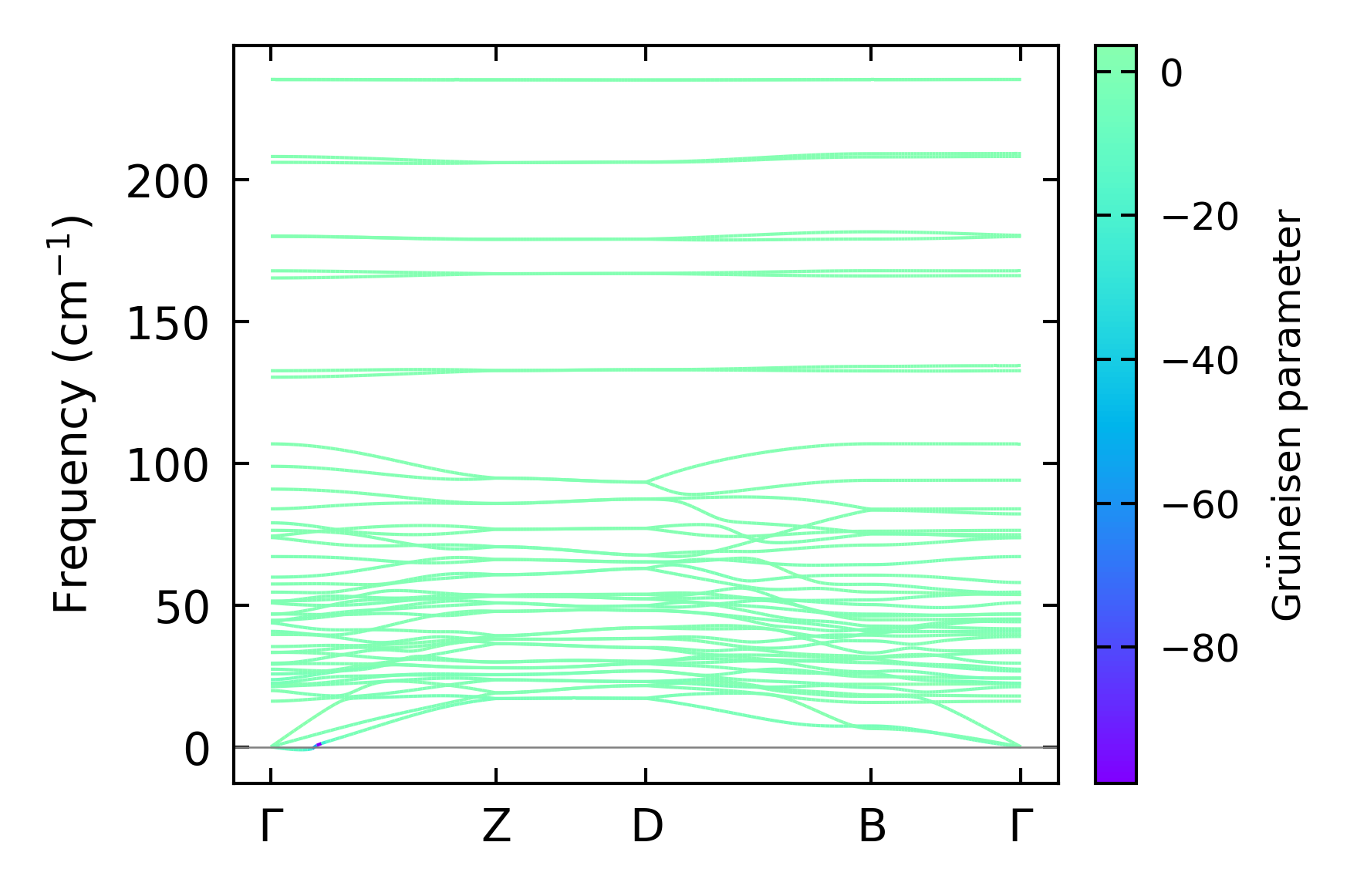

../../_images/fig_gruneisen2460.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x3x2 — q-mesh: 8x11x6, supercell: 2x3x2

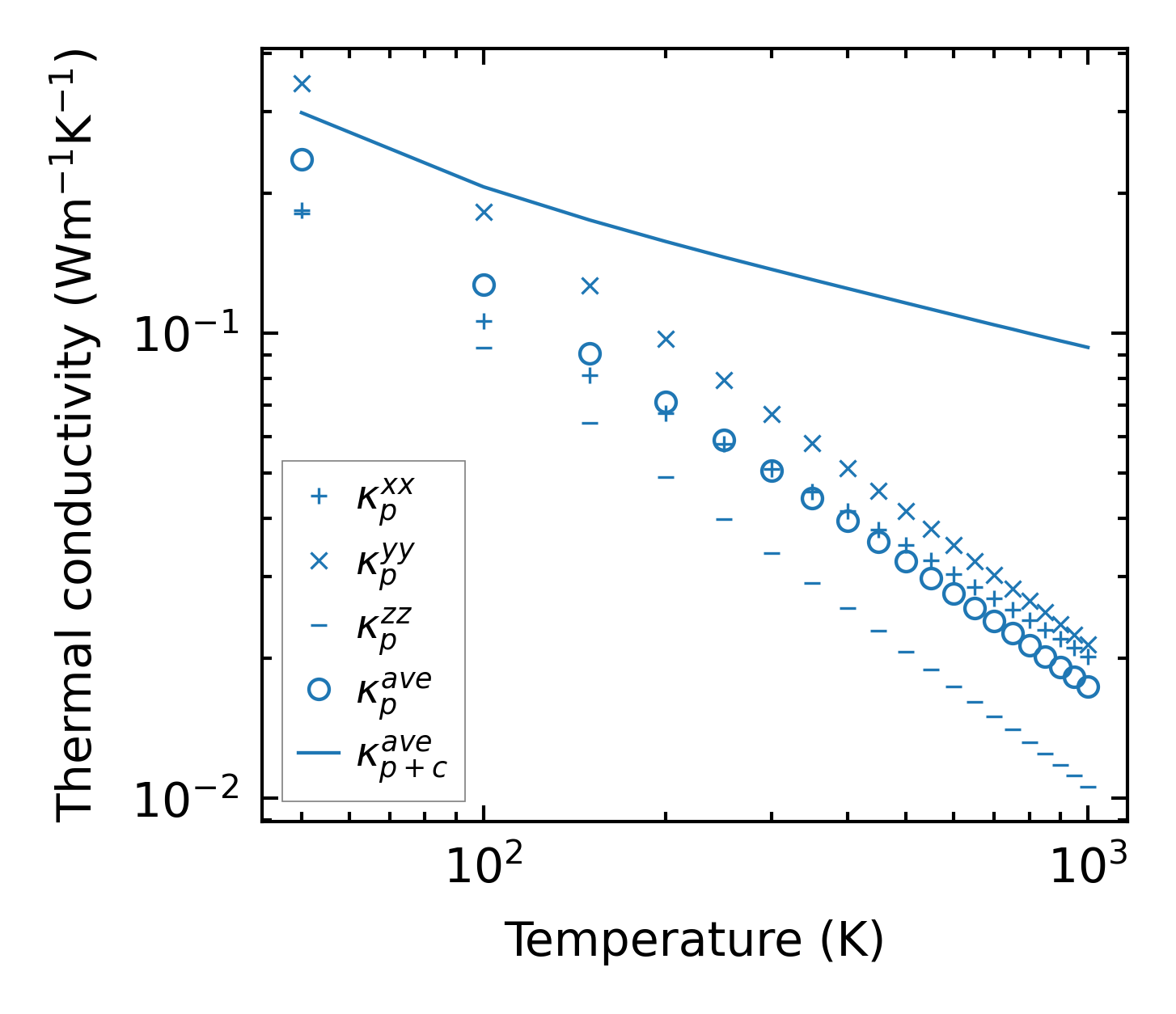

../../_images/fig_kappa4685.png — (a) Temperature-dependent lattice thermal conductivity

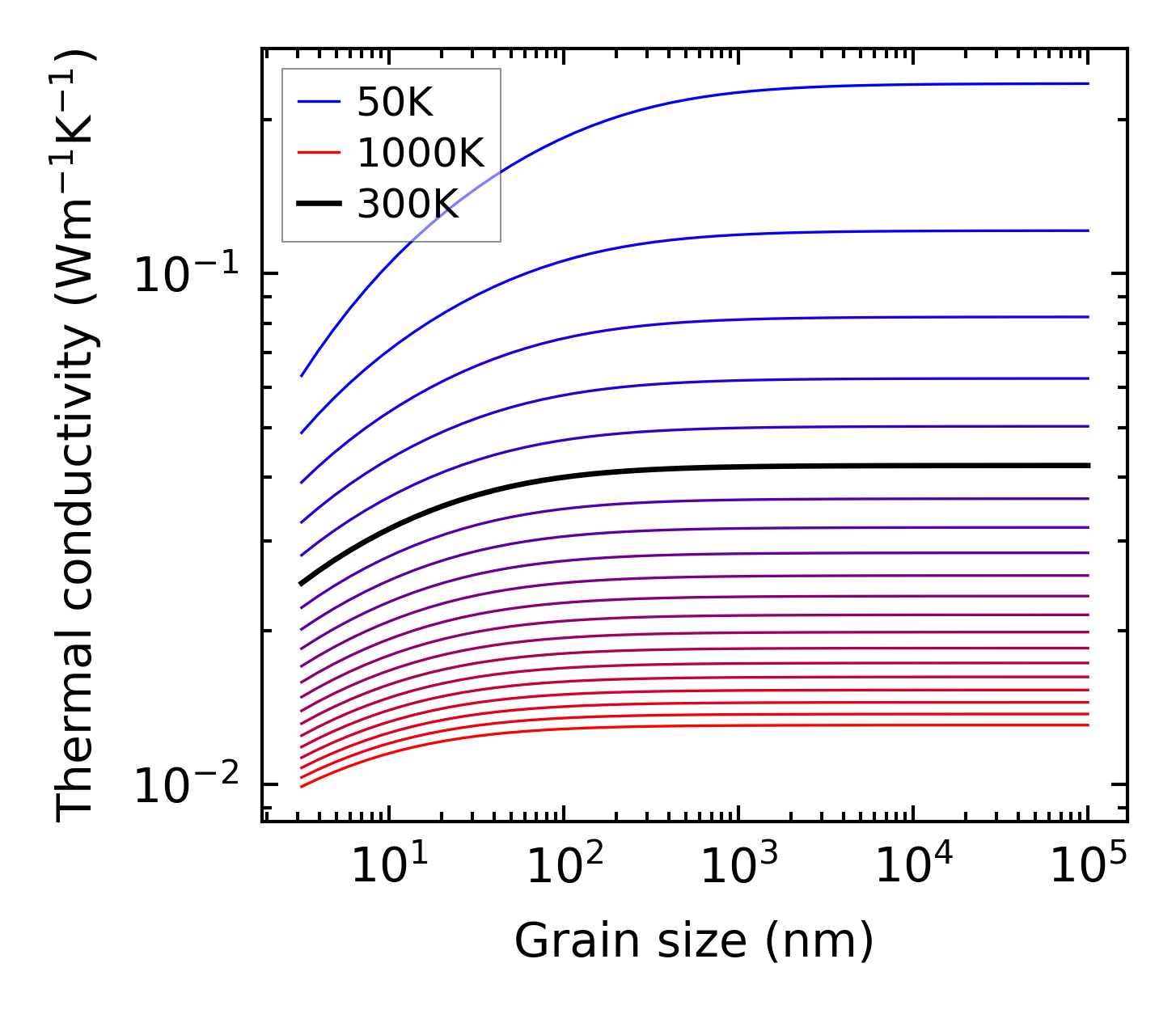

../../_images/fig_kappa_vs_grain_size2491.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

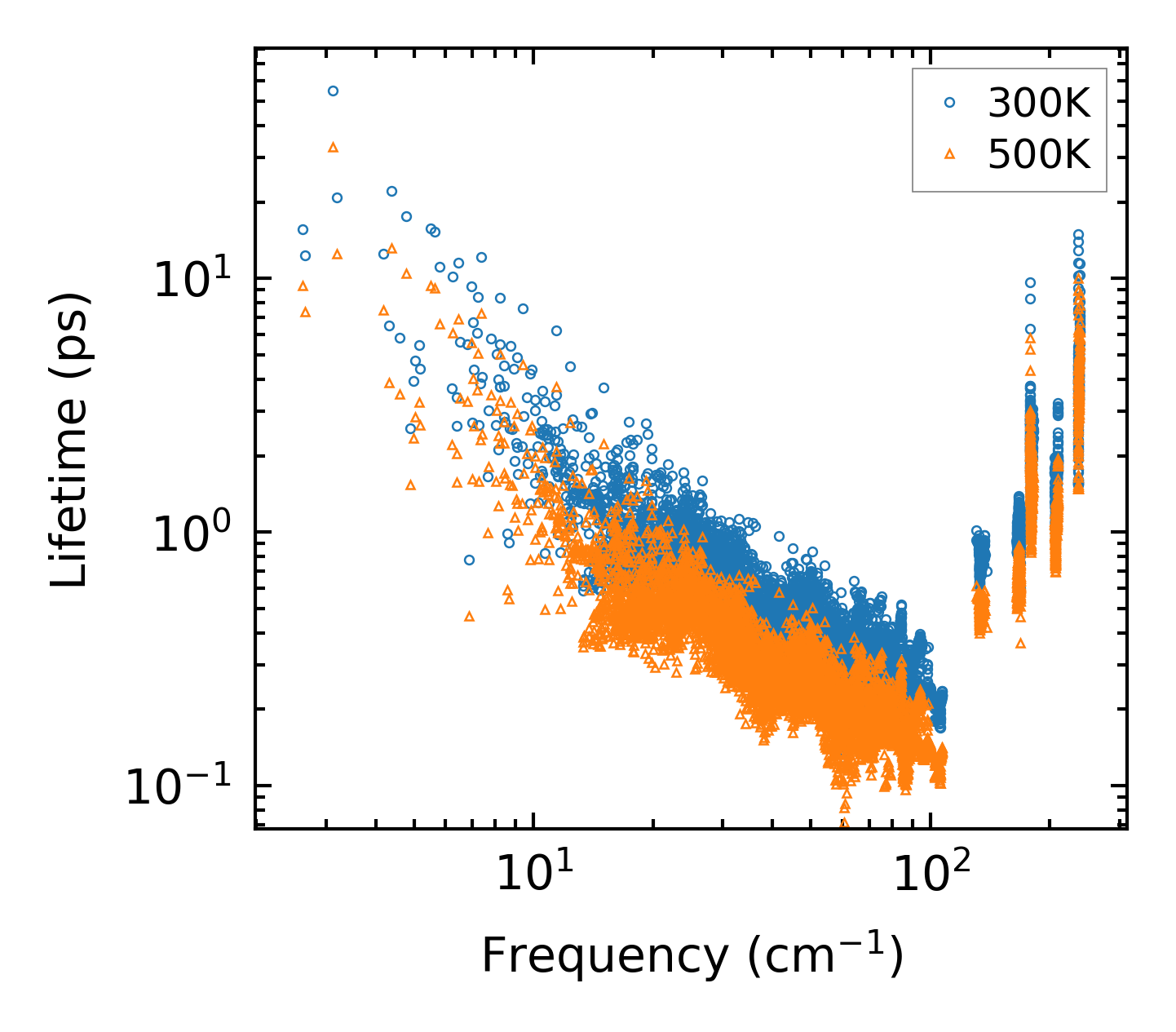

../../_images/fig_lifetime2443.png — (a) Phonon lifetime due to phonon-phonon scattering

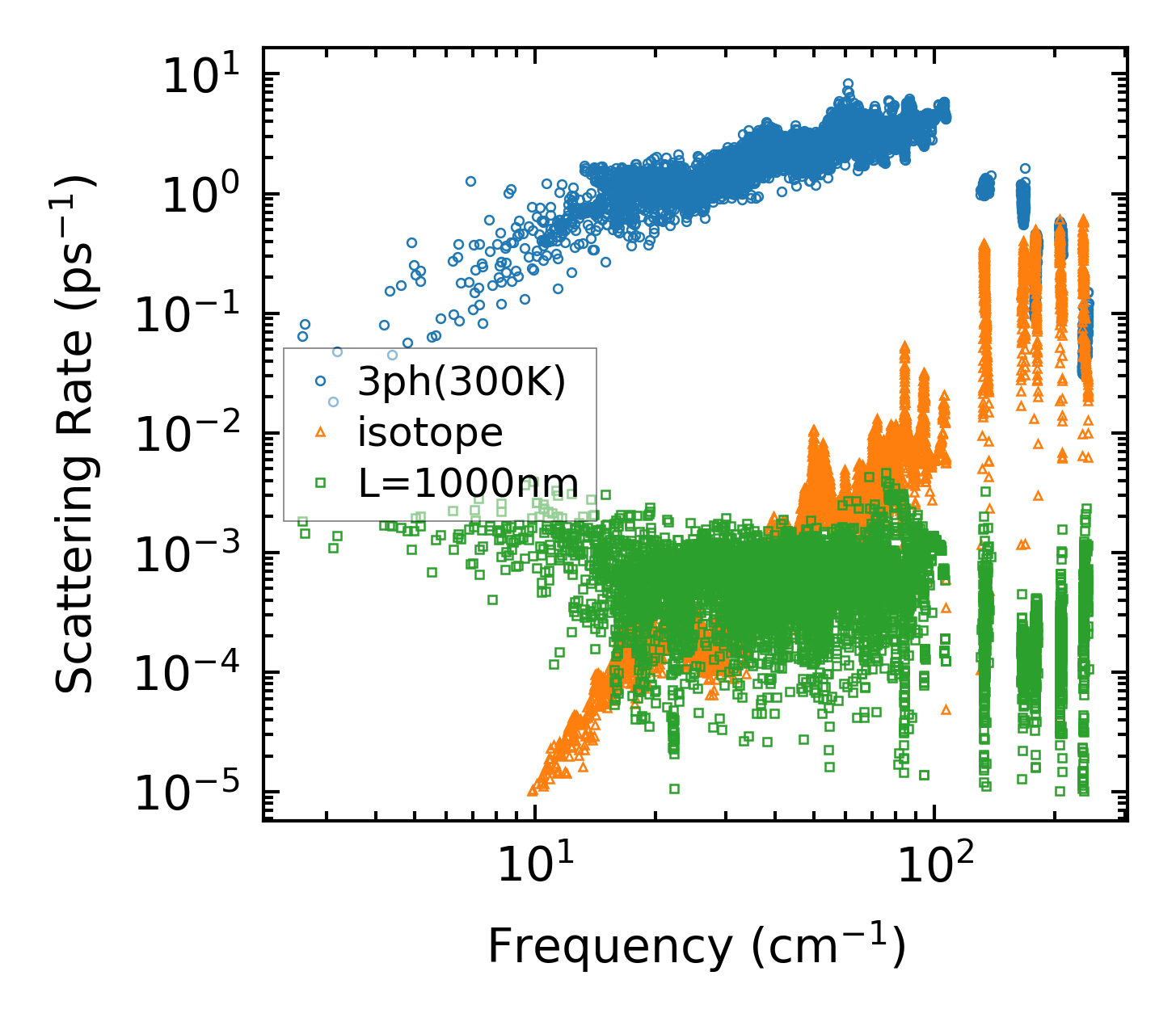

../../_images/fig_scat_rates2442.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

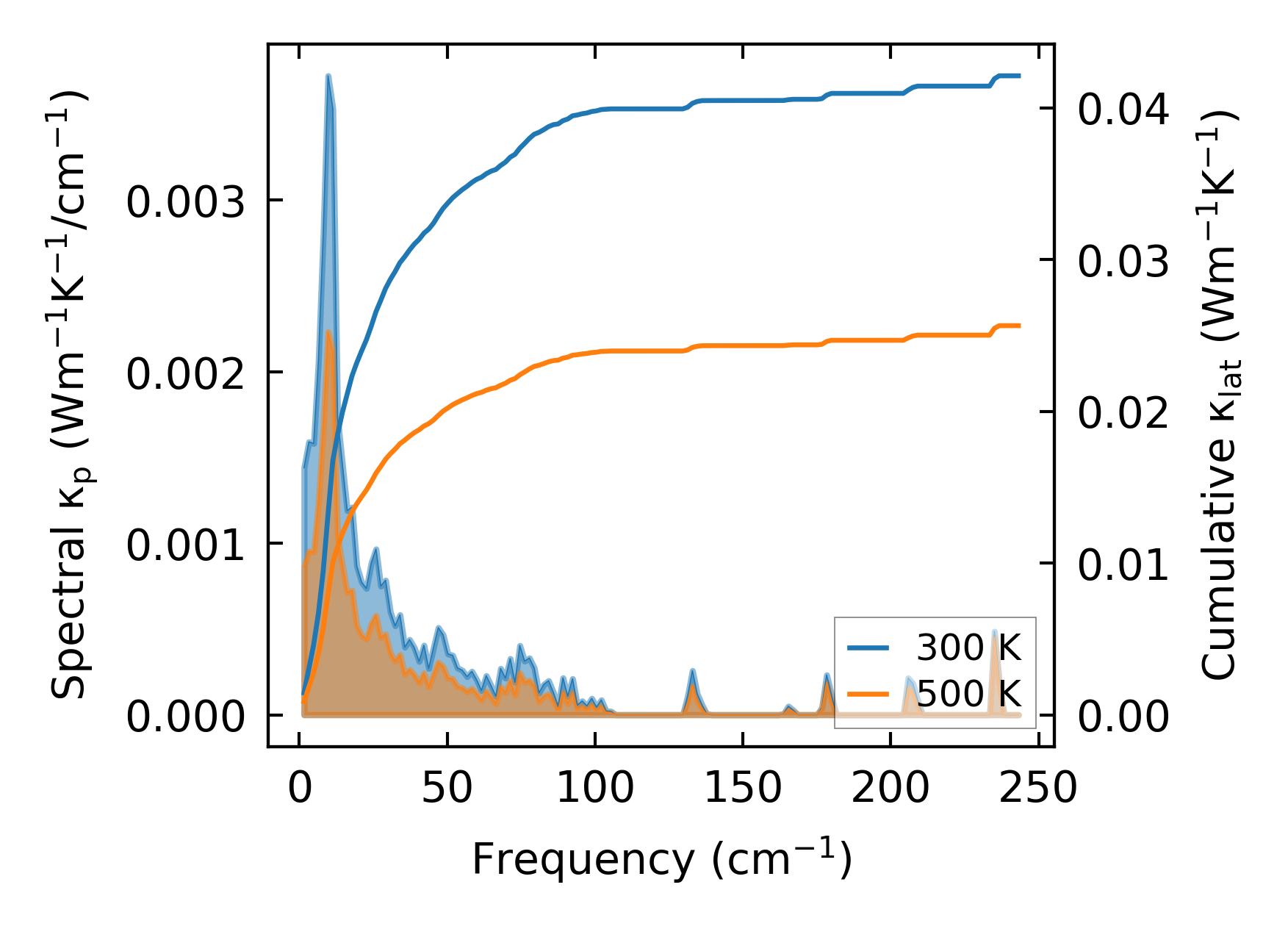

../../_images/fig_cumu_frequency2443.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

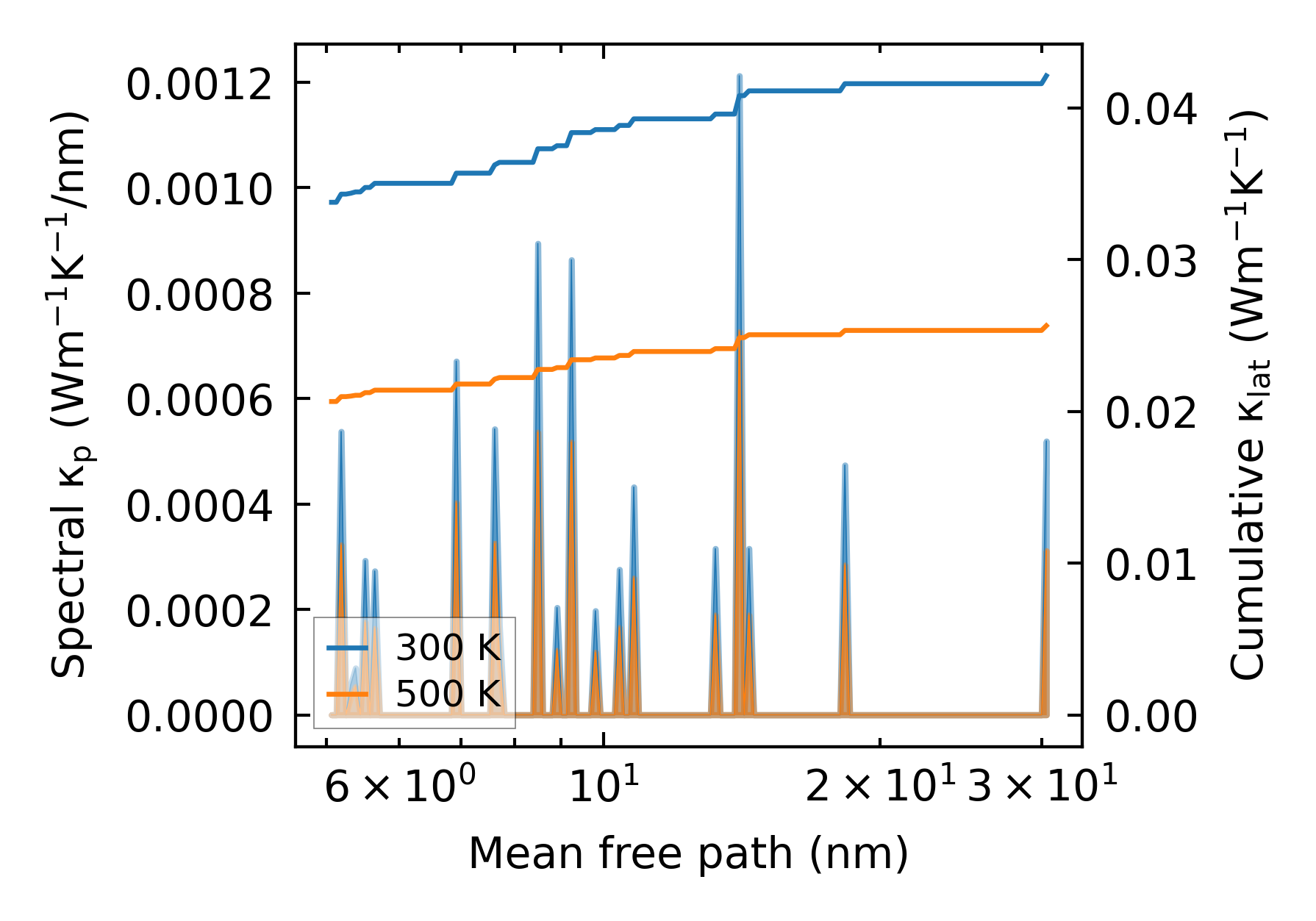

../../_images/fig_cumu_mfp2442.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

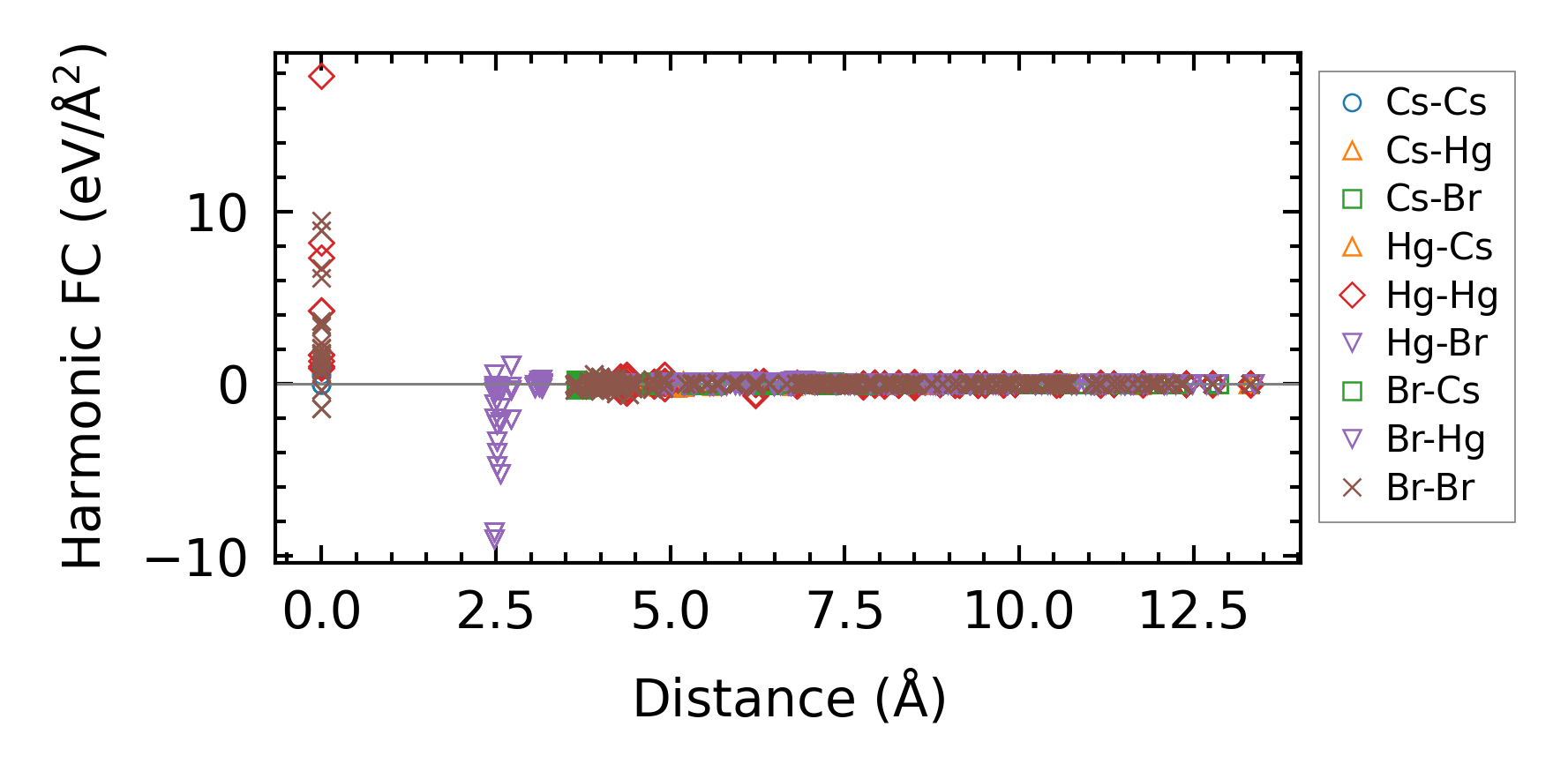

../../_images/fig_fc25847.png — (a) Force constants w.r.t atomic distance

Summary

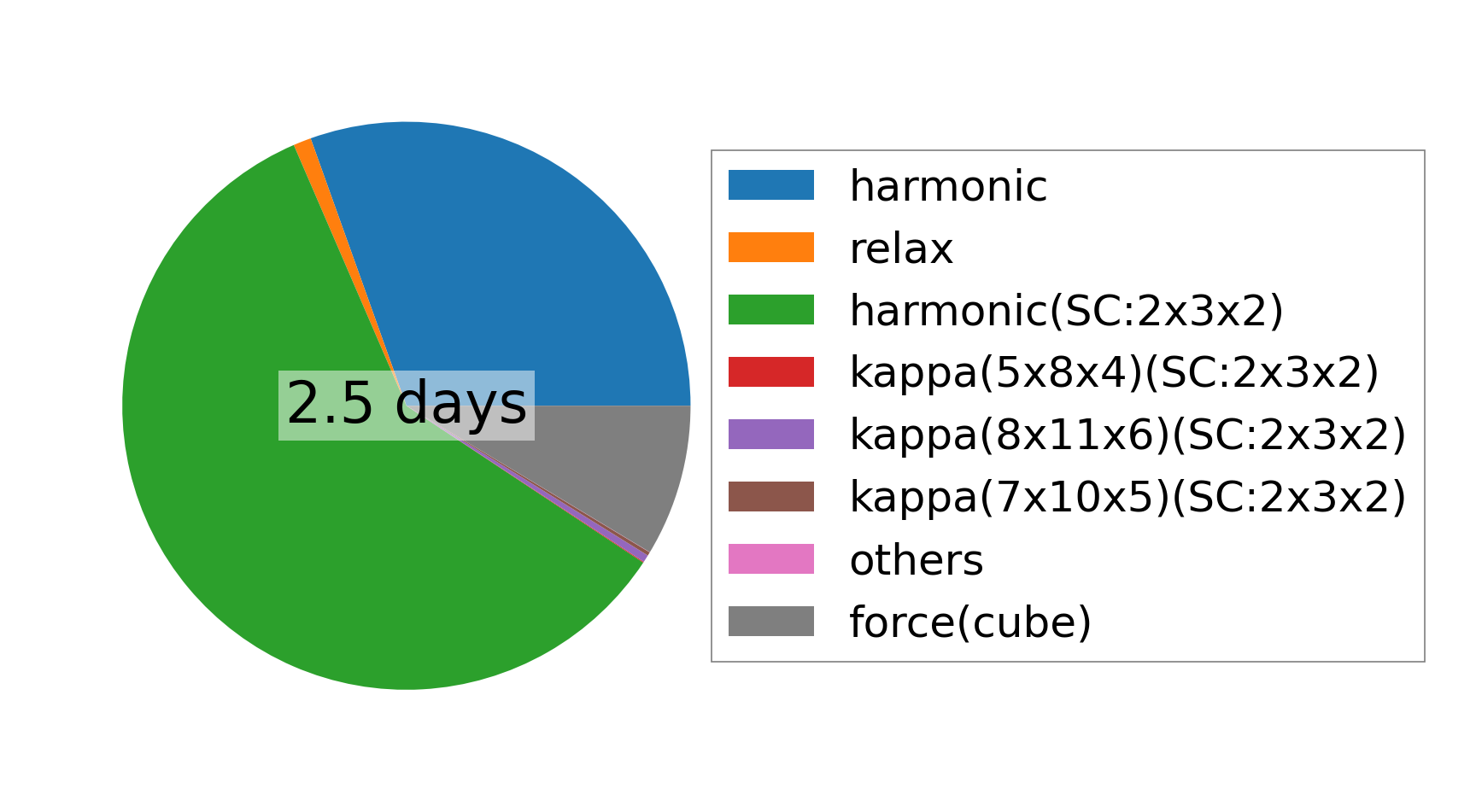

../../_images/fig_times11084.png — (a) Computation time
