mp-619279/In2PbS4/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-619279.tar.gz

Harmonic properties

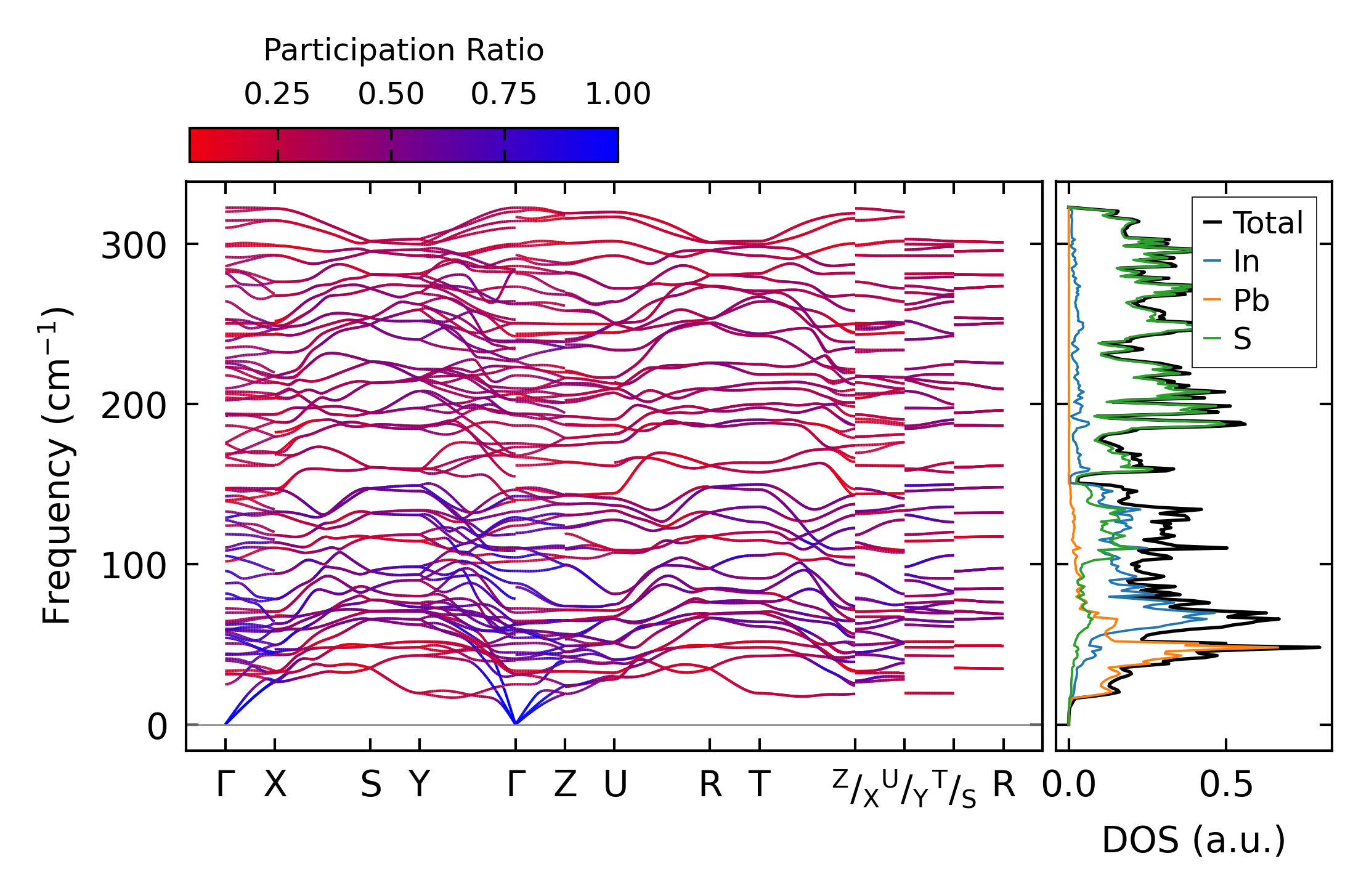

../../_images/fig_bandos_pr6052.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6052.png — (b) Thermodynamic properties

Grüneisen parameters

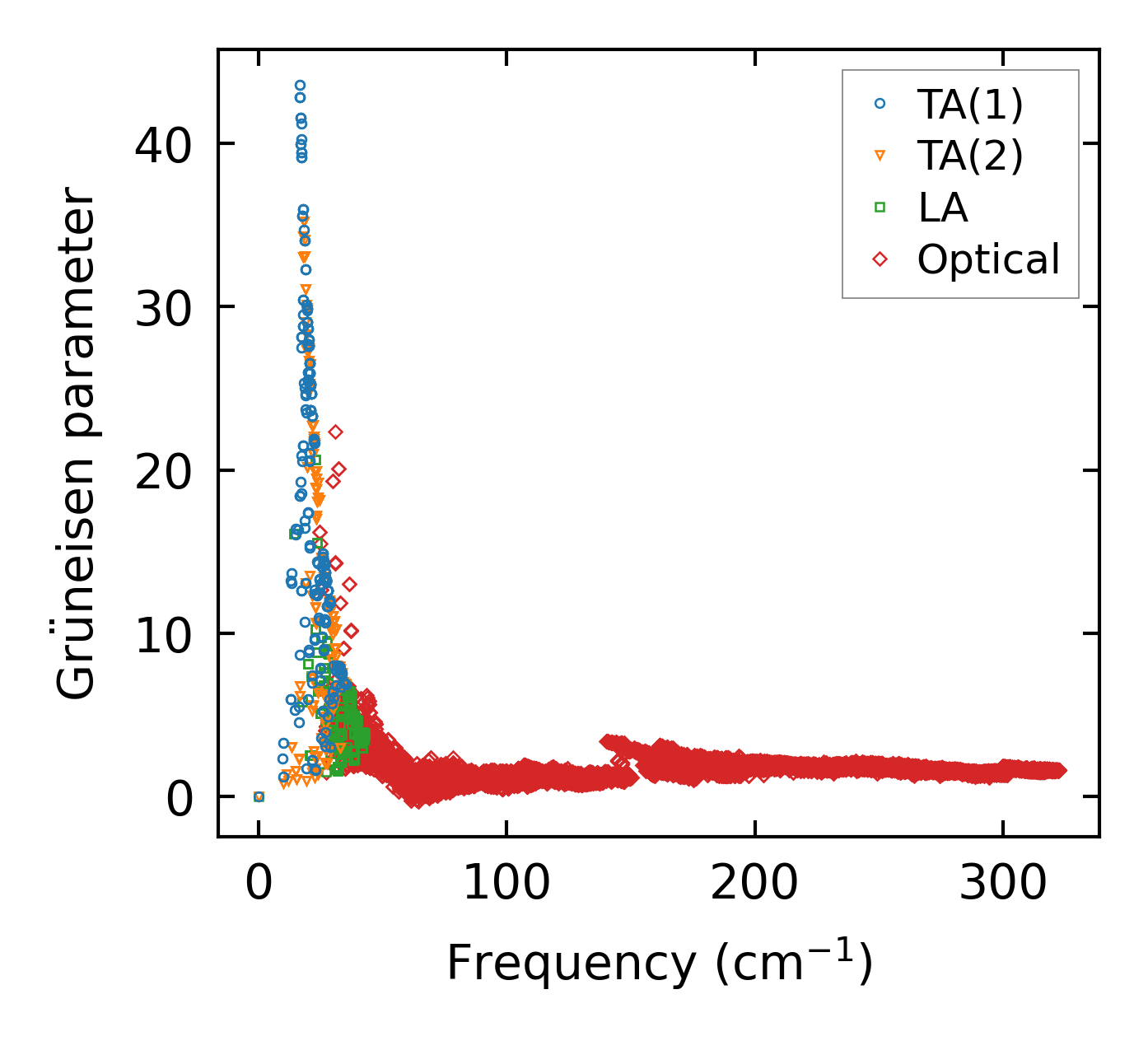

../../_images/fig_gru_all2459.png — (a) Grüneisen parameters

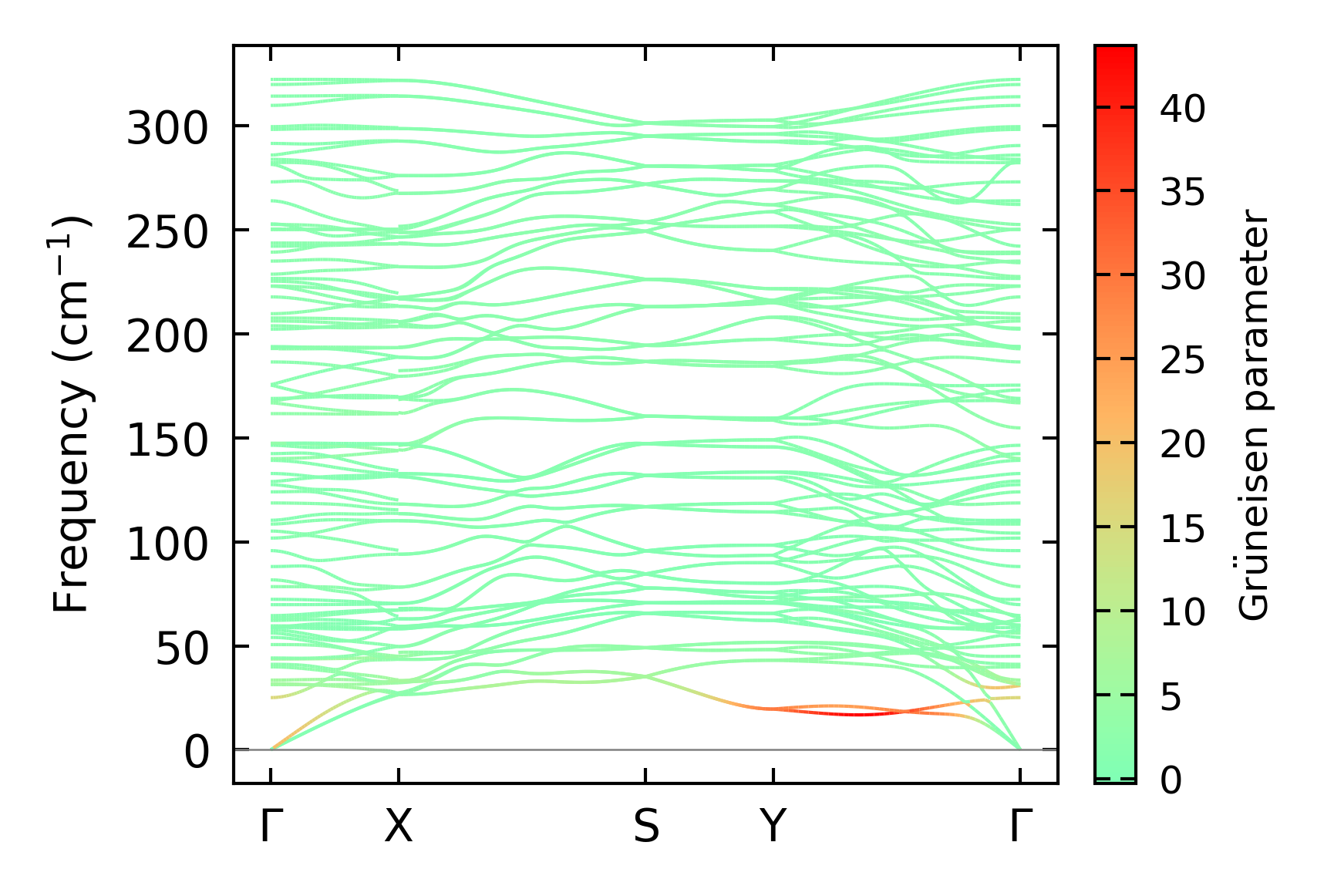

../../_images/fig_gruneisen2459.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x18x5, supercell: 1x4x1

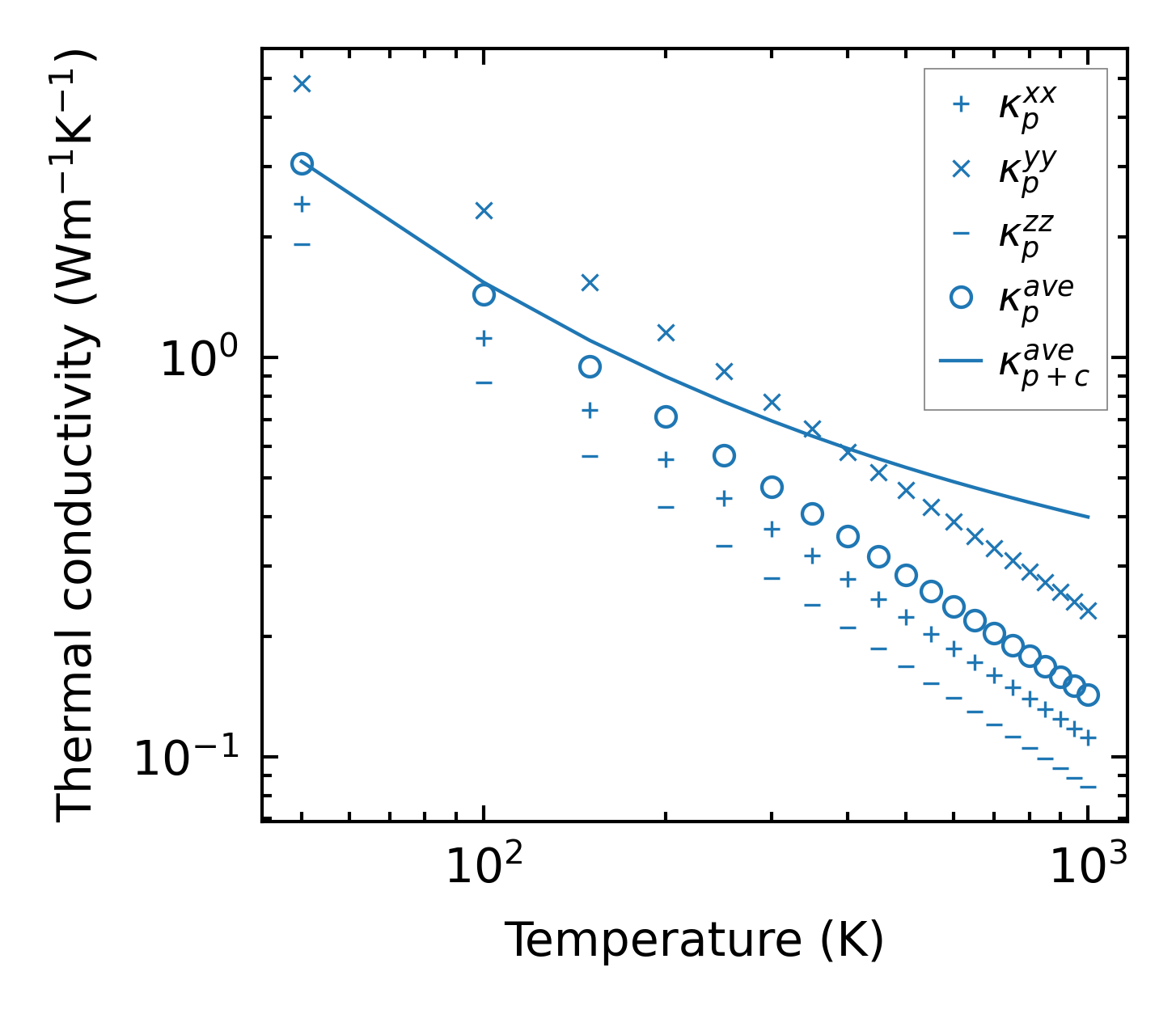

../../_images/fig_kappa4683.png — (a) Temperature-dependent lattice thermal conductivity

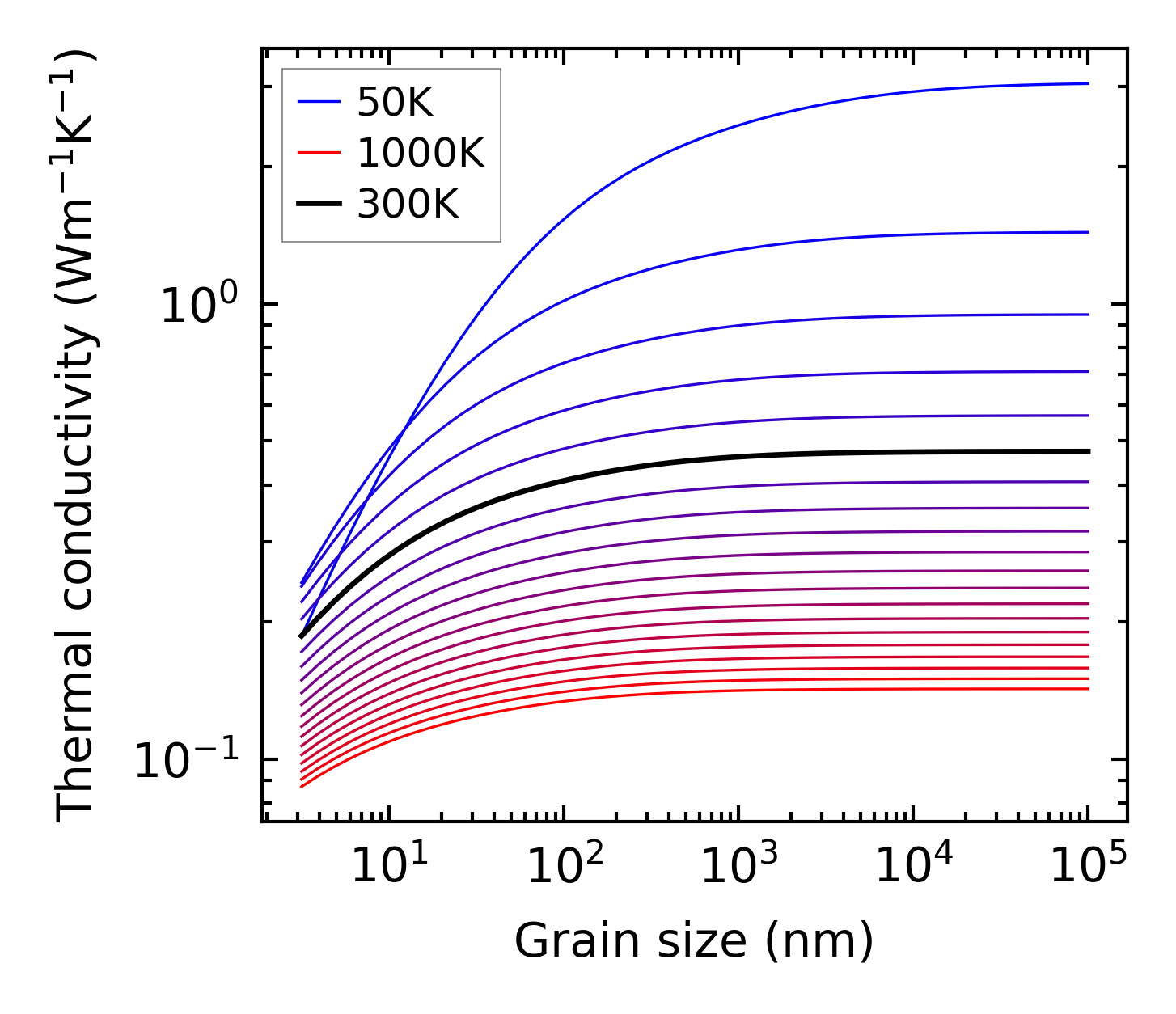

../../_images/fig_kappa_vs_grain_size2490.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

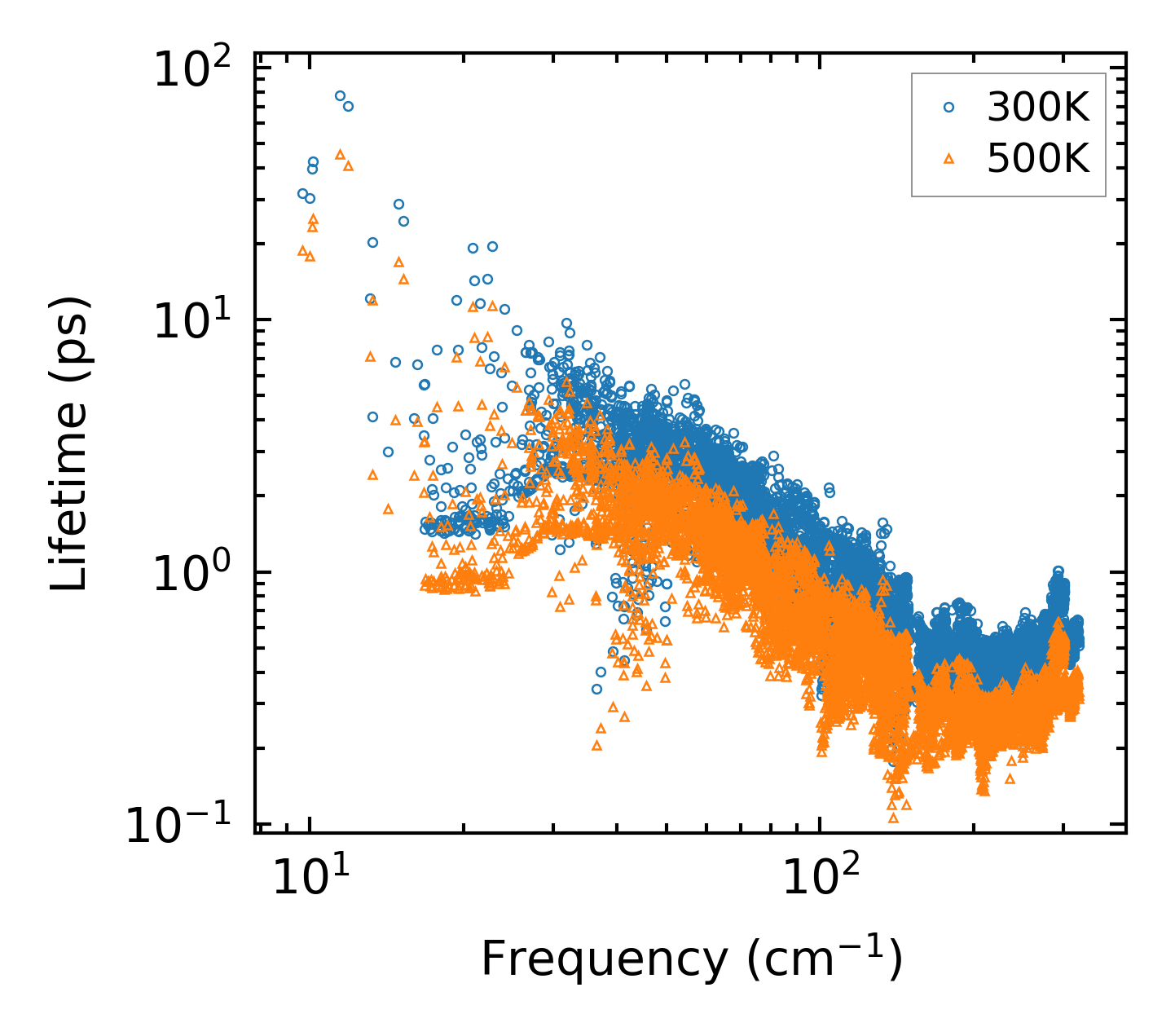

../../_images/fig_lifetime2442.png — (a) Phonon lifetime due to phonon-phonon scattering

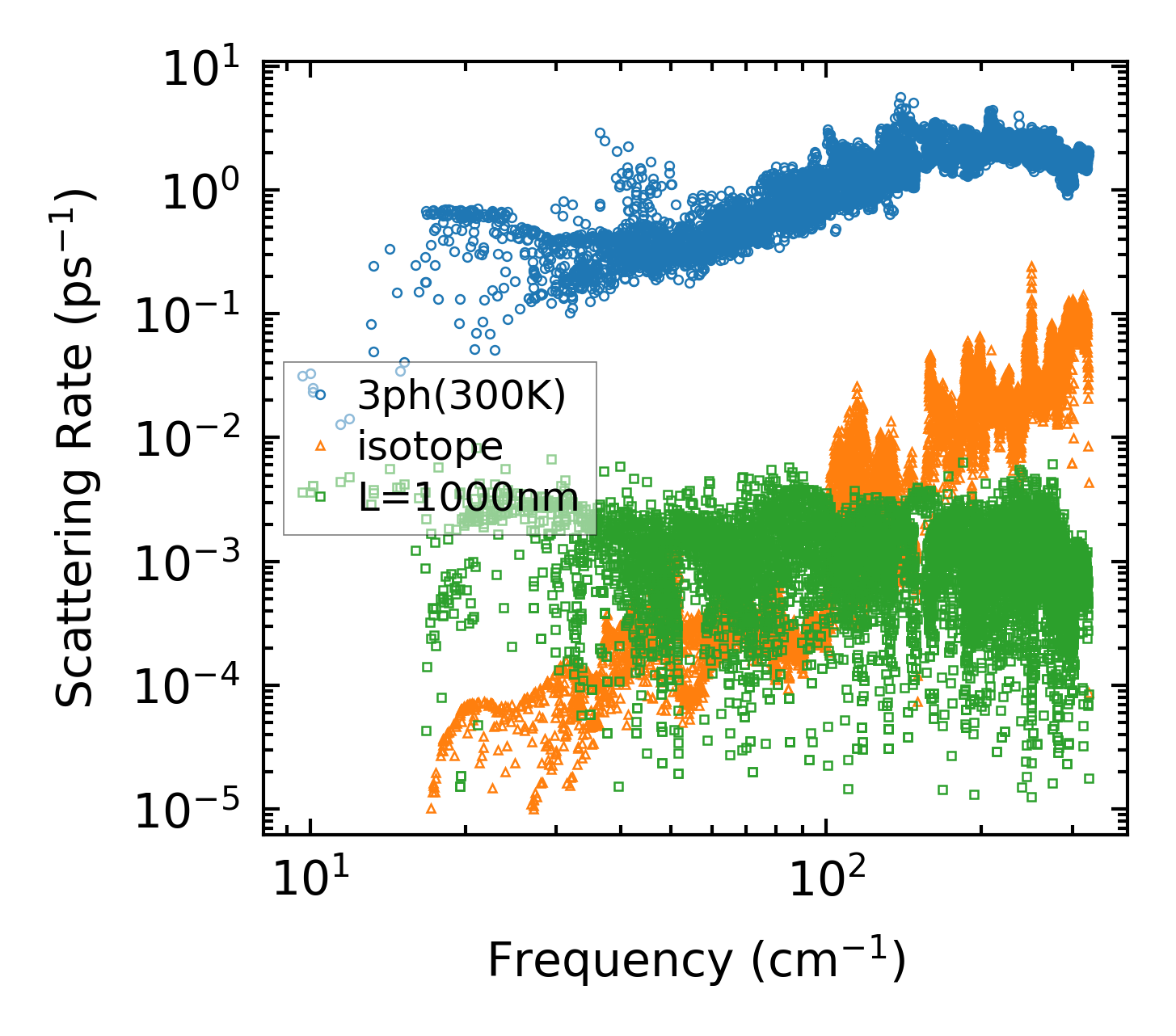

../../_images/fig_scat_rates2441.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

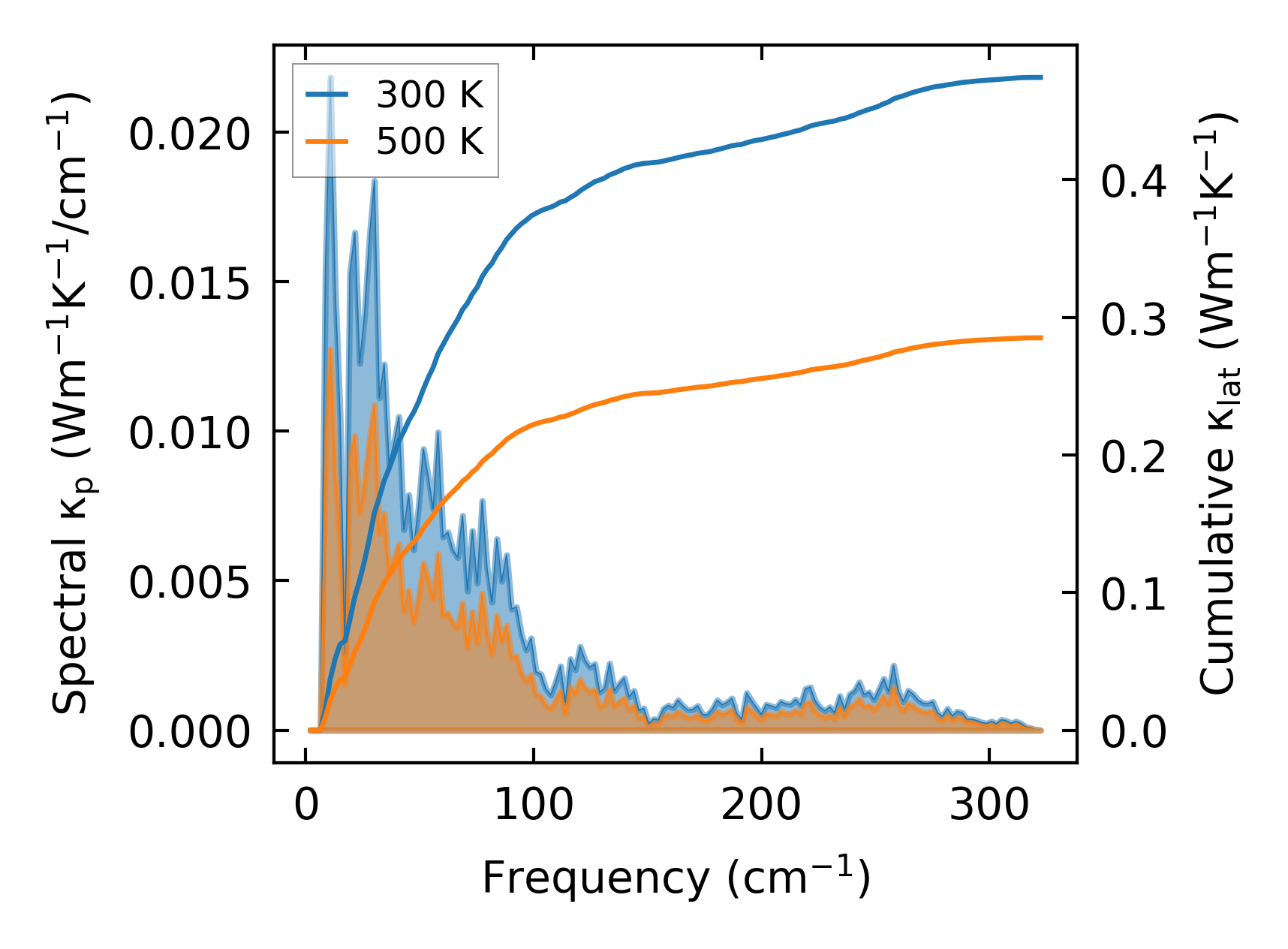

../../_images/fig_cumu_frequency2442.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

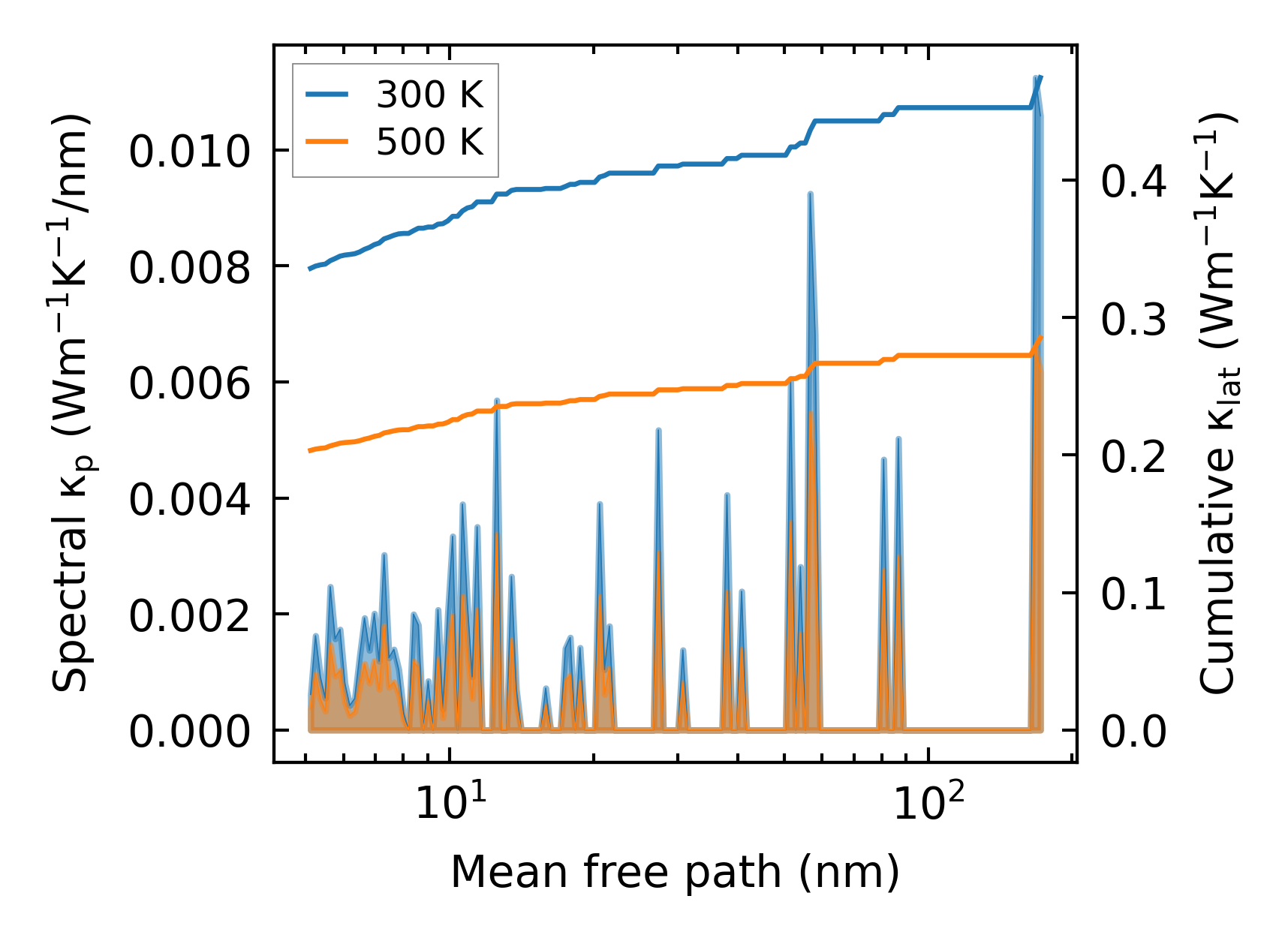

../../_images/fig_cumu_mfp2441.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

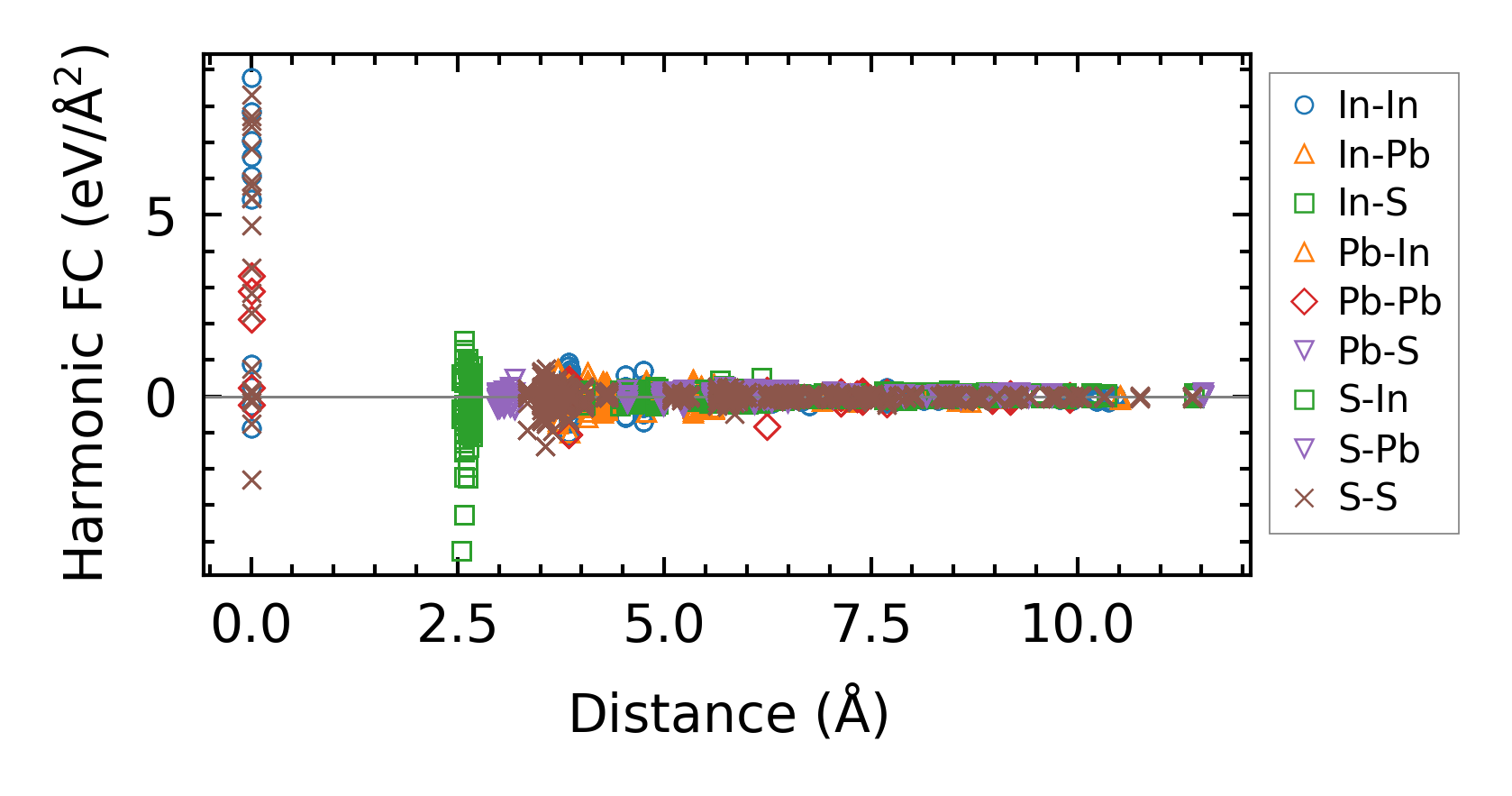

../../_images/fig_fc25843.png — (a) Force constants w.r.t atomic distance

Summary

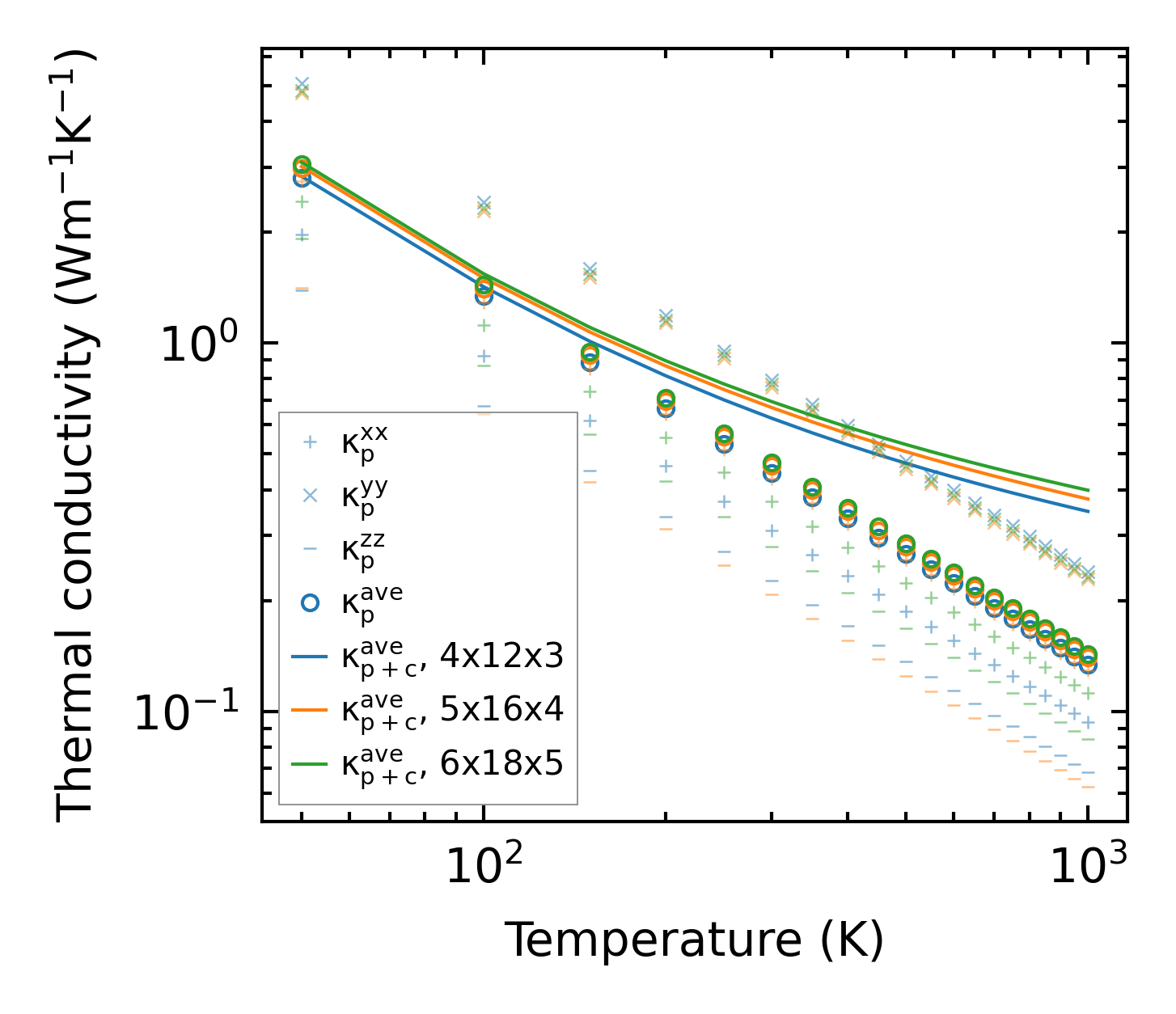

../../_images/fig_kappa4684.png — (a) Temperature-dependent lattice thermal conductivity

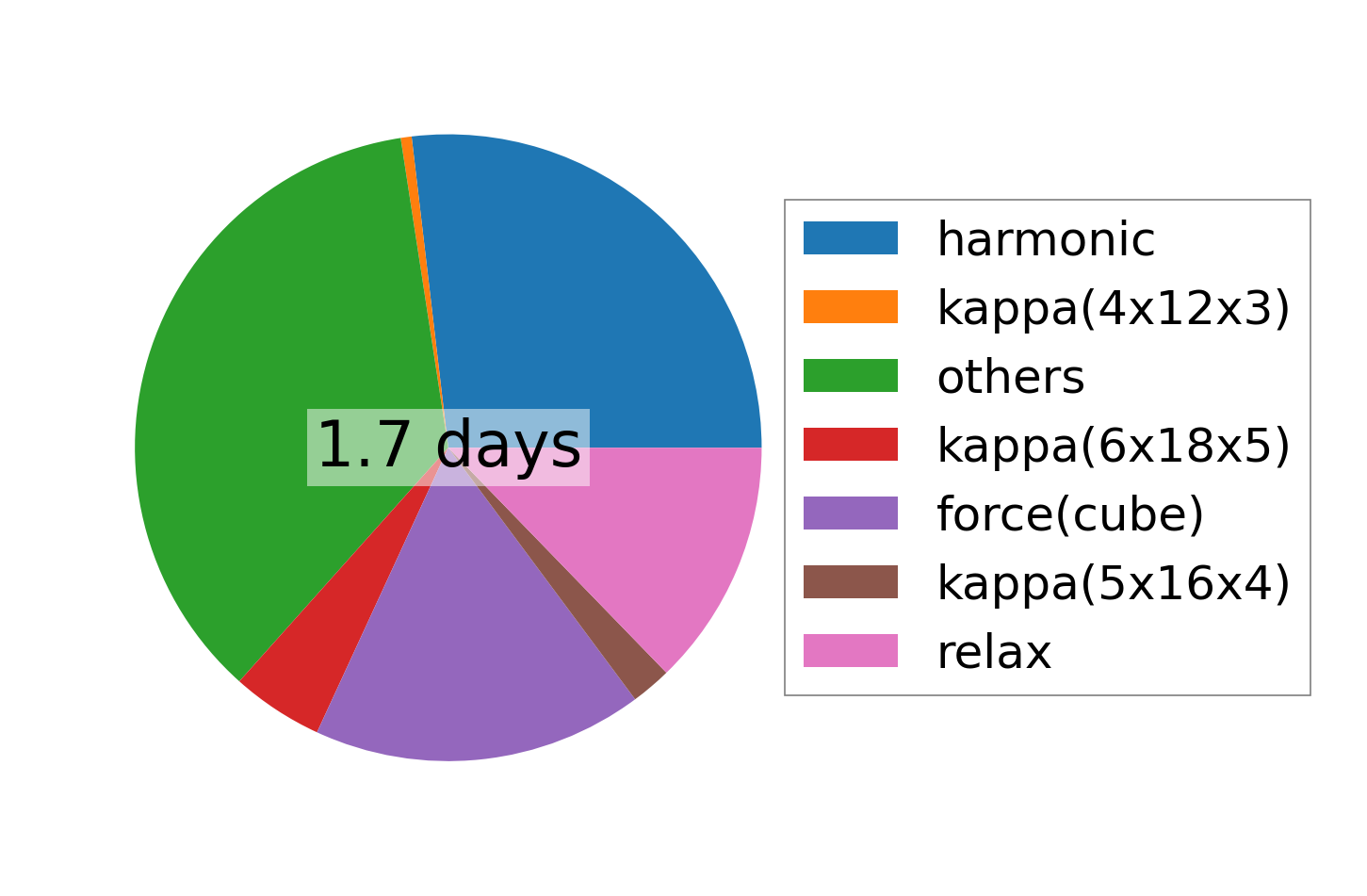

../../_images/fig_times11078.png — (b) Computation time
