mp-608081/Rb3Pb4Au/anharm

Space group: Pmmn (59)
Link: Materials Project
Download: mp-608081.tar.gz

Harmonic properties

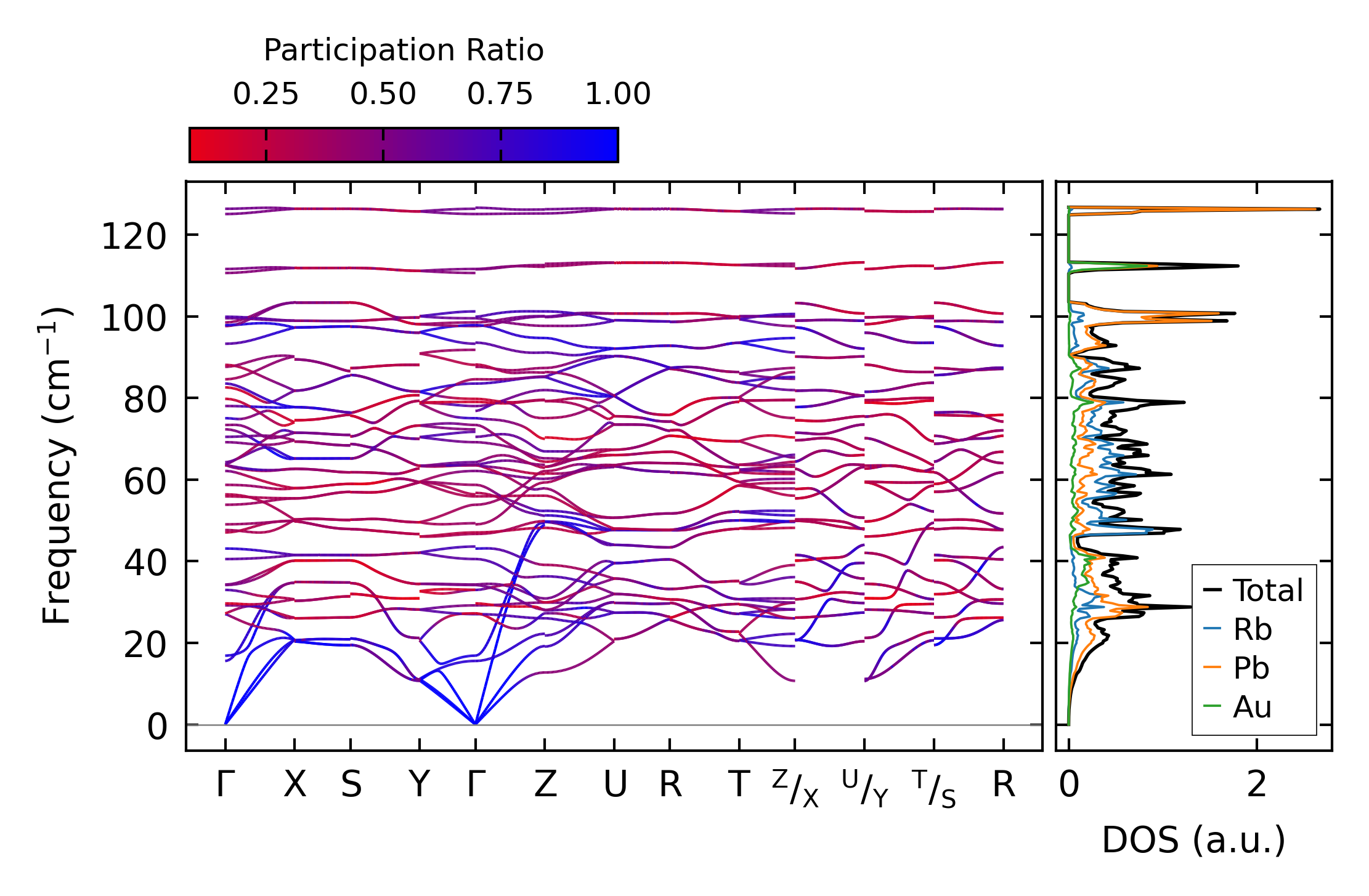

../../_images/fig_bandos_pr5981.png — (a) Phonon dispersion with participation ratio and DOS

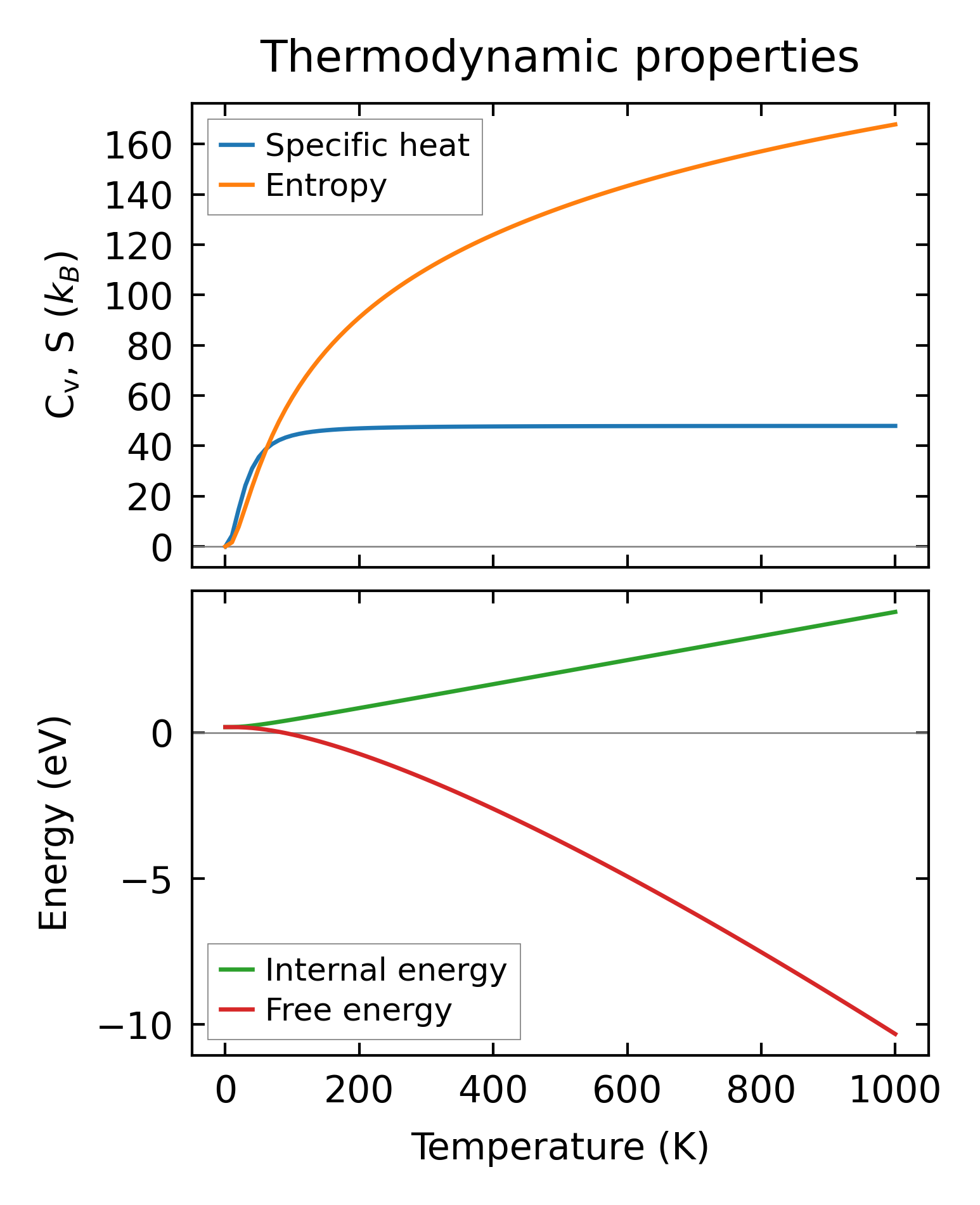

../../_images/fig_thermo5981.png — (b) Thermodynamic properties

Grüneisen parameters

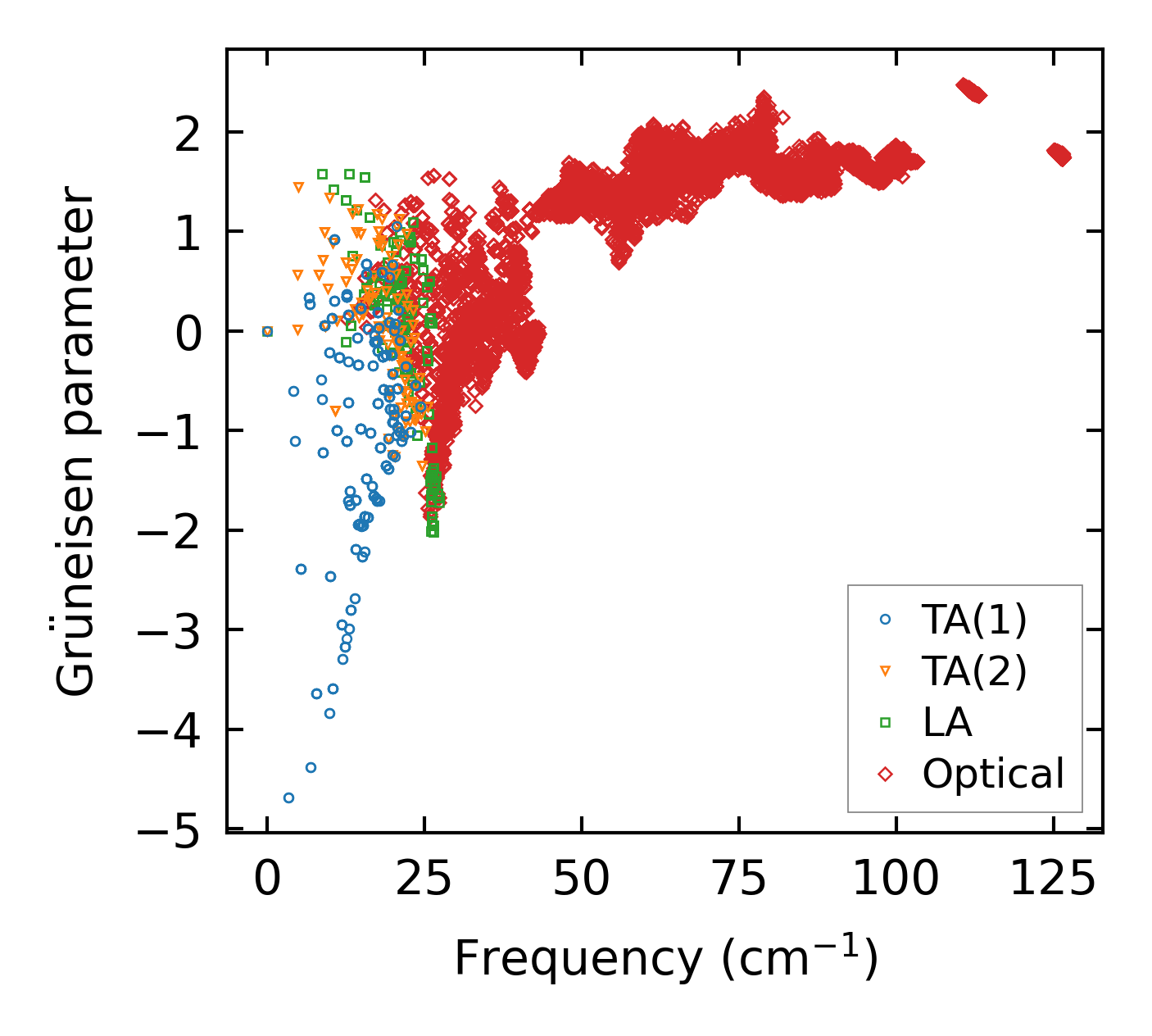

../../_images/fig_gru_all2434.png — (a) Grüneisen parameters

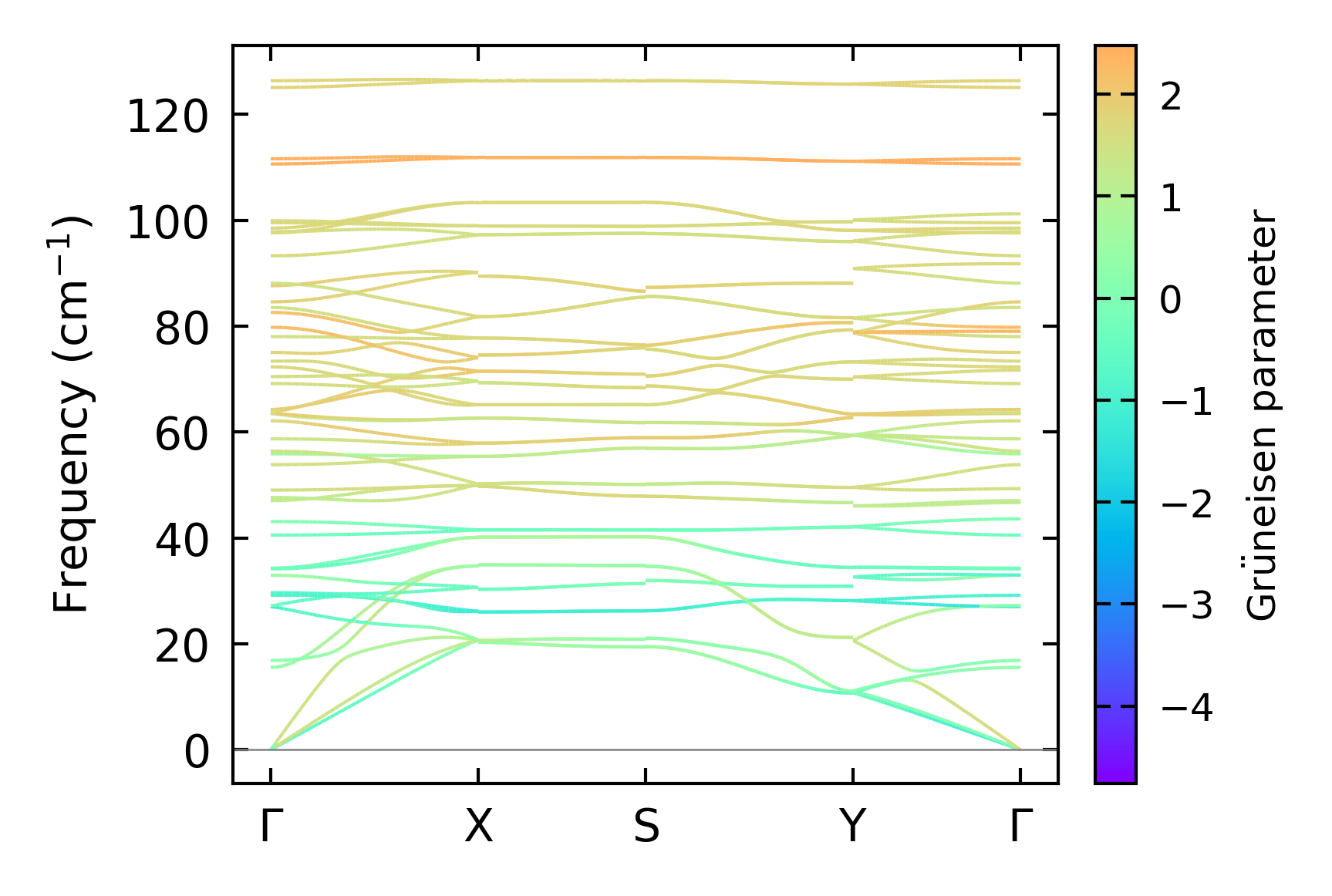

../../_images/fig_gruneisen2434.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x5x10, supercell: 3x1x3

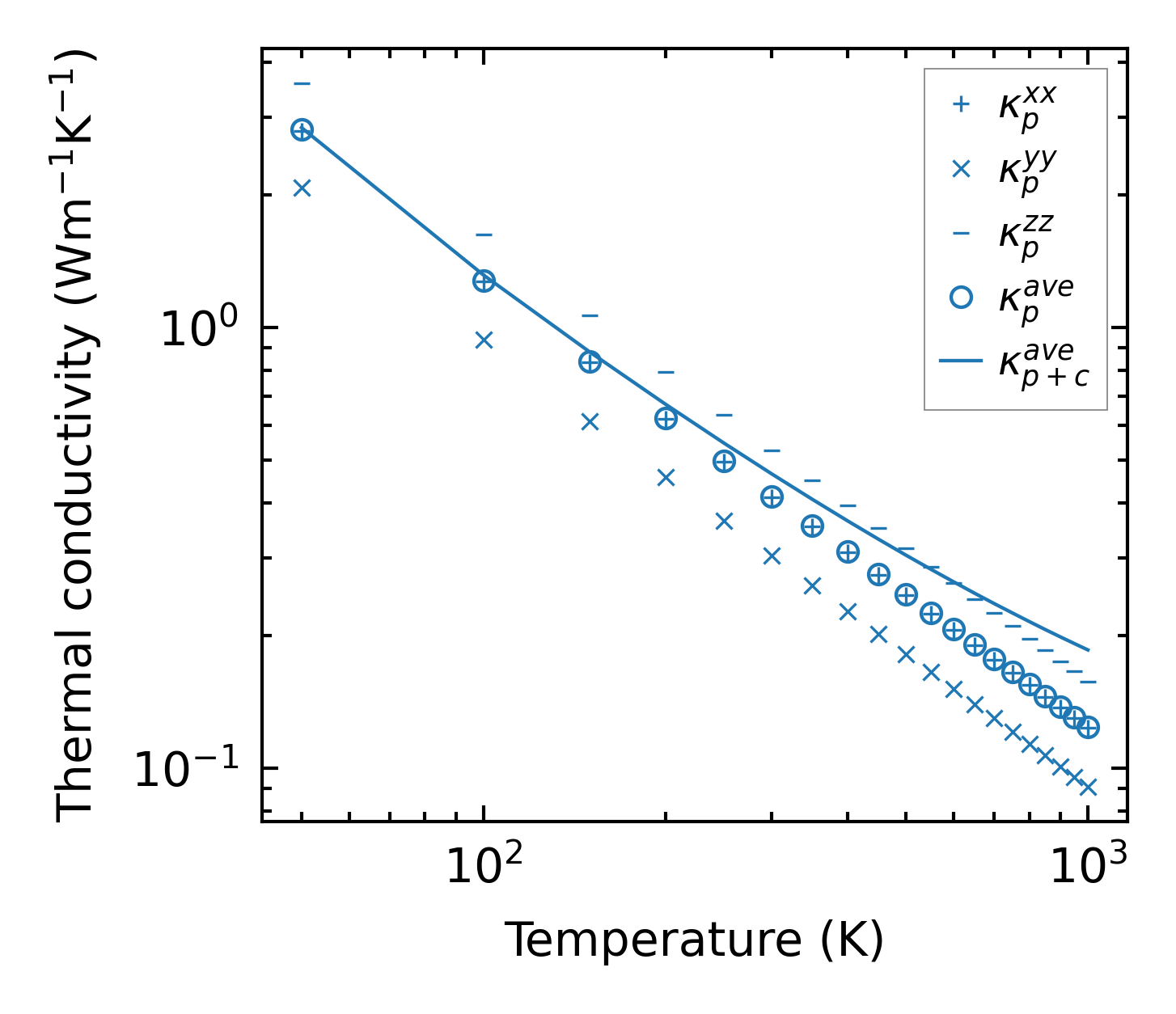

../../_images/fig_kappa4635.png — (a) Temperature-dependent lattice thermal conductivity

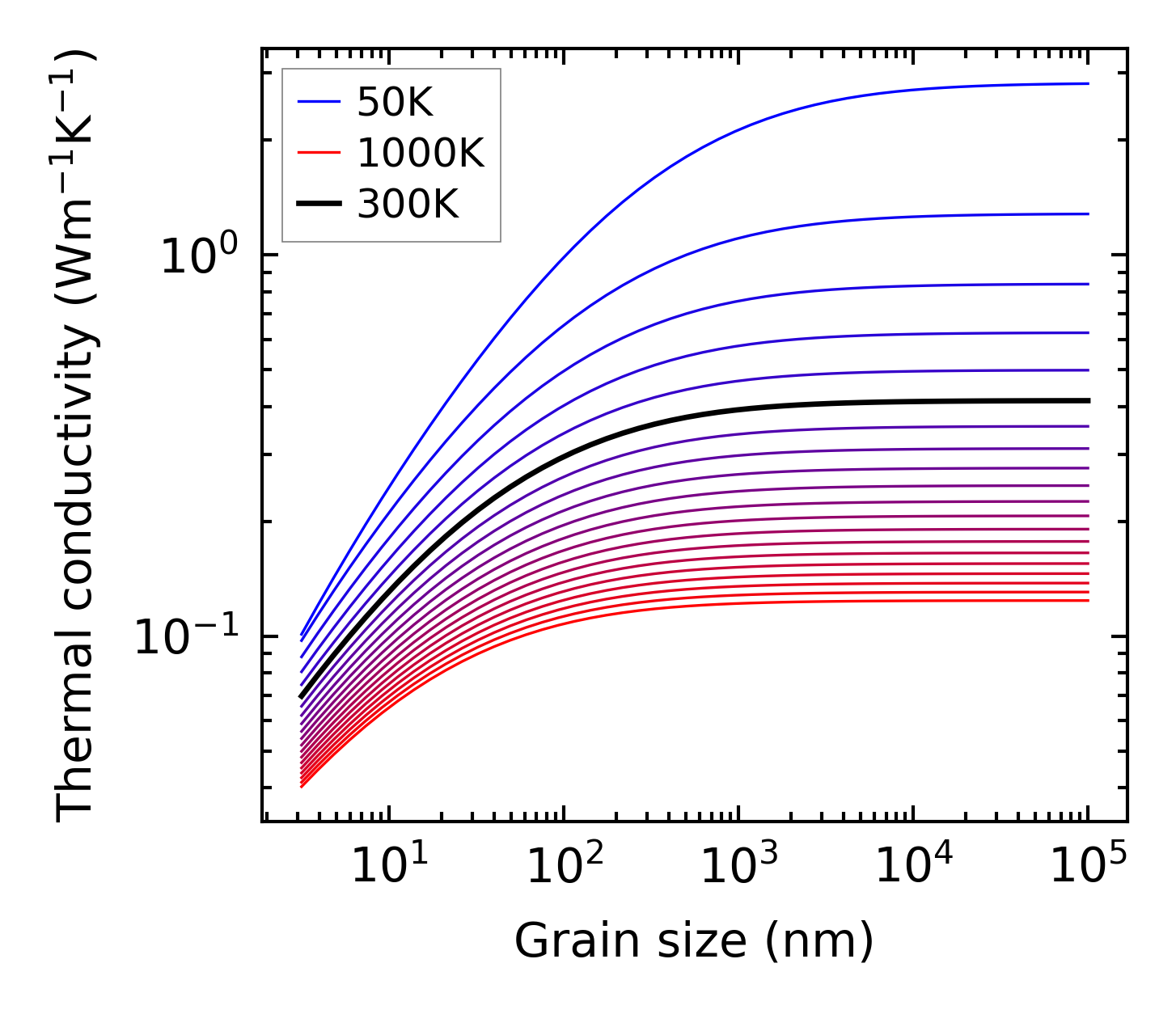

../../_images/fig_kappa_vs_grain_size2465.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

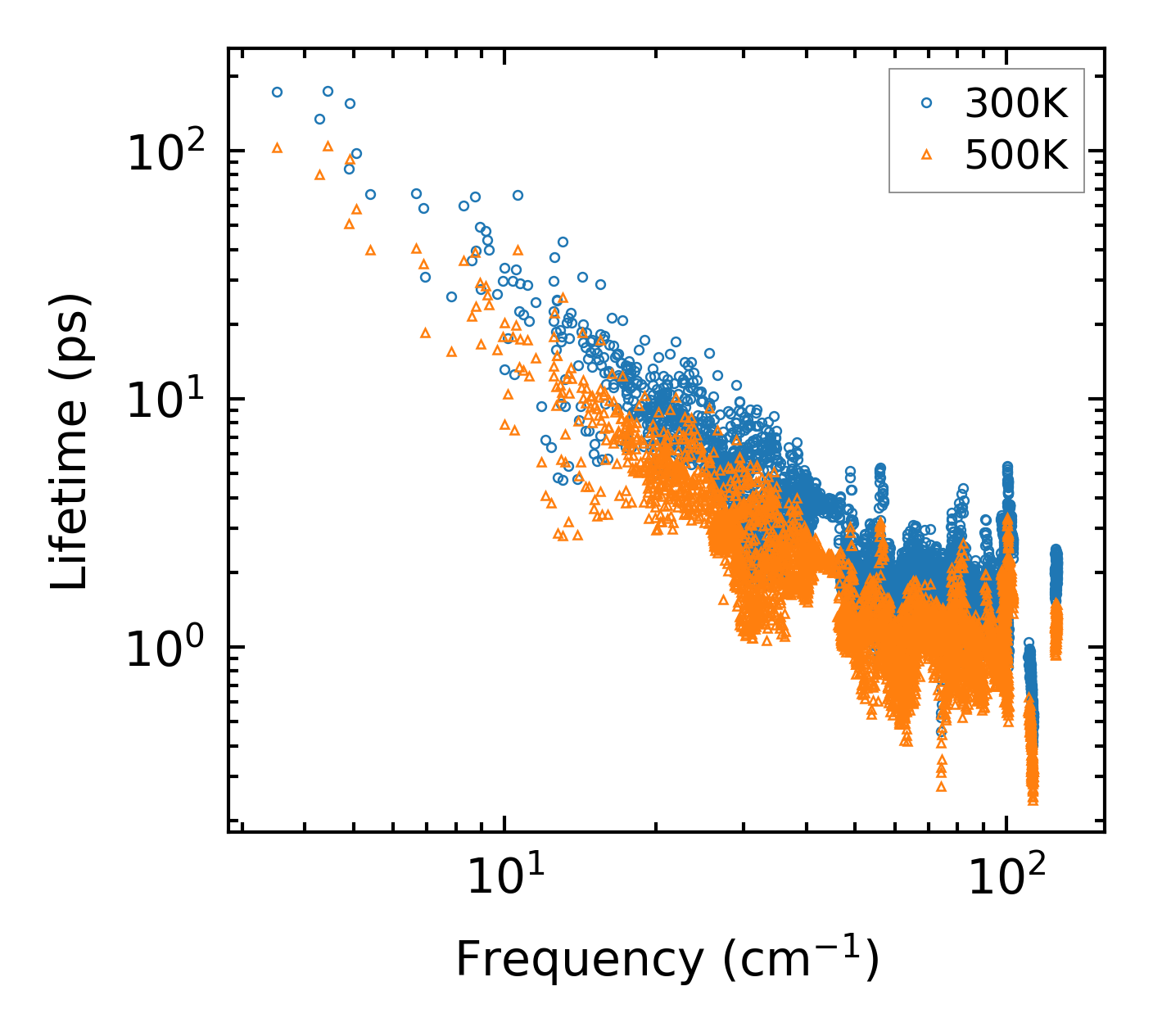

../../_images/fig_lifetime2417.png — (a) Phonon lifetime due to phonon-phonon scattering

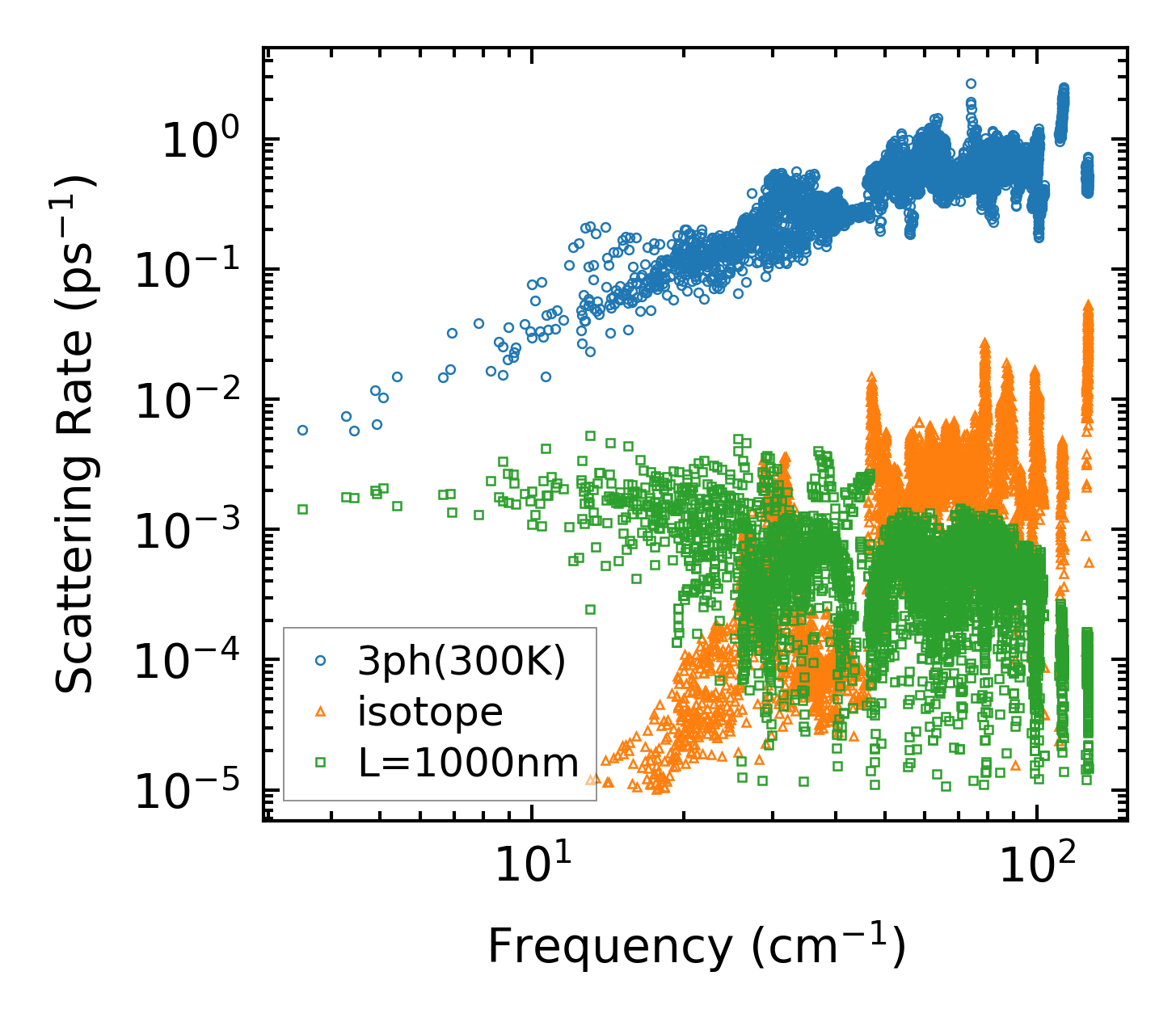

../../_images/fig_scat_rates2416.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

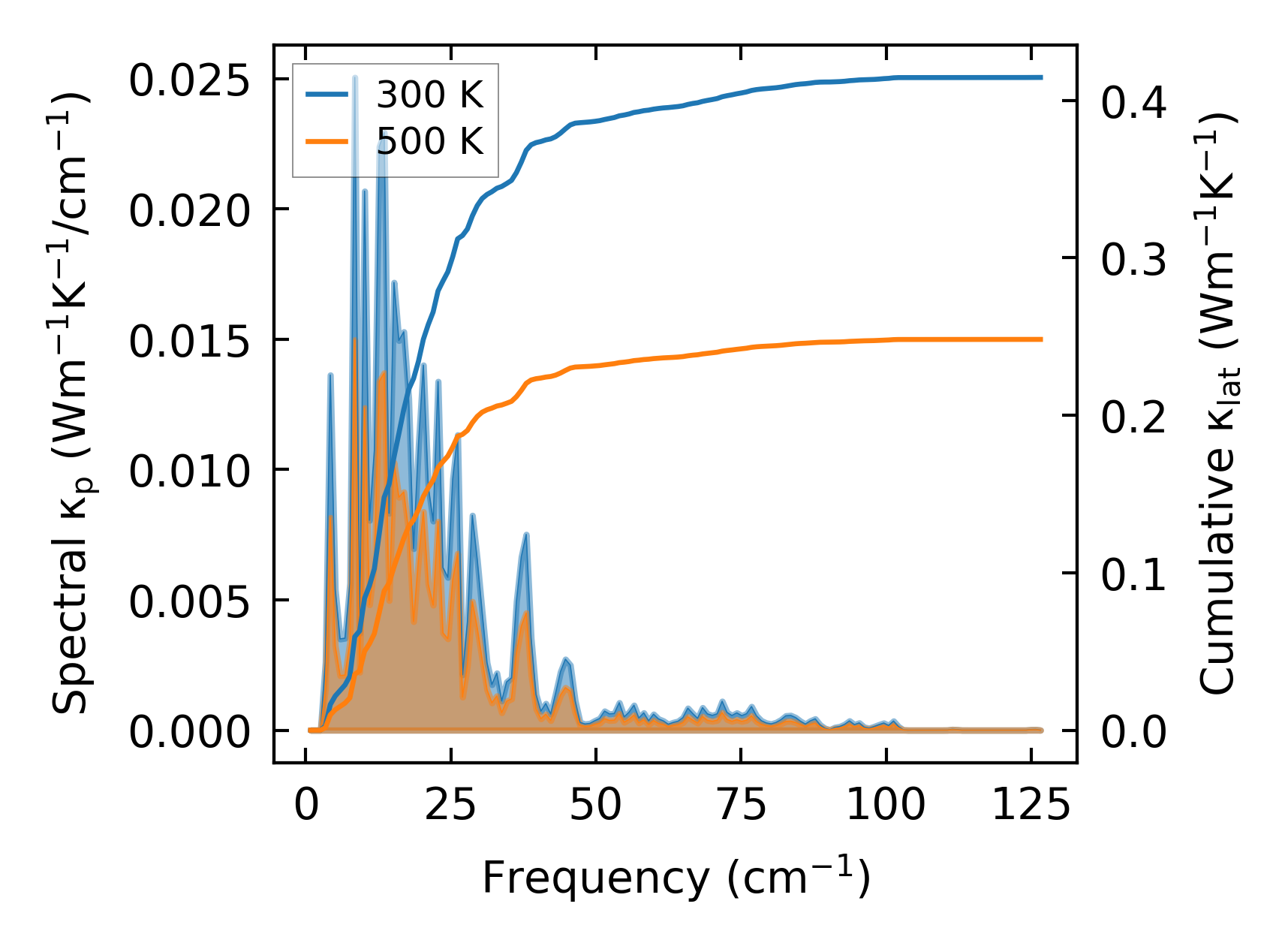

../../_images/fig_cumu_frequency2417.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

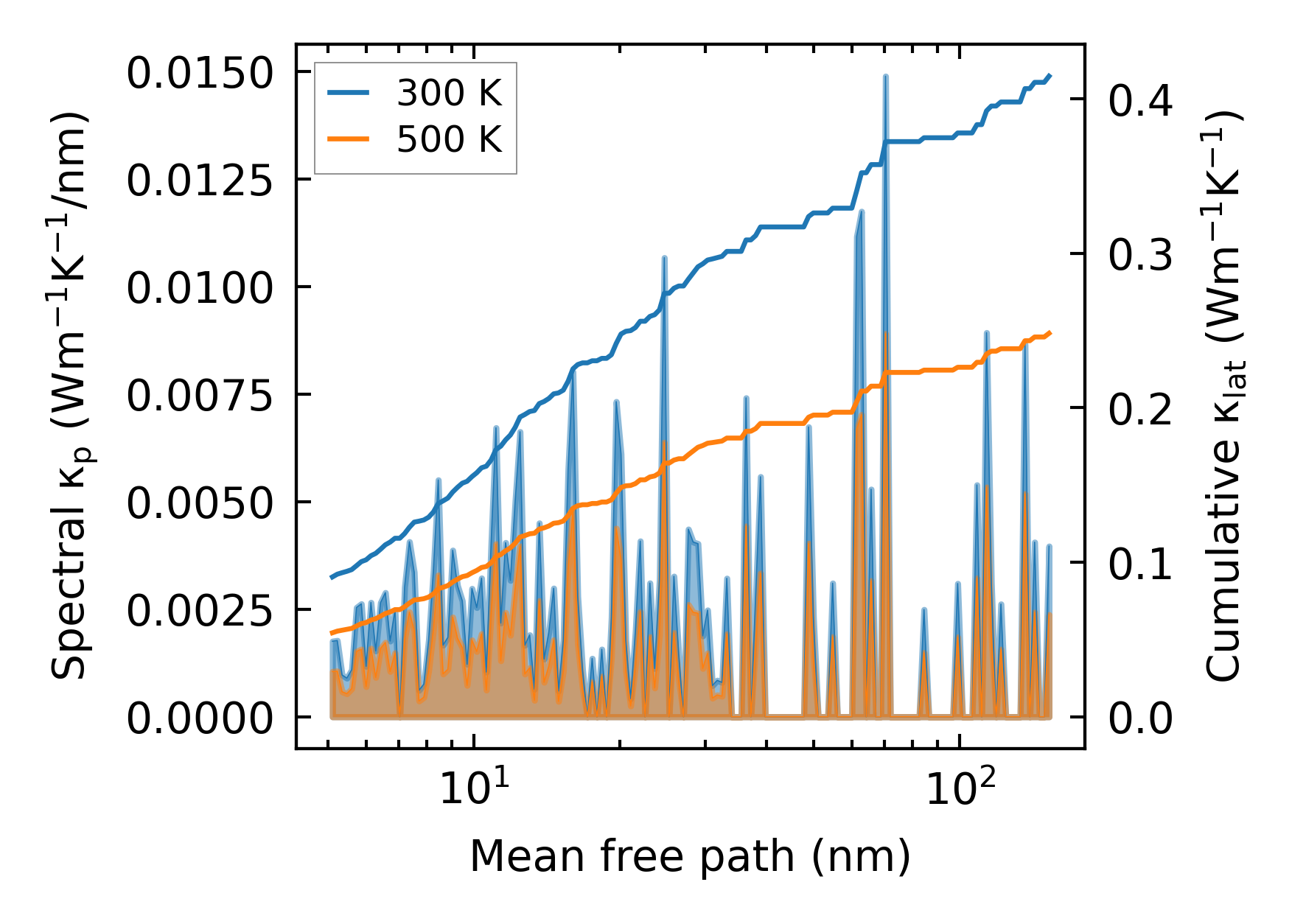

../../_images/fig_cumu_mfp2417.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

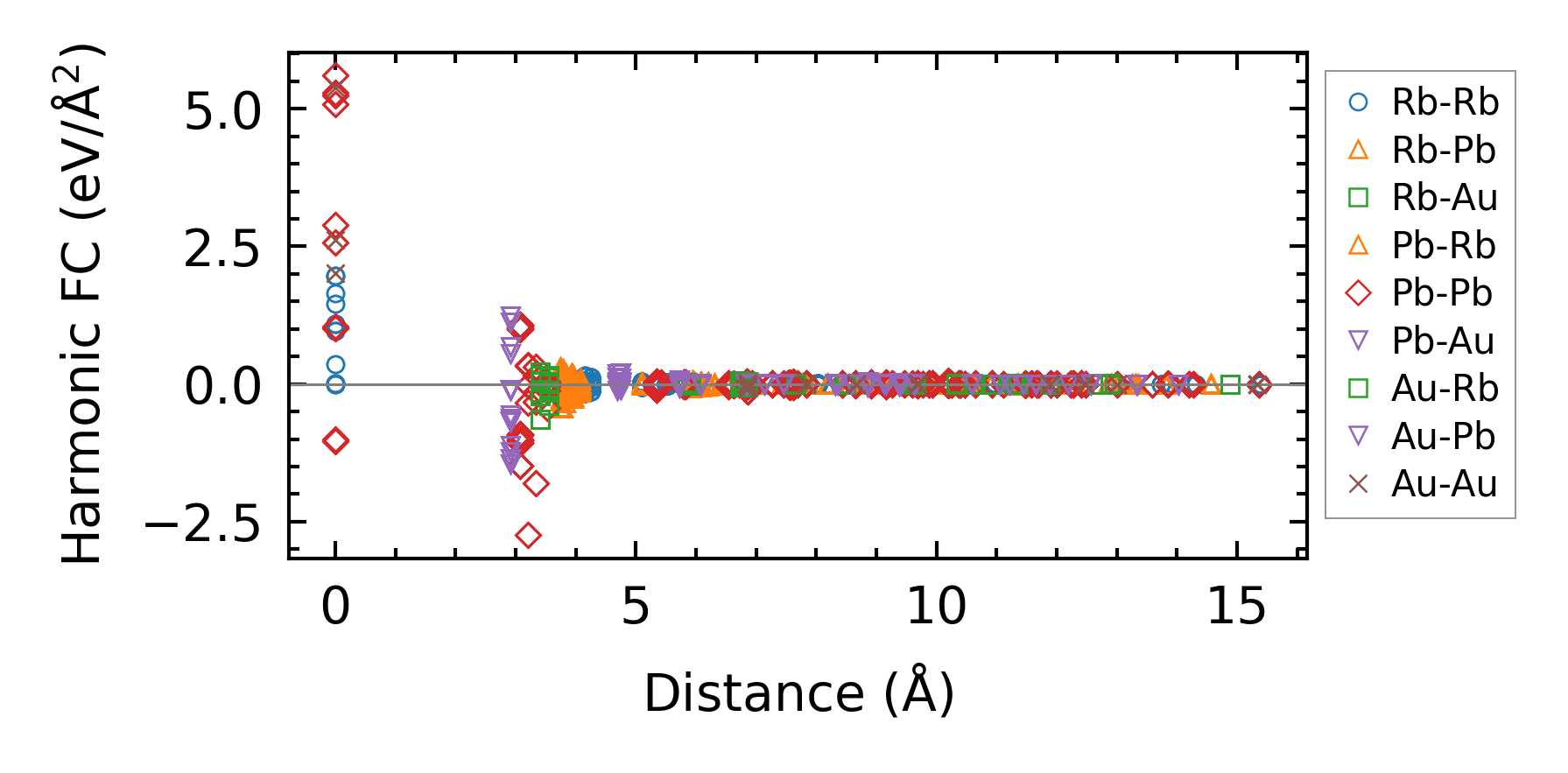

../../_images/fig_fc25776.png — (a) Force constants w.r.t atomic distance

Summary

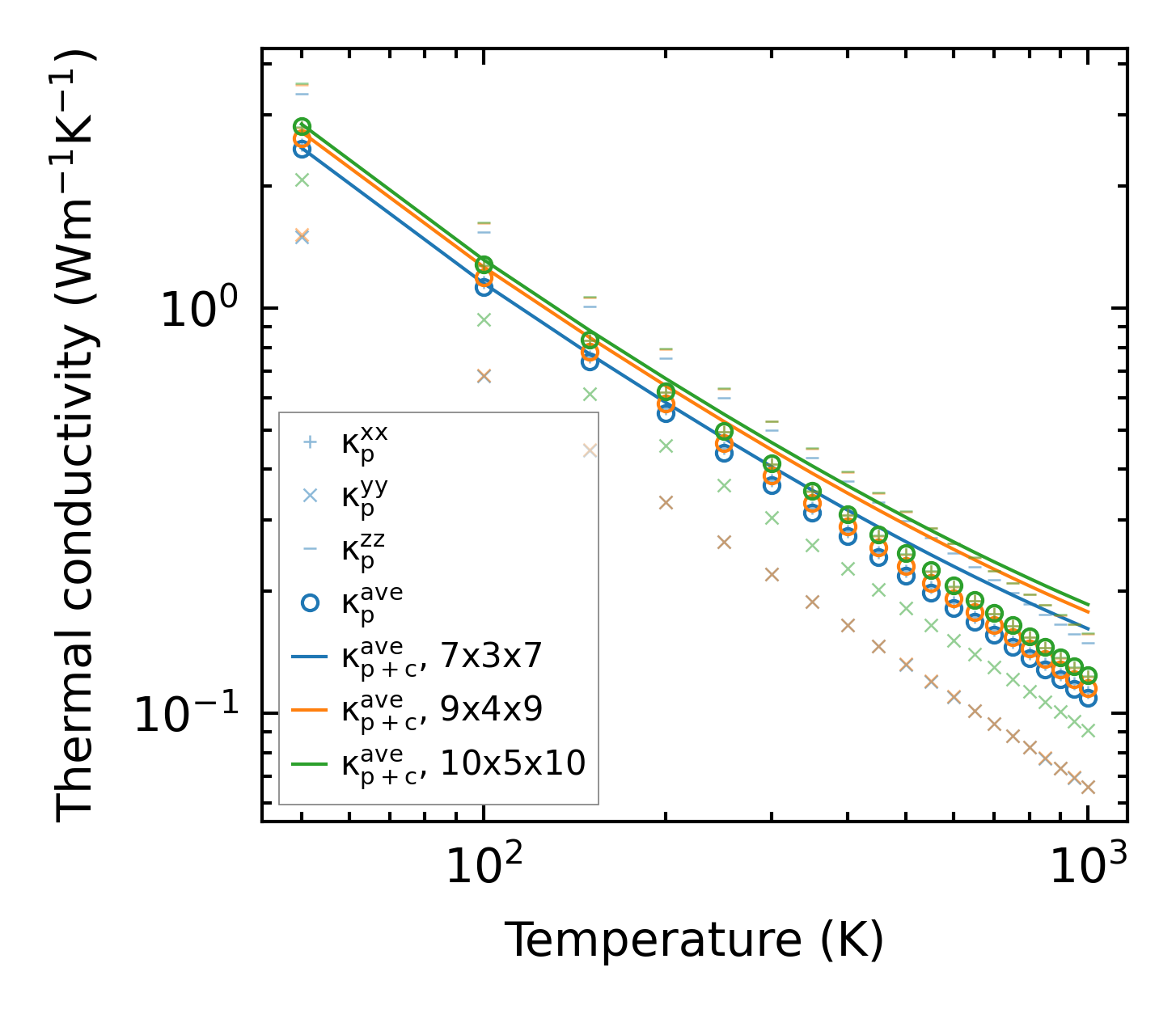

../../_images/fig_kappa4636.png — (a) Temperature-dependent lattice thermal conductivity

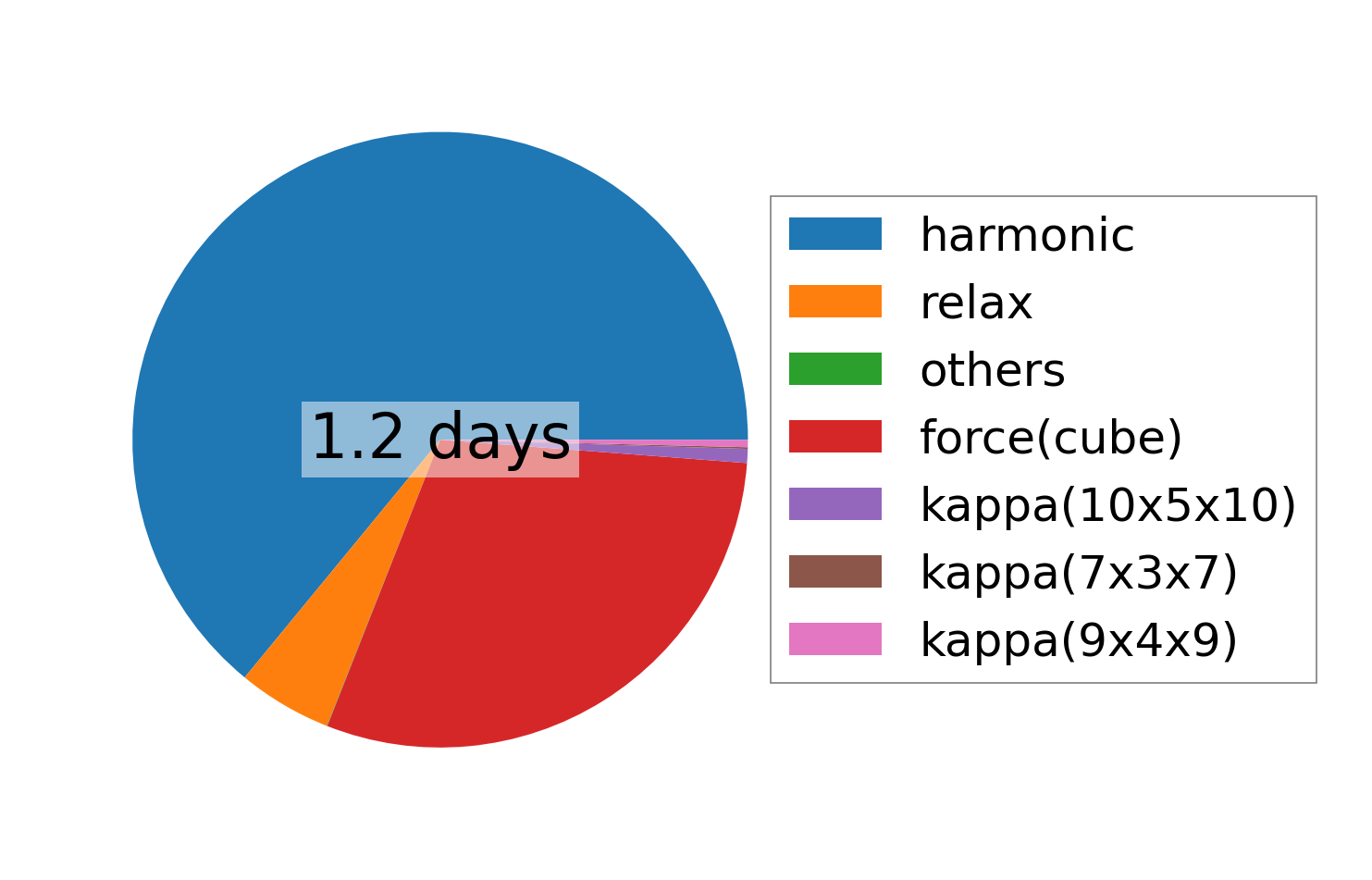

../../_images/fig_times10943.png — (b) Computation time
