mp-40226-2/Na4Ga3Si3IO12/anharm

Space group: P-43n (218)
Link: Materials Project
Download: mp-40226-2.tar.gz

Equation of state

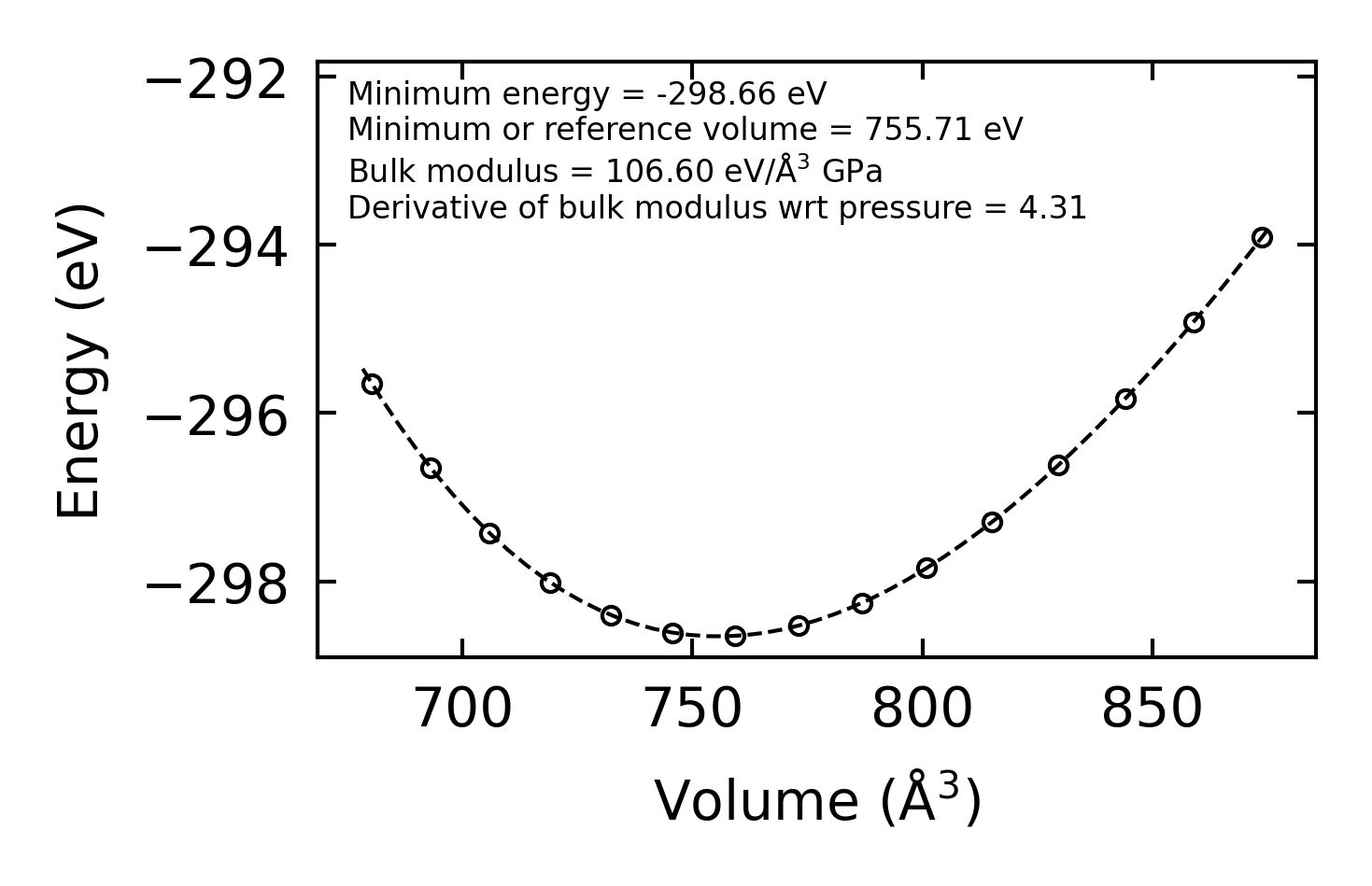

../../_images/fig_bm5156.png — (a) Equation of state

Harmonic properties

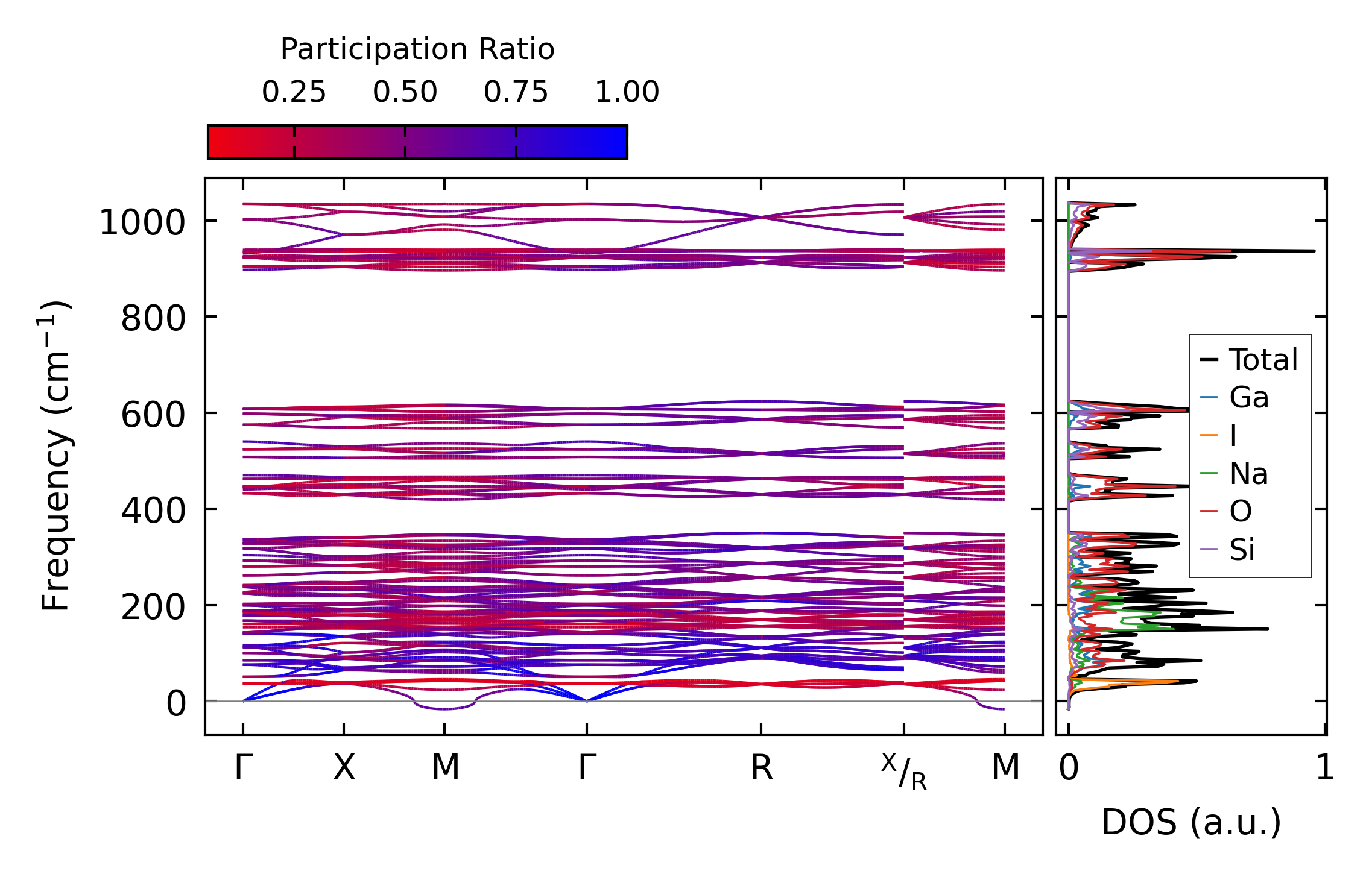

../../_images/fig_bandos_pr10294.png — (a) Phonon dispersion with participation ratio and DOS

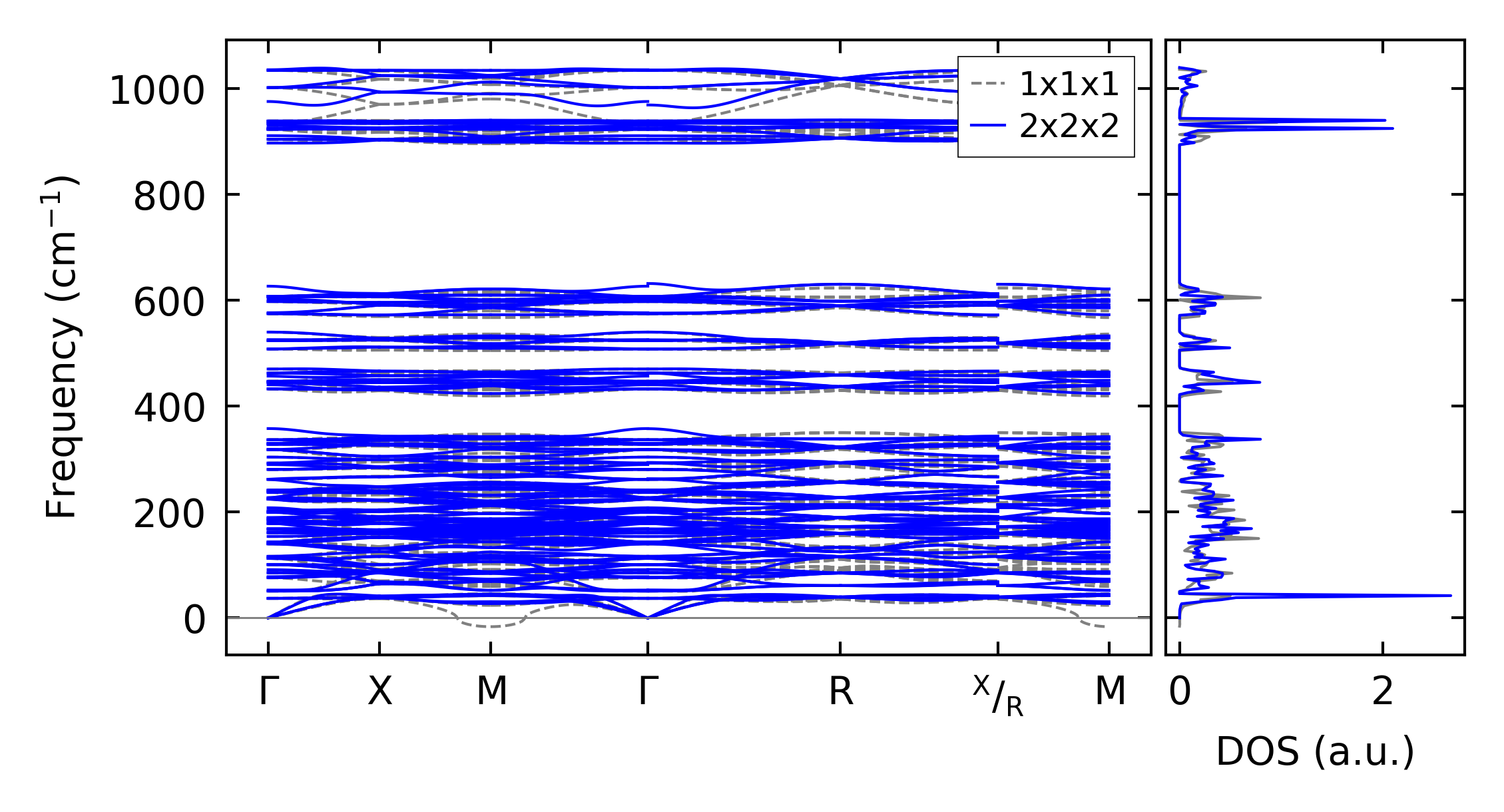

../../_images/fig_bandos14235.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo10294.png — (c) Thermodynamic properties

Grüneisen parameters

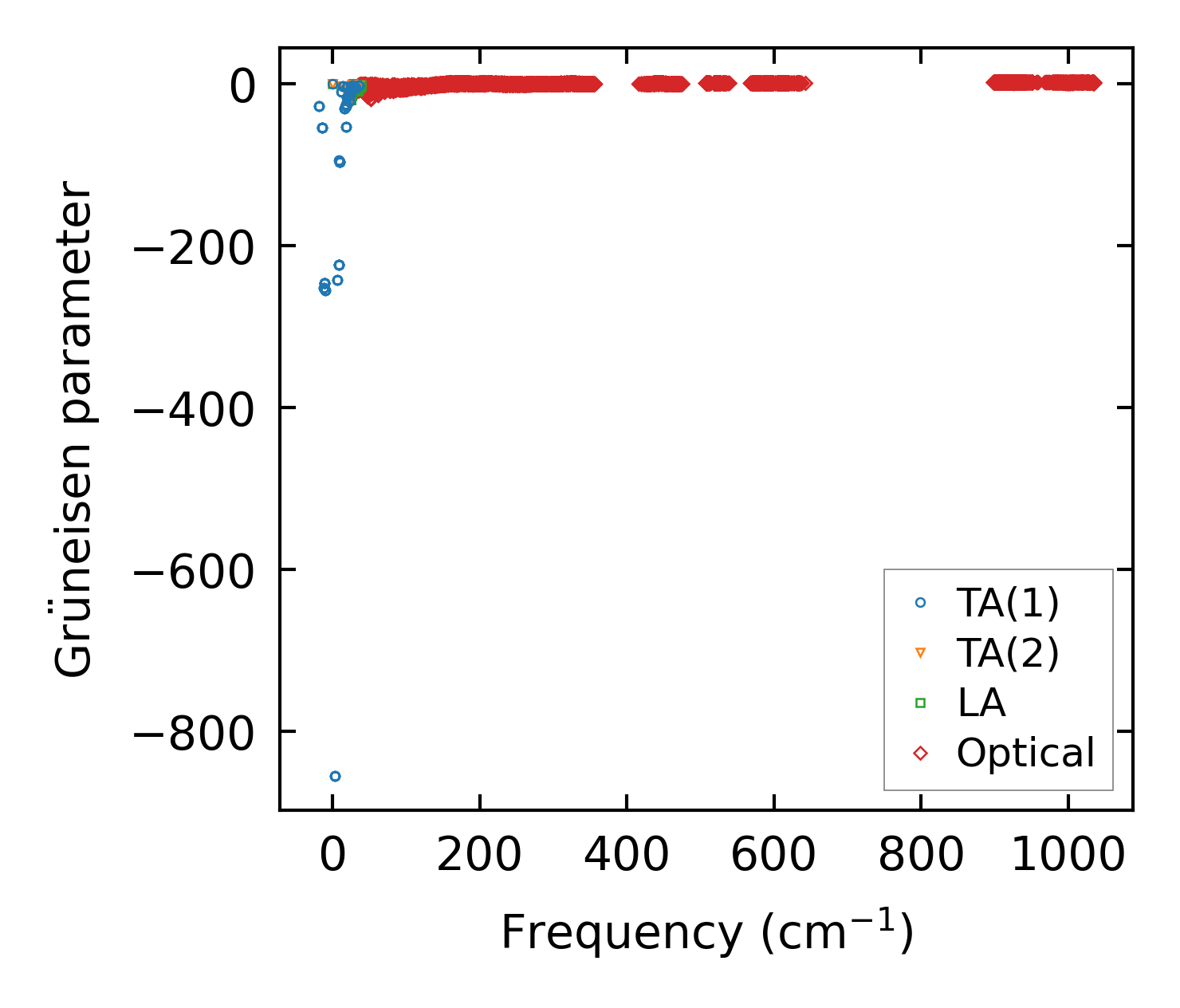

../../_images/fig_gru_all4149.png — (a) Grüneisen parameters

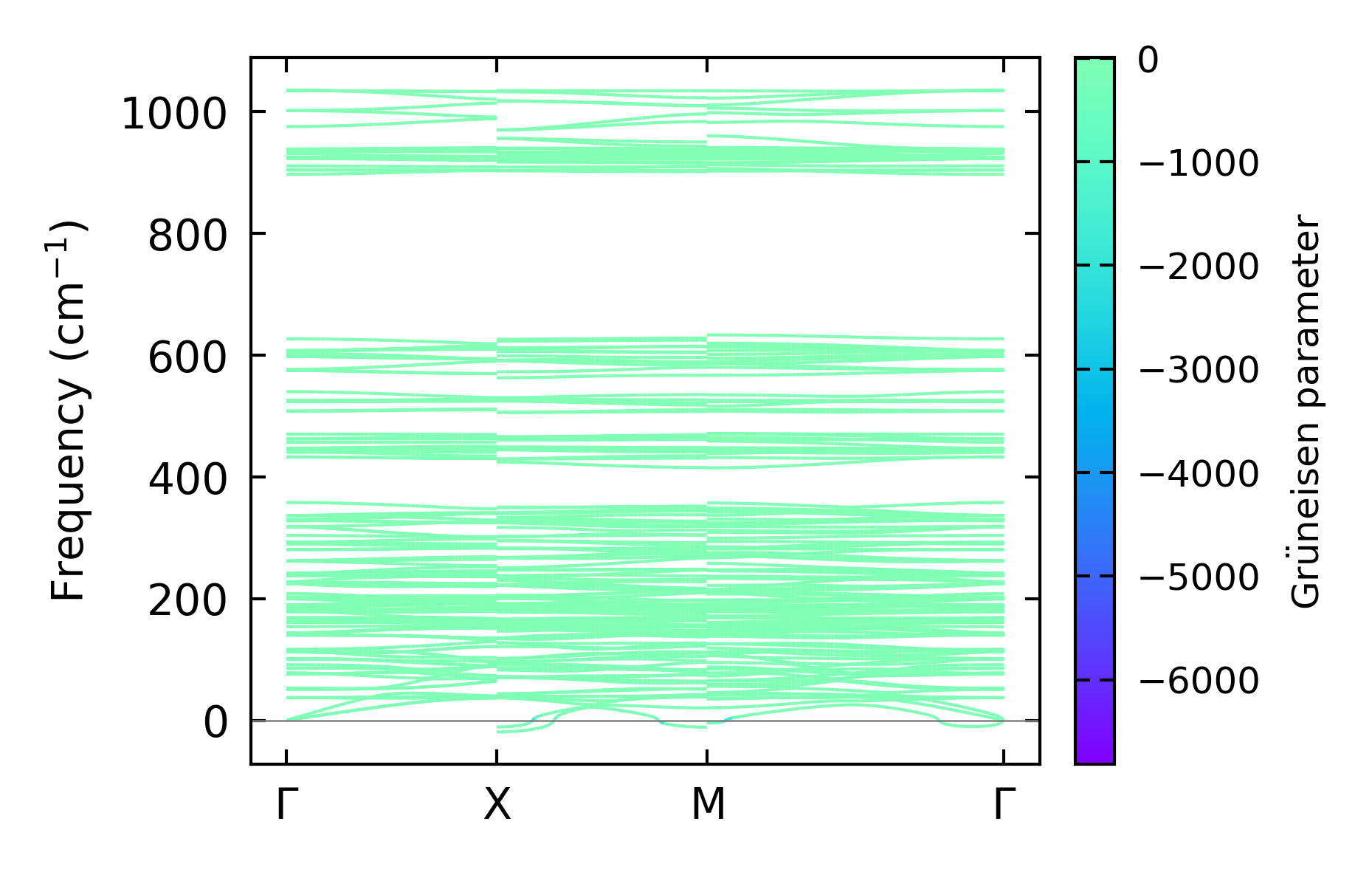

../../_images/fig_gruneisen4149.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 7x7x7, supercell: 2x2x2

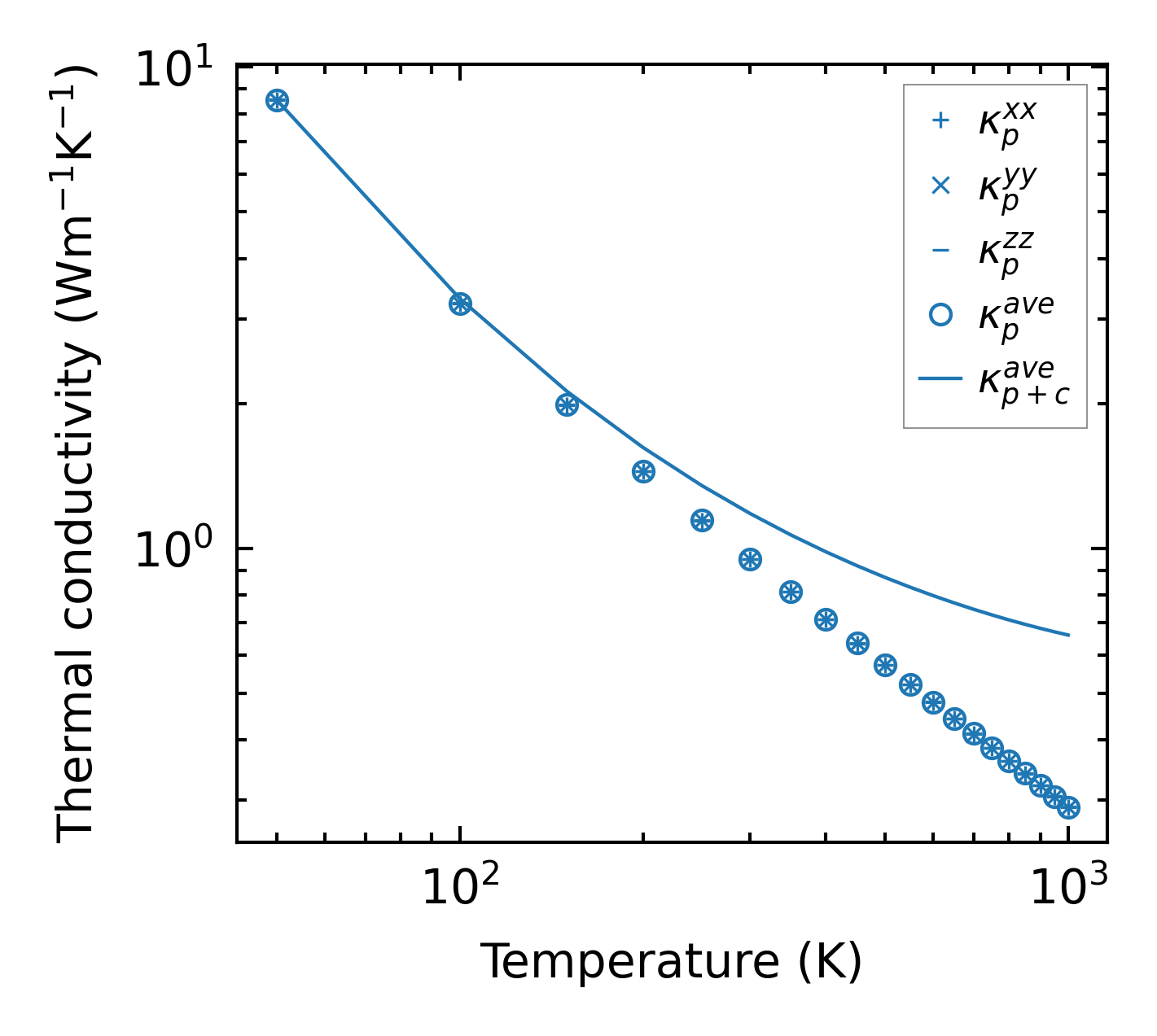

../../_images/fig_kappa7825.png — (a) Temperature-dependent lattice thermal conductivity

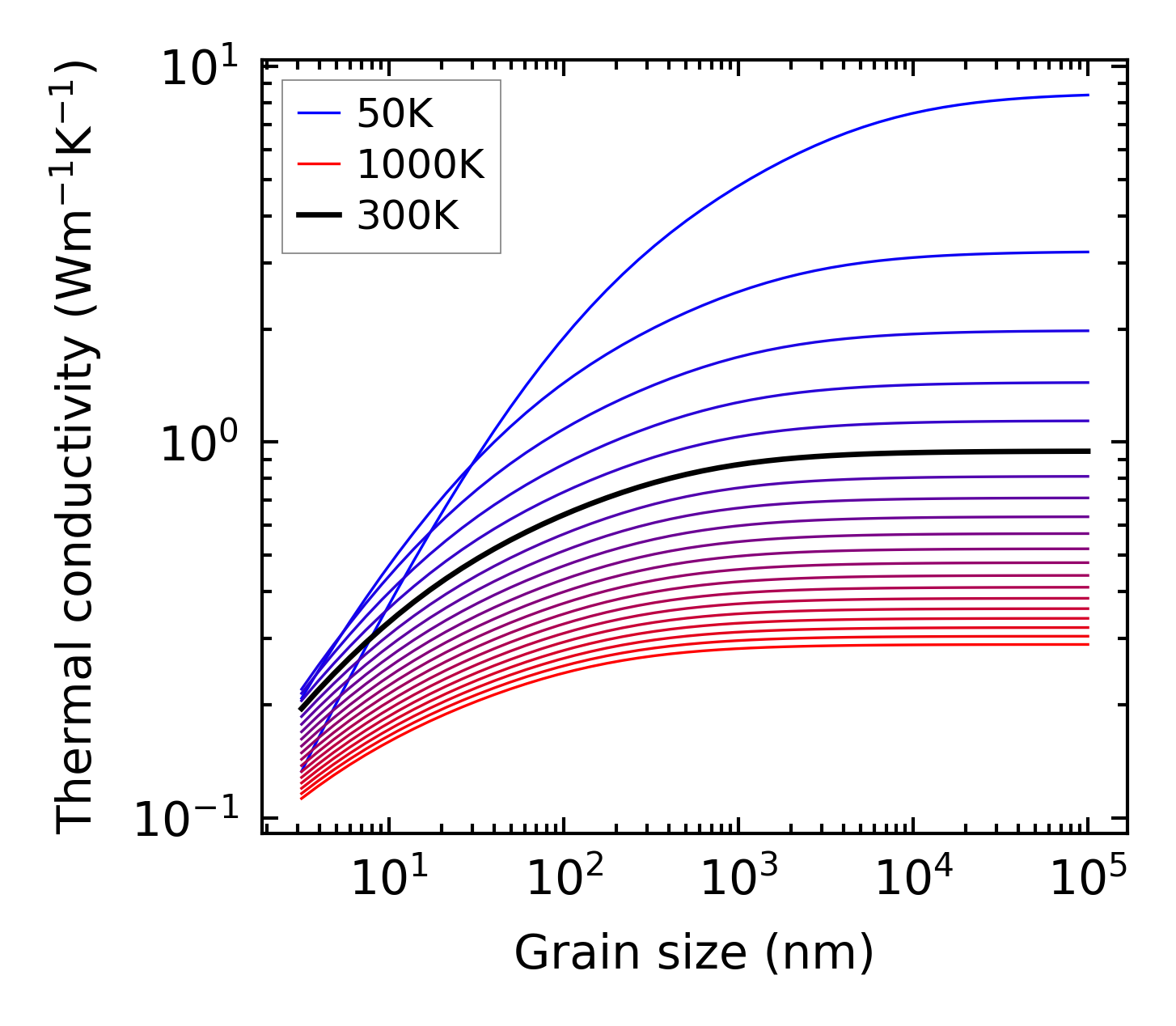

../../_images/fig_kappa_vs_grain_size4205.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

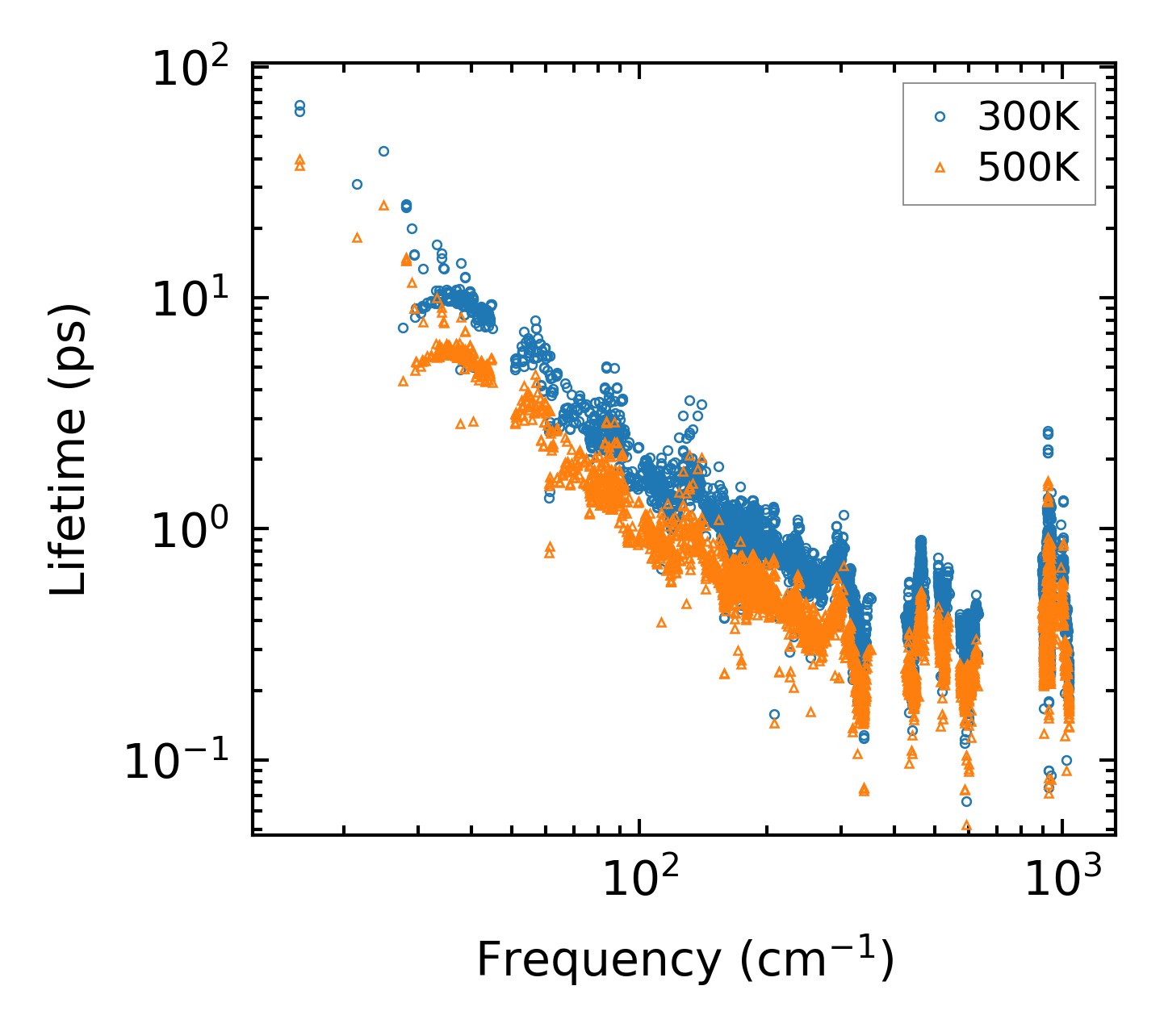

../../_images/fig_lifetime4111.png — (a) Phonon lifetime due to phonon-phonon scattering

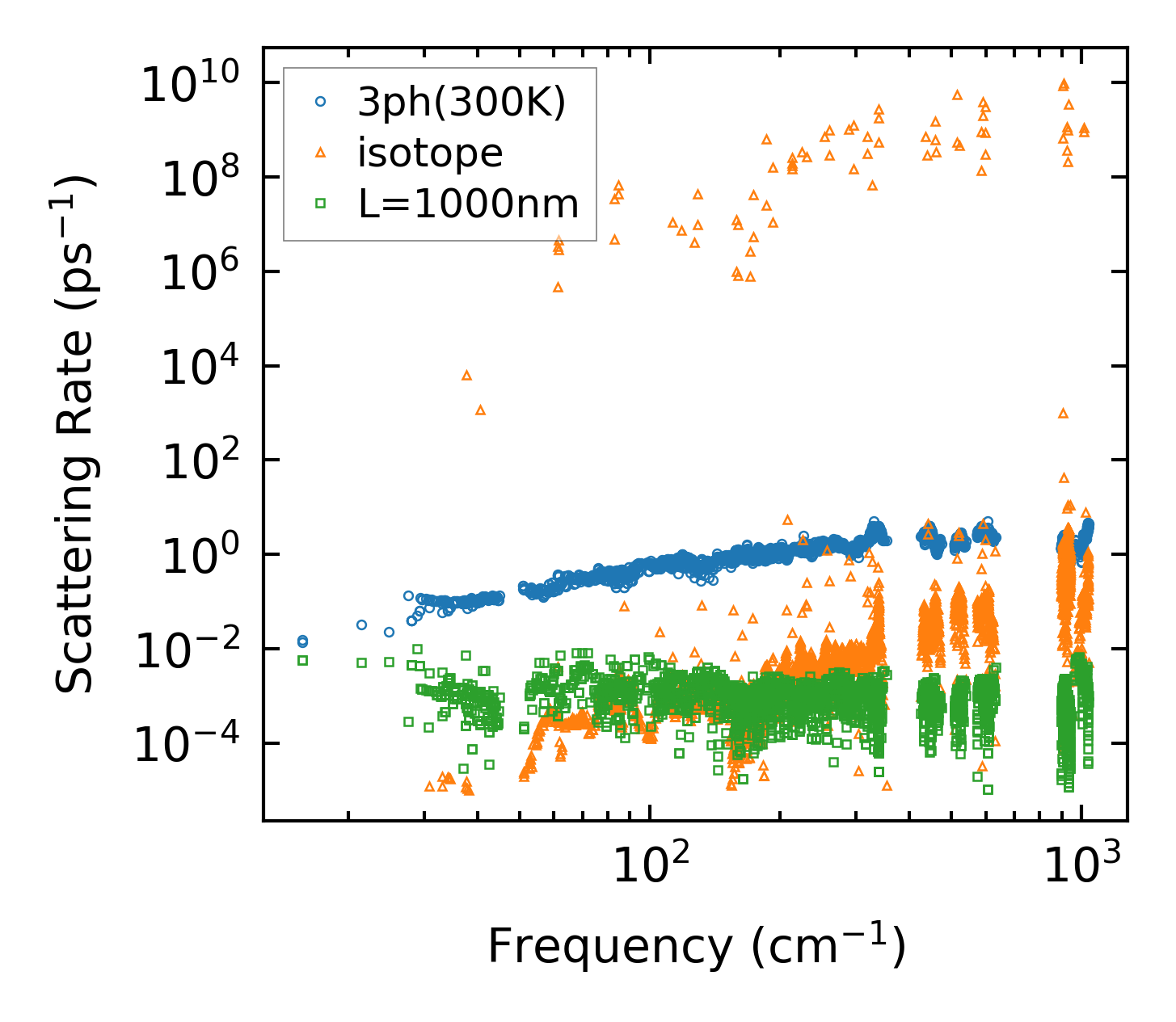

../../_images/fig_scat_rates4110.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

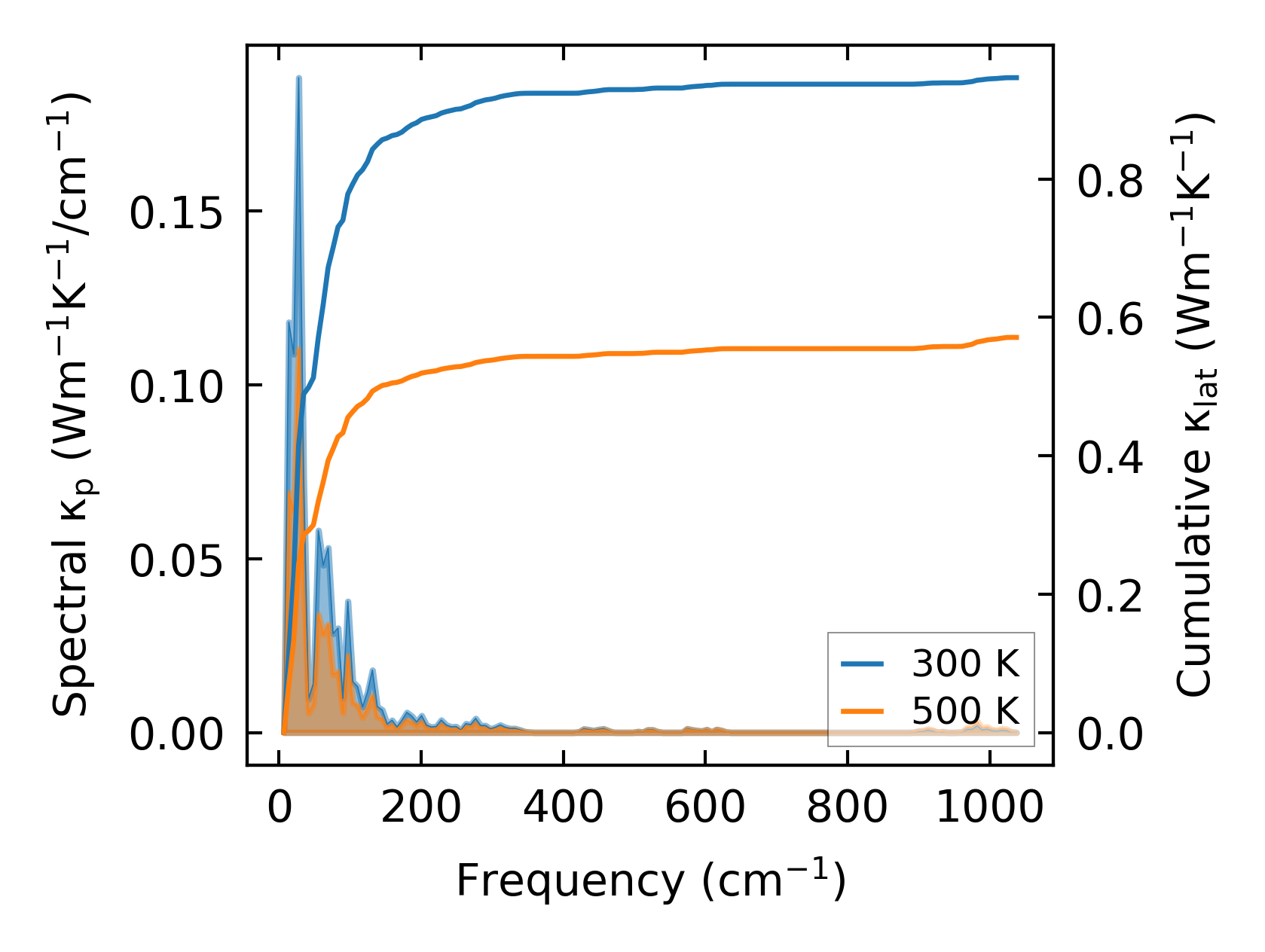

../../_images/fig_cumu_frequency4111.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

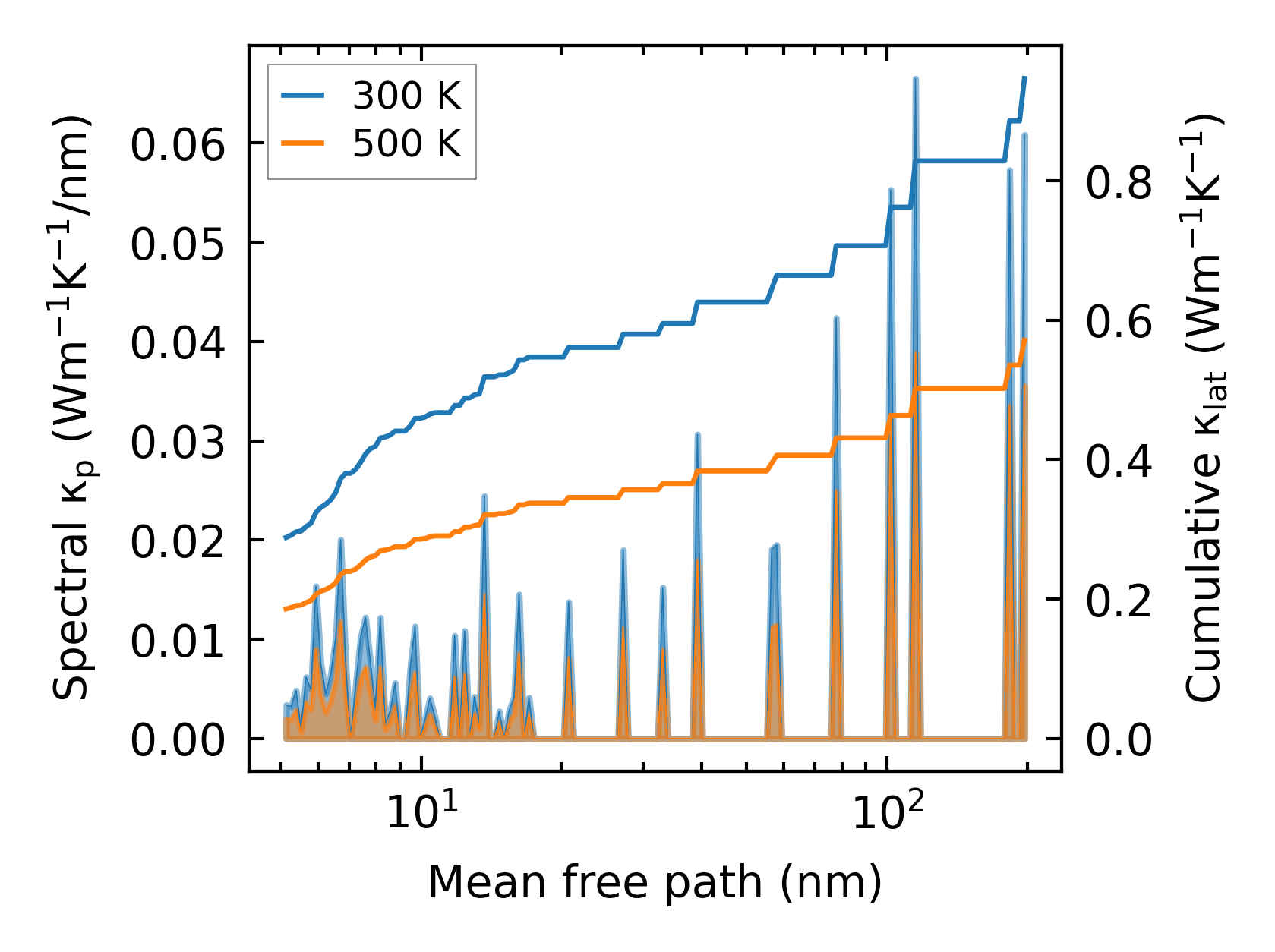

../../_images/fig_cumu_mfp4110.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

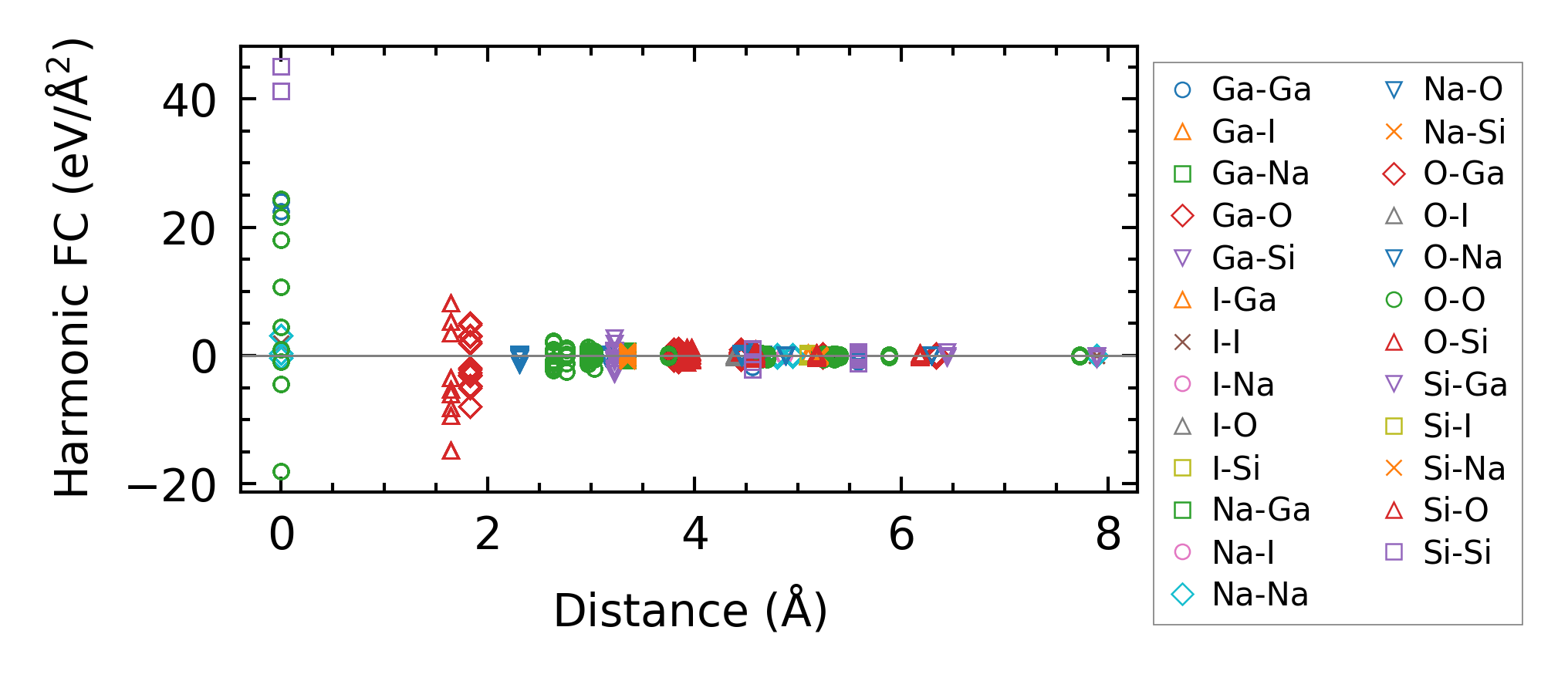

../../_images/fig_fc210044.png — (a) Force constants w.r.t atomic distance

Summary

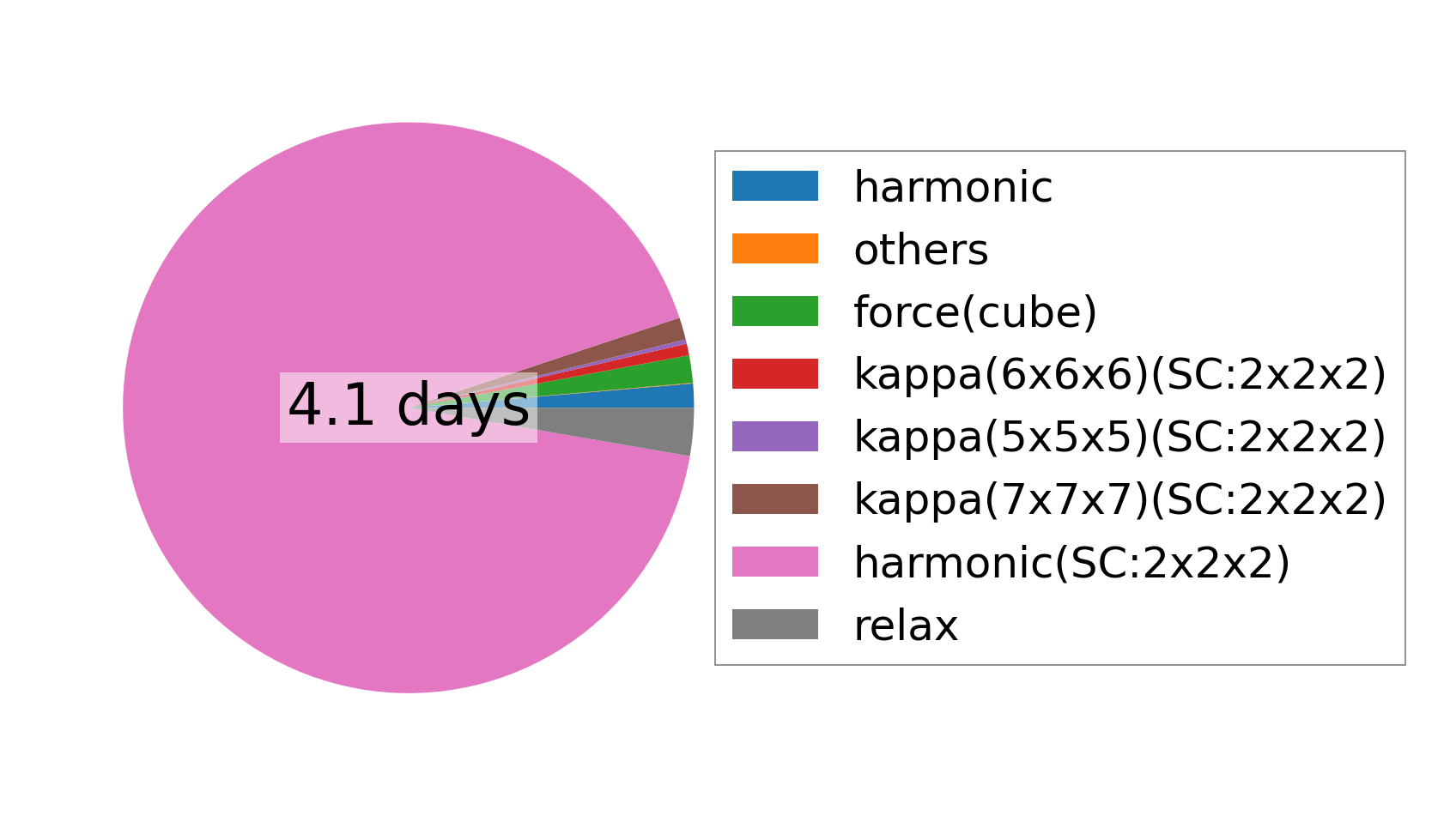

../../_images/fig_times17782.png — (a) Computation time
