mp-40161-2/NaHf2P3O12/anharm

Space group: R-3c (167)
Link: Materials Project
Download: mp-40161-2.tar.gz

Equation of state

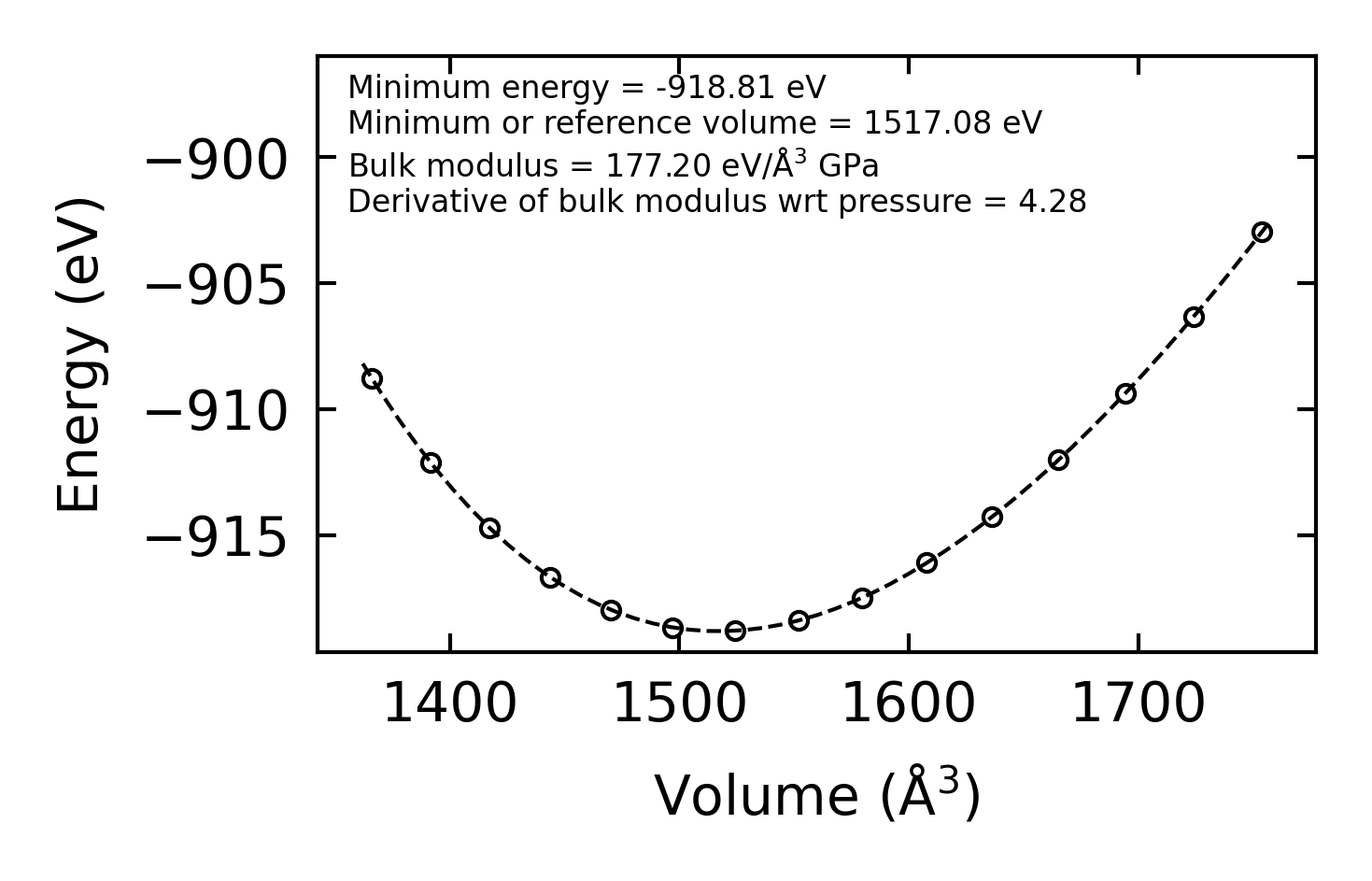

../../_images/fig_bm5154.png — (a) Equation of state

Harmonic properties

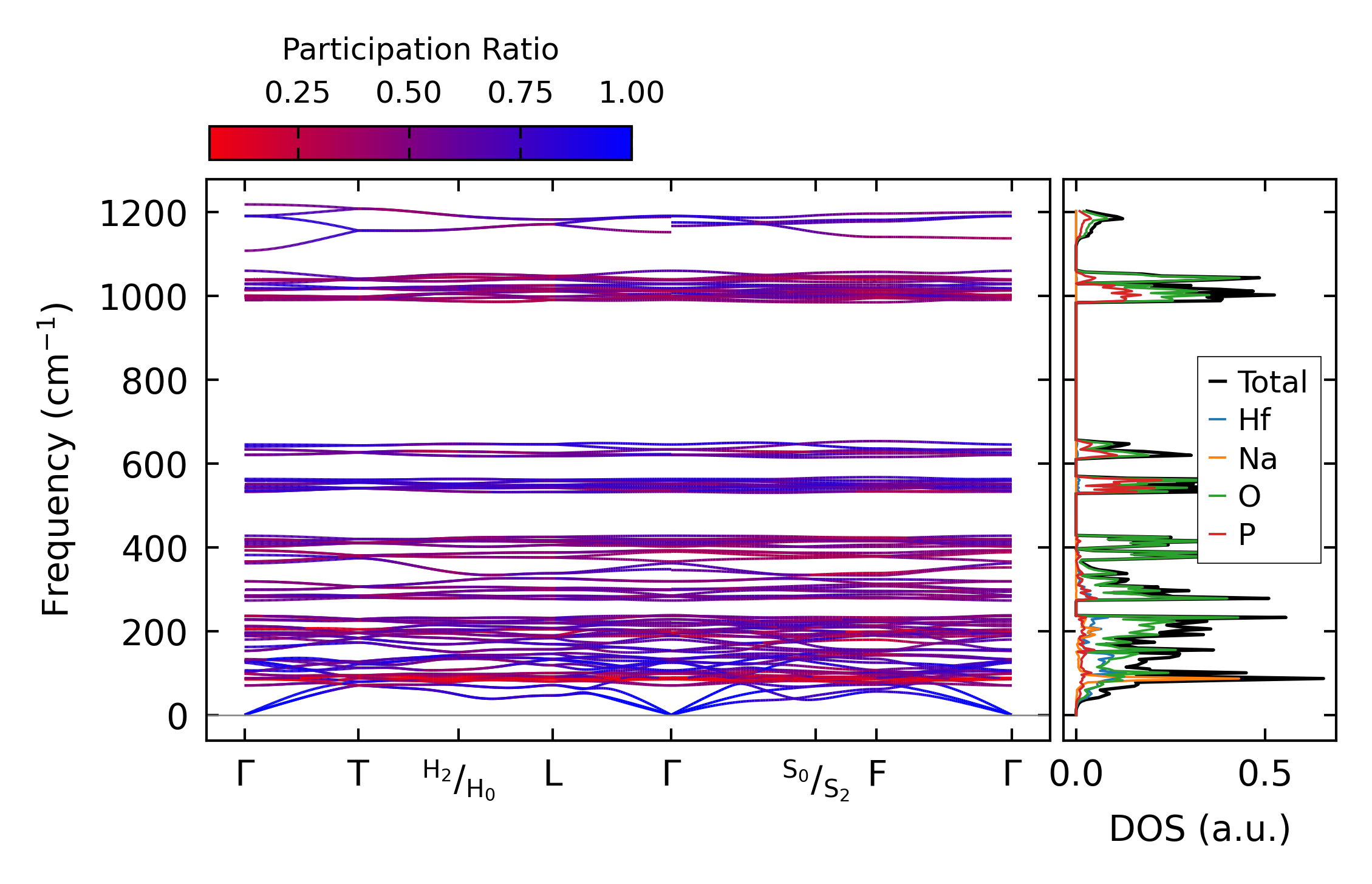

../../_images/fig_bandos_pr10289.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10289.png — (b) Thermodynamic properties

Grüneisen parameters

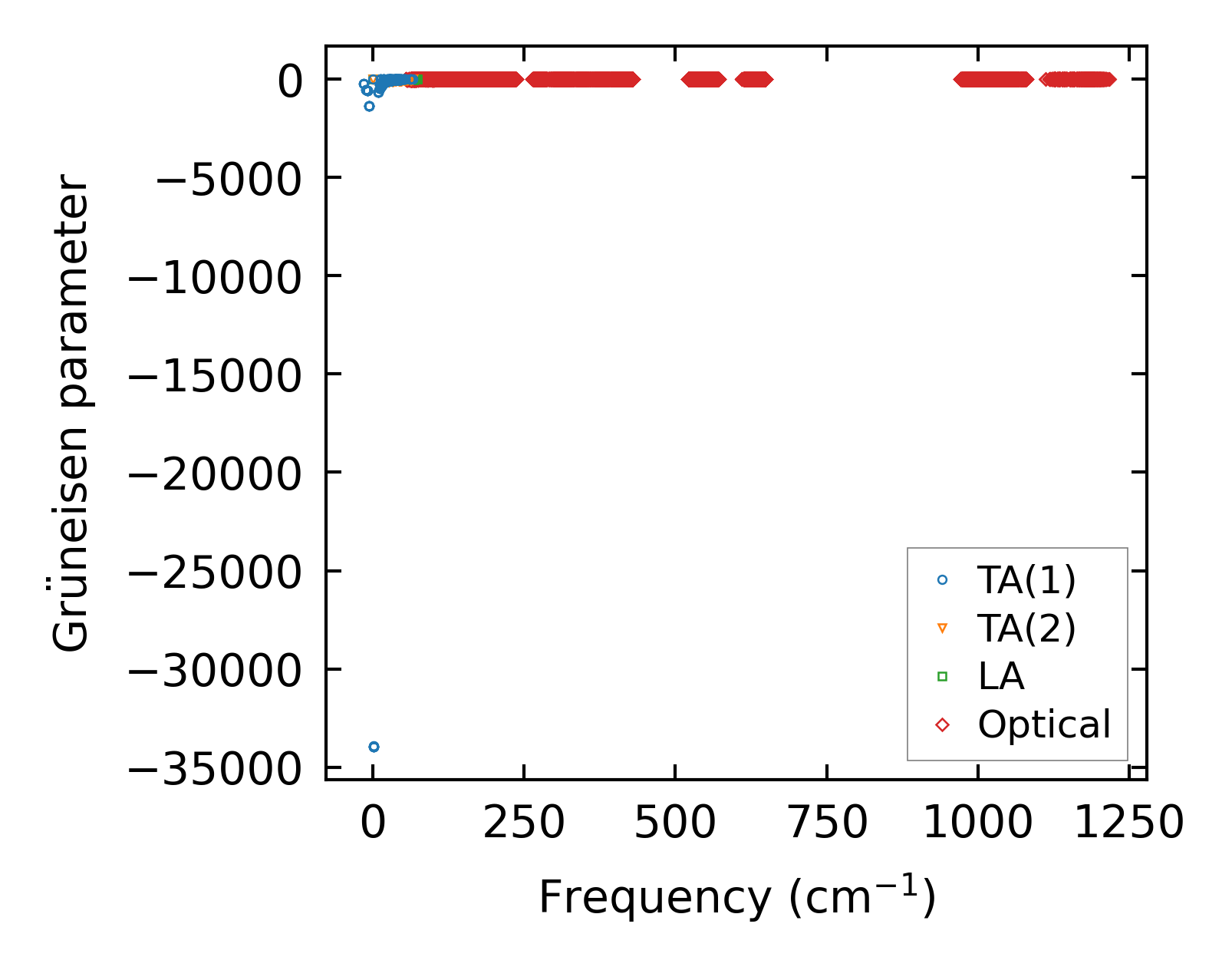

../../_images/fig_gru_all4148.png — (a) Grüneisen parameters

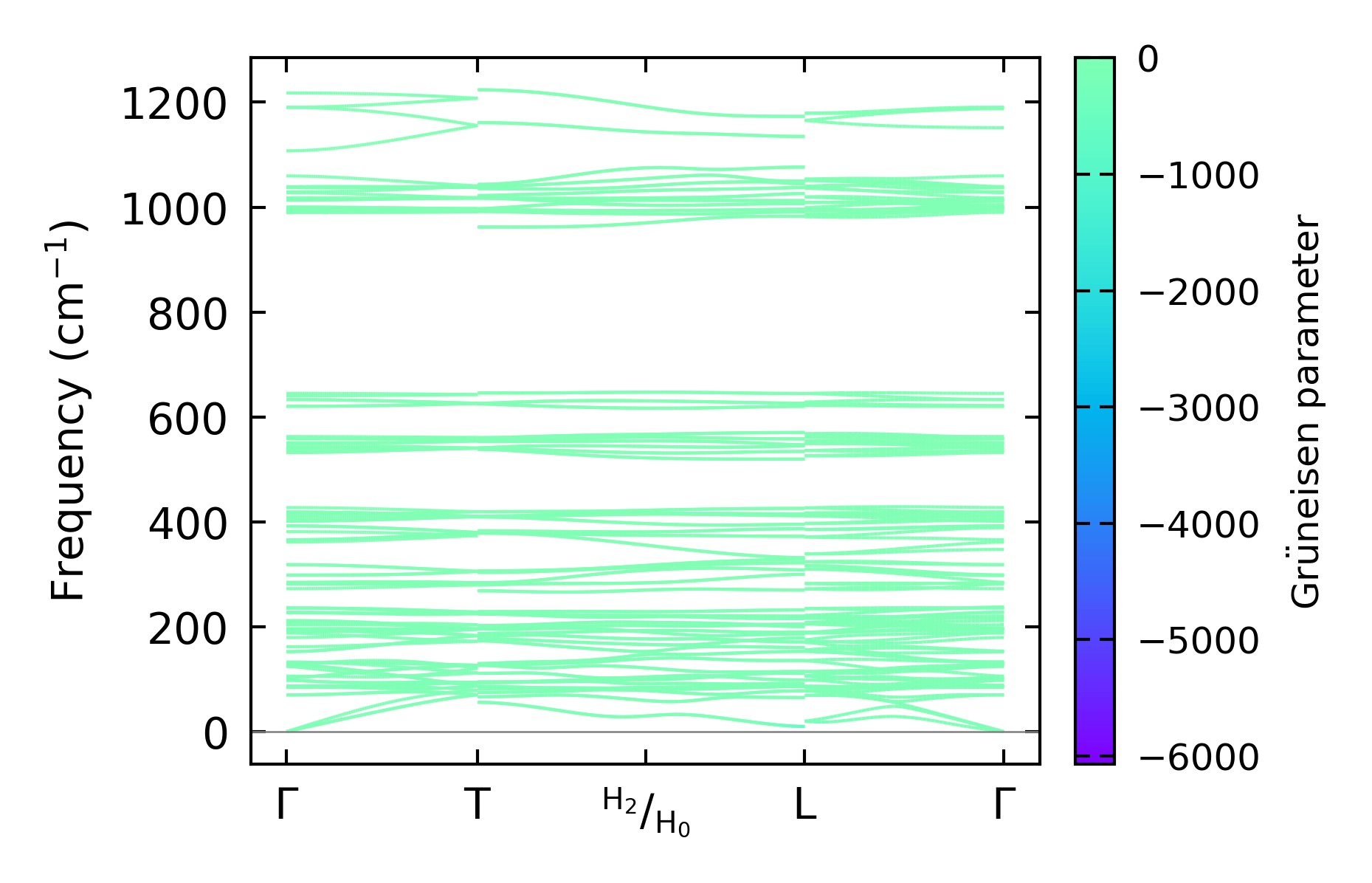

../../_images/fig_gruneisen4148.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x9, supercell: 1x1x1

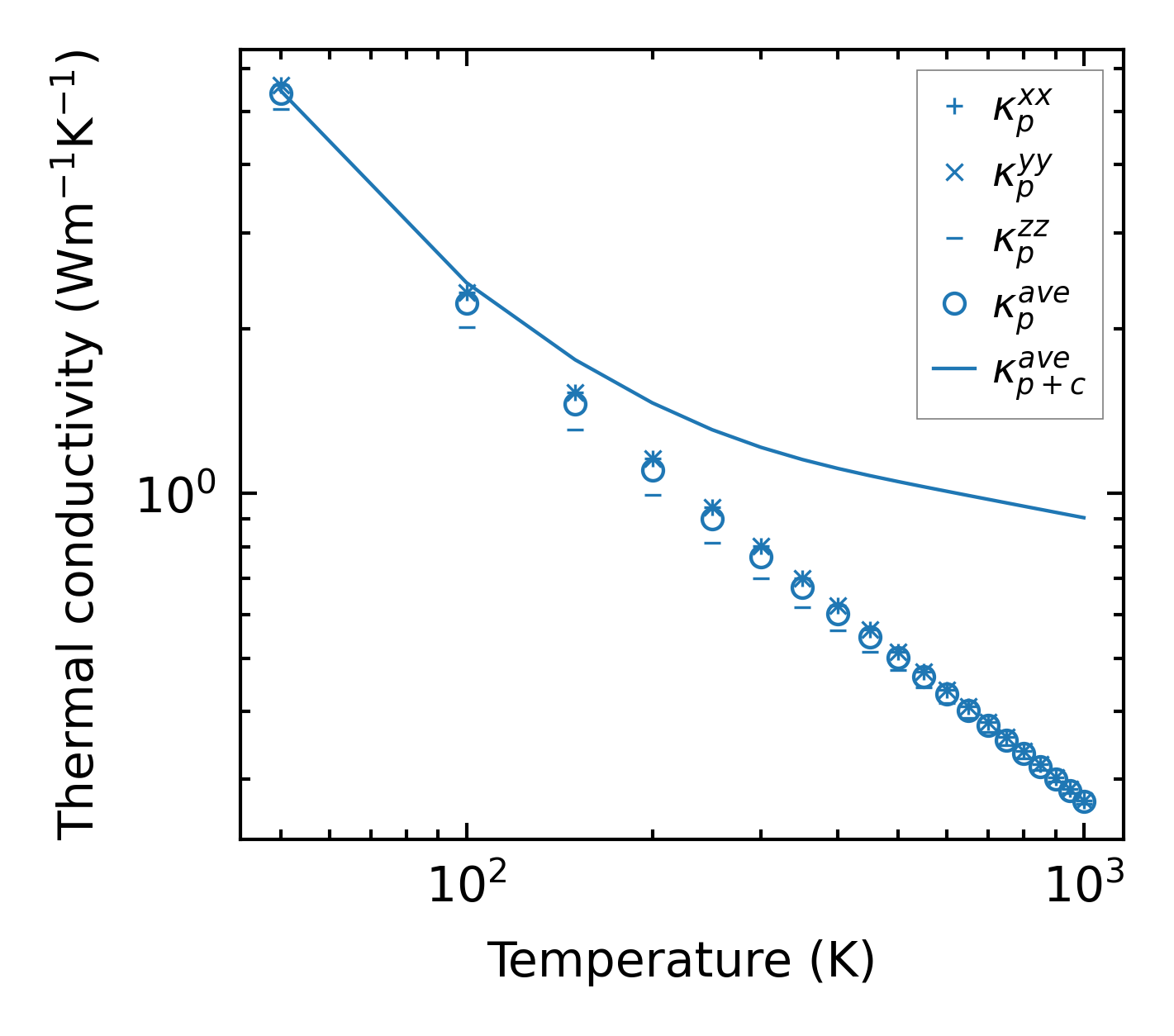

../../_images/fig_kappa7822.png — (a) Temperature-dependent lattice thermal conductivity

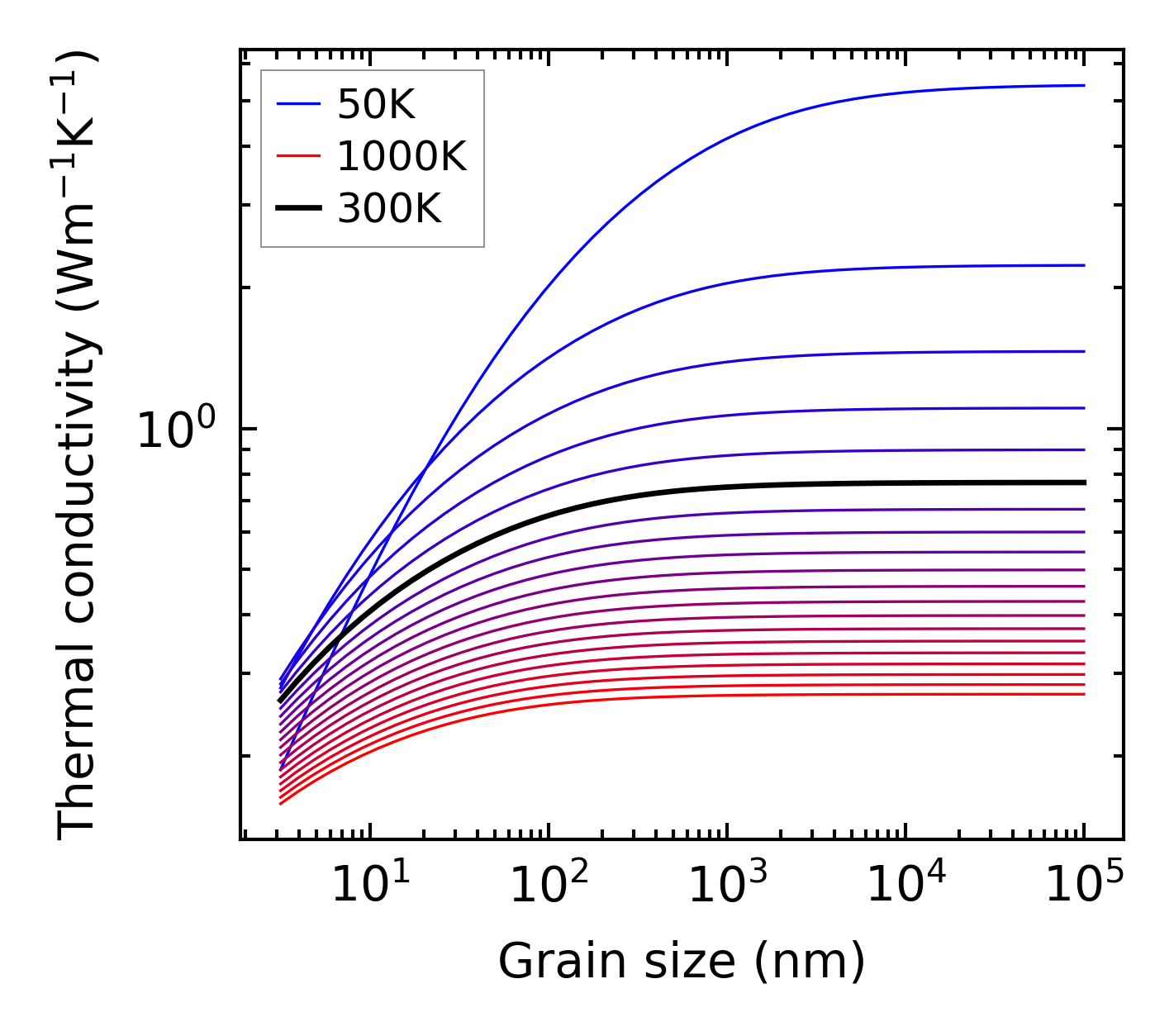

../../_images/fig_kappa_vs_grain_size4203.png — (b) Peierls lattice thermal conductivity w.r.t grain size

3-phonon (LASSO), supercell 2x2x1 — q-mesh: 9x9x9, supercell: 2x2x1

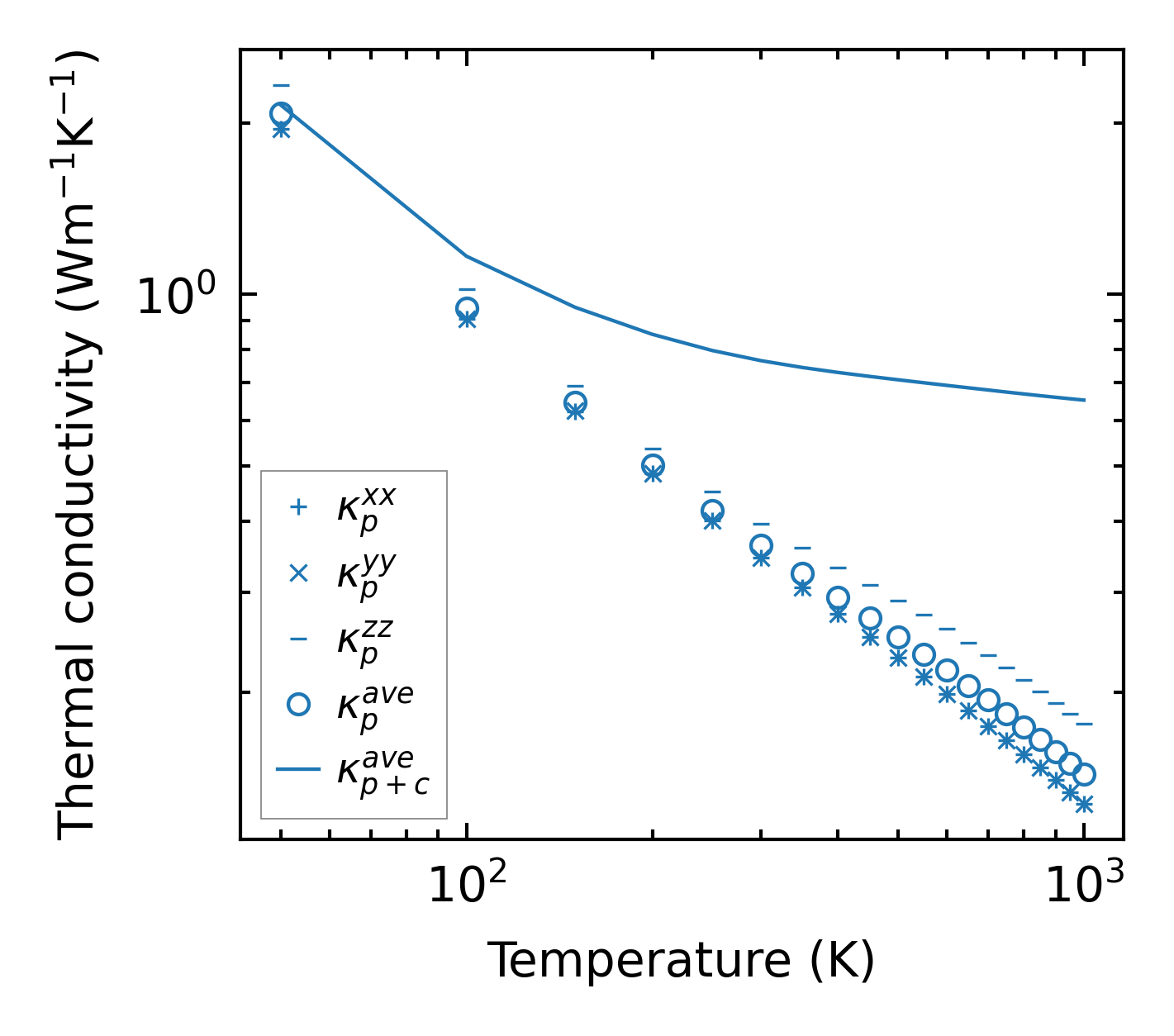

../../_images/fig_kappa7823.png — (a) Temperature-dependent lattice thermal conductivity

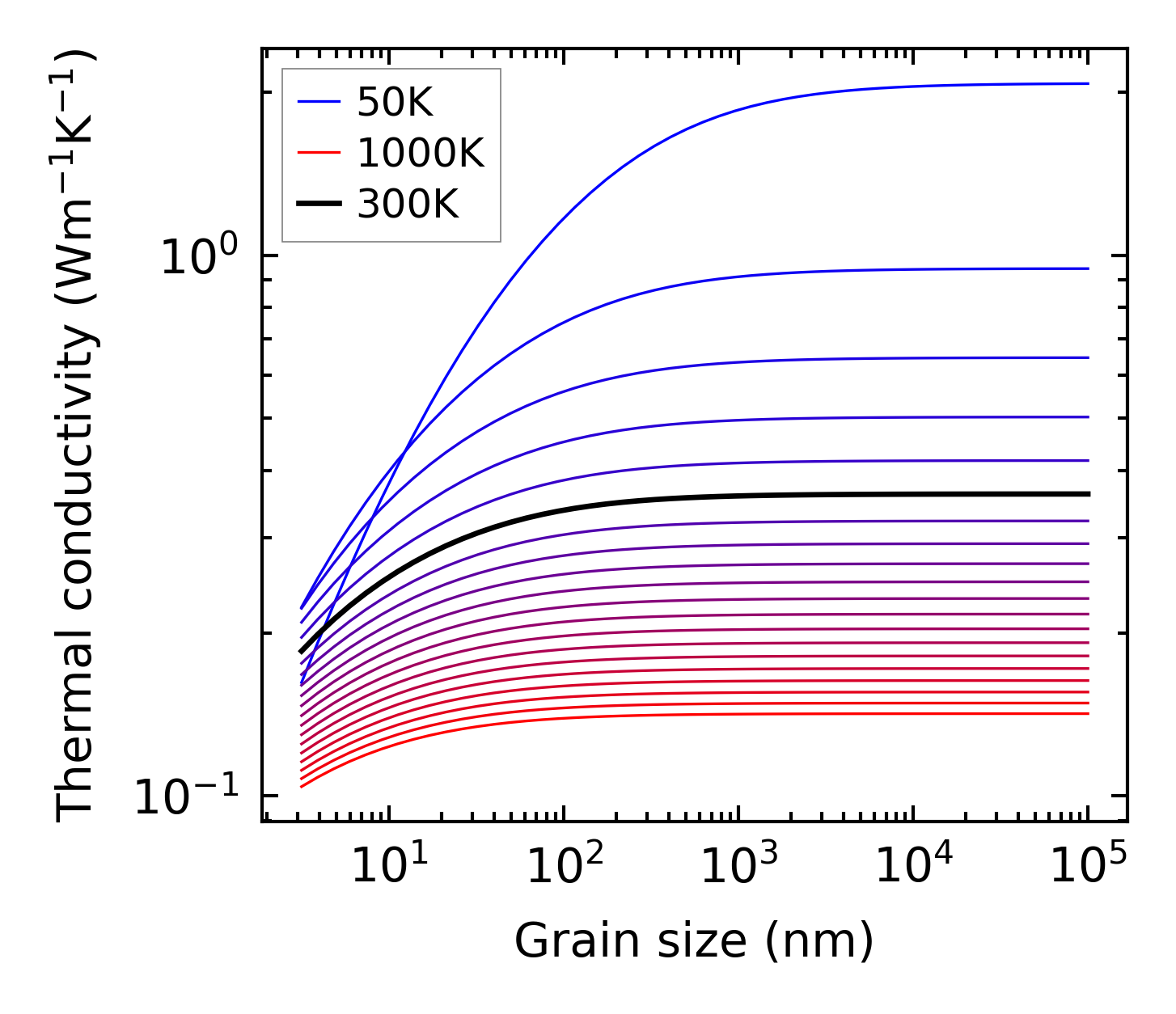

../../_images/fig_kappa_vs_grain_size4204.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

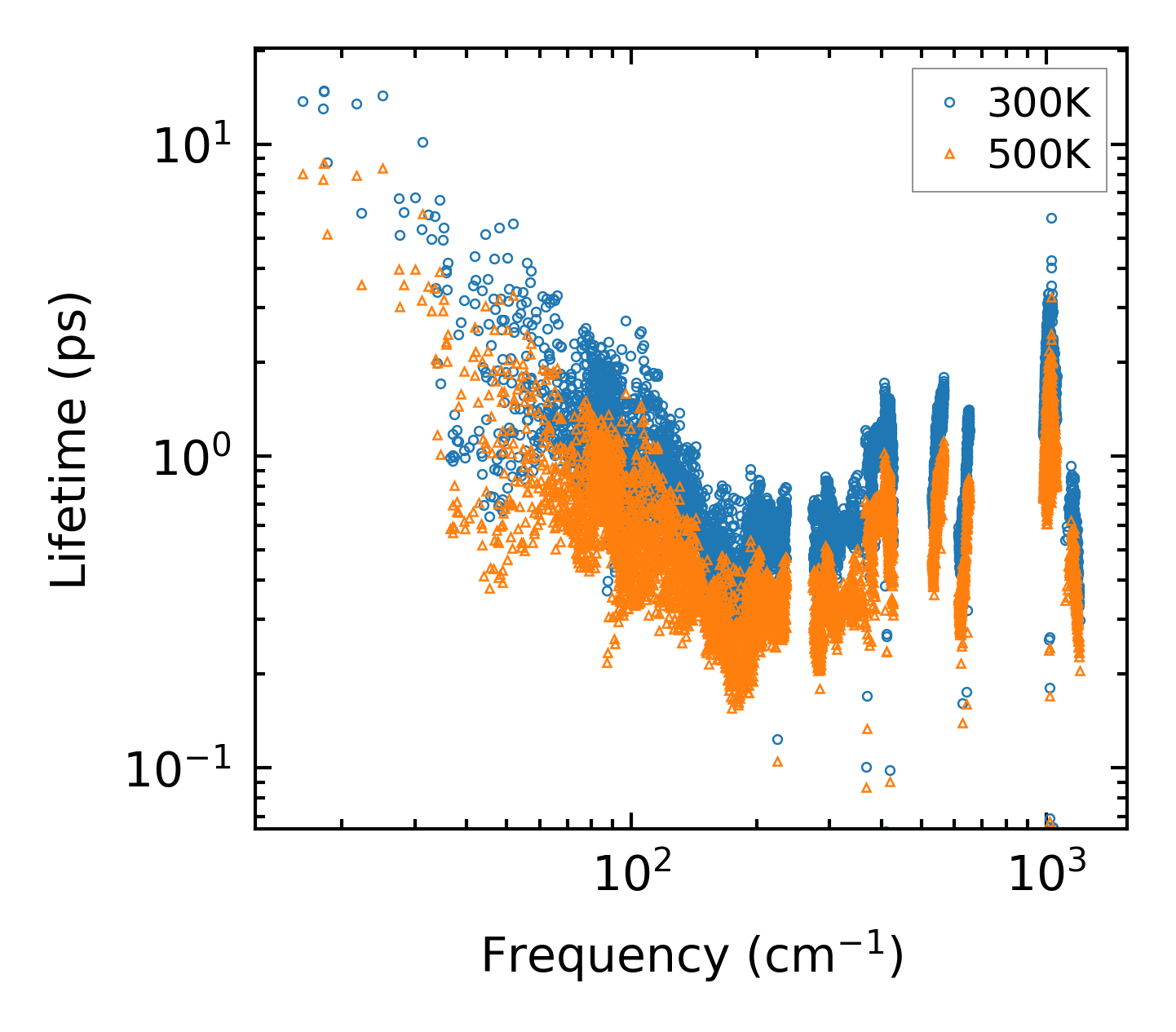

../../_images/fig_lifetime4110.png — (a) Phonon lifetime due to phonon-phonon scattering

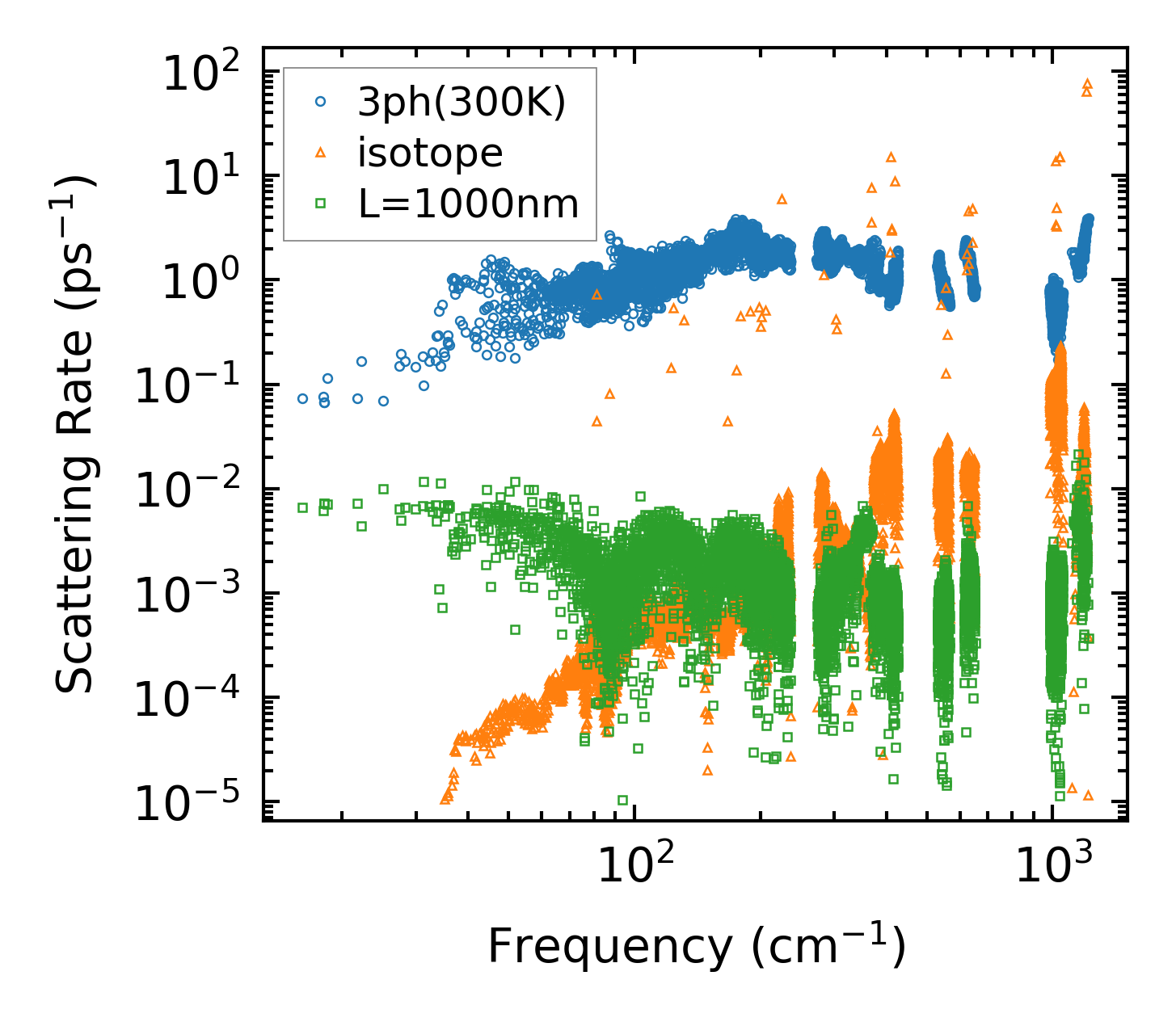

../../_images/fig_scat_rates4109.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

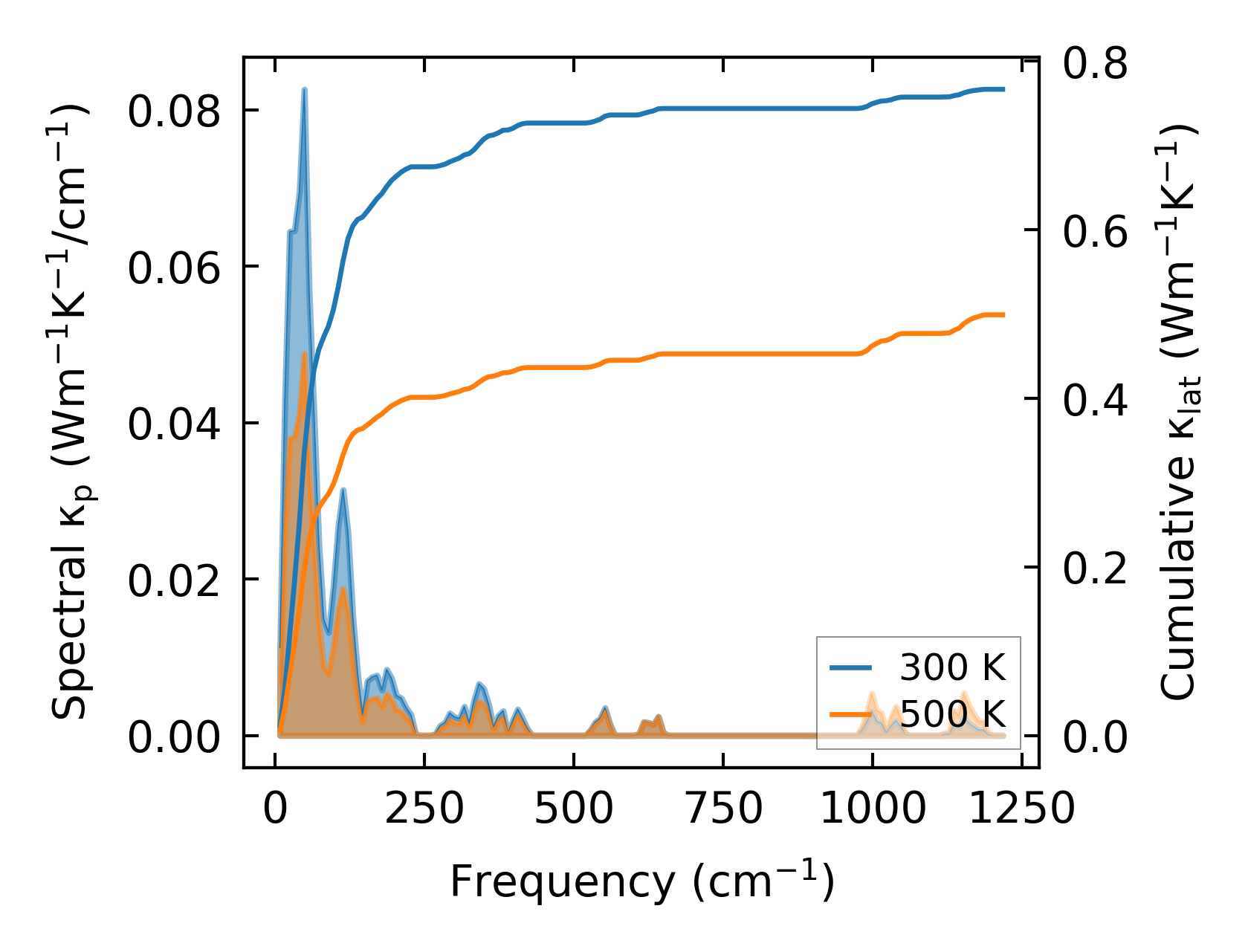

../../_images/fig_cumu_frequency4110.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4109.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

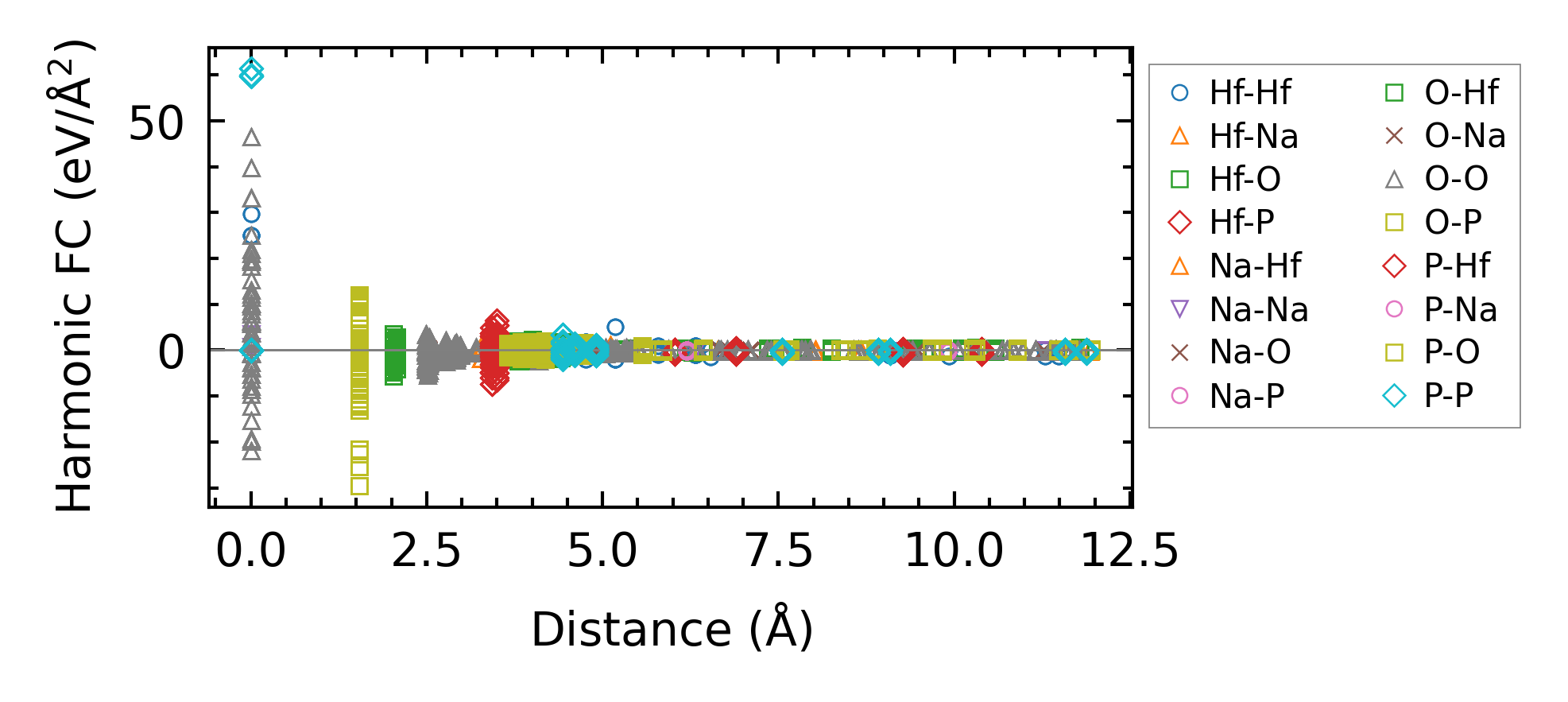

../../_images/fig_fc210039.png — (a) Force constants w.r.t atomic distance

Summary

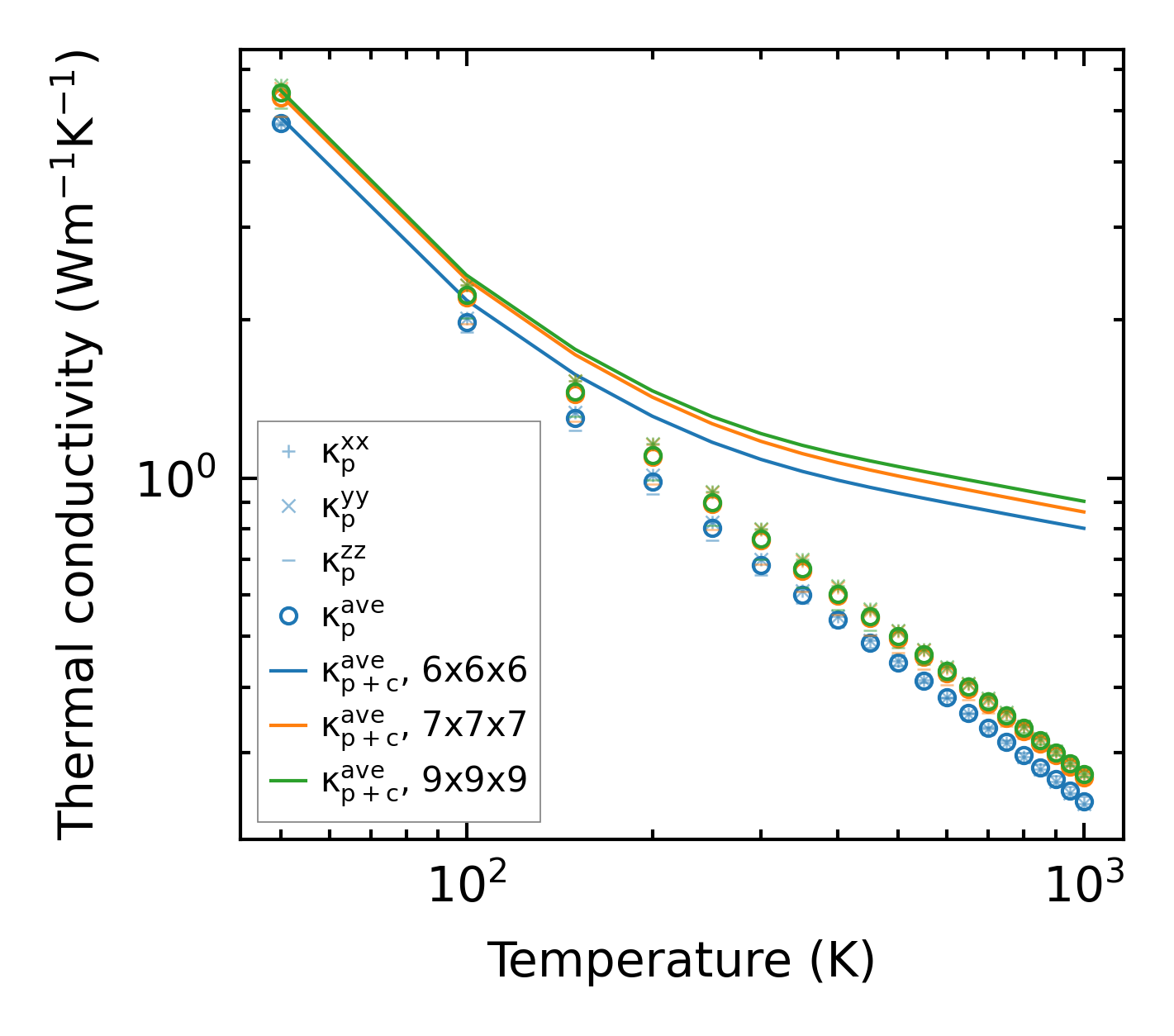

../../_images/fig_kappa7824.png — (a) Temperature-dependent lattice thermal conductivity

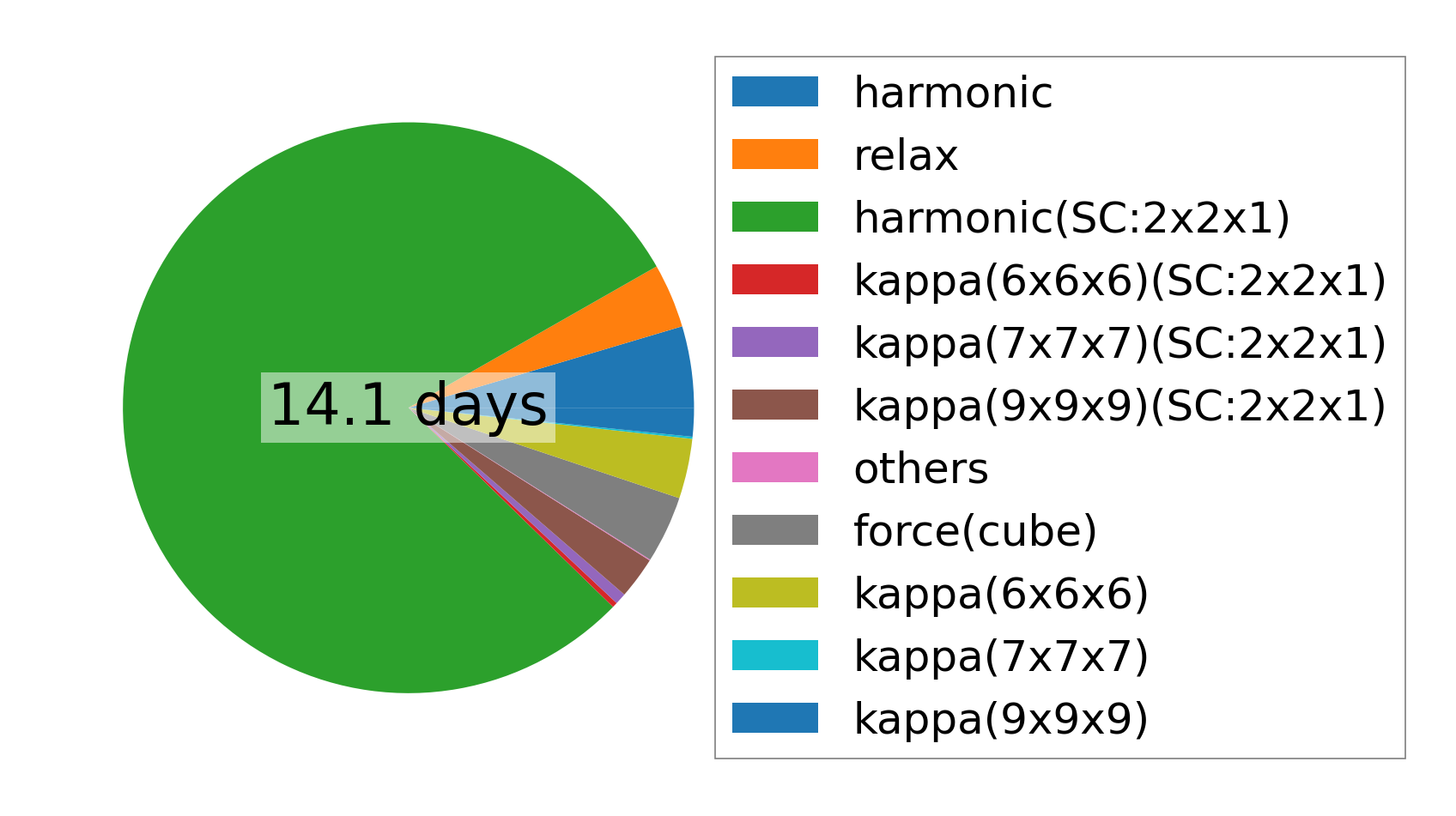

../../_images/fig_times17776.png — (b) Computation time
