mp-1222293/LuBiTe3/anharm

Space group: R3m (160)
Link: Materials Project
Download: mp-1222293.tar.gz

Harmonic properties

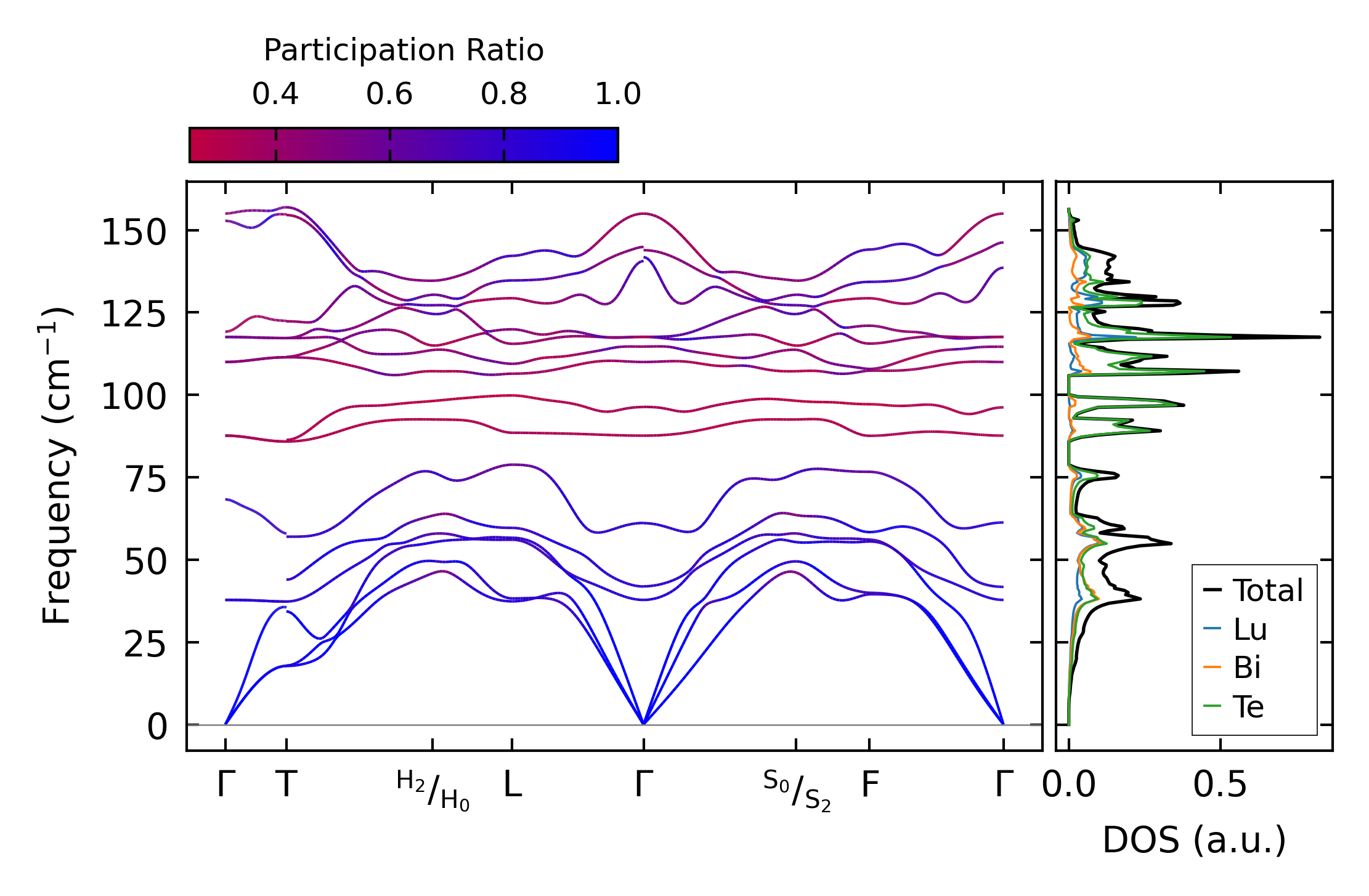

../../_images/fig_bandos_pr15322.png — (a) Phonon dispersion with participation ratio and DOS

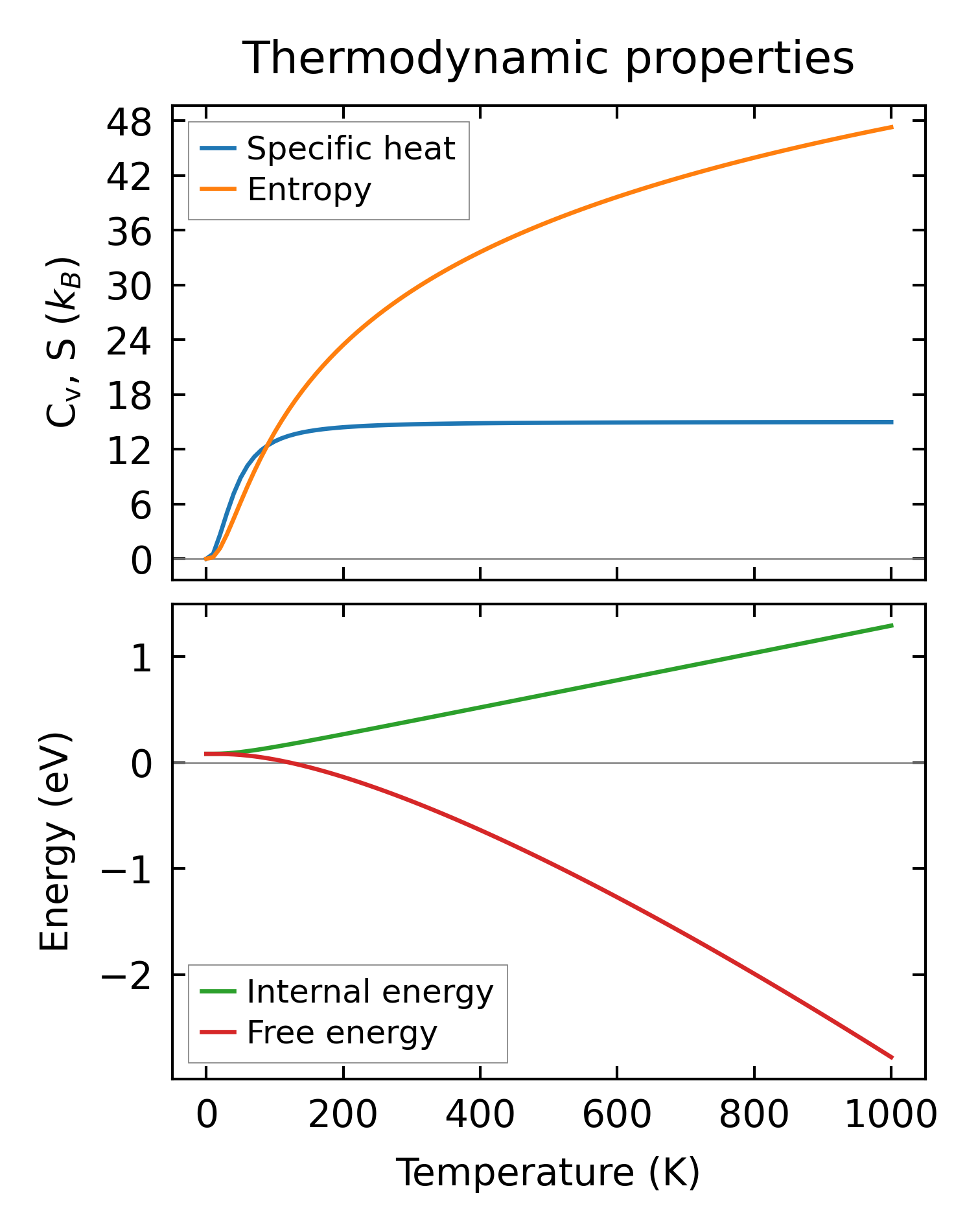

../../_images/fig_thermo15321.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6621.png — (a) Grüneisen parameters

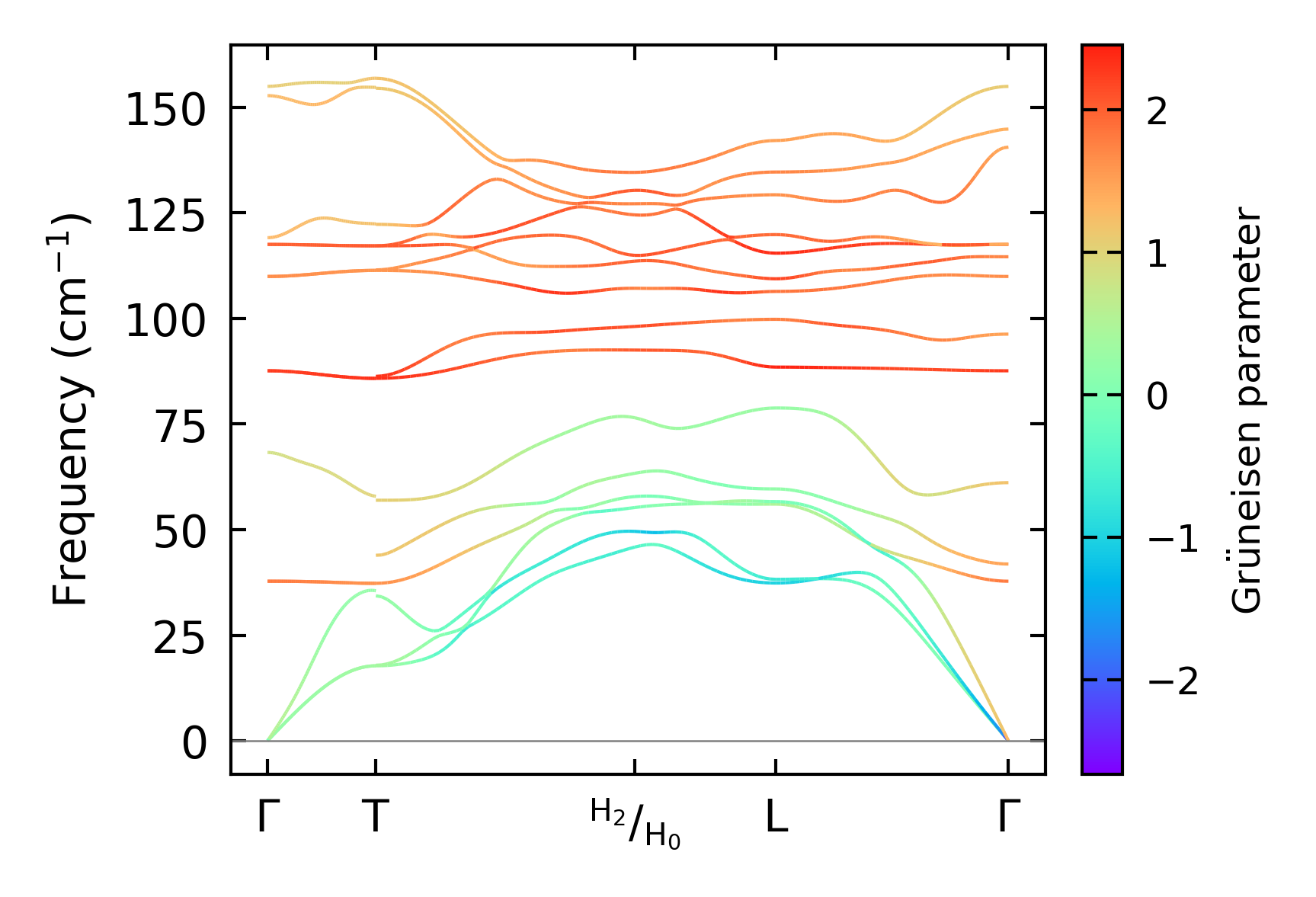

../../_images/fig_gruneisen6621.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 3x3x1

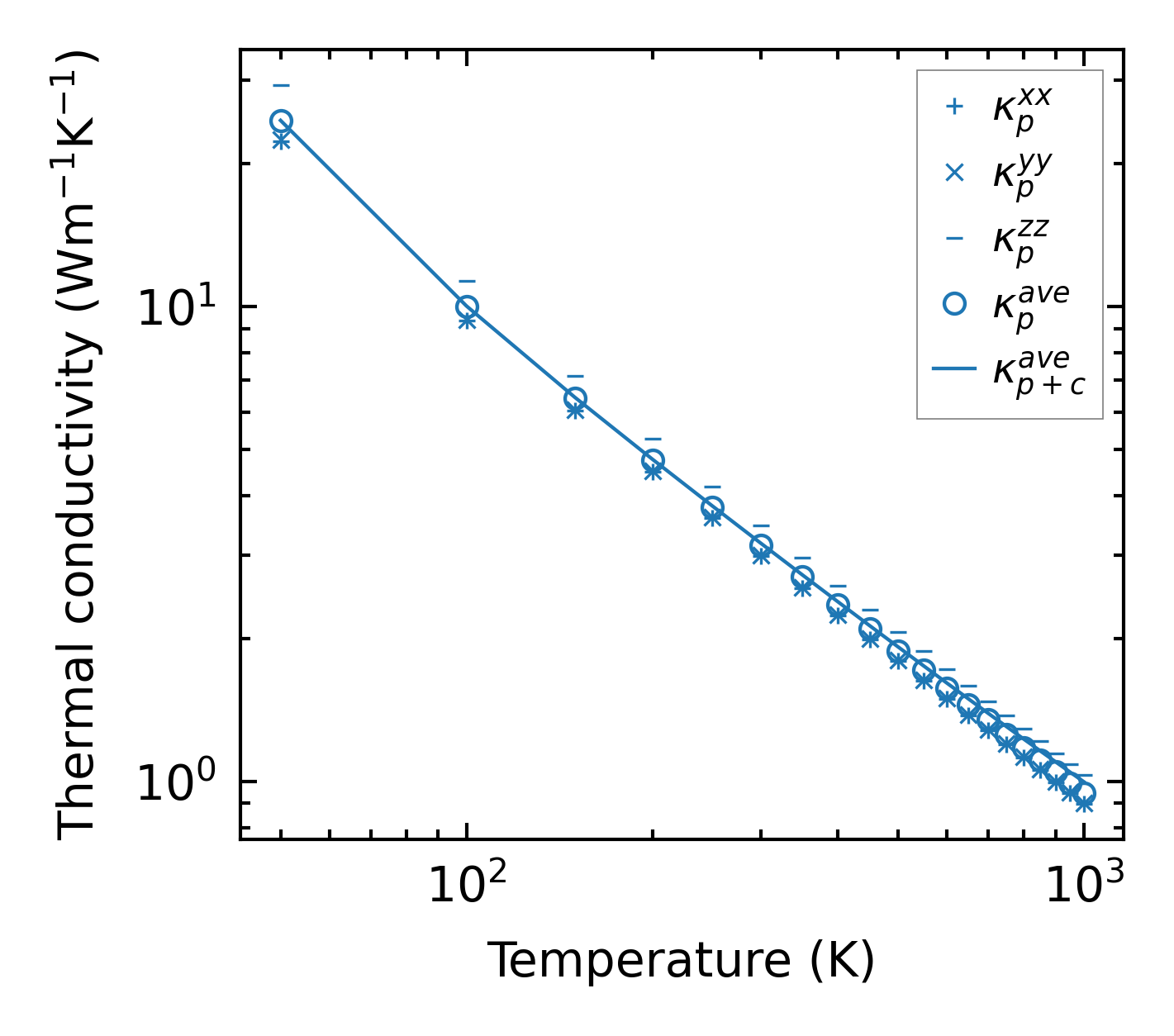

../../_images/fig_kappa12466.png — (a) Temperature-dependent lattice thermal conductivity

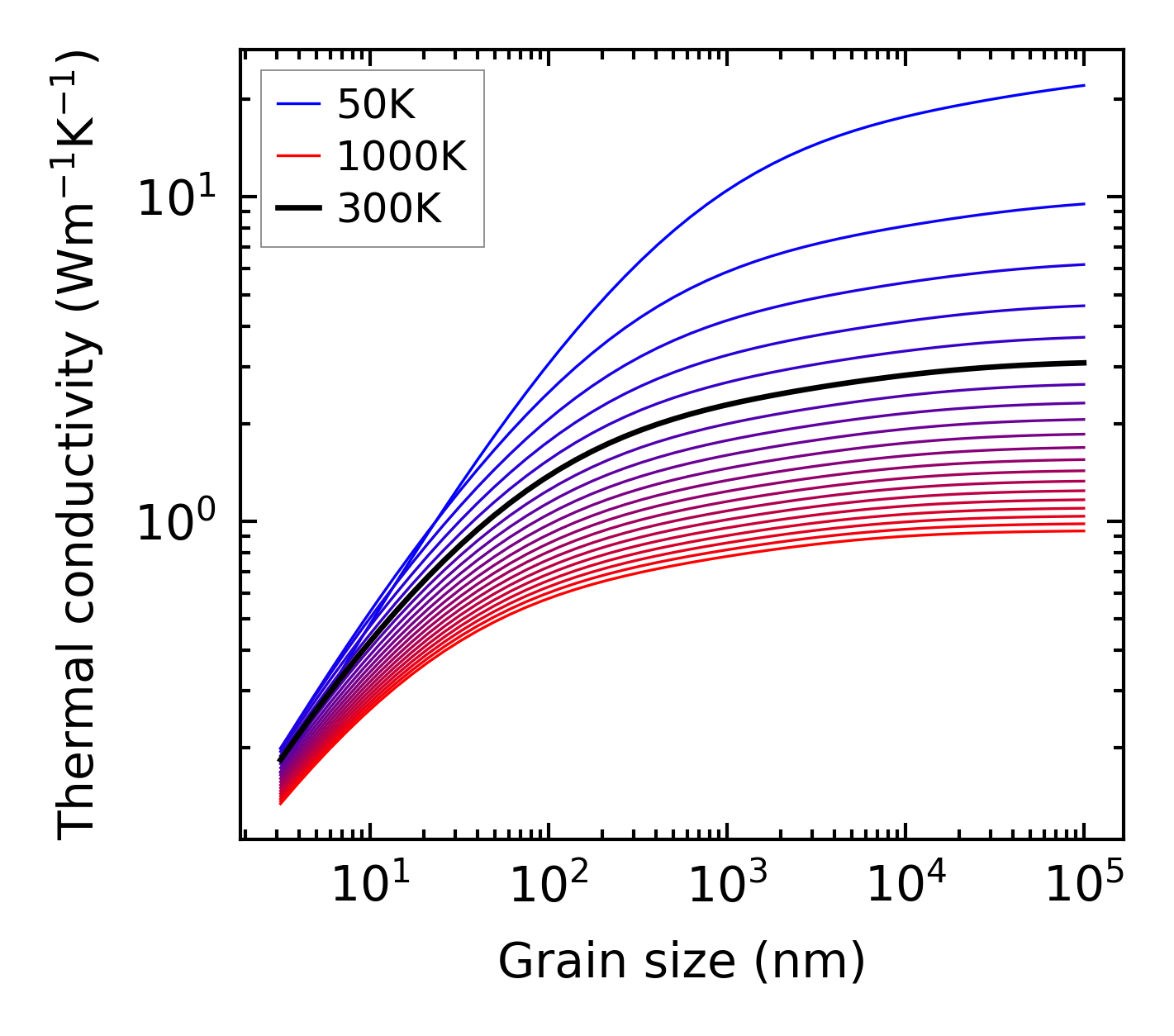

../../_images/fig_kappa_vs_grain_size6699.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

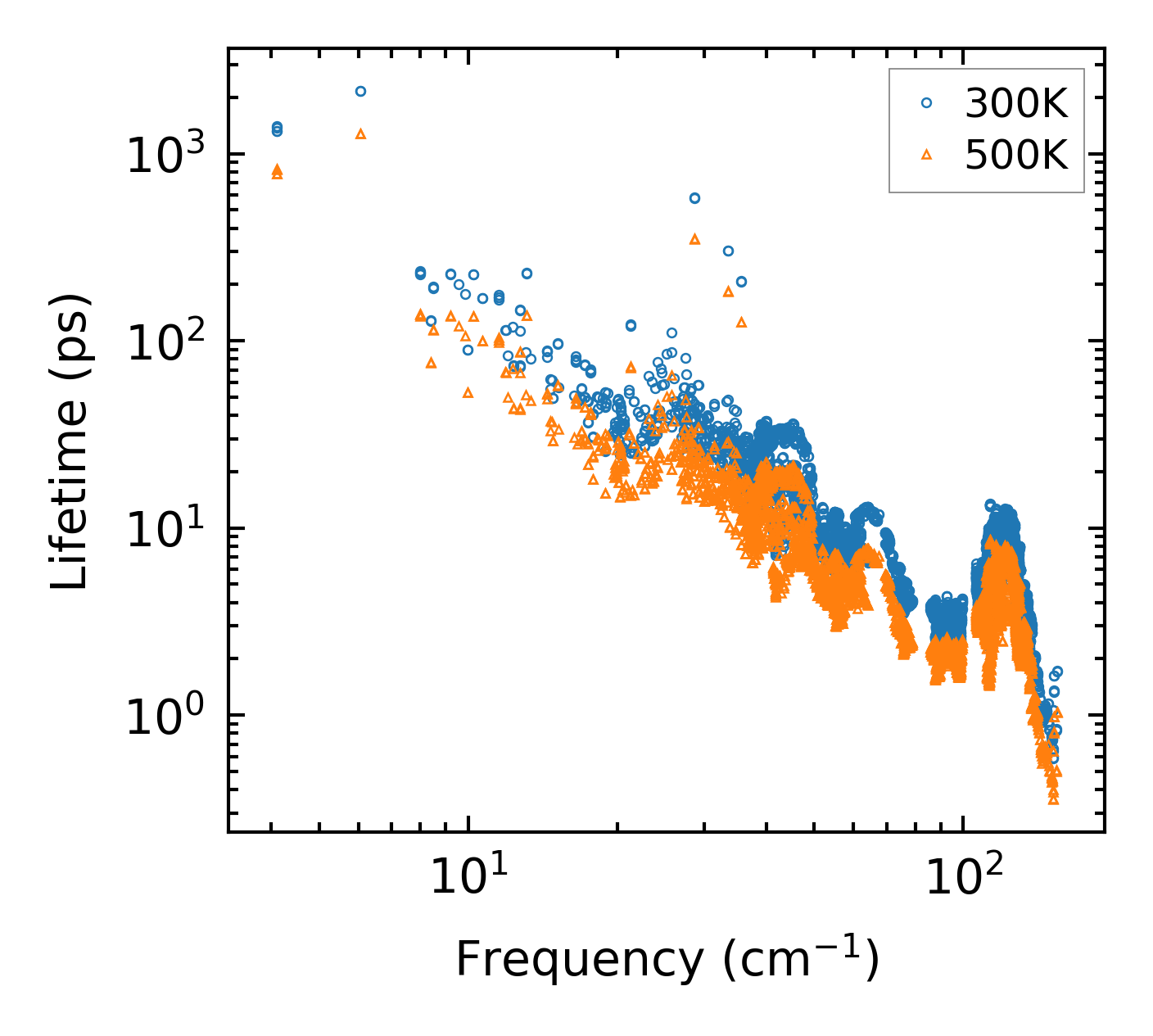

../../_images/fig_lifetime6555.png — (a) Phonon lifetime due to phonon-phonon scattering

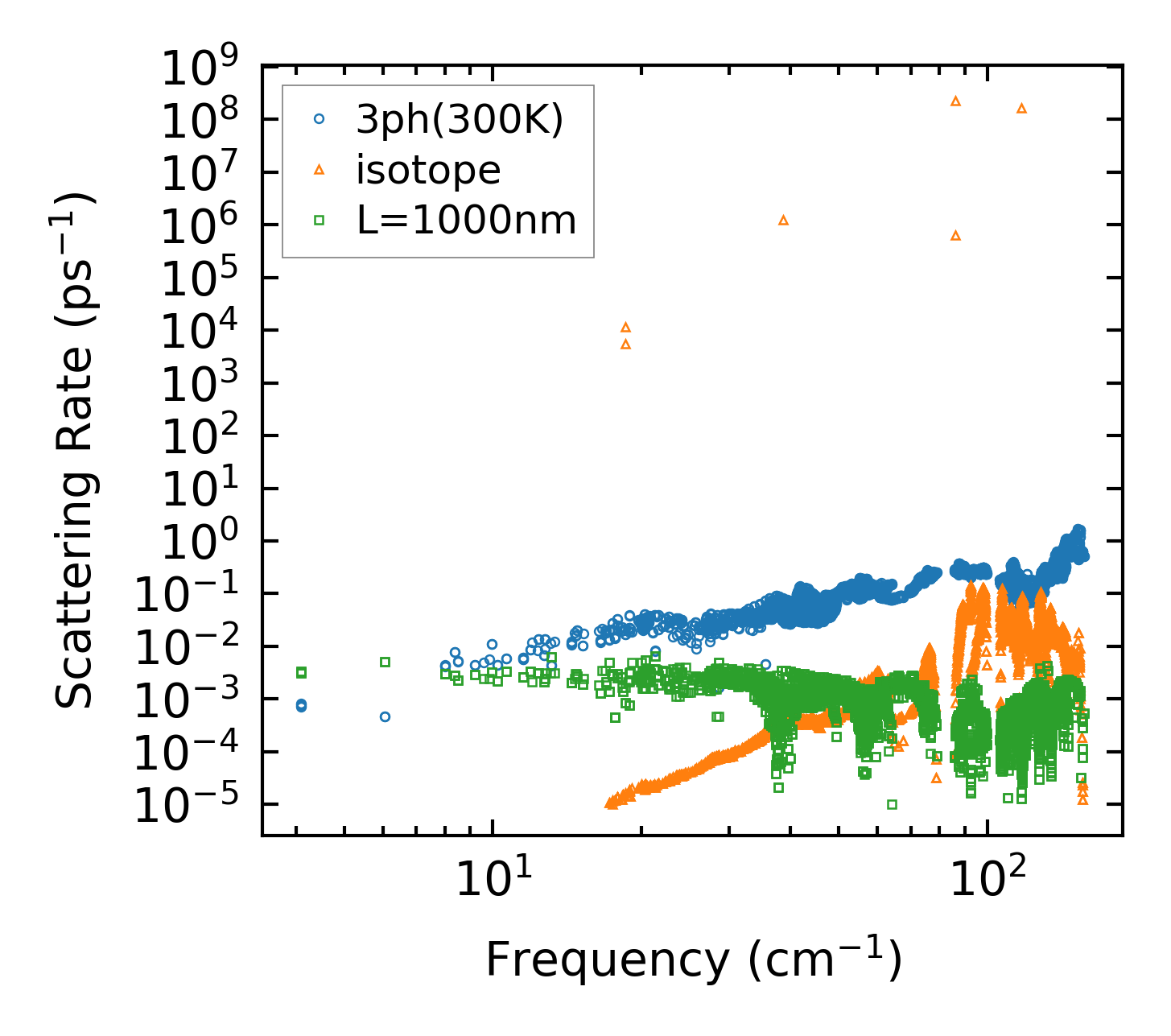

../../_images/fig_scat_rates6554.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

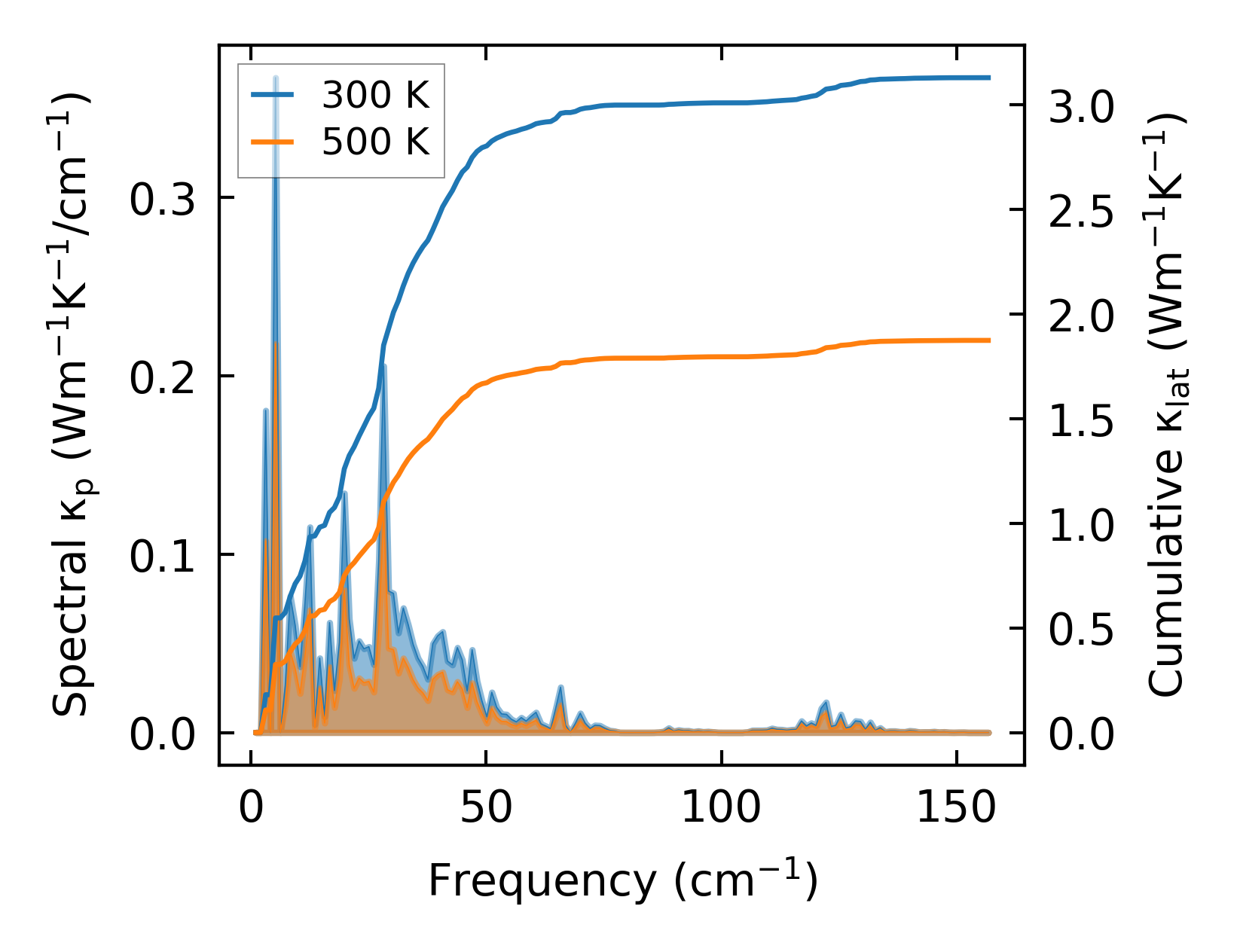

../../_images/fig_cumu_frequency6555.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

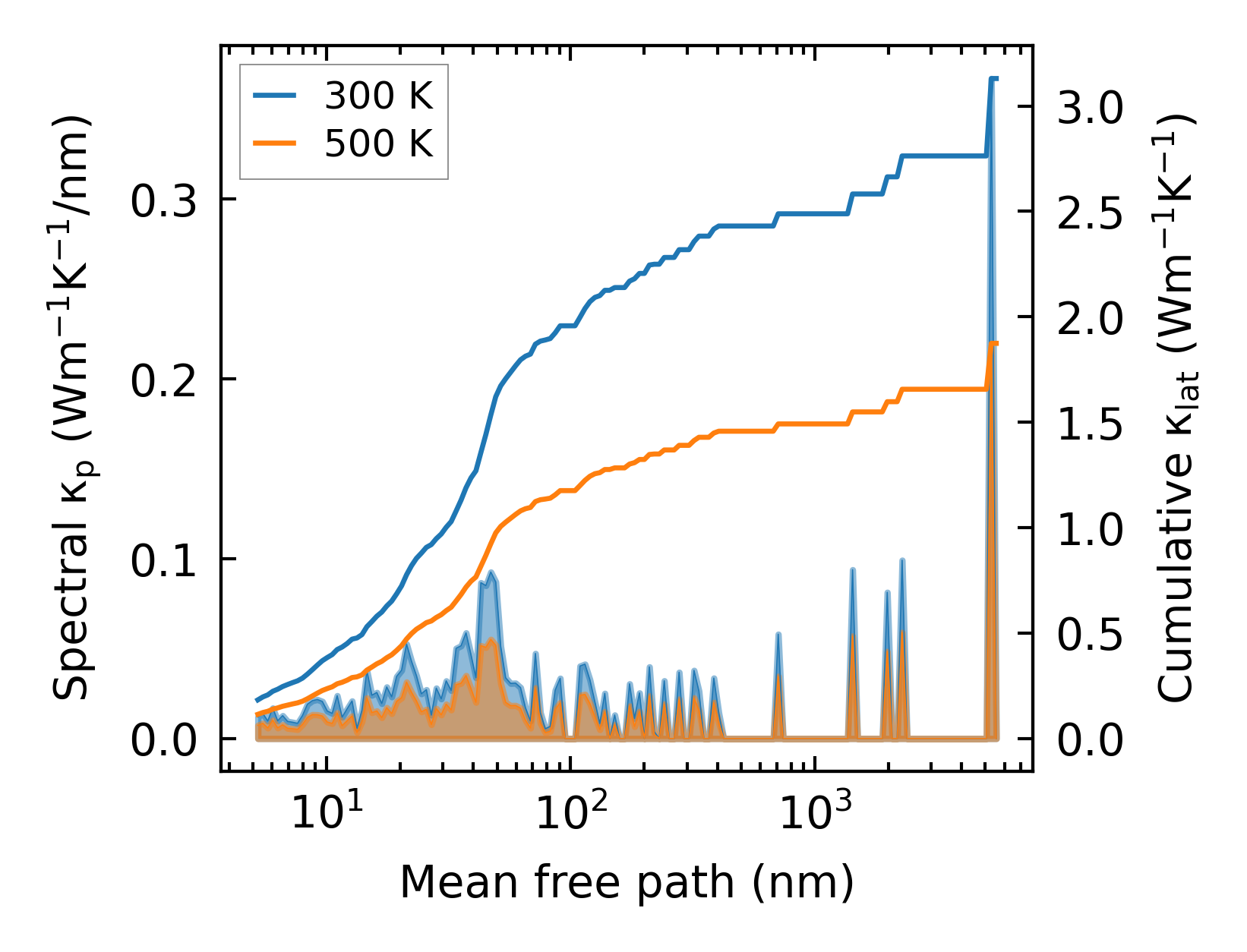

../../_images/fig_cumu_mfp6554.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

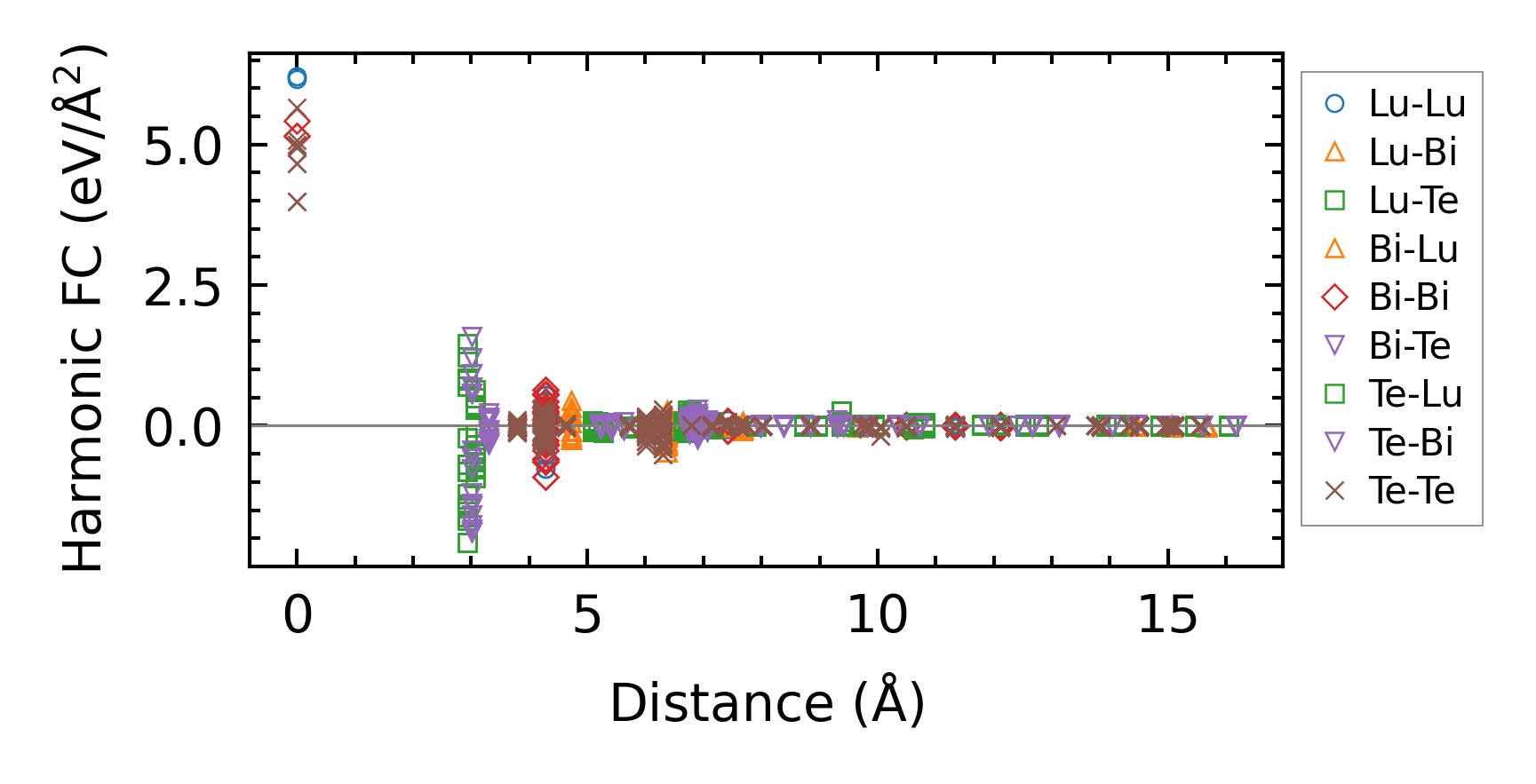

../../_images/fig_fc214928.png — (a) Force constants w.r.t atomic distance

Summary

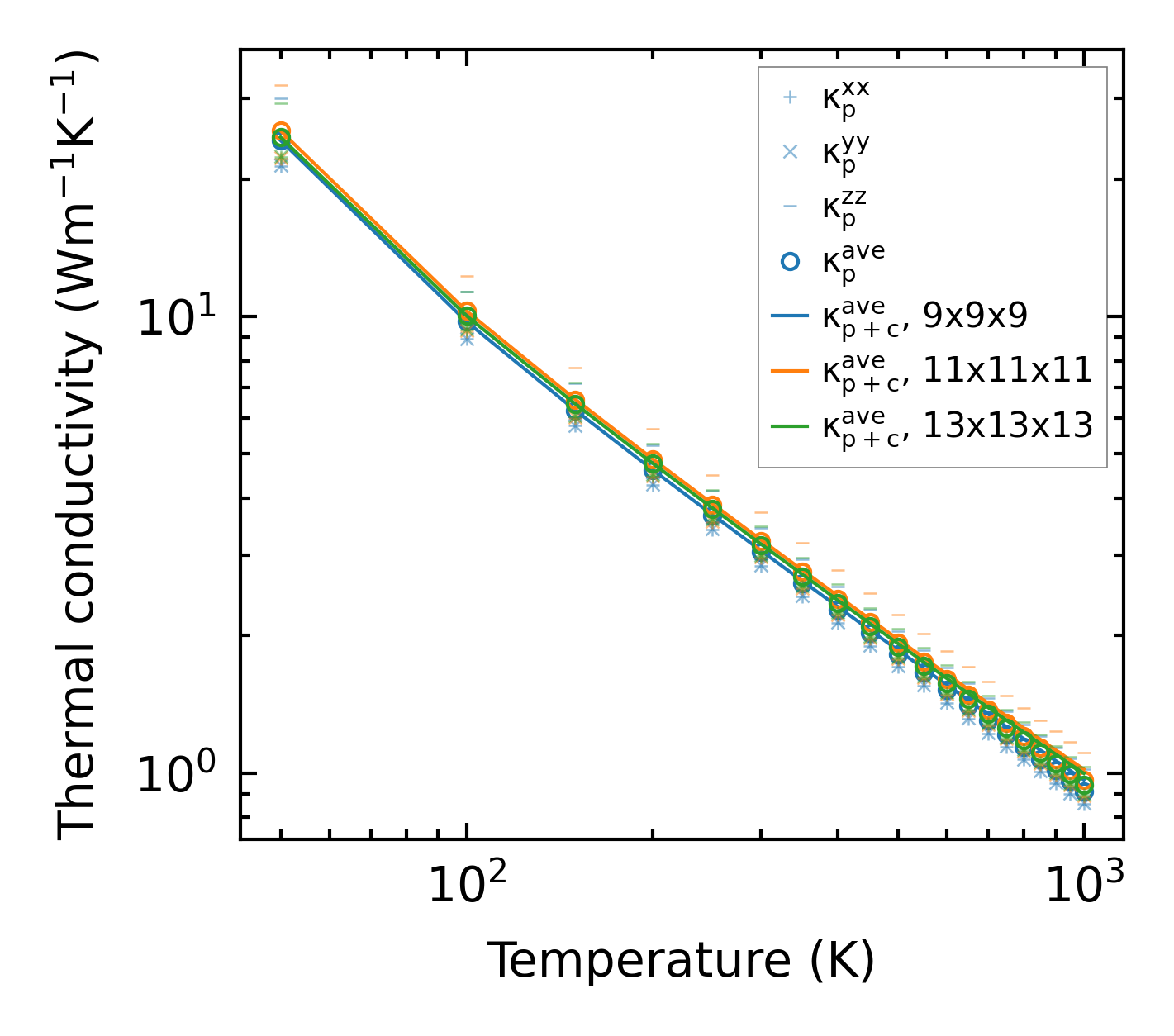

../../_images/fig_kappa12467.png — (a) Temperature-dependent lattice thermal conductivity

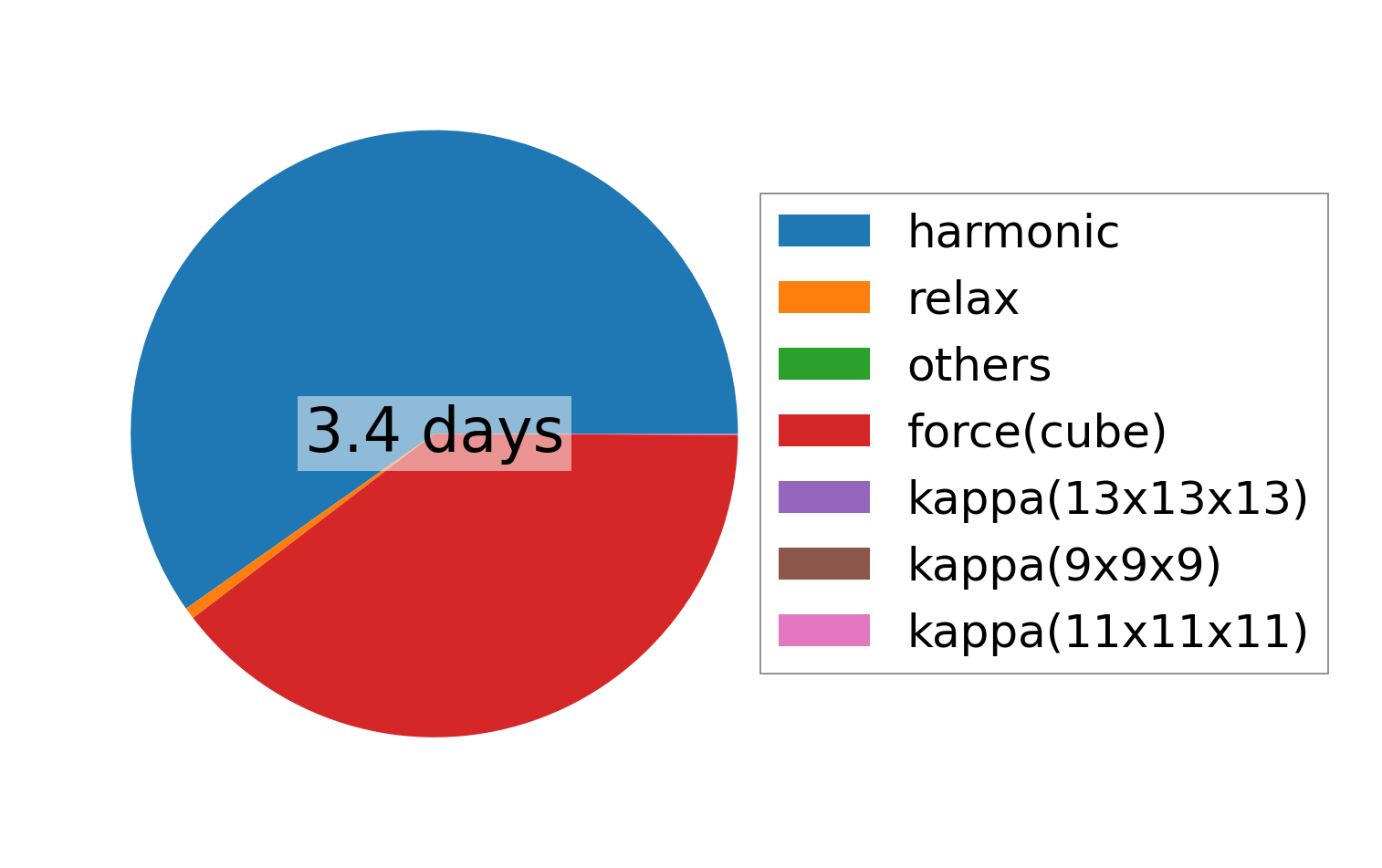

../../_images/fig_times25347.png — (b) Computation time
