mp-1070852/YbHCl/anharm

Space group: P4/nmm (129)
Link: Materials Project
Download: mp-1070852.tar.gz

Harmonic properties

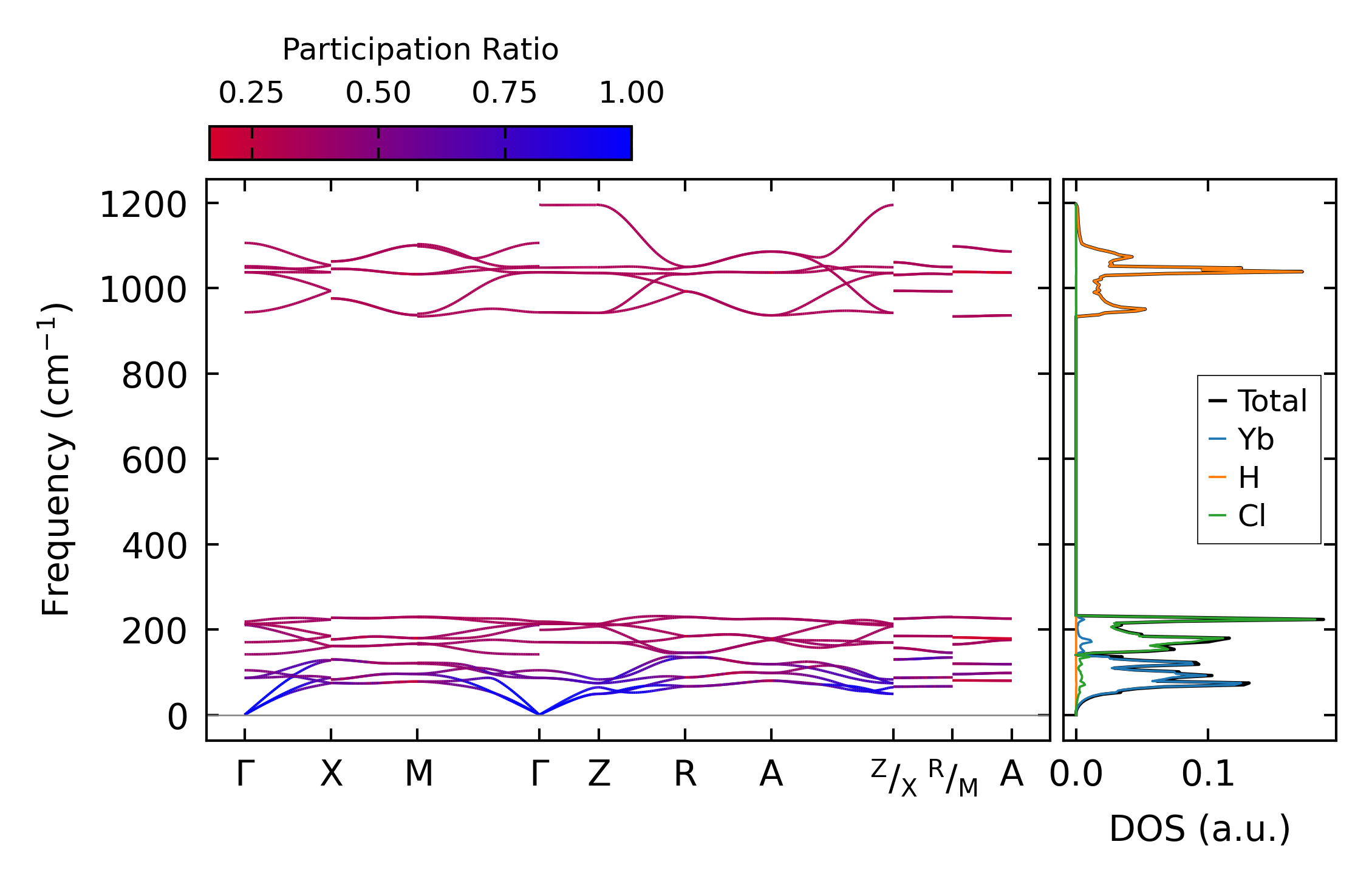

../../_images/fig_bandos_pr17132.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo17131.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all7491.png — (a) Grüneisen parameters

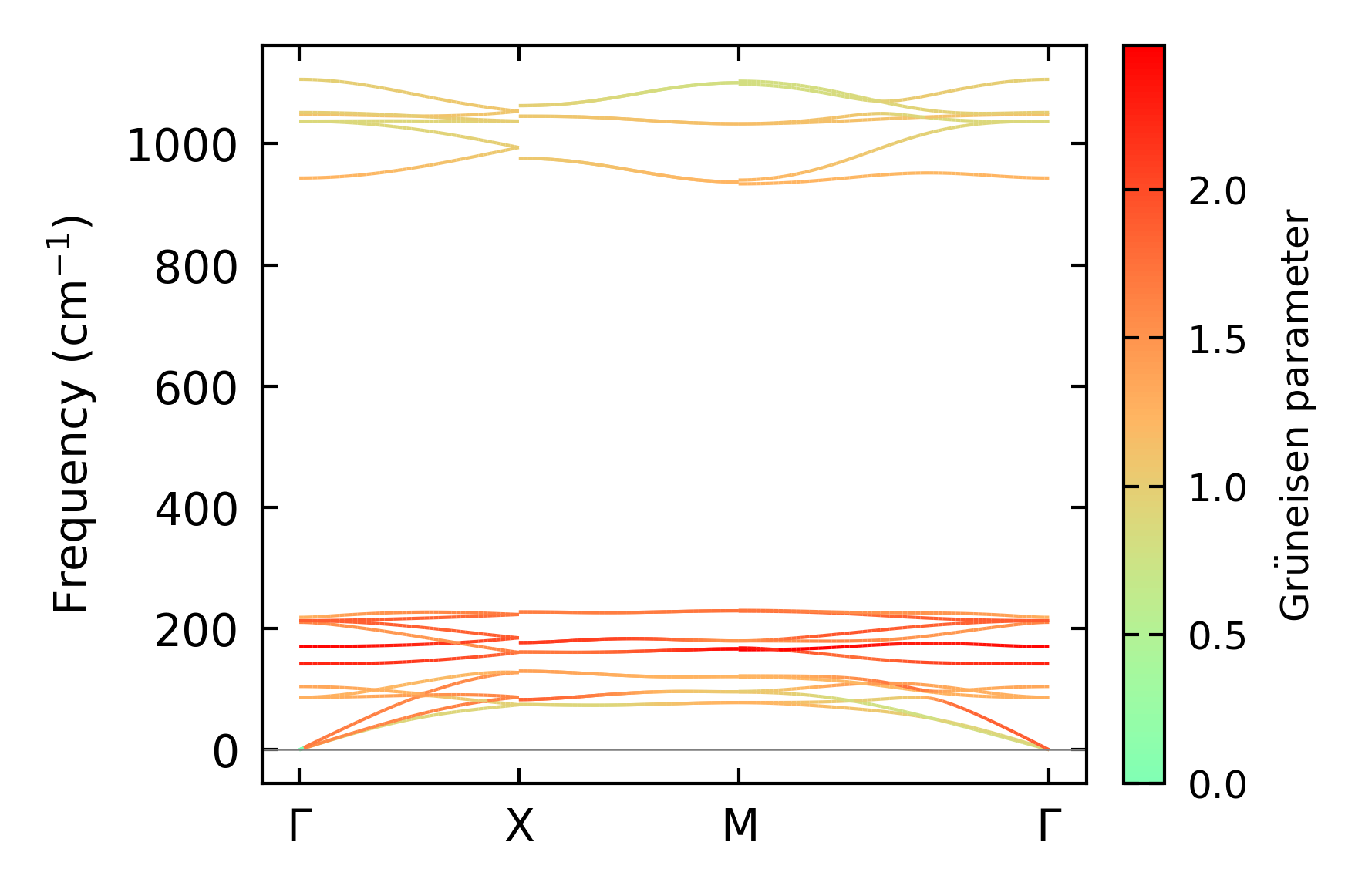

../../_images/fig_gruneisen7491.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 19x19x11, supercell: 3x3x2

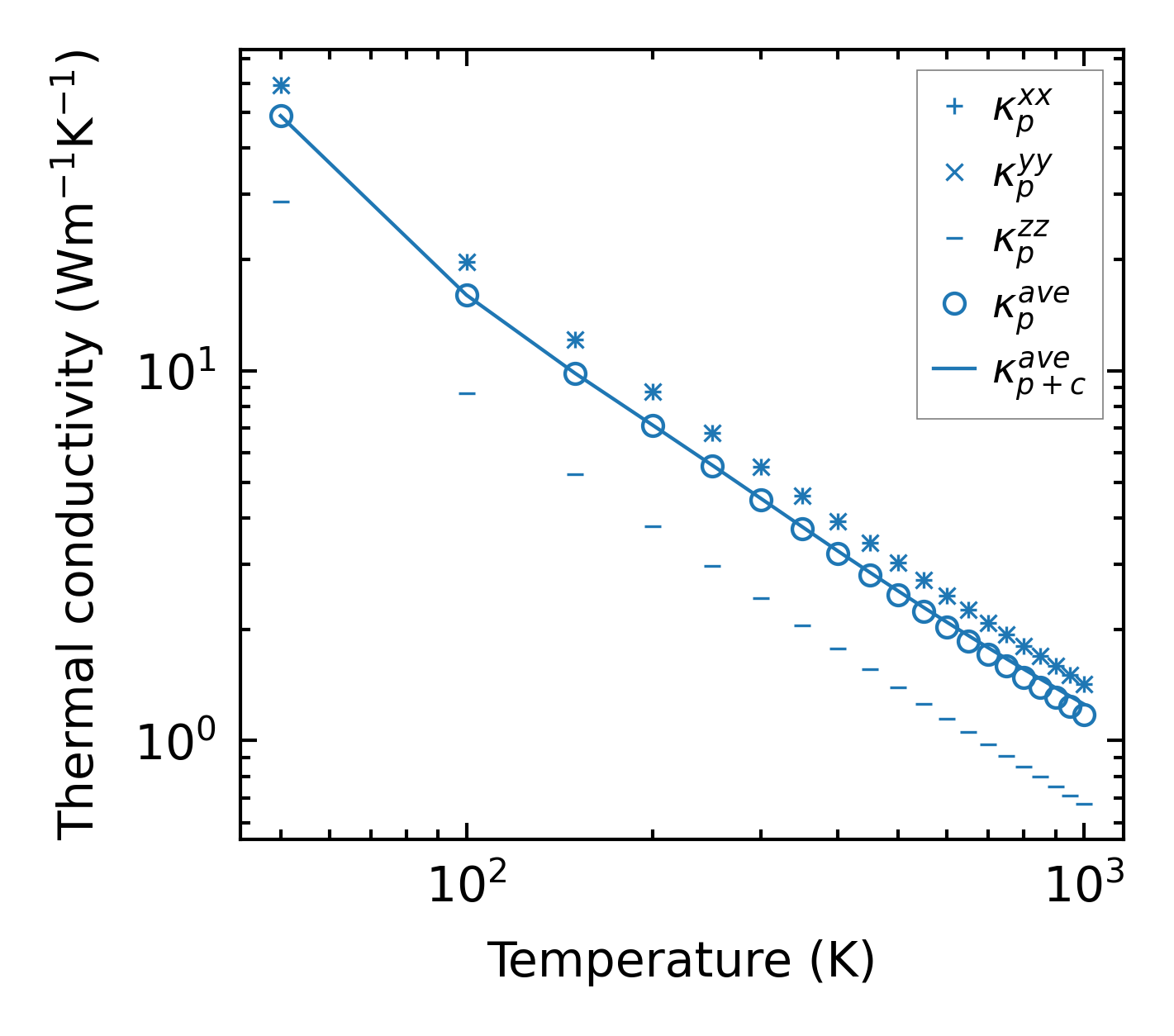

../../_images/fig_kappa14132.png — (a) Temperature-dependent lattice thermal conductivity

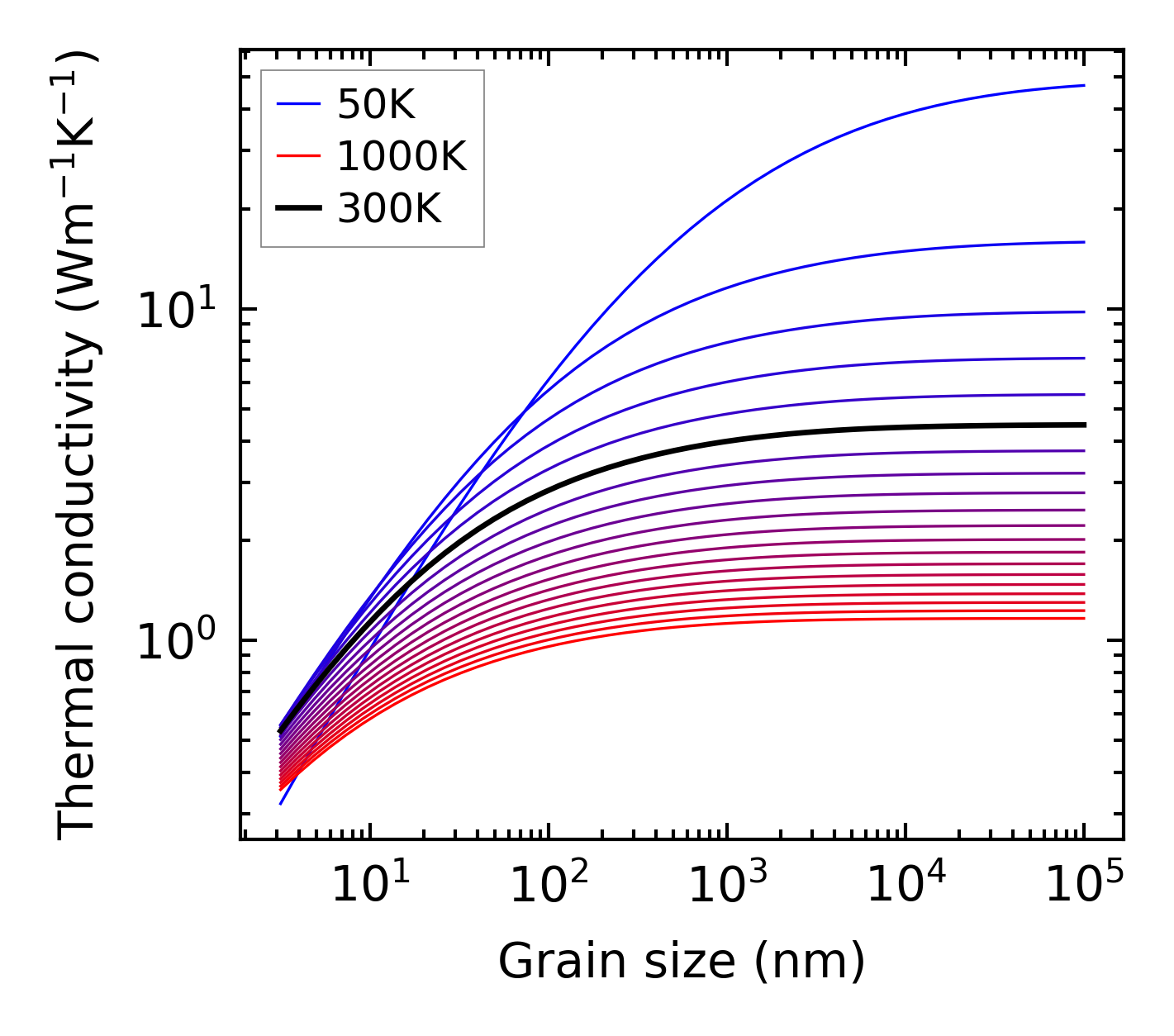

../../_images/fig_kappa_vs_grain_size7581.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

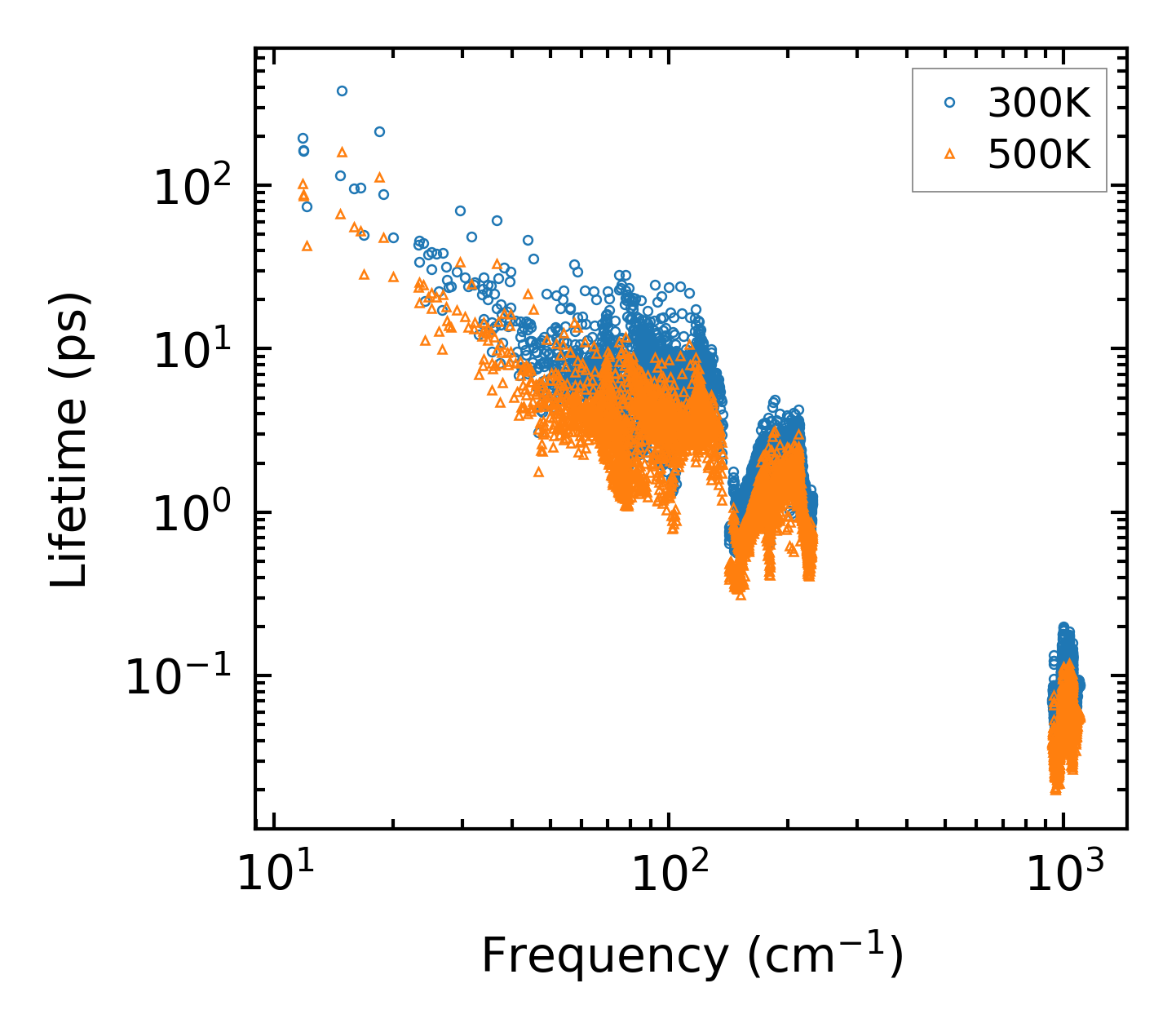

../../_images/fig_lifetime7424.png — (a) Phonon lifetime due to phonon-phonon scattering

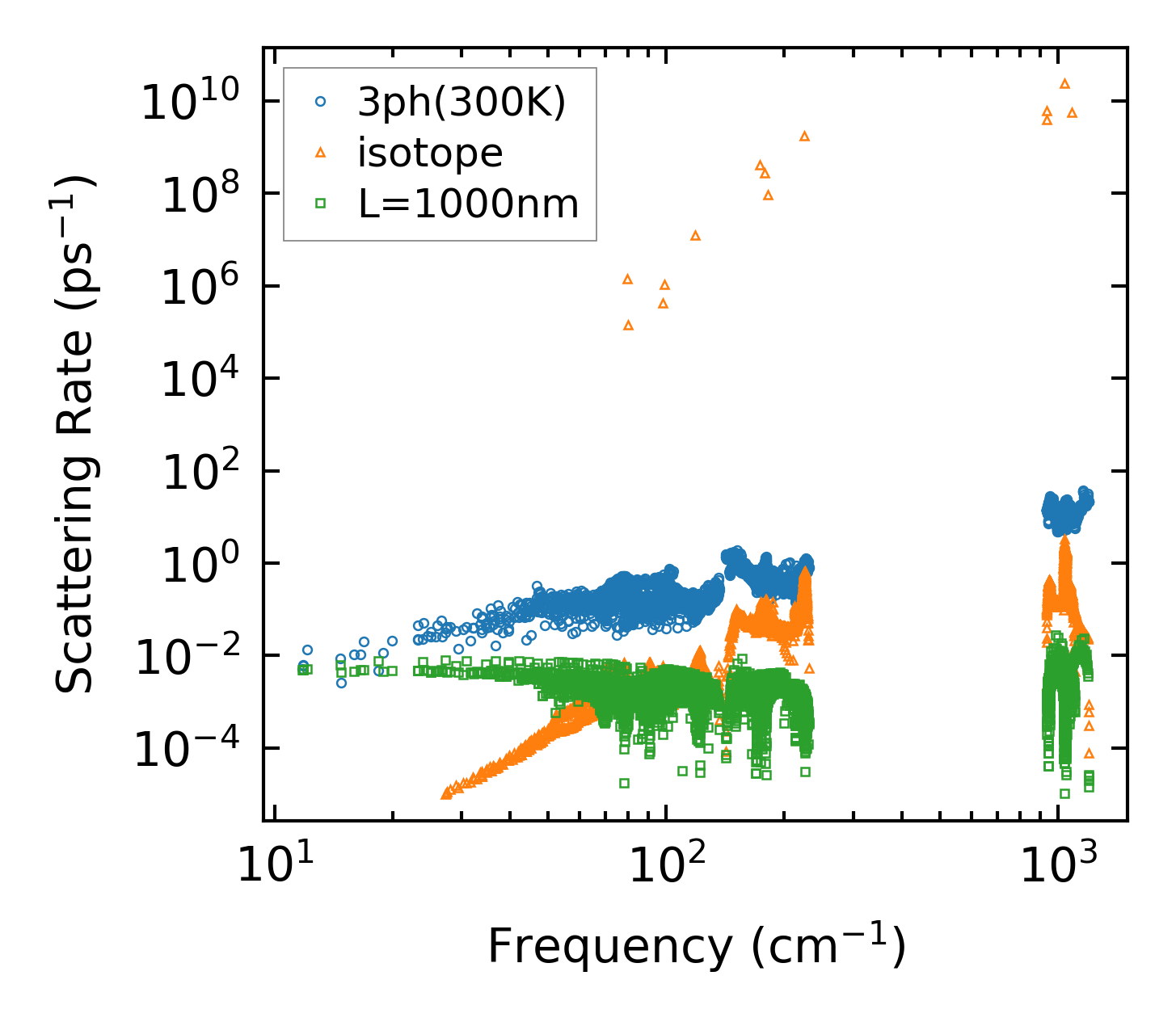

../../_images/fig_scat_rates7423.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

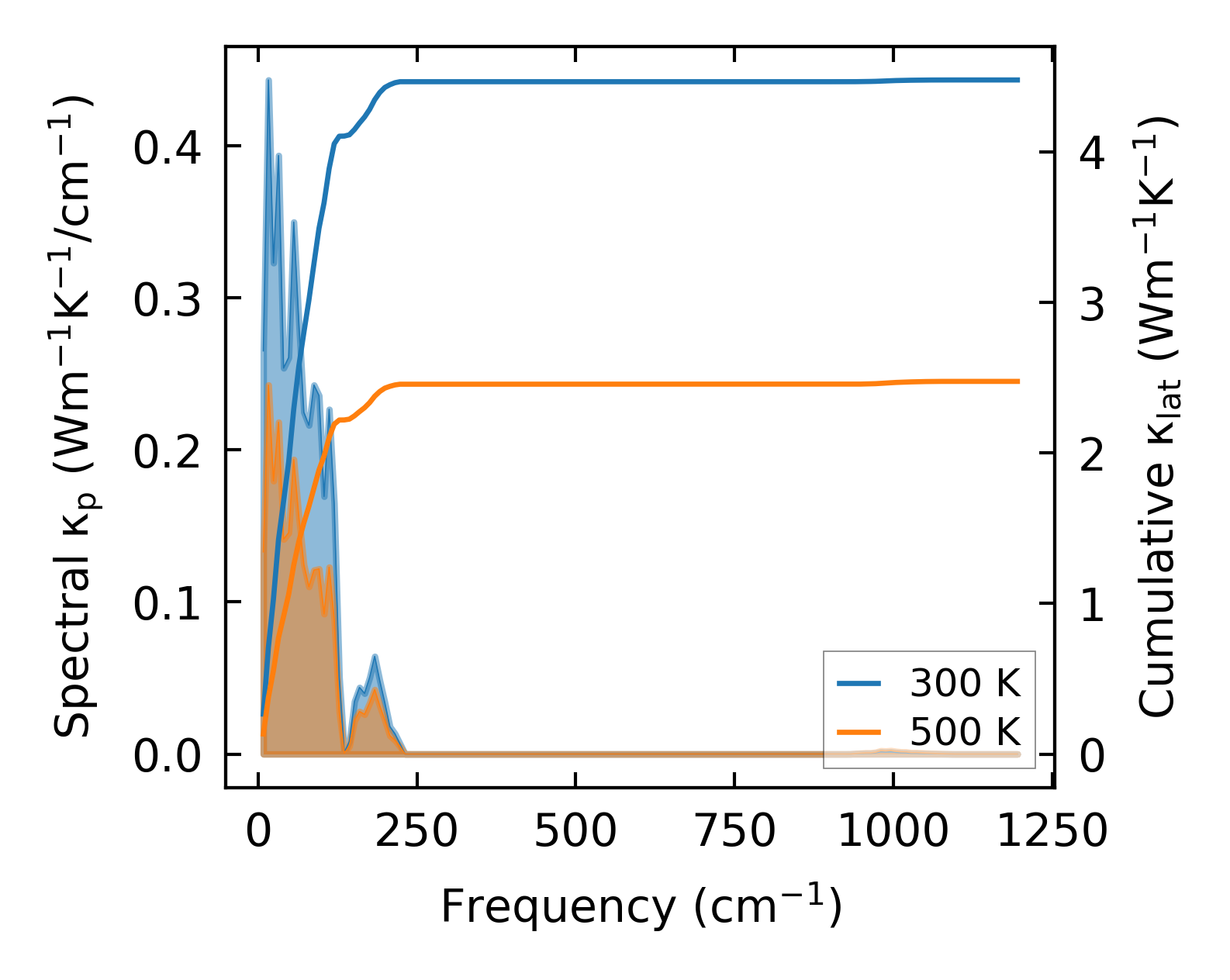

../../_images/fig_cumu_frequency7424.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp7423.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc216676.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa14133.png — (a) Temperature-dependent lattice thermal conductivity

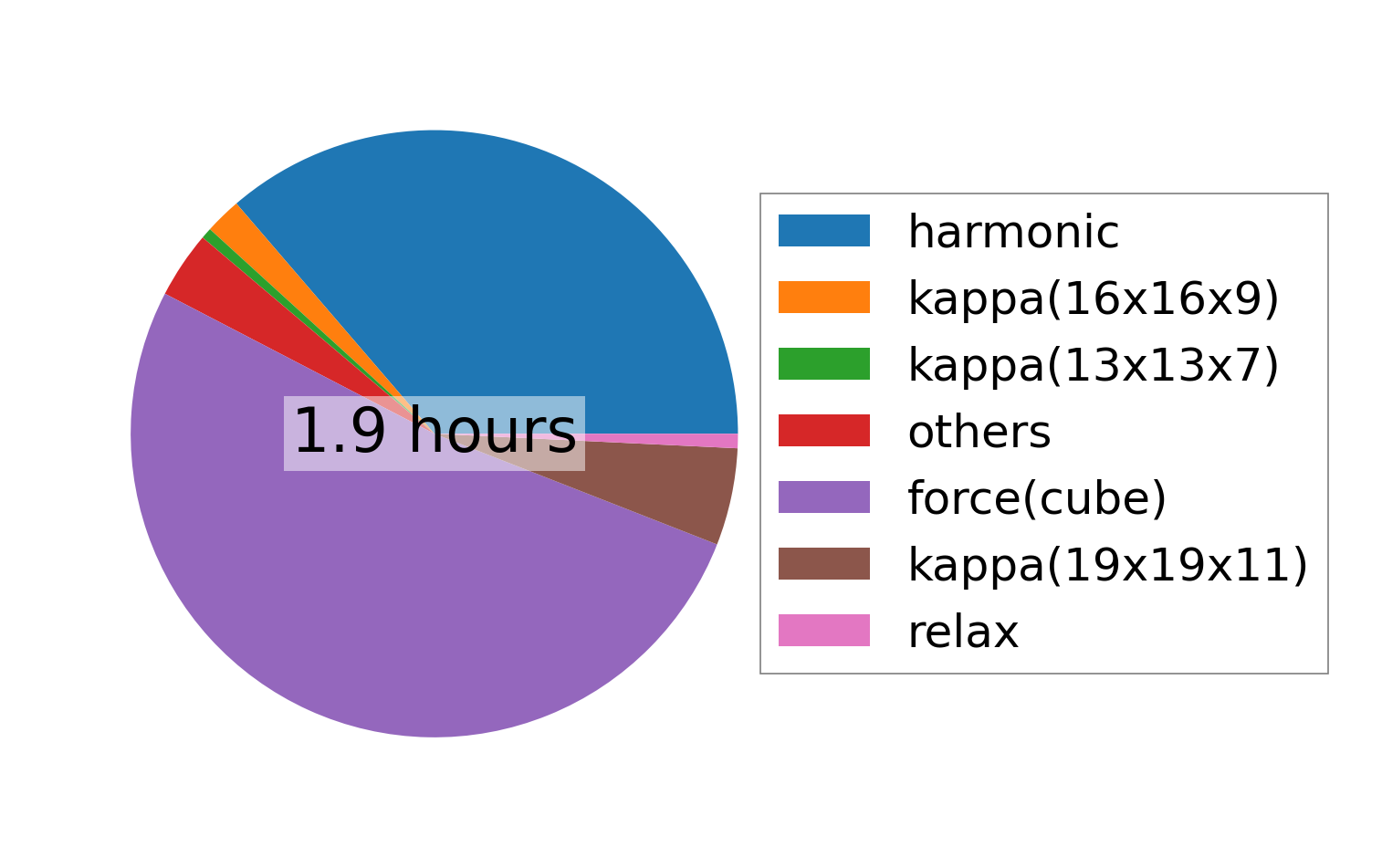

../../_images/fig_times27956.png — (b) Computation time
