mp-1070498-2/Rb2Te2Pt/anharm

Space group: Immm (71)
Link: Materials Project
Download: mp-1070498-2.tar.gz

Equation of state

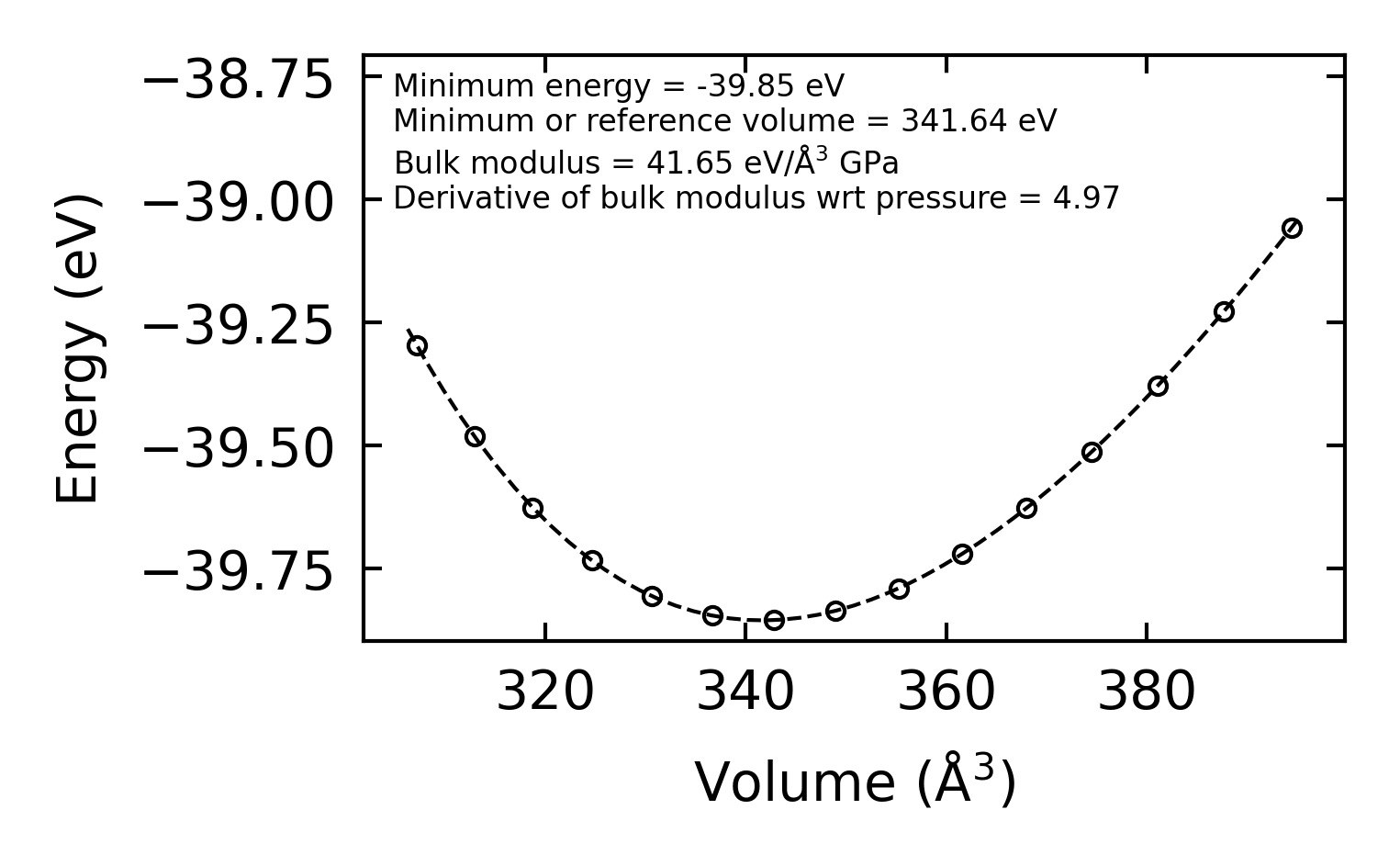

../../_images/fig_bm7816.png — (a) Equation of state

Harmonic properties

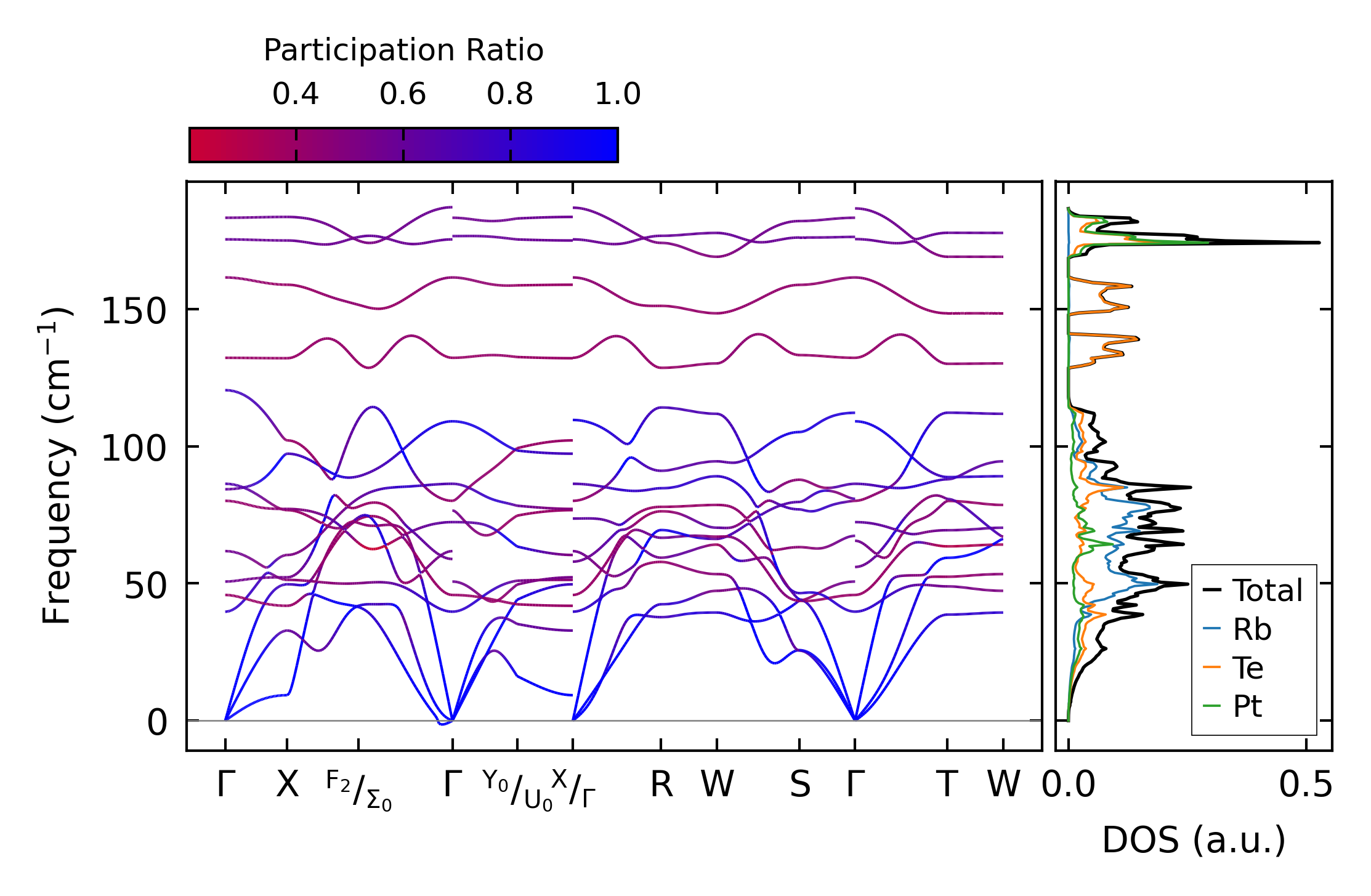

../../_images/fig_bandos_pr17130.png — (a) Phonon dispersion with participation ratio and DOS

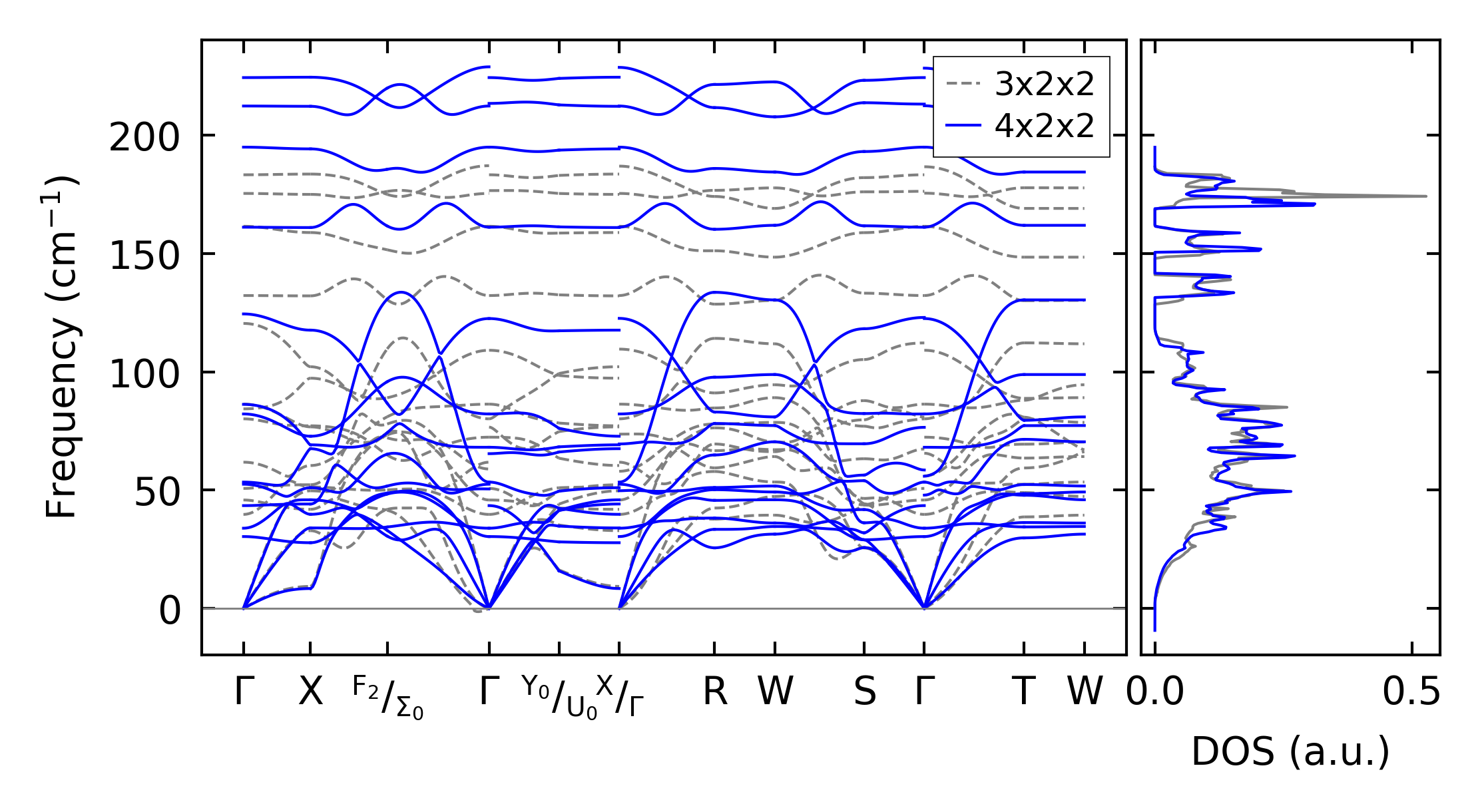

../../_images/fig_bandos21526.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo17129.png — (c) Thermodynamic properties

Grüneisen parameters

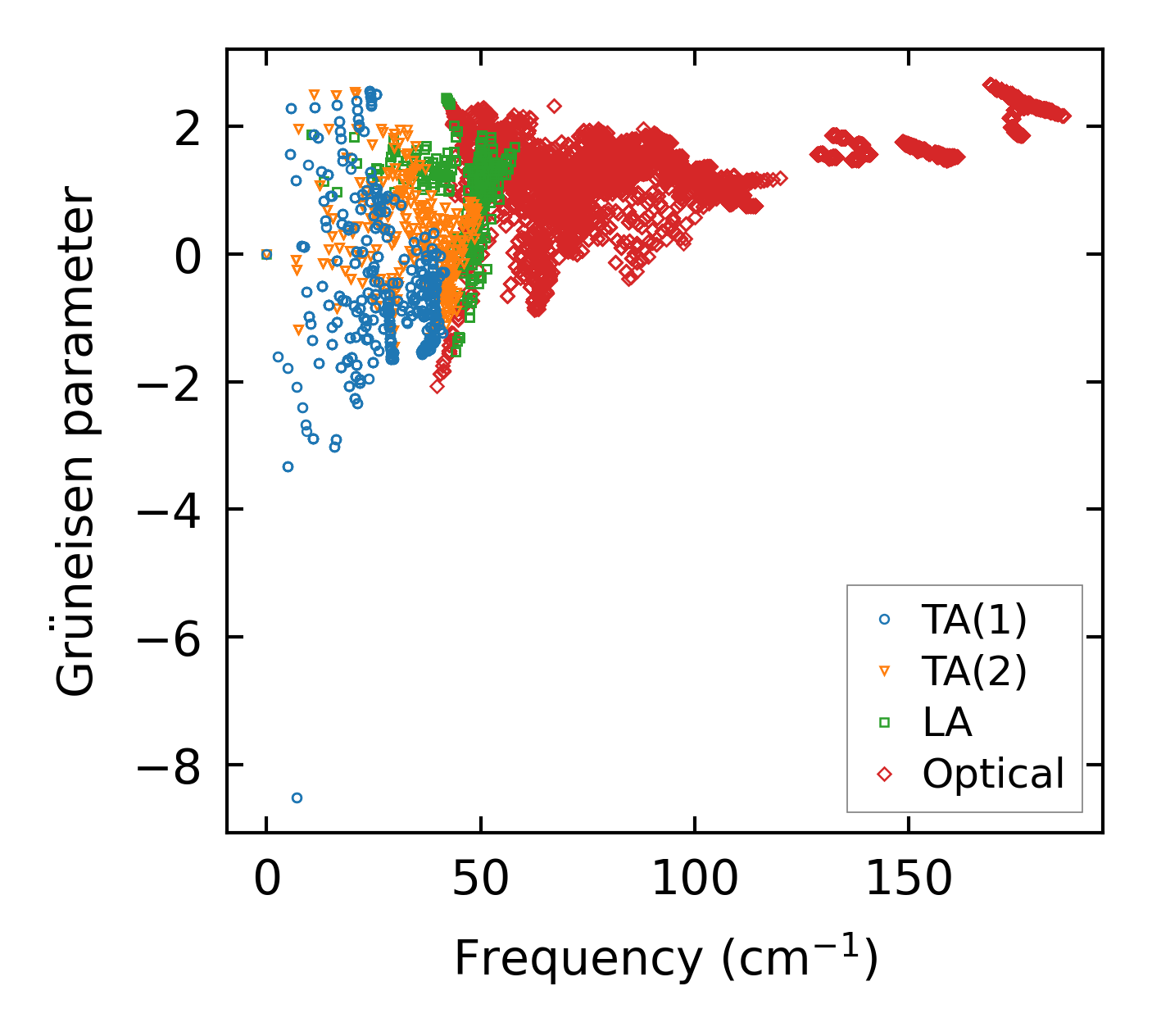

../../_images/fig_gru_all7489.png — (a) Grüneisen parameters

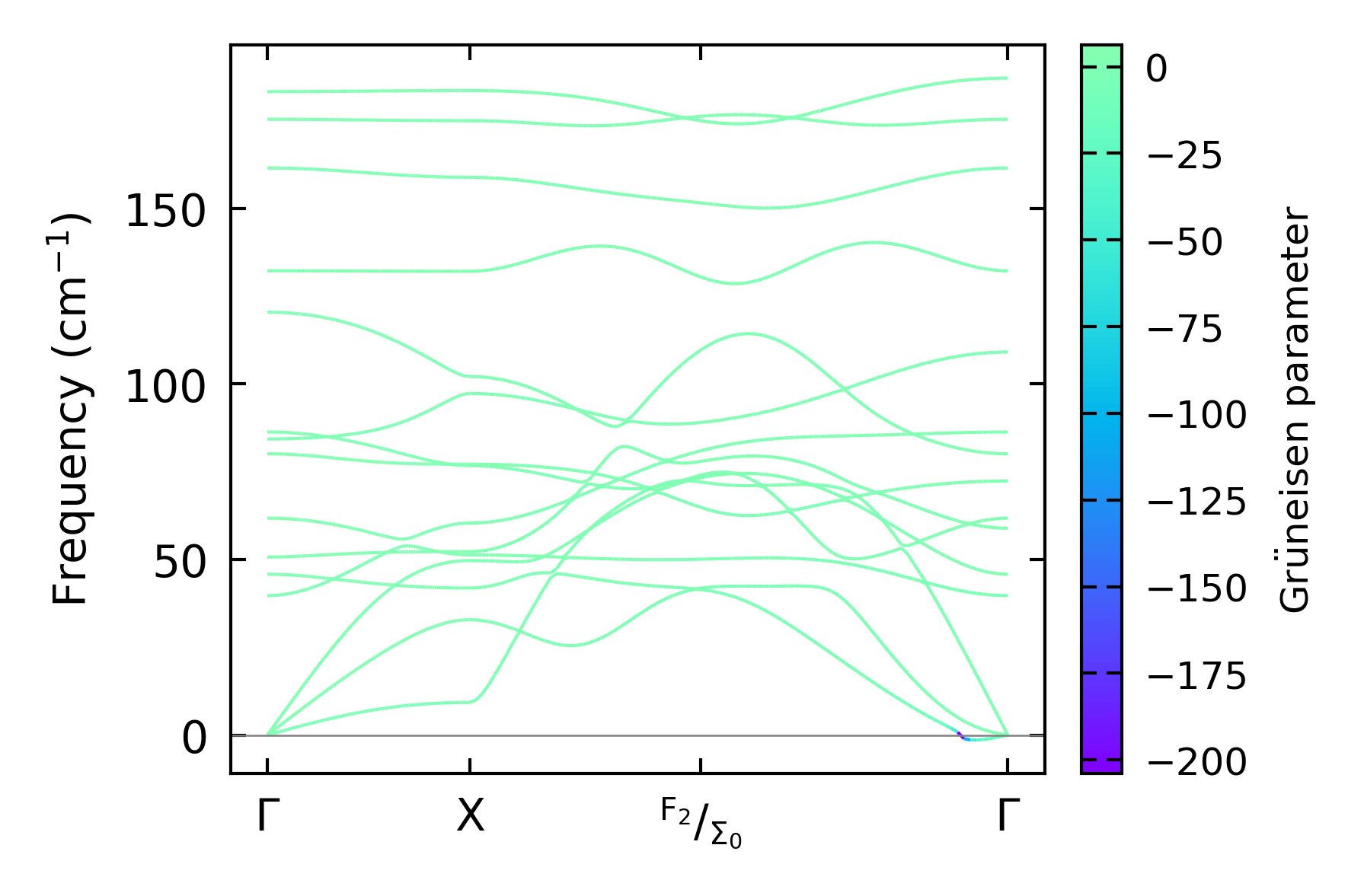

../../_images/fig_gruneisen7489.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 4x2x2 — q-mesh: 12x12x12, supercell: 4x2x2

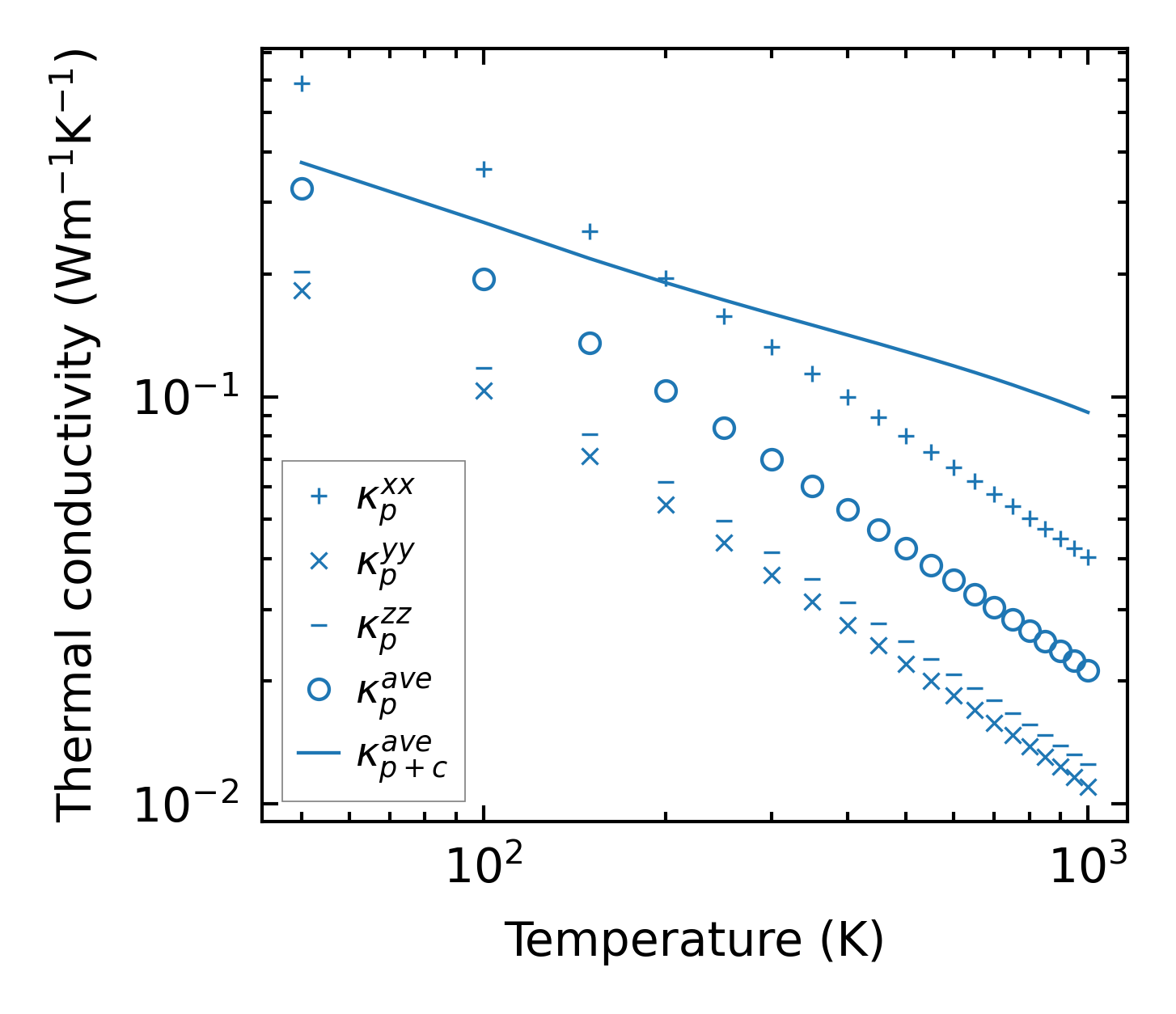

../../_images/fig_kappa14129.png — (a) Temperature-dependent lattice thermal conductivity

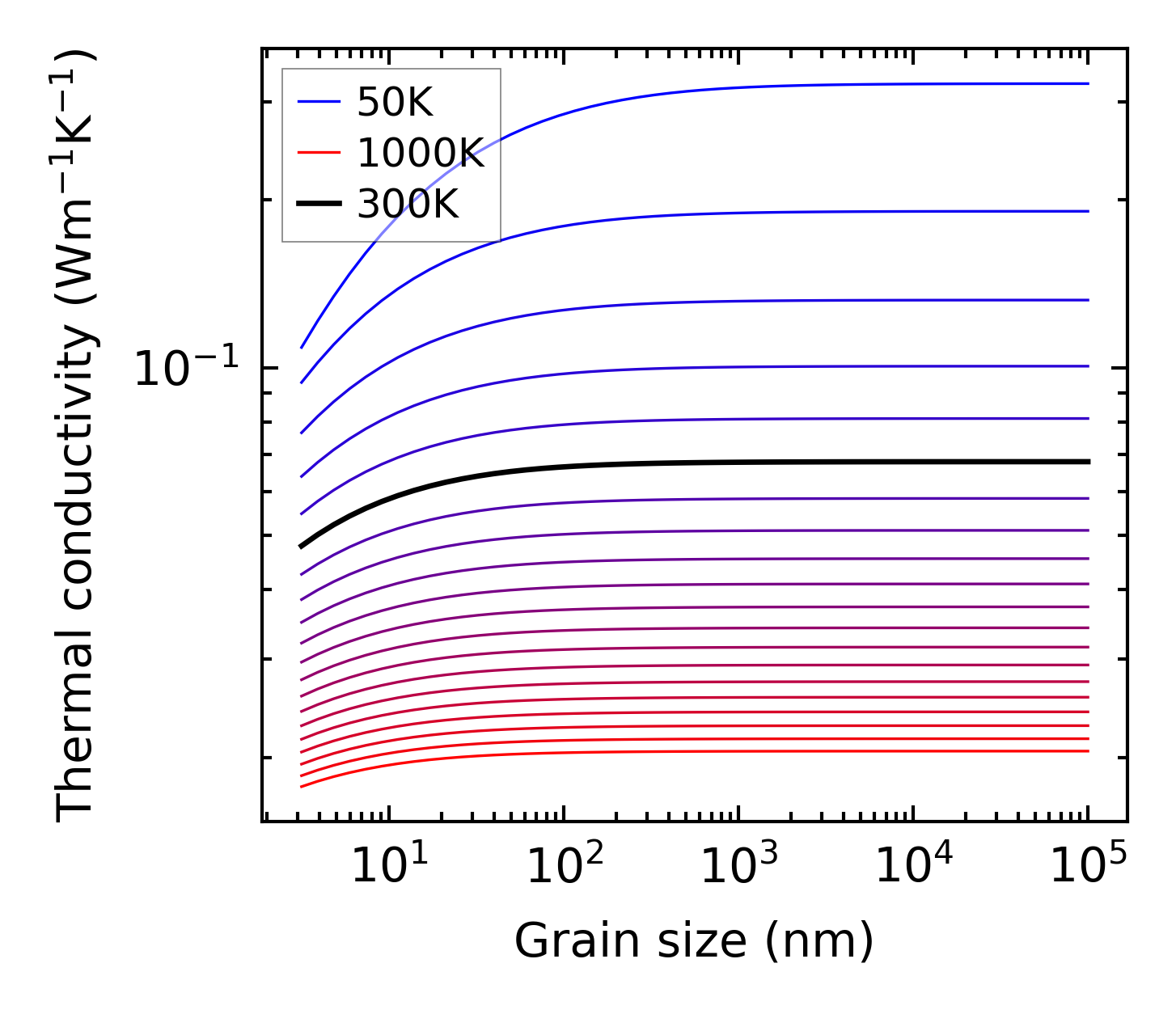

../../_images/fig_kappa_vs_grain_size7579.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

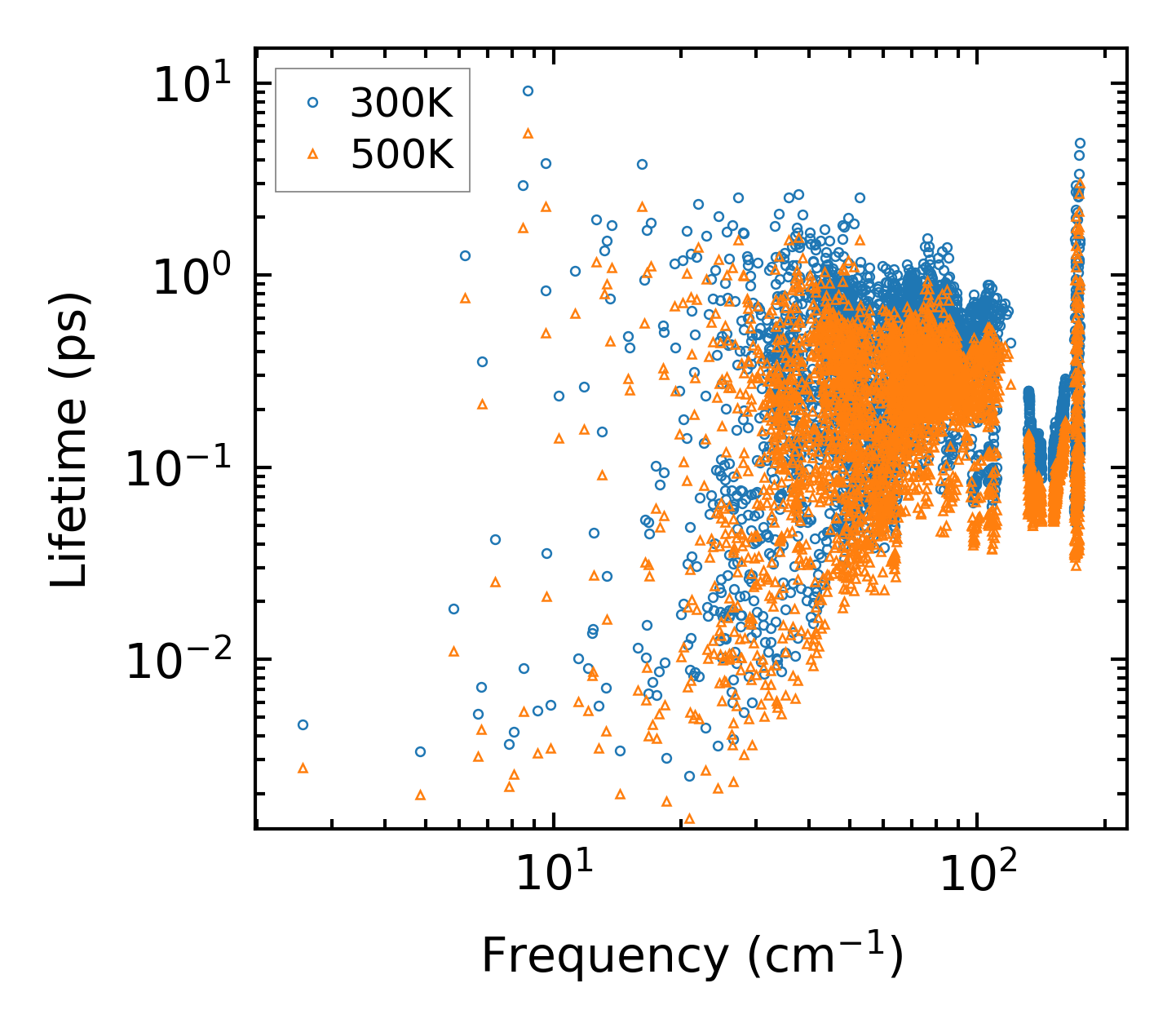

../../_images/fig_lifetime7422.png — (a) Phonon lifetime due to phonon-phonon scattering

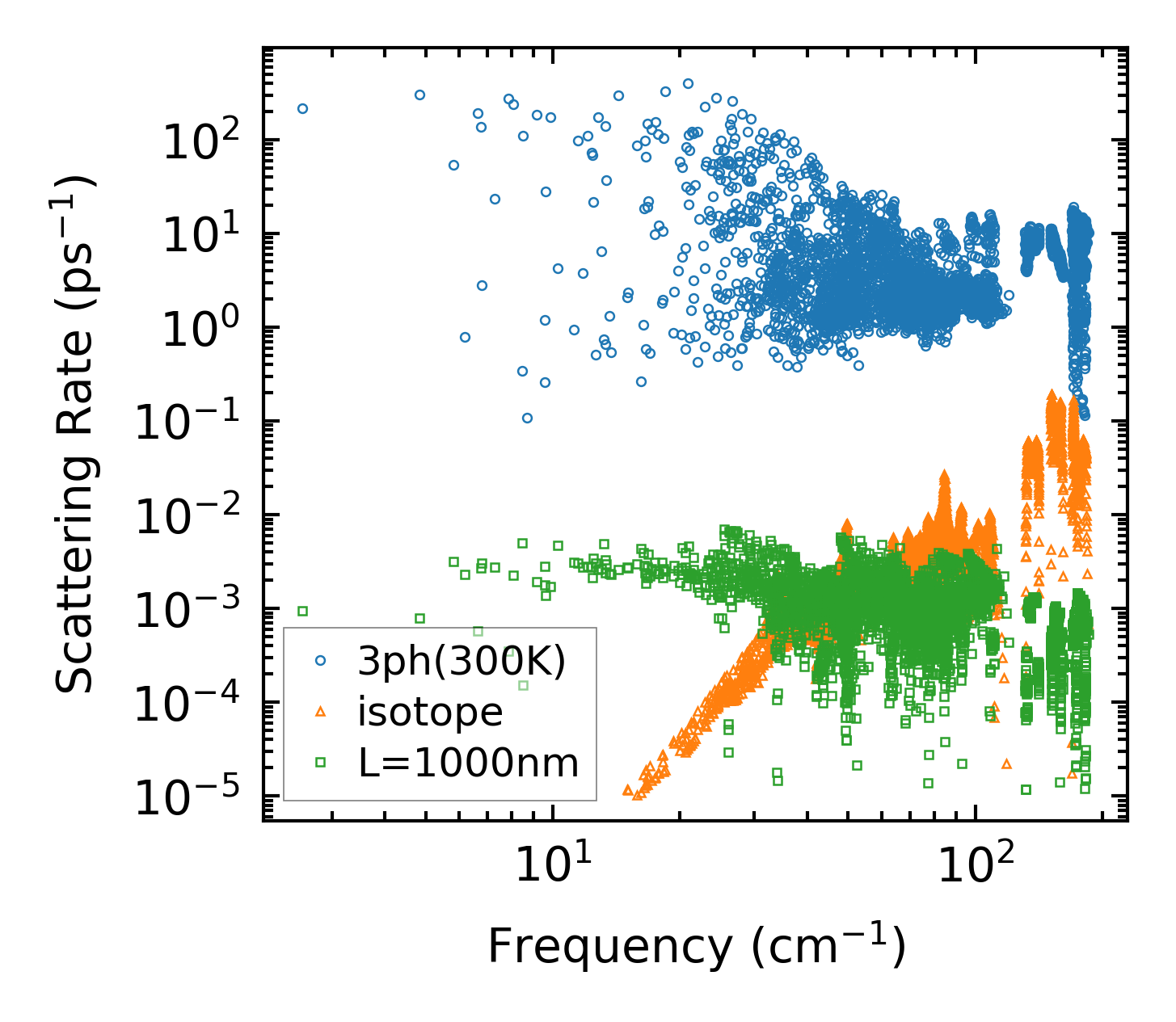

../../_images/fig_scat_rates7421.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

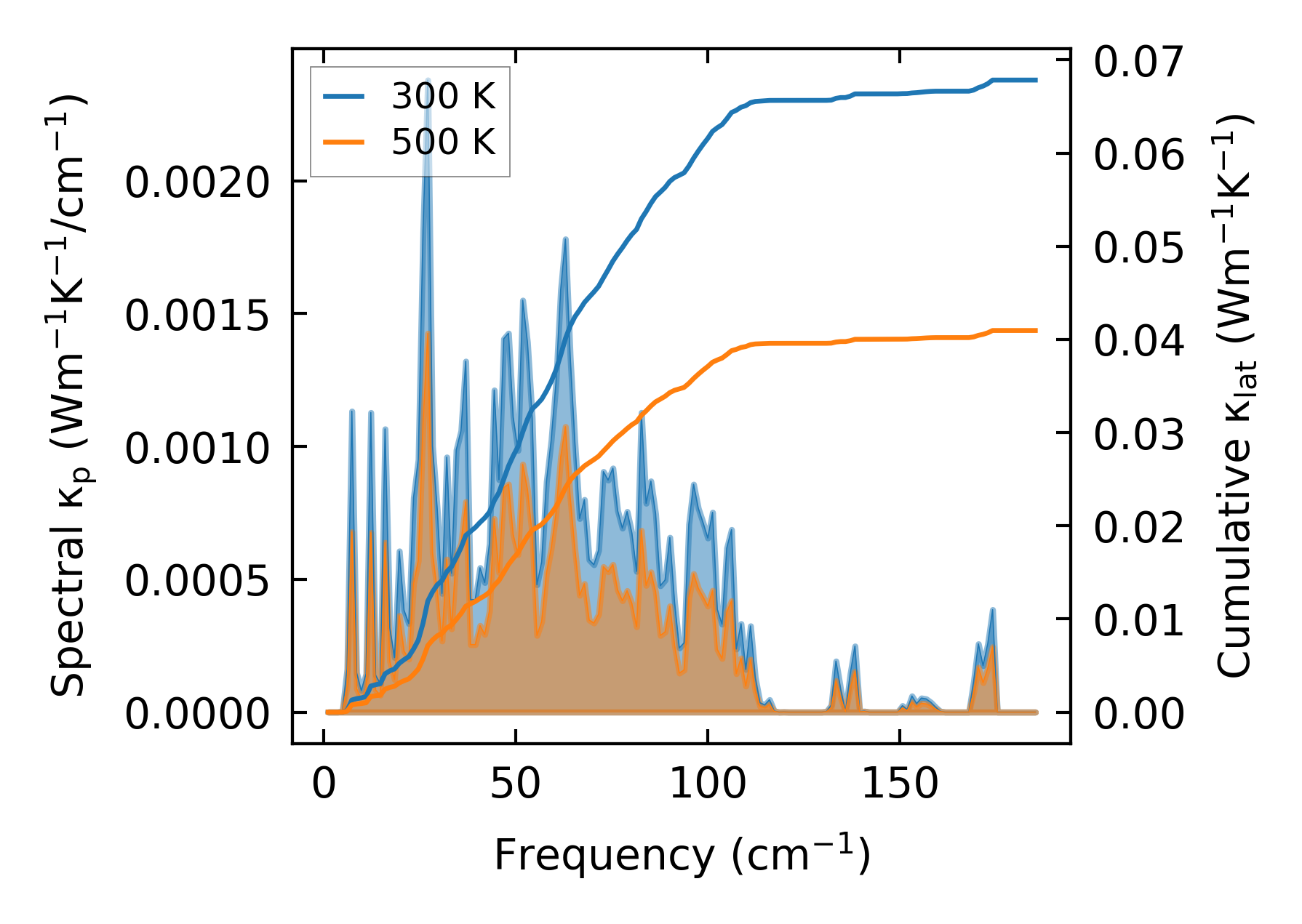

../../_images/fig_cumu_frequency7422.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

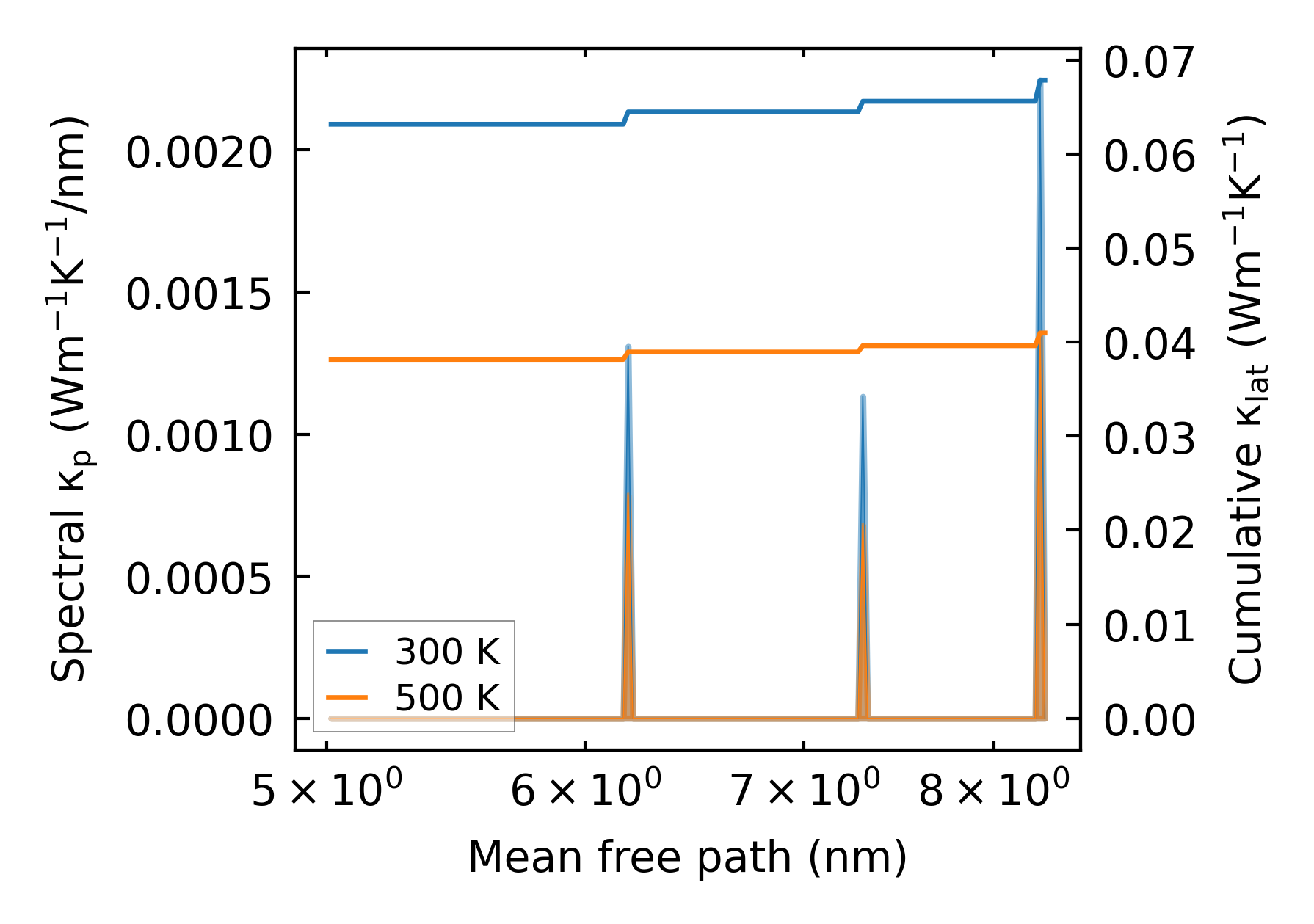

../../_images/fig_cumu_mfp7421.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

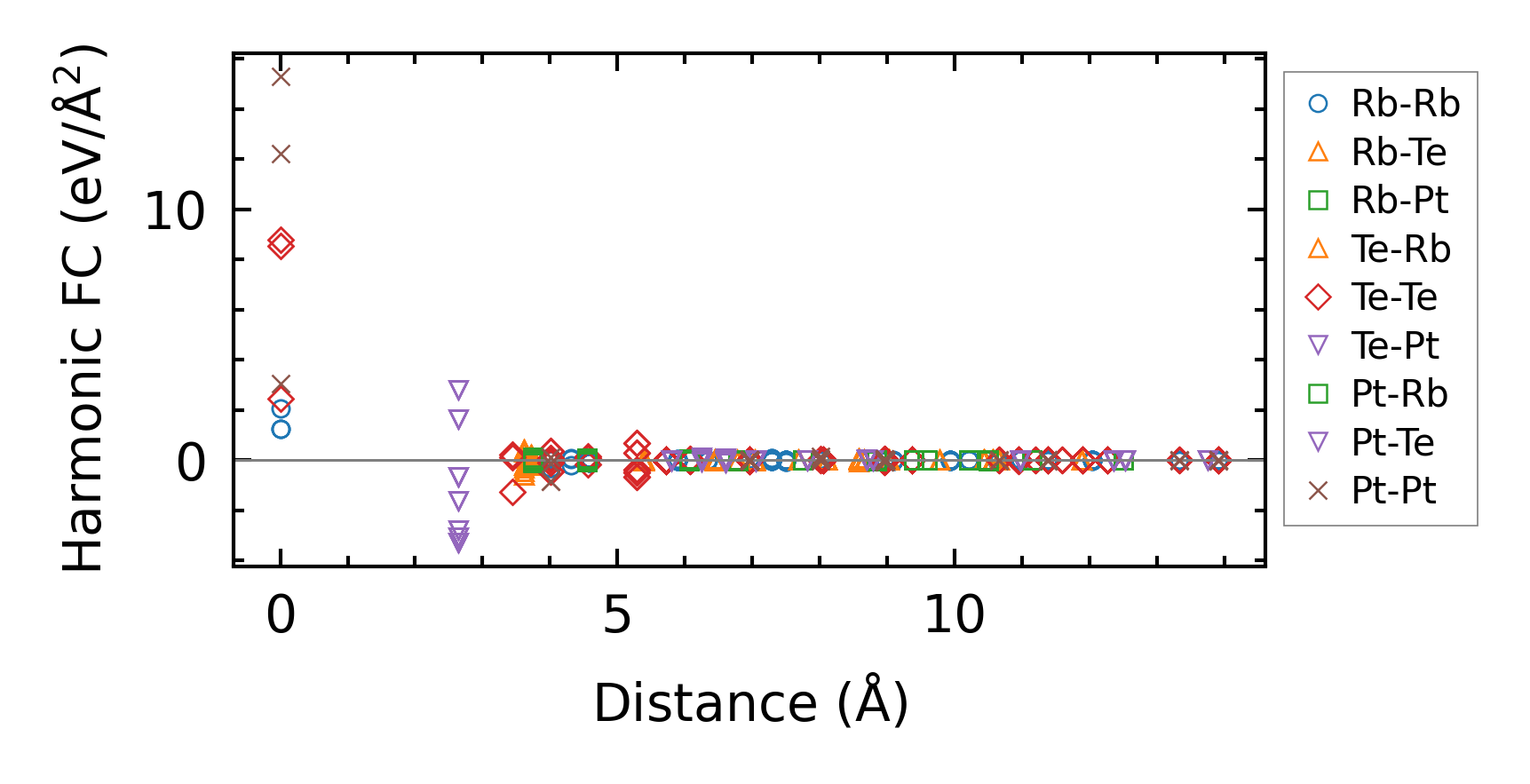

../../_images/fig_fc216675.png — (a) Force constants w.r.t atomic distance

Summary

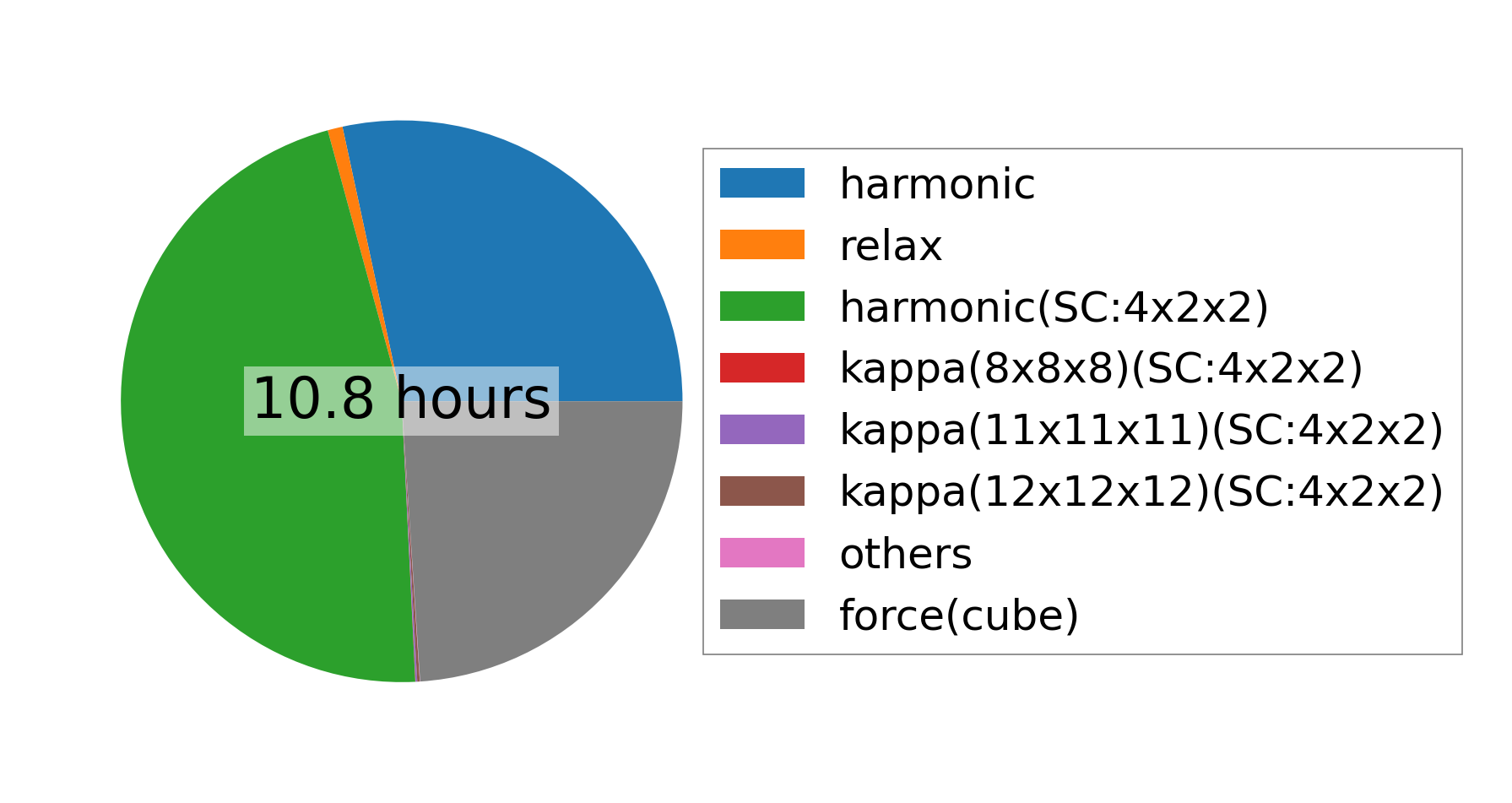

../../_images/fig_times27953.png — (a) Computation time
