mp-972199/CsTbS2/anharm

Space group: P6_3/mmc (194)
Link: Materials Project
Download: mp-972199.tar.gz

Harmonic properties

../../_images/fig_bandos_pr998.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo998.png — (b) Thermodynamic properties

Grüneisen parameters

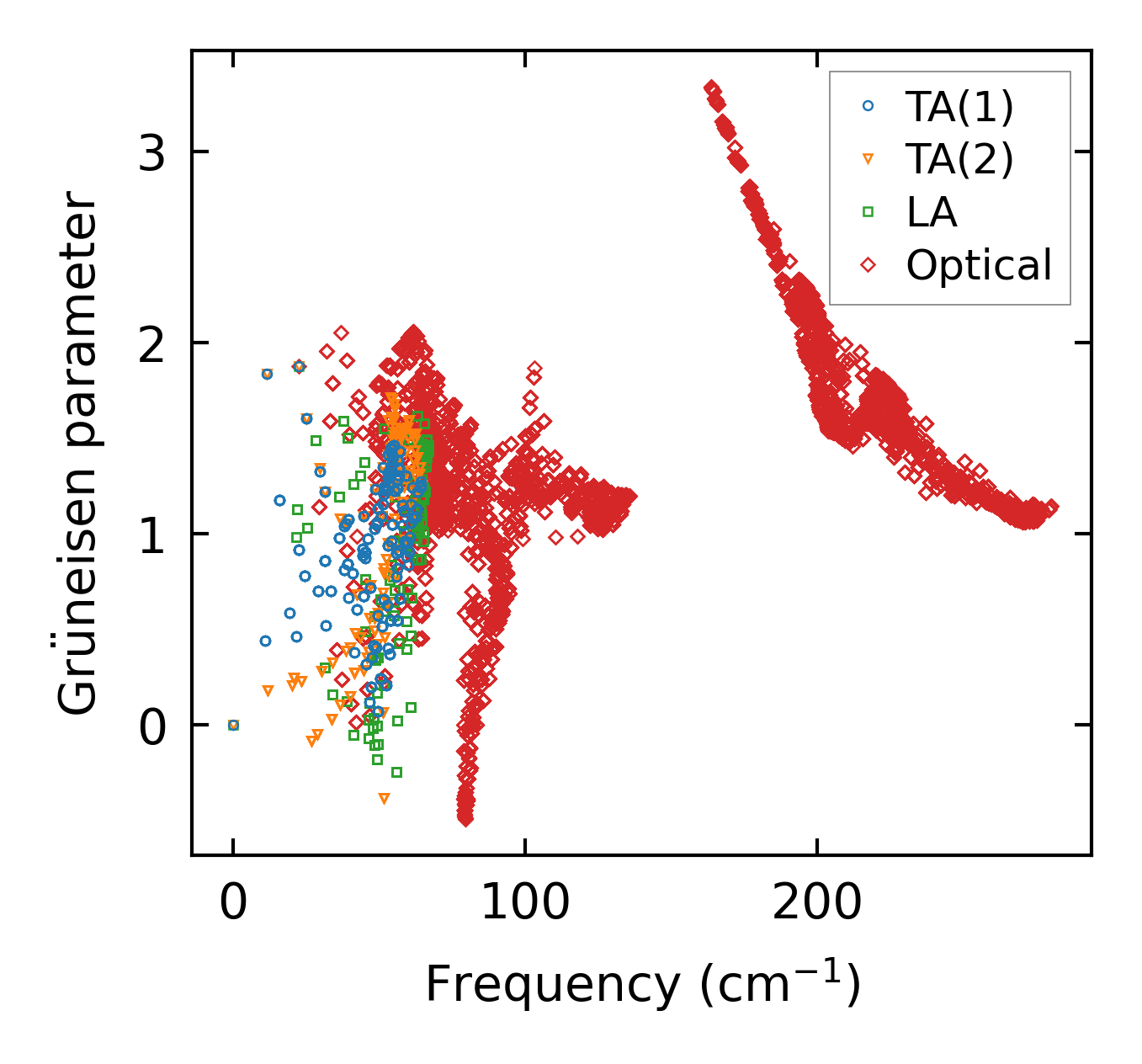

../../_images/fig_gru_all616.png — (a) Grüneisen parameters

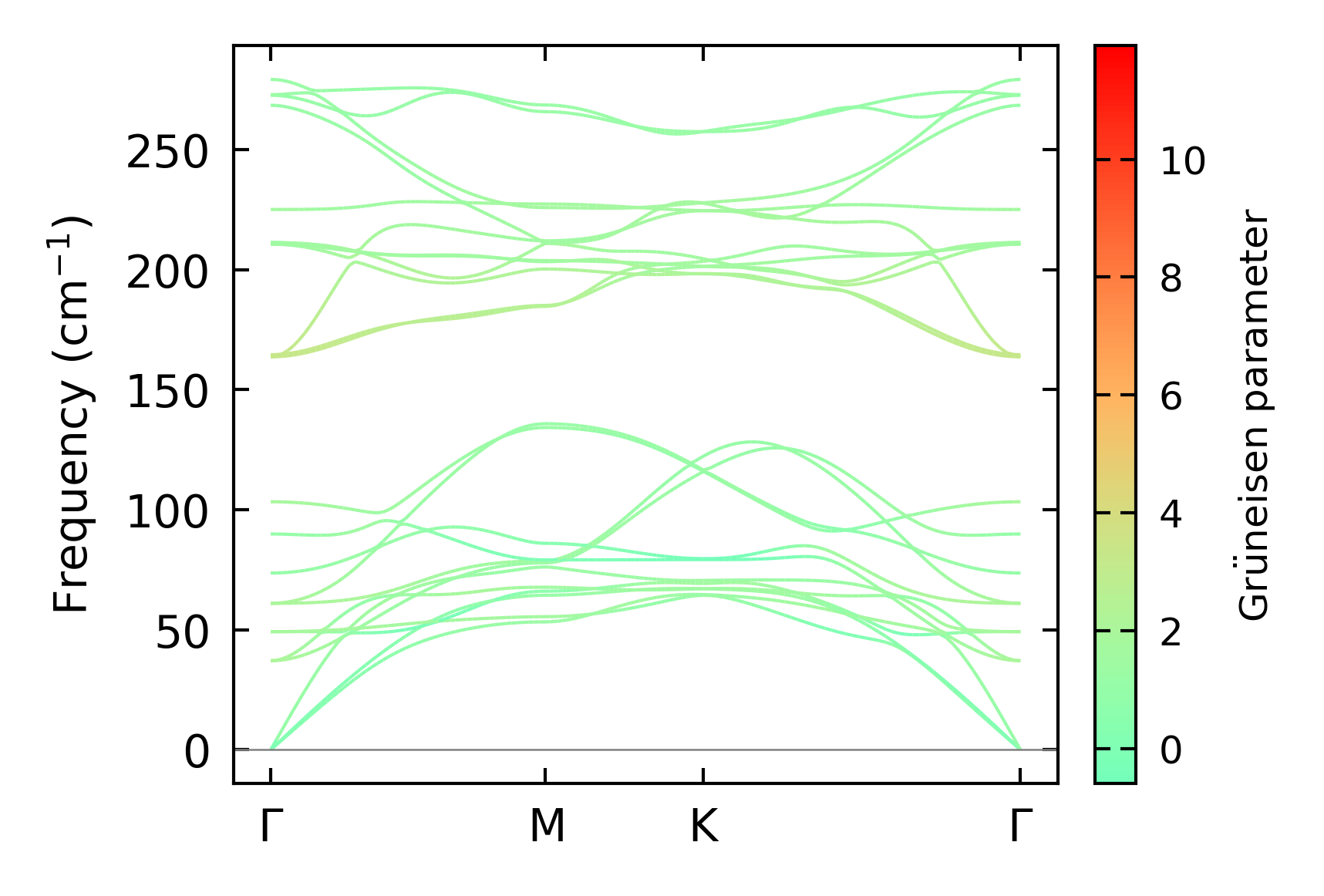

../../_images/fig_gruneisen616.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 18x18x4, supercell: 4x4x1

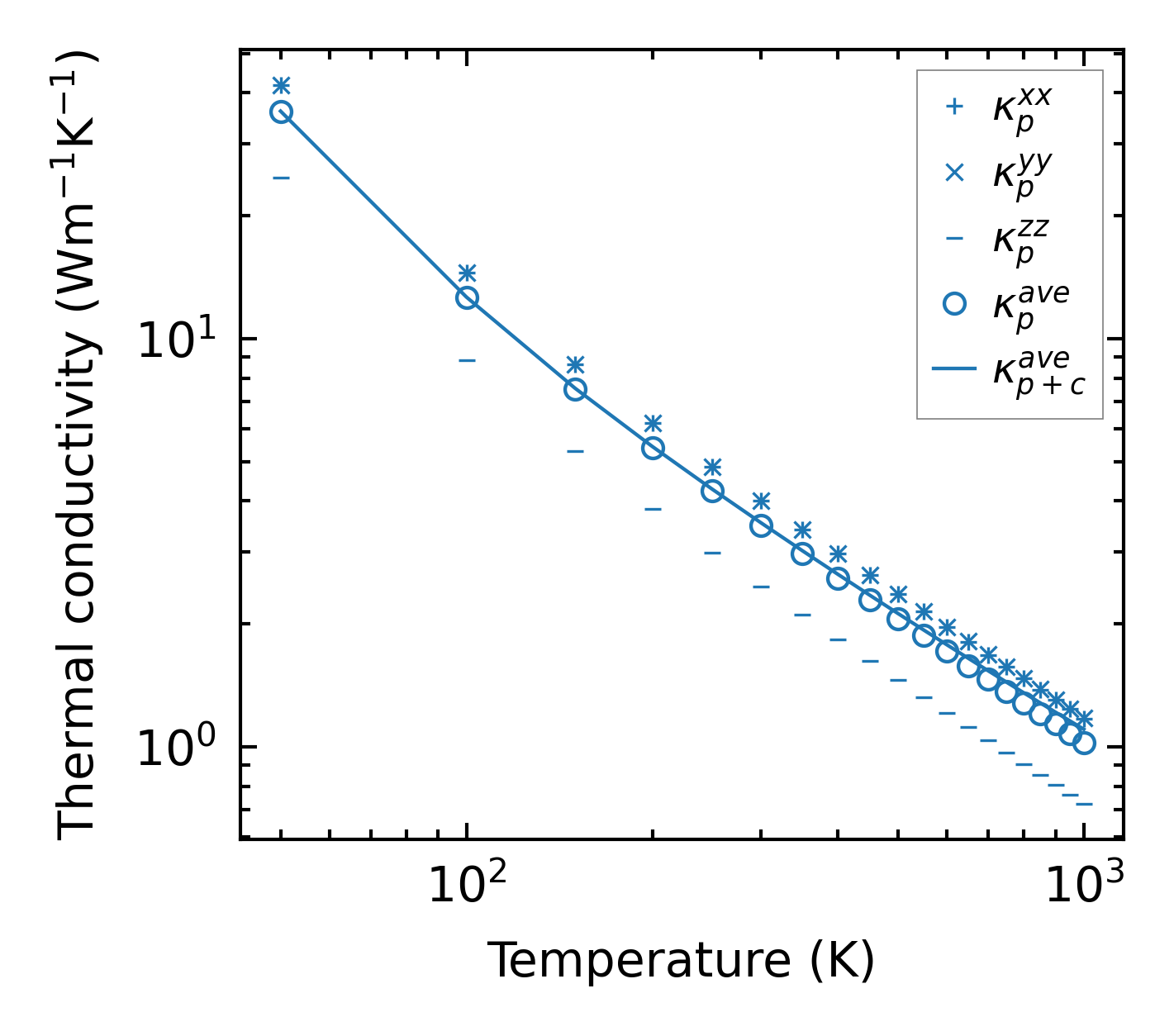

../../_images/fig_kappa1199.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size624.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

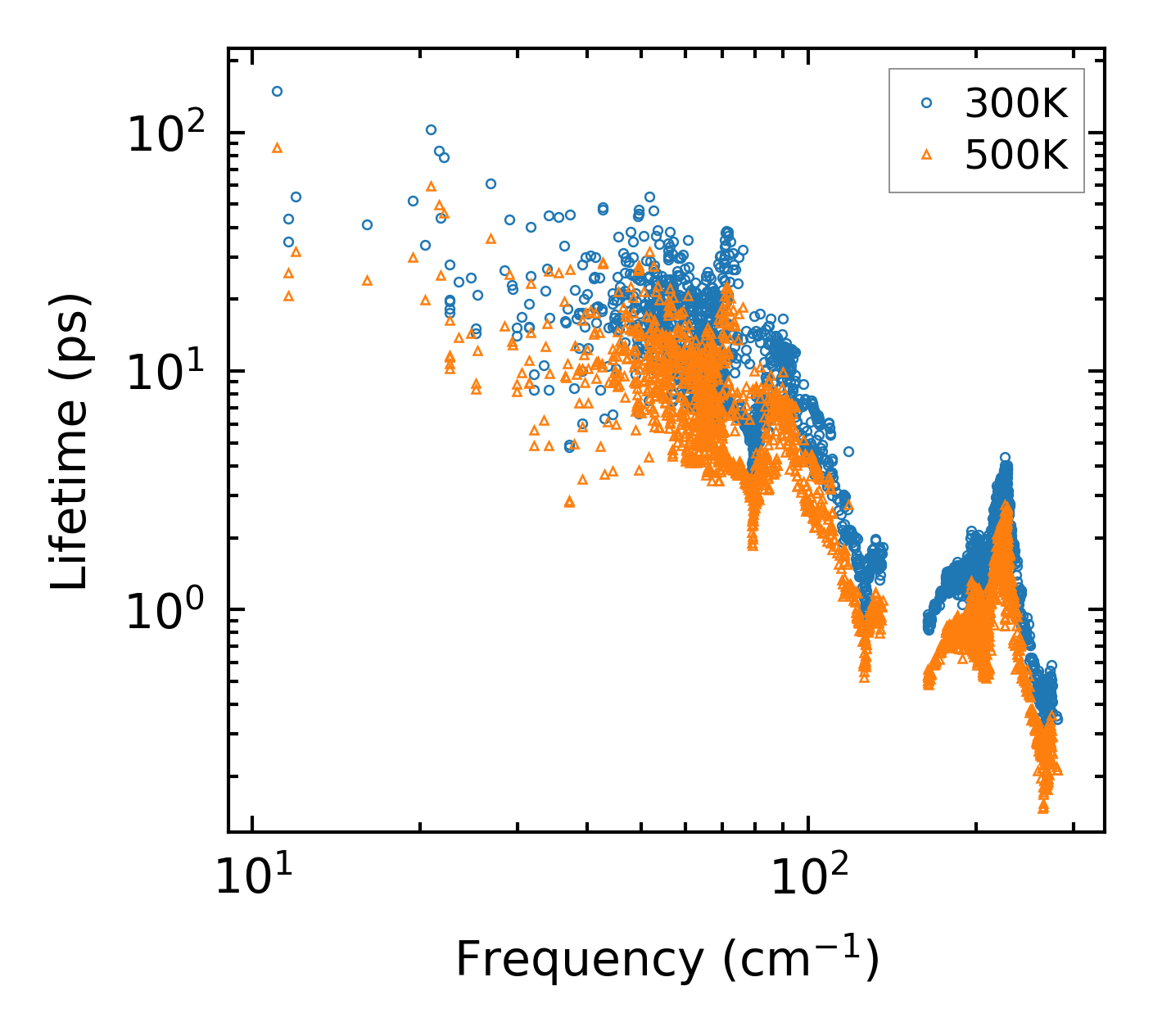

../../_images/fig_lifetime614.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates613.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

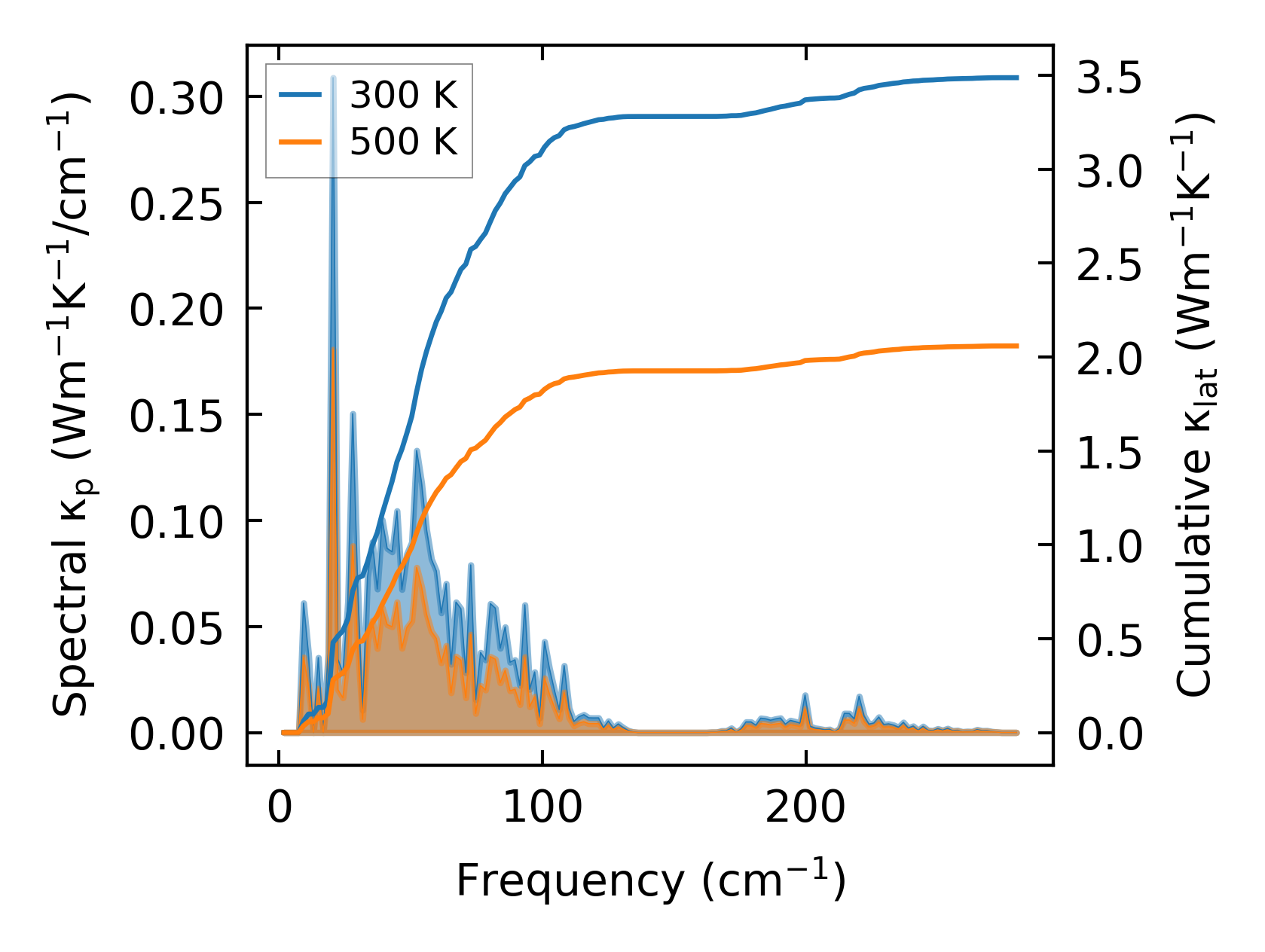

../../_images/fig_cumu_frequency614.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp614.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

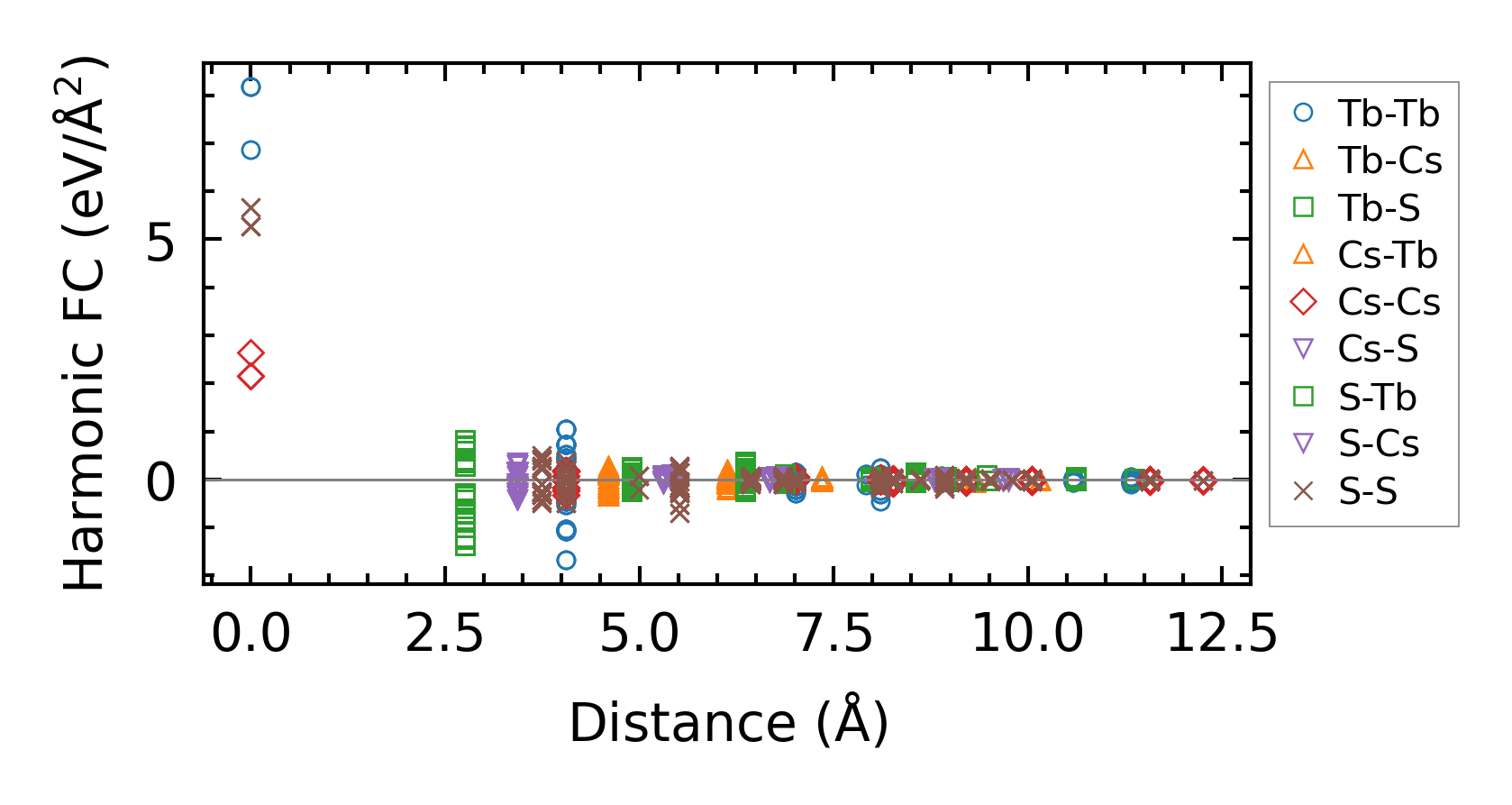

../../_images/fig_fc2867.png — (a) Force constants w.r.t atomic distance

Summary

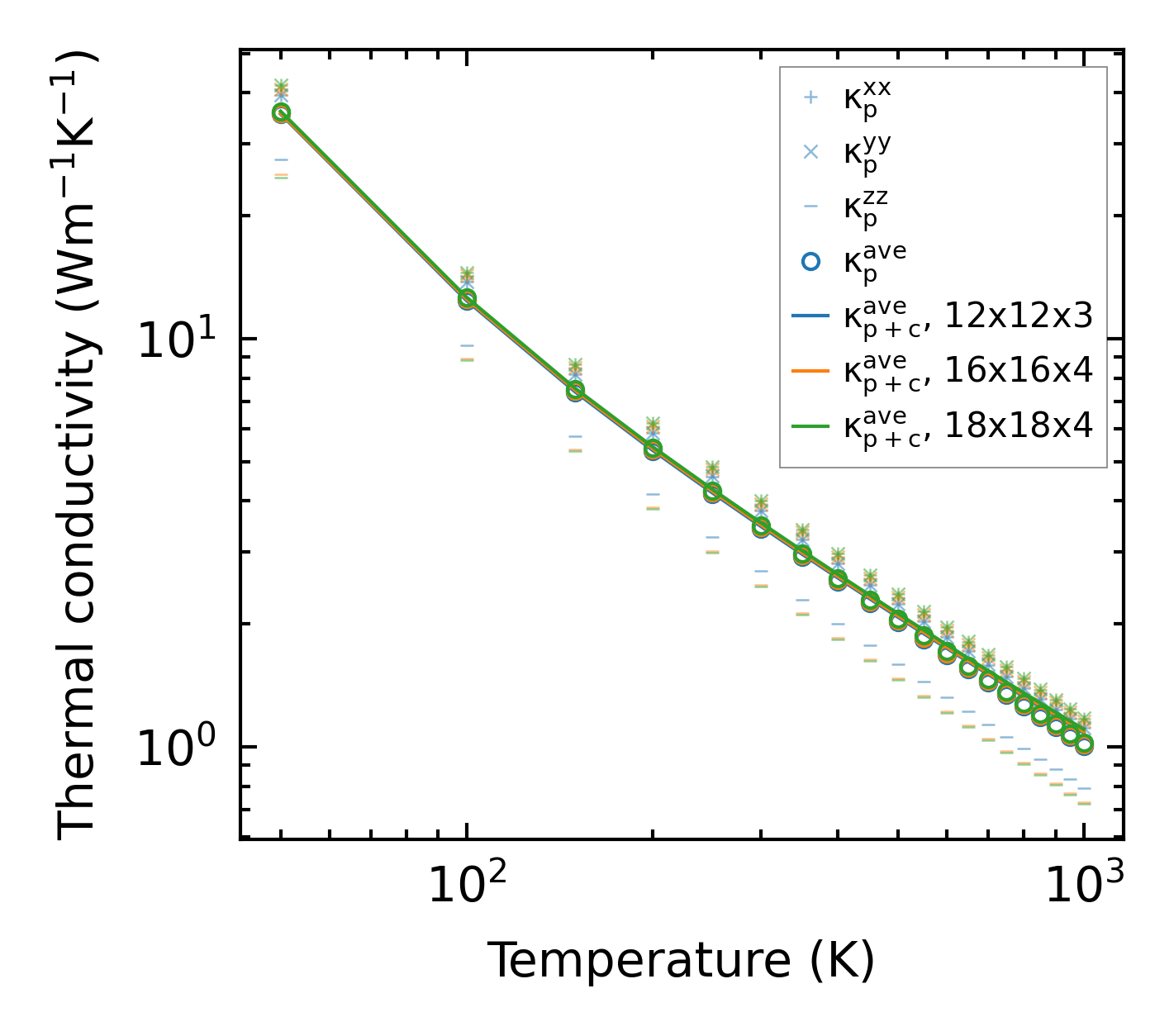

../../_images/fig_kappa1200.png — (a) Temperature-dependent lattice thermal conductivity

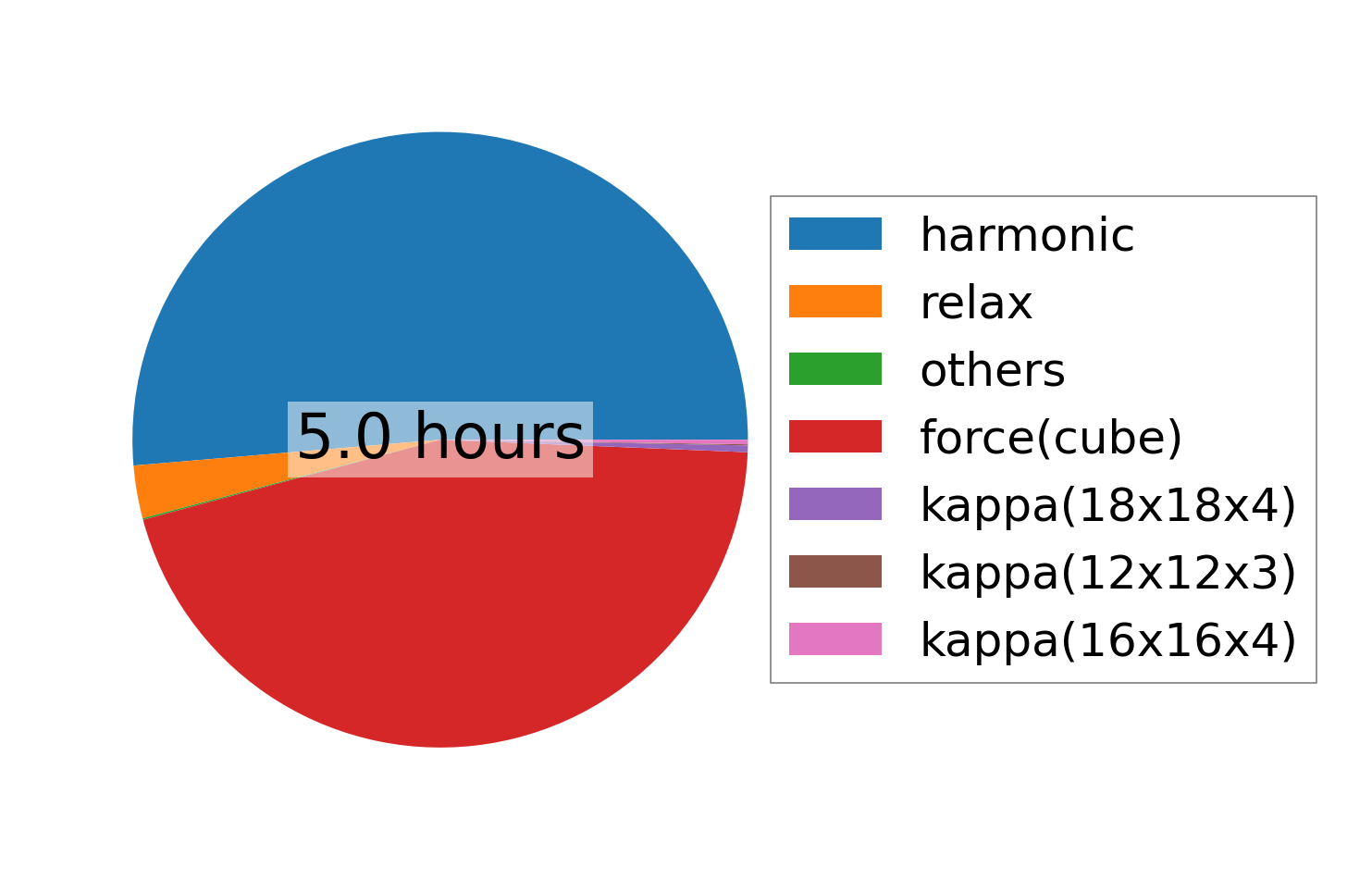

../../_images/fig_times1488.png — (b) Computation time
