mp-971662/Si/anharm

Space group: Pm-3n (223)
Link: Materials Project
Download: mp-971662.tar.gz

Harmonic properties

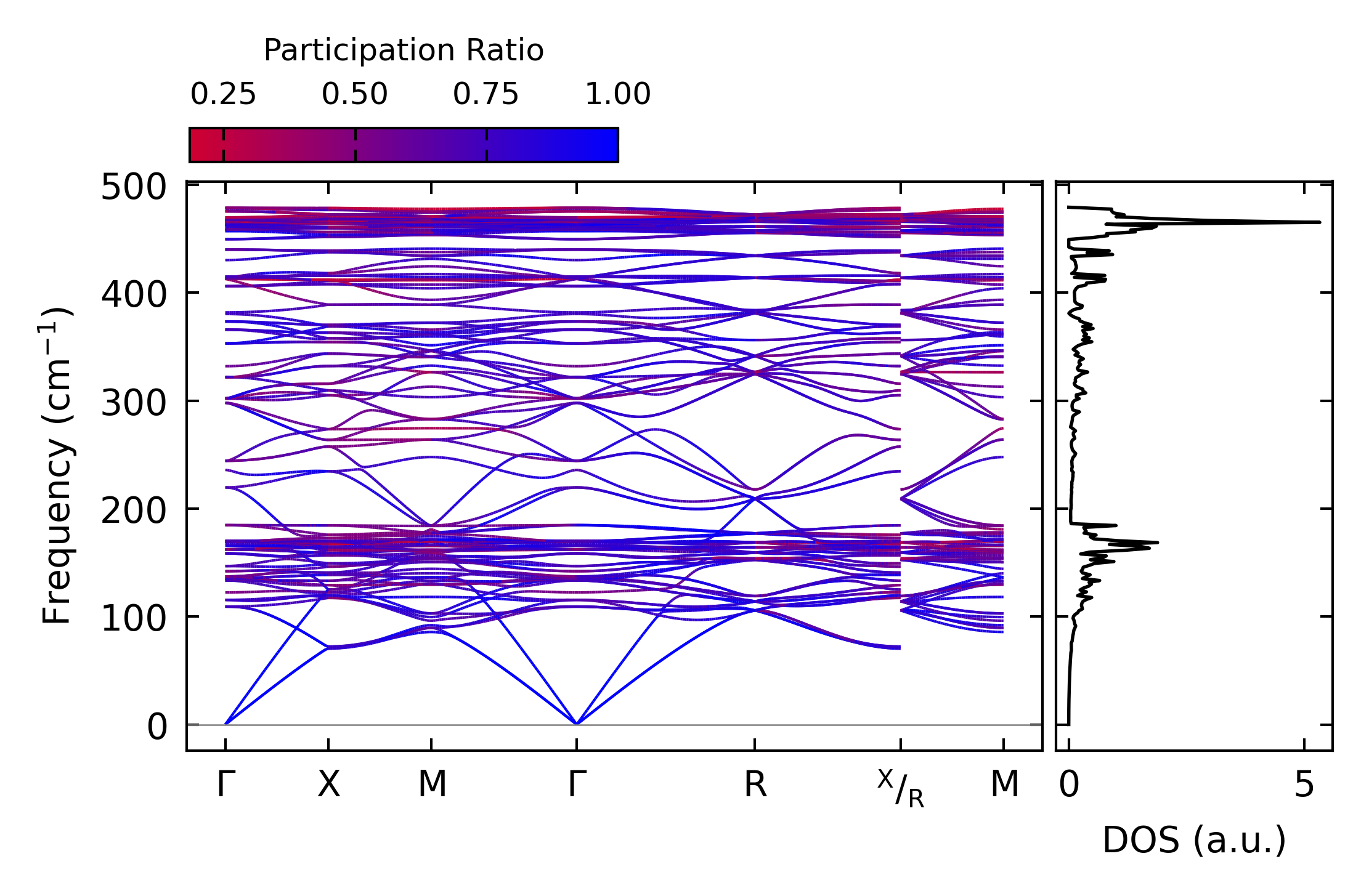

../../_images/fig_bandos_pr992.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo992.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all613.png — (a) Grüneisen parameters

../../_images/fig_gruneisen613.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x7x7, supercell: 1x1x1

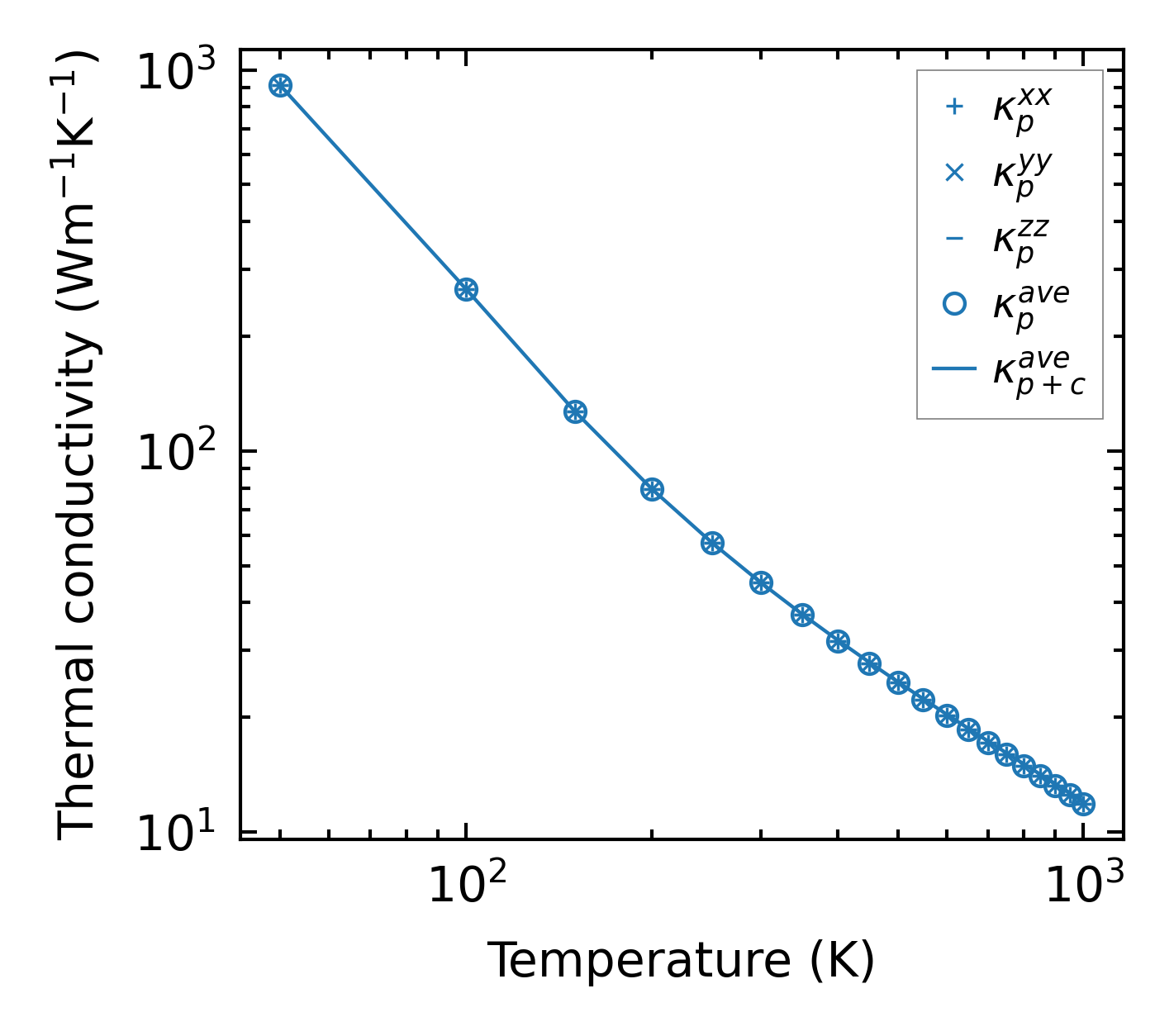

../../_images/fig_kappa1193.png — (a) Temperature-dependent lattice thermal conductivity

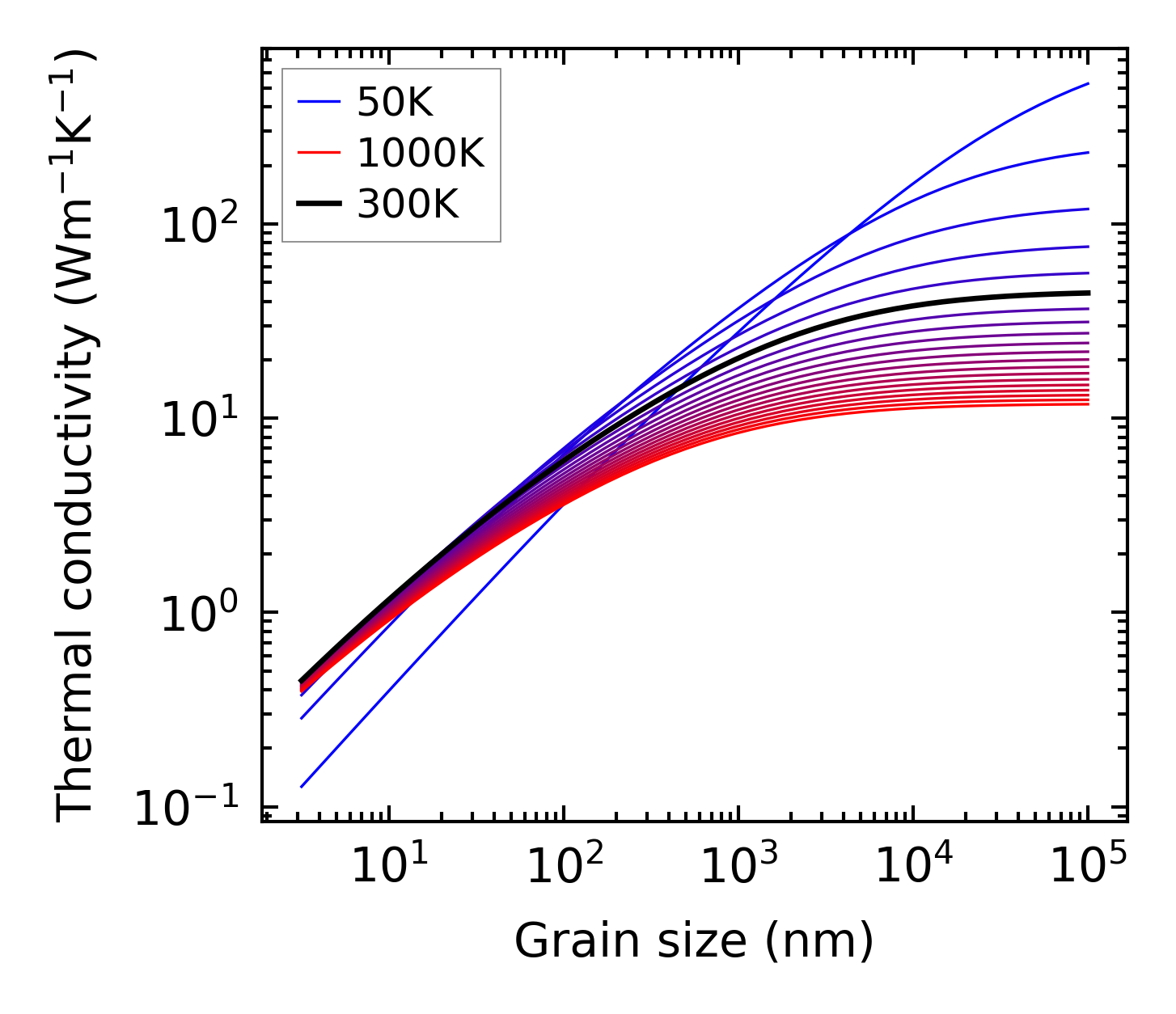

../../_images/fig_kappa_vs_grain_size621.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime611.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates610.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

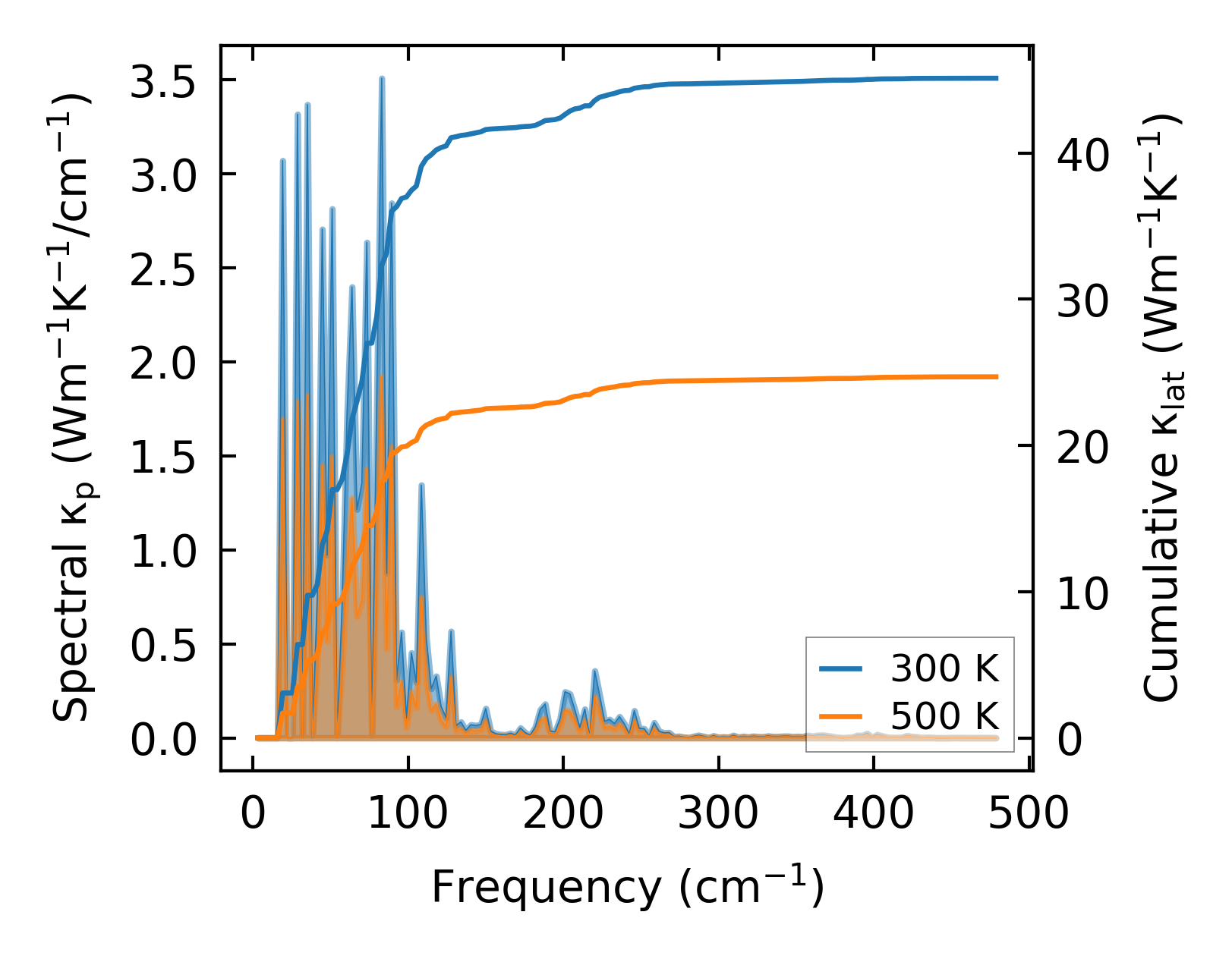

../../_images/fig_cumu_frequency611.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

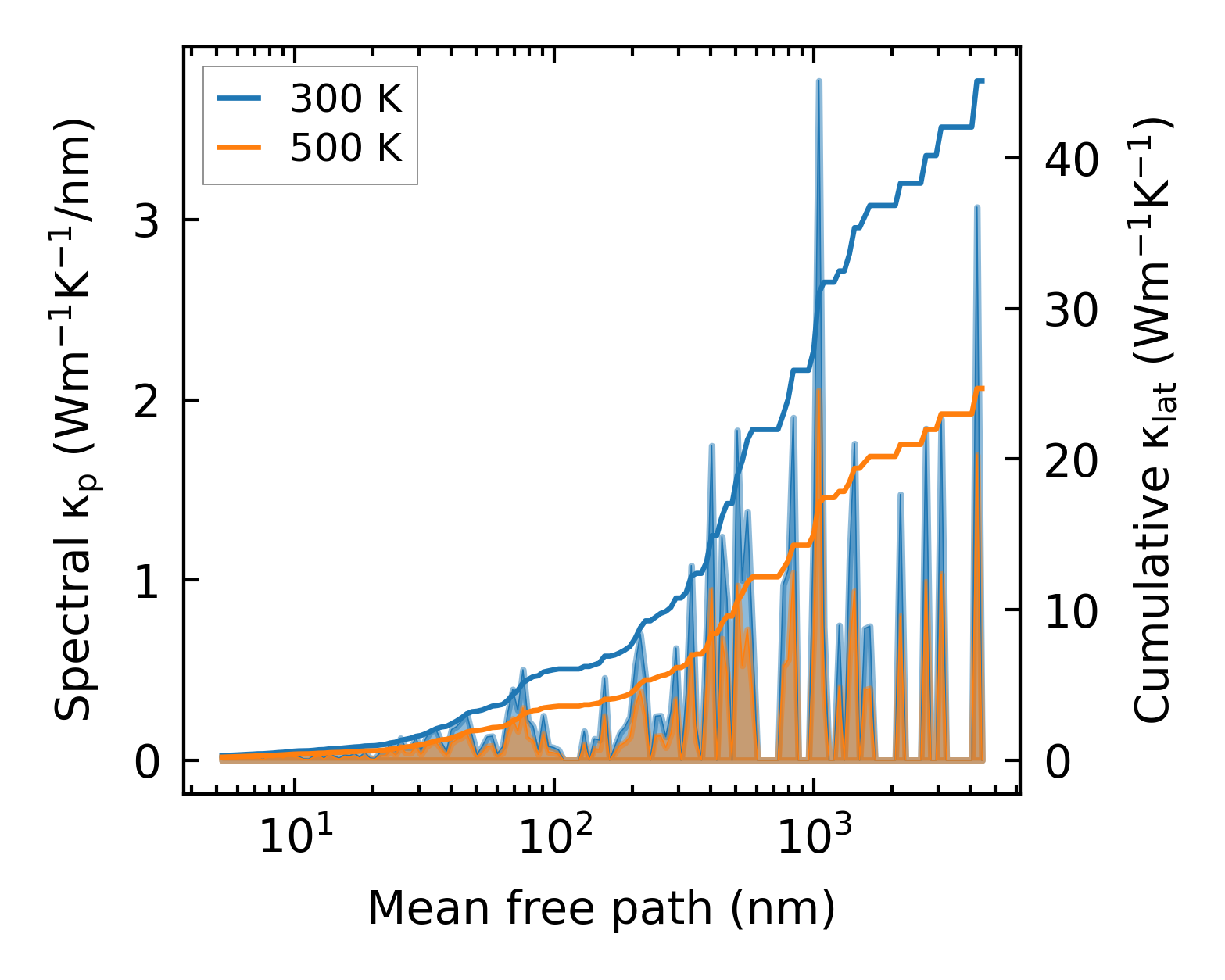

../../_images/fig_cumu_mfp611.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

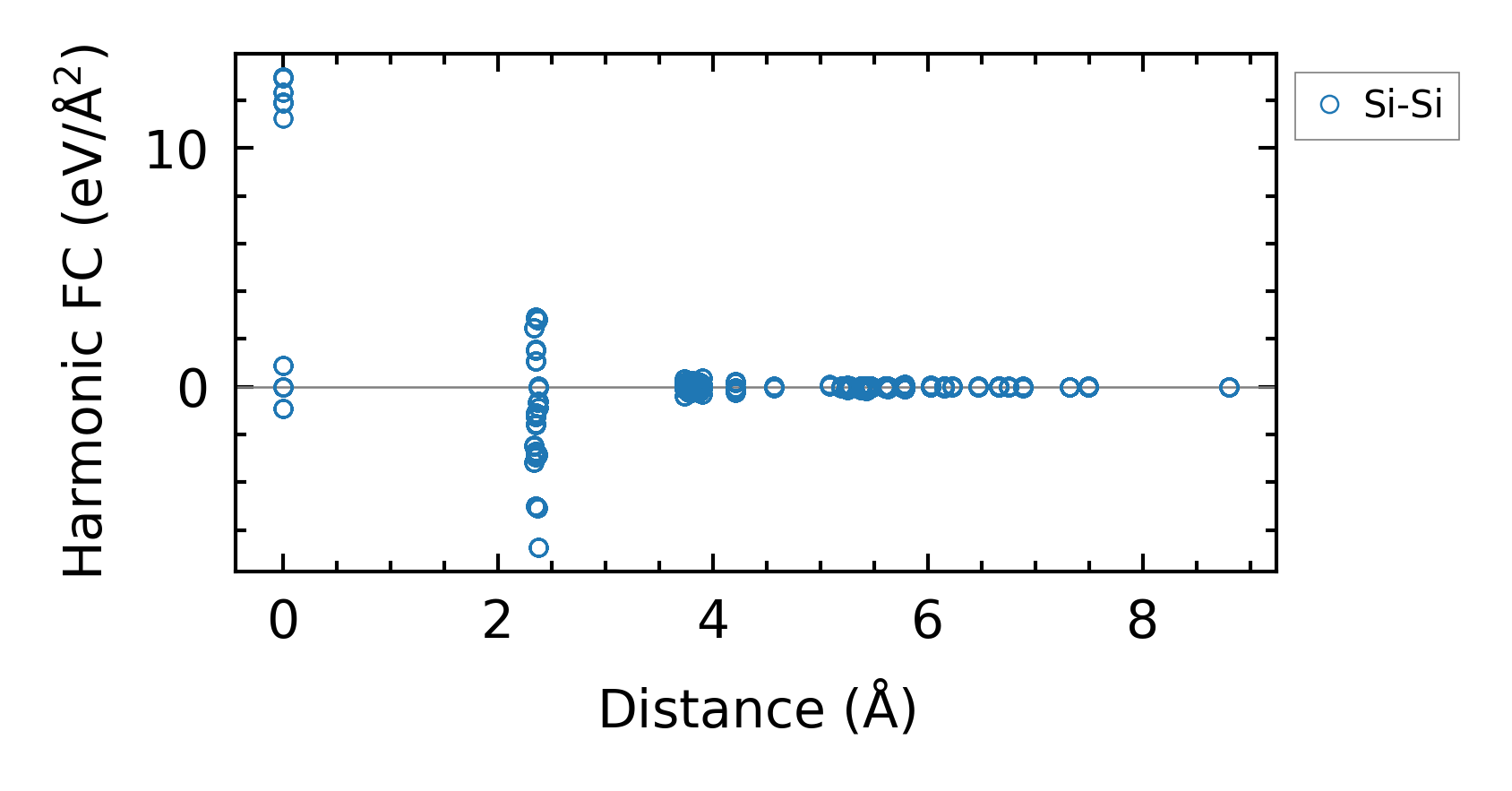

../../_images/fig_fc2861.png — (a) Force constants w.r.t atomic distance

Summary

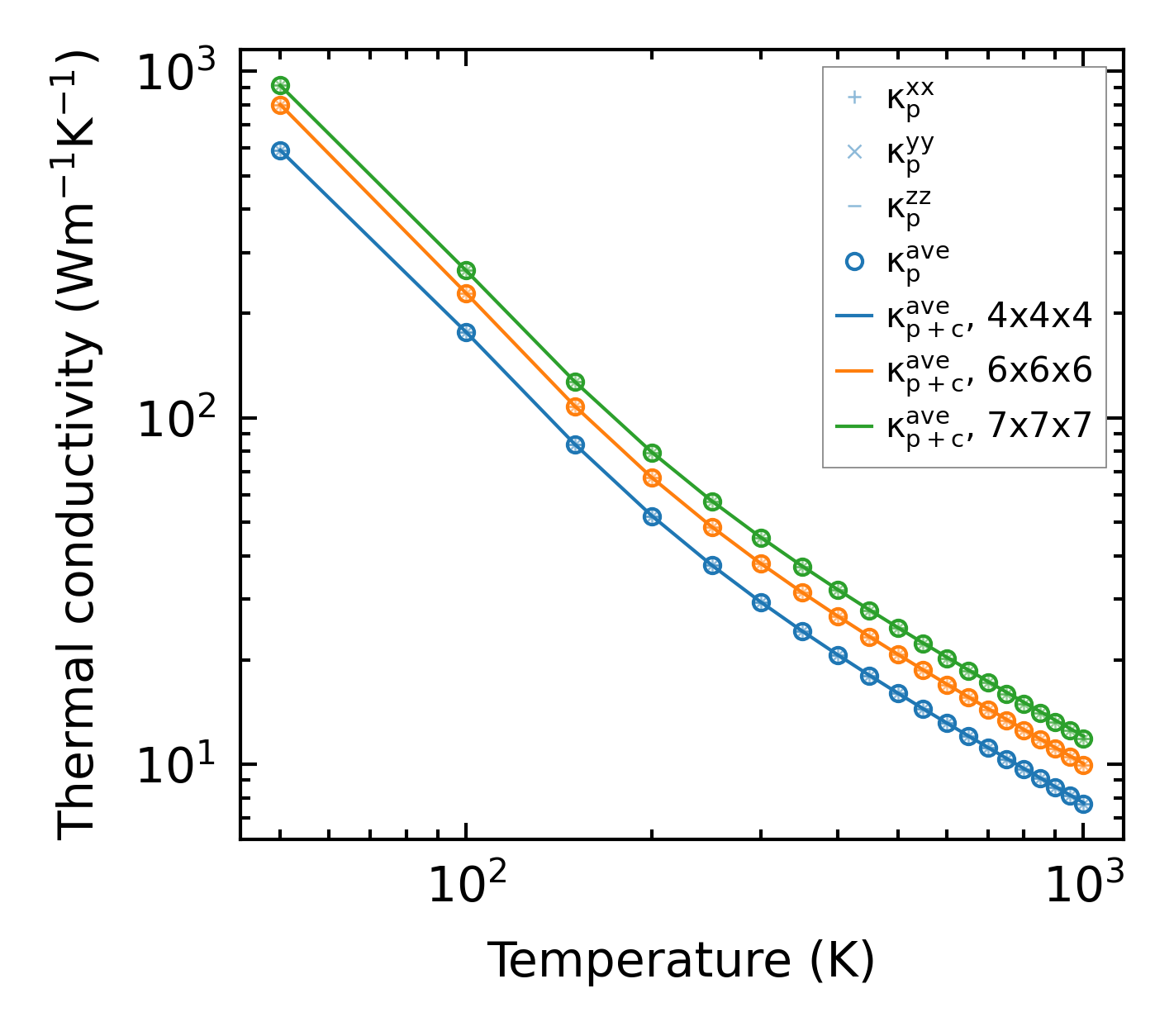

../../_images/fig_kappa1194.png — (a) Temperature-dependent lattice thermal conductivity

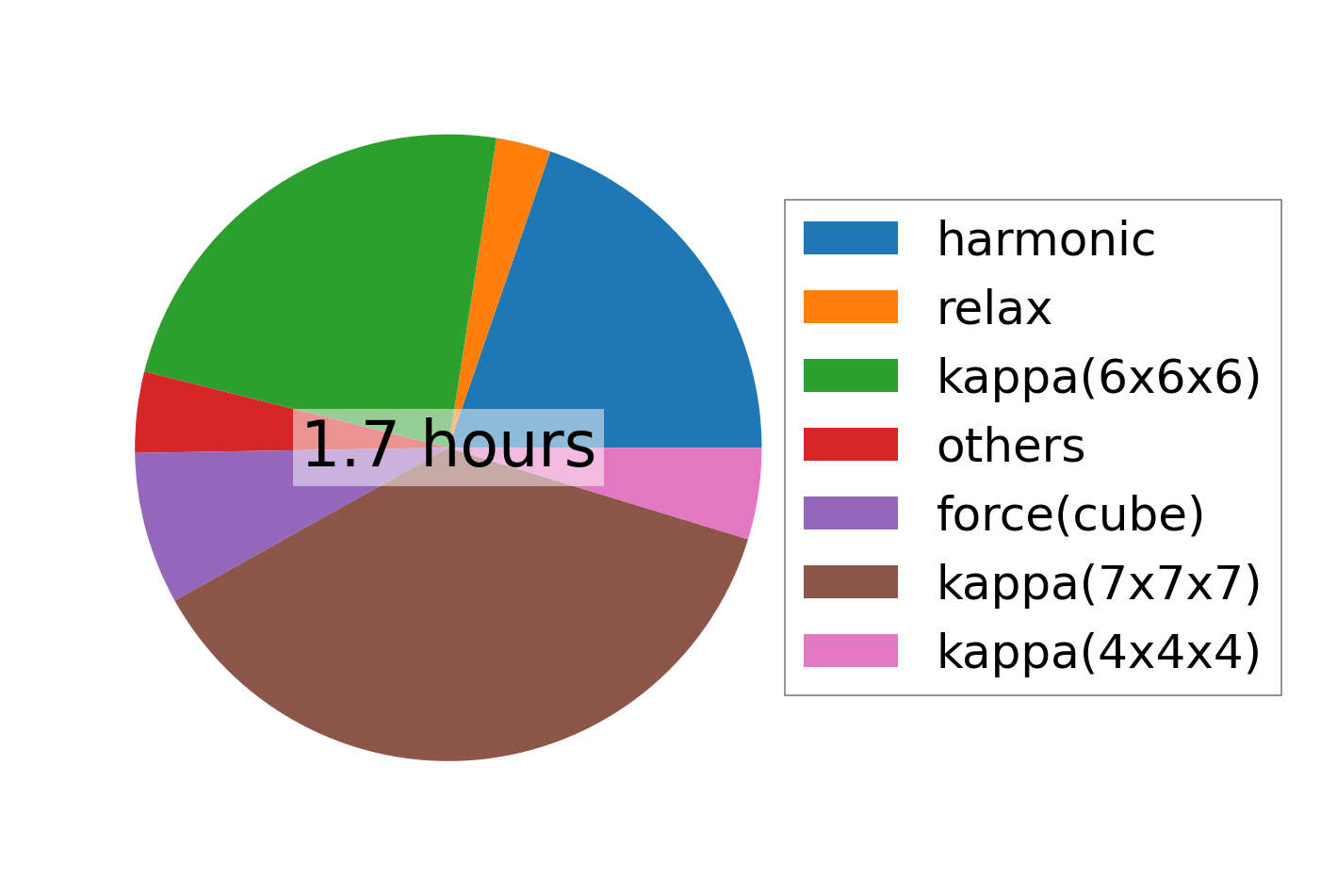

../../_images/fig_times1476.png — (b) Computation time
