mp-859874/Mg2PbO4/anharm

Space group: Pbam (55)
Link: Materials Project
Download: mp-859874.tar.gz

Harmonic properties

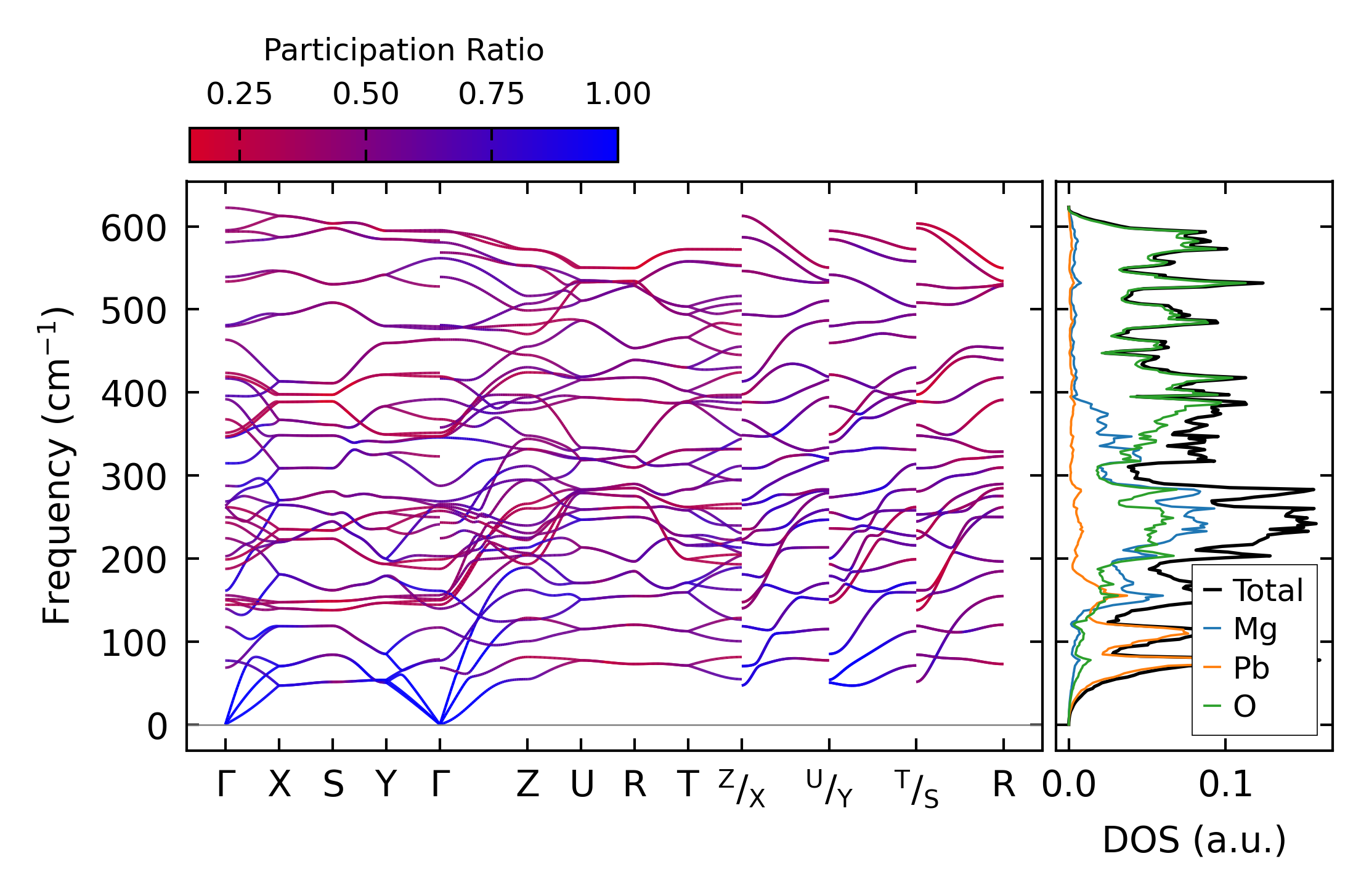

../../_images/fig_bandos_pr1743.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1743.png — (b) Thermodynamic properties

Grüneisen parameters

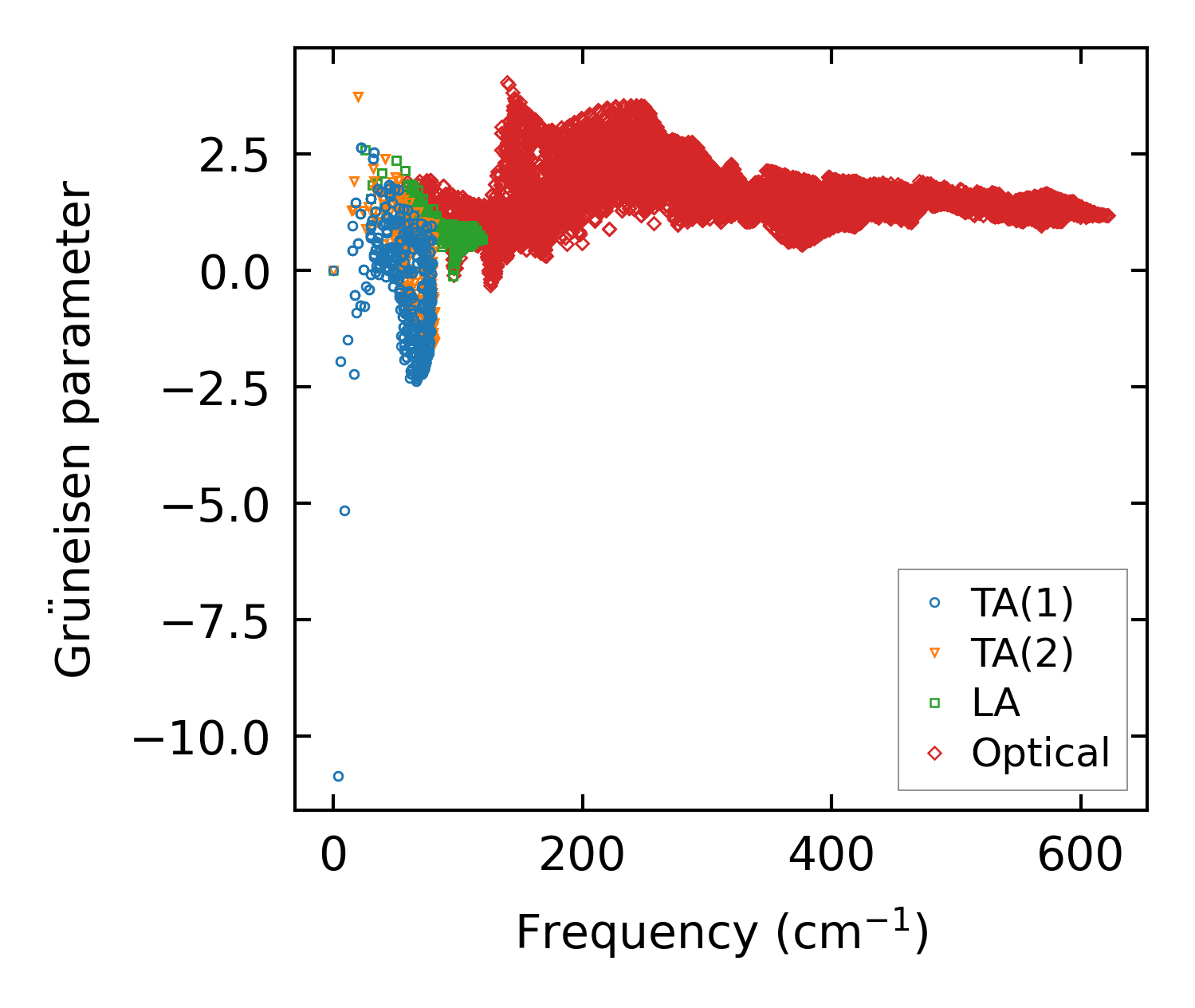

../../_images/fig_gru_all993.png — (a) Grüneisen parameters

../../_images/fig_gruneisen993.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x7x22, supercell: 2x1x4

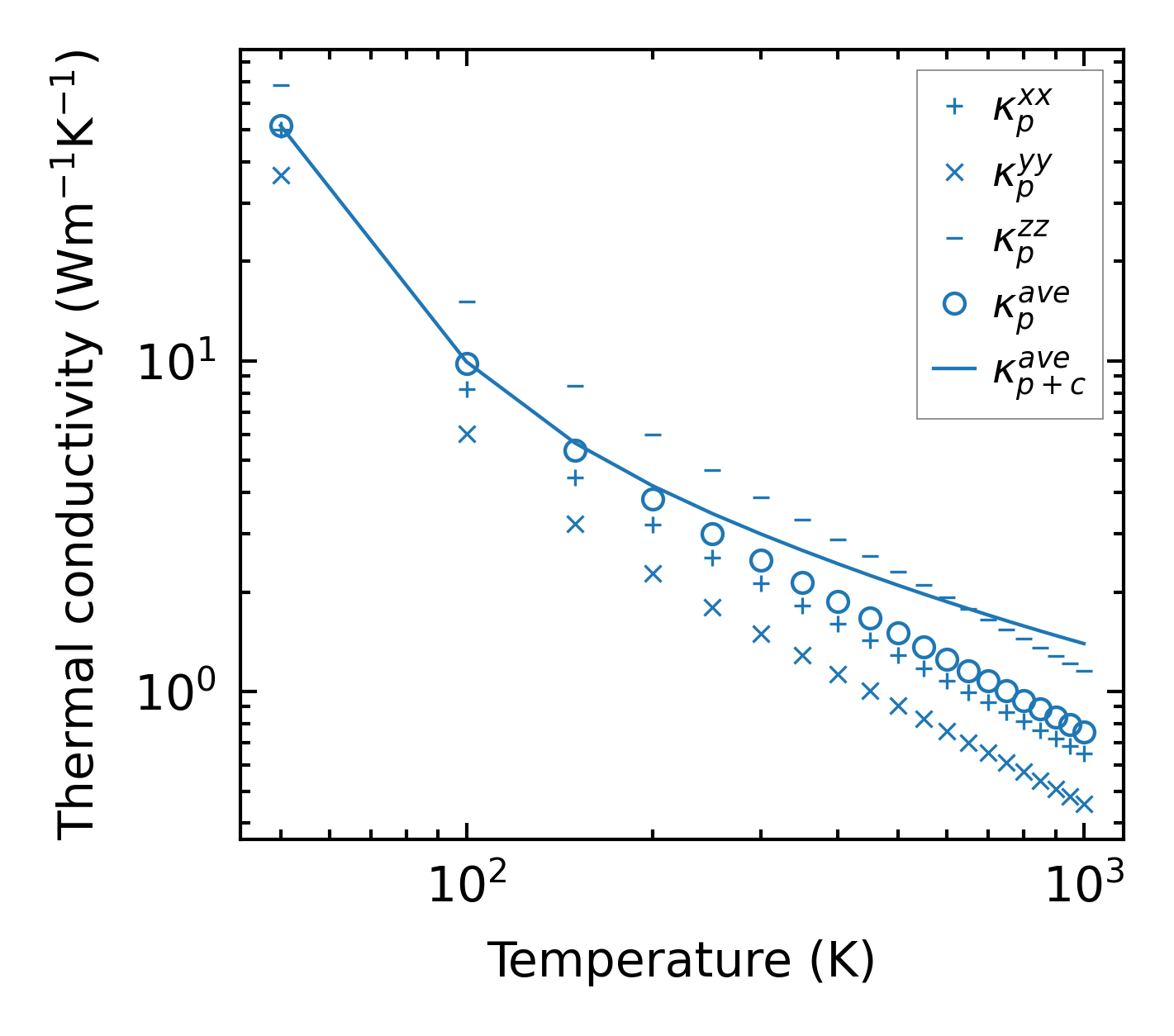

../../_images/fig_kappa1925.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1005.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime986.png — (a) Phonon lifetime due to phonon-phonon scattering

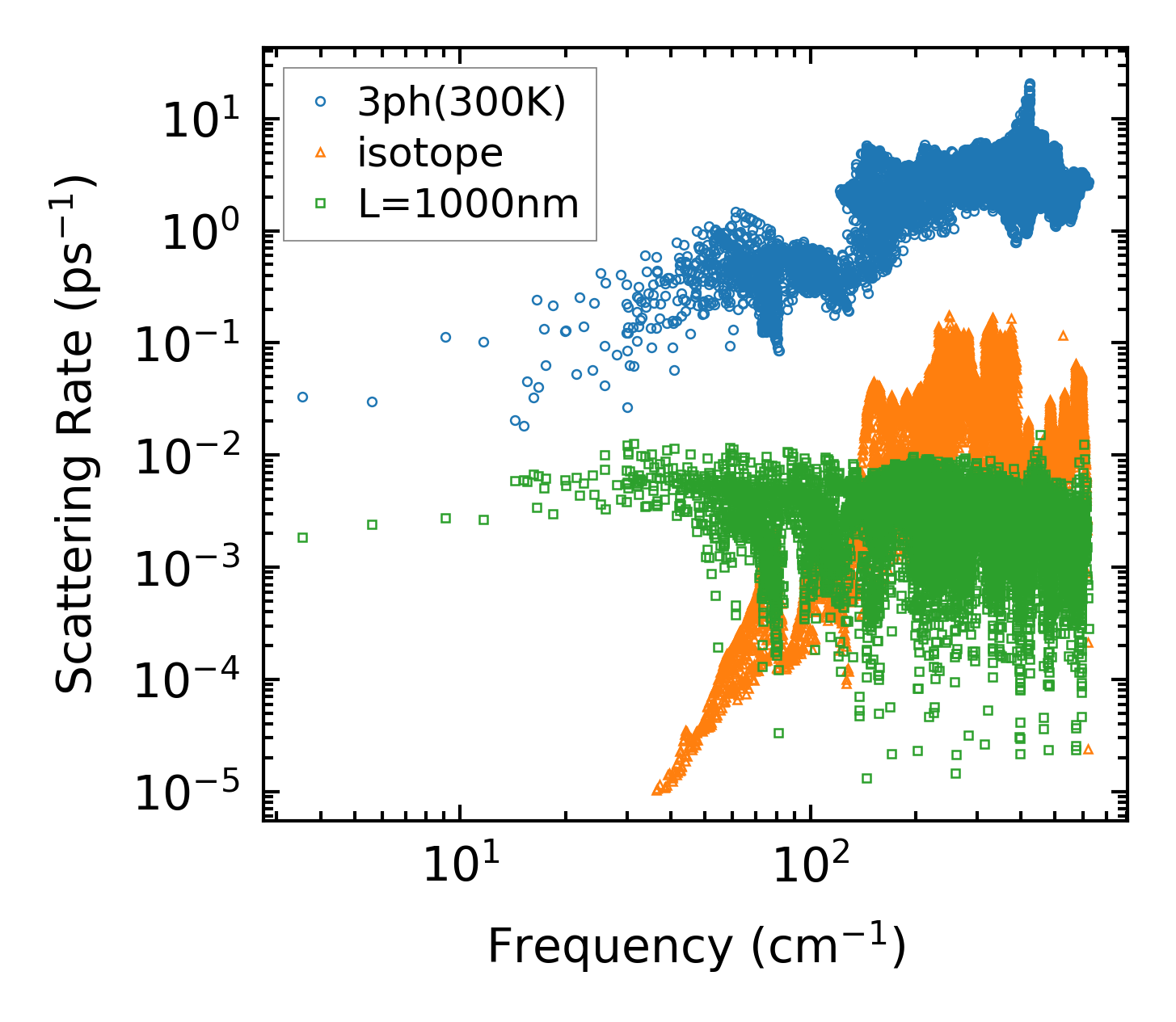

../../_images/fig_scat_rates985.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

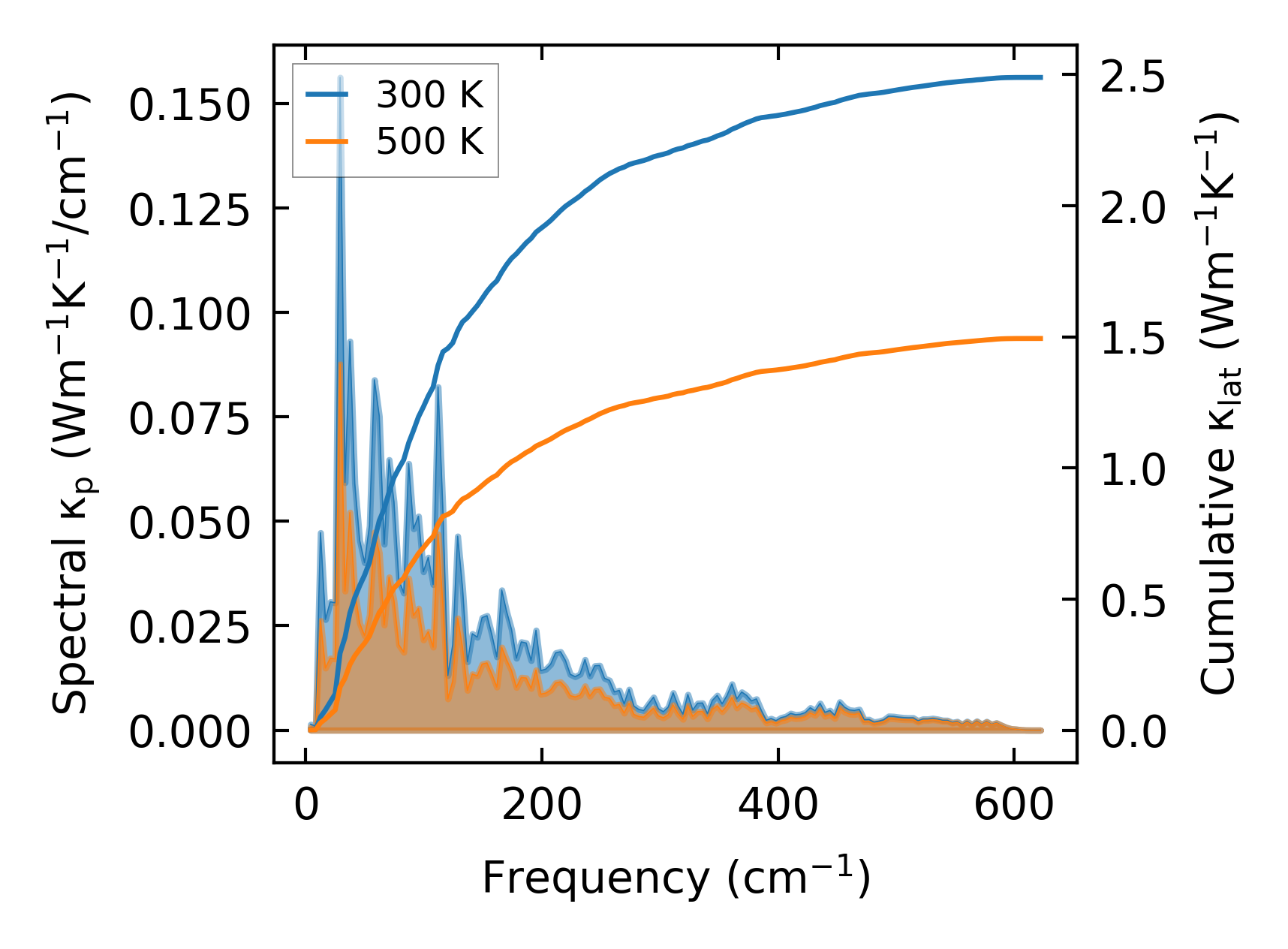

../../_images/fig_cumu_frequency986.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

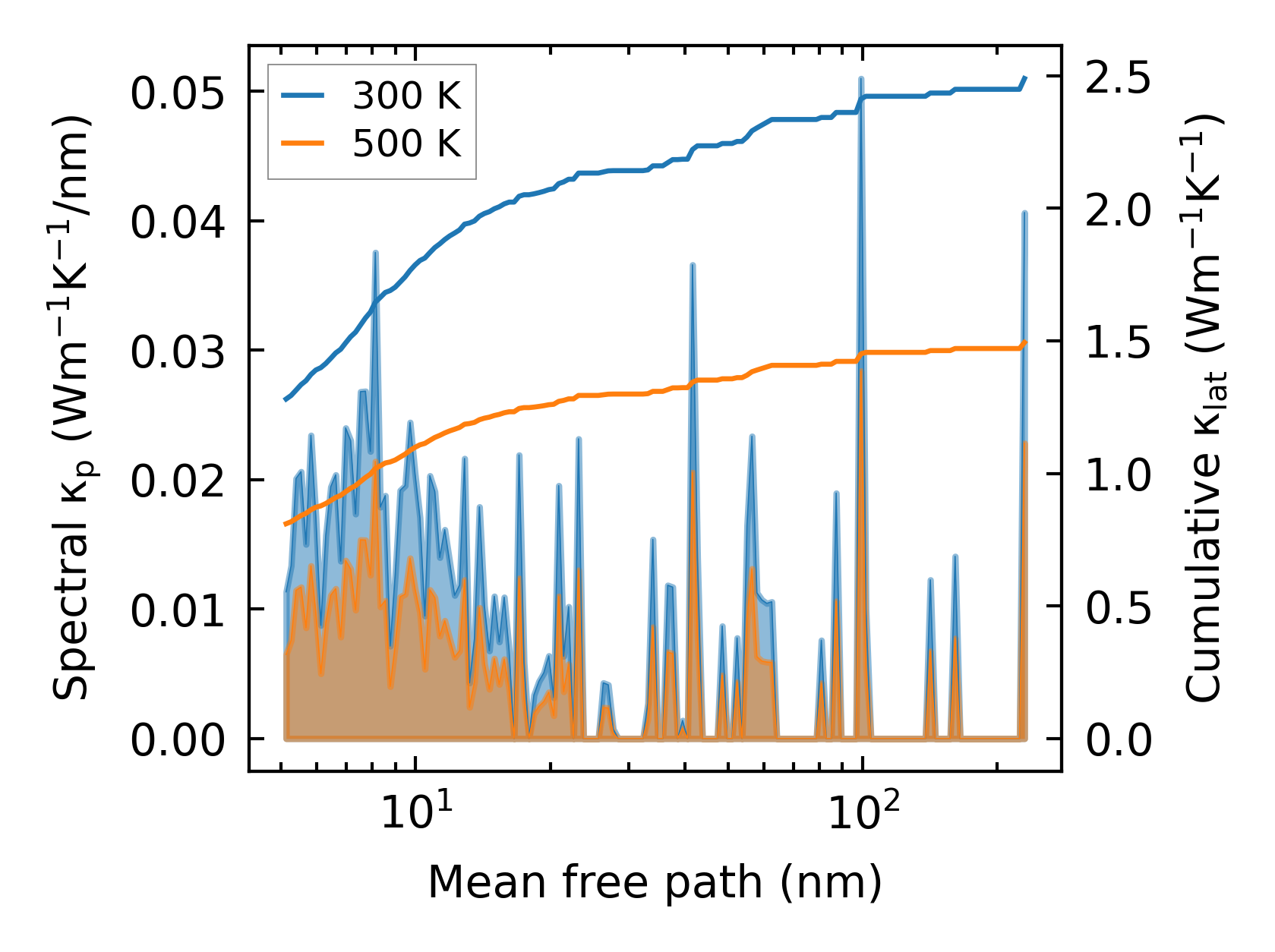

../../_images/fig_cumu_mfp986.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc21575.png — (a) Force constants w.r.t atomic distance

Summary

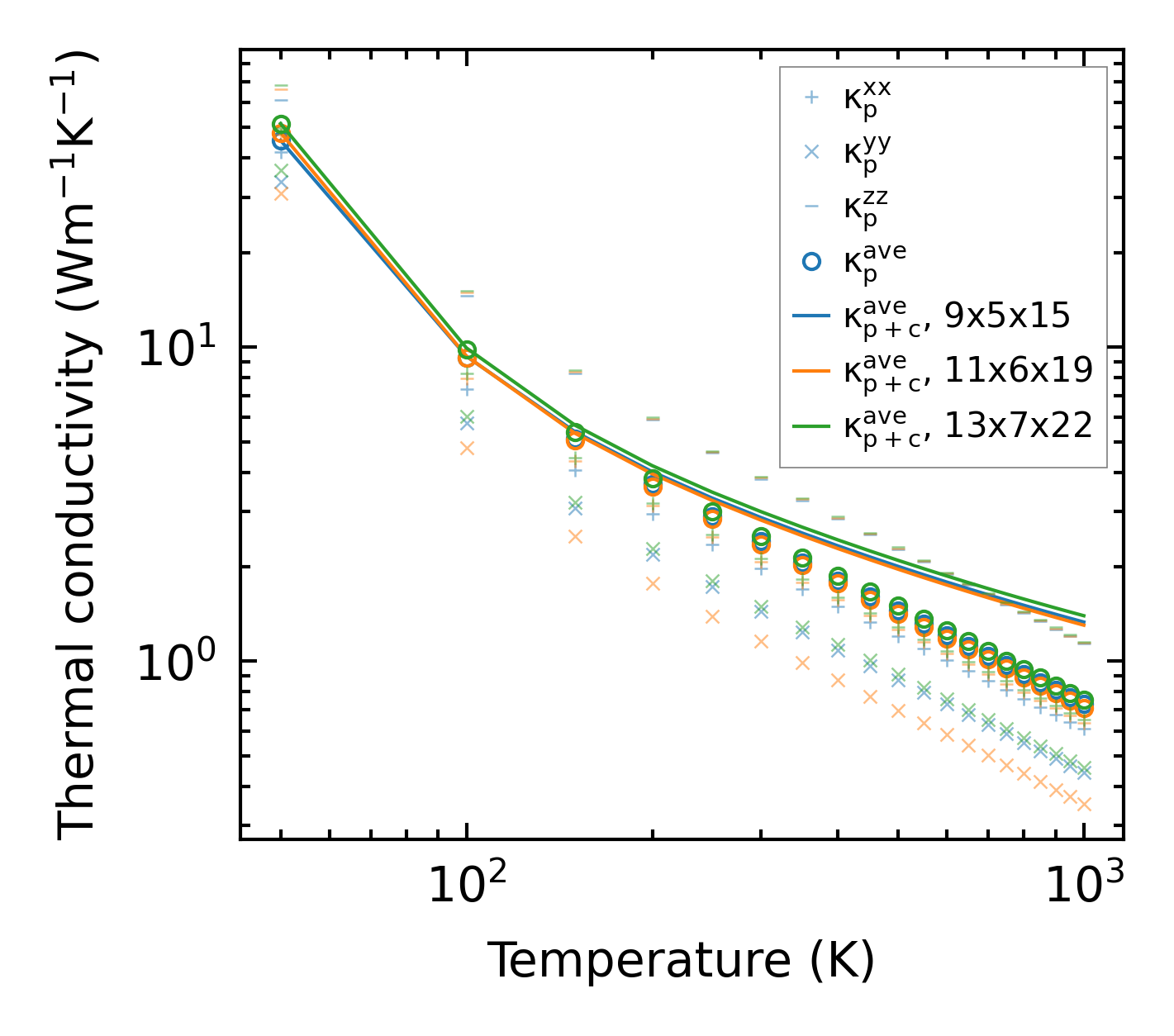

../../_images/fig_kappa1926.png — (a) Temperature-dependent lattice thermal conductivity

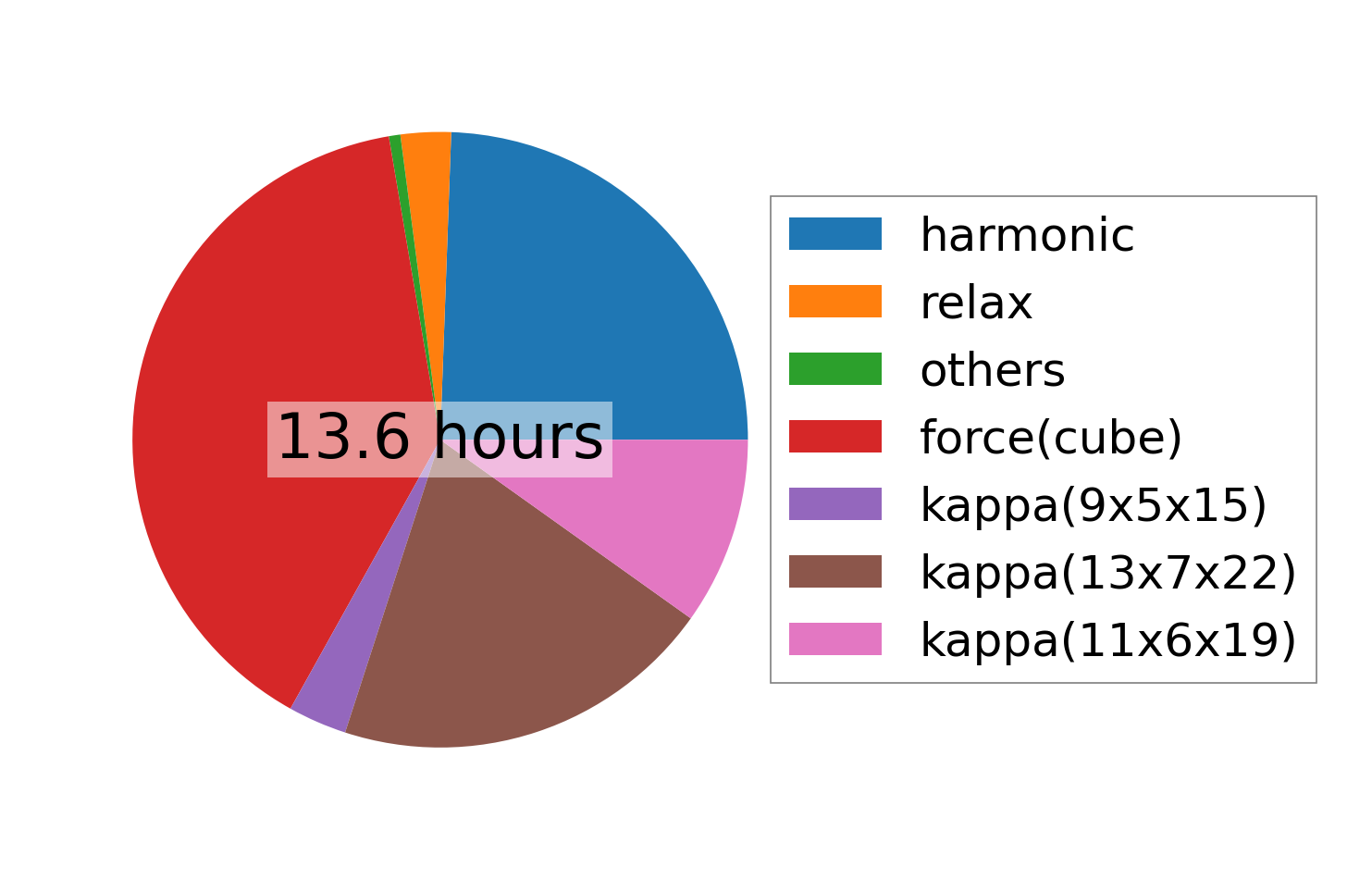

../../_images/fig_times2663.png — (b) Computation time
