mp-851112-2/Ba9La5Br33/anharm

Space group: P-1 (2)
Link: Materials Project
Download: mp-851112-2.tar.gz

Equation of state

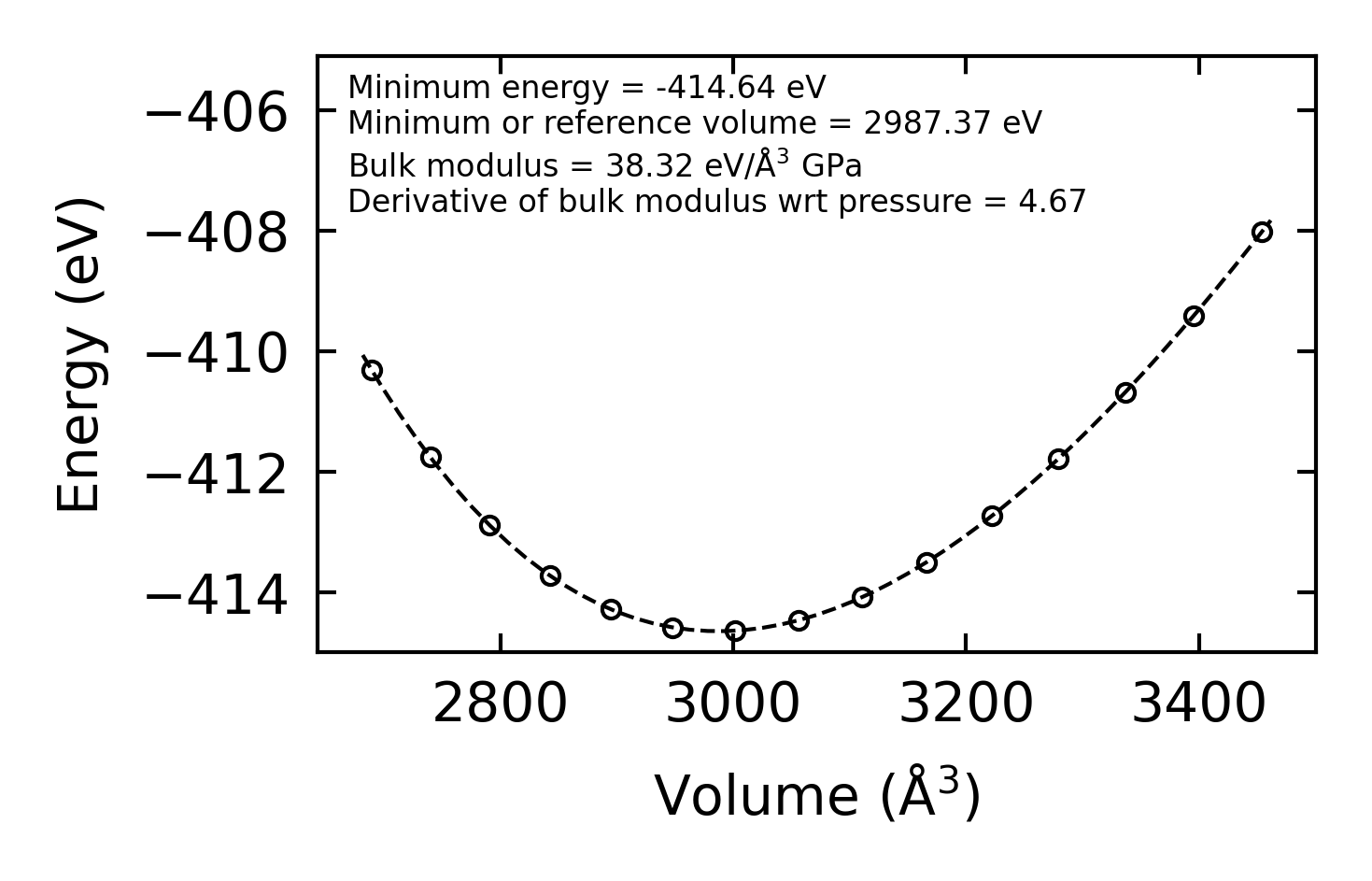

../../_images/fig_bm675.png — (a) Equation of state

Harmonic properties

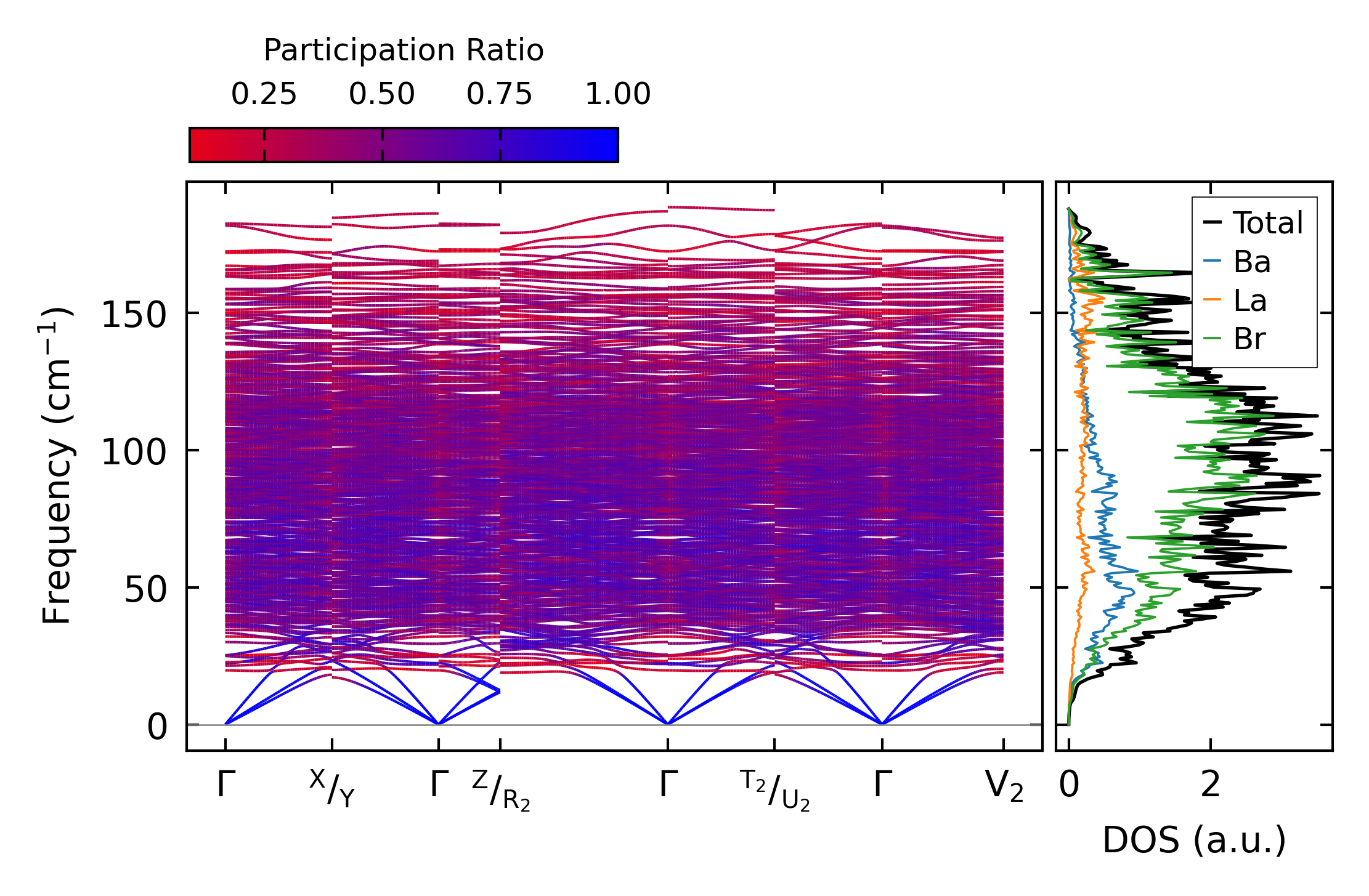

../../_images/fig_bandos_pr1732.png — (a) Phonon dispersion with participation ratio and DOS

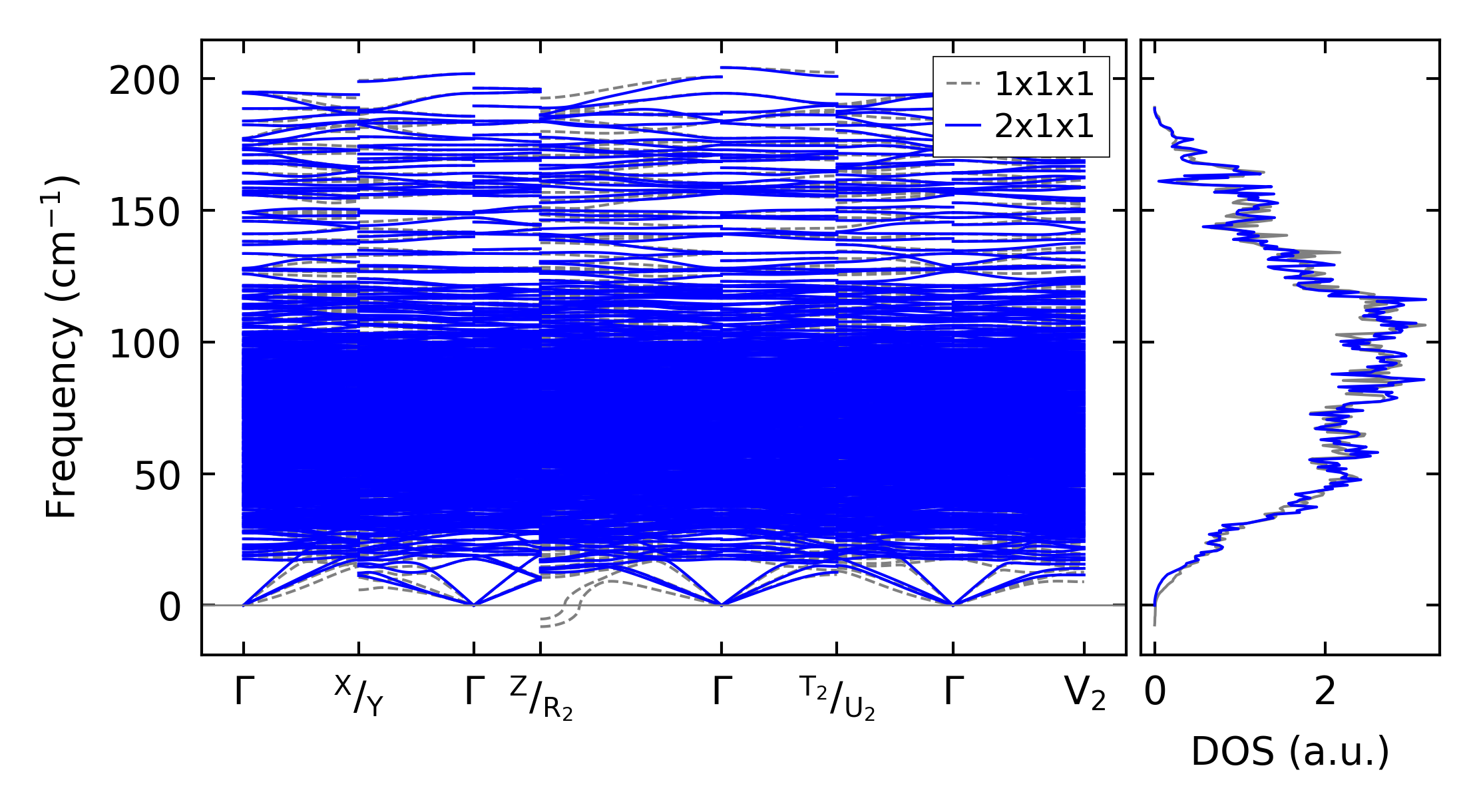

../../_images/fig_bandos1734.png — (b) Phonon dispersion and DOS

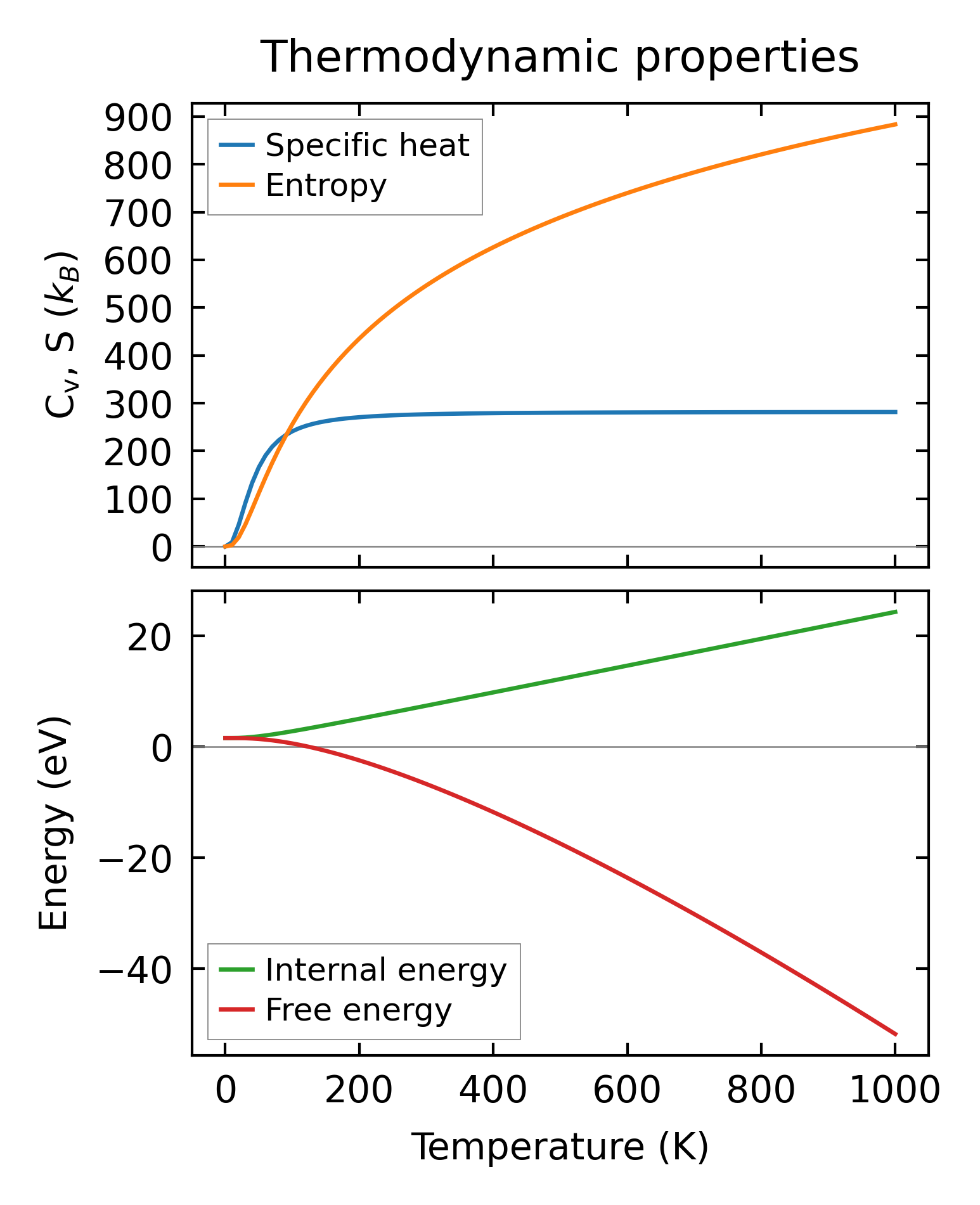

../../_images/fig_thermo1732.png — (c) Thermodynamic properties

Grüneisen parameters

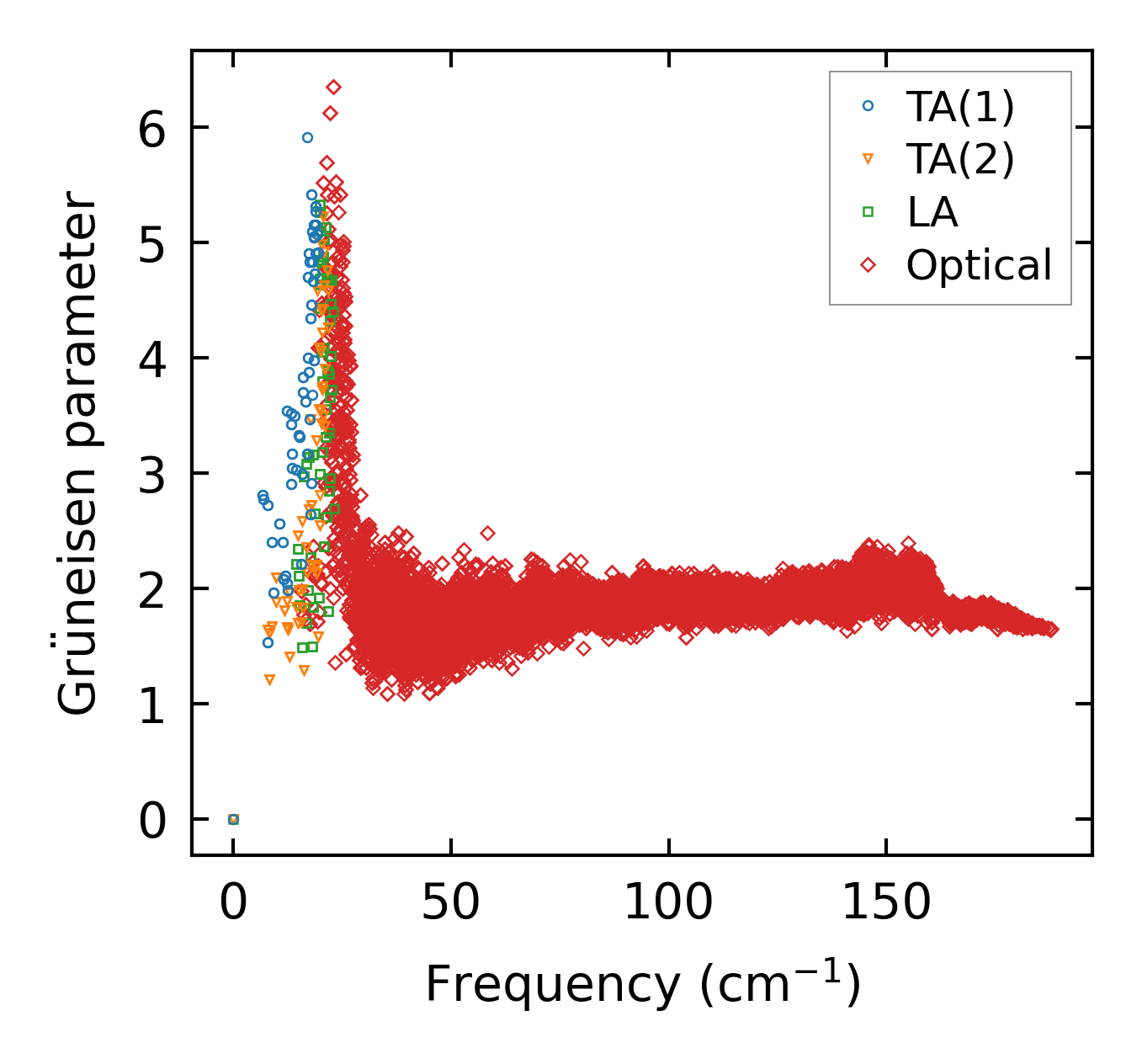

../../_images/fig_gru_all992.png — (a) Grüneisen parameters

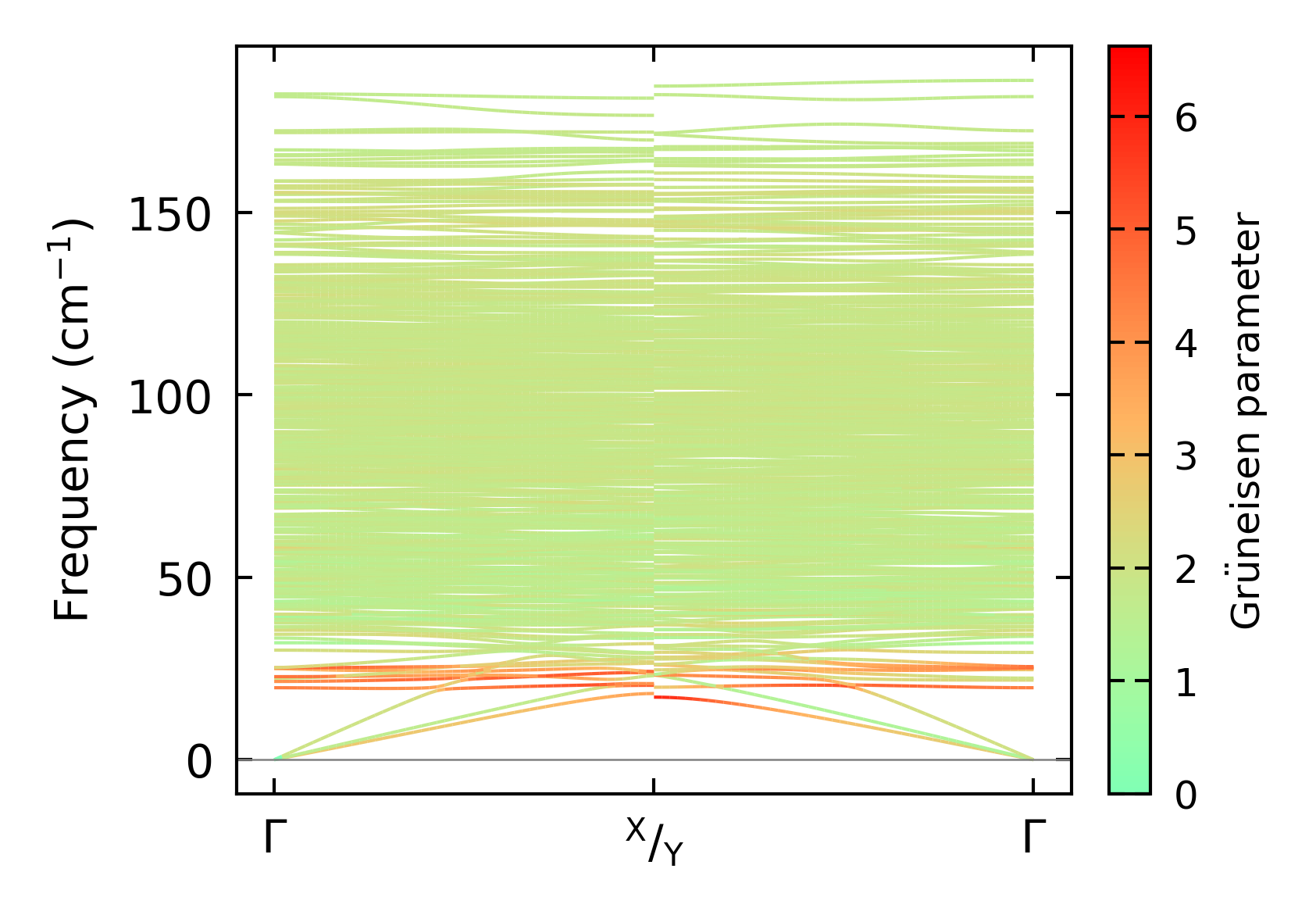

../../_images/fig_gruneisen992.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x6x3, supercell: 1x1x1

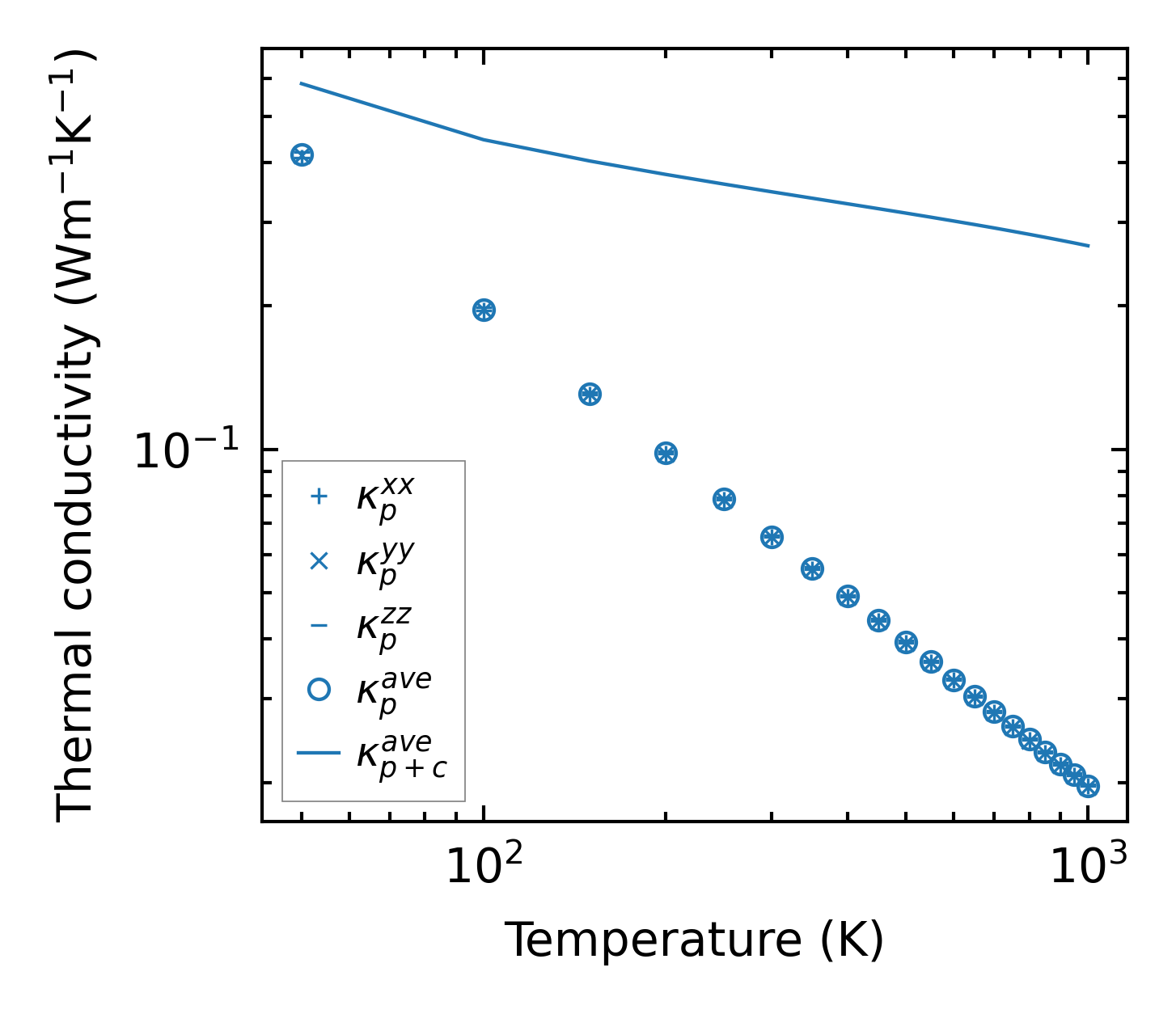

../../_images/fig_kappa1922.png — (a) Temperature-dependent lattice thermal conductivity

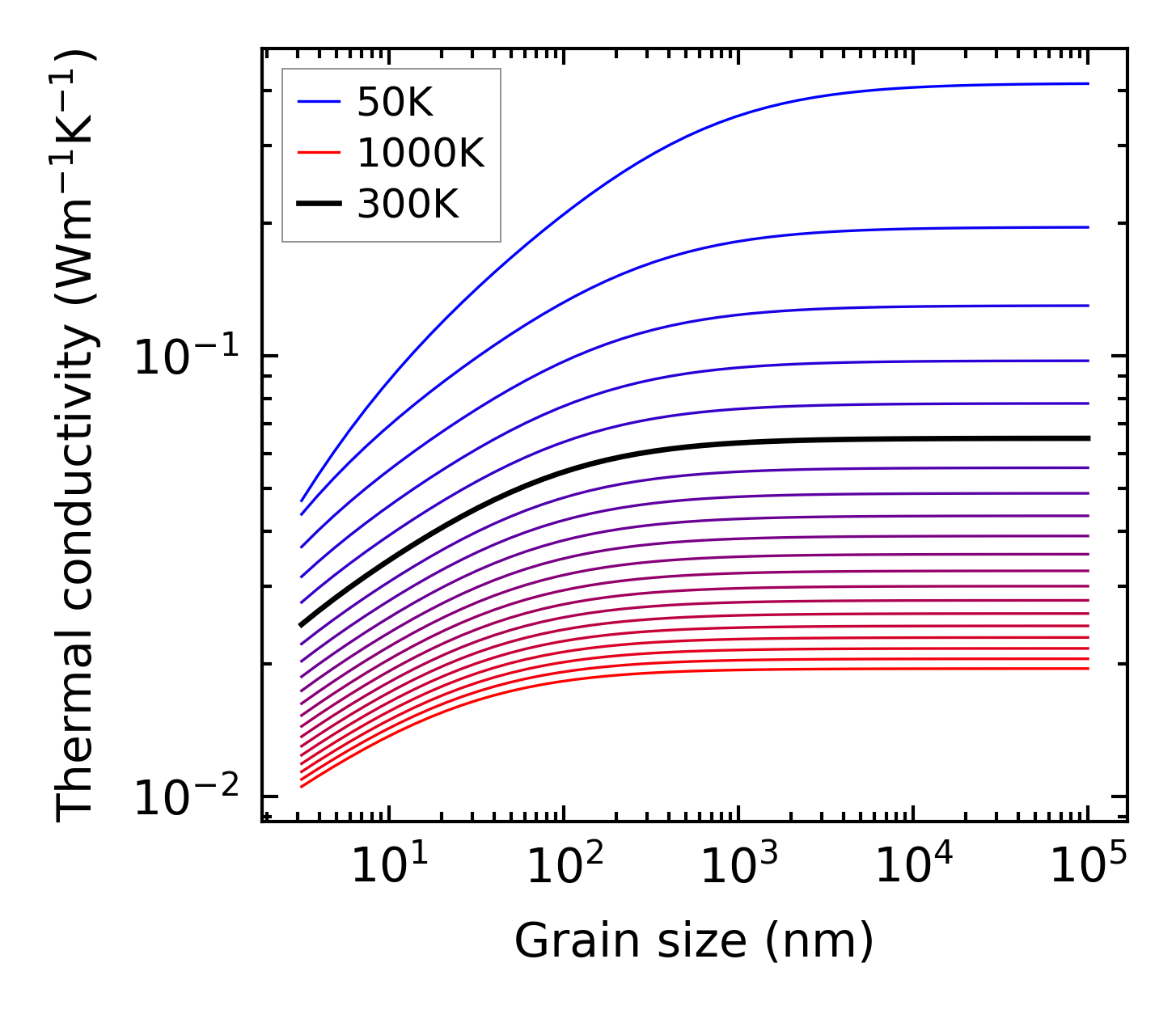

../../_images/fig_kappa_vs_grain_size1003.png — (b) Peierls lattice thermal conductivity w.r.t grain size

3-phonon (LASSO), supercell 2x1x1 — q-mesh: 6x6x3, supercell: 2x1x1

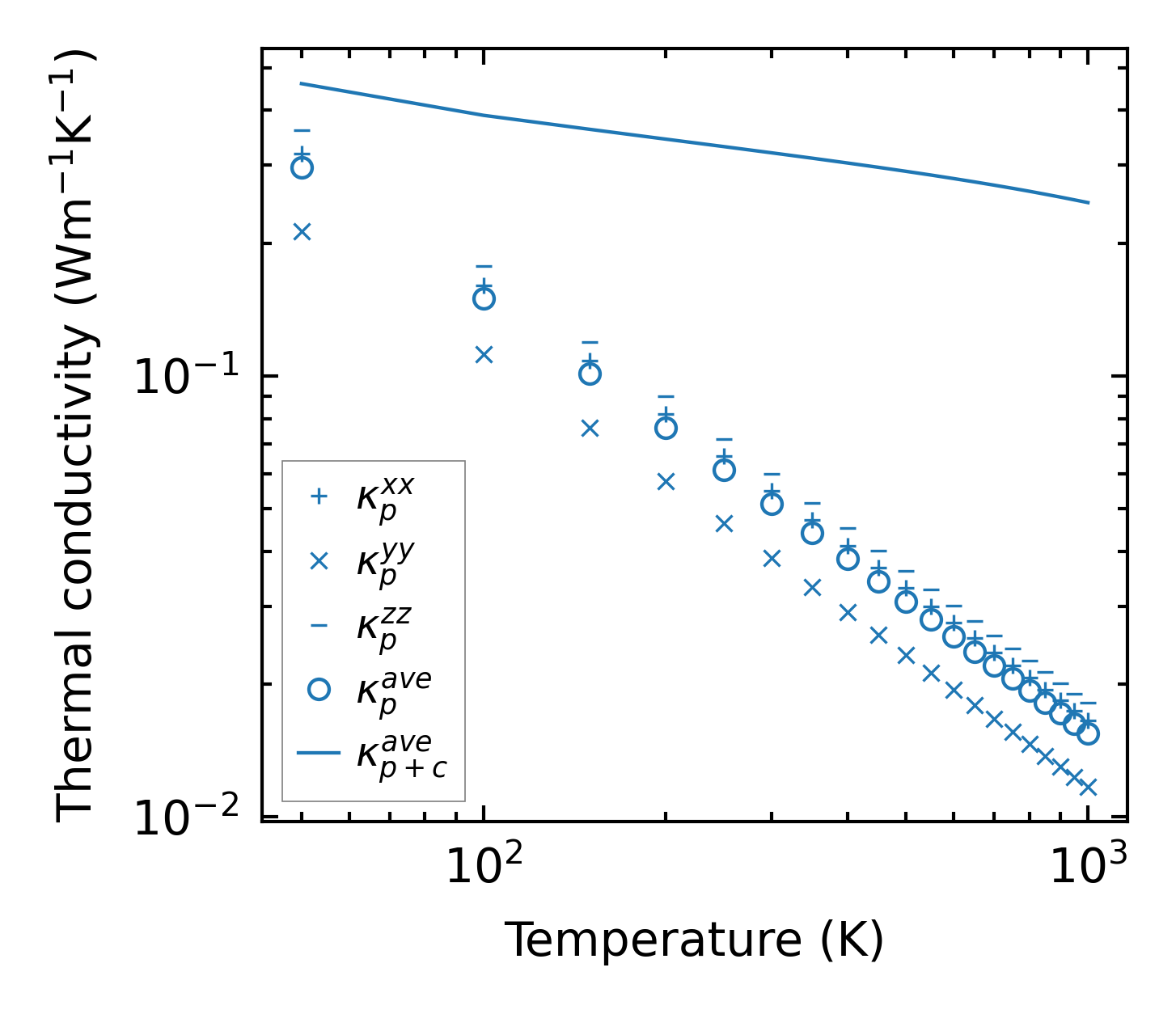

../../_images/fig_kappa1923.png — (a) Temperature-dependent lattice thermal conductivity

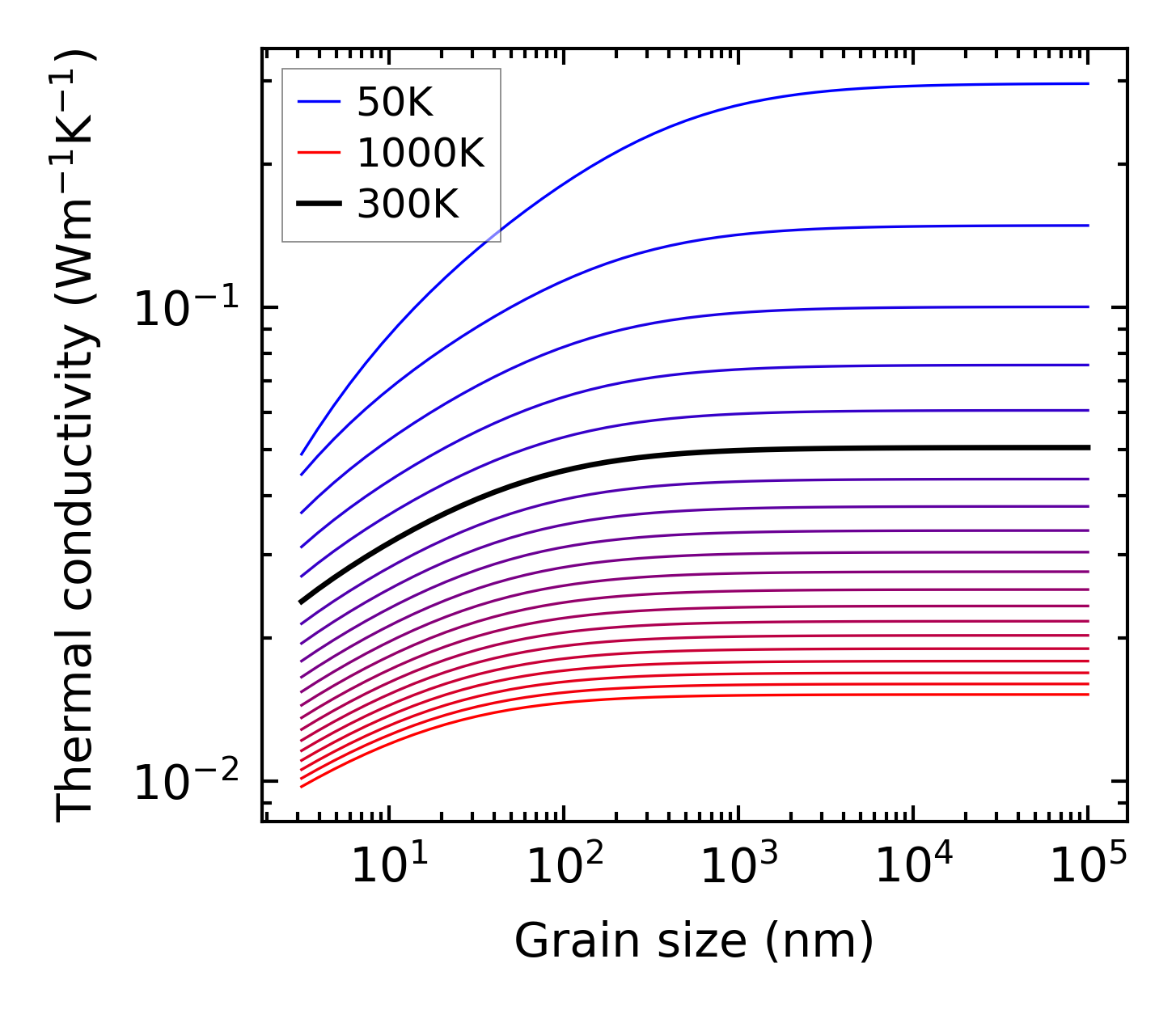

../../_images/fig_kappa_vs_grain_size1004.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

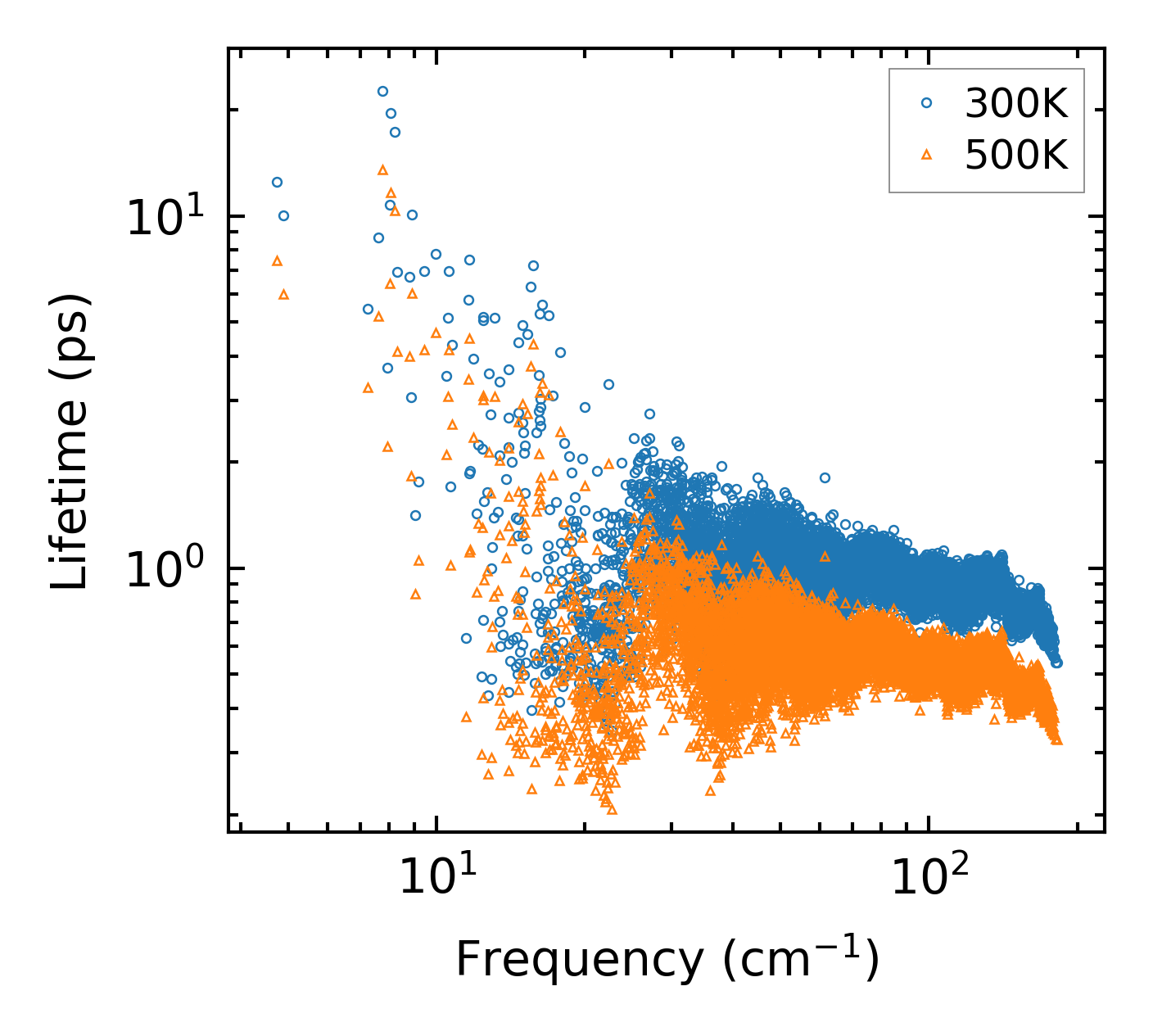

../../_images/fig_lifetime985.png — (a) Phonon lifetime due to phonon-phonon scattering

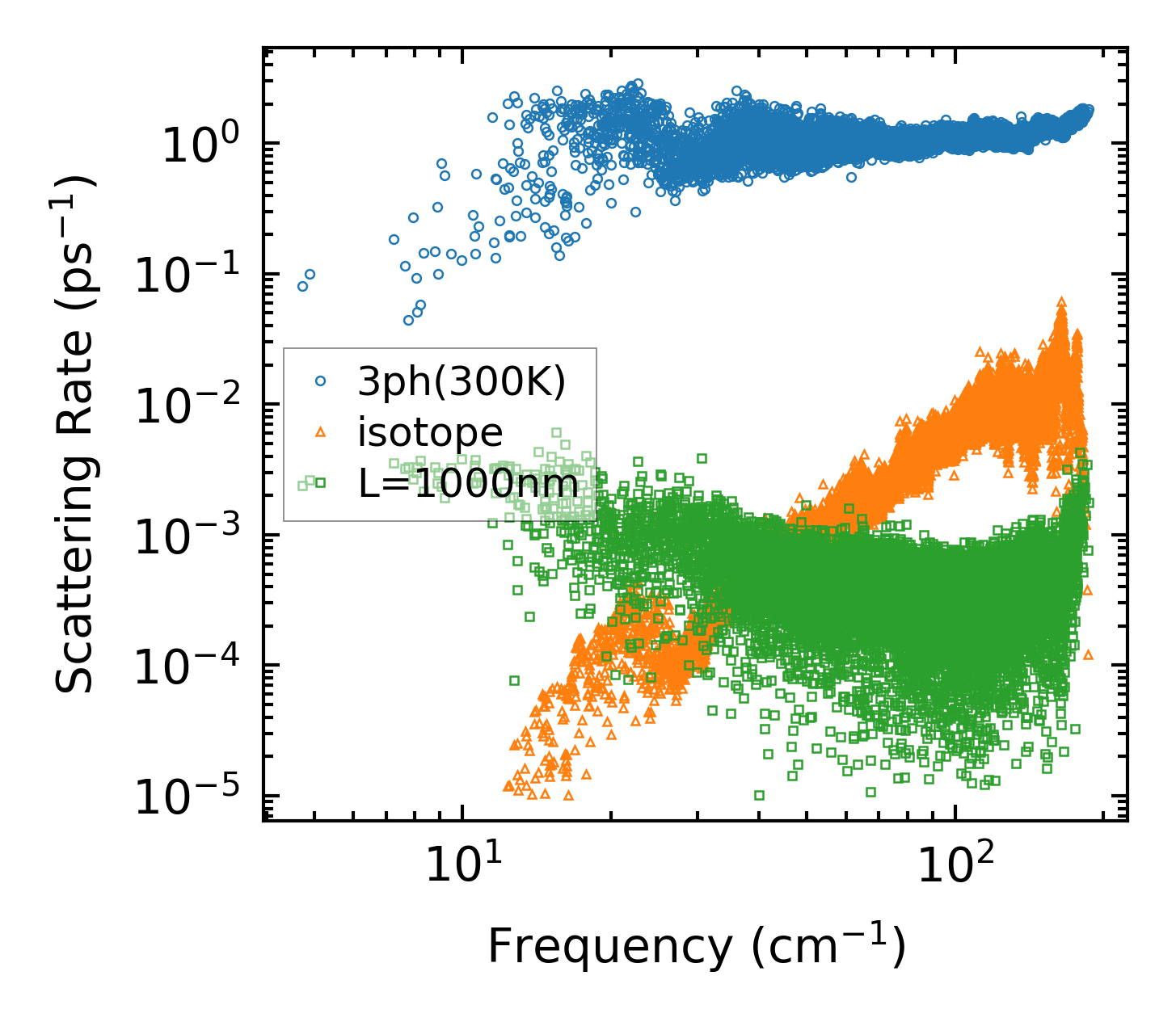

../../_images/fig_scat_rates984.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

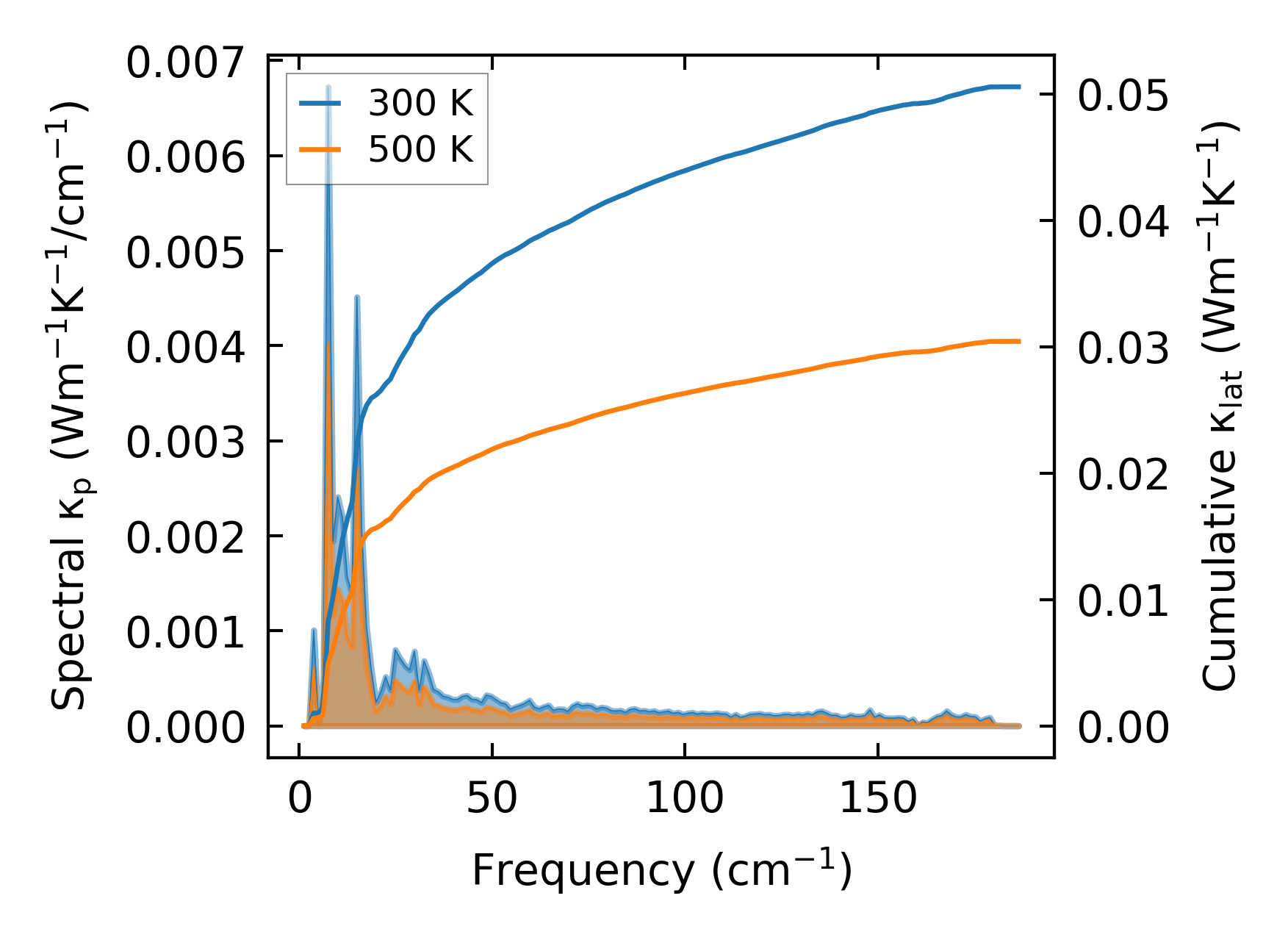

../../_images/fig_cumu_frequency985.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

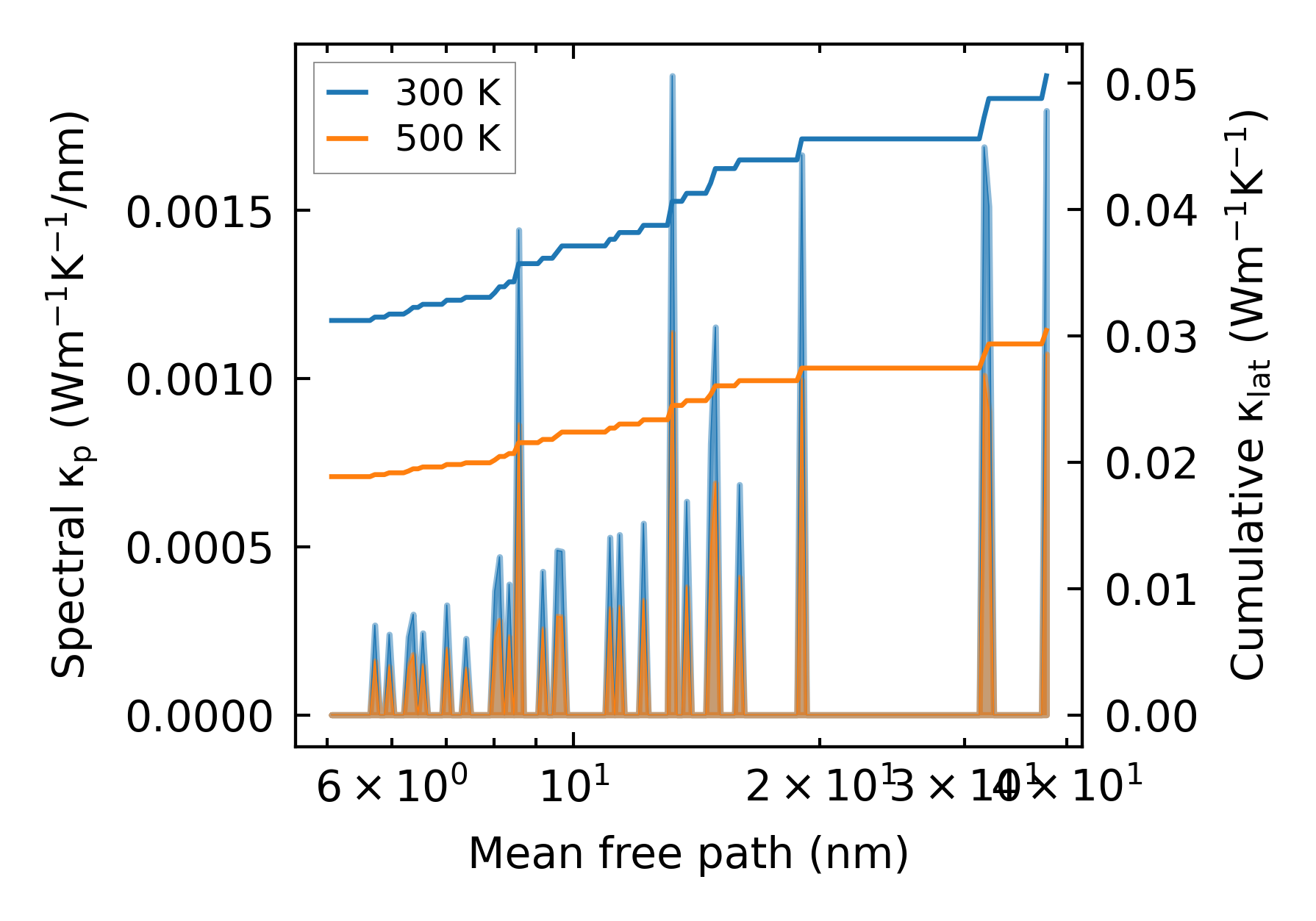

../../_images/fig_cumu_mfp985.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

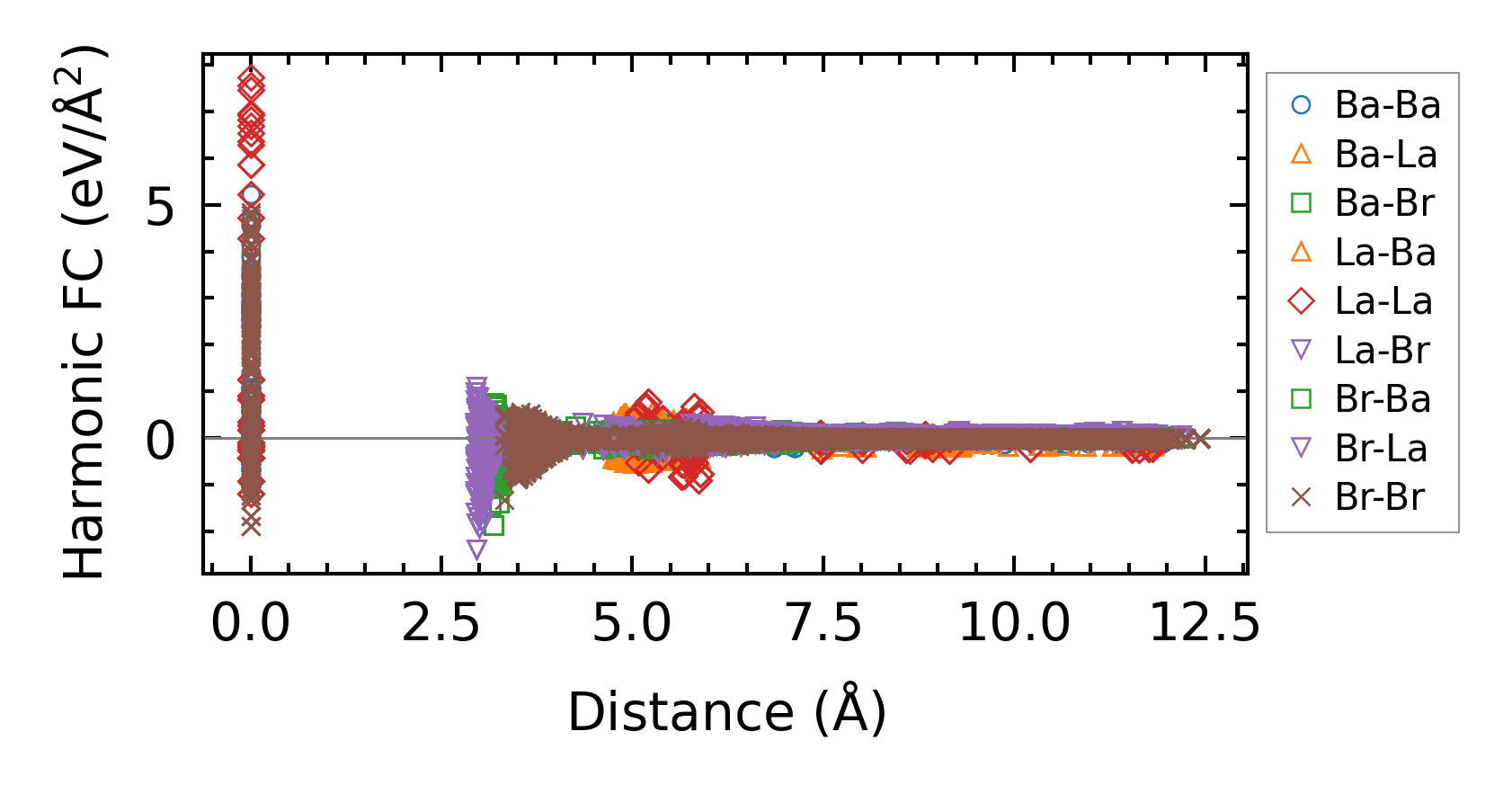

../../_images/fig_fc21564.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa1924.png — (a) Temperature-dependent lattice thermal conductivity

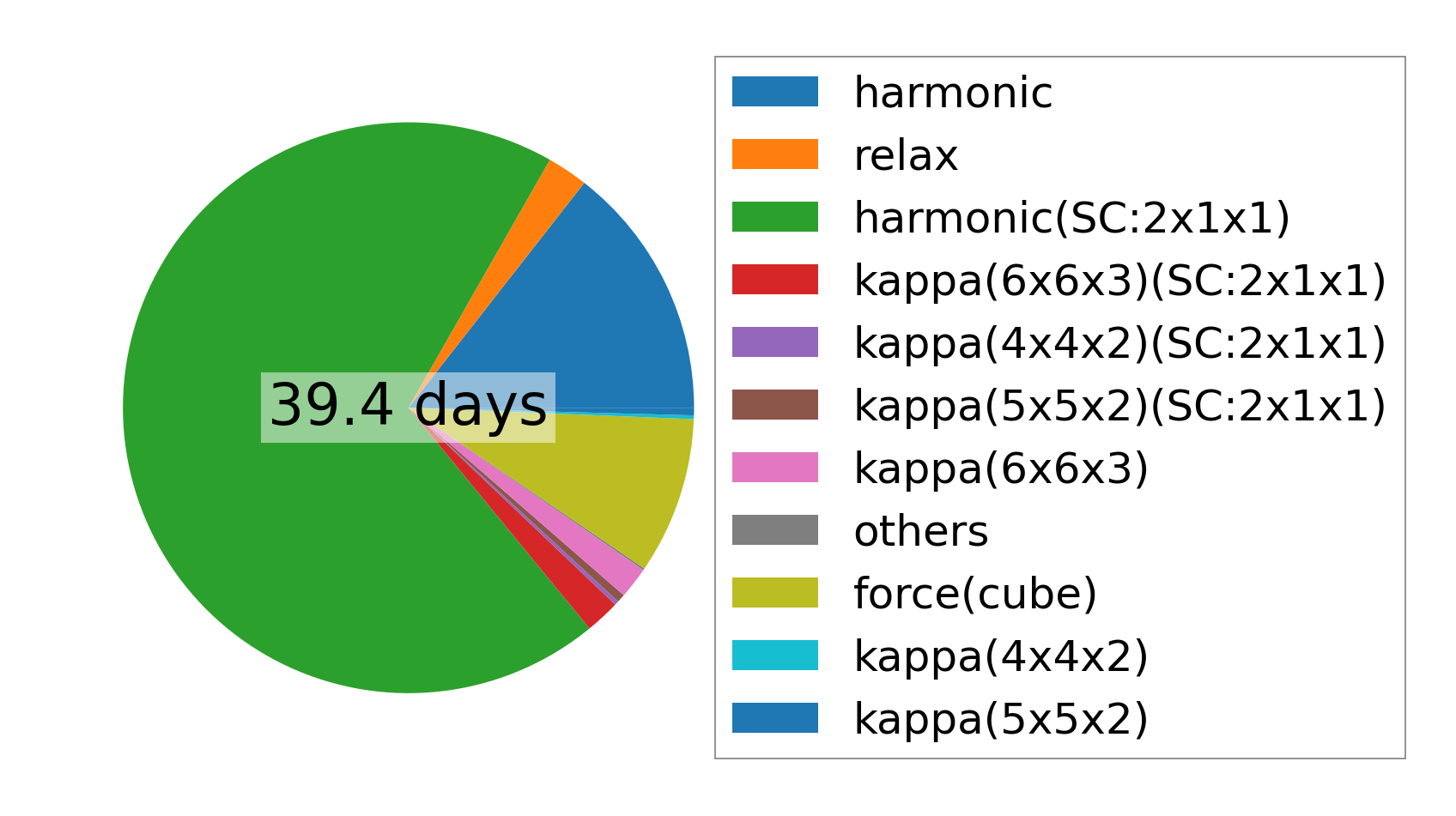

../../_images/fig_times2640.png — (b) Computation time
