mp-851110/Ba9La5I33/anharm

Space group: P-1 (2)
Link: Materials Project
Download: mp-851110.tar.gz

Harmonic properties

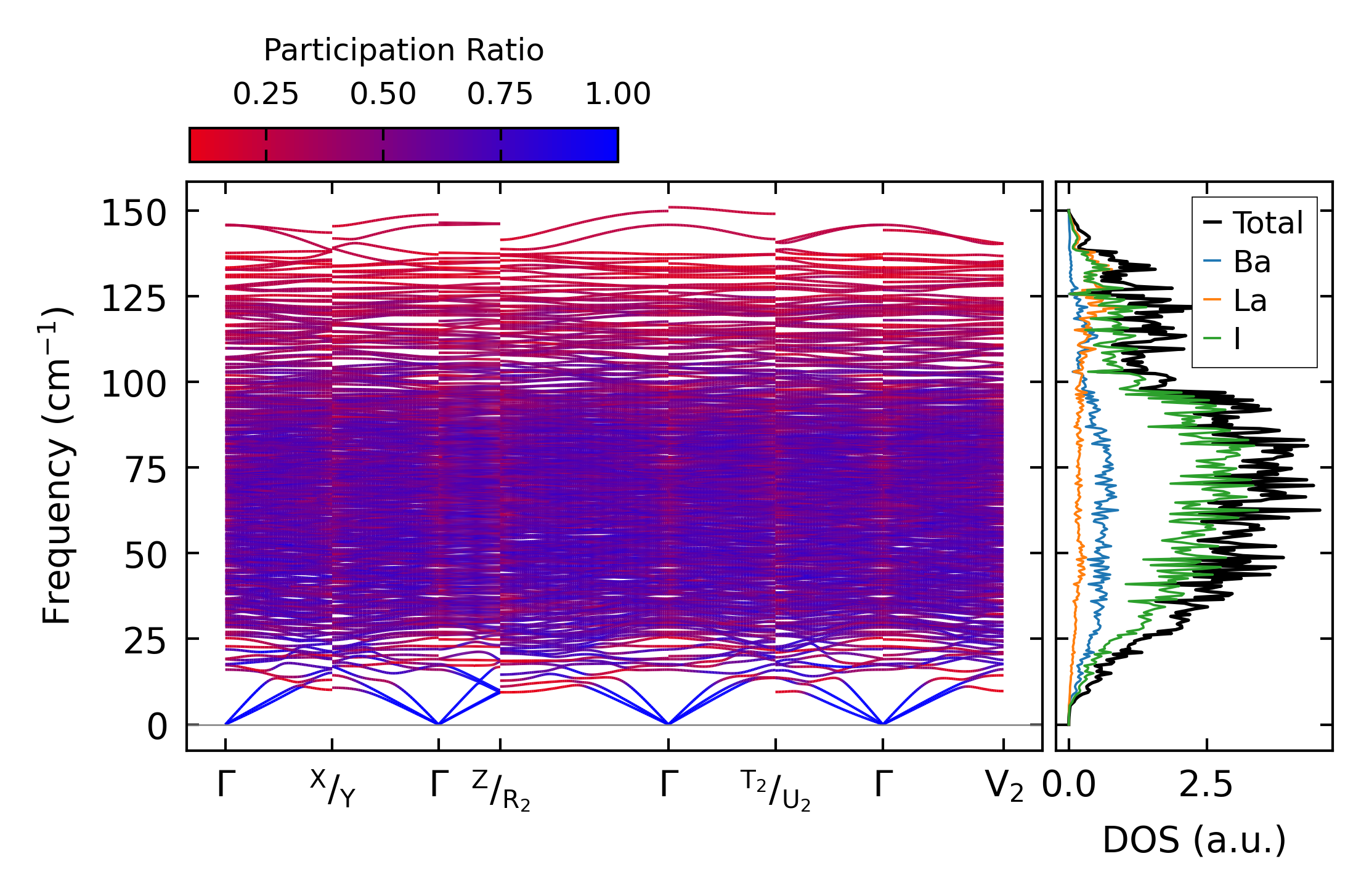

../../_images/fig_bandos_pr1731.png — (a) Phonon dispersion with participation ratio and DOS

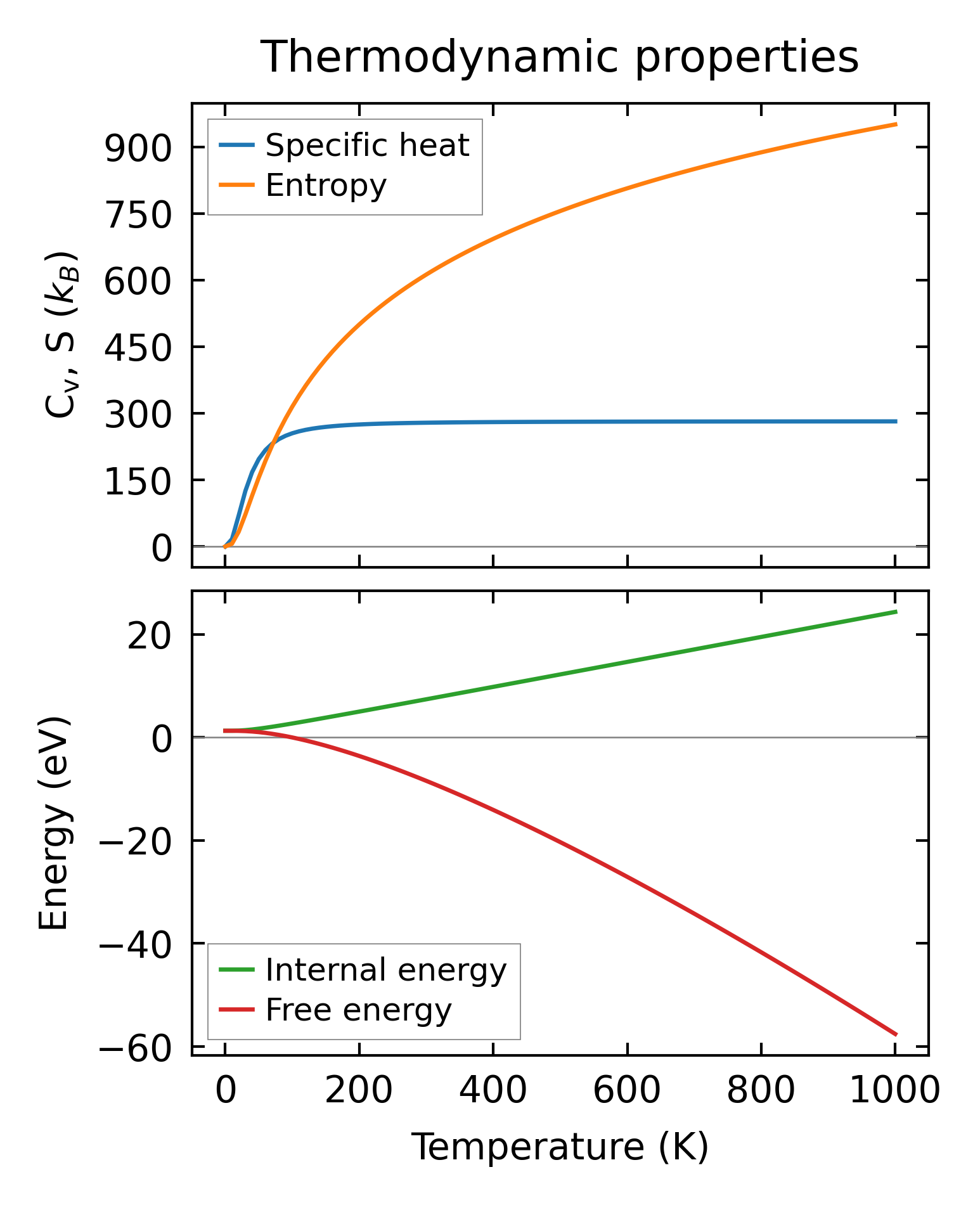

../../_images/fig_thermo1731.png — (b) Thermodynamic properties

Grüneisen parameters

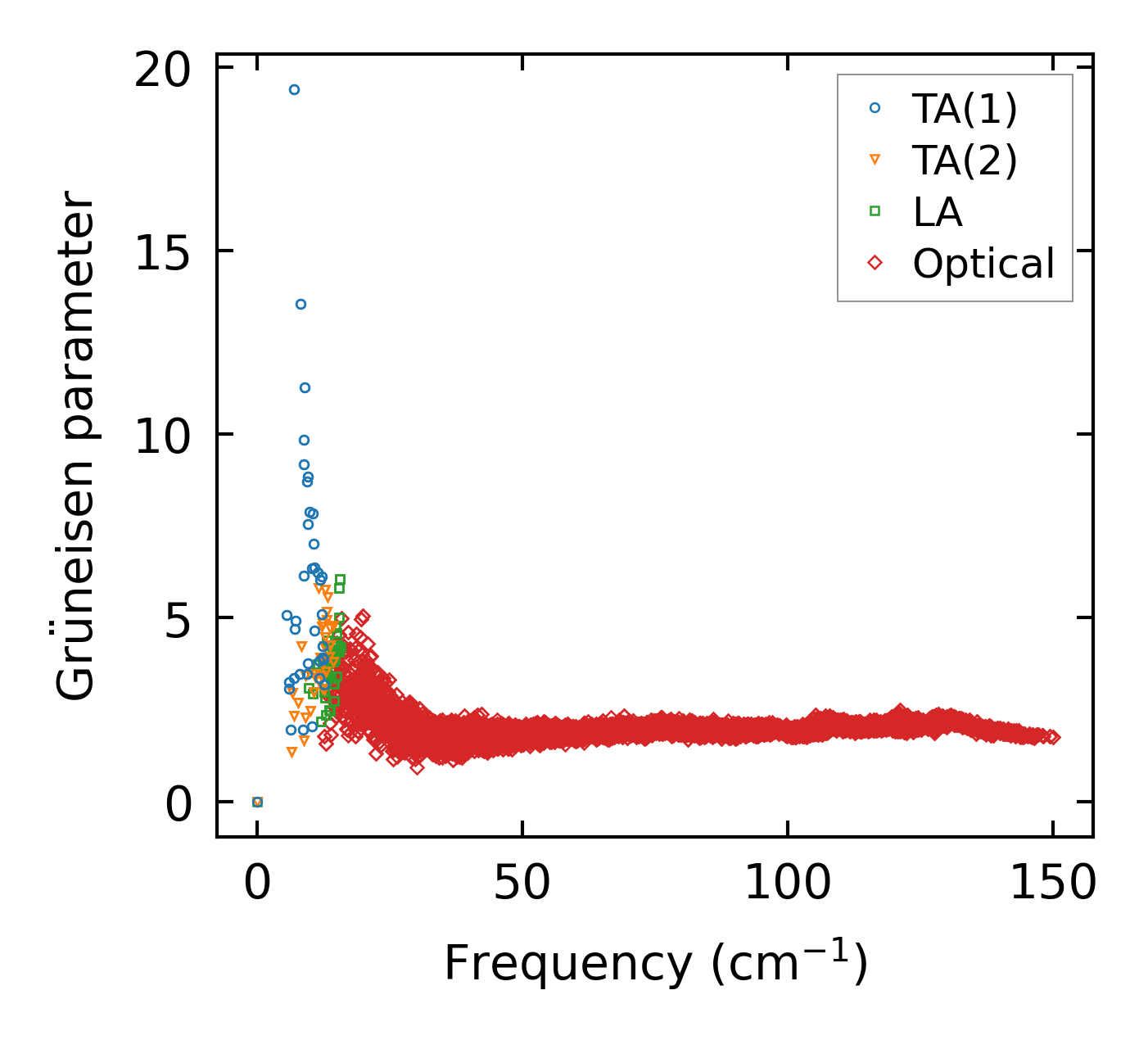

../../_images/fig_gru_all991.png — (a) Grüneisen parameters

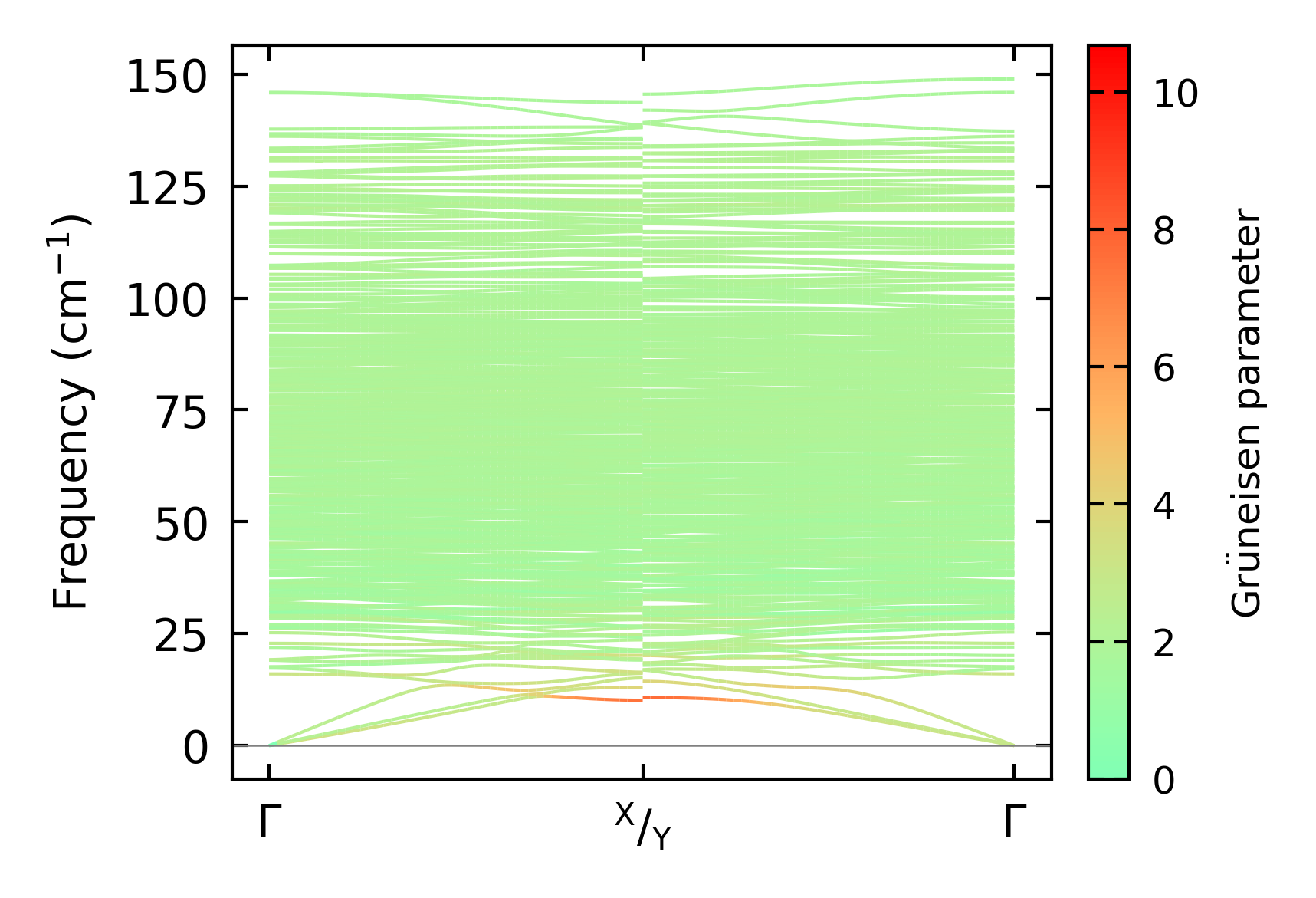

../../_images/fig_gruneisen991.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 5x5x3, supercell: 1x1x1

../../_images/fig_kappa1920.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1002.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

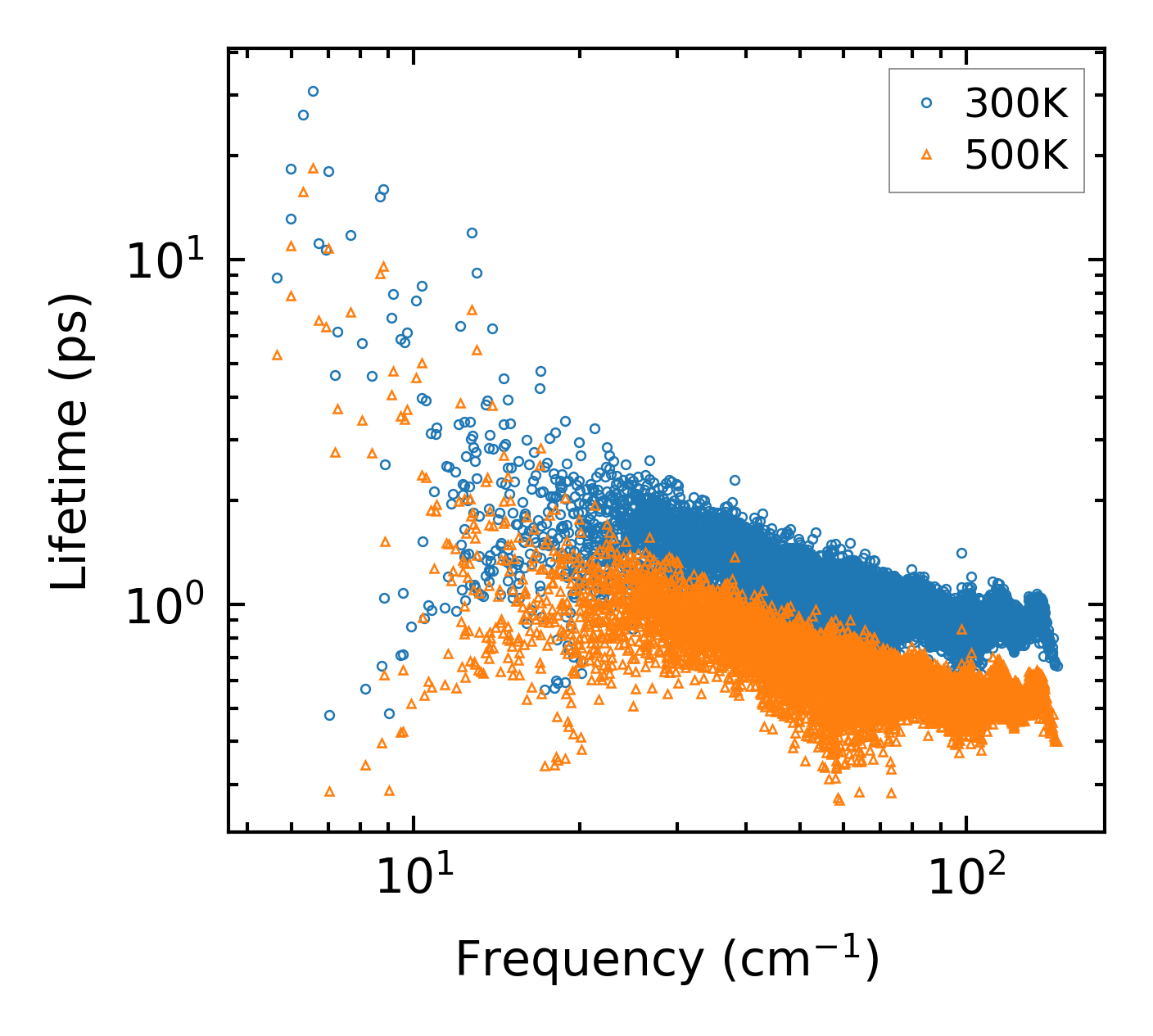

../../_images/fig_lifetime984.png — (a) Phonon lifetime due to phonon-phonon scattering

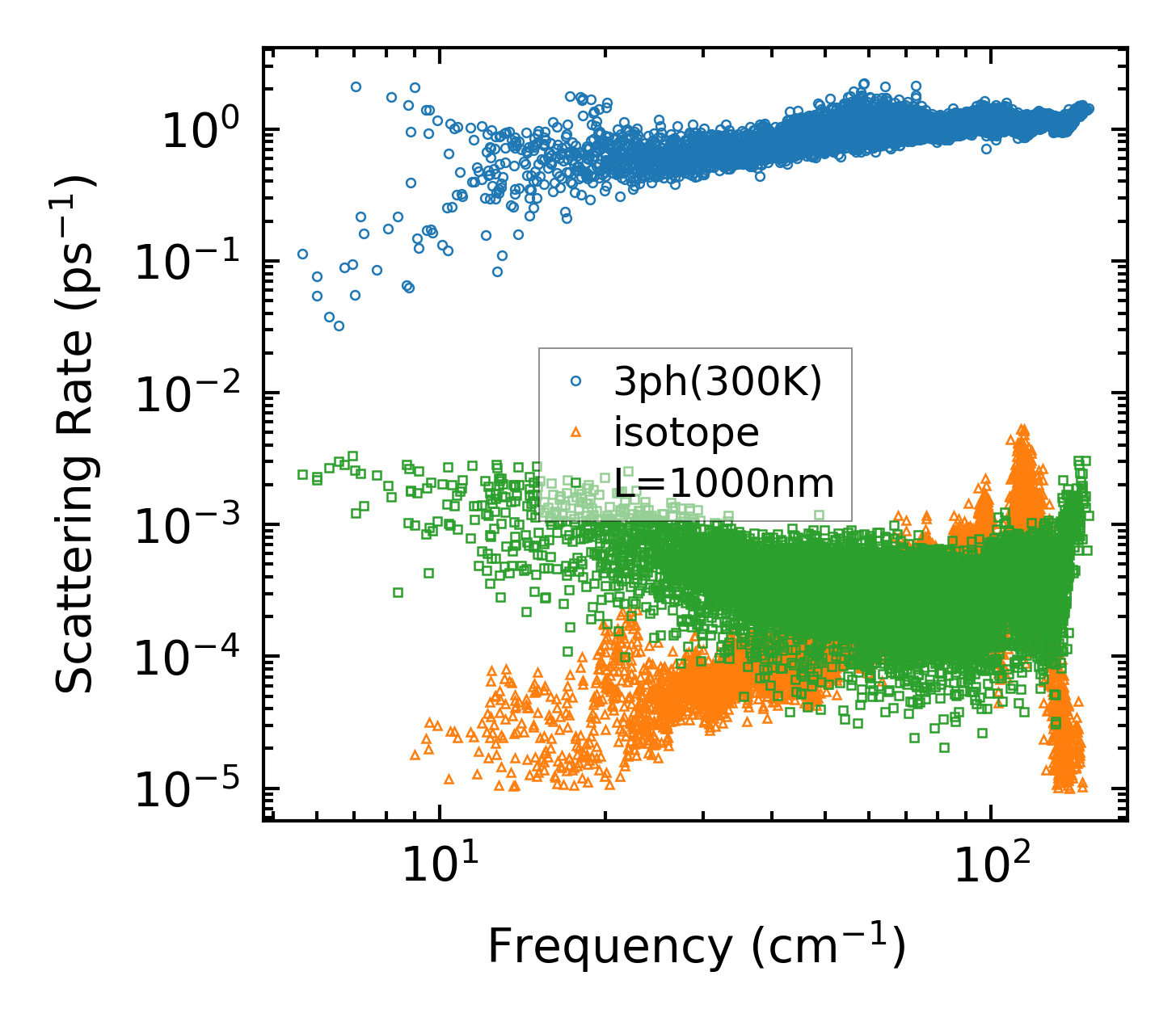

../../_images/fig_scat_rates983.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

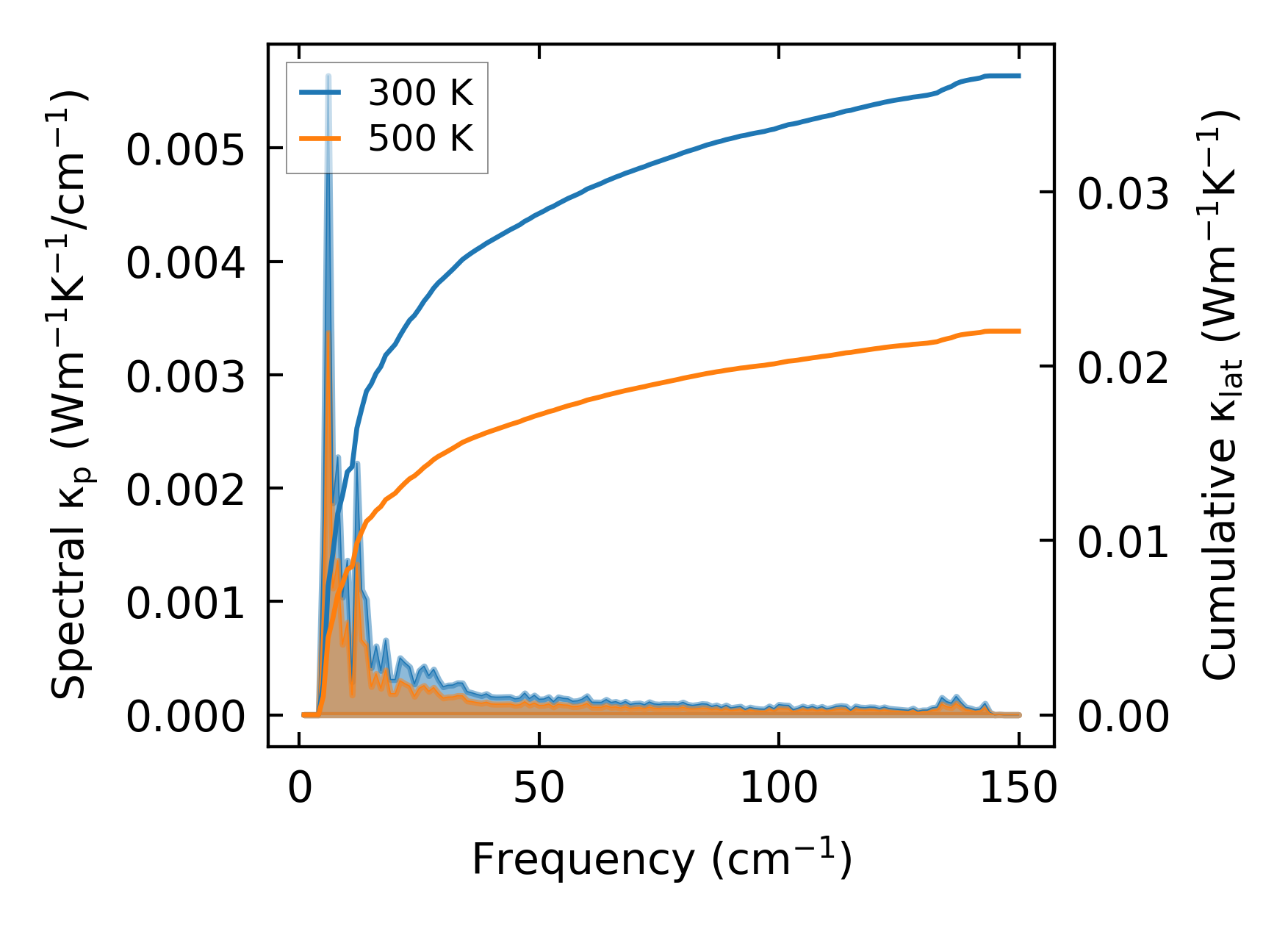

../../_images/fig_cumu_frequency984.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

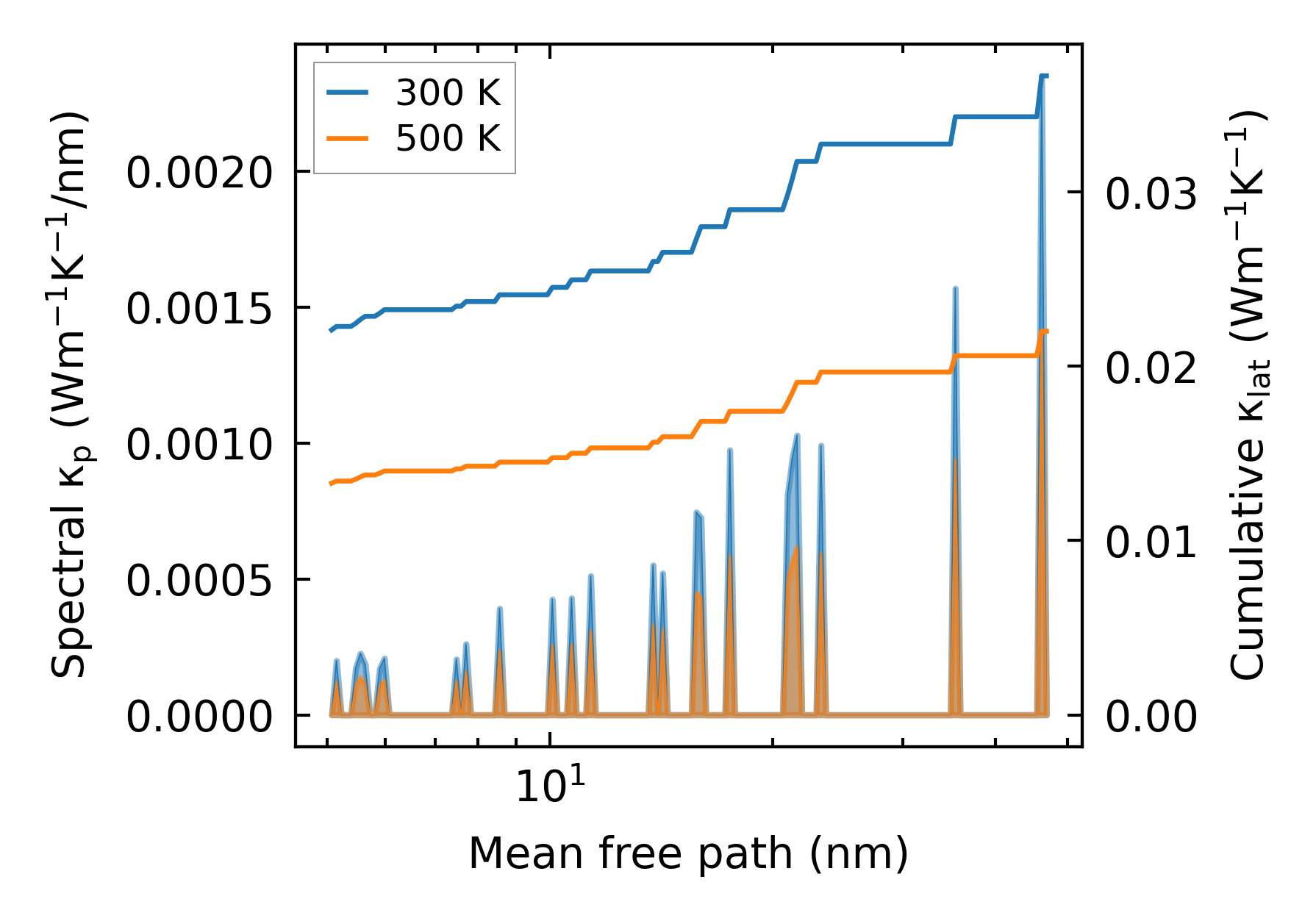

../../_images/fig_cumu_mfp984.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc21563.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa1921.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times2638.png — (b) Computation time
