mp-781015-2/La2WO6/anharm

Space group: Pbca (61)
Link: Materials Project
Download: mp-781015-2.tar.gz

Equation of state

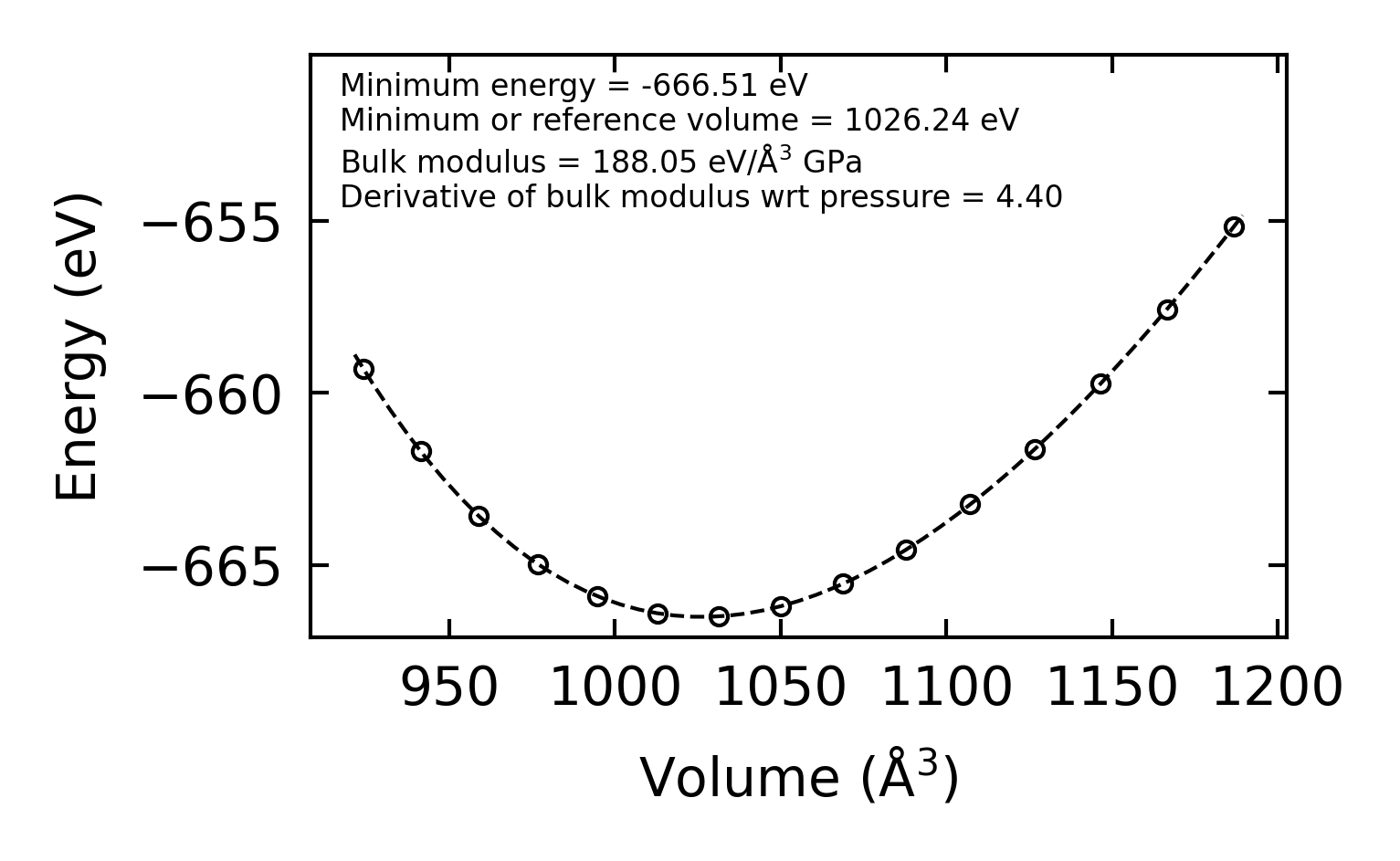

../../_images/fig_bm842.png — (a) Equation of state

Harmonic properties

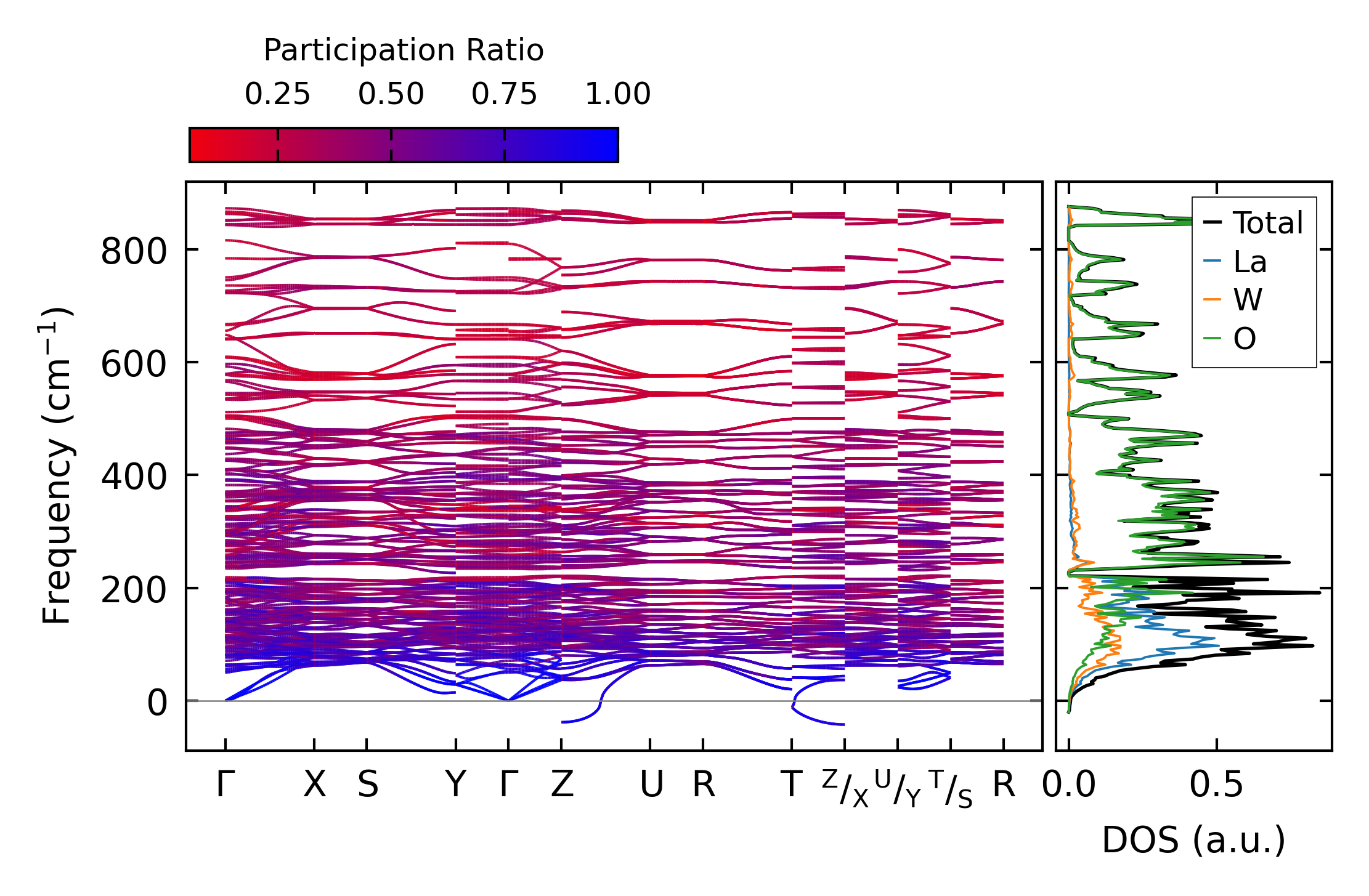

../../_images/fig_bandos_pr2003.png — (a) Phonon dispersion with participation ratio and DOS

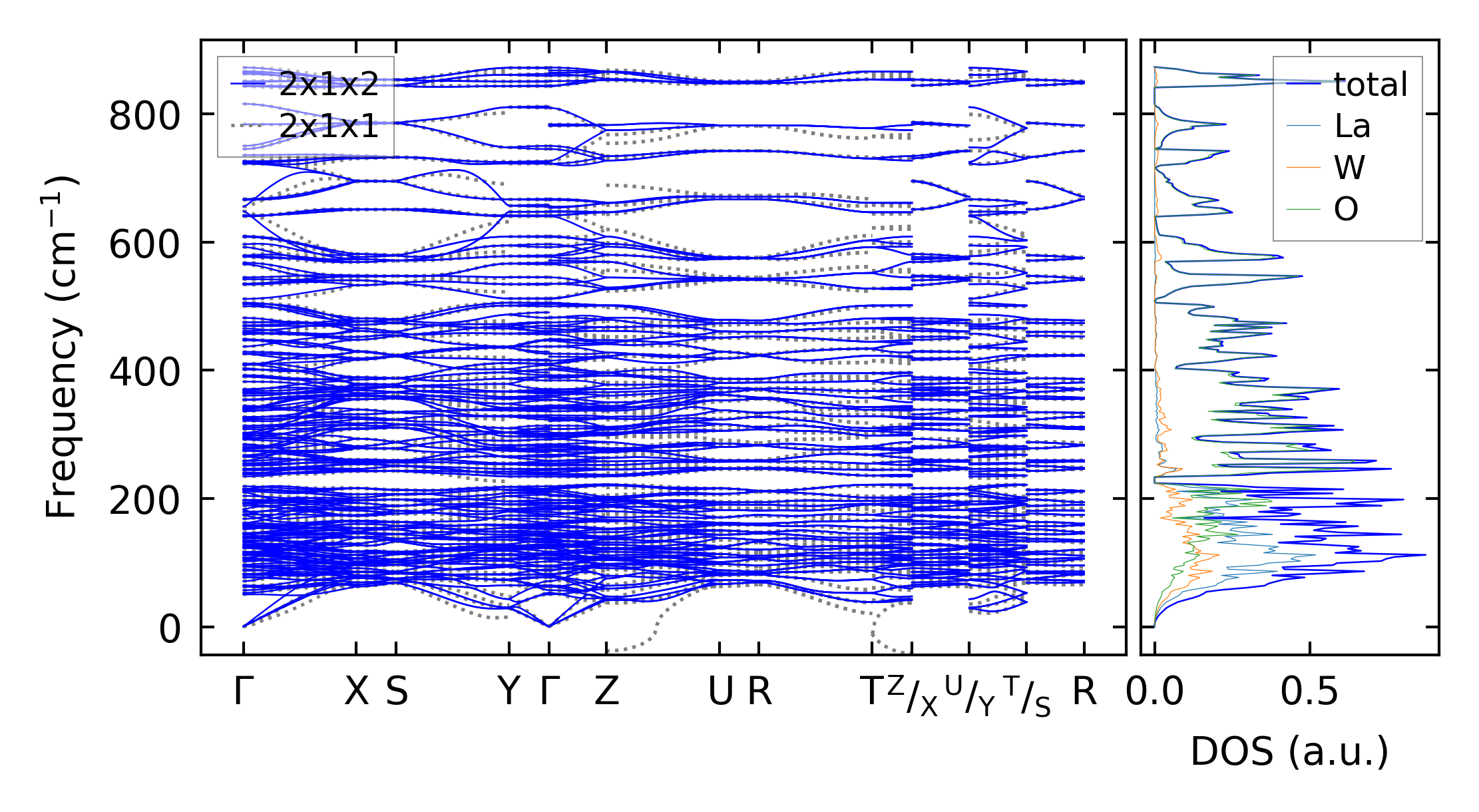

../../_images/fig_bandos2044.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo2003.png — (c) Thermodynamic properties

Thermal conductivity

Force constants

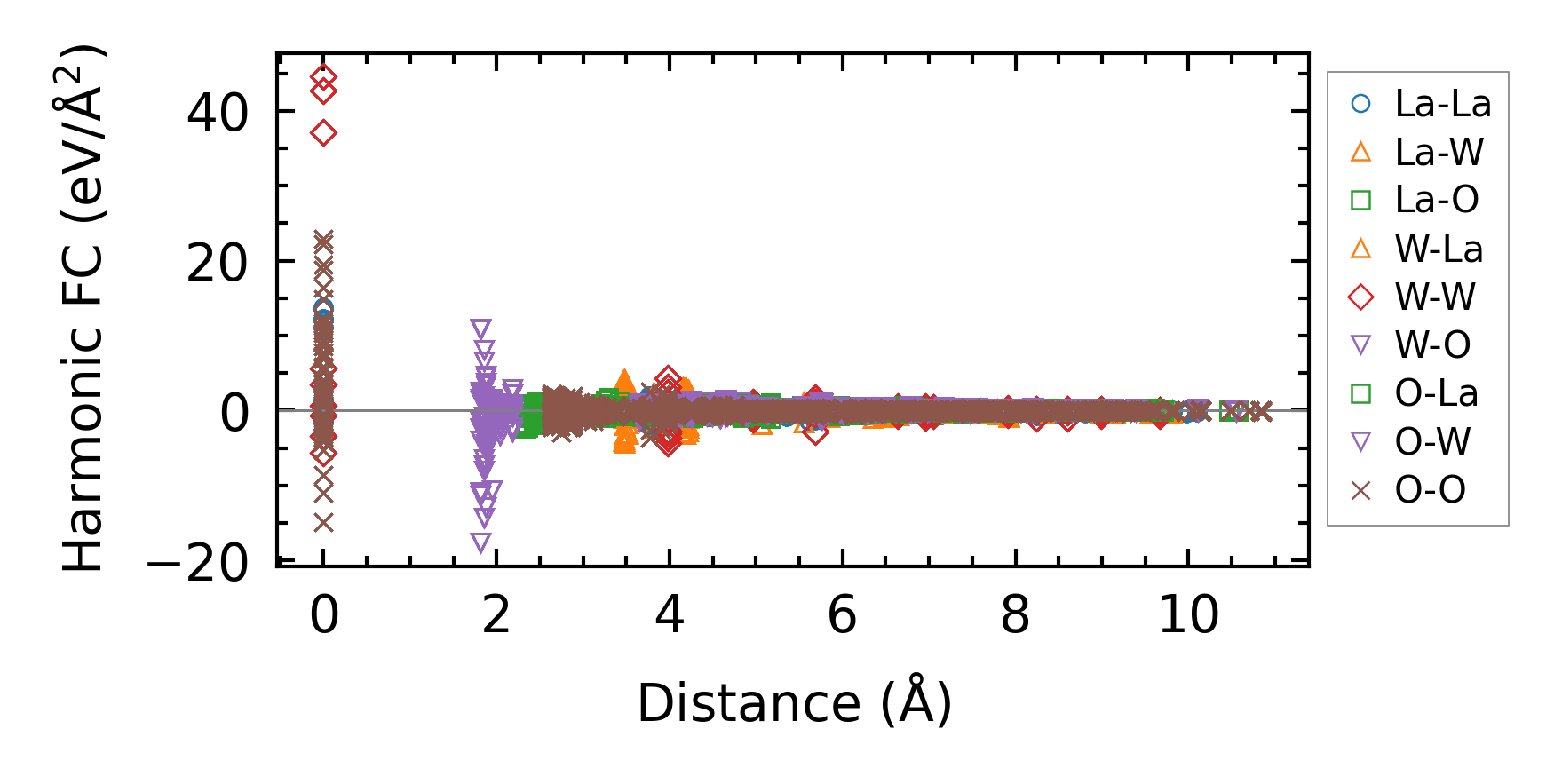

../../_images/fig_fc21826.png — (a) Force constants w.r.t atomic distance

Summary

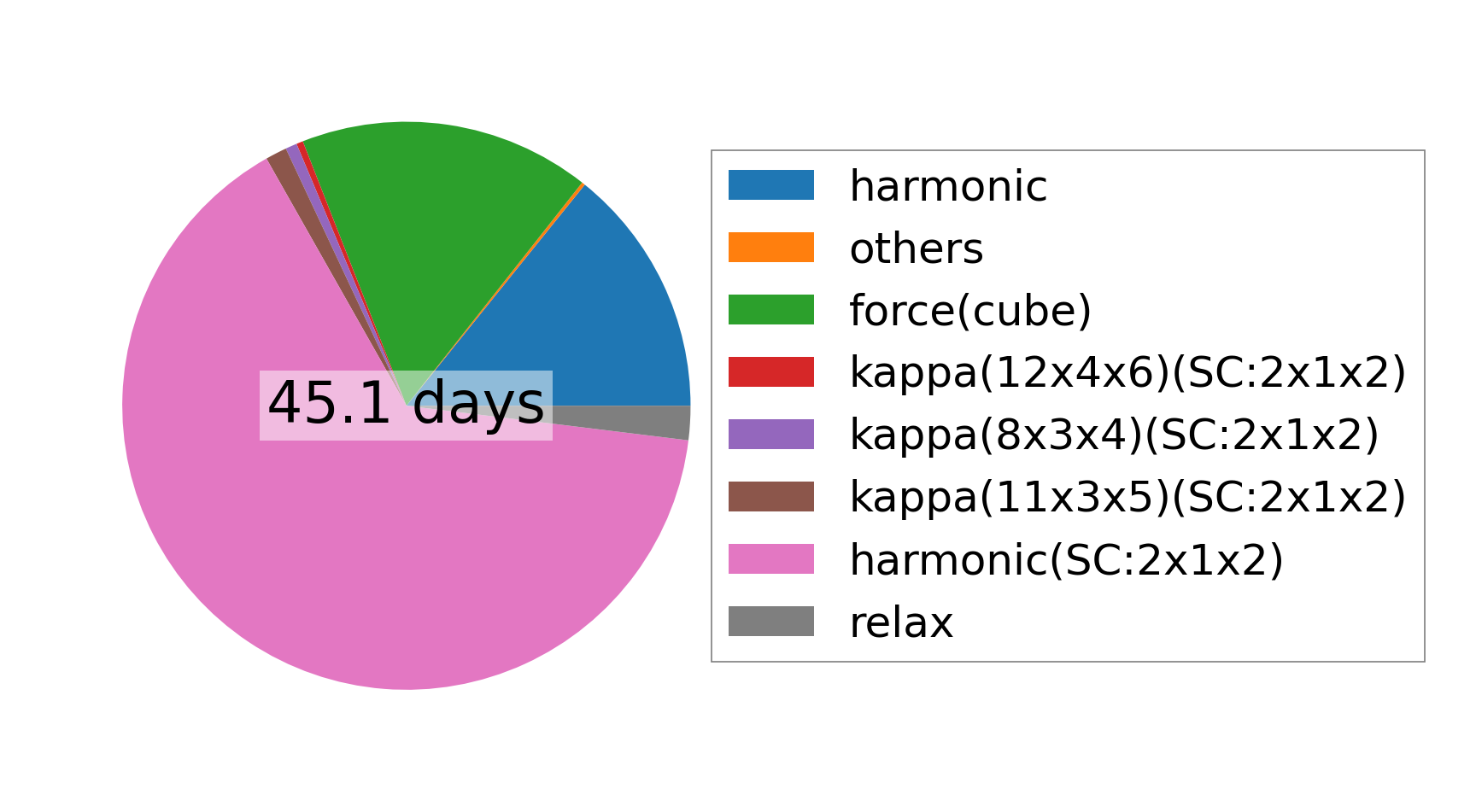

../../_images/fig_times3073.png — (a) Computation time
