mp-721702-2/Zn2AsHO5/anharm

Space group: Pnnm (58)
Link: Materials Project
Download: mp-721702-2.tar.gz

Equation of state

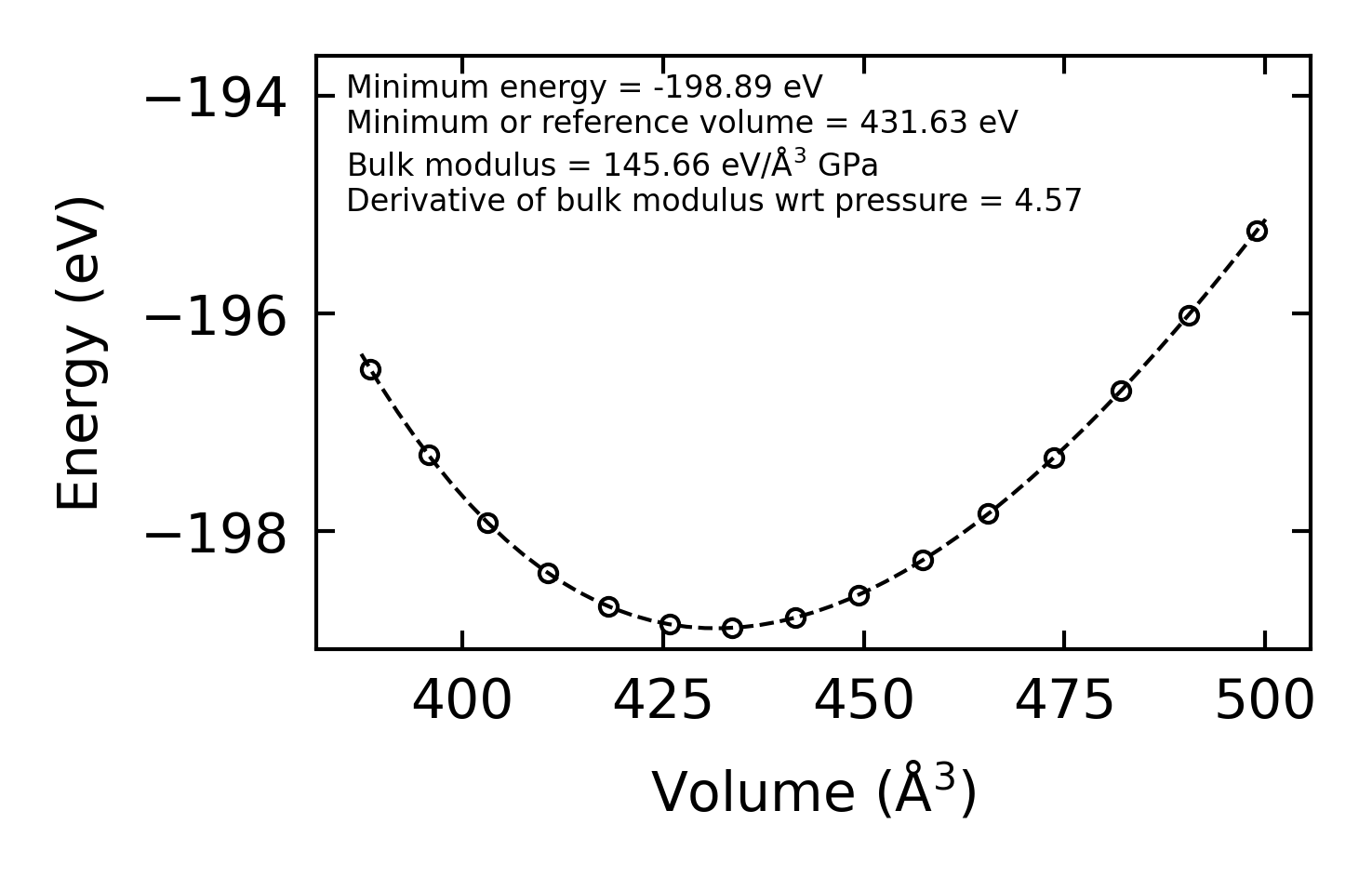

../../_images/fig_bm2060.png — (a) Equation of state

Harmonic properties

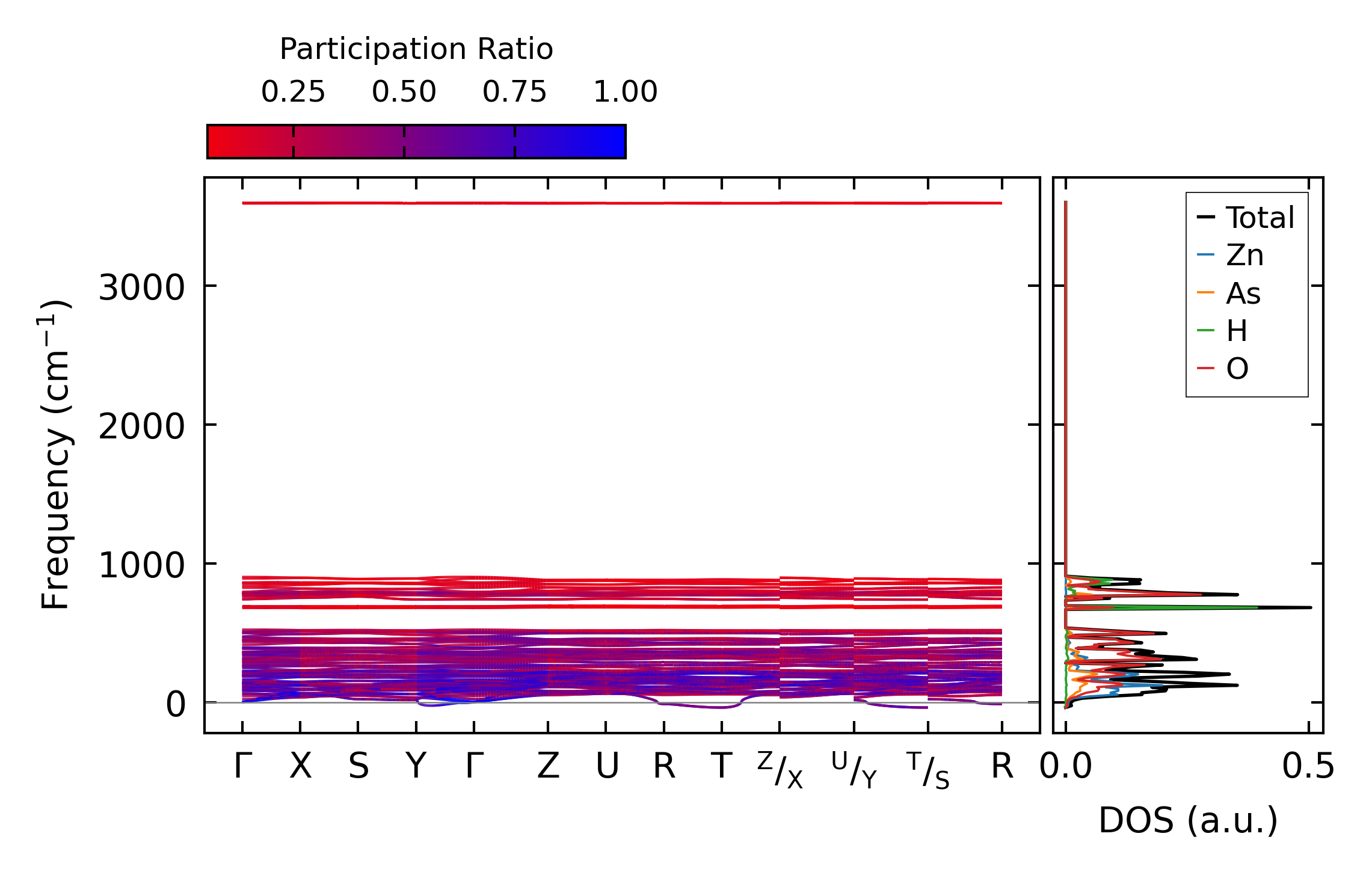

../../_images/fig_bandos_pr4149.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos5640.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo4149.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1826.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1826.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 8x8x11, supercell: 2x2x2

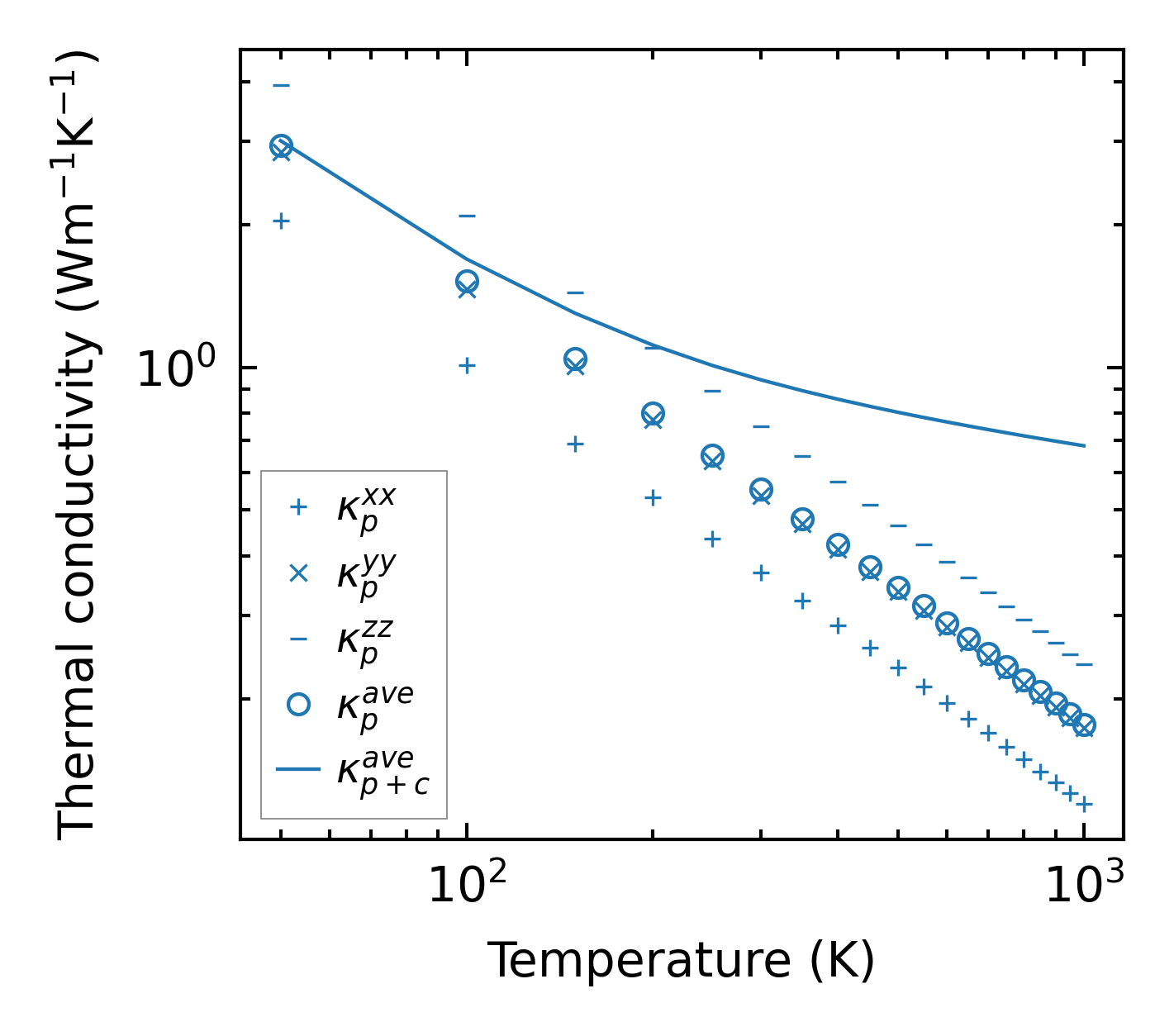

../../_images/fig_kappa3503.png — (a) Temperature-dependent lattice thermal conductivity

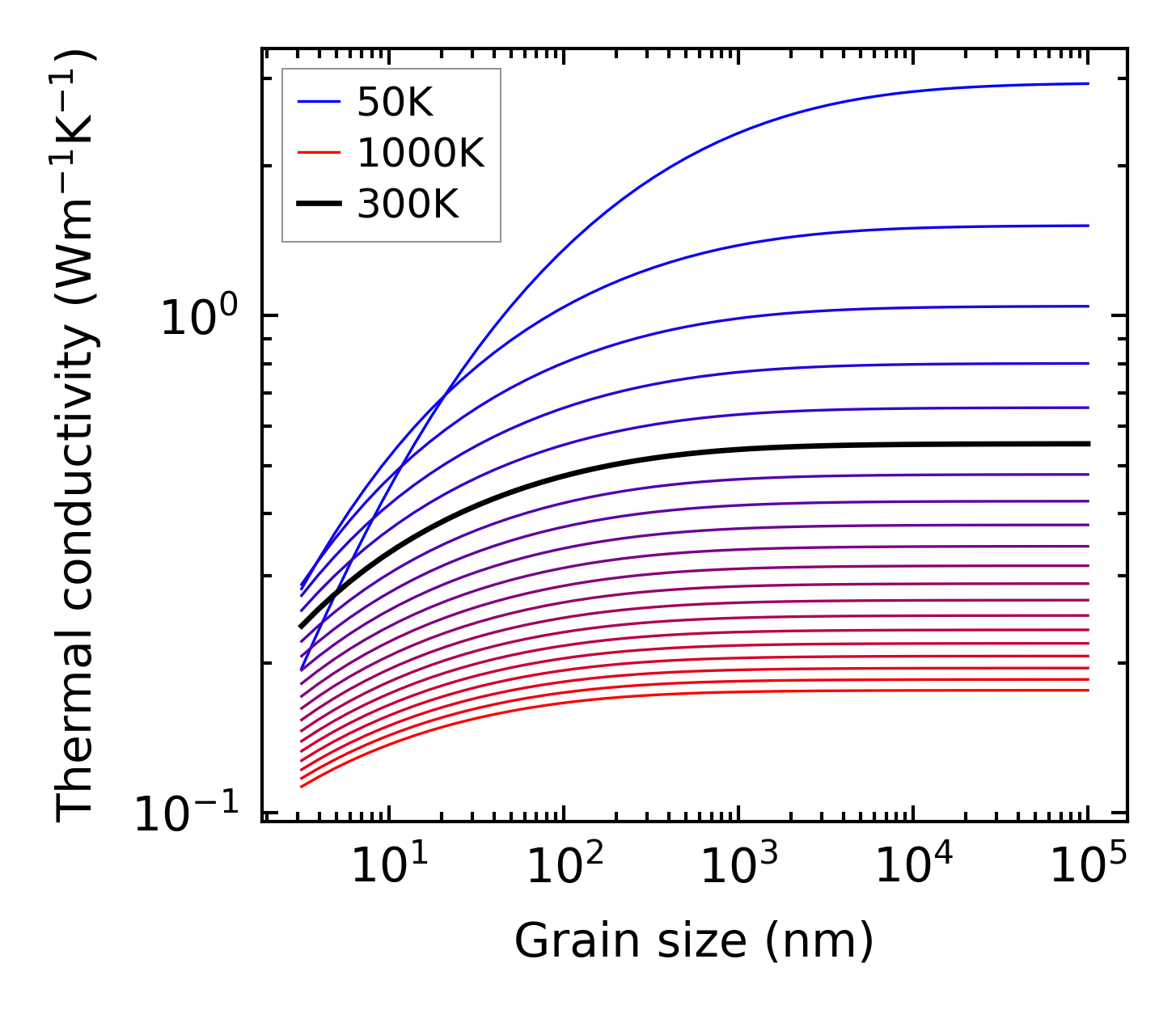

../../_images/fig_kappa_vs_grain_size1854.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

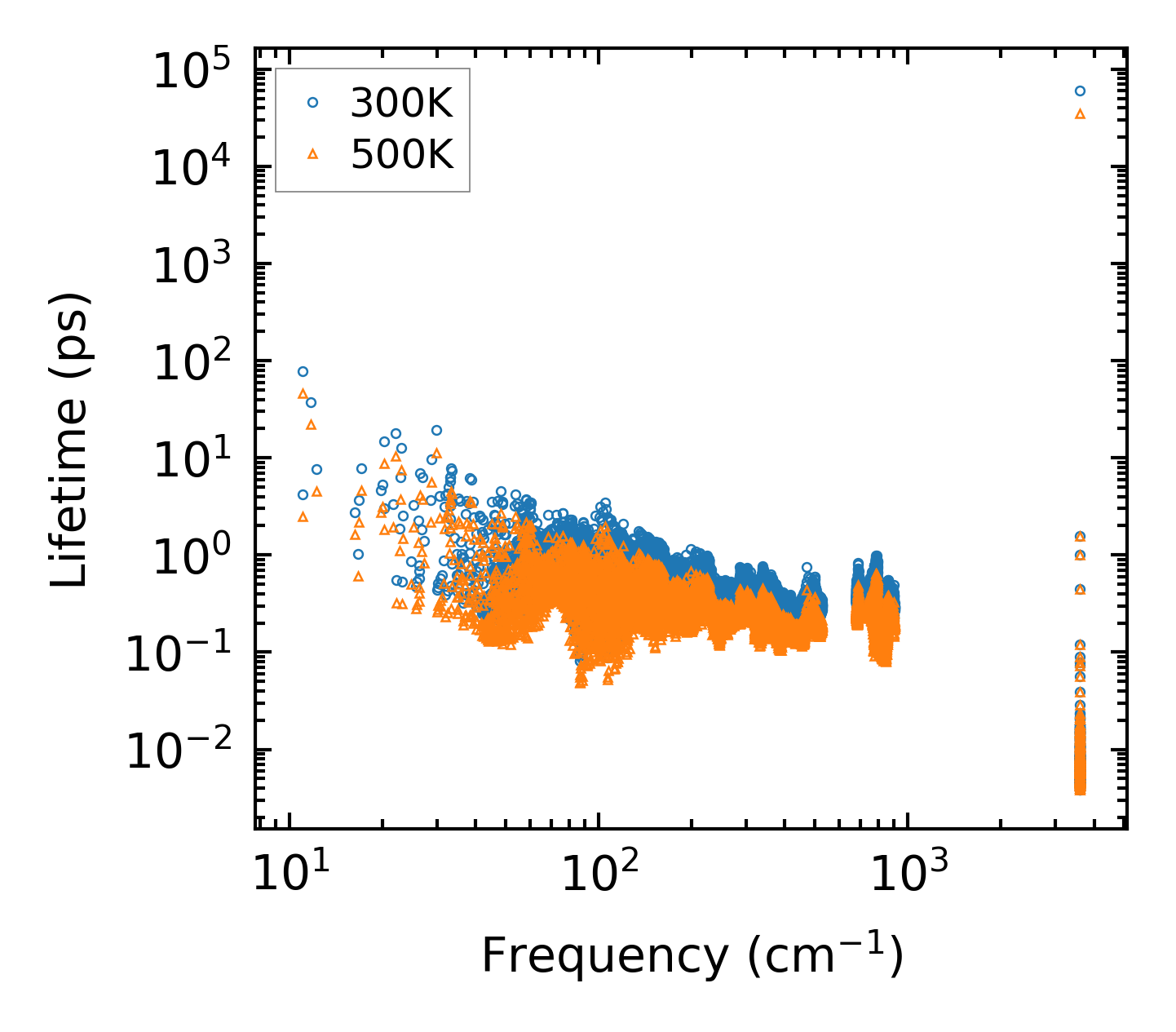

../../_images/fig_lifetime1816.png — (a) Phonon lifetime due to phonon-phonon scattering

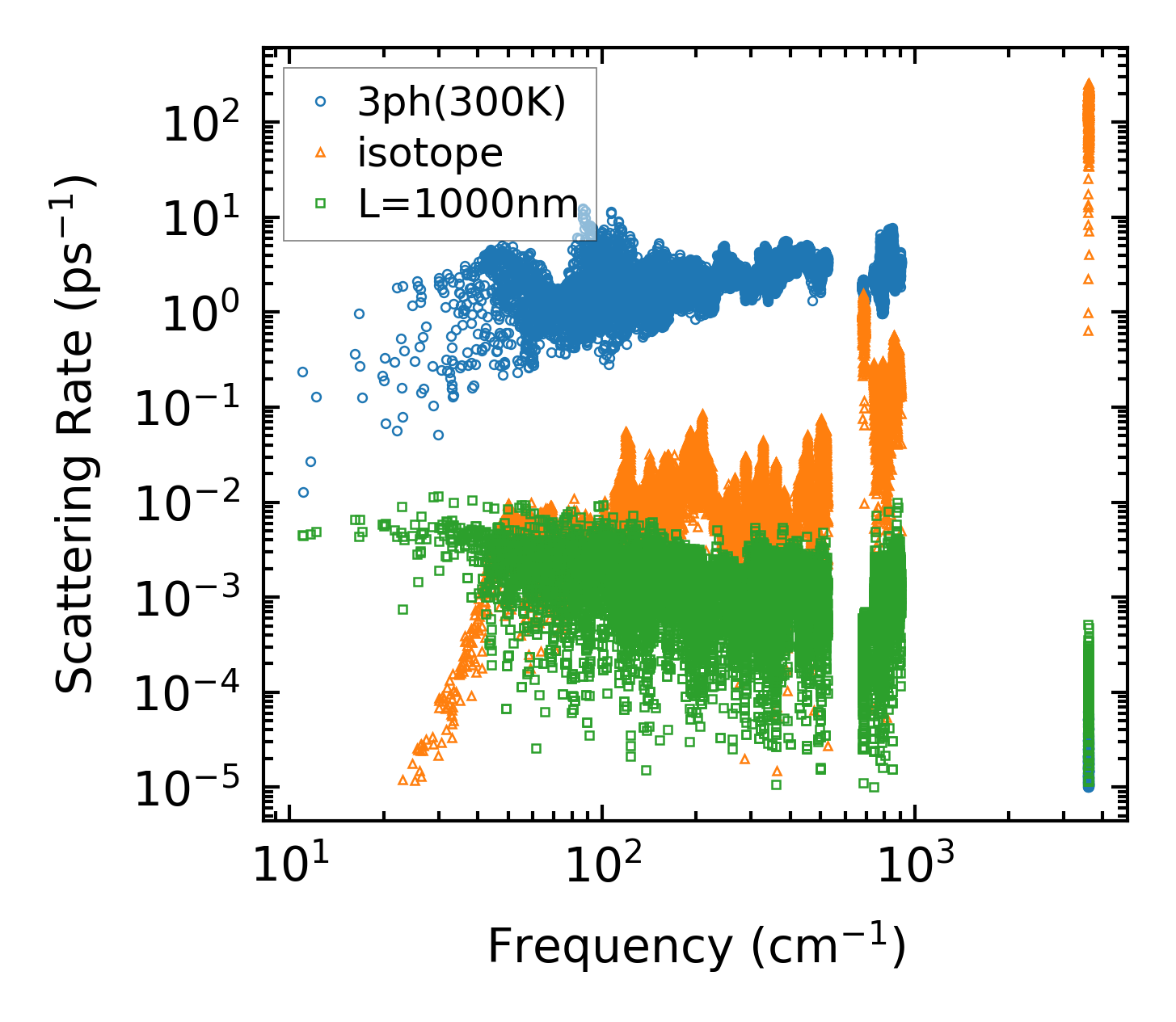

../../_images/fig_scat_rates1815.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1816.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

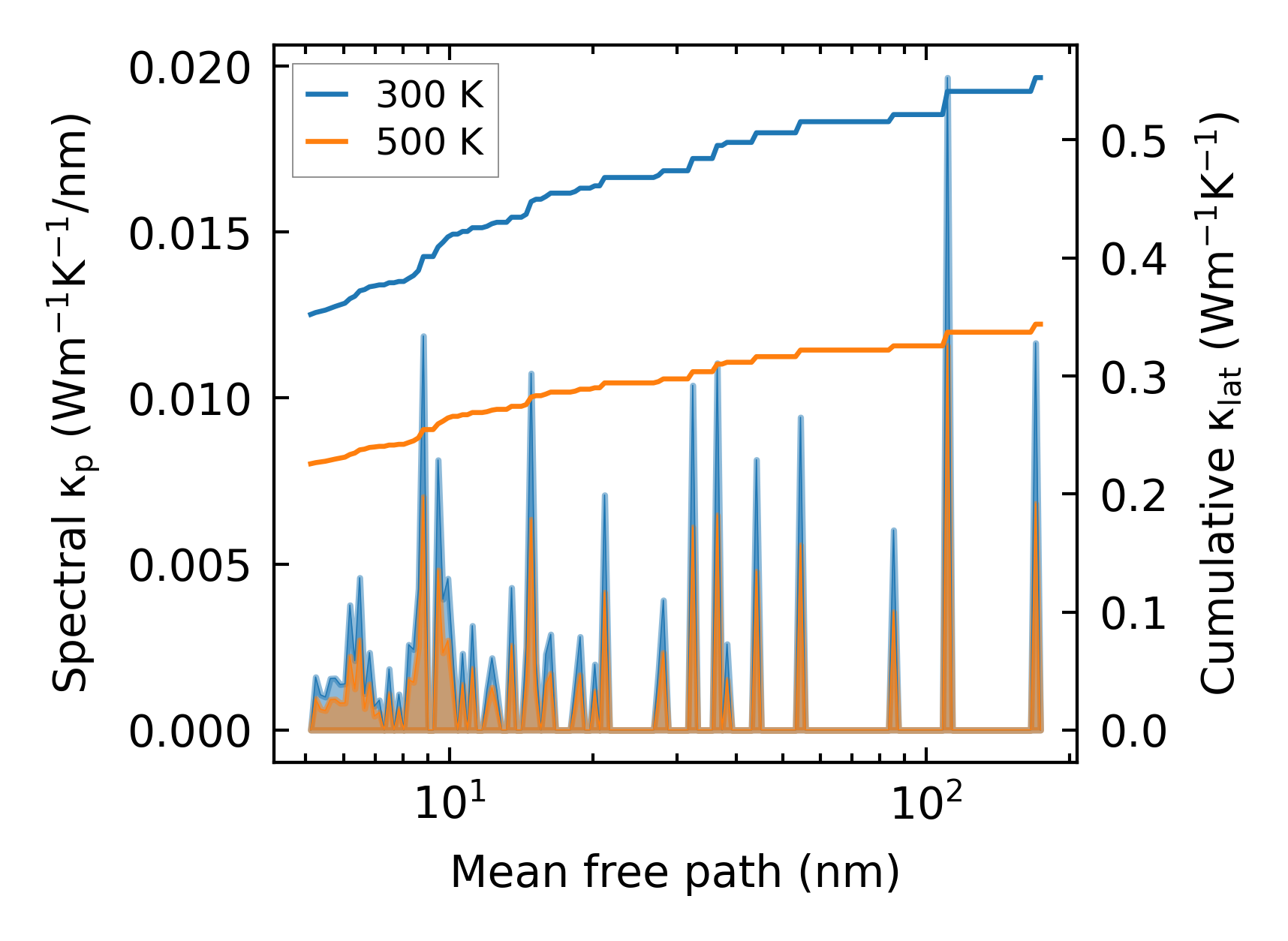

../../_images/fig_cumu_mfp1816.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc23962.png — (a) Force constants w.r.t atomic distance

Summary

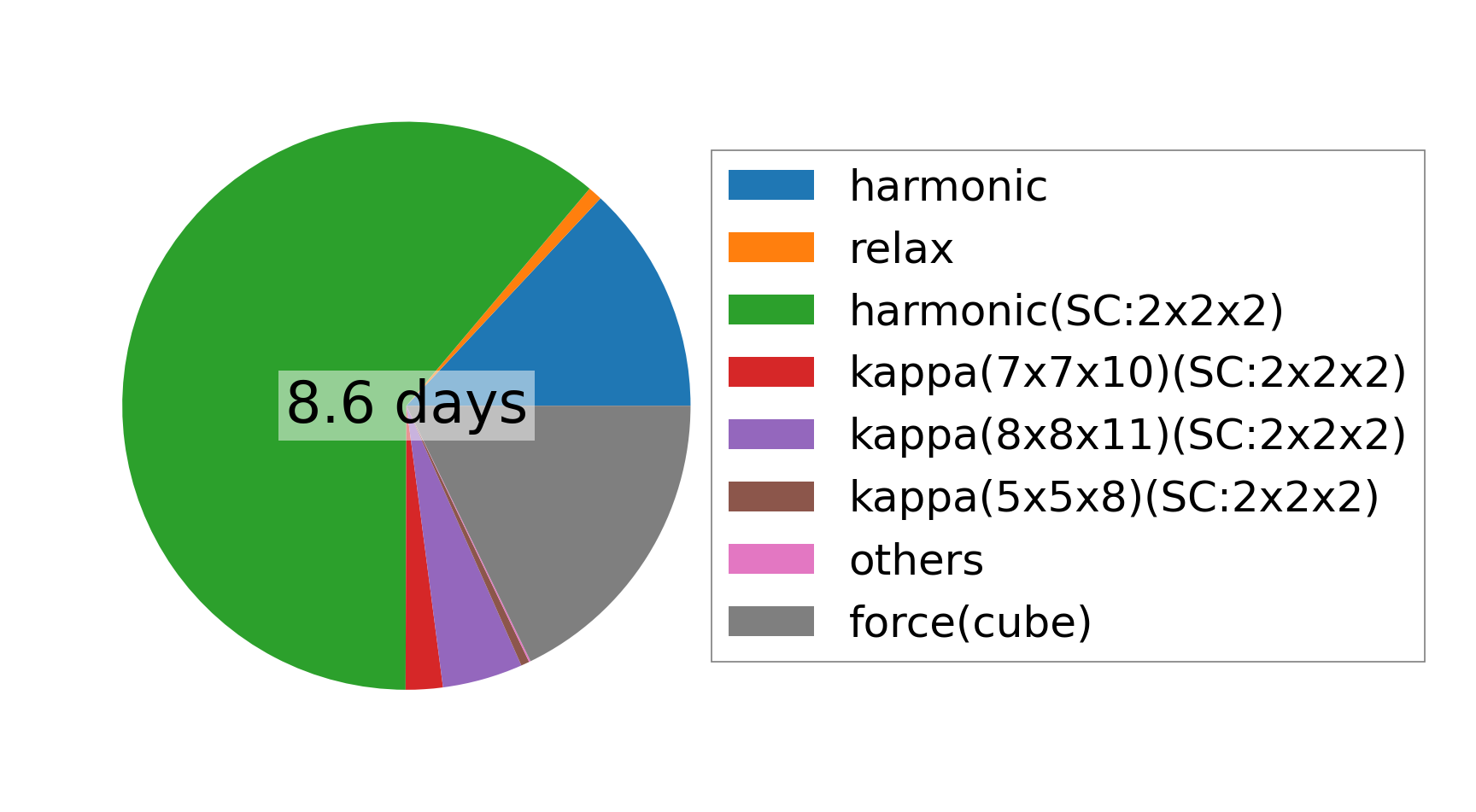

../../_images/fig_times7260.png — (a) Computation time
