mp-699464/Ca3Be2Si3H2O12/anharm

Space group: P4_2/n (86)
Link: Materials Project
Download: mp-699464.tar.gz

Harmonic properties

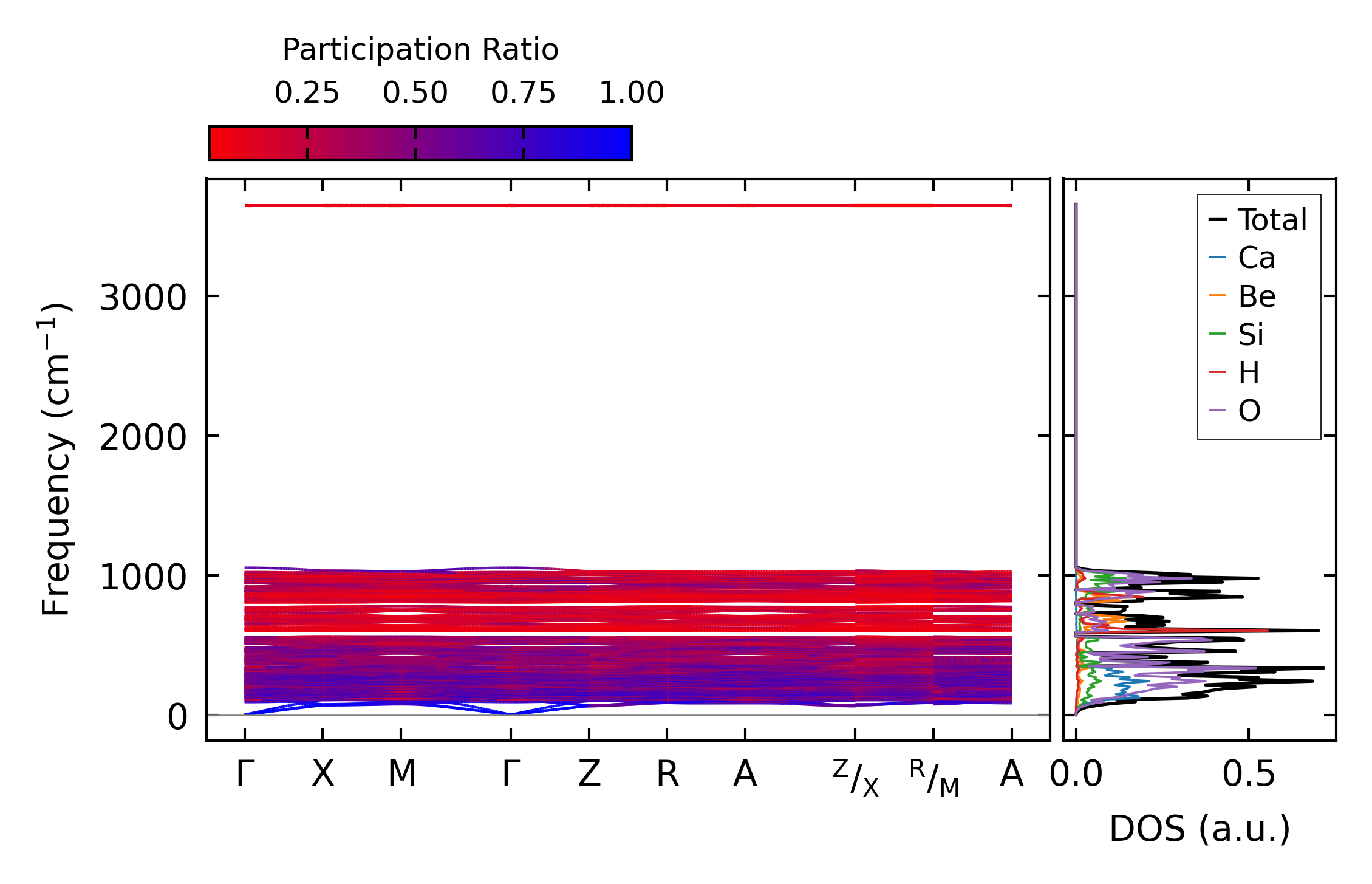

../../_images/fig_bandos_pr4764.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4764.png — (b) Thermodynamic properties

Grüneisen parameters

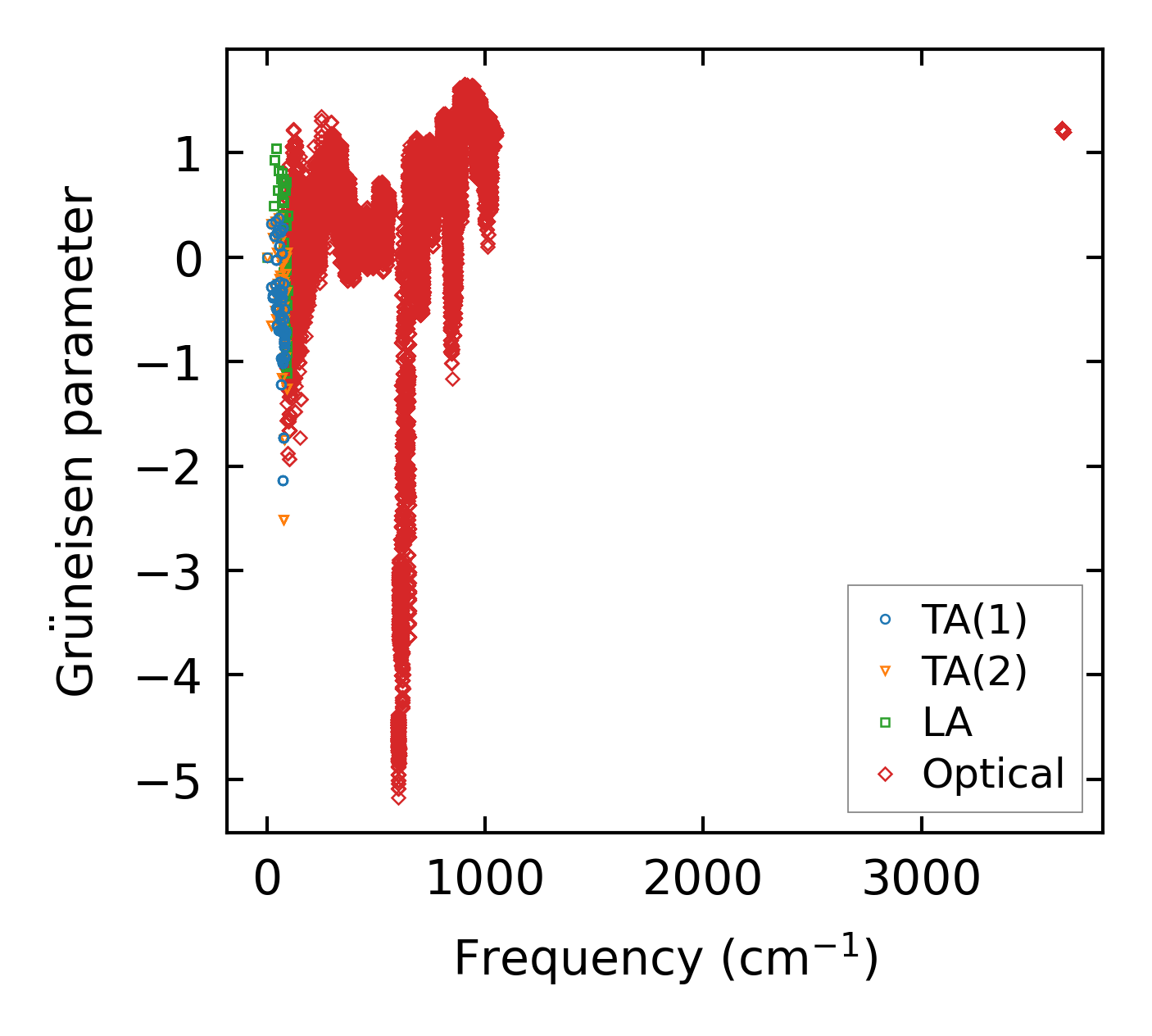

../../_images/fig_gru_all2049.png — (a) Grüneisen parameters

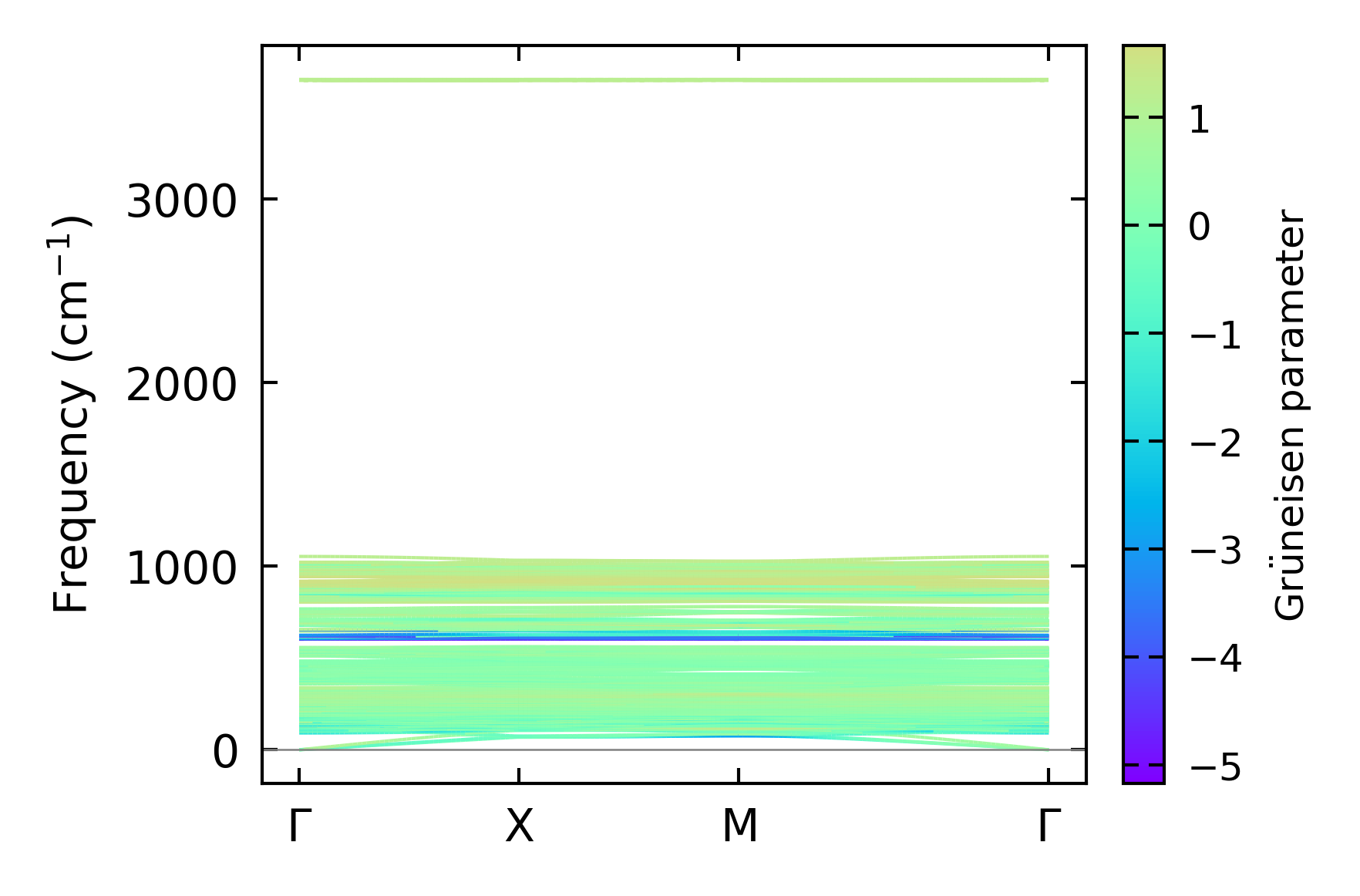

../../_images/fig_gruneisen2049.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x7x7, supercell: 1x1x1

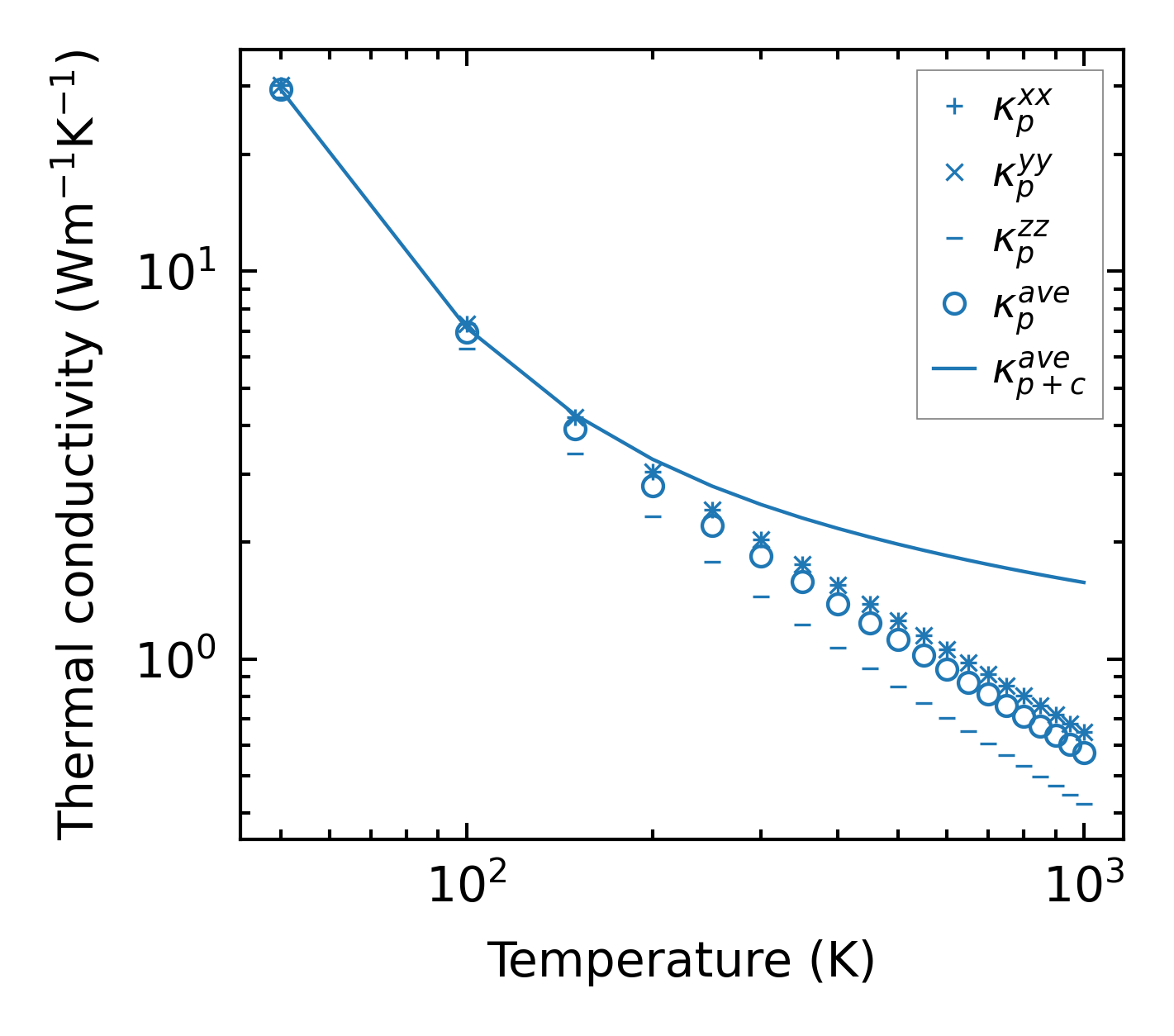

../../_images/fig_kappa3926.png — (a) Temperature-dependent lattice thermal conductivity

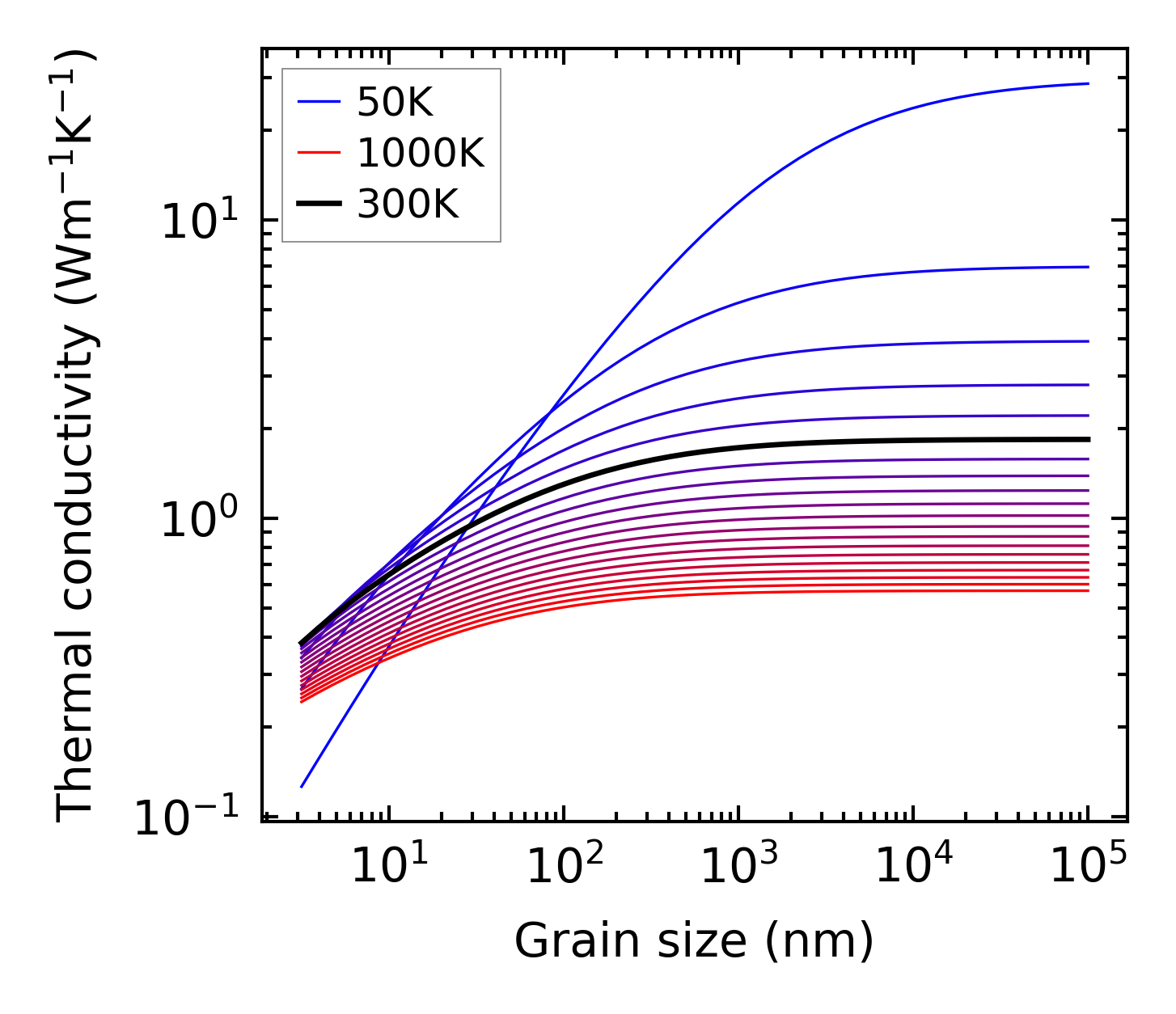

../../_images/fig_kappa_vs_grain_size2078.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2036.png — (a) Phonon lifetime due to phonon-phonon scattering

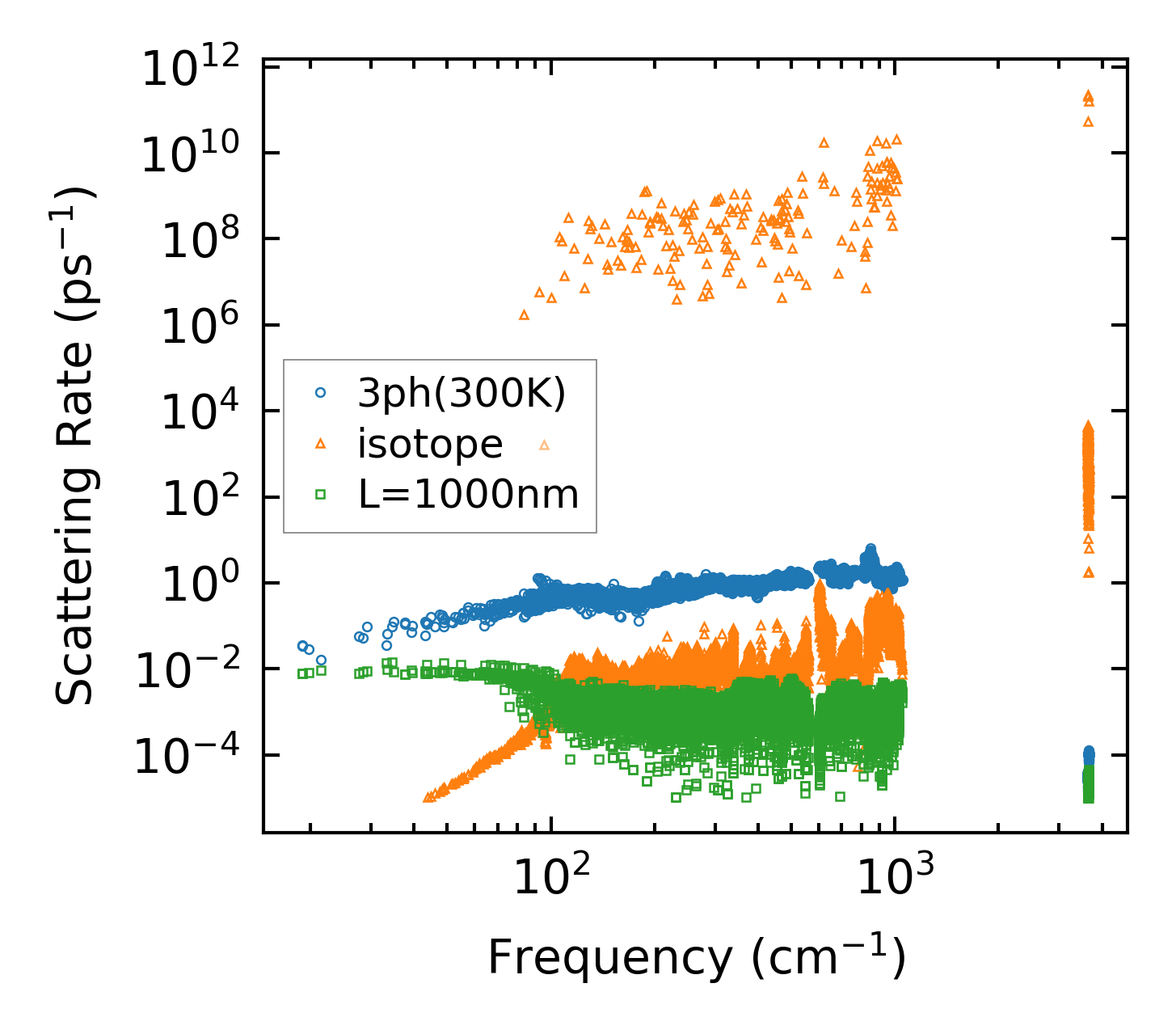

../../_images/fig_scat_rates2035.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

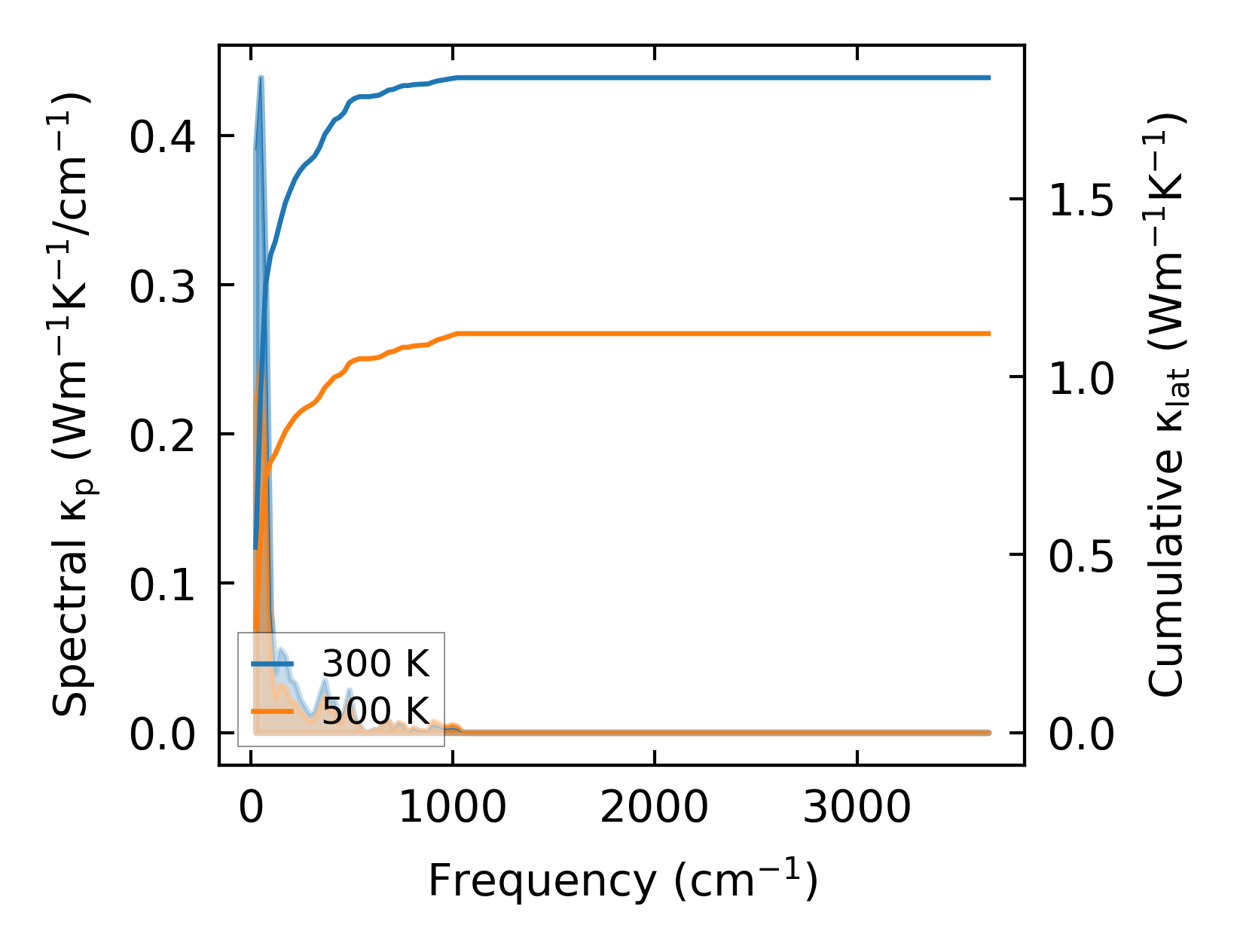

../../_images/fig_cumu_frequency2036.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2036.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc24575.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa3927.png — (a) Temperature-dependent lattice thermal conductivity

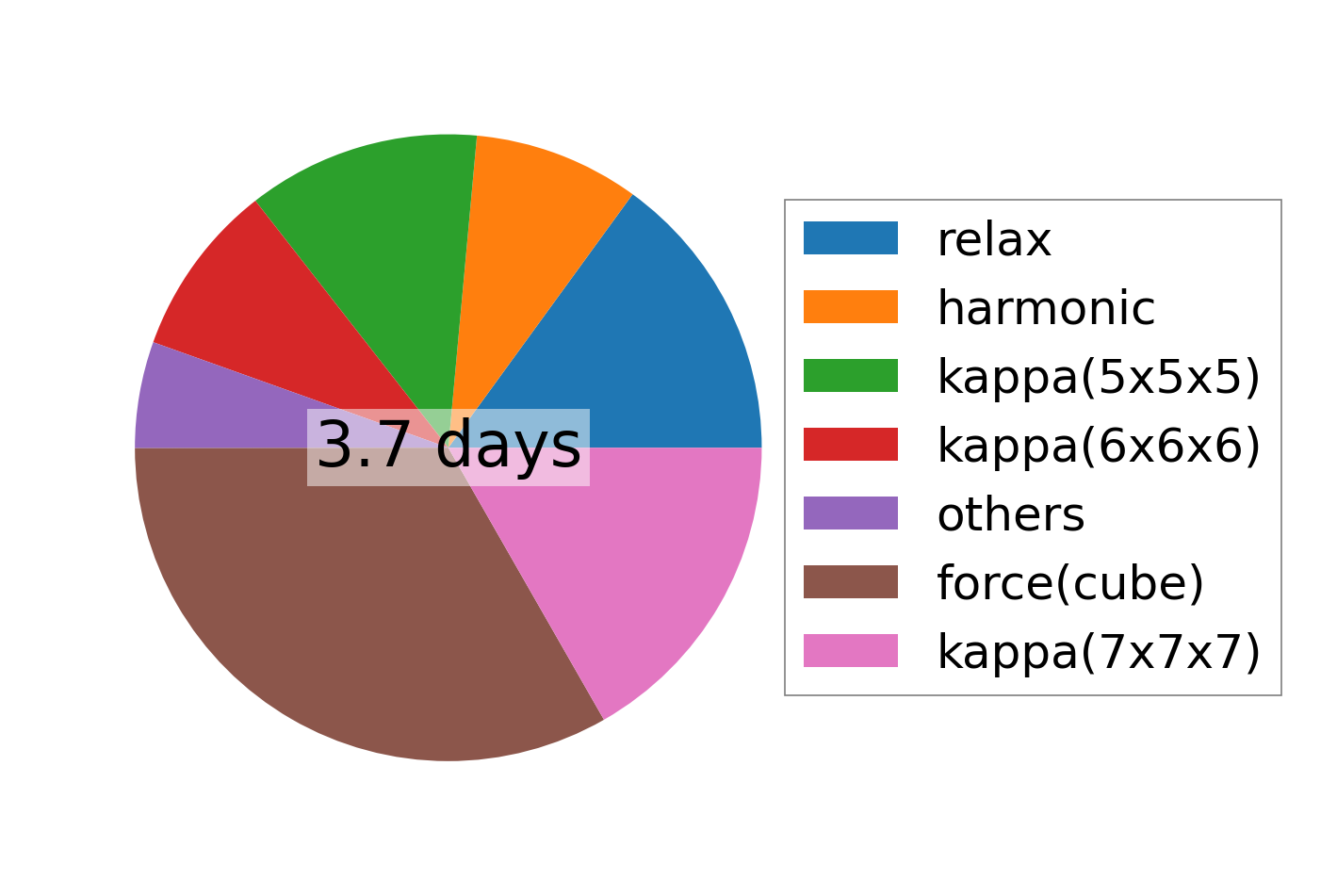

../../_images/fig_times8446.png — (b) Computation time
