mp-637242-2/RbC2N3/anharm

Space group: Pbcm (57)
Link: Materials Project
Download: mp-637242-2.tar.gz

Equation of state

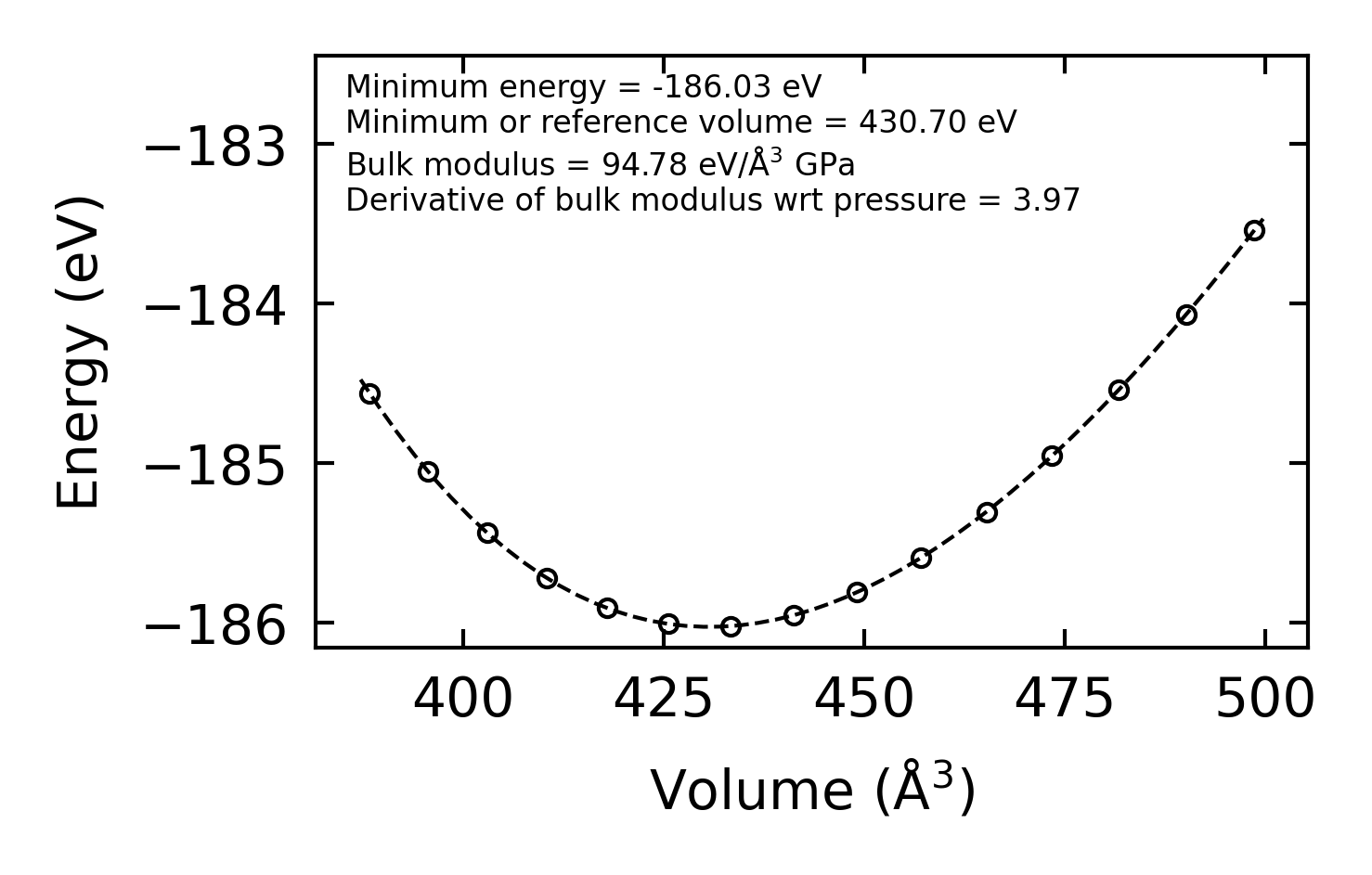

../../_images/fig_bm2810.png — (a) Equation of state

Harmonic properties

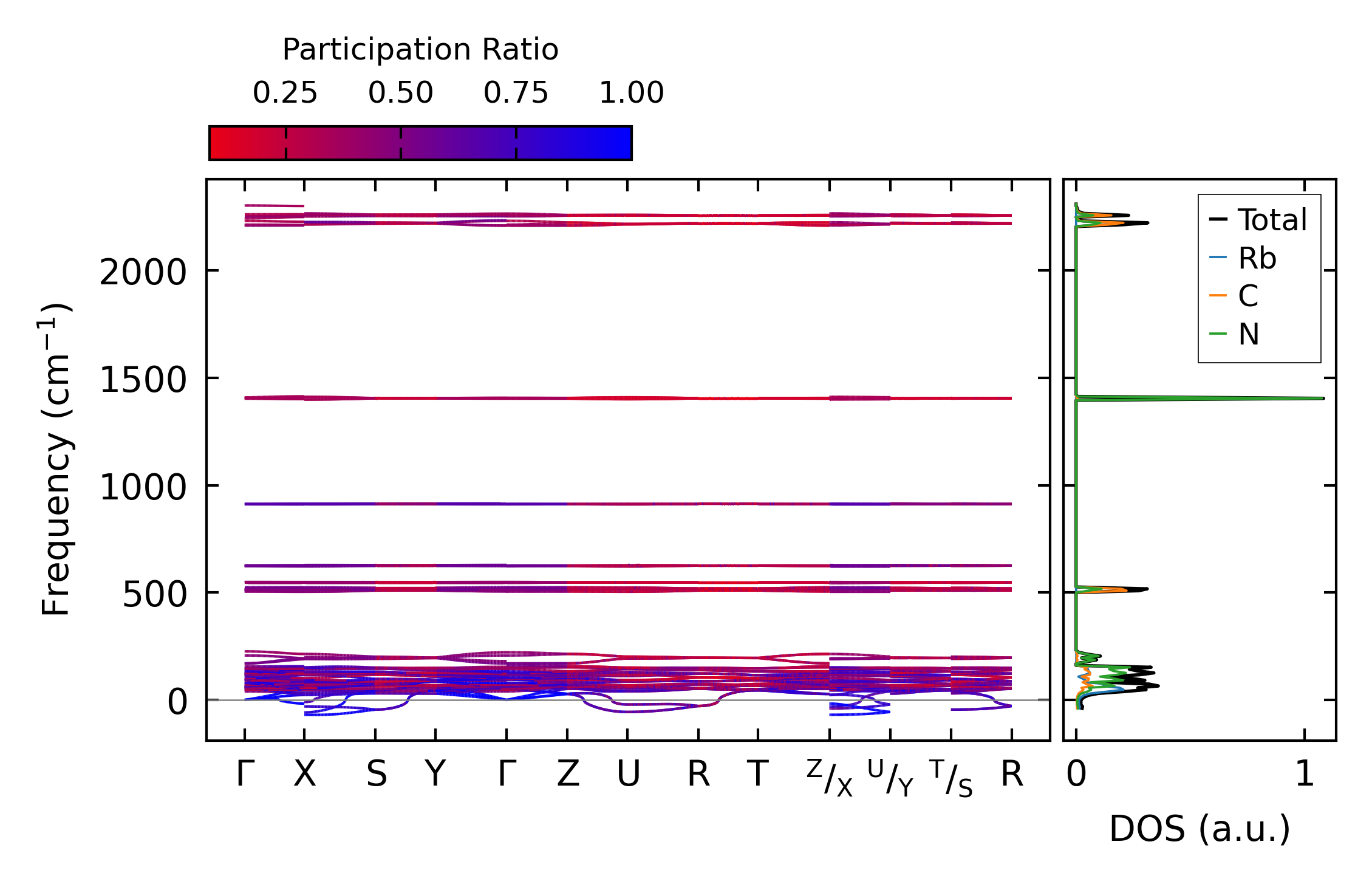

../../_images/fig_bandos_pr5681.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos8177.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo5681.png — (c) Thermodynamic properties

Grüneisen parameters

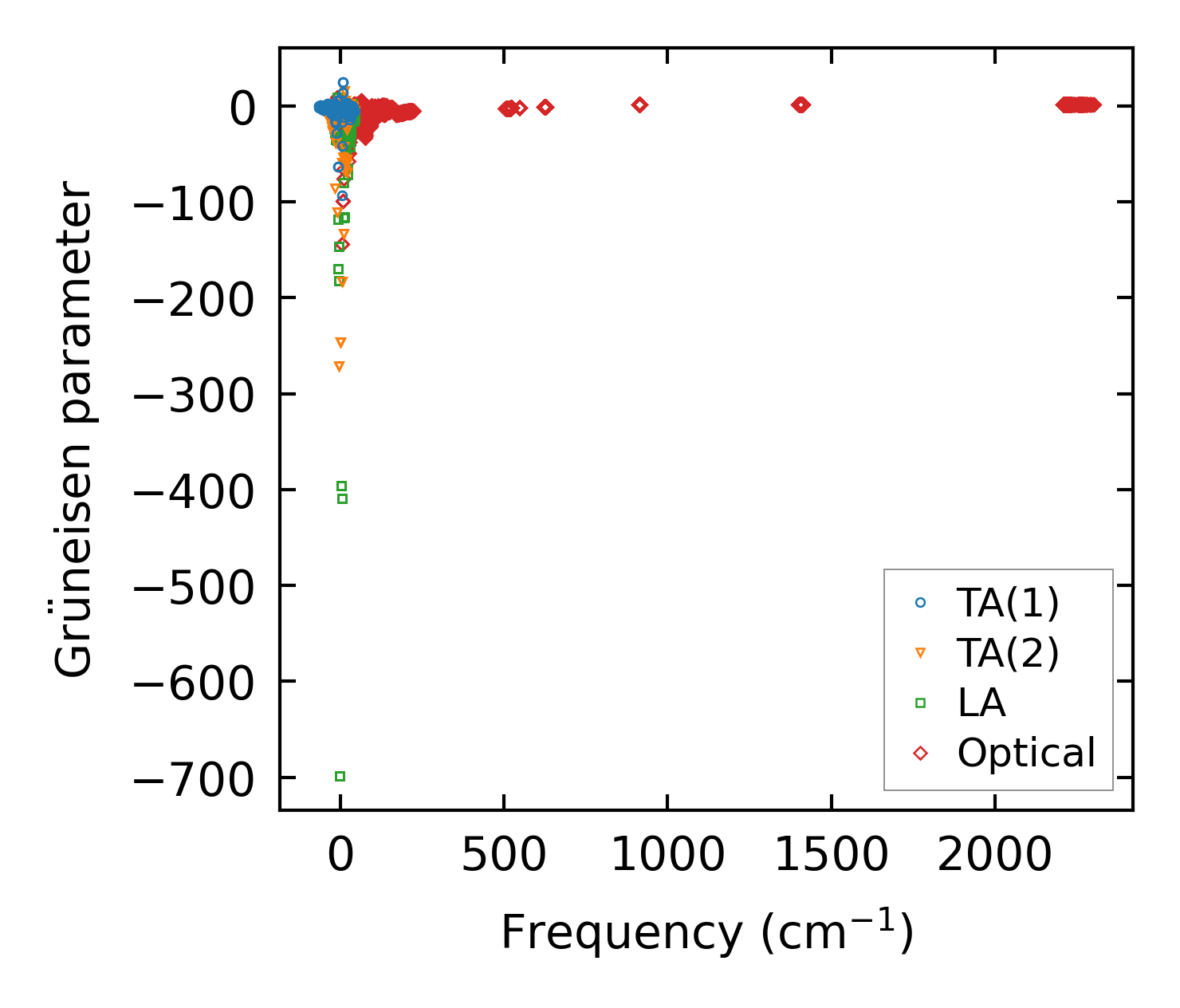

../../_images/fig_gru_all2368.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2368.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 8x10x9, supercell: 2x2x2

../../_images/fig_kappa4520.png — (a) Temperature-dependent lattice thermal conductivity

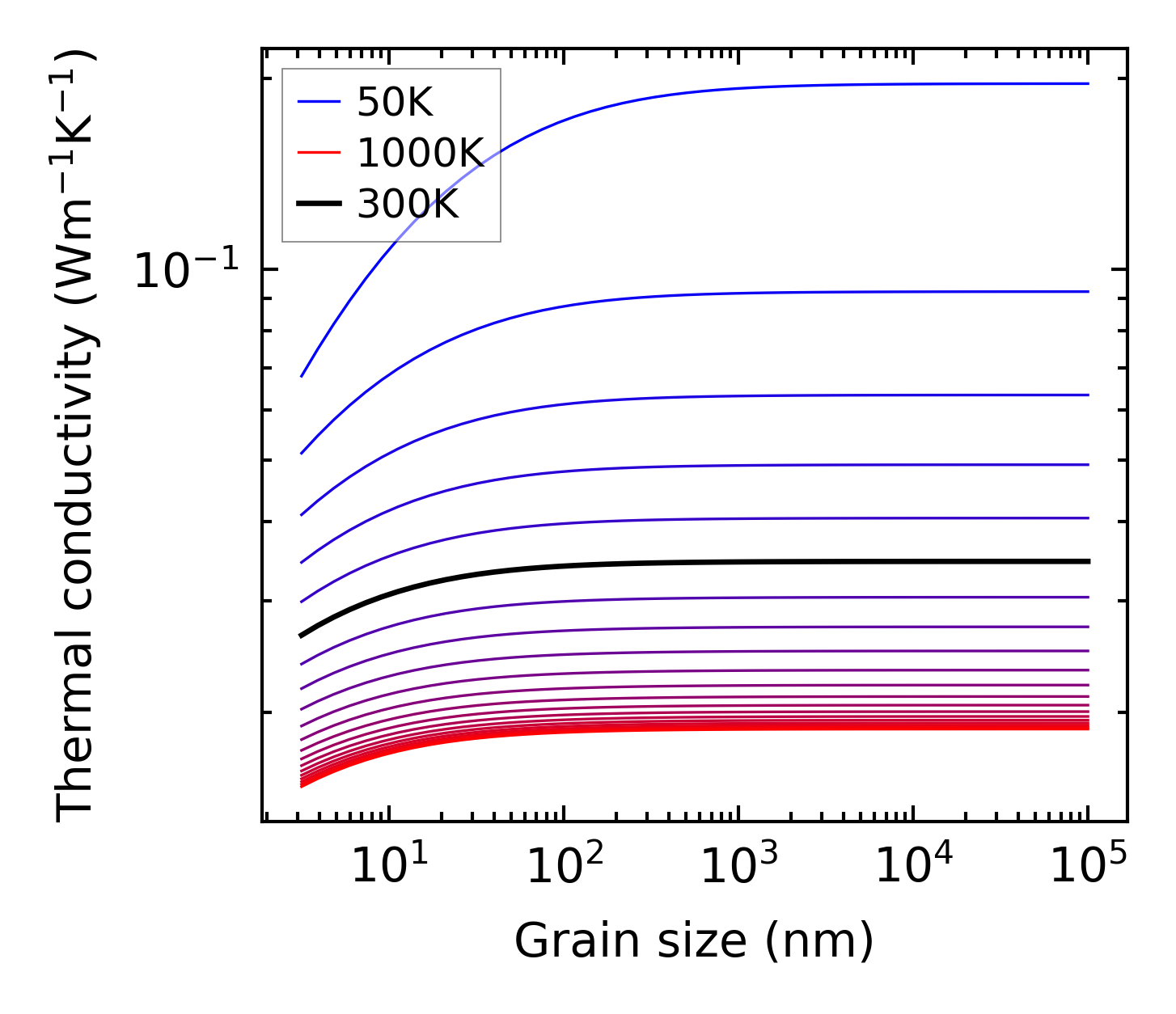

../../_images/fig_kappa_vs_grain_size2399.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2353.png — (a) Phonon lifetime due to phonon-phonon scattering

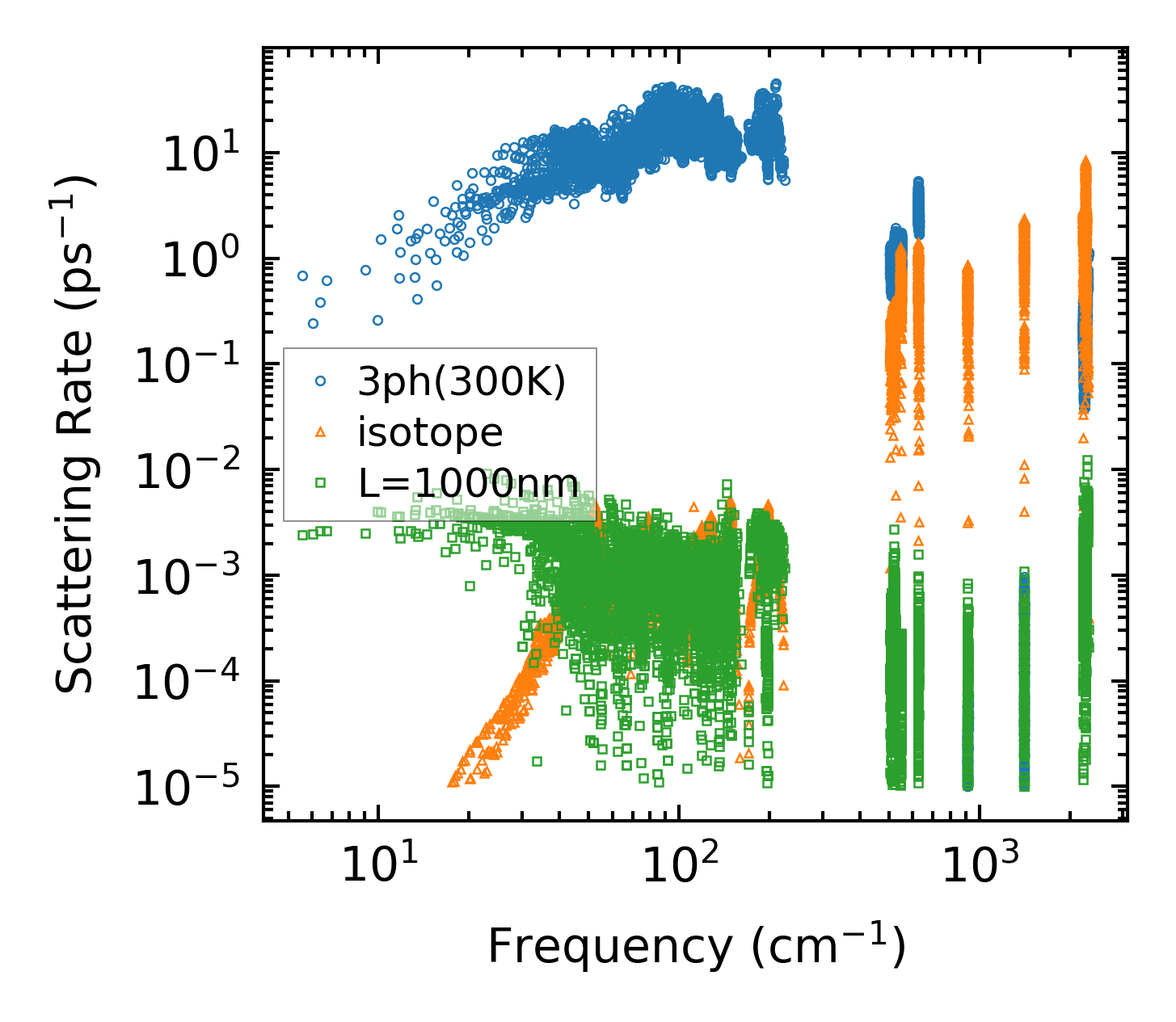

../../_images/fig_scat_rates2352.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

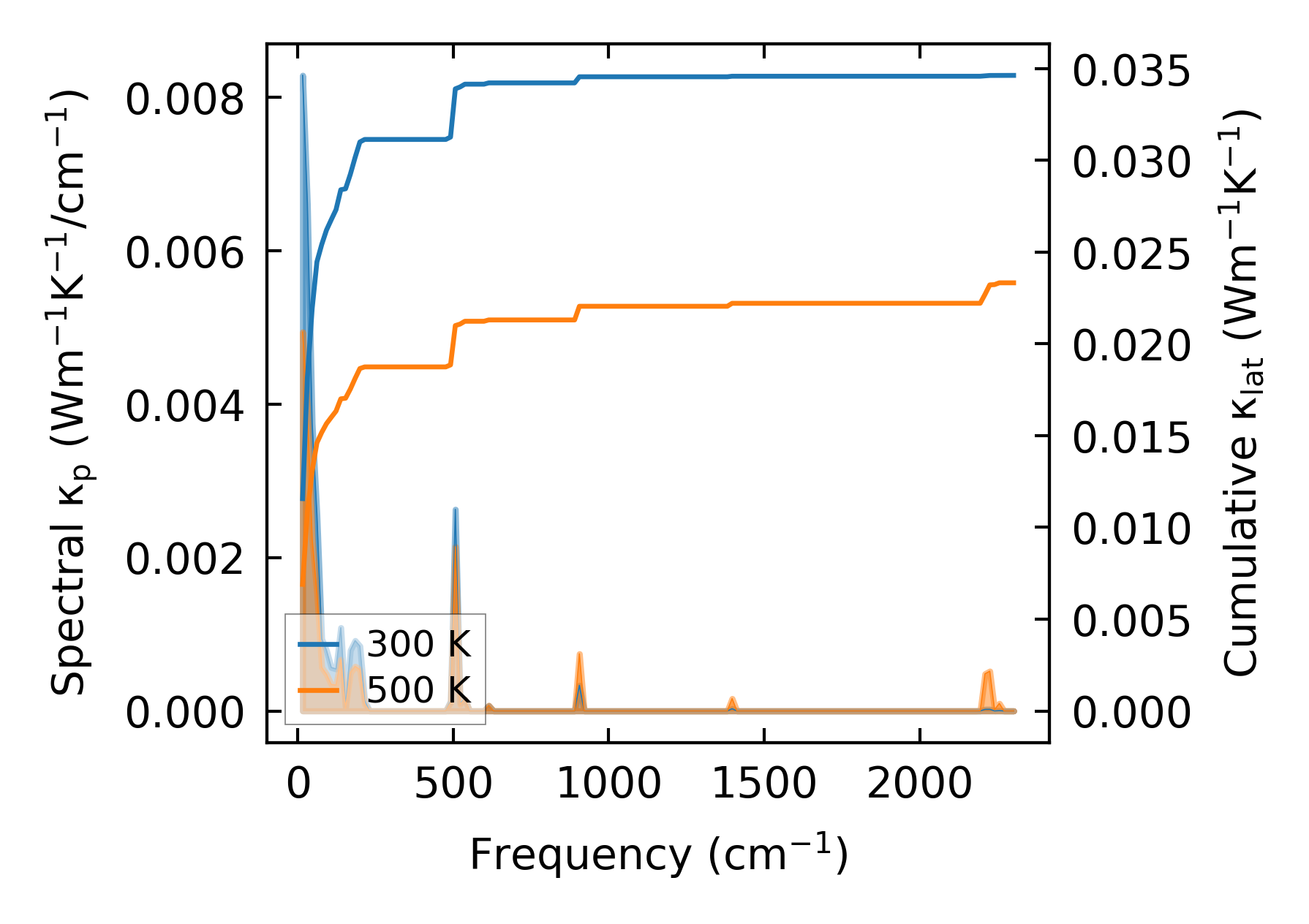

../../_images/fig_cumu_frequency2353.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2353.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

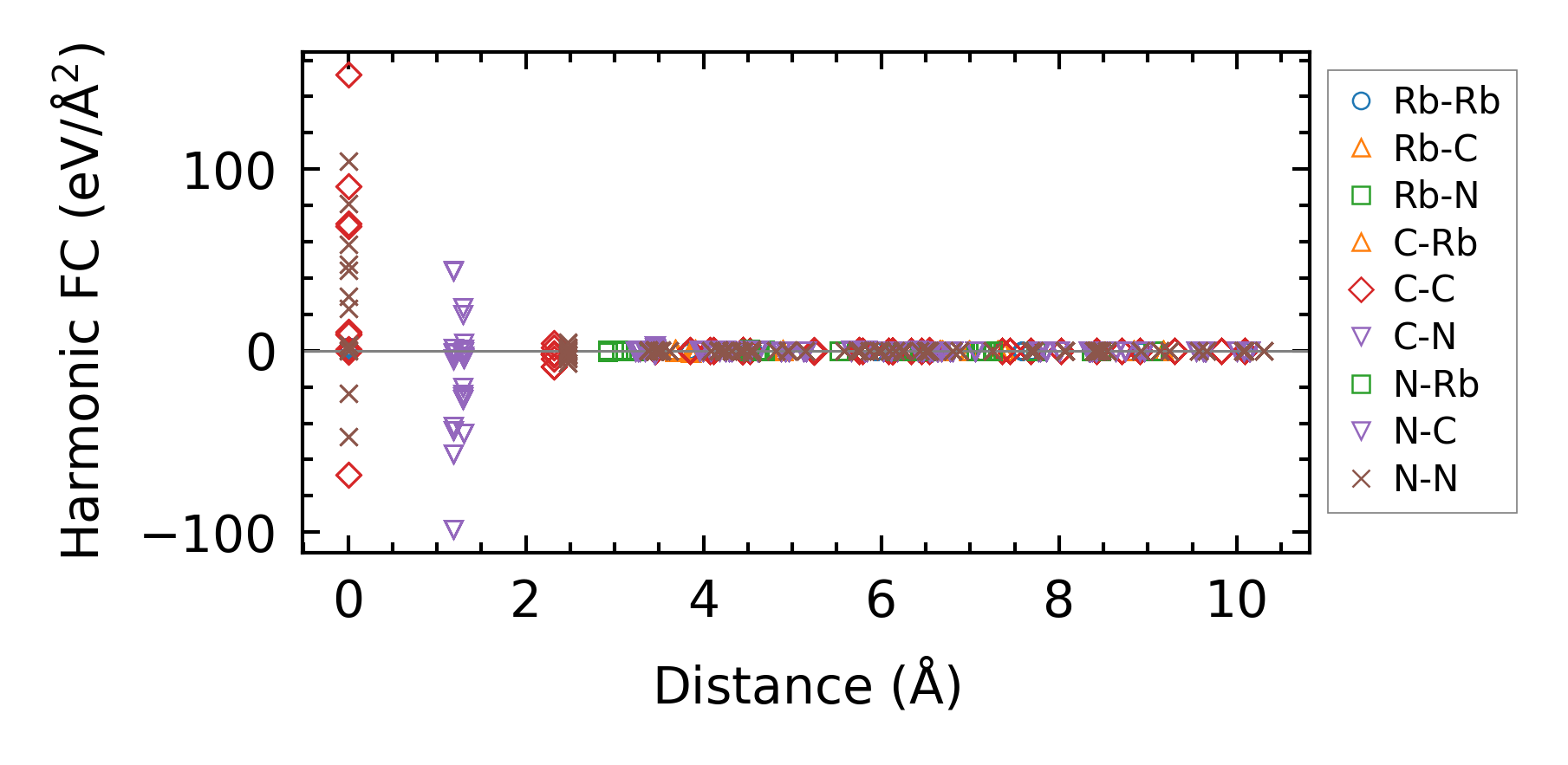

../../_images/fig_fc25479.png — (a) Force constants w.r.t atomic distance

Summary

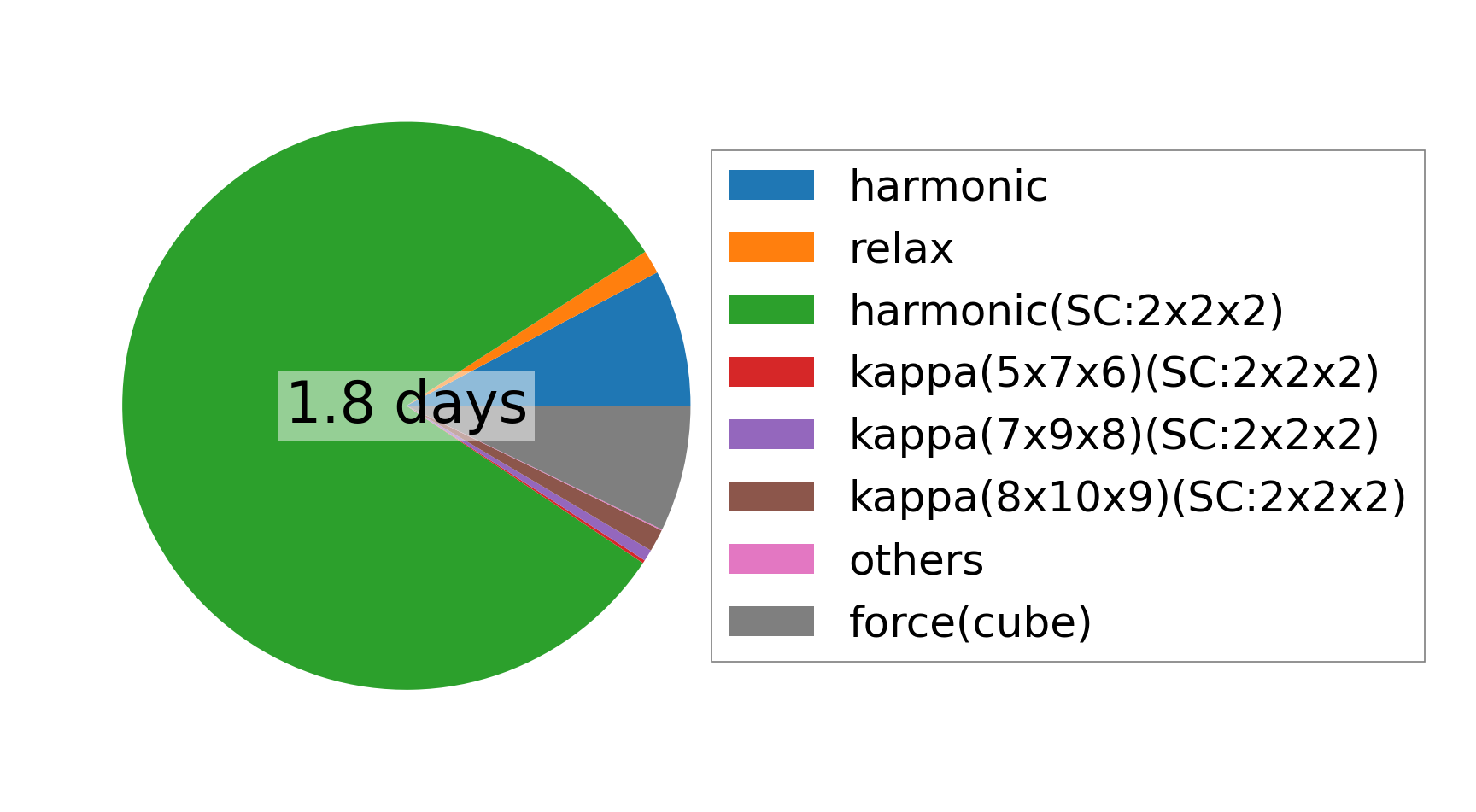

../../_images/fig_times10276.png — (a) Computation time
