mp-637213/La2GeI2/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-637213.tar.gz

Harmonic properties

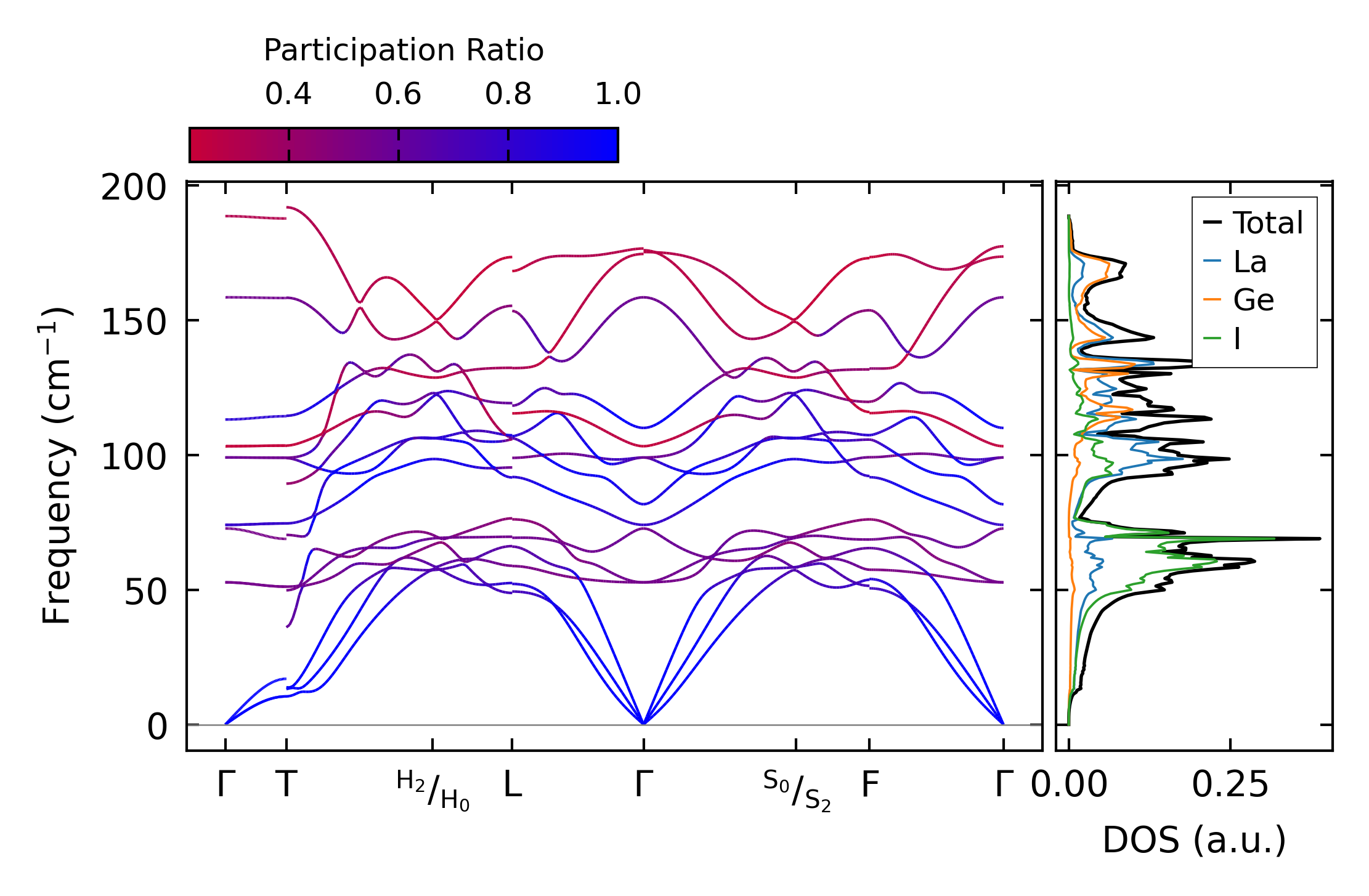

../../_images/fig_bandos_pr5680.png — (a) Phonon dispersion with participation ratio and DOS

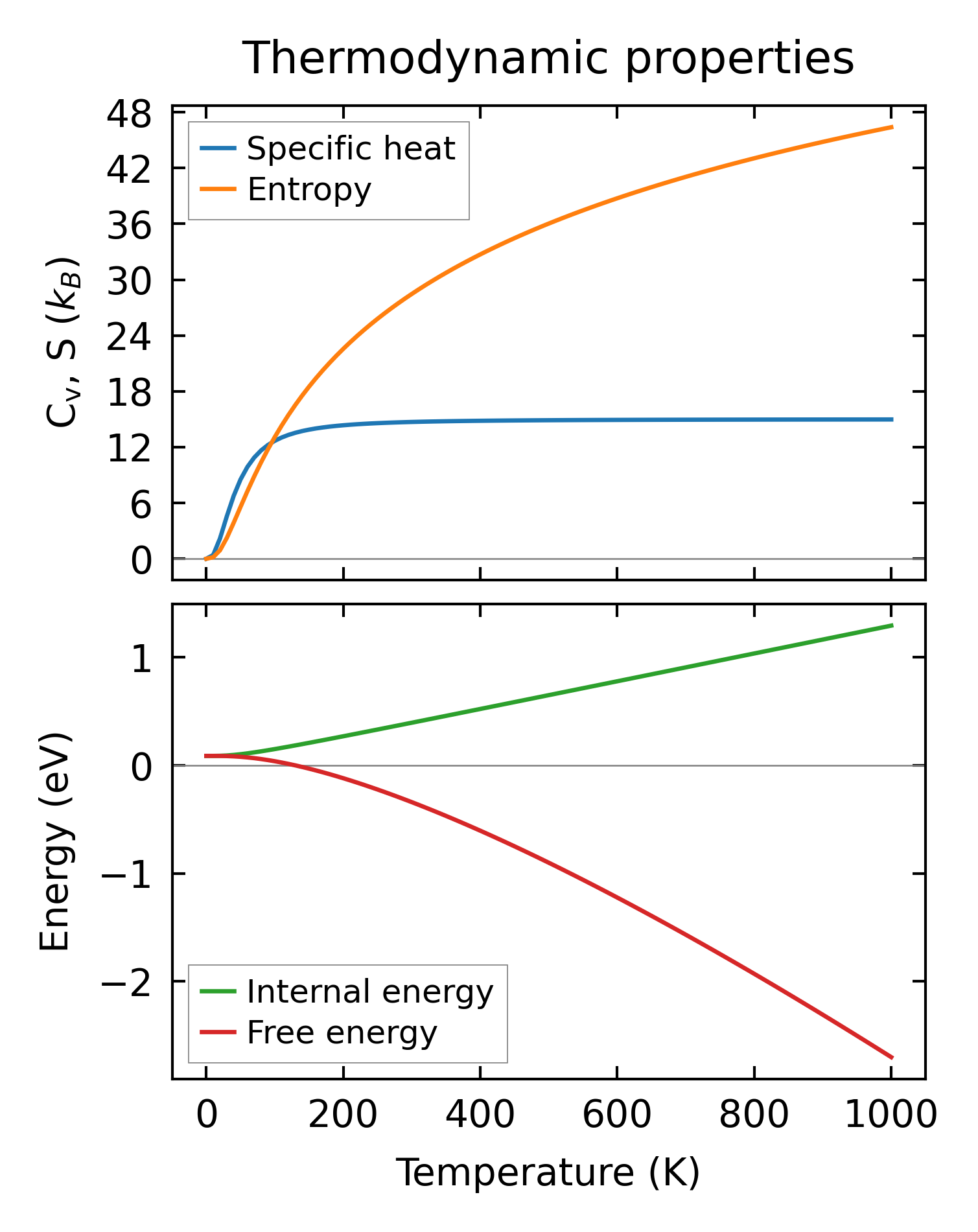

../../_images/fig_thermo5680.png — (b) Thermodynamic properties

Grüneisen parameters

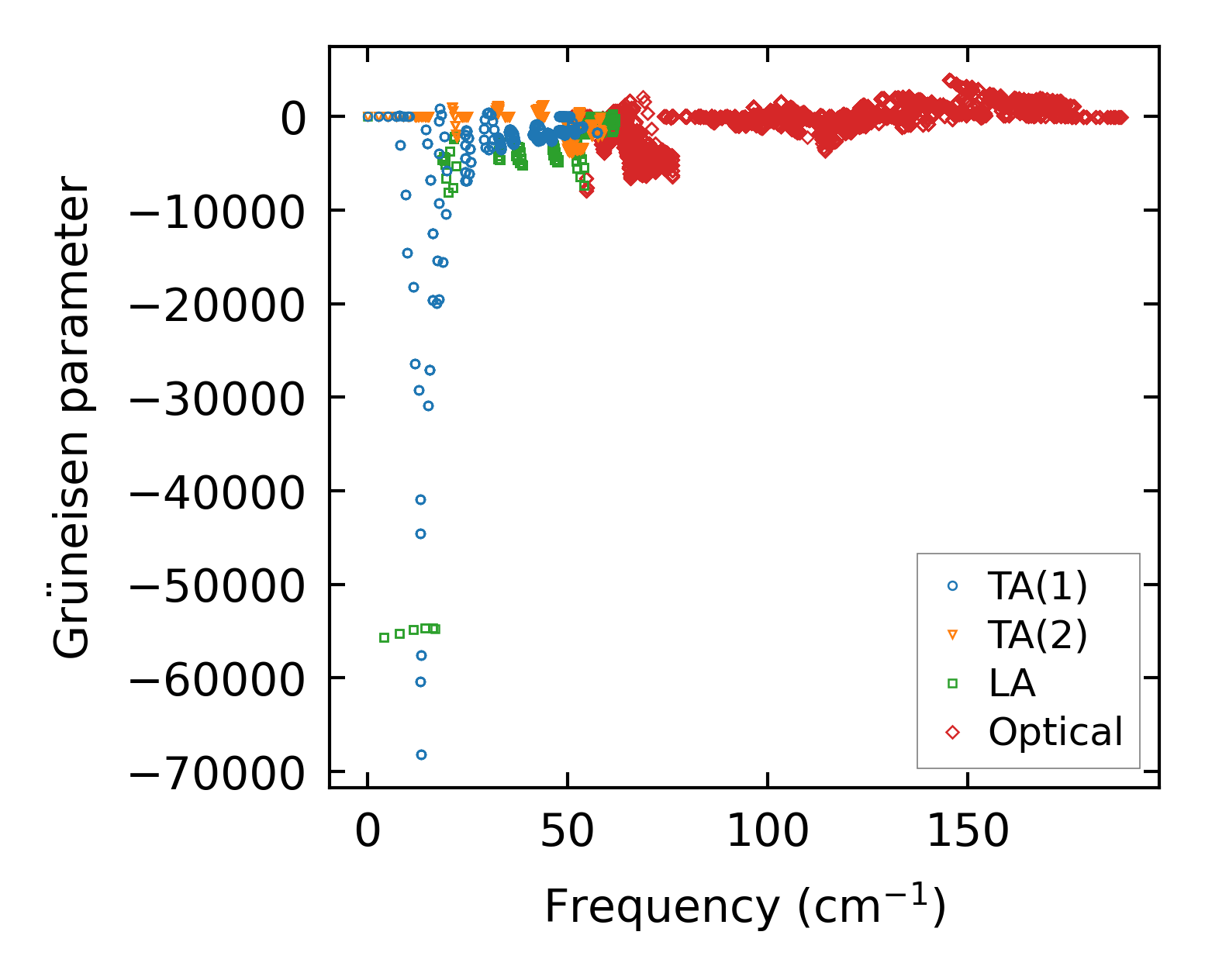

../../_images/fig_gru_all2367.png — (a) Grüneisen parameters

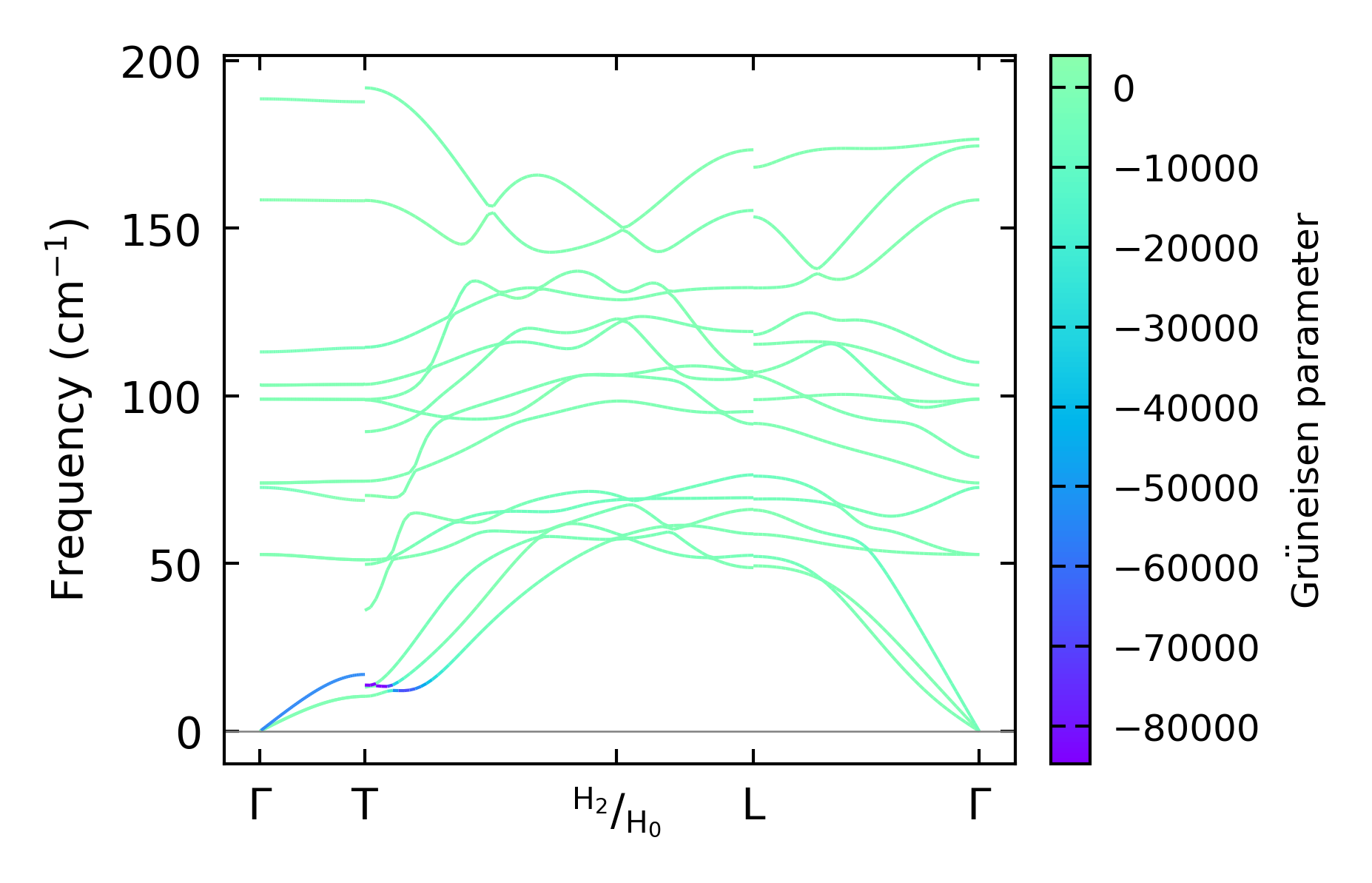

../../_images/fig_gruneisen2367.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 12x12x12, supercell: 3x3x1

../../_images/fig_kappa4518.png — (a) Temperature-dependent lattice thermal conductivity

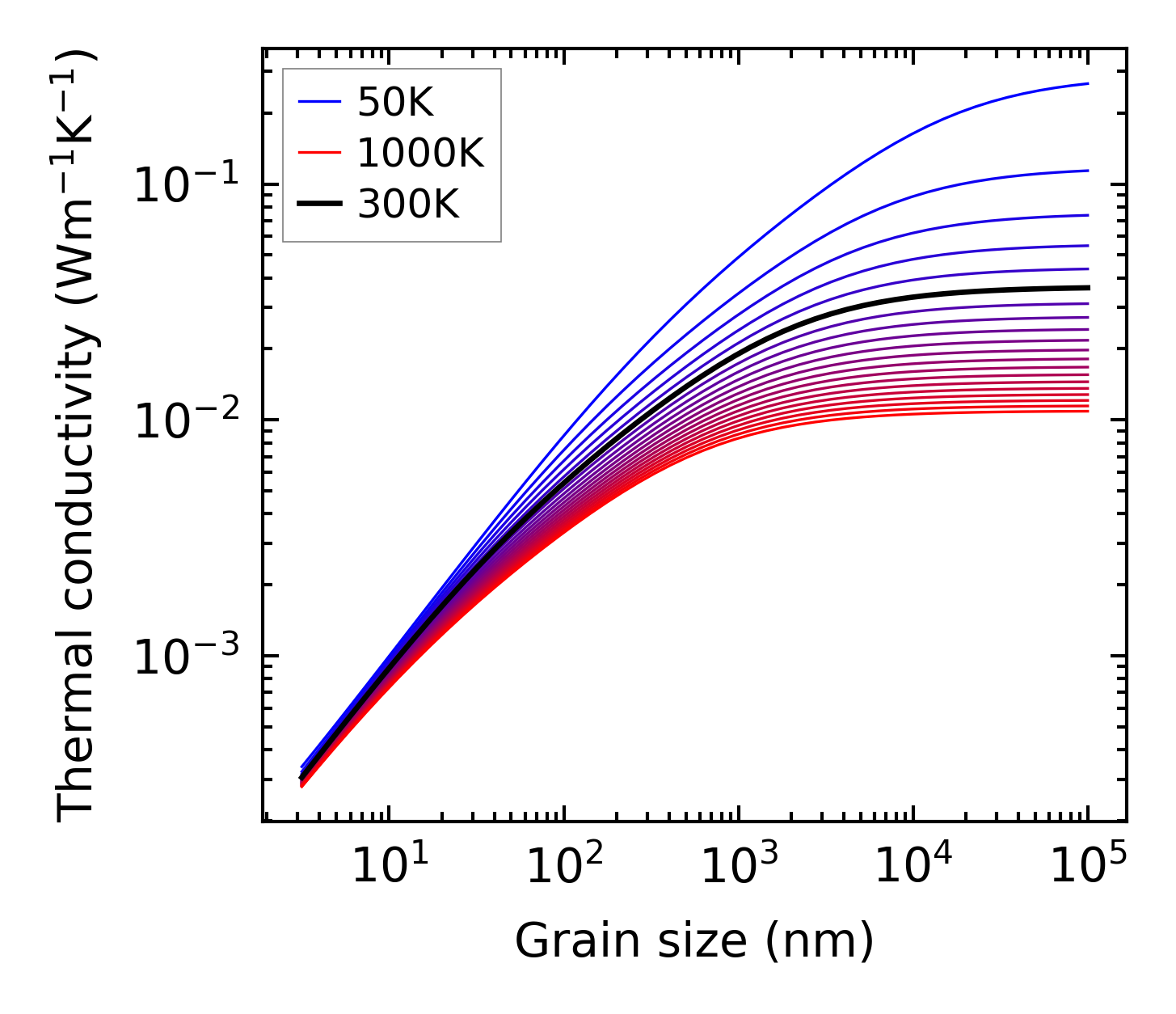

../../_images/fig_kappa_vs_grain_size2398.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

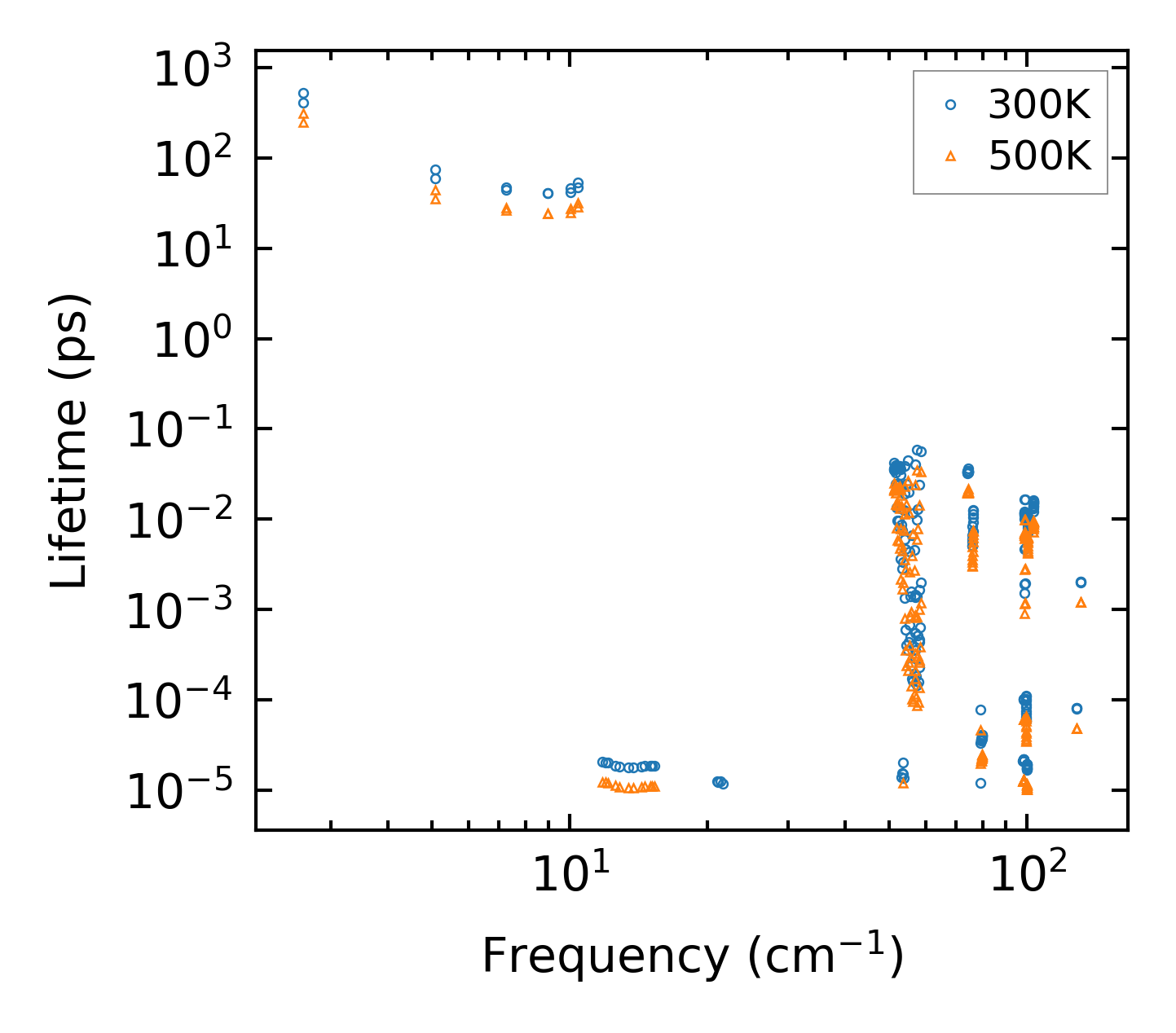

../../_images/fig_lifetime2352.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2351.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

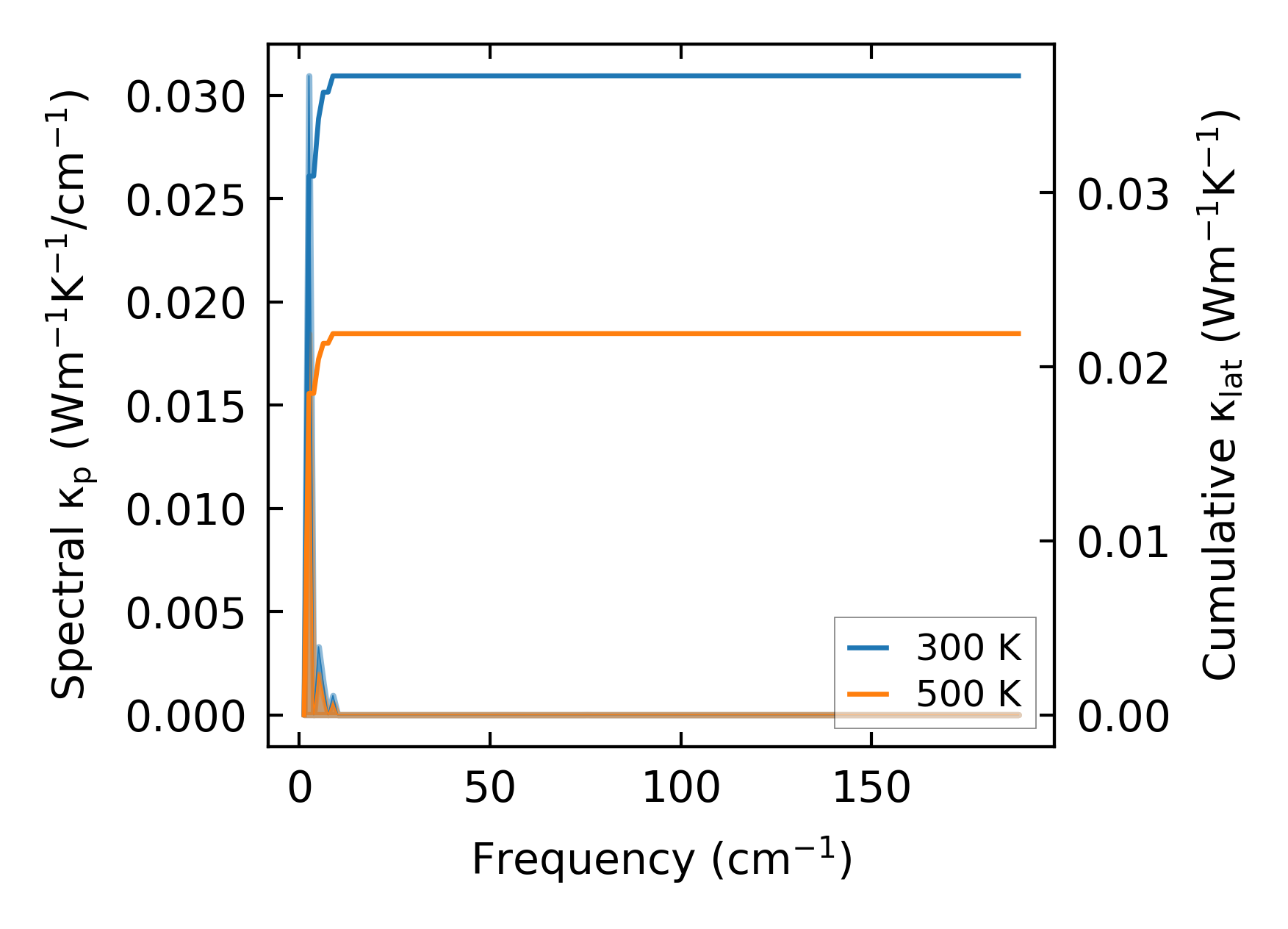

../../_images/fig_cumu_frequency2352.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2352.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

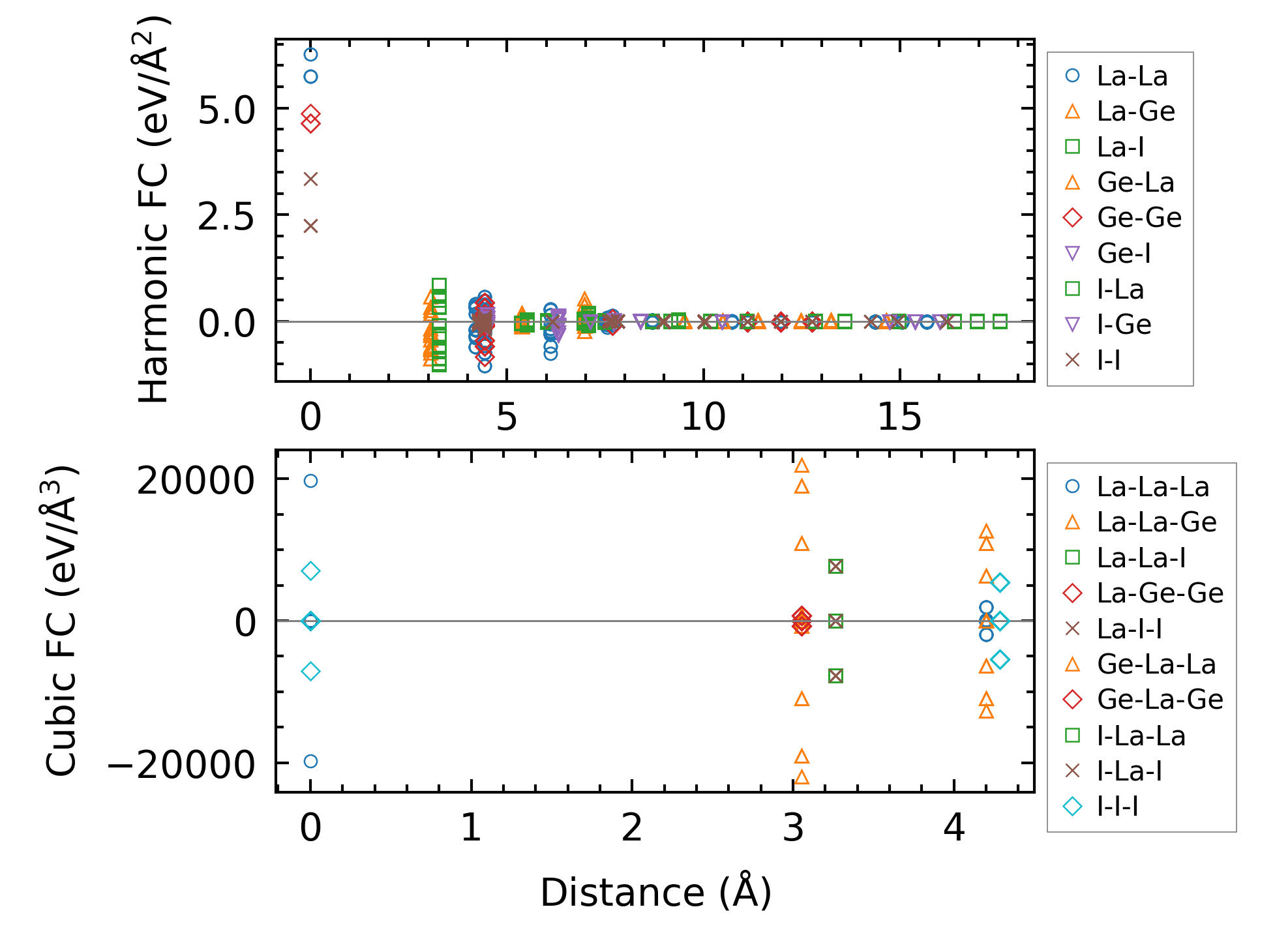

../../_images/fig_fc3201.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa4519.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times10272.png — (b) Computation time
