mp-614572/Ca3InP3/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-614572.tar.gz

Harmonic properties

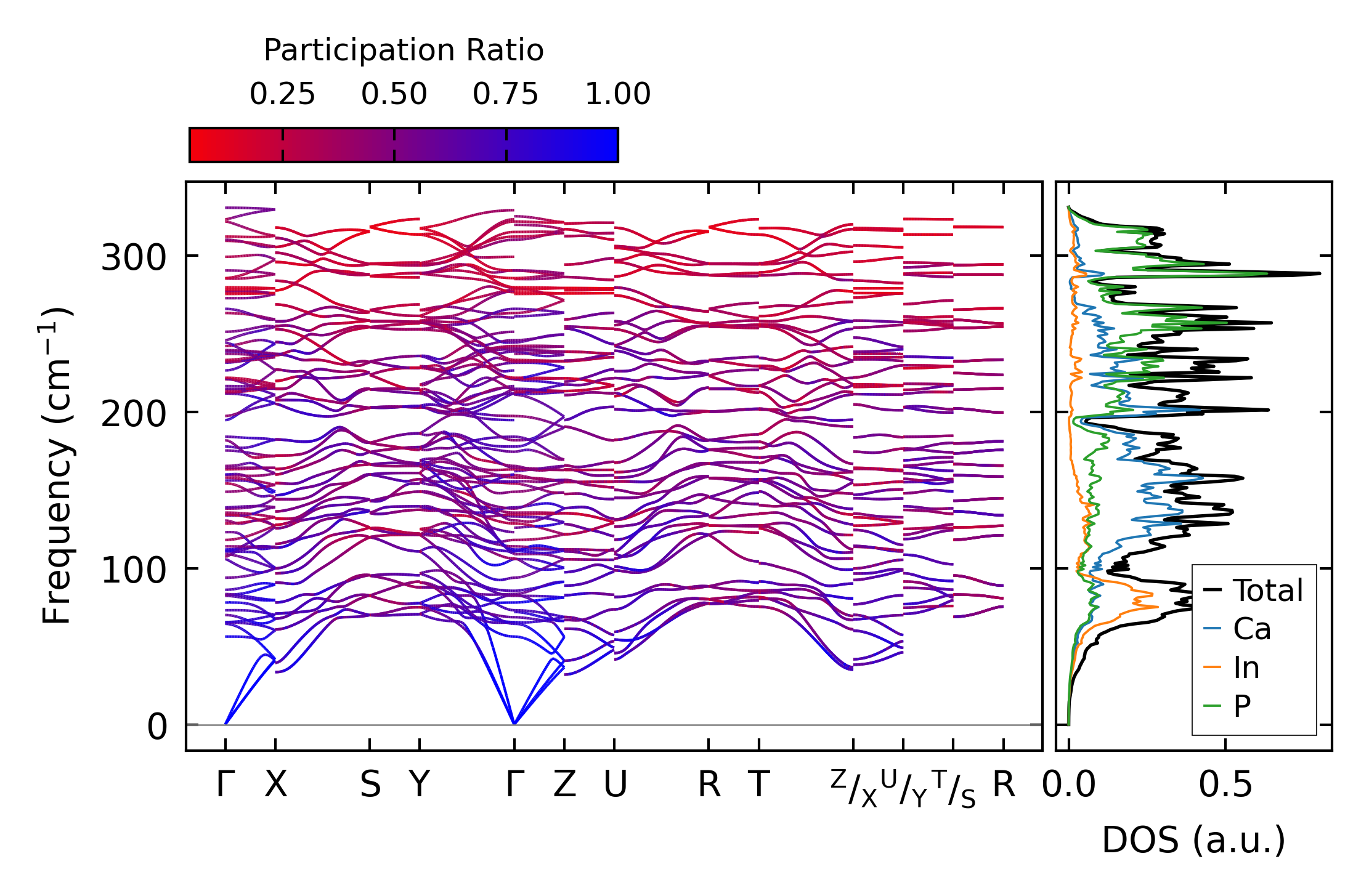

../../_images/fig_bandos_pr6006.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6006.png — (b) Thermodynamic properties

Grüneisen parameters

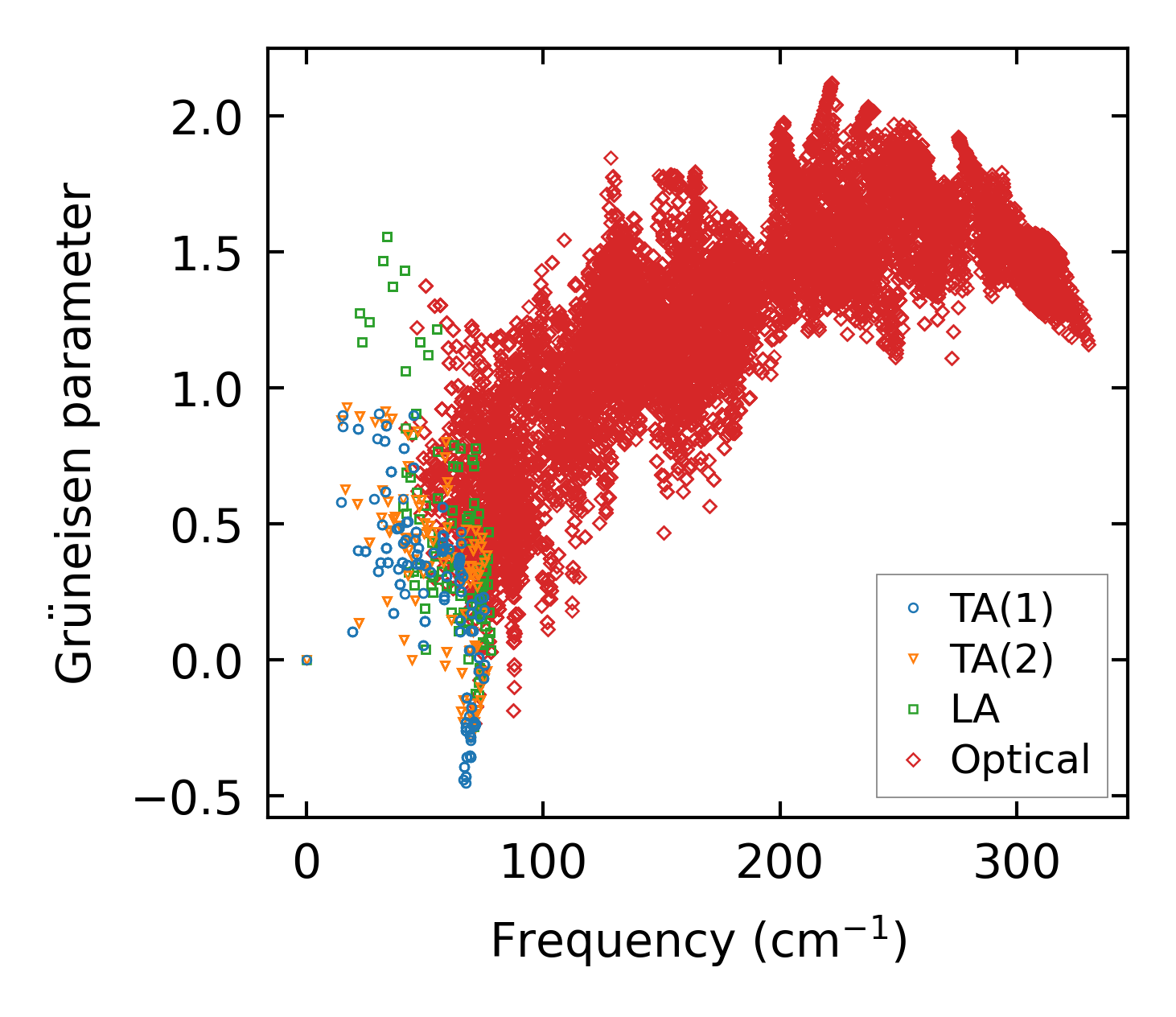

../../_images/fig_gru_all2446.png — (a) Grüneisen parameters

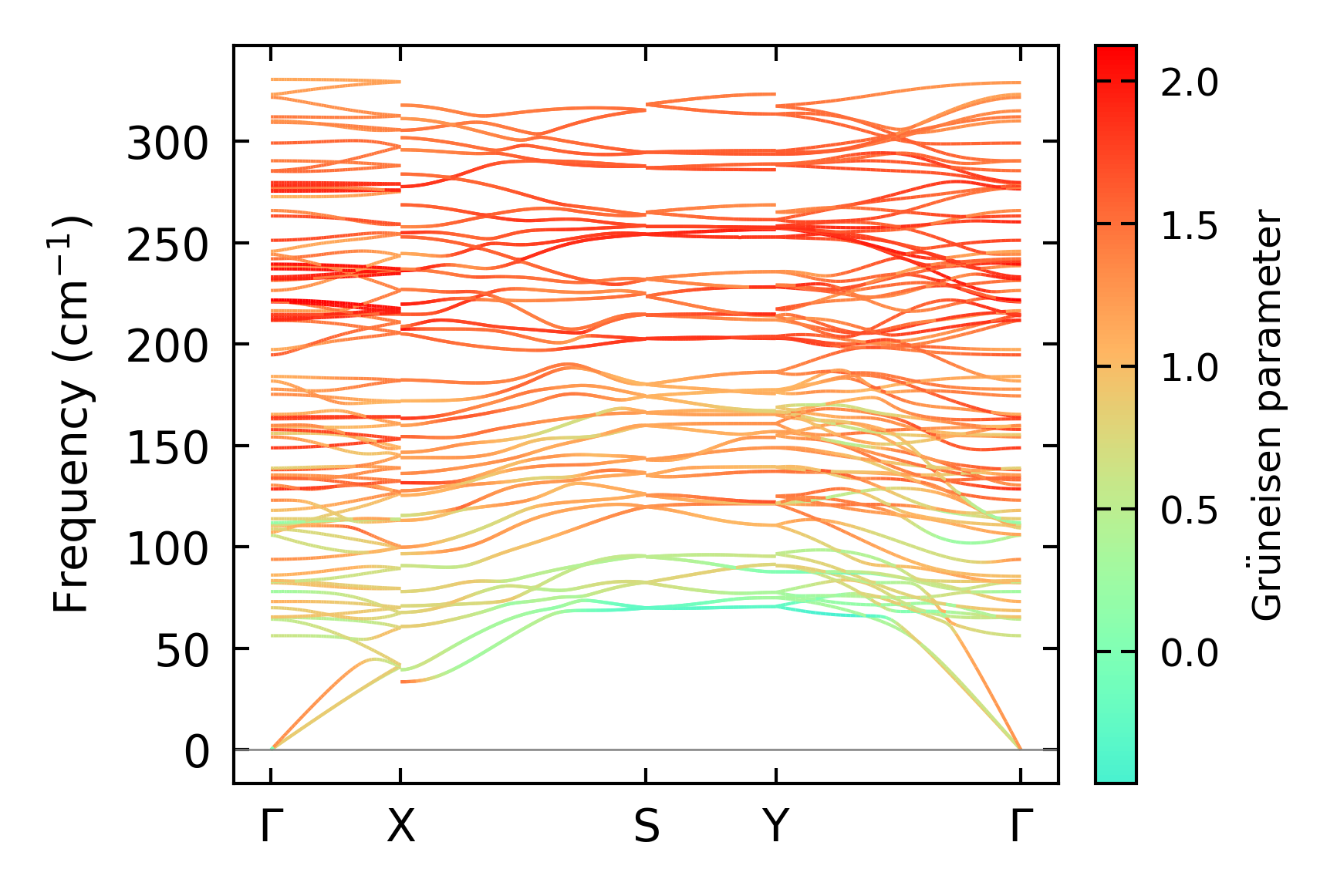

../../_images/fig_gruneisen2446.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x17x5, supercell: 1x3x1

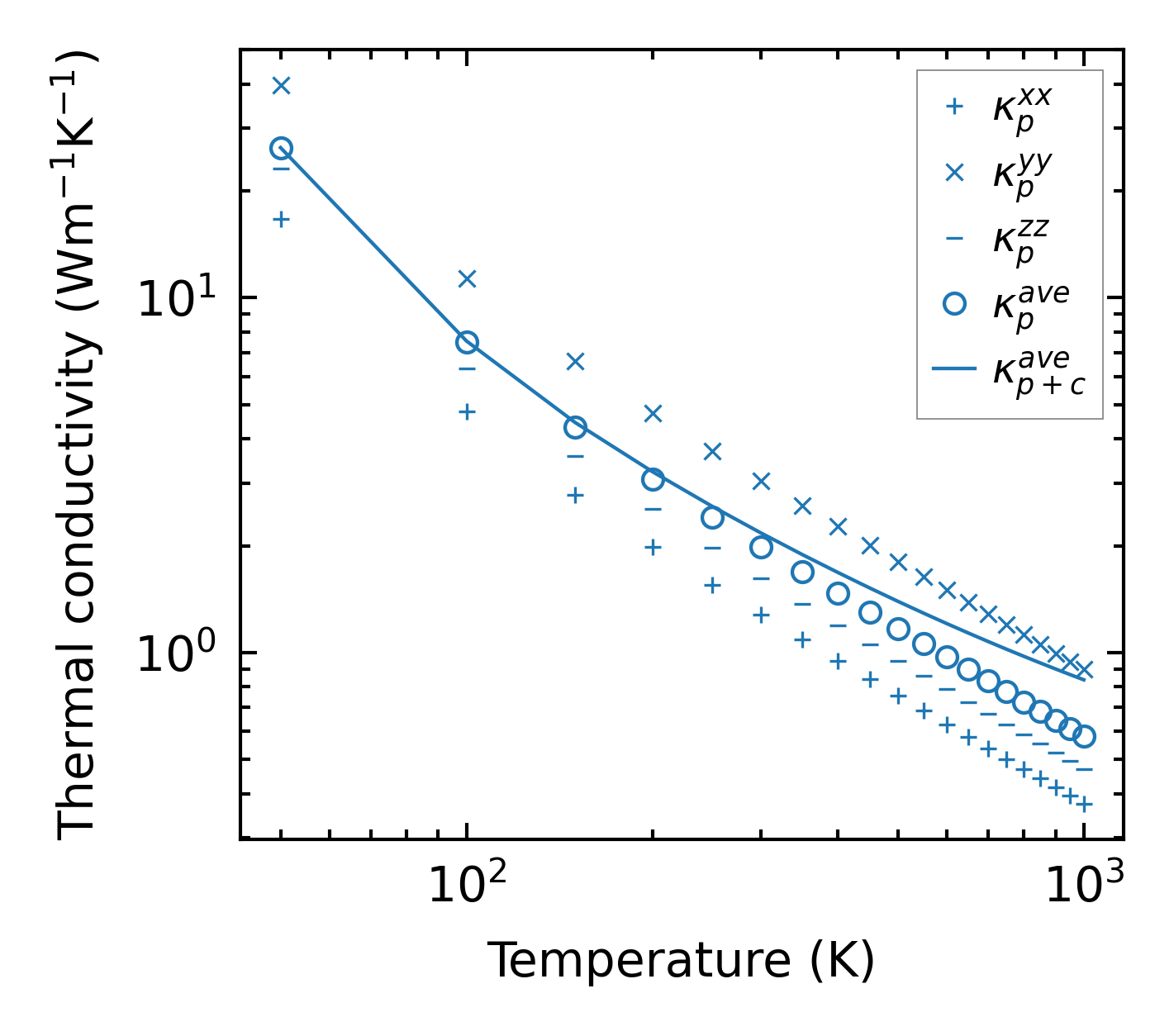

../../_images/fig_kappa4659.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2477.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

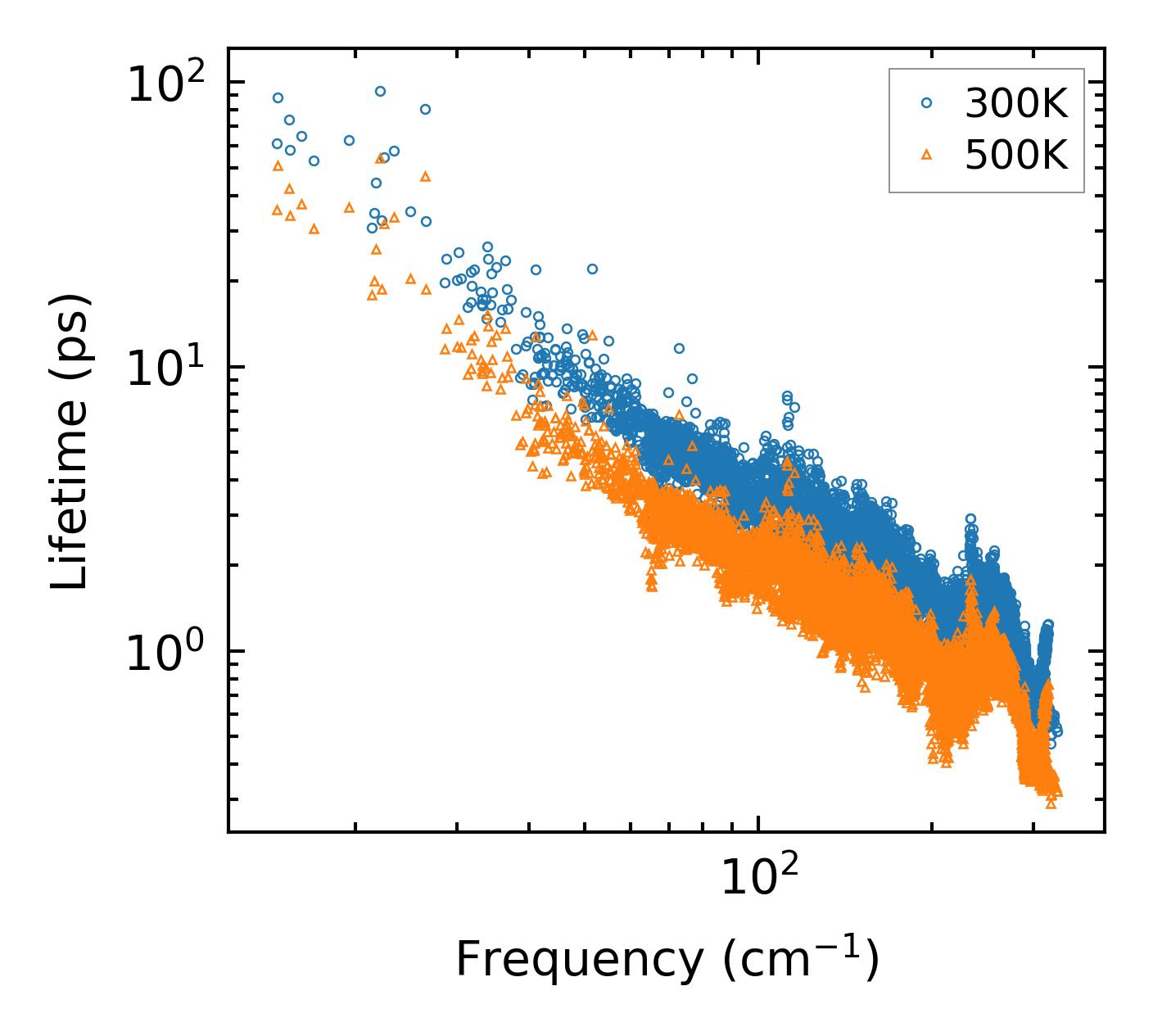

../../_images/fig_lifetime2429.png — (a) Phonon lifetime due to phonon-phonon scattering

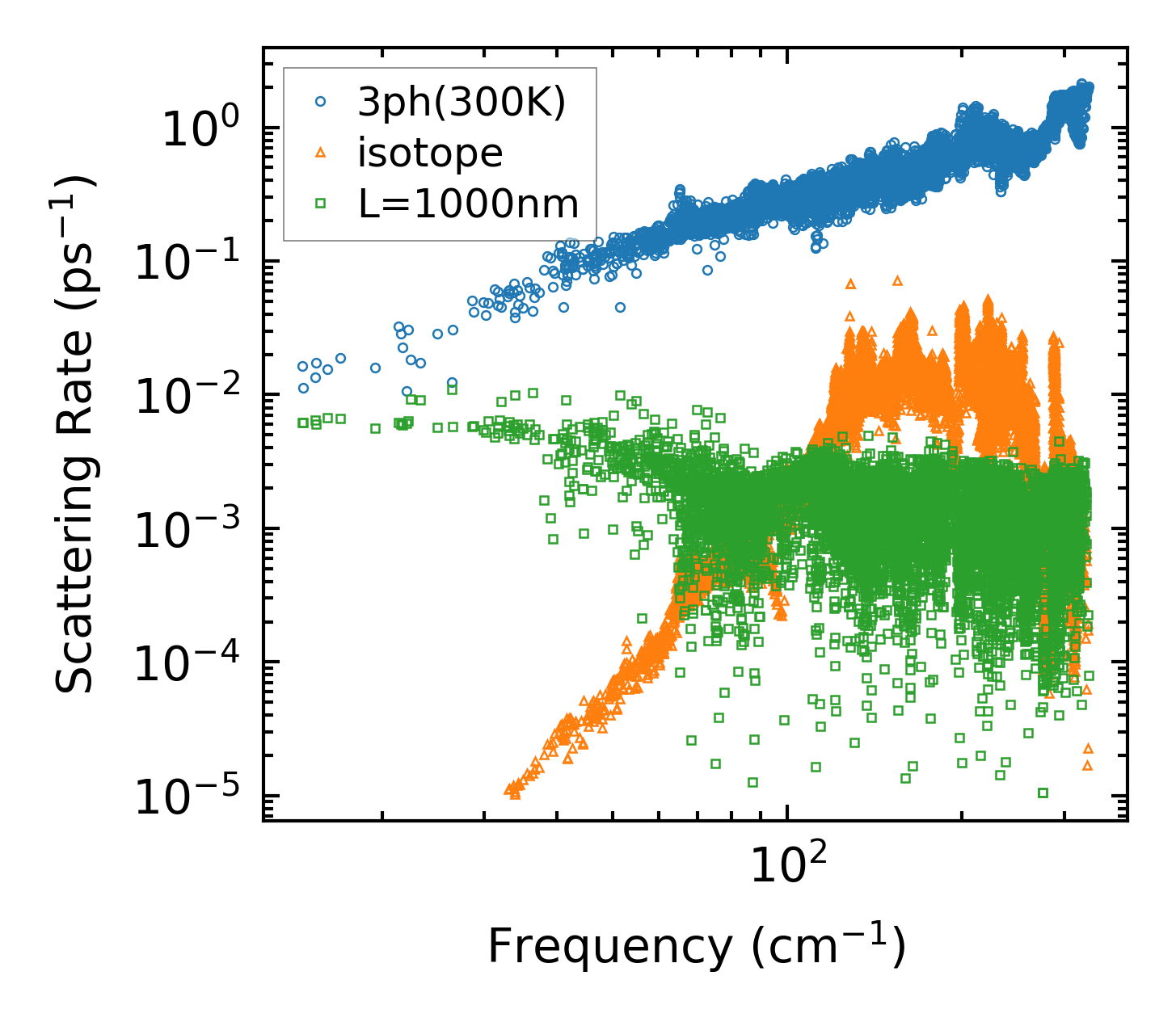

../../_images/fig_scat_rates2428.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

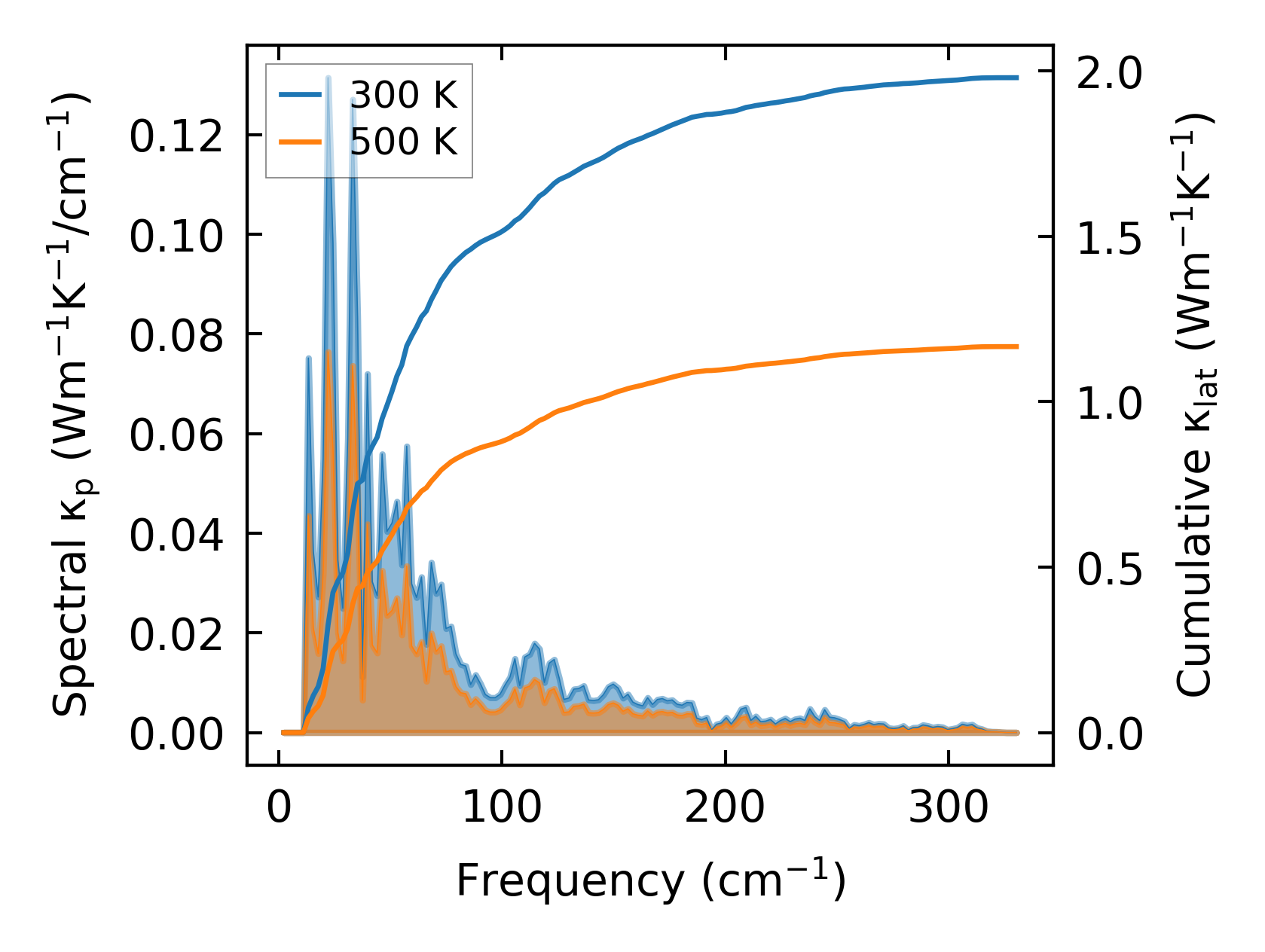

../../_images/fig_cumu_frequency2429.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

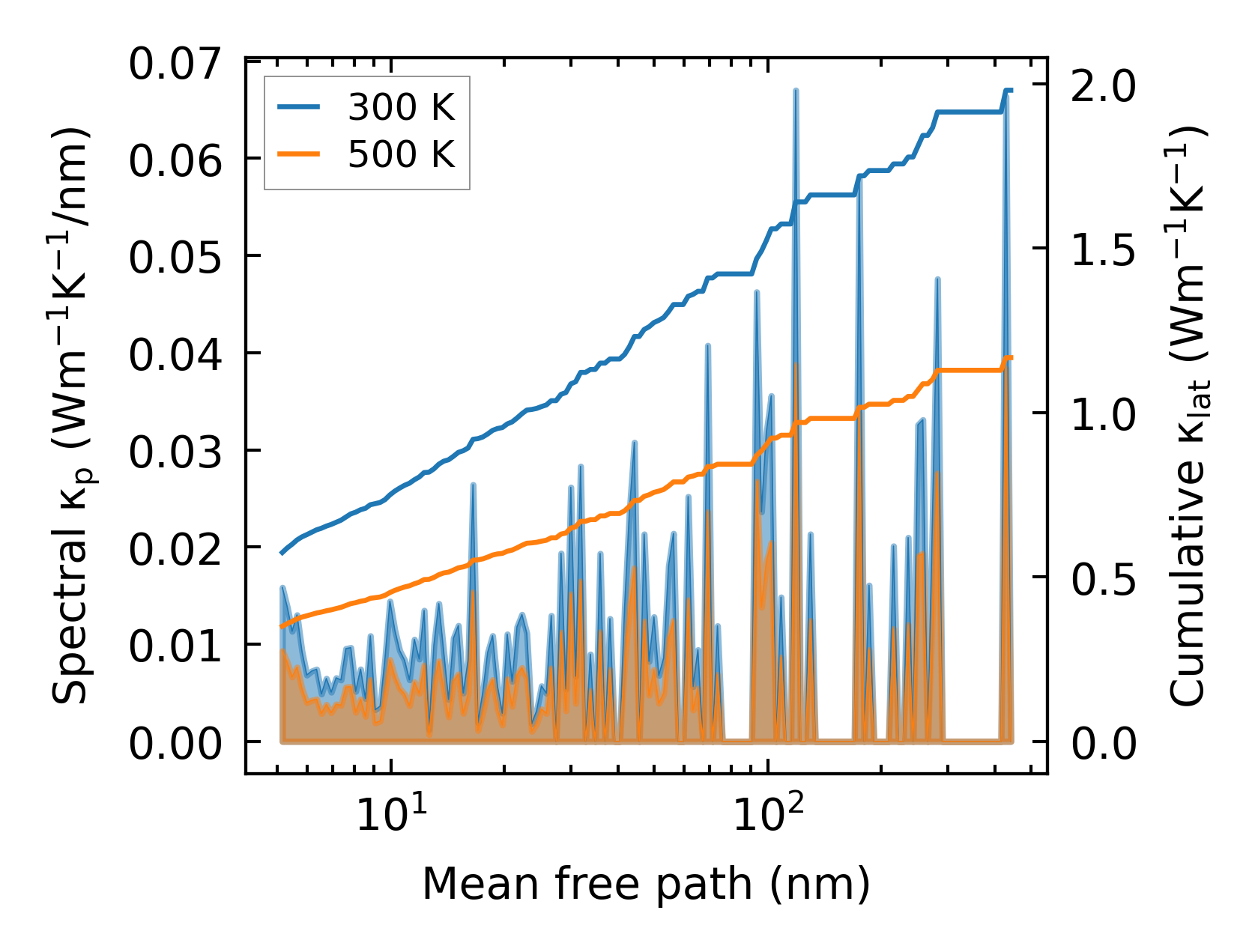

../../_images/fig_cumu_mfp2428.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

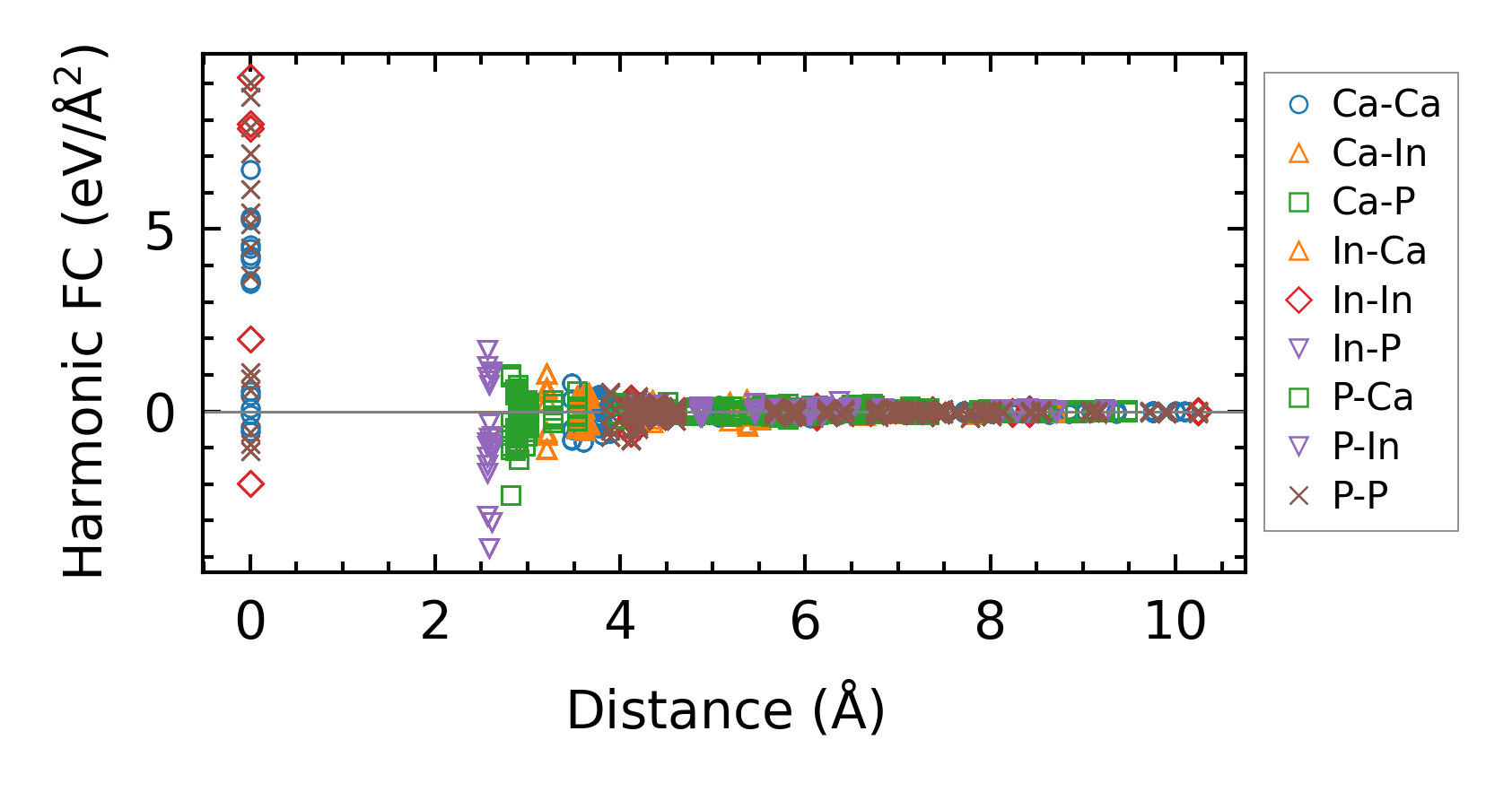

../../_images/fig_fc25798.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa4660.png — (a) Temperature-dependent lattice thermal conductivity

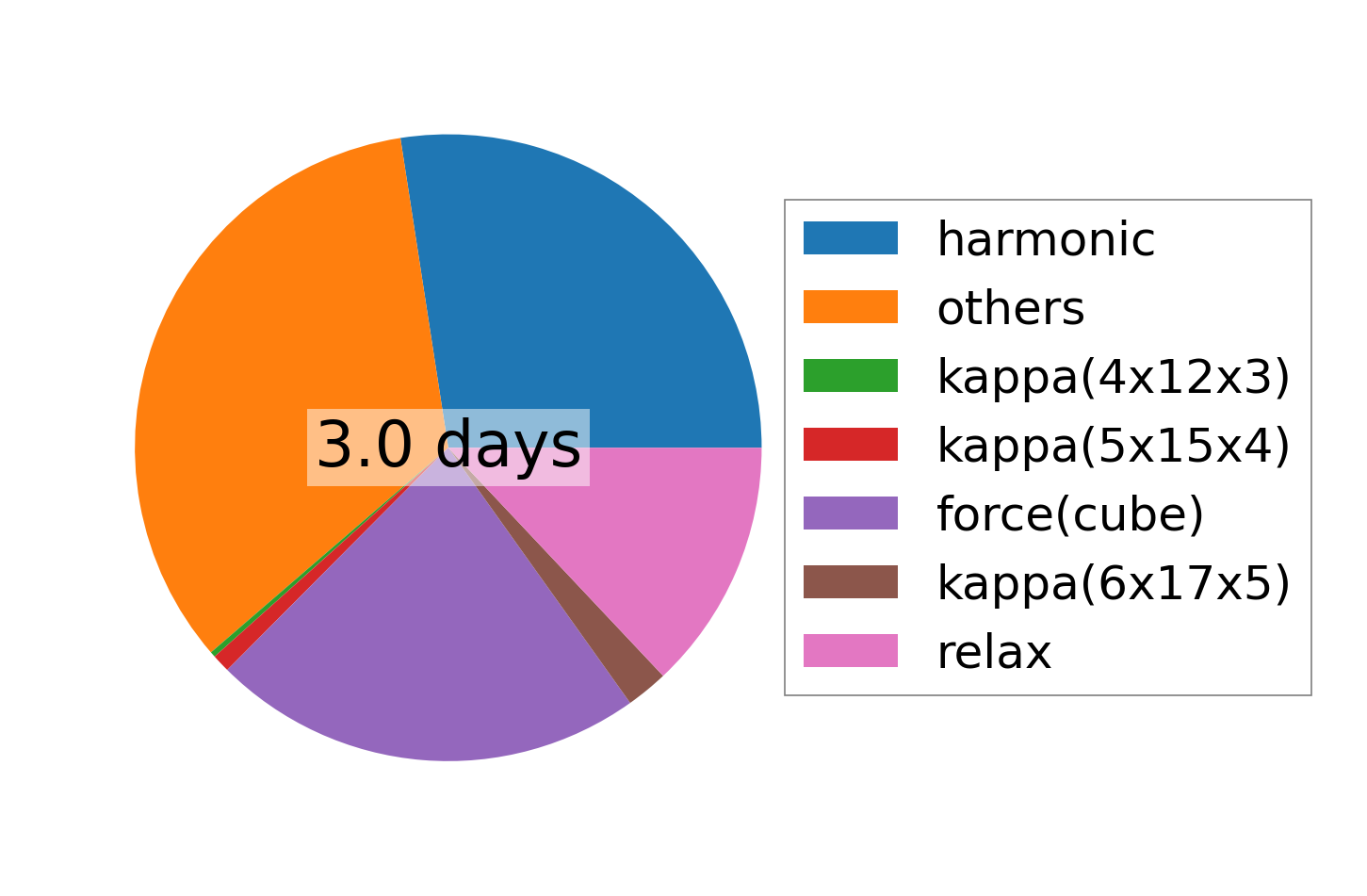

../../_images/fig_times11004.png — (b) Computation time
