mp-1220963/NaNdS2/anharm

Space group: P4/mmm (123)
Link: Materials Project
Download: mp-1220963.tar.gz

Harmonic properties

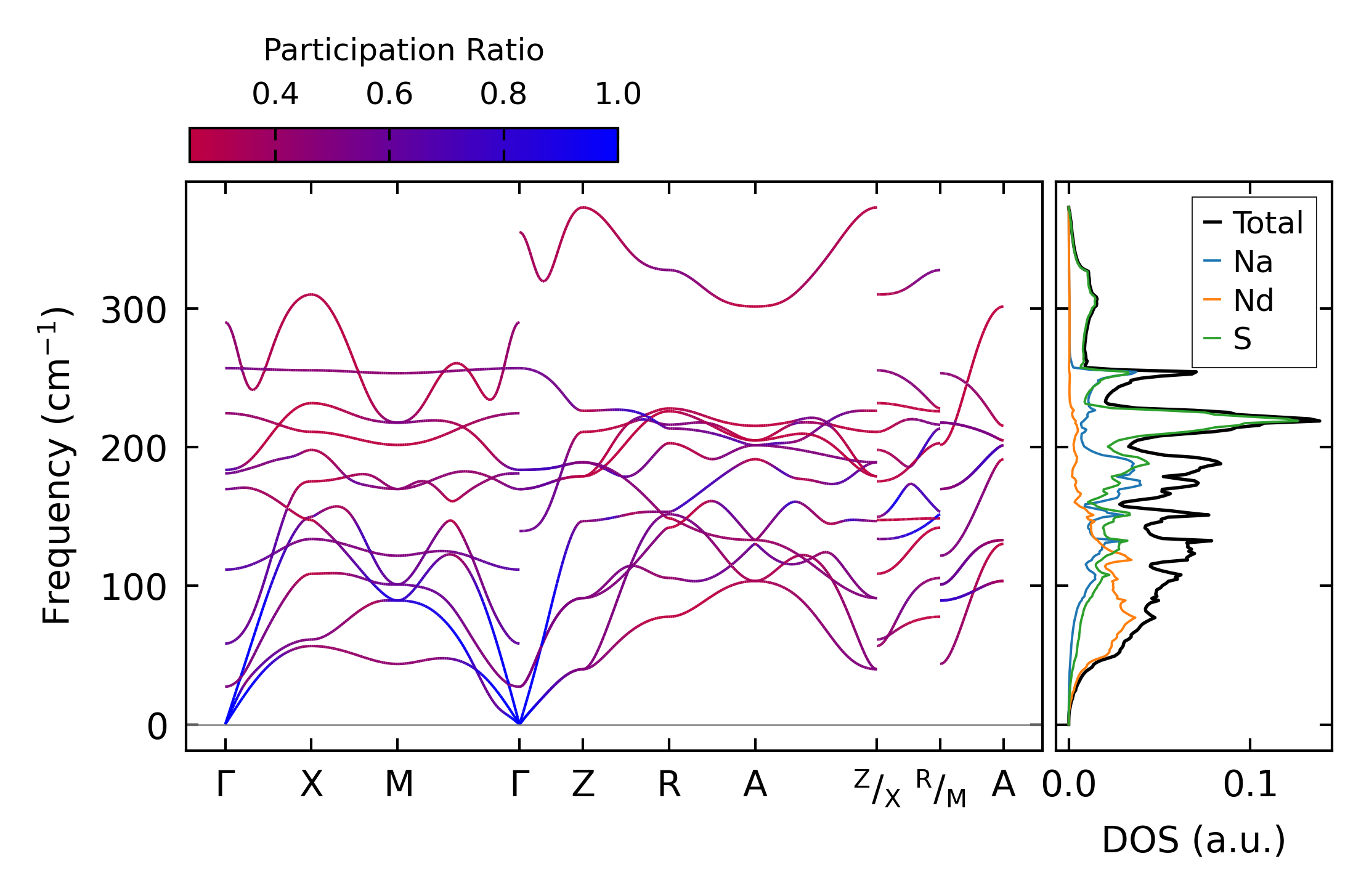

../../_images/fig_bandos_pr15302.png — (a) Phonon dispersion with participation ratio and DOS

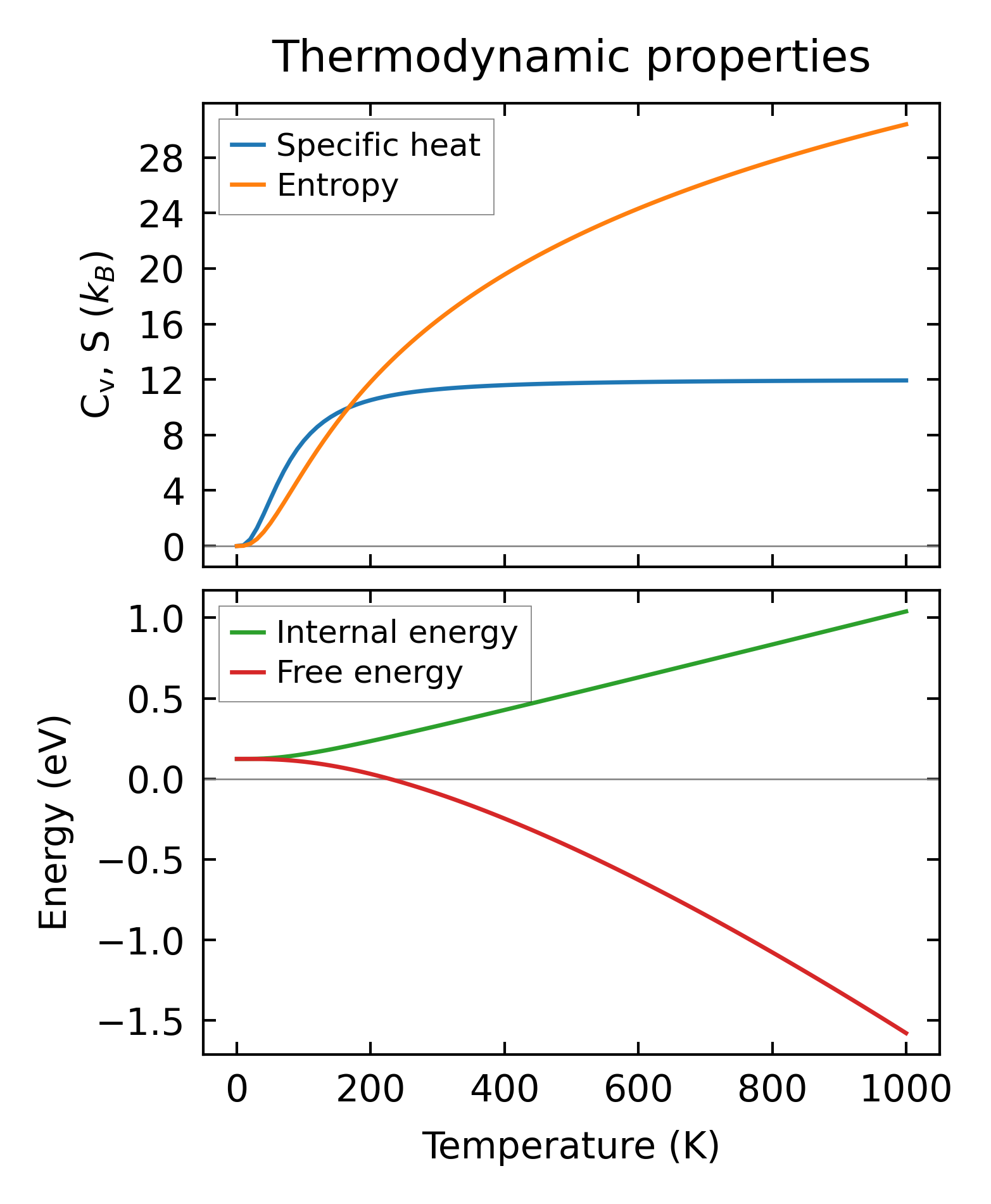

../../_images/fig_thermo15301.png — (b) Thermodynamic properties

Grüneisen parameters

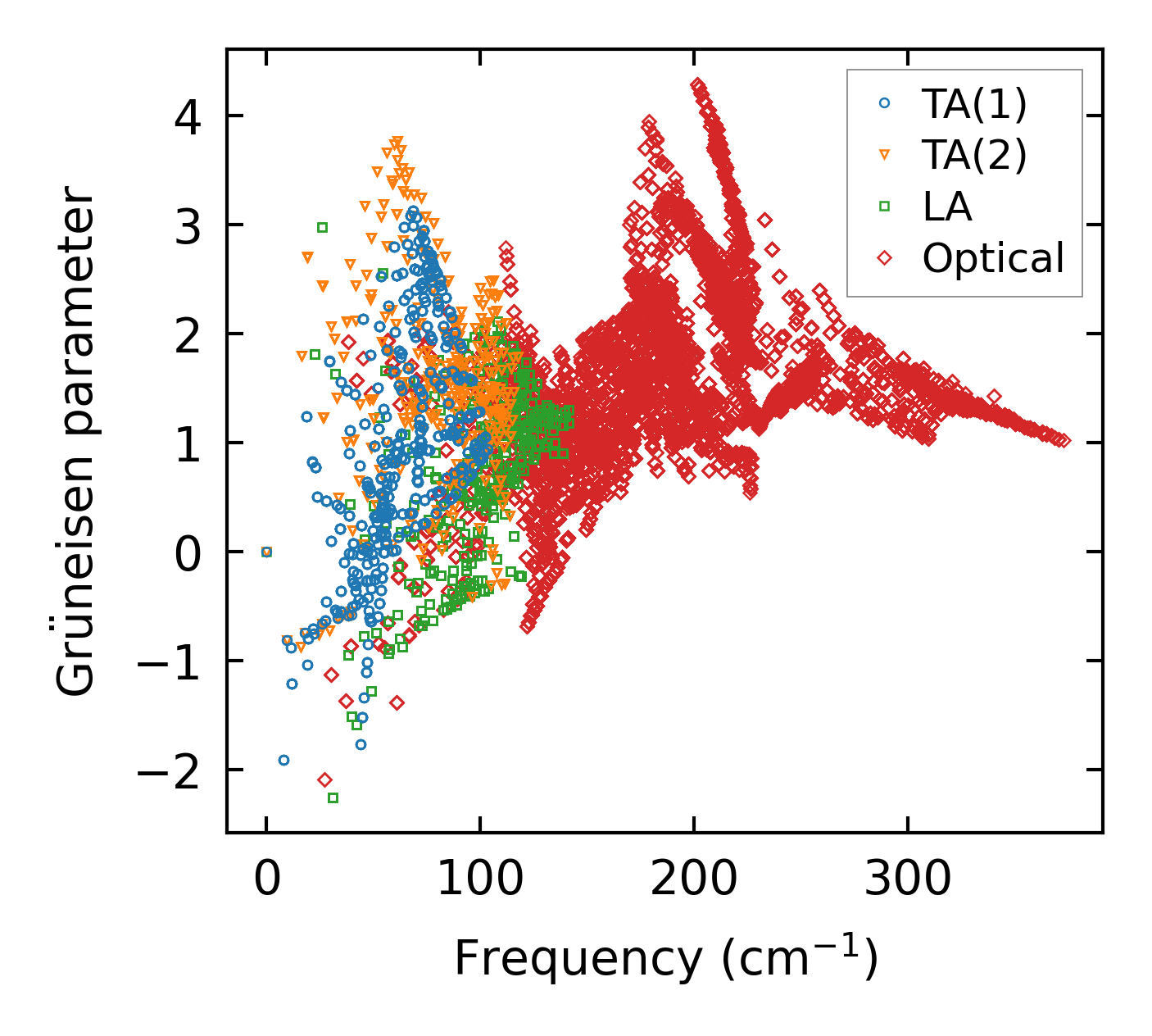

../../_images/fig_gru_all6604.png — (a) Grüneisen parameters

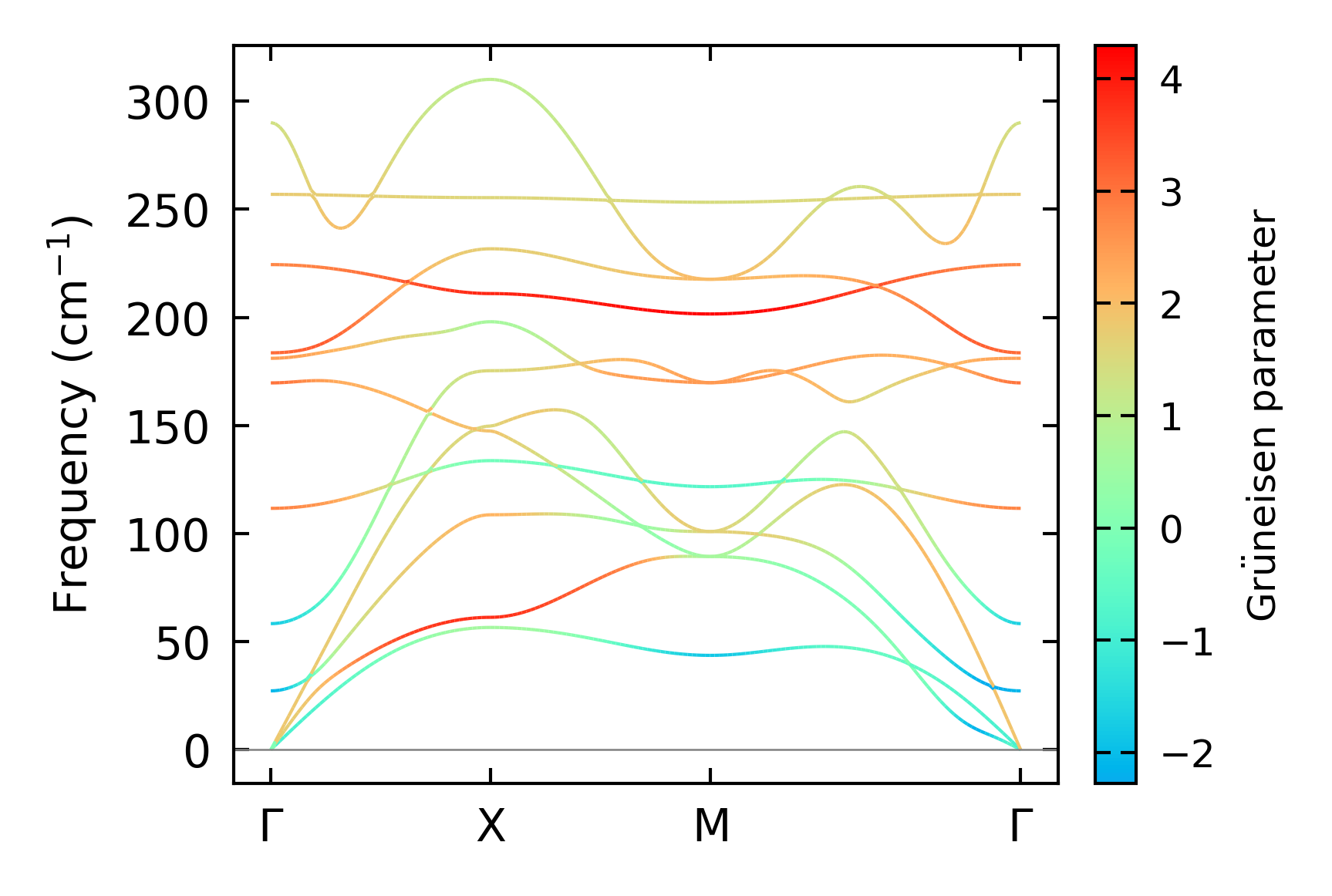

../../_images/fig_gruneisen6604.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 17x17x12, supercell: 3x3x3

../../_images/fig_kappa12432.png — (a) Temperature-dependent lattice thermal conductivity

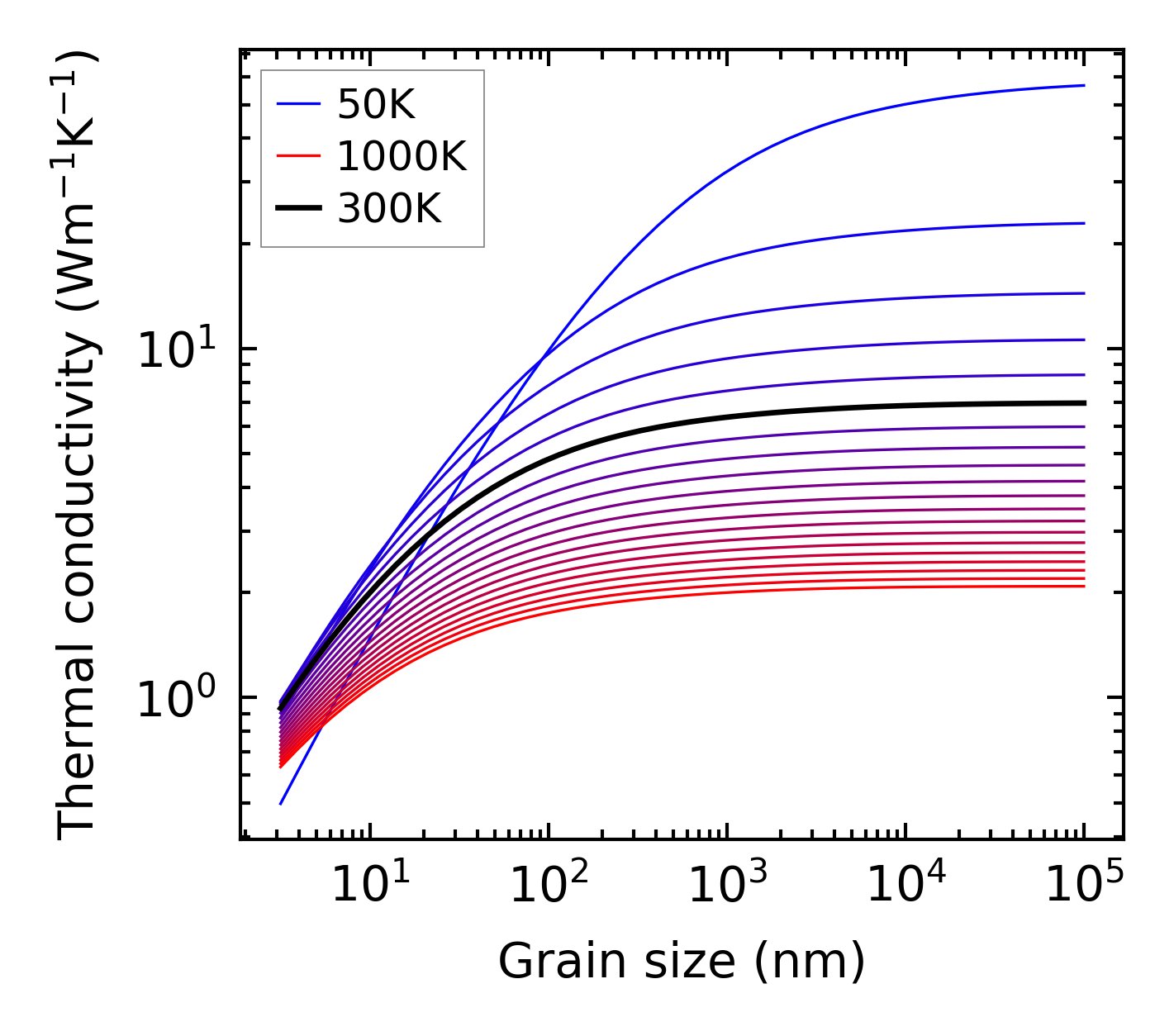

../../_images/fig_kappa_vs_grain_size6682.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

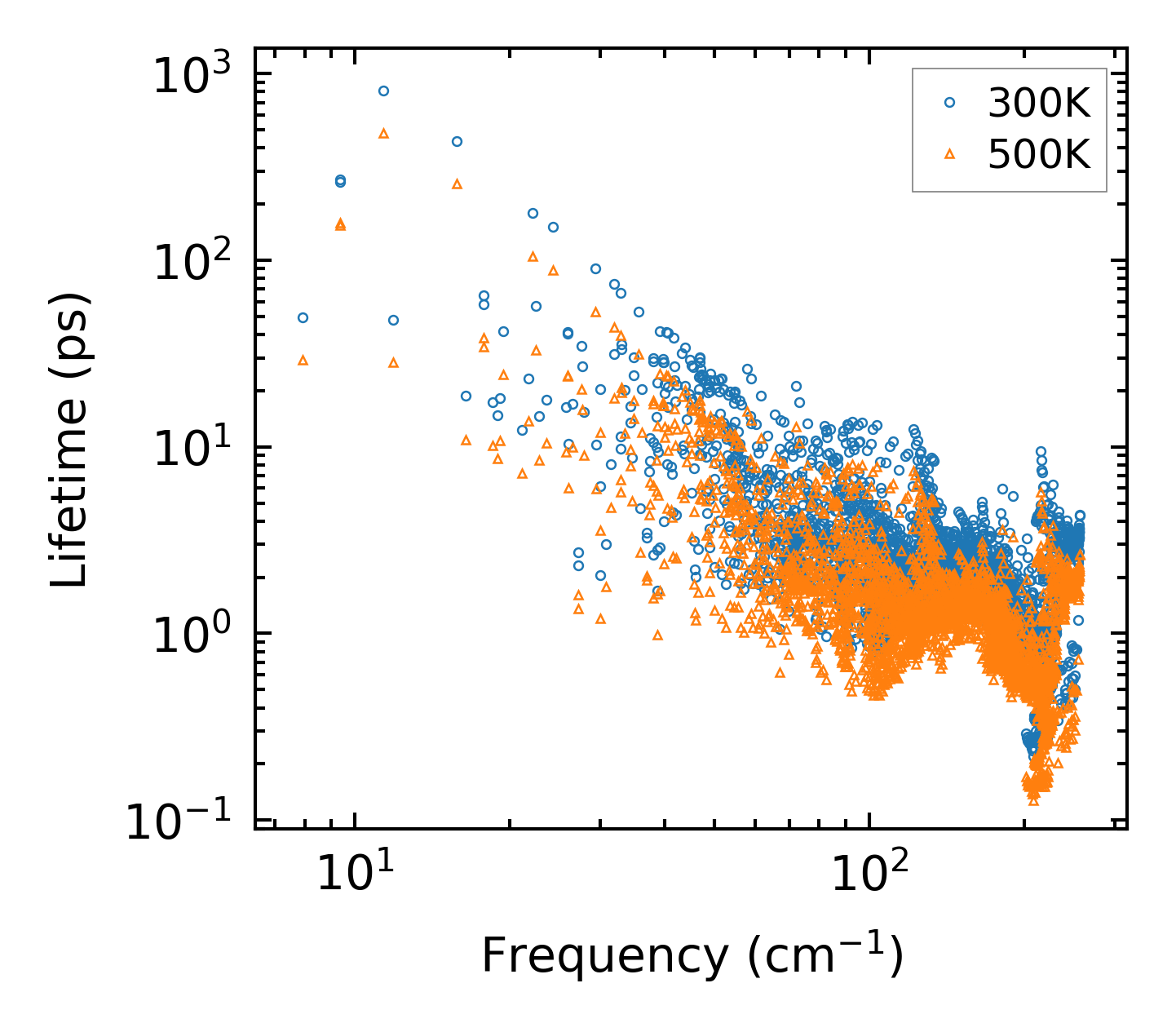

../../_images/fig_lifetime6538.png — (a) Phonon lifetime due to phonon-phonon scattering

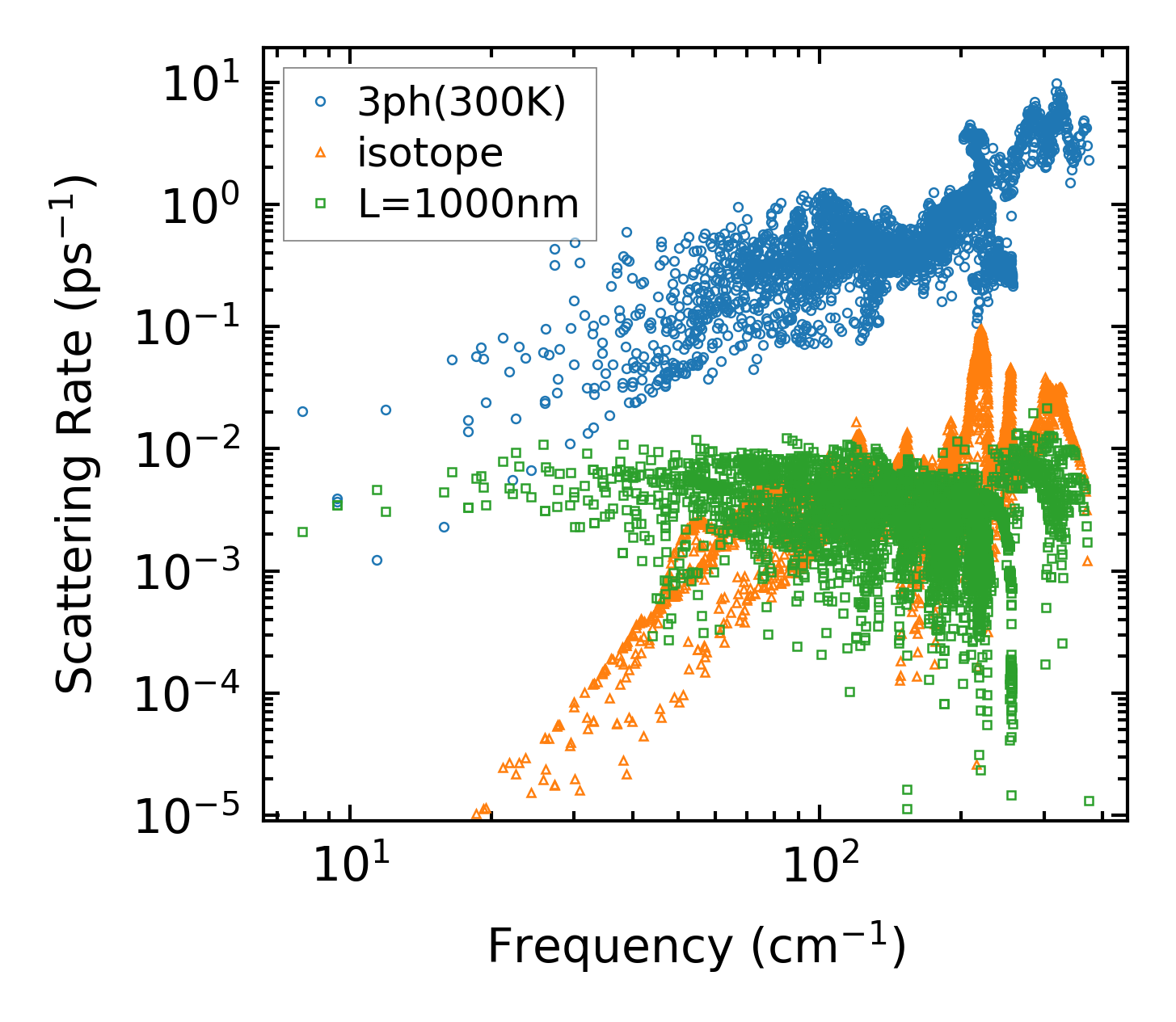

../../_images/fig_scat_rates6537.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

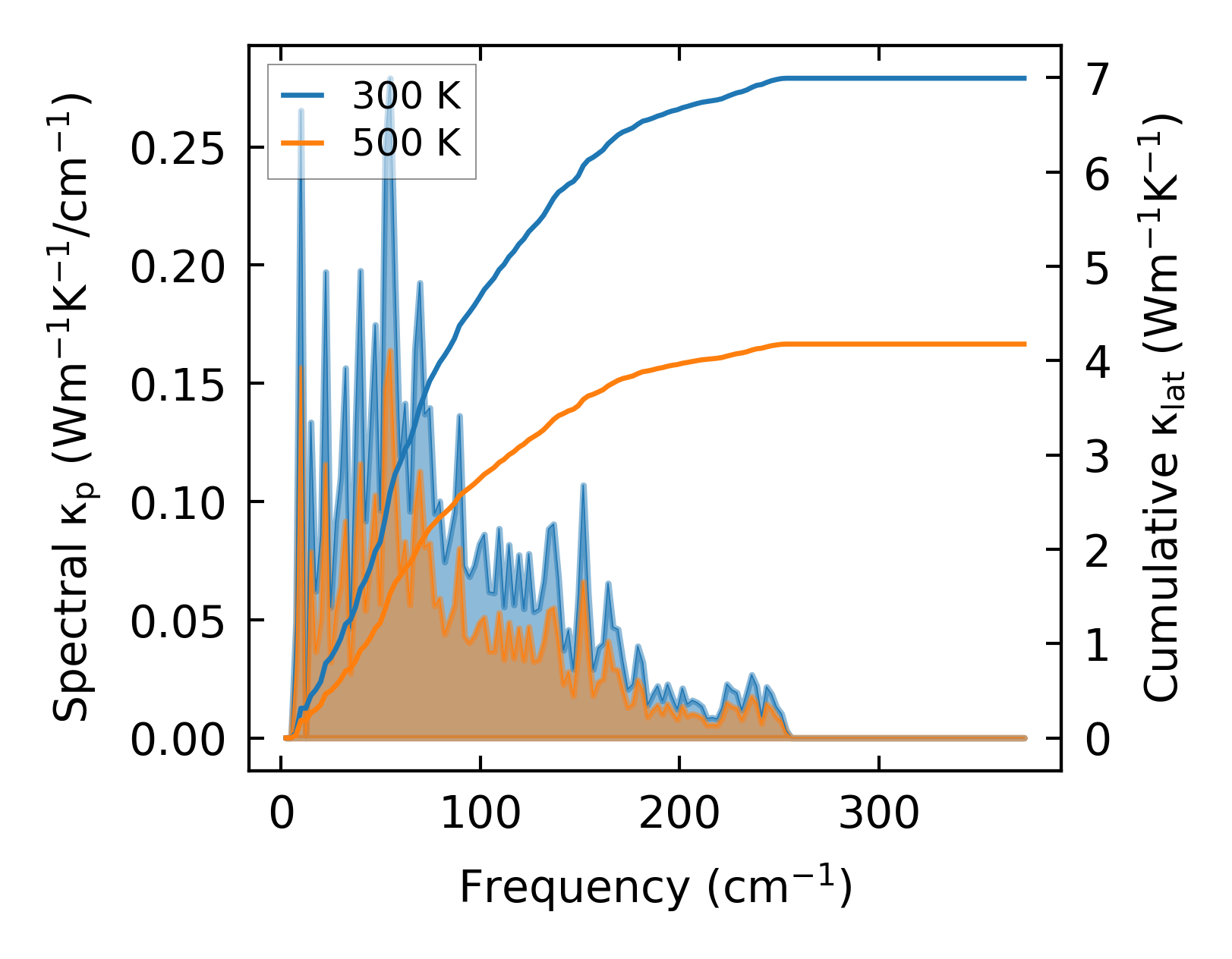

../../_images/fig_cumu_frequency6538.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

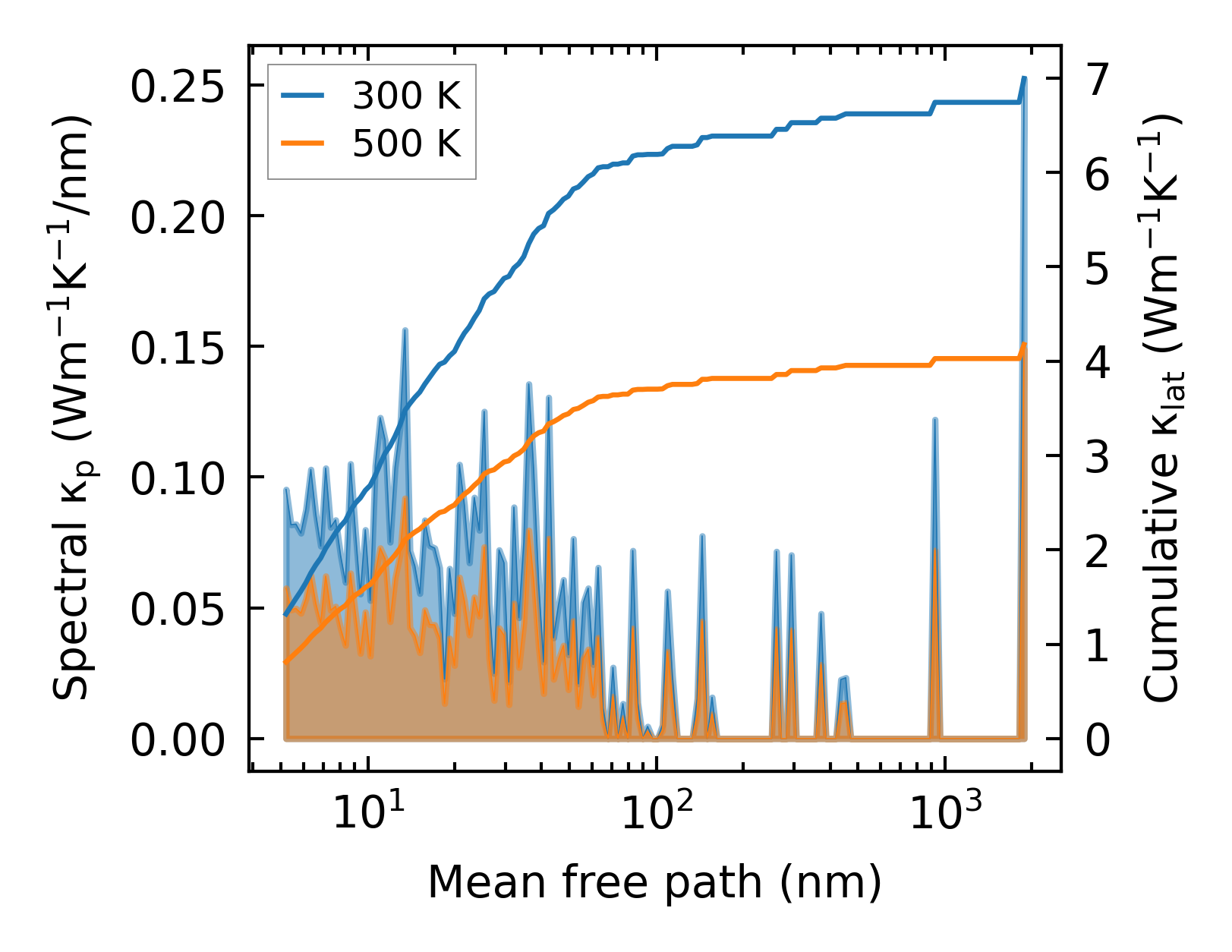

../../_images/fig_cumu_mfp6537.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

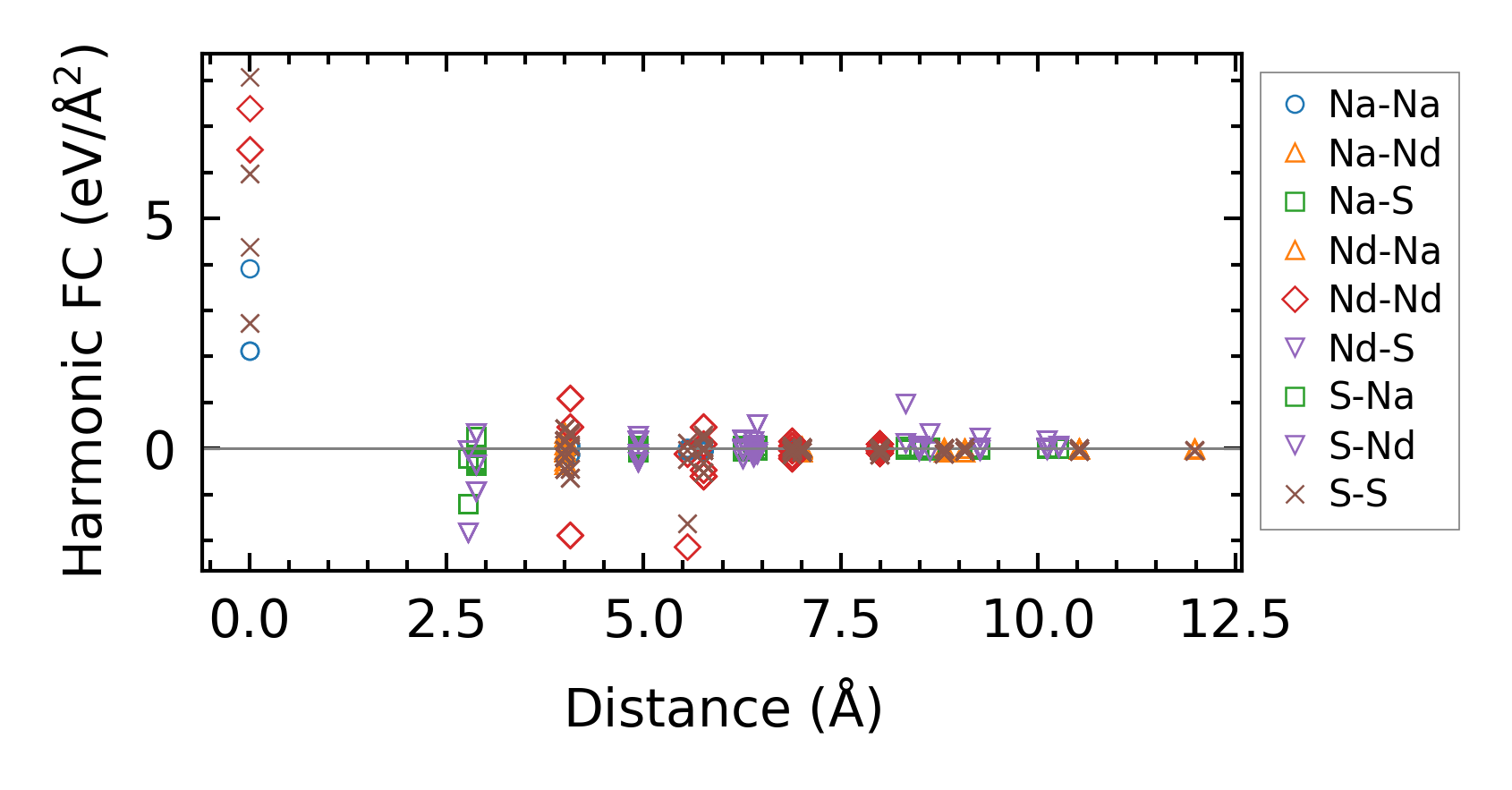

../../_images/fig_fc214909.png — (a) Force constants w.r.t atomic distance

Summary

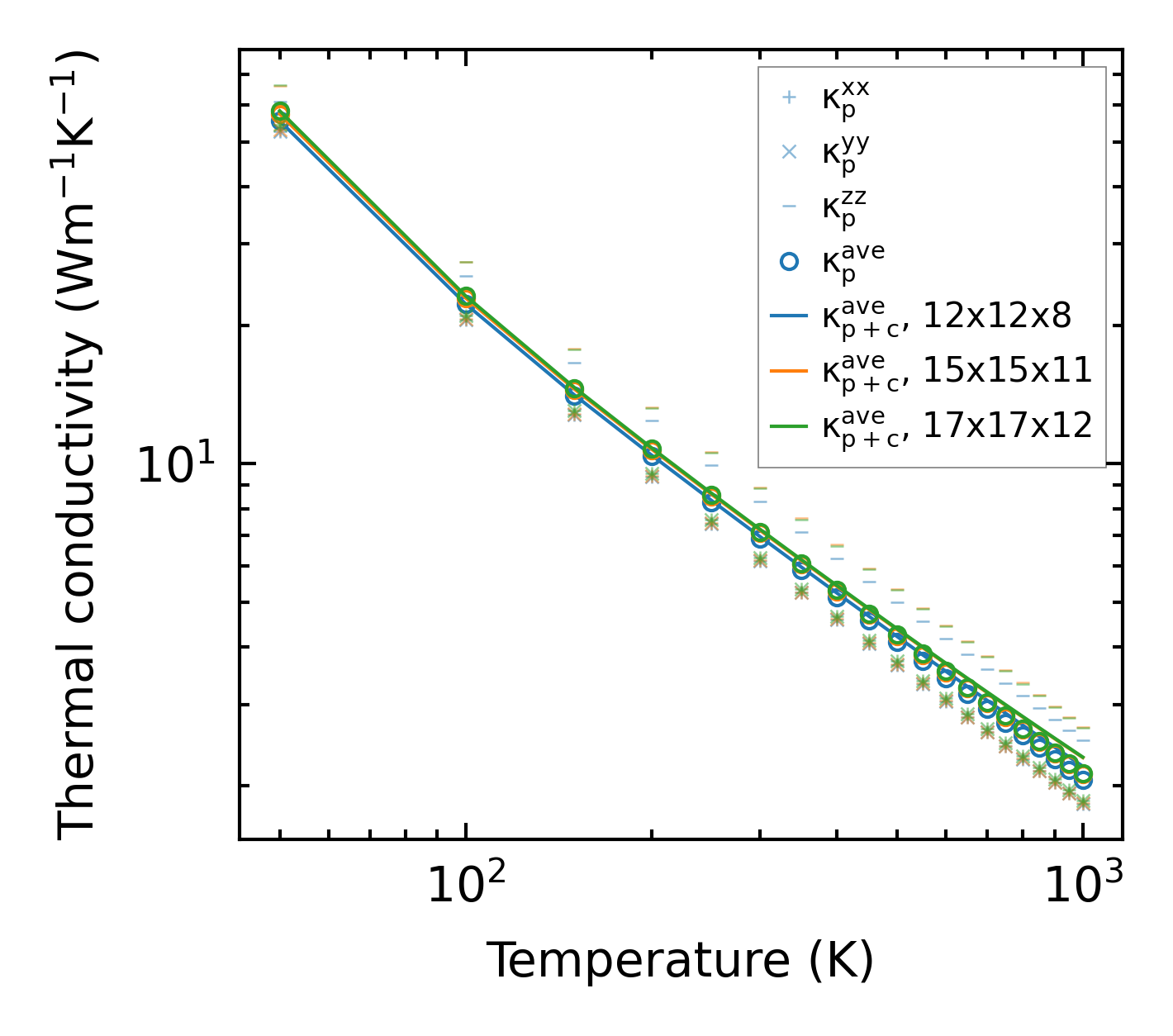

../../_images/fig_kappa12433.png — (a) Temperature-dependent lattice thermal conductivity

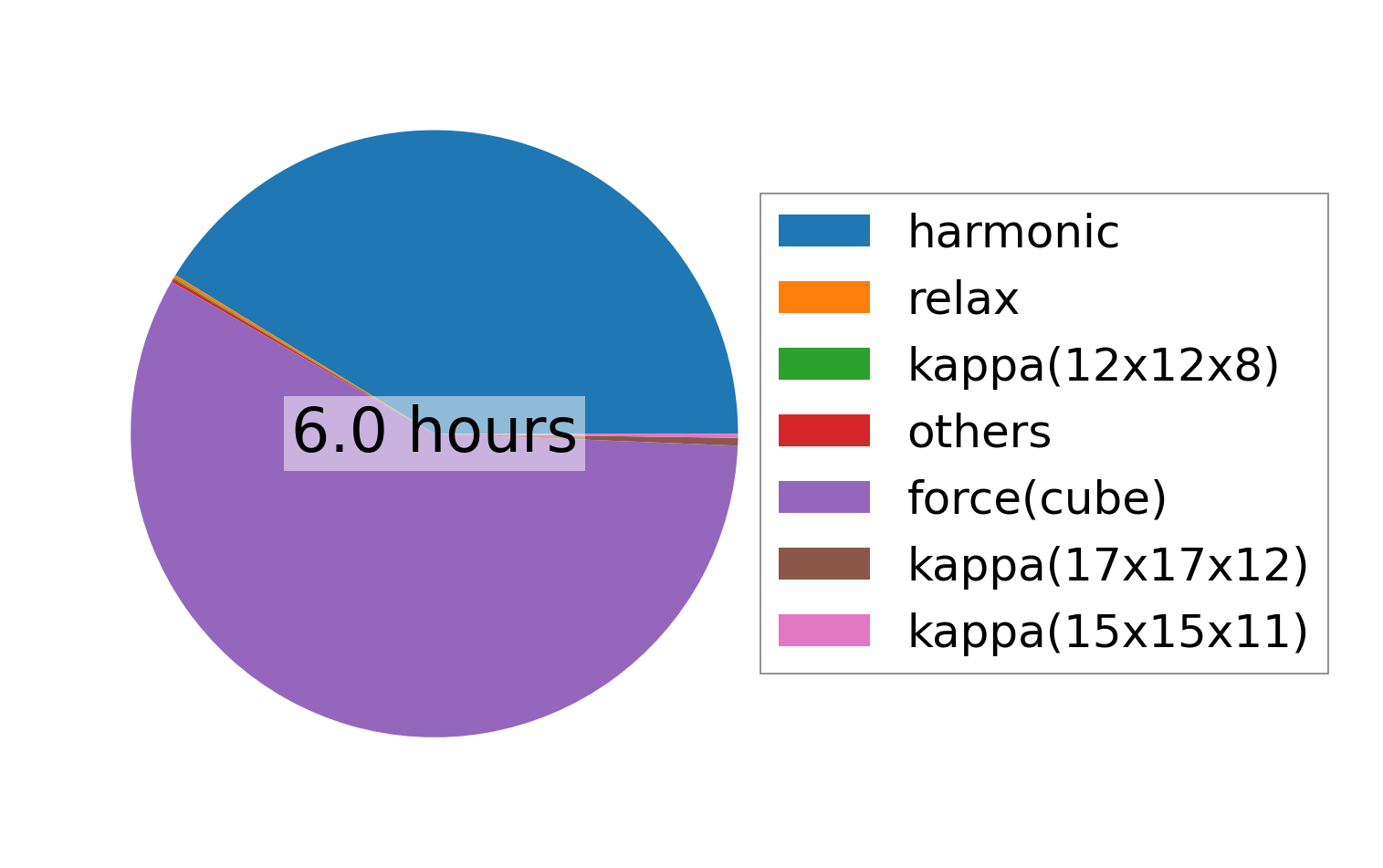

../../_images/fig_times25321.png — (b) Computation time
