mp-1184550/GeC/anharm

Space group: P6_3mc (186)
Link: Materials Project
Download: mp-1184550.tar.gz

Harmonic properties

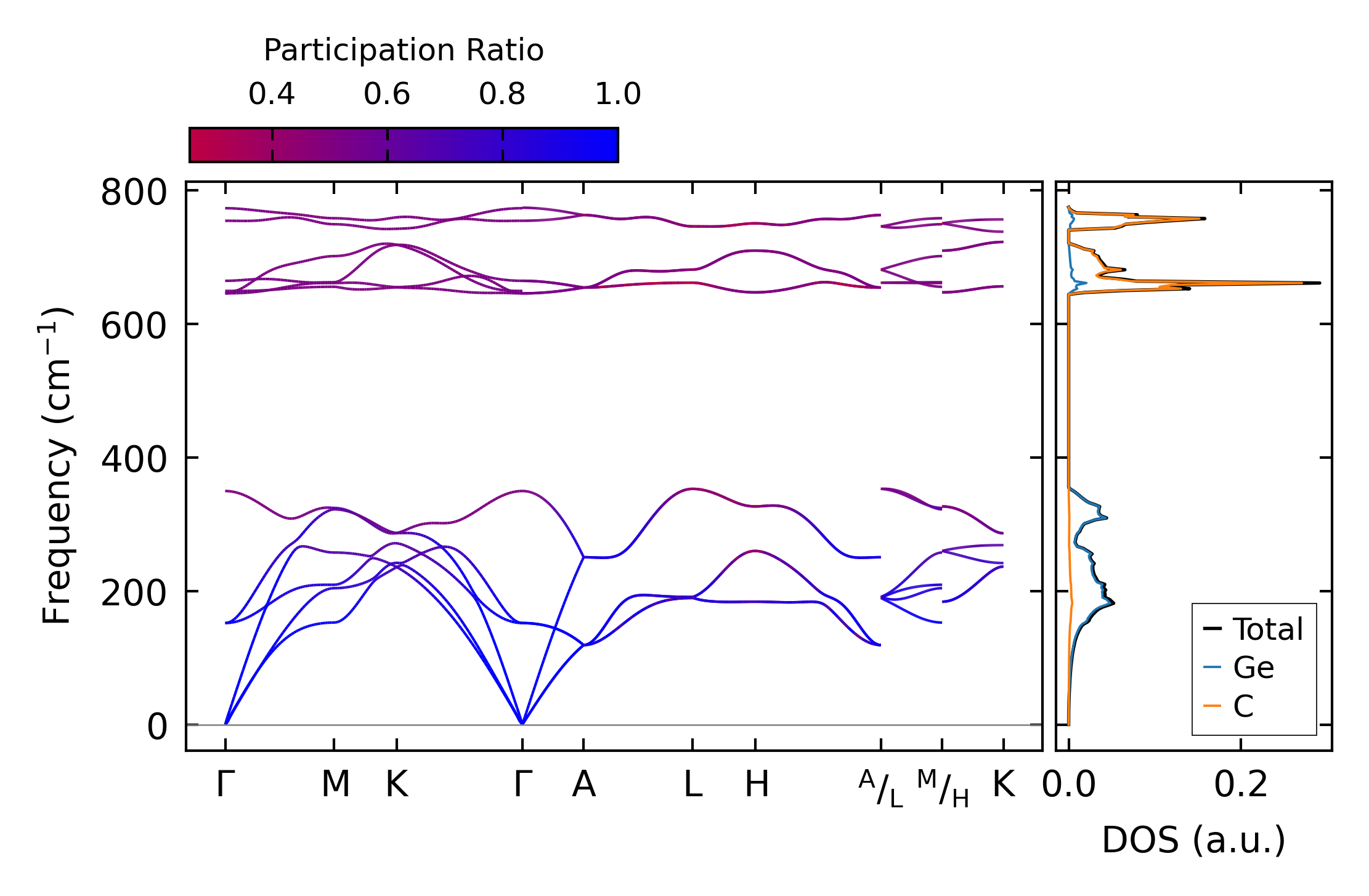

../../_images/fig_bandos_pr16164.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16163.png — (b) Thermodynamic properties

Grüneisen parameters

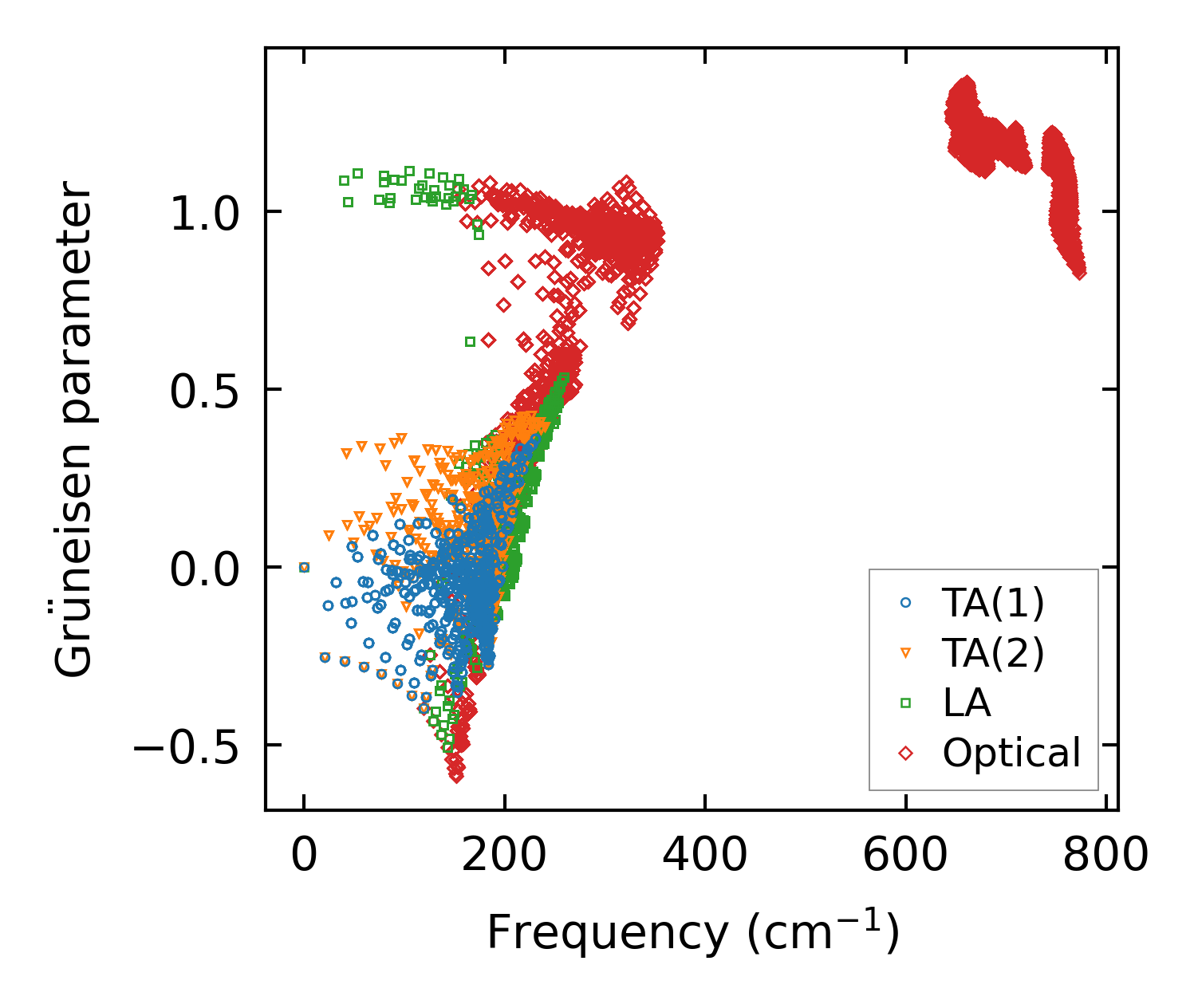

../../_images/fig_gru_all7015.png — (a) Grüneisen parameters

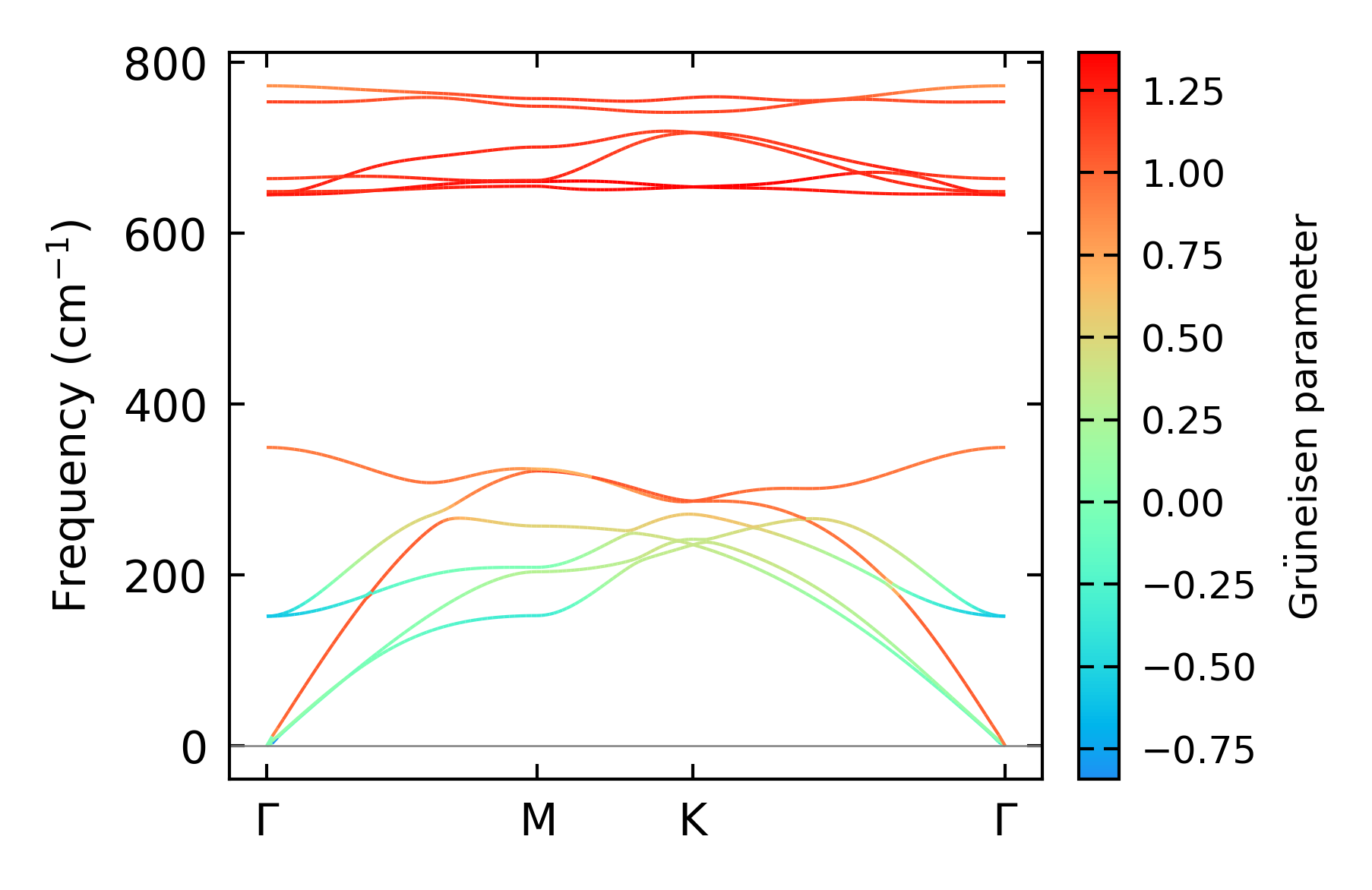

../../_images/fig_gruneisen7015.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 23x23x14, supercell: 4x4x2

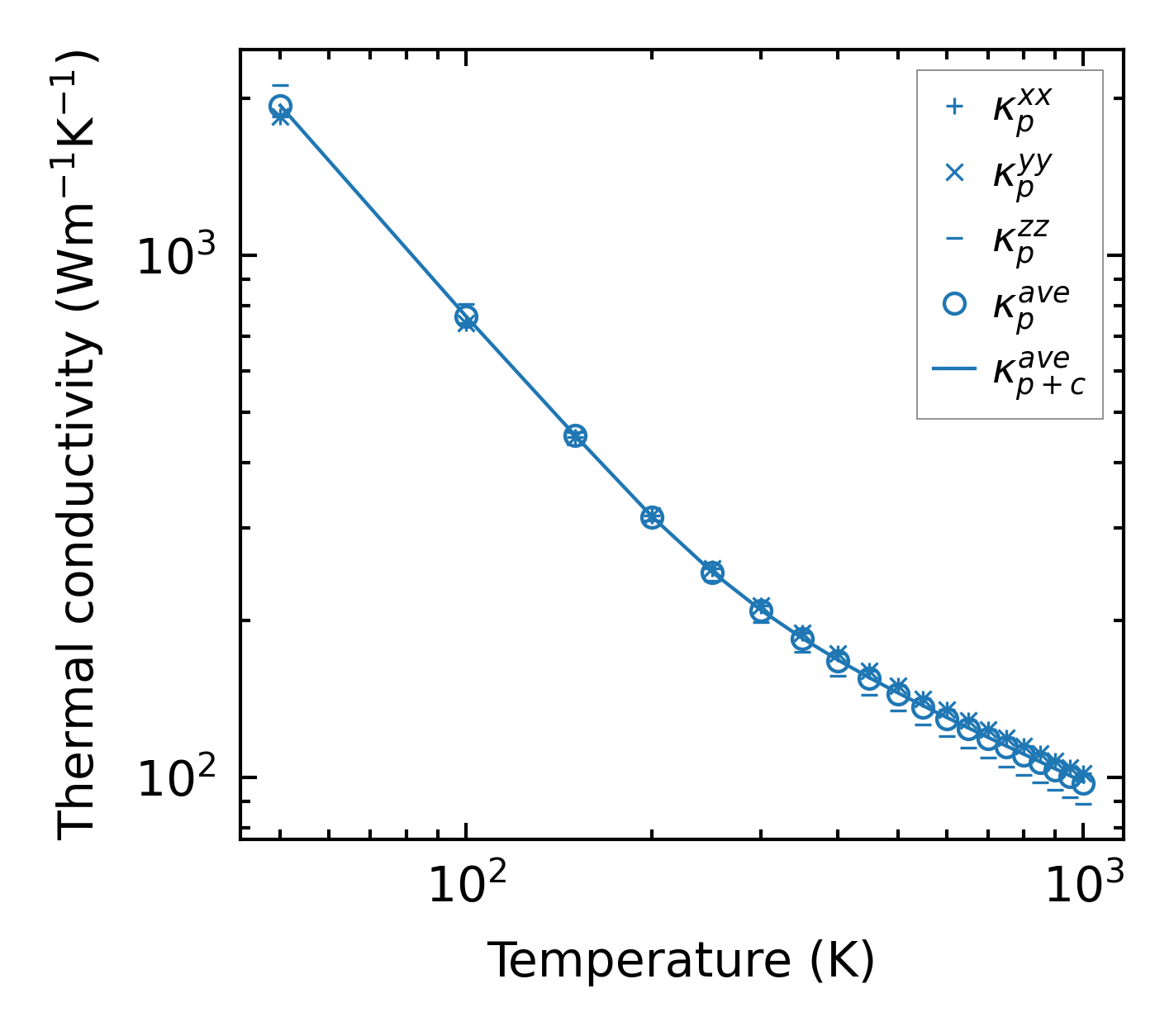

../../_images/fig_kappa13210.png — (a) Temperature-dependent lattice thermal conductivity

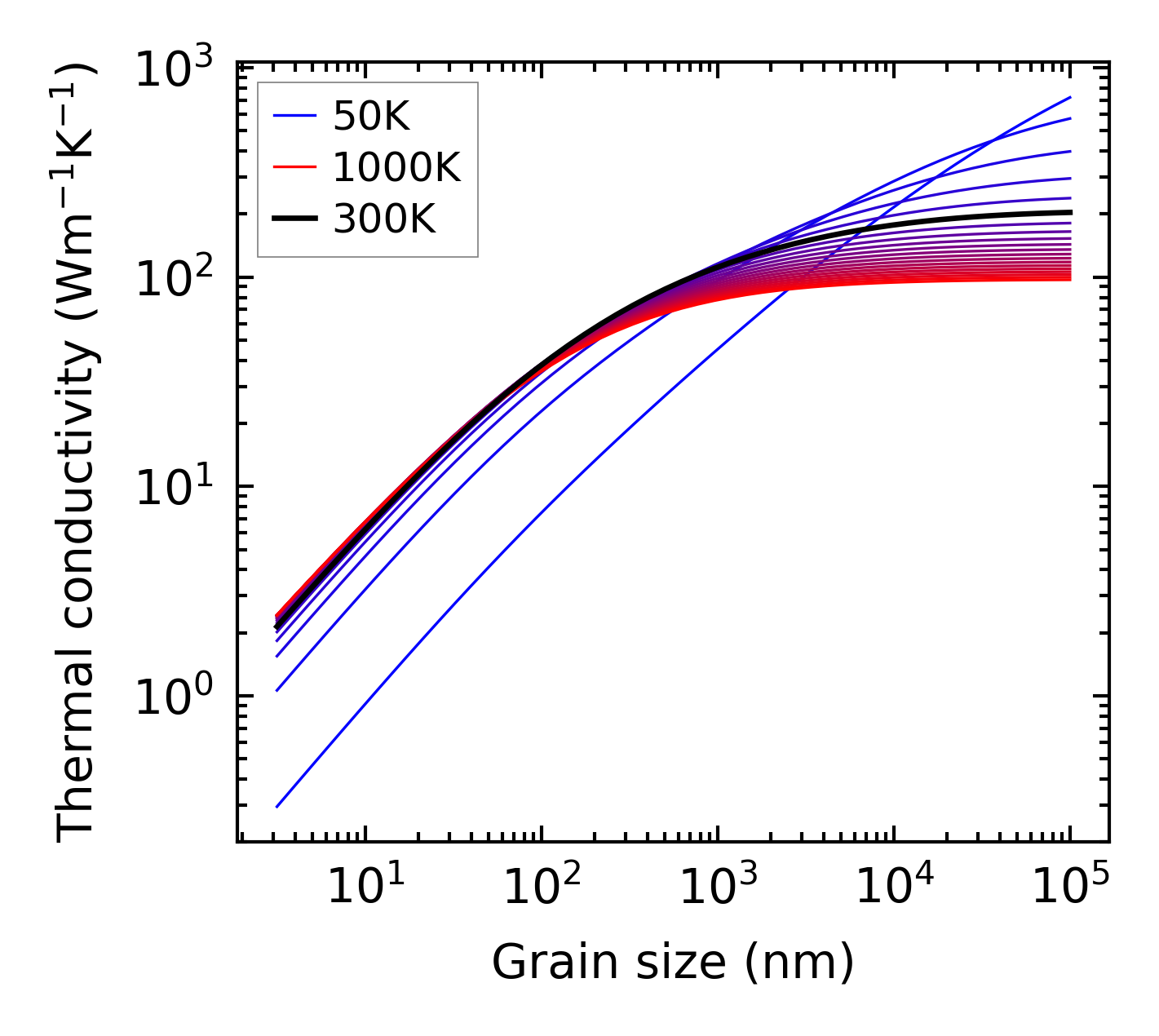

../../_images/fig_kappa_vs_grain_size7097.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

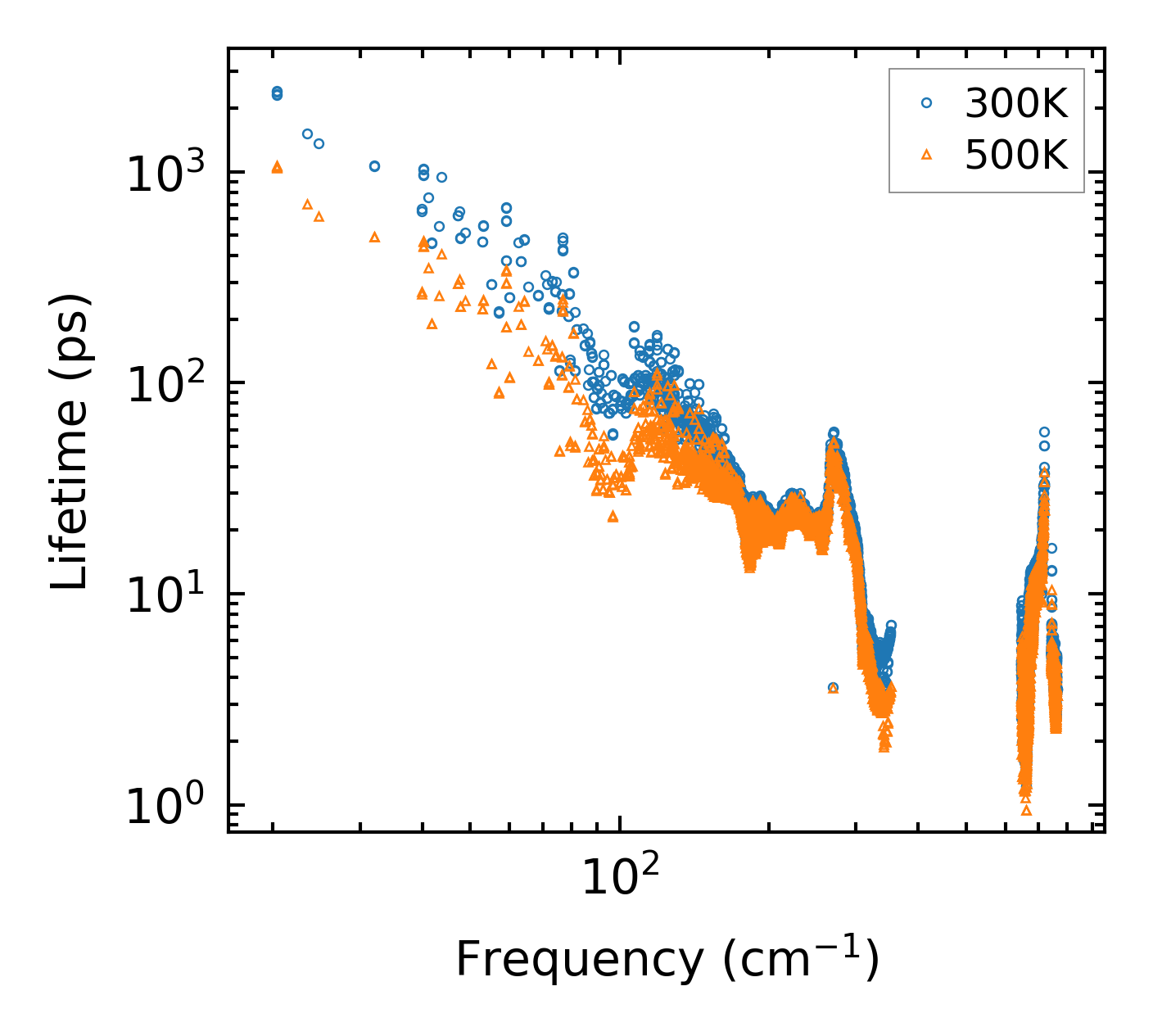

../../_images/fig_lifetime6949.png — (a) Phonon lifetime due to phonon-phonon scattering

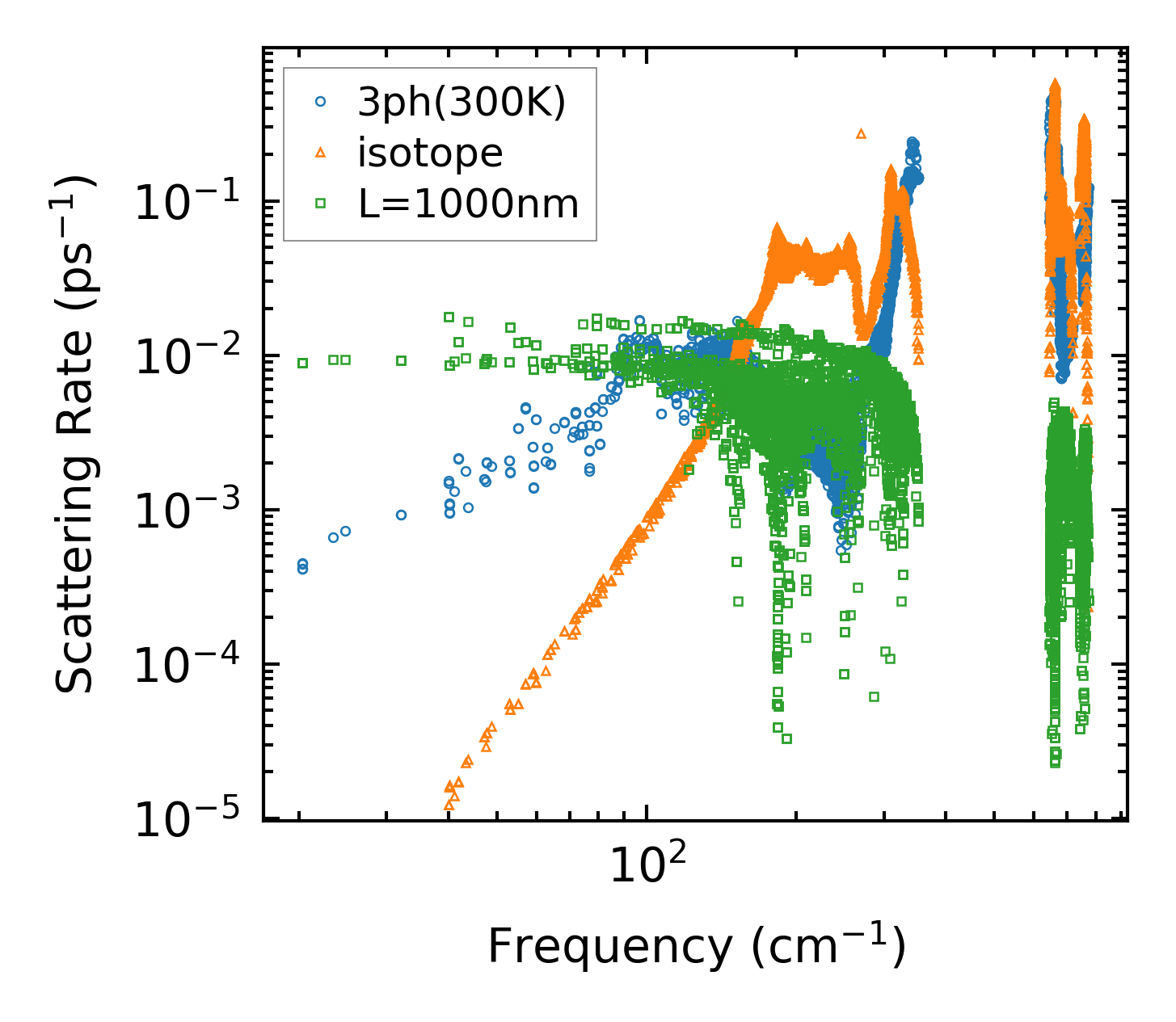

../../_images/fig_scat_rates6948.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

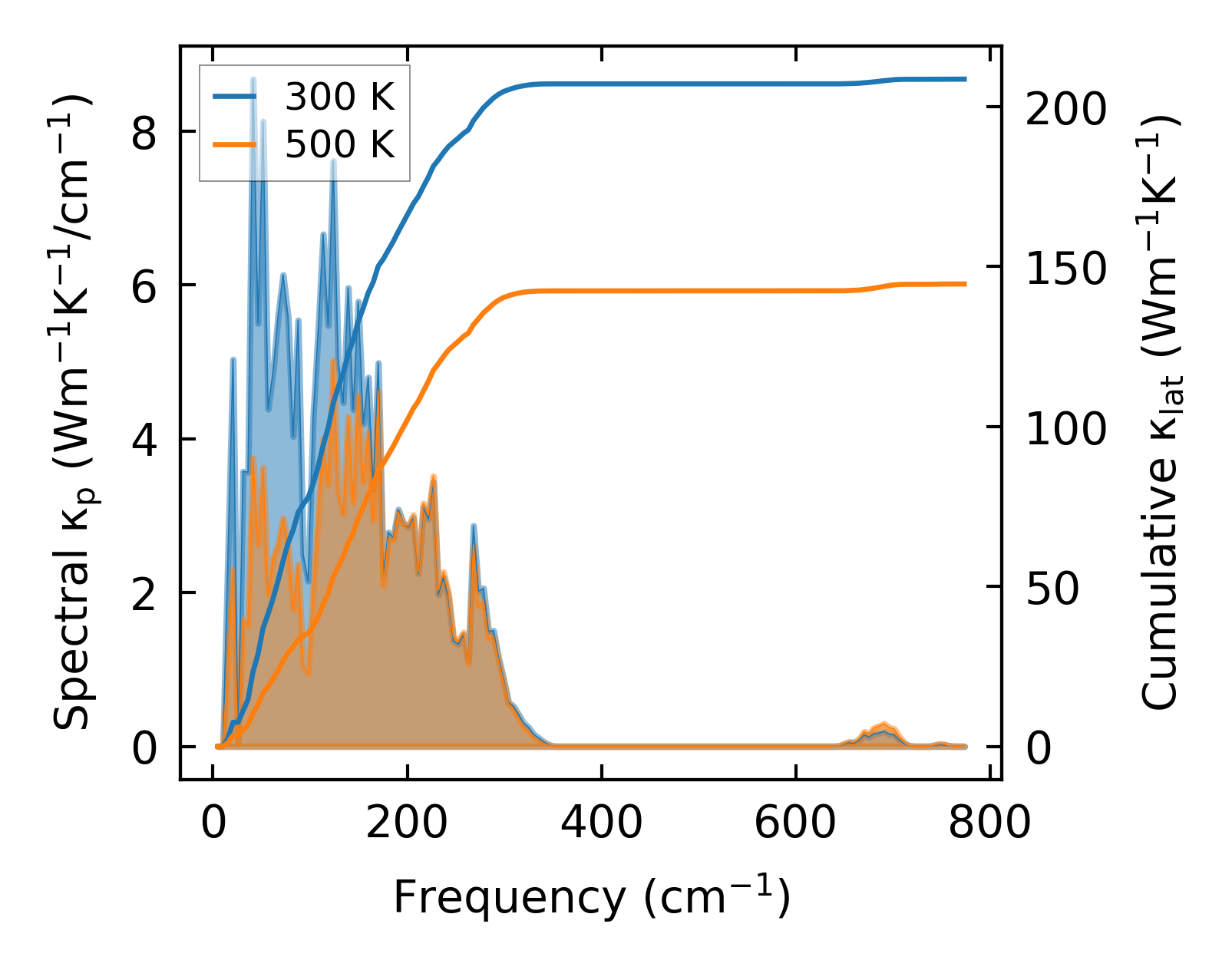

../../_images/fig_cumu_frequency6949.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

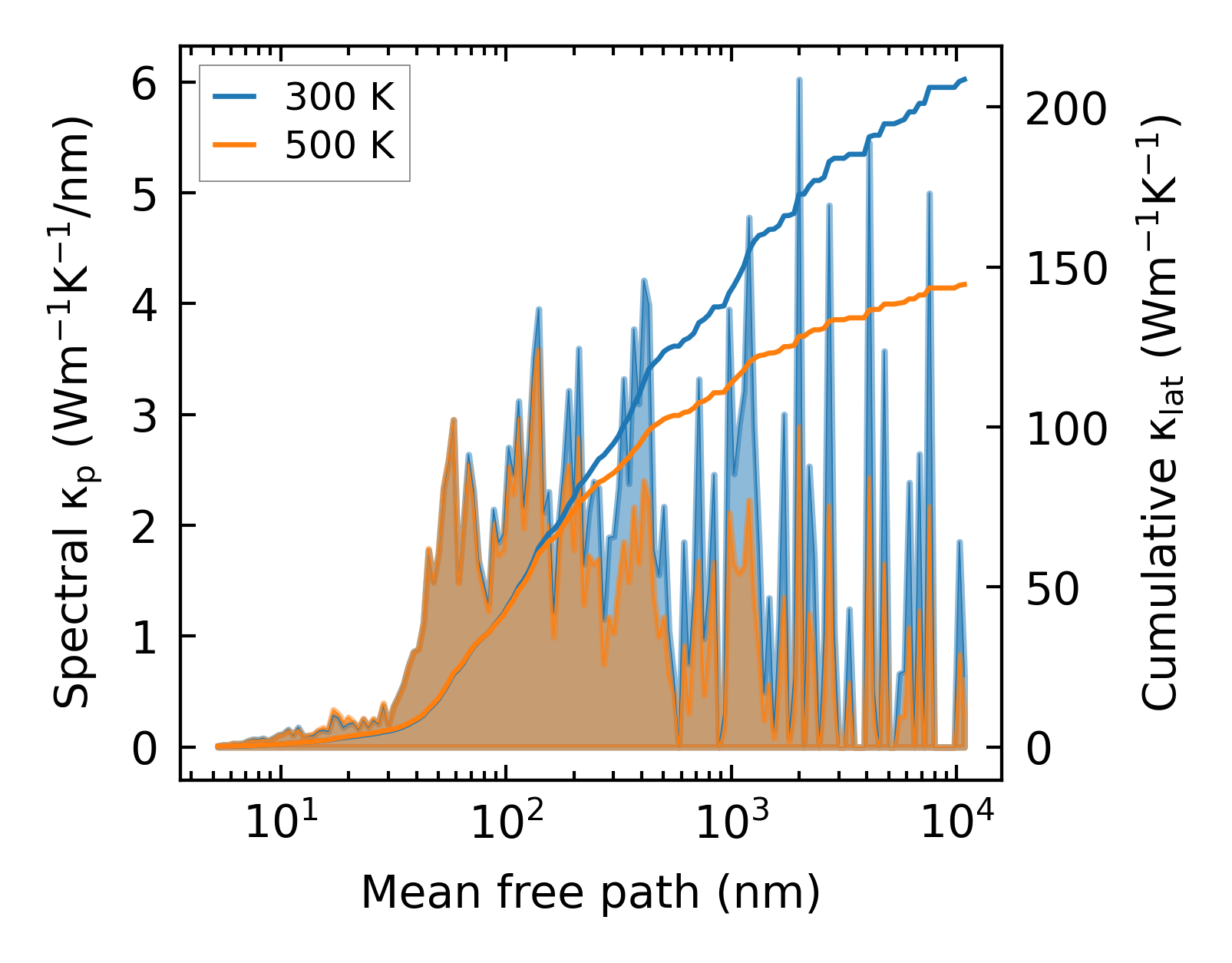

../../_images/fig_cumu_mfp6948.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

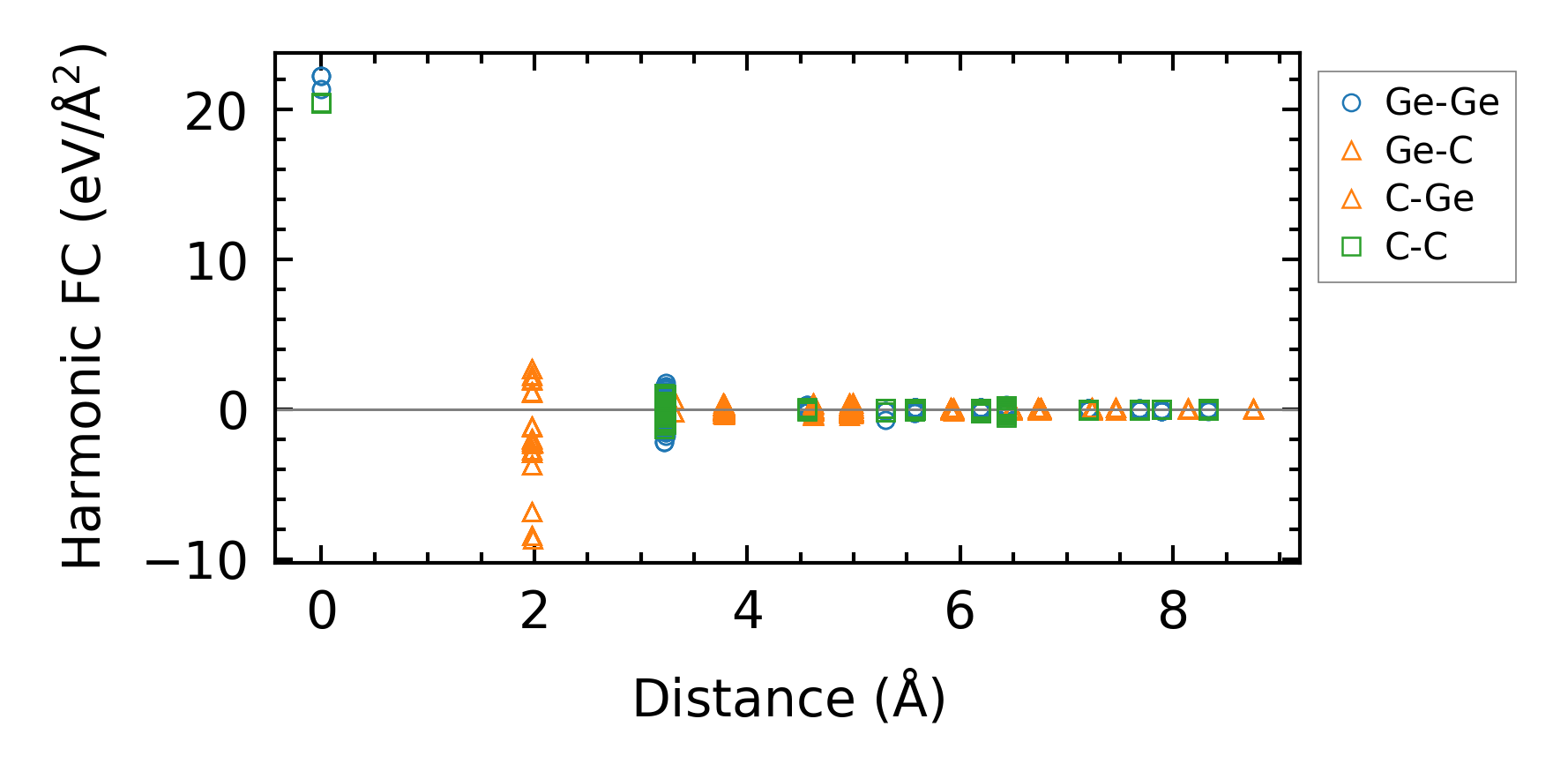

../../_images/fig_fc215757.png — (a) Force constants w.r.t atomic distance

Summary

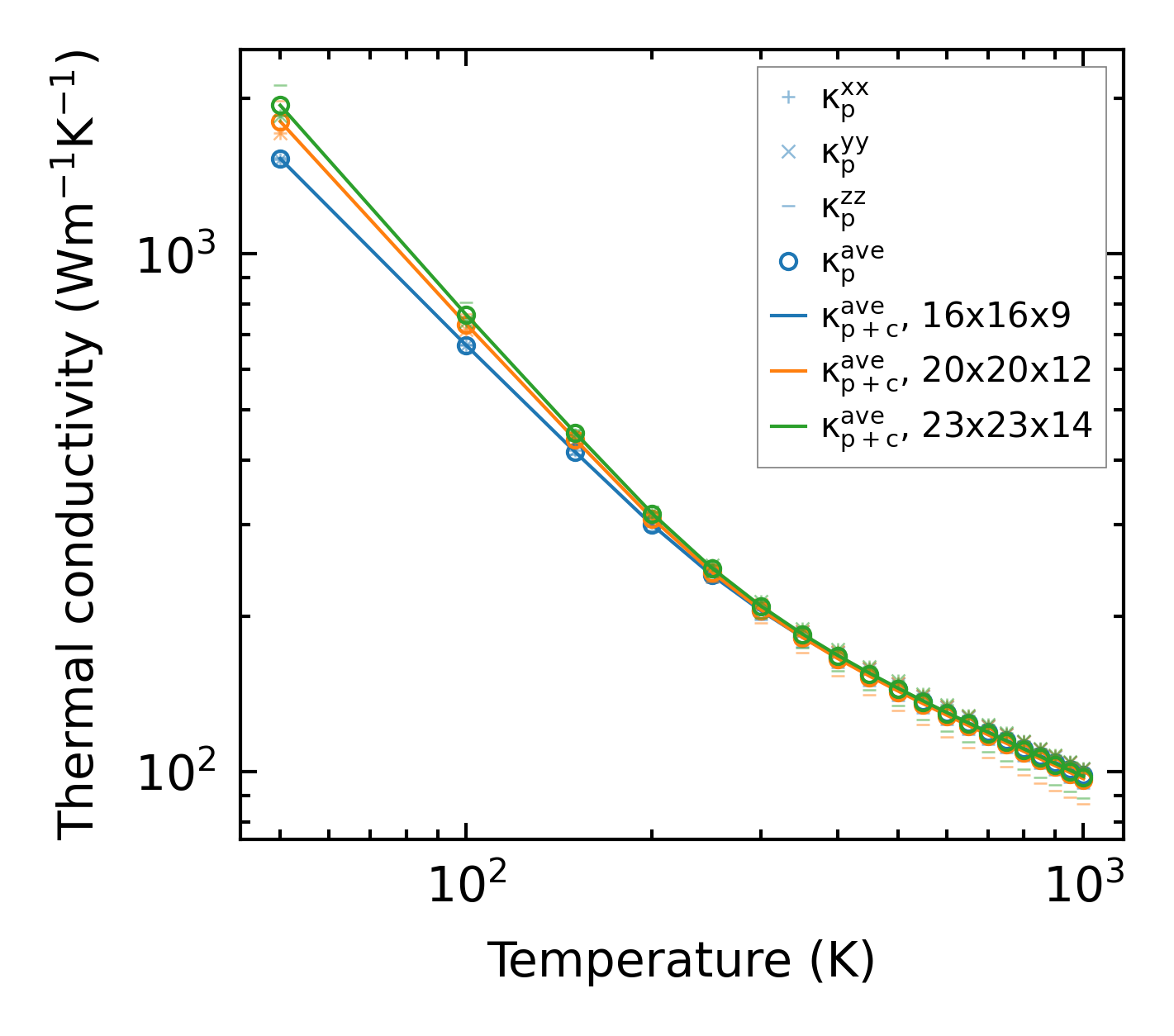

../../_images/fig_kappa13211.png — (a) Temperature-dependent lattice thermal conductivity

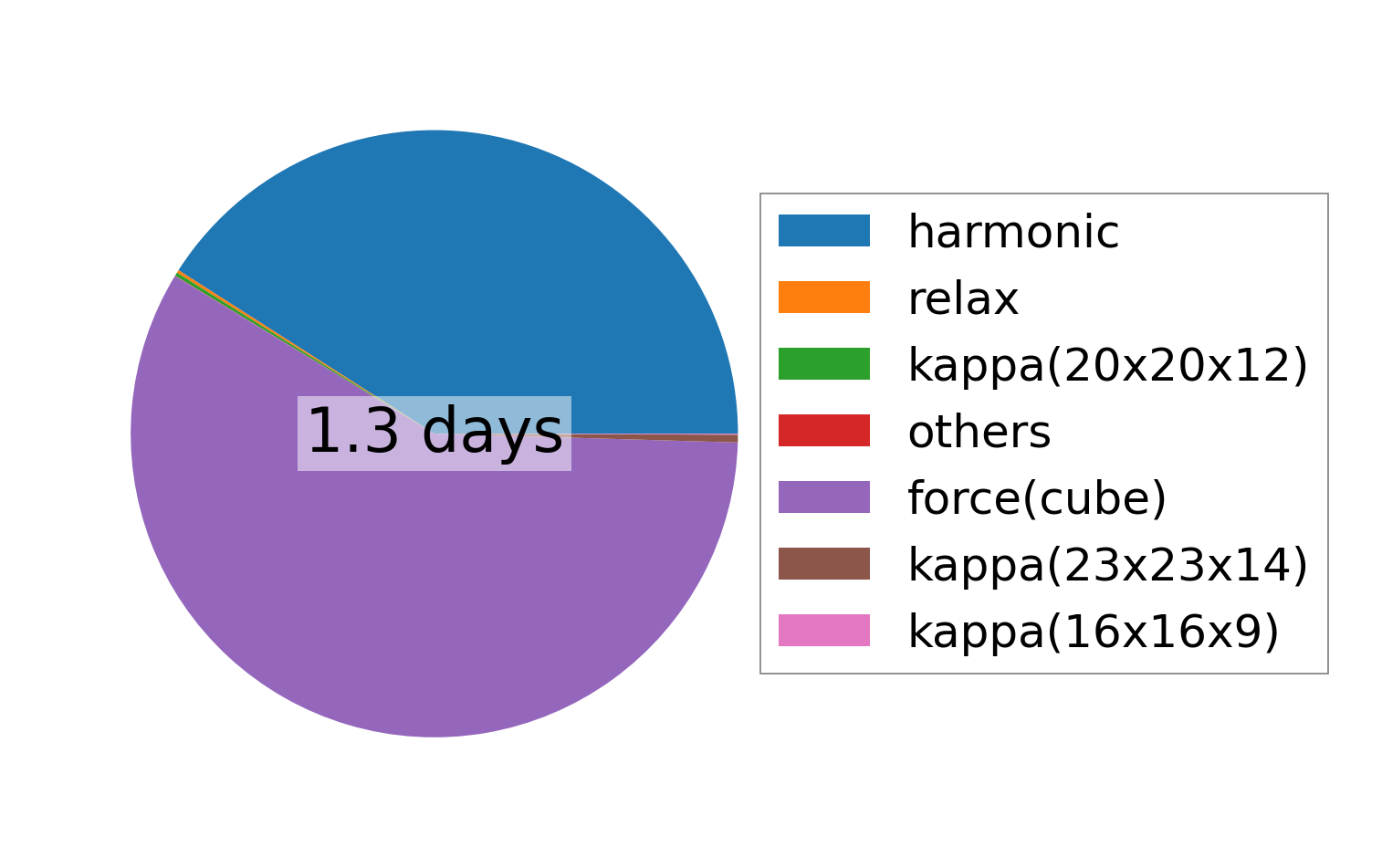

../../_images/fig_times26597.png — (b) Computation time
