mp-1182093/BaPdO5/anharm

Space group: P2/c (13)
Link: Materials Project
Download: mp-1182093.tar.gz

Harmonic properties

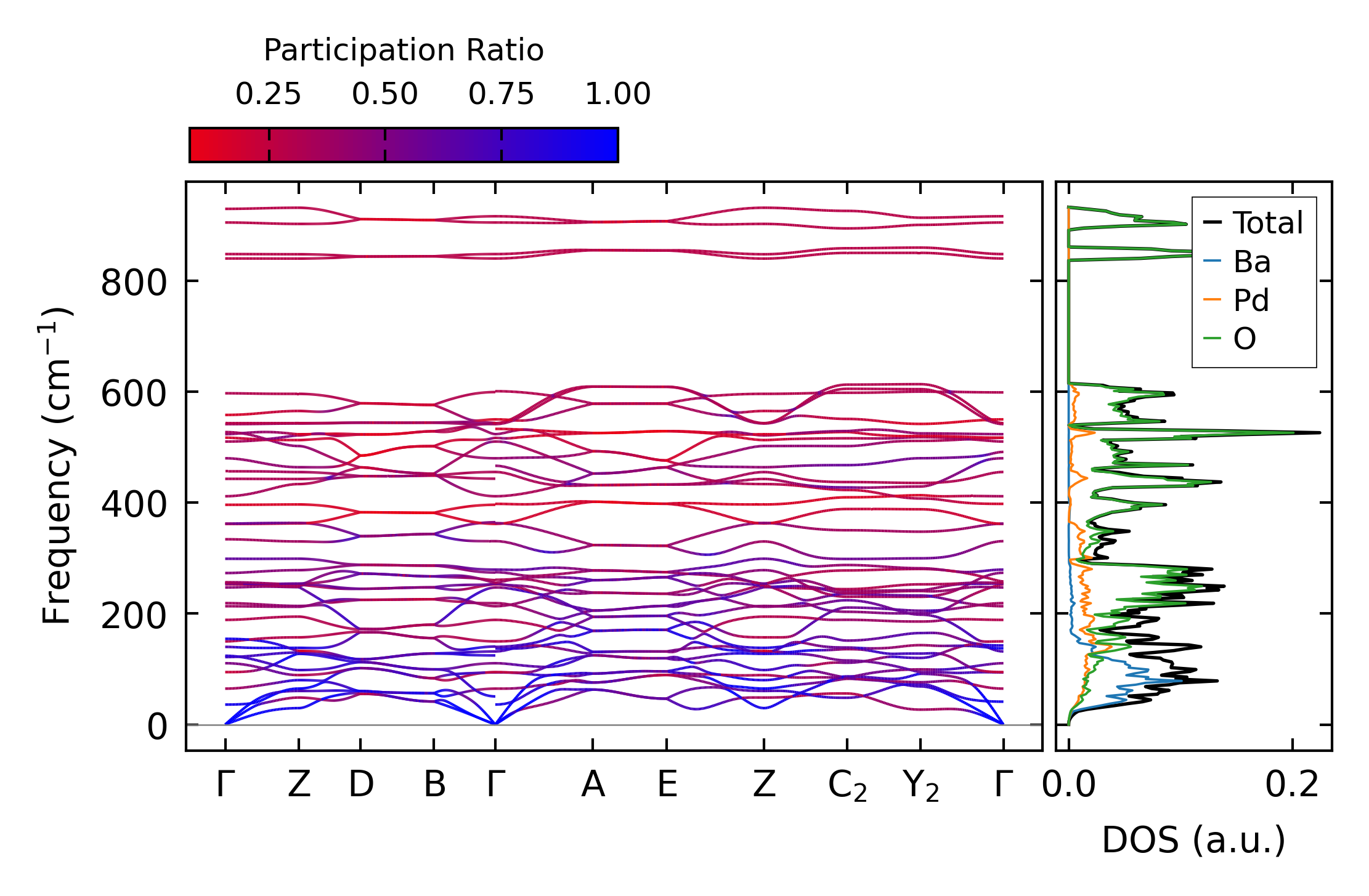

../../_images/fig_bandos_pr16150.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16149.png — (b) Thermodynamic properties

Grüneisen parameters

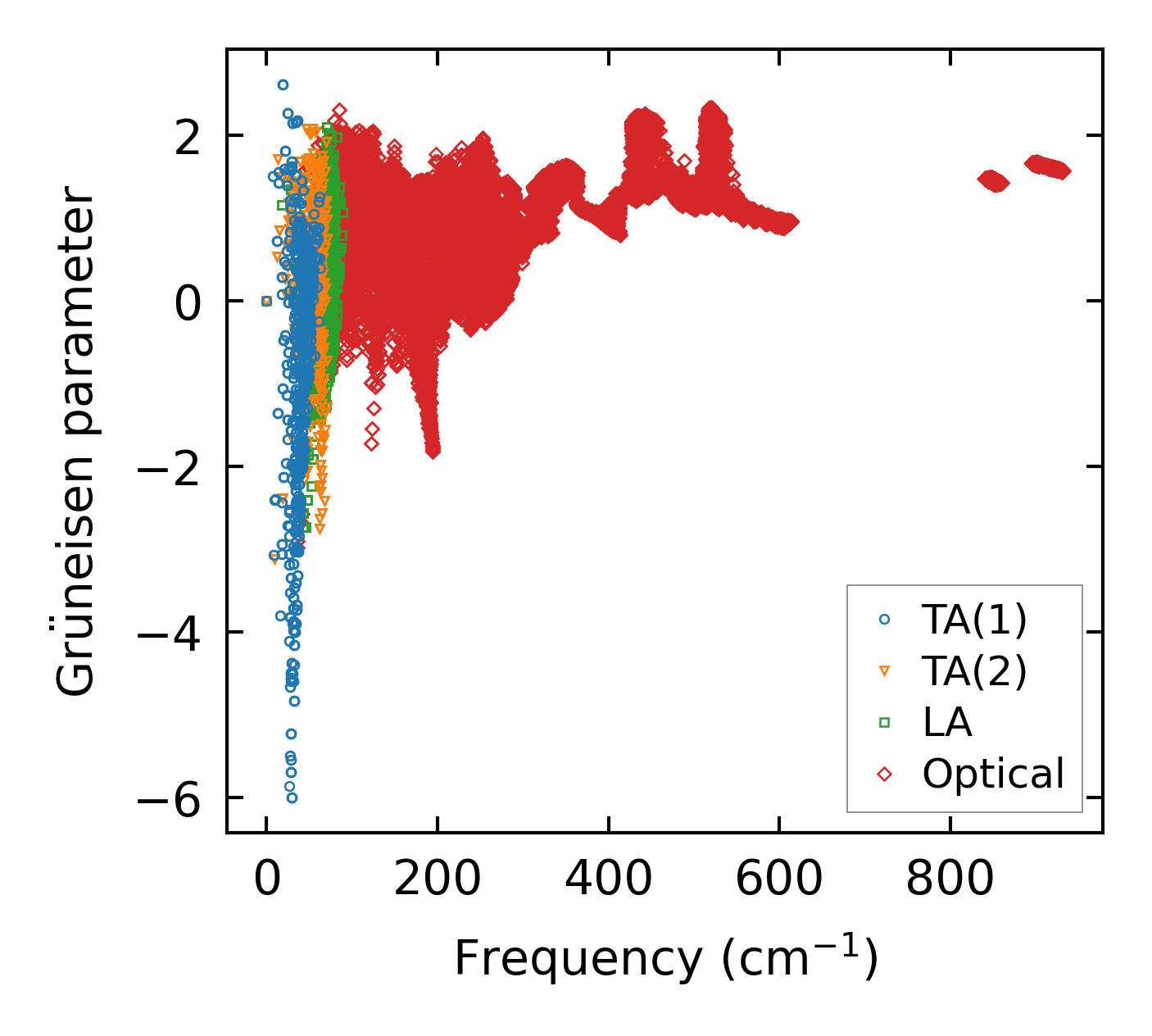

../../_images/fig_gru_all7004.png — (a) Grüneisen parameters

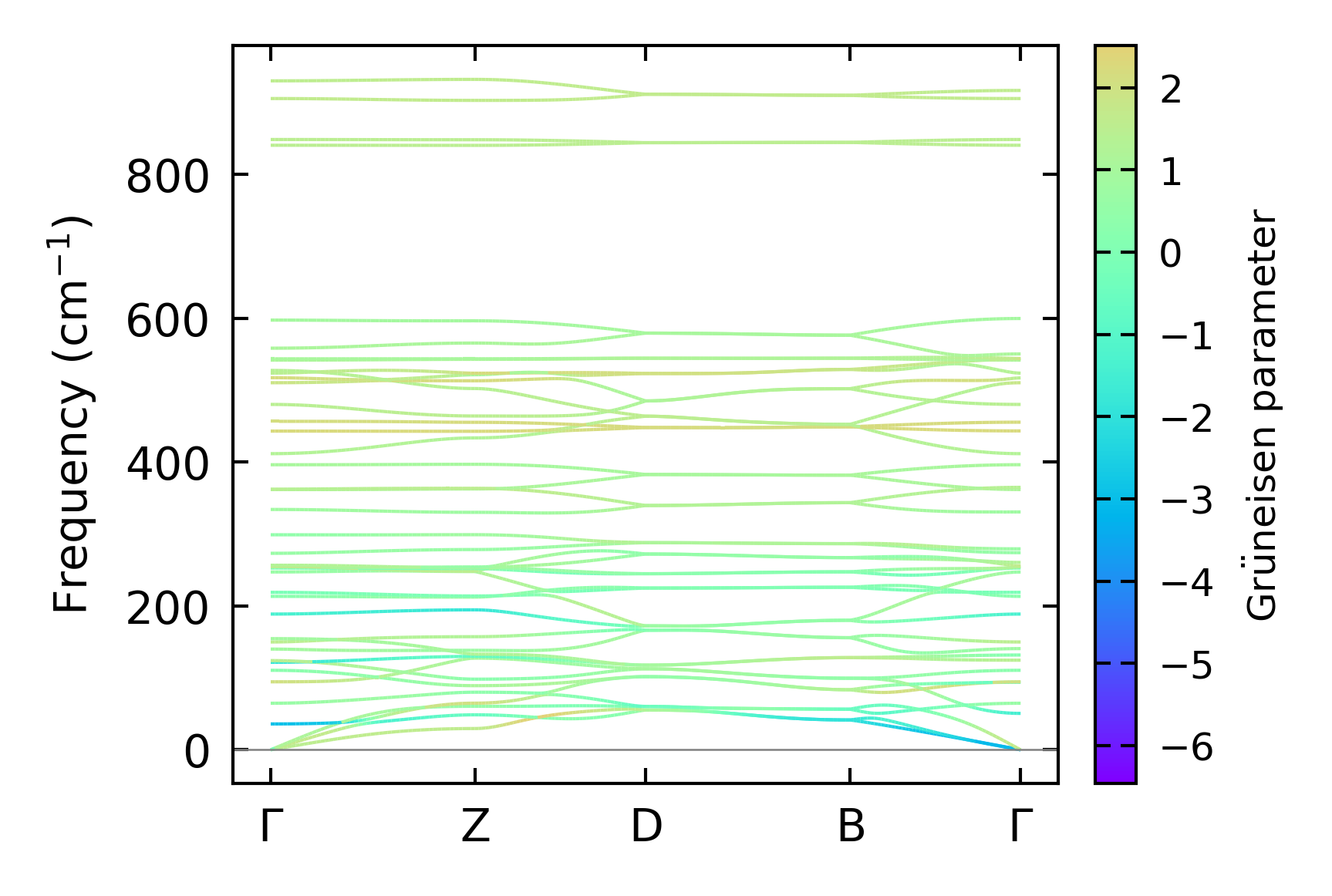

../../_images/fig_gruneisen7004.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x13x10, supercell: 2x2x2

../../_images/fig_kappa13188.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7086.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

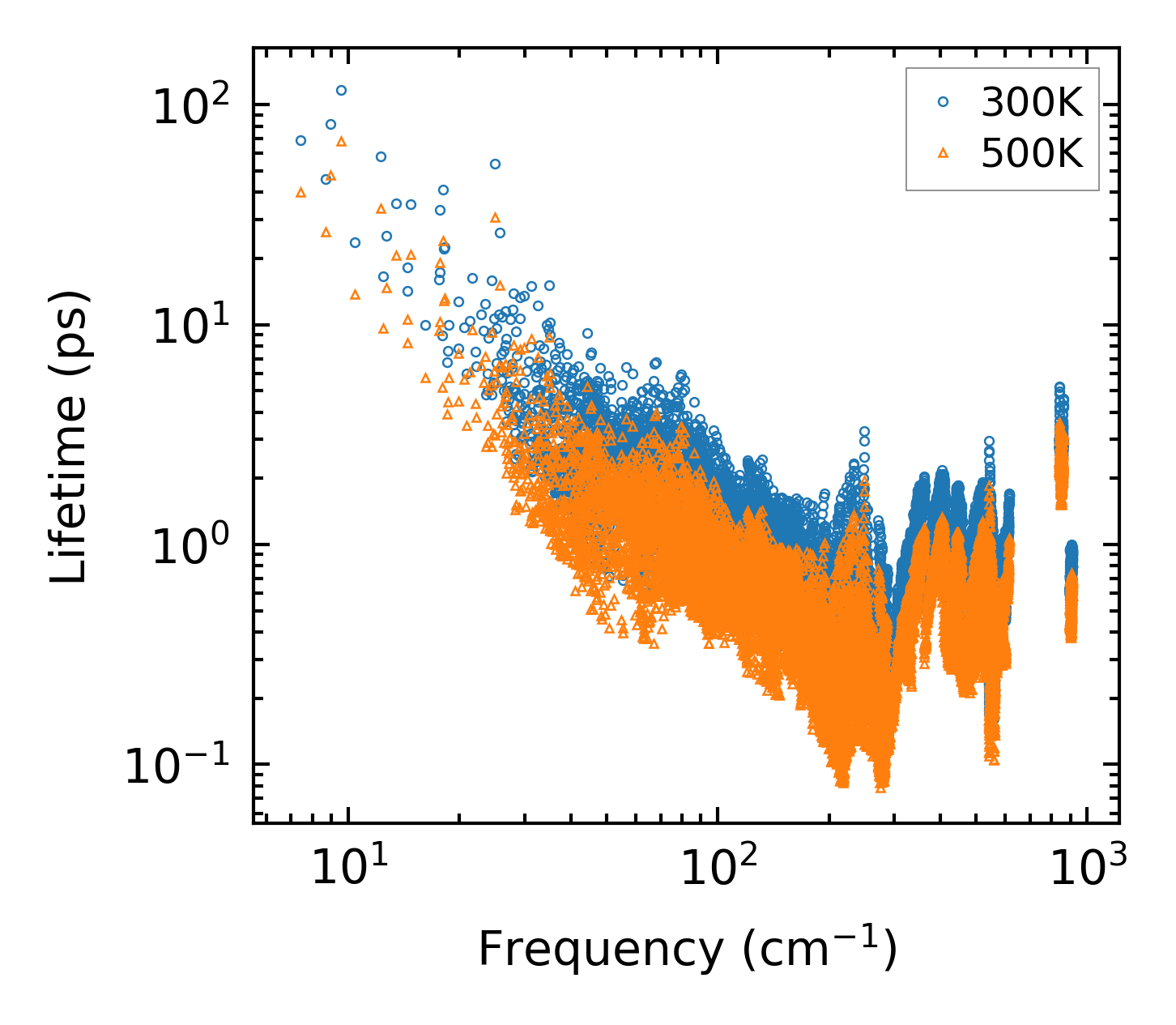

../../_images/fig_lifetime6938.png — (a) Phonon lifetime due to phonon-phonon scattering

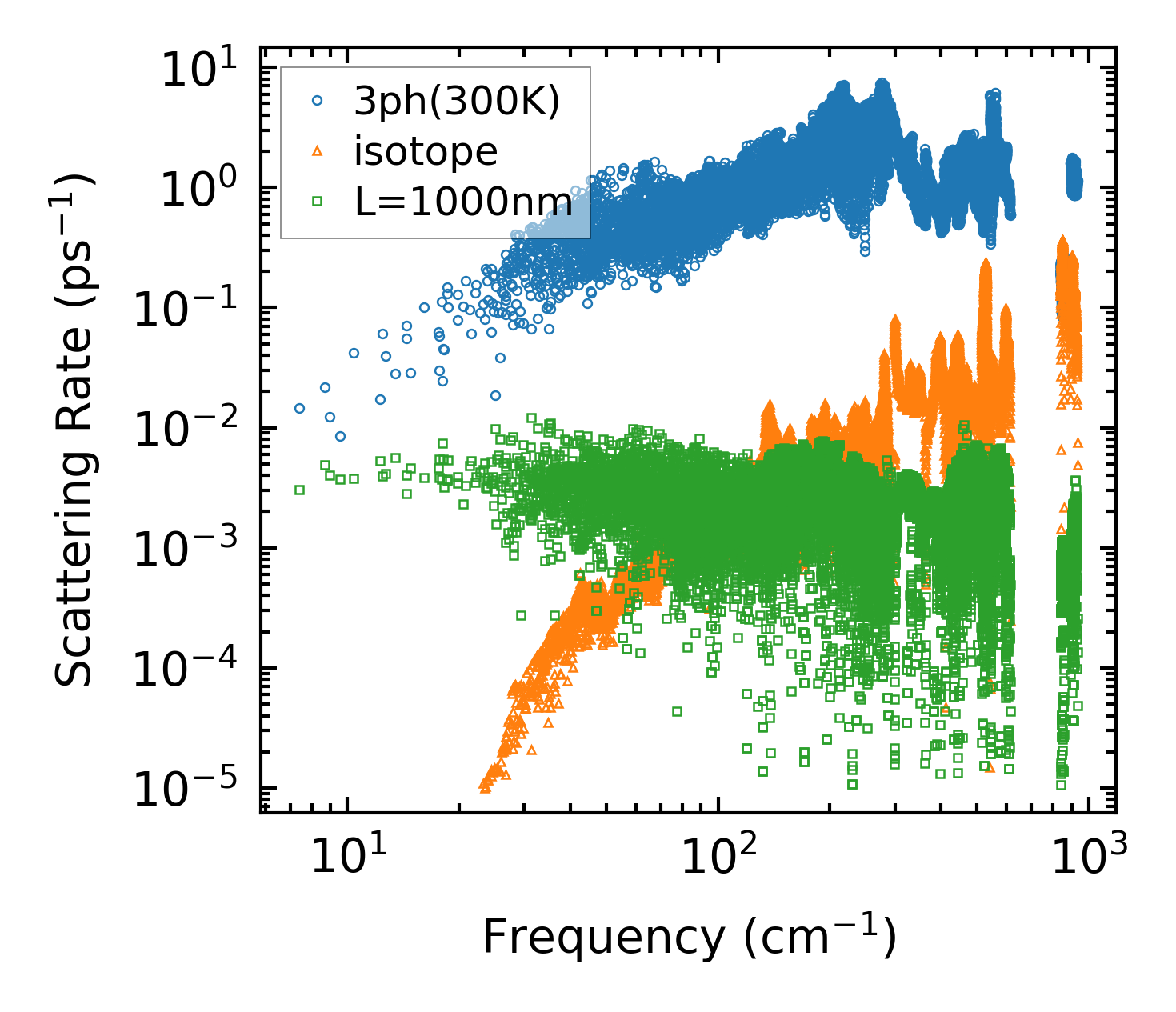

../../_images/fig_scat_rates6937.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6938.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6937.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

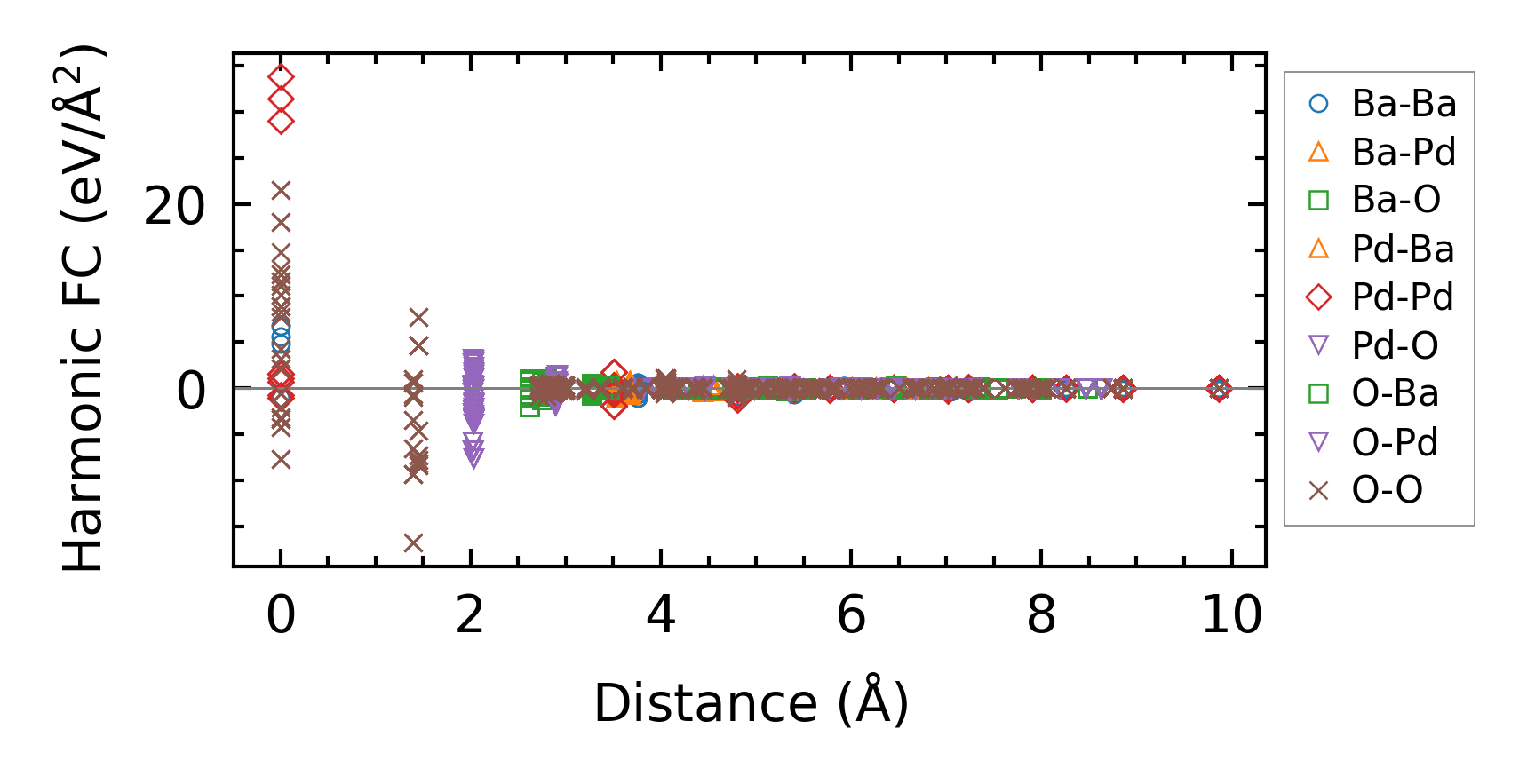

../../_images/fig_fc215745.png — (a) Force constants w.r.t atomic distance

Summary

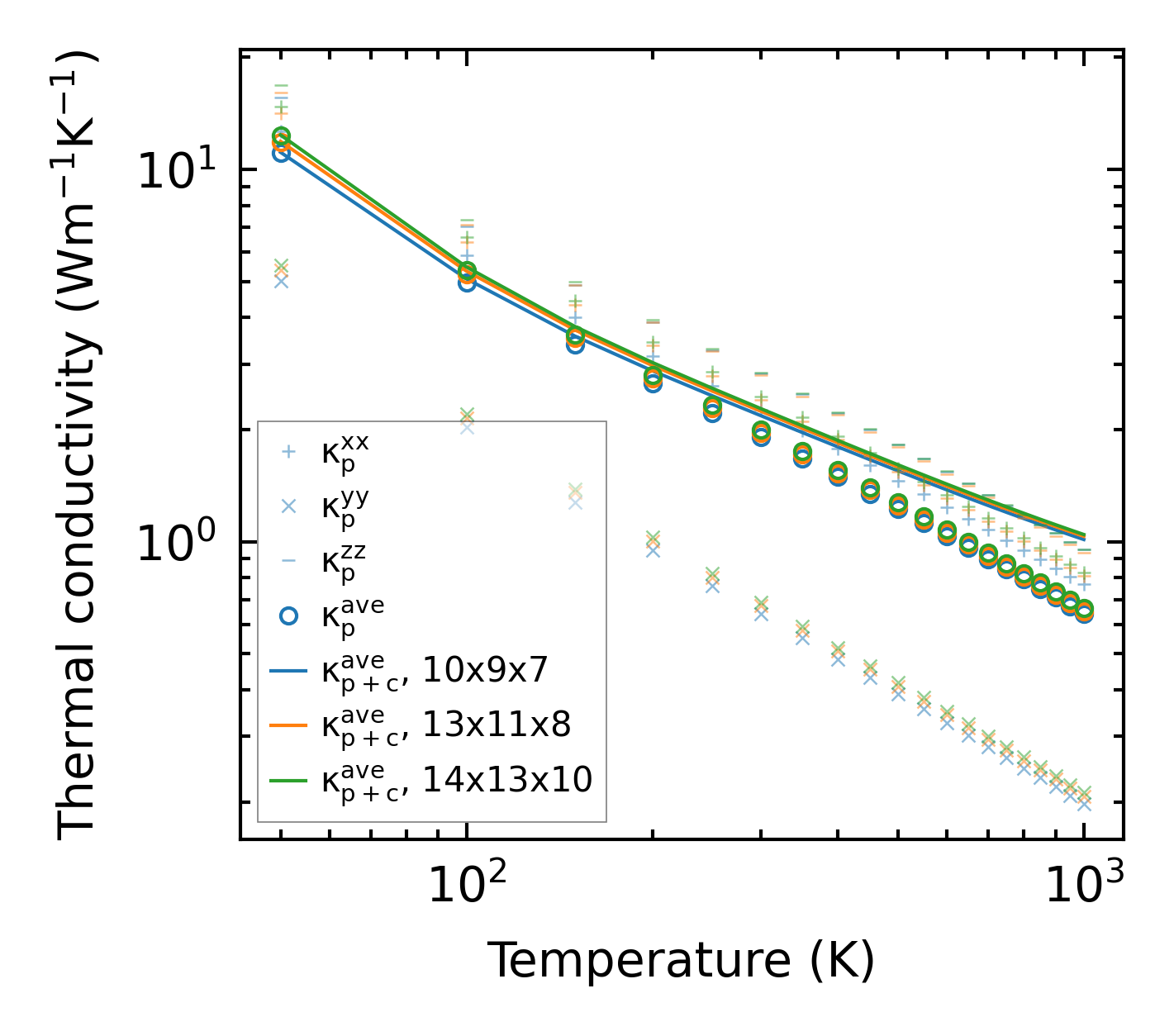

../../_images/fig_kappa13189.png — (a) Temperature-dependent lattice thermal conductivity

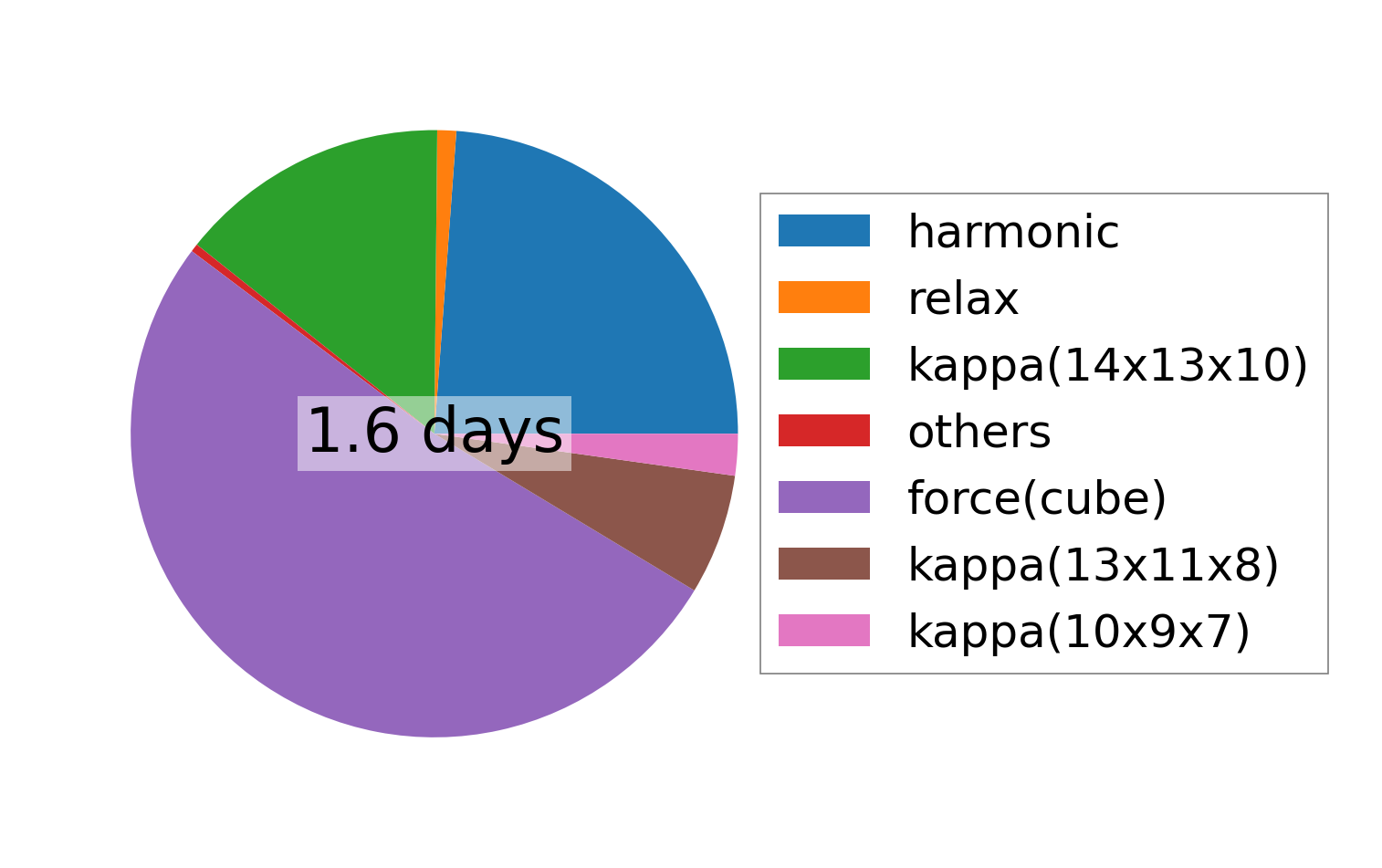

../../_images/fig_times26560.png — (b) Computation time
