mp-1182061/BaNaH6Ir/anharm

Space group: F-43m (216)
Link: Materials Project
Download: mp-1182061.tar.gz

Harmonic properties

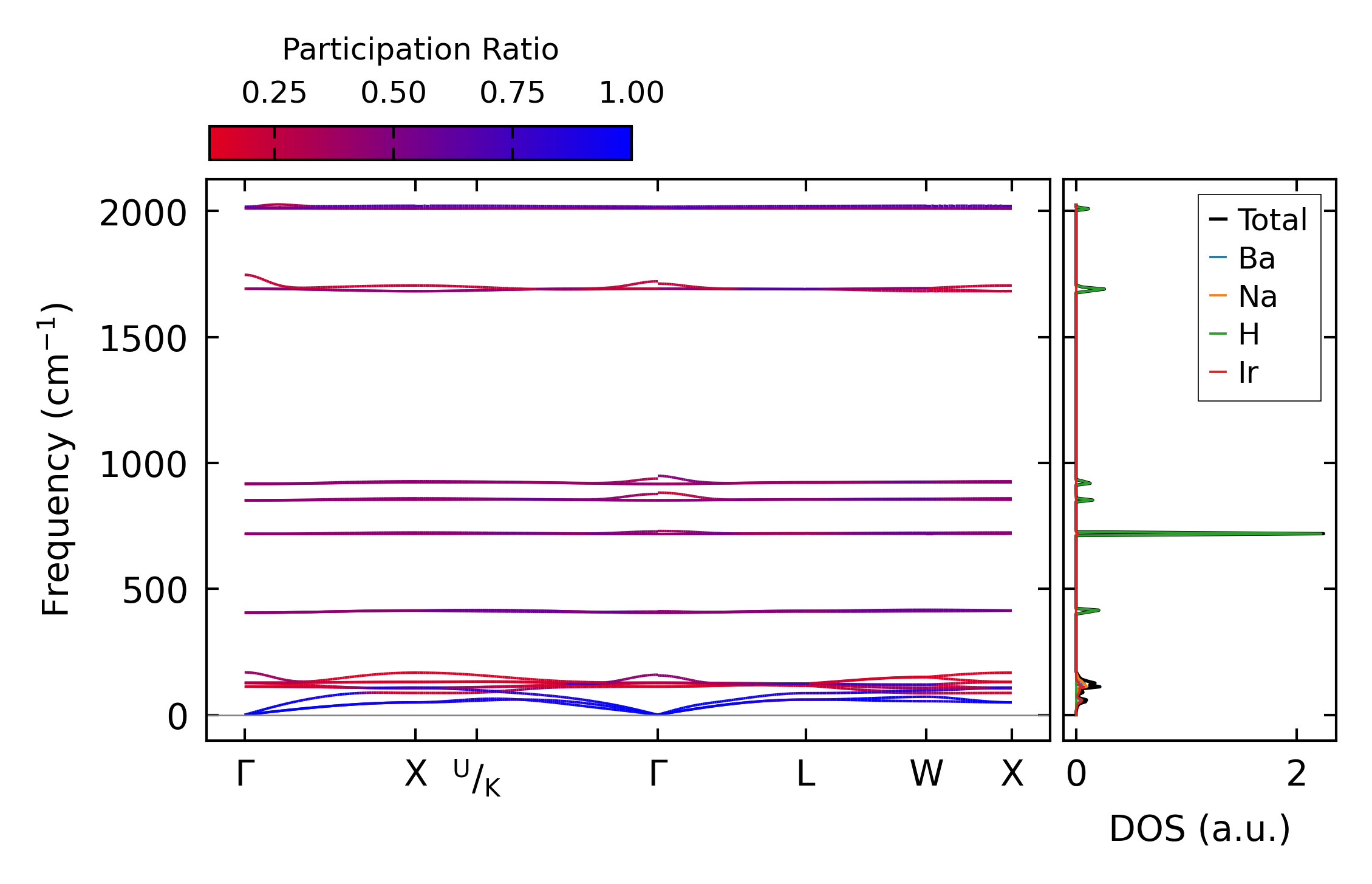

../../_images/fig_bandos_pr16149.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16148.png — (b) Thermodynamic properties

Grüneisen parameters

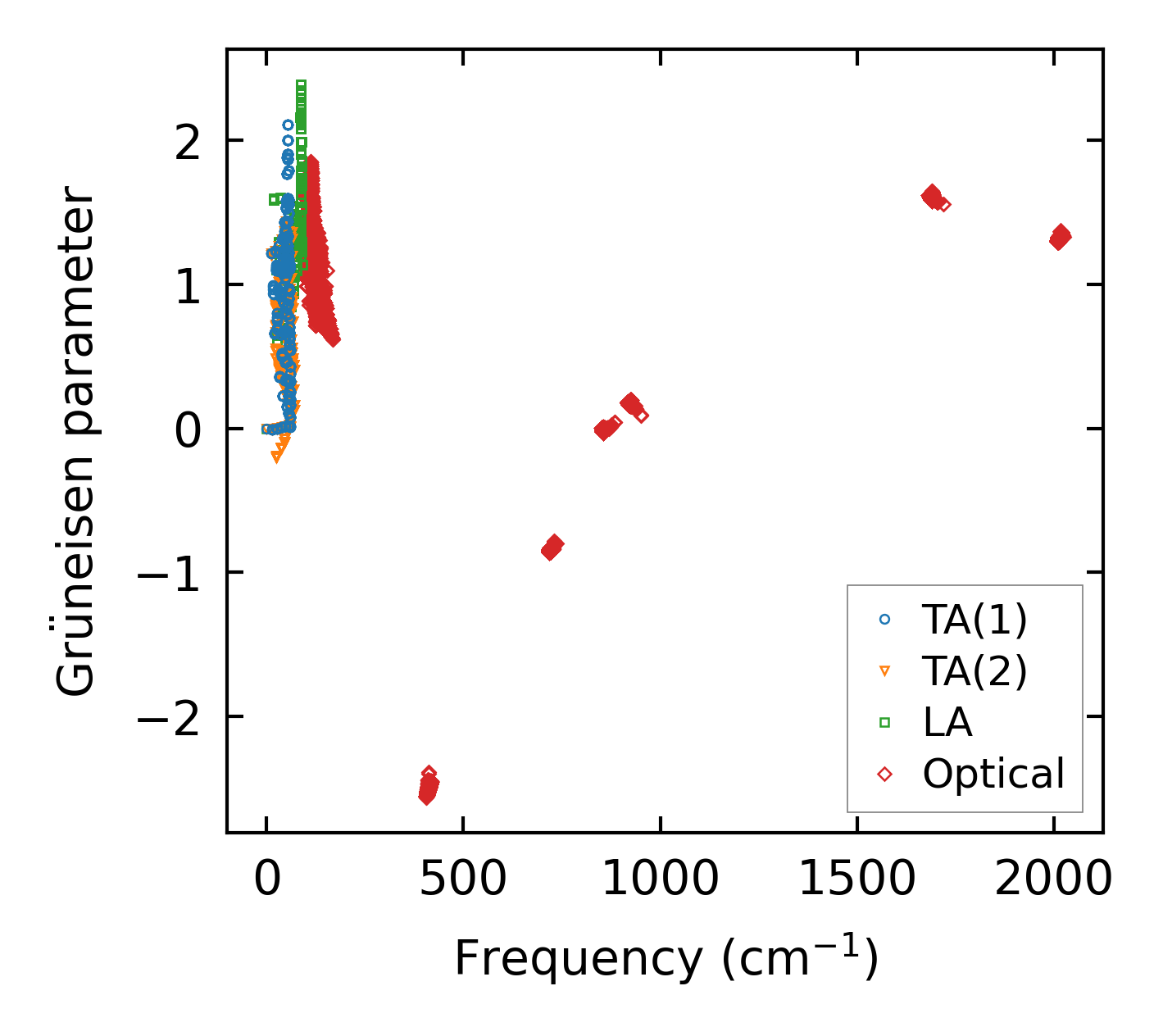

../../_images/fig_gru_all7003.png — (a) Grüneisen parameters

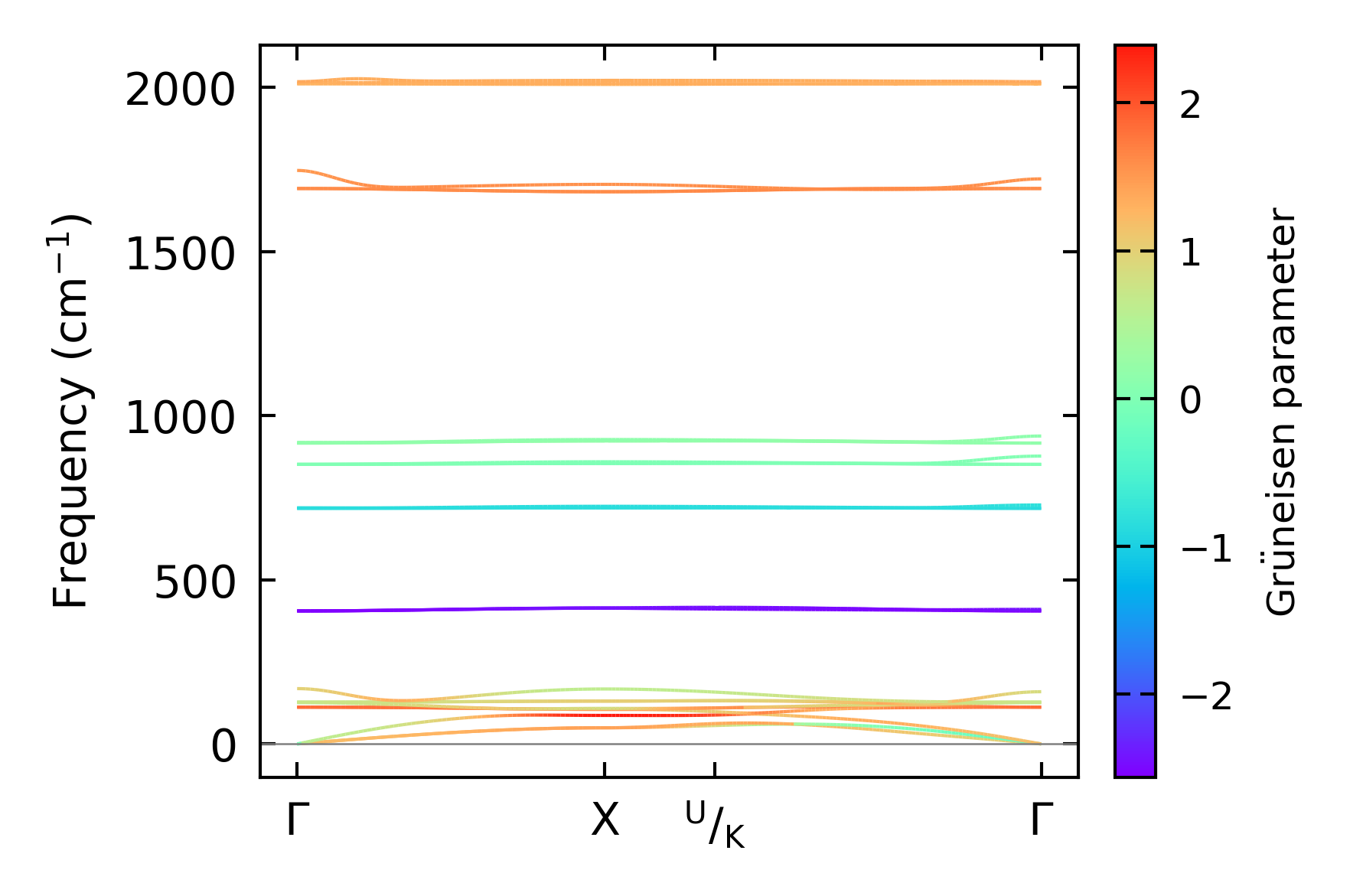

../../_images/fig_gruneisen7003.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x14, supercell: 1x1x1

../../_images/fig_kappa13186.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7085.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

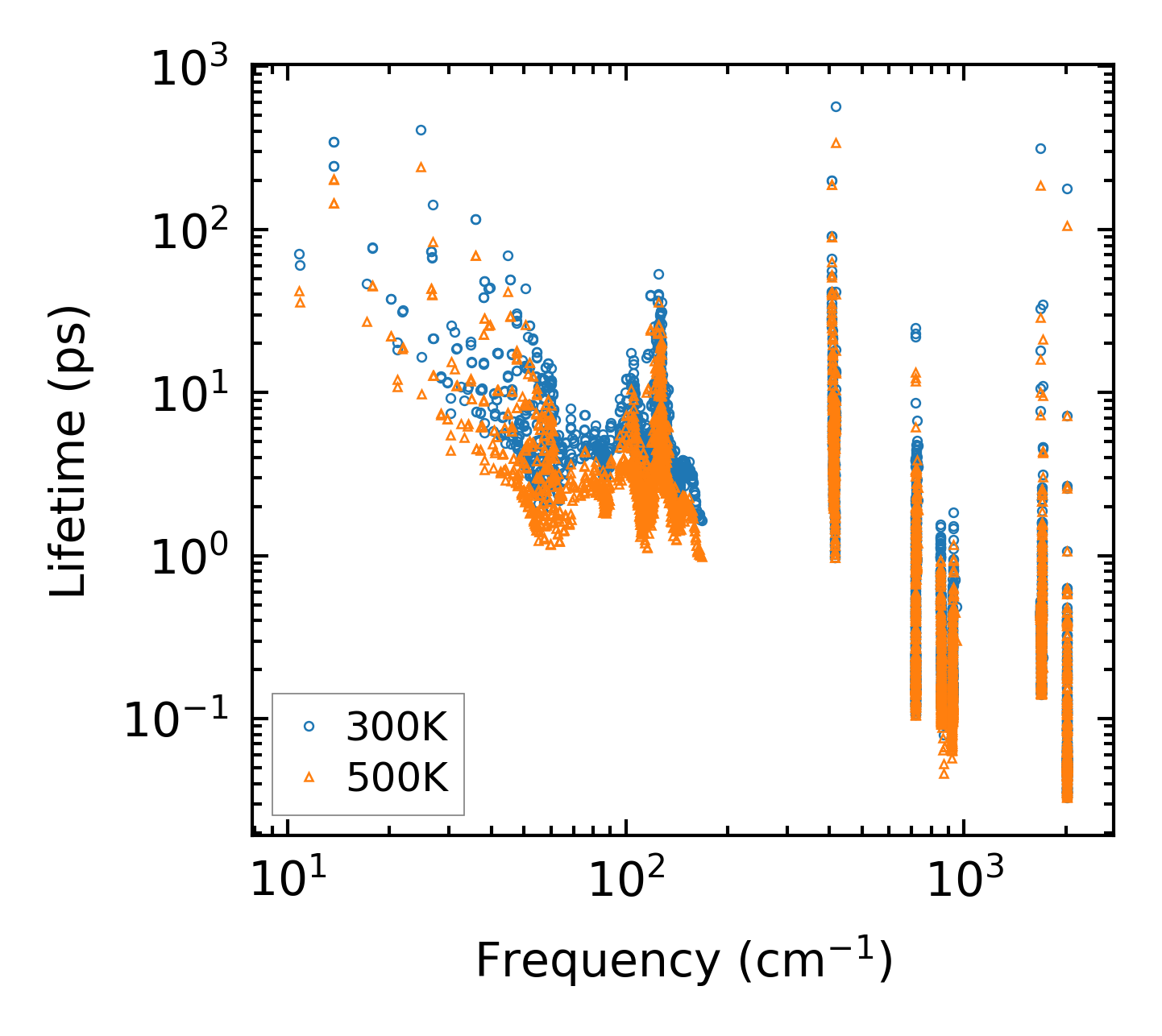

../../_images/fig_lifetime6937.png — (a) Phonon lifetime due to phonon-phonon scattering

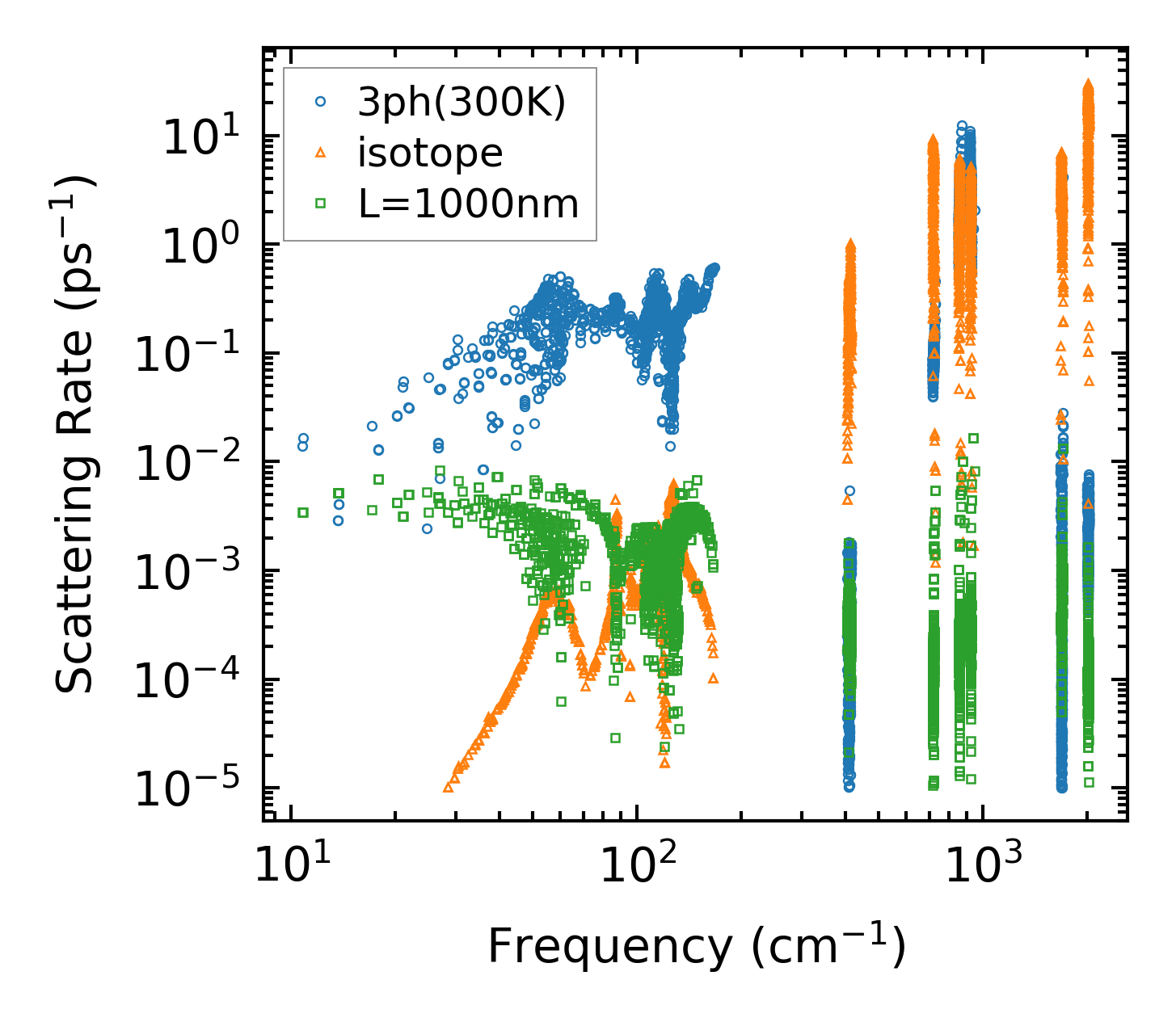

../../_images/fig_scat_rates6936.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

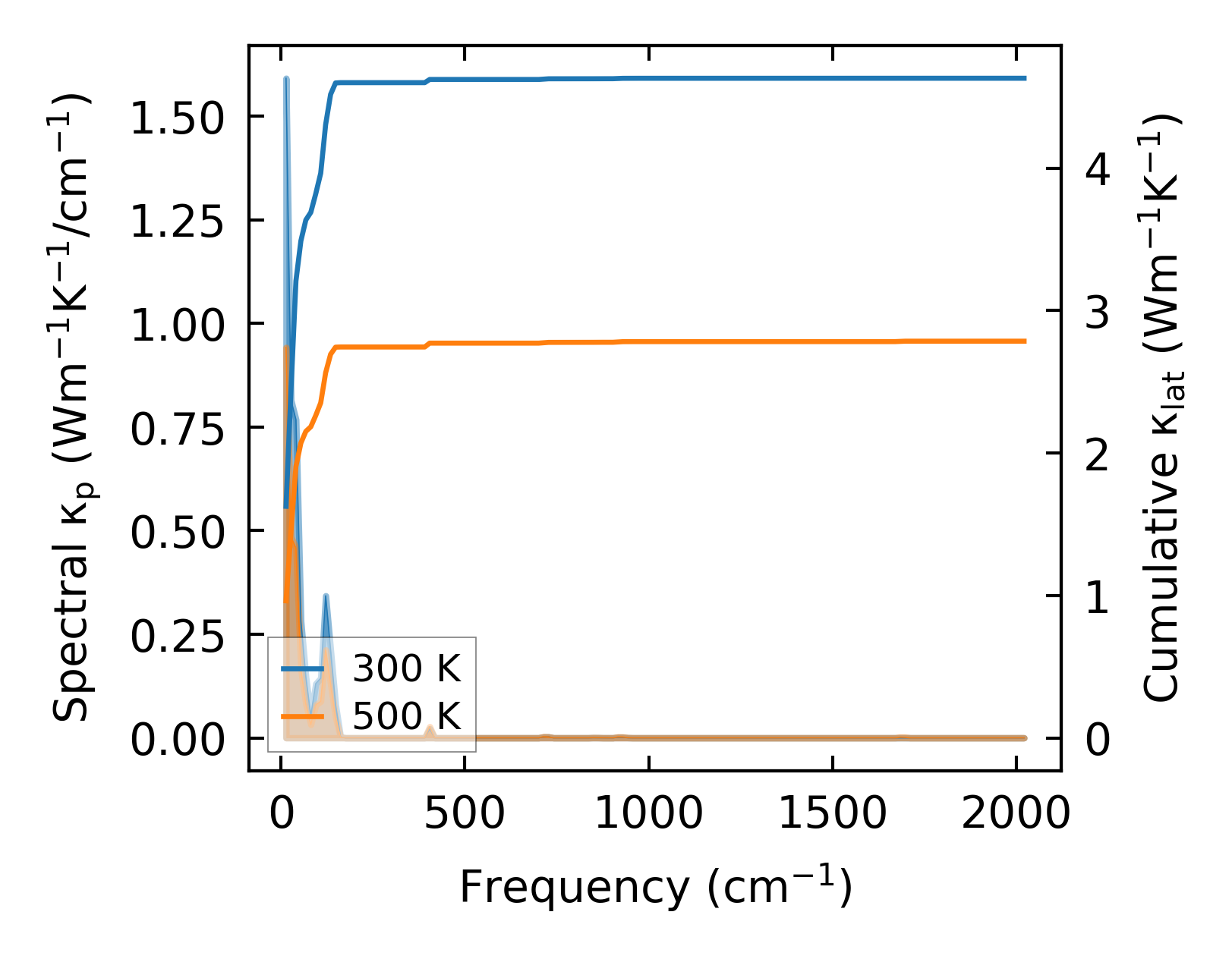

../../_images/fig_cumu_frequency6937.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6936.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc215744.png — (a) Force constants w.r.t atomic distance

Summary

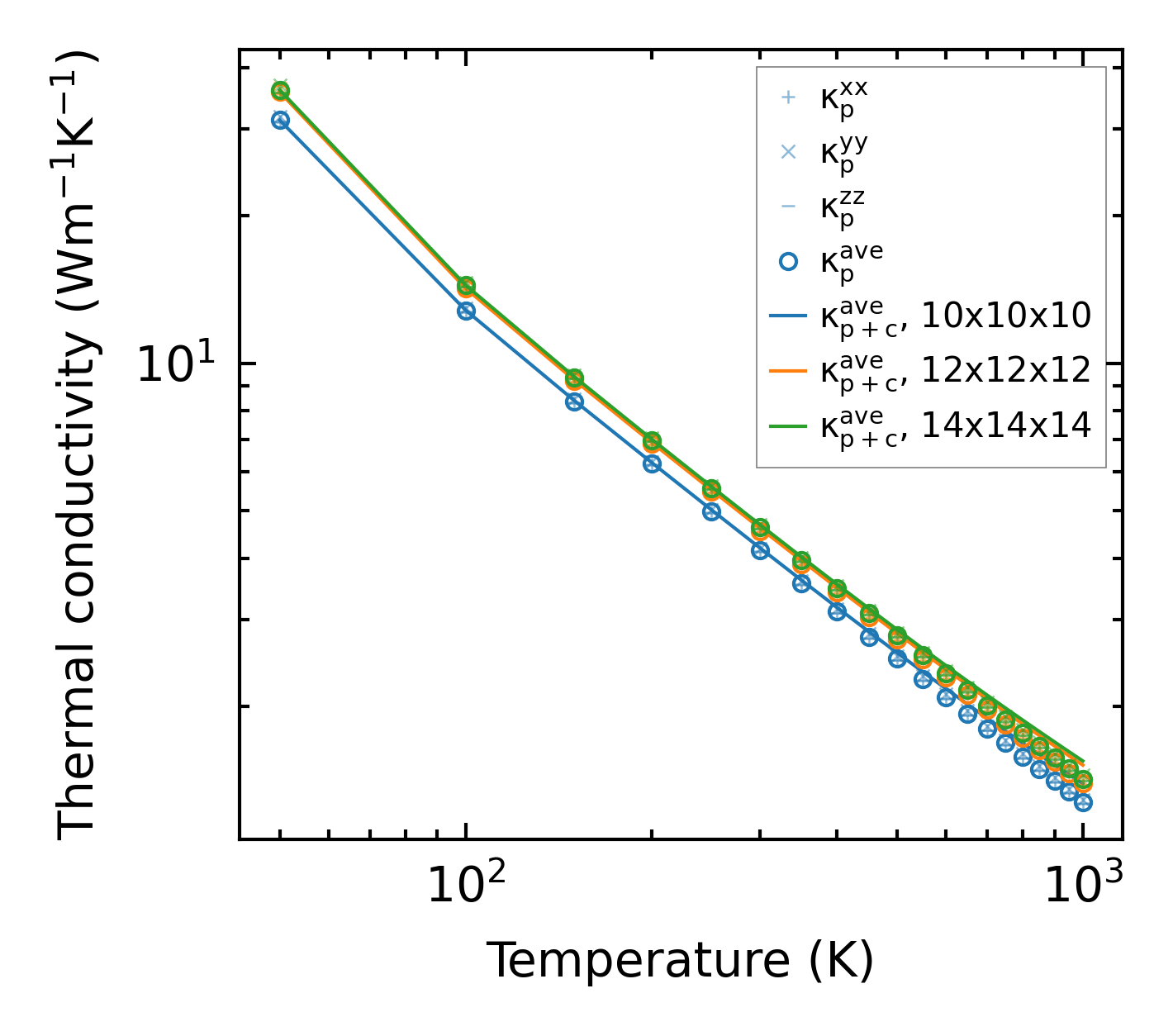

../../_images/fig_kappa13187.png — (a) Temperature-dependent lattice thermal conductivity

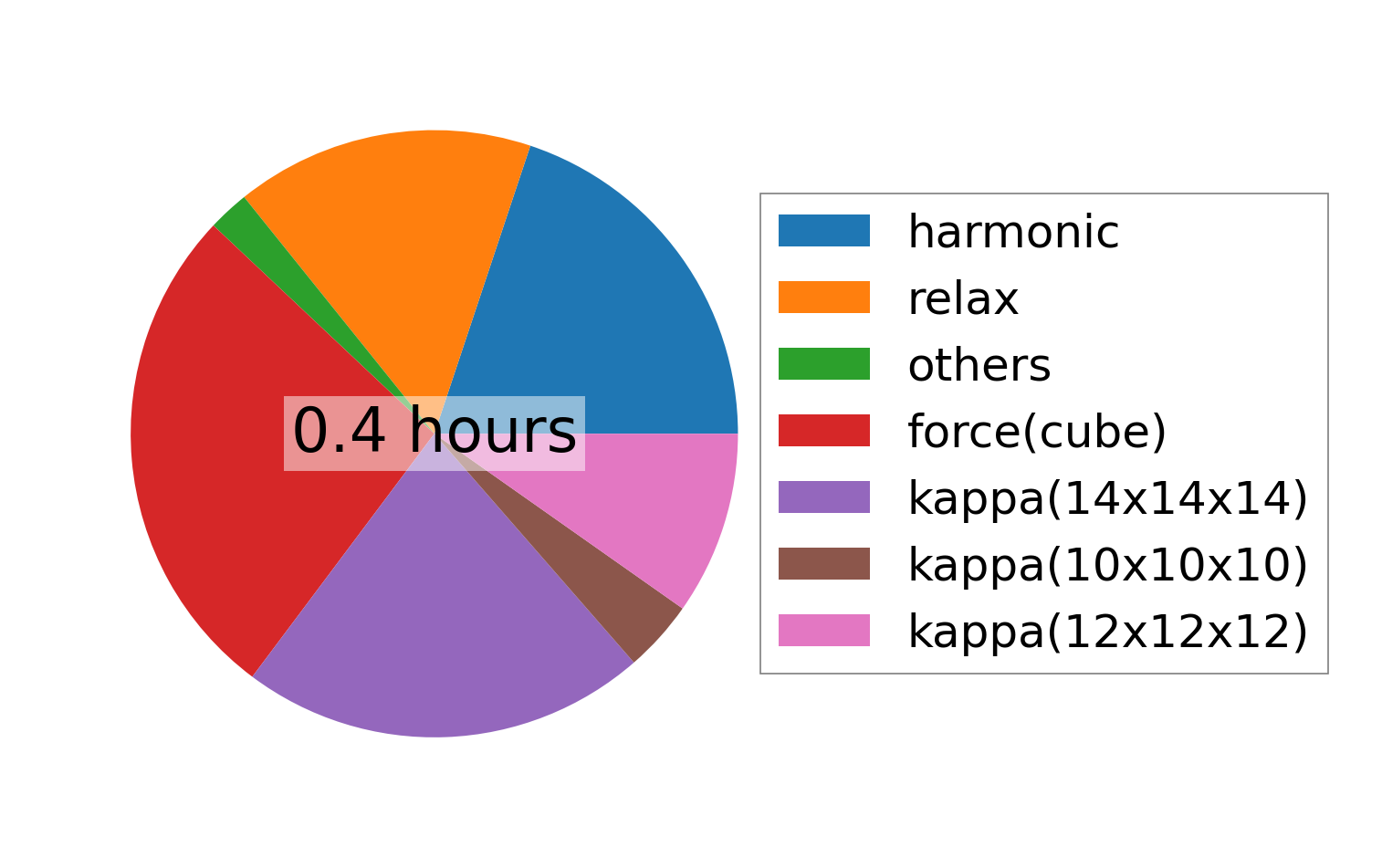

../../_images/fig_times26559.png — (b) Computation time
