mp-1094088/NbCoSn/anharm

Space group: F-43m (216)
Link: Materials Project
Download: mp-1094088.tar.gz

Harmonic properties

../../_images/fig_bandos_pr16653.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16652.png — (b) Thermodynamic properties

Grüneisen parameters

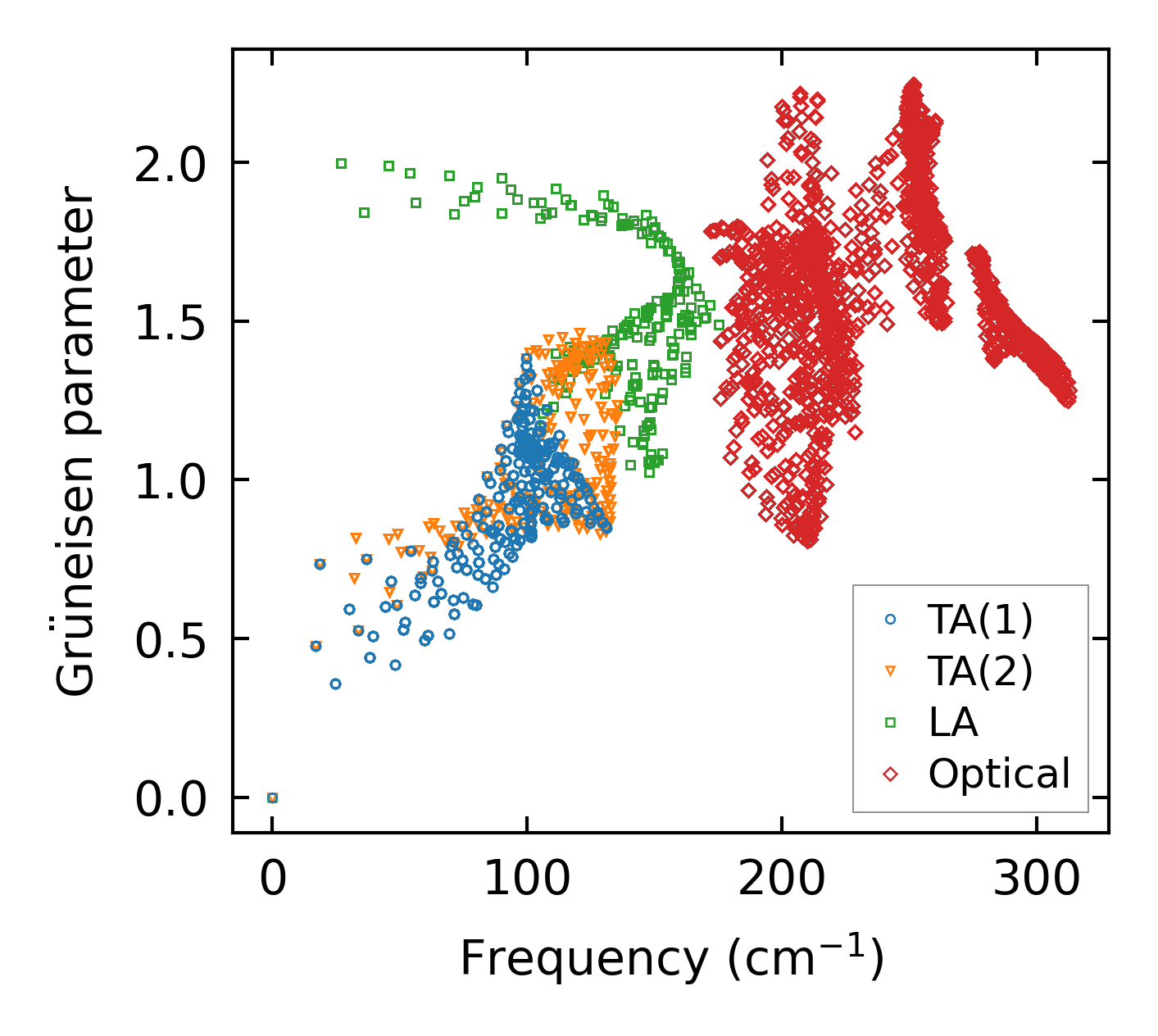

../../_images/fig_gru_all7235.png — (a) Grüneisen parameters

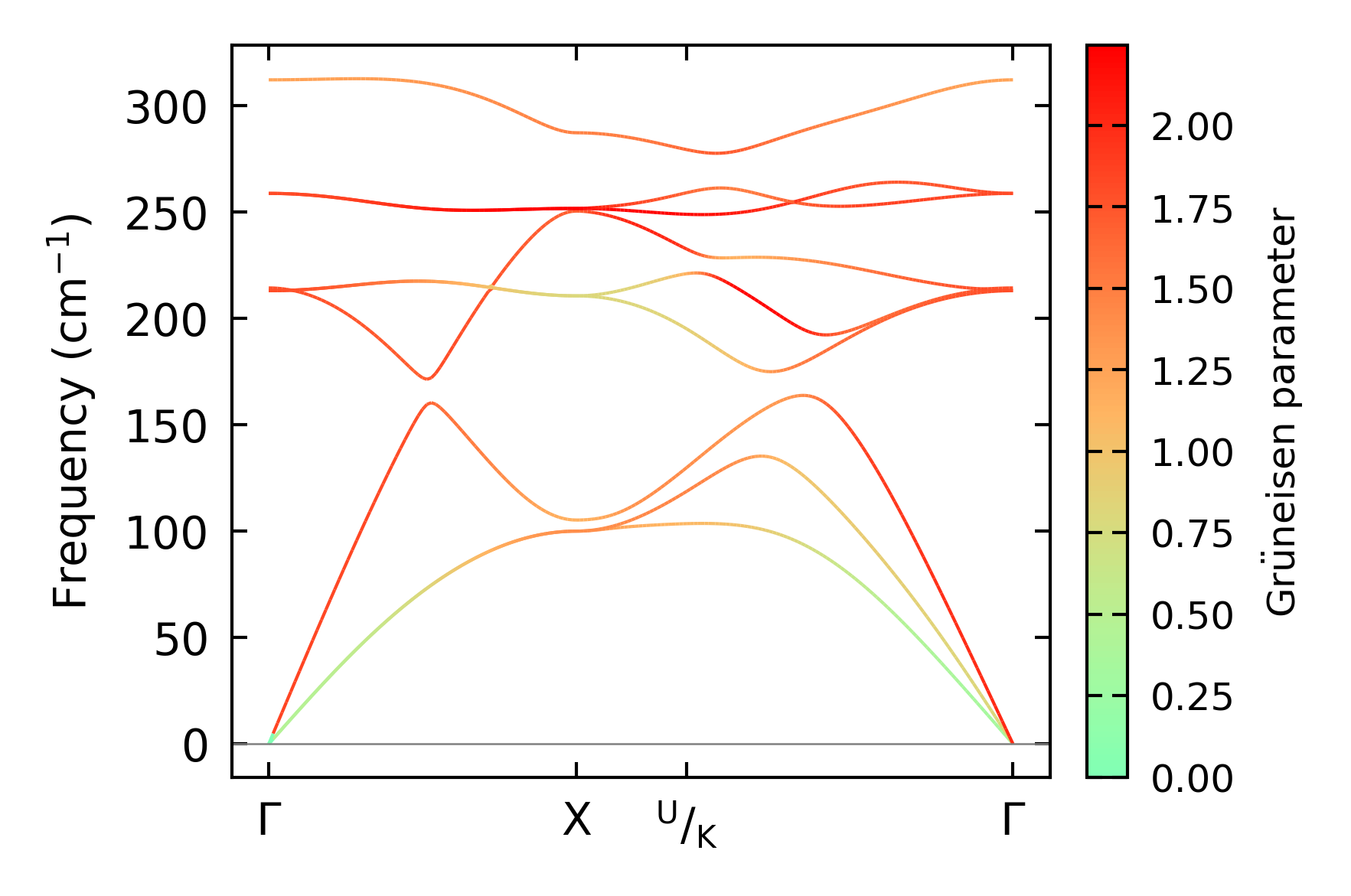

../../_images/fig_gruneisen7235.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 19x19x19, supercell: 2x2x2

../../_images/fig_kappa13641.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7321.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

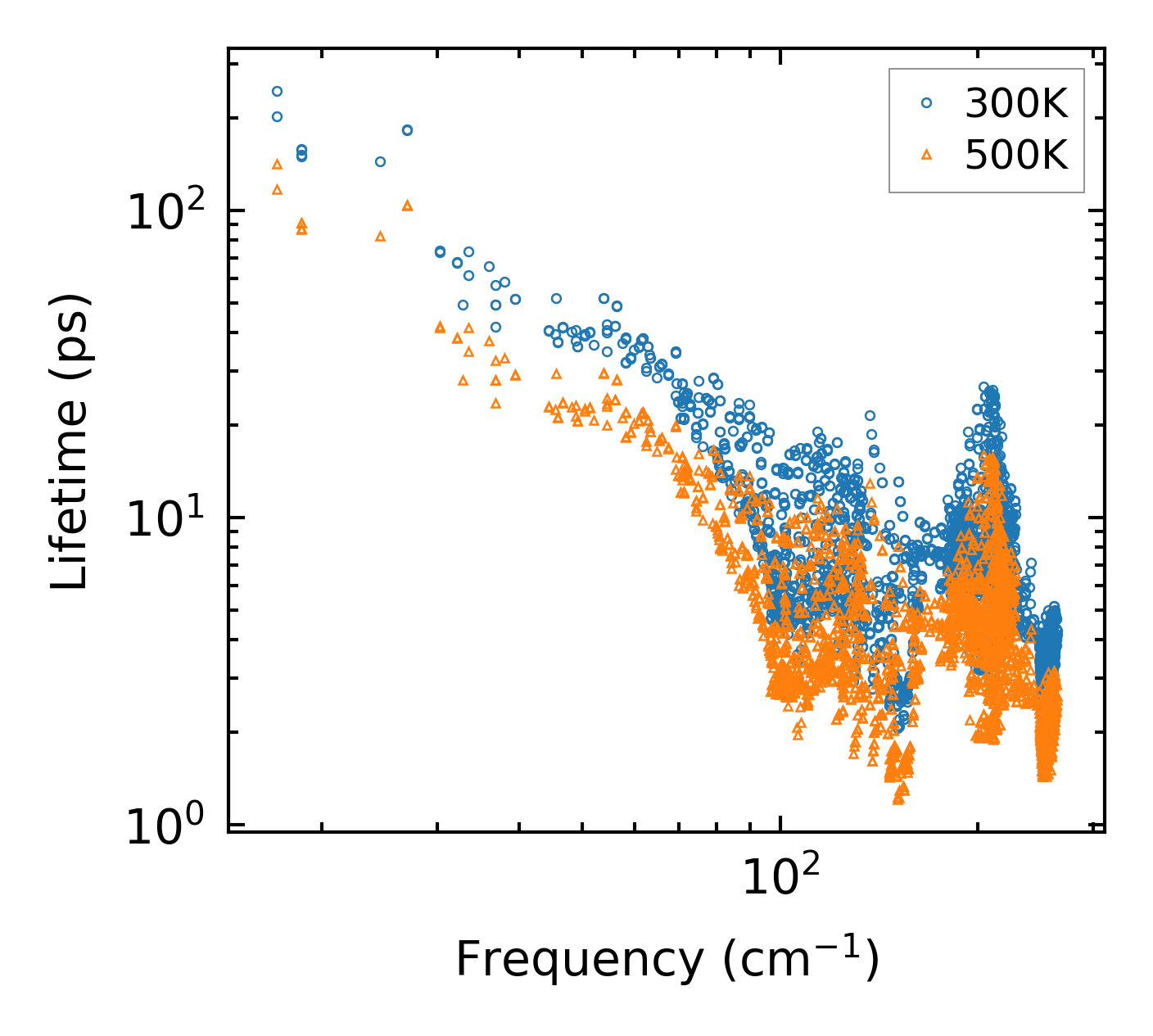

../../_images/fig_lifetime7169.png — (a) Phonon lifetime due to phonon-phonon scattering

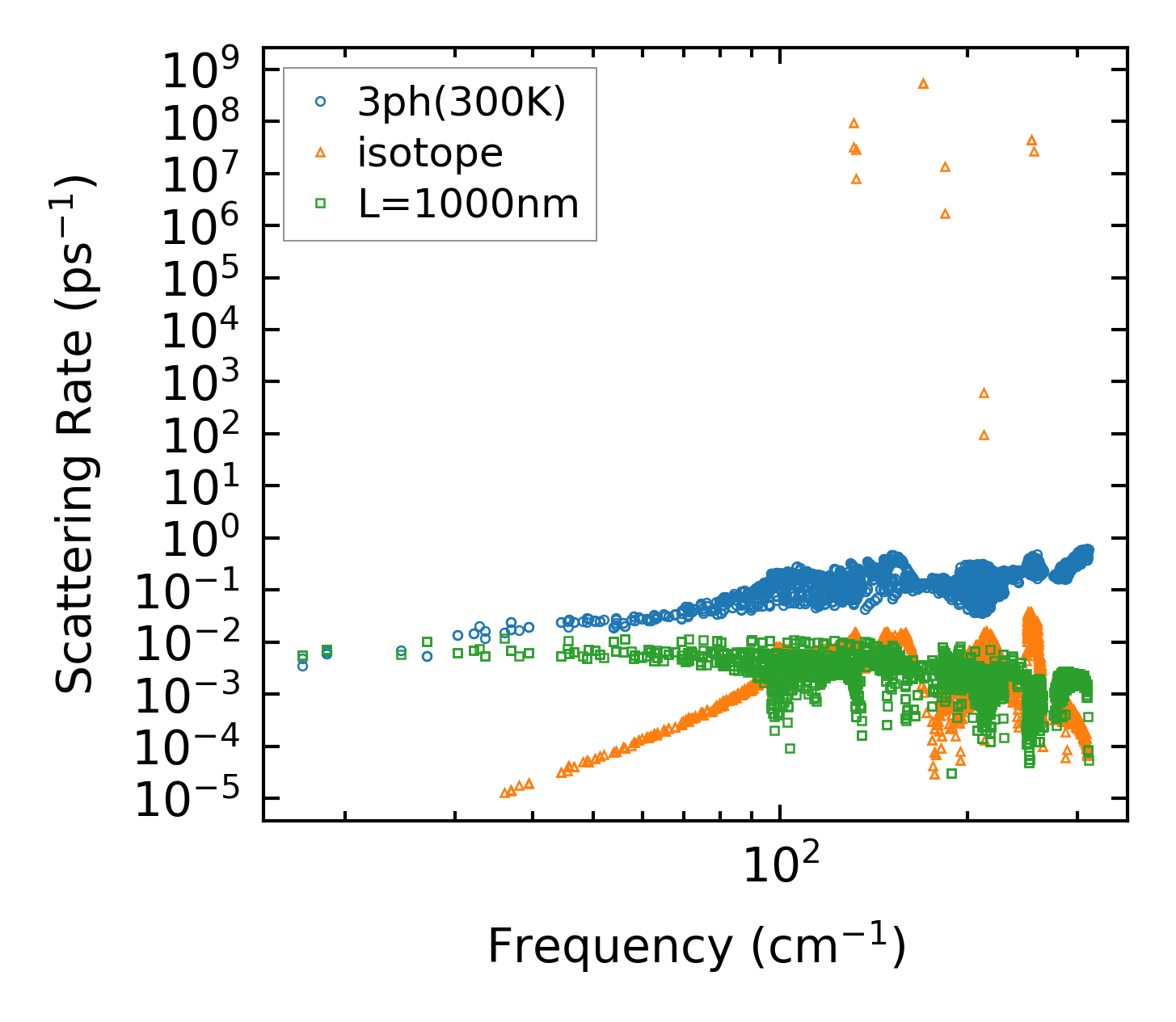

../../_images/fig_scat_rates7168.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

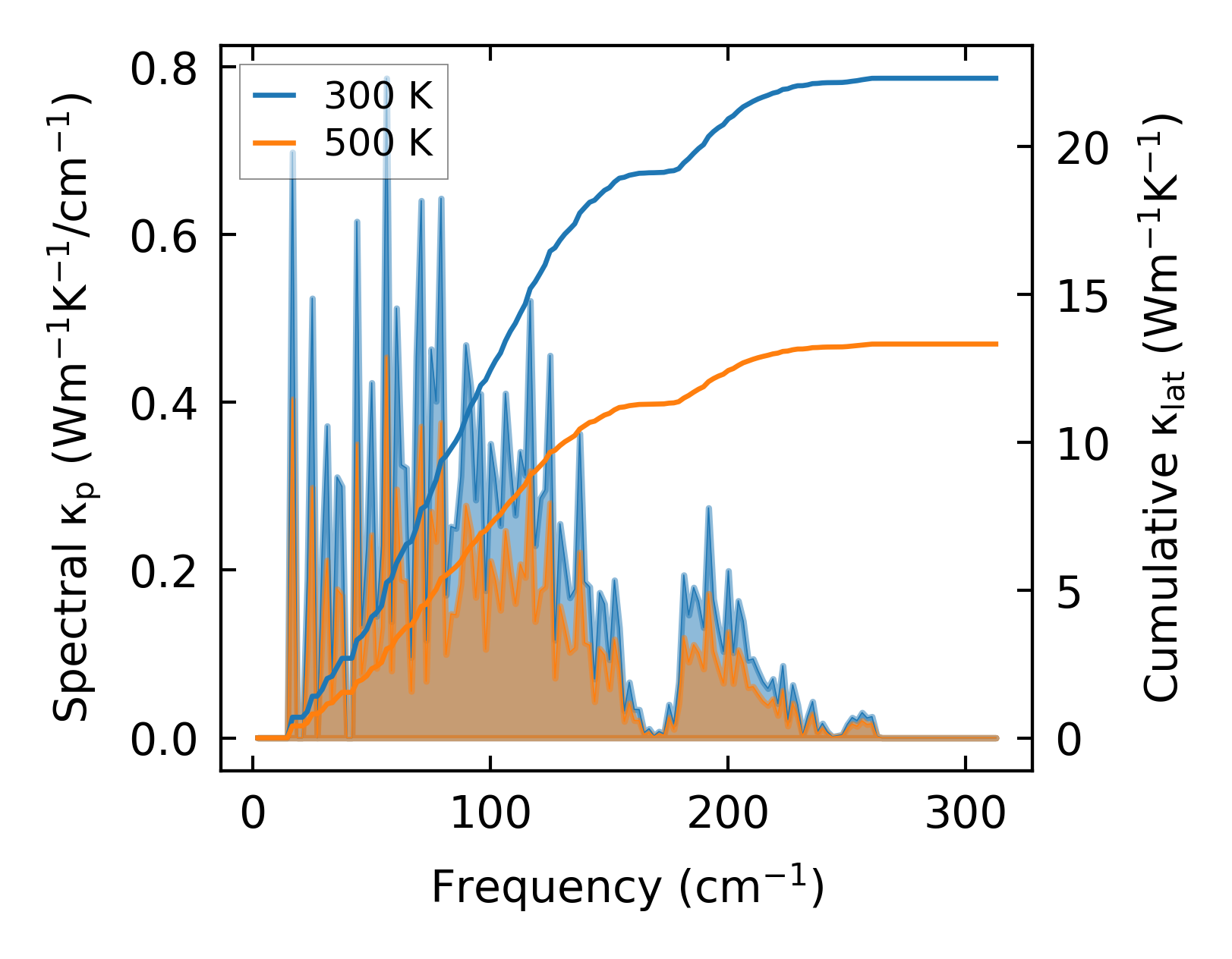

../../_images/fig_cumu_frequency7169.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

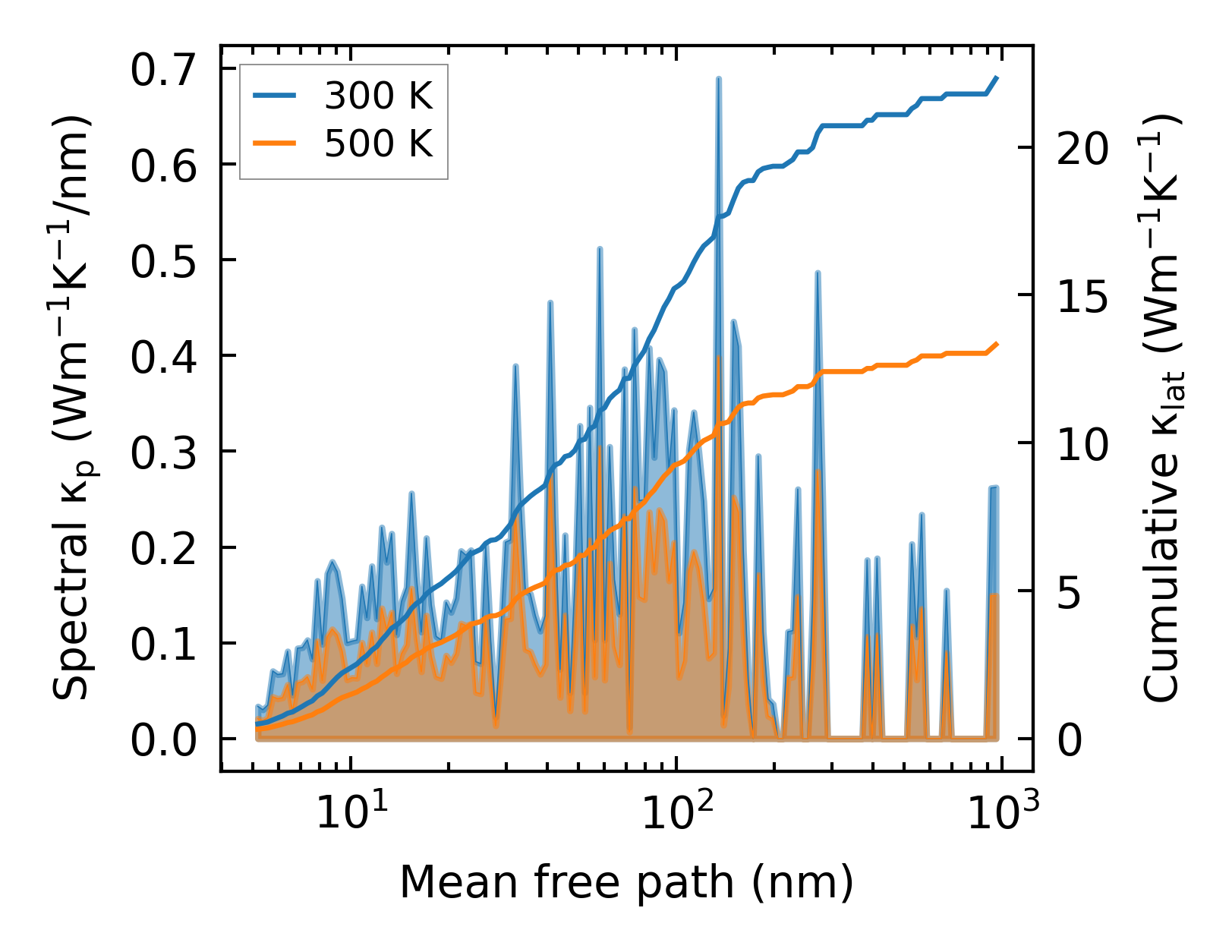

../../_images/fig_cumu_mfp7168.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc3430.png — (a) Force constants w.r.t atomic distance

Summary

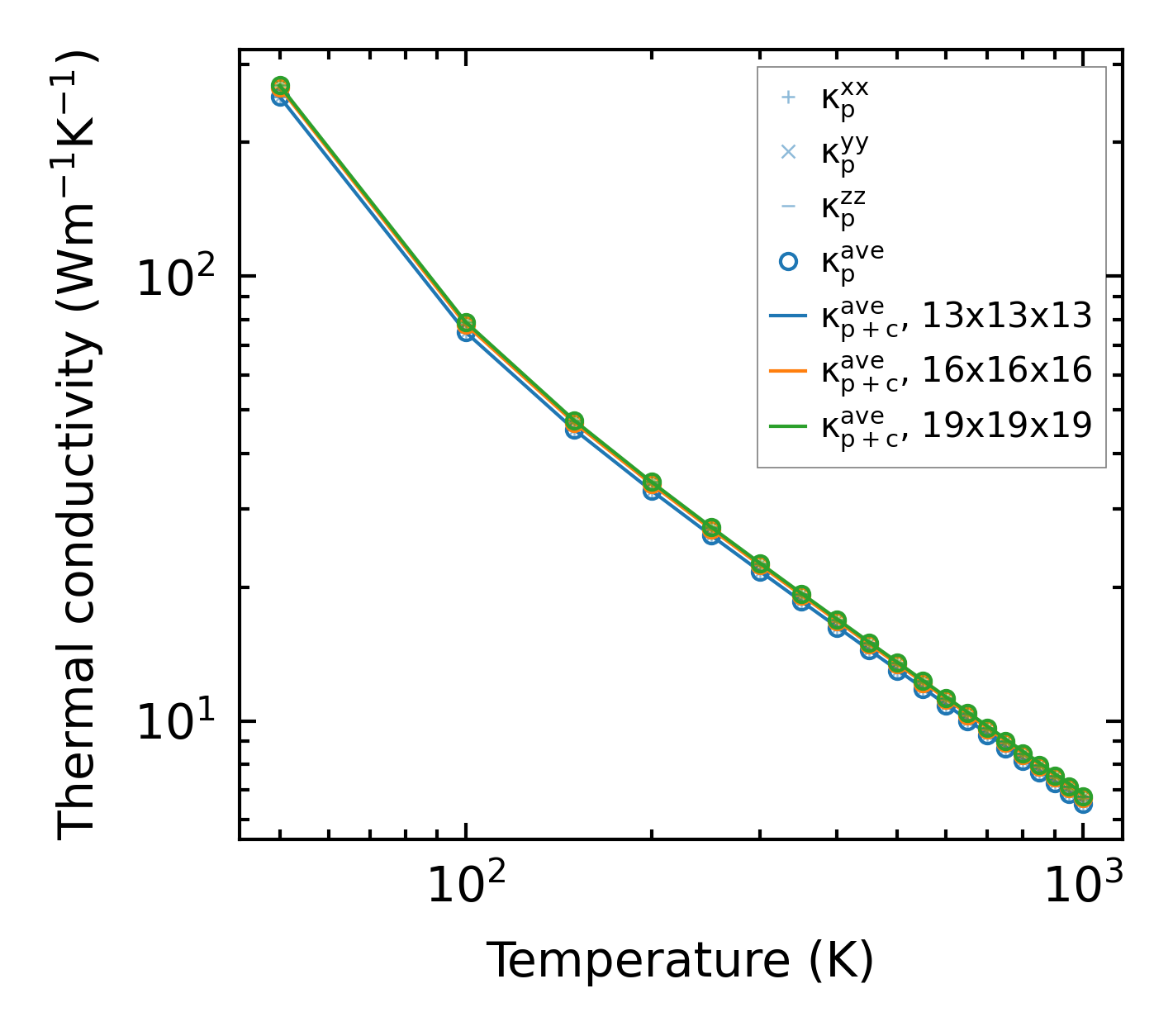

../../_images/fig_kappa13642.png — (a) Temperature-dependent lattice thermal conductivity

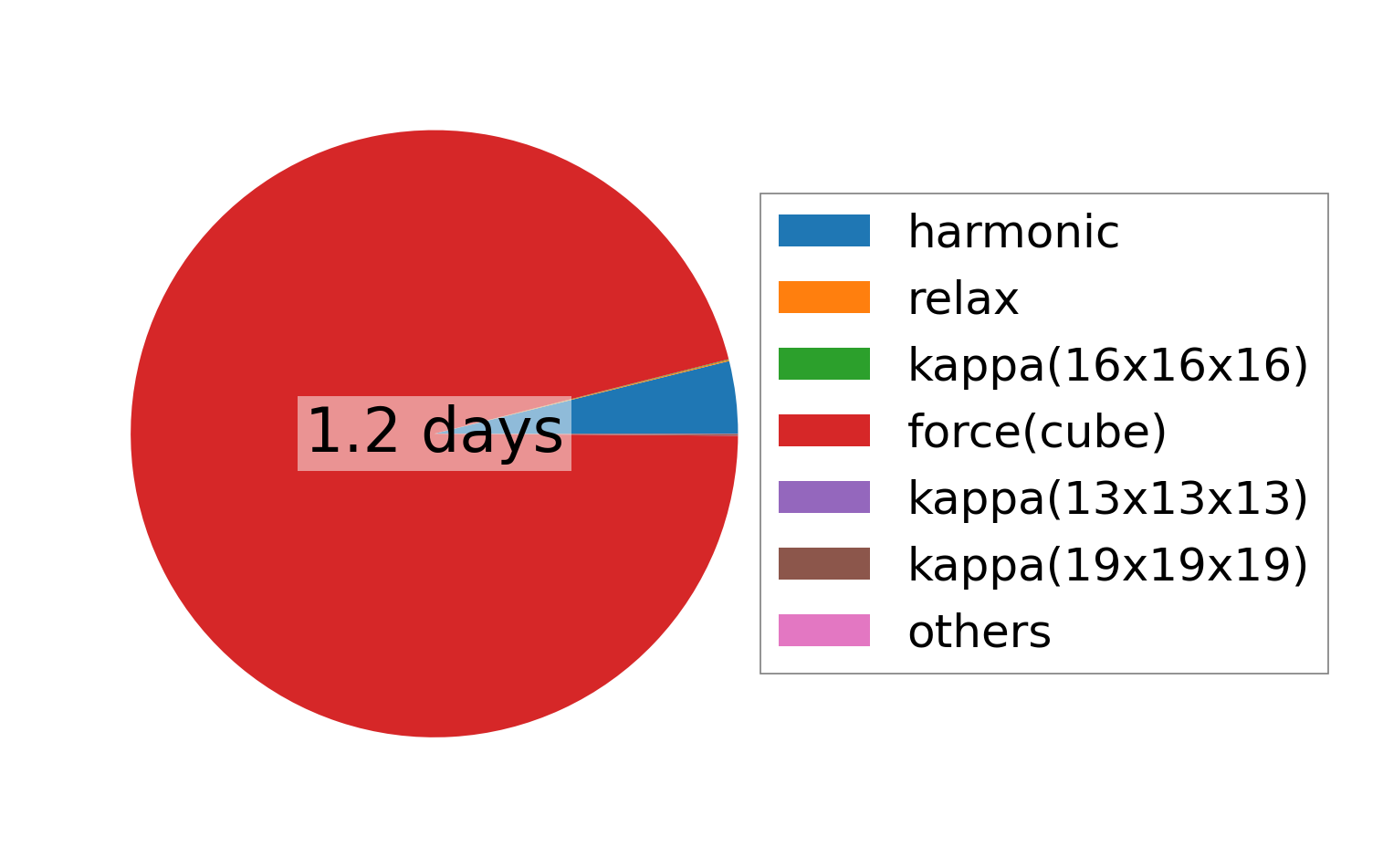

../../_images/fig_times27223.png — (b) Computation time
