mp-1087504/KZn4P3/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-1087504.tar.gz

Harmonic properties

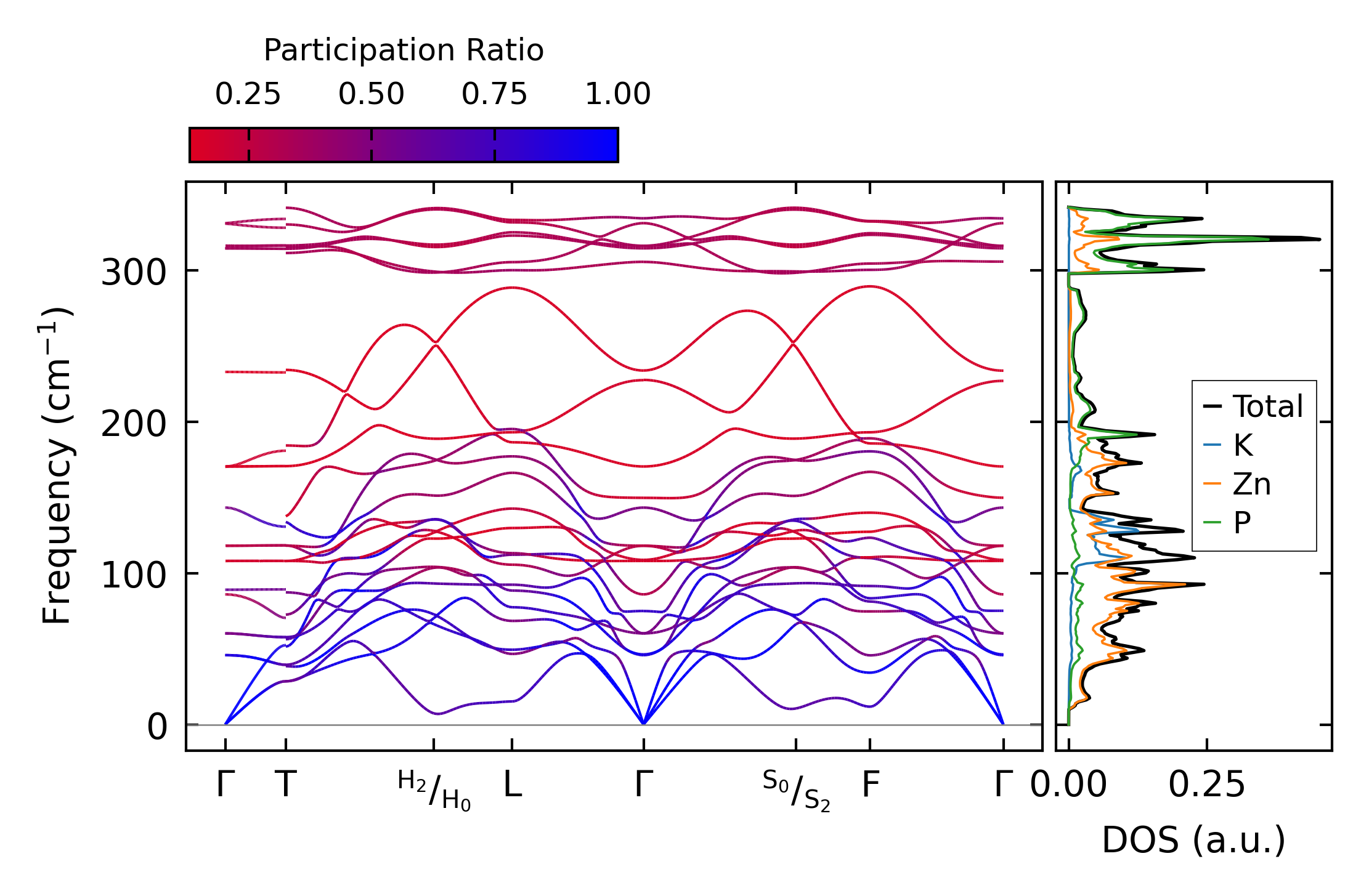

../../_images/fig_bandos_pr17007.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo17006.png — (b) Thermodynamic properties

Grüneisen parameters

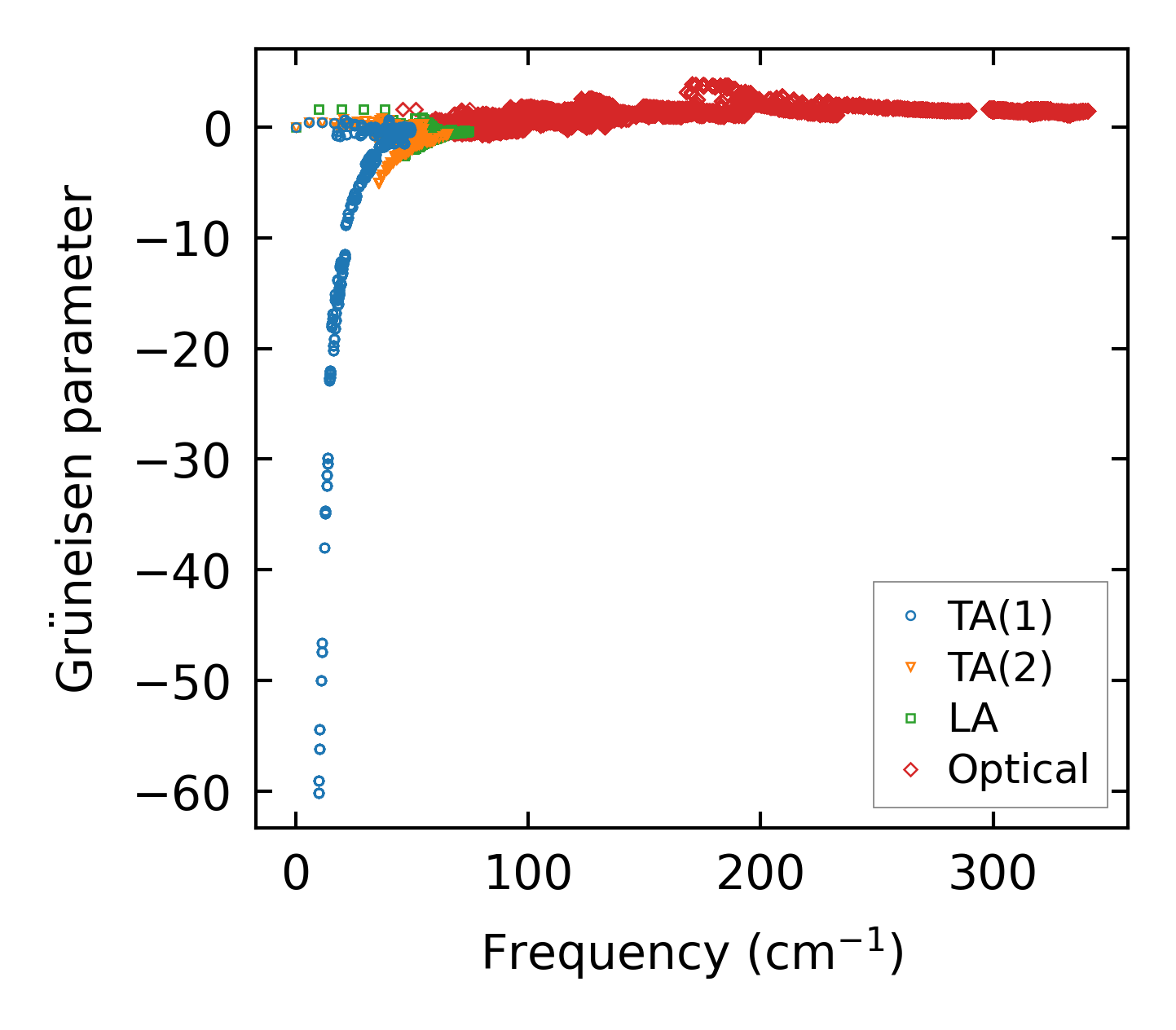

../../_images/fig_gru_all7451.png — (a) Grüneisen parameters

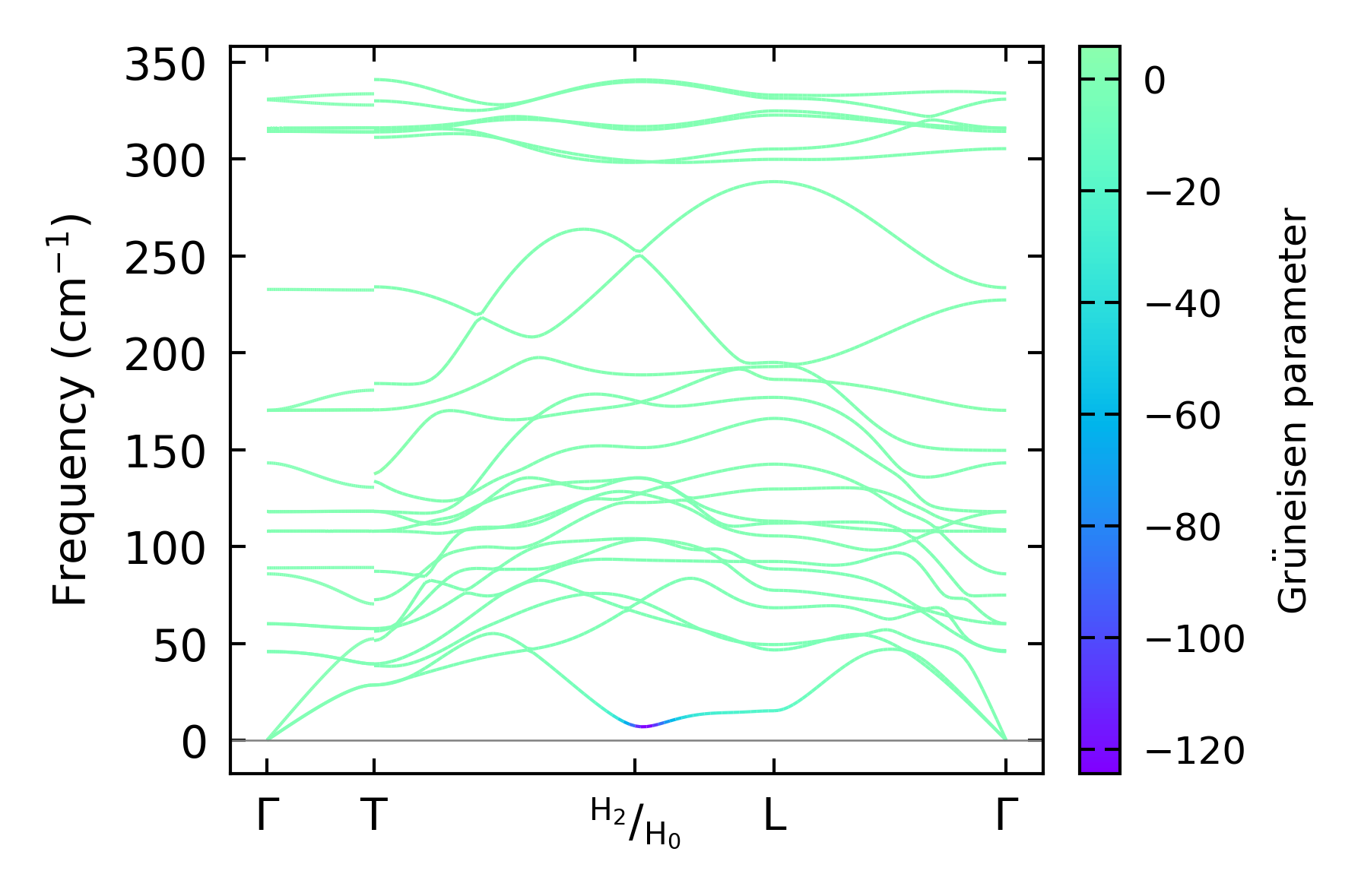

../../_images/fig_gruneisen7451.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 2x2x1

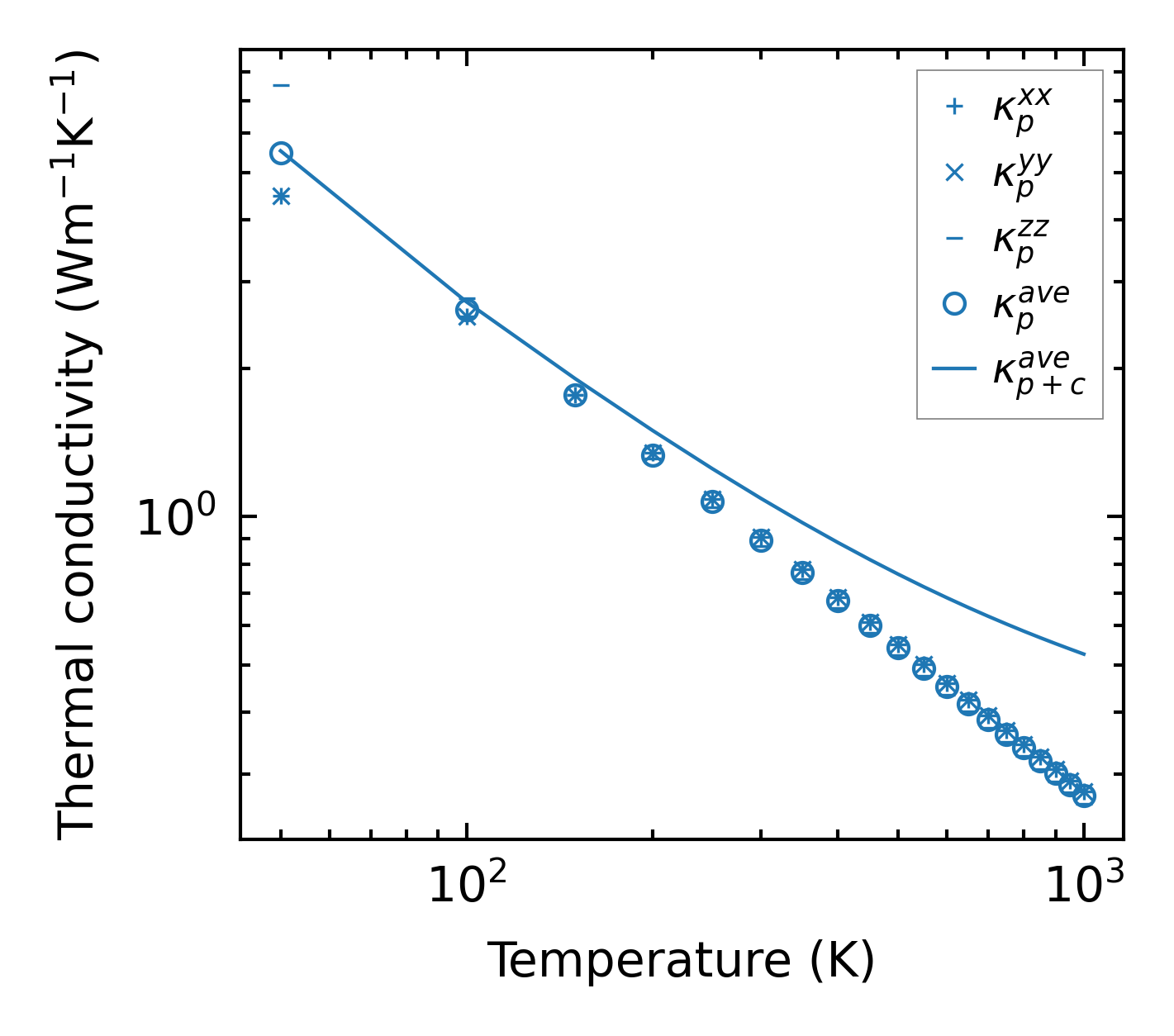

../../_images/fig_kappa14053.png — (a) Temperature-dependent lattice thermal conductivity

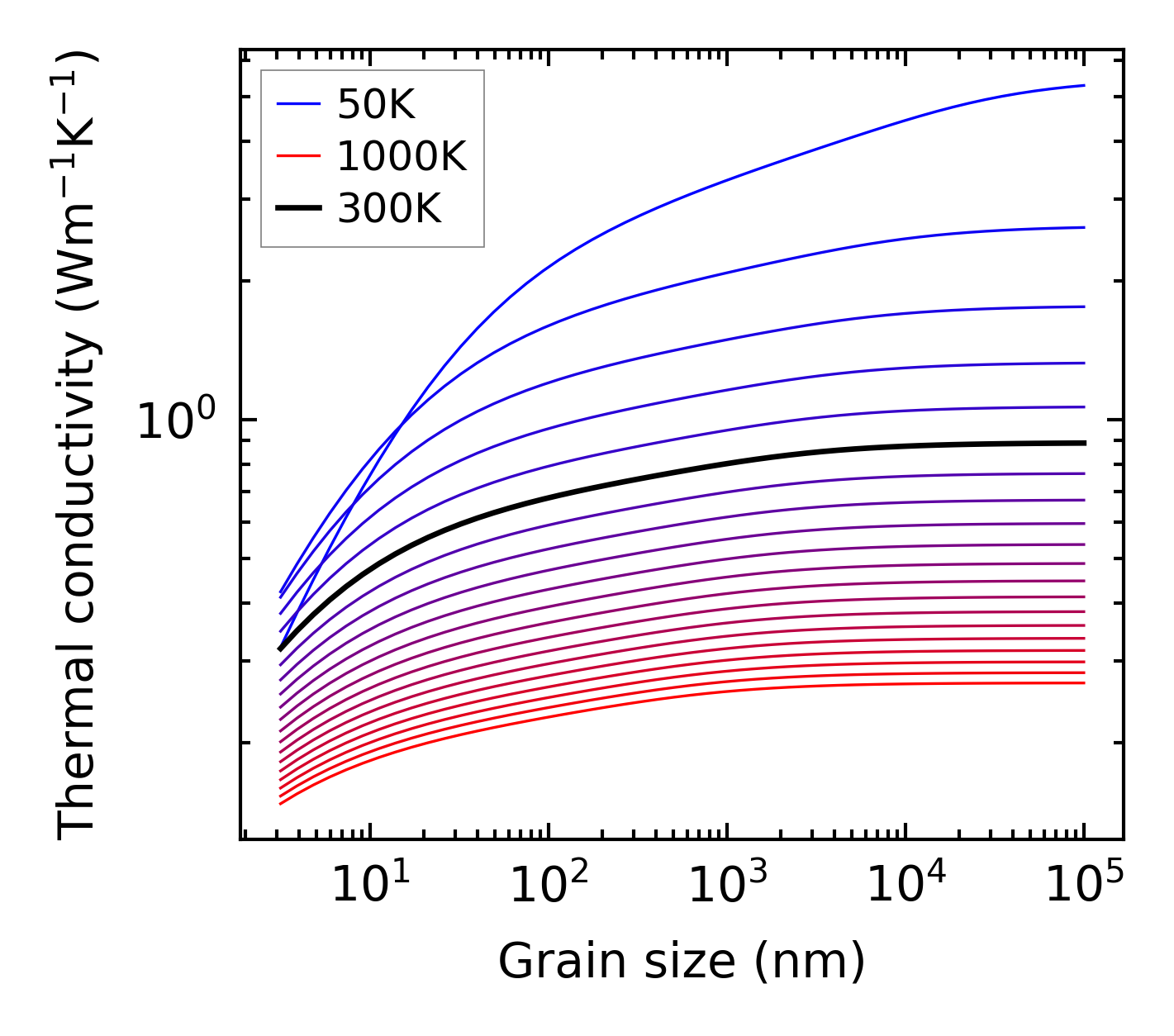

../../_images/fig_kappa_vs_grain_size7539.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime7384.png — (a) Phonon lifetime due to phonon-phonon scattering

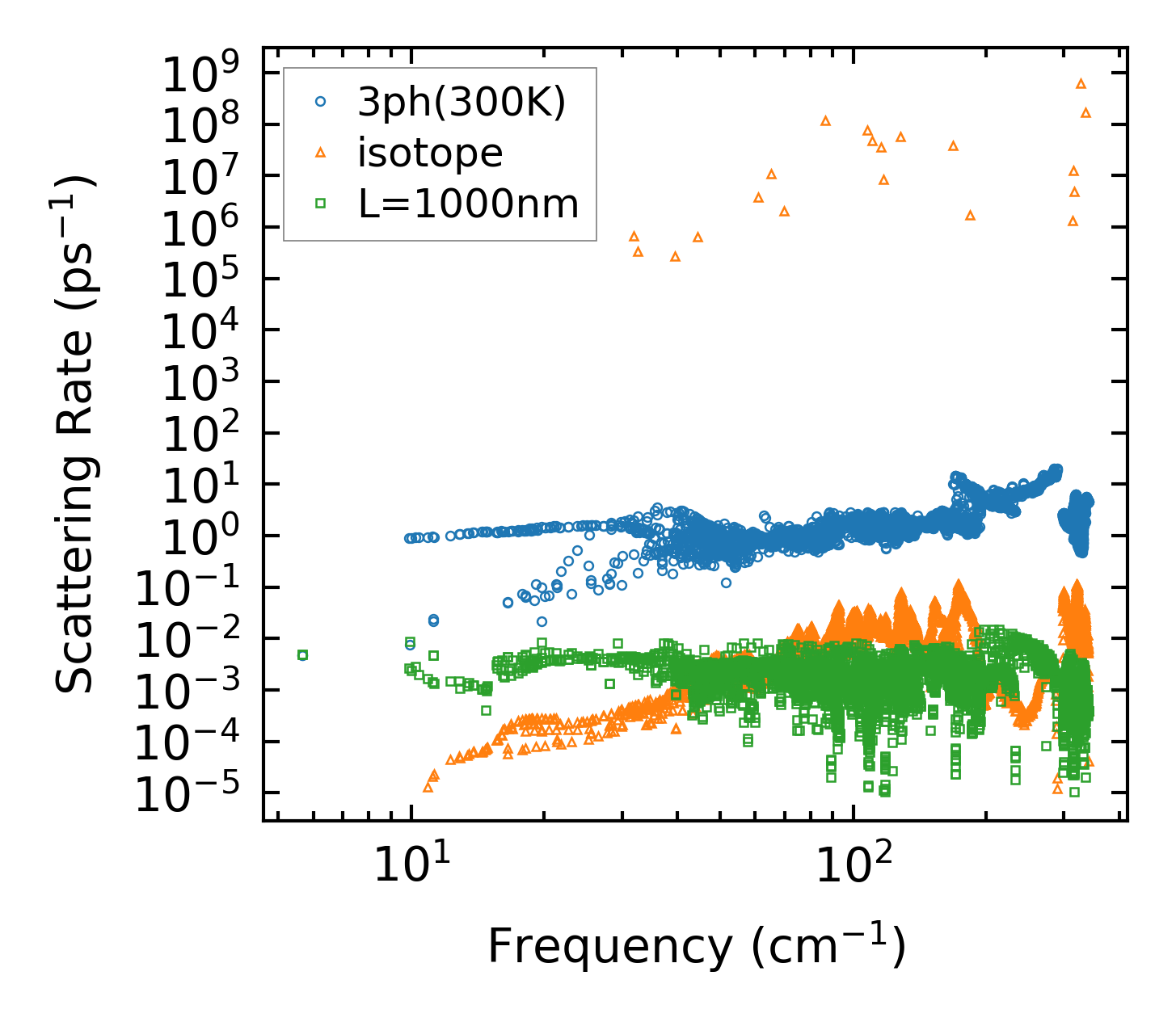

../../_images/fig_scat_rates7383.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency7384.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp7383.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc216559.png — (a) Force constants w.r.t atomic distance

Summary

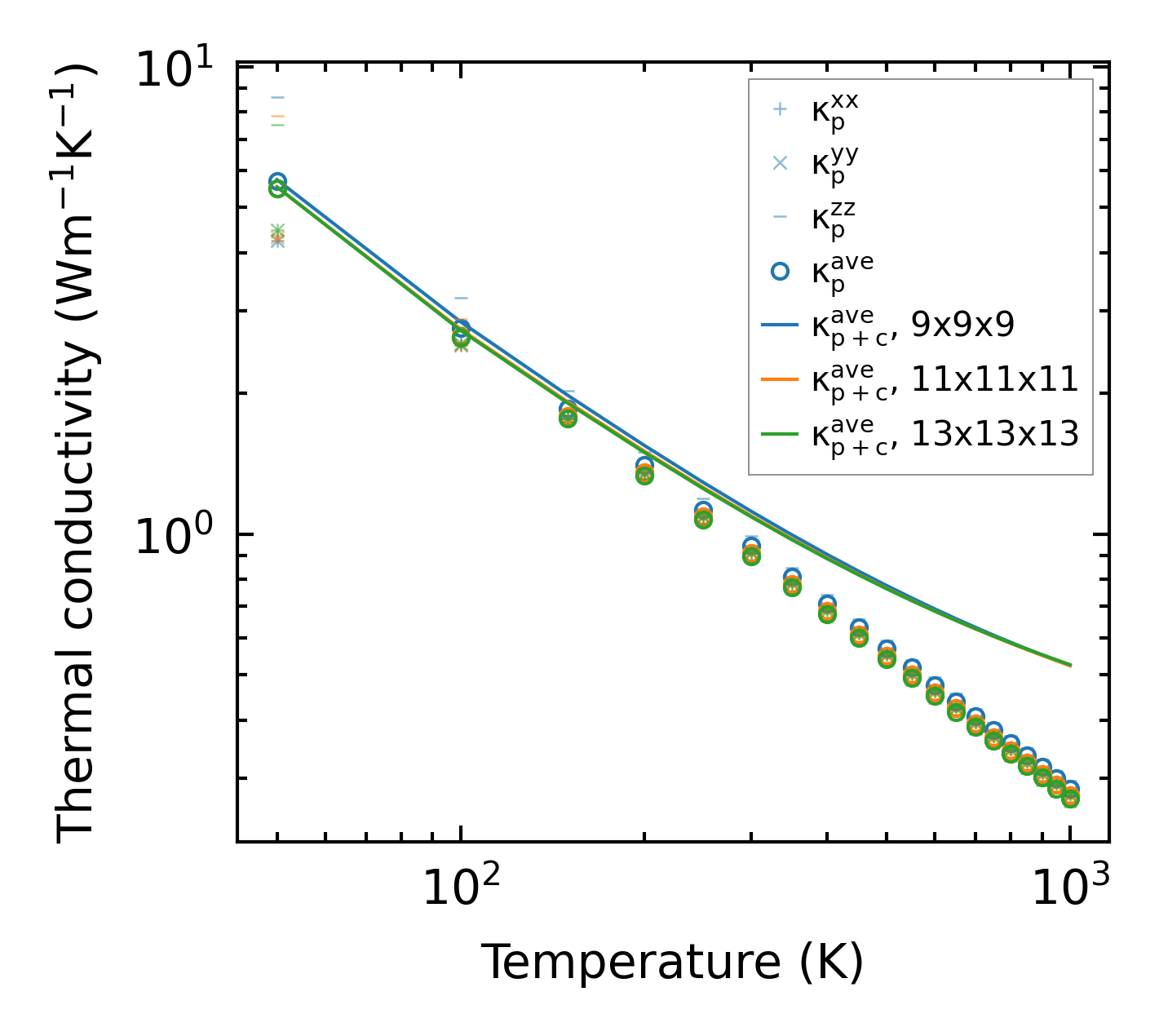

../../_images/fig_kappa14054.png — (a) Temperature-dependent lattice thermal conductivity

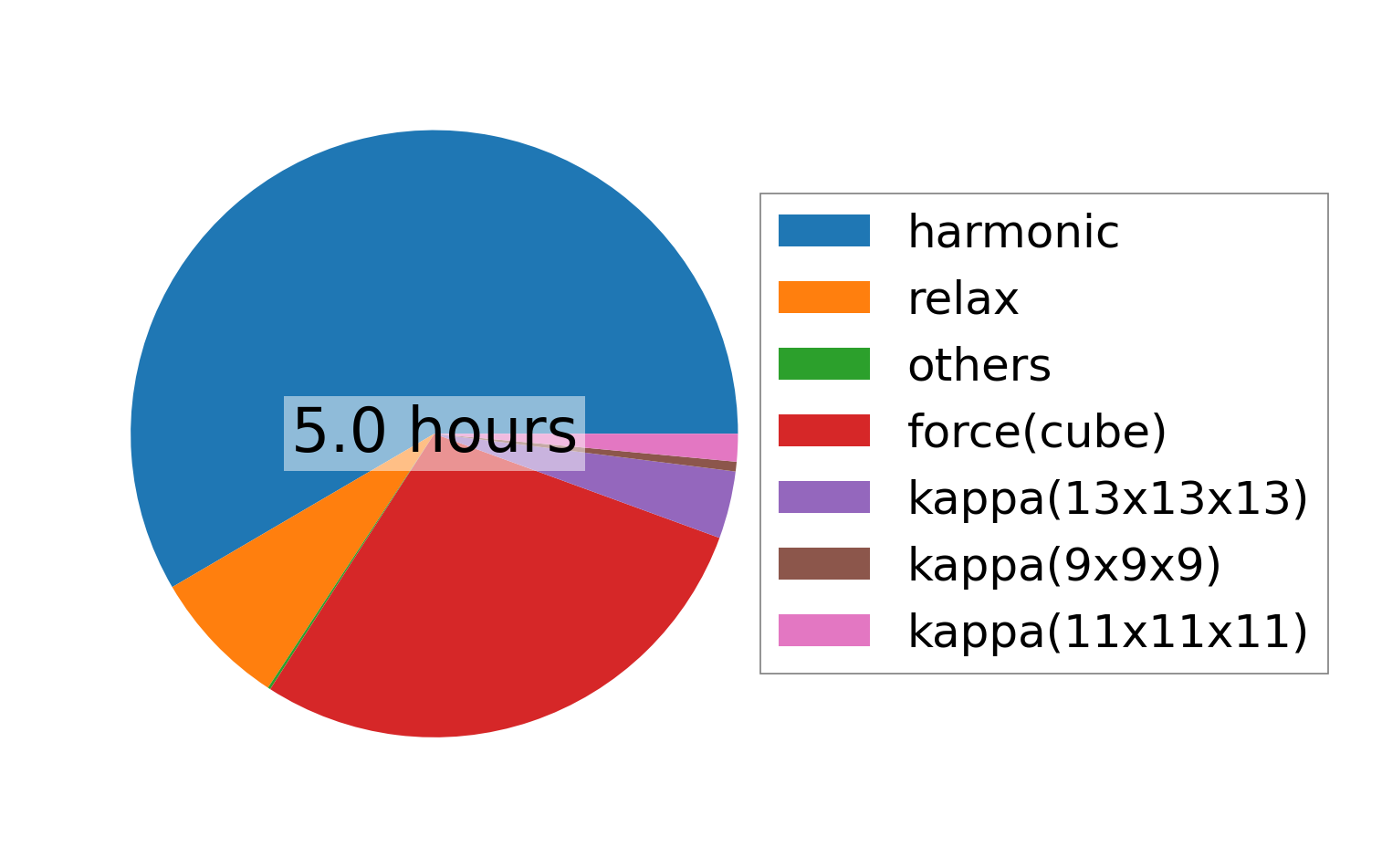

../../_images/fig_times27714.png — (b) Computation time
