mp-1077232/WN2/anharm

Space group: P6_3/mmc (194)
Link: Materials Project
Download: mp-1077232.tar.gz

Harmonic properties

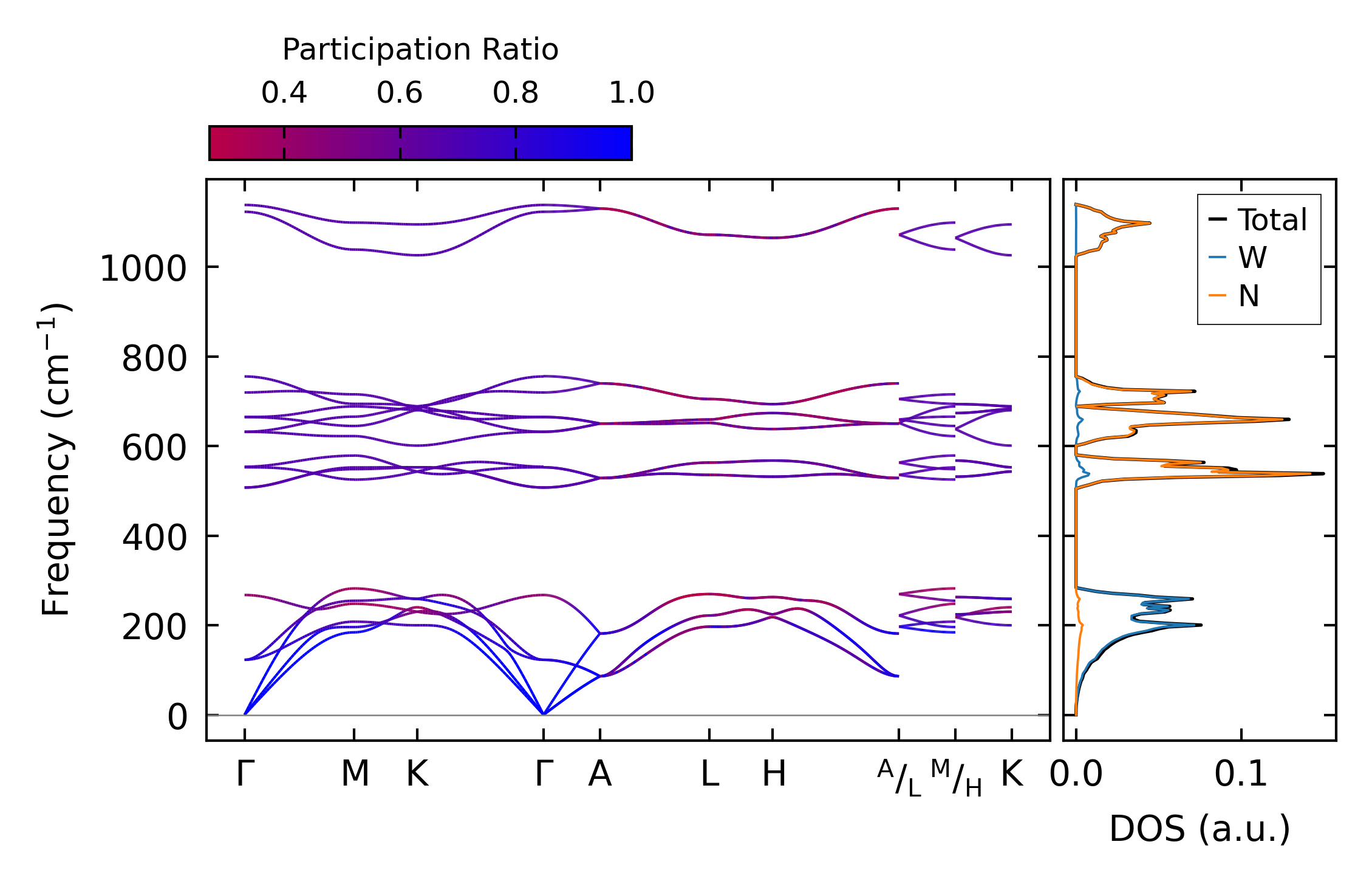

../../_images/fig_bandos_pr16836.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16835.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all7358.png — (a) Grüneisen parameters

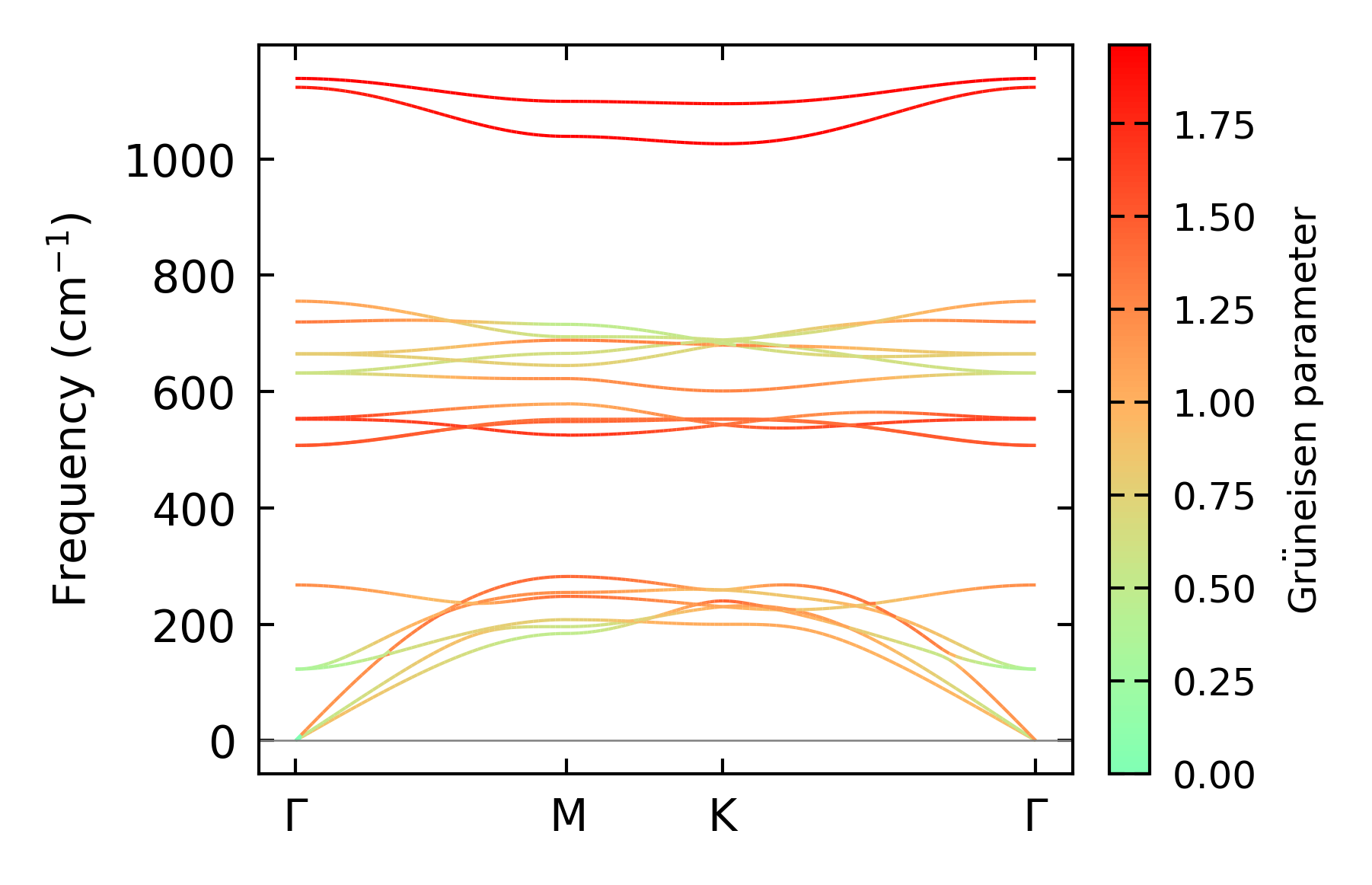

../../_images/fig_gruneisen7358.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 25x25x9, supercell: 3x3x2

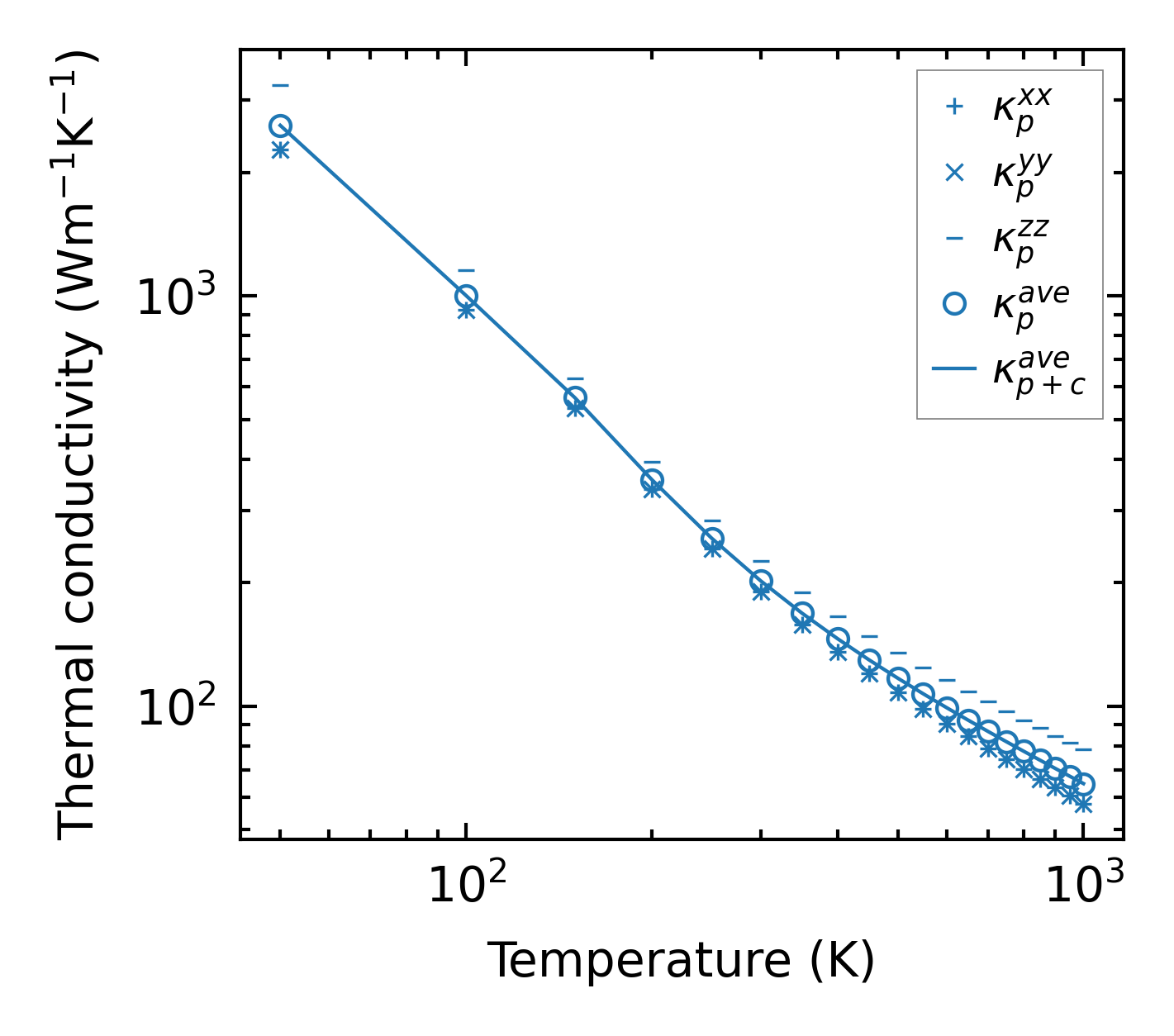

../../_images/fig_kappa13880.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7446.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime7292.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates7291.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

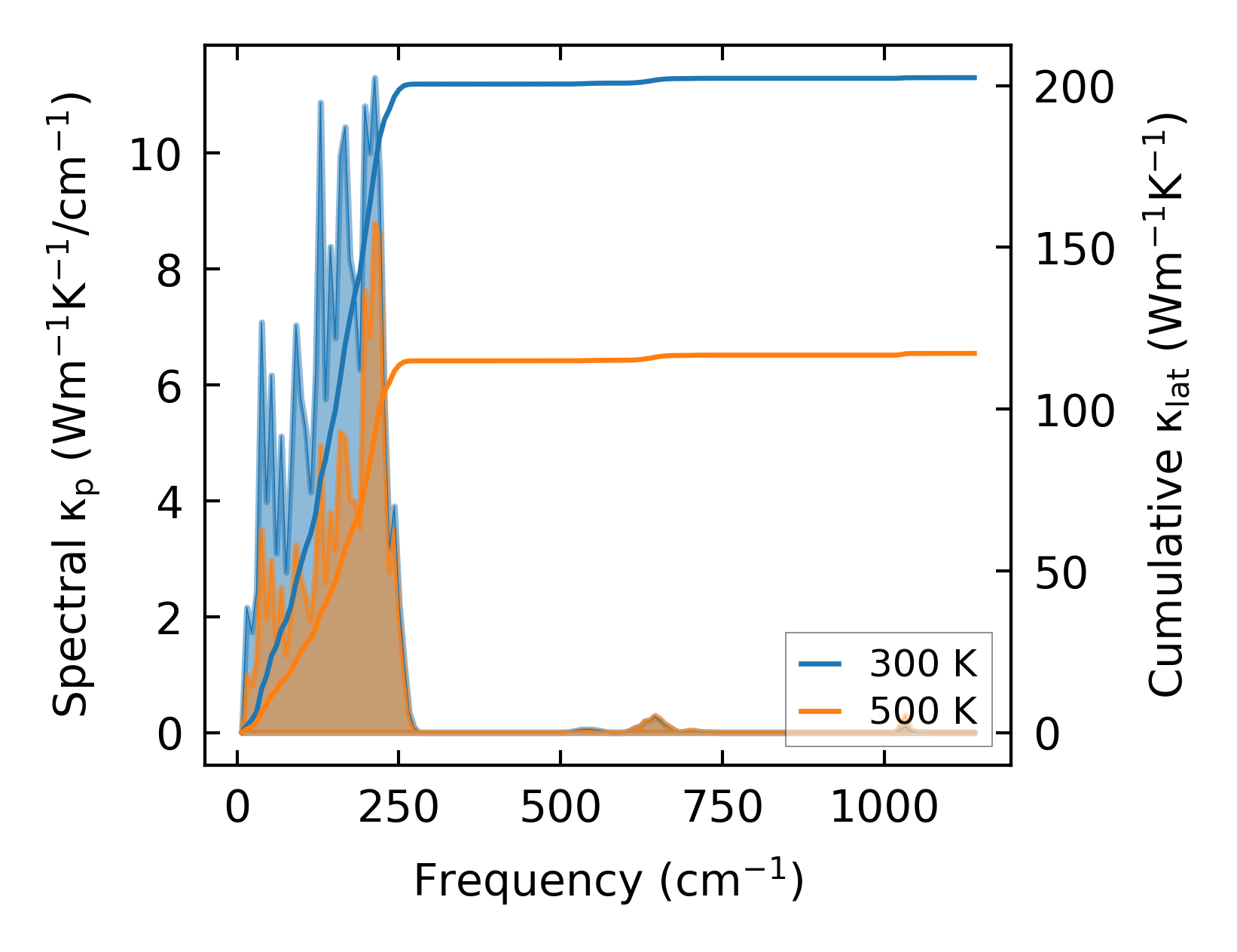

../../_images/fig_cumu_frequency7292.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

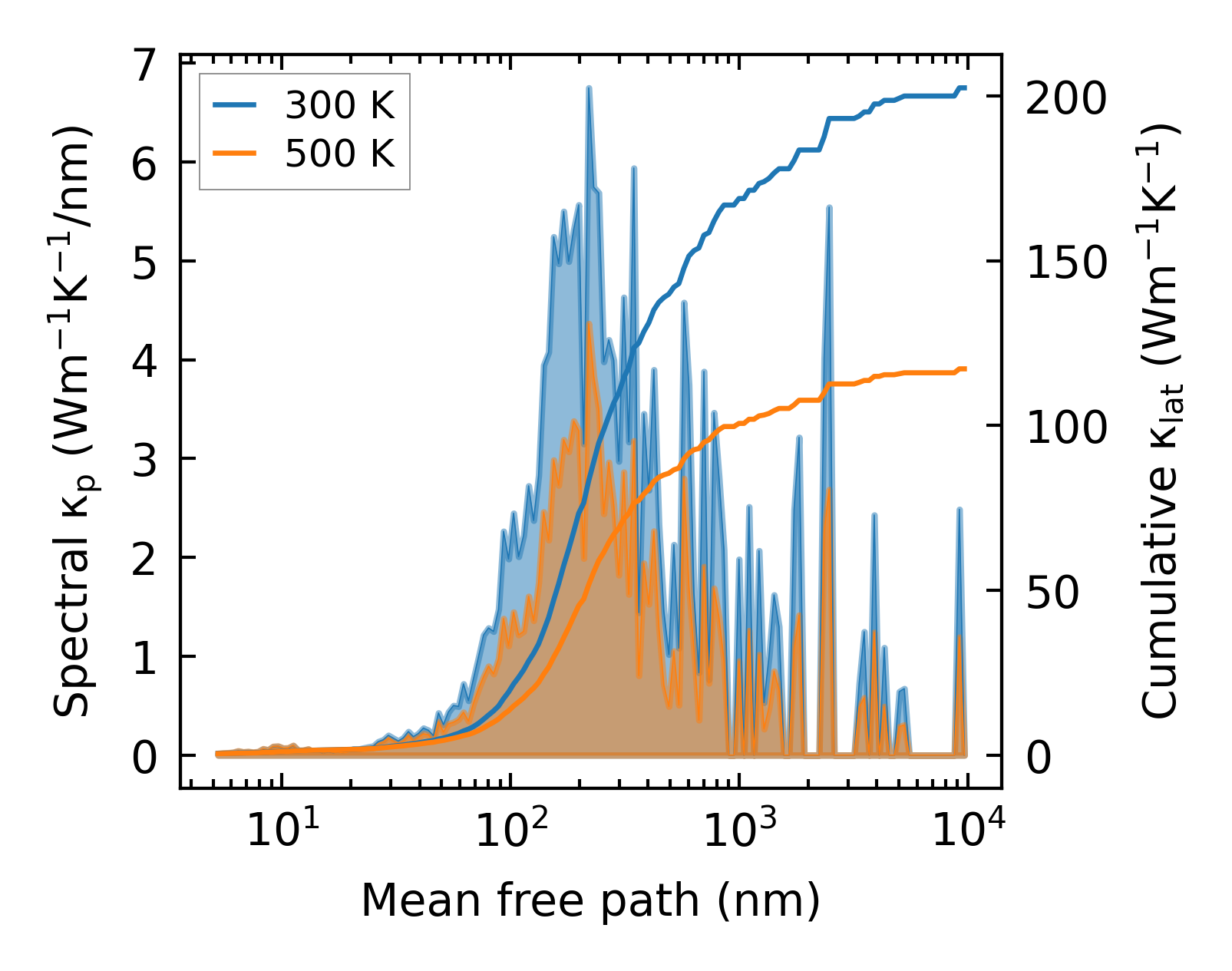

../../_images/fig_cumu_mfp7291.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

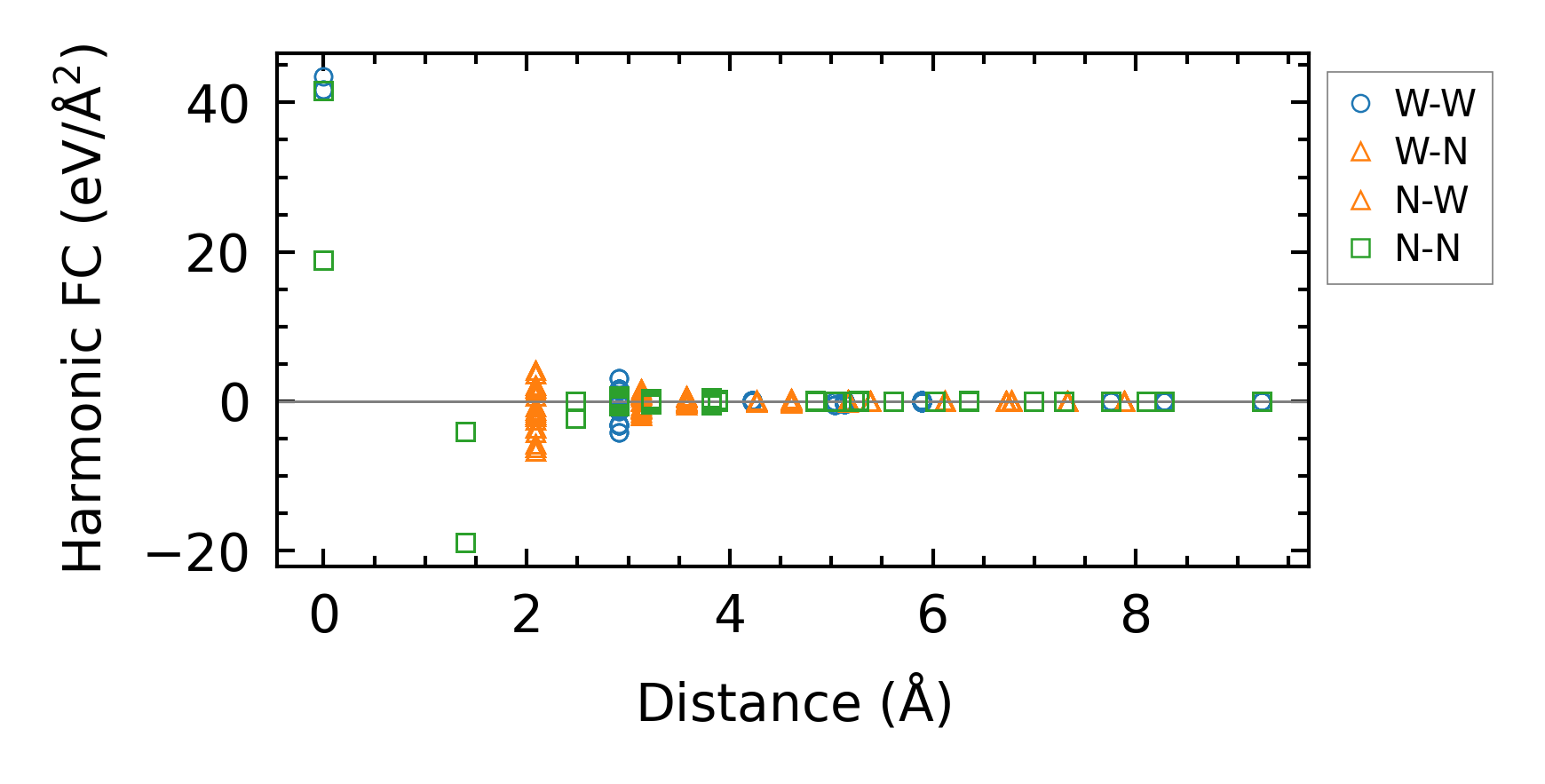

../../_images/fig_fc216391.png — (a) Force constants w.r.t atomic distance

Summary

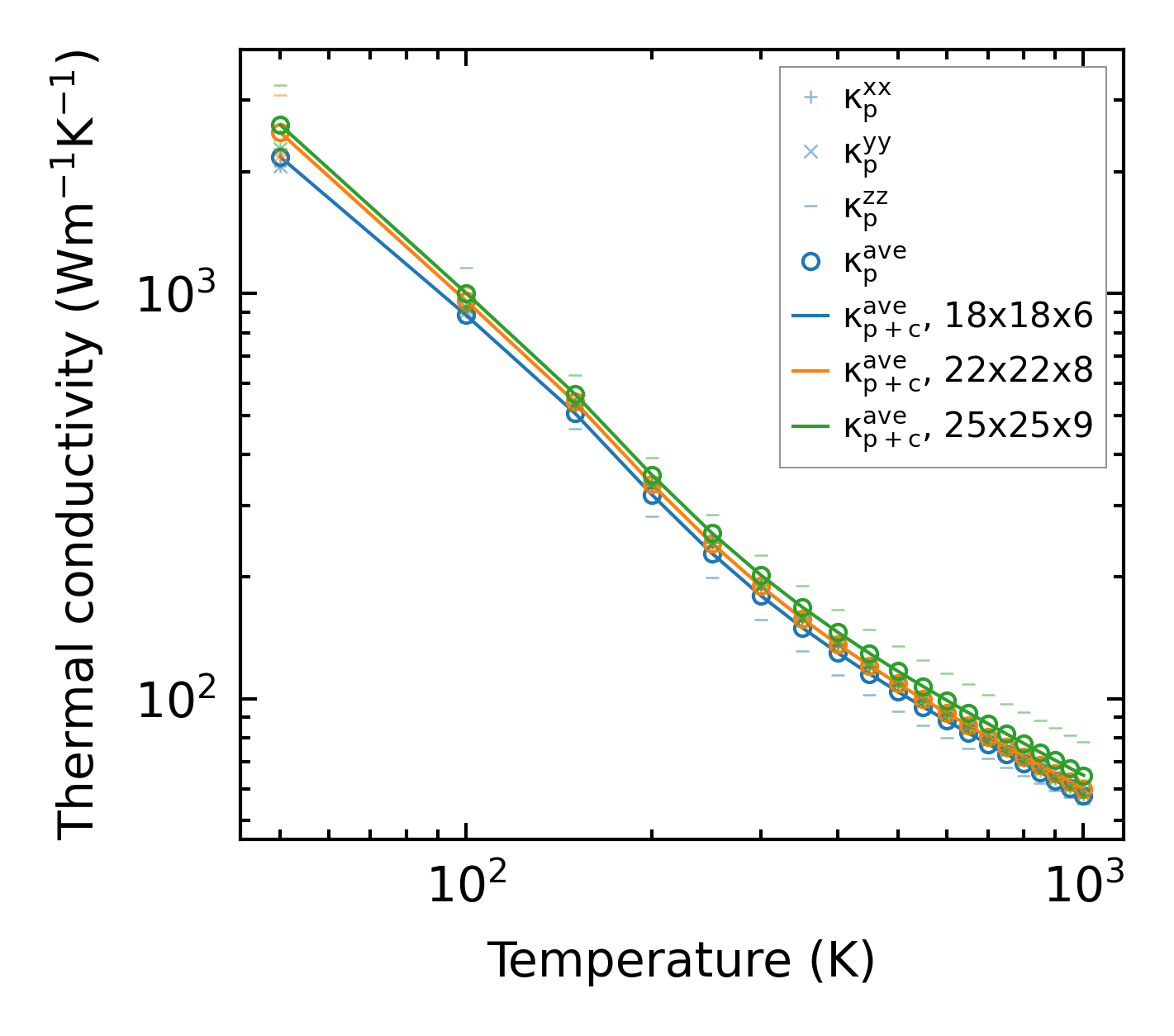

../../_images/fig_kappa13881.png — (a) Temperature-dependent lattice thermal conductivity

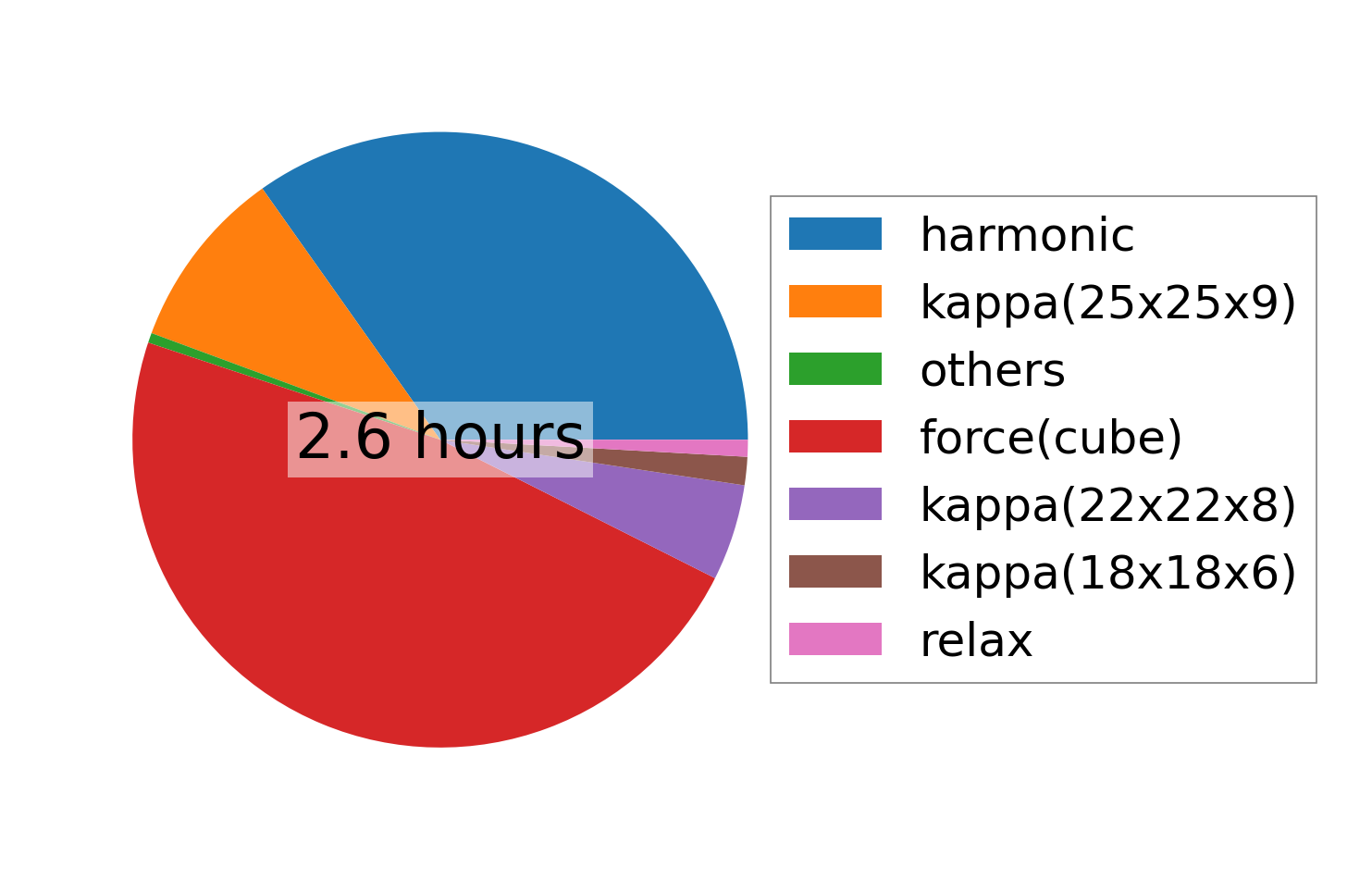

../../_images/fig_times27475.png — (b) Computation time
