mp-1041822/ZnAg2O4/anharm

Space group: P2/c (13)
Link: Materials Project
Download: mp-1041822.tar.gz

Harmonic properties

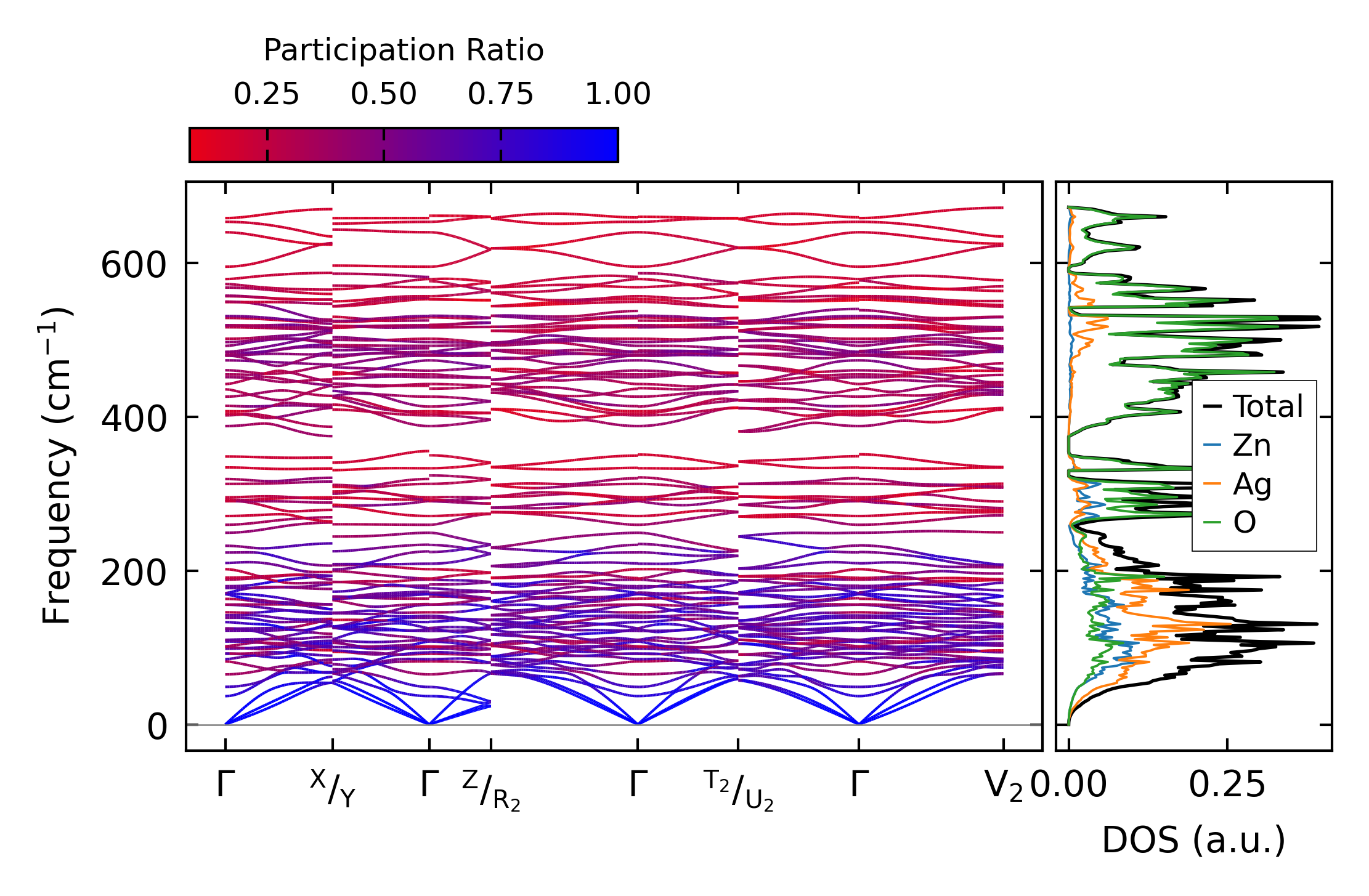

../../_images/fig_bandos_pr17205.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo17204.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all7539.png — (a) Grüneisen parameters

../../_images/fig_gruneisen7539.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x11x6, supercell: 2x2x1

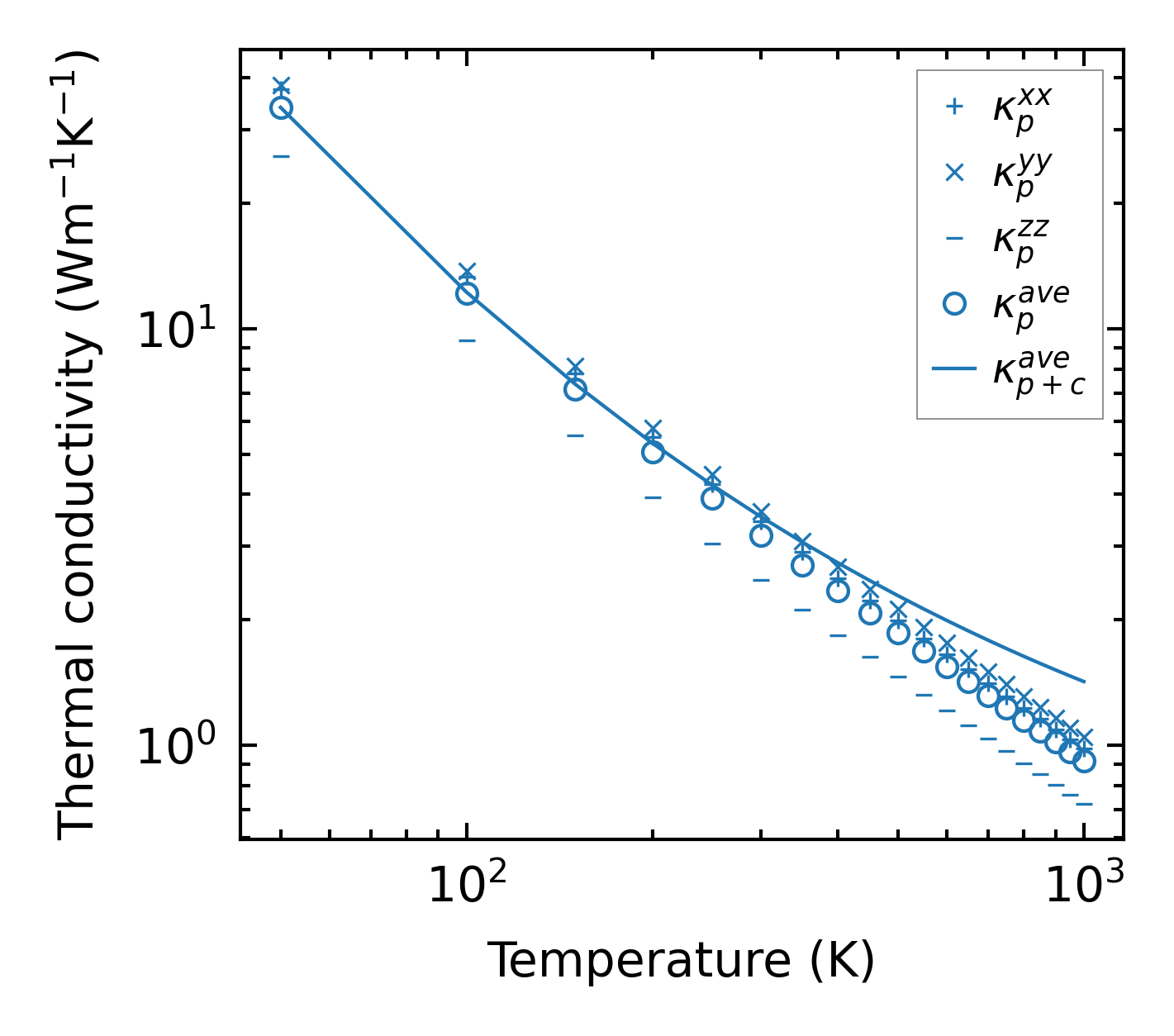

../../_images/fig_kappa14221.png — (a) Temperature-dependent lattice thermal conductivity

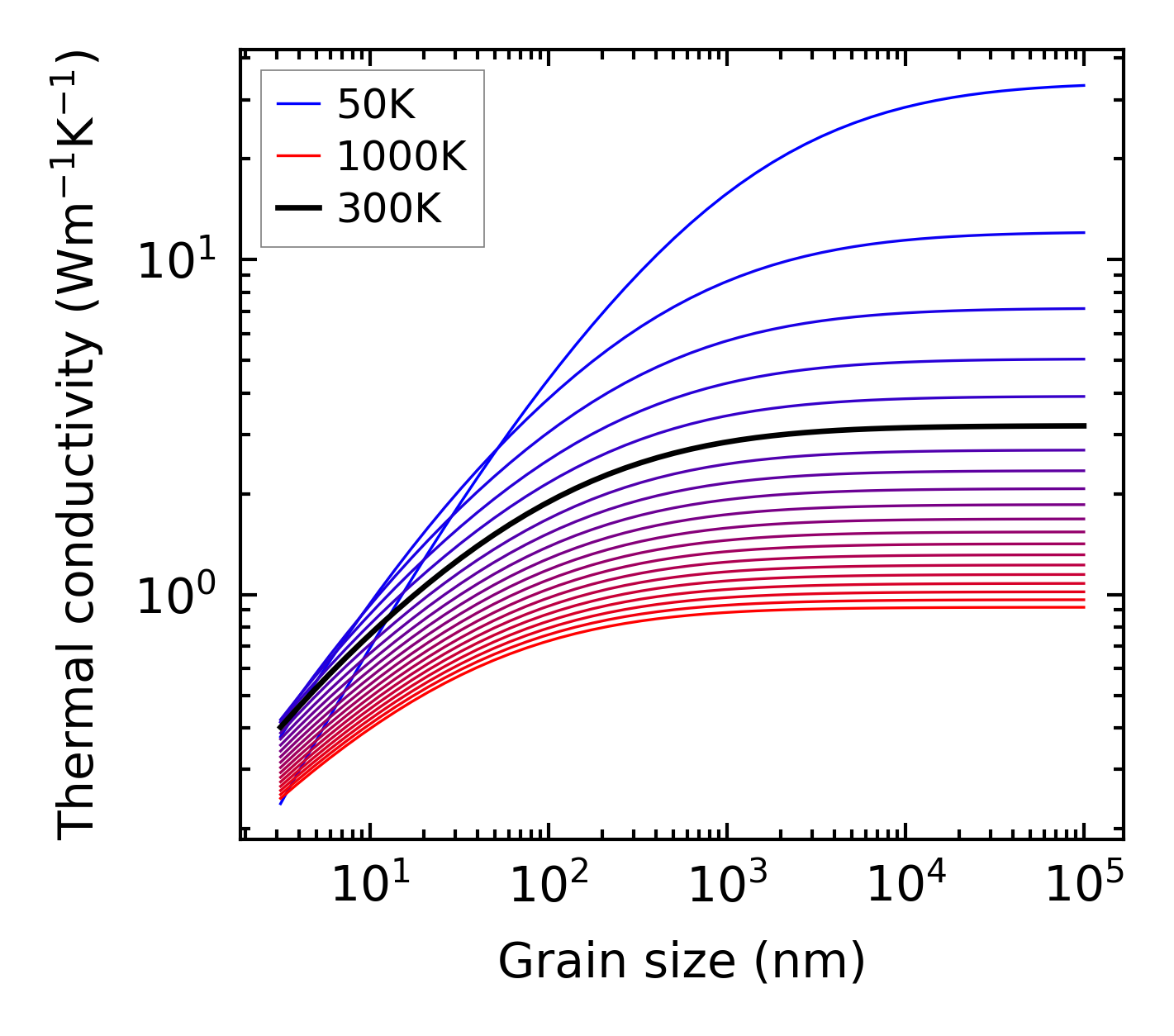

../../_images/fig_kappa_vs_grain_size7628.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime7471.png — (a) Phonon lifetime due to phonon-phonon scattering

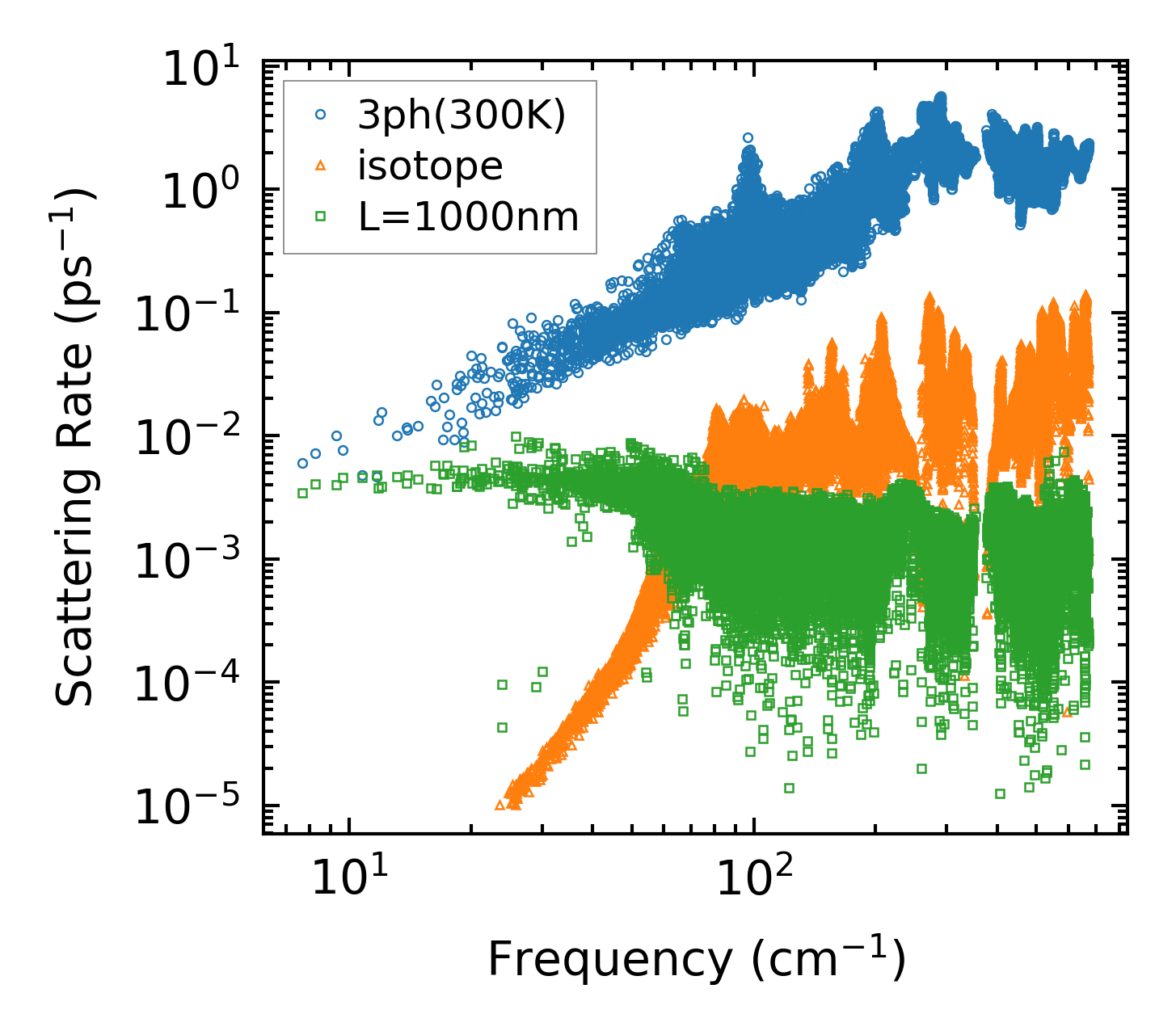

../../_images/fig_scat_rates7470.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

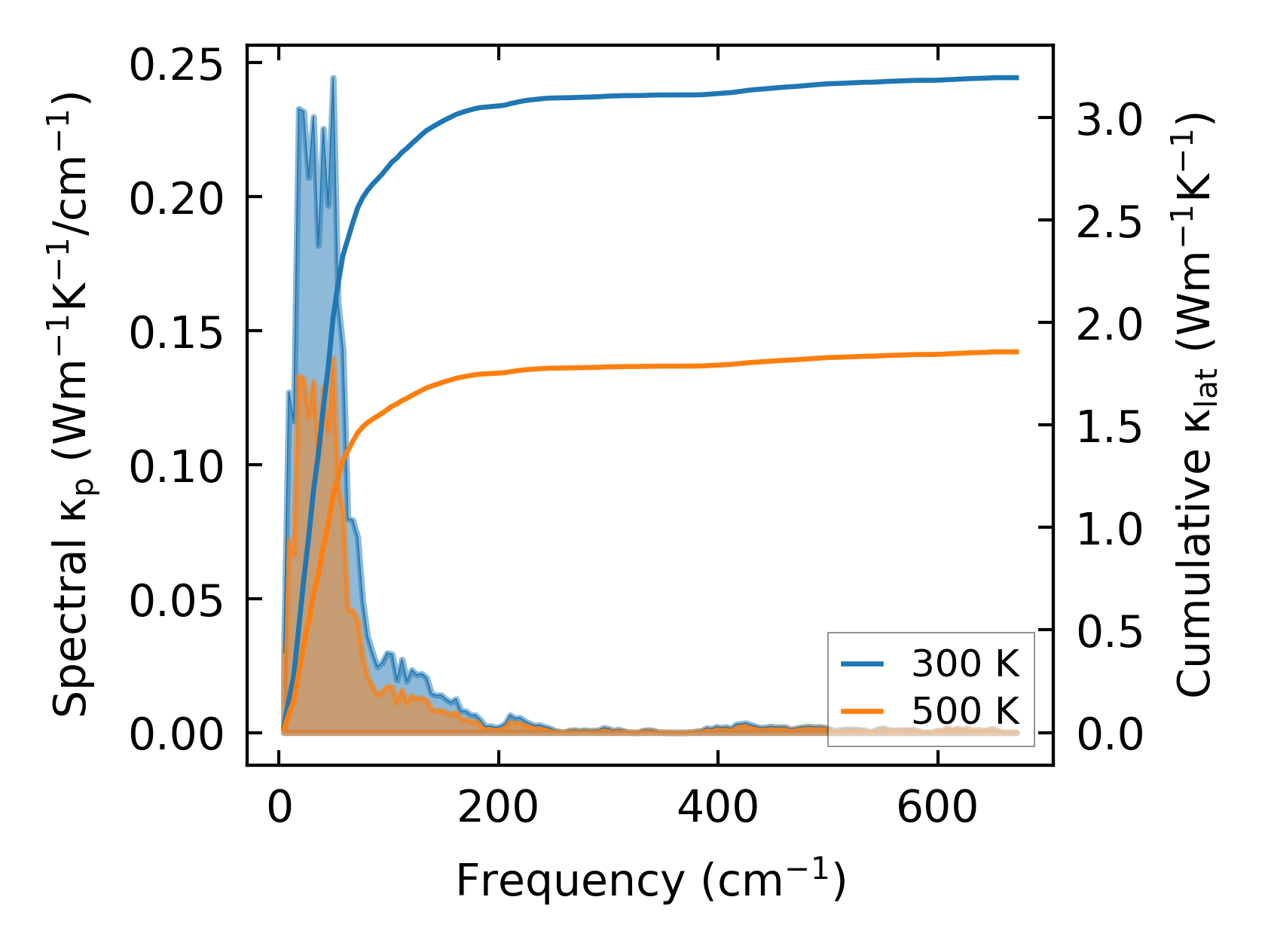

../../_images/fig_cumu_frequency7471.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

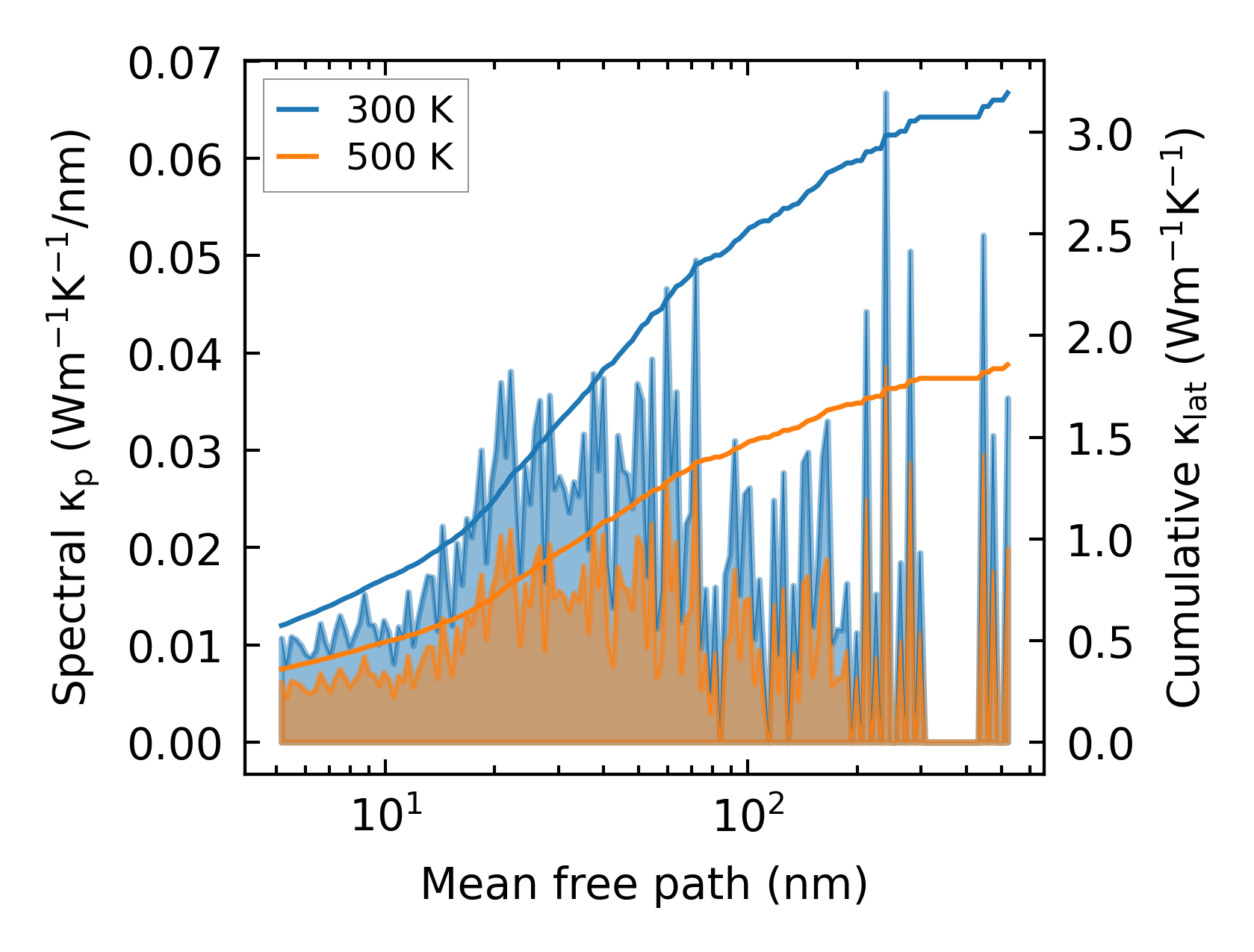

../../_images/fig_cumu_mfp7470.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

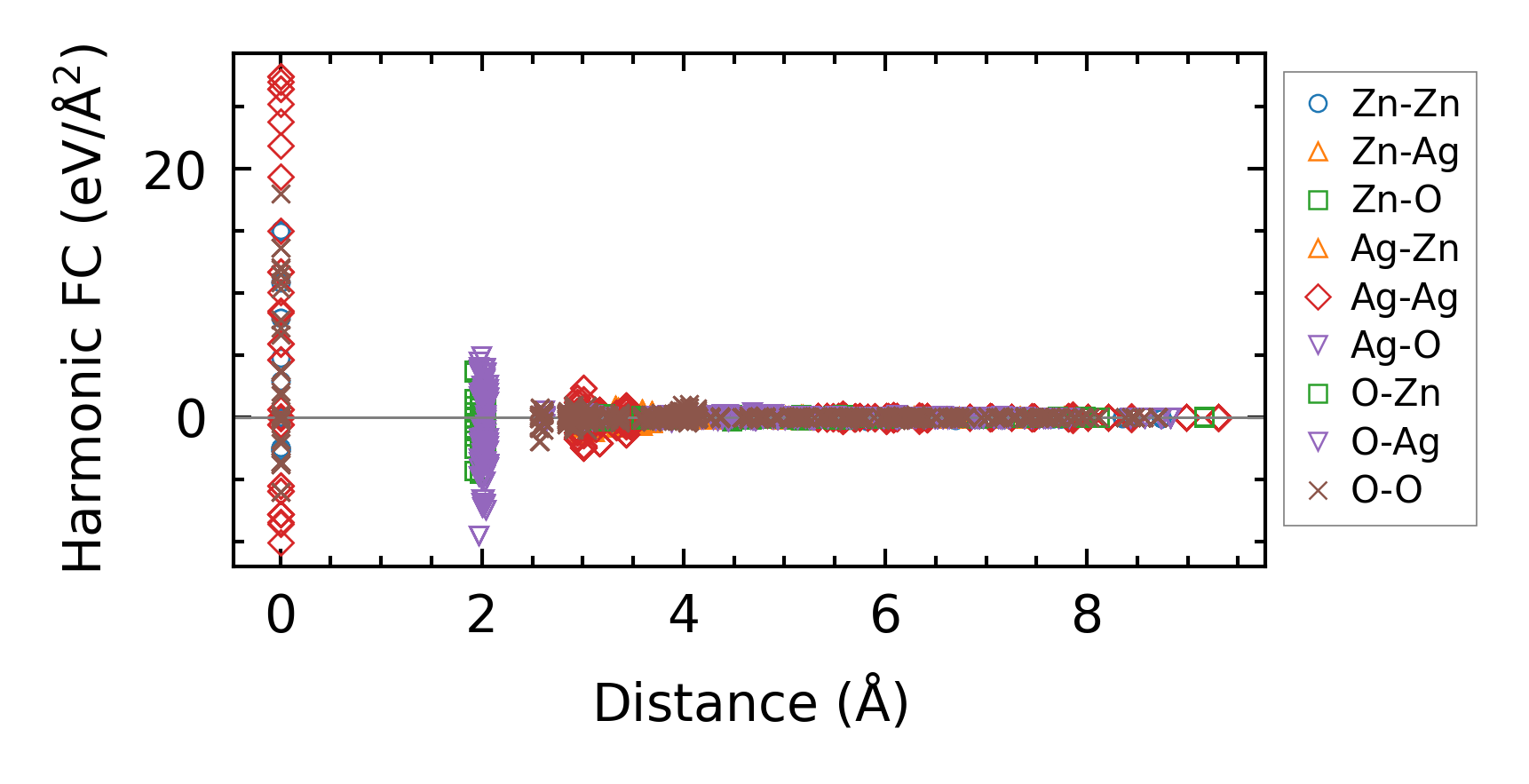

../../_images/fig_fc216746.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa14222.png — (a) Temperature-dependent lattice thermal conductivity

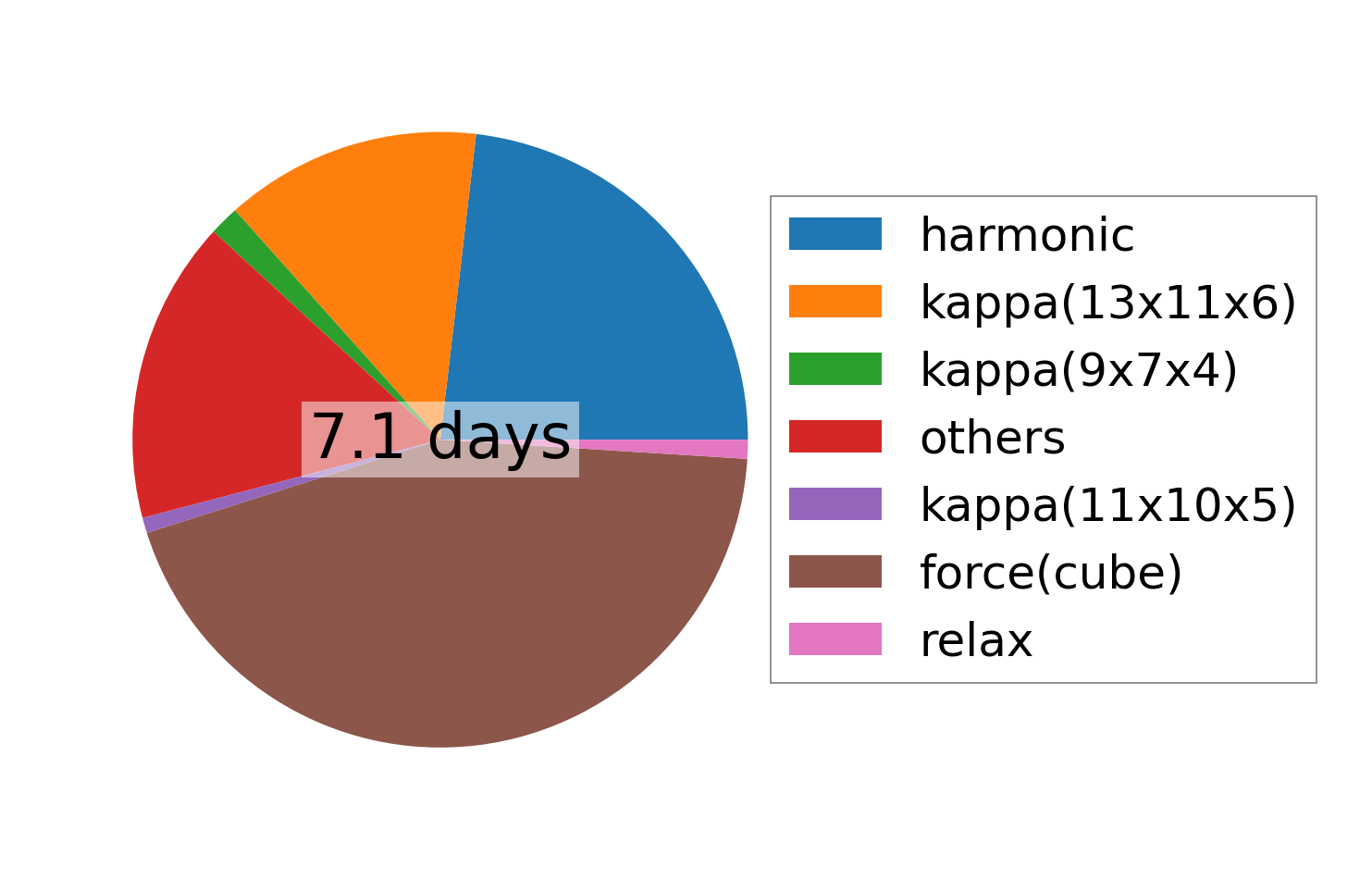

../../_images/fig_times28133.png — (b) Computation time
