mp-1041631/MgCu2O4/anharm

Space group: Pbcm (57)
Link: Materials Project
Download: mp-1041631.tar.gz

Harmonic properties

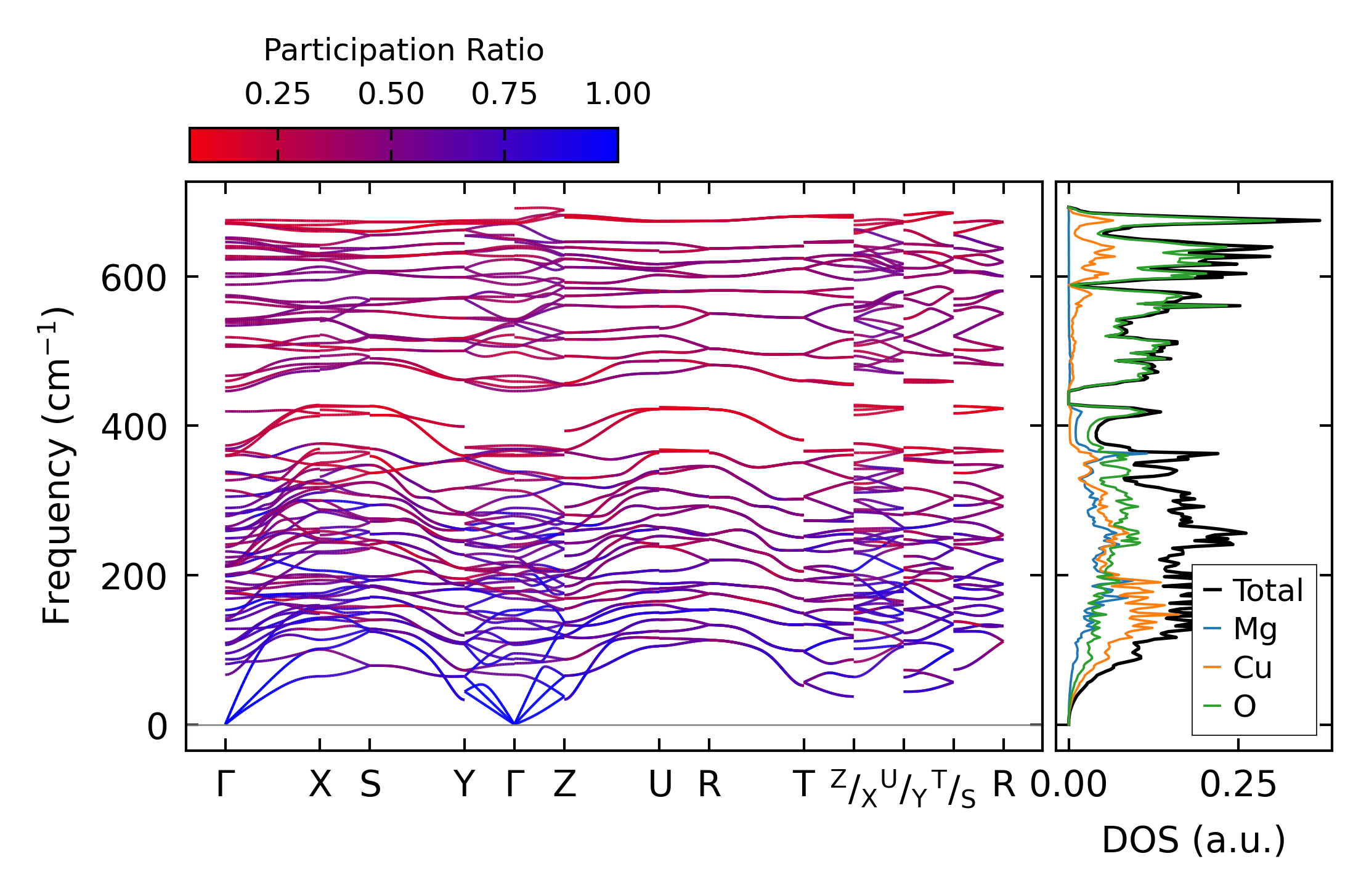

../../_images/fig_bandos_pr17203.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo17202.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all7537.png — (a) Grüneisen parameters

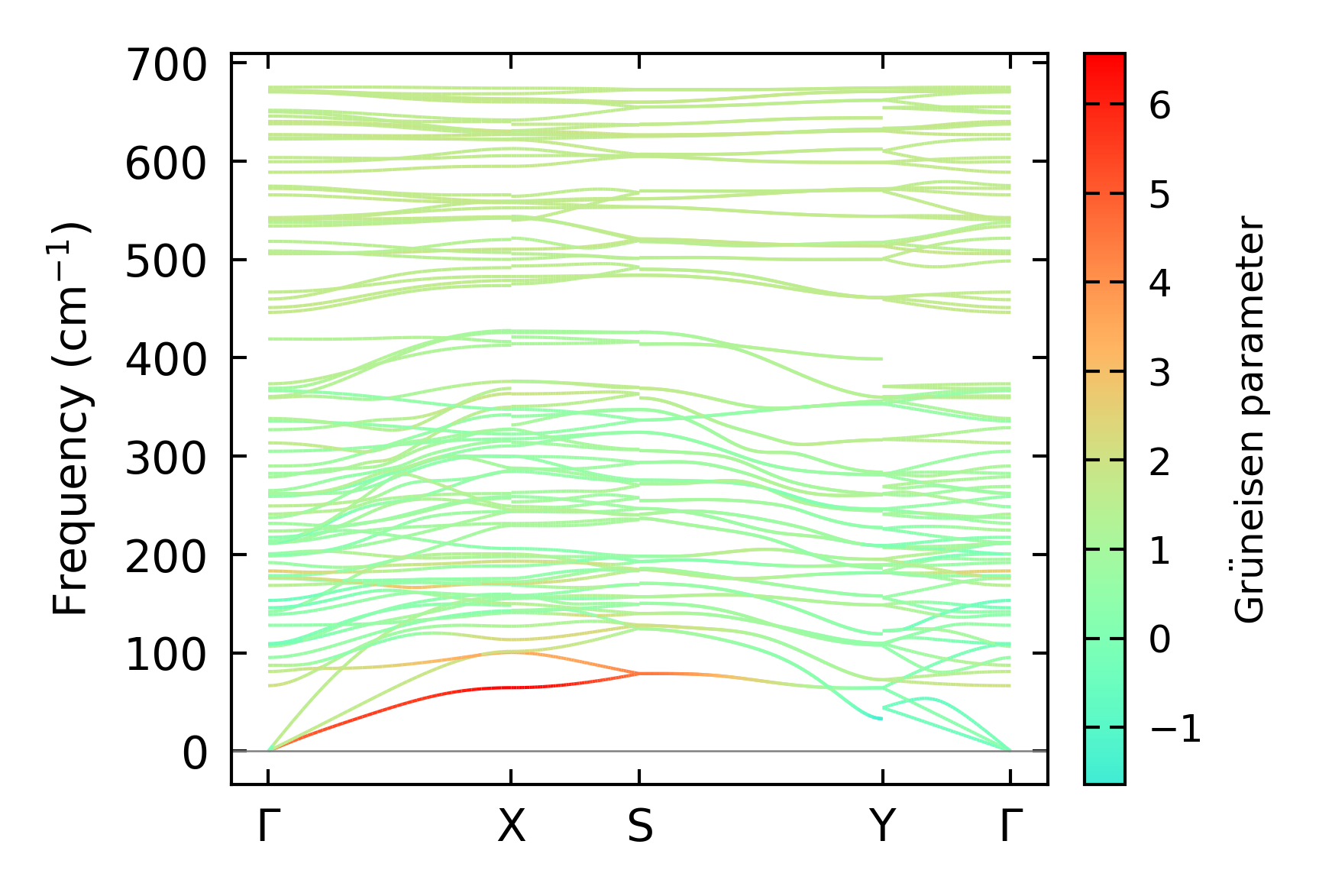

../../_images/fig_gruneisen7537.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 23x7x7, supercell: 3x1x1

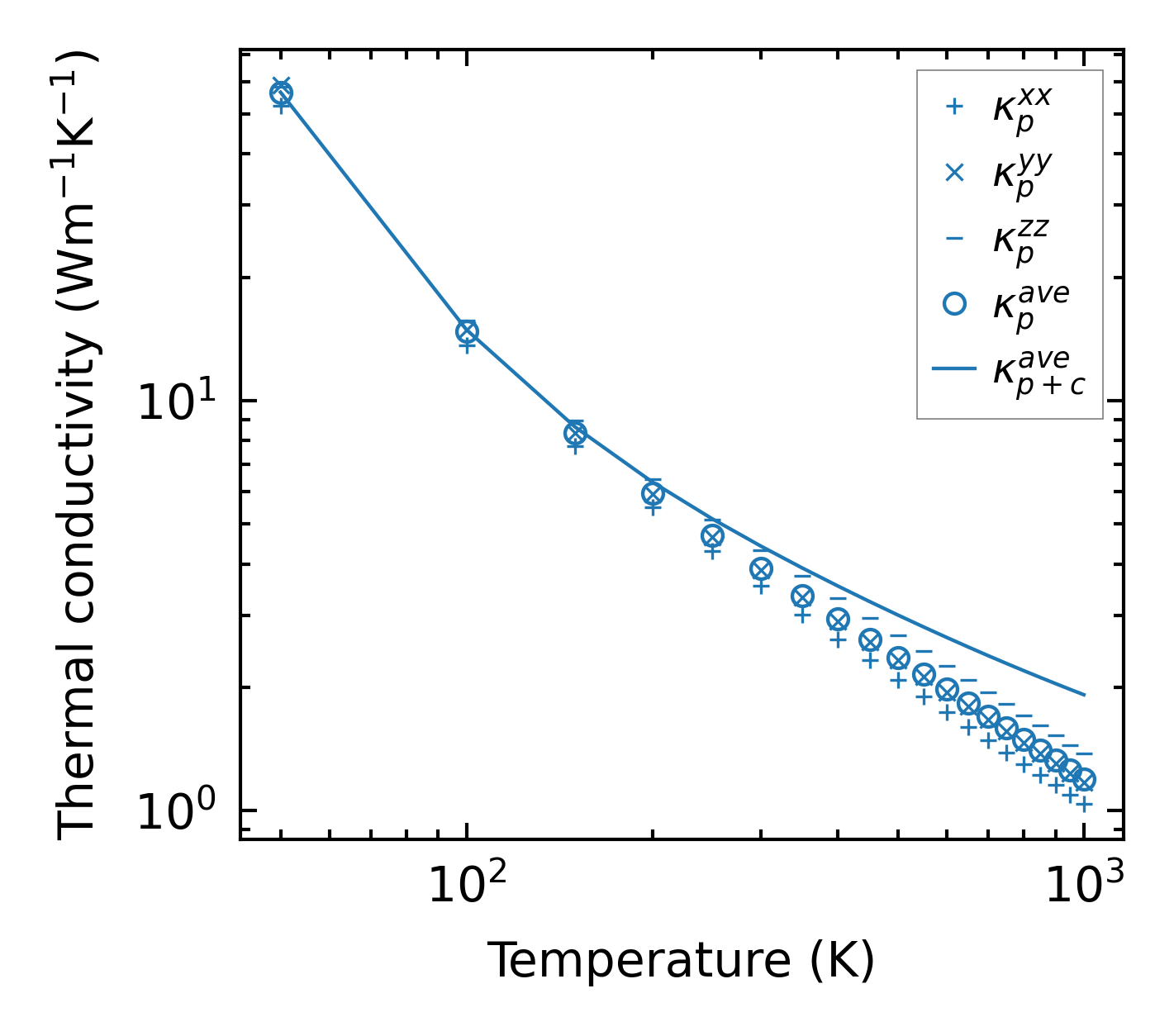

../../_images/fig_kappa14217.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7626.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime7469.png — (a) Phonon lifetime due to phonon-phonon scattering

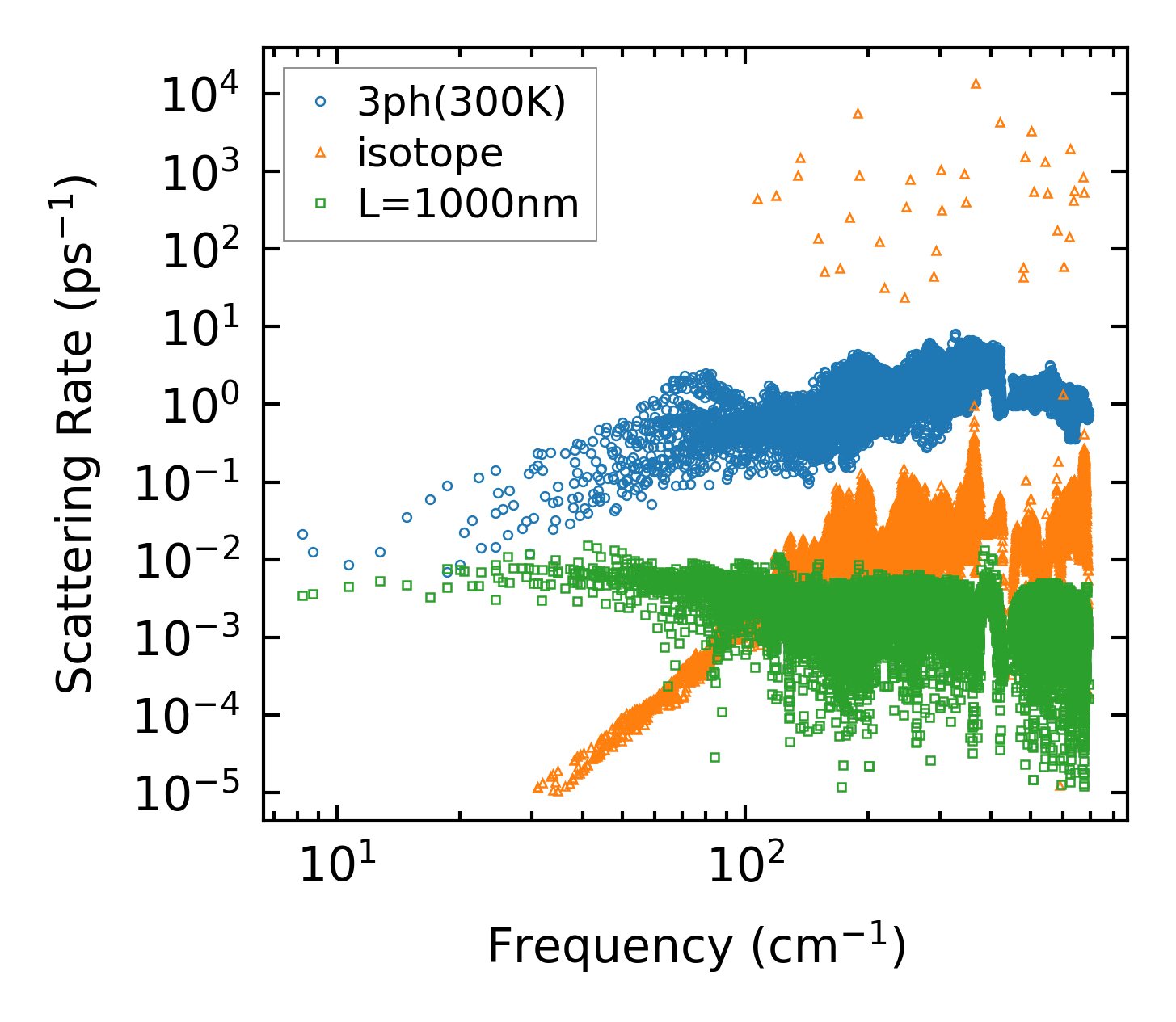

../../_images/fig_scat_rates7468.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

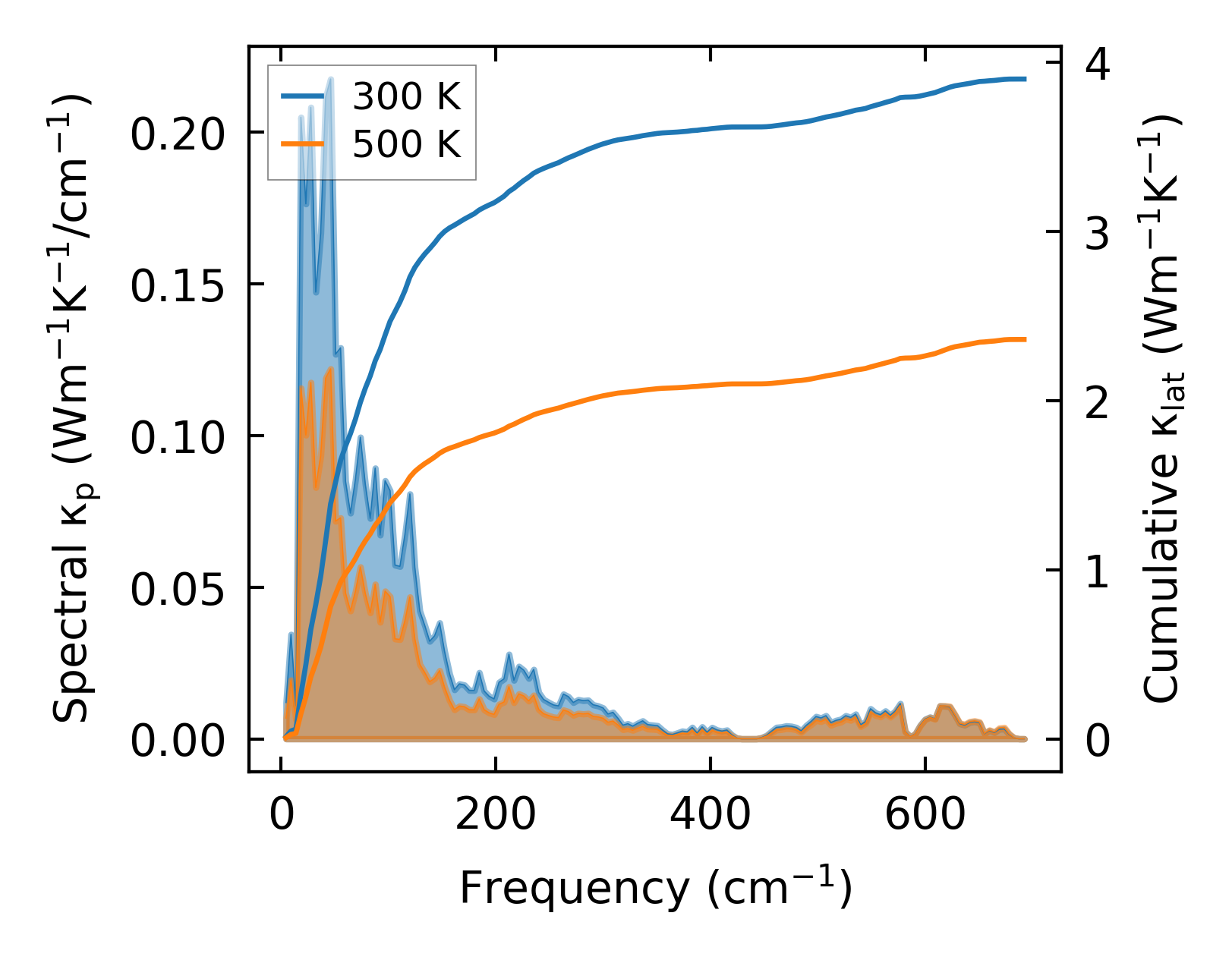

../../_images/fig_cumu_frequency7469.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

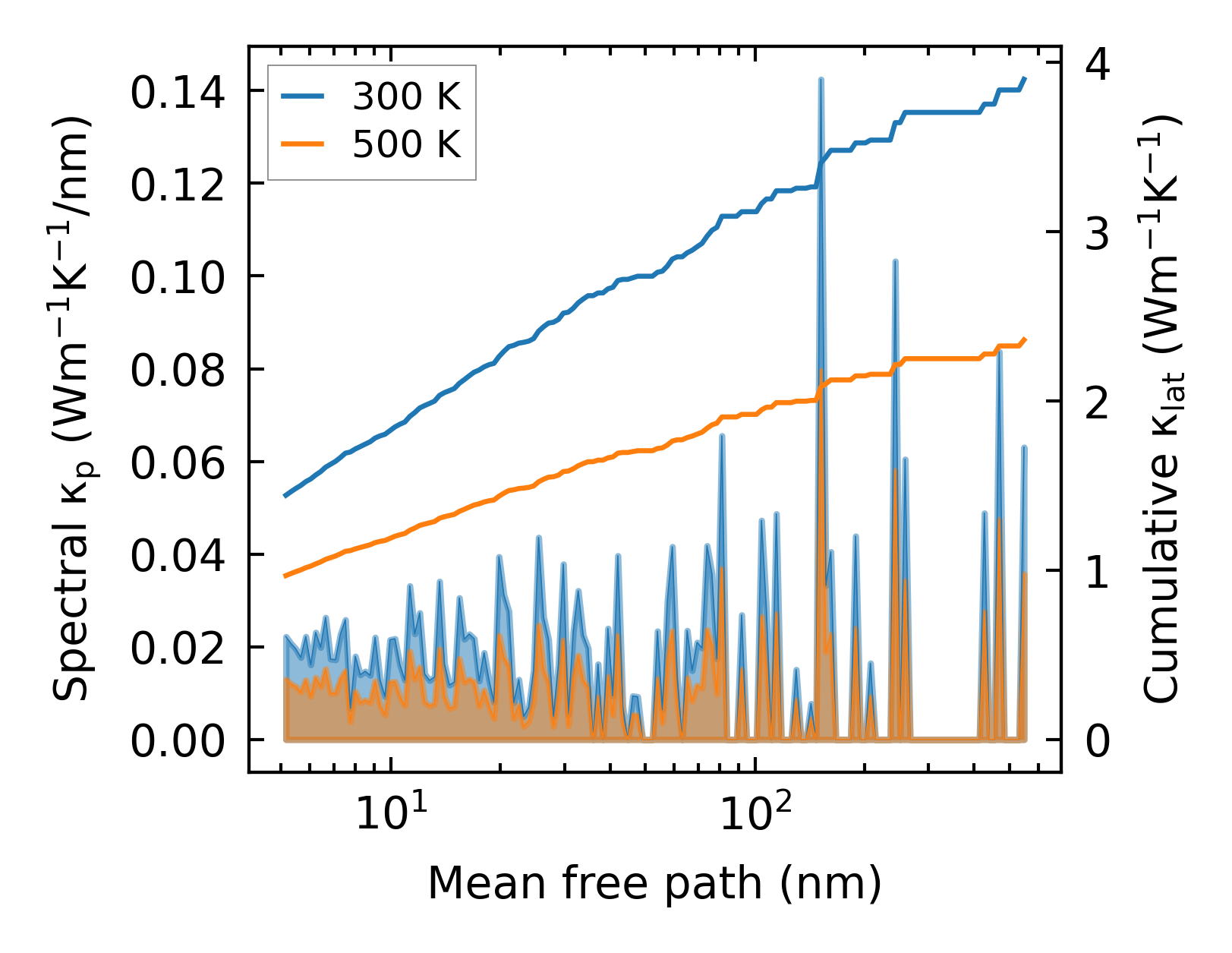

../../_images/fig_cumu_mfp7468.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc216744.png — (a) Force constants w.r.t atomic distance

Summary

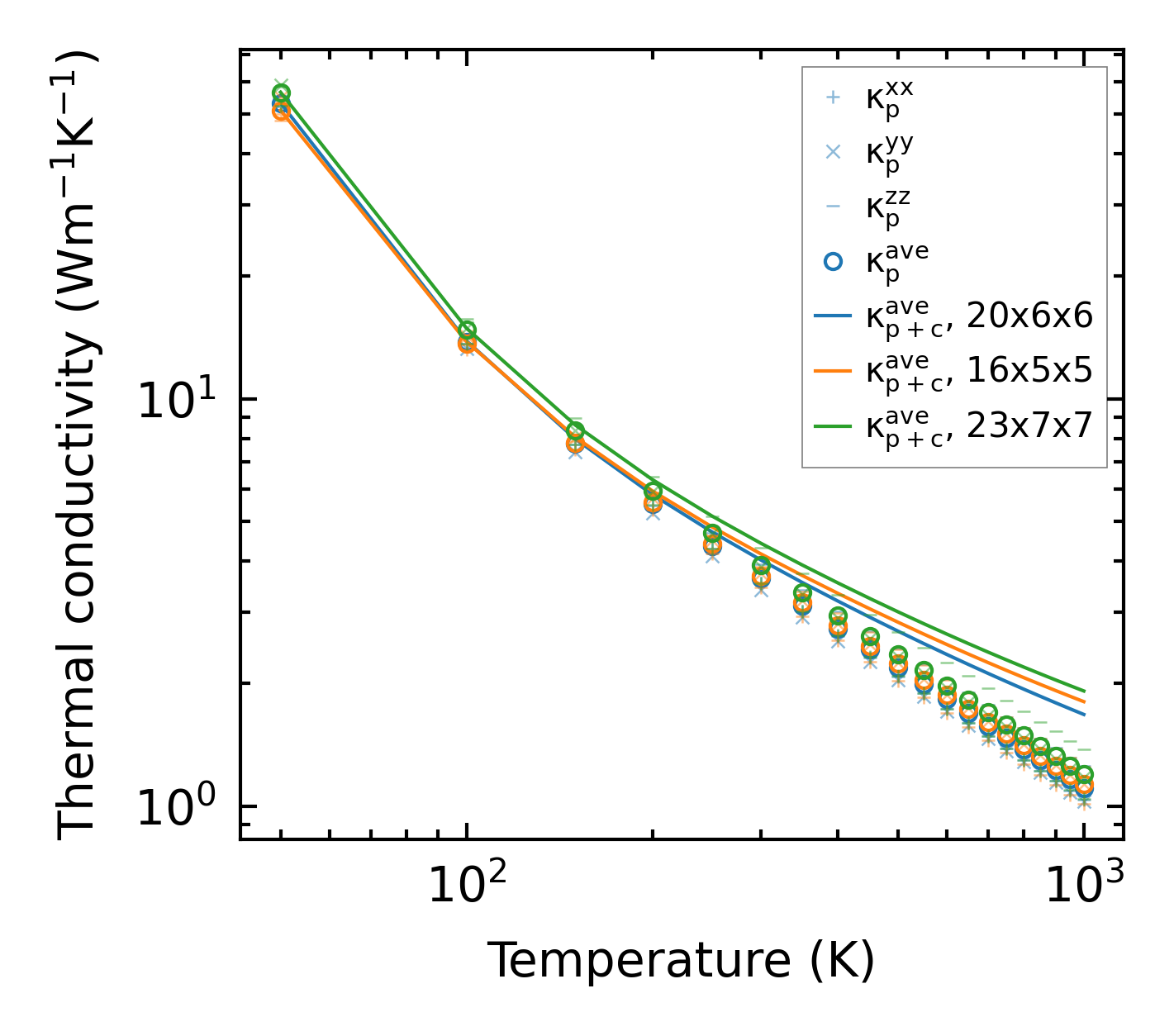

../../_images/fig_kappa14218.png — (a) Temperature-dependent lattice thermal conductivity

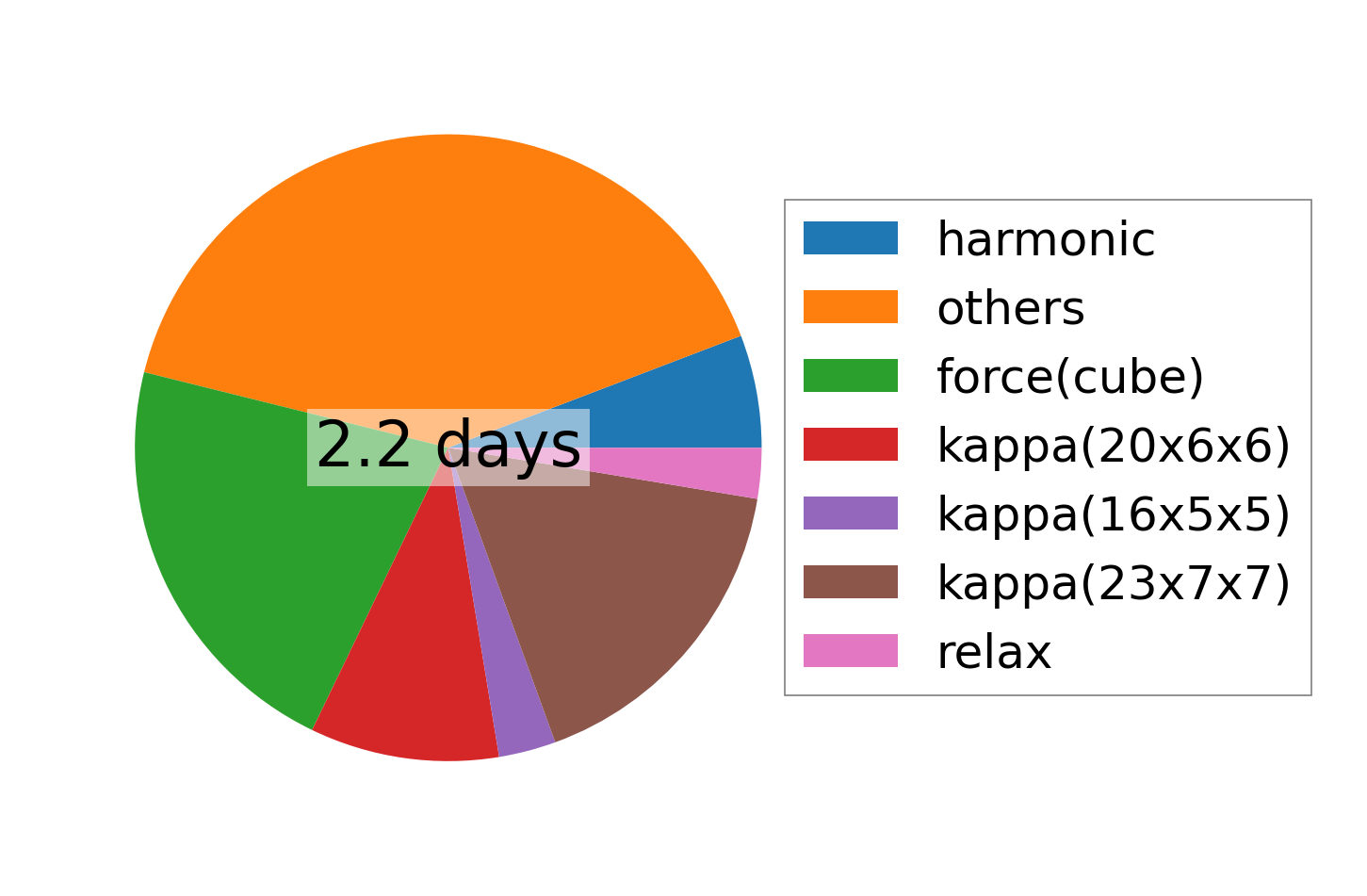

../../_images/fig_times28118.png — (b) Computation time
