mp-980666/SrDy2S4/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-980666.tar.gz

Harmonic properties

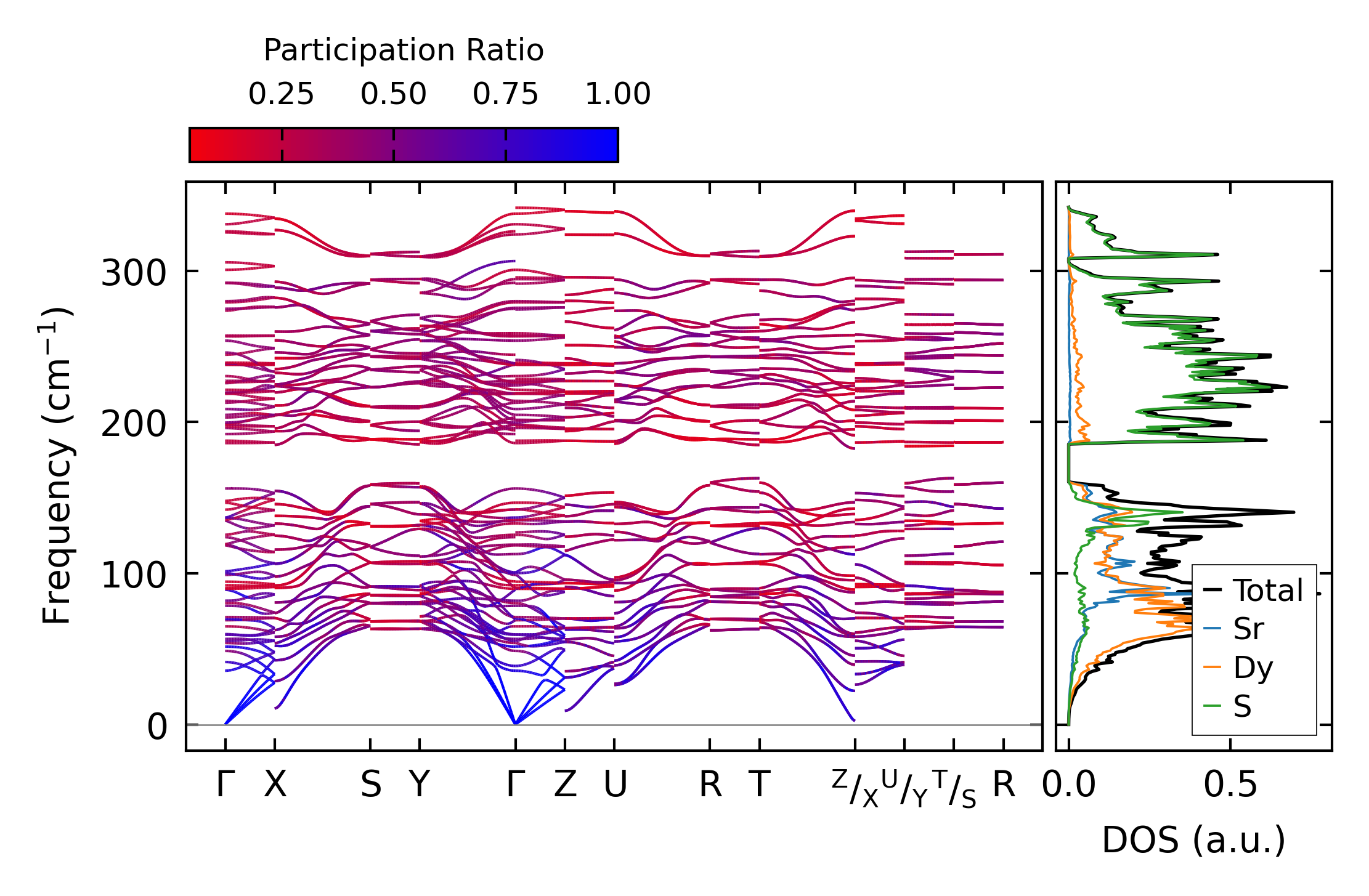

../../_images/fig_bandos_pr1077.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1077.png — (b) Thermodynamic properties

Grüneisen parameters

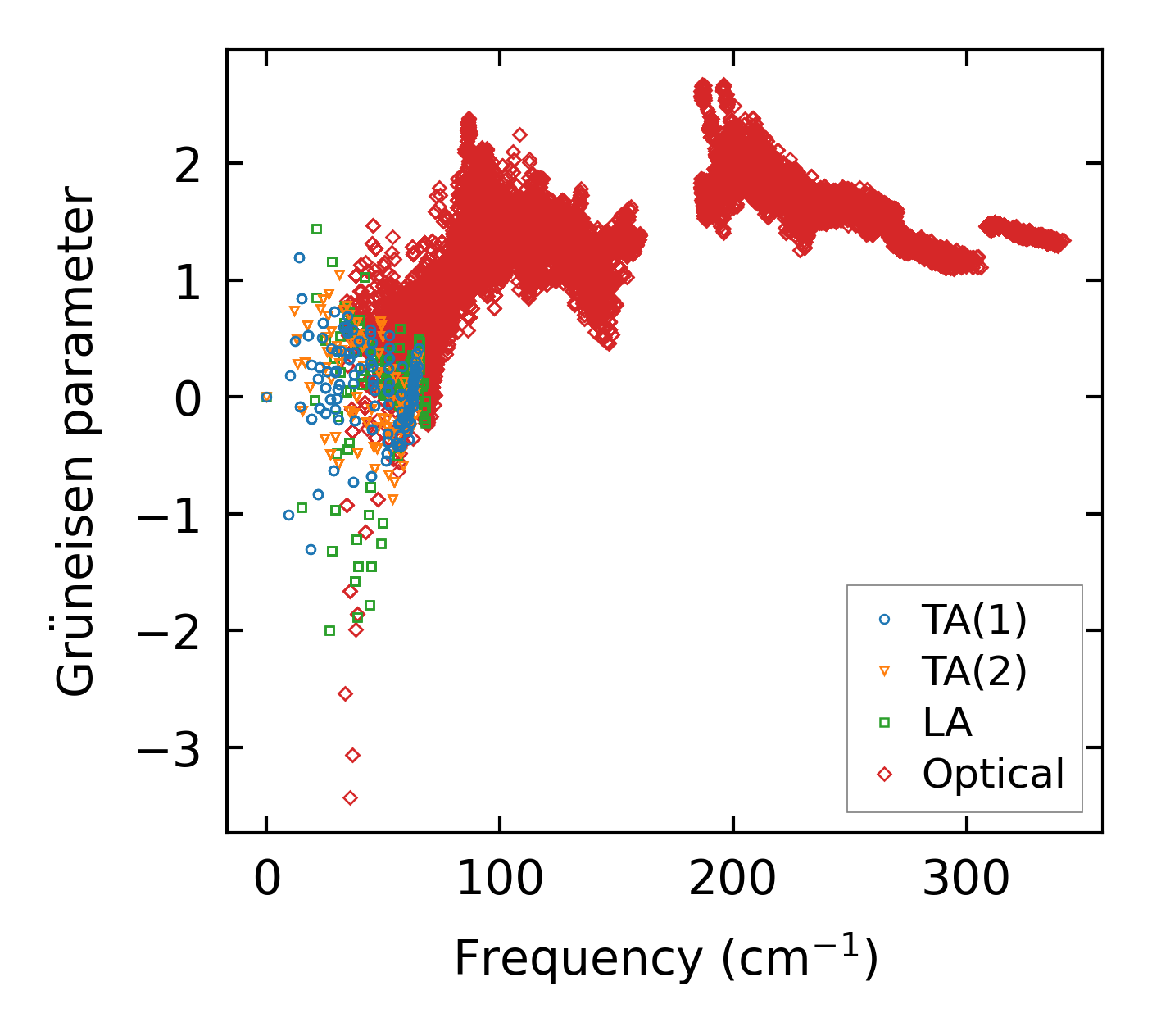

../../_images/fig_gru_all662.png — (a) Grüneisen parameters

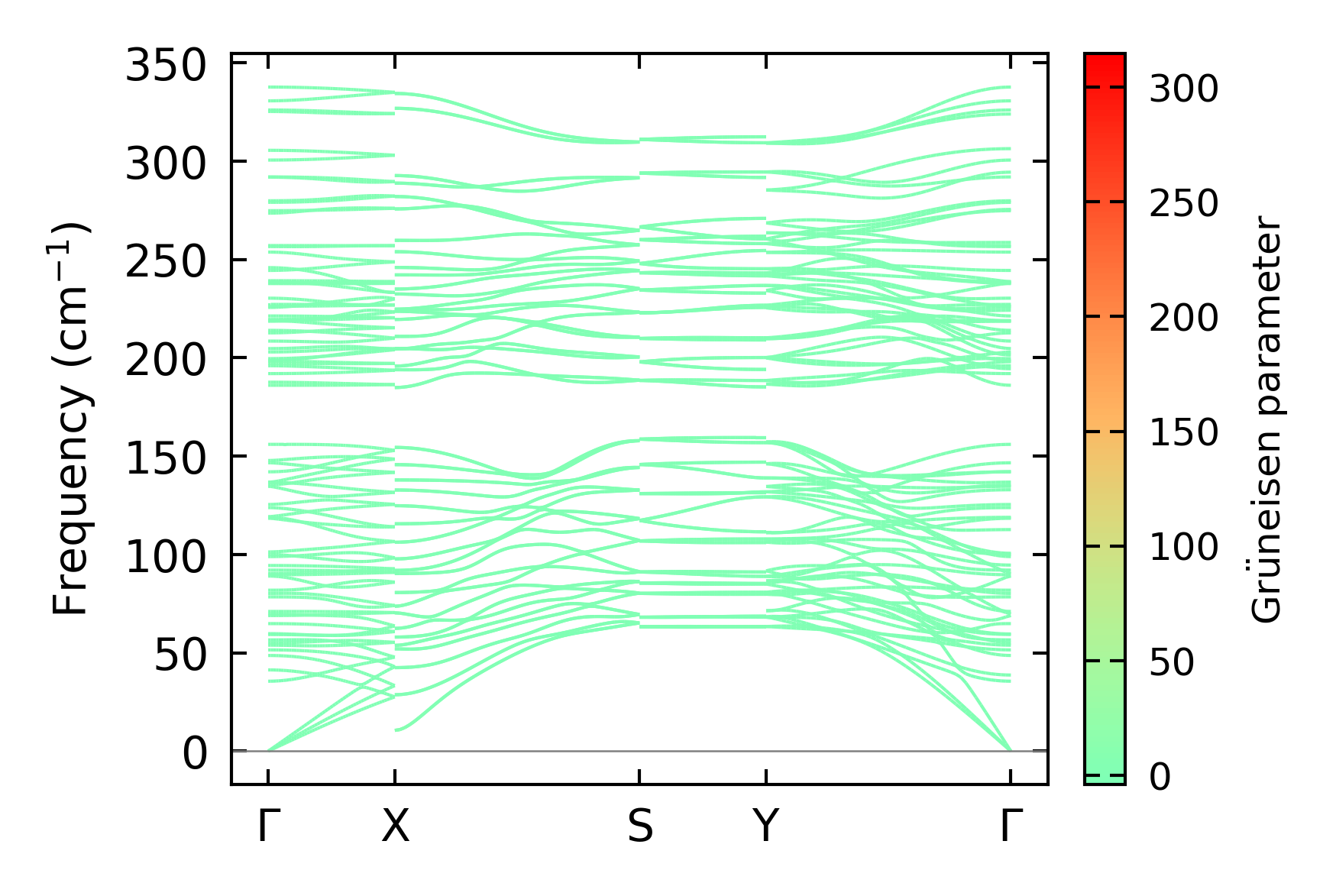

../../_images/fig_gruneisen662.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x18x5, supercell: 1x3x1

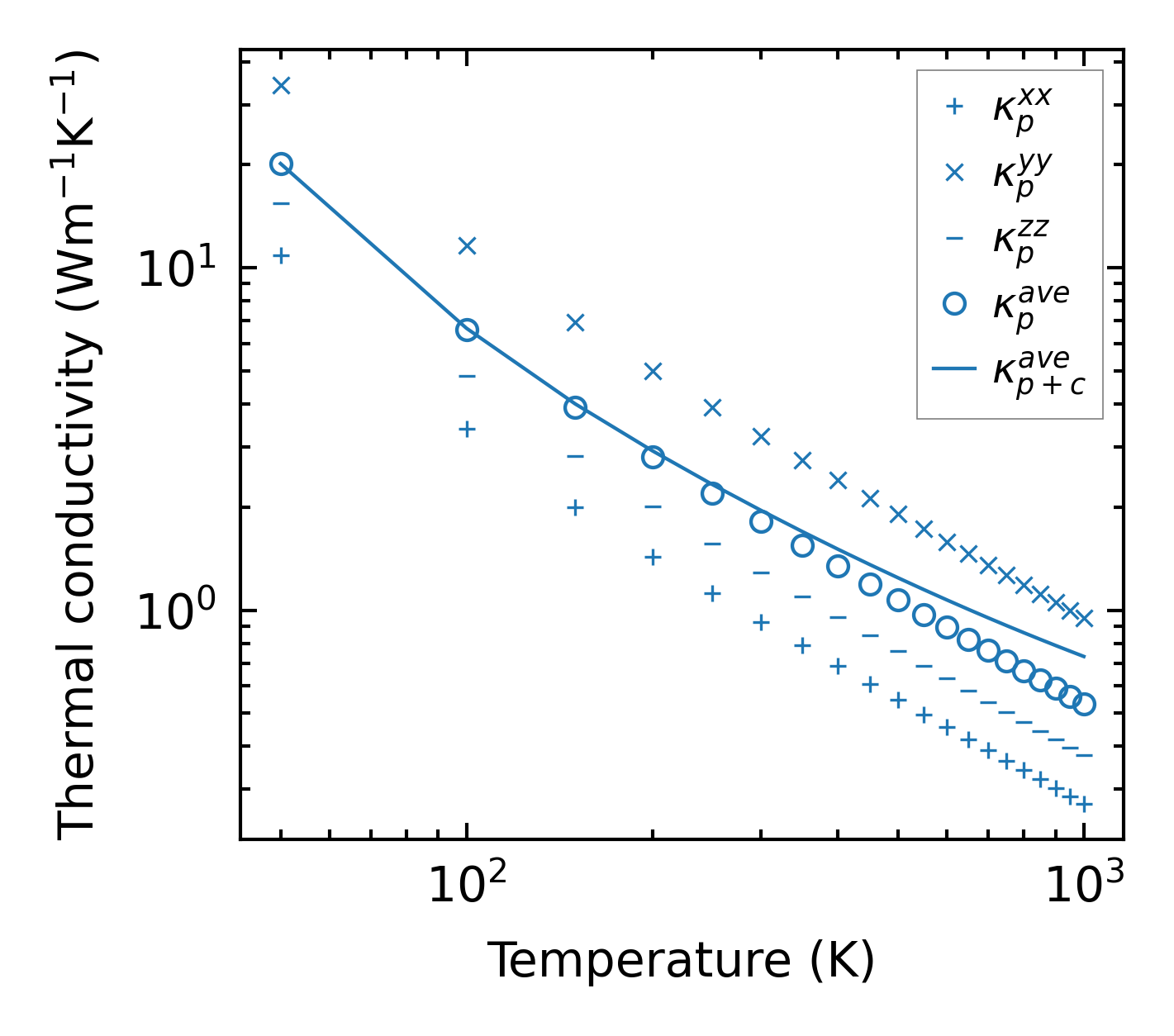

../../_images/fig_kappa1290.png — (a) Temperature-dependent lattice thermal conductivity

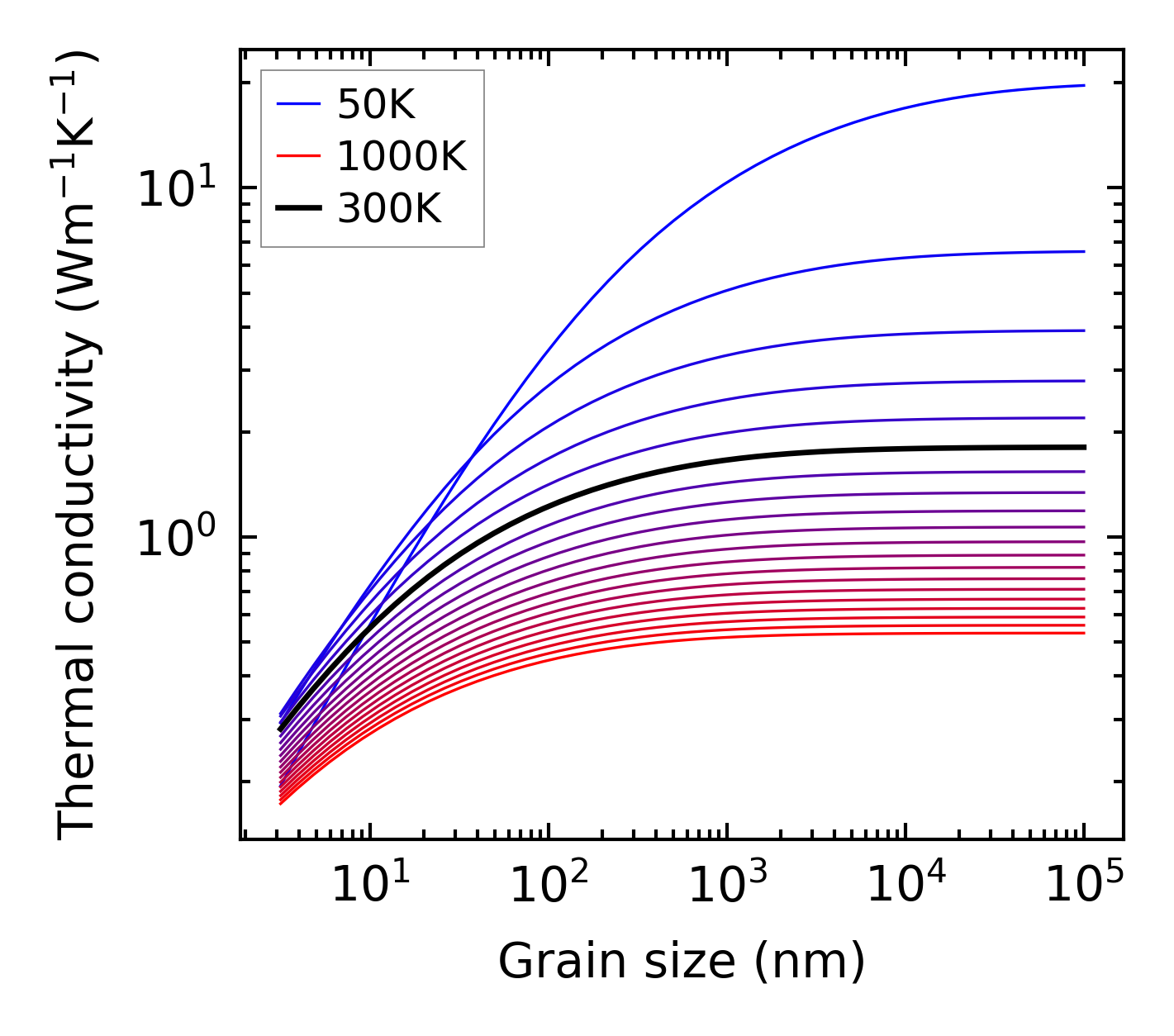

../../_images/fig_kappa_vs_grain_size670.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

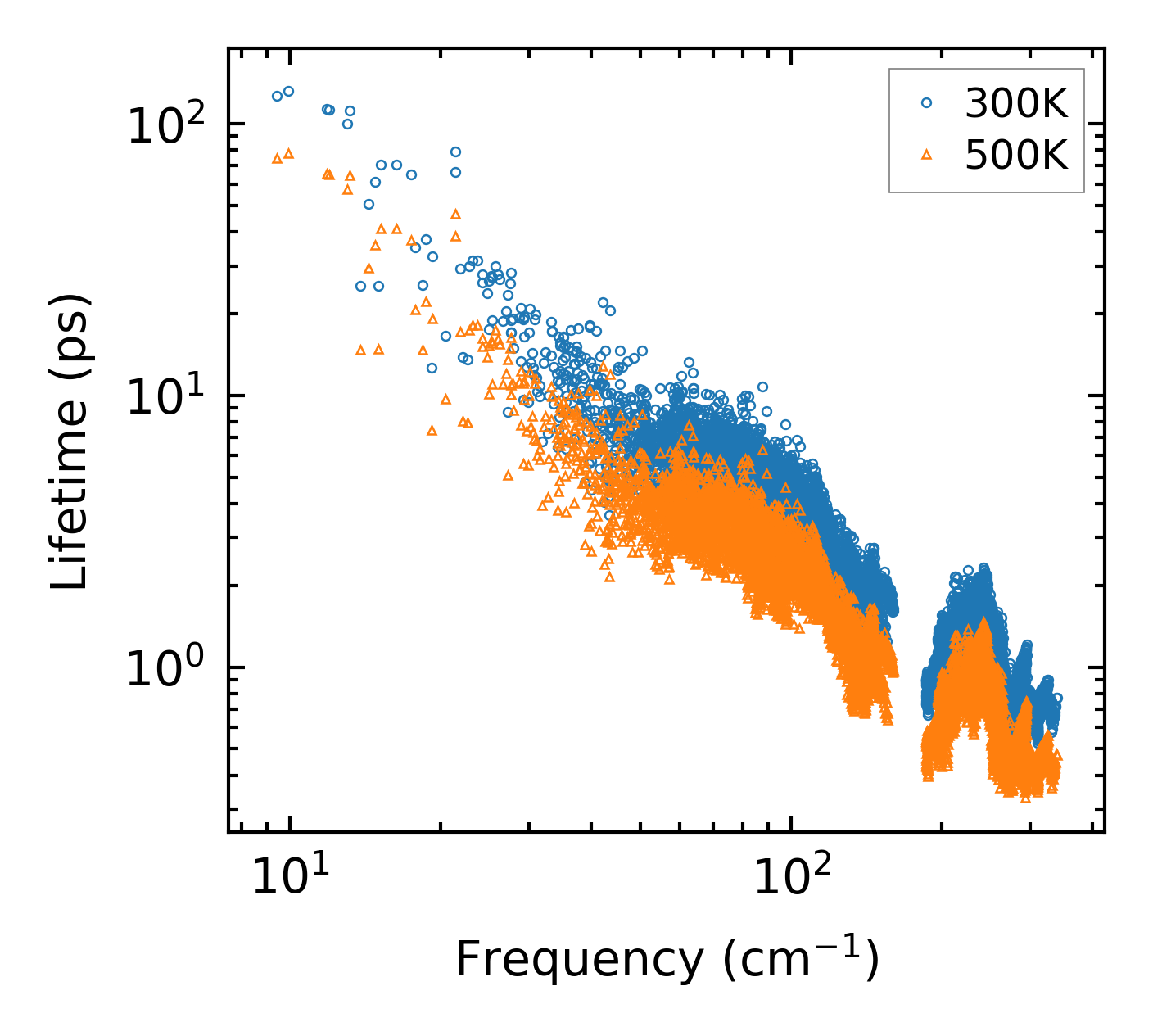

../../_images/fig_lifetime660.png — (a) Phonon lifetime due to phonon-phonon scattering

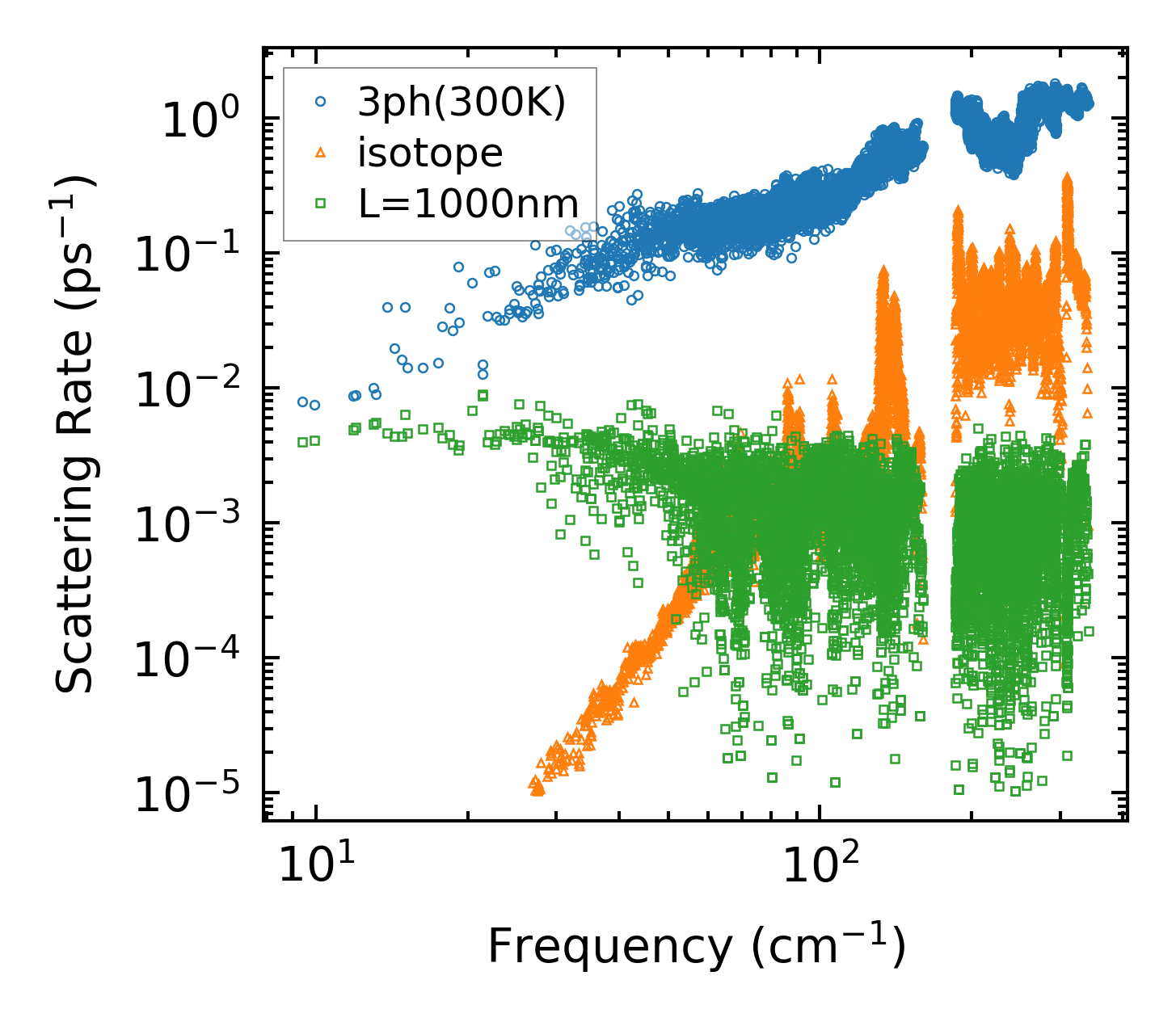

../../_images/fig_scat_rates659.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

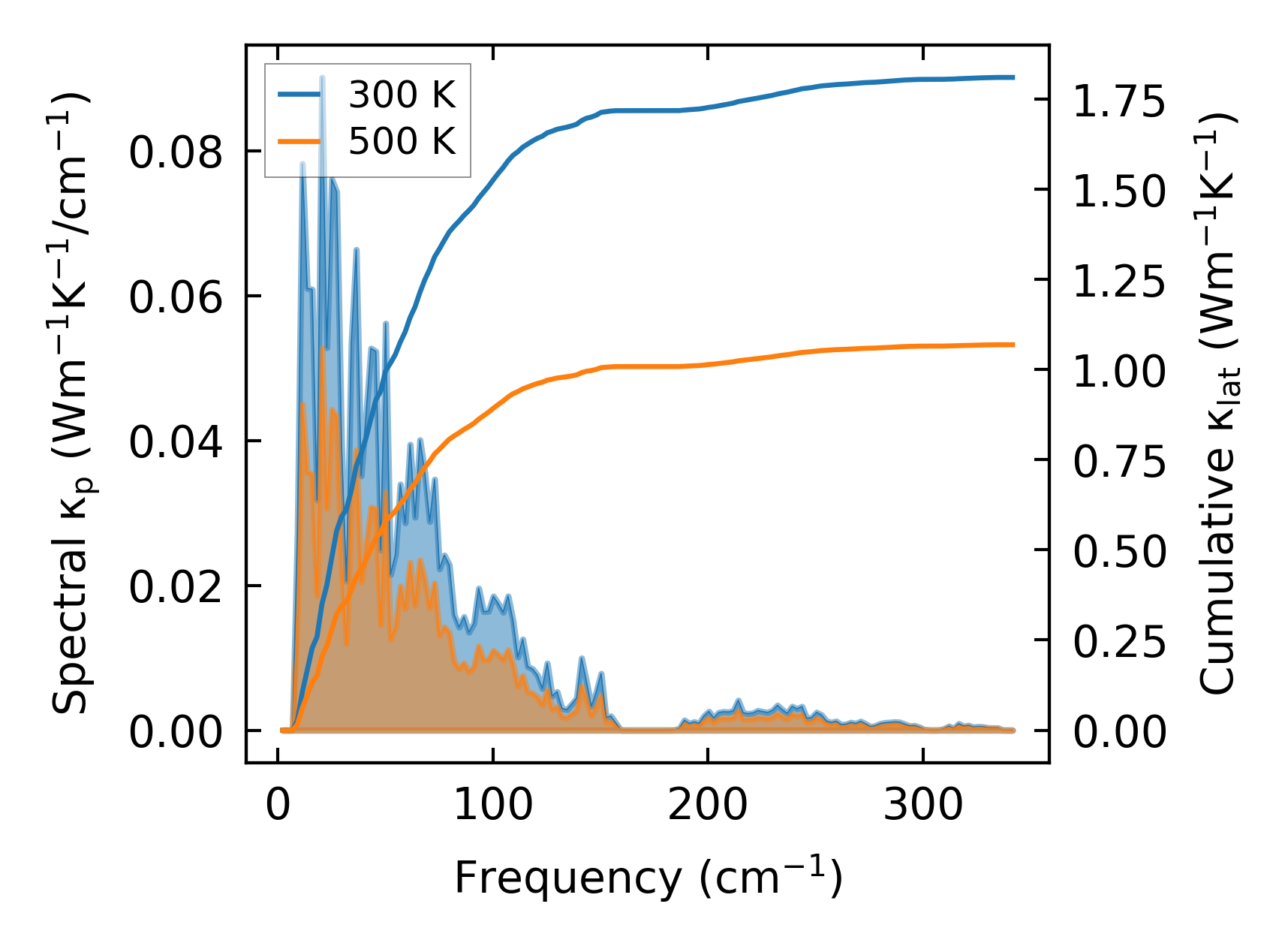

../../_images/fig_cumu_frequency660.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

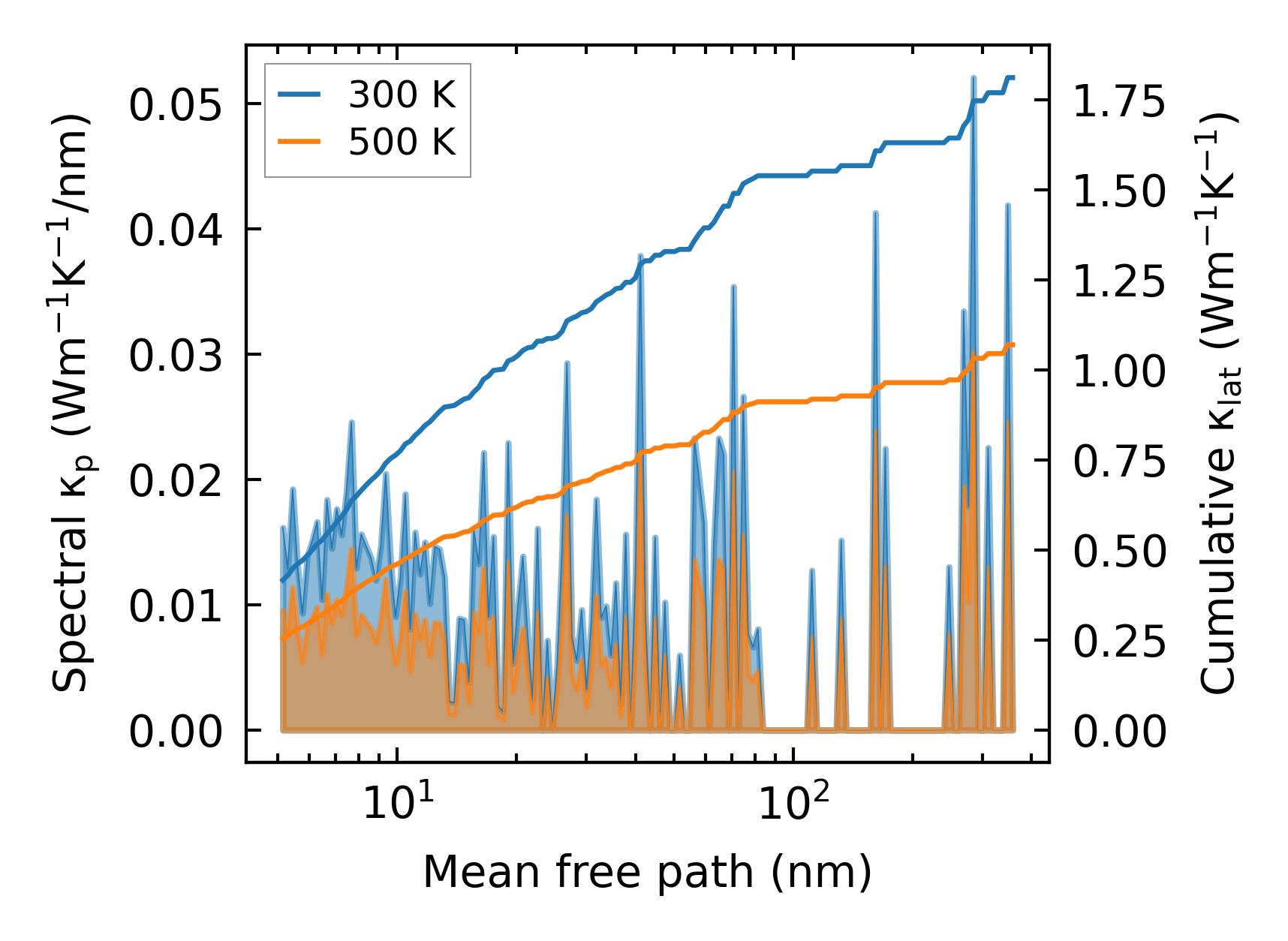

../../_images/fig_cumu_mfp660.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

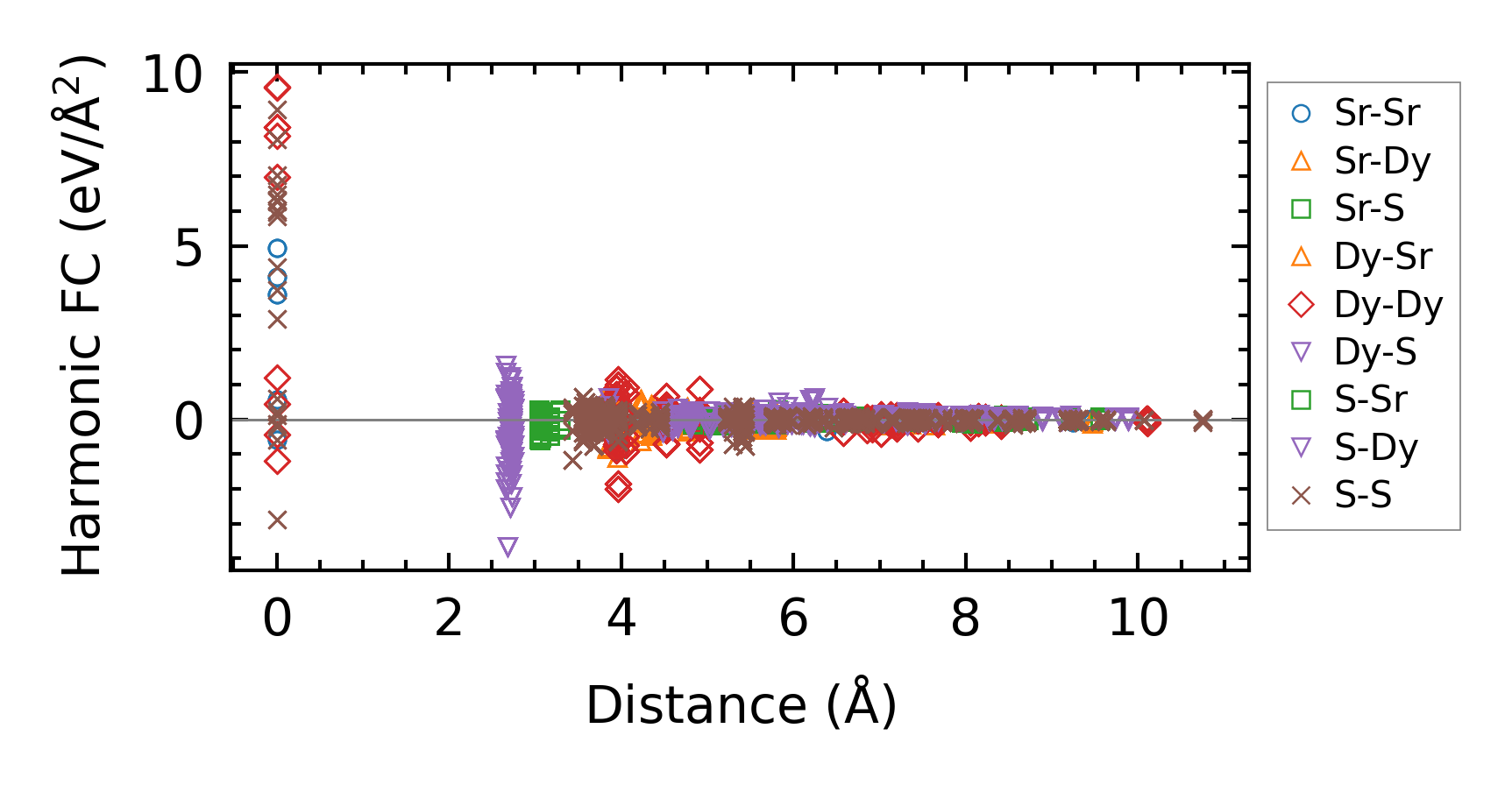

../../_images/fig_fc2945.png — (a) Force constants w.r.t atomic distance

Summary

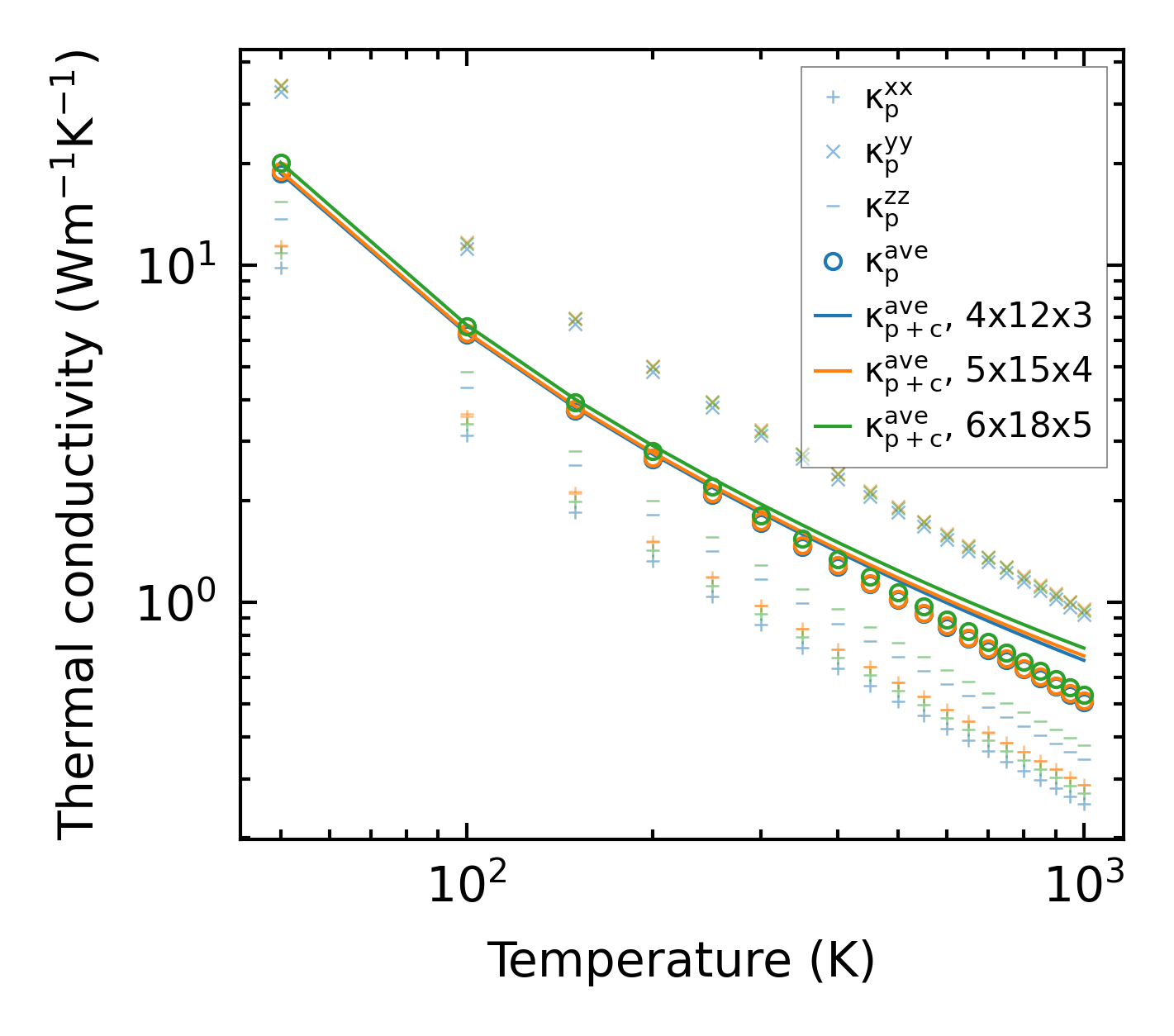

../../_images/fig_kappa1291.png — (a) Temperature-dependent lattice thermal conductivity

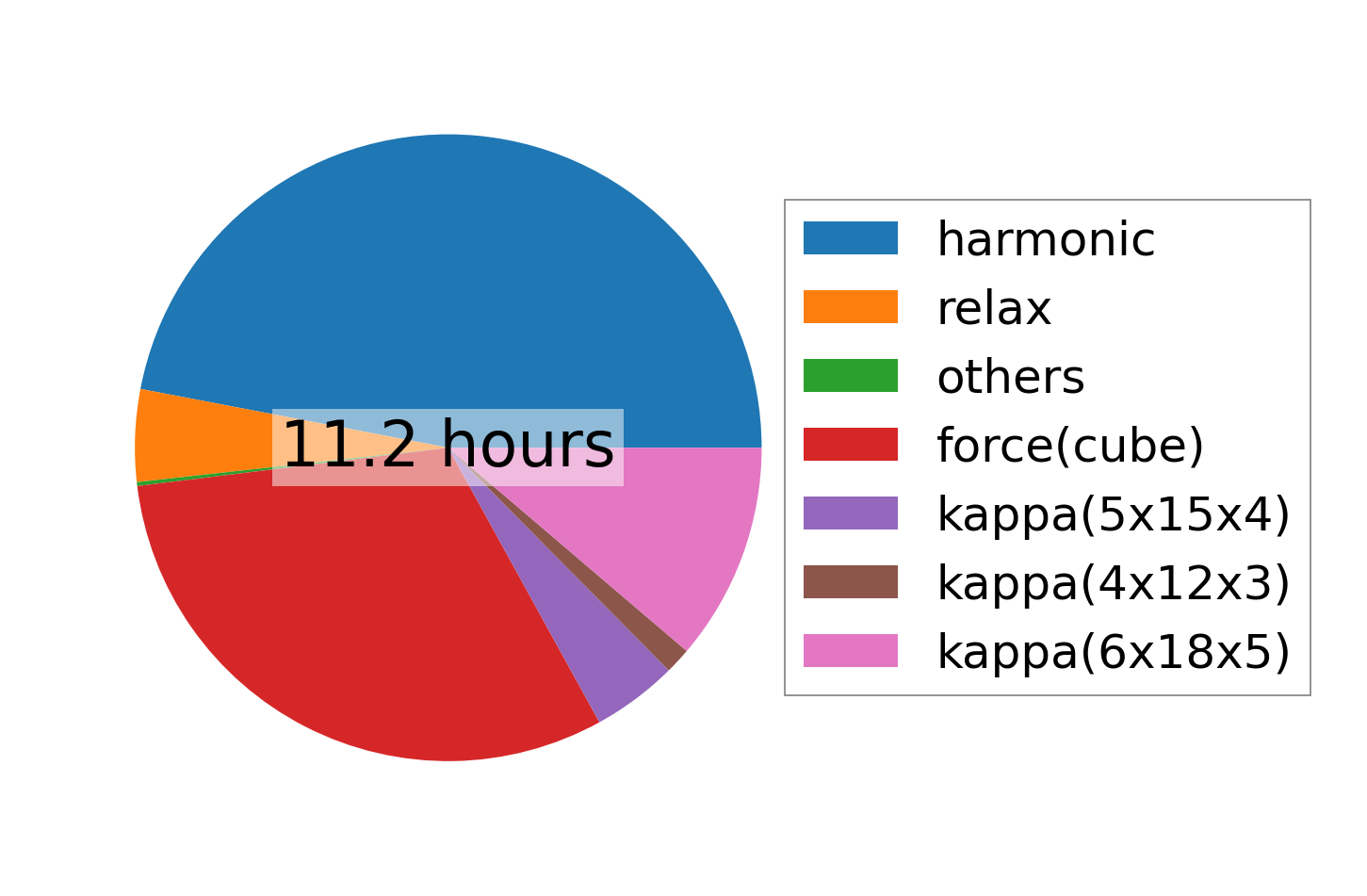

../../_images/fig_times1616.png — (b) Computation time
