mp-849371/CdSnO3/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-849371.tar.gz

Harmonic properties

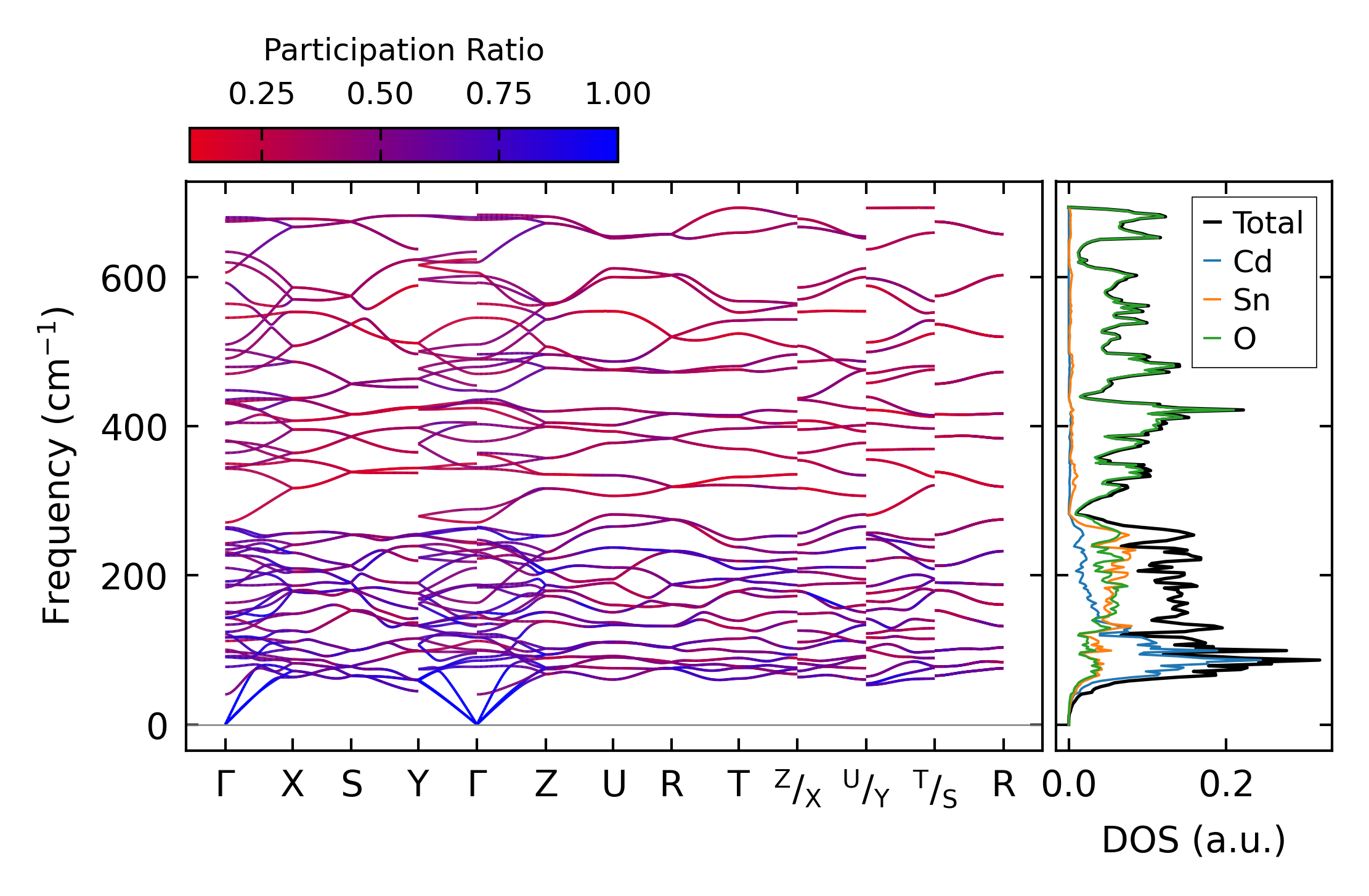

../../_images/fig_bandos_pr1699.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1699.png — (b) Thermodynamic properties

Grüneisen parameters

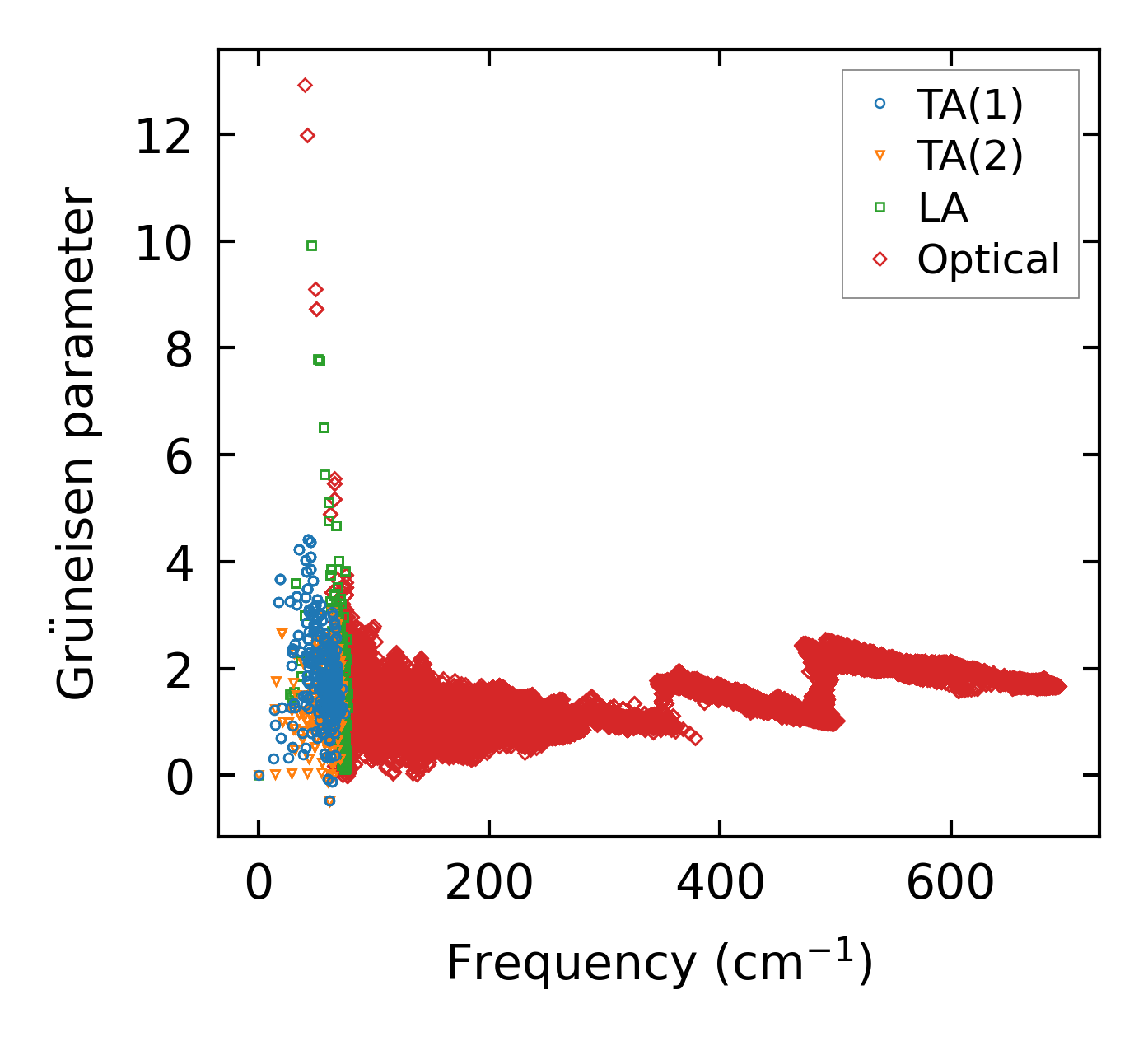

../../_images/fig_gru_all986.png — (a) Grüneisen parameters

../../_images/fig_gruneisen986.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x9x13, supercell: 2x1x2

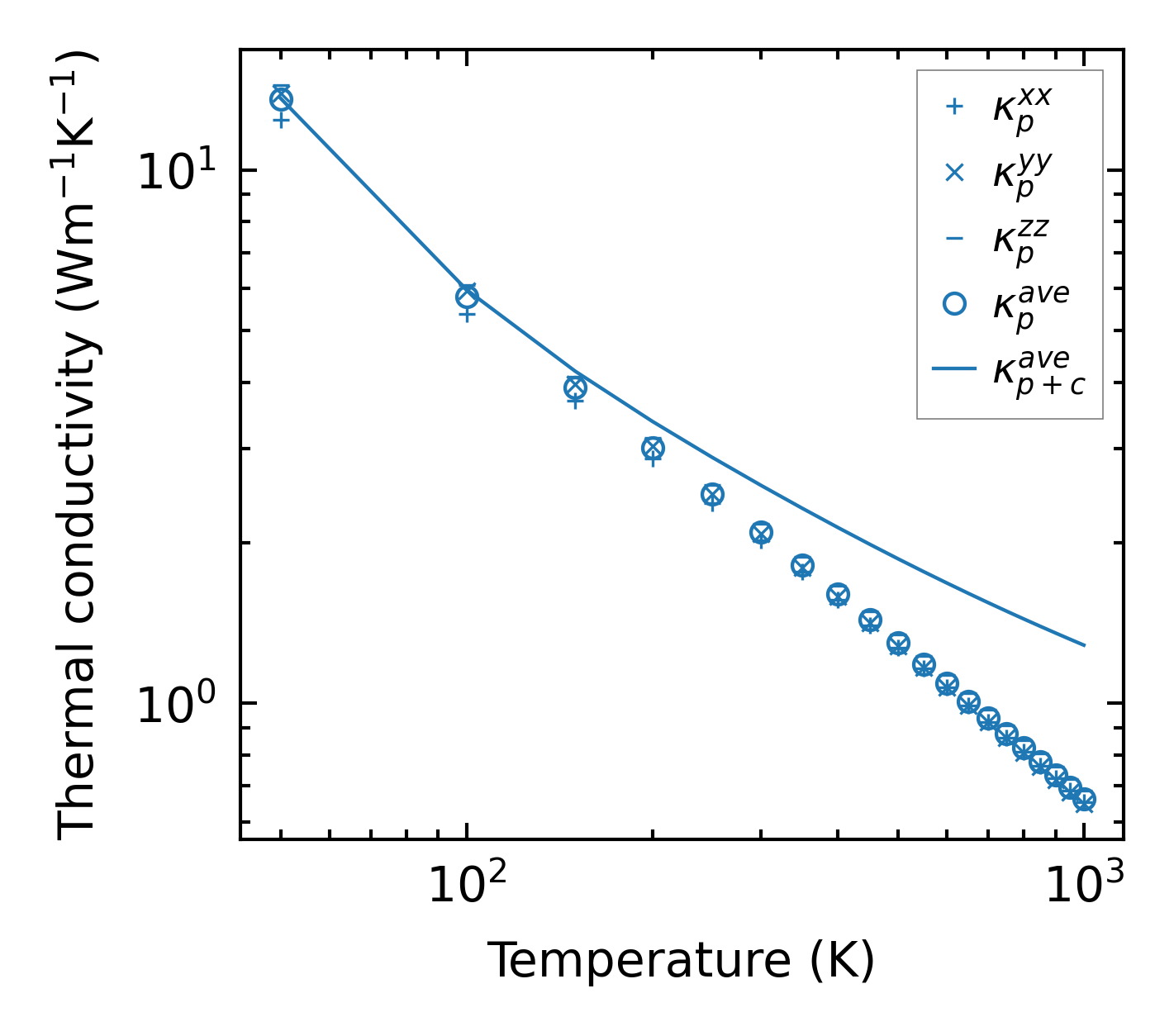

../../_images/fig_kappa1912.png — (a) Temperature-dependent lattice thermal conductivity

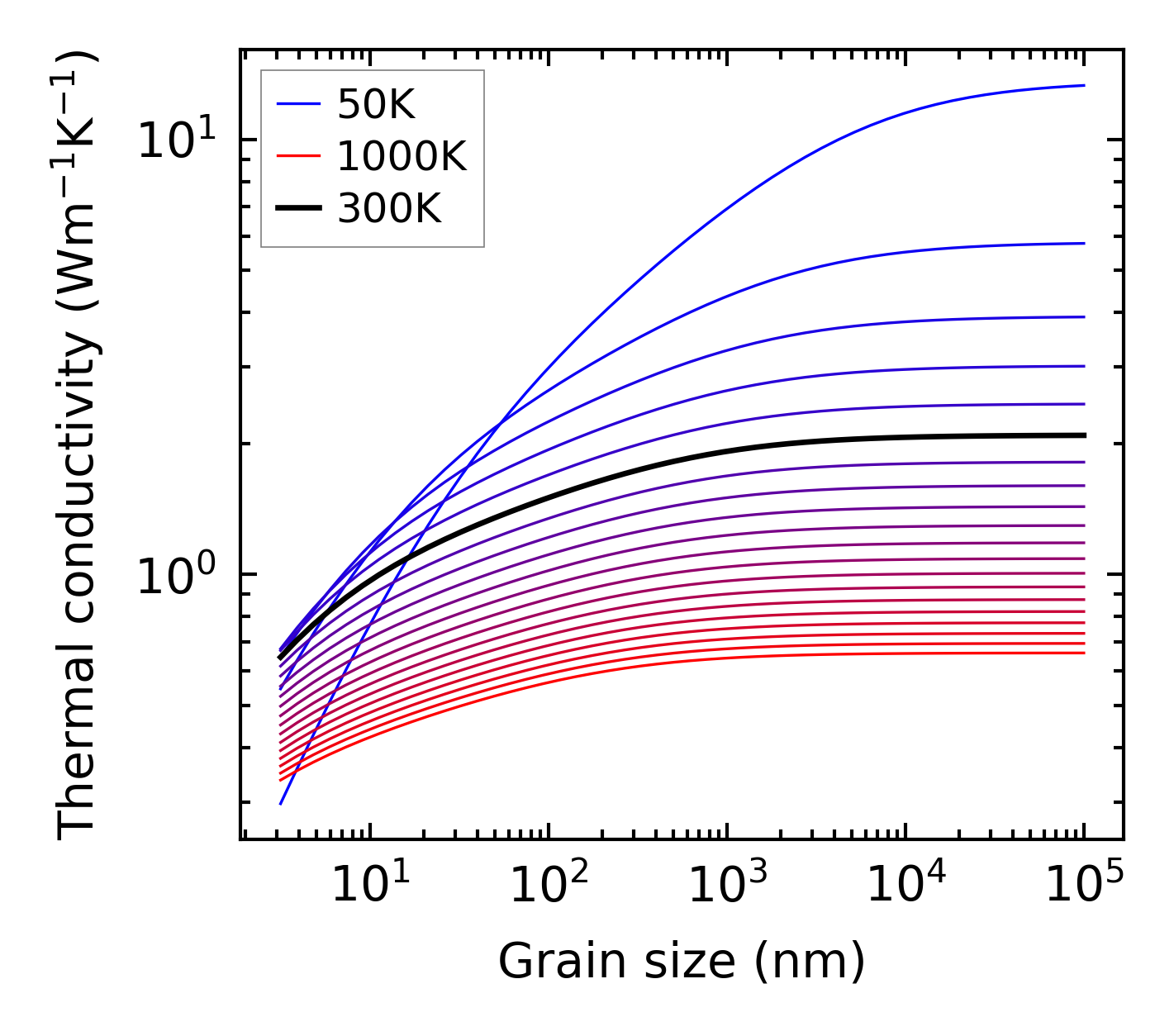

../../_images/fig_kappa_vs_grain_size997.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime979.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates978.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

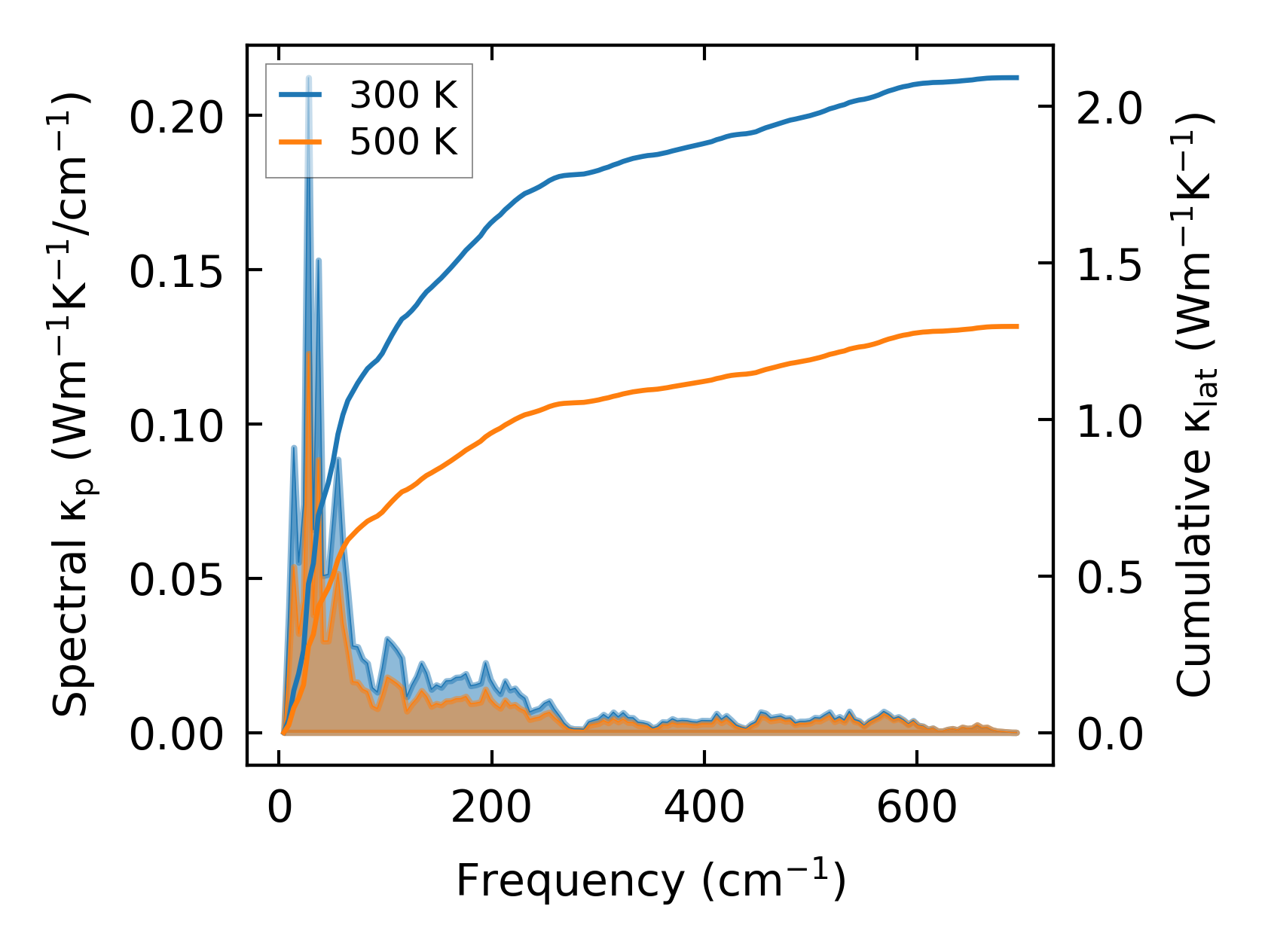

../../_images/fig_cumu_frequency979.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

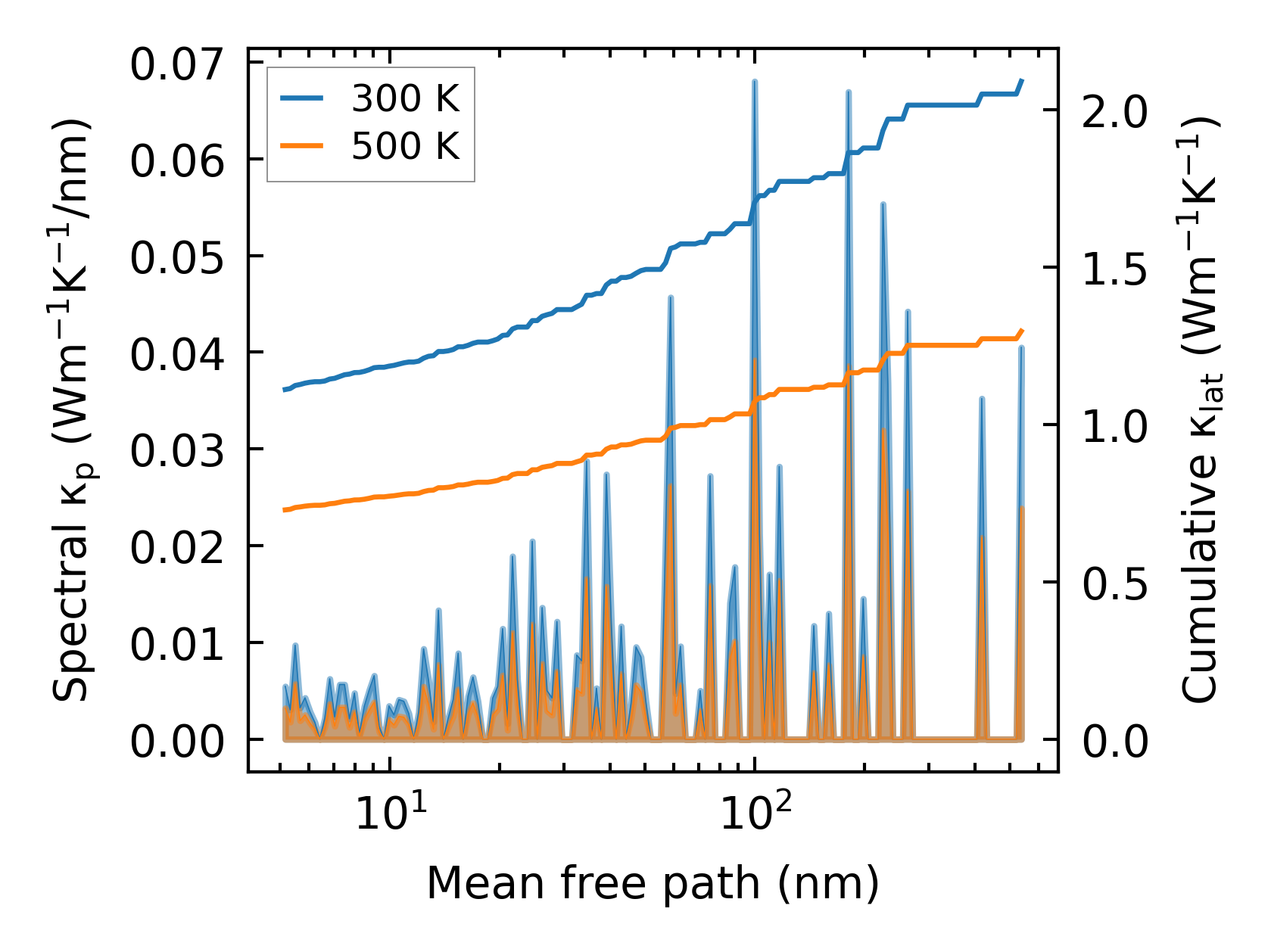

../../_images/fig_cumu_mfp979.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

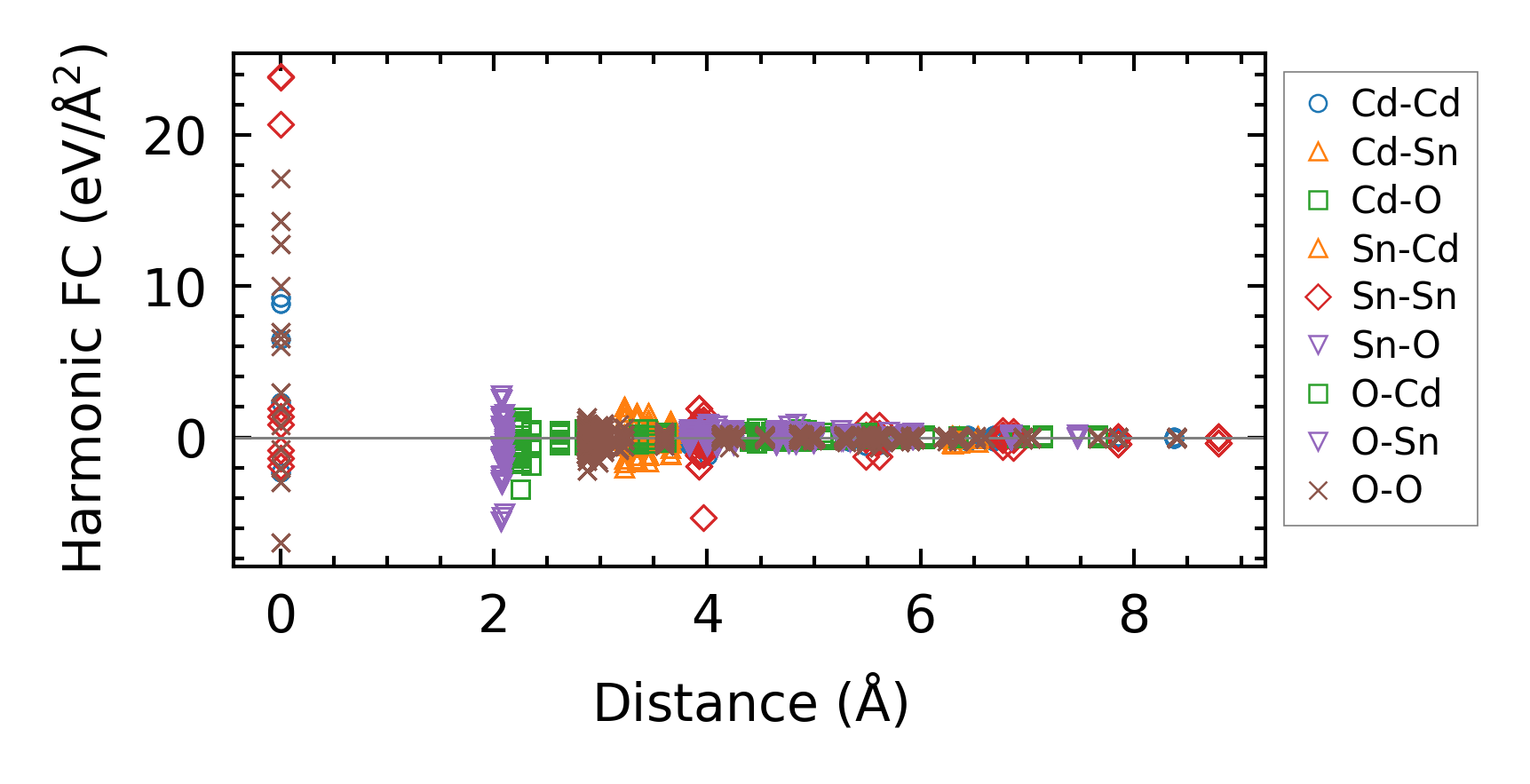

../../_images/fig_fc21532.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa1913.png — (a) Temperature-dependent lattice thermal conductivity

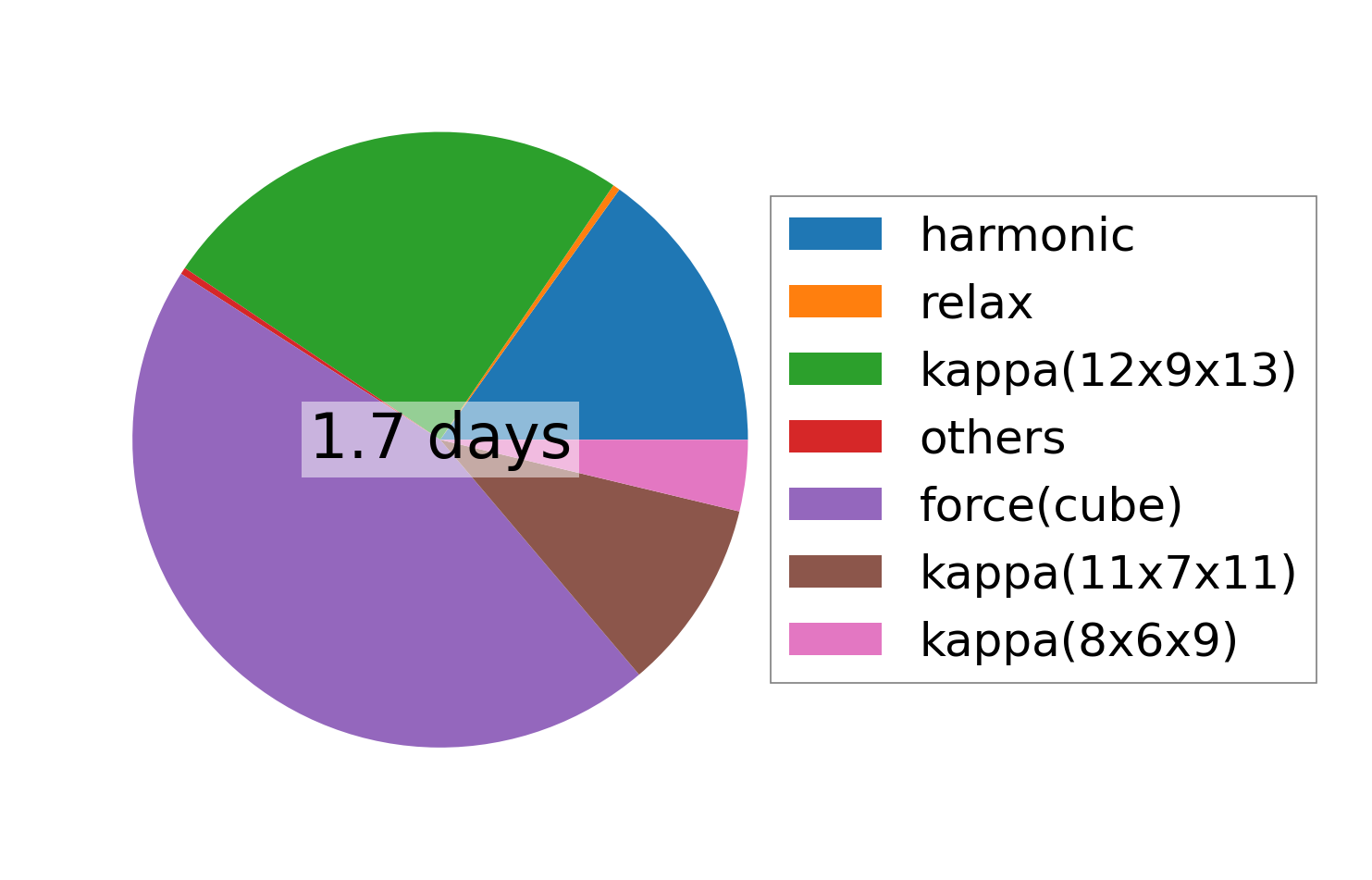

../../_images/fig_times2566.png — (b) Computation time
